Type	CD Receiver with Radio Data System, MP3/WMA playback
Model	KD-R507EE
Brand	JVC
Installation Dimensions (W x H x D)	182 mm x 52 mm x 160 mm
Panel Dimensions (W x H x D)	188 mm x 58 mm x 12 mm
Weight	1.3 kg (excluding accessories)
Power Supply	DC 14.4 V (11 V to 16 V allowance), negative ground
Maximum Power Output	50 W per channel (Front/Rear)
Continuous Power Output (RMS)	19 W per channel into 4 Ω, 40 Hz to 20 kHz, ≤0.8% THD
Load Impedance	4 Ω (4 Ω to 8 Ω allowance)
Frequency Response	40 Hz to 20,000 Hz
Signal-to-Noise Ratio	70 dB (audio amplifier)
Tuner Frequency Ranges	FM: 87.5–108.0 MHz, FM-LO: 65.00–74.00 MHz, AM (MW): 522–1620 kHz, AM (LW): 144–279 kHz
CD Player Type	Compact disc player, non-contact optical pickup (semiconductor laser)
Supported Disc Formats	CD, CD-R, CD-RW (audio CD, MP3, WMA)
MP3/WMA Bit Rate	8–320 kbps
AUX Input	Yes, 3.5 mm jack on front panel
Preset Sound Modes	USER, ROCK, CLASSIC, POPS, HIP HOP, JAZZ
Detachable Control Panel	Yes, for theft protection
Remote Control	Optional RM-RK50 (battery: CR2025)
Display Customization	29 preset colors + user color (day/night)
Maintenance	Clean connectors with alcohol; avoid moisture condensation
Safety	Class 1 laser product; do not open; volume caution for driving

Frequently Asked Questions - KD-R507EE JVC

How do I reset the unit?

Press and hold the reset button located on the front panel (see manual page 3). This erases preset adjustments. If the unit is unresponsive, reset again.

How do I forcibly eject a disc?

Press and hold the eject button or, if disc is locked, press OPEN, then press ▲. The display shows 'PLEASE' and 'EJECT' alternately. If this fails, reset the unit.

How do I set the clock?

Press and hold MENU until the main menu appears. Select 'CLOCK' then 'CLOCK SET'. Adjust hour and minute with the control dial, then press to confirm. You can also set 24H/12H format.

How do I store radio stations automatically?

Press and hold the SSM button (or menu) while in FM/FM-LO source. The unit presets up to 12 FM or 6 FM-LO stations with the strongest signals. To stop, press ◀◀/▶▶.

Why is there no sound?

Check the volume level, ensure speakers are connected, and the correct source is selected. Also check if the unit is muted (press ATT). If using a cellular phone, check TEL MUTING settings.

How do I play MP3/WMA files?

Burn MP3/WMA files (.mp3 or .wma extension) onto a CD-R/RW using ISO 9660 Level 1/2, Romeo, or Joliet format. Up to 512 files, 255 folders, 8 levels deep. Insert the disc and select CD source.

How do I use the AUX input?

Connect an external device to the AUX jack on the front panel. Ensure 'AUX IN' is enabled in the menu (SRC SELECT > AUX IN > ON). Then press SRC to select 'AUX IN'.

How do I change the display color?

Press the color button (or go to MENU > COLOR). Select a preset color (COLOR 01-29) or choose USER to customize. For user colors, adjust RED, GREEN, BLUE levels (00-31) for day and night modes.

What does 'PLEASE' and 'EJECT' mean?

The disc is inserted upside down or incorrectly. Press OPEN, then ▲ to eject the disc, then reinsert it correctly with the label facing up.

How do I clean the unit?

Wipe the connectors periodically with a cotton swab moistened with alcohol. Avoid touching the connectors with fingers. For discs, wipe from center to edge with a soft cloth. Do not use solvents.

USER MANUAL KD-R507EE JVC

Abstract geometric pattern with diagonal black and white stripes (no text or symbols)

Having TROUBLE with operation?

Please reset your unit

Refer to page of How to reset your unit

© 2008 Victor Company of Japan, Limited

1208DTSMDTJEIN

JVC

CD RECEIVER

Front view of a JVC audio recording device (no text or symbols visible)

Radio Data System

MP3
WMA

For canceling the display demonstration, see page 6.

For installation and connections, refer to the separate manual.

Abstract pattern of diagonal black and white stripes on white background (no text or symbols)

INSTRUCTIONS

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best possible performance from the unit.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT
2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.
3. CAUTION: Visible and/or invisible class 1M laser radiation when open. Do not view directly with optical instruments.
4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

CAUTIONVISIBLE AND/ORINVISIBLE CLASS 1MLASER RADIATIONWHEN OPEN, DO NOTVIEW DIRECTLY WITHOPTICAL INSTRUMENTS.EC60825-1:2001(ENG)

ATTENTIONRAYONNEMENT LASERVISIBLE EY/OUINVISIBLE DE CLASSE1M UNE FOS OUVERTNE PAS REGARDERDIRECTMENT AVECDES INSTRUMENTSOPTIQUES. (FRA)

AVISORADJACIÓN LÁSERDE CLASE 1MVISIBLE Y/O INVISIBLECUANDO ESTABERTO, NO MIRARDIRECTAMENTECON INSTRUMENTALOPTICO. (ESP)

VARNINGSYNUG OCH/ELLERSYNLIGLASERSTRALNING,KLASS 1M, NÁR DENNADEL ÁR ÖPPNAD.BETRAKTA ELSTRALEN MED OPTISKAINSTRUMENT. (SWB)

注意ここを聞くと可見及び/または不可見のクラス 1MLーダー放射が出ます。光学装置で直接受ないでください。(UPN)

CAUTIONVISIBLE AND/ORINVISIBLE CLASS XLASER RADIATIONWHEN OPEN.DO NOT STAREINTO BEAM.RDA 21 CPR(ENG)

[European Union only]

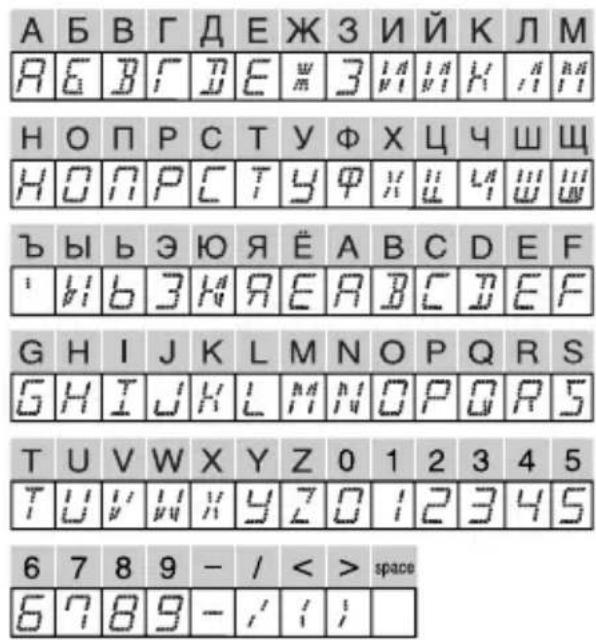

Available characters on the display

Available characters □ Display indications

If you need to operate the unit while driving, be sure to look around carefully or you may be involved in a traffic accident.

Caution on volume setting:

Discs produce very little noise compared with other sources. Lower the volume before playing a disc to avoid damaging the speakers by the sudden increase of the output level.

For safety...

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.
• Stop the car before performing any complicated operations.

Temperature inside the car...

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

Detaching the control panel

Avoid touching the connectors.

Attaching the control panel

How to reset your unit

Diagram showing a device being inserted into a box, with no visible text or symbols

- Your preset adjustments will also be erased.

How to forcibly eject a disc

- "PLEASE" and "EJECT" appear alternately on the display.

• You can forcibly eject the loaded disc even if the disc is locked. To lock/unlock the disc, see page 10.
• Be careful not to drop the disc when it ejects.
  • If this does not work, reset your unit.

CONTENTS

Detaching the control panel 3

Attaching the control panel 3

How to reset your unit 3

How to forcibly eject a disc 3

OPERATIONS

Basic operations 4

Preparation......6

Listening to the radio 7

Disc operations 10

EXTERNAL DEVICES

Listening to the other external components....11

Using the remote controller—RM-RK50 ..... 12

SETTINGS

Selecting a preset sound mode 13

Menu operations 15

Color settings 18

REFERENCES

More about this unit 19

Troubleshooting......21

Maintenance....23

Specifications....24

This mark is used to indicate...

Turn the control dial to make a selection, then press to confirm the selection.

Basic operations

1 • FM/AM/FM-LO: Select preset station.

- CD: Select folder.

2 Select the source.

FM → CD * 2 → AUX IN *8 → AM *8 → FM-LO → (back to the beginning)

3 • Enter list operations.

- Enter Menu setting [Hold].

4 • Control the volume or select items [Turn].

- Confirm the selection [Press].

• FM/FM-LO: Enter SSM preset mode [Hold].

• CD: Enter playback mode [Hold].

5 Display window

6 • Activate/deactivate TA Standby Reception.

- Enter PTY Searching mode [Hold].

7 Change the display information.

8 Flip down the control panel.

- To eject the disc, flip down the control panel then press ▲ on the unit.

9 • FM/AM/FM-LO: Search for station.

- CD: Select track.

10 Return to the previous menu.

11 Select the display and button illumination color.

12 · Turn on the power.

- Attenuate the sound (if the power is on).

- Turn off the power [Hold].

13 Remote sensor

- You can control this unit with an optionally purchased remote controller. For details, see page 12.

14 AUX (auxiliary) input jack

*1 Also known as "Control dial" in this manual.

*2 You cannot select "CD" as the playback source if no disc is in the unit.

*3 You cannot select these sources if they were disabled in the Menu (see "SRC SELECT" in "Menu operations" on page 18).

1 Tr (track) indicator
2 Source display / Track number / Folder number / Time countdown indicator / Setting and list operation information
3 TAG (Tag information) indicator
4 Playback mode / item indicators— RND (random), (disc), (folder), RPT (repeat)

5 ST (stereo) indicator
6 LOUD (loudness) indicator
7 Radio Data System indicators—AF, REG, TP, PTY
8 Menu hierarchy position indicator—(bottom),>(top),(middle)
9 Main display
10 Disc information indicators— (track/file), (folder)

Preparation

Canceling the display demonstration and setting the clock

• See also page 15.

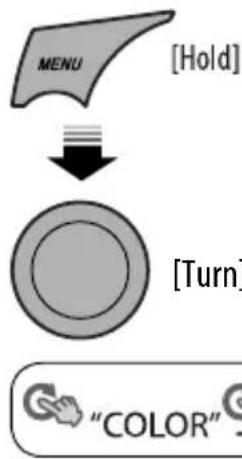

1	[IMAGE]	Turn on the power.
2	Hold]Press and hold until the main menu is called up.[Turn] → [Press]• Repeat this procedure.	Cancel the display demonstrationsSelect “DEMO,” then “DEMO OFF.”Set the clockSelect “CLOCK” → “CLOCK SET.”Adjust the hour, then press control dial once to proceed to adjust the minute.Select “24H/12H,” then “24 HOUR” or “12 HOUR.”• To return to the previous menu, press BACK.

Changing the display information

DISP

When the power is turned off: The current clock time is displayed if "CLOCK DISP" is set to "CLOCK OFF," (see page 15).

When the power is turned on: The display information of the current source changes as follows:

FM/AM/FM-LO	Station Frequency → Clock → (back to the beginning)
FM Radio Data System	Station name (PS) → Station Frequency → Programme type (PTY) → Clock → (back to the beginning)
CD Audio CD/CD	Text: Disc title/performer * 1 → Track title *1 → Current track number with the elapsed playing time → Current track number with the clock time → (back to the beginning)MP3/WMA: Album name/performer (folder name) * 2 → Track title (file name) *2 → Current track number with the elapsed playing time → Current track number with the clock time → (back to the beginning)

*1 If the current disc is an audio CD, "NO NAME" appears.

*2 If an MP3/WMA file does not have Tag information or "TAG DISPLAY" is set to "TAG OFF" (see page 15), folder name and file name appear.

Listening to the radio

1		Select “FM,” “AM,” or “FM-LO.”
2		Search for a station to listen—Auto Search.When a station is tuned in, searching stops. To stop searching, press the same button again.You can also search for a station manually—Manual Search. Hold either one of the buttons until “M” flashes on the display, then press it repeatedly.When receiving an FM stereo broadcast with sufficient signal strength, the ST indicator lights up on the display.Note:FM: 87.5 MHz – 108.0 MHzFM-LO: 65.00 MHz – 74.00 MHz

Improving the FM reception

When an FM stereo broadcast is hard to receive, activate monaural mode for better reception.

• Not applicable when the source is "FM-LO."
  • See also page 16.

[Turn] [Press]

Reception improves, but stereo effect will be lost.

To restore the stereo effect, repeat the same procedure to select "MONO OFF."

Storing stations in memory

Automatic presetting (FM/FM-LO)—SSM (Strong-station Sequential Memory)

You can preset up to 12 stations for FM, and 6 stations for FM-LO.

1 While listening to a station...

2 Select the preset number range you want to store.

SSM 01-06,

SSM 01-06

Local FM stations with the strongest signals are searched and stored automatically.

- To stop searching, press |◀◀ /▶▶|.

To preset other 6 stations, repeat from step 1 again.

Continued on the next page

Manual presetting (FM/AM/FM-LO)

You can preset up to 12 stations for FM, 6 stations for FM-LO, and 6 stations for AM.

Ex.: Storing FM station of 92.50 MHz into preset number "04."

1

2 Select preset number "04."

3

Selecting preset station

The following features are available only for FM Radio Data System stations.

Searching for FM Radio Data System programme—PTY Search

You can tune in to a station broadcasting your favorite programme by searching for a PTY code.

1 The last selected PTY code [Hold] appears.

2 Select one of your favorite programme types or a PTY code.

3 Start searching for your favorite programme.

If a station is broadcasting a programme of the same PTY code as you have selected, that station is tuned in.

Using the standby receptions

TA Standby Reception

TA Standby Reception allows the unit to switch temporarily to Traffic Announcement (TA) from any source other than AM and FM-LO. The volume changes to the preset TA volume level if the current level is lower than the preset level (see page 16).

To activate TA Standby Reception

The TP (Traffic Programme)

indicator either lights up or flashes.

• If the TP indicator lights up, TA Standby Reception is activated.
• If the TP indicator flashes, TA Standby Reception is not yet activated. (This occurs when you are listening to an FM station without the Radio Data System signals required for TA Standby Reception.) To activate the reception, tune in to another station providing these signals. The TP indicator will stop flashing and remain lit.

To deactivate the TA Standby Reception

The TP indicator goes off.

PTY Standby Reception

PTY Standby Reception allows the unit to switch temporarily to your favorite PTY programme from any source other than AM and FM-LO.

To activate and select your favorite PTY code for PTY Standby Reception, see page 16.

The PTY indicator either lights up or flashes.

• If the PTY indicator lights up, PTY Standby Reception is activated.
• If the PTY indicator flashes, PTY Standby Reception is not yet activated.

To activate the reception, tune in to another station providing these signals. The PTY indicator will stop flashing and remain lit.

To deactivate the PTY Standby Reception, select "PTY OFF" for the PTY code (see page 16). The PTY indicator goes off.

Tracing the same programme—Network-Tracking Reception

When driving in an area where FM reception is not sufficient enough, this unit automatically tunes in to another FM Radio Data System station of the same network, possibly broadcasting the same programme with stronger signals (see the illustration below).

Programme A broadcasting on different frequency areas (01 – 05)

When shipped from the factory, Network-Tracking Reception is activated.

To change the Network-Tracking Reception setting, see "AF-REG" on page 16.

Automatic station selection—Programme Search

Usually when you select a preset number, the station preset in that number is tuned in.

If the signals from the FM Radio Data System preset station are not sufficient for good reception, this unit, using the AF data, tunes in to another frequency possibly broadcasting the same programme as the original preset station is broadcasting.

- The unit takes some time to tune in to another station using programme search.

• See also page 16.

PTY codes

NEWS, AFFAIRS, INFO, SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE, VARIED, POP M (music), ROCK M (music), EASY M (music), LIGHT M (music), CLASSICS, OTHER M (music), WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, JAZZ, COUNTRY, NATION M (music), OLDIES, FOLK M (music), DOCUMENT

Disc operations

1		Turn on the power.
2		Insert a disc.All tracks will be played repeatedly until you change the source or eject the disc.

Stop playing and ejecting the disc

- "NO DISC" appears. Press SRC to listen to another playback source.

Prohibiting disc ejection

To cancel the prohibition, repeat the same procedure.

Selecting a track/folder

• For MP3/WMA discs, select the desired folder, then the desired track by repeating the control dial procedures.
  • To return to the previous menu, press BACK.

Pressing (or holding) the following buttons allows you to...

	MP3/WMA: Select folder
	[Press]Selecttrack[Hold] Reverse/fast-forward track

Selecting the playback modes

You can use only one of the following playback modes at a time.

1

[Hold]

2

[Turn] [Press]

REPEAT ↔ RANDOM

3

[Turn] → [Press]

REPEAT

TRACK RPT : Repeats current track

FOLDER RPT : MP3/WMA: Repeats current folder

RANDOM

FOLDER RND : MP3/WMA: Randomly plays all tracks of current folder, then tracks of next folders

ALL RND : Randomly plays all tracks

• To cancel repeat play or random play, select "RPT OFF" or "RND OFF."
  • To return to the previous menu, press BACK.

Listening to the other external components

You can connect an external component to AUX (auxiliary) input jack on the control panel.

Preparation: Make sure "AUX ON" is selected in the "SRC SELECT" → "AUX IN" setting, see page 18.

1	SRC	Select “AUX IN.”
2	—	Turn on the connected component and start playing the source.
3	[Turn]	Adjust the volume.
4	—	Adjust the sound as you want (see pages 13 and 14).

Connecting an external component to the AUX input jack

Using the remote controller — RM-RK50

This unit can be remotely controlled as instructed here (with an optionally purchased remote controller). We recommend that you use remote controller RM-RK50 with your unit.

Installing the lithium coin battery (CR2025)

Caution:

• Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
• Battery shall not be exposed to excessive heat such as sunshine, fire, or the like.

If the effectiveness of the remote controller decreases, replace the battery.

Before using the remote controller:

• Aim the remote controller directly at the remote sensor on the unit.
• DO NOT expose the remote sensor to bright light (direct sunlight or artificial lighting).

Diagram of a device rear panel with buttons and a button, no text or symbols present

Remote sensor

1 • Turns the power on if pressed briefly or attenuates the sound when the power is on.
- Turns the power off if pressed and held.
2 • Changes the preset stations.
• Changes the folder of the MP3/WMA.
3 Adjusts the volume level.
4 Selects the sound mode.
5 Selects the source.
6 • Searches for stations if pressed briefly.

- Fast-forwards or reverses the track if pressed and held.

• Changes the tracks if pressed briefly.

Warning (to prevent accidents and damage):

• Do not install any battery other than CR2025 or its equivalent.
• Do not leave the remote controller in a place (such as dashboards) exposed to direct sunlight for a long time.
• Store the battery in a place where children cannot reach.
• Do not recharge, short, disassemble, heat the battery, or dispose of it in a fire.
• Do not leave the battery with other metallic materials.
• Do not poke the battery with tweezers or similar tools.
• Wrap the battery with tape and insulate when throwing away or saving it.

Selecting a preset sound mode

You can select a preset sound mode suitable to the music genre.

• See also page 15.

[Hold]

[Turn] → [Press]

"EQ"

"USER/ROCK/CLASSIC/POPS/HIP HOP/JAZZ"

• See page 14 for "USER" settings.

Preset value setting for each sound mode

Sound mode	Preset value
	BASS MIDDLE TREBLE LOUD									(loudness)
	Freq. Level Q Freq. Level Q Freq. Level Q
USER 60 Hz 00	Q1.0 1.0	kHz 00 Q	1.0 10.0 k	Hz 00 Q1.25						OFF
ROCK 100 Hz	+03 Q1.0	1.0 kHz 00	Q1.25 10	0.0 kHz +02 Q1.25
CLASSIC 80 Hz	+01 Q1.0	1.0 kHz	00 Q1.25	10.0 kHz +03 Q1.25
POPS 100 Hz	+02 Q1.0	1.0 kHz +	01 Q1.25	10.0 kHz +02 Q1.25
HIP HOP	60 Hz	+04	Q1.0	1.0 kHz	-02	Q1.0	10.0 kHz	+01	Q1.25
JAZZ	80 Hz	+03 Q1.0	1.0 kHz 00	Q1.25 10	0.0 kHz +03 Q1.25

Freq.: Frequency Q: Q-slope

Storing your own sound mode

You can store your own adjustments in memory.

1 Select "USER."

2 While "USER" is shown on the display...

3 Select a tone.

4 Adjust the sound elements of the selected tone.

1 Adjust the frequency.

2 Adjust the level.

3 Adjust the Q-slope.

Sound elements	Range/ selectable items
	BASS M	IDDLE TRE	BLE
Frequency 60 Hz	80 Hz	0.5 kHz	7.5 kHz
		1.0 kHz	10.0 kHz
	100 Hz	1.5 kHz	12.5 kHz
	120 Hz	2.5 kHz	15.0 kHz
Level -06 to +06	-06 to +06	-06 to +06
Q Q0.5	Q1.0	Q0.75	Q0.75
		Q1.0	Q1.25
	Q1.5	Q1.25
	Q2.0	Q1.5

5 Repeat steps 3 and 4 to adjust other sound characteristics.

The adjustment made will be stored automatically.

Menu operations

1 Call up the menu.

2 Select the desired item. [Turn] → [Press]

3 Repeat step 2 if necessary.To return to the previous menu, press BACK.To exit from the menu, press DISP or MENU.

3 Repeat step 2 if necessary.

Initial: Underlined

Category	Menu items Selectable settings, [reference page]
DEMO	DEMODisplaydemonstration	· DEMO ON : Display demonstration will be activated automatically if no operation is done for about 20 seconds, [6].· DEMO OFF : Cancels.
CLOCK	CLOCK DISP *1Clock display	· CLOCK ON : Clock time is shown on the display at all times when the power is turned off.· CLOCK OFF : Cancels; pressing DISP will show the clock time for about 5 seconds when the power is turned off, [6].
	CLOCK SETClock setting	: Adjust the hour, then the minute, [6].(Initial: 0:00)
	24H/12HTime display mode	· 24 HOUR : See also page 6 for setting.· 12 HOUR
	CLOCK ADJ *2Clock adjustment	· AUTO : The built-in clock is automatically adjusted using the CT (clock time) data in the Radio Data System signal.· OFF : Cancels.
EQ	EQEqualizer	: Select a preset sound mode suitable to the music genre.USER, ROCK, CLASSIC, POPS, HIP HOP, JAZZ
DISPLAY	DIMMERDimmer	· DIMMER ON : Dims the display and button illumination.· DIMMER OFF : Cancels.
	SCROLL *3Scroll	· SCROLL ONCE : Scrolls the displayed information once.· SCROLL AUTO : Repeats scrolling (at 5-second intervals).· SCROLL OFF : Cancels.Pressing DISP for more than one second can scroll the display regardless of the setting.
	TAG DISPLAYTag display	· TAG ON : Shows the Tag information while playing MP3/WMA tracks.· TAG OFF : Cancels.

*1 If the power supply is not interrupted by turning off the ignition key of your car, it is recommended to select "CLOCK OFF" to save the car's battery.
*2 Takes effect only when CT data is received.
*3 Some characters or symbols will not be shown correctly (or will be blanked) on the display.

Continued on the next page

Category	Menu items Selectable settings, [reference page]
TUNER	AF-REG *4Alternative frequency/regionalization reception	· AF ON: When the currently received signals become weak, the unit switches to another station (the programme may differ from the one currently received), [9].· The AF indicator lights up.· AF-REG ON: When the currently received signals become weak, the unit switches to another station broadcasting the same programme.· The AF and REG indicators light up.· OFF: Cancels.
	PTY-STANDBY *4PTY standby	PTY OFF, PTY codes: Activates PTY Standby Reception with one of the PTY codes, [9].
	TA VOLUME *4Traffic announcement volume	VOLUME 00– VOLUME 50(or VOLUME 00– VOLUME 30)*5: (Initial: VOLUME 15)
	P-SEARCH *4Programme search	· SEARCH ON: Activates Programme Search, [9].· SEARCH OFF: Cancels.
	MONO *6Monaural mode	· MONO ON: Activate monaural mode to improve FM reception, but stereo effect will be lost, [7].· MONO OFF: Restore the stereo effect.
	IF BANDIntermediate frequency band	· AUTO: Increases the tuner selectivity to reduce interference noises between adjacent stations. (Stereo effect may be lost.)· WIDE: Subject to interference noises from adjacent stations, but sound quality will not be degraded and the stereo effect will remain.
COLOR	COLOR 01– COLOR 29, USER	: Select one of the preset or user color for display and button (except T/P/DISP/OPEN/φIllumination.(For customize color settings, “USER,” see page 18.)
MENU COLOR	MENU COLORMenu color	· OFF: Cancels.· ON: Changes the display and button (except T/P/DISP/OPEN/φIllumination during menu, list search and playback mode operations.

*4 Only for FM Radio Data System stations.
*5 Depends on the amplifier gain control.
*6 Displayed only when the source is "FM."

Category	Menu items Selectable settings, [reference page]
AUDIO	FADER*7, *8Fader	R06 - F06: Adjust the front and rear speaker output balance. (Initial: 00)
	BALANCE *Balance	L06 - R06: Adjust the left and right speaker output balance. (Initial: 00)
	LOUD Loudness	·LOUD OFF · LOUD ON : Cancels. : Boost low and high frequencies to produce a well-balanced sound at a low volume level.
	VOL ADJUST Volume adjust	VOL ADJ -05 — VOL ADJ +05 (Initial: VOL ADJ 00) : Preset the volume adjustment level of each source (except FM), compared to the FM volume level. The volume level will automatically increase or decrease when you change the source. · Before making an adjustment, select the source you want to adjust. · “VOL ADJ FIX” appears on the display if “FM” is selected as the source.
	L/O MODE Line output mode	·SUB.W · REAR : Select if the REAR LINE OUT terminals are used for connecting a subwoofer (through an external amplifier). : Select if the REAR LINE OUT terminals are used for connecting the speakers (through an external amplifier).
	SUB.W FREQ *Subwoofer cutoff frequency	·LOW · MID · HIGH : Frequencies lower than 72 Hz are sent to the subwoofer. : Frequencies lower than 111 Hz are sent to the subwoofer. : Frequencies lower than 157 Hz are sent to the subwoofer.
	SUB.W LEVEL *Subwoofer level	SUB.W 00 — SUB.W 08 : Adjust the subwoofer output level. (Initial: SUB.W 04)
	BEEP Key touch tone	·BEEP OFF · BEEP ON : Deactivates the key touch tone. : Activates the key touch tone.
	TEL MUTING Telephone muting	·MUTING 1/ MUTING 2 ·MUTING OFF : Select either one which mutes the sounds while using a cellular phone. : Cancels.
	AMP GAIN *O Amplifier gain control	·LOW POWER ·HIGH POWER : VOLUME 00 - VOLUME 30 (Select if the maximum power of each speaker is less than 50 W to prevent damaging the speaker.) : VOLUME 00 - VOLUME 50

*7 If you are using a two-speaker system, set the fader level to "00."

*8 This adjustment will not affect the subwoofer output.

*9 Displayed only when "L/O MODE" is set to "SUB.W."

*10 The volume level automatically changes to "VOLUME 30" if you change to "LOW POWER" with the volume level set higher than "VOLUME 30."

Category	Menu items Selectable settings, [reference page]
SRC SELECT	AM *1AM station	• AM OFF : Disable “AM” in source selection.• AM ON : Enable “AM” in source selection, [4].
	AUX IN *2Auxiliary input	• AUX OFF : Disable “AUX IN” in source selection.• AUX ON : Enable “AUX IN” in source selection, [4].

*11 Displayed only when any source other than "AM" is selected.

*12 Displayed only when any source other than "AUX IN" is selected.

Color settings

Selecting a preset color

You can select a preset color for the buttons and display.

• See also page 16.

Creating your own color —USER Color

You can create your own colors—"DAY COLOR" or "NIGHT COLOR."

DAY COLOR: Used when "DIMMER" is set to "DIMMER OFF."

NIGHT COLOR: Used when "DIMMER" is set to "DIMMER ON."

1 Select "USER."

2 While "USER" is shown on the display...

3

[Turn] [Press]

4 Select a primary color.

[Turn] [Press]

RED ↔ GREEN ↔ BLUE

5 Adjust the level (00 to 31) of the selected primary color.

[Turn] → [Press]

If "00" is selected for all the primary colors, nothing appear on the display.

6 Repeat steps 4 and 5 to adjust other primary colors.

7 Exit from the setting.

DISP

or

Select "USER" to show your own colors for the buttons and display.

More about this unit

Basic operations

Turning on the power

- By pressing SRC button on the unit, you can also turn on the power. If the source is ready, playback also starts.

Turning off the power

- If you turn off the power while listening to a track, playback will start from where it had been stopped previously next time you turn on the power.

General

• If you change the source while listening to a disc, playback stops.
  Next time you select "CD" as the playback source, playback will start from where it had been stopped previously.
• After ejecting a disc, "NO DISC" appears and you cannot operate some of the buttons. Insert another disc or press SRC to select another playback source.
• If no operation is done for about 30 seconds after pressing MENU button, the operation will be canceled.

Tuner operations

Storing stations in memory

• During SSM search...
  – All previously stored stations are erased and the stations are stored anew.
• When SSM is over, the station stored in the lowest preset number will be automatically tuned in.
• When storing a station manually, the previously preset station is erased when a new station is stored in the same preset number.

FM Radio Data System operations

• Network-Tracking Reception requires two types of Radio Data System signals—PI (Programme Identification) and AF (Alternative Frequency) to work correctly. Without receiving these data correctly, Network-Tracking Reception will not operate correctly.
• If a Traffic Announcement is received by TA Standby Reception, the volume level automatically changes to the preset level (TA VOL) if the current level is lower than the preset level.
• When Alternative Frequency Reception is activated (with AF selected), Network-Tracking Reception is also activated automatically.

Disc operations

Caution for DualDisc playback

- The Non-DVD side of a "DualDisc" does not comply with the "Compact Disc Digital Audio" standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended.

General

• This unit has been designed to reproduce CDs/CD Texts, and CD-Rs (Recordable)/CD-RWs (Rewritable) in audio CD (CD-DA), MP3/WMA formats.
• When a disc is inserted upside down, "PLEASE" and "EJECT" appear alternately on the display. Press OPEN, then ▲ to eject the disc.
• MP3 and WMA "tracks" (words "file" and "track" are used interchangeably) are recorded in "folders."
• While fast-forwarding or reversing on an MP3 or WMA disc, you can only hear intermittent sounds.

Playing a CD-R or CD-RW

• Use only "finalized" CD-Rs or CD-RWs.
• This unit can only play back files of the same type as those detected first if a disc includes both audio CD (CD-DA) files and MP3/WMA files.
• This unit can play back multi-session discs; however, unclosed sessions will be skipped while playing.
• Some CD-Rs or CD-RWs may not play back on this unit because of their disc characteristics, or for the following reasons:
  – Discs are dirty or scratched.
• Moisture condensation has occurred on the lens inside the unit.
  – The pickup lens inside the unit is dirty.
• The files on the CD-R/CD-RW are written using the "Packet Write" method.
  – There are improper recording conditions (missing data, etc.) or media conditions (stained, scratched, warped, etc.).
• CD-RWs may require a longer readout time since the reflectance of CD-RWs is lower than that of regular CDs.
• Do not use the following CD-Rs or CD-RWs:
  – Discs with stickers, labels, or a protective seal stuck to the surface.
  – Discs on which labels can be directly printed by an ink jet printer.
  Using these discs under high temperature or high humidity may cause malfunctions or damage to the unit.

Playing an MP3/WMA disc

• This unit can play back MP3/WMA files with the extension code <.mp3> or <.wma> (regardless of the letter case—upper/lower).
• This unit can show the names of albums, artists (performer), and Tag (Version 1.0, 1.1, 2.2, 2.3, or 2.4) for MP3 files and for WMA files.
• This unit can play back MP3/WMA files meeting the conditions below:
• Bit rate: 8 kbps — 320 kbps
• Sampling frequency: 48 kHz, 44.1 kHz, 32 kHz (for MPEG-1)
  24 kHz, 22.05 kHz, 16 kHz (for MPEG-2)

– Disc format: ISO 9660 Level 1/Level 2, Romeo, Joliet, Windows long file name.
- The maximum number of characters for file/folder names vary depending on the disc format used (includes 4 extension characters—<.mp3> or <.wma>).
– ISO 9660 Level 1: up to 12 characters
– ISO 9660 Level 2: up to 31 characters
– Romeo: up to 128 characters
– Joliet: up to 64 characters
– Windows long file name: up to 128 characters
- This unit can recognize a total of 512 files, 255 folders, and 8 hierarchical levels.
- This unit can play back files recorded in VBR (variable bit rate).
Files recorded in VBR have a discrepancy in the elapsed time display, and do not show the actual elapsed time. In particular, this difference becomes noticeable after performing the search function.
- This unit cannot play back the following files:
- MP3 files encoded in MP3i and MP3 PRO format.
- MP3 files encoded in an inappropriate format.
- MP3 files encoded with Layer 1/2.
– WMA files encoded in lossless, professional, and voice format.
- WMA files which are not based upon Windows Media® Audio.
- WMA files copy-protected with DRM.
– Files which have data such as AIFF, ATRAC3, etc.
- The search function works but search speed is not constant.

Ejecting a disc

- If the ejected disc is not removed within 15 seconds, it is automatically inserted into the loading slot again to protect it from dust. Playback starts automatically.

Menu operations

- If you change the "AMP GAIN" setting from "HIGH POWER" to "LOW POWER" while the volume level is set higher than "VOLUME 30," the unit automatically changes the volume level to "VOLUME 30."

Troubleshooting

What appears to be trouble is not always serious. Check the following points before calling a service center.

	Symptoms Remedies/Causes
General	Sound cannot be heard from the speakers.Adjust the volume to the optimum level.Check the cords and connections.
	The unit does not work at all. Reset the unit (see page 3).
	“AUX IN” cannot be selected. Check the “SRC SELECT” → “AUX IN” setting (see page 18).
	Nothing appear on the display. Check the USER color settings (see page 18).
FM/AM	SSM automatic presetting does not work. Store stations manually.
	Static noise while listening to the radio. Connect the aerial firmly.
	“AM” cannot be selected. Check the “SRC SELECT” → “AM” setting (see page 18).
Discs in general	Disc cannot be played back. Insert the disc correctly.
	CD-R/CD-RW cannot be played back.Tracks on the CD-R/CD-RW cannot be skipped.	Insert a finalized CD-R/CD-RW.Finalize the CD-R/CD-RW with the component which you used for recording.
	Disc can neither be played back nor ejected.	Unlock the disc (see page 10).Eject the disc forcibly (see page 3).
	Disc sound is sometimes interrupted. Stop playback while driving on rough roads.Change the disc.Check the cords and connections.
	“NO DISC” appears on the display. Insert a playable disc into the loading slot.
	“PLEASE” and “EJECT” appear alternately on the display.	Press OPEN, then ▲ to eject the disc, then insert a disc correctly.

Continued on the next page

	Symptoms Remedies/Causes
MP3/WMA playback	Disc cannot be played back. Use a disc with MP3/WMA tracks recorded in a format compliant with ISO 9660 Level 1, Level 2, Romeo, or Joliet.Add the extension code <.mp3> or <.wma> to the file names.
	Noise is generated. Skip to another track or change the disc. (Do not add the extension code <.mp3> or <.wma> to non-MP3 or WMA tracks.)
	A longer readout time is required ("READING" keeps flashing on the display).	Do not use too many hierarchical levels and folders.
	Tracks do not play back in the order you have intended them to play.	The playback order is determined when the files are recorded.
	The elapsed playing time is not correct. This sometimes occurs during playback. This is caused by how the tracks are recorded on the disc.
	"NO FILE" appears on the display. Selected folder is an empty folder*. Select another folder that contains MP3/WMA tracks.* Folder that is physically empty or folder that contains data but does not contain valid MP3/WMA track.
	The correct characters are not displayed (e.g. album name).	This unit can only display Roman alphabets (upper case), Cyrillic alphabets (upper case), numbers, and a limited number of symbols (see page 2).

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

Maintenance

How to clean the connectors

Frequent detachment will deteriorate the connectors. To minimize this possibility, periodically wipe the connectors with a cotton swab or cloth moistened with alcohol, being careful not to damage the connectors.

Diagram of a device rear panel showing internal components and connectors (no text or labels)

Connectors

Moisture condensation

Moisture may condense on the lens inside the unit in the following cases:

• After starting the heater in the car.
• If it becomes very humid inside the car.
Should this occur, the unit may malfunction. In this case, eject the disc and leave the unit turned on for a few hours until the moisture has evaporated.

How to handle discs

When removing a disc from its case, press down the center holder of the case and lift the disc out, holding it by the edges.

Center holder

• Always hold the disc by the edges. Do not touch its recording surface.

When storing a disc in its case, gently insert the disc around the center holder (with the printed surface facing up).

• Make sure to store discs in cases after use.

To keep discs clean

A dirty disc may not play correctly. If a disc does become dirty, wipe it with a soft cloth in a straight line from center to edge.

- Do not use any solvents (for example, conventional record cleaner, spray, thinner, benzine, etc.) to clean discs.

To play new discs

New discs may have some rough spots around the inner and outer edges. If such a disc is used, this unit may reject the disc.

To remove these rough spots, rub the edges with a pencil or ball-point pen, etc.

Do not use the following discs:

Single CD (8 cm disc) Warped disc

Sticker and sticker residue Stick-on label

Unusual shape

C-thru Disc (semi-transparent disc)

Transparent or semi-transparent parts on its recording area

Specifications

AUDIO AMPLIFIER SECTION
Maximum Power Output: Front/Rear: 50 W per channel
Continuous Power Output (RMS): Front/Rear: 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion.
Load Impedance: 4 Ω (4 Ω to 8 Ω allowance)
Tone Control Range: Bass: ±12 dB (60 Hz, 80 Hz, 100 Hz, 120 Hz)		Q0.5, Q1.0, Q1.5, Q2.0
		Middle: ±12 dB (0.5 kHz, 1.0 kHz, 1.5 kHz, 2.5 kHz) Q0.75, Q1.0, Q1.25, Q1.5
		Treble: ±12 dB (7.5 kHz, 10.0 kHz, 12.5 kHz, 15.0 kHz) Q0.75, Q1.25
Frequency Response: 40 Hz to 20 000 Hz
Signal-to-Noise Ratio: 70 dB
Line-Out Level/Impedance: 2.5 V/20 kΩ load (full scale)
Output Impedance: 1 kΩ
Subwoofer-Out Level/Impedance: 2.5 V/20 kΩ load (full scale)
Other Terminal: AUX (auxiliary) input jack

TUNER SECTION
Frequency Range: FM:	87.5 MHz to 108.0 MHz
	FM-LO:	65.00 MHz to 74.00 MHZ
	AM:	MW: 522 kHz to 1 620 kHzLW: 144 kHz to 279 kHz
FM Tuner	Usable Sensitivity:	9.3 dBf (0.8 μV/75 Ω)
	50 dB Quieting Sensitivity:	16.3 dBf (1.8 μV/75 Ω)
	Alternate Channel Selectivity (400 kHz):	65 dB
	Frequency Response:	40 Hz to 15 000 Hz
	Stereo Separation:	40 dB
MW Tuner	Sensitivity:	20 μV
	Selectivity:	40 dB
LW Tuner	Sensitivity:	50 μV

CD PLAYER SECTION
Type: Compact disc player
Signal Detection System: Non-contact optical pickup	(semiconductor laser)
Number of Channels: 2 channels (stereo)
Frequency Response: 5 Hz to 20 000 Hz
Dynamic Range: 96 dB
Signal-to-Noise Ratio: 98 dB
Wow and Flutter: Less than measurable limit
MP3 Decoding Format: (MPEG1/2 Audio Layer 3) Max. Bit Rate: 320 kbps
WMA (Windows Media® Audio) Decoding Format: Max. Bit Rate: 320 kbps

GENERAL
Power Requirement: Operating Voltage	DC 14.4 V (11 V to 16 V allowance)
Grounding System: Negative ground
Allowable Operating Temperature: 0°C to +40°C
Dimensions (W × H × D): (approx.)	Installation Size: 182 mm × 52 mm × 160 mm
	Panel Size: 188 mm × 58 mm × 12 mm
Mass:		1.3 kg (excluding accessories)

Design and specifications are subject to change without notice.

Diagram showing a device being inserted into a panel, with no visible text or symbols

The image is too blurry to recognize any text content.

Diagram of a device rear panel with a button and indicator finger (no text or symbols)

"USER/ROCK/CLASSIC/POPS/HIP HOP/JAZZ"

Diagram of a device rear panel with internal components and connectors (no text or symbols)

Разъемы

Конденсация влаги

Diagram showing a device being inserted into a housing, with no visible text or symbols

"USER/ROCK/CLASSIC/POPS/HIP HOP/JAZZ"

Diagram of a device rear panel with internal components and connectors (no text or symbols)

З'єднувачі

Конденсація вологи
