TAB1011 - Tablet SALORA - Free user manual and instructions

Product type	Touchscreen tablet
Brand	Salora
Model	TAB1011
Screen size	10.1 inches (25.65 cm)
Screen resolution	1280 x 800 pixels
Dimensions (L x W x H)	241 x 165 x 9.5 mm
Weight	510 g
Operating system	Android (version 10 or later)
Processor	Quad-core 1.6 GHz
RAM	2 GB
Internal storage	32 GB expandable via microSD
Battery capacity	5000 mAh
Battery life	Up to 8 hours of moderate use
Power supply	Mains charger 5V/2A, micro-USB port
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth 4.0
Sensors	Accelerometer, ambient light sensor
Camera	Front 2 MP, rear 5 MP
Main functions	Web browsing, media playback, games, messaging, Android apps
Care and cleaning	Wipe with a soft, dry cloth. Do not use chemical products.
Safety	Do not expose to moisture or extreme temperatures. Use only the provided charger.
Spare parts and repairability	Contact Salora customer service or an authorized repair center. No spare parts available for retail.
General information	2-year warranty. Made in China. Refer to the full user manual for more details.

Frequently Asked Questions - TAB1011 SALORA

How to turn the Salora TAB1011 tablet on and off?

To turn on, press and hold the power button located on the side edge for a few seconds. To turn off, press and hold the same button, then select 'Power off' from the menu that appears.

How to charge the battery?

Use the provided mains charger (5V/2A) and micro-USB cable. Plug the charger into a wall outlet and connect the cable to the tablet. The indicator light shows charging status. A full charge takes about 4 hours.

Can I use a microSD card to expand storage?

Yes, the tablet has a microSD card slot (up to 128 GB). Insert the card into the designated slot, usually under the removable cover or on the side. It is recommended to format the card via storage settings.

How to connect the tablet to a Wi-Fi network?

Go to 'Settings' > 'Wi-Fi', enable Wi-Fi, then select your network from the list. Enter the password if required. The tablet will connect automatically.

What to do if the screen stays black and won't turn on?

Try pressing and holding the power button for 10-15 seconds to force a restart. If that doesn't work, plug the tablet into the charger and wait a few minutes before trying again. If it still fails, contact technical support.

How to perform a factory reset?

In 'Settings' > 'System' > 'Reset options', select 'Erase all data (factory reset)'. Confirm the operation. Caution: this action deletes all your personal data. Back up your important files beforehand.

Is it possible to update the Android system?

Go to 'Settings' > 'System' > 'Software update'. The tablet will check for available updates. Follow the on-screen instructions to install them. Make sure you have a stable Wi-Fi connection and sufficient battery charge.

How to clean the screen without damaging it?

Use a clean, dry microfiber cloth. If necessary, lightly dampen the cloth with distilled water. Never use abrasive products, alcohol, or chemical cleaners. Avoid pressing too hard on the screen.

The tablet does not recognize the charger. What to do?

Check that the cable and charger are properly connected. Try a different compatible micro-USB cable. Inspect the tablet's charging port for debris. If the problem persists, the charger or battery may be faulty; contact after-sales service.

How to transfer files between the tablet and a computer?

Connect the tablet to the computer using a micro-USB cable. On the tablet, pull down the notification bar and select 'File transfer' (MTP). The computer will then detect the tablet as a storage device; you can copy/paste files.

USER MANUAL TAB1011 SALORA

Blank tablet device with rounded corners and a blank center (no text or symbols)

Betreffende applicaties

Blank tablet device with rounded corners and a blank center (no text or symbols)

MANUEL D'UTILISATION
TAB1011

SOMMAIRE

Sommaire....1

Specifications....11

Caractéristiques

Parcourir le web

1.VOL-/VOL+

Applications

Simple line drawing of a tablet device with rounded corners and a blank screen (no text or symbols)

USER'S MANUAL
TAB1011

Table of Contents

Table of Contents....1

Features....2

Unit at a Glance ....3

Getting Started....4-5

About Applications....5-6

Preinstalled Applications....6

Connect to a Wi-Fi network....7-8

Bluetooth Connection 9

Optional Connections....10

Specifications....11

Features

Browse the Web.

Visit your favorite websites

Check your e-mail

Keep in touch with friends and family

Watch YouTube™ videos

Browse the world's most popular video-sharing community

Read your favorite books

Download thousands of books with the included E-book reader *

Discover thousands of apps for Android ^TM

Games, applications, and more with marketplace(need for customer installed)

Connect to the Internet wirelessly

High-speed Wi-Fi 802.11 b/g/n networking

HDMI ^TM output to your TV ^TM

Enjoy in the comfort of your living room

Enjoy your media library anywhere

Portable powerhouse plays popular music, video, and photo formats

microSD memory card reader

Increase your storage capacity (up to 32 GB supported)

Built-in camera

Convenient front-facing camera 0.3M / rear camera 2.0M.

Automatic orientation detection

Read any way you want; the display adjusts automatically!

Reading books in the ePub format requires the included E-book reader application.

Requires optional HDMI cable

(Type A-to-Type C). 1080p HD video playback requires a video file encoded at 1080p.

Streaming video quality will be affected by the source, and the quality and condition of your network connection.

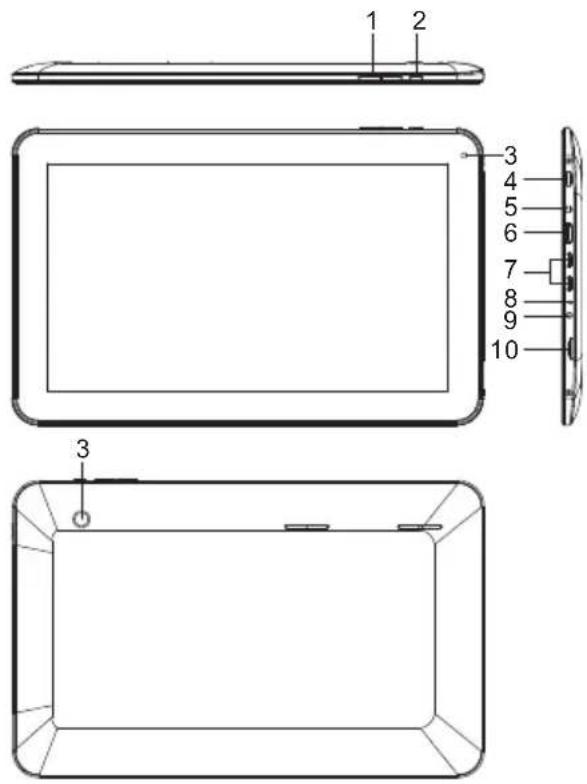

Unit at a Glance

1. VOL-/VOL+ Press VOL- to decrease the volume level. Press VOL+ to increase the volume level.

2. Back Press to return to the previous screen. If the keyboard is on the screen, Press to close the keyboard.

3. Camera Use it to take pictures or capture videos.

4. Power Press to turn the unit on, or to turn the screen on or off. Press and hold to access the Power Off menu.

5. Headphone Audio output connection for headphones.

6. HDMI Connect to a TV or other displays.

7. USB OTG Connect to a USB device or a computer to transfer data (e.g. music, videos, photos, files).

8. Reset Reset the tablet.

9. Adapter In Charge and power the tablet with adapter.

10.microSD Load external microSD memory cards here.

Getting Started

Turning the Tablet on and off

To turn the tablet on:

Press and hold the Power key until the LCD screen turns on. Wait until the Home screen appears; the tablet is now ready for use.

To turn the tablet off:

1. 1. Press and hold the Power key until the Device Options menu appears.

1. Touch ok the screen to turn off the tablet.

Turning the Screen On and Off (Standby)

When the tablet is on, you can turn off the screen to conserve battery power. Simply press the Power key once to turn the screen off. Press the Power key again to turn the screen back on.

To conserve battery power, the screen can be set to turn off automatically when the tablet is not in use (between 1 minute and 30 minutes).

This Screen timeout option can be found in the Display menu.

Getting Started

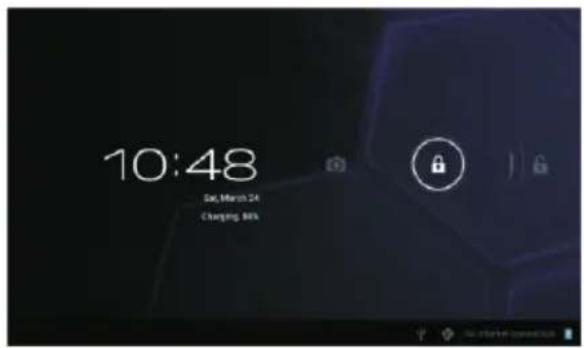

Unlocking the Screen

When the screen turns off, you will have to unlock the screen when you turn it back on.

To unlock the screen, drag the lock icon across the screen towards the lock icon.

About Applications

To open an application, touch the application icon on the home screen or in the Launcher where you can tap the icon right up on the home screen to get in.

Launcher screen:

The screen shown above is for illustrative purposes only. Reserves the right to modify and improve the final list of applications available on the tablet.

About Applications

Preinstalled Applications

Some applications have been installed on your tablet for your convenience.

These applications include:

Browse the web.

Perform simple mathematical operations.

Take pictures or videos with the frontfacing camera.

Check your e-mail.

Play music.

Access the Settings menu to adjust the tablet's options.

Bluetooth

Preinstalled Applications Installing Applications

You can also download an install additional applications from the device's applications marketplace, the web browser, or other sources.

The tablet must be set to allow installation of applications from non-Market sources. The Unknown sources option can be set in the Application settings menu.

Connect to a Wi-Fi network

The Notification bar displays icons that indicate your tablet's Wi-Fi status.

Notification that an open Wi-Fi network is in range.

Connected to a Wi-Fi network (waves indicate connection strength).

[no icon] There are no Wi-Fi networks in range, or the Wi-Fi radio is off.

1. Turn on the Wi-Fi radio if it is not already on. To turn on Wi-Fi:

a.Go to the Home screen: Press the Home key.

b.Open the Settings menu: tap the icon right up on the home screen to get into the launcher, then touch Settings icon.

c.Open the Wireless & networks menu: Slide the icon to ON status.

When Wi-Fi is on, the tablet will look for and display a list of available Wi-Fi networks.

If a network that you have connected to previously is found, the tablet will connect to it. If you don't see your network in the list, you can force the tablet to re-scan. To scan for networks, tap the Menu key and then touch Scan.

Connect to a Wi-Fi network

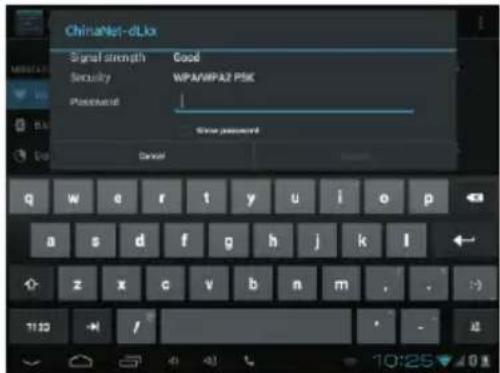

2. Select an available Wi-Fi network to connect to:

In the same Wi-Fi settings menu above, touch a network in the list.

If the network is open, the tablet will prompt you to confirm connection to the network. Touch Connect to confirm.

If the network is secured (as indicated by a Lock icon), the tablet will prompt you to enter a password or other credentials. Touch the Wireless password box to show the on-screen keyboard and then use it to enter the password. Touch Connect to confirm.

When you have successfully connected to a Wi-Fi network, the Notifications bar at the the low of the screen will show a Wi-Fi signal indicator.

To learn about how to add a Wi-Fi network when it is not in range or when the router is set to obscure the network name (SSID); or to configure advanced Wi-Fi options, please refer to the manual.

Bluetooth Connection

Functions of bluetooth:

1. You can exchange the files between two bluetooth device. You can exchange the files with other computers, mobile phones and PDA.
2. You can synchronously exchange pims data with mobile phones, PDA and laptop to support the bluetooth (data of outlook E-mail address).
3. You can exchange the electronic name card with mobile phones, PDA and laptop to
4. You can connect the keyboard, mouse and joystick to support the bluetooth.

Application of bluetooth

1. Setting procedure of entering into bluetooth: setting -> bluetooth setting, open the bluetooth equipment.
2. Name of equipment: you can randomly change the name of bluetooth for your MID by pressing Menu key.

3. Detectability: open this function by clicking the place for name of bluetooth, which indicates that your MID bluetooth can be searched by other bluetooth equipments, the default time for this opening is 120 seconds.

4. Scan and look for equipment: you can detect the equipment desired to be connected by utilizing this function.

5. Bluetooth: after the scan to look for the equipment, all bluetooth equipment searched by your MID can display under this function.

BlueZ: Click this and open the detectability function.
: Click this icon to search for the equipment.

Optional Connections

Connecting to a Computer

Connect the tablet to a computer to transfer files.

1. Connect your tablet to the computer.

With the included USB cable: Plug the small end of the cable into the USB 2.0 high speed connector of the tablet. Plug the large end of the cable into an available USB 2.0 high speed port on the computer.

2. When your tablet is connected, slide up the USB icon right down on the screen and then touch icon USB connected.

3. Mount the storage.

Touch button Turn on USB storage to mount the tablet's built-in storage. When it is mounted, you can copy files to or from your tablet.

To connect the tablet to the TV:

1. Plug the small end of the HDMI cable into the mini HDMI connector on the tablet.
2. Plug the large end of the HDMI cable into the HDMI port on the TV.
3. Turn on the TV, and set its display mode to the HDMI port that the tablet is connected to.

If you need help setting the display mode of the TV, please refer to the documentation provided by the TV manufacturer. If there is no sound from the tablet on your TV, you may need to set the HDMI switch sound settings.

Specifications

Processor	BOXCHIP A10 1GHz(Cortex A8)
RAM	1GB DDR3
Storage	4GB(option) flash built-in; microSD card slot (max.32GB supported)
Display	10.1"TFT LCD(1024x600), Capactive touch screen
Wi-Fi Networking	IEEE 802.11 b/g/n
Bluetooth	BT 2.1+EDR
Video Output	Mini HDMI,type C(1080p and 720p supported)
Audio Output	3.5mm headphone
PC Interface	USB 2.0 high speed
Additional Features	Built-in microphoneFront facing camera(0.3MP)Rear camera(2.0MP)2x1W speaker
Operating System	Android^TM 4.0

Power	Rechargeable Li-poly battery power Adapter(DC 5V,2A)
Playback Time(hours)	About 8 hours for music, About 3.5 hours for video, About 4.5 hours for web browsing

Music was tested with a 128 kbps MP3 file; video was tested with a 1920x1080 MPEG-4/AVC file; browsing was tested with the screen brightness set to default. Actual playback results may vary.
