Product type	Gas lawn mower
Brand	Güde
Model	BL 460 BS Blackline Law
Engine	Briggs & Stratton, 4-stroke
Engine power	2.6 kW (3.5 hp)
Displacement	140 cm³
Cutting width	46 cm
Cutting height	25 to 75 mm, centrally adjustable
Grass catcher capacity	60 L
Drive type	Self-propelled (rear-wheel drive)
Speeds	1 forward speed
Starting	Manual (recoil start)
Weight	28 kg
Dimensions (L x W x H)	75 x 56 x 45 cm
Chassis material	Steel
Wheels	4 wheels, front diameter 18 cm, rear 25 cm
Sound level (LwA)	96 dB(A)
Vibration (hand-arm)	6.9 m/s²
Engine oil type	SAE 30
Oil tank capacity	0.6 L
Fuel tank capacity	1.2 L
Fuel type	Unleaded gasoline 95
Main functions	Cut, mulch, side discharge (options)
Maintenance and cleaning	Clean after each use, drain oil after 5h, sharpen blade regularly
Safety	Blade brake, safety handle (engine stops on release)
Spare parts and repairability	Blade, air filter, spark plug, belt available
Warranty	2 years

Frequently Asked Questions - BL 460 BS Blackline Law GUDE

How to start the Güde BL 460 BS lawn mower?

Make sure the tank contains gasoline and the oil level is correct. Activate the stop lever (safety handle) and pull the starter cord firmly. If the engine does not start, check the spark plug and air filter.

What engine oil to use for the BL 460 BS lawn mower?

Use a SAE 30 quality oil for 4-stroke engines. The capacity is 0.6 liters. Check the level with the dipstick before each use.

How to adjust the cutting height?

The cutting height is adjusted centrally using a lever. Turn it to select the desired height between 25 and 75 mm. Make sure the mower is turned off when adjusting.

What to do if the mower does not collect grass well?

Check that the grass catcher is not full and that the grass deflector is properly in place. Clean the cutting deck and ensure the blade is sharp. A cutting height too low can also reduce collection.

How to change the mower blade?

Disconnect the spark plug to prevent accidental starting. Tilt the mower on its side (spark plug up). Unscrew the central blade bolt with a wrench, replace the blade, and tighten firmly. Wear protective gloves.

When and how to drain the engine oil?

Drain the oil after the first 5 hours of use, then every 25 hours or at the start of each season. Run the engine for a few minutes to warm the oil, then tilt the mower to drain through the drain plug.

What to do if the mower vibrates abnormally?

Stop the engine immediately. Check that the blade is properly fastened and not damaged. An imbalance may come from a bent blade or a stuck object. Clean the housing and inspect the bearings.

How to clean the mower after use?

Use a low-pressure water jet to clean the cutting deck and wheels. Avoid wetting the engine and air filter. Dry the mower before storing. Grease the pivot points.

What type of gasoline to use for the BL 460 BS?

Use unleaded gasoline with an octane rating of 95 or higher. Do not use gasoline containing more than 10% ethanol (E10). The tank capacity is 1.2 liters.

The mower struggles to move on tall grass, what to do?

Reduce the cutting height gradually. If the mower is self-propelled, make sure the drive cable is properly adjusted. Clean the wheels and check that the drive belt is not worn. Work at reduced speed.

USER MANUAL BL 460 BS Blackline Law GUDE

Deutsch DE 3

Original Operating Instructions

LAWN MOWER

Français FR 15

DE

97/68/EC & 2004/26/EC

Betrieb

LAGERUNG

Please read carefully the following Operating Instructions before putting the appliance into operation.

A.V.2

Reprints, even partial, are subject to approval. Technical changes reserved.

	Do you have any technical questions? A claim? Do you need spare parts or the Operating Instructions?You will be helped quickly and without needless bureaucracy at our webpage www.guede.com in the Services part.Please help us be able to assist you. To be able to identify your appliance when claimed, we need to know its serial No.,order No. and year of production. All these details can be found on the type label. Enter the details below for future reference.Serial No.Order No.Year of production:
	Tel.: [phone] / 700-360	Fax: [phone]	E-Mail: [e-mail]

Marking:

B1

B2

B3

B4

B5

B6

B7

B8

B1: Please read and follow the Operating Instructions and safety instructions before putting the appliance into operation.
B2: Risk of injury by thrown-away items when the engine is running. Safe distance must necessarily be adhered to.
B3: Keep an appropriate distance from the cutting knife when operating the appliance.
B4: Risk of explosion – engine to be only refuelled when the appliance is off.
B5: Toxic exhaust gases – appliance to be used outdoors only.
B6: Hearing protection and safety protective glasses to be used.
B7: Switch off the engine and unplug the spark plug before any repair, servicing and cleaning.
B8: Caution: hot surface – risk of burn

Engine instructions to be necessarily

followed!!!

Product safety, prohibitions:

Product corresponds to appropriate EU standards	Proven safety

Technical specifications:

Capacity			Idle
Cutting height Weight
Cutting width Grass catcher capacity

Environment protection:

Dispose waste professionally so as not to harm the environment.			Packing cardboard material may be delivered to collection centres for recycling.
Any defective and/or disposed electric or electronic appliances must be delivered to appropriate collection centres.

Package:

Protect against moisture This side up

Technical specifications:

BLACKLINE BL 460 BS

Engine type/capacity	DOV 4-takt / 158 ccm
Idle speed 2,700 per min -1
Cutting width 460 mm
Grass catcher capacity	55 l
Tank capacity 0.8 litre
Height adjustment 10 levels (25 mm-75 mm)
Noise	LWA96 dB
Vibrations atw3.634 m per s2K=1.5
Weight	30 kg
Order No. 95315

Supply includes plus appliance specification (pic. 1)

1. Sliding handle
2. Air filter
3. Spark plug
4. Exhaust/noise suppressor
5. Height adjustment lever
6. Grass catcher
7. Reversing starter
8. Type label
9. Brake clip
10. Gas lever
11. Primary pump

EU DECLARATION OF CONFORMITY

We,

Güde GmbH & Co. KG

Birkichstrasse 6

D-74549 Wolpertshausen

Germany

herewith declare that the following appliance complies with the appropriate basic safety and healthy requirements of the EU Directives based on its design and type, as brought into circulation by us.

In case of alternation of the machine, not agreed upon by us, this declaration will lose its validity.

Machine description:

BLACKLINE BL 460 BS

Article No.

95315

Applicable EU Directives:

2006/42/EC

2004/108/EC

2000/14/EC & 2005/88/EC

97/68/EC & 2004/26/EC

Applicable harmonised standards:

EN 836/A3:2004

EN 14982/A3:2009

Place of certification:

TÜV SÜD Product Service GmbH

Ridlerstrasse 65

D-80339 Munich

Germany

Reference number:

Z1A 09 11 60822 237

Z2 10 04 60822 280

OR/005514/011

e11*97/68SA*2004/26*0292*02

Date/authorised signature: 8 Nov, 2010

Title of signatory: Managing Director Mr Arnold

Technical documentation: J. Bürkle FBL; QS

Warranty

The warranty applies exclusively to material defects or manufacturing defects.

Original purchase voucher with the purchase date must be provided for lodging a claim in the warranty period.

The warranty does not cover any unauthorised use such as appliance overload, violent use, damage by a foreign person or foreign item. Failure to follow the Operating Instructions or assembly instructions and ordinary wear and tear are also excluded from the warranty.

General safety instructions

Instructions

IMPORTANT: The lawn mower may amputate toes and fingers and throw away items. Failing to observe the below-mentioned rules may lead to serious injuries.

WARNING: To prevent unintentional appliance starting when adjusting, transporting or servicing the mower, the spark plug must be disconnected at all times.

WARNING: Exhaust gases and their components contain or, more precisely, emit chemicals acting as carcinogenic agents may damage the fetus or cause infertility.

WARNING: The absorber and other engine components may become very hot in the operating condition and remain hot even when the engine has been switched off. Do not touch these components to avoid burns.

• Do not touch these components to avoid burns. Familiarise with the operating elements and appropriate use of the appliance.
• Keep your hands and legs in safe distance from the rotating parts. Keep safe distance from the appliance exhaust. Caution: do not touch the rotating parts of the appliance.
• The appliance should only be operated by responsible persons who have familiarised themselves with the Operating Instructions.
• Inspect carefully the area where the appliance is to be used. Remove any items that could be thrown away when operating the appliance.
• Do not use the mower if there are persons (children, in particular) or animals around.
• Wear solid shoes and long trousers when working. Never cut when barefooted or in open sandals.
• If not necessary, avoid moving the mower backwards. Look backwards and under you when moving backwards.
• Never use the mower if any protective equipment, e.g. ejection flap and/or grass catcher, is damaged or missing.
• Accessories allowed by the manufacturer to be used only.
• Switch off the knife when crossing any path or road.
• Switch off the engine and release the spark plug - before releasing any blocked parts or cleaning an obstructed ejection channel

- before any check, cleaning or works on the mower

- after a foreign item has been caught by the mower. Check whether the mower is not damaged and remove any damage by restarting the mower.

- if there are any abnormally strong vibrations (appliance to be checked immediately)

• Switch off the engine before removing the grass catcher and wait until the knife fully stops.

• Cut only in broad daylight or under adequate artificial lighting.

• Do not operate the appliance when under the influence of alcohol or drugs.

• Never cut in wet grass. Pay attention to where you are putting your legs and hold the guide handle firmly. Guide the mower step by step.
• Release the wheel drive clutch before starting the engine
• Replace any defective absorber.
• Protective glasses to be worn whenever you work with the mower.
• Remove any obstacles, e.g. stones and branches.
• Check the ground for any unevenness; obstacles may be hidden in high grass.
• Do not cut near slopes and ditches as stability and balance could be affected.
• Do not use the appliance on too steep terrains.
• Be sure to know that the owner or user is liable for any injuries, putting other persons at risk and damage to property.
• Be cautious and switch the mower off if there are children around.
• On slopes, cut along the level line, never upwards or downwards.
• Never let children or other persons not familiarised with the Operating Instructions operate the appliance. The age of the user may be limited by local regulations.
• WARNING: Fuel is highly flammable.
• Fuel to be stored in containers designated for that purpose only.
• Tank to be refuelled outdoors only; no smoking.
• Fuel to be added before starting the engine. Never open the fuel tank cap and add fuel when the engine is hot or running.
• If fuel is spilled, never try to start the appliance. Take the appliance away and avoid an ignition source from being generated around the spilled fuel.
• Provide safe replacement of the fuel tank and caps.
• Check always whether the knife, knife bolts and cutting equipment are not damaged or worn before using the mower. Always replace any damaged and worn knives and bolts in the entire set to prevent appliance unbalance. Do not make any alterations to the safety equipment. Check regularly if they work properly.
• Keep the appliance clean, with no grass, leaves or other dirt. Oil or fuel run out to be removed at all times. Let the engine cool down before storing the mower in closed spaces.
• Be particularly careful when changing direction on slopes.
• Never adjust the wheel height when the engine is running.
• When worn out or damaged, the grass catching equipment may no longer work properly and items may be thrown away. Check regularly the mower parts and use spare parts recommended by the manufacturer to replace them if necessary.
• The mower knife is very sharp. Risk of injury! Be particularly careful when servicing the knife and wear protective gloves or cover the knife edges.
• Do not change the basic engine setting and do not overload the engine.
• Be especially careful when turning the mower or pulling it towards your body.
• If it is necessary to incline or lift the mower to cross a surface other than grass or when carrying the mower to or from the area to be cut, switch off the knife.
• Release all knife and drive clutches before starting the engine.

• Start the engine as specified in the Operating Instructions and make sure your legs are in a safe distance from the knife.

• Do not incline the mower when starting unless necessary. In such a case, do not incline the mower more than necessary and lift the part reversed from you at all times.

• Do not start the engine when standing in front of the ejection outlet.
• Never lift or transfer the mower when the engine is running.
• Lower the brake adjustment when the engine is off. If the engine is fitted with a stop valve, close the fuel supply after cutting is finished.
• Make sure your posture is always safe when working on slopes.
• Do not let the combustion engine run in closed spaces where dangerous carbon monoxide may accumulate.

ASSEMBLY/PŘEPARATION

CAUTION: All assembly and servicing works must necessarily be performed when the engine is switched off! Please read the entire Operating Instructions before assembling your new mower.

IMPORTANT: The mower is supplied with no oil and fuel.

Unpacking the mower

Take the mower out of the cardboard and check whether there are no parts left in the package.

Grass catcher assembly (pic. 2) (pic. 3) (pic. 4)

1. Take the grass catcher, frame and plastic insertion out of the package (pic. 2)
2. Insert the frame in the grass catcher and make sure the clutch on the frame is outside the grass catcher (pic. 3)
3. Attach the grass catcher to the frame now (pic. 4)

Handle assembly

Handle assembly

IMPORTANT: Dismount the handle carefully to prevent cable squeezing or damage.

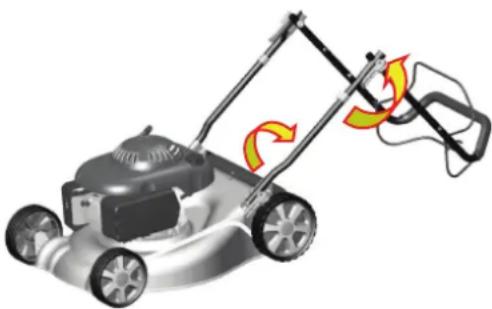

1. Lift the handle until it snaps in the operating position.
2. Remove the protection sleeve, lift the upper part of the handle and assemble it with the lower part. Tighten the safety bolts on both sides of the handle.
3. Remove the protection sleeve of the operating handle in the upper part.

Operation

Brake clip (9) - press in this direction to the handle when starting. Release the lever to switch the engine off.

Gas lever (10) is used to move the mower forward.

Area of use

Cutting and collection

Grass is collected to the grass catcher (catcher capacity is reduced if grass is moist or wet). To fasten the grass catcher to the mower, lift the cover plate and fit the grass catcher.

Cutting (without grass catcher)

The cut grass is left in stripes.

GAS CONTROL

Self-propelled movement is controlled as follows: press the automatic switch-off clip (9) towards the handle and the gas lever (10) towards the handle at the same time.

To stop the forward movement, release the gas lever (10).

CUTTING HEIGHT ADJUSTMENT

The wheels height must be adjusted depending on the required cutting height. Using the lever (8), adjust the height as required. The medium position is ideal for most of the mowers.

ADDING FUEL (unleaded)

Fuel is added through the filling hole in the tank. Make sure fuel is not spilled. Use common pure unleaded fuel. Mix the fuel with oil. Buy only adequate fuel volume so that it can be consumed within 30 days.

WARNING: Spilled oil or fuel to be wiped off. Not to be stored, spilled, used near open fire.

WARNING: Alcohol-enriched fuels (gasohol) or fuels with ethyl alcohol or methanol mixtures may attract humidity and subsequent acid formation. Due to long storing, pure fuel may damage the engine fuel system. To prevent engine problems, you should empty the fuel system before storing the appliance for more than 30 days. Empty the fuel tank, start the engine and let it run until the fuel system and carburettor are empty. Add fresh fuel each season. See the storing instructions, too. Never pour cleaners to the fuel tank to clean the engine or carburettor. By doing so, you could cause irrevocable engine damage.

STARTING THE ENGINE

When starting the appliance, first make sure the spark plug is in place and there is sufficient amount of oil and fuel in the appliance.

Caution: The engine may smoke when the appliance is started for the first time, which is caused by the protective oil film on the inside surface of the engine. Take this as normal.

1.

Press

the

primary pump (11) 3-5 times.

2.

(1).

1. With the brake clip (9) engaged, pull out slowly the starting cord (9) until you can feel slight resistance and then pull strongly the starter until the engine starts.

Caution: The first steps may need to be repeated several times in cold weather or when the appliance has not been operated for a long time.

STOPPING THE ENGINE

To stop the engine, release the brake clip (9).

CAUTION: The knife keeps rotating for a couple of seconds after the engine has been switched off. To leave the mower unattended, disconnect the spark plug cap. important tips and advice for cutting grass!!!

- Adjusting a bigger cutting height may be necessary under certain conditions, e.g. grass being too high, to relief the strain when pushing the mower, remove engine overloading and prevent grass from getting stuck in the mower. It is possible that the area will need to be cut more times.

- Vent ports in the grass catcher may get blocked if the catcher is not cleaned regularly. Clean the grass catcher regularly with water and let it dry before applying it.

- Keep the upper part of the engine at the starter clean. This will improve the air flow and increase the engine service life.

- Cut in dry weather only.

- Keep the knives sharp at all times.

SERVICING

IMPORTANT – Regular servicing is absolutely necessary for constant operational reliability and maintaining the original appliance performance.

Original spare parts are supplied by the customer service centre and dealers. An authorised service centre is recommended to provide the annual servicing and inspection of the safety elements. Please contact your dealer for servicing and spare parts.

1) Keep all bolts and nuts tightened to be sure that the appliance is in an operation-reliable condition. Regular servicing is necessary to provide safety and trouble-free operation.

2) Never keep the appliance with fuel in closed rooms as the evaporating fuel could ignite.

3) It is necessary to let the appliance cool down and empty the fuel before keeping the mower in closed rooms.

4) To minimise the risk of fire, keep the engine and muffler and the fuel tank clean and with no grass, leaves and fats. Do not store the mower with the cut grass.

5) For safety reasons, avoid using the appliance with any parts that are worn or damaged. Replace any defective parts with new ones, do not repair them. Original spare parts and original spare knives to be used only.

Parts of quality other than specified may damage the appliance and put your safety at risk.

6) If it is necessary to empty the fuel tank, do it outdoors and with the engine being cold.

7) Wear solid protective gloves when disassembling and servicing the knives.

8) Check the appropriate rotating direction and balance of the knives after sharpening.

9) Check regularly the wear and pollution of the self-closing cover and grass catcher.

10) Wear safety gloves whenever the appliance needs to be transported, held in hands or inclined.

At all times, hold the appliance for parts guaranteeing safe holding. Consider the mower weight and weight distribution.

CLEANING

Wash the appliance thoroughly with water before it is used, remove any grass and mud from inside – this will prevent dirt from drying inside the appliance and problems the next time the appliance is started.

One or two times a year, remove the gear housing and use a brush or compressed air to clean the space around the belt pulleys and drive belts.

Once in a season, you should clean the inside of the driving wheels. Disassemble both wheels. Remove grass and dirt off the geared wheels and their edges using compressed air or a brush.

KNIFE DISASSEMBLY

To clean/sharpen/replace the knife

CAUTION: The spark plug must be disconnected before disassembly.

Release the bolt when disassembling the knives.

Reassemble as shown in the picture. Tighten the bolts. Torque - 40 Nm. The bolt should also be replaced when replacing the knives.

EMPTYING THE FUEL TANK AND CARBURETTOR

Put a container allowing fuel storage under the carburettor. To prevent fuel spilling, use a funnel.

Remove the drain bolt and put the fuel valve tie rod to the ON position.

Re-fit the drain bolt with a gasket ring when the fuel tank is empty. Tighten the bolt.

STORING

Fuel must not remain in the fuel tank for more than 1 month. Clean the mower at regular intervals and store it in a dry and locked room.

ENVIRONMENT

For environment protection, a special attention should be paid to the following points:

- Use common pure unleaded fuel.

- A funnel and/or can with level control to be used at all times to prevent fuel from spilling when refuelling.

- Do not fill the fuel tank up to the edge.

• Make sure the engine oil does not overflow.

- When changing oil, make sure the used oil is disposed under the applicable regulations. Prevent oil spillage.

- Do not put old oil filters to municipal waste – deliver them to an appropriate collection centre.

- Replace the absorber if defective. Original spare parts to be used for any repair.

- Contact a professional for any adjustment to the carburettor.

- Filter to be cleaned as instructed at all times.

- After the mower service life has expired, we recommended returning the appliance to the seller that will dispose it in accordance with the applicable regulations.

- At regular intervals, check the level of wear and technical condition of the mower.

TROUBLESHOOTING

ENGINE NOT STARTING	Possible cause Remedy
Check the fuel	Lack of fuel	Add fuel
	Wrong fuel, appliance storing without emptying the fuel tank, wrong fuel type.	Drain the fuel tank and carburettor. Add fresh fuel.
Check the spark plug	Wrong, dirty or wrongly set spark plug.	Replace the spark plug.
	Spark plug is wet from fuel (flooded engine).	Dry and refit the spark plug.
Have the engine repaired by an authorised seller or read the service manual.	Clogged fuel filter, wrong carburettor or ignition system setting, blind valves, etc.	Replace or (if necessary) repair any defective component.
Forward movement is defective	Stroke is too long Change the stroke setting
Grass is not being collected	Blocked channel, full grass catcher, grass is too wet	Clean the ejection channel, empty the grass catcher, cut only in dry weather
Engine not starting but the automatic switch-off lever (9) is pressed	Automatic switch-off lever stroke is too long	Shorten the automatic switch-off lever using an adjusting nut.

FR

DÉCLARATION DE CONFORMITÉ CE

Nous,

Güde GmbH & Co. KG

Birkichstrasse 6

D-74549 Wolpertshausen

Allemagne

Directives applicables de la CE:

2006/42/EC

2004/108/EC

2000/14/EC & 2005/88/EC

97/68/EC & 2004/26/EC

Fonctionnement

STOCKAGE

97/68/EC & 2004/26/EC

Provoz

ULOŽENÍ

97/68/EC & 2004/26/EC

Prevádzka

ULOŽENIE

97/68/EC & 2004/26/EC

Gebruik

TANKEN VAN BRANDSTOF (loodvrije benzine)

OPSLAG

97/68/EC & 2004/26/EC

Esercizio

CONSERVAZIONE

97/68/EC & 2004/26/EC

Üzemeltetés

RAKTÁROZÁS
