USER MANUAL PC 1300 SIGMA SPORT

Taipei County, Taiwan, ROC

Tel. ++886-2-2205 2668

Tel. ++886-2-2206 3855

Fax ++886-2-2206 2324

Cycle + Skate Computer

kate 39 25.140

Cycle Lighting

Close-up of a black bicycle headlight with a glowing light source (no text or symbols visible)

Pocket Tools

3D rendered image of a mechanical device with wheels and a blue component (no visible text or symbols)

Mini Pumps

Close-up of a handheld device with a vertical handle and attached base (no visible text or symbols)

10:29:17

10:29:18

10:29:19

10:29:20

10:29:21

10:29:22

10:29:23

10:29:24

10:29:25

pulse computer

SPORTLINE

Digital fitness wristwatch with green and beige body, displaying digital display (no visible text or symbols)

PC 1300

I Allgemeines

Product display of a smartwatch and two black athletic headsets (no text or symbols visible)

Medical procedure diagram showing steps to adjust a cable or wire using a tool, with magnified views highlighting the process.

I.1 Kit contents Page 16
I.2 Wearing the heart rate monitor/ Attachment on the bike Page 16

I.3 Functions Page 17

I.4 Functions of the operating keys Page 18

I.5 Basic settings Page 18

II Explaining and setting the training functions

II.1 Max Heart rate (Hr max) - Page 20 the maximum test

II.2 The right heart rate for training Page 21

II.3 Setting of upper and lower limit of heart rate Page 22

II.4 Training times in and outside the limits Page 22

II.5 The average heart rate Page 23

II.6 Maximum heart rate Page 23

II.7 Calorie accumulation/Fat Grams Burned Page 23 Tablet of specific sport factors Page 24

II.8 Stopwatch with recovery time operation Page 25

III Use and Operating Information

III.1 Warning Page 26

III.2 Malfunction Page 26

III.3 Changing the battery Page 27

III.4 Warranty Page 27

I. In general

We recommend consulting a doctor before setting up your personal training-schedule

1. Kit contents

1 Heart rate monitor PC 1300
1 Elastic strap
1 Transmitter belt
1 Bicycle mounting bracket

Three black and teal mechanical components with no visible text or symbols

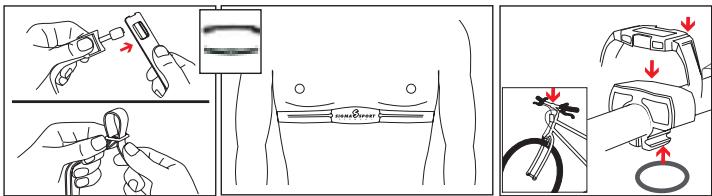

1. Wearing the heart rate monitor/mounting the bicycle bar bracket

Medical procedure diagram showing steps to draw a cable or cable with magnified views and a device.

A. You can wear the heart rate monitor as a wristwatch or you can mount it on the handlebar of your bike
B. Positioning the transmitter belt

- Connect the transmitter belt with the elastic strap (via eyelet)

- The elastic band should be adjusted snugly, yet not too tight to hinder your breathing

- Men should place the transmitter at the base of the chest muscle, women at the base of the breast. The Sigma Sport logo must be visible in front and not upside down.

C. Lift the belt slightly from the skin and wet the rear surface of the conductive ribbed rubber pads with ECG conductive gel or moisten the pads with saliva

3. Functions

1. Heart rate display
2. 12 / 24 h clock
3. Date
4. Alarm AL
5. Stopwatch STP
6. Setting of lower (30-179) and upper (240-100) limit
7. Alarm if you pass the upper and lower limit
8. Average heart rate AVG
9. Maximum heart rate MAX
10. Fat Grams Burned
11. Calorie accumulation KCAL
12. Training times in and outside the limits Hi-Lo-In
13. Recovery time operation R

Hi-Lo-In, KCAL and AVG functions only work if stopwatch (STP) is switched on.

4. Functions of the operating keys

SET: Setting the clock, alarm, date, lower and upper limit, individual data of sex, weight and specific sport factor, stopwatch/recovery time operation

MENU: stopwatch, average heart rate, calorie accumulation, clock, training times in and outside the limits

SUBMENU: Fat Grams Burned, alarm, date, maximum heart rate ALARM: On/Off of alarm

For the following settings, please also use the picture on page 1 for a better understanding.

5. Basic settings

Set Clock

• Press MENU key until clock appears at top of display
• Hold SET key for 2 seconds until the word "hold" disappears and you get the blinking clock format
• Press SET key to select 12/24 h display and confirm with MENU.
• Press MENU to select hours and minutes, set flashing section with SET key.
• To complete and quit the setting press MENU key

Set Date

• Press MENU key until clock appears at top of display
• Press SUBMENU key until date appears in the display
• Press and hold SET key for 2 seconds until the word "hold" disappears and you get the blinking year format
• Press MENU to select year, month and day, set flashing section with SET key.
• To quit the setting press MENU key

Set Alarm Clock

• Press MENU key until clock appears at top of display
• Press SUBMENU until AL appears.
• Press SET key until "hold" disappears.
• Press SET to turn ON alarm. (bell icon will appear)
• Press MENU to make hour flash.
• Press SET key to select hour.
• Press MENU to switch to minutes.
• Press SET key to select minutes.
• Press MENU to finish.

Alarm Audio Tone

• Press ALARM Key. A small sound wave icon will appear to signal that the audio alarm is activated. You will hear the audio display when your current heart rate is above or below your training zone limits.
• To deactivate, just press ALARM Key and icon will disappear.

II. Explaining and setting the training functions

The heart rate (Hr) is displayed in beats per minute.

1. Maximum Heart Rate- Maximum test

The maximum heart rate Hr MAX is your present maximum heart rate if you go to the limits of your capability. The individual Hr max depends on your age, your sex and your fitness level. The best way to determine the individual Hr max is a stress test.

We recommend you to see a doctor to do this test and to repeat it regularly.

The Hr max may also be estimated by means of the following mathematical equation.

Men: 210 - half age - (0.11 x personal weight + 4)

Women: 210 - half age - (0.11 x personal weight)

2. The right heart rate for training

The training zone is the variation of the heart rate you want to train in for effective training

An indication is:

65 % of the Hr max is your lower limit for training and 80 % of the Hr max should be your top limit. You can find out your estimated heart rate zone looking at the chart in accordance with your goals.

Zone: General Health 50-70 % of the Hr max

Alignment: Fitness for beginners
	Hr max	150	160	170	180	190	200 210
Upper limit	70 %	105	112	119	126	133	140 147
Lower limit	50 %	75	80	85	90	95	100 105

Zone: Fitness 70-80 % of Hr max

Alignment: Fitness for advanced users
	Hr max	150	160	170	180	190	200
Upper limit	80 %	120	128	136	144	152	160
Lower limit	70 %	105	112	119	126	133	140

Zone: Competitive performance 80-100 % of Hr max

Alignment: Compatition Training for performance athletes
	Hr max	150	160	170	180	190 200 210
Upper limit	100 %	150	160	170	180	190 200 210
Lower limit	80 %	120	128	136	144	152 160 168

Please be aware that common training schedules never match the individual needs of a person. A perfect training schedule can only be set up by a well-educated trainer, who knows you personally.

3. Set upper/lower limit

• Press MENU key to select Hi-Lo-In format
• The display changes automatically between Hi, Lo and In.
• Press SET key until the word "hold" disappears and the flashing upper limit with 100 is on display
• Press Set key to set upper limit, the figures run upwards
• Confirm upper limit by pressing MENU key and select flashing lower limit (30) and press SET key to set it.
  • To leave and confirm the setting push MENU key

If you exceed the upper or lower limit you will get an audible (if turned on) and visual alarm.

4. Training times in and outside the limits

Hi-Lo-In only works, if stopwatch is switched on. Your upper and lower limit are already saved. Now the following alternating information are displayed:

Hi Time in minutes above the adjusted upper heart rate limit
Lo Time in minutes under the adjusted lower heart rate limit
In Time in minutes within the adjusted upper and lower heart rate limits

Resetting the stopwatch will also zero the lap time function.

5. The average heart rate

Your personal average heart rate should be within your individual training zone. Formula: 170 minus your age in years. This heart rate monitor saves your average heart rate (AVG).

AVG only works if stopwatch (STP) is switched on.

- Press MENU to enter AVG display.

Resetting the stopwatch will also zero the AVG function.

6. Accomplished maximum heart rate

This heart rate monitor saves your accomplished maximum heart rate (MAX). MAX only works if stopwatch (STP) is switched on.

• Press MENU to enter AVG display.
• Press SUBMENU to enter MAX display.

Resetting the stopwatch will also zero the MAX function.

7. Calorie accumulation/Fat Grams Burned

This heart rate monitor can analyze your calorie consumption during a physical effort; taking into consideration sex, weight, and specific sport factor can calculate the total calorie consumption of a person.

Tablet of specific sport factors:

00045	Walking:	2 miles in 30 minutes
00061	Jogging, relaxed:	2 miles in 30 minutes
00079	Jogging, average:	3 miles in 30 minutes
00099	Jogging, intensive:	4 miles in 30 minutes
00031	Cycling, relaxed:	7 miles in 1 hour
00055	Cycling, average:	11 miles in 1 hour
00080	Cycling, intensive:	17 miles in 1 hour
00068	Inline Skating, relaxed:	6 miles in 1 hour
00078	Inline Skating, average:	9 miles in 1 hour
00089	Inline Skating, intensive:	13 miles in 1 hour
00048	Aerobic, relaxed:	30 minutes
00061	Aerobic, average:	30 minutes
00072	Aerobic, intensive:	30 minutes
00030	Gymnastic:	30 minutes

Set of the calorie accumulation

• Press MENU to enter KCAL display.
• Press SET key until the word "hold" disappears.
• Press SET key to set sex – male (M) or female (F).
• Press MENU to select weight. Press SUBMENU to select kilogram (KG) or pound (Lb)
• Press Set key to set
• Select your specific factor in the table and press SET key to set it.
• Confirm factor by pressing MENU key.
• Press SET key to set.
• To quit the setting press MENU key.

8. Stopwatch with recovery timer

• Press MENU to enter STP display.
• Press SET to start.

Press SET again to switch to the recovery timer.

Watch the display and memorize the STP time before pressing the SET key.

The recovery timer (R) is running 3 minutes. When the timer is down to zero the recorded heart rate from 3 minutes ago is shown in the upper display. The current heart rate is shown in the lower display.

- Press SET 2 seconds for reset.

III. Use and Operating Information

1. Warning

• MAX, KCAL and AVG functions only work if stopwatch (STP) is switched on.
• Before you start to train contact your doctor to analyze you personal heart rate.
• People using a pacemaker or other such device should consult a physician prior to starting any exercise program
• Before wearing transmitter belt, pre-set upper and lower limit
• Values are converted automatically from Lb to kg and from kg to Lb

2. Trouble Shooting

No heart rate display:

• The inside surface of the conductive ribbed rubber pads are not clean or not moist
• Sources of interference e.g. power lines
• Check battery of the transmitter

LCD display is sluggish or black:

• Possible at temperatures under 34^ F or above 131^ F

Display fades:

- Battery (Number CR 2025 or DL 2025) weak, change as soon as possible

Watertightness:

The SIGMA SPORT heart rate monitors and transmitter unit are water resistant to a 3m depth. The use in sea (salt water) should be avoided and can cause malfunctions

3. Battery change

Battery in heart rate monitor: CR 2025 or DL 2025. Battery in transmitter belt: CR 2032 or DL 2032 The SIGMA SPORT heart rate monitor is a very sensitive and technical measuring instrument. To guarantee the function and the water resistance, the battery change has to be done only by an authorized dealer. Its warranty is void if the watch has been tampered with, taken apart or ill treated. The KCAL-factor resets automatically to 00069 after battery change and has to be corrected. The clock, maximum heartrate and upper/lower limits must be reset also.

4. Warranty

24 months from date of purchase. The warranty is limited to material and workmanship. Batteries are not included in the warranty The warranty is only valid if 1. The heart rate monitor has not been opened, 2. The receipt comes with it. Please read the instructions carefully before sending off the heart rate monitor for a warranty claim. If the equipment still seems faulty, contact the dealer where you bought it or send it together with the receipt and all its fittings and with sufficient postage to:

Europe:

SIGMA Elektro GmbH, Dr.-Julius-Leber-Str. 15, 67433 Neustadt/Weinstr., Germany

America:

SIGMA SPORT USA, 1926 Miller Drive, Olney, IL 62450 USA tel. [phone] free for US Where warranty claims are covered by our guarantee, replacement equipment will be returned to you free of charge. Only current models are used. Specifications are subject to change without notice. www.sigmasport.com

Français

I Généralités

Product display of a smartwatch and three black athletic gear accessories (no text or symbols visible)

Medical procedure diagram showing steps to adjust a cable or cable device with magnified views and directional arrows indicating motion.

Product photo of a smartwatch and two black athletic gear accessories (no text or symbols visible)

Medical procedure diagram showing step-by-step instructions for using a tool to adjust the body part with a magnified view of the device.

Product display of a smartwatch and two black fitness equipment (no visible text or symbols)

Medical procedure diagram showing step-by-step instructions for using a tool to adjust the body part with a magnified view of the device.

Product photo of a smartwatch and two black athletic gear accessories (no text or symbols visible)

Medical procedure diagram showing step-by-step instructions for using a tool to adjust the body part with a magnified view of the device.
