6110 AA - Drill SKIL - Free user manual and instructions

Product type	Corded drill
Brand	Skil
Model	6110 AA
Power	550 W
Voltage	230 V
Variable no-load speed	0 - 2800 rpm
Chuck capacity	1.5 - 10 mm
Weight	1.5 kg
Cable length	3 m
Dimensions (L x W x H)	250 x 200 x 70 mm
Functions	Drilling, screwdriving, forward/reverse switch, variable speed
Safety	Double insulation, automatic brush stop
Maintenance and cleaning	Disconnect before cleaning; use a dry, lint-free cloth
Spare parts and repairability	Available on the Skil website; repairable by a professional

Frequently Asked Questions - 6110 AA SKIL

How to change the chuck on the Skil 6110 AA drill?

To change the chuck, insert an Allen wrench into the locking screw inside the chuck, turn it counterclockwise. Then use a chuck key to unscrew the chuck itself. Reassemble the new chuck by following the reverse steps.

The drill does not start, what should I do?

First check that the drill is plugged in and the switch is in the on position. If it still does not start, check the fuse in your electrical system. If the problem persists, contact Skil customer service.

How to adjust the rotation speed?

The Skil 6110 AA is equipped with an electronic variable speed control. Simply press the trigger more or less to vary the speed from 0 to 2800 rpm. A preset wheel may also be present on some models.

What is the maximum drilling capacity?

In wood, up to 25 mm; in steel, up to 10 mm with a suitable drill bit. For larger diameters, use a hole saw.

Can I use the drill for screwdriving?

Yes, the Skil 6110 AA drill has a screwdriving function. Use the forward/reverse switch to tighten or loosen. Adjust the torque setting if your model is equipped with one.

How to clean the drill after use?

Always unplug it before cleaning. Use a dry, lint-free cloth to wipe the housing. Never immerse the drill in water and do not use harsh cleaners.

Which accessories are compatible?

All drill bits and bits with a cylindrical shank from 1.5 to 10 mm are compatible. Skil accessories or other quality brands are suitable. Use screwdriver bits with an adapter.

Does the drill have a hammer function?

No, the Skil 6110 AA model is a standard drill without hammer action. For drilling into brick or concrete, use a masonry bit and a hammer drill.

Where to find spare parts?

Spare parts (brushes, chuck, switch, etc.) are available on the official Skil website or from authorized dealers. Use model number 6110 AA to identify parts.

What to do if the drill overheats?

Let it cool down for a few minutes. Avoid jamming the bit or forcing on materials that are too hard. If overheating persists, check that the ventilation slots are not blocked and that the brushes are not worn.

USER MANUAL 6110 AA SKIL

Illustration of a SKIL electric drill with handle and blade (no text or symbols on the device itself)

GB ORIGINAL INSTRUCTIONS 7
F NOTICE ORIGINALE 9
D ORIGINALBETRIEBSANLEITUNG 13
NL ORIGINELE GEBRUIKSAANWIJZING 16
S BRUKSANVISNING I ORIGINAL 19
DK ORIGINAL BRUGSANVISNING 22
N ORIGINAL BRUKSANVISNING 24
FIN ALKUPERÄISET OHJEET 27
E MANUAL ORIGINAL 30
P MANUAL ORIGINAL 33
I ISTRUZIONI ORIGINALI 36
H EREDETI HASZNÁLATI UTASÍTÁS 39
CZ PÚVODNÍM NÁVODEM K POUŽÍVÁNÍ 43
TR ORİJINAL İŞLETME TALİMATI 45
PL INSTRUKCJA ORYGINALNA 48
UA ОРИГІНАЛЬНА ІНСТРУКЦІЯ З ЕКСПЛУАТАЦІЇ 51

GR ΠΡΩΤΟΥΠΟ ΟΔΗΓΙΩΝ ΧΡΗΣΗΣ 55
RO INSTRUCTIUNI DE FOLOSIRE ORIGINALE 58
BG ОРИГИНАЛНО РЪКОВОДСТВО ЗА ЕКСПЛОАТАЦИЯ 62
SK PÔVODNÝ NÁVOD NA POUŽITIE 65
HR ORIGINALNE UPUTE ZA RAD 68
SRB ORIGINALNO UPUTSTVO ZA RAD 72
SLO IZVIRNA NAVODILA 74
EST ALGUPÄRANE KASUTUSJUHEND 77
LV ORIGINĀLĀ LIETOŠANAS PAMĀCĪBA 80
LT ORIGINALI INSTRUKCIJA 83
MK ИЗВОРНО УПАТСТВО ЗА РАБОТА 86
AL UDHËZIMET ORIGJINALE 89
AR دليل الاستعمال 102
④ RAHENMAI AUSLI 100

www.skil.com

①
6110

②

③

4

5
Line drawing of hands using a power tool to clean electrical components, with a light bulb symbol nearby (no text or symbols present)

GB

Impact drill 6110

INTRODUCTION

• This tool is intended for impact drilling in brick as well as for drilling in wood, metal, ceramic and plastic
  • This tool is not intended for professional use
• Read and save this instruction manual ③

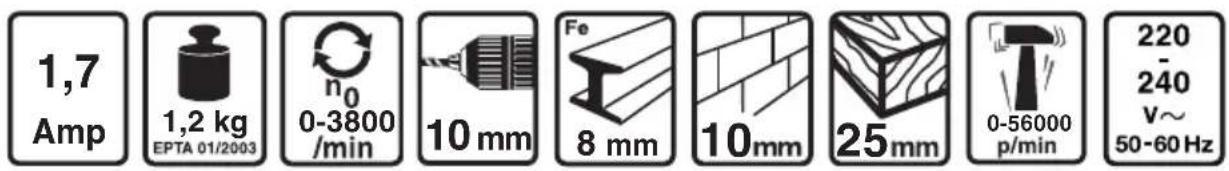

TECHNICAL DATA①

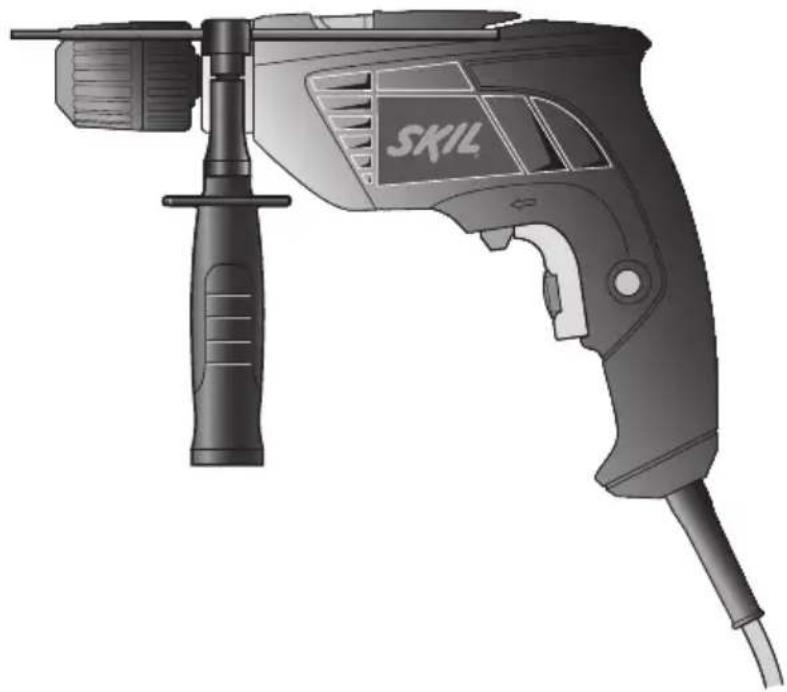

TOOL ELEMENTS ②

A Switch for on/off and speed control
B Button for switch locking
C Wheel for maximum speed control
D Switch for changing direction of rotation
E Switch for selecting drilling function
F Indicator of selected drilling function
G Auxiliary handle
H Depth gauge
J Ventilation slots

SAFETY

GENERAL SAFETY INSTRUCTIONS

WARNING! Read all safety warnings and all

instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) WORK AREA SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or

moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) PERSONAL SAFETY

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) SERVICE

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

SAFETY INSTRUCTIONS FOR IMPACT DRILLS

GENERAL

• This tool should not be used by people under the age of 16 years
  • Always disconnect plug from power source before making any adjustment or changing any accessory
• Wear ear protectors (exposure to noise can cause hearing loss)
• Use auxiliary handle(s), if supplied with the tool (loss of control can cause personal injury)
• Use completely unrolled and safe extension cords with a capacity of 16 Amps (U.K. 13 Amps)
• Do not work materials containing asbestos (asbestos is considered carcinogenic)
• Dust from material such as paint containing lead, some wood species, minerals and metal may be harmful (contact with or inhalation of the dust may cause allergic reactions and/or respiratory diseases to the operator or bystanders); wear a dust mask and work with a dust extraction device when connectable
• Certain kinds of dust are classified as carcinogenic (such as oak and beech dust) especially in conjunction with additives for wood conditioning; wear a dust mask and work with a dust extraction device when connectable
• Follow the dust-related national requirements for the materials you want to work with

BEFORE USE

• Always check that the supply voltage is the same as the voltage indicated on the nameplate of the tool
• Avoid damage that can be caused by screws, nails and other elements in your workpiece; remove them before you start working

• Use suitable detectors to find hidden utility lines or call the local utility company for assistance (contact with electric lines can lead to fire or electrical shock; damaging a gas line can result in an explosion; penetrating a water pipe will cause property damage or an electrical shock)

• Secure the workpiece (a workpiece clamped with clamping devices or in a vice is held more securely than by hand)

• Never use the tool when cord is damaged; have it replaced by a qualified person

ACCESSORIES

• SKIL can assure flawless functioning of the tool only when original accessories are used
• Use only accessories with an allowable speed matching at least the highest no-load speed of the tool

DURING USE

• Always keep the cord away from moving parts of the tool
- If the drill bit becomes unexpectedly jammed (causing a sudden, dangerous reaction), immediately switch off the tool
- Hold the power tool only by the insulated gripping surfaces when performing an operation where the accessory may contact hidden wiring or its own power cord (contact with a "live" wire will also make exposed metal parts of the power tool "live" and shock the operator)
- In case of electrical or mechanical malfunction, immediately switch off the tool and disconnect the plug
- If the cord is damaged or cut through while working, do not touch the cord, but immediately disconnect the plug

AFTER USE

- When you put away the tool, switch off the motor and ensure that all moving parts have come to a complete standstill

EXPLANATION OF SYMBOLS ON TOOL

③ Read the instruction manual before use
④ Double insulation (no earth wire required)
⑤ Do not dispose of the tool together with household waste material

WHEN CONNECTING NEW 3-PIN PLUG (U.K. ONLY):

• Do not connect the blue (= neutral) or brown (= live) wire in the cord of this tool to the earth terminal of the plug
• If for any reason the old plug is cut off the cord of this tool, it must be disposed of safely and not left unattended

USE

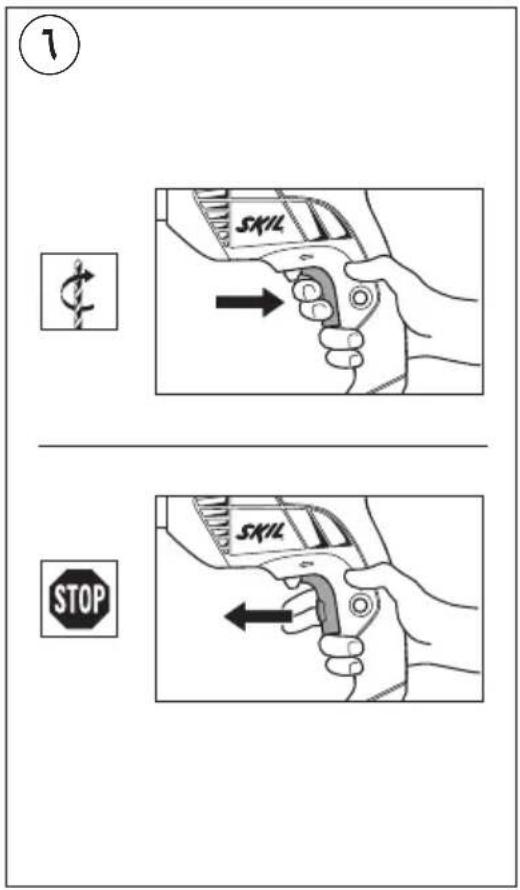

• On/off ⑥
• Switch locking for continuous use ⑦

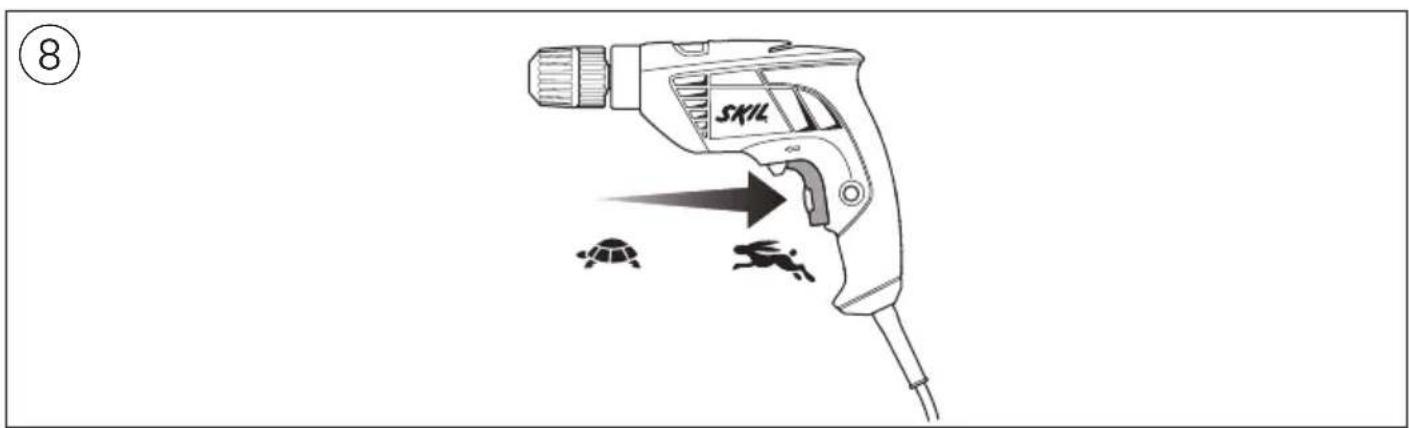

  • Speed control for smooth starting ⑧

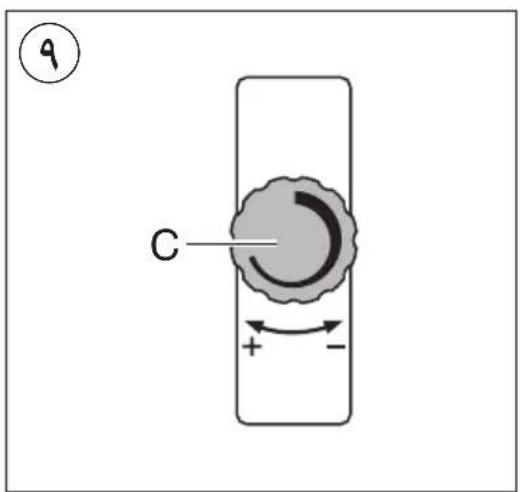

  • Maximum speed control ⑨

With wheel C the maximum speed can be adjusted from low to high

-switch on the tool
-lock the switch
-turn wheel C to select maximum speed

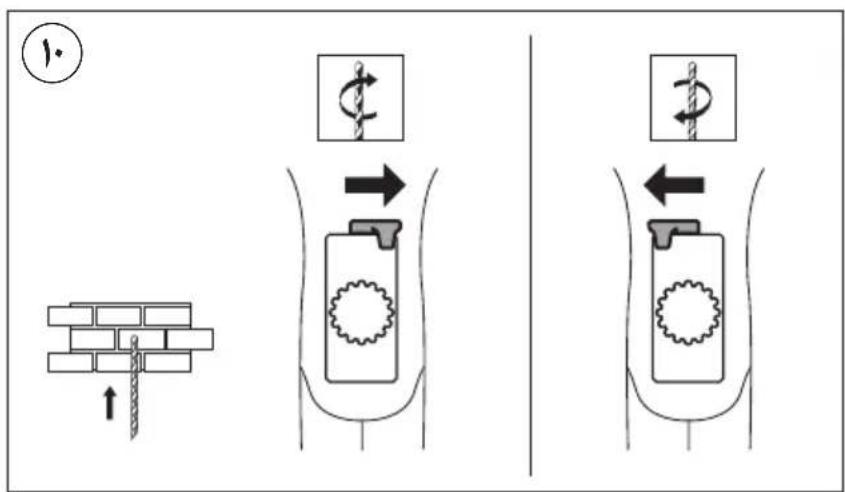

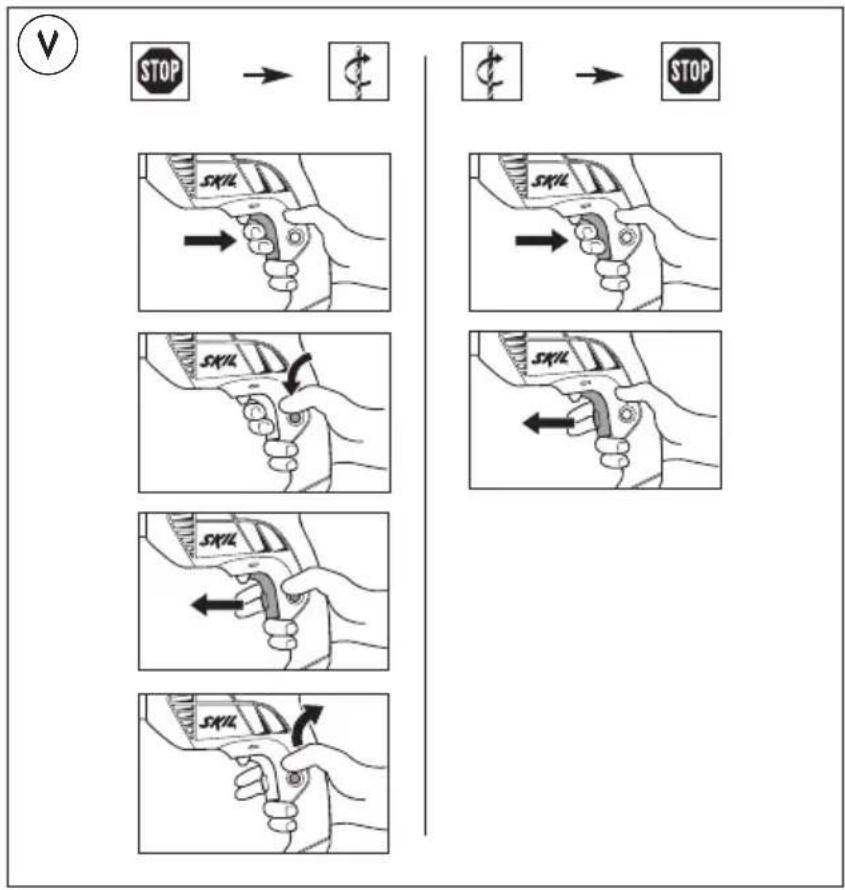

- Changing direction of rotation ⑩

-when not properly set in left/right position, switch A②

cannot be activated

!change direction of rotation only when tool is at a complete standstill

• Normal drilling versus impact drilling ⑪

-indicator F shows the selected drilling function

!select drilling function only when tool is switched off

- Changing bits ⑫

-insert the bit as deep as possible in the chuck !do not use bits with a damaged shank

• Adjusting drilling depth ⑬
  • Holding and guiding the tool ⑭
  !while working, always hold the tool at the grey-coloured grip area(s)
  -always use auxiliary handle G② (can be adjusted as illustrated)
  -keep ventilation slots J② uncovered
  -do not apply too much pressure on the tool; let the tool do the work for you

APPLICATION ADVICE

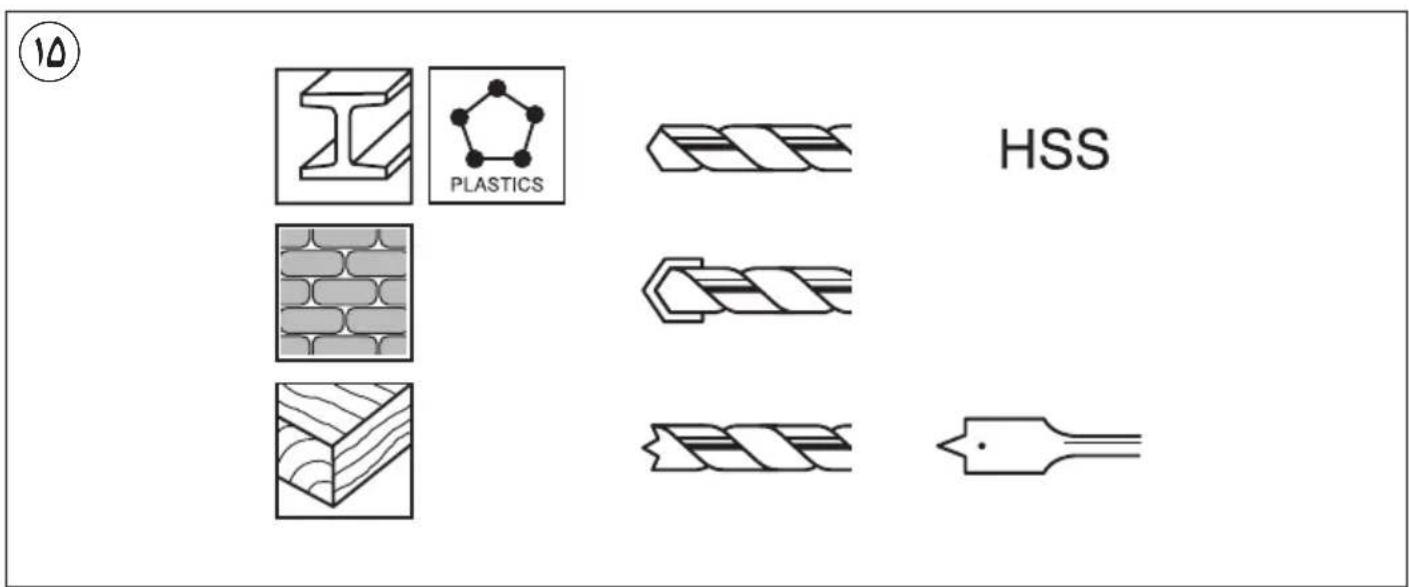

• Use the appropriate bits ⑮
!only use sharp bits
- For drilling in stone a steady pressure on the drill is required
- When drilling ferrous metals - pre-drill a smaller hole, when a large hole is required - lubricate drill bit occasionally with oil

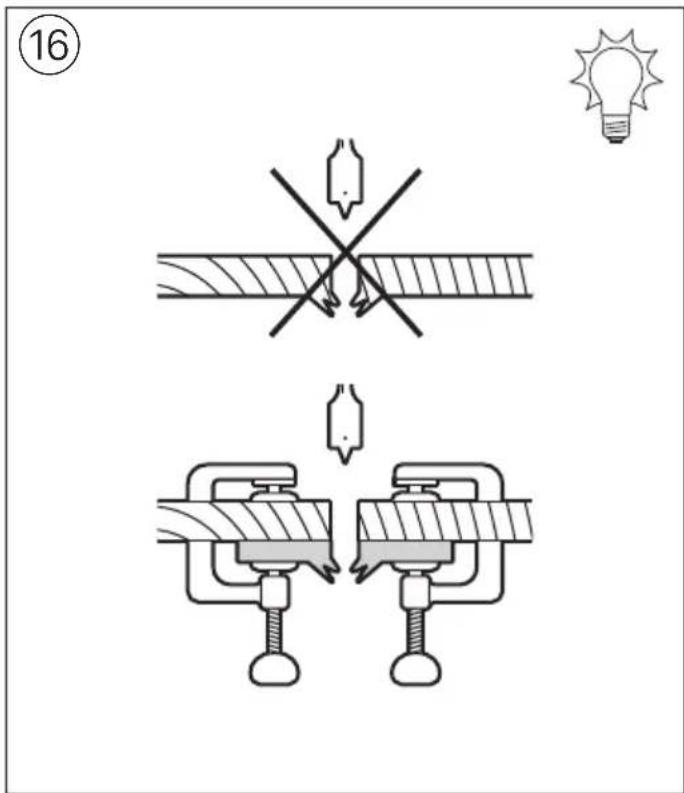

- Splinterfree drilling in wood ⑯
• Dustfree drilling in walls ⑰

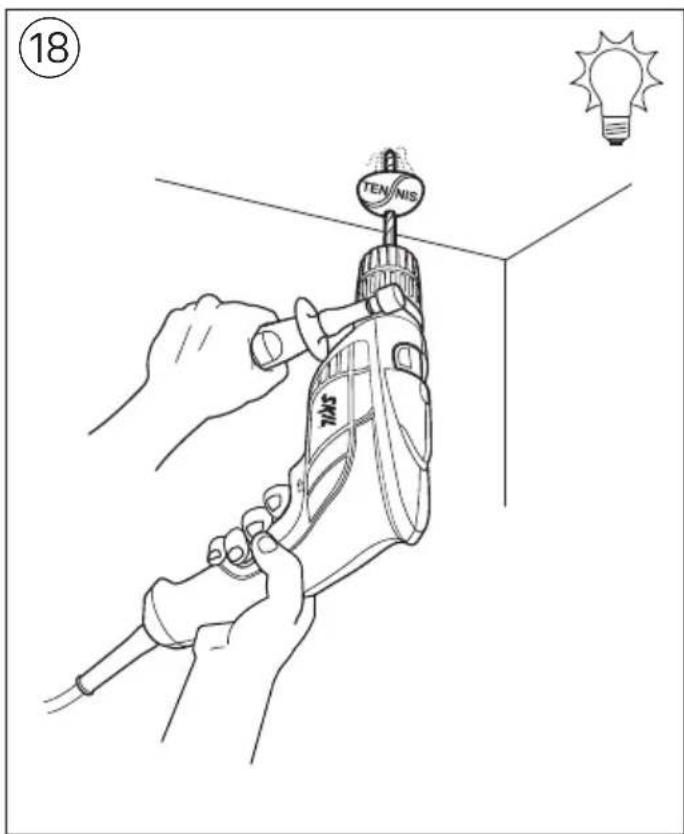

• Dustfree drilling in ceilings ⑱

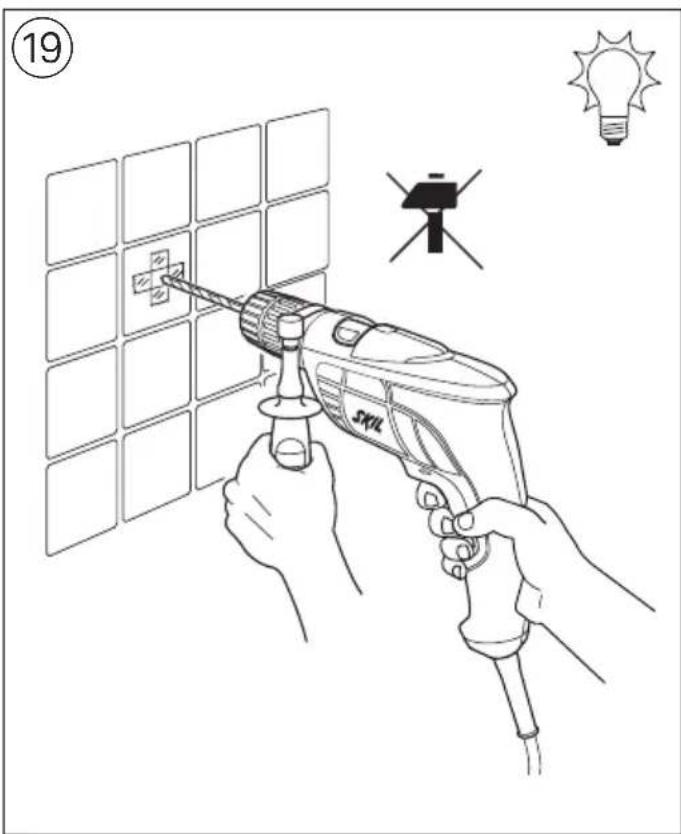

- Drilling in tiles without skidding ⑲
- For more tips see www.skil.com

MAINTENANCE / SERVICE

• This tool is not intended for professional use
- Always keep tool and cord clean (especially ventilation slots J ②)
!disconnect the plug before cleaning
- If the tool should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an after-sales service centre for SKIL power tools
- send the tool undismantled together with proof of purchase to your dealer or the nearest SKIL service station (addresses as well as the service diagram of the tool are listed on www.skil.com)

ENVIRONMENT

- Do not dispose of electric tools, accessories and packaging together with household waste material (only for EU countries)

-in observance of European Directive 2012/19/EC on waste of electric and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility

-symbol⑤ will remind you of this when the need for disposing occurs

CE DECLARATION OF CONFORMITY

Impact drill 6110

Technical data①

- We declare under our sole responsibility that the product described under "Technical data" is in conformity with the following standards or standardization documents: EN 60745, EN 61000, EN 55014, in accordance with the provisions of the directives 2004/108/EC (until 19.04.2016), 2014/30/EU (from 20.04.2016), 2006/42/EC, 2011/65/EU

• Technical file at: SKIL Europe BV (PT-SEU/ENG1), 4825 BD Breda, NL

• Measured in accordance with EN 60745 the sound pressure level of this tool is 95 dB(A) and the sound power level 106 dB(A) (standard deviation: 3 dB), and the vibration * (triax vector sum; uncertainty K = 1.5 m/s^2 )
  * when drilling in metal 6.8 m/s²
  * when impact drilling in concrete 15.4 m/s ^2
• The vibration emission level has been measured in accordance with a standardised test given in EN 60745; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned
  -using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level
  -the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level
  !protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

19.03.2015

GELUID/VIBRATIE

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

19.03.2015

LJUD/VIBRATION

1) SIKKERHET PÅ ARBEIDSPLASSEN

a) Hold arbeidsområdet rent og ryddig. Rotete arbeidsområder eller arbeidsområder uten lys kan føre til ulykker.

VEDLIKEHOLD / SERVICE

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

19.03.2015

MELU/TÄRINÄ

Operations & Engineering

Olat Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

19.03.2015

RUÍDO/VIBRAÇÕES

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

19.03.2015

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

19.03.2015

HLUČNOSTI/VIBRACÍ

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

19.03.2015

GÜRÜLTÜ/TİTREŞIM

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL 19.03.2015

HAŁASU/WIBRACJE

Operations & Engineering

Olat Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

19.03.2015

UPUTE ZA SIGURAN RAD S UDARNA BUŠILICAMA

OPĆENITO

• Uređaj ne bi smjele koristiti osobe mlađe od 16 godina
• Prije svih radova održavanja, podešavanja ili izmjene alata i pribora treba izvući utikač iz mrežne utičnice
• Nosite štitnike za sluh (djelovanje buke može dovesti do gubitka sluha)
• Koristite pomoćne ručke isporučene sa alatom (gubitak kontrole nad alatom može uzrokovati ozljede)
• Upotrebljavajte samo neodmotane i zaštićene produžne kabele kapaciteta 16 ampera
• Ne obrađujte materijal koji sadrži azbest (azbest se smatra kancerogenim)
• Prašina od materijala kao što su boje koje sadrže olovo, neke vrste drveća, minerali i metal mogu biti opasne (dodir s prašinom ili njeno udisanje mogu prouzročiti alergične reakcije i/ili respiratorna oboljenja rukovatelja ili posmatrača); nosite masku za zaštitu od prašine i radite s uređajem za ekstrakciju prašine ukoliko ga možete priključiti
• Određene vrste prašine klasificiraju se kao karcinogenske (kao što su prašina hrastovine i bukovine), osobito u sudejstvu s aditivima za kondicioniranje drveta; nosite masku za zaštitu od prašine i radite s uređajem za ekstrakciju prašine ukoliko ga možete priključiti
• Nacionalni uvjeti za materijale s kojima želite raditi PRIJE UPORABE
• Uvijek provjerite je li napon napajanja isti kao onaj naveden na tipskoj pločici uređaja
• Izbjegavajte oštećenja od vijaka, čavala i sličnih predmeta na vašem izratku; prije početka rada ih izvadite
• Koristite prikladne uređaje za traženje napona kako bi se pronašli skriveni napojni vodovi ili se savjetuje s lokalnim distributerom (kontakt s električnim vodovima mogao bi doći do požara i električnog udara; oštećenje plinske cijevi moglo bi

dovesti do eksplozije; probijanje vodovodne cijevi uzrokuje materijalne štete ili može uzrokovati električni udar)

• Osigurajte izradak (izradak je sigurnije pričvršćen pomoću stezaljke ili škripa nego da ga držite rukom)
• Nikad ne upotrebljavajte alat kad su kabel oštećeni; neka iz zamijeni kvalificirana osoba

PRIBÓR

• SKIL može osigurati besprijekoran rad uređaja samo ako se koristi originalni pribor
• Upotrebljavajte pribor čija dopuštena brzina odgovara najvećoj brzini alata u praznom hodu

TIJEKOM UPORABE

OPŠTA UPUTSTVA O SIGURNOSTI

A PAŽNJA! Čitajte sva upozorenja i uputstva. Propusti kod pridržavanja upozorenja i uputstava mogu imati za posledicu električni udar, požar i/ili teške povrede. Čuvajte sva upozorenja i uputstva za budućnost. Pojam upotrebljen u upozorenjima "električni alat" odnosi se na električne alate sa radom na mreži (sa mrežnim kablom) i na električne alate sa radom na akumulator (bez mrežnog kabla).

1) SIGURNOST NA RADNOM MESTU

Operations & Engineering

Olat Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

19.03.2015

BUKA/VIBRACIJE

• Mereno u skladu sa EN 60745 nivo pritiska zvuka ovog alata iznosi 95 dB(A) a jačina zvuka 106 dB(A) (normalno odstupanje: 3 dB), a vibracija * m/s² (zbir vektora tri pravca; nesigurnost K = 1,5 m/s²)
  * pri bušenju metala 6,8 m/s²
  * pri udarnom bušenju betona 15,4 m/s²
• Nivo emisije vibracija izmeren je u skladu sa standardizovanim testom datim u EN 60745; on se može koristiti za upoređenje jedne alatke sa drugom, kao i za preliminarnu procenu izloženosti vibracijama pri korišćenju ove alatke za pomenute namene
  -korišćenje alatke u drugačije svrhe ili sa drugačijim ili slabo održavanim nastavcima može značajno povećati nivo izloženosti
  -vreme kada je alatka isključena ili kada je uključena, ali se njome ne radi, može značajno smanjiti nivo izloženosti
  !zaštitite se od posledica vibracija održavanjem alatke i njenih nastavaka, održavajući Vaše ruke toplim i organizovanjem Vaših radnih obrazaca

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

19.03.2015

HRUP/VIBRACIJA

- Izmerjeno v skladu s predpisom EN 60745 je raven zvočnega pritiska za to orodje 95 dB(A) in jakosti zvoka 106 dB(A) (standarden odmik: 3 dB), in vibracija * m/s² (vektorska vsota treh smeri; netočnost K = 1,5 m/s²)

* pri vrtanju v kovino 6,8 m/s²
* pri udarnem vrtanju v beton 15,4 m/s ^2

ÜLDISED OHUTUSJUHISED

APKALPOŠANA / APKOPE

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

19.03.2015

TROKSNIS/VIBRĀCIJA

TECHNINIAI DUOMENYS ①

PRIETAISO ELEMENTAI②

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

19.03.2015

TRIUKŠMINGUMAS/VIBRACIJA

Simple line drawing of a pencil (no text or symbols)

Simple line drawing of a pencil (no text or symbols)

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

19.03.2015

صدالارعتاشات

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

19.03.2015

الضضاء/الاهتاز

Line drawing of hands using a power tool to clean electrical components, with a light bulb symbol nearby (no text or symbols present)

6110

مُنْقَاب مُطْرِقي

6110

SKIL®

Illustration of a SKIL electric drill with handle and blade (no text or symbols on the device itself)

دليل الاستعمال

AR

راهنماي اصلی

FA
