Series 5000 S5230 - Razor PHILIPS - Free user manual and instructions

Product Type	Electric shaver
Model	Series 5000 S5230
Brand	Philips
Power Supply	Rechargeable battery, 1 hour charge time, cordless operation
Adapter	100-240 V to safe low voltage <24 V, model HQ8505
Battery Indicator	1 or 3 lights (depending on version) with orange low battery warning
Shaving System	3 rotary shaving heads, replacement model SH50
Wet/Dry Use	Waterproof, suitable for shaving in shower or with foam/gel
Turbo Setting	Yes, for quicker and more intense shaving (specific types only)
Click-On Attachments	Trimmer, beard styler with comb, cleansing brush (specific types only)
SmartClean System	Compatible with specific models; cleaning cartridge JC301-305
Cleaning Method	Rinse under tap or thorough cleaning by disassembling shaving heads
Travel Lock	Yes, activate by holding on/off button for 3 seconds
Replacement Reminder	Shaving heads: every 2 years; reset by holding on/off button 7 seconds
Cleaning Reminder	Flashes after each use to remind cleaning
Protection Caps	For shaving unit and cleansing brush attachment
Maximum Noise Level	Lc = 69 dB(A)
Safety Standards	Waterproof, EMF compliant, adapter with transformer
Accessories (may vary)	Pouch, SmartClean system, cleansing brush, beard styler, trimmer

Frequently Asked Questions - Series 5000 S5230 PHILIPS

Why is my Philips Series 5000 S5230 shaver not turning on?

Possible causes: the shaver is still connected to the mains (unplug it), the battery is empty (charge for 1 hour), or the travel lock is activated (press the on/off button for 3 seconds to deactivate).

How do I clean the shaver properly?

For daily cleaning, rinse the shaving unit under warm water. For thorough cleaning, open the shaving unit, remove the shaving head holder, take out each cutter and guard, rinse them separately, let dry, and reassemble. Never use a towel on the shaving heads.

What should I do if the shaver doesn't shave as well as before?

The shaving heads may be worn or damaged (replace every 2 years with Philips SH50 heads) or blocked by hair/dirt (perform thorough cleaning). Also check the replacement reminder on the display.

How long does the battery take to charge and how long does it last?

Charging takes approximately 1 hour. The battery indicator shows charging status. Battery life depends on usage, but the shaver is designed for cordless use only.

Can I use the shaver in the shower or with shaving foam?

Yes, the shaver is waterproof and can be used in the bath or shower, or on a wet face with shaving foam or gel. Rinse the shaving unit under the tap before and after use to ensure smooth gliding.

What attachments are available for the Series 5000 S5230?

Depending on the box, click-on attachments include a trimmer, beard styler with comb (1-5 mm), and a cleansing brush. These are used for grooming sideburns, beard styling, and daily facial cleansing.

How do I replace the shaving heads?

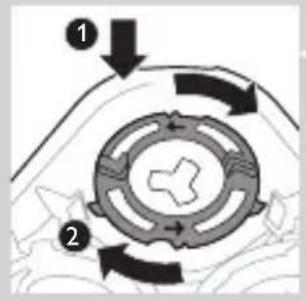

Regularly replace every 2 years. Open the shaving unit, remove the shaving head holder, turn the retaining rings anticlockwise, take out old heads, insert new SH50 heads, secure rings clockwise, close the unit. Then reset the replacement reminder by holding the on/off button for 7 seconds.

What does the travel lock symbol mean and how do I disable it?

The travel lock prevents accidental switch-on. A flashing lock symbol indicates it is active. To disable, press and hold the on/off button for 3 seconds until the symbol stops flashing.

How do I use the SmartClean system?

If your model includes one, prepare by inserting the cleaning cartridge (Philips JC301-305) and connecting power. Place the shaver upside down into the holder, press down the top cap, then press the on/off button on the SmartClean system to start the 10-minute cleaning program.

Why is water leaking from the bottom of the shaver?

During rinsing, water may collect between inner body and outer shell. This is normal and not dangerous because all electronics are sealed in a power unit. Just shake off excess water and let it dry.

USER MANUAL Series 5000 S5230 PHILIPS

Always here to help you

Register your product and get support at www.philips.com/welcome

series S5000

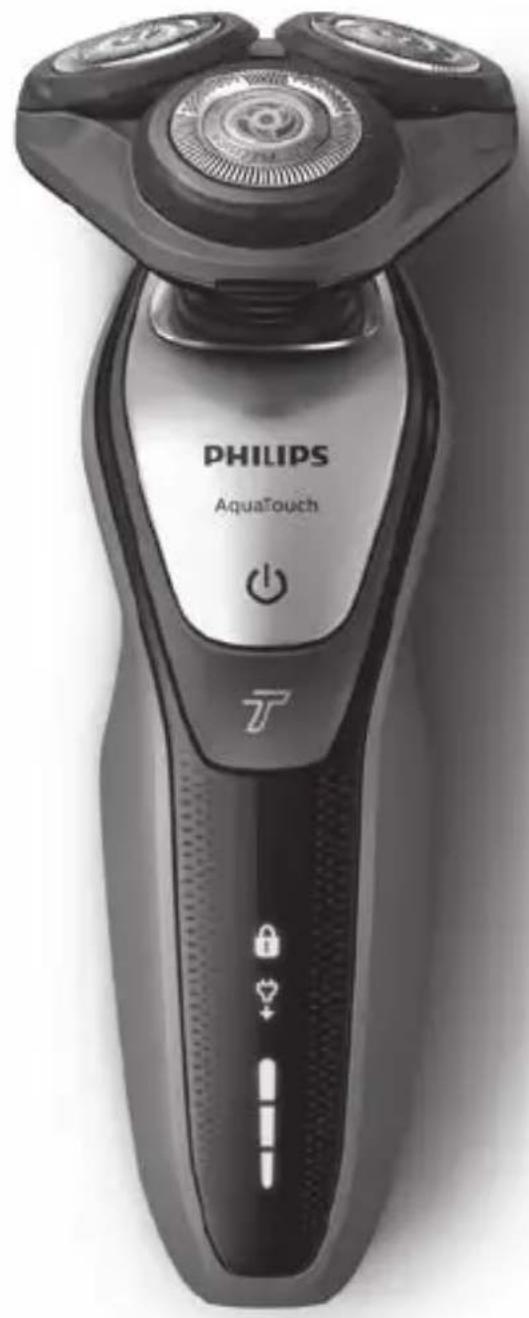

Black Philips Aquatouch electric shaver with three rotary buttons and power button (no text or symbols on body)

ENGLISH 4

БЪЛГАРСКИ 39

ČEŠTINA 78

EESTI 113

HRVATSKI 147

MAGYAR 183

КАЗАКША 218

LIETUVIŠKAI 255

LATVIEŠU 291

МАКЕДОНСКИ 326

POLSKI 365

ROMÂNĂ 402

РУССКИЙ 437

SLOVENSKY 475

SLOVENŠČINA 511

SHQIP 545

SRPSKI 581

УКРАЇНСЬКА 616

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at

www.philips.com/welcome.

General description (Fig. 1)

1 Protection cap for cleansing brush attachment (specific types only)
2 Click-on cleansing brush attachment (specific types only)
3 Comb for beard styler attachment (specific types only)
4 Click-on beard styler attachment (specific types only)
5 Click-on trimmer attachment (specific types only)
6 Protection cap for shaving unit (specific types only)
7 Click-on shaving unit
8 On/off button
9 Turbo button (specific types only)
10 Handle
11 Socket for small plug
12 Battery charge indicator with 1 light
13 Battery charge indicator with 3 lights
14 Unplug for use symbol
15 Travel lock symbol
16 Replacement reminder
17 Cleaning reminder
18 Cleaning cartridge for SmartClean system
19 SmartClean system (specific types only)
20 Cap of SmartClean system
21 On/off button
22 Battery symbol
23 Cleaning symbol
24 Replacement symbol
25 Ready symbol

26 Adapter
27 Small plug
28 Pouch (specific types only)

Note: The accessories supplied may vary for different products. The box shows the accessories that have been supplied with your appliance.

Important safety information

Read this important information carefully before you use the appliance and its accessories and save it for future reference. The accessories supplied may vary for different products.

Danger

- Keep the adapter dry.

Warning

- The adapter contains a transformer. Do not cut off the adapter to replace it with another plug, as this causes a hazardous situation. - This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Always unplug the shaver before you clean it under the tap.
• Always check the appliance before you use it. Do not use the appliance if it is damaged, as this may cause injury. Always replace a damaged part with one of the original type.

No sign depicting a faucet without any text or symbols

Prohibition sign of a faucet with no text or symbols

Caution

• Never immerse the cleaning system or the charging stand in water and do not rinse it under the tap.
• Never use water hotter than 80^ C to rinse the shaver.
• Only use this appliance for its intended purpose as shown in the user manual.
• For hygienic reasons, the appliance should only be used by one person.
• Do not use the adapter in or near wall sockets that contain or have contained an electric air freshener to prevent irreparable damage to the adapter.
• Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.
• If your shaver comes with a cleaning system, always use the original Philips cleaning fluid (cartridge or bottle, depending on the type of cleaning system).
• Always place the cleaning system on a stable, level and horizontal surface to prevent leakage.

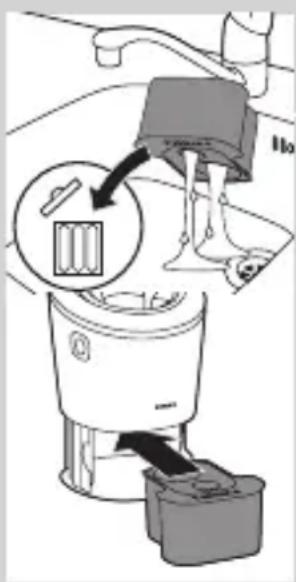

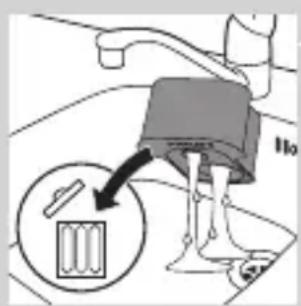

• If your cleaning system uses a cleaning cartridge, always make sure that the cartridge compartment is closed before you use the cleaning system to clean or charge the shaver.
• When the cleaning system is ready for use, do not move it to prevent leakage of cleaning fluid.
• Water may drip from the socket at the bottom of the shaver when you rinse it. This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the shaver.

Simple line drawing of a showerhead spraying over a water-filled container (no text or symbols)

Electromagnetic fields (EMF)

- This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

General

• This shaver is waterproof. It is suitable for use in the bath or shower and for cleaning under the tap. For safety reasons, the shaver can therefore only be used without cord.
• The appliance is suitable for mains voltages ranging from 100 to 240 volts.
• The adapter transforms 100-240 volts to a safe low voltage of less than 24 volts.
• Maximum noise level: Lc = 69dB(A)

The display

Charging

Battery charge indicator with 3 lights

• Charging takes approx. 1 hour
• Quick charge: When the appliance is connected to the mains, the lights of the battery charge indicator light up one after the other continuously. When the appliance contains enough energy for one shave, the bottom light of the battery charge indicator flashes slowly.
• If you leave the appliance connected to the mains, the charging process continues. To indicate that the appliance is charging, first the bottom light flashes and then lights up continuously. Then the second light flashes and then lights up continuously, and so on until the appliance is fully charged.

Diagram of a device with a star-shaped annotation and a magnified view of its internal structure (no text or symbols present)

ENGLISH8

Illustration of a laboratory test tube with a magnified inset showing a test tube tip (no text or symbols present)

Battery charge indicator with 1 light

- Charging takes approx. 1 hour.

- Quick charge: When the appliance does not contain enough energy for one shave, the battery charge indicator flashes quickly. When the battery charge indicator starts flashing slowly, the appliance contains enough energy for one shave.

- If you leave the appliance connected to the mains, the charging process continues. To indicate that the appliance is charging, the battery charge indicator flashes slowly.

Battery fully charged

Diagram of a laboratory test tube with a capillary top and a magnified inset showing internal structure (no text or labels)

Note: This appliance can only be used without cord.

Note: When the battery is full, the display switches off automatically after 30 minutes. If you press the on/off button during charging, the ‘unplug for use’ symbol flashes white to remind you that you have to disconnect the appliance from the mains.

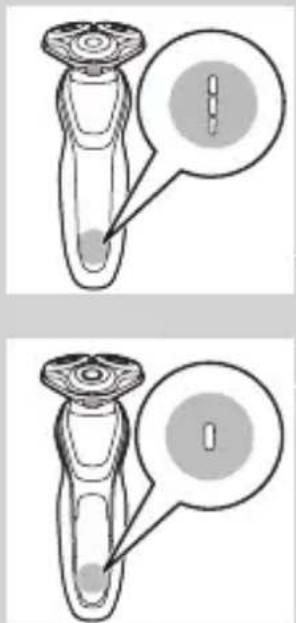

When the battery is fully charged, all lights of the battery charge indicator light up continuously.

- Battery charge indicator with 3 lights

Diagram of a mechanical component with a labeled circular feature (no text or symbols present)

- Battery charge indicator with 1 light

Battery low

Illustration of a hairdryer with a magnified inset showing the tip and base (no text or symbols)

When the battery is almost empty, the battery charge indicator flashes orange.

- Battery charge indicator with 3 lights

Diagram of a device with a starburst pattern and a magnified view of its internal structure (no text or symbols)

- Battery charge indicator with 1 light

Remaining battery capacity

Diagram of a dropper with a magnified inset showing internal structure (no text or labels)

Battery charge indicator with 3 lights

- The remaining battery capacity is indicated by the lights of the battery charge indicator that light up continuously.

'Unplug for use' reminder

- The appliance is equipped with an ‘unplug for use’ reminder. The ‘unplug for use’ symbol starts to flash to remind you that you have to disconnect the appliance from the adapter before you can switch it on.

Cleaning reminder

For optimal shaving performance, we advise you to clean the shaver after every use.

- When you switch off the shaver, the cleaning reminder flashes to remind you to clean the shaver.

Travel lock

You can lock the shaver when you are going to travel. The travel lock prevents the shaver from being switched on by accident.

Activating the travel lock

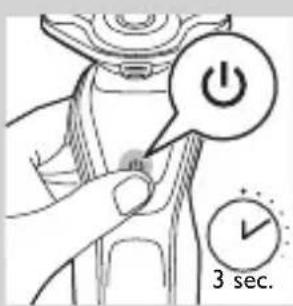

1 Press the on/off button for 3 seconds to enter the travel lock mode.

- While you activate the travel lock, the travel lock symbol lights up continuously. When the travel lock is activated, the travel lock symbol flashes.

Deactivating the travel lock

1 Press the on/off button for 3 seconds.

- The travel lock symbol flashes and then lights up continuously. The shaver is now ready for use again.

Illustration of a smart device with a lock icon and a star-shaped button (no text or symbols)

Illustration of a smart device with a lock icon and a button, no text or symbols present

Replacing shaving heads

For maximum shaving performance, we advise you to replace the shaving heads every two years.

- The appliance is equipped with a replacement reminder which reminds you to replace the shaving heads. The replacement reminder lights up continuously.

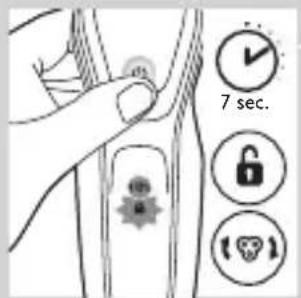

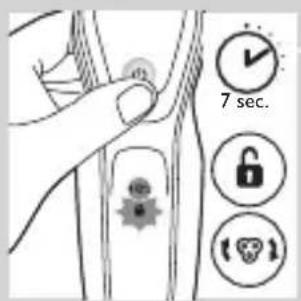

Note: After replacing the shaving heads, you need to reset the replacement reminder by pressing the on/off button for 7 seconds.

Turbo setting (specific types only)

The appliance is equipped with a Turbo or Turbo+ setting. This setting is intended for quicker and more intense shaving and makes hard-to-reach areas easier to shave.

Illustration of a hand pressing a button on a human leg, with no visible text or symbols

Activating the Turbo setting

1 To activate the Turbo setting, press the Turbo button once.

Deactivating the Turbo setting

1 To deactivate the Turbo setting, simply press the Turbo button once again.

Charging

Charging takes approx. 1 hour.

Note: This appliance can only be used without cord.

Charge the shaver before you use it for the first time and when the display indicates that the battery is almost empty.

Charging with the adapter

Diagram of a plug connected to a handheld device with two arrows indicating cable or connection (no text or symbols present)

1 Insert the small plug into the appliance and put the adapter in the wall socket.

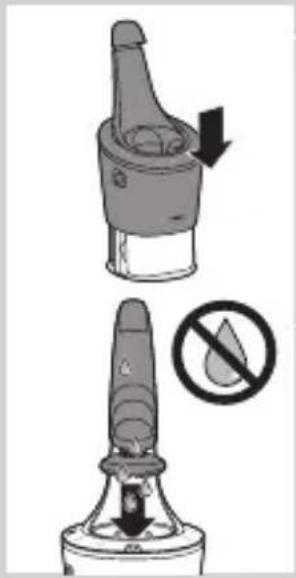

Charging in the SmartClean system (specific types only)

1 Put the small plug in the SmartClean system.
2 Put the adapter in the wall socket.
3 Press down the top cap to be able to place the shaver in the holder ('click').
4 Hold the shaver upside down above the holder. Make sure the front of the shaver points towards the SmartClean system.

Simple line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a pair of boots on a diagonal line, one with an arrow indicating motion or force, the other with a flame (no text or symbols)

5 Place the shaver in the holder, tilt the shaver backwards and press down the top cap to connect the shaver ('click').

- The battery symbol flashes slowly to indicate the shaver is charging.

Using the shaver

Switching the appliance on and off

1 To switch on the appliance, press the on/off button once.
2 To switch off the appliance, press the on/off button once.

- Battery charge indicator with 3 lights: The display lights up for a few seconds to show the remaining battery status.

Shaving

Skin adaptation period

Your first shaves may not bring you the result you expect and your skin may even become slightly irritated. This is normal. Your skin and beard need time to adapt to any new shaving system. We advise you to shave regularly (at least 3 times a week) with this shaver for a period of 3 weeks to allow your skin to adapt to the new shaver.

Note: This appliance can only be used without a cord.

Illustration of a person applying facial contour or mask to their ear (no text or symbols present)

1 Switch on the appliance.
2 Move the shaving heads over your skin in circular movements.

Note: Do not make straight movements.

3 Clean the shaver after use (see chapter ‘Cleaning and maintenance’).

Wet shaving

You can also use this shaver in the shower or on a wet face with shaving foam or shaving gel.

ENGLISH14

Illustration of a person's face with hand near ear area, no text or symbols present

To shave with shaving foam or shaving gel, follow the steps below:

1 Apply some water to your skin.

Line drawing of a person applying a product to their ear (no text or symbols)

2 Apply shaving foam or shaving gel to your skin.

Illustration of a faucet spraying water onto a surface with bubbles (no text or symbols)

3 Rinse the shaving unit under the tap to ensure that the shaving unit glides smoothly over your skin.

4 Switch on the shaver.

Illustration of a person applying a hair accessory to their face (no text or symbols present)

5 Move the shaving heads over your skin in circular movements.

Note: Rinse the shaver under the tap regularly to ensure that it continues to glide smoothly over your skin.

6 Dry your face and thoroughly clean the shaver after use (see chapter ‘Cleaning and maintenance’).

Note: Make sure you rinse all foam or shaving gel off the shaver.

Turbo setting (specific types only)

The appliance is equipped with a Turbo or Turbo+ setting for easy shaving of hard-to reach areas.

Illustration of a hand holding a circular button labeled 'Y' on a curved surface, with no visible text or symbols beyond the icon.

1 Switch on the shaver.

2 Press the Turbo button once to switch on the Turbo setting if you want to shave hard-to-reach areas more quickly.

Illustration of a man with a beard and a circular icon containing a stylized 'T' symbol (no text or symbols present)

3 Move the shaving heads over your skin in circular movements.

Note: Do not make straight movements.

4 To deactivate the Turbo setting simply press the Turbo button once.

Using the click-on attachments

Note: The accessories supplied may vary for different products. The box shows the accessories that have been supplied with your appliance.

Removing or attaching the click-on attachments

Illustration of a hand holding a device with a cross symbol and upward arrow, no text or labels present.

1 Make sure the appliance is switched off.

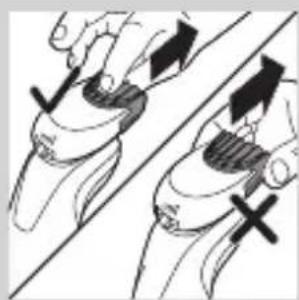

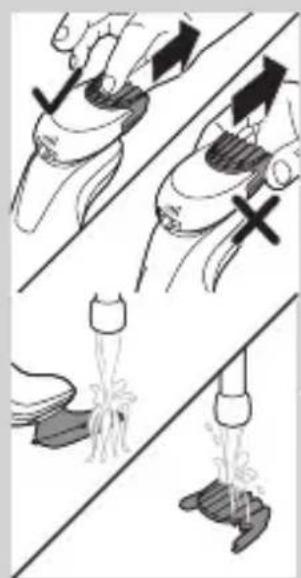

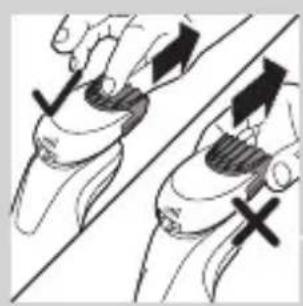

2 Pull the attachment straight off the appliance.

Note: Do not twist the attachment while you pull it off the appliance.

Illustration of a funnel pouring liquid into a curved surface, with an inset showing a graduation cap (no text or symbols)

3 Insert the lug of the attachment into the slot in the top of the appliance. Then press down the attachment to attach it to the appliance ('click').

Illustration of a medical or laboratory procedure showing a device emitting particles from a surface, with an inset magnified view of the process (no text or symbols present)

Illustration of a person applying makeup to their ear (no text or symbols present)

Illustration of a graduation cap impact on a curved surface, with an inset showing the same cap's effect (no text or symbols present)

Line drawing of a hairbrush cutting into a pair of scissors (no text or symbols)

Using the trimmer attachment

You can use the trimmer attachment to groom your sideburns and moustache.

1 Make sure the appliance is switched off.
2 Insert the lug of the attachment into the slot in the top of the shaver. Then press down the trimmer attachment to attach it to the appliance ('click').
3 Switch on the appliance.

4 You can now start trimming.

5 Clean the attachment after use (see chapter 'Cleaning and maintenance').

Using the beard styler attachment

1 Make sure the appliance is switched off.
2 Insert the lug of the attachment into the slot in the top of the appliance. Then press down the attachment to attach it to the appliance ('click').

Using the beard styler attachment with comb

You can use the beard styler attachment with the comb attached to style your beard at one fixed setting, but also at different length settings. You can use it also to pre-trim any long hairs before shaving to have a more comfortable shave.

The hair length settings on the beard styler attachment correspond to the remaining hair length after cutting and range from 1 to 5mm.

1 Slide the comb straight into the guiding grooves on both sides of the attachment ('click').

2 Press the length selector and then push it to the left or right to select the desired hair length setting.
3 Switch on the appliance.
4 You can now start styling your beard by moving the attachment upwards with gentle pressure making sure the front of the comb is in full contact with the skin.
5 Clean the attachment after use (see chapter 'Cleaning and maintenance').

Using the beard styler attachment without comb

You can use the beard styler attachment without the comb to contour your beard, moustache, sideburns or neckline to a length of 0.5mm.

Illustration of a man with a beard and a pipe, showing a hand holding a small object (no text or symbols present)

1 Pull the comb off the attachment.

Note: Grab the comb in the centre to pull it off the attachment. Do not pull at the sides of the comb.

Illustration of two hands holding a curved object with directional arrows indicating movement or force (no text or symbols)

2 Switch on the appliance.
3 You can now start contouring your beard, moustache, sideburns or neckline by moving the styler downwards with gentle pressure while holding it perpendicular to the skin.
4 Clean the attachment after use (see chapter 'Cleaning and maintenance').

Line drawing of a man's face with short hair and beard, holding a small object near his neck (no text or symbols)

Illustration of a dropper tip dispensing liquid into a container, with an inset showing the same dropper (no text or symbols present)

Illustration of a hand pouring liquid from a bottle onto a mechanical component (no text or symbols)

Illustration of a person applying facial care to their face, with no visible text or symbols

Using the cleansing brush attachment

Use the rotating cleansing brush attachment with your daily cleansing cream. The cleansing brush attachment removes oil and dirt, contributing to a healthy and oil-free skin.

1 Insert the lug of the attachment into the slot in the top of the appliance. Then press down the attachment to attach it to the appliance ('click').
2 Moisten the attachment with water. Do not use the appliance with a dry brush head, as this can irritate the skin.
Tip: Use the attachment before shaving for easier shaving and a more hygienic shaving result.
3 Moisten your face with water and apply a cleanser to your face.
4 Place the attachment on your right cheek.
5 Switch on the appliance.
6 Gently move the attachment across your skin from the nose towards the ear. Do not push the attachment too hard onto the skin to make sure the treatment remains comfortable.
7 After approx. 20 seconds you can move the attachment to your left cheek and start cleansing this part of your face.

Caution: Do not clean the sensitive area around your eyes.

8 After approx. 20 seconds you can move the attachment to your forehead and start cleansing this part of your face. Gently move the attachment from left to right.

Note: We advise you to not overdo the cleansing and to not cleanse any zone longer than 20 seconds.

Illustration showing two facial expressions with a magnified inset of a tool (no text or symbols)

9 After the treatment, rinse and dry your face. Your face is now ready for the next step of your daily skincare routine.
10 Clean the attachment after use (see chapter ‘Cleaning and maintenance’).

Cleaning and maintenance

Note: The accessories supplied may vary for different products. The box shows the accessories that have been supplied with your appliance.

Cleaning the shaver in the SmartClean system (specific types only)

Simple line drawing of a paintbrush with a cross mark and spray effect (no text or symbols)

Do not tilt the SmartClean system to prevent leakage.

Note: Hold the SmartClean system while you prepare it for use.

Note: If you clean the shaver in the SmartClean system once a week, the SmartClean cartridge will last approximately three months.

Preparing the SmartClean system for use

1 Put the small plug in the back of the SmartClean system.
2 Put the adapter in the wall socket.
3 Press the button on the side of the SmartClean system and lift the top part of the SmartClean system.

Simple line drawing of a container with an upward arrow, no text or symbols present

4 Pull the seal off the cleaning cartridge.

Diagram of a blender with a black arrow indicating the process (no text or symbols present)

5 Place the cleaning cartridge in the SmartClean system.

Mechanical component diagram showing a lever with a downward arrow indicating motion (no text or symbols)

6 Push the top part of the SmartClean system back down ('click').

Using the SmartClean system

Always make sure to shake excess water off the shaver before you place it in the SmartClean system.

Illustration of a hand pouring liquid into a container with an inset showing a cross-section of a container (no text or symbols)

1 Press down the top cap to be able to place the shaver in the holder ('click').

Close-up of a mechanical component with a black arrow pointing downward (no text or symbols visible)

2 Hold the shaver upside down above the holder. Make sure the front of the shaver points towards the SmartClean system.

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

3 Place the shaver in the holder, tilt the shaver backwards and press down the top cap to connect the shaver ('click').

- The battery symbol flashes slowly to indicate that the shaver is charging.

Illustration of a hand holding two circular buttons with power and spiral symbols, next to a device component (no text or labels)

4 Press the on/off button on the SmartClean system to start the cleaning program.

- During the cleaning program (which takes approx. 10 minutes), the cleaning symbol flashes.

Diagram of a mechanical component with two circular indicators (one checked, one not checked) and a checkmark symbol, no readable text or labels present.

- When the cleaning program has been completed, the ready symbol lights up continuously. - The battery symbol lights up continuously to indicate that the shaver is fully charged. This takes approx. 1 hour.

Note: If you press the on/off button of the SmartClean system during the cleaning program, the program aborts. In this case, the cleaning symbol stops flashing.

Note: If you remove the adapter from the wall socket during the cleaning program, the program aborts.

Note: 30 minutes after the charging phase has been completed, the SmartClean system switches off automatically.

5 To let the shaver dry, you can leave it in the SmartClean system until your next shave. You can also remove the shaver from the SmartClean system, shake off excess water, open the shaving unit and let the shaver air dry.

Replacing the cartridge of the SmartClean System

If you clean the shaver in the SmartClean system once a week, the SmartClean cartridge will last approximately three months.

Replace the cleaning cartridge when the replacement symbol flashes orange or when you are no longer satisfied with the cleaning result. If used once a week, the SmartClean cartridge will last for approximately three months

1 Press the button on the side of the SmartClean system and lift the top part of the SmartClean system.
2 Take the empty cleaning cartridge from the SmartClean system and pour any remaining cleaning fluid out of the cleaning cartridge.
You can simply pour the cleaning fluid down the sink.
3 Throw away the empty cleaning cartridge.
4 Unpack the new cleaning cartridge and pull the seal off the cartridge.

Diagram of a blender with a black arrow indicating a process or operation, showing no text or symbols.

5 Place the new cleaning cartridge in the SmartClean system.

Diagram of a mechanical component with a downward arrow indicating motion (no text or symbols)

6 Push the top part of the SmartClean system back down ('click').

Cleaning the shaver under the tap

Clean the shaver after every shave for optimal shaving performance.

Be careful with hot water. Always check if the water is not too hot, to prevent your hands from getting burnt.

Never dry the shaving unit with a towel or tissue, as this may damage the shaving heads.

Illustration of a hand holding a small object with motion lines indicating movement or force (no text or symbols)

1 Rinse the shaving unit under a warm tap for some time.

Anatomical illustration of internal organs with arrows indicating movement or force (no text or labels)

2 Press the release button and open the shaving unit.

Illustration of a food item being lifted by a fork (no text or symbols present)

3 Rinse the shaving head holder under a warm tap for 30 seconds.
4 Carefully shake off excess water and let the shaving head holder dry.
5 Close the shaving head holder ('click').

Thorough cleaning method

Illustration of a hand holding a decorative object with arrows indicating motion (no text or symbols)

Make sure the appliance is switched off.

1 Press the release button and open the shaving unit.

Illustration of a biological structure with an upward arrow, no text or symbols present

2 Pull the shaving head holder off the bottom part of the shaving unit.

3 Turn the retaining rings anticlockwise and remove them.

Diagram showing two mechanical components with directional arrows, no text or symbols present

4 Remove the shaving heads from the shaving head holder. Each shaving head consists of a cutter and guard.

Note: Do not clean more than one cutter and guard at a time, since they are all matching sets. If you accidentally put a cutter in the wrong shaving guard, it may take several weeks before optimal shaving performance is restored.

Diagram showing two mechanical components with fluid flow, no text or symbols present

5 Clean the cutter and guard under the tap.

Diagram of a mechanical component with a central base and top circular feature (no text or symbols)

6 After cleaning, place the cutter back into the guard.

7 Put the shaving heads back into the shaving head holder.

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Note: Make sure the projections of the shaving heads fit exactly into the recesses of the shaving-head holder.

8 Place the retaining rings back onto the shaving head holder and turn them clockwise.

- Each retaining ring has two recesses and two projections that fit exactly in the projections and recesses of the shaving head holder.

ENGLISH26

Diagram showing two circular components with arrows indicating motion or flow, separated by a diagonal line (no text or symbols)

- Turn the ring clockwise until your hear 'click' and the ring is fixed.

Note: Hold the shaving head holder in your hand when you reinsert the shaving heads and reattach the retaining rings. Do not place the shaving head holder on a surface when you do this, as this may cause damage.

Illustration of two hands holding a cloud-like object with a downward arrow and a glowing effect, no text or symbols present.

9 Reinsert the hinge of the shaving head holder into the slot of the shaving unit. Close the shaving head holder ('click').

Cleaning the click-on attachments

Never dry the trimmer or beard styler attachments with a towel or tissue, as this may damage the trimming teeth.

Cleaning the trimmer attachment

Clean the trimmer attachment every time you have used it.

Illustration of a shoe being squeezed from a bottle into a container (no text or symbols)

1 Switch on the appliance with the trimmer attachment attached.
2 Rinse the trimmer attachment under a hot tap for some time.
3 After cleaning, switch off the appliance.

Illustration of a hand blowing bubbles with a magnified circular inset showing a mountain (no text or symbols)

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols)

Illustration of two hands pouring liquid from a bottle onto a surface, separated by a diagonal line (no text or symbols)

Two cartoon fish jumping over a diagonal line, one falling and the other wading (no text or symbols)

Diagram of a mechanical component with a top cylindrical part and an upward arrow, no text or symbols present.

4 Carefully shake off excess water and let the trimmer attachment dry.

Tip: For optimal trimmer performance, lubricate the trimmer teeth with a drop of sewing machine oil every six months.

Cleaning the beard styler attachment

Clean the beard styler attachment every time you have used it.

1 Pull the comb off the beard stylisty attachment.
Note: Grab the comb in the centre to pull it off the attachment. Do not pull at the sides of the comb.
2 Switch on the appliance.
3 Rinse the beard styler attachment and the comb separately under a hot tap for some time.
4 After cleaning, switch off the appliance.
5 Carefully shake off excess water and let the beard styler attachment and comb dry.

Tip: For optimal trimmer performance, lubricate the trimmer teeth with a drop of sewing machine oil every six months.

Cleaning the cleansing brush attachment

Clean the cleansing brush attachment every time you have used it.

1 Make sure the appliance is switched off.
2 Detach the brush head from the brush base.

Two identical diagrams showing a spray gun above a base, separated by a diagonal line (no text or symbols)

3 Clean both parts thoroughly with warm water and mild soap.

Illustration of mechanical components and a gear mechanism (no text or symbols)

4 Dry the cleansing brush attachment with a towel.

Storage

Diagram of a mechanical component with a downward arrow indicating motion or force (no text or symbols)

Note: The accessories supplied may vary for different products. The box shows the accessories that have been supplied with your appliance.

Note: We advise you to let the appliance and its attachments dry before you put the protection caps on the attachments and store the shaver in the pouch.

- Put the protection cap on the shaving unit to protect it from dirt accumulation.

- Store the shaver in the pouch supplied.

- Put the protection cap on the cleansing brush attachment to protect it from dirt accumulation.

Illustration of a mechanical component with an arrow indicating motion (no text or symbols)

Diagram of a showerhead with a handle and base, showing no text or symbols

Replacement

Replacing the cleansing brush head

Simple line drawing of a mechanical component with a top and base, no text or symbols present.

- The cleansing brush head attachment should be replaced every 3 months or earlier if the filaments are deformed or damaged.

Replacing the shaving heads

For maximum shaving performance, we advise you to replace the shaving heads every two years.

Replacement reminder

The shaving unit symbol will light up to indicate that the shaving heads need to be replaced. Replace damaged shaving heads immediately. Only replace the shaving heads with original Philips shaving heads as specified in chapter ‘Ordering accessories’.

1 The shaving unit symbol lights up continuously when you switch off the shaver to indicate that the shaving heads need to be replaced.

Anatomical illustration of a human head and neck with internal organs, showing directional movement (no text or labels)

2 Press the release button and open the shaving unit.

Illustration of a mechanical component with an upward arrow, no text or symbols present

3 Pull the shaving head holder off the bottom part of the shaving unit.

4 Turn the retaining rings anticlockwise and remove them.

Diagram showing a hand holding a circular object with an arrow indicating direction, alongside a gear-like structure (no text or symbols present)

5 Remove the shavings heads from the shaving head holder and throw them away.

Abstract diagram with three connected circular nodes and a central triangular structure (no text or symbols)

6 Place new shaving heads in the holder.

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Note: Make sure the projections of the shaving heads t exactly into the recesses of the shaving head holder.

7 Place the retaining rings back onto the shaving heads and turn them clockwise.

- Each retaining ring has two recesses and two projections that fit exactly in the projections and recesses of the shaving head holder.

Diagram showing two circular components with arrows and a checkmark, no readable text or symbols present

- Turn the ring clockwise until your hear 'click' and the ring is fixed.

Note: Hold te shaving head holder in your hand when you reinsert the shaving heads and reattach the retaining rings. Do not place the shaving head holder on a surface when you do this, as this may cause damage.

Illustration of two hands holding a cloud-like object with arrows indicating motion (no text or symbols)

8 Reinsert the hinge of the shaving head holder into the slot of the shaving unit. Close the shaving head holder ('click').

9 To reset the replacement reminder, press and hold the on/off button for approx. 7 seconds.

Ordering accessories

To buy accessories or spare parts, visit

www.shop.philips.com/service or go

to your Philips dealer. You can also contact the Philips Consumer Care Centre in your country (see the worldwide guarantee leaflet for contact details).

The following parts are available:

• HQ8505 adapter
• SH50 Philips shaving heads
• HQ110 Philips Shaving Head Cleaning Spray
• RQ111 Philips beard styler attachment
• RQ585 Philips cleansing brush attachment
• RQ560, RQ563 Philips cleansing brush heads
• JC301, JC302, JC303, JC304, JC305 cleaning cartridge

Note: Availability of the accessories may differ per country.

Shaving heads

- We advise you to replace your shaving heads every two years. Always replace the shaving heads with original SH50 Philips shaving heads.

Recycling

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

- This symbol means that this product shall not be disposed of with normal household waste (2012/19/EU).

- This symbol means that this product contains a built-in rechargeable battery which shall not be disposed of with normal household waste (2006/66/EC). We strongly advise you to take your product to an official collection point or a Philips service centre to have a professional remove the rechargeable battery.

- Follow your country's rules for the separate collection of electrical and electronic products and rechargeable batteries. Correct disposal helps prevent negative consequences for the environment and human health.

Removing the rechargeable shaver battery

Only remove the rechargeable battery when you discard the shaver. Make sure the battery is completely empty when you remove it.

Be careful, the battery strips are sharp.

Illustration of a hand holding a small object with a tool, alongside a separate view of the same object (no text or symbols present)

1 Remove the screw in the back panel with a screwdriver. Then remove the back panel.

Illustration of two mechanical components with directional arrows indicating motion (no text or symbols)

2 Bend the hooks aside and remove the power unit.

Two mechanical components with cross-sectional views, one showing internal features and the other with a highlighted section (no text or symbols)

3 Break the snap hooks and remove the front panel of the power unit.

Illustration of a hand holding a tool with an arrow indicating motion (no text or symbols present)

4 Take out the battery holder and cut the battery tags with a pair of cutting pliers.

Guarantee and support

If you need information or support, please visit www.philips.com/support or read the separate worldwide guarantee leaflet.

Guarantee restrictions

The shaving heads (cutters and guards) are not covered by the terms of the international guarantee because they are subject to wear.

Troubleshooting

This chapter summarises the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Centre in your country.

Problem Possible cause Solution

The shaver does not shave as well as it used to.	The shaving heads are damaged or worn.	Replace the shaving heads (see chapter ‘Replacement’).
	Hairs or dirt obstruct the shaving heads.	Clean the shaving heads by following the steps of the thorough cleaning method (see chapter ‘Cleaning and maintenance’).
The shaver does not work when I press the on/off button.	The shaver is still attached to the mains. For safety reasons, the shaver can only be used without cord.	Disconnect the shaver from the mains and press the on/off button to switch on the shaver (see section ‘Unplug for use reminder’).
	The rechargeable battery is empty.	Recharge the battery (see chapter ‘Charging’).
	The travel lock is activated.	Press the on/off button for 3 seconds to deactivate the travel lock.
	The shaving unit is soiled or damaged to such an extent that the motor cannot run.	Clean the shaving heads or replace them (see chapters ‘Cleaning and maintenance’ and ‘Replacement’).

Problem Possible cause Solution

The shaver is not entirely clean after I clean it in the SmartClean system.	You have not placed the shaver in the SmartClean system properly, so there is no electrical connection between the SmartClean system and the shaver.	Press down the top cap ('click') to ensure a proper connection between the shaver and the SmartClean system.
	The cleaning cartridge is empty. The replacement symbol flashes to indicate you have to replace the cleaning cartridge.	Place a new cleaning cartridge in the SmartClean system (see chapter 'Cleaning and maintenance').
	You have used another cleaning fluid than the original Philips cleaning cartridge.	Only use the original Philips cleaning cartridges.
Water is leaking from the bottom of the shaver.	During cleaning, water may collect between the inner body and the outer shell of the shaver.	This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the shaver.

Problem Possible cause Solution

The SmartClean system does not work when I press the on/off button.	The SmartClean system is not connected to the mains.	Put the small plug in SmartClean system and put the adapter in the wall socket.
The shaver is not fully charged after I charge it in the SmartClean system.	You have not placed the shaver in the SmartClean system properly.	Make sure you press the shaver in the SmartClean system until it locks into place and press down the top cap.
I replaced the shaving heads, but the replacement reminder symbol is still showing.	You have not reset the shaver.	Reset the shaver by pressing the on/off button for approx. 7 seconds (see chapter ‘Replacement’).
A shaving head symbol had suddenly appeared on the display.	This symbol is a replacement reminder.	Replace the shaving heads (see chapter ‘Replacement’).
The nose trimmer attachment pulls at the hairs.	You move the appliance too fast.	Do not move the appliance too fast.

Problem Possible cause Solution

The nose trimmer attachment does not work.

The cutting element of the attachment is very dirty, for instance because some nasal mucus has dried inside the cutting element.

Clean the cutting element by rinsing it under the tap with hot water. Switch on the appliance and rinse the cutting element once more to remove any remaining hairs.

If rinsing the nose trimmer under the tap does not unblock the cutting element, then immerse it in a glass with warm water for a few minutes. Then switch on the appliance and rinse it under the tap.

Въведение

No smoking symbol with a faucet icon (no text or numbers present)

Prohibition sign showing a faucet with a diagonal line and a diagonal line, indicating no restrictions or water use.

Simple line drawing of a showerhead spraying over a water-filled basin (no text or symbols)

на Philips (касета или бутилка, в зависимост от типа система за почистване).

Illustration of a medical device with a magnified view showing internal structure (no text or symbols)

Illustration of a laboratory test tube with a magnified inset showing a test tube tip (no text or symbols present)

Illustration of a hairdryer with a magnified inset showing internal structure (no text or symbols)

Diagram of a laboratory pipette with a labeled component (no text or symbols present)

Diagram of a hairbrush with a magnified inset showing internal structure (no text or symbols)

Diagram of a laboratory test tube with a magnified inset showing internal structures (no text or labels)

Diagram of a test tube with a cap and a magnified inset showing internal components (no text or labels)

Simple line drawing of a medical or anatomical structure with a small star-like feature and a speech bubble containing an electrical symbol (no text or labels)

Illustration of a robotic device with a lock icon and speech bubble (no text or symbols)

Illustration of a hand pressing a button on a human leg, with no visible text or symbols

Diagram of a plug connected to a handheld device with two arrows indicating cable or connection (no text or symbols present)

Simple line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Illustration of a hand holding a circular object with an arrow pointing to it, no text or symbols present

Illustration of a person applying facial hair to their ear with a tool (no text or symbols)

Line drawing of a person's face with a hand touching the ear area (no text or symbols)

Line drawing of a person applying a product to their ear (no text or symbols)

Illustration of a hand washing a small object with water spray (no text or symbols)

Illustration of a person applying makeup to the ear with a brush (no text or symbols)

Illustration of a hand pressing a button on a patient's knee joint (no text or symbols)

Illustration of a person applying a toothbrush to their beaded area, with a circular logo containing the letter 'T' (no text or symbols on the diagram itself)

Illustration of a funnel with an upward arrow and a cross symbol, no text or labels present

БЪЛГАРСКИ52

Diagram showing a funnel pouring liquid into a curved surface, with an inset magnified view of the process (no text or symbols)

Illustration of a robotic arm interacting with a curved surface, showing motion and magnified detail (no text or symbols)

Illustration of a person applying a hair accessory to their ear (no text or symbols present)

Illustration of a hairdryer with a magnified inset showing the tip and hair (no text or symbols)

Line drawing of a hairbrush cutting down a button with a downward arrow (no text or symbols)

Illustration of a man with a beard eating a spoon (no text or symbols)

Illustration of two hands holding a tool, with arrows indicating movement or force direction (no text or symbols)

Line drawing of a person applying a hair accessory to their neck (no text or symbols)

Illustration of a dropper tip dispensing liquid into a container, with an inset showing a dropper tip (no text or symbols present)

Illustration of a mechanical component with fluid flow, no text or symbols present

Illustration of a person applying facial care to their face, with no visible text or symbols

Illustration showing a person applying facial care to another person's face, with a magnified inset of the tool (no text or symbols present)

Simple line drawing of a paintbrush with a cross mark and spray effect (no text or symbols)

Simple line drawing of a container with an upward arrow, no text or symbols present

Illustration of a blender with a black arrow pointing to its interior (no text or symbols)

Mechanical component diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols)

Warning symbol for a device with a downward arrow and prohibition sign (no text or labels)

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Hand holding two circular buttons with power and spiral symbols, next to a device (no text or labels visible)

Diagram of a blender with a black arrow pointing to its lid (no text or symbols present)

Mechanical component diagram showing a lever mechanism with a downward arrow (no text or symbols)

Illustration of a hand holding a small object with motion lines indicating movement or force (no text or symbols)

Anatomical illustration of a human head with internal organs and a directional arrow indicating movement (no text or labels)

Illustration of a noodle being lifted from a pipette into a bowl of noodles (no text or symbols)

Anatomical illustration of internal organs with arrows indicating movement or force (no text or labels)

Illustration of a mushroom-shaped object with an upward arrow, no text or symbols present

Diagram showing two mechanical components with arrows indicating direction, no text or symbols present

Diagram showing two mechanical components with fluid flow, no text or symbols present

Simple line drawing of a mechanical component with a circular base and a star-shaped top (no text or symbols)

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Diagram showing two mechanical components with arrows indicating motion or force, no text or symbols present

Illustration of two hands holding a cloud-like object with arrows indicating motion or transformation (no text or symbols)

Illustration of a hand holding a shoe with a fork inserted into the cup (no text or symbols)

Illustration of a hand blowing bubbles with motion lines, accompanied by a circular icon showing a rock face and a cross symbol (no text or labels)

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols)

Illustration of two hands using a tool to lift or spread material, separated by a diagonal line (no text or symbols)

Two cartoon-style icons showing a bird and a boot, separated by a diagonal line (no text or symbols)

Simple line drawing of a mechanical component with a top cylindrical part and an upward arrow, no text or symbols present.

Two hanging objects with ropes tied on a diagonal line, no text or symbols visible

Illustration of mechanical components including a drum, roller, and base (no text or symbols)

Diagram of a mechanical component with a top cylindrical part and an upward arrow, no text or symbols present.

Anatomical illustration of a human head and neck with internal organs, showing no text or labels.

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Diagram showing a hand holding a device with a circular component and an arrow indicating direction (no text or symbols)

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Illustration of two hands holding a cloud-like object with arrows indicating motion or transformation (no text or symbols)

Symbol of a waste bin with no text or labels, crossed by two crossed lines and a solid black rectangle below (no text or symbols present)

Illustration showing a hand holding a tool and a foot, with no visible text or symbols

Illustration of two skis with directional arrows indicating movement or motion (no text or symbols)

Diagram showing two car interior compartments with a directional arrow indicating movement or change (no text or symbols present)

Diagram showing two hands operating a tool with an arrow indicating motion (no text or symbols present)

No sign depicting a faucet with a showerhead, enclosed in a circle (no text or symbols)

Prohibition sign showing a faucet without a shower, enclosed in a circle (no text or symbols)

Upozornění

Simple line drawing of a showerhead spraying over water in a container (no text or symbols)

Diagram of a laboratory test tube with a magnified inset showing internal structures (no text or labels)

Illustration of a dental instrument with a starburst pattern and a speech bubble (no text or symbols)

Diagram of a test tube with a magnified inset showing internal structure (no text or symbols)

- Indikátor nabití baterie s 1 kontrolkou

Diagram of a test tube with a stopper and a magnified circular section labeled 'I' (no text or symbols beyond the label)

Vybitá baterie

Illustration of a hairdryer with a magnified inset showing the tip and base (no text or symbols)

Diagram of a device with a starburst pattern and a magnified view of its internal structure (no text or symbols)

- Indikátor nabití baterie s 1 kontrolkou

Diagram of a laboratory test tube with a magnified inset showing internal components (no text or labels)

Indikátor nabití baterie se 3 kontrolkami

Cestovní zámek

Illustration of a hand pressing a button on a human leg, with no visible text or symbols

Diagram of a plug connected to a handheld device with two arrows indicating cable or connection (no text or symbols present)

1 Zasuňte malou zástrčku do systému SmartClean.

Simple line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Illustration of a hand holding a circular object with an arrow pointing to it, no text or symbols present

Illustration of a person applying facial hair to their ear with a curling tool (no text or symbols)

Illustration of a person's face with hand near ear area, no text or symbols present

Line drawing of a person's head and neck with a hand near the ear area (no text or symbols)

Illustration of a hand washing a small object with a water dispenser (no text or symbols)

Illustration of a person applying makeup to their face with a brush (no text or symbols)

Mokré holení

Illustration of a hand holding a circular button labeled 'Y' on a curved surface, with no visible text or symbols beyond the icon.

Illustration of a person using a hairdryer with a T-shaped logo overlay (no text or symbols on the figure)

Diagram showing a device with a cross symbol and an upward arrow, no text or labels present

Diagram showing a funnel pouring liquid into a curved surface, with an inset magnified view of the process (no text or symbols)

Illustration of a hairdryer with an inset showing a hairdryer tip (no text or symbols present)

Illustration of a person using a hairpin to apply product (no text or symbols present)

Illustration of a hairdryer with an inset showing the tip and base (no text or symbols)

Line drawing of a hairbrush cutting into a pair of scissors (no text or symbols)

Illustration of a man with a beard and a pipe, no text or symbols present

Illustration of two hands holding a device with directional arrows indicating movement (no text or symbols)

Line drawing of a person's head and neck with a hairpin (no text or symbols)

Illustration of a dropper tip dispensing liquid into a container with an arrow indicating flow (no text or symbols)

Illustration of a mechanical component with motion lines indicating movement (no text or symbols)

Illustration of a person applying facial care to their face, with no text or symbols present.

Illustration showing two facial expressions with a magnified inset of the first face (no text or symbols)

Simple line drawing of a paintbrush with a cross mark and spray, no text or symbols present

Simple line drawing of a container with an upward arrow, no text or symbols present

5 Vložte čisticí kazetu do systému SmartClean.

Diagram of a blender with a black arrow indicating the process (no text or symbols present)

Mechanical component diagram showing a lever with a downward arrow indicating motion (no text or symbols)

Illustration of a hand pouring liquid into a container with an inset showing a cross-section of a container (no text or symbols)

Close-up of a mechanical component with a black arrow pointing downward (no text or symbols visible)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Hand holding two circular buttons with a power symbol, next to a device component (no text or labels visible)

Diagram of a mechanical component with two circular indicators (one checked, one not checked) and a checkmark symbol, no readable text or labels present.

Diagram of a blender with a plug inserted into a container (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating rotation (no text or symbols)

Illustration of a hand holding a small object with motion lines, possibly a tool or device, emitting a bundle of wires or fibers (no text or symbols present)

Anatomical illustration of a human upper body with decorative patterns and arrows indicating movement or force (no text or labels)

Illustration of a fork being inserted into a bowl of noodles (no text or symbols)

Anatomical illustration of a human digestive system with an arrow indicating a process (no text or labels present)

Illustration of a mechanical component with an upward arrow, no text or symbols present

Diagram showing two mechanical components with arrows indicating direction, no text or symbols present

Illustration of two kitchen utensils with water splashing, showing different shapes and surfaces (no text or symbols)

Cross-sectional diagram of a mechanical component with internal structure (no text or labels)

Abstract diagram of a symmetrical geometric structure with three circular elements and a top node (no text or symbols)

Diagram showing a circular object with a downward arrow pointing to a triangular structure (no text or symbols)

Diagram showing two circular components with arrows indicating direction, one crossed over the other by a diagonal line (no text or symbols)

Illustration of two hands holding a cloud-like object with a downward arrow and a glowing effect (no text or symbols)

Illustration of a shoe being lifted by a bag (no text or symbols)

Illustration of a hand crushing a rock with a magnified circular inset showing a pile of dust (no text or symbols)

Illustration of two hands holding a tool with directional arrows indicating movement (no text or symbols)

Illustration of two hands holding objects above and below a diagonal line (no text or symbols)

Illustration of two cartoon fish separated by a diagonal line, one falling and the other wading (no text or symbols)

Diagram of a mechanical component with a top cylindrical part and a base, showing an upward arrow (no text or symbols)

Two identical mechanical components hanging from a diagonal line, no text or symbols visible

Illustration of a mechanical component with motion indicators, no text or symbols present

Diagram of a hairbrush with a downward arrow indicating compression or disassembly (no text or symbols)

Simple line drawing of a mechanical component with a downward arrow indicating motion (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram of a mechanical component with a top cylindrical part and an upward arrow indicating motion (no text or symbols)

Anatomical illustration of a human digestive system with an arrow indicating a specific region (no text or labels present)

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Diagram showing a hand holding a circular object with arrows indicating motion or force (no text or symbols present)

Abstract diagram of a symmetrical geometric structure with three circular elements and an upward arrow, no text or symbols present.

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Diagram showing mechanical components with arrows indicating motion or force, no readable text or symbols present

Illustration of two hands holding a heart-shaped object with arrows indicating motion or change (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Simple line drawing of a trash bin with two crossed x-axes (no text or symbols)

Illustration showing a hand using a screwdriver to cut a cylindrical object, with another hand holding a small boat (no text or symbols present)

Illustration of two skis with directional arrows indicating motion (no text or symbols)

Two mechanical components with a diagonal line and an upward arrow, no visible text or symbols

Illustration of a robotic arm gripping a tool, with a hand holding the grip and an arrow indicating motion (no text or symbols)

No sign depicting a faucet without any text or symbols

No smoking sign with faucet symbol (no text)

Ettevaatust

Simple line drawing of a showerhead spraying over a water-filled container (no text or symbols)

Üldteave

Diagram of a test tube with a magnified inset showing internal structure (no text or labels)

Illustration of a laboratory test tube with a cap and bulb, showing a magnified view of the test tube (no text or symbols present)

Diagram of a hairbrush with a circular inset showing a vertical line (no text or symbols)

Diagram of a laboratory test tube with a labeled inset showing a test tube (no text or symbols present)

Illustration of a laboratory test tube with a magnified inset showing internal components (no text or symbols)

Illustration of a test tube with a cap and a magnified inset showing internal structure (no text or symbols)

Aku jääkmahtuvus

Diagram of a test tube with a cap and magnified inset showing internal components (no text or labels)

Simple line drawing of a plug plug inside a container with a small star-shaped mark (no text or symbols)

Illustration of a person wearing a smartwatch with a lock icon and speech bubble (no text or symbols)

Diagram of a smart device with a lock icon and a speech bubble (no text or symbols)

Diagram of a hairpin with two leads and a plug, showing wiring connection (no text or symbols)

Illustration of a hand spraying water with a magnified inset showing a droplet on a surface (no text or symbols)

Close-up of a mechanical component with a black arrow pointing downward (no text or symbols visible)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Illustration of a hand holding a circular button with an arrow, pointing to a rounded object (no text or symbols present)

Illustration of a person applying makeup to their face with a brush (no text or symbols)

Line drawing of a person's face with hand near ear area, no text or symbols present

Line drawing of a person applying a product to their ear (no text or symbols)

Illustration of a hand washing a cup with a water dispenser (no text or symbols)

3 Loputage pardlipead kraani all, et kindlustada pardlipea sujuv libisemine nahal.
4 Lülitage pardel sisse.

Illustration of a person applying makeup to their ear with a brush (no text or symbols)

Illustration of a hand pressing a button on a human leg, with no visible text or symbols

Illustration of a person's beard and ear with a T-shaped logo overlay (no text or symbols on the main subject)

Illustration of a hand holding a device with a warning symbol (no text or labels)

Diagram showing a funnel pouring liquid into a curved surface, with an inset magnified view of a droplet (no text or symbols)

Illustration of a robotic arm with motion lines and a magnified inset showing a robot head (no text or symbols)

Illustration of a person using a hairpin to apply product (no text or symbols present)

Illustration of a spray gun dispensing liquid onto a surface, with an inset showing the spray bottle (no text or symbols present)

Line drawing of a hairbrush cutting into a button (no text or symbols)

Illustration of a man with a beard eating a pipe (no text or symbols)

Illustration of a hand holding a tool with directional arrows indicating movement (no text or symbols)

Line drawing of a person applying a hair accessory to their neck (no text or symbols)

Illustration of a dropper tip dispensing liquid into a container, with an inset showing the same dropper (no text or symbols present)

Illustration of a mechanical component with fluid flow, no text or symbols present

Illustration of a person applying facial care to their face, with no visible text or symbols

Simple line drawing of a paintbrush with a cross mark and spray effect (no text or symbols)

Simple line drawing of a container with an upward arrow and label 'POTATO' (no text or symbols on the diagram itself)

Diagram of a blender with a handle and base, showing mechanical components without any text or symbols.

Diagram of a mechanical component with a downward arrow indicating rotation (no text or symbols)

Illustration of a spray gun with a stop sign and downward arrow (no text or symbols)

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols visible)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Hand holding two circular buttons with power and spiral symbols, connected to a device (no text or labels visible)

Diagram of a funnel-shaped container with two circular indicators showing check and stop symbols (no text or labels)

Illustration of a hand holding a small object with motion lines indicating movement or force (no text or symbols)

Anatomical illustration of a human head with a decorative pattern and arrow indicating a specific anatomical structure (no text or labels present)

Illustration of a fork lifting a bowl of noodles (no text or symbols)

Anatomical illustration of a human head and neck with internal organs, showing a highlighted anatomical structure (no text or labels)

Illustration of a biological structure with an upward arrow, showing internal components (no text or symbols)

Diagram showing two mechanical components with directional arrows, no text or symbols present

Illustration of two mechanical devices with water spray and a gear-like component, no text or symbols present

Pure mechanical component diagram without any text, numbers, or symbols

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Diagram showing mechanical components with arrows indicating motion or force, no readable text or symbols present

Illustration of two hands holding a cloud-like object with arrows indicating motion or transformation (no text or symbols)

Illustration of a hand cleaning a shoe with a tool (no text or symbols)

Illustration of two hands holding a tool with arrows indicating movement or force direction (no text or symbols)

Illustration of two hands holding small objects above a diagonal line, no text or symbols present

Two cartoon fish jumping over a diagonal line, one falling and the other wading (no text or symbols)

Diagram of a mechanical component with a top cylindrical part and an upward arrow, no text or symbols present.

Two hanging objects with ropes tied on a diagonal line, no text or symbols visible

Illustration of mechanical components including a drum, drum screw, and base mount (no text or symbols)

Hoiundamine

Diagram of a mechanical component with a top cylindrical part and an upward arrow, no text or symbols present.

Anatomical illustration of a human digestive system with arrows indicating movement or force (no text or labels)

Illustration of a mushroom-shaped container with an upward arrow indicating growth (no text or symbols)

Diagram showing a hand holding a circular object with arrows indicating direction, alongside a divided line and a battery-like component (no text or symbols present)

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Diagram showing two circular components with arrows indicating motion or flow, separated by a diagonal line (no text or symbols)

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or numbers present)

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

Illustration of a hand holding a small object, with no visible text or symbols

Two illustrations of a scooter with directional arrows indicating motion, no text or symbols present

1 Eemaldage tagapaneelil olev kruvi kruvikeeraja abil. Seejärel eemaldage tagapaneel.

Two mechanical components with arrows indicating motion or assembly, no visible text or symbols

Diagram showing mechanical assembly with tool and clamping mechanism (no text or symbols)

No smoking sign with faucet symbol (no text)

Pažnja

Simple line drawing of a showerhead spraying over water in a container (no text or symbols)

Elektromagnetska polja (EMF)

Illustration of a laboratory test tube with a magnified inset showing internal structures (no text or symbols)

Illustration of a laboratory test tube with a magnified inset showing a test tube tip (no text or symbols present)

Indikator napunjenosti baterije s 1 diodom

- Punjenje traje približno 1 sat.

Diagram of a laboratory test tube with a capillary top and a magnified inset showing internal structures (no text or labels)

Diagram of a mechanical component with a labeled circular feature (no text or symbols present)

- Indikator napunjenosti baterije s 1 diodom

Baterija je gotovo prazna

Illustration of a hairdryer with a magnified inset showing the tip and base (no text or symbols)

Kada je baterija gotovo prazna, indikator napunjenosti baterije bljeska narančasto.

- Indikator napunjenosti baterije s 3 diode

Diagram of a device with a starburst pattern and a magnified view of its internal structure (no text or symbols)

- Indikator napunjenosti baterije s 1 diodom

Preostali kapacitet baterija

Diagram of a dropper with a magnified inset showing internal structure (no text or symbols)

Indikator napunjenosti baterije s 3 diode

- Preostali kapacitet baterije naznačen je indikatorima napunjenosti baterije koji kontinuirano svijetle.

Podsjetnik za iskopčavanje kabela

Za učinkovitije brijanje aparat očistite nakon svake uporabe.

Illustration of a smart device with a lock icon and a star-shaped button (no text or symbols)

Illustration of a smart device with a lock icon and a button, no text or symbols present

Deaktiviranje putnog zaključavanja

Zamjena glava za brijanje

Illustration of a hand pressing a button on a human leg, with no visible text or symbols

Aktivacija postavke Turbo

1 Kako biste aktivirali postavku Turbo, jednom pritisnite gumb Turbo.

Deaktivacija postavke Turbo

1 Kako biste deaktivirali postavku Turbo, jednostavno ponovo pritisnite gumb Turbo.

Punjenje

Punjenje traje približno 1 sat.

Diagram of a hairpin with a plug and cord, showing two blades and a cable with arrows indicating direction (no text or symbols)

1 Umetnite mali utikač u aparat, a adapter u zidnu utičnicu.

Punjenje u sustavu SmartClean (samo neki modeli)

1 Mali utikač ukopčajte u sustav SmartClean.

Simple line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

4 Držite aparat za brijanje naopako iznad držača. Pazite da prednji dio aparata za brijanje bude okrenut prema sustavu SmartClean.

Illustration of two boots with arrows indicating motion or damage, no text or symbols present

5 Stavite aparat za brijanje u držač, nagnite aparat za brijanje natrag i pritišćite gornji poklopac kako biste priključili aparat za brijanje ("klik").

- Simbol baterije sporo bljeska naznačujući da se aparat za brijanje puni.

Uporaba aparata za brijanje

Illustration of a hand holding a circular object with an arrow pointing to it, no text or symbols present

1 Kako biste uključili aparat, jednom pritisnite gumb za uključivanje/isključivanje.
2 Kako biste isključili aparat, jednom pritisnite gumb za uključivanje/isključivanje.
- Indikator napunjenosti baterije s 3 diode: zaslon će se uključiti na nekoliko sekundi i prikazati preostali kapacitet baterije.

Brijanje

Illustration of a person applying a hairpin to their ear (no text or symbols present)

1 Uključite aparat.
2 Pomičite glave za brijanje po koži kružnim pokretima.

Napomena: Nemojte oblikovati pravocrtne pokrete.

3 Aparat za brijanje očistite nakon uporabe (pogledajte poglavlje “Čišćenje i održavanje”).

Illustration of a person's face with hand near ear area, showing facial features (no text or symbols)

Mokro brijanje

Ovaj aparat za brijanje možete koristiti i pod tušem ili na mokrom licu uz pjenu ili gel za brijanje. Za brijanje s pjenom ili gelom za brijanje slijedite korake u nastavku:

1 Nanesite malo vode na kožu.

2 Nanesite pjenu ili gel za brijanje na kožu.

Line drawing of a person applying a product to their ear (no text or symbols)

3 Jedinicu za brijanje isperite pod mlazom vode kako bi mogla glatko kliziti po koži.

Illustration of a hand using a water tap to lift a small bowl (no text or symbols)

5 Pomičite glave za brijanje po koži kružnim pokretima.

Illustration of a person applying makeup to their ear with a brush (no text or symbols)

Napomena: Aparat za brijanje redovito ispirite pod mlazom vode kako bi i dalje glatko klizio po koži.

Illustration of a person's beard with a T-shaped logo, no text or symbols present

3 Pomičite glave za brijanje po koži kružnim pokretima.

Napomena: Nemojte oblikovati pravocrtne pokrete.

4 Kako biste deaktivirali postavku Turbo, jednostavno jednom pritisnite gumb Turbo.

Diagram showing a funnel with an upward arrow and a cross symbol, no text or labels present

Diagram showing a funnel pouring liquid into a leaf, with an inset magnified view of the leaf being covered (no text or symbols)

Illustration of a hairdryer with an inset showing the tip and base (no text or symbols)

Illustration of a person using a hairdryer (no text or symbols present)

3 Uključite aparat.

4 Sada možete početi s podrezivanjem.

5 Nastavak očistite nakon uporabe (pogledajte poglavlje “Čišćenje i održavanje”).

Uporaba nastavka za oblikovanje brade

Illustration of a medical procedure showing a surgical tool impacting a patient's skin area, with an inset magnified view of the procedure (no text or symbols present)

Line drawing of a hairdryer with a hand emitting powder from its tip (no text or symbols)

1 Češalj gurnite izravno u vodilice s obje strane nastavka (“klik”).

Illustration of a man with a beard eating a spoon (no text or symbols)

4 Sada možete započeti oblikovanje brade pomicanjem nastavka prema gore uz blagi pritisak, pazeći da prednji dio češlja potpuno dodiruje kožu.

5 Nastavak očistite nakon uporabe (pogledajte poglavlje “Čišćenje i održavanje”).

Uporaba nastavka za oblikovanje brade bez češlja

Nastavak za oblikovanje brade možete koristiti bez češlja kako biste oblikovali bradu, brkove, zaliske ili liniju uz vrat na duljinu od 0,5 mm.

Illustration of two hands holding a curved object with directional arrows indicating movement or force (no text or symbols)

1 Povucite češalj s nastavka.

Line drawing of a person applying a hair accessory to their ear (no text or symbols)

3 Sada možete započeti oblikovanje brade, brkova, zalizaka ili linije uz vrat tako da pomičete nastavak za oblikovanje prema dolje uz blagi pritisak i držeći ga pod pravim kutom u odnosu na kožu.
4 Nastavak očistite nakon uporabe (pogledajte poglavlje “Čišćenje i održavanje”).

Uporaba nastavka s četkom za čišćenje

Koristite nastavak s rotirajućom četkom za čišćenje s dnevnom kremom za čišćenje. Nastavak s četkom za čišćenje uklanja masnoću i prljavštinu, što pomaže u održavanju kože zdravom i bez masnoće.

Illustration of a dropper tip dispensing liquid into a container, with an inset showing a dropper tip (no text or symbols present)

Illustration showing a hand washing a tooth with a spray bottle and another person applying facial care to their face (no text or symbols)

2 Navlažite nastavak vodom. Aparat nemojte koristiti sa suhom glavom četke jer time biste mogli nadražiti kožu.

Illustration showing facial massage technique with magnified inset (no text or symbols)

Simple line drawing of a paintbrush with a cross mark, no text or symbols present

Kako biste spriječili curenje tekućine, nemojte naginjati sustav SmartClean.

Napomena: Držite sustav SmartClean dok ga pripremate za uporabu.

Priprema sustava SmartClean za uporabu

1 Mali utikač umetnite u stražnju stranu sustava SmartClean.
2 Adapter priključite u zidnu utičnicu.
3 Pritisnite gumb na bočnoj strani sustava SmartClean i podignite gornji dio sustava SmartClean.

Simple line drawing of a container with an upward arrow, no text or symbols present

4 Povucite brtvu sa spremnika za čišćenje.

Diagram of a blender with a black arrow indicating the process (no text or symbols present)

5 Stavite spremnik čišćenje u sustav SmartClean.

Mechanical component diagram showing a lever with a downward arrow indicating motion (no text or symbols)

6 Gornji dio sustava SmartClean gurnite natrag prema dolje (“klik”).

Uporaba sustava SmartClean

Prije nego što ga stavite u sustav SmartClean s aparata za brijanje obavezno otresite višak vode.

Illustration of a hand pouring liquid into a container with an inset showing a cross-section of a container (no text or symbols)

Close-up of a mechanical component with a black arrow pointing downward (no text or symbols visible)

2 Držite aparat za brijanje naopako iznad držača. Pazite da prednji dio aparata za brijanje bude okrenut prema sustavu SmartClean.

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

3 Stavite aparat za brijanje u držač, nagnite aparat za brijanje natrag i pritišćite gornji poklopac kako biste priključili aparat za brijanje ("klik").

- Simbol baterije sporo bljeska naznačujući da se aparat za brijanje puni.

Hand holding two circular buttons with a power symbol, next to a device component (no text or labels visible)

Diagram of a mechanical component with two circular indicators (one checked, one not checked) and a checkmark symbol, no readable text or labels present.

Diagram of a blender with a black arrow pointing to its internal component (no text or symbols present)

5 Novi spremnik za čišćenje postavite u sustav SmartClean.

Diagram of a mechanical component with a downward arrow indicating direction (no text or symbols)

6 Gornji dio sustava SmartClean gurnite natrag prema dolje (“klik”).

Čišćenje aparata za brijanje pod mlazom vode

Za najbolje rezultate brijanja aparat očistite nakon svakog brijanja.

Illustration of a hand holding a small object with motion lines indicating movement or force (no text or symbols)

1 Jedinicu za brijanje neko vrijeme ispirite pod mlazom tople vode.

2 Pritisnite gumb za otpuštanje i otvorite jedinicu za brijanje.

Illustration of a biological structure with layered patterns and a curved arrow indicating rotation (no text or symbols)

Illustration of a food item being lifted by a fork (no text or symbols)

3 Ispirite držač glave za brijanje pod mlazom tople vode 30 sekundi.
4 Pažljivo otresite višak vode i ostavite držač glave za brijanje da se osuši.
5 Zatvorite držač glave za brijanje ("klik").

Temeljito čišćenje

Diagram of a biological structure with arrows indicating movement or force (no text or labels)

Illustration of a mushroom-shaped container with an upward arrow, no text or symbols present

Diagram showing two mechanical components with arrows indicating direction, no text or symbols present

4 Odvojite glave za brijanje iz držača glave za brijanje. Svaka glava za brijanje sastoji se od rezača i štitnika.

Napomena: Nemojte istovremeno čistiti više od jednog rezača i štitnika jer su međusobno usklađeni. Ako rezač slučajno stavite u pogrešan štitnik, možda će trebati nekoliko tjedana da se ponovno uspostavi optimalan rad aparata.

Diagram showing fluid flow between two containers with a valve and pump (no text or symbols)

5 Očistite rezač i štitnik pod mlazom vode.

Diagram of a mechanical or electrical component with a central gear-like structure and a base, showing no text or symbols.

Diagram showing a circular object falling into a triangular structure with internal rings (no text or symbols)

Diagram showing two circular components with arrows and a checkmark, no readable text or symbols present

Napomena: Držite držač glave za brijanje u ruci prilikom ponovnog umetanja glava za brijanje i vraćanja prstena za pričvršćivanje. Nemojte stavljati držač glave za brijanje na površinu dok to činite, jer to može uzrokovati oštećenja.

Illustration of two hands holding a cloud-like object with arrows indicating motion or transformation (no text or symbols)

9 Vratite šarku držača glava za brijanje u utor jedinice za brijanje. Zatvorite držač glava za brijanje ("klik").

Illustration of a shoe being lifted by a tool, showing the blade and handle (no text or symbols)

Illustration of a hand holding a small object with motion lines, emitting particles, and a magnified circular inset showing a mountain-like shape with an 'X' symbol (no text or labels)

Illustration of two hand positions with arrows indicating movement or force direction (no text or symbols)

1 Češalj povucite s nastavka za oblikovanje brade.

Illustration of two hands cleaning a surface with chopsticks and a spoon (no text or symbols)

Illustration of two fish separated by a diagonal line, one falling and the other wading (no text or symbols)

Diagram of a mechanical component with a top component and an arrow indicating upward motion (no text or symbols)

Two identical diagrams showing a container being lifted by a tool, separated by a diagonal line (no text or symbols)

Illustration of mechanical components including a knob, drum, and base (no text or symbols)

2 Uključite aparat.
3 Nastavak za oblikovanje brade i češalj neko vrijeme zasebno ispirite pod mlazom vruće vode.
4 Nakon čišćenja isključite aparat.
5 Pažljivo otresite višak vode i ostavite nastavak za oblikovanje brade i češalj da se osuše.

Napomena: Priloženi dodatni pribor može se razlikovati ovisno o proizvodu. Na kutiji su prikazani proizvodi isporučeni s aparatom.

Napomena: Savjetujemo da aparat i njegove nastavke ostavite da se osuše prije nego što na nastavke stavite zaštitne kapice i spremite aparat za brijanje u torbicu.

Diagram of a mechanical component with a top cylindrical part and an arrow indicating upward motion (no text or symbols)

Anatomical illustration of a human digestive system with an arrow indicating a process (no text or labels present)

Illustration of a mechanical component with an upward arrow, no text or symbols present

Diagram showing a hand holding a device with an upward arrow and a magnified view of its internal components (no text or symbols)

5 Izvadite glave za brijanje iz držača glave za brijanje i bacite ih.

6 Stavite nove glave za brijanje u držač.

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Diagram showing two mechanical components with a checkmark indicating a specific section (no text or symbols present)

Napomena: Držite držač glave za brijanje u ruci prilikom ponovnog umetanja glava za brijanje i vraćanja prstena za pričvršćivanje. Nemojte stavljati držač glava za brijanje na površinu dok to činite jer to može uzrokovati oštećenja.

Diagram showing two hands holding a cloud-like object with arrows indicating motion or transformation (no text or symbols)

8 Vratite šarku držača glava za brijanje u utor jedinice za brijanje. Zatvorite držač glava za brijanje (“klik”).

Symbol of a trash bin crossed with no text or labels, accompanied by a solid black rectangle below (no text or symbols present)

- Ovaj simbol naznačuje da se proizvod ne smije odlagati s uobičajenim otpadom iz kućanstva (2012/19/EU).

Illustration showing a hand using a screwdriver to cut a cylindrical object, with another hand holding a small boat (no text or symbols present)

1 Izvadite vijak iz stražnje ploče pomoću odvijača. Zatim odvojite stražnju ploču.

Illustration of two skis with directional arrows indicating motion (no text or symbols)

2 Savijte kuke u stranu i izvadite jedinicu za napajanje.

Diagram of two mechanical components with arrows indicating motion or assembly (no text or symbols)

3 Slomite kukice i odvojite prednju ploču jedinice za napajanje.

Illustration of a hand using a tool to lift a car, showing mechanical components and motion (no text or symbols)

Prohibition sign showing a faucet without raindrops, enclosed in a circle (no text)

Simple line drawing of a showerhead spraying over water in a container (no text or symbols)

Illustration of a hairdryer with a magnified inset showing internal structure (no text or symbols)

Illustration of a laboratory pipette with a magnified inset showing a test tube tip (no text or symbols present)

Diagram of a laboratory test tube with a magnified inset showing internal structure (no text or labels)

Diagram of a mechanical component with a circular annotation and pointer, no readable text or symbols present.

Illustration of a hairdryer with a magnified inset showing internal structure (no text or symbols)

Diagram of a dropper with a cap and a starburst pattern, no text or symbols present

Diagram of a laboratory test tube with a magnified inset showing internal components (no text or labels)

Simple line drawing of a plug plug with a small star-shaped base and a speech bubble containing an electrical symbol (no text or labels)

Illustration of a robotic arm with a lock icon and a speech bubble (no text or symbols)

Illustration of a robotic device with a lock icon and speech bubble (no text or symbols)

Illustration of a human torso with a speech bubble containing a heart symbol (no text or labels)

Illustration of a hand pressing a button on a knee joint (no text or symbols)

Diagram of a hairpin plug connecting a socket to a rack with an arrow indicating direction (no text or symbols)

Illustration of a hand pouring liquid into a container with an inset showing a cross-section of a container (no text or symbols)

Close-up of a mechanical component with a black arrow pointing downward (no text or symbols visible)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Illustration of a hand pressing down on a curved object with a circular arrow pointing to it (no text or symbols)

Illustration of a person applying makeup to their face with a brush (no text or symbols)

Illustration of a person's face with hand near ear area, no text or symbols present

Line drawing of a person applying a product to their ear (no text or symbols)

Illustration of a hand washing a cup with a water dispenser (no text or symbols)

Illustration of a hand pressing a button on a human knee joint (no text or symbols)

Illustration of a person's beard and hair being brushed with a toothbrush, with a circular logo containing the letter 'T' (no text or symbols on the image itself)

Illustration of a hand holding a device with a bulb and a cross symbol, no text or labels present

Diagram showing a funnel pouring liquid into a curved surface, with an inset magnified view of a droplet (no text or symbols)

Illustration of a robotic arm with motion arrows and a magnified inset showing a small object (no text or symbols)

Line drawing of a person applying makeup to their ear (no text or symbols)

Illustration of a spray gun on a curved surface with an inset showing a magnified view of the spray (no text or symbols)

Illustration of a hairbrush cutting into a toothbrush with a downward arrow (no text or symbols)

Illustration of a man with a beard eating a small bowl (no text or symbols)

Illustration of two hands performing a finger manipulation or tool path (no text or symbols present)

Line drawing of a person applying a hair accessory to their neck (no text or symbols)

Illustration of a dropper dispensing liquid into a container with a magnified inset showing the dropper's tip (no text or symbols present)

Illustration of a mechanical component with motion lines indicating movement (no text or symbols)

Illustration of a person applying facial care to their face, with no visible text or symbols

Illustration showing two men applying facial care to their face, one with a magnified inset of the first eye (no text or symbols present)

Simple line drawing of a paintbrush with a cross mark and spray effect (no text or symbols)

Simple line drawing of a container with an upward arrow and label 'SWEET' (no text or symbols on the diagram itself)

MAGYAR200

Diagram of a blender with a black arrow pointing to its base, showing mechanical components (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating direction (no text or symbols)

Illustration of a spray bottle with a stopper and a prohibition symbol (no text or labels)

Illustration of a hand holding a small object with arrows indicating motion or force, and an inset showing a cross-section of a mechanical component (no text or symbols present)

Close-up of a mechanical component with a black arrow pointing downward (no text or symbols visible)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Line drawing of a hand inserting a device into a container with two circular buttons (no text or symbols)

Diagram of a mechanical component with two circular indicators (one checked, one not checked) and a checkmark symbol, no readable text or labels present.

Illustration of a hand holding a shoe being lifted by a pipette (no text or symbols)

Illustration of a decorative ornamental object with swirling patterns and an arrow indicating direction (no text or symbols)

Illustration of a spoon lifting a bowl of noodles (no text or symbols)

Diagram of a biological structure with swirling patterns and directional arrows, no visible text or symbols

Illustration of a mushroom-shaped container with internal spiral patterns and an upward arrow, no text or symbols present.

Diagram showing two mechanical components with directional arrows, no text or symbols present

Diagram showing two mechanical components with fluid flow, no text or symbols present

Pure mechanical component diagram without any text, numbers, or symbols

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Diagram showing mechanical components with arrows indicating motion or force direction (no text or symbols)

Illustration of two hands exchanging a heart-shaped object, with arrows indicating motion (no text or symbols)

Illustration of a hand holding a shoe with a tool above it, no text or symbols present

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols present)

Illustration of four different water spray methods: dropping from a bottle, spraying water, creating a fish, and splashing water (no text or symbols)

Diagram of a mechanical component with a top cylindrical part and an upward arrow, no text or symbols present.

Two identical mechanical components hanging from a diagonal line, no text or symbols visible

Illustration of mechanical components including a drum, drumbell, and base mount (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram of a mechanical component with a top cylindrical part and an arrow indicating upward motion (no text or symbols)

Diagram of a biological structure with internal organs and directional arrows, no visible text or labels

Illustration of a mushroom-shaped container with internal swirling patterns and an upward arrow, no text or symbols present.

Diagram showing a hand holding three circular components with an arrow indicating direction, alongside a battery and a separate cylindrical component (no text or symbols present)

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Diagram showing two circular components with arrows indicating motion or flow, separated by a diagonal line (no text or symbols)

Illustration of two hands holding a cloud-like object with a downward arrow and a glowing effect (no text or symbols)

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or numbers present)

Simple line drawing of a trash bin with crossed x-axes (no text or symbols)

Illustration of a tool tip and a foot with an arrow, no text or symbols present

Two illustrations of a scooter with directional arrows indicating motion (no text or symbols)

Two mechanical components with a diagonal line and an arrow indicating motion or assembly (no text or symbols)

Diagram of two mechanical components with a diagonal line, showing no text or symbols

No sign depicting a faucet with a showerhead, enclosed in a circle (no text or symbols)

No smoking sign with faucet symbol (no text or numbers)

Simple line drawing of a showerhead spraying over water (no text or symbols)

Diagram of a hair follicle with a magnified inset showing internal structure (no text or labels)

Diagram of a dropper with a spiky tip and a magnified inset showing internal structure (no text or symbols)

Diagram of a laboratory test tube with a magnified inset showing internal structure (no text or labels)

Diagram of a laboratory test tube with a magnified inset showing a labeled section (no text or symbols present)

Illustration of a hairdryer with a magnified inset showing internal structure (no text or symbols)

Diagram of a laboratory test tube with a capillary top and a magnified inset showing a labeled region (no text or symbols present)

Diagram of a laboratory test tube with a magnified inset showing internal components (no text or labels)

Illustration of a smart device with a lock icon and a speech bubble (no text or symbols)

Diagram of a smart device with a lock icon and a speech bubble (no text or symbols)

Illustration of a hand pressing a button on a curved mechanical component (no text or symbols visible)

Diagram of a hairpin plug connecting a socket to a cable with an arrow indicating direction (no text or symbols)

Close-up of a mechanical component with a black arrow pointing downward (no text or symbols visible)

Illustration of a pair of boots with arrows indicating motion or force, no text or symbols present

Illustration of a hand pressing down on a circular object with a black arrow (no text or symbols)

Illustration of a person applying makeup to their ear with a brush (no text or symbols)

Line drawing of a person's face with hand near ear area, no text or symbols present

Line drawing of a person applying a product to their ear (no text or symbols)

Illustration of a hand using a water spray to lift a small object (no text or symbols visible)

Illustration of a person applying a hair accessory to their face (no text or symbols present)

Illustration of a hand pressing a button on a human knee joint (no text or symbols)

Illustration of a person applying a toothbrush to their ear, with a circular logo containing the letter 'T' (no text or symbols on the diagram itself)

Diagram showing a funnel with a cross symbol and an upward arrow, no text or labels present

Illustration of a medical procedure showing a surgical tool impacting a patient's skin area, with an inset magnified view of the procedure (no text or symbols present)

Illustration of a medical or laboratory procedure showing a device emitting particles from a surface, with an inset magnified view of a graduation cap (no text or symbols present)

Line drawing of a person applying a hair product to their ear (no text or symbols)

Illustration of a medical procedure showing a surgical tool impacting tissue with an inset image of a graduation cap (no text or symbols present)

Illustration of a hairbrush cutting down a piece of hair with a downward arrow indicating compression (no text or symbols)

Illustration of a man eating with a toothbrush (no text or symbols)

Illustration of two hands holding a curved object with directional arrows indicating movement or force (no text or symbols)

Line drawing of a person applying a hair product to their neck (no text or symbols)

Illustration of a dropper tip dispensing liquid into a container, with an inset showing a dropper tip (no text or symbols present)

Illustration of a mechanical component with fluid flow, no text or symbols present

Illustration of a person applying facial care to their face with a tool, no text or symbols present

Illustration showing two men applying facial care to their face, one with a magnified inset of the eye (no text or symbols)

Simple line drawing of a paintbrush with a cross mark and spray effect (no text or symbols)

Simple line drawing of a container with an upward arrow and label 'POTATO' (no text or symbols on the diagram itself)

Diagram of a blender with a handle and base, showing mechanical components without any text or symbols.

Diagram of a mechanical component with a downward arrow indicating rotation (no text or symbols)

Illustration of a spray gun with a stopper and no visible text or symbols

Illustration of a hand holding a small object with arrows indicating motion or force, and an inset showing a cross-section of a mechanical component (no text or symbols)

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Hand holding two circular buttons with power and spiral symbols, connected to a device (no text or labels visible)

Diagram of a mechanical component with two circular indicators (one checked, one not checked) and a checkmark symbol, no readable text or labels present.

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a hand holding a small object with motion lines indicating movement or force (no text or symbols)

Anatomical illustration of a human upper body with internal organs and a directional arrow indicating movement (no text or labels)

Illustration of a fork being inserted into a bowl of noodles (no text or symbols)

Anatomical illustration of internal organs with arrows indicating movement or force (no text or labels)

Illustration of a mechanical component with an upward arrow indicating motion (no text or symbols)

Diagram showing two mechanical components with directional arrows, no text or symbols present

Illustration of two mechanical devices with water spray and a gear-like component, no text or symbols present

Cross-sectional diagram of a mechanical component with no visible text or symbols

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

Illustration of two hands holding a cloud-like object with arrows indicating rotation or movement (no text or symbols)

Line drawing of a shoe being squeezed from a bottle into a plug (no text or symbols)

Illustration of two hands holding a device with directional arrows indicating movement (no text or symbols)

Illustration of two hands pouring liquid from a bottle onto a surface, separated by a diagonal line (no text or symbols)

Two cartoon illustrations of a diverging object with falling rocks, no text or symbols present

Diagram of a mechanical component with a top cylindrical part and an upward arrow, no text or symbols present.

Two identical mechanical components hanging from a diagonal line, no text or symbols visible

Illustration of kitchen utensils and a cloth on a diagonal line (no text or symbols)

Simple line drawing of a mechanical component with an upward arrow, no text or symbols present.

Diagram of a biological structure with arrows indicating movement or force (no text or labels)

Illustration of a mushroom-shaped container with internal swirling patterns and an upward arrow, no text or symbols present.

Illustration of a hand holding a circular device with arrows indicating motion (no text or symbols)

Pure diagram of a mechanical or structural component with a circular top and triangular base, no text or symbols present.

Diagram showing mechanical components with arrows indicating motion or force direction (no text or symbols)

Illustration of two hands holding a cloud-like object with a downward arrow and a glowing effect (no text or symbols)

Symbol of a waste bin with crossed lines and a horizontal bar below (no text or numbers present)

Simple line drawing of a trash bin with crossed x-axes (no text or symbols)

Illustration of a hand holding a small object with a screwdriver, alongside another hand holding a small object (no text or symbols present)

Illustration of two skis in motion, one on a diagonal line and the other on a curved track (no text or symbols)

Two mechanical components with arrows indicating movement or assembly (no text or symbols)

Diagram showing two hands operating a tool with an arrow indicating motion (no text or symbols present)

No sign depicting a faucet with a showerhead, enclosed in a circle (no text or symbols)

Simple line drawing of a showerhead spraying over water (no text or symbols)

Illustration of a laboratory test tube with a magnified inset showing internal structures (no text or symbols)

Illustration of a hairdryer with a magnified inset showing a star-shaped mark (no text or symbols)

Diagram of a test tube with a cap and a magnified inset showing internal structure (no text or symbols)

Diagram of a hairbrush with a circular indicator showing the number 1, no text or symbols present

Akumuliatorius senka

Illustration of a hairdryer with a magnified inset showing the tip and base (no text or symbols)

Diagram of a laboratory test tube with a capillary top and a star-shaped inset showing a labeled region (no text or symbols present)

Diagram of a syringe with a magnified inset showing internal components (no text or labels)

Baterijos ikrovos indikatorius su 3 lemputémis

Line drawing of a robot's torso with a lock icon and a small star on the chest (no text or symbols)

Illustration of a smart device with a lock icon and a button, no text or symbols present

Illustration of a hand pressing a button on a patient's knee joint (no text or symbols)

Diagram of a hairpin with two leads connected to a power outlet (no text or symbols)

Simple line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Illustration of a hand holding a circular object with an arrow pointing to it, no text or symbols present

Illustration of a person applying facial contour or mask to the ear (no text or symbols)

Line drawing of a person's face with hand near ear area (no text or symbols)

Line drawing of a person applying a product to their ear (no text or symbols)

Illustration of a faucet spraying water onto a surface with two circular objects (no text or symbols)

Illustration of a person applying makeup to their face with a brush (no text or symbols)

Illustration of a person applying a toothbrush to their beaded area, with a circular logo containing a stylized 'T' symbol (no text or symbols present)

Diagram showing a hand holding a device with a device emitting a droplet above it, marked with a cross and an upward arrow (no text or symbols present)

Illustration of a medical procedure showing a surgical tool impacting a patient's skin area, with an inset magnified view (no text or symbols)

Illustration of a robotic arm with motion arrows and a magnified inset showing the head area (no text or symbols)

Line drawing of a person applying makeup to their ear (no text or symbols)

Diagram showing a device interacting with a surface, with an inset magnified view of the device's internal structure (no text or symbols present)

Line drawing of a hairbrush cutting down a piece of hair with a downward arrow indicating compression (no text or symbols)

Illustration of a man eating with a spoon (no text or symbols)

Illustration of two hands holding a tool with directional arrows indicating movement (no text or symbols)

Line drawing of a person applying a hair product to their neck (no text or symbols)

Illustration of a dropper tip dispensing liquid into a container, with an inset showing a close-up of the dropper (no text or symbols present)

Illustration of a mechanical component with fluid flow, no text or symbols present

Illustration of a person applying facial care to their face with a hand holding a tool (no text or symbols)

Illustration showing a person applying facial care to another person's face, with a magnified inset of the tool (no text or symbols present)

Simple line drawing of a paintbrush with a cross mark and spray, no text or symbols present

Illustration of a hand pouring liquid into a container with an inset showing a cross-section of a container (no text or symbols)

Close-up of a mechanical component with a black arrow pointing downward (no text or symbols visible)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Hand holding two circular buttons with a power symbol, next to a device component (no text or labels visible)

Diagram of a mechanical component with two circular indicators (one checked, one not checked) and a checkmark symbol, no readable text or labels present.

Diagram of a blender with a black arrow pointing to its internal component (no text or symbols present)

Diagram of a mechanical component with a downward arrow indicating rotation (no text or symbols)

Illustration of a hand holding a small object with motion lines indicating movement or force (no text or symbols)

Anatomical illustration of a human upper body with internal organs and a directional arrow indicating movement (no text or labels)

Illustration of a fork being inserted into a bowl of noodles (no text or symbols)

Anatomical illustration of a human head with internal organs and arrows indicating movement or force (no text or labels)

Illustration of a biological structure with an arrow indicating upward movement (no text or symbols)

Diagram showing two mechanical components with arrows indicating motion or force direction (no text or symbols)

Illustration of a mechanical device with fluid flow and gear mechanism (no text or symbols)

Simple line drawing of a mechanical component with a central circular base and a curved top (no text or symbols)

Pure diagram of a mechanical or architectural component with no text, numbers, or symbols

Diagram showing mechanical components with arrows and a checkmark, no readable text or symbols present

Illustration of two hands holding a cloud-like object with a downward arrow and a spark effect, no text or symbols present.

Illustration of a shoe being lifted by a bag (no text or symbols)

Illustration of a hand crushing a rock with a magnified circular section showing a pile of rocks (no text or symbols)

Illustration of two hand positioning guide hands with arrows indicating movement (no text or symbols)

Illustration of two hands pouring liquid from a bottle onto a shoe and a shoe with a handle, separated by a diagonal line (no text or symbols)

Two cartoon fish jumping over a diagonal line, one falling and the other wading (no text or symbols)

Diagram of a mechanical component with a top cylindrical part and an upward arrow, no text or symbols present.

Two identical mechanical components hanging from a diagonal line, no text or symbols visible

Illustration of mechanical components including a drum, gear, and base (no text or symbols)

Laikymas

Diagram of a mechanical component with a top cylindrical part and an arrow indicating upward motion (no text or symbols)

Illustration of a decorative ornamental object with swirling patterns and a central arrow (no text or symbols)

Diagram of a mechanical component with an upward arrow indicating motion or assembly (no text or symbols present)

Diagram showing two mechanical components with a checkmark indicating a specific section (no text or symbols present)

Illustration of two hands holding a cloud-like object with arrows indicating motion or transformation (no text or symbols)

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

Illustration showing a hand holding a screwdriver and a foot with a tool, both on a diagonal line (no text or symbols)

Illustration of two skis with directional arrows indicating motion (no text or symbols)

Diagram showing two car body parts with a directional arrow indicating movement or force (no text or symbols present)

Illustration of two hands using a tool to lift or lift an object, showing mechanical components (no text or symbols)

No sign depicting a faucet with a showerhead, enclosed in a circle (no text or symbols)

Simple line drawing of a showerhead spraying over a water-filled container (no text or symbols)

Diagram of a test tube with a cap and a magnified inset showing internal structure (no text or labels)

Illustration of a hairbrush with a circular annotation highlighting a spike (no text or symbols present)

Diagram of a test tube with a cap and a magnified inset showing internal structure (no text or symbols)

Diagram of a mechanical component with a circular annotation and pointer, no readable text or symbols present.

Tukša baterija

Illustration of a hairdryer with a magnified inset showing the tip and base (no text or symbols)

Diagram of a device with a starburst pattern and a magnified view of its internal structure (no text or symbols)

Diagram of a dropper with a magnified inset showing internal structure (no text or symbols)

Bateriju uzlādes indikators ar 3 lampiņām

Celojuma blokētājs

Line drawing of a smart device with a lock icon and a star-shaped button (no text or symbols)

Illustration of a person's leg with a lock icon and a speech bubble (no text or symbols)

Illustration of a hand pressing a button on a human leg, with no visible text or symbols

Diagram of a hairpin with two leads connected to a power outlet (no text or symbols)

1 lespraudiet mazo kontaktdakšu ierīcē un adapteri sienas kontaktligzdā.

Simple line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Skuvekla lietošana

Illustration of a hand holding a circular object with an arrow pointing to it, no text or symbols present

Illustration of a person applying facial hair to their ear (no text or symbols present)

Illustration of a person's face with hand near ear area, showing facial features (no text or symbols)

Line drawing of a person applying a product to their ear (no text or symbols)

Illustration of a hand using a water dispenser to lift a small bowl (no text or symbols)

Illustration of a person applying makeup to their ear with a brush (no text or symbols)

Illustration of a hand pressing a button on a vertical surface, with no visible text or symbols

Illustration of a person applying a toothbrush to their beaded teeth, with a circular logo containing the letter 'T' (no text or symbols on the diagram itself)

Illustration of a hand holding a device with a bulb and a cross symbol, no text or labels present

Diagram showing a droplet on a surface with an arrow indicating light emission, and a magnified inset showing the droplet's internal structure (no text or symbols)

Illustration of a robotic arm with motion arrows and a magnified inset showing a circular object (no text or symbols)

Illustration of a person using a hairpin to apply product (no text or symbols present)

Illustration of a hairdryer with a magnified inset showing the tip and base (no text or symbols)

Line drawing of a hairbrush cutting down a surface with a downward arrow indicating compression (no text or symbols)

Illustration of a man with a beard and pipe, holding a small object (no text or symbols)

Illustration of two hands holding a tool with directional arrows indicating movement (no text or symbols)

Line drawing of a person applying a hair accessory to their neck (no text or symbols)

Illustration of a dropper tip dispensing liquid into a container with an inset showing a magnified view of the dropper (no text or symbols present)

Illustration of a mechanical component with fluid flow, no text or symbols present

Illustration of a person applying facial care to their face, with no text or symbols present.

Illustration showing two men applying facial care to their face, one with a magnified inset of the first eye (no text or symbols)

Simple line drawing of a paintbrush with a cross mark and spray effect (no text or symbols)

Simple line drawing of a container with an upward arrow and a shaded interior (no text or symbols)

Diagram of a blender with a black arrow indicating the process (no text or symbols present)

Diagram of a mechanical component with a downward arrow indicating direction (no text or symbols)

Illustration of a fire extinguisher with a stop sign (no text or symbols on the device itself)

Close-up of a mechanical component with a black arrow pointing downward (no text or symbols visible)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Hand holding two circular buttons with 'Power' and 'Spiral' symbols, connected to a device (no text or labels visible)

Diagram of a funnel-shaped container with two circular indicators showing check and stop symbols (no text or labels)

Diagram of a blender with a black arrow pointing to its internal component (no text or symbols present)

Illustration of a mechanical component with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a small object with motion lines indicating movement or force (no text or symbols)

Anatomical illustration of a human head with decorative patterns and arrows indicating movement or force (no text or labels)

Illustration of a food item being lifted from a pipette into a bowl (no text or symbols)

Anatomical illustration of internal organs with arrows indicating movement or force (no text or labels)

Illustration of a mechanical component with an upward arrow, no text or symbols present

Diagram showing two mechanical components with arrows indicating direction, no text or symbols present

Illustration of two mechanical components with fluid flow, no text or symbols present

Cross-sectional diagram of a mechanical component with internal structure (no text or labels)

Abstract diagram of a symmetrical geometric structure with three circular elements and a top node (no text or symbols)

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Diagram showing two circular components with arrows indicating direction, one crossed over the other by a diagonal line (no text or symbols)

Illustration of two hands holding a rose with arrows indicating rotation or movement (no text or symbols)

Illustration of a hand holding a shoe next to a bundle of noodles or noodles being lifted by a bottle (no text or symbols)

Illustration of a hand crushing debris with a magnified circular inset showing a pile of debris (no text or symbols)

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols present)

Illustration of two hands pouring liquid from a bottle onto a surface, separated by a diagonal line (no text or symbols)

Two cartoon fish jumping over a diagonal line, one falling and the other wading (no text or symbols)

Diagram of a mechanical component with a top cylindrical part and an upward arrow, no text or symbols present.

4 Uzmanīgi nokratiet lieko ūdeni un Įaujiet trimmera uzgalim nožūt.

Two identical mechanical components hanging from a diagonal line, no text or symbols visible

Illustration of kitchen utensils and a blender on a diagonal line (no text or symbols)

Diagram of a hairbrush with a curved blade and three circular blades, showing a downward motion (no text or symbols)

Illustration of a stylized object with a downward arrow, possibly indicating a motion or change (no text or symbols present)

Simple line drawing of a spray bottle with a handle and spout (no text or symbols)

Nomaina,

Diagram of a mechanical component with a top cylindrical part and an upward arrow, no text or symbols present.

Anatomical illustration of a human head and neck with internal organs, showing a highlighted region (no text or labels)

Illustration of a mushroom-shaped object with an upward arrow, no text or symbols present

Diagram showing a hand holding circular components with an arrow indicating upward motion, alongside a battery pack (no text or symbols)

Diagram showing a circular object falling into a triangular structure with concentric rings (no text or symbols)

Diagram showing a mechanical or electrical component with arrows indicating motion, no text or symbols present

Illustration of two hands holding a cloud-like object with arrows indicating motion or transformation (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Illustration of a tool tip and a small boat with an arrow, no text or symbols present

Two illustrations of a scooter or scooter climbing stairs, showing different motion directions (no text or symbols)

Two types of shoe covers shown side by side, one with a magnified view of the cover (no text or symbols)

Diagram of a robotic arm with tool, showing mechanical components and a diagonal line (no text or symbols)

No sign depicting a faucet with a diagonal line and a diagonal line, crossed out by a diagonal line (no text or symbols)

Simple line drawing of a showerhead spraying over water (no text or symbols)

Diagram of a hairdryer with a magnified inset showing internal structure (no text or labels)

Illustration of a test tube with a magnified inset showing a warning symbol (no text or labels present)

Diagram of a hairdryer with a magnified inset showing internal structure (no text or symbols)

Diagram of a handheld device with a circular button labeled 'I' pointing to its tip (no text or symbols on the device itself)

Illustration of a hairdryer with a magnified inset showing internal structure (no text or symbols)

Diagram of a dropper with a labeled spike and arrow pointing to the tip (no text or symbols present)

Diagram of a laboratory test tube with a magnified inset showing internal components (no text or labels)

Illustration of a person wearing a smartwatch with a lock icon and speech bubble (no text or symbols)

Illustration of a person wearing a smartwatch with a lock icon and speech bubble (no text or symbols)

Illustration of a hand pressing a button on a human leg, with no visible text or symbols

Diagram of a hairbrush connecting a plug to a cable with an arrow indicating direction (no text or symbols)

Simple line drawing of a mechanical component with a downward arrow, no text or symbols present

Користење на бричот

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Illustration of a hand holding a circular object with an arrow pointing to it, no text or symbols present

Illustration of a person applying makeup to their face with a circular brush (no text or symbols)

Line drawing of a person's face with hand near ear area (no text or symbols)

Line drawing of a person applying a product to their ear (no text or symbols)

Illustration of a faucet spraying water onto a surface with no text or symbols

Illustration of a person applying makeup to their face with a brush (no text or symbols)

Illustration of a hand holding a circular button labeled 'Y' on a curved surface, with no visible text or symbols beyond the icon.

Diagram showing a mushroom-shaped object above a curved surface with a cross symbol and an upward arrow, no text or labels present.

Diagram showing a funnel pouring liquid into a droplet on a surface, with an inset magnified view of the droplet's tip (no text or symbols)

Illustration of a robotic arm interacting with a curved surface, showing motion and magnified detail (no text or symbols)

Illustration of a person applying a hair accessory to their ear (no text or symbols present)

Illustration of a hairdryer with an inset showing the tip and mouth area (no text or symbols)

Illustration of a hairbrush cutting into a button with a downward arrow (no text or symbols)

Illustration of a man with a beard eating a small bowl (no text or symbols)

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols)

Line drawing of a person applying a hair accessory to their neck (no text or symbols)

Illustration of a dropper dispensing liquid into a container with an inset showing a dropper tip (no text or symbols)

Illustration of a mechanical component with fluid flow, no text or symbols present

Illustration of a person applying facial care to their face, with no visible text or symbols

Illustration showing a person applying facial care to another person's face, with a magnified inset of the device (no text or symbols present)

Simple line drawing of a paintbrush with a cross mark and spray effect (no text or symbols)

Simple line drawing of a container with an upward arrow, no text or symbols present

Diagram of a blender with a black arrow indicating the process (no text or symbols present)

Mechanical component diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols)

Illustration of a hand pouring liquid into a container with an inset showing a cross-section of a container (no text or symbols)

Close-up of a mechanical component with a black arrow pointing downward (no text or symbols visible)

Illustration of two different shoe boots with arrows indicating motion or wear (no text or symbols)

Hand holding two circular buttons with power and spiral symbols, next to a device (no text or labels visible)

Diagram of a mechanical component with two circular indicators (one checked, one not checked) and a checkmark symbol, no readable text or labels present.

Illustration of a blender with a black arrow pointing to its lid (no text or symbols present)

Diagram of a mechanical component with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a small object with motion lines indicating movement or force (no text or symbols)

Anatomical illustration of internal organs with arrows indicating movement or force (no text or labels)

Illustration of a food item being lifted from a pipette into a bowl (no text or symbols)

Illustration of a biological structure with ornamental patterns and a central arrow (no text or symbols)

Illustration of a mechanical component with an upward arrow, showing internal gear-like structure (no text or symbols)

Diagram showing two mechanical components with arrows indicating direction, no text or symbols present

Illustration of two mechanical devices with liquid and a foot, showing internal components (no text or symbols)

Diagram of a mechanical component with a central gear and base, showing internal structure (no text or symbols)

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Diagram showing two circular components with arrows and a checkmark, no readable text or symbols present

Illustration of two hands exchanging a leaf with arrows indicating rotation or movement (no text or symbols)

Illustration of a shoe being lifted by a fork (no text or symbols)

Illustration of a hand crushing debris with a magnified circular inset showing a pile of waste (no text or symbols)

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols present)

Illustration of two hands pouring liquid from a bottle onto a surface, separated by a diagonal line (no text or symbols)

Two cartoon fish jumping over a diagonal line, one falling and the other wading (no text or symbols)

Diagram of a mechanical component with a top cylindrical part and an upward arrow indicating motion (no text or symbols)

Two identical diagrams showing a hand holding a tool above a base, with no text or symbols present.

Illustration of mechanical components and a gear mechanism (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating motion or force (no text or symbols)

Simple line drawing of a mechanical component with an arrow indicating motion (no text or symbols)

Simple line drawing of a showerhead with a handle and base, no text or symbols present

Simple line drawing of a mechanical component with an upward arrow, no text or symbols present.

Illustration of a biological structure with layered patterns and an arrow indicating direction (no text or symbols)

Illustration of a mechanical component with an upward arrow, no text or symbols present

Diagram showing a hand operating a rotary switch with a magnified view of the switch (no text or symbols present)

Diagram showing a circular object falling into a triangular structure with internal circular elements (no text or symbols)

Diagram showing two mechanical components with arrows indicating motion or force, separated by a diagonal line (no text or symbols)

Illustration of two hands holding a cloud-like object with arrows indicating motion or transformation (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed with no text or labels

Illustration of a hand holding a small object, with another hand partially visible below (no text or symbols)

Illustration of two skis with directional arrows indicating motion (no text or symbols)

Two car body diagrams showing front and side views of a vehicle, with arrows indicating motion direction (no text or symbols)

Illustration of a hand using a tool to lift a car, with no visible text or symbols

No sign depicting a faucet with a showerhead, enclosed in a circle (no text or symbols)

Simple line drawing of a showerhead spraying over a water-filled container (no text or symbols)

Diagram of a biological specimen with a magnified inset showing internal structures (no text or labels)

Illustration of a test tube with a cap and a speech bubble containing a starburst symbol (no text or labels)

Diagram of a laboratory test tube with a magnified inset showing internal structure (no text or labels)

Diagram of a mechanical component with a circular annotation and pointer, no readable text or symbols present.

Illustration of a hairdryer with a magnified inset showing the tip and base (no text or symbols)

Diagram of a dropper with a star-shaped label and arrow pointing to its tip (no text or symbols present)

Diagram of a test tube with a magnified inset showing internal components (no text or labels)

Simple line drawing of a device with a plug and arrow icon (no text or symbols)

Illustration of a robotic arm with a lock icon and speech bubble (no text or symbols)

Illustration of a robotic device with a lock icon and speech bubble (no text or symbols)

Diagram of a hairbrush connecting a plug to a cable with an arrow indicating direction (no text or symbols)

Illustration of a hand holding a small object with arrows indicating motion or force, and an inset showing a cross-section of a mechanical component (no text or symbols)

Simple line drawing of a chess piece with a downward arrow indicating compression (no text or symbols)

Diagram showing two different foot positions with arrows indicating motion or force direction (no text or symbols)

Illustration of a hand pressing a circular button on a curved object (no text or symbols)

Illustration of a person applying a hair product to their face (no text or symbols)

Line drawing of a person's face with hand near ear area, no text or symbols present

Illustration of a person applying a product to their ear (no text or symbols)

Illustration of a hand using a water tap to lift a small bowl (no text or symbols)

Illustration of a person applying facial hair to their ear with a brush (no text or symbols)

Illustration of a hand pressing a button on a patient's knee joint (no text or symbols)

Illustration of a person's beard with a T-shaped logo overlay (no text or symbols on the figure itself)

Diagram showing a device with a bulb and a cross symbol, no text or labels present

Diagram showing a funnel pouring liquid into a leaf, with an inset magnified view of the leaf being covered (no text or symbols)

Illustration of a robotic arm interacting with a curved surface, showing motion and magnified detail (no text or symbols)

Illustration of a person using a hairpin to apply product (no text or symbols present)

Illustration of a hairdryer with an inset showing the tip and base (no text or symbols)

Illustration of a hairdryer with a brush and motion arrow (no text or symbols)

Illustration of a man with beard and mustache eating a spoon (no text or symbols)

Illustration of two hands holding a curved object with directional arrows indicating movement or force (no text or symbols)

Line drawing of a person applying a hair product to their neck (no text or symbols)

Illustration of a dropper tip dispensing liquid into a container with an inset showing a dropper tip (no text or symbols)

Illustration of a tool tip with spray and motion lines, no text or symbols present

Illustration of a person applying facial care to their face, with no visible text or symbols

Illustration showing facial massage technique with a magnified inset of the eye area (no text or symbols)

Simple line drawing of a paintbrush with a cross mark and spray effect (no text or symbols)

Simple line drawing of a container with an upward arrow, no text or symbols present

Diagram of a blender with an arrow indicating compression process (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating direction (no text or symbols)

Close-up of a mechanical component with a downward arrow and a prohibition symbol (no text or labels)

Diagram showing a hand pouring liquid into a container with an inset magnified view of a lid (no text or symbols)

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Hand holding two circular buttons labeled 'Power' and 'Spiral', connected to a device (no text or symbols visible)

Simple line drawing of a funnel with circular indicators (no text or symbols)

Diagram of a blender with a plug inserted into a container (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating motion or force (no text or symbols)

Illustration of a hand holding a small object with motion lines indicating movement or force (no text or symbols)

Illustration of a biological structure with swirling patterns and an arrow indicating direction (no text or symbols)

Illustration of a food item being lifted from a pipette into a bowl (no text or symbols)

Illustration of a decorative object with swirling patterns and an arrow indicating rotation (no text or symbols)

Illustration of a mushroom-shaped container with internal swirling patterns and an upward arrow, no text or symbols present.

Diagram showing two mechanical components with directional arrows, no text or symbols present

Illustration of two mechanical components with fluid flow, no text or symbols present

Pure mechanical component diagram without any text, numbers, or symbols

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Mechanical gear assembly diagram showing two components with a checkmark indicating alignment (no text or symbols)

Illustration of two hands exchanging a cloud-like object, one with a downward arrow and the other with a curved arrow (no text or symbols)

Illustration of a shoe being lifted by a bag, showing the blade and spine (no text or symbols)

Illustration of a hand blowing bubbles with a magnified circular inset showing a hand holding a rock (no text or symbols)

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols)

Illustration of two hands pouring liquid from a bottle onto a surface, separated by a diagonal line (no text or symbols)

Illustration of two fish separated by a diagonal line, one emitting particles and the other emitting waves (no text or symbols)

Diagram of a mechanical component with a top cylindrical part and an upward arrow indicating motion (no text or symbols)

Two identical mechanical components hanging from a diagonal line, no text or symbols visible

Illustration of mechanical components and a gear mechanism (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating motion or force (no text or symbols)

Illustration of a mechanical component with a downward arrow indicating motion (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Simple line drawing of a mechanical component with an upward arrow, no text or symbols present.

Anatomical illustration of a human digestive system with internal organs and a curved arrow indicating movement (no text or labels)

POLSKI392

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Diagram showing a hand holding a circular object with arrows indicating motion or force (no text or symbols present)

Diagram showing a circular object with a downward arrow pointing to a ring structure (no text or symbols)

Diagram showing two mechanical components with arrows indicating motion or force, separated by a diagonal line (no text or symbols)

Illustration of two hands holding a cloud-like object with arrows indicating motion or transformation (no text or symbols)

Illustration of a hand holding a tool over a curved object, with another hand inserting a plug into a boat (no text or symbols)

Illustration of two different types of skiing gear with directional arrows indicating motion (no text or symbols)

Two views of a vehicle showing front and side views with an arrow indicating motion (no text or symbols)

Diagram showing two hands operating a robotic arm with a tool, no text or symbols present

No sign depicting a faucet with a showerhead, enclosed in a circle (no text or symbols)

Simple line drawing of a showerhead spraying over a water-filled container (no text or symbols)

Illustration of a hairdryer with a magnified inset showing internal structure (no text or symbols)

Illustration of a laboratory pipette with a magnified inset showing a test tube tip (no text or symbols present)

Diagram of a laboratory test tube with a magnified inset showing internal structure (no text or labels)

Diagram of a mechanical component with a circular annotation and pointer, no readable text or symbols present.

Illustration of a hairdryer with a magnified inset showing internal structure (no text or symbols)

Diagram of a laboratory test tube with a capillary top and a magnified inset showing a labeled region (no text or symbols present)

Diagram of a syringe with a magnified inset showing internal components (no text or labels)

Simple line drawing of a plug plug with a small star on the stem, no text or symbols present

Illustration of a robot's torso with a lock icon and speech bubble (no text or symbols)

Illustration of a smart device with a lock icon and speech bubble (no text or symbols)

Illustration of a medical device with a speech bubble showing three circular icons (three, two, and one) inside, no text or symbols present.

Diagram of a hairbrush connecting a plug to a cable with directional arrows indicating electrical connection (no text or symbols)

Illustration of a hand holding a small object with arrows indicating motion or force direction, and a magnified inset showing a close-up of a mechanical component (no text or symbols)

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Illustration of a hand holding a circular object with an arrow pointing to it, no text or symbols present

Line drawing of a person applying makeup to their face (no text or symbols)

Line drawing of a person's face with hand near ear area, no text or symbols present

Line drawing of a person applying a product to their ear (no text or symbols)

Illustration of a hand washing a small object with a water dispenser (no text or symbols)

Illustration of a person applying makeup to their face with a circular tool (no text or symbols)

Illustration of a hand pressing a button on a human leg, with no visible text or symbols

Illustration of a person's beard and ear with a T-shaped logo overlay (no text or symbols on the main subject)

Illustration of a hand holding a mushroom-shaped object with an upward arrow and a cross symbol (no text or labels)

Diagram showing a funnel pouring liquid into a curved surface, with an inset magnified view of the process (no text or symbols)

Illustration of a robotic arm interacting with a surface, showing motion and magnified detail (no text or symbols)

Line drawing of a person applying a hair accessory to their ear (no text or symbols)

Illustration of a hairdryer with a magnified inset showing the tip and base (no text or symbols)

Illustration of a hand holding a device with directional arrows indicating movement (no text or symbols)

Line drawing of a person applying a hair accessory to their neck (no text or symbols)

Illustration of a dropper tip dispensing liquid into a container, with an inset showing a dropper tip (no text or symbols present)

Illustration of a mechanical component with motion lines indicating movement (no text or symbols)

Illustration of a person applying facial care to their face, with no text or symbols present.

Illustration showing two facial expressions with a magnified inset of the first face (no text or symbols)

Simple line drawing of a paintbrush with a cross mark and spray effect (no text or symbols)

Simple line drawing of a container with an upward arrow, no text or symbols present

Diagram of a blender with a black arrow pointing to its base (no text or symbols present)

Close-up of a mechanical component with a handle and base, showing a downward arrow (no text or symbols)

Illustration of a pair of boots with arrows indicating motion or force direction (no text or symbols)

Hand holding two circular buttons with 'Power' and 'Spiral' symbols, connected to a device (no text or labels visible)

Diagram of a mechanical component with two circular indicators (one checked, one not checked) and a checkmark symbol, no readable text or labels present.

Diagram of a blender with a black arrow pointing to its interior component (no text or symbols present)

Diagram of a mechanical component with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a small object with motion lines indicating movement or force (no text or symbols)

Anatomical illustration of a human head with internal organs and a directional arrow indicating movement (no text or labels)

Illustration of a fork lifting a bowl of noodles (no text or symbols)

Illustration of a biological structure with swirling patterns and directional arrows (no text or symbols)

Illustration of a mechanical component with an upward arrow, showing internal gear-like structure (no text or symbols)

Diagram showing two mechanical components with directional arrows, no text or symbols present

Diagram showing two mechanical components with fluid or material flows, no text or symbols present

Mechanical component diagram showing a gear-like top with a central shaft and circular base (no text or symbols)

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Diagram showing two circular components with arrows and a checkmark, no readable text or symbols present

Illustration of two hands exchanging a leaf with arrows indicating rotation or movement (no text or symbols)

Illustration of a hand holding a shoe with a tool above it, no text or symbols present

Illustration of a hand crushing a rock with a magnified circular section showing a pile of rocks (no text or symbols)

Illustration of two hands holding a device with directional arrows indicating movement (no text or symbols)

Illustration of two hands pouring liquid from a bottle onto a surface, separated by a diagonal line (no text or symbols)

Illustration of two cartoon fish crossing a diagonal line, one falling and the other wading (no text or symbols)

Diagram of a mechanical component with a top cylindrical part and an upward arrow, no text or symbols present.

Two identical mechanical components hanging from a diagonal line, no text or symbols visible

Illustration of mechanical components and a gear shift, no text or symbols present

Diagram of a hairpin with a magnified view showing the tip and base (no text or symbols)

Illustration of a stylized object with a downward arrow, possibly indicating a motion or change (no text or symbols present)

Diagram of a hairdryer with a cap and bulb, showing a downward arrow (no text or symbols)

Înlocuirea

Simple line drawing of a mechanical component with a top cylindrical part and an upward arrow, no text or symbols present.

Illustration of a hand holding a decorative object with an arrow indicating rotation (no text or symbols)

Illustration of a mushroom-shaped object with an upward arrow, no text or symbols present

Diagram showing a hand turning a circular object into a cylindrical container, with an upward arrow indicating motion (no text or symbols present)

Pure diagram of a mechanical or architectural component with no text, numbers, or symbols

Diagram showing two circular components with arrows and a checkmark, no readable text or symbols present

Illustration of two hands holding a cloud-like object with arrows indicating motion or transformation (no text or symbols)

Simple line drawing of a trash bin with no text or symbols

Illustration of a hand operating a screwdriver on a flat surface, with a separate close-up showing the same tool (no text or symbols present)

Illustration of two mechanical components with directional arrows indicating motion (no text or symbols)

Two mechanical components with a diagonal line and an arrow indicating motion or assembly (no text or symbols)

Illustration of two hands using a tool to adjust or install a mechanical component, with no visible text or symbols.

No sign depicting a faucet with a showerhead, enclosed in a circle (no text or symbols)

Simple line drawing of a showerhead spraying over a water-filled basin (no text or symbols)

Illustration of a hairdryer with a magnified inset showing hair follicle structure (no text or symbols)

Illustration of a handheld device with a starburst symbol and speech bubble (no text or labels)

Illustration of a hairdryer with a magnified inset showing the tip and tail (no text or symbols)

Diagram of a mechanical component with a labeled circular feature (no text or symbols present)

Diagram of a hairbrush with a magnified inset showing internal structure (no text or symbols)

Diagram of a laboratory test tube with a magnified inset showing internal structures (no text or labels)

Diagram of a test tube with a cap and a magnified inset showing internal components (no text or labels)

Illustration of a person wearing a smartwatch with a lock icon and speech bubble (no text or symbols)

Illustration of a robotic device with a lock icon and a speech bubble (no text or symbols)

Illustration of a human torso with a speech bubble containing a skull and directional arrows (no text or symbols)

Illustration of a hand pressing a button on a human leg, with no visible text or symbols

Diagram of a hairbrush connecting a plug to a cable with an arrow indicating direction (no text or symbols)

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols visible)

Illustration of a pair of boots with arrows indicating motion or force, no text or symbols present

Illustration of a hand holding a circular object with an arrow pointing to it, no text or symbols present

Illustration of a person applying a hair product to their face (no text or symbols)

Line drawing of a person's face with hand near ear area (no text or symbols)

Line drawing of a person applying a product to their ear (no text or symbols)

Illustration of a hand washing a cup with water spray (no text or symbols)

Illustration of a person applying makeup to their face with a brush (no text or symbols)

Illustration of a person's beard and hair with a circular logo containing a stylized 'T' symbol (no text or symbols present)

Illustration of a mushroom-shaped object with a cross symbol and an upward arrow, placed on a curved surface (no text or symbols)

Illustration of a medical procedure showing a surgical tool impacting tissue with an inset magnified view (no text or symbols)

Illustration of a robotic arm interacting with a surface, showing motion and vibration effects (no text or symbols)

Line drawing of a person using a hairdryer (no text or symbols)

Illustration of a medical or laboratory procedure showing a device interacting with a patient's ear, with an inset magnified view of the procedure (no text or symbols present)

Illustration of a hairbrush cutting down a piece of hair with a downward arrow indicating compression (no text or symbols)

Illustration of a man eating with a spoon (no text or symbols)

Illustration of two hands holding a curved object with directional arrows indicating movement or force (no text or symbols)

РУССКИЙ452

Line drawing of a person applying a hair product to their neck (no text or symbols)

Illustration of a dropper tip dispensing liquid into a container with an inset showing a dropper tip (no text or symbols)

Illustration of a mechanical component with motion lines indicating movement (no text or symbols)

Illustration of a person applying facial care to their face, with no text or symbols present.

Illustration showing two men applying facial care to their face, one with a magnified inset of the eye (no text or symbols)

Simple line drawing of a paintbrush with a cross mark and spray effect (no text or symbols)

Simple line drawing of a container with an upward arrow and label 'POTATO' (no text or symbols on the diagram itself)

Diagram of a blender with a handle and base, showing mechanical components without any text or symbols.

Diagram of a mechanical component with a downward arrow indicating rotation (no text or symbols)

Illustration of a spray gun with a stop sign and downward arrow (no text or symbols)

Diagram showing fluid flow around a container with an inset magnified view of internal structures (no text or symbols)

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols visible)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Hand holding two circular buttons with power and spiral symbols, connected to a device (no text or labels visible)

Diagram of a mechanical component with two circular indicators (one checked, one not checked) and a checkmark symbol, no readable text or labels present.

Illustration of a hand holding a small object with motion lines indicating movement (no text or symbols)

Illustration of a stylized human head with ornate hair and decorative elements, no text or symbols present

Illustration of a food item being lifted by a pipette over a bowl of noodles (no text or symbols)

Anatomical illustration of internal organs with arrows indicating movement or force (no text or labels)

Illustration of a mushroom-shaped container with internal compartments and an upward arrow, no text or symbols present

Diagram showing two mechanical components with arrows indicating direction, no text or symbols present

Diagram showing fluid flow between two vessels with bubbles and a central pipe (no text or symbols)

Diagram of a mechanical or biological structure with a central circular component and directional arrow (no text or symbols)

Diagram showing a circular object falling into a triangular structure with concentric rings (no text or symbols)

Diagram showing a mechanical or electrical component with arrows indicating motion, no text or symbols present

Illustration of two hands holding a cloud-like object with a downward arrow and a glowing effect, no text or symbols present.

Illustration of a shoe being lifted by a string, showing the foot and ankle (no text or symbols)

Illustration of a hand crushing a small object with waste, accompanied by a magnified circular diagram showing a pile of material (no text or symbols)

Illustration of two hand positions with arrows indicating movement or force direction (no text or symbols)

Illustration of two hanging objects with ropes and a diagonal line, no text or symbols present

Two cartoon fish separated by a diagonal line, one falling and the other wading (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating motion or force (no text or symbols)

Illustration of a medical device with a downward arrow indicating compression or insertion (no text or symbols)

Simple line drawing of a spray bottle with a handle and spout (no text or symbols)

Diagram of a mechanical component with a top cylindrical part and an upward arrow indicating motion (no text or symbols)

Illustration of a biological structure with ornate topography and internal patterns (no text or symbols)

Illustration of a mushroom-shaped object with an upward arrow, no text or symbols present

Diagram of a hand holding a circular component with arrows indicating direction (no text or symbols)

Pure diagram of a mechanical or architectural component with no text, numbers, or symbols

Diagram showing mechanical components with arrows and a checkmark, no readable text or symbols present

Illustration of two hands holding a cloud-like object with arrows indicating motion or transformation (no text or symbols)

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or numbers present)

Simple line drawing of a trash bin with two crossed x-axes (no text or symbols)

Illustration of a hand holding a small object with a tool, alongside a close-up of the object's tip and base (no text or symbols)

Illustration of two skis with directional arrows indicating motion (no text or symbols)

Two mechanical components with arrows indicating motion or assembly, no visible text or symbols

Illustration of a robotic arm gripping a tool, with no visible text or symbols

No sign depicting a faucet without any text or symbols

Simple line drawing of a showerhead spraying over a water-filled container (no text or symbols)

Illustration of a hairdryer with a magnified inset showing internal structure (no text or symbols)

Diagram of a laboratory pipette with a magnified inset showing a test tube tip (no text or labels)

Indikátor nabitia batérie s 1 kontrolkou

• Nabíjanie trvá približne 1 hodinu.
• Rýchle nabíjanie: Ked' zariadenie nemá dostatok energie na jedno oholenie, indikátor nabitia batérie rýchlo bliká. Ked' indikátor nabitia batérie začne pomaly blikat', zariadenie má dostatok energie na jedno oholenie.
• Ak necháte zariadenie pripojené k elektrickej sieti, proces nabíjania bude pokračovat'. Nabíjanie zariadenia indikuje pomalé blikanie indikátora nabitia batérie.

Diagram of a laboratory test tube with a magnified inset showing internal structure (no text or labels)

- Indikátor nabitia batérie s 3 kontrolkami

Diagram of a laboratory test tube with a magnified inset showing a labeled section (no text or symbols present)

- Indikátor nabitia batérie s 1 kontrolkou

Illustration of a hairdryer with a magnified inset showing internal structure (no text or symbols)

Ked'je batéria takmer vybitá, indikátor nabitia batérie bliká naoranžovo.

- Indikátor nabitia batérie s 3 kontrolkami

Diagram of a laboratory test tube with a capillary top and a magnified inset showing a star-shaped object (no text or labels)

- Indikátor nabitia batérie s 1 kontrolkou

Diagram of a syringe with a magnified inset showing internal components (no text or labels)

Indikátor nabitia batérie s 3 kontrolkami

Illustration of a robotic arm with a lock icon and speech bubble (no text or symbols)

Illustration of a robotic arm with a lock icon and speech bubble (no text or symbols)

Illustration of a human torso with a speech bubble containing a heart symbol (no text or labels)

Zapnutie nastavenia Turbo

Diagram of a hairbrush connecting a plug to a cable with directional arrows indicating cable movement (no text or symbols)

1 Malú koncovku pripojte k zariadeniu a adaptér zapojte do elektrickej zásuvky.

Diagram showing a hand pressing down on a surface with arrows indicating force direction, and an inset magnified view of a mechanical component (no text or symbols)

1 Malú koncovku zasuňte do systému SmartClean.

2 Adaptér pripojte do siet'ovej zásuvky.

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a pair of boots on a diagonal line, one with arrows indicating motion or change (no text or symbols)

5 Holiaci strojček vložte do držiaka, nakloňte ho dozadu a zatlačením horného krytu smerom nadol holiaci strojček pripojte („cvaknutie“).

- Symbol batérie pomaly bliká, čo označuje, že sa holiaci strojček nabíja.

1 Ak chcete zariadenie zapnút', jedenkrát stlačte vypínač.
2 Ak chcete zariadenie vypnút', opätovne stlačte vypínač.

Illustration of a person applying makeup to their ear with a brush (no text or symbols)

Line drawing of a person's face with hand near ear area, no text or symbols present

1 Navlhčite si tvár.
2 Na pokožku naneste holiacu penu alebo gél.

Line drawing of a person applying a product to their ear (no text or symbols)

3 Opláchnite holiacu jednotku tečúcou vodou, aby sa l'ahko kízala po pokožke.

4 Zapnite holiaci strojček.

Illustration of a person applying makeup to their ear with a brush (no text or symbols)

Upozornenie: Pravidelne oplachujte holiaci strojček tečúcou vodou, aby sa neustále hladko kízal po Vašej pokožke.

Illustration of a hand holding a circular button labeled 'T' on a curved surface, with no visible text or symbols beyond the button.

Illustration of a person's beard and toothbrush with a circular logo containing a stylized 'T' symbol (no text or symbols present)

Illustration of a hand holding a small object with an upward arrow and a cross symbol, no text or labels present.

Diagram showing a funnel pouring liquid into a curved surface, with an inset magnified view of the process (no text or symbols)

Illustration of a robotic arm interacting with a curved surface, showing motion and magnified detail (no text or symbols)

Line drawing of a person applying makeup to their ear (no text or symbols)

Illustration of a medical or laboratory procedure showing a device emitting particles from a surface, with an inset magnified view of a graduation cap (no text or symbols present)

Illustration of a person using a hairdryer with a hand gesture above their head (no text or symbols)

Illustration of a man with a beard eating a pipe (no text or symbols)

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols)

Line drawing of a person applying a hair accessory to their neck (no text or symbols)

Illustration of a dropper tip dispensing liquid into a container with an arrow indicating flow (no text or symbols)

Illustration of a mechanical component with motion lines indicating movement (no text or symbols)

Illustration of a person applying facial care to their face, with no text or symbols present.

Illustration showing a person applying facial care to another person's face, with a magnified inset of the eye (no text or symbols present)

Simple line drawing of a paintbrush with a cross mark and spray, no text or symbols present

Close-up of a mechanical component with a black arrow pointing downward (no text or symbols visible)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

3 Holiaci strojček vložte do držiaka, nakloňte ho dozadu a zatlačením horného krytu smerom nadol holiaci strojček pripojte („cvaknutie“).

- Symbol batérie pomaly bliká, čo označuje, že sa holiaci strojček nabíja.

Hand holding a device with two circular buttons labeled 'Power' and 'Spiral', no text or symbols present

Diagram of a mechanical component with two circular indicators (one checked, one not checked) and a checkmark symbol, no readable text or labels present.

- Ked' sa čistiaci program dokončí, rozsvieti sa symbol pripravenosti na použitie.

- Ked'je holiaci strojček úplne nabitý, symbol batérie začne nepretržite svietit'. Nabitie trvá približne 1 hodinu.

Diagram of a blender with a black arrow pointing to its internal component (no text or symbols present)

5 Novú čistiacu kazetu vložte do systému SmartClean.

Diagram of a mechanical component with a downward arrow indicating rotation (no text or symbols)

Illustration of a hand holding a small object with motion lines indicating movement or force (no text or symbols)

Illustration of a biological structure with ornamental patterns and directional arrows (no text or symbols)

Illustration of a food item being lifted by a fork (no text or symbols)

3 Nosič holiacej hlavy opláchnite pod teplou tečúcou vodou po dobu 30 sekúnd.
4 Opatrne otraste prebytočnú vodu a nechajte nosič holiacej hlavy vyschnút'.
5 Zatvorte nosič holiacej hlavy („cvaknutie“).

Anatomical illustration of a human head with internal organs and arrows indicating movement or force (no text or labels)

Illustration of a mushroom-shaped object with an upward arrow, no text or symbols present

Diagram showing two mechanical components with directional arrows, no text or symbols present

Diagram showing fluid flow between two vessels with bubbles and a central pipe (no text or symbols)

5 Strihaciu jednotku a kryt umyte pod tečúcou vodou.

Diagram of a mechanical or biological structure with a central circular component and directional arrow (no text or symbols)

Diagram showing a circular object falling into a triangular structure with concentric rings (no text or symbols)

Diagram showing two circular components with arrows and a checkmark, no readable text or symbols present

Illustration of two hands holding a cloud-like object with arrows indicating motion or transformation (no text or symbols)

9 Opätovne zasuňte klb nosiča holiacej hlavy do otvoru holiacej jednotky. Zatvorte nosič holiacej hlavy („cvaknutie“).

Illustration of a shoe being dispensed from a bottle onto a surface (no text or symbols)

Illustration of a hand crushing debris with an inset showing a pile of material (no text or symbols)

Illustration showing hand positioning and three different positions of a device, with no visible text or symbols.

Illustration of two fish crossing a diagonal line, one falling and the other wading (no text or symbols)

Diagram of a mechanical component with a top cylindrical part and an upward arrow indicating motion (no text or symbols)

Two identical diagrams showing a tool interacting with a base, one above and one below, against a diagonal line (no text or symbols)

Illustration of mechanical components and a gear mechanism (no text or symbols)

Odkladanie

Diagram of a mechanical component with a downward arrow indicating motion or force (no text or symbols)

SLOVENSKY500

Illustration of a mechanical component with an arrow indicating motion (no text or symbols)

- Holiaci strojček odložte do dodaného puzdra.

Diagram of a hairdryer with a cap and bulb, showing a downward arrow (no text or symbols)

Simple line drawing of a mechanical component with an upward arrow, no text or symbols present.

Illustration of a stylized, ornate object resembling a helmet or abstract form with a curved handle, no text or symbols present.

2 Stlačte uvolňovacie tlačidlo a otvorte holiacu jednotku.

Illustration of a mechanical component with an upward arrow, no text or symbols present

Diagram showing a hand holding a circular object with arrows indicating motion or assembly (no text or symbols present)

Pure diagram of a mechanical or architectural component with a circular top and triangular base, no text or symbols present.

7 Nasad'te prídržné krúžky spät' na holiace hlavy a otočte ich v smere hodinových ručičiek.

Diagram showing mechanical components with arrows and a checkmark, no readable text or symbols present

Illustration of two hands holding a cloud-like object with arrows indicating motion (no text or symbols)

8 Opätovne zasuňte kíb nosiča holiacej hlavy do otvoru holiacej jednotky. Zatvorte nosič holiacej hlavy („cvaknutie“).

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or numbers present)

Simple line drawing of a trash bin with two crossed arms (no text or symbols)

Illustration of a hand tool applying material to a small object, with no visible text or symbols

Illustration of two skis with directional arrows indicating motion (no text or symbols)

Two mechanical components with arrows indicating motion or assembly, no visible text or symbols

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

4 Vyberte držiak batérie a plombovacími kliešt'ami prestrihnite svorky batérie.

Záruka a podpora

No sign depicting a faucet with a showerhead, enclosed in a circle (no text or symbols)

Simple line drawing of a showerhead spraying over water in a container (no text or symbols)

Elektromagnetna polja (EMF)

Diagram of a laboratory test tube with a magnified inset showing internal structures (no text or labels)

Illustration of a test tube with a cap and a magnified inset showing a test tube (no text or symbols)

Diagram of a laboratory test tube with a magnified inset showing internal structures (no text or labels)

- Indikator napolnjenosti baterije z 1 lučjo

Diagram of a device with a circular button labeled 'I' and an arrow pointing to it (no text or symbols beyond the label)

Prazna baterija

Ko je baterija skoraj prazna, indikator polnjenja utripa oranžno.

- Indikator napolnjenosti baterije s 3 lučmi

Diagram of a hairbrush with a magnified inset showing internal structure (no text or symbols)

SLOVENŠČINA516

Diagram of a test tube with a spiky tip and a magnified inset showing a labeled section (no text or symbols present)

- Indikator napolnjenosti baterije z 1 lučjo

Preostala zmogljivost baterije

Diagram of a dropper with a magnified inset showing internal structure (no text or labels)

Indikator napolnjenosti baterije s 3 lučmi

Simple line drawing of a medical or anatomical structure with a small star-like symbol and a speech bubble containing an electrical plug symbol (no text or labels)

Illustration of a smart device with a lock icon and a speech bubble (no text or symbols)

Illustration of a smart device with a lock icon and a button, no text or symbols present

Illustration of a human robot with a speech bubble showing a medical or health symbol (no text or labels present)

Illustration of a hand pressing a button on a patient's knee joint (no text or symbols)

1 Nastavitev Turbo vklopite tako, da pritisnete gumb Turbo.

Izklop nastavitve Turbo

1 Nastavitev Turbo izklopite tako, da ponovno pritisnete gumb Turbo.

Polnjenje

Polnjenje traja približno eno uro.

Diagram of a hairpin plug connecting a power outlet with an attached cable, showing directional arrows (no text or symbols)

Illustration of a hand pouring liquid into a container with an inset showing a cross-section of a container (no text or symbols)

Close-up of a mechanical component with a black arrow pointing downward (no text or symbols visible)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

5 Brivnik postavite v nosilec, nagnite nazaj in pritisnite na zgornji pokrovček, da brivnik priključite (“klik”).

Illustration of a hand pressing down on a curved object with a circular arrow pointing to it (no text or symbols)

1 Aparat vklopite tako, da pritisnete gumb za vklop/izklop.
2 Aparat izklopite tako, da pritisnete gumb za vklop/izklop.

Illustration of a person applying a hair product to their face (no text or symbols)

Illustration of a person's face with a hand touching the cheek area (no text or symbols)

Line drawing of a person applying a product to their ear (no text or symbols)

Illustration of a hand washing a cup with a water tap (no text or symbols)

Illustration of a person applying makeup to their ear with a brush (no text or symbols)

Illustration of a hand holding a button with a circular icon, pointing to a device (no text or symbols present)

Illustration of a person applying a toothbrush to their beaded jaw, with a circular logo containing the letter 'T' (no text or symbols on the diagram itself)

Uporaba pritrdljivih nastavkov

Illustration of a mushroom-shaped object with an upward arrow and a cross symbol, no text or labels present.

Diagram showing a funnel pouring liquid into a curved surface, with an inset magnified view of the process (no text or symbols)

Diagram showing a device emitting heat or vibration to a surface, with an inset magnified view of the device's internal structure (no text or symbols present)

Illustration of a person using a hairpin to apply product (no text or symbols present)

3 Zatič nastavka vstavite v režo na zgornjem delu aparata. Nato nastavek pritisnite navzdol, da ga pritrdite na aparat (“klik”).

Illustration of a spray gun interacting with a surface, showing spray effect and magnified view (no text or symbols)

Uporaba nastavka za oblikovanje brade

1 Aparat mora biti izklopljen.
2 Zatič nastavka vstavite v režo na zgornjem delu aparata. Nato nastavek pritisnite navzdol, da ga pritrdite na aparat (“klik”).

Uporaba nastavka za oblikovanje brade z glavnikom

Illustration of a hairbrush cutting down with a downward arrow indicating compression (no text or symbols)

1 Glavnik potisnite naravnost v vodila na obeh straneh nastavka (“klik”).
2 Pritisnite drsnik za dolžino in ga potisnite levo ali desno, da izberete želeno dolžino dlak.
3 Vklopite aparat.

Illustration of a man with a beard eating a spoon (no text or symbols)

Illustration of two hands holding a tool, with arrows indicating movement direction (no text or symbols)

Line drawing of a person applying a hairpin to their neck (no text or symbols)

Illustration of a dropper tip emitting powder onto a surface, with an inset showing a graduation cap (no text or symbols)

Illustration of a mechanical component with fluid flow, no text or symbols present

Illustration of a person applying facial care to their face, showing hand and product lines (no text or symbols)

Uporaba nastavka za oblikovanje brade brez glavnika

Illustration showing two facial expressions with a magnified inset of the first face (no text or symbols)

Simple line drawing of a paintbrush with a cross mark and spray effect (no text or symbols)

Simple line drawing of a container with an upward arrow, no text or symbols present

5 Čistilni vložek vstavite v sistem SmartClean.

Diagram of a blender with a black arrow pointing to its internal component (no text or symbols present)

6 Zgornji del sistema SmartClean potisnite nazaj navzdol (“klik”).

Diagram of a mechanical component with a downward arrow indicating motion or force (no text or symbols)

Illustration of a dropper tip with a downward arrow and a prohibition symbol (no text or labels)

Uporaba sistema SmartClean

Illustration of a hand holding a small object with arrows indicating motion or force, and a magnified inset showing a cross-section of a mechanical component (no text or symbols)

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

3 Brivnik postavite v nosilec, nagnite nazaj in pritisnite na zgornji pokrovček, da brivnik priključite (“klik”).

Hand holding a device with two circular buttons labeled 'Power' and 'Spiral', no visible text or symbols

Diagram of a funnel-shaped object with two circular indicators (one checked, one not checked) and a checkmark symbol, no readable text or labels present.

Diagram of a blender with a black arrow pointing to its internal component (no text or symbols present)

Diagram of a mechanical component with a downward arrow indicating rotation (no text or symbols)

Illustration of a hand holding a small object with motion lines indicating movement (no text or symbols)

SLOVENŠČINA530

Anatomical illustration of a human ear with internal organs and a curved arrow indicating rotation (no text or labels)

Illustration of a medical procedure showing a surgical tool interacting with a patient's ear canal (no text or symbols present)

3 Nosilec brivne glave 30 sekund spirajte pod toplo tekočo vodo.
4 Previdno otresite vso odvečno vodo in pustite, da se nosilec brivnih glav posuši.
5 Zaprite nosilec brivnih glav ("klik").

Temeljito čiščenje

Anatomical illustration of a human head and neck with internal organs, showing no text or labels.

Illustration of a mechanical component with an upward arrow, no text or symbols present

Diagram showing two mechanical components with arrows indicating motion or assembly (no text or symbols)

Diagram showing two mechanical components with fluid flow, no text or symbols present

Simple line drawing of a mechanical component with a circular base and a star-shaped top (no text or symbols)

7 Brivne glave namestite nazaj v nosilec brivnih glav.

Diagram showing a circular object being lifted by a downward arrow into a triangular structure (no text or symbols)

SLOVENŠČINA532

8 Pritrdilne obročke namestite nazaj na nosilec brivne glave in obrnite v desno.

Diagram showing mechanical components with arrows and a checkmark, no readable text or symbols present

Illustration of two hands holding a cloud-like object with a downward arrow and a spark effect, no text or symbols present.

9 Zgib nosilca brivne glave ponovno vstavite v režo brivne enote. Zaprite nosilec brivne glave (“klik”).

Line drawing of a shoe being lifted by a string, showing the foot and ankle (no text or symbols)

1 Vklopite aparat z nameščenim nastavkom za oblikovanje.

Illustration of a hand holding a small object with motion lines, accompanied by a magnified circular inset showing a landslide or landslide (no text or symbols)

Illustration of two hands holding a tool, one with arrows indicating movement and the other with an 'X' mark (no text or symbols present)

Illustration of two hands pouring liquid from a bottle onto a surface, separated by a diagonal line (no text or symbols)

2 Vklopite aparat.

Two cartoon fish jumping over a diagonal line, one falling and the other wading (no text or symbols)

Diagram of a mechanical component with a top component and an arrow indicating upward motion (no text or symbols)

Two hanging objects with ropes tied on a diagonal line, no text or symbols visible

3 Oba dela temeljito očistite s toplo blago milnico.

Illustration of mechanical components including a drum, bell, and base mount (no text or symbols)

Diagram of a hairpin with a curved handle and three circular base, showing mechanical components (no text or symbols)

Two-step diagram showing a device being inserted into a base, with no visible text or symbols.

- Brivnik hranite v priloženi torbici.

Diagram of a mechanical component with a top cylindrical part and an upward arrow, no text or symbols present.

Anatomical illustration of internal organs with arrows indicating movement or force (no text or labels)

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Diagram showing a hand holding a circular object with arrows indicating motion or force (no text or symbols present)

5 Brivne glave odstranite z nosilca brivne glave in zavrzite.

Abstract diagram of a symmetrical geometric structure with three circular elements and an upward arrow, no text or symbols present.

6 V nosilec namestite nove brivne glave.

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

7 Pritrdilne obročke namestite nazaj na brivne glave in obrnite v desno.

Diagram showing two circular components with arrows and a checkmark, no readable text or symbols present

Illustration of two hands holding a heart-shaped object with arrows indicating motion or change (no text or symbols)

8 Zgib nosilca brivne glave ponovno vstavite v režo brivne enote. Zaprite nosilec brivne glave ("klik").

9 Če želite ponastaviti opomnik za zamenjavo, za približno 7 sekund pritisnite gumb za vklop/izklop.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

- Ta simbol pomeni, da izdelka ne smete odlagati skupaj z običajnimi gospodinjskimi odpadki (2012/19/EU).

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Illustration of a hand tool applying material to a small object, with no visible text or symbols

Illustration of two skis with directional arrows indicating motion (no text or symbols)

2 Upognite kaveljčke in odstranite napajalno enoto.

Two views of a mechanical component with arrows indicating motion or assembly (no text or symbols)

Illustration of a hand holding a tool with an arrow indicating motion (no text or symbols)

4 Odstranite nosilec baterije in s kleščami prerežite trakove baterije.

Garancija in podpora

Prohibition sign showing a faucet without spraying water, enclosed in a circle (no text)

No smoking sign with faucet symbol (no text or numbers)

Simple line drawing of a showerhead spraying over water in a container (no text or symbols)

Illustration of a hairdryer with a magnified inset showing internal structure (no text or symbols)

Diagram of a test tube with a cap and a magnified inset showing a spike (no text or symbols)

Diagram of a test tube with a cap and a magnified inset showing internal structure (no text or symbols)

Diagram of a device with a circular annotation highlighting a specific area (no text or symbols present)

Diagram of a hairdryer with a magnified inset showing internal structure (no text or symbols)

Diagram of a droplet with a cap and droplet inside, showing a droplet on the surface (no text or symbols)

Diagram of a dropper with a magnified inset showing internal structure (no text or symbols)

Illustration of a robot with a lock icon and speech bubble (no text or symbols)

Illustration of a smart device with a lock icon and speech bubble (no text or symbols)

Illustration of a hand pressing a button on a patient's knee joint (no text or symbols)

Diagram of a hairpin plug connecting a power outlet with a cable, showing two arrows indicating direction (no text or symbols present)

Simple line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Illustration of a person applying a hairpin to their face (no text or symbols present)

Line drawing of a person's face with hand near ear area, no text or symbols present

Rroja në të njomë

Line drawing of a person applying a product to their ear (no text or symbols)

Illustration of a hand using a water dispenser to lift a small bowl (no text or symbols)

Illustration of a person applying a hair accessory to their face (no text or symbols present)

Illustration of a hand holding a finger with a circular button labeled 'Y' (no text or symbols beyond the icon)

Illustration of a person applying a toothbrush to their beaded jaw, with a circular logo containing the letter 'T' (no text or symbols on the diagram itself)

Illustration of a hand holding a device with a cross symbol and upward arrow, no text or labels present.

Diagram showing a droplet on a surface with an arrow indicating light or emission, and a magnified inset showing a graduation cap (no text or symbols)

Illustration of a medical or laboratory procedure showing a device emitting particles into a curved surface, with an inset magnified view of the process (no text or symbols present)

Illustration of a person applying makeup to their ear (no text or symbols present)

Illustration of a hairdryer with an inset showing the tip and mouth area (no text or symbols)

Line drawing of a hairbrush cutting into a pair of tweezers (no text or symbols)

Illustration of a man eating with a spoon (no text or symbols)

Illustration of two hands holding a tool, one with arrows indicating movement and the other marked with an 'X' (no text or symbols present)

Line drawing of a person applying a hair product to their ear (no text or symbols)

Illustration of a dropper tip dispensing liquid into a container, with an inset showing a close-up of the dropper (no text or symbols present)

Illustration of a mechanical component with fluid flow, no text or symbols present

Illustration of a person applying facial care to their face, with no visible text or symbols

Simple line drawing of a paintbrush with a cross mark and a warning symbol (no text or labels)

Close-up of a mechanical component with a black arrow pointing downward (no text or symbols visible)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Illustration of a hand holding two circular buttons with power and spiral symbols, next to a device component (no text or labels)

Diagram of a mechanical component with two circular indicators (one checked, one not checked) and a checkmark symbol, no readable text or labels present.

Diagram of a blender with a black arrow pointing to its internal component (no text or symbols present)

Diagram of a mechanical component with a downward arrow indicating rotation (no text or symbols)

Illustration of a hand holding a small object with motion lines indicating movement or force (no text or symbols)

Anatomical illustration of a human organ with internal structures and a directional arrow (no text or labels)

Illustration of a food item being lifted by a fork (no text or symbols)

Anatomical illustration of internal organs with arrows indicating movement or force (no text or labels)

Illustration of a biological structure with an arrow indicating upward movement (no text or symbols)

Diagram showing a hand holding a device with an arrow indicating upward motion (no text or symbols present)

Diagram showing two mechanical components with fluid flow, no text or symbols present

Diagram of a mechanical or electrical component with a central circular element and a curved top surface (no text or symbols)

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Diagram showing two circular components with arrows and a checkmark, no readable text or symbols present

Illustration of two hands holding a cloud-like object with arrows indicating motion or transformation (no text or symbols)

Simple line drawing of a shoe being lifted by a string, no text or symbols present

Illustration of a hand blowing bubbles with a magnified circular inset showing a mountain (no text or symbols)

Illustration of two hands holding a curved object with directional arrows indicating movement or force (no text or symbols)

Illustration of two hands pouring liquid from a bottle onto a surface, separated by a diagonal line (no text or symbols)

Two cartoon fish jumping over a diagonal line, one falling and the other wading (no text or symbols)

Diagram of a mechanical component with a top cylindrical part and a base, showing an upward arrow (no text or symbols)

Two identical diagrams showing a container being inverted over a wall, with no text or symbols present.

Illustration of mechanical components and a gear mechanism (no text or symbols)

Vendruajtja

Simple line drawing of a mechanical component with a top cylindrical part and an upward arrow (no text or symbols)

Diagram showing a hand holding a circular brush head with an arrow indicating direction, alongside a magnified view of the brush tip (no text or symbols present)

Diagram showing a circular object with a downward arrow pointing to a triangular structure (no text or symbols)

Diagram showing mechanical components with arrows and a checkmark, no readable text or symbols present

Diagram showing two hands holding a cloud-like object with arrows indicating motion or transformation (no text or symbols)

Symbol of a trash bin crossed with no text or symbols, representing waste sorting or disposal (no text present)

Illustration of a hand turning a tool on a slide, with no visible text or symbols

Illustration of two skis in motion, one curved and one linear, with arrows indicating movement direction (no text or symbols)

Two car seats with a diagonal line and an upward arrow, no visible text or symbols

Diagram showing two robotic arms with a tool, one holding a tool and the other extending, against a diagonal line (no text or symbols)

No sign depicting a faucet with a showerhead, enclosed in a circle (no text or symbols)

- Uvek proverite aparat pre upotrebe. Nemojte da koristite aparat ako je oštećen jer to može izazvati povrede. Ako je neki deo oštećen, obavezno ga zamenite originalnim.

Opomena

Simple line drawing of a showerhead spraying over water in a container (no text or symbols)

Illustration of a hairdryer with a magnified inset showing internal structure (no text or symbols)

- Ako aparat ostavite povezan na električnu mrežu, proces punjenja se nastavlja. Kako bi ukazala na to da se aparat puni, donja dioda prvo počinje da treperi, a zatim da stalno svetli. Ta procedura se ponavlja sa drugom diodom i nastavlja se dok se aparat potpuno ne napuni.

Diagram of a test tube with a cap and a magnified inset showing a star-shaped object (no text or symbols)

Indikator napunjenosti baterije sa 1 diodom

- Punjenje traje oko 1 sat.

Diagram of a laboratory test tube with a magnified inset showing internal structure (no text or labels)

- Indikator napunjenosti baterije sa 3 diode

Diagram of a handheld device with a circular button labeled 'I' and an arrow pointing to it (no text or symbols beyond the label)

- Indikator napunjenosti baterije sa 1 diodom

Skoro prazna baterija

Illustration of a hairdryer with a magnified inset showing internal structure (no text or symbols)

Kada je baterija skoro ispražnjena, indikator napunjenosti baterije treperi narandžasto.

- Indikator napunjenosti baterije sa 3 diode

Diagram of a laboratory test tube with a capillary top and a magnified inset showing a star-shaped object (no text or labels)

- Indikator napunjenosti baterije sa 1 diodom

Preostali kapacitet baterije

Diagram of a hairdryer with a magnified inset showing the tip and base (no text or symbols)

Indikator napunjenosti baterije sa 3 diode

- Preostali kapacitet baterije označavaju lampice indikatora napunjenosti baterije koje neprekidno svetle.

Illustration of a smart device with a lock icon and a speech bubble (no text or symbols)

- Dok aktivirate zaključavanje za vreme putovanja, simbol te funkcije stalno svetlo. Kada je zaključavanje za vreme putovanja aktivno, simbol te funkcije treperi.

Diagram of a smart device with a lock icon and a speech bubble (no text or symbols)

Aktiviranje postavke Turbo

1 Da biste aktivirali postavku Turbo, jedanput pritisnite dugme Turbo.

Deaktiviranje postavke Turbo

1 Da biste deaktivirali postavku Turbo, samo još jednom pritisnite dugme Turbo.

Punjenje

Punjenje traje oko 1 sat.

Diagram of a hairbrush connecting a plug to a cable with an arrow indicating direction (no text or symbols)

Illustration of a hand holding a small object with arrows indicating motion or force, and a magnified inset showing a close-up of a mechanical component (no text or symbols)

1 Priključite mali utikač u sistem SmartClean.
2 Uključite adapter u utičnicu.
3 Pritisnite gornji poklopac da biste mogli da postavite aparat za brijanje u držač („klik“).

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

4 Držite aparat za brijanje naopako iznad držača. Vodite računa da prednja strana aparata za brijanje bude usmerena ka sistemu SmartClean.

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

5 Postavite aparat za brijanje u držač, nagnite aparat za brijanje unazad i pritisnite gornji poklopac nadole da biste priključili aparat za brijanje („klik“).

Illustration of a hand holding a circular object with an arrow pointing to it, no text or symbols present

1 Da biste uključili aparat, jedanput pritisnite dugme za uključivanje/isključivanje.
2 Da biste isključili aparat, jedanput pritisnite dugme za uključivanje/isključivanje.

- Indikator napunjenosti baterije sa 3 diode: Displej se uključuje na nekoliko sekundi kako bi ukazao na status napunjenosti baterije.

Brijanje

Period prilagođavanja kože

Illustration of a person applying makeup to their ear with a brush (no text or symbols)

Line drawing of a person's head with hand near ear area, no text or symbols present

Illustration of a person applying a product to their ear (no text or symbols)

Napomena: Redovno ispirajte aparat za brijanje pod mlazom vode kako biste osigurali neprekidno glatko pomeranje preko kože.

Illustration of a person applying a hair product to their face (no text or symbols)

Illustration of a hand pressing a button on a human leg, with no visible text or symbols

Illustration of a man with a beard and a T-shaped logo, no text or symbols present

6 Nakon upotrebe osušite lice i temeljno očistite aparat za brijanje (pogledajte poglavlje „Čišćenje i održavanje“).

Napomena: Obavezno isperite svu penu/gel za brijanje sa aparata za brijanje.

Postavka Turbo (samo određeni modeli)

Illustration of a funnel with a cross symbol and an upward arrow, no text or labels present

Diagram showing a funnel pouring liquid into a leaf, with an inset magnified view of the leaf being covered (no text or symbols)

3 Ubacite ušicu dodatka u prorez sa gornje strane aparata. Zatim pritisnite dodatak ka dole da biste ga pričvrstili za aparat („klik“).

Upotreba trimera

Trimer možete da koristite za podrezivanje zulufa i brkova.

Illustration of a robotic arm interacting with a human leg, showing motion and head movement (no text or symbols)

1 Proverite da li ste isključili aparat.
2 Ubacite ušicu dodatka u prorez sa gornje strane aparata za brijanje. Zatim pritisnite dodatak za podrezivanje ka dole da biste ga pričvrstili za aparat („klik“).

Illustration of a person using a hairdryer (no text or symbols present)

3 Uključite aparat.

4 Sada možete početi sa podrezivanjem.

5 Očistite dodatak nakon upotrebe (pogledajte poglavlje „Čišćenje i održavanje“).

Čišćenje dodatka za oblikovanje brade

Illustration of a medical procedure showing a surgical tool impacting tissue with an inset magnified view (no text or symbols)

1 Proverite da li ste isključili aparat.
2 Ubacite ušicu dodatka u prorez sa gornje strane aparata. Zatim pritisnite dodatak ka dole da biste ga pričvrstili za aparat („klik“).

Upotreba dodatka za oblikovanje brade sa češljem

Dodatak za oblikovanje brade sa montiranim češljem možete da koristite za oblikovanje brade uz jednu fiksnu postavku, ali i uz različite postavke dužine. Takođe možete da ga koristite za skraćivanje dugačkih dlačica pre brijanja kako biste dobili ugodniji osećaj brijanja.

Line drawing of a hairbrush cutting into a button with a downward arrow (no text or symbols)

Postavke dužine na dodatku za oblikovanje brade odgovaraju preostaloj dužini dlačica nakon podrezivanja i idu od 1 do 5 mm.

Illustration of a man with a beard eating a spoon (no text or symbols)

1 Gurnite češalj ravno u useke za vođenje sa obe strane dodatka („klik“).
2 Pritisnite selektor dužine, a zatim ga gurnite ulevo ili udesno da biste izabrali željenu postavku dužine dlačica.
3 Uključite aparat.
4 Možete da počnete sa oblikovanjem brade pomeranjem dodatka nagore uz primenu blagog pritiska i obraćanje pažnje na to da češalj bude potpuno u kontaktu sa kožom.
5 Očistite dodatak nakon upotrebe (pogledajte poglavlje „Čišćenje i održavanje“).

Upotreba dodatka za oblikovanje brade bez češlja

Dodatak za oblikovanje brade bez češlja možete da koristite za oblikovanje brade, brkova, zulufa ili linije kose na dužinu od 0,5 mm.

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols)

1 Skinite češalj sa dodatka.

Napomena: Uhvatite češalj za sredinu i povucite ga sa dodatka. Nemojte da vučete češalj za bočne strane.

2 Uključite aparat.

Line drawing of a person applying a hair product to their neck (no text or symbols)

3 Možete da počnete sa oblikovanjem brade, brkova, zulufa ili linije kose pomeranjem dodatka za oblikovanje nadole uz primenu blagog pritiska, držeći ga pod pravim uglom u odnosu na kožu.
4 Očistite dodatak nakon upotrebe (pogledajte poglavlje „Čišćenje i održavanje“).

Illustration of a dropper tip dispensing liquid into a container, with an inset showing a graduation cap and a speech bubble (no text or symbols)

1 Ubacite ušicu dodatka u prorez sa gornje strane aparata. Zatim pritisnite dodatak ka dole da biste ga pričvrstili za aparat („klik“).

Illustration of a mechanical component with motion lines indicating movement (no text or symbols)

Illustration of a person applying facial care to their face with a tool, no text or symbols present

Illustration showing facial massage technique with a magnified inset of the eye area (no text or symbols)

9 Nakon tretmana isperite i osušite lice. Vaše lice je spremno za sledeći korak svakodnevne rutine nege kože.

10 Očistite dodatak nakon upotrebe (pogledajte poglavlje „Čišćenje i održavanje“).

Simple line drawing of a paintbrush with a cross mark and motion lines, no text or symbols present.

Nemojte da naginjete sistem SmartClean da ne bi došlo do prosipanja.

Napomena: Držite sistem SmartClean dok ga pripremate za upotrebu.

1 Priključite mali utikač u zadnju stranu sistema SmartClean.

Simple line drawing of a container with an upward arrow and label 'SPIN' at the bottom (no text or symbols on the diagram itself)

5 Stavite patronu za čišćenje u sistem SmartClean.

Diagram of a blender with an arrow pointing to its internal component (no text or symbols present)

Diagram of a mechanical component with a downward arrow indicating direction (no text or symbols)

6 Gurnite gornji deo sistema SmartClean nadole (,,klik“).

Illustration of a spray gun with a stop sign and downward arrow (no text or symbols)

Upotreba sistema SmartClean

Obavezno otresite višak vode sa aparata za brijanje pre nego što ga stavite u sistem SmartClean.

Illustration of a hand holding a small object with arrows indicating motion or force, and an inset showing a cross-section of a mechanical component (no text or symbols)

1 Pritisnite gornji poklopac da biste mogli da postavite aparat za brijanje u držač („klik“).

Close-up of a mechanical component with a black arrow pointing downward (no text or symbols visible)

2 Držite aparat za brijanje naopako iznad držača. Vodite računa da prednja strana aparata za brijanje bude usmerena ka sistemu SmartClean.

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

3 Postavite aparat za brijanje u držač, nagnite aparat za brijanje unazad i pritisnite gornji poklopac nadole da biste priključili aparat za brijanje („klik“).

- Simbol baterije sporo treperi, što ukazuje na to da se aparat za brijanje puni.

Hand holding two circular buttons with power and spiral symbols, connected to a device (no text or labels visible)

Diagram of a mechanical component with two circular indicators (one checked, one not checked) and a checkmark symbol, no readable text or labels present.

4 Pritisnite dugme za uključivanje/isključivanje na sistemu SmartClean da biste pokrenuli program za čišćenje.

- Tokom programa za čišćenje (koji traje približno 10 minuta) treperi simbol za čišćenje.

- Po završetku programa za čišćenje simbol za spremnost će početi neprekidno da svetli.

Illustration of a blender with a black arrow pointing to its interior (no text or symbols)

Mechanical component diagram showing a lever with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a small object with motion lines indicating movement or force (no text or symbols)

Illustration of a biological structure with a curved top and arrow indicating direction (no text or symbols)

2 Pritisnite taster za oslobađanje i otvorite jedinicu za brijanje.

Illustration of a food item being lifted by chopsticks, showing a bowl and fork (no text or symbols)

3 Ispirajte držač glave za brijanje pod mlazom tople vode 30 sekundi.
4 Pažljivo otresite višak vode i ostavite držač glave za brijanje da se osuši.
5 Zatvorite držač glave za brijanje („klik“).

Temeljno čišćenje

Anatomical illustration of internal organs with arrows indicating movement or force (no text or labels)

Proverite da li ste isključili aparat.

1 Pritisnite taster za oslobađanje i otvorite jedinicu za brijanje.

Diagram of a mechanical assembly with an upward arrow indicating motion (no text or symbols present)

2 Skinite držač glave za brijanje sa donjeg dela jedinice za brijanje.

3 Okrenite zaustavne prstenove suprotno od smera kazaljke na satu i uklonite ih.

Diagram showing two mechanical components with arrows indicating motion or force direction (no text or symbols)

4 Skinite glave za brijanje sa držača glava za brijanje. Svaka glava za brijanje sastoji se od rezača i štitnika.

Diagram showing fluid flow between two mechanical components (no text or symbols)

Mechanical component diagram showing a gear and shaft assembly (no text or symbols)

Pure diagram of a mechanical or architectural component with no text, numbers, or symbols

Napomena: Proverite da li su istureni delovi na glavama za brijanje potpuno uklopljeni u useke na držaču glave za brijanje.

8 Vratite zaustavne prstenove na držač glave za brijanje i okrenite ih u smeru kazaljke na satu.

- Svaki zaustavni prsten ima dva useka i dva isturena dela koji se potpuno uklapaju sa isturenim delovima i usecima na držaču glave za brijanje.

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

- Okrenite prsten u smeru kazaljke na satu dok ne budete čuli „klik“ i dok se prsten ne fiksira.

Napomena: Držač glave za brijanje držite u ruci prilikom ponovnog ubacivanja glava za brijanje i montiranja zaustavnih prstenova. Nemojte da stavljate držač glave za brijanje na površinu dok ovo radite pošto može da dođe do oštećenja.

Illustration of two hands holding a cloud-like object with arrows indicating motion or transformation (no text or symbols)

9 Vratite šarku držača glave za brijanje u prorez na jedinici za brijanje. Zatvorite držač glave za brijanje („klik“).

Upotreba dodataka koji se skidaju

Line drawing of a shoe being lifted by a bag (no text or symbols)

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols present)

Napomena: Uhvatite češalj za sredinu i povucite ga sa dodatka. Nemojte da vučete češalj za bočne strane.

2 Uključite aparat.

Illustration of two kitchen utensils with liquid, one above and one below, separated by a diagonal line (no text or symbols)

Two cartoon fish jumping over a diagonal line, one falling and the other wading (no text or symbols)

Diagram of a mechanical component with a top component and an arrow indicating upward motion (no text or symbols)

Two hanging objects with ropes tied on a diagonal line, no text or symbols visible

Illustration of mechanical components and a gear mechanism (no text or symbols)

Diagram of a hairpin with a downward arrow indicating compression or disassembly (no text or symbols present)

Illustration of a mechanical component with a downward arrow indicating motion (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram of a mechanical component with a top cylindrical part and an upward arrow, no text or symbols present.

- Glavu sa četkicom za čišćenje trebalo bi zameniti na svaka 3 meseca ili ranije ako su vlakna deformisana ili oštećena.

Zamena glava za brijanje

Anatomical illustration of a human upper body with internal organs and arrows indicating movement or force (no text or labels)

3 Skinite držač glave za brijanje sa donjeg dela jedinice za brijanje.

Illustration of a biological structure with an upward arrow, no text or symbols present

4 Okrenite zaustavne prstenove suprotno od smera kazaljke na satu i uklonite ih.

Diagram showing a hand holding circular components with an arrow indicating upward motion, alongside a battery pack (no text or symbols)

5 Skinite glave za brijanje sa držača glava za brijanje i bacite ih.

6 Stavite nove glave za brijanje u držač.

Diagram showing a circular object falling into a triangular structure with concentric rings (no text or symbols)

Napomena: Proverite da li su istureni delovi na glavama za brijanje potpuno uklopljeni u useke na držaču glave za brijanje.

7 Vratite zaustavne prstenove na glave za brijanje i okrenite ih u smeru kazaljke na satu.

- Svaki zaustavni prsten ima dva useka i dva isturena dela koji se potpuno uklapaju sa isturenim delovima i usecima na držaču glave za brijanje.

Diagram showing two circular components with arrows and a checkmark, no readable text or symbols present

- Okrenite prsten u smeru kazaljke na satu dok ne budete čuli „klik“ i dok se prsten ne fiksira.

Napomena: Držač glave za brijanje držite u ruci prilikom ponovnog ubacivanja glava za brijanje i montiranja zaustavnih prstenova. Nemojte da stavljate držač glave za brijanje na površinu dok ovo radite pošto može da dođe do oštećenja.

Illustration of two hands holding a cloud-like object with arrows indicating motion or transformation (no text or symbols)

8 Vratite šarku držača glave za brijanje u prorez na jedinici za brijanje. Zatvorite držač glave za brijanje („klik“).

9 Da biste resetovali podsetnik za zamenu, pritisnite dugme za uključivanje/isključivanje i zadržite ga približno 7 sekundi.

Illustration of a hand operating a screwdriver on a flat surface, with a separate close-up showing the same tool (no text or symbols present)

Illustration of two skis with directional arrows indicating motion (no text or symbols)

Two mechanical components with a diagonal line and an arrow indicating motion (no text or symbols)

3 Polomite žabice i uklonite prednju ploču jedinice za napajanje.

Diagram showing two mechanical components with a tool, one being inserted and the other holding a tool (no text or symbols present)

4 Izvadite držač baterije i presecite jezičke baterije pomoću sečica.

Garancija i podrška

No sign depicting a faucet without any text or symbols

No smoking sign with faucet symbol (no text or numbers)

Simple line drawing of a showerhead spraying over a water-filled basin (no text or symbols)

Illustration of a hairdryer with a magnified inset showing internal structure (no text or symbols)

Illustration of a test tube with a magnified inset showing a warning symbol (no text or labels present)

Illustration of a hairdryer with a magnified inset showing the tip and tail (no text or symbols)

Diagram of a mechanical component with a circular annotation and pointer, no readable text or symbols present.

Diagram of a medical or laboratory device with a magnified inset showing internal components (no text or symbols)

УКРАЇНСЬКА622

Diagram of a dropper with a starburst pattern and a magnified view of the dropper's tip (no text or symbols)

Diagram of a laboratory test tube with a magnified inset showing internal components (no text or labels)

Illustration of a robot's torso with a lock icon and speech bubble (no text or symbols)

Illustration of a smart device with a lock icon and speech bubble (no text or symbols)

Illustration of a hand pressing a button on a human leg, with no visible text or symbols

Diagram of a handheld device with two leads and a plug, showing wiring connection (no text or symbols)

Illustration of a hand holding a small object with arrows indicating motion or force, and an inset showing a close-up of a mechanical component (no text or symbols)

Simple line drawing of a mechanical component with a downward arrow, no text or symbols present

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Використання бритви

Illustration of a hand holding a circular object with an arrow pointing to it, no text or symbols present

Illustration of a person applying facial hair to their ear with a cotton swab (no text or symbols)

Illustration of a person's face with hand near ear area, no text or symbols present

Line drawing of a person applying a product to their ear (no text or symbols)

Illustration of a hand washing a cup with a water dispenser (no text or symbols)

Illustration of a hand pressing a button on a patient's knee joint (no text or symbols)

Illustration of a person's beard and hair being brushed with a toothbrush, with a circular logo containing the letter 'T' (no text or symbols on the image itself)

Diagram showing a mushroom-shaped object above a curved surface with a cross symbol, indicating a process or detection (no text or labels present)

Diagram showing a funnel pouring liquid into a curved surface, with an inset magnified view of a graduation cap (no text or symbols present)

Illustration of a robotic arm interacting with a surface, showing motion and spray effects (no text or symbols)

Illustration of a hairdryer with an inset showing the tip and base (no text or symbols)

Illustration of a hairbrush cutting into a circular cutter (no text or symbols)

Illustration of a man smoking a pipe with a beanie (no text or symbols)

УКРАЇНСЬКА630

Illustration of two hands holding a tool with arrows indicating movement or force direction (no text or symbols)

Line drawing of a person applying a hair accessory to their neck (no text or symbols)

Illustration of a dropper tip dispensing liquid into a container, with an inset showing a dropper tip (no text or symbols present)

Illustration of a mechanical component with fluid flow, no text or symbols present

Illustration of a person applying facial care to their face, with no visible text or symbols

Illustration showing a person applying facial care to another person's face, with no visible text or symbols

Simple line drawing of a container with an upward arrow, no text or symbols present

Illustration of a blender with a black arrow pointing to its lid (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating rotation (no text or symbols)

Illustration of a spray bottle with a stopper and a prohibition symbol (no text or labels)

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols visible)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Line drawing of a hand holding two circular buttons with power and spiral symbols (no text or labels)

Diagram of a mechanical component with two circular indicators (one checked, one checked) and a checkmark symbol, no readable text or labels present.

Diagram of a blender with a black arrow pointing to its internal component (no text or symbols present)

Diagram of a mechanical component with a downward arrow indicating direction (no text or symbols)

Illustration of a hand holding a small object with motion lines indicating movement or force (no text or symbols)

Illustration of a biological structure with layered patterns and a curved arrow indicating rotation (no text or symbols)

Illustration of a food item being lifted by a fork, showing a bowl and fork (no text or symbols)

Illustration of a decorative object with swirling patterns and an arrow indicating direction (no text or symbols)

Illustration of a mechanical component with an upward arrow, no text or symbols present

Diagram showing two mechanical components with arrows indicating direction, no text or symbols present

Illustration of a hand washing a water bottle with splashing liquid (no text or symbols)

Diagram of a mechanical or electrical component with a central circular base and a top circular head (no text or symbols)

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Diagram showing a mechanical component with arrows indicating motion, divided by a diagonal line (no text or symbols)

Illustration of two hands holding a cloud-like object with arrows indicating motion or transformation (no text or symbols)

Illustration of a shoe being lifted by a string, showing the foot and ankle (no text or symbols)

Illustration of a hand crushing a rock with a magnified circular inset showing a pile of rocks (no text or symbols)

Illustration of two hand positions with arrows indicating movement or force direction (no text or symbols)

Illustration of two hanging objects with ropes and a diagonal line, no text or symbols present

Illustration of two fish separated by a diagonal line, one falling and the other wading (no text or symbols)

Diagram of a mechanical component with a top cylindrical part and an upward arrow indicating motion (no text or symbols)

Two identical diagrams showing a spray bottle and a container with liquid, separated by a diagonal line (no text or symbols)

Illustration of a pair of industrial components with vibration effects, no text or symbols present

Зберігання

Diagram of a mechanical component with a downward arrow indicating motion or force (no text or symbols)

Illustration of a medical device with a downward arrow indicating force or movement (no text or symbols)

Simple line drawing of a spray bottle with a handle and spout (no text or symbols)

Simple line drawing of a mechanical component with an upward arrow indicating motion (no text or symbols)

Illustration of a biological structure with ornate topography and internal patterns (no text or symbols)

Illustration of a mushroom-shaped object with an upward arrow, no text or symbols present

Diagram of a hand holding a circular component with arrows indicating direction (no text or symbols)

Abstract diagram with three symmetrical shapes and arrows, no text or symbols present

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Diagram showing two circular components with arrows and a checkmark, no readable text or symbols present

Illustration of two hands holding a cloud-like object with arrows indicating motion (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Illustration of a sewing machine tool and a sewing machine blade assembly (no text or symbols)

Two skis shown side by side, one with directional arrows indicating motion (no text or symbols)

Two car body components with a diagonal line and an upward arrow, no visible text or symbols

Diagram showing two hands operating a tool with a pencil, no text or symbols present
