S181.EU - Heating Bimar - Free user manual and instructions

Product Type	Fan heater or convector (portable)
Brand	Bimar
Model	S181.EU
Category	Supplemental heating
Power	2000 W (typical for this type)
Power supply	220-240V ~ 50Hz
Dimensions (L x H x D)	Approximately 25 x 35 x 20 cm
Weight	Approximately 2.5 kg
Recommended heating area	Up to 25 m²
Adjustable thermostat	Yes, integrated
Power levels	2 or 3 (depending on version)
Oscillation function	Yes, for even heat distribution
Safety shut-off	Tip-over and overheat
Heating type	Convection or radiant (depending on technology)
Housing material	Heat-resistant plastic
Noise level	Low (quiet fan)
Maintenance	Clean the air intake grille with a soft cloth
Child safety	Not specific but CE compliant
Protection rating	IP21 (protection against water droplets)
Included accessories	User manual, warranty certificate
Warranty	2 years (standard)

Frequently Asked Questions - S181.EU Bimar

What is the power of the Bimar S181.EU heater?

The Bimar S181.EU has a maximum power of 2000 W, allowing it to effectively heat a room up to about 25 m².

How to clean the heater?

Unplug the device and wait for it to cool down. Use a soft, dry cloth to clean the air intake and outlet grilles. Never use water or abrasive products.

The heater turns off by itself, is that normal?

Yes, it's normal. The device is equipped with a tip-over safety switch and an overheat thermostat. If it tips over or reaches an excessive temperature, it automatically turns off.

Can I leave the heater on overnight?

It is not recommended to leave the device unattended for long periods. Do not leave it on overnight in a room where you sleep, unless it is equipped with a timer or safety thermostat.

What is the recommended height to place the device?

Place the heater on a flat, stable surface, at least 50 cm away from walls and flammable objects (curtains, furniture). Avoid soft floors like carpets.

How to use the oscillation function?

Press the Oscillation button (often represented by a rotation icon). The heater will then sweep the room for even heat distribution.

The indicator stays on even after turning off the device?

Some models have a standby indicator. To turn it off completely, unplug the power cord.

Can I use an extension cord?

Yes, but use an extension cord of sufficient cross-section (minimum 1.5 mm²) and fully uncoiled. Avoid overloaded power strips.

What is the power consumption?

At full power (2000 W), the consumption is 2 kWh per hour. Use the thermostat to reduce consumption by maintaining the desired temperature.

Where to find spare parts?

Contact Bimar after-sales service or an authorized dealer. Common parts like filters or heating elements can be ordered online. Keep the user manual for references.

USER MANUAL S181.EU Bimar

type S181 (mod. BG-11031B)

Gentile Signora, Egregio Signore,

FUNZIONAMENTO

Thank you for purchasing the wall quartz heater.

Your choice will be rewarded when the wall quartz heater performs its indispensable function of extending your summers.

Our company has specialized in the production of heaters for over 60 years and is in a position to guarantee the greatest degree of reliability.

All our products conform to European safety standards and the service centers that are listed in the attachment will perform any maintenance and repair your require.

This short manual will provide all the advice you will need to make the best use of the wall quartz heater

Thanks again for choosing us.

Please read these instructions carefully before using the appliance, and instruct other persons using it, too, when necessary. Keep booklet handy for further use.

GENERAL ADVISE

• This appliance is destined only to the heating of domestic or similar environments and in compliance with these instructions. It can be considered only a supplementary source of heating and not as a central heating element. The appliance must not be used in dusty environments or in the presence of extremely volatile materials which could obstruct grids or heat exchanger, nor in very damp environments, in the presence of inflammable products, or out of doors in the open. Any other use is to be considered inappropriate and therefore dangerous. The manufacturer cannot be held responsible for eventual damage caused by inappropriate, improper or irresponsible use and/or for repairs made to the product by unauthorised personnel.
• This stove is a radiant appliance the elements of which are visibly incandescent and exceed a temperature of 650^ C; the appliance gets hot when working; so only touch the pull-chain switch to select power. Avoid contact with the radiant part. Also warn persons near the heater about this.
• The fireguard of this heater is intended to prevent direct access to heating elements and must be in place when the heater is in use, but the fireguard does not give full protection for young children and for infirm person.

• When the heater is working:

• Do not touch it with wet hands or feet

• Do not move it or adjust the position of the radiant part.

• Do not cover it (such as with cloth, towels, etc.) to avoid the risk of fire.

• Ensure that the appliance come into contact with water or other liquids. If this should happen, never immerse hands in the liquid but remove the plug from the socket first of all. Dry the appliance carefully and check that all the electric parts are dry. If in doubt, call a qualified expert.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• The appliance must be kept out of children's reach.
• Attention: when using electric appliances, the basic safety precautions must always be observed to avoid risks of fire, electric shocks and physical injury.

• Unplug the appliance when not in use.

• The fireguard of this heater is intended to prevent direct access to heating elements and must be in place when the heater is in use, but the fireguard does not give full protection for young children and for infirm person.

• That the user must not leave the appliance unattended while it is connected to the supply.
• Never use the radiator to dry damp garments.
• Do not touch the heater with wet hands or feet.
• Do not expose the heater to the weather (sun, rain, etc.)
• After switching on or off the appliance, it is possible to hear a light noise (click) due to the heating or the cooling of the appliance. This is normal and it does not indicate a bad working.
• If the appliances falls or works badly, disconnect the electrical cable immediately. Check that no part is damaged and switch it on after these controls: in case of doubt, contact professionally qualified persons.
• To avoid all risk of electric shock, never immerse the power cable, plug or appliance itself in water.
• Do not pull on the power cord or the appliance to unplug the appliance from the electric socket.
• If the electric cord is damaged, it has to be replaced by the supplier or an authorized service center or a professionally qualified, to avoid any risks.

Attention: do not cover the appliance when it is operating to avoid the risk of fires.

INSTALLATION

• After removing the packing materials, check the integrity of the appliance; if you are unsure, do not use it and ask for qualified professional help. The packing materials (plastic bags, polystyrene foam, nails, etc.) must be kept out the reach of children because they are potential sources of danger; but dispose of them in accordance with current law.
• Before connecting the appliance, check that the voltage shown on the data plate matches that of your electricity (230V\~ 50Hz), and that the electric plug is grounded. In the event of incompatibility between the electric outlet and the plug of the appliance, have the outlet replaced with another more suitable type by professionally qualified personnel, who will make sure that the section of the wires of the outlet is appropriate for the absorbed power of the appliance. In general, the use of adapters or extension cords is not recommended; if their use is indispensable, they must conform to existing safety standards and their current capacity (amperes) must not be less that the maximum of the appliance.
• The appliance must not be positioned immediately under a socket.
• The power socket must be easy to reach so the plug can be removed quickly in case of emergency.

Wall installation

With wall installation, the wall to which the appliance is secured must be made of masonry and/or of heat-resistant material (not wood, or synthetic material which can easily overheat); also, follow these indications for the installation:

1) so it is horizontal, to avoid it overheating or damaging the heating elements
2) far from other sources of heat, inflammable materials (curtains, carpets, etc.), inflammable gases or explosive materials (spray cans) and from materials that can deform on exposure to heat

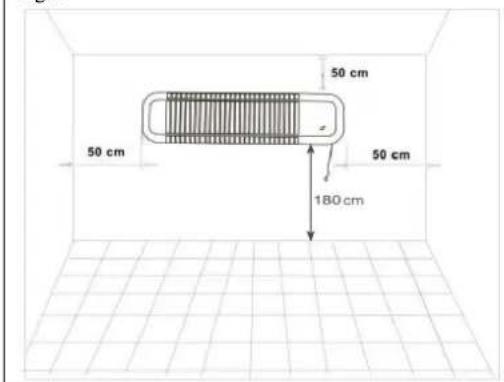

3) at the minimum distances from walls (always so long as they are masonry or brick) indicated in figure n.2; these distances must be increased at least 3 times for other materials, but it is a good idea to use a professionally qualified installer; the heater must be installed at least 1,8m above the floor.

4) not below electrical outlets.

- Attach the heater to the wall using the screws provided, use the holes of the control box (see fig.2).

• Make sure that the electric cord is correctly positioned, inset the electric cord through the guide (right or left) not touching hot or sharp surfaces and not wrapped around the appliance or twisted.
- To orient the infrared radiant element and heat in the most convenient way, adjust the inclination of the heating part (angle = 45° max).
- Do not use the appliance with a timer or a programmer or with a system that can switch on the appliance automatically, to avoid risk of fire, since a fire risk exists if the heater is covered or positioned incorrectly.
- All repairs should be made by a competent qualified electrician. In any case you should return the appliance to this service.

Fig.1

Fig.2

USE

The heater has a "pull switch" to select the heater's power with a display that shows the selection: 0 = off, 1 = 600W, 2 = 1200W and 3 = 1800W. The selection changes each time you pull the cord. To turn the heater off, pull the cord of the "pull switch" until you see "0" on the display and plug out from the current socket.

Never leave the appliance connected to the socket if it is not in use, especially for long periods.

CLEANING AND MAINTENANCE

Attention: before cleaning the appliance, switch it off, remove the plug from the current socket and leave it until getting cool.

• Protect the radiant part from dust to preserve its reflectivity.
  • To clean the base, use a slightly damp, soft cloth; do not use scouring pads or abrasive products.
• To clean the radiant part, use a slightly damp, soft cloth; do not use metal scouring pads or abrasive products, water or other liquids; do not immerse in water or other liquids.
• A special tool is required to replace the electrical cord and quartz heater (230V 600W): contact an authorized service center, also for any repairs.
• If you decide not to use the appliance any more, we recommend making it inoperative by cutting the power cord (after making sure you have disconnected the plug from the socket) and make dangerous parts harmless if children are allowed to play with them.
• Do not dispose of non-biodegradable products in the environment but dispose of them in accordance with current law. At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to stockists who supply this service on purchasing a new appliance. Disposing of a household appliance separately avoids possible negative consequences for the environment and health

deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources.
