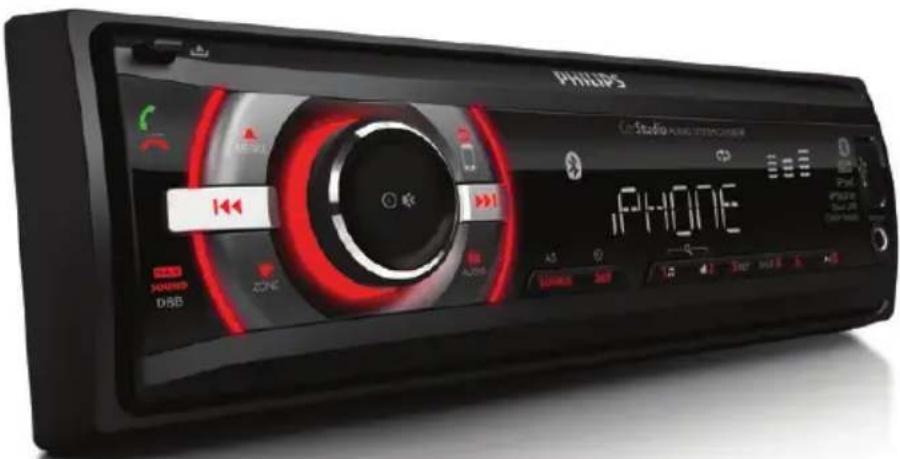

Product Type	Car Radio with CD/DVD? No CD, but USB/SD/Bluetooth/DAB
Brand	Philips
Model	CarStudio CE153DR
Dimensions (W x H x D)	182 x 52 x 95 mm
Weight (main unit)	1.0 kg
Power Supply	12 V DC (11-16 V), negative ground
Max Power Output	50 W x 4 channels
Continuous Power Output	22 W x 4 RMS (4 Ω, 10% THD)
Speaker Impedance	4 - 8 Ω
Pre-Amp Output Voltage	2.0 V
Aux Input Level	500 mV
Radio Bands	FM (87.5-108 MHz), MW (522-1620/530-1710 kHz), DAB/DAB+ (174.928-239.2 MHz)
Bluetooth Version	2.0, Class 2
Bluetooth Profiles	HFP, A2DP, AVRCP
Supported Media	USB (up to 32 GB, FAT16/32), SD/SDHC (up to 32 GB), iPod/iPhone, external player (AUX)
Supported Audio Formats	MP3 (8-320 kbps), WMA (V4-V9, 64-192 kbps)
Display	LCD screen
Mounting Size	1-DIN
Front Panel	Detachable
Preset Stations	6 per band (FM1/2/3, MW1/2, DAB1/2/3)
Sound Effects	DBB (Dynamic Bass Boost), DSC, MAX Sound, Equalizer (Preset/Custom)
RDS Features	AF, TA, PTY, CT (Clock Time)
Safety Features	Reverse polarity protection (negative ground only), fuse (15 A)
Cleaning	Soft damp cloth; no alcohol/chemicals

Frequently Asked Questions - CarStudio CE153DR PHILIPS

How do I reset the Philips CarStudio CE153DR to factory settings?

Detach the front panel and press the RESET button located on the main unit using a pointed object like a ballpoint pen or toothpick. All settings will be restored to factory defaults.

How do I pair my phone via Bluetooth?

Enable Bluetooth on your phone and set it to visible. Search for devices and select 'CE153' from the list. Enter the PIN '0000' and confirm. Once paired, ensure connection is enabled. The LCD will display 'PAIRED' and 'CONNECTED'.

How do I set the clock on this car radio?

Press and hold the MENU button (labeled with an up arrow) to access the system menu. Press MENU repeatedly until 'CLOCK' appears with blinking digits. Rotate the volume knob to set the hour, then press again to set the minute. Choose 12h or 24h format beforehand if needed.

How do I store radio stations?

Tune to the desired station, then press and hold one of the preset buttons (1 through 6) until 'SAVED' appears. Alternatively, press and hold the SOURCE button to automatically store up to 6 stations with strong signals.

Can I play music from a USB drive?

Yes, connect a USB storage device (up to 32 GB, FAT16/FAT32 formatted) to the front or rear USB port. Press SOURCE repeatedly to select 'FRONT USB' or 'REAR USB'. Playback starts automatically. Supported formats: MP3 and WMA.

How do I adjust the sound settings?

Press the EQ AUDIO button repeatedly to cycle through preset equalizers. For custom settings, press and hold EQ AUDIO, then use the knob to adjust bass, treble, balance, and fader. Also use the MAX SOUND and DBB buttons for additional effects.

What should I do if the system does not turn on?

Check the car ignition is on (ACC). Ensure the power and ground wires are correctly connected. Verify the fuse (15 A) on the rear panel is intact. If the fuse is blown, replace it with the same rating. If the problem persists, press the RESET button.

How do I listen to DAB radio?

Connect the optional DAB receiver and antenna. Press SOURCE to select 'DAB/DAB+'. Press MENU then select 'DAB SCAN' to scan for stations. Use the arrow buttons to browse and the knob to tune. Preset stations the same way as FM.

Is the front panel removable?

Yes, the front panel is detachable for security. Turn off the system, press the release button, and pull the panel outward. To reattach, align the notch and press until it clicks.

How do I clean the device?

Use a soft, damp cloth to wipe the surfaces. Never use alcohol, chemicals, or abrasive cleaners. Avoid exposing the device to liquids or moisture.

USER MANUAL CarStudio CE153DR PHILIPS

Always there to help you

Register your product and get support at www.philips.com/welcome

CE153DR

User manual

PHILIPS

Contents

1 Safety 2

2 Your car audio system 3

Introduction 3

What's in the box 3

Overview of the system 4

3 Install the car audio system 6

Connect wires 7

Mount into the dashboard 8

Attach the front panel 10

4 Get started 11

For the first time use 11

Set the time format 11

Set the clock 11

Select a source 11

Select a listening zone 12

Mute the button beep 12

5 Listen to FM/MW radio stations 12

Switch to FM/MW radio mode 12

Select a tuner region 12

Select a tuner sensitivity 13

Search for a radio station 13

Store radio stations in memory 13

Play with RDS 13

6 Listen to DAB radio stations 15

Switch to DAB mode 15

Scan for on-air stations 15

Program radio stations 16

Display DAB information 16

Set up for weak reception 17

Use the DRC (Dynamic Range Control) 17

Disable the DAB reception 17

Reset the DAB tuner 17

Remove invalid stations 17

Check the current version of DAB firmware 17

7 Play from a storage device 18

Control play 18

Switch tracks 19

8 Play from an iPod/iPhone 19

Compatible iPod/iPhone models 19

Connect your iPod/iPhone 19

Control play 20

Charge your iPod/iPhone 20

9 Use Bluetooth devices 21

Connect a device 21

Play audio from a Bluetooth device 22

Make a call 22

10 Listen to an external player 23

11 Adjust sound 23

12 Additional information 24

Reset the system 24

Replace the fuse 24

Upgrade the firmware 24

13 Product information 25

14 Troubleshooting 26

General 26

About the Bluetooth device 27

15 Notice 28

Compliance 28

Care of the environment 28

Trademark notice 28

Copyright 29

1 Safety

Read and understand all instructions before you use this device. If damage is caused by failure to follow instructions, the warranty does not apply.

• Modification of the product could result in hazardous radiation of EMC or other unsafe operation.
• The device is designed for negative ground (earth) 12 V DC operation only.
• To ensure safe driving, adjust the volume to a safe and comfortable level.
• Improper fuses can cause damage or fire. When you need to change the fuse, consult a professional.
• Use only the supplied mounting hardware for a safe and secure installation.
• To avoid short circuits, do not expose the device to rain or water.
• The device shall not be exposed to dripping or splashing.
• Do not place any sources of danger on the device (e.g. liquid filled objects, lighted candles).
• Never insert objects into the ventilation slots or other openings on the device.
• Clean the device with soft, damp cloth. Never use substances such as alcohol, chemicals or household cleaners on the device.

2 Your car audio system

Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

Introduction

With this system, you can:

• enjoy audio from a USB storage device, SD/SDHC card, iPod/iPhone, and external player,
• charge your iPod/iPhone,
• listen to radio stations, and
  • make phone calls via Bluetooth.

You can enrich sound output with these sound effects:

• Dynamic bass boost (DBB)
• Digital sound control (DSC)

playable media:

- USB storage device

• Compatibility: USB 2.0, USB 1.1
• Class support: MSC (Mass Storage Class)
• Maximum capacity: 32 GB

- SD/SDHC card

• Maximum capacity: 32 GB

- Files

• File system: FAT16, FAT32
  • Maximum number of folders: 99
  • Maximum number of tracks/files: 999
  • Maximum level of directory: 8
• .mp3 files

Sampling frequencies: 32 kHz, 44.1 kHz, 48 kHz

Bitrates: 8-320 kbps and variable bitrates

• .wma files Versions: V4, V7, V8, V9 (L1 and L2) Sampling frequencies: 44.1 kHz, 48 kHz Bitrates: 64-192 kbps and variable bitrates
  • ID3 tag V2.0 or later
• Unsupported files: AAC, WAV, and PCM files DRM protected WMA files (.wav, .m4a, .m4p, .mp4, and .aac) WMA files in lossless format

What's in the box

Check and identify the contents of the package:

①

②

③

④

5

6

① Main unit (with a sleeve)
② Carrying case (with front panel included)
③ Trim plate

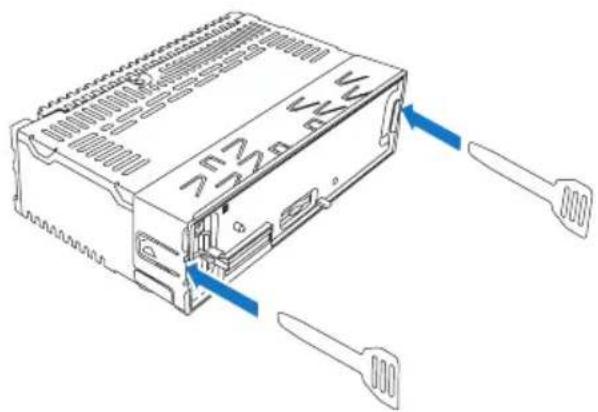

④ Disassembly tool X 2
⑤ ISO male connector X 2
⑥ User manual

Overview of the system

- Unlock the front panel.

• For .wma and .mp3 tracks on a storage device, press to select the previous folder.
• Press and hold to access the system menu.
• In DAB mode, press to access the DAB menu.
• Press to select a tuner band.

• Return to the previous menu.
• For iPod/iPhone, press repeatedly to select a control mode: control play on the iPod/iPhone or on this product.
• During a call, press and hold to transfer the phone call to mobile phone.

LCD screen

• Connect to a USB storage device.
• Connect to a compatible iPod/iPhone.

⑥ AUDIO-IN

- Connect to the audio output socket (usually the headphone socket) of an external device.

⑦ ▶116

• Start, pause, or resume the play of tracks.
• In FM/MW radio mode, press to select the preset radio station of No. 6.
• In radio mode, press and hold to store the current radio station at channel No. 6.

⑧ 5

• In FM/MW radio mode, press to select the preset radio station of No. 5.
• In FM/MW radio mode, press and hold to store the current radio station at channel No. 5.

⑨ SHUF 4

• In FM/MW radio mode, press to select the preset radio station of No. 4.
• In FM/MW radio mode, press and hold to store the current radio station at channel No. 4.
• For .wma and .mp3 tracks, press repeatedly to select a play mode: play all tracks randomly ([SHUFFLE ALL]), play tracks in the current folder or album randomly ([SHUFFLE FLD]/[SHUFFLE ALB]), or play all tracks in sequence ([SHUFFLE OFF]).

⑩ 3 REP

• In FM/MW radio mode, press to select the preset radio station of No. 3.
• In FM/MW radio mode, press and hold to store the current radio station at channel No. 3.
• For .wma and .mp3 tracks, press repeatedly to select a repeat mode.

⑪ 2

- In FM/MW radio mode, press to select the preset radio station of No. 2.

• In FM/MW radio mode, press and hold to store the current radio station at channel No. 2.
• For .wma and .mp3 tracks on a storage device, press to access the folder list.

⑫ 1♪

• In FM/MW radio mode, press to select the preset radio station of No. 1.
• In FM/MW radio mode, press and hold to store the current radio station at channel No. 1.
• For .wma and .mp3 tracks on a storage device, press to access the track list.
• Press to access the music menu of an iPod/iPhone.

⑬ /DISP

• Press repeatedly to display available information about the current track.
• Press repeatedly to display available information that is transmitted by a DAB/RDS radio station.
• Press and hold to display the set clock.

⑭ AS/SOURCE

• Press repeatedly to select a source.
• In FM/MW radio mode, press and hold to activate the automatic search of radio stations.

15 EQ AUDIO

• Press repeatedly to select a preset sound equalizer.
• Press and hold to activate the setup of bass, treble, balance, and fader.

16 ①

• Press to turn on the product.
• Press and hold to turn off the product.
• Press to mute or restore sound.
• Press to confirm an option.
• Rotate to switch between menu options.
• Rotate to adjust the volume level.

17

• For .wma and .mp3 tracks on a storage device, press to select the next folder.
• In DAB mode, press and hold to access the list of stored stations.
• In a mode other than DAB mode, press and hold to activate the selection of listening zones.
• Press to select a tuner band.

18

• Tune to a radio station.
• Press to skip to the previous/next track.
• Press and hold to rewind a track or search fast forward.

19

- Press to enable or disable the MAX Sound feature.

- Press and hold to enable or disable the DBB (dynamic bass boost) sound effect.

20

• Press to answer or redial a call.
• Press to hang up a call.
• Press and hold to reject an incoming call.

21

- Insert an SD/SDHC card.

22

RESET

- Press to reset the product.

3 Install the car audio system

Caution

- Use the controls only as stated in this user manual.

Always follow the instructions in this chapter in sequence.

These instructions are for a typical installation. However, if your car has different requirements, make the adjustment accordingly. If you have any question regarding installation kits, consult your local retailer.

Note

•This system is designed for negative ground (earth) 12V DC operation only.
• Always install this system in the car dashboard. Other locations can be dangerous as the rear of the system heats up during use.
• To avoid short-circuit: before you connect, make sure that the ignition is off.
• Make sure that you connect the yellow and red power supply leads after all other leads are connected.
• Make sure that all loose leads are insulated with electrical tape.
• Make sure that the leads do not get caught under screws iron parts that will move (e.g. seat rail).
• Make sure that all ground (earth) leads are run to a common ground (earth) point.
- Use only the supplied mounting hardware for a safe and secure installation.
- Improper fuses can cause damage or fire. When you need to change the fuse, consult a professional.
- When you connect other devices to this system, make sure that the rating of the car circuit is higher than the total fuse value of all the connected devices.
- Never connect speaker wires to the metal body or chassis of the car.
- Never connect speaker wires with stripes to one another.

Connect wires

Note

Make sure that all loose leads are insulated with electrical tape.
- Consult a professional to connect wires as instructed below.

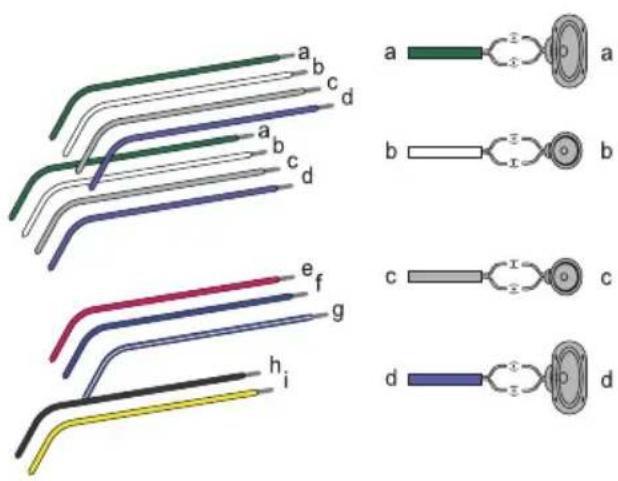

1 Check the car's wiring carefully and connect them to the the supplied ISO male connectors.

ISO male connectors Connect to

1 Green strip, black-edged green strip	Rear left speaker
2 White strip, black-edged white strip	Front left speaker
3 Gray strip, black-edged gray strip	Front right speaker
4 Purple strip, black-edged purple strip	Rear right speaker
e Red strip Ignition key +12V	DC when ON/ACC
f Blue strip Motor/electric	antenna relay control lead
g White-edged blue strip	Amplifier relay control lead

h Black strip Ground

i Yellow strip

To the +12V car battery which is energized at all times

2 Connect other wires if necessary.

Sockets or connectors on rear panel	External sockets or connectors
1 USB connector	A USB storage device or iPod/iPhone
2 Purple strip	OE remote control module
3 FM/MW radio antenna socket	FM/MW radio antenna
4 DAB radio receiver socket	DAB radio receiver
5 REAR R	Rear right speaker
6 REAR L	Rear left speaker
7 For ISO male connectors	ISO male connectors

Tip

•The pin arrangement for the ISO connectors depends on the type of your vehicle. To avoid damage to the unit, connect properly.

Connect the DAB radio receiver

Note

•The DAB radio receiver and DAB radio antenna are not bundled. Consult your local retailer for purchase.
• Make sure that no lead other than the DAB radio antenna contacts the antenna connector of the DAB radio receiver.
- Risk of injury: Never install the DAB radio receiver and its accessories on the airbag cover.
- Risk of overheating: Do not fix the DAB radio receiver to the metal surface of the main unit.
- Risk of electromagnetic interference: Do not install the DAB radio receiver over any sensors or vents.
- Risk of short circuit, malfunction, or damage to this product: Do not alter the cable of DAB radio receiver or dismantle the receiver box.
- Risk of damage to the DAB radio receiver: Never pull its cable when you remove it.

1 Connect the DAB radio receiver to the main unit.
2 Connect a DAB radio antenna to the DAB radio receiver.

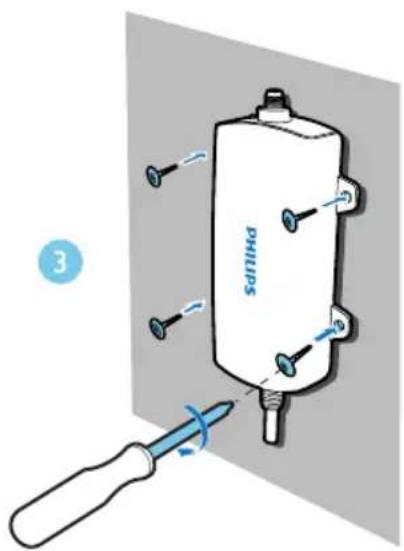

3 Secure the DAB radio receiver to your car.

Mount into the dashboard

• If the car does not have an on-board drive or navigation computer, disconnect the negative terminal of the car battery.
• If the car battery is not disconnected, to avoid short-circuit, make sure that the bare wires do not touch each other.

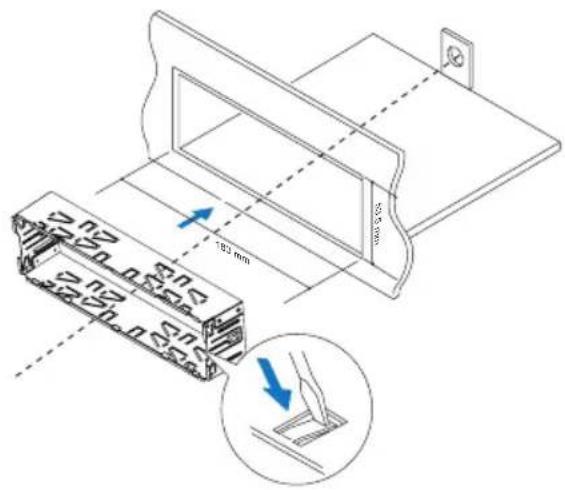

  1 Make sure that the car dashboard opening is within these measurements:

2 Remove the mounting sleeve with the supplied disassembly tools.

Technical line drawing of a computer internal unit with two labeled components (no text or symbols)

3 Install the sleeve into the dashboard and bend the tabs outward to fix the sleeve.

4 Slide the unit into the sleeve until you hear a "click".

Technical line drawing of an electronic device showing internal components and a separate housing (no text or symbols)

5 Attach the trim plate.

Illustration of a computer chassis with a blue plastic cover and a blue arrow indicating a component (no text or symbols present)

6 Reconnect the negative terminal of the car battery.

Attach the front panel

1 Insert the notch on the front panel to the chassis on the main unit.

Technical line drawing of a device housing with ventilation grilles and a blue arrow indicating direction (no text or symbols)

2 Press the left end of the front panel inwards until it is securely locked with a "click".

Technical line drawing of a Philips air conditioner unit with internal components and ventilation slots (no text or symbols)

Detach the front panel

Note

Before you insert an SD/SDHC card or reset the system, detach the front panel.
- Before you detach the front panel, make sure that the system is turned off.

1 Press release the front panel.
2 Pull the front panel outwards to remove it.

Diagram of a Philips air conditioner unit with airflow direction indicated (no text or symbols on the device itself)

4 Get started

For the first time use

1 Press ☐ to turn on the system.

→ [PHILIPS] is displayed and then [SELECT OPERATING REGION] (select a radio region) scrolls.

2 When one of the following options is displayed, rotate ⏻ to select a radio region that matches your location.

• [AREA EUROPE] (Western Europe)
• [AREA ASIA] (Asia Pacific)
• [AREA M--EAST] (Middle East)
• [AREA AUST] (Australia)
• [AREA RUSSIA] (Russia)
• [AREA USA] (United States)
• [AREA LATIN] (Latin America)
• [AREA JAPAN] (Japan)

3 Press to confirm.

→ If a DAB radio receiver is correctly connected, the system switches the source to [DAB/DAB+] automatically.
→ If no DAB radio receiver is connected, the system switches the source to [RADIO] automatically.

- To turn off the system, press and hold ① ✦ until the screen backlight is off.

Set the time format

1 Press and hold ⬆ to access the system menu.

2 Press ▲ repeatedly until [CLOCK 24H] or [CLOCK 12H] is displayed.

3 Rotate to select [CLOCK 24H] or [CLOCK 12H].

• [CLOCK 24H]: 24-hour time format
• [CLOCK 12H]: 12-hour time format

Set the clock

1 Press and hold ⬆ access the system menu.
2 Press ↑ MENU repeatedly until [CLOCK] is displayed with time digits blinking.
3 Rotate and clockwise to set the hour.
4 Rotate clockwise to set the minute.

Tip

•The system can automatically synchronize its clock with an RDS station that transmits time signals (see 'Synchronize the system clock' on page 15).

Display the clock

Press and hold ⏻DISP until [CLOCK] and the set clock are displayed.

- To exit the clock display, press any button or rotate ⏻ ❖️.

Select a source

Press AS/SOURCE repeatedly to select a source.

- [DAB/DAB+]: When a DAB radio receiver is connected, you can select this source to listen to DAB radio stations.

• [RADIO]: Listen to FM/MW radio.

- [FRONT USB]/[REAR USB]: When a USB storage device or compatible iPod/iPhone is connected and recognized, you can select this source to play audio files that are stored on it.

- [SD/SDHC]: When an SD/SDHC card is inserted and recognized, you can select this source to play audio files that are stored on it.

- [AUX IN]: Listen to the audio that is transferred through the AUDIO-IN socket.

- [BT AUDIO]: When a Bluetooth player is connected, you can select this source to transfer audio from the player to this system via Bluetooth.

Select a listening zone

1 Press and hold ▼ until one of the following options is displayed.

• [ALL]: For all passengers
• [FRONT-L]: For the front-left seat only
• [FRONT-R]: For the front-right seat only
• [FRONT]: For front passengers only

2 Press ⬆ MENU repeatedly to select a listening zone.

Mute the button beep

The beep sound of buttons is enabled by default.

1 Press and hold TO access the system menu.
2 Press ↑ MENU repeatedly until [BEEP ON] or [BEEP OFF] is displayed.

- [BEEP ON]: Enable the beep sound of buttons.

- [BEEP OFF]: Mute the beep sound of buttons.

3 Rotate to change the setting.

5 Listen to FM/MW radio stations

Switch to FM/MW radio mode

1 Press AS/SOURCE repeatedly to switch the source to [RADIO].
2 Press ▲ repeatedly to select a band: FM1, FM2, FM3, MW1, or MW2.

Select a tuner region

You can select a radio region that matches your location.

1 Press and hold ⬆ to access the system menu.
2 Press ⬆ MENU repeatedly until one of the following options is displayed.

• [AREA EUROPE] (Western Europe)

• [AREA ASIA] (Asia Pacific)

• [AREA M--EAST] (Middle East)

• [AREA AUST] (Australia)

• [AREA RUSSIA] (Russia)

• [AREA USA] (United States)

• [AREA LATIN] (Latin America)

• [AREA JAPAN] (Japan)

3 Rotate to select a region.

Select a tuner sensitivity

To search for radio stations with strong signals only or more radio stations, you can change the tuner sensitivity.

1 Press and hold ⬆ access the system menu.

2 Press MÉNU repeatedly until [LOCAL ON] or [LOCAL OFF] is displayed.

3 Rotate to select a setting. - [LOCAL ON]: Search for radio stations with strong signals only. - [LOCAL OFF]: Search for radio stations with strong and weak signals.

Search for a radio station

Search for a radio station automatically

Press | to search for the previous or next radio station with strong signals.

Search for a radio station manually

1 Press and hold for untarle frequency digits start change.

2 Press for repeatedly until the target frequency is displayed.

Store radio stations in memory

Note

• You can store a maximum of six stations in each band.

Store radio stations automatically

1 Press ▲ or ▼ repeatedly to select a band.
2 Press and hold AS/SOURCE until [STORE---] is displayed.

→ After the search is complete, the first stored radio station is broadcast automatically.

• To select a stored radio station, press 1 📌 2 3 REP, SHUF 4 5 or ▶ 6

Store radio stations manually

1 Press ▲ repeatedly to select a tuner band.
2 Tune to the radio station that you want to store.
3 Press and hold 1 ♪, ▶ 2 3 REP, SHUF 4, 5, or ▶ 6 to store the radio station at the selected channel.

• To select a stored radio station, press 1 ♩ 2 3 REP, SHUF 4 5, or ▶ 6

Play with RDS

The RDS (Radio Data System) function operates only in areas with FM stations broadcasting RDS signals. If you tune to an RDS station, the station name is displayed.

Enable the RDS function

Note

• The RDS function is enabled by default. • Only when the RDS function is enabled, RDS related settings can be accessed.

1 Press and hold MEOD access the system menu.
2 Press MENU repeatedly until [RDS ON] or [RDS OFF] is displayed.

3 Rotate to select [RDS ON].

→ The RDS function is enabled.

• To disable the RDS function, rotate

① to select [RDS OFF].

Select a program type

Before tuning to RDS stations, you can select a program type to search for programs of the selected category only.

1 Press and hold ↑ to access the system menu.

2 Press MENU repeatedly until [PTY] is displayed.

3 Press to access the list of program types.

4 Rotate ⓣ to select a program type, and then press ⏻ to confirm.

Item Program type	Description
1 NEWS News services
2 AFFAIRS Politics and current affairs
3 INFO	Special information programs
4 SPORT	Sports
5 EDUCATE Education and advanced training
6 DRAMA	Radio plays and literature
7	CULTURE	Culture, religion and society
8	SCIENCE Science
9	VARIED	Entertainment programs
10	POP M	Pop music
11	ROCK M	Rock music
12	EASY M	Light music
13	LIGHT M	Light classical music
14	CLASSICS	Classical music
15	OTHER M	Special music programs
16	WEATHER	Weather
17	FINANCE	Finance

18	CHILDREN	Children's programs
19	SOCIAL	Social Affairs
20	RELIGION	Religion
21	PHONE IN	Phone In
22	TRAVEL	Travel
23	LEISURE Leisure
24	JAZZ	Jazz Music
25	COUNTRY	Country Music
26	NATION M	National Music
27	OLDIES	Oldies Music
28	FOLK M	Folk Music
29	DOCUMENT	Documentary
30	TEST	Alarm Test
31	ALARM	Alarm

Use alternate frequencies

If the signal of an RDS station is poor, enable the AF (Alternate Frequency) function to search for another station that broadcasts the same program.

1 Press and hold ⬆ access the system menu.
2 Press ↑ MENU repeatedly until [AF ON] or [AF OFF] is displayed.
3 Rotate to select a setting. • [AF ON]: Enable the AF function. • [AF OFF]: Disable the AF function.

Set the region for AF tuning

You can set the region for AF tuning.

1 Press and hold ⬆ access the system menu.
2 Press MENU repeatedly until [REGION ON] or [REGION OFF] is displayed.
3 Rotate to select a setting. - [REGION ON]: Only RDS stations in current region can be tuned to automatically. - [REGION OFF]: All RDS stations can be tuned to automatically.

Receive traffic announcement

If you want to receive traffic announcement, enable the TA (Traffic Announcement) function.

1 Press and hold ⬆ access the system menu.
2 Press ▲ / ▼ ZONE repeatedly until [TA ON] or [TA OFF] is displayed.
3 Rotate to select a setting.

• [TA ON]: When a traffic announcement is on air, the system automatically switches to the tuner mode and begins to broadcast the traffic announcement. When the traffic announcement is over, the system returns to the previous mode.

• [TA OFF]: Traffic announcement does not cut in.

Tip

- When a traffic announcement cuts in, you can press to switch the system to the previous mode.

Synchronize the system clock

You can synchronize the system clock with an RDS station that transmits time signals.

1 Press and hold to access the system menu.
2 Press MENU repeatedly until [CT ON] or [CT OFF] is displayed.
3 Rotate to select a setting.

- [CT ON]: Synchronize the system clock with the RDS station automatically.

- [CT OFF]: The automatic clock synchronization with RDS station is disabled.

Tip

•The accuracy of time depends on the RDS station that transmits time signals.

6 Listen to DAB radio stations

Note

Make sure that the DAB radio receiver is securely connected.
- For optimal reception, securely connect a DAB radio antenna to the DAB radio receiver and extend it.
- Check with local retailer or go to www.WorldDAB.org for applicable DAB radio frequencies in your area.

Switch to DAB mode

1 Press AS/SOURCE repeatedly to switch the source to [DAB/DAB+].
2 Press MENU repeatedly to select a band: DAB1, DAB2, or DAB3.

Scan for on-air stations

Note

•The operation does not replace the stations that are programmed in each band.

1 Press and hold ⬆ to access the system menu.

→ [DAB SCAN] is displayed.

2 Press ⏻

→ [SCANNING] is displayed.
→ The product starts scanning for on-air DAB radio stations.
→ The detected stations are saved in the flash memory.

Tune to a detected station

1 Press to exit the system menu.
2 Press again to access the list of detected stations. → Q is displayed.
3 Press | repeatedly or rotate
① ✕ until the name of the target station is displayed.
4 Press to start listening.

Program radio stations

You can assign a sequence number to a detected station. Afterwards, you can quickly tune to it by pressing the corresponding numeric button on the main unit.

Note

Before the programming, make sure that the scanning is complete.
- You can store a maximum of six stations in each band.

Program stations automatically

1 Press and hold ⬆ access the system menu.

→ [DAB SCAN] is displayed.

2 Press MENU repeatedly until [DAB STORE] is displayed.

3 Press ① → [STORING] is displayed.

→ The product starts programming DAB radio stations automatically.
Earlier programmed stations are replaced with the latest ones.
After the programming is complete, the first programmed station is broadcast.

• To tune to a programmed radio station, press its corresponding numeric button 1 ♩, 2, 3 REP, SHUF 4, 5, or ▶6.

Program stations manually

1 Tune to the target detected station (see 'Tune to a detected station' on page 16).
2 Press MENU repeatedly to select a band.
3 Press and hold a numeric button 1 2, 3 REP, SHUF 4, 5, or ▶6 to assign a sequence number to the station. → [SAVED] is displayed. → The station is programmed with the sequence number.

4 Repeat the steps above to program more stations.

- To tune to a programmed radio station, press its corresponding numeric button 1 ♩, ▪ 2, 3 REP, SHUF 4, 5, or ▶ 6.

Display DAB information

The name of current DAB station is displayed. You can also view the other information. To cycle through available information, press DISP repeatedly.

• Dynamic label segment (DLS)
- Signal strength
- Program type (PTY)
- Ensemble name
- Frequency
- Signal error rate
- Bitrate codec
- Time
- Date

Set up for weak reception

When the current reception gets poor, the product can automatically switch the source or mute the speakers according to your setup.

1 Press and hold ⬆ to access the system menu.

→ [DAB SCAN] is displayed.

2 Press MENU repeatedly until [DAB WEAK] scrolls.

3 Rotate ⓣ to select an option, and then press ⏻ to confirm.

• [WEAK MUTE]: Mute the speakers

- [WEAK TO FM]: Switch the source to an FM radio station with strong reception that broadcasts the same program

Use the DRC (Dynamic Range Control)

DRC adds or removes a degree of compensation for the differences in the dynamic range between radio stations.

1 Press and hold → access the system menu. → [DAB SCAN] is displayed.

2 Press 🎨 repeatedly until one of the following options is displayed.

• [DRC OFF]: No compensation applied.

• [DRC LOW]: Medium compensation applied.

• [DRC HIGH]: Maximum compensation applied.

3 Rotate to select an option.

Disable the DAB reception

1 Press and hold ⬆ to access the system menu.

→ [DAB SCAN] is displayed.

2 Press ↑ MENU repeatedly until [ANTENNA OFF] or [ANTENNA 12V] is displayed.

3 Rotate to select an option, and then press to confirm.

• [ANTENNA OFF]: Disable the DAB reception.

• [ANTENNA 12V]: Enable the DAB reception.

Reset the DAB tuner

1 Press and hold ⬆to access the system menu.

→ [DAB SCAN] is displayed.

2 Press MENU repeatedly until [DAB RESET] is displayed.

• To clear the list of detected and programmed stations, press ⏻ to confirm.

• To exit the system menu, press

Remove invalid stations

1 Press and hold ⬆ to access the system menu.

→ [DAB SCAN] is displayed.

2 Press MENU repeatedly until [PRUNE] is displayed.

- To remove invalid stations from the list of scanned stations, press ⏻ ❖.

• To exit the system menu, press

Check the current version of DAB firmware

1 Press and hold MEVO access the system menu.

→ [DAB SCAN] is displayed.

2 Press MENU repeatedly until [SWVERSION] is displayed, and then press ⓘ ❖.

→ The current version of DAB firmware is displayed.

7 Play from a storage device

This system can play .mp3 and .wma files that are copied onto a compatible storage device.

Note

Philips does not guarantee compatibility with all storage devices.

- NTFS (New Technology File System) file system is not supported.

1 Connect a compatible USB storage device or SD/SDHC card.

- For an SD/SDHC card, detach the front panel first, insert the card into the card slot, and then attach the front panel.

2 Press AS/SOURCE repeatedly to switch the source.

• [FRONT USB]: For a USB storage device that is connected to the USB socket on the front panel
- [REAR USB]: For a USB storage device that is connected to the USB connector on the rear panel
- [SD/SDHC]: For an SD/SDHC card that is inserted into the s slot

3 If the play does not start, press ▶6

Control play

Button Function

MENU / ZONE	Press repeatedly to select a folder.
▶11 6	Pause or resume play.
▶◀◀/▶▶▶	Press to play the previous or next track.
▶◀◀/▶▶▶	Press and hold to rewind a track or search forward fast.
➊/DISP	Press repeatedly to display available information about the current track.
3 REP	Press repeatedly to select a repeat mode:• [REPEAT ONE]: repeat the current track,• [REPEAT FLD]: repeat all tracks in the current folder, or• [REPEAT ALL]: repeat all tracks in the storage device.
SHUF 4	Press repeatedly to select a play mode:• [SHUFFLE ALL]: play all tracks randomly,• [SHUFFLE FLD]: play tracks in the current folder randomly, or• [SHUFFLE OFF]: play all tracks in the storage device in sequence.

Switch tracks

During play, you can switch tracks or folders quickly.

Switch tracks directly

1 Press 1 to access the track list. → The file name of current track scrolls.
2 Rotate to toggle through tracks.
3 Press to play the selected track.

Switch folders for a track

1 Press 2 access the folder list. → The name of current folder scrolls.
2 Rotate to toggle through folders.
3 Press to select the folder. → The system starts playing the first track under the folder.

8 Play from an iPod/iPhone

Note

During play, no audio signals are transferred through the headphone socket of your iPod/iPhone.

Compatible iPod/iPhone models

This car audio system supports the following iPod and iPhone models.

• iPhone 4S, iPhone 4, iPhone 3GS, and iPhone 3G
• iPod touch (2nd, 3rd, and 4th generations)
• iPod classic
• iPod nano (3rd, 4th, 5th, and 6th generations)

Connect your iPod/iPhone

1 Connect an Apple 30-pin USB cable between

• the USB socket on the front panel or the USB connector on the rear panel, and
• your iPod/iPhone.

2 Press AS/SOURCE repeatedly to switch the source to [FRONT USB] (Front USB socket) or [REAR USB] (Rear USB connector). → The system starts playing tracks that are stored on your iPod/iPhone.

Note

Before you disconnect the iPod/iPhone, switch the system to another source.

Control play

Button Function
	Press repeatedly to select a control mode: control play on your iPod/iPhone, or on the system.
▶11 6	Press to pause or resume play.
I◀◀ /▶▶I	Press to play the previous or next track.
I◀◀ /▶▶I	Press and hold to rewind a track or search forward fast.
➀ /DISP	Press repeatedly to display available information about the current track.
3 REP	Press repeatedly to select a repeat mode:[REPEAT ONE]: repeat the current track, or[REPEAT ALL]: repeat all tracks.
SHUF 4	Press repeatedly to select a play mode:[SHUFFLE ALL]: play all tracks randomly,[SHUFFLE ALB]: play tracks in the current album randomly, or[SHUFFLE OFF]: play all tracks in the iPod/iPhone library in sequence.

Search for a track

After accessing the iPod/iPhone menu, you can select a specific track quickly.

1 Press 1 to access the iPod/iPhone menu.
→ [PLAYLIST] scrolls.
2 Rotate to select a category.
3 Press to access the list of tracks under the category.
→ The file name of the first track scrolls.

4 Rotate to select a track.

→ The file name of current track scrolls.

5 Press to start play.

Charge your iPod/iPhone

Once the iPod/iPhone is docked and recognized, the charging starts.

9 Use Bluetooth devices

With this car audio system, you can listen to audio from a player or make a call through Bluetooth.

Connect a device

Note

Philips does not guarantee the compatibility with all Bluetooth devices.
- Before pairing a device with this system, read its user manual for Bluetooth compatibility.
• Make sure that Bluetooth function is enabled on your device, and your device is set as visible to all other Bluetooth devices.
- At one time, you can connect only one Bluetooth device to this system.
• The operational range between this system and a Bluetooth device is approximately 3 meters (9 feet).
- Any obstacle between this system and a Bluetooth device can reduce the operational range.
- Keep away from any other electronic device that may cause interference.

On your device, follow the steps below.

1 Search for Bluetooth devices.
2 In the device list, select CE153.
3 Enter the default password "0000", and then confirm the password entry.

If the pairing succeeds, [PAIRED] is displayed on the LCD screen of this system.

4 Enable or permit the connection with CE153.

If the connection succeeds, [CONNECTED] scrolls and ⚙ is displayed on the LCD screen of this system.
If the connection fails, [FAILED] is displayed on the LCD screen of this system.

Disconnect a device

1 Press and hold ⬆ access the system menu.
2 Press MENU repeatedly until [DIS--CON] is displayed.
3 Press ⏻

→ [WAIT] is displayed with -, --, and --- blinking alternately until [DISCONNECTED] scrolls.

Tip

• You can also complete the disconnection on your device.

Reconnect a device

Some Bluetooth devices support the automatic reconnection with a paired Bluetooth device. If your device does not support automatic reconnection, reconnect it with this system manually.

1 Press and hold ⬆ to access the system menu.
2 Press ↑ MENU repeatedly until [RE--CON] is displayed.
3 Press ⏻

→ [WAIT] is displayed with -, --, and --- blinking alternately until [CONNECTED] scrolls or [FAILED] appears.

→ If [CONNECTED] scrolls, this system is reconnected to the last connected device.

Tip

- You can also complete the reconnection on your device.

Play audio from a Bluetooth device

If the connected Bluetooth device supports Advanced Audio Distribution Profile (A2DP), you can listen to tracks that are stored on the device through the system. If the device also supports Audio Video Remote Control Profile (AVRCP) profile, you can control play on the system or with its remote control.

1 Play a track on the connected device.
2 Press AS/SOURCE repeatedly to switch the source to [BT AUDIO].

→ Play starts automatically.

• To pause or resume play, press ▶116.
- To skip to the previous or next track, press ◀◀◀/▶▶

Note

If the connected device does not support the AVRCP profile, control play on the connected device.

Make a call

Note

Keep the Bluetooth connection active between the system and your mobile phone.

Call a number

On your mobile phone, call a number.

→ [CALLING] is displayed.

Redial the last called number

1 Press

→ [REDIAL] is displayed.

2 Press to confirm.

→ [CALLING] is displayed.

Pick up an incoming call

When the system receives an incoming call, the phone number or [PHONE IN] is displayed.

Press to answer the call.

Reject an incoming call

Press and hold until [END] is displayed.

End a call

To end an on-going call, press

Transfer a call to mobile phone

By default, the voice comes from the loudspeakers during a call.

1 Press and hold until [TRANSFER] is displayed. → The loudspeakers are muted, and the voice comes from your mobile phone only.

2 Take up your mobile phone for the conversation.

10 Listen to an external player

You can use the system to amplify the audio input from an external player, for example, MP3 player.

1 Press AS/SOURCE repeatedly to switch the source to [AUX IN].
2 Connect an audio input cable with a 3.5 mm connector on both ends between

• the AUDIO-IN socket on the front panel, and
• the audio output socket (usually the headphone socket) on the external player.

3 Play audio on the external player.

11 Adjust sound

The following operations are applicable to all supported media.

Button Function

	Rotate to increase or decrease the volume level.
	Press to mute the speakers or release the speakers from mute status.
MAX SOUND DBB	Press to enable or disable the MAX Sound feature.
MAX SOUND DBB	Press and hold to enable or disable the Dynamic Bass Boost (DBB) effect.
EQ AUDIO	Press repeatedly to select a sound equalizer.
EQ AUDIO	1 Press and hold to activate the setup of customized sound equalizer.2 Press repeatedly to select an option: [BASS] (bass), [TREBLE] (treble), [BALANCE] (balance), or [FADER] (fader).3 Rotate to adjust the setting.

12 Additional information

Reset the system

If the system works abnormally, reset the system to factory default settings.

1 Detach the front panel.

2 Press the RESET button with the tip of a ball-point pen or toothpick. → All settings are reset to factory default.

Replace the fuse

If there is no power, check the fuse and replace it if it is damaged.

1 Check the electric connection.
2 Remove the damaged fuse from the rear panel.
3 Insert a new fuse with the same specifications (15 A).

Note

If the fuse gets damaged immediately after it is replaced, an internal malfunction may occur. In such case, consult your Philips retailer.

Upgrade the firmware

Note

Power supply must not be interrupted during the upgrade.
- When the firmware upgrade succeeds, all settings are restored to the factory default status.

Register your product

1 Go to www.philips.com/welcome.
2 Click the link of "Register my product" (the exact wording of this link name may vary in different languages).
3 Log in with your account on the prompt Web page.
- If you have no account for Club Philips, create one first on this Web page.
4 Search your product with "CE153DR/05" as the keyword.
5 Click the link of search result to access the Web page for registering your product.
6 Fill in necessary information about this product to complete the registration.

With the registration, you can get information about software update and product support at this Web page or via your mailbox that is registered as the account for Club Philips.

Perform the upgrade

1 Check the current firmware version of this product. (see 'Check the current version of DAB firmware' on page 17)

2 Go to www.philips.com/support.

3 Log in with your account for Club Philips.

→ Support information about your registered product is displayed.

4 Click the link of "Firmware Upgrade Readme File" (the exact wording of this link name may vary in different languages).

5 Read and understand the instructions on firmware upgrade.

6 Follow the instructions to download the upgrade packet and complete the upgrade.

- If the upgrade fails, reboot this system, and then perform the upgrade again.

13 Product information

Note

Specifications are subject to change without prior notice.

General

Power supply 12 V DC (11 V - 16 V), negative ground
Fuse 15 A
Suitable speaker impedance	4 - 8 Ω
Maximum power output	50 W × 4 channels
Continuous power output	22 W × 4 RMS(4 Ω 10% T.H.D.)
Pre-Amp output voltage	2.0 V
Aux-in level 500 mV
Dimensions(W × H × D)	182 × 52 × 95 mm
Weight (main unit) 1.0 kg

Radio

Frequency range - FM	87.5 - 108.0 MHz(100kHz per step in auto search and 50kHz per step in manual search)
Usable sensitivity - FM (S/N = 20 dBA)	8 μV
Frequency range - AM(MW)	522 - 1620 KHz(9 kHz)530 - 1710 kHz(10 kHz)
Usable sensitivity - AM(MW) (S/N = 20 dBA)	30 μV
Frequency range - DAB	174.928 - 239.200 MHz

Usable sensitivity - DAB (EN50248)

< -95 dbm

Bluetooth

Output power	Class 2
Frequency band	2.4000 GHz - 2.4835 GHz ISM Band
Range 3 meters(free space)
Standard Bluetooth 2.0 specification

14 Troubleshooting

Warning

Never remove the casing of this product.

To keep the warranty valid, never try to repair the product yourself.

If you encounter problems when using this product, check the following points before requesting service. If the problem remains unsolved, go to the Philips Web page (www.philips.com/support). When you contact Philips, make sure that the product is nearby and the model number and serial number are available.

General

No power or no sound

• The power supply from car battery is cut off, or the car battery runs out of energy. Power the system with car battery.
• Car engine is not on. Turn the car engine on.
• Cable is not correctly connected. Check connections.
  • The fuse is burnt. Replace the fuse.
  • Volume is too low. Adjust volume.
• If the above solutions do not work, press the RESET button.
• Make sure that the current track is in a compatible format.

Noise in broadcasts

• Signals are too weak. Select other stations with stronger signals.
• Check the connection of the car antenna.

Preset stations are erased.

- Battery cable is not correctly connected. Connect the battery cable to the terminal that is always live.

Cannot switch the source to iPod/iPhone

• Check whether the iPod/iPhone is securely connected.
• Check whether the iPod/iPhone is compatible with this system.
• Check whether the iPod/iPhone battery is nearly empty. Connect it to this system for charging first.

Cannot switch the source to [DAB/DAB+]

• Check whether the DAB radio receiver is securely connected.
• Check whether the DAB reception is enabled (see 'Disable the DAB reception' on page 17).

Display shows ERR-12.

- Data error. Check the USB storage device or SD/SDHC card.

About the Bluetooth device

Music playback is unavailable on the system even after successful Bluetooth connection.

- The device cannot be used with the system to play music.

The audio quality is poor after connection with a Bluetooth-enabled device.

- The Bluetooth reception is poor. Move the device closer to the system or remove any obstacle between the device and the system.

Cannot connect with the system.

• The device does not support the profiles required for the system.
• The Bluetooth function of the device is not enabled. Refer to the user manual of the device to find out how to enable the function.
  • The system is not in the pairing mode.
• The system is already connected with another Bluetooth-enabled device. Disconnect that device or all other connected devices and then try again.

The paired mobile phone connects and disconnects constantly.

• The Bluetooth reception is poor. Move the mobile phone closer to the system or remove any obstacle between the mobile phone and the system.
• Some mobile phones may connect and disconnect constantly when you make or end calls. This does not indicate any malfunction of the system.
• For some mobile phones, the Bluetooth connection may be deactivated automatically as a power-saving feature. This does not indicate any malfunction of the system.

15 Notice

Any changes or modifications made to this device that are not expressly approved by Philips Consumer Lifestyle may void the user's authority to operate the equipment.

Compliance

CE1177

This product complies with the radio interference requirements of the European Community.

Care of the environment

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products.

Please act according to your local rules and do not dispose of your old products with your normal household waste.

Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.)

Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Trademark notice

The Bluetooth ^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Philips is under license.

Windows Media and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries.

"Made for iPod" and "Made for iPhone" mean that an electronic accessory has been designed to connect specifically to iPod or iPhone respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.

iPod and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries.

Other trademarks and trade names are those of their respective owners.

Copyright

2013 © Koninklijke Philips Electronics N.V. Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V or their respective owners. Philips reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly.

Specifications are subject to change without notice

All rights reserved.

CE153DR_05_UM_V1.0
