Product Type	Cordless Handheld Vacuum Cleaner
Model Number	GAS 10.8V-LI Professional
Brand	Bosch
Battery Voltage	10.8 V (Li-Ion)
Battery Capacity	2.0 Ah (typical)
Charging Time	Approx. 1 hour
Run Time	Up to 15 minutes
Dust Capacity	0.5 L
Suction Power	60 mbar (max)
Weight (without battery)	0.5 kg
Dimensions (L x W x H)	320 x 120 x 150 mm
Filter Type	Washable fabric filter
Accessories Included	Crevice nozzle, brush nozzle, extension tube
Main Functions	Dry vacuuming for small debris and dust
Maintenance	Empty and clean filter regularly; wash filter with water
Safety Features	Overload protection, automatic shut-off on full dust container
Spare Parts Availability	Batteries, chargers, filters, nozzles available separately
Repairability	Modular design; serviceable by Bosch service centers
General Information	Professional use; compact and lightweight

Frequently Asked Questions - GAS 10.8V-LI Professional BOSCH

What battery does the Bosch GAS 10.8V-LI use?

It uses a Bosch 10.8V Li-Ion battery (compatible with the 10.8V system, e.g., GBA 10.8V).

Can I use a 12V battery instead of 10.8V?

No, only 10.8V batteries are recommended. Using higher voltage may damage the device.

How do I clean the filter?

Remove the filter and tap it gently. For thorough cleaning, wash with water and let it dry completely before reinstalling.

How often should I empty the dust container?

Empty after each use or when the container is full. Overfilling reduces suction.

Is the vacuum suitable for wet pickup?

No, it is designed for dry vacuuming only. Using it on liquids can damage the motor.

What accessories are included?

A crevice nozzle, brush nozzle, and extension tube are included for versatile cleaning.

How long does the battery take to charge?

With the standard charger (AL 1130 CV), charging takes about 1 hour.

What is the warranty period?

Bosch offers a 2-year warranty for professional tools. Check local terms.

Can I buy spare parts?

Yes, batteries, chargers, filters, and nozzles are available through Bosch service centers.

Why is the suction weak?

Check if the dust container is full or the filter is clogged. Also, ensure the battery is fully charged.

USER MANUAL GAS 10.8V-LI Professional BOSCH

OBJ_BUCH-2137-002.book Page 1 Wednesday, June 22, 2016 10:21 AM

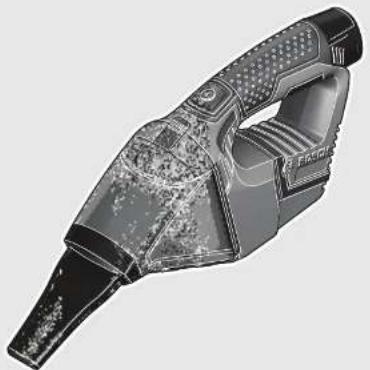

Illustration of a handheld vacuum cleaner with digital display (no text or symbols visible)

Robert Bosch Power Tools GmbH

70538 Stuttgart

GERMANY

www.bosch-pt.com

1 609 92A 1UG (2014.08) PS/30 ASIA

OBJ_BUCH-2137-002.book Page 2 Wednesday, June 22, 2016 10:17 AM

2

English.... Page 5

中文 页 9

中文 页 12

한국어 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

ภาษาไทย.... หนัก 18

3D mechanical component diagram showing a threaded plate with a pin and a cylindrical shaft (no text or symbols)

English | 5

English

Safety Notes

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save these instructions.

This vacuum cleaner is not intended for use by children and persons with physical, sensory or mental limitations or a lack of experience or knowledge. This vacuum cleaner can be used by children aged 8 or older and by persons who have physical, sensory or mental limitations or a lack of experience or knowledge if a person responsible for their safety supervises them or has instructed them in the safe operation of the vacuum cleaner and they understand the associated dangers. Otherwise, there is a danger of operating errors and injuries.

- Supervise children. This will ensure that children do not play with the vacuum cleaner. - Cleaning and user maintenance of the vacuum cleaner shall not be made by children without supervision.

WARNING Do not vacuum materials that are harmful to one's health, e. g. dust from beech or oak wood, masonry dust, asbestos. These materials are considered carcinogenic.

Inform yourself about the valid regulations/laws for your country concerning the handling of materials that are hazardous to one's health.

WARNING Use the vacuum cleaner only when you fully understand and can perform all

functions without limitation, or have received appropriate instructions. A thorough introduction reduces operating errors and injuries.

WARNING

The vacuum cleaner is suitable only for vacuuming dry materials. The penetraeases the risk of an electric shock.

IMPORTANT

The vacuum cleaner may only be used and stored indoors. The pene-

tration of rain or moisture into the vacuum cleaner lid increases the risk of an electric shock.

WARNING

Do not vacuum hot or burning dusts, and in rooms with an explosion hazard. Dusts can ignite or explode.

Remove the battery before cleaning or performing maintenance on the vacuum cleaner, making tool adjustments, changing accessories or storing the vacuum cleaner. This safety measure prevents the vacuum cleaner from being started accidentally.
▶ Provide for good ventilation at the working place.
▶ Have the vacuum cleaner repaired only through qualified specialists and only using original spare parts. This ensures that the safety of your vacuum cleaner is maintained.
▶ Do not clean the vacuum cleaner with a water jet pointed directly at it. The penetration of water into the vacuum cleaner lid increases the risk of an electric shock.
The intake port and ventilation slots must not be shut, covered or clogged. This is to ensure proper operation of the motor.
▶ Do not vacuum any sharp-edged objects such as broken glass, nails, stones, needles or razor blades. This is to ensure that the filter is not damaged.

▶ Do not open the battery. Danger of short-circuiting.

Protect the battery against heat, e. g., against continuous intense sunlight, fire, water, and moisture. Danger of explosion.

When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
▶ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritations or burns.
In case of damage and improper use of the battery, vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system.
▶ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
▶ Use the battery only together with your Bosch product. This is the only way to protect the battery against dangerous overload.
The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit can occur and the battery can burn, smoke, explode or overheat.

6 | English

Product Description and Specifications

Intended Use

The vacuum cleaner is intended for vacuuming dry materials that are not harmful to one's health.

WARNING

Use the vacuum cleaner only after having received sufficient information on

its usage. A thorough introduction reduces operating errors and injuries.

Product Features

The numbering of the product features refers to the illustration of the vacuum cleaner on the graphics page.

1 Release button for dust cup
2 On/Off button
3 Battery charge-control indicator
4 Handle
5 Battery pack*
6 Venting slots
7 Motor housing
8 Dust cup
9 Crevice nozzle

10 Intake port

11 Battery port

12 Battery unlocking button

13 Opening

14 Filter seal

15 Filter assembly

*Accessories shown or described are not part of the standard delivery scope of the product. A complete overview of accessories can be found in our accessories program.

Technical Data

Cordless dry vacuum cleaner GAS 10,8 V-LI

Article number 3 601 JE3 0..
Container volume	I	0.4
Vacuum, max.	hPa 45
Airflow, max.	l/s 15
Weight according to EPTA-Procedure 01:2014	kg 0.88 - 1,1
Permitted ambient temperature– during charging– during operation ' and during storage	°C	0...+45
	°C	-20...+50
Recommended batteries		GBA 10.8V...O-.
Recommended chargers		AL 11.. CV
* Limited performance at temperatures <0 °C
Technical data determined with battery from delivery scope.

Assembly

Battery Charging

▶ Use only the battery chargers listed on the accessories page. Only these battery chargers are matched to the lithium-ion battery pack used in your vacuum cleaner.

Note: The battery supplied is partially charged. To ensure full capacity of the battery, completely charge the battery in the battery charger before using your power tool for the first time. The lithium-ion battery can be charged at any time without reducing its service life. Interrupting the charging procedure does not damage the battery.

The lithium-ion battery is protected against deep discharging by the "Electronic Cell Protection (ECP)". When the battery is empty, the machine is switched off by means of a protective circuit: The inserted tool no longer rotates.

▶ After the automatic shut-off of the vacuum cleaner, do not continue to press the On/Off button. The battery pack could become damaged.

Observe the notes for disposal.

Battery Charge-control Indication

The three green LEDs of the battery charge-control indicator 3 show the charging status of the battery 5. The battery charge-control indicator only illuminates for 3 seconds after start-up.

LED Capacity

Continuous lighting 3 x green ≥ 2/3

Continuous lighting 2 x green ≥ 1/3

Continuous lighting 1 x green <1/3

Flashing light 1 x green Reserve

When no LED lights up after switching on, then the battery is defective and must be replaced.

Battery Insertion/Removal (see figures A1 - A2)

▶ Do not use force to insert the battery. The battery is designed in such a way that it can only be inserted into the vacuum cleaner when it is in the right position.
- Slide the battery 5 all the way into the battery compartment 11.
- To remove the battery pack 5, press the unlocking buttons 12 and pull the battery pack out of the battery port 11.

Mounting the Crevice Nozzle (see figure B)

Remove the battery before cleaning or performing maintenance on the vacuum cleaner, making tool adjustments, changing accessories or storing the vacuum cleaner. This safety measure prevents the vacuum cleaner from being started accidentally.

The crevice nozzle 9 can be connected directly to the dust chamber 8.

- Firmly insert the crevice nozzle 9 into the intake port 10 on the dust chamber 8 with the mark shown in the illustration facing down.

English | 7

Operation

Remove the battery before cleaning or performing maintenance on the vacuum cleaner, making tool adjustments, changing accessories or storing the vacuum cleaner. This safety measure prevents the vacuum cleaner from being started accidentally.

Starting Operation

▶ Before vacuuming, ensure that the filter assembly is assembled securely.
▶ Only use an undamaged filter (no cracks, small holes, etc.). Replace a damaged filter immediately.

Switching On and Off

To save energy, only switch the vacuum cleaner on when using it.

• To switch on the vacuum cleaner, press the On/Off button 2.
• To switch off the vacuum cleaner, press the On/Off button 2 again.

Maintenance and Service

Maintenance and Cleaning

Remove the battery before cleaning or performing maintenance on the vacuum cleaner, making tool adjustments, changing accessories or storing the vacuum cleaner. This safety measure prevents the vacuum cleaner from being started accidentally.
▶ For safe and proper working, always keep the vacuum cleaner and ventilation slots clean.

– Clean the vacuum cleaner housing from time to time using a moist cloth.
– Clean soiled charger contacts using a dry cloth.

Cleaning the Dust Cup (see figures C1-C3)

To maintain the optimum performance of the vacuum cleaner, clean the dust cup 8 after each use.

• Hold the vacuum cleaner down slightly so that dust cannot fall out of the dust chamber when the vacuum cleaner is opened.
• Press release button 1 and remove the dust cup 8 from the motor housing 7.
• Reach into the recess 13 on the motor housing 7 and pull the filter unit 15 off the motor housing by the filter seal 14.
• Shake/tap out the dust cup 8 over a suitable waste bin.
• If required, clean the dust cup with a moist cloth. If required, clean the filter assembly (see "Cleaning the Filter Assembly", page 7).
• Insert the filter unit 15 with the filter seal 14 back into the motor housing 7.
  Afterwards, hang the dust cup at the bottom into the motor housing, apply light pressure until the dust cup can be heard to engage.

Cleaning the Filter Assembly (see figure D)

The filter unit 15 must not be wet cleaned.

• Hold the vacuum cleaner down slightly so that dust cannot fall out of the dust chamber when the vacuum cleaner is opened.
• Press release button 1 and remove the dust cup 8 from the motor housing 7.
• Reach into the recess 13 on the motor housing 7 and pull the filter unit 15 off the motor housing by the filter seal 14.
• Brush down the flaps of the pleated filter with a soft broom.
• Assembly is carried out in reverse order.

Malfunctions

In the case of insufficient vacuuming performance, check the following:

• Is the dust cup 8 full?
  ▷ See "Cleaning the Dust Cup", page 7.

- Is the folded filter clogged with dust? ▷ See "Cleaning the Filter Assembly", page 7.

- Is the capacity of the battery pack too low? ▷ See "Battery Charging", page 6.

Regular emptying of the dust cup 8 and cleaning of the filter assembly 15 ensures optimal vacuum capacity.

If the vacuuming performance is not achieved thereafter, take the vacuum cleaner to customer service.

After-sales Service and Application Service

In all correspondence and spare parts orders, please always include the 10-digit article number given on the type plate of the vacuum cleaner.

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can also be found under:

www.bosch-pt.com

Bosch's application service team will gladly answer questions concerning our products and their accessories.

People's Republic of China

China Mainland

Bosch Power Tools (China) Co., Ltd.

567, Bin Kang Road

Bin Jiang District 310052

Hangzhou, P.R.China

Service Hotline: [phone]

Fax: [phone]

E-Mail: [e-mail]

www.bosch-pt.com.cn

HK and Macau Special Administrative Regions

Robert Bosch Hong Kong Co. Ltd.

21st Floor, 625 King's Road

North Point, Hong Kong

Customer Service Hotline: [phone]

Fax: [phone]

E-Mail: [e-mail]

www.bosch-pt.com.hk

8 | English

Indonesia

PT Robert Bosch

Palma Tower 9 ^th & 10 ^th Floor

JI. Let. Jend. TB Simatupang II S/06

28th Floor Fort Legend Towers,

3rd Avenue corner 31st Street,

Fort Bonifacio Global City,

1634 Taguig City, Philippines

Tel.: [phone]

Fax: [phone]

[e-mail]

www.bosch-pt.com.ph

Bosch Service Center:

9725-27 Kamagong Street

San Antonio Village

Makati City, Philippines

Tel.: [phone]

Fax: [phone]

[e-mail]

Malaysia

Robert Bosch (S.E.A.) Sdn. Bhd.

No. 8A, Jalan 13/6

G.P.O. Box 10818

46200 Petaling Jaya

Selangor, Malaysia

Tel.: [phone]

Fax: [phone]

[e-mail]

Toll-Free: 1800 880188

www.bosch-pt.com.my

Thailand

Robert Bosch Ltd.

Liberty Square Building

No. 287, 11 Floor

Silom Road, Bangrak

Bangkok 10500

Tel.: [phone]

Fax: [phone]

Robert Bosch Ltd., P. O. Box 2054

Bangkok 10501, Thailand

www.bosch.co.th

Bosch Service – Training Centre

La Salle Tower Ground Floor Unit No.2

10/11 La Salle Moo 16

Srinakharin Road

Bangkaew, Bang Plee

Samutprakarn 10540

Thailand

Tel.: [phone]

Fax: [phone]

Singapore

Robert Bosch (SEA) Pte. Ltd.

11 Bishan Street 21

Singapore 573943

Tel.: [phone]

Fax: [phone]

[e-mail]

Toll-Free: 1800 3338333

www.bosch-pt.com.sg

Vietnam

Robert Bosch Vietnam Co. Ltd

10/F, 194 Golden Building

473 Dien Bien Phu Street

Ward 25, Binh Thanh District

84 Ho Chi Minh City

Vietnam

Tel.: [phone] ext. 413

Fax: [phone]

[e-mail]

www.bosch-pt.com

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Power Tools

Locked Bag 66

Clayton South VIC 3169

Customer Contact Center

Inside Australia:

Phone: [phone]

Fax: [phone]

Inside New Zealand:

Phone: [phone]

Fax: [phone]

Outside AU and NZ:

Phone: [phone]

www.bosch.com.au

Transport

The contained lithium-ion batteries are subject to the Dangerous Goods Legislation requirements. The user can transport the batteries by road without further requirements.

When being transported by third parties (e.g.: air transport or forwarding agency), special requirements on packaging and labelling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is required.

Dispatch batteries only when the housing is undamaged. Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging.

Please also observe possibly more detailed national regulations.

Disposal

Vacuum cleaners, battery packs, accessories and packaging should be sorted for environmental-friendly recycling.

Do not dispose of vacuum cleaners and battery packs/batteries into household waste!

Battery packs/batteries:

Li-ion: Please observe the instructions in section "Transport", page 8.

Subject to change without notice.

中文

安全规章

Tâng 10,194 Golden Building

473 Điện Biên Phủ

Line drawing of a Bosch computer mouse with control panel and keyboard (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

V...

Line drawing of a small electric shaver with ventilation slots and a handle (no text or symbols)

AL 1130 CVGBA 10,8

Illustration of a corrugated metal panel or cover with ribbed structure (no text or symbols)

2607432046

Technical line drawing of a mechanical housing or enclosure component (no text or symbols)

L-BOXX 102
2 608 438 691

Isometric technical drawing of a mechanical housing or enclosure with internal components (no text or symbols)

1 600 A00 3KW

Isometric line drawing of a mechanical housing or enclosure with internal compartments and mounting holes (no text or symbols)

1 600 A00 2WY
