Product Type	Random orbital sander
Brand	Einhell
Model	TE-OS 2520 E
Rated power	250 W
No-load speed	6,000 – 12,000 rpm (variable)
Sanding pad diameter	150 mm
Oscillation diameter	3 mm
Abrasive attachment system	Self-adhesive (Velcro)
Dust extraction	Integrated dust bag + vacuum cleaner connection
Weight	1.6 kg
Dimensions (L × W × H)	240 × 125 × 150 mm
Supply voltage	230 V ~ 50 Hz
Power cable length	2 m
Sound pressure level (LpA)	82 dB(A)
Sound power level (LWA)	93 dB(A)
Vibration (total value)	5.0 m/s²
Protection class	II (double insulation)
Included accessories	Dust bag, sanding pad, 1 abrasive sheet (grit 80)
Warranty	2 years (extension possible with registration)
Maintenance and cleaning	Blow out ventilation slots, replace pad if worn, empty dust bag regularly

Frequently Asked Questions - TE-OS 2520 E EINHELL

How do I change the abrasive disc on the TE-OS 2520 E sander?

The pad is equipped with a self-adhesive (Velcro) system. Simply peel off the old abrasive and apply the new one by pressing evenly.

The sander vibrates a lot: is this normal?

Some vibration is normal for an orbital sander. If it becomes excessive, check that the pad is securely attached and that the adhesive is centered correctly. Wear anti-vibration gloves.

How do I adjust the speed of the sander?

The TE-OS 2520 E is equipped with an electronic speed control. Turn the dial on top of the body to adjust the speed from 6,000 to 12,000 rpm depending on the material.

The dust bag does not fill up: what should I do?

Check that the bag is properly clipped and that the extraction holes are not clogged. You can also connect a vacuum cleaner to the rear port for better suction.

What size of abrasives are compatible?

Use 150 mm diameter self-adhesive abrasive sheets. The Velcro system allows quick changes.

Can I use the sander on metal?

Yes, with an abrasive suitable for metal (fine to medium grit). Make sure to use dust extraction and wear safety glasses.

How do I clean the sander after use?

Unplug the device, then blow out the ventilation slots with compressed air. Clean the body with a damp cloth, without solvents. Empty and wash the dust bag.

Does the sander heat up normally?

Slight heating is normal during prolonged use. If it gets too hot, reduce the speed or take breaks. Check that the ventilation slots are not blocked.

What type of oil should I use for maintenance?

The bearings are lubricated for life and do not require oiling. Never apply oil or lubricant to the motor or pad.

Where can I find spare parts for the TE-OS 2520 E?

Spare parts (pad, bag, switch) are available from the Einhell after-sales service or on their website. The model is designed to be repairable.

USER MANUAL TE-OS 2520 E EINHELL

GB Original operating instructions Orbital sander

Close-up of a mechanical device with a tool and curved cable, labeled with number 8 (no text or symbols on the device itself)

-2-

Close-up of a mechanical device with labeled parts (4 and 8), showing a lever and adjustment mechanism (no readable text or symbols beyond labels)

Close-up of a power tool pressing down on a perforated metal plate, with a hand adjusting the part (no text or symbols visible)

Close-up of a white plastic mechanical component with multiple circular holes (no text or symbols visible)

Close-up of a hand holding a mechanical component with a curved arrow indicating a movement or change, labeled '1' and '7' (no readable text or symbols)

Close-up of a mechanical device with labeled parts (8 and 4), no readable text or symbols beyond labels

D

Caution - Read the operating instructions to reduce the risk of inquiry

Wear ear-muffs. The impact of noise can cause damage to hearing.

Wear a breathing mask. Dust which is injurious to health can be generated when working on wood and other materials. Never use the device to work on any materials containing asbestos!

Wear safety goggles. Sparks generated during working or splinters, chips and dust emitted by the device can cause loss of sight.

GB

⚠️ Important!

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

1. Safety regulations

The corresponding safety information can be found in the enclosed booklet.

Caution!

Read all safety regulations and instructions.

Any errors made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury.

Keep all safety regulations and instructions in a safe place for future use.

2. Layout and items supplied

2.1 Layout (Fig. 1)

1 Oscillating plate
2 Handle
3 Speed controller
4 Operating switch
5 Connector for dust collection box
6 Dust collection box
7 Locking knob
8 Clamp lever

2.2 Items supplied

Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

• Open the packaging and take out the equipment with care.
• Remove the packaging material and any packaging and/or transportation braces (if

available).

• Check to see if all items are supplied.
• Inspect the equipment and accessories for transport damage.
• If possible, please keep the packaging until the end of the guarantee period.

Important!

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating!

• Original operating instructions
- Safetyinstructions

3. Proper use

The machine is designed for the grinding/sanding of wood, metal, plastic and similar materials using the appropriate grinding/sanding paper. The equipment is not suitable for wet grinding/sanding.

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

4. Technical data

Voltage 230 V \~ 50 Hz

Power input 250 W

Grinding/sanding area 230 x 115 mm

Abrasive paper size ....280 x 115 mm

Idling speed 7,000-12,000 min ^1

Oscillating speed ....14,000-24,000 min ^1

Oscillatory circuit 2.0 mm

Protection class:

Weight: 1.9 kg

GB

Sound and vibration

Sound and vibration values were measured in accordance with EN 60745.

L_pA sound pressure level 83,8 dB(A)

K_pA uncertainty 3 dB

L_WA sound power level 94,8 dB(A)

K_WA uncertainty 3 dB

Wear ear-muff s.

The impact of noise can cause damage to hearing.

Total vibration values (vector sum of three directions) determined in accordance with EN 60745.

Handle

Vibration emission value a_b=10.223 m/s^2

K uncertainty = 1.5 m/s²

Warning!

The specified vibration value was established in accordance with a standardized testing method. It may change according to how the electric equipment is used and may exceed the specified value in exceptional circumstances.

The specified vibration value can be used to compare the equipment with other electric power tools.

The specified vibration value can be used for initial assessment of a harmful effect.

Keep the noise emissions and vibrations to a minimum.

• Only use appliances which are in perfect working order.
  • Service and clean the appliance regularly.
  • Adapt your working style to suit the appliance.
  • Do not overload the appliance.
• Have the appliance serviced whenever necessary.
• Switch the appliance off when it is not in use.
  • Wear protective gloves.

Residual risks

Even if you use this electric power tool in accordance with instructions, certain residual risks cannot be rules out. The following hazards may arise in connection with the equipment's construction and layout:

1. Lung damage if no suitable protective dust mask is used.
2. Damage to hearing if no suitable ear protection is used.
3. Health damage caused by hand-arm vibrations if the equipment is used over a prolonged period or is not properly guided and maintained.

5. Before starting the equipment

Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data.

Always pull the power plug before making adjustments to the equipment.

5.1 Fitting the dust collection box (Fig. 2)

The dust collection box (6) must be pushed onto the connector for the dust collection box (5). Push the dust collection box (6) onto the equipment until you hear it click clearly. To remove the dust collection box (6), press the locking knob (7) and pull the dust collection box to the rear and off.

The dust is extracted directly through the abrasive paper and the grinding/sanding disk into the dust bag.

Important!

For health safety reasons it is imperative that you use the dust collection box.

5.2 Fastening the grinding/sanding paper with the Velcro fastening system (Fig. 3-6)

Only use grinding/sanding paper with the corresponding dimensions and matching perforations!

• Lift the clamping lever (8) on the front of the orbital grinder/sander.
• Insert the grinding/sanding paper into the open clamp and close the lever.

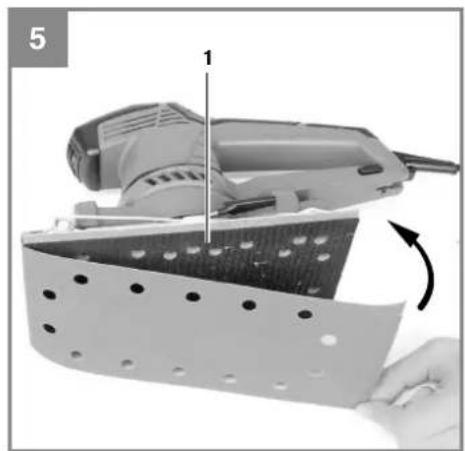

• Lay the grinding/sanding paper over the oscillating plate (1) so that the paper is taut and clamp it again at the back of the orbital grinder with the second clamping lever (8).
  • Make sure that the perforations in the sanding/grinding paper coincide with the oscilla-

GB

ting plate.

5.3 Fastening the sanding/grinding paper with the Velcro fastening system (Fig. 7)

• Only use sanding/grinding paper with the corresponding dimensions and matching perforations.
• Place the sanding/grinding paper onto the oscillating plate (7) as shown in Figure 1. Make sure that the perforations in the sanding/grinding paper coincide with the oscillating plate.

6. Operation

6.1 Switching the equipment ON/OFF (Fig. 8) To switch on:

Push the ON/OFF switch (4) forwards.

To switch off :

Push back the ON/OFF switch (4) into its starting position.

6.2 Speed control (Fig. 9/Item 3)

To pre-select the speed turn the knurled screw (3) on the switch.

Plus direction: Higher speed Minus direction: Lower spee

6.3 Working with the orbital grinder

• Place the whole surface area of the oscillating plate on the material.
• Switch on the machine and move it with gentle pressure over the workpiece completely circular movements or moving it to and fro and up and down.
• Use a coarse paper for coarse sanding and a finer paper for finish sanding. You can find the best paper for the job by means of testing.

Important.

The dust generated when working with the machine may be harmful.

• Always wear goggles and a dust mask when carrying out sanding/grinding work.
- Everybody who uses the machine or enters the workplace must wear a dust mask.
• Do not eat, drink or smoke at the workplace.
- Do not use the machine on paints which contain lead.

7. Replacing the power cable

If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.

8. Cleaning, maintenance and ordering of spare parts

Always pull out the mains power plug before starting any cleaning work.

8.1 Cleaning

• Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
  • We recommend that you clean the device immediately each time you have finished using it.
• Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device. The ingress of water into an electric tool increases the risk of an electric shock.

8.2 Carbon brushes

In case of excessive sparking, have the carbon brushes checked only by a qualified electrician. Important! The carbon brushes should not be replaced by anyone but a qualified electrician.

8.3 Maintenance

There are no parts inside the equipment which require additional maintenance.

8.4 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

• Type of machine
• Article number of the machine
• Identification number of the machine
- Replacement part number of the part required For our latest prices and information please go to www.isc-gmbh.info

9. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offices.

10. Storage

Store the equipment and accessories out of children's reach in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30^ . Store the electric tool in its original packaging.

GB

For EU countries only

Never place any electric power tools in your household refuse.

To comply with European Directive 2002/96/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the return request:

As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any accessories or aids without electrical components supplied with the old equipment.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the iSC GmbH.

Subject to technical changes

GB

Service information

We have competent service partners in all countries named on the guarantee certificate whose contact details can also be found on the guarantee certificate. These partners will help you with all service requests such as repairs, spare and wearing part orders or the purchase of consumables.

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Category Example
Wear parts* Carbon brushes, grinding/sanding plate
Consumables* Grinding/sanding paper
Missing parts

* Not necessarily included in the scope of delivery!

In the effect of defects or faults, please register the problem on the internet at www.isc-gmbh.info. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:

• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.

GB

Warranty certifi cate

Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. You can also contact us by telephone using the service number shown. Please note the following terms under which guarantee claims can be made:

1. These guarantee conditions regulate additional guarantee services. Your statutory guarantee claims are not affected by this guarantee. Our guarantee is free of charge to you.

2. Our guarantee only covers defects suffered by the device which have been verifiably caused by a material or manufacturing fault and is limited to the rectification of such defects or the replacement of the device at our discretion.
   Please note that our devices are not designed for use in commercial, trade or professional applications. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.

3. The following are not covered by our guarantee:

- Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by exposing the device to abnormal environmental conditions or by lack of care and maintenance.

- Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for example by dropping it). - Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.

1. The guarantee is valid for a period of 24 months starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies if an on-site service is used.

2. Please report the defective device on the following internet address to register your guarantee claim: www.isc-gmbh.info. If the defect is covered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement device.

Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address.

Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions.

F

X 2006/42/EC
Annex IV
Notified Body:
Notified Body No.:
Reg. No.
□ 2000/14/EC_2005/88/EC
Annex V
Annex VI
P = KW; L/∅ = cm
Notified Body:
□2004/26/EC
Emission No.:

Noise: measured L_ = dB (A); guaranteed L_ = dB (A)

Standard references: EN 60745-1; EN 60745-2-4; EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-3

Niyed Yang Yang/Product-ManagementWeichselgartner/General-Manager

First CE: 13

Art.-No.: 44.606.20 I.-No.: 11012

Subject to change without notice

Archive-File/Record: NAPR002809

Documents registrar: Daniel Protschka

Wiesenweg 22, D-94405 Landau/Isar

EH 12/2013 (01)
