| Product Type | Built-in Wine Cellar |
| Brand | Sub-Zero |
| Model | ICB424FSG |
| Bottle Capacity | 24 bottles |
| Adjustable Temperature | 5°C to 18°C |
| Temperature Zone | Single Zone |
| Dimensions (W x H x D) | 610 x 864 x 584 mm |
| Net Weight | 68 kg |
| Power Supply | 220-240 V, 50 Hz |
| Energy Consumption | 150 kWh/year |
| Energy Class | D |
| Refrigerant Type | R600a |
| Noise Level | 38 dB |
| Functions | Electronic temperature control, LED lighting, glass door, charcoal air filter |
| Maintenance and Cleaning | Clean with a soft cloth and warm water, manual defrost |
| Safety | Child lock system, open door alarm |
| Spare Parts and Repairability | Charcoal filter, shelves, LED bulb available on manufacturer's website |
| General Information | 2-year warranty, made in the USA |
| Installation Type | Built-in |
| Number of Shelves | 4 cherry wood shelves |
Frequently Asked Questions - ICB424FSG Sub-Zero
User questions about ICB424FSG Sub-Zero
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Wine cellar in PDF format for free! Find your manual ICB424FSG - Sub-Zero and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. ICB424FSG by Sub-Zero.
USER MANUAL ICB424FSG Sub-Zero
GUIDA ALL'USO E ALLA MANUTENZIONE
SUB-ZERO ^® is a registered trademark of Sub-Zero, Inc.
www.subzero.com
Contents
Sub-Zero Wine Storage 4
Wine Storage Features 4
Wine Storage Models 5
Wine Storage Use & Care 7
Keeping Wine at Its Best 12
Troubleshooting Guide 13
Service Information 14
Features and specifications in this guide and on the website are subject to change at any time without notice. Check our website, www.subzero.com, for the most up-to-date specifications.
Contenido
Thank you for purchasing your new Sub-Zero wine storage unit. The ultimate in beauty, engineering, detailing and functionality, this wine storage equipment continues the Sub-Zero tradition of superior quality and reliability, giving you the peace of mind that your wine is stored properly, at the exact temperature you select.
This use & care guide will answer most of your questions about the features, operation and maintenance of your wine storage unit. If you have questions that are not addressed here, contact your dealer.
Important Note
To ensure the safe and efficient use of Sub-Zero equipment, please take note of the following types of highlighted information throughout this guide:
IMPORTANT NOTE highlights information that is especially important.
CAUTION signals a situation where minor injury or product damage may occur if instructions are not followed.
WARNING states a hazard that may cause serious injury or death if precautions are not followed.
Wine Storage Features
- D ual temperature zones—all wine storage models allow you to have precise independent temperature control within one degree of your preset temperature in each of the two temperature zones.
- M odel ICB427R has a third temperature zone—refrigerator drawers—for items to be stored at a cooler temperature than your wine.
- Electronic controls—a microprocessor controls all electronic functions and allows you to monitor the exact temperature you have preset and make adjustments easily.
- Correct temperature—each temperature zone of your wine storage unit has a range of 3°C to 18°C, and your set temperature is shown in the LED display, located on the control panel.
• Proper humidity is maintained throughout the entire unit.
- Discreet lighting—our soft low-wattage lighting can be controlled independently of the door's opening, which will allow you to display your collection of wine for special occasions.
- S. turdy, rustproof wire shelves can easily accommodate standard 750 ml bottles, half bottles, as well as magnums. Finished off with a natural cherry wood facing, all shelves ensure that the wine is stored properly, with the corks in contact with the bottles' contents.
- R roller-assembly shelves with a full three-quarter extension for easy access to all stored bottles.
- D isplay shelf—featured on models ICB427, ICB427R and ICBWS-30, this shelf allows you to display those prized bottles in your wine collection. It is illuminated
with discreet lighting mounted in the control panel. • Service alert—a indicator light in the LED display on the control panel will let you know if service may be necessary.
• Home alarm—wiring connections give you the option of hooking the wine storage unit up to your home security system.
- Model ICB427R has an alarm feature that will make an audible beeping sound if a drawer has been left open.
- Sabbath mode will allow the lights to remain off during certain religious observances.
- U V-resistant glass in the door filters out harmful UV light.
- Optional lock—lock is available as a sales accessory. Contact your Sub-Zero dealer for details.
- M agnetic gaskets around the doors give extra-tight seals.
- The solid, adjustable kickplate gives a true built-in look and conforms to American Institute of Architects standards.
- Front venting—all Sub-Zero wine storage models are designed for mechanical system airflow at the front of the unit.
With the installation of a harness kit, these appliances are Star-K compliant to most strict religious regulations in conjunction with specific instructions found on www.star-k.org. For details about the harness kit, contact your Sub-Zero dealer.

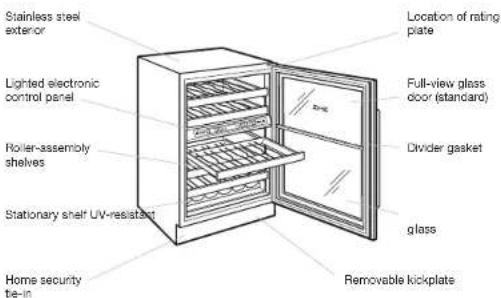

Model ICB424
UNDERCOUNTER WINE STORAGE
Model ICB424FS
FREE-STANDING WINE STORAGE

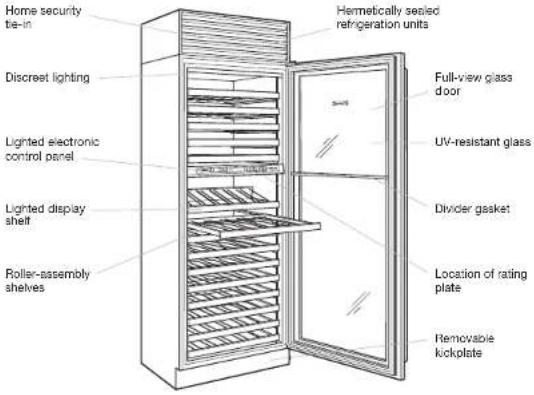

Model ICB427
ALL WINE STORAGE
Model ICBWS-30
ALL WINE STORAGE
Model ICB427R
WINE STORAGE WITH REFRIGERATOR DRAWERS
Electronic Control System
The electronic control system of your Sub-Zero wine storage unit gives you the most accurate temperature control for your peace of mind. You can be assured your wine is stored at the temperature you have selected, whether it is long-term aging or staging wine for consumption that evening.
Amicroprocessor accurately samples the temperature every second in each zone to be sure the temperatures stay within one degree of your preset temperatures. It also monitors the unit's operation and will let you know if service may be necessary.
TEMPERATURE CONTROL
With all wine storage models you have the capability of setting two distinct temperatures within the two zones of your wine storage unit. Your model has been thoroughly tested and inspected before it was shipped from the factory. The temperature has been preset at 7°C in the smaller zone and 13°C in the larger zone.
There are two sets of and key pads on the control panel, one for each of the two separate temperature zones. An arrow next to the temperature in the LED display, will indicate which temperature corresponds with each zone. Refer to the illustration below.
The key pad on the control panel allows you to decrease the temperature in the corresponding zone by one degree each time you depress the key pad. Remember that the temperature range in each zone is 3°C to 18°C and you can set two different temperatures—one for each zone.
Similar to the key pad, you can raise the temperature in the corresponding zone by one degree each time you depress the key pad on the control panel.
Electronic control panel.
LED DISPLAY
Electronic control system functions, such as digital temperatures and service indicators, are shown in the LED display, located on the control panel. The temperatures of each zone will be visible through the glass door of your wine storage unit. If you are using your unit frequently, the numbers may fluctuate.
UNIT ON/OFF
The day pad on the control panel will shut off all electrical power to the wine storage unit for cleaning or service.
LIGHTS ON/OFF
All wine storage units have the capability of having the lights on independently of the door's opening and closing. This will allow you to display your collection of wine for special occasions.
To have the lights remain on independently of the door's opening and closing, press the key pad. Press the key pad again to have the lights to go off when the door is closed.
CAUTION
You should not leave the lights on overnight or for extremely long periods of time. The heat from the lights will cause the unit to work unnecessarily hard.
ALARM FEATURE
If the microprocessor detects temperature fluctuations or a faulty component, you will hear an audible beep and a symbol will flash in the LED display on the control panel. Also, if the unit is tied in with your home security, it will alert this system. You can deactivate the alarm feature and the audible sound by depressing the key pad. If the alarm is deactivated, the symbol will not be visible in the LED display.
SABBATH MODE (STAR-K)
All wine storage units feature the Sabbath mode. This is for certain religious observances where the lights need to be turned off.
To initiate Sabbath mode, while the unit is on press the key pad so that OFF is visible in the LED display on the control panel. Your unit will be off.
Then press and hold the key pad for 10 seconds. This will turn the unit back on and will disable the lights. To return the unit to normal lighting, press and release the key pad.
If you have questions about Star-K compliance, visit www.star-k.org.
VISUAL SERVICE DISPLAY
The electronic control system monitors temperatures as well as the unit's operation. If there is a temperature or operation problem, you will notice the symbol illuminated in the LED display on the control panel. Before calling for service, please check to see if your condenser area needs cleaning. Refer to condenser cleaning on page 11.
Refrigerator Drawers—Model ICB427R
TEMPERATURE CONTROL
For model ICB427R, the refrigerator drawers have their own microprocessor and control panel located in the top drawer. The preset temperature is 3°C from the factory, but you have the option of adjusting the temperature within the range of 1°C to 7°C. The LCD display on the control panel displays the actual temperature of both drawers in your unit.
The key pad on the control panel allows you to decrease the temperature of the drawers by one degree each time you depress the key pad. You can raise the temperature in the drawers by one degree each time you depress the key pad on the control panel.
ALARM FEATURE
For model ICB427R, an alarm will make an audible beeping sound if a drawer has been left open accidentally. When the alarm is activated, a symbol will be illuminated in the LCD display of the control panel. When the alarm is deactivated, the symbol will not be visible.
Temperature Settings
In all instances, the temperature settings are your individual preference, and with the wine storage model you purchased, you can be confident the unit will maintain those temperatures. A chart with suggested storing and serving temperatures can be found on page 12.
While each temperature zone of your wine storage unit has a range of 3°C to 18°C, you can set the temperatures at the exact temperature you think best—whether it's for consumption or for duplicating the temperatures of cellars for long term storage.
Wine Storage
WINE STORAGE SHELVES
All Sub-Zero wine storage models have roller-assembly shelves with a full three-quarter extension for easy access to all stored bottles.
IMPORTANT NOTE: Models ICB424 and ICB424FS have roller-assembly shelves in all instances with the exception of the bottom stationary shelf.
The shelves have a solid natural cherry wood facing that can be replaced with other wood to match your cabinetry. Details on how to replace the shelves' wood facing can be found in the Sub-Zero design guide.
IMPORTANT NOTE: If you choose to stain or seal the shelves' natural cherry wood facing, be aware that some of these substances are hazardous and will damage stored wine.
Your wine storage unit is intended to maximize the storage of bottles in an ideal environment where the wine stays in contact with the cork at an even temperature. Refer to the illustration for the proper arrangement of bottles on the shelves.
If you are storing half bottles or magnums, they are nestled in the shelves in the same manner as the 750 ml bottles.
Wine storage arrangement. Wine storage shelf removal.
WINE STORAGE SHELF REMOVAL
To remove a wine storage shelf, pull the shelf out to its full extension, gently and evenly lift up on both sides of the front of the shelf and remove. Refer to the illustration above. Reverse the procedure to reinstall the shelf.
CAUTION
Be sure to unload all bottles from the wine storage shelf before removing it.
CAUTION
When storing magnum bottles you must remove the shelf just above the intended storage shelf to allow for these larger bottles to be moved in and out of the unit. Failure to do so will cause the bottles to break.
Wine Storage
DISPLAY SHELF
Models ICB427, ICB427R and ICBWS-30 feature a display shelf that allows you to display those prized bottles in your wine collection. It is illuminated with discreet lighting mounted in the control panel. The display shelf is designed so that the wine will stay in proper contact with the cork. Refer to the illustration below.
IMPORTANT NOTE: The display shelf is designed for only one row of bottles laid in such a way that the bottom portion of the bottle is against the wood rail and the top and cork of the bottle are toward the back of the wine storage unit.
IMPORTANT NOTE: Models ICB424 and ICB424FS do not include the display shelf.
Display shelf.
DISPLAY SHELF REMOVAL
To remove the display shelf, pull the shelf out to its full extension, gently and evenly lift up on both sides of the front of the shelf and remove. Reverse the procedure to reinstall the shelf.
CAUTION
Be sure to unload all bottles from the wine storage shelf before removing it.
Refrigerator Drawers—Model ICB427R
DRAWER REMOVAL
IMPORTANT NOTE: For model ICB427R, you must disconnect the control cable before removing the top drawer. Refer to the illustration below.
To remove a drawer from the model ICB427R, pull the drawer open until it stops. Lift up evenly on both sides of the drawer front and pull out, as shown in the illustration below.
IMPORTANT NOTE: Be sure to unload the contents before removing the drawer.
To replace a drawer, raise the front of the drawer up and place onto the drawer slide tracks. Be sure to engage the front holes of the drawer slide with the small pegs at the end of each rail.
CAUTION
Before removing the top drawer of the model ICB427R, you MUST disconnect the control cable.
Drawer divider.
DRAWER DIVIDER
Each drawer of the model ICB427R has a divider that can be easily removed.
To remove, pull the drawer divider forward and pivot the back edge of the divider away from the back of the drawer. Reverse the procedure to reinstall the divider. Refer to the illustration above.
Control cable.
Door Operation
DOOR CLOSING
The door of your wine storage unit has a spring-loaded closure mechanism. As the door is closed, the door closer engages to help close and seal the door.
90° DOOR STOP
If your wine storage unit is positioned in a corner, you may want to limit the door opening to 90".
IMPORTANT NOTE: A 90° door stop is not available for models ICB424 and ICB424FS.
For models ICB427 and ICB427R, a 90° door stop built into the hinge system. You can easily actuate the stop by using a blade-type screwdriver and rotating the brass cam in both the top and bottom hinges. You must position both stops at 90° if you want to safely use the door. You can go to the maximum of a 105° door opening by using the screwdriver and rotating the brass cam to the next stop. Refer to the illustration below.
For model ICBWS-30, a 90" door stop ships with the unit and is located behind the flip-up grille. Refer to the illustration below.
90° door stop (model ICBWS-30).
90° door stop (models ICB427 and ICB427R).
WARNING
The door swing on models ICB427 and ICB427R may cause severe finger pinching. Watch that fingers are not placed in the door opening on the hinge side when the door is open.
Lighting Information
CABINET LIGHTING
For models ICB424 and ICB424FS, rope-style lighting is mounted to the top of the cabinet and cascades down the entire front of the unit.
Models ICB427, ICB427R and ICBWS-30 have discreet lighting provided in two places. Rope-style lighting is mounted to the top of the cabinet and additional lighting is mounted in the control panel to illuminate the display shelf. Refer to the illustration.
These lights have an extended life and it should be some time before they need to be replaced. If you have problems with the cabinet lighting or need replacements, contact your Sub-Zero dealer.
WARNING
Shut off power to the unit before replacing light bulbs. Wear protective gloves when handling bulbs.
Cabinet lighting (models ICB427, ICB427R and ICBWS-30).
Drawer compartment lighting (model ICB427R).
DRAWER LIGHTING—MODEL ICB427R
Lighting is recessed into the top area of each refrigerator drawer compartment of model ICB427R. Refer to the illustration above.
To replace a light bulb in the drawer compartment, you must pull the drawer out to its maximum extension. It is recommended that you remove the drawer. Refer to page 9 for the drawer removal procedure.
Remove the 15-watt bulb by unscrewing it from its socket and complete the reinstallation by following the reverse steps.
Cleaning
STAINLESS STEEL EXTERIOR
Classic stainless steel finish: To clean the exterior of the classic stainless steel finish, use a soft, nonabrasive stainless steel cleaner and apply with a soft 100% lint-free cloth.
Different light types and source locations can result in variations in shading on different components and areas of large appliances.
To bring out the natural luster of the finish, lightly wipe the surface with a water-dampened microfiber cloth followed by a dry polishing chamols. All work should follow the grain direction of the finish. Better results are obtained by keeping the cloth in continuous contact with the stainless steel.
CAUTION
Under no circumstances should you use a metallic or highly abrasive cleaner or cloth, as this will scratch the classic stainless steel finish.
GLASS DOOR CLEANING
The glass door panel can be cleaned using any standard glass cleaner available on the market today.
INTERIOR CLEANING
To clean interior surfaces and removable parts, wash with a mild solution of soap and luke warm water with a little baking soda. Do not use vinegar. Rinse and dry thoroughly. Avoid getting water on lights, control panel and the solid cherry wood facing on the shelves.
Do not use abrasive cleaners or cloths on any of the interior or exterior surfaces, including the glass door panel.
CAUTION
Before cleaning the unit, shut off power to the unit at the control panel.
CONDENSER CLEANING
Clean the condenser area every three to six months. The cleaning schedule will depend on the amount of dust and lint that accumulates in this area.
For models ICB424 and ICB424FS, the condenser is located behind the kickplate. First, remove the kickplate to expose the condenser area. Refer to the illustration below.
The condenser for models ICB427 and ICB427R is located behind the kickplate/grille. Remove the screws holding the kickplate/grille. This assembly will slide forward easily, giving you access to the condenser area. Refer to the illustration below.
For model ICBWS-30, the condenser is located behind the grille. First, pull out on the bottom edge of the grill and tilt forward. Refer to the illustration.
Use a soft bristle brush and vacuum hose to remove dust and lint from the condenser area.
IMPORTANT NOTE: To avoid bending the condenser fins, be sure to vacuum in the direction of the fins (up and down).
Location of condenser (models ICB424 and ICB424FS).
Location of condenser (models ICB427 and ICB427R).
Location of condenser (model ICBWS-30),
CAUTION
Before cleaning the condenser, shut off power to the unit at the control panel. When you clean the condenser, wear gloves to avoid injury from the sharp condenser fins.
CAUTION
Failure to clean the condenser could result in temperature loss or mechanical failure or damage.
Storing and Serving Wine
There is a right way to store and serve wine. And there is a wrong way. The Sub-Zero wine storage equipment is committed to the right way. Wine enthusiasts know that wine, optimally, likes to be stored for long periods of time in caves that are vibration free, dark, damp and kept at a constant 13°C. However, how many of us have these situations available?
When you think about wine, think about preserving fruit and the fact that you must refrigerate it at the proper temperature before it spoils. After all, wine is the juice of grapes in its simplest interpretation.
Wine needs to be selected and cared for properly. The wine aficionado knows that proper storage will ensure the wine is served at the best conditions.
You have taken the extra step to ensure that your wine is kept in the best possible environment by purchasing your Sub-Zero wine storage unit. Now how you use the unit is up to you.
You can devote the entire wine storage unit to long-term storage and have the temperature set to 13°C in both zones—the ideal temperature for long-term storage or aging. If, however, you want to devote only a small portion of the unit to that feature, you can adjust the temperature in the smaller zone to long-term storage and adjust the other temperature zone to accommodate the wine you will be enjoying soon.
The temperature in this zone can be anything you choose. Sure, there are ideal temperatures for serving wine, but it is very subjective, with everyone's palate reacting differently to different temperatures.
The following chart offers some universally accepted storing and serving temperatures for the most common wines consumed today.
Enjoy the wine and your Sub-Zero wine storage unit. And thank you for your trust in Sub-Zero.
Storing and Serving Temperatures
| SWEET WHITES LIGHT REDSDRY WHITES | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Muscadet | Chabis | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Sautemes | Macon | Chinnon | Best White Burgundee / Graves | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
5C10EC7C9C9C10C11C12C13C14C15C16C17C18C
© Octobre Publishing Group Ltd., reproduced from Hugh Johnson's 'The World Atlas of Films', published by Michael Deszeg, London.
Troubleshooting
If your wine storage unit is not operating properly, refer to the following troubleshooting guide before calling your Sub-Zero dealer. This guide will save you time and trouble and may help you avoid the expense of a service call.
The wine storage unit is not operating.
• Is there electrical power to the unit?
• Is your home circuit breaker or fuse on?
- Is the unit on? Depress the key pad.
• Is the condenser area clean?
The wine storage unit is warmer than usual.
• Is the control set properly?
• Is the condenser area clean?
- Have the door or drawers (model ICB427R) been open for a long time?
The wine storage unit runs for long periods of time.
- Is the condenser area clean?
- On hot days and in warm room temperatures, the compressor runs longer.
- Have the door or drawers (model ICB427R) been open for a long time?
• Have you recently added a large amount of wine?
Condensation forms inside the unit.
• This is normal during periods of higher humidity (summer) and with frequent door openings.
- Are the door and drawers (model ICB427R) closing and sealing properly?
Condensation forms outside the unit.
- During periods of high humidity, some condensation may appear on outside surfaces. The condensation will disappear when the humidity drops. Be sure that the door and drawers (model ICB427R) are closing and sealing properly. If condensation persists, contact your Sub-Zero dealer.
You need service.
- If service is necessary, maintain the quality built into your Sub-Zero unit by calling your Sub-Zero dealer.
- When calling for service, you will need the model and serial numbers of your unit. The numbers are listed on the product rating plate. For models ICB424 and ICB424FS, the rating plate is located on the underside of the top wall. For models ICB427, ICB427R and ICBWS-30, it is attached to the underside of the control panel.
Frequently Asked Questions
TEMPERATURE
IMPORTANT NOTE: Unless the wine storage unit is being serviced, make sure the power for your unit is on.
Q: How do I adjust the temperatures?
A: To adjust temperatures, refer to temperature control on page 7. For model ICB427R, also refer to page 8.
Q: What are the suggested temperature settings?
A: Temperature settings are your individual preference. While each temperature zone of your wine storage unit has a range of 3°C to 18°C, you can set the temperatures you think best. A chart with suggested storing and serving temperatures can be found on page 12.
Q: Condensation is forming on the inside and outside of my unit.
A: In climates with higher humidity, condensation will form and is considered normal. Leaving the door open for a long period of time may also contribute to condensation forming on the inside of your unit.
Q: My unit isn't cooling properly.
A: Clean the condenser area as outlined on page 11
Service Information 14
Service Information
This use & care guide gives you the information necessary to preserve your wine at optimum quality in your Sub-Zero wine storage unit.
If you do need service, be sure to have the model and serial number of your unit when you call. The numbers are listed on the product rating plate. For models ICB424 and ICB424FS, the rating plate is located on the underside of the top wall. For models ICB427, ICB427R and ICBWS-30, it is attached to the underside of the control panel. Refer to pages 5–6 for location of the rating plate for your specific model.
Model Number:
Serial Number:
Installation Date:
Sub-Zero Dealer:
Phone:
The information and images in this guide are the copyright property of Sub-Zero, Inc. Neither this guide nor any information or images contained herein may be copied or used in whole or in part without the express written permission of Sub-Zero, Inc. 95Sub-Zero, Inc. all rights reserved.
- Contents
- Contenido
- Important Note
- Wine Storage Features
- Electronic Control System
- TEMPERATURE CONTROL
- LED DISPLAY
- UNIT ON/OFF
- LIGHTS ON/OFF
- CAUTION
- ALARM FEATURE
- SABBATH MODE (STAR-K)
- VISUAL SERVICE DISPLAY
- Refrigerator Drawers—Model ICB427R
- Temperature Settings
- Wine Storage
- DISPLAY SHELF REMOVAL
- DRAWER DIVIDER
- Door Operation
- WARNING
- Lighting Information
- DRAWER LIGHTING—MODEL ICB427R
- Cleaning
- GLASS DOOR CLEANING
- INTERIOR CLEANING
- CONDENSER CLEANING
- Storing and Serving Wine
- Troubleshooting
- The wine storage unit is not operating.
- The wine storage unit is warmer than usual.
- The wine storage unit runs for long periods of time.
- Condensation forms inside the unit.
- Condensation forms outside the unit.
- You need service.
- Frequently Asked Questions
- TEMPERATURE
- Q: How do I adjust the temperatures?
- Q: What are the suggested temperature settings?
- Service Information
Brand : Sub-Zero
Model : ICB424FSG
Category : Wine cellar
