FZG 1004 - Barbecue Fieldmann - Free user manual and instructions

Product type	Charcoal barbecue
Brand	Fieldmann
Model	FZG 1004
Dimensions (W x D x H)	80 x 50 x 100 cm
Weight	15 kg
Fuel	Manual (charcoal)
Cooking surface	Chrome steel grid, 45 x 35 cm
Grid height adjustment	3 positions
Adjustable air intake	Yes, to control temperature
Removable ash pan	Yes, for easy cleaning
Insulated handle	Yes, for safe handling
Stable legs	4 legs with anti-slip ends
Usage	Outdoor only
Maintenance and cleaning	Clean the grid with a metal brush, empty the ash pan after each use
Safety	Do not use indoors, keep away from flammable materials
Spare parts available	Cooking grid, ash pan, handles
Repairability	Standard parts available; repair possible by a professional
Warranty	2 years

Frequently Asked Questions - FZG 1004 Fieldmann

How to assemble the Fieldmann FZG 1004 barbecue?

Follow the instructions in the manual. Generally, attach the legs to the main body, install the grid and ash pan. Use the tools provided.

What type of charcoal to use?

Use standard charcoal or briquettes. Avoid chemically treated charcoal.

How to light the barbecue?

Arrange the charcoal in a pyramid, add a fire starter and light. Let the embers turn gray before cooking.

How to clean the cooking grid?

After use, scrub the grid with a metal brush while it is still warm. You can also wash it with soapy water.

Is the ash pan removable?

Yes, the ash pan can be easily removed to empty the ashes. Wait for the embers to be completely extinguished and cooled.

Can I use the barbecue in an apartment?

No, the barbecue is designed for outdoor use only. Never use it in an enclosed space.

How to adjust the temperature?

Use the adjustable air intake to increase or decrease the airflow. More air = hotter.

What is the ideal cooking height?

The grid offers 3 positions. For fast cooking, use the low position; for slow cooking, use the high position.

Is the barbecue stable?

Yes, it is equipped with 4 stable legs with anti-slip ends. Place it on a flat surface.

Where to find spare parts?

Contact Fieldmann customer service or search online with the reference FZG 1004. Grids and ash pans are available.

USER MANUAL FZG 1004 Fieldmann

Abstract black-and-white spiral pattern with no text or symbols

FIELDMANN®

Home & Garden Performance

Line drawing of a portable grill with a dome-shaped top and side-mounted heater (no text or symbols)

FZG 1004

INSTRUCTION MANUAL

NÁVOD K OBSLUZE

NÁVOD NA OBSLUHU

HASZNÁLATI ÚTMUTATÓ

INSTRUKCJA OBSŁUGI

GENERAL SAFETY INSTRUCTIONS Important Safety Instructions

FAILURE TO HEED THESE DANGER, WARNING, AND CAUTION STATEMENTS MAY CAUSE SERIOUS BODILY INJURY OR DEATH, OR A

* SAFETY SYMBOLS (*) will alert you to important SAFETY information.

* Signal words DANGER, WARNING, or CAUTION will be used with the (*) SAFETY SYMBOL.

* DANGER will identify the most serious hazard.

* Please read all safety information contained in this Owner's Guide.

\* DANGER

* Failure to follow the Dangers, Warnings and Cautions contained in this Owner's Manual may result in serious bodily injury or death, or in a fire or an explosion causing damage to property.

* Do not use indoors! This barbecue is designed for outdoor use only. If used indoors, toxic fumes will accumulate and cause serious bodily injury or death.

* Only use this barbecue outdoors in a well-ventilated area. Do not use in a garage, building, breezeway or any other enclosed area.

* Do not use this barbecue under any overhead combustible construction.

* CAUTION! Do not use spirit or petrol for lighting or re-lighting! Use only firelighters complying to EN 1860-3.

* Improper assembly may be dangerous. Please follow the assembly instructions in this manual. Do not use barbecue unless all parts are in place. Make sure either the ash catcher is properly attached to the legs underneath the bowl of the barbecue, or the high capacity ash catcher is in place, before lighting the grill.

Do not add charcoal starter fluid or charcoal impregnated with charcoal lighter fluid to hot or warm charcoal. Cap starter fluid after use, and place a safe distance away from the barbecue.

Do not use gasoline, alcohol or other highly volatile fluids to ignite charcoal. If using charcoal starter fluid, remove any fluid that may have drained through the bottom vents before lighting the charcoal.

* WARNING! Keep children and pets away. Do not leave infants, children or pets unattended near a hot barbecue.

* ATTENTION! This barbecue will become very hot, do not move it during operation. Allow the grill to cool before moving.

Do not use this barbecue within five feet of any combustible material. Combustible materials include, but are not limited to wood or treated wood decks, patios and porches.

Do not remove ashes until all charcoal is completely burned out and are fully extinguished and grill is cool.

Do not wear clothing with loose flowing sleeves while lighting or using the barbecue.

Do not use barbecue in high winds.

WARNING

* Keep the barbecue on a stable, level surface at all times.

- Remove the lid from the barbecue while lighting and getting the charcoal started.

* Never touch the cooking or charcoal grates, ashes, charcoal or the barbecue to see if they are hot.

Do not use water to control flare-ups or to extinguish charcoal, as it may damage the porcelain finish. Slightly close bottom air vents (dampers) and place lid on bowl.

* Extinguish coals when finished cooking. Close all vents (dampers) after putting lid on bowl.

* Barbecue mitts should always be worn while cooking, adjusting air vents (dampers), adding charcoal and handling the thermometer or lid.

* Use proper barbecue tools, with long, heat-resistant handles.

* Some models may include lid holder feature. The lid holder is used to store the lid while checking on or turning your food. Do not use the lid holder as a handle to lift or move the grill. For those models without the feature, use the hook on the inside of the lid to hang the lid on the side of the barbecue bowl. Do not place a hot lid on carpeting or grass. Do not hang the lid on the bowl handle.

* Never dump hot coals where they might be stepped on or be a fire hazard. Never dump ashes or coals before they are fully extinguished. Do not store barbecue until ashes and coals are fully extinguished.

* Keep the cooking area clear of flammable vapor and liquids, such as gasoline, alcohol, etc., and combustible material.

* Handle and store hot electric starters carefully.

* Keep electrical wires and cords away from the hot surfaces of the barbecue and away from high traffic areas.
* The use of alcohol, prescription or non-prescription drugs may impair the consumer's ability to properly assemble or safely operate the barbecue.
* This barbecue is not intended to be installed in or on recreational vehicles and/or boats.
* This barbecue is not intended for and should never be used as a heater.
* Lining the bowl with aluminum foil will obstruct the air flow. Instead, use a drip pan to catch drippings from meat when cooking by the indirect method.
* Using sharp objects to clean the cooking grate or remove ashes will damage the finish.
* Using abrasive cleaners on the cooking grates or the barbecue itself will damage the finish.
* The barbecue should be thoroughly cleaned on a regular basis.

CAUTION

SYMBOLS

WARNING!! Hot Surface

GRIL NA DŘEVĚNÉ UHLÍ FZG 1004

VŠEOBECNÉ BEZPEČNOSTNÍ PŘEDPISY

Warning sign depicting steam rising from a chimney, enclosed in a triangle (no text or symbols)

Warning sign depicting steam rising from a chimney (no text or symbols)

Avertissement!! surface chaude.

Advertencia!! Superficie caliente.

GRILL A CARBONELLA FZG 1004

REGOLE GENERALI DI SICUREZZA

Warning sign depicting steam rising inside a triangle (no text or symbols)

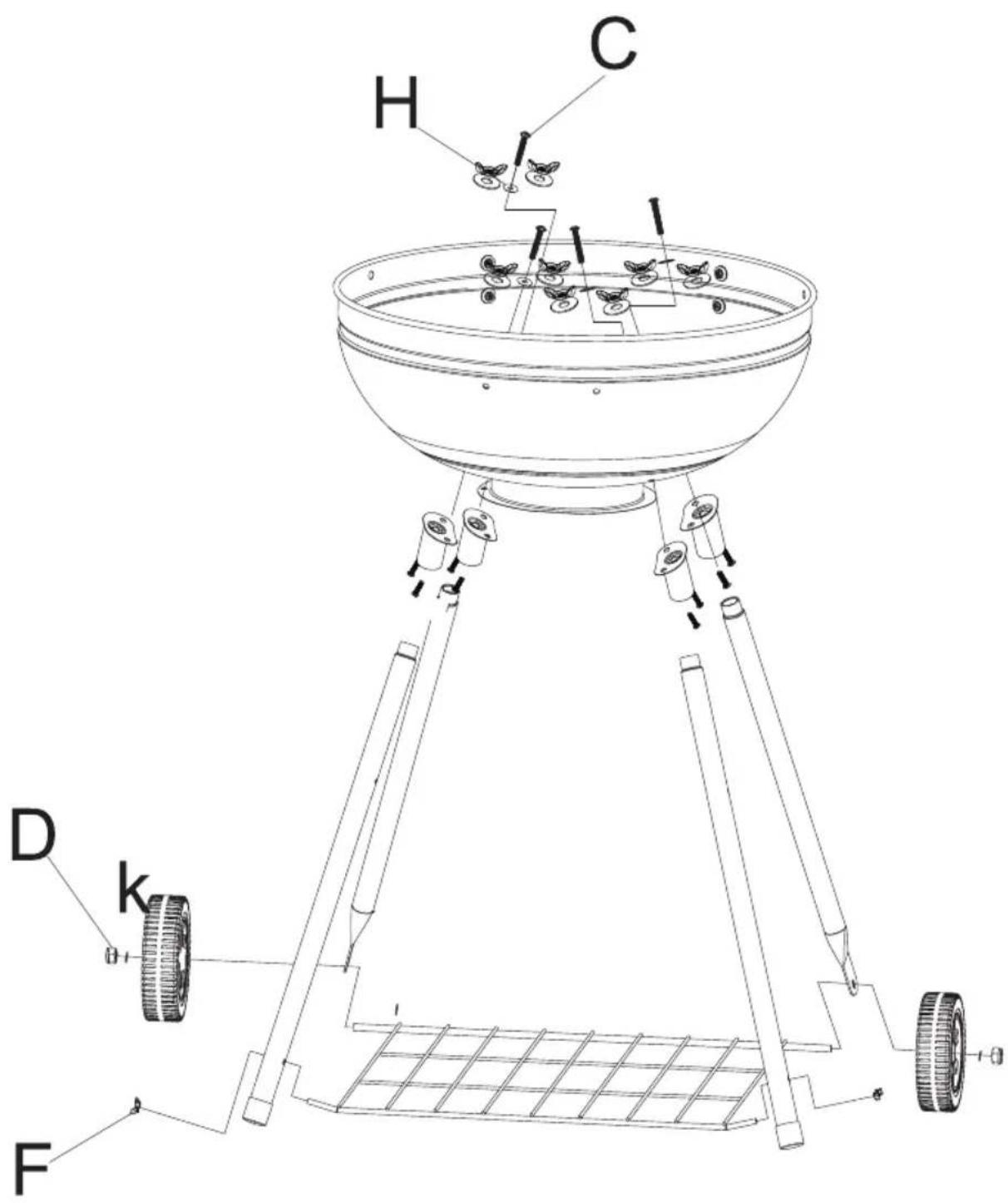

Exploded view diagram of a portable grill setup with labeled components (no text or symbols present)

A: M5X12 A3PHILIPS TRUSS HEAD SCREW__1PC	11.06HEAT RESISTANT WASHERS__4PCS
B: M6X10 A3PHILIPS TRUSS HEAD SCREW__9PC	I:ø6X30 A3 HINGE PINS__2PCS
C: M6X30 A3PHILIPS TRUSS HEAD SCREW__4PCS	J:ø1.4X30 65Mu COOTTER PINS__2PCS
D: M8 A3 HEX NUTS__2PCS	K:ø6Plastic washer__2PCS
E: M5 WING NUTS__1PC
F: M5 WING NUTS__15PCS
G:ø6LARGE WASHERS__8PCS

Line drawing of a portable grill with fan, grating pan, and cooking equipment (no text or symbols)

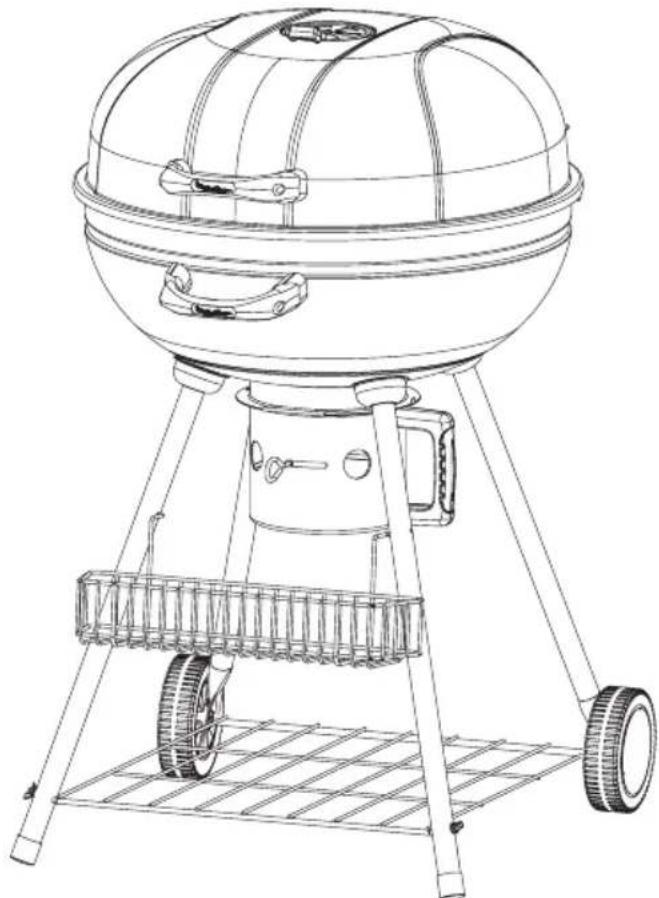

Line drawing of a portable grill with a dome-shaped top and side-mounted wheels (no text or symbols)
