Brand	Turmix
Model	A31150
Product type	Immersion blender
Power supply	220-240 V ~ 50/60 Hz
Power	700 W
Speeds	2 speeds + turbo
Shaft material	Stainless steel
Blade	Stainless steel, 4 blades
Measuring cup capacity	700 ml
Dimensions (W x D x H)	6.5 x 6.5 x 38 cm
Weight	0.85 kg
Cable length	1.2 m
Bowl material	BPA-free plastic
Main functions	Blend, emulsify, puree, milkshakes
Care and cleaning	Removable shaft, dishwasher safe (shaft and bowl)
Safety	Automatic shut-off in case of overheating, double insulation
Spare parts and repairability	Blending shaft, blade, measuring cup available
Included accessories	Blending shaft, measuring cup, whisk (depending on version)
General information	Versatile immersion blender for liquid and semi-liquid preparations

Frequently Asked Questions - A31150 Turmix

How to use the Turmix A31150 immersion blender?

Insert the shaft into the motor unit until it clicks. Immerse the shaft in the preparation and select the desired speed. Use the turbo function for thicker mixtures.

Can I blend hot liquids?

Yes, but wait until the liquid cools to about 80 °C maximum to avoid splashing or risk of burns.

How to clean the blending shaft?

Detach the shaft from the motor unit and rinse it under running water. You can also place it in the dishwasher (top rack). Wipe the motor unit with a damp cloth.

Is the measuring cup dishwasher safe?

Yes, the plastic measuring cup can be washed in the dishwasher. Avoid very high temperatures.

What to do if the blender does not start?

Check that the shaft is properly engaged and that the power outlet works. If the problem persists, contact customer service.

Does the blender heat up during use?

Slight heating is normal. If a burning smell appears, stop the appliance and let it cool. Do not exceed 5 minutes of continuous use.

Can I blend frozen fruits?

Yes, but cut them into pieces and do not use large frozen blocks. Prefer the turbo function.

How to replace the blender blade?

The blade is not removable on this model. If damaged, replace the entire blending shaft (spare part available).

What is the maximum capacity of the measuring cup?

The measuring cup has a capacity of 700 ml, but be careful not to exceed 500 ml to avoid splashing.

Where to find spare parts for the Turmix A31150?

Visit the official Turmix website or contact customer service. Blending shafts and measuring cups are usually available.

USER MANUAL A31150 Turmix

DIE NEUEN TURMIX KÜCHENGERÄTE WURDEN VON FÜHRENDEN SCHWEIZER INGENIEUREN UND DESIGNERN ENTWICKELT. SIE WERDEN MIT GRÖSSTER SORGFALT IN DER SCHWEIZ GEFERTIGT.

IHR NEUER TURMIX HANDMIXER IM DETAIL

ANWENDUNG

MAYONNAISE

KARTOFFELPÜREE

BROT GRUNDREZEPT

KALTE GURKENSUPPE

Rezept für Mixstab

REINIGUNG

KNETSPIRALEN / DOPPELDRAHTRÜHRBESEN

GEHÄUSE

SICHERHEITSHINWEISE

ENTSORGUNG

CHÈRE CLIENTE, CHER CLIENT

VOTRE NOUVEAU BATTEUR-MIXEUR EN DÉTAIL

APPLICATION

MISE EN MARCHE / ARRÊT DE L'APPAREIL

MAYONNAISE

PAIN RECETTE DE BASE

POTAGE GLACÉ AUX CONCOMBRES

NETTOYAGE

CROCHETS PÉTRISSEURS / FOUETS À FILS DOUBLES

Boîtier

CONSIGNES DE SÉCURITÉ

MISE AU REBUT

I NUOVI APPARECCHI DA CUCINA TURMIX SONO STATI STUDIATI DA INGEGNERI E DESIGNER SVIZZERI DI PRIM'ORDINE E SONO REALIZZATI IN SVIZZERA CON GRANDISSIMA CURA.

GENTILE CLIENTE

UTILIZZO

ACCENSIONE / SPEGNIMENTO DELL'APPARECCHIO

MAIONESE

POCO SALE, PEPE, SENAPE

PUREA DI PATATE

RICETTA BASE PER PANE

PULIZIA

GANCI DA IMPASTO / FRUSTE A DOPPIO FILO

CUSTODIA

AVVERTENZE DI SICUREZZA

SMALTIMENTO

THE NEW TURMIX KITCHEN APPLIANCES WERE DEVELOPED BY LEADING SWISS ENGINEERS AND DESIGNERS. THE APPLIANCES ARE MANUFACTURED IN SWITZERLAND WITH THE UTMOST CARE.

The new range of appliances expresses the TURMIX philosophy of quality in every detail. The range meets the criteria for «best in class» for all the qualities you would expect of an excellent kitchen appliance: TURMIX products are ergonomically designed, completely user-friendly and extremely quiet. Clever technology specially developed for each type of appliance ensures efficient, smooth functioning. Many TURMIX innovations are patented.

Some of these build on tried-and-tested TURMIX technologies, adding new concepts to create optimised solutions. TURMIX kitchen appliances are the result of a combination of Swiss quality standards, decades of experience and a love of innovation. Together, these qualities bring passion to your cooking.

DEAR CUSTOMER,

Congratulations on the purchase of your new TURMIX Hand Mixer. It will bring you much pleasure and allow you to experience many culinary delights. Your new hand mixer was developed by leading Swiss engineers and designers and has been carefully manufactured by hand in Switzerland.

The TURMIX Hand Mixer combines the functions of a hand mixer, a hand blender and of a dough mixer all in one appliance. It comfortably fits in one hand, ensures the best results and is easy to clean. A kitchen appliance that has made itself indispensable. Because it meets all your needs.

All of the TURMIX Hand Mixer attachments are made of top-quality stainless steel and integrate the sophisticated TURMIX technology. The TURMIX double whisks are fitted with 8 wire loops instead of 4. The TURMIX double helix kneading tools are designed in a way that allow the dough to be kneaded gently yet intensively. This allows the device to work effectively and efficiently with an ideal speed for all applications.

Please read through the safety instructions carefully before use. We wish you much enjoyment using your new hand mixer.

53Overview

55Instruction

56Recipes

61Cleaning i

63Safety inst

Disposal / Guarantee / Specifications / Website

65

51Introduction

EN

YOUR NEW TURMIX HAND MIXER IN DETAIL

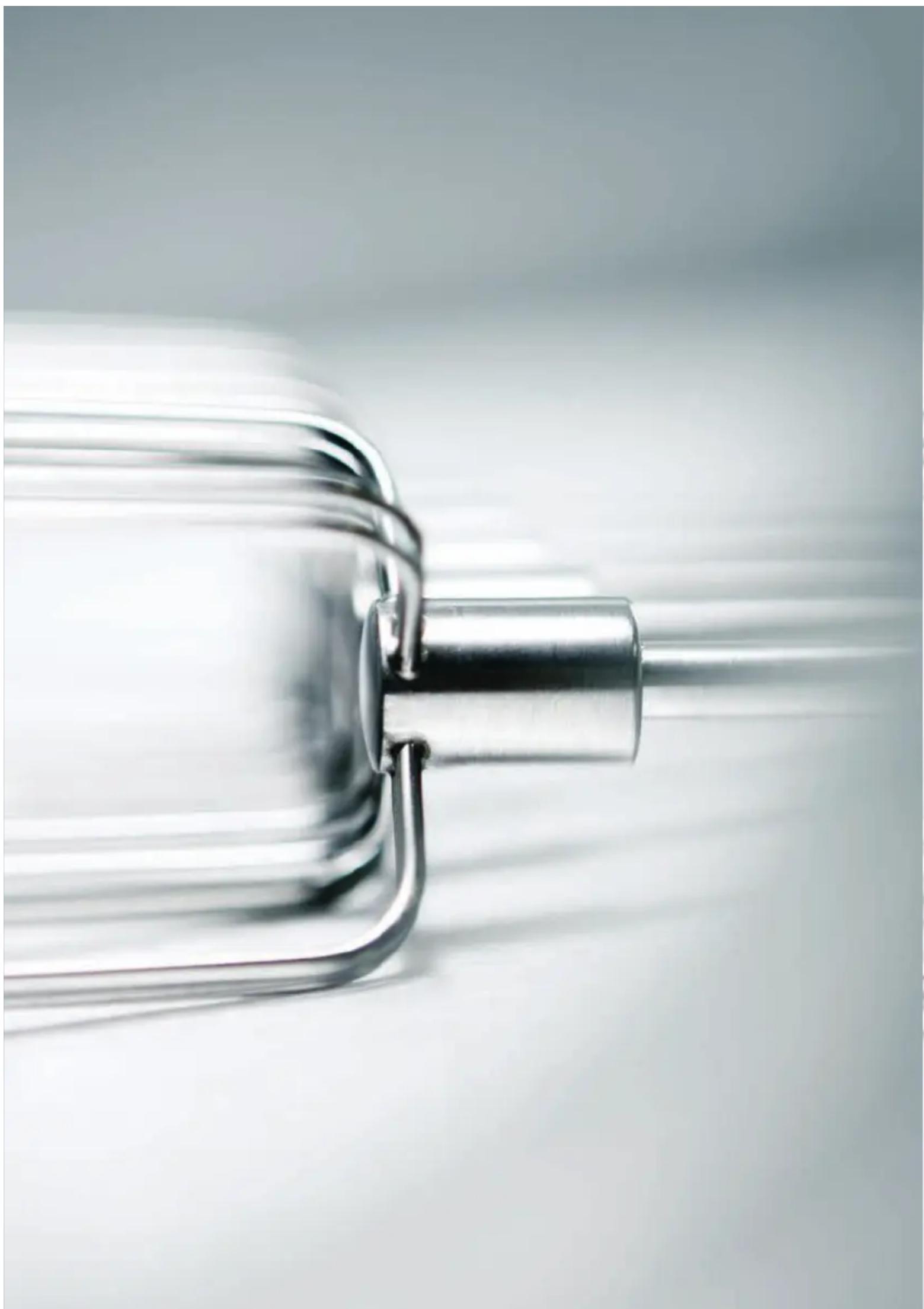

THE ORIGINAL TURMIX DOUBLE WHISKS to cream, mix, beat and mash

EJECT BUTTON FOR THE ATTACHMENT TOOLS enabling the tools to be removed in a clean manner

3 MECHANIC SPEED SETTINGS making your choice of the ideal speed easier

IDEAL CENTRE OF GRAVITY OF THE DEVICE ensuring the highest level of comfort when in use

FLOATING MOTOR SYSTEM AND SPECIAL TURMIX MOTOR ensuring a minimum vibration level and noise development

ERGONOMIC SOFT-TOUCH-GRIP ensuring comfortable use

ENCLOSURE CLOSED TO THE BOTTOM making it easier to clean

THE TURMIX BASE 2 in 1: automatic cable rewind and cap for the hand blender attachment

THE ORIGINAL TURMIX KNEADING HELICES replace the dough machine

THE TURMIX HAND BLENDER replaces the conventional hand blender; used to mash, grind, blend and mix

INSTRUCTIONS FOR USE

IMPORTANT The device must be unplugged to remove /change the accessories.

INSERT THE KNEADING HELICES OR DOUBLE WHISKS

Put the attachments in the openings until they lock into place with a clicking noise. Due to the special construction of the openings you can only put the kneading spirals in one of the openings. If one of the kneading spirals cannot be inserted, choose the other opening. Remove the attachment by pressing the release button. The attachment slides from the opening due to its own weight.

OR

INSERT THE HAND BLENDER AND KNIFE

Turn the base at the back of the device in an anti-clockwise direction until it stops and then pull it out. Push the blender attachment into the opening as far as possible and secure it by turning it clockwise into the plastic ring until it can no longer be turned. Press the knife attachment into it. Make sure the driving pins are properly plugged into the slot. The blender and knife attachment can be removed by following these steps in a reversed order.

TURN THE DEVICE ON / OFF

Plug it in before using it. Turn the device on by turning the switch to the desired setting. Start with the lowest speed setting and then slowly increase the speed. Turn the device off and unplug before emptying the contents or adding more ingredients. Let the device cool down before storing it.

MAYONNAISE

Recipe for the double whisk

1 FRESH EGG YOLK Stir in a small bowl. LITTLE SALT, PEP- PER, MUSTARD

1 - 1½ dI OIL Add drop by drop and stir steady. When the mayonnaise becomes thick, the oil can be added in a thin squirt.

γ₂ - 1 TSP LEMON Add when the mayonnaise is thick. Taste. JUICE OR VINAGER

TIPS Ingredients must be at room temperature, so that the mayonnaise does not break. Do not use olive oil, it makes the mayonnaise bitter. Fold in beaten egg white or 1 – 2 tbsp. quark or yoghurt. If the mayonnaise starts to breake, put an egg yolk in a bowl and add the broken mayonnaise drop by drop whilst beating continuously. Sauces and dishes prepared from mayonnaise should be cooled immediately and used quickly. Do not prepare mayonnaise in advance. If the mayonnaise is prepared with the hand blender the whole egg can be used and the oil can be added more quickly.

MASHED POTATOES

Recipe for the double whisk

5 dl WATER Bring to boil.

1 TSP SALT Season.

1 kg STARCHY Wash, peel, rinse, cut into large pieces. Cook with lid on, on a low heat (cooking time 20 -25 mins). Pour off the water, put the pan back on the warm ring, without a lid, let the water evaporate, until the potatoes are dry.

2 dl MILK Put in the pan. Stir vigorously on a low heat, until the mashed potatoes are fluffy and hot. If the mash is too thick add a little milk. A little salt, nutmeg.

LITTLE SALT, Season to taste. NUTMEG

TIPS Add finely cut herbs (e.g. flat-leaf parsley, marjoram) to the ready-made mashed potato. Replace 1 kg potatoes with 600 g potatoes and 400 g broccoli.

BASIC BREAD RECIPE

Recipe for the double helices

500 G OF FLOUR put in bowl.

1.5 TSP. OF SALT Add.

1/2 CUBE OF YEAST Dissolve yeast. Mix the flour with the liquid in the centre. Knead (APPROX. 20 G) the dough thoroughly until it is smooth and supple. If the dough is too dry, add some water. Cover it and put in a warm place allowing it to rise to double its size. Make one large loaf of bread or lots of small rolls. Place on a baking paper and then on baking tray. Let it rise again. Bake (bottom part of the oven at 220° C, 30 – 50 min.) You can tell if the bread is baked by tapping on the bottom of it. If it sounds hollow, it is ready.

WATER Brush a bit of water on the hot bread.

TIPS Replace part of the water with milk (gives a darker crust).

Place the bread in a cool place before baking it.

Knead 100–150 g of chopped walnuts / hazelnuts or 100 g of sunflower / pumpkin seeds into the prepared dough.

COLD CUCUMBER SOUP

Recipe for the hand blender

1 dl WATER Heat up.

2 TSPS VEGETABLE Season, allow to cool, pour into measuring jug. STOCK

1 CUCUMBER, Peel, cut into pieces, add. APPROX. 400 g

1/4 PEPERONCINO Cut in halves, remove the cores, cut finely, add.

3 dl CURDLED MILK Add. 180 g NATURAL YOGHURT

LITTLE SALT, Season, mix. Leave to cool. Serve soup. PEPPER, DILL

TIPS Garnish soup with finely cut small cubes of cucumber and dill. Serve with garlic bread, herb bread, crisp bread rolls or savoury crisps.

CLEANING INSTRUCTIONS

IMPORTANT Unplug before cleaning/disassembling

KNEADING HELICES / DOUBLE WHISKS

Remove the accessory by pressing the eject button. The accessory will drop out of the opening. Wash the whisks thoroughly under running water with some washing-up liquid. These are also dish-washer proof. Do not use any abrasive / aggressive detergents.

EN

HAND BLENDER AND KNIFE

Remove the knife by pulling it slightly. Turn the hand blender in an anti-clockwise direction until it stops and then pull it out. Insert the base in the opening and turn it in a clockwise direction until it can no longer be turned. The hand blender is not dishwasher proof. Wash it thoroughly under running water with some washing-up liquid. Do not use any abrasive / aggressive detergents.

ENCLOSURE

Check that the power plug has been unplugged. Wipe down the enclosure with a wet, non-abrasive cloth and then dry it. The enclosure should never come into contact with water.

SAFETY INSTRUCTIONS

This appliance is not to be used by persons (including children) with restricted physical, sensory or mental capacity or with a lack of experience or knowledge without supervision or prior instruction by a person responsible for their safety. Children are to be supervised to ensure they do not play with the appliance.

This appliance is intended for household use and not for business or commercial purposes. Never operate this appliance on an uneven surface or outdoors.

Never leave the appliance out unattended. When the appliance is not in use, switch it off and disconnect the plug from the mains socket. Allow the appliance to cool down before storing away.

Connect the appliance to properly installed sockets only, with the correct power rating (see rating plate on the appliance), ideally to a residual-current device (max. 30 mA). Do not use an extension cable.

Never operate damaged appliances or equipment (including damaged power cord). Do not disassemble the appliance yourself. All repairs must be carried out by properly qualified specialists only. Our service points can be found at www.TURMIX.com.

Never allow the power cord to hang loose. Do not unplug the appliance from the mains by pulling on the cable or with wet hands. Never place the power cord on hot surfaces and do not allow it to come into contact with fats or oils.

Never touch live parts.

Pull out the plug from the mains socket before removing or attaching parts, before cleaning or maintenance and if the appliance is not functioning properly.

For reasons of safety, only use accessories recommended or sold by the manufacturer.

If the appliance catches fire, extinguish the fire with a fire blanket only.

Never touch rotating parts or blades. Switch the appliance off, wait until it stops completely and pull out the mains plug before touching parts inside the appliance. Danger of injury!

The knife is sharp! Even if the device is turned off, clean it with the utmost care.

Do not insert any objects or fingers into the appliance openings.

Do not cover the appliance openings or air vents. This can lead to overheating!

Never use the appliance near water or other liquids (bathtub, sink, etc.) and never expose it to rain or damp. If the appliance falls into water or liquid, pull out the mains plug before taking it out. The appliance must be checked by a qualified specialist before its next use.

When using the appliance on sensitive furniture, use a covering to protect it.

Only wash those parts in the dishwasher that are designated dishwasher-safe. For more information on this, see the section entitled «Cleaning».

Use of the appliance for anything other than its intended purpose, or incorrect operation, cleaning or repair renders the guarantee void and no liability will be assumed for any damage caused.

DISPOSAL

Before disposing of the appliance, make it unusable by cutting off the power cord.

This appliance is not suitable for disposal as domestic waste. Please dispose of it in accordance with the regulations that apply in your area.

GUARANTEE

We provide a 2-year guarantee from the date of purchase with TURMIX electrical household appliances. Improper handling or third-party interference with the appliance renders the guarantee void. Please be sure to retain your proof of purchase (receipt), which serves as proof of guarantee.

SPECIFICATIONS

Power

Sound pressure

Weight

Dimensions (W x H x L)

Power cord length

250 W

CA.75DBA

CA.1,5 KG

CA. 75×130×190 MM

CA. 1,2 M

WEBSITE

To find out more about what TURMIX has to offer, please visit our website.

www.TURMIX.com
