HNK115 - Heated blanket INVENTUM - Free user manual and instructions

Product type	Heating blanket
Brand	Inventum
Model	HNK115
Dimensions (L x W)	160 x 130 cm
Weight	1.5 kg
Power supply	Mains 220-240 V ~ 50/60 Hz
Power	100 W
Number of heat levels	3
Automatic shut-off function	Yes
Material	Fleece
Machine washable	Yes (detachable connector)
Cable length	1.8 m
Safety	Overheat protection
Adjustable temperatures	Yes
Usage	Domestic use
Certifications	CE
Warranty	2 years

Frequently Asked Questions - HNK115 INVENTUM

How to wash the HNK115 heating blanket?

Unplug the blanket and remove the connector. Machine wash at 30°C, delicate cycle. Do not use fabric softener. Air dry.

Can I leave the blanket on all night?

Yes, the built-in automatic shut-off turns off the device after several hours to ensure safety.

What are the available heat levels?

The blanket offers 3 levels: low, medium, and high, selectable via remote control.

Is the blanket suitable for people with reduced mobility?

Yes, it is lightweight and easy to use. However, people who are very sensitive to heat should consult a doctor before use.

How to clean stains on the blanket?

For localized stains, use a damp cloth with a mild detergent. Avoid abrasive products.

Does the heating blanket consume a lot of electricity?

No, with a power of 100 W, it is economical. The automatic shut-off also limits consumption.

Can I use the blanket with a pet?

Not recommended. Claws or teeth could damage the internal wires.

What to do if the blanket no longer heats?

Check the plug, connector, and fuse. If the problem persists, contact customer service.

Is the blanket repairable?

The internal components are not user-repairable. Only an authorized professional can intervene.

What is the warranty of the HNK115 blanket?

The warranty is 2 years against manufacturing defects. Keep the proof of purchase.

USER MANUAL HNK115 INVENTUM

Three types of medical or cosmetic bandaging with dotted patterns, arranged diagonally on a plain background (no text or symbols visible)

explanation of symbols page 10
1. safety instructions page 11
2. appliance description page 13
3. intended use page 13
4. operation page 13
5. cleaning & maintenance page 14
6. storage page 15
7.disposal page 15
8. problems & solutions page 15
guarantee & after sales service page 29

Deutsch

Technical illustration of a mechanical component with a threaded shaft and circular housing (no text or symbols)

4.3 Inschakelen

	Read the instructions!	Woolen!	programme 30°C.
			Do not bleach.
	Do not pierce with needles!		Do not tumble dry.
			Do not iron.
	Do not use when folded or creased!		Do not clean chemically.
			The textiles used for this device meet stringent human ecological requirements of Oeko Tex Standard 100, as verified by Hohenstein Research Institute.
	Not to be used with very young children (0-3 years).
	WARNING; Warning of risk of injury or danger to your health.
	CAUTION; Safety information about possible damage to the device/accessories.
	NOTE; Refers to important information.

1 safety instructions

Important safety instructions - read carefully and keep for later use!

WARNING

• Failure to observe the information provided below van lead to personal injury or material damage (electric shock, skin burns, fire). The following safety and hazard information is not only intended to protect your health and the health of others, it should also protect the product. Therefore, observe this safety information and pass these instructions together with the product.
• This heating pad must not be used by people who are not sensitive to heat or by vulnerable people who may not be able to react to overheating (e.g. diabetics, persons with skin changes related to illness or persons with scarred skin in the area where the pad is to be applied, after taking any pain-relieving medication or alcohol).
• This heating pad may not be used by very young children (0-3 years old) due to their inability to react to overheating.
• This heating pad may not be used by young children (3-8 years old) unless the controller has been pre-set by a parent or guardian and unless the child has been adequately instructed how to operate the heating pad safely.
• This heating pad may be used by children over the age of 8 and by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the heating pad.
• Cleaning and user maintenance shall not be made by children without supervision.
• This heating pad is not intended for use in hospitals.
• Do not insert pins.
• Do not use folded or bunched up.
• Do not use if wet.
• This heating pad must be used with the type of controll that is marked on the rating label of the heating pad, only.
• The electrical and magnetic fields emitted by this heating pad may

interfere with the function of a pacemaker. However, they are still well within the limits: electrical field strength: max. 5000 V/m, magnetic field strength: max. 80 A/m, magnetic flux density: max. 0.1 millitesla. Please consult your doctor and the manufacturer of your pacemaker before using this heating pad.

• Do not pull, twist or make sharp bends in the cables.
• This heating pad must be examined frequently for signs of wear or damage. If there are such signs, if the heating pad has been mis-used or does not work, return it to the supplier before switching it on again.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.
• While this heating pad is switched on

- never place any objects on it (e.g. suitcase or washing basket)

- never place any heat source on it (e.g. hot water bottle, heating pad or similar).

• When in use, the electronic components in the controll of the heating pad make the controll slightly warm. The controll should therefore never be covered or placed on the heating pad when it is in operation.
• If you should have any questions about using our devices, please contact Customer Services.
  • Always observe the notes on operation (section 4), cleaning and maintenance (section 5) and storage (section 6).

2 appliance description

HNK115

Elektric heating pad

Dimensions: 47 x 34 cm

6 illuminated settings

Turbo heating

Automatic switch-off after 90 minutes

Detachable cord

Machine washable, 30°C

100 Watt

Material: fleece

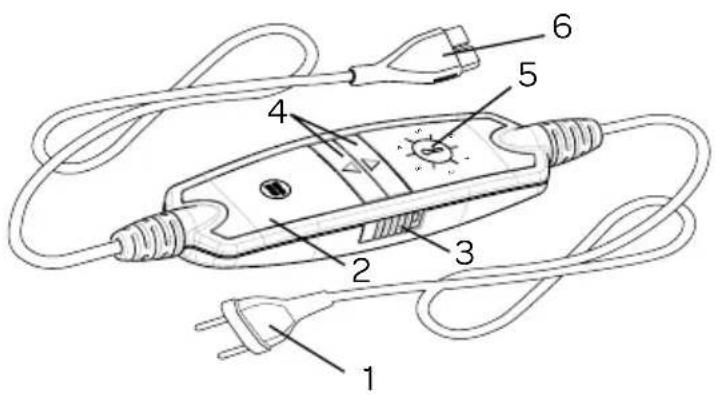

1. Supply plug
2. Controller
3. Sliding switch (ON = I/ OFF = 0)
4. Buttons for setting temperature
5. Illuminated display for temperature settings
6. Plug-in coupling

3 intended use

CAUTION

This heating pad is only designed to warm up the human body.

4 operation

4.1 Safety

CAUTION

This heating pad is fitted with the INVENTUM SAFETY SYSTEM (ISS). This electronic sensor technology prevents the entire surface of the heating pad from overheating by automatically switching off in the event of a fault. If the safety system switches off the heating pad automatically as a result of a fault, the display for the temperature settings is no longer illuminated even when the heating pad is switched on.

Please note that, after a fault has occurred, the heating pad can no longer be used for safety reasons and must be sent to the service address indicated.

4.2 Initial use

CAUTION

Ensure that the heating pad will not bunch up or become folded during use.

• First, connect the controller to the heating pad by inserting the plug-in coupling.
• Then plug the mains plug into the socket.

Technical illustration of a mechanical component with a threaded connector and a circular housing (no text or symbols)

4.3 Switching on

Push the sliding switch on the right side of the controller to the setting I (ON). When the switch is on, the temperature settings display is illuminated.

4.4 Setting the temperature

To increase the temperature, press the △ button. To reduce the temperature, press the ▽ button.

Setting 1: minimum heat

Setting 2-5: individual heat setting

Setting 6: maximum heat

NOTE

The fastest way to warm up the heating pad is to initially set the highest temperature setting of the controller, first.

NOTE

This heating pad has a turbo function, which allows the heating pad to warm up faster in the first 10 minutes.

CAUTION

If the heating pad is being used over several hours it is recommended to use the lowest setting (1) of the control to avoid overheating the heated body part, which may lead to burns to the skin.

4.5 Automatic switch-off

This heating pad is equipped with an automatic switch-off function. This turns off the heat supply approx. 90 minutes after the initial use of the heating pad. A part of the displayed temperature settings on the controller then begins to flash. So that the heating pad can be switched back on, the side sliding switch (3) must first be set to setting "0" (OFF). After about 5 seconds it is possible to switch it on again.

4.6 Switching off

To switch the heating pad off, set the sliding switch for ON/OFF to setting 0 (OFF) position. The temperature settings are then no longer illuminated.

NOTE

If the heating pad is not in use, switch the side sliding switch for ON/OFF to the OFF (0) position and remove the mains plug from the socket. Then disconnect the controller from the heating pad by unplugging the plug-in coupling.

5 cleaning & maintenance

WARNING

Before cleaning, always remove the mains plug from the socket first. Then disconnect the controller from the heating pad by unplugging the plug-in coupling. Otherwise there is a risk of electric shock.

CAUTION

- The controller must never come into contact with water or other liquids. Otherwise, the controller may be damaged.

To clean the controller, use a dry, lint-free cloth. Do not use any chemical or abrasive cleaning agents.

The textile cover can be cleaned in accordance with the symbols on the label and must be removed from the heating pad prior to cleaning. Small marks on the heating pad can be removed with a damp cloth or sponge, or if necessary, with a little liquid detergent for delicate laundry.

CAUTION

- Please note the heating pad must not be dry-cleaned, wrung out, machine dried, pressed or ironed.

In case of heavier soiling, this heating pad can be washed in a washing machine. Set the washing machine to a particularly gentle, 30°C cycle (woolens programme). Use a wool laundry detergent and follow the manufacturer's instructions.

CAUTION

- Please note that excessive washing will wear out the heating pad. For this reason, the heating pad should only be machine-washed a maximum of 10 times throughout its entire life.

Immediately after washing, reshape the heating pad to its original dimensions while it is still damp and spread it out flat over a clothes drying rack to dry.

CAUTION

• Do not attach the heating pad to washing lines with washing pegs or similar. Otherwise the heating pad may be damaged.
• Do not reconnect the switch to the heating pad until the plug-in connection and the heating pad are completely dry. Otherwise the heating pad may be damaged.

WARNING

- Never switch the heating pad on to dry it! Otherwise there is a risk of electric shock.

6 storage

If you do not plan to use the heating pad for a long period of time, we recommend that you store it in the original packaging. For this purpose, disconnect the controller from the heating pad by unplugging the plug-in coupling.

CAUTION

Please allow the heating pad to cool down first. Otherwise, the heating pad may be damaged. To avoid sharp folds in the heating pad, do not place any objects on top of it while it is being stored.

7 disposal

Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

8 problems & solutions

Problem Cause Remedy
The temperature settings are not illuminated while- the controller is fully connected to the heating pad;- the supply plug is connected to the mains outlet with correct function;- the sliding switch on the controller is set to setting I (ON).	The safety system switched off the heating pad irreversible.	Send the heating pad together with the controller to the service department.

Technical illustration of a mechanical component with a threaded shaft and bearing housing (no text or symbols)

4.3 Einschalten

Technical illustration of a mechanical component with a shaft and bearing assembly (no text or symbols)

general terms and conditions of service and warranty

We do not need to remind you of the importance of service. After all, we develop our products to a standard so that you can enjoy them for many years, without any concerns. If, nevertheless, there is a problem, we believe you are entitled to a solution straight away. Hence our products come with an exchange service, on top of the rights and claims you are entitled to by law. By exchanging a product or part, we save you time, effort and costs.

2-year full manufacturer's warranty

1. Customers enjoy a 2-year full manufacturer's warranty on all Inventum products. Within this period, a faulty product or part will always be exchanged for a new model, free of charge. In order to claim under the 2-year full manufacturer's warranty, you can either return the product to the shop you bought it from or contact the Inventum costumer service department via the form at www.inventum.eu/service-aanvraag.
2. The 2-year warranty period starts from the date the product is bought.
3. In order to claim under the warranty, you must produce a copy of the original receipt.
4. The warranty applies only to normal domestic use of Inventum products within the Netherlands.

Breakdowns or faults outside the warranty period

1. Breakdowns or faults in small or large domestic appliances outside the warranty period, can be reported to the costumer services department via the form at www.inventum.eu/service-aanvraag or by calling the costumer services department.
2. The costumer services department may ask you to send the product for inspection or repair. The costs of dispatch will be at your expense.
3. The inspection to establish whether repair is possible involves a charge. You need to grant your permission for this, in advance.
4. In the event of a large domestic appliance, Inventum, at your request, can send out a service engineer. In that case, you will be charged the call-out costs, as well as parts and labour.
5. In the event of an instruction to repair, the repair costs must be paid in advance. In the event of a repair by a service engineer, the costs of the repair must be settled with the engineer onsite, preferably by means of PIN payment.

Warranty exclusions

1. The following is excluded from the aforesaid warranties:

• normal wear and tear;
- improper use or misuse;
• insufficient maintenance;
- failure to comply with the operating and maintenance instructions;
- unprofessional installation or repairs by third parties or the customer himself;
• non-original parts used by the customer;
- use for commercial or business purposes;
- removal of the serial number and/or rating label.

1. In addition, the warranty does not apply to normal consumer goods, such as:

2. dough hooks, baking tins, (carbon) filters, etc.;

3. batteries, bulbs, carbon filters, fat filters etc.;
   • external connection cables;

4. glass accessories and glass parts such as oven doors;
   • and similar items.

5. Transport damage not caused by Inventum is also excluded. Therefore, inspect your new device before starting to use it. If you detect any damage, you must report this to the store where you purchased the product within 5 working days, or to the Inventum customer service department via the form at www.inventum.eu/service-aanvraag. If transport damage is not reported within this period, Inventum does not accept any liability in this respect.

6. The following are excluded from warranty and/or replacement: faults, loss of and damage to the device as a result of an event that is normally insured under the home contents insurance.

Important to know

1. The replacement or repair of a faulty product, or a part thereof, does not lead to an extension of the original warranty period.
2. If a complaint is unfounded, all costs arising from it will be at the customer's expense.
3. Following expiry of the warranty period, all costs of repair or replacement, including administration costs, dispatch and call-out charges, will be charged to the customer.
4. Inventum cannot be held liable for damage caused by external events, unless this liability arises from mandatory statutory provisions.
5. These warranty and service provisions are governed by Dutch law. Disputes will be settled exclusively by the competent Dutch court.
