Type of product	Electric convector heater
Model	REIN-1501 C
Brand	Fagor
Power consumption	1500 W
Voltage	220-240 V, 50/60 Hz
Dimensions (H x W x D)	45 x 60 x 20 cm
Weight	5.2 kg
Heating elements	Aluminum fins with PTC element
Number of power settings	2 (750 W / 1500 W)
Thermostat	Adjustable mechanical thermostat with frost protection mode
Safety features	Overheat protection, tip-over switch, thermal fuse
Installation	Freestanding or wall-mounted (brackets not included)
Controls	Rotary power selector and thermostat dial
Indication light	Power on/off indicator
Noise level	Low, < 25 dB
Cleaning and maintenance	Wipe with a damp cloth; do not use abrasive cleaners
Spare parts availability	Replacement feet, control knobs, and thermostats available from Fagor service centers
Repairability index	8.5 / 10 (highly repairable with common tools)
Energy efficiency class	A (22% energy saving compared to standard)

Frequently Asked Questions - REIN-1501 C FAGOR

How do I set the thermostat on my Fagor REIN-1501 C heater?

Turn the thermostat dial clockwise to increase the temperature setting. The heater will maintain the room at the selected temperature. The indicator light will turn on when heating.

What is the power consumption of the REIN-1501 C?

It has two power settings: 750 W (low) and 1500 W (high). Actual consumption depends on the selected power and thermostat cycling.

Can I use the heater in a bathroom?

No, this heater is not IPX4 rated and should not be used in wet areas like bathrooms. It is designed for indoor dry locations only.

How do I clean the heater?

Unplug the heater and allow it to cool. Wipe the exterior with a soft, damp cloth. Do not use chemical cleaners, abrasives, or immerse in water.

Does the heater have an automatic shut-off?

Yes, it is equipped with overheat protection and a tip-over switch. If the heater overheats or accidentally tips over, it will turn off automatically.

Can the heater be mounted on a wall?

Yes, it can be wall-mounted using appropriate brackets (not included). Ensure the wall can support the weight and follow the installation instructions in the manual.

What is the warranty period for the Fagor REIN-1501 C?

Typically, Fagor offers a 2-year warranty. Refer to your purchase documentation or contact customer support for specific terms.

Why is my heater not turning on?

Check that the power cord is plugged in and the socket is working. Ensure the thermostat is set above room temperature. If it still doesn't turn on, check the tip-over switch and overheat protection reset.

Are spare parts available for this model?

Yes, common spare parts such as feet, control knobs, and thermostats can be ordered from Fagor authorized service centers.

What is the recommended room size for this heater?

The 1500 W heater is suitable for rooms up to approximately 20-25 m² (215-270 sq ft), depending on insulation and climate.

USER MANUAL REIN-1501 C FAGOR

Black-and-white photo of a woman holding an object, no visible text or symbols

Close-up of a person's lower legs standing on a metal stand, no visible text or symbols

Modern stainless steel stand with curved arm and circular base (no text or symbols visible)

CERTIFICADO DE GARANTÍA CERTIFICATE OF GUARANTEE

CERTIFICADO DE GARANTIA ΠΙΣΤΟΠΟΙΗΤΙΚΟ ΕΓΓΥΗΣΗΣ

COD. KΩΔ.

kg.

N.: Ap.

Antes de instalar y usar el aparato lea cuidadosamente el manual de instrucciones Before using and installing this appliance, read the following instructions carefully.

1. Important warnings 14
2. Installation 14
3. Use of the appliance 18
4. Maintenance and cleaning of the appliance 21
5. Troubleshooting 22

PORTUGUÊS

Pure mechanical diagram showing a rectangular frame with internal components and directional arrows, no text or symbols present.

NOTA ECOLÓGICA

Diagram of a device rear panel with cable and directional arrows indicating flow or movement (no text or symbols)

Technical line drawing of a mechanical assembly with a tool and component, no visible text or symbols

Diagram of a hand holding a tool interacting with a circular component, labeled 'd' (no text or symbols on the diagram itself)

Pure technical line drawing of a mechanical component with no text or symbols

Diagram of a server rack with two hanging devices and directional arrows indicating airflow or connection (no text or symbols)

Line drawing of a wall-mounted air conditioner unit with control panel and adjacent electrical outlet (no text or symbols)

Line drawing of a hand holding a wall-mounted air conditioner unit next to a small meter (no text or symbols)

IMPORTANTE

Diagram of a wall-mounted air conditioner unit with airflow arrows indicating heat or airflow direction (no text or symbols)

IMPORTANTE

Three-step diagram showing a door lock mechanism with arrows indicating rotation and movement (no text or symbols)

Es aconsejable

Fagor responds to lack of conformity that may occur within the first two years after the delivery, as set out in the Law 23/2003.

The solution of any problems that may appear within the first six months after the date of purchase will be free of charge for the user.

Fagor also offers a guarantee of up to two years for the parts and components of the appliance, only if they are replaced by Fagor's Official Technical Support Service.

GUARANTEE EXCLUSIONS

The following are not covered by this Guarantee, and in such cases the total repair costs will therefore correspond to the user:

a) Breakdown caused by the consumer's negligence or misuse of the appliance
b) Breakdown caused by unforeseeable circumstances, force majeure (weather conditions or geological phenomena) and accidents.
c) Breakdown or damage deriving from incorrect or illegal installation, or installation with a power supply other than that indicated.
d) This appliance is for domestic use only. The guarantee does not cover its use in industrial or commercial establishments.
e) Any damages caused to the user as a result of the appliance's failure to function due to breakdown.

ANNULMENT OF THE GUARANTEE

This Guarantee shall be null and void if the appliance has been manipulated, modified or repaired by unauthorised persons or technical services other than the brand's official technical assistance services.

VERY IMPORTANT: TO BENEFIT FROM THIS GUARANTEE, IT IS ABSOLUTELY ESSENTIAL FOR THE USER TO PROVIDE PROOF OF DATE OF PURCHASE TO THE GUARANTOR'S AUTHORISED TECHNICAL SERVICE, BY SHOWING THEM THE OFFICIAL RECEIPT FOR THE APPLIANCE. IN THE CASE OF APPLIANCES SUPPLIED IN NEW CONSTRUCTIONS, SUFFICIENT PROOF OF THE DATE OF THE APPLIANCE'S AVAILABILITY FOR USE MUST BE PROVIDED.

This Guarantee shall only be valid in the European Union, and it shall only cover the appliance mentioned, supplied by Fagor Electrodomésticos, S. Coop. B° San Andrés n° 18, 20500 Mondragón-Guipúzcoa. For other countries, please consult your distributor.

ECO-HEATER

0

IMPORTANT WARNINGS

• This appliance is not designed for use by physically, sensorially or mentally handicapped people (including children), or people without experience or knowledge of the appliance, unless they are supervised or instructed in its use by a person responsible for their safety. Children must be supervised to ensure they do not play with the appliance.
• Read these instructions carefully and keep them for future reference.
• Do not install the appliance under an electrical socket.
• In bathrooms, the appliance must be installed in accordance with national law concerning electrical installations.
  • Do not handle the appliance with wet hands.
  • Never pull on the cable to remove the plug.
  • If the connection cable should be damaged, it must be replaced by qualified personnel.
• Do not cover the appliance, or place it near flammable materials.
• Do not dry clothes on top of the appliance or cover it with any other object.
• The eco-emitter's surfaces may become hot. Small children must be supervised when they are close to it.
  • In case of malfunctioning, consult an Authorised Technical Service.

INSTALLATION

(1) UNPACKING THE APPLIANCE

Unpack the appliance and remove the polystyrene protectors.

When handling the appliance to fix it to the wall, pick it up by its sides and not by the front grille, to prevent possible damage.

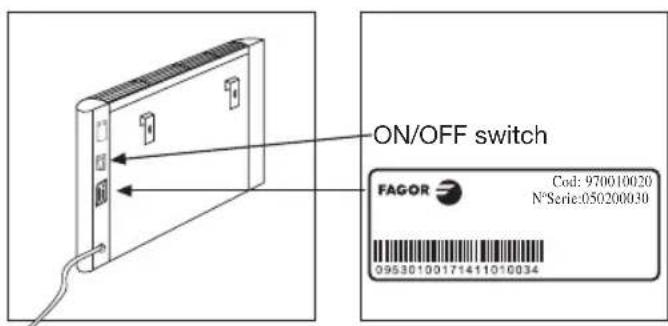

The characteristics label is on the rear of the Eco-heater. This label must not be removed under any circumstances, as it informs of the exact model of Eco-heater and its serial n°, and provides electrical data on the appliance.

Pure mechanical diagram showing a rectangular frame with internal components and directional arrows, no text or symbols present.

ECO-NOTE

This appliance has been designed and manufactured with total respect for the environment. Ensure the packaging of your appliance is correctly disposed of.

Location of your home

In order to make the most of the Eco-heater's energy savings, you should take the location of your home into account. Aspects such as the climatic zone, the orientation of the home and the type of insulation are vital in determining the most suitable range of appliances.

Size of the home

Another factor to be taken into account is the total surface area of the home and how it is divided into the different rooms. To help you make this calculation, there is an online application at www.fagor.com, or you may consult your distributor.

After making this previous analysis, locate the Eco-heaters in each room of the house to obtain maximum heating comfort with minimum power consumption.

Location of the Eco-heater

Wall: Choose a wall where no furniture is to be placed. It is a good idea to place the Eco-heater centrally with respect to the wall, keeping it away from doors and windows. You should also avoid placing it next to objects such as furniture, curtains or other appliances.

Corners: Avoid placing the Ecoheater in a corner of the room.

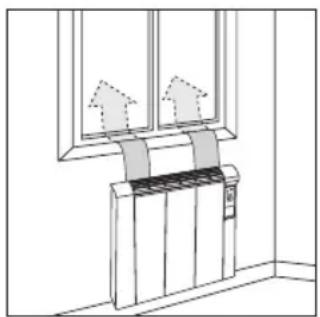

Windows: The appliance may exceptionally be installed under a window. This solution is often used when there are no other walls free. However, you should not forget that heat may be lost through the window.

IMPORTANT

Do not install the Eco-heater under an electrical socket.

(3) WALL-MOUNTING

When you have decided whereabouts in the room the eco-heater is to be installed, it should be fixed to the wall as follows:

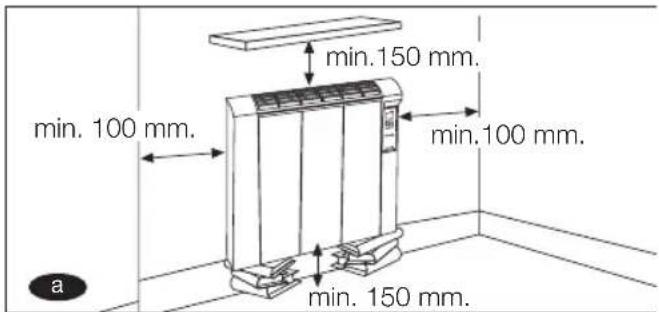

a Position the Eco-heater in its

location, propping it up with books or the polystyrene protectors from the packaging. The minimum distances shown in the figure must be maintained. Take the following references:

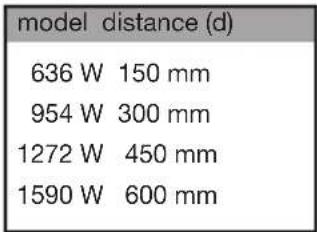

b Mark the hole positions: Take into account the distance from the floor (620 mm) and the between the fixing parts, depending on the model.

Fixing parts: To fix the appliance to the wall, use the two fixing clips supplied. At the rear of the Ecoheater there are two grooves for these fixing clips to be fitted into.

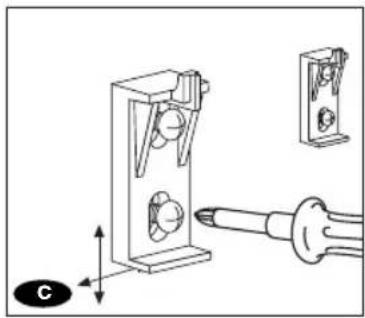

C Drill suitable holes: Insert the ∅6 mm rawl plugs supplied with the fixing kit, position the fixing clips and tighten the screws until the clips are sufficiently secured.

Level the clips in the elongated holes until they are at the same height, then firmly tighten the screws.

Technical line drawing of a mechanical assembly with a tool and component, no visible text or symbols

Diagram of a hand holding a tool interacting with a circular component, labeled 'd' (no text or symbols on the diagram itself)

Before fixing the appliance to the wall, you should first fix in place two stops, which are contained in the fixing kit. Turn the Eco-Heater face down. On the lower rear part of the Eco-Heater there are two threaded holes for these stops to be screwed into using 2 screws ( 2.9 x 9.5). Position the stops as shown in the diagram and screw in the screws until the stops are correctly fixed to the appliance.

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Diagram of a wall-mounted air conditioner unit with two hanging sensors, no text or symbols present

f Hang the appliance from the top fixing clips. Check the appliance is securely fixed in place.

4 ELECTRICAL CONNECTION

A correct electrical connection must be made for the Eco-heater to function correctly. This is a simple process, but certain conditions must be taken into account.

Electrical installation in the home

The electrical installation must correspond to the voltage indicated on the appliance. It must be of the correct voltage and have a good earth connection. It must comply with all the applicable legislation and you must have the necessary power contracted with the electrical company to connect all the appliances installed.

model intensity

Installing several appliances

The Eco-heaters may be simultaneously protected and connected by a common overload protector, but always make that the total current of the appliances does not exceed the maximum permitted.

Installing an appliance.

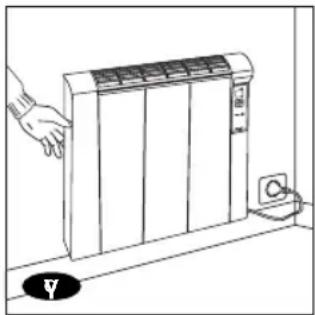

a The Eco-heater is supplied with a power cable and Schuko plug.
b Installing a socket: If a new socket needs to be installed, it is recommended that the centre of the socket is located approximately 100 mm to the right of the appliance, and 100 mm above the bottom of the appliance.

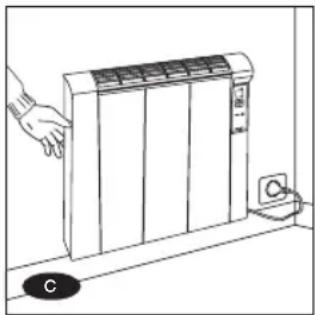

c Press the On/Off master switch for the electrical current: This is on the rear of the appliance.

Line drawing of a wall-mounted air conditioner unit with a control panel and a hanging switch (no text or symbols)

Line drawing of a hand operating a wall-mounted air conditioner unit with a control panel nearby (no text or symbols)

IMPORTANT

The power cable must not touch the hot parts of the radiator.

If the connection cable of the appliance should be damaged, in order to prevent hazard it must be replaced by a service authorised by the manufacturer.

The socket must never be located either behind or above the Eco-heater.

5 TECHNICAL CHARACTERISTICS

	MODELS
	636 W	954 W	1272 W	1590 W

CHARACTERISTICS

Power (W) 636 954 1272 1590
Component number 4 6 8 10
Kind I insulation		●	●	●	●
Voltage/ Frequency (V/Hz)		230 V / 50Hz	230 V / 50Hz	230 V / 50Hz	230 V / 50Hz
Sizes	Height	610 610	610 610
	Width	460 610	780 910
	Depth	95	95	95	95

1 PRESENTATION

BACKLIT LCD DISPLAY

This lights up for 45 sec. when any of the buttons is pressed.

(**) The heat ON indicator appears on the display when the appliance is emitting heat. The Ecoheater itself determines when it should be switched on, via its electronic sensors, depending on the temperature of the room and smart energy use.

(2

FUNCTIONAL CHARACTERISTICS

2.1 Switching on the appliance

To start up the Eco-heater, proceed as follows:

a Switch on the ON/OFF electrical current master switch on the rear of the Eco-heater.
b Press the On/Standby button ◆ to start up the radiator. When you switch off the radiator using this button, two horizontal dashes will appear on the display “- -”
C Press the MODE button to choose between the 3 possible functioning modes: comfort mode *, economy mode or anti-frost mode.

• Comfort mode : You may select the desired temperature (increasing it by 0.5°C at a time) by pressing the + and - buttons. The selection limits are 7°C and 30°C.
• Economy mode) Ideal for use at night when the home is occupied, and during the daytime when the house is empty. It is automatically set at a temperature 3.5^ C lower than the setting selected for comfort mode.
• Anti-frost mode : ideal for empty homes. The temperature is set to 7°C.

c Press the + / - buttons to select the desired temperature. Only the comfort mode ⚙ temperature can be selected, as the economy mode ⌍ temperature is automatically set 3.5°C lower than the comfort mode temperature, and the anti-frost mode ⚙ temperature is a set value.

2.1.1 Blocking the keypad

The keypad can be blocked by pressing the + and - buttons simultaneously and holding them down for 5 seconds. The message "Lo" will appear on the display. This message will then appear on the display when any button is pressed.

To unblock the keypad, press the + and - buttons again simultaneously and hold them down for 5 seconds. When the message "Lo" disappears from the screen this means the keypad has been unblocked.

2.2 Configuration

2.2.1 Correcting the sensor temperature measurement

The appliance has an option for adjusting and correcting the temperature. As the thermostat is located on the bottom of the appliance there may be a difference between the temperature at the sensor level and the temperature at a height of 112 metres. The sensor may also be particularly affected by draughts, which can alter its measurement.

With this option, the radiator temperature can be adjusted to the temperature of a thermometer located in any desired position.

To correct the sensor temperature, hold down the MODE button for 5 seconds and then press the +/- buttons to change the temperature setting.

If the room temperature is lower than or the same as the temperature selected on the display and the word "ON" does not appear in the top corner of the display, you should reduce the sensor temperature until "ON" appears on the screen. The selection limits are +/- 4.5 °C. The default configuration is 0°C.

To return to the initial display, press the MODE button twice, although if no buttons are pressed it will automatically exit this mode after 120 seconds.

2.2.2 Display backlight time adjustment

The duration of the display backlight when a button is pressed can be adjusted. To adjust it, hold down the MODE button for 5 seconds, and then press the Mutton again. You can use the +/- buttons to adjust the time, increasing it 15 seconds at a time from 0-90 seconds. If you adjust it to 0 there will no backlight. The default configuration is 45 seconds.

To return to the initial screen press the MODE button again, although if no buttons are pressed it will automatically exit this mode after 120 seconds.

(3) POWER CUTS

If a power cut occurs, the appliance will not work until the electricity returns. However, the Ecoheater has a batteryless power reserve that maintains all the selected settings with the display switched off.

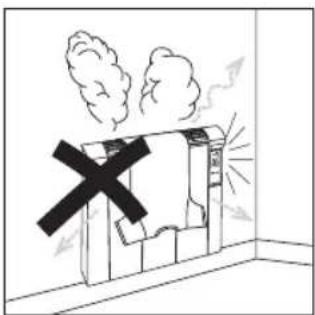

4 OVERHEATING PROTECTION

Heat emission is greatly hindered if the appliance is totally or partially covered with clothing or any other objects.

In addition to preventing the appliance from functioning correctly, it will also cause it to overheat. The Eco-heater has a device that limits overheating of the appliance. When the cause of overheating has been rectified, the appliance will automatically start to function normally again.

However, if this occurs frequently, it may give rise to breakdown which will not be covered by the guarantee.

Diagram of a heat exchanger or air conditioner unit with airflow arrows indicating heat flow (no text or symbols)

Simple line drawing of a fire with smoke and a cross symbol (no text or labels)

IMPORTANT

NEVER COVER the top of the Eco-heater or OBSTRUCT the air flow in the lower part.

MAINTENANCE AND CLEANING OF THE APPLIANCE

No periodical technical maintenance is required.

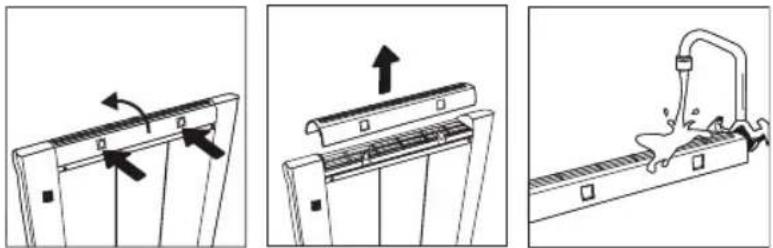

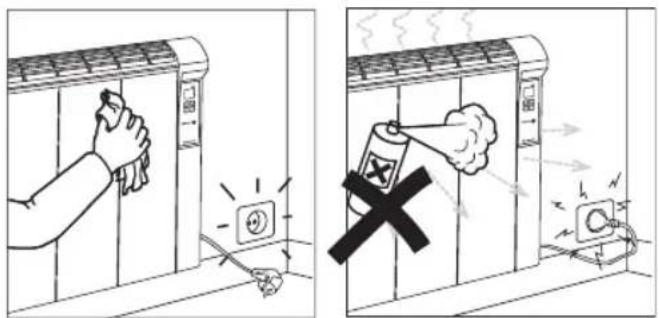

Cleaning the outside of the appli- ance

The Eco-heater only requires cleaning from time to time. This can be done with a vacuum cleaner or a soft brush, or in the case of accidental spills or stains, simply use a damp cloth with a little neutral detergent. Do not use solvents or abrasive powders. The top grilles may be removed for cleaning. To do this, press the buttons on the rear and turn the grilles to the front. To replace the grilles, proceed in the same way but in reverse order, i.e. firstly rest the grilles on the front part and then turn them towards the rear so that the clips fit into place.

Three-step diagram showing a door lock mechanism with arrows indicating rotation and movement (no text or symbols)

Recommendation

Leave the Eco-heater switched off if you will be away from home for a long period of time. Press the On/Off electric current master switch on the rear of the appliance.

IMPORTANT

Before carrying out any cleaning or maintenance operations, you should unplug the appliance from the mains.

ECO-HEATER

TROUBLESHOOTING

The appliance is not heating up

a Check the appliance is plugged in and receiving electrical current (turn on the master switch on the right side of the rear of the appliance and check the display is on).
b Observe whether the word "ON" (consumption indicator) appears on the display. If it does not, increase the temperature setting until "ON" appears.

The appliance is hardly heating up

a Check whether the word "ON" (consumption indicator) appears on the display. If it appears and disappears, raise the temperature setting to increase the difference from room temperature. This will allow the appliance to heat continuously.

b The problem may be due to the air outlets having recently been obstructed (with clothing or towels, for example), causing the radiator temperature to increase and the thermostat to switch off the power. The safety thermostat functions automatically and the power will switch on again as soon as the appliance cools down.

Check that your home's power supply is of the correct voltage. Consult the Fagor calculation program (www.fagor.com) or an authorised Technical Service.

The appliance is making a noise

a If you switch off the appliance when it is hot, some noise may occur due to contraction. This is normal and does not indicate malfunctioning.

After checking the above, if the appliance continues to malfunction you should contact an Authorised Technical Service.

TECHNICAL ASSISTANCE

In case of breakdown or if you have any queries, you may call the user help line on

IMPORTANT

The Eco-heater is not equipped with a fuse or similar element that can be repaired by the user. In case of breakdown you should always contact an Authorised Technical Assistance Service.

CONDIÇÕES DE GARANTIA

Pure mechanical diagram showing a rectangular frame with internal components and directional arrows, no text or symbols present.

NOTA ECOLÓGICA

Technical diagram showing mechanical assembly with labeled component C and directional arrows (no text or symbols)

Diagram of a hand holding a tool interacting with a circular component, no text or symbols present

Pure technical line drawing of a mechanical part with no text, numbers, or symbols

Diagram of a server rack with two hanging devices and a control panel, no text or symbols present

modelo intensidade

Line drawing of a wall-mounted air conditioner unit with control panel and adjacent electrical outlet (no text or symbols)

Line drawing of a hand holding a wall-mounted air conditioner unit next to a small meter (no text or symbols)

IMPORTANTE

ECRÃ RETRO-ILUMINADO

Diagram of a wall-mounted air conditioner unit with airflow arrows indicating heat transfer (no text or symbols)

IMPORTANTE

NUNCA COBRIR o Eco-Emissor na zona superior, nem OBSTRUIR a passagem de ar na zona inferior.

Three-step diagram showing a door opening process with arrows indicating rotation and movement, no text or symbols present.

É aconselhável

Pure mechanical diagram showing a rectangular frame with internal components and directional arrows, no text or symbols present.

ΟΙΚΟΛΟΓΙΚΗ ΣΗΜΕΙΩΣΗ

Top-down floor plan of a room with furniture layout (no text or symbols)

Simple line drawing of a window with a black X mark overlay (no text or symbols)

Line drawing of a window with a hanging door and a mounted cabinet (no text or symbols)

ΠΡΟΣΟΧΗ

Technical line drawing of a mechanical device with mounting bracket and tool, showing alignment and assembly (no text or symbols)

Diagram of a tool interacting with a circular component, showing a pointer and a labeled point (no text or symbols present)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Diagram of a wall-mounted air conditioner unit with two hanging sensors, no text or symbols present

Line drawing of a wall-mounted air conditioner unit with a control panel and indicator lights (no text or symbols)

Line drawing of a hand opening a wall-mounted air conditioner unit with a small inset showing a component (no text or symbols)

ΠΡΟΣΟΧΗ

Diagram of a wall-mounted air conditioner unit with airflow arrows indicating heat or airflow direction (no text or symbols)

ΠΡΟΣΟΧΗ

Three-step diagram showing a door lock mechanism with arrows indicating rotation and movement (no text or symbols)

Συνιστάται να

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. To remind you that you must collaborate with a selective collection scheme, the symbol shown appears on the product warning you not to dispose of it in traditional refuse containers. For further information, contact your local authority or the shop where you bought the product.

NOTA ECOLÓGICA
