USER MANUAL KWT1611SF MIELE

Operating and Installation Instructions

Wine Storage Unit

KWT 1601 SF

KWT 1611 SF

To prevent accidents

and appliance damage

read these instructions

before

installation or use.

en - US, CA

M.-Nr.07682470

IMPORTANT SAFETY INSTRUCTIONS 4

Guide to the wine storage unit 7

Before use 9

Before using for the first use 9

Turning the appliance On/Off 9

Settings 10

Using the settings 10

Custom settings 11

Turning the button sound On/Off 12

Turning off for longer periods of time 13

Alarm 14

Temperature alarm 14

Door alarm 14

Optimum temperature and air quality 15

Setting the temperature 15

Humidity. 19

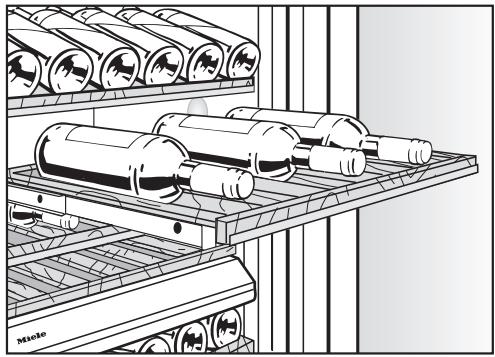

Storing wine 21

Wooden racks 21

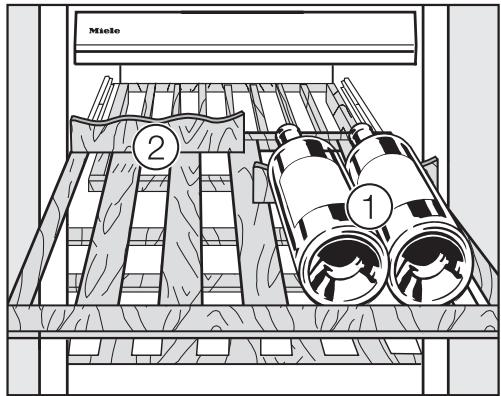

Bottle display rack 22

Maximum capacity. 22

Display lighting 23

Defrosting 24

Cleaning and care 25

Cleaning the interior. 25

Appliance door 25

Ventilation slits 26

Door seals 26

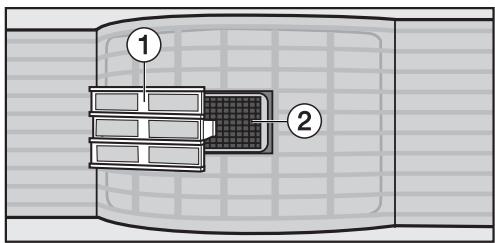

Active charcoal filters 26

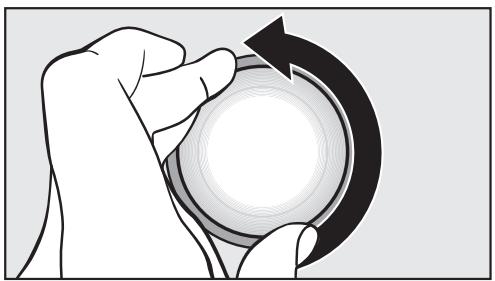

Changing the light bulbs 27

Frequently asked questions 28

After sales service 31

Caring for the environment 34

Installation 35

Installation site 35

Base. 36

Furniture/fixtures 36

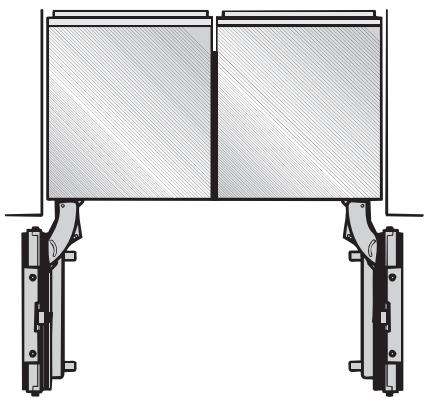

Installation options 37

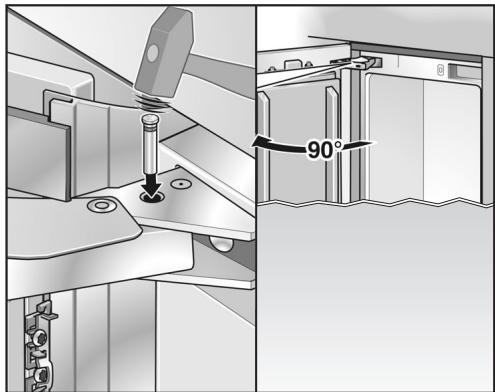

Adjusting the door opening angle (optional accessory) 38

Dimensions 39

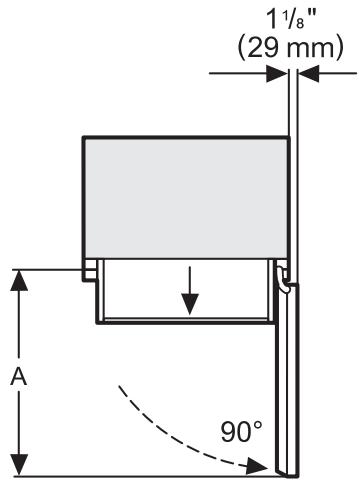

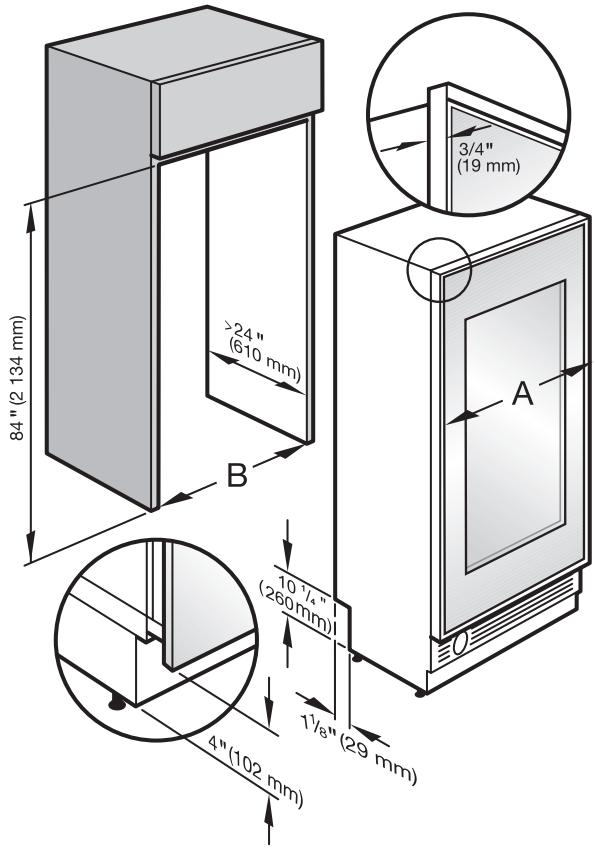

Door dimensions (open min. 90^ 39

Installation 41

Before you begin 41

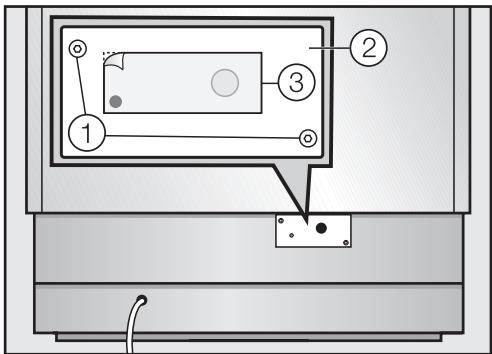

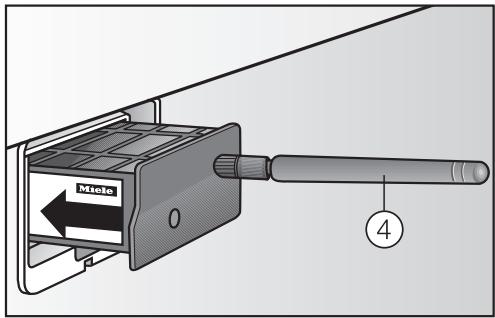

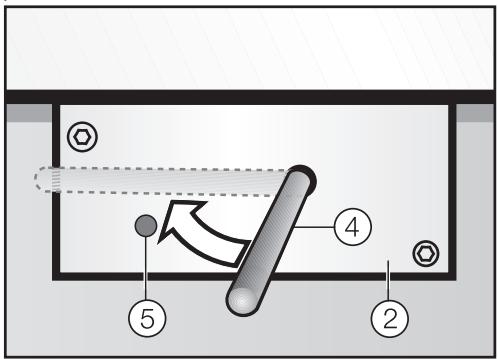

RemoteVision module installation 43

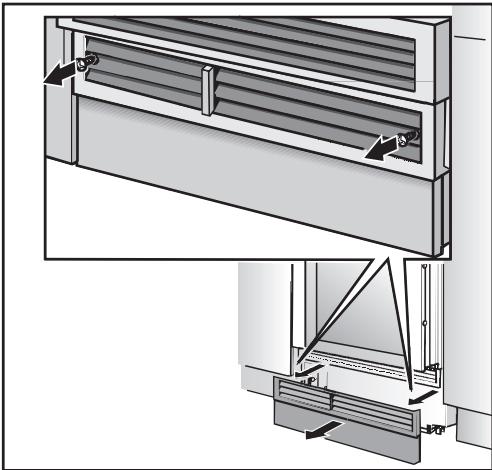

Home Security System (HSS) 44

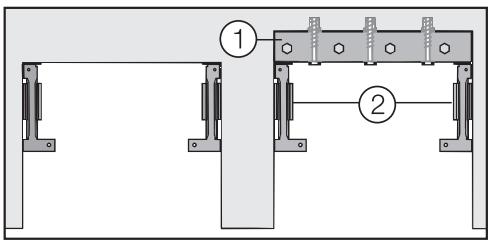

Preparing the installation niche 45

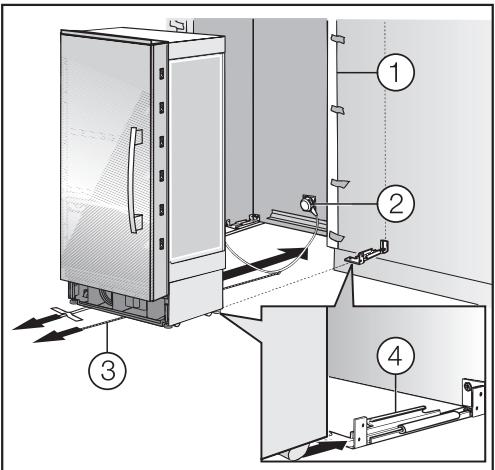

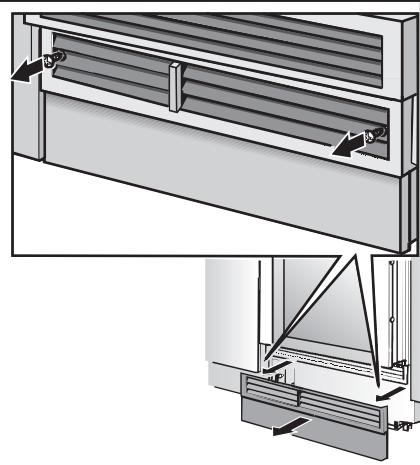

Sliding the appliance into the installation niche 48

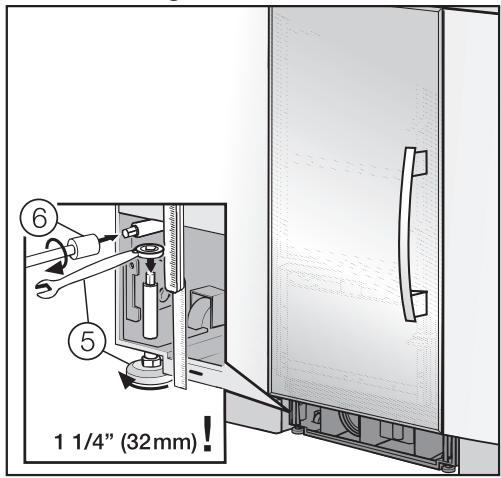

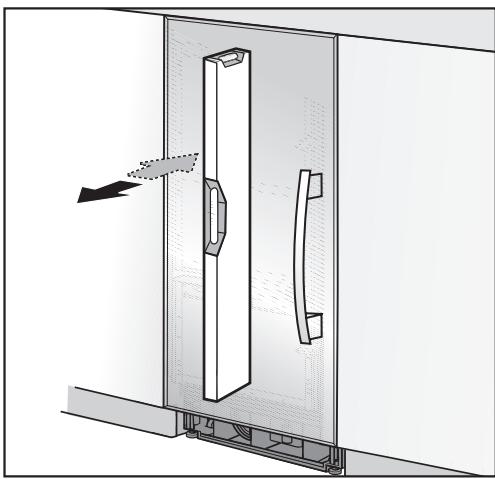

Aligning the appliance. 49

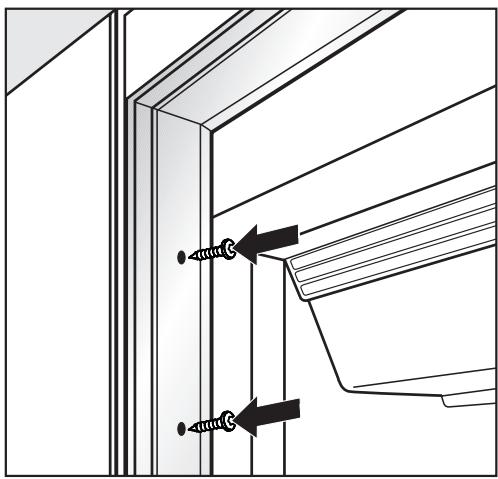

Attaching the appliance to the installation niche. 50

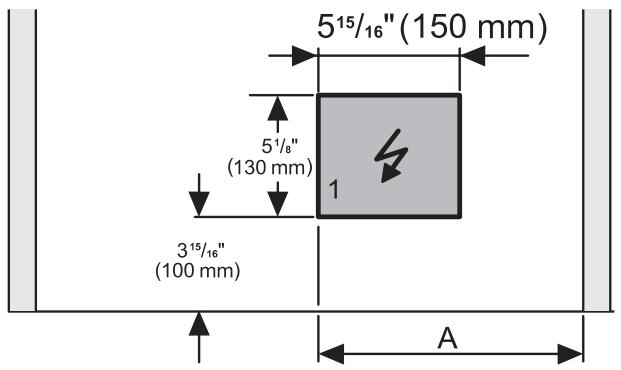

Electrical connection 53

RemoteVision (optional accessory) 54

Accessing the RemoteVision control panel. 55

IMPORTANT SAFETY INSTRUCTIONS

When using the appliance, follow basic safety precautions, including the following:

Read all instructions before installation and use to prevent accidents and machine damage.

This appliance is intended for residential use only. Use only as described in this Operating manual.

Only use the appliance for its intended purpose.

This appliance complies with current safety requirements. Improper use of the appliance can lead to personal injury and material damage.

Keep these operating instructions in a safe place and pass them on to any future user.

Warning: At an altitude of more than 8200 ft (2500 m) the glass door can break. Danger of injuries.

Electrical safety

Before installation, make sure that the voltage and frequency listed on the data plate correspond with the household electrical supply. This data must correspond to prevent injury and machine damage. Consult a qualified electrician if in doubt.
Before installation or service, disconnect the power supply to the work area by unplugging the unit, "tripping" the circuit breaker or removing the fuse.
Do not use an extension cord to connect this appliance to electricity. Extension cords do not guarantee the required safety of the appliance (e.g., danger of overheating).
Be certain your appliance is properly installed and grounded by a qualified technician. To guarantee the electrical safety of this appliance continuity must exist between the appliance and an effective grounding system. It is imperative that this basic safety requirement be met. If there is any doubt, have the electrical system of the house checked by a qualified electrician.
Only connect power to the appliance when all installation work is complete.

Installation

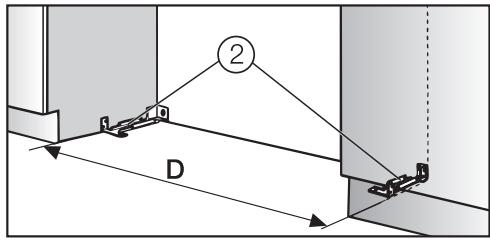

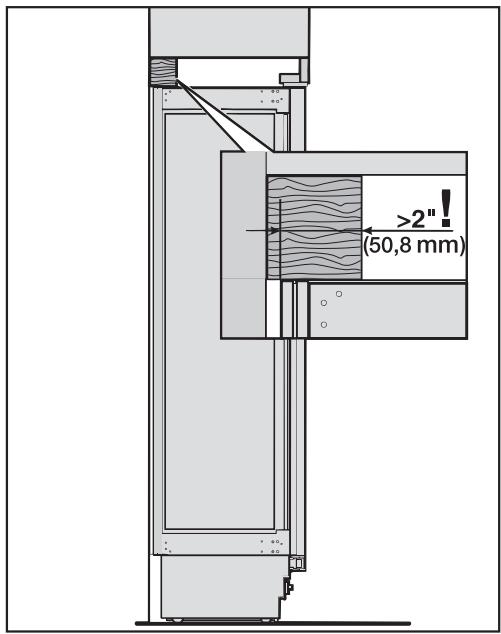

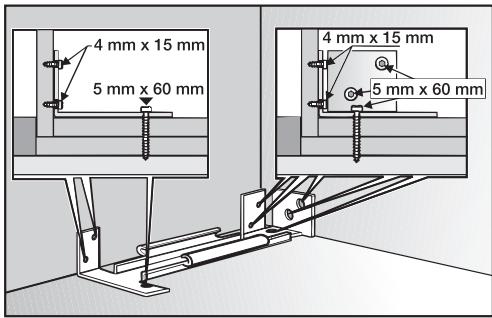

This appliance is top-heavy and must be secured to prevent the possibility of tipping forward. Keep the door closed until the appliance is completely installed and secured per installation instructions.

This appliance must be installed and connected in compliance with the installation instructions.
Installation and repair work should be performed by a Miele authorized service technician. Work by unqualified persons could be dangerous and may void the warranty.
Do not operate any appliance with a damaged cord or plug, or if the appliance has been damaged in any manner. Contact Miele's Technical Service Department.
This equipment is not designed for maritime use or for use in mobile installations such as recreational vehicles or aircraft.
Do not install the appliance in a room with too low an ambient temperature, e.g., a garage, as this may lead to the appliance switching off for longer periods so that it cannot maintain the required temperature.

Use

• Persons who lack physical, sensory or mental abilities, or experience with the machine should not use it without supervision or instruction by a responsible person.
  To reduce the risk of injury, do not allow children to play in, on or near the appliance, especially in the door hinge area.
  Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
  Do not use any oils or grease on the door seal, as these will cause the seal to deteriorate and become porous with time.
  Do not block the ventilation gaps in the plinth or the top of the appliance housing unit as this would impair the efficiency of the appliance, increase the electricity consumption and could cause damage to the appliance.
  Never use a steam cleaner to clean the appliance. Pressurized steam could damage electrical components and cause a short circuit.
  Do not use any electrical equipment inside the appliance. Danger of injury.

IMPORTANT SAFETY INSTRUCTIONS

Disposal of your old appliance

Before disposing of an old appliance, first make the door latch or lock unusable.
Take off the door.
Leave the shelves in place so that children may not easily climb inside.
Consult with your municipal policy on recycling.
Be careful not to damage any part of the pipework while awaiting disposal by:

• puncturing the refrigerant channels in the evaporator.
• bending any pipework.
• scratching the surface coating.

Splashes of refrigerant can damage the eyes.

• Your old refrigerator may have a cooling system that used CFCs (chlorofluorocarbons). CFCs are believed to harm stratospheric ozone.

If you intentionally release this CFC refrigerant, you can be subject to fines and imprisonment under provisions of environmental legislation. Make sure the CFC refrigerant is removed and disposed of by a qualified technician.

SAVE THESE INSTRUCTIONS

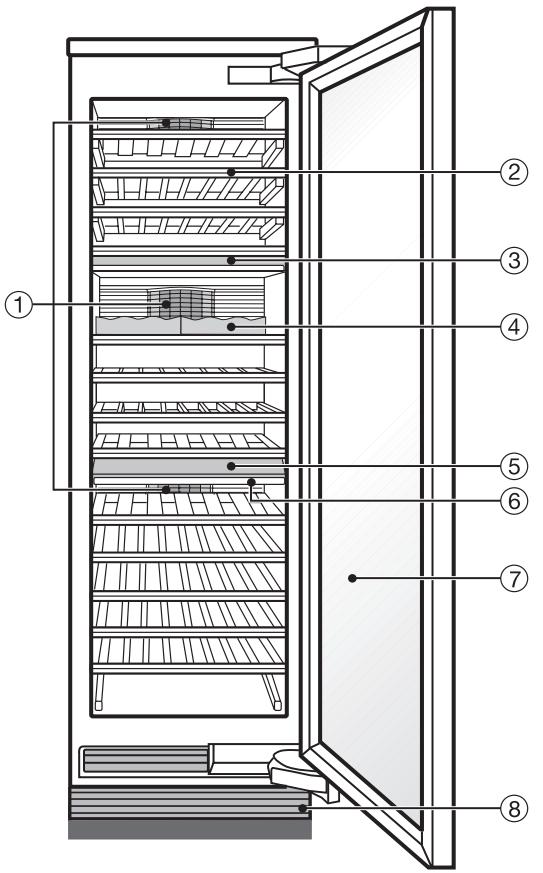

① Circulation fans / Active charcoal filter
② Wooden racks
(3) Insulation panel to separate the upper and middle temperature zones
(4) Bottle display rack
(5) Control panel / Insulation panel to separate the middle and lower temperature zones
(6) Main switch to turn the appliance On/Off
⑦ Glass door with UV filter

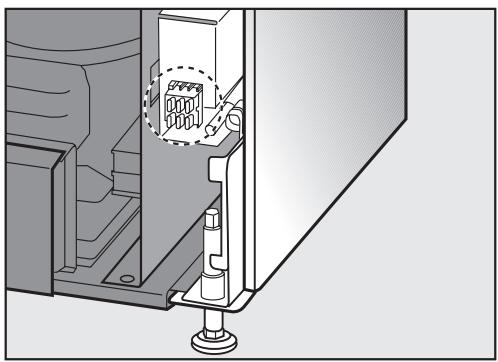

⑧ Connection (behind the ventilation gap) for the Home Security System (HSS)

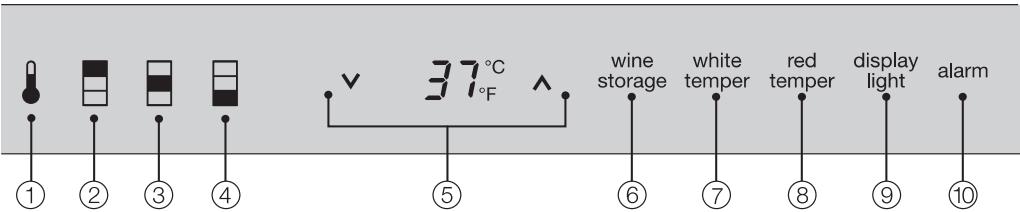

Control panel

① Access button
(2) Upper temperature zone
③ Middle temperature zone
(4) Lower temperature zone
⑤ Temperature display: Allows you to set the temperature (V colder; warmer) and set the duration of the display lighting (V shorter; longer)

(6) Long-term wine storage
(7) Short-term storage of white wine at a moderate temperature
(8) Short-term storage of red wine at a moderate temperature
(9) On/Off sensor button for the display lighting
Off sensor button for the temperature and/or door alarm*

• only visibly when the relevant function is activated

Before using for the first use

The stainless steel surface of the appliance is protected with a plastic film, which protects it during shipping.

Do not remove this protective film until the appliance has been completely installed.

After removing the protective film clean the exterior surface with the supplied stainless steel agent. This will aid in preventing resoiling.

Clean the inside of the appliance and the accessories with a mild solution of warm water and liquid dish soap. Dry with a soft cloth.

After installing the unit, wait at least 30 minutes before switching it on. During transport, the fluids in the refrigeration system may have shifted, and will need some time to settle.

Turning the appliance On/Off

Open the appliance door.

Turn the appliance On/Off with the main switch.

The main switch is located on the right-side underneath the control panel.

All three zones are switched on or off together.

Once on, the appliance begins cooling. When the door is open, the interior lights come on.

The access button will light in the control panel.

The preset temperatures (factory settings) are reached after a few hours.

Turning off the appliance with the main switch does not safely isolate it from the power supply.

Using the settings

When a sensor button has been selected with a finger touch, it will appear yellow.

A de-selected button will appear white.

• Touch the access button so it turns yellow.

On the control panel you will now see the sensor buttons of the three temperature zones.

The factory (default) settings for the temperature zones are as follows:

• upper temperature zone: red temper.
• middle temperature zone: white temper.
• lower temperature zone: wine storage.

display light

To turn the display lighting on or off when the door is closed, touch the "display light" sensor button.

To change the settings, touch the sensor button for the temperature zone you wish to set.

The selected sensor button appears yellow.

You can now select from the following settings for the selected zone(s) or change the pre-set temperature(s) as desired.

wine white red storage temper temper

For more information on setting the temperature see "Optimum temperature and air quality".

To de-select a temperature zone touch the sensor button for that particular zone so that it turns white, or select another sensor button.

To leave the settings menu, touch the access button " 串 " so it turns white. The last settings entered are stored.

The sensor buttons for the three temperature zones disappear from the control panel.

Even if you do not touch the access button, the electronics will switch back to normal after about 1 min.

Custom settings

In the custom settings mode you can select and change functions. The function possibilities are described in the respective chapters of this manual.

Function	Display text
Temperature °C - °F	°F
RemoteVision Module settings (optional accessory)	r
Button sound on/off	b
Exit Custom Settings mode	c
Humidity settings	θ

Turning the button sound On/Off

If you prefer the buttons to be silent when touched, the button sound can be turned off.

Touch the access button "?" so it turns yellow.

• Touch the sensor button for any temperature zone so it turns yellow.
  Note the position of the button, but do not touch.
  Touch the access button " again so it turns white.

Only the access button "I" is visible.

• Place one finger on the position of the button and hold (the button will not be visible).

While holding down the button, press the access button "?" once. Keep holding the button down until the following appears in the display (approx. 5 seconds).

• Tap the button until b appears in the display.
  Touch the access button "?" to confirm.
• By touching the button, you can choose between:

b D:Button sound is off
b1:Button sound is on
b-: Return to menu.

• Touch the access button "?" to confirm the setting.
• Tap the button until you see c in the display.
  Touch the access button "0".

You have now left the Custom settings mode.

When you are in the Custom settings mode the door alarm is turned off automatically. Once the door is closed it is reactivated.

Turning off for longer periods of time

If the appliance is not going to be used for an extended time (for example, during a vacation) some precautions should be taken.

Turn the appliance off at the main switch
Unplug the appliance
Clean the interior
Leave the door open to prevent odors

The appliance is equipped with an alarm system, to ensure that the temperature does not rise unnoticed because of energy loss or an open door.

The alarm system is always operational, it does not need to be turned on.

Temperature alarm

If the temperature becomes too warm, an alarm sounds, the "alarm" indicator turns red and flashes. At the same time the affected zone flashes in the display.

If you use the Home Security System, a temperature alarm will also trigger your security alarm. Once the temperature alarm is turned off, the security alarm will also shut off.

The alarm will sound and the display will flash if:

• too much warm air flows into the appliance, for example when bottles are being loaded, re-arranged, or taken out.
• a large number of bottles are being stored for the first time.
• the power fails.

Turning the temperature alarm Off

As soon as the alarm condition is corrected, the alarm signal turns off and the affected zone stops flashing in the display. The "alarm" indicator goes out.

To turn the alarm off early, press the "alarm" sensor button.

The alarm signal turns off. The "alarm" indicator remains red and the corresponding appliance zone continues to flash until the alarm condition is corrected.

Door alarm

If the appliance door is left open for over 5 minutes, an alarm signal will sound and the "alarm" indicator will light up.

Turning the door alarm Off

Once the door is closed the alarm turns off and the "alarm" indicator goes out. If the door has not been closed properly, the alarm will sound again after five minutes.

alarm

To turn the alarm off early, press the "alarm" sensor button. The "alarm" indicator and signal will turn off.

Wine will continue to mature depending on the surrounding conditions. The length of time which wine can be kept in good condition will therefore depend not only on the temperature but also on the air quality.

The wine storage unit provides a constant temperature, increased humidity and an odor-free environment, creating the best possible storage conditions for your wine.

Temperature

Wine can be stored at temperatures between 41^ and 64^ (5 - 18°C). If you would like to store red and white wines together, choose a temperature between 50^ and 54^ (10 - 12 °C). Most white wines are palatable at this temperature. It is best to take red wine out of the appliance about 2 hours before drinking. Open the wine to allow it to breathe and to develop its aroma. After 2 hours, red wine will be at the correct temperature for drinking.

Storage temperatures above 72^ (22^) will cause wines to mature too quickly. By contrast, wine should not be stored below 41^ (5^) , since it will not mature fully at this low temperature.

Fluctuations in temperature put wine under stress and interrupt the maturing process. Therefore, it is important to maintain a constant temperature.

Setting the temperature

The factory (default) settings for the temperature zones are as follows:

The upper temperature zone is set for optimal red-wine storage: Red temper 62°F (17°C)

The middle temperature zone is set for optimal white-wine storage: White temper 46^ (8^)

The lower temperature zone is intended for wine storage in general. Wine storage 51^ F (11°C)

You can change the "purpose" of the zones as you wish.

For example, you can store white wine in the upper temperature zone, as long as you adjust the temperature accordingly:

• Tap the sensor button for the desired temperature zone, so that it turns yellow.

winstorage

white temper

red temper

• Select the preferred temperature setting so that the sensor button turns yellow.

The setting "white temper" is not available in the lower temperature zone.

Optimum temperature and air quality

Temperatures can be independently set in all three zones.

The unit comes factory pre-set for white wine, red wine, and wine storage.

If you wish, you can change any or all of these factory settings.

• Select the temperature zone you would like to change the temperature in.

Use the and buttons next to the temperature display to set the temperature warmer or colder.

The factory-suggested temperature for the selected zone appears in yellow.

The temperature is now stored for this zone.

Temperature ranges

• upper temperature zone
• 3^ to 18^ or
• 37^ to 64^ .
• middle temperature zone 3°C to 18°C or 37°F to 64°F.
• lower temperature zone 8°C to 18°C or 46°C to 64°F.

Insulation panels for thermal separation

The unit has two fixed insulation panels, to divide the interior into the three different temperature zones. This allows you to store three different types of wine, such as red wine, white wine and champagne.

The correct serving temperature is crucial for the taste and therefore your enjoyment of the wine.

The following temperatures are recommended for the different types of wine:

Red wine:	57°F to 64°F (14 °C to 18°C)
Rosé:	50°F to 54°F (10 °C to 12 °C)
White wine:	46°F to 54°F (8 °C to 12 °C)
Sparkling wine:	45°F to 48°F (7 °C to 9 °C)
Champagne:	41°F to 45°F (5 °C to 7 °C)

Temperature display

The temperature display on the control panel always shows the desired temperature.

The temperature display will flash if the temperature in one of the zones is too warm or too cold.

Tap the and sensor buttons to raise/lower the temperature 1^ , or hold them down to move through the temperature range more quickly.

Optimum temperature and air quality

Temperature unit (Fahrenheit/Celsius)

The temperature can be displayed in degrees Fahrenheit (°F) or Celsius (°C).

Touch the access button " 串 " so it turns yellow.

• Touch the sensor button for any temperature zone, so that it turns yellow.
  Note the position of the button, but do not touch.
  Touch the access button " again so it turns white.

Only the access button "I" is visible.
- Place one finger on the position of the button and hold (the button will not be visible).

While holding down the button, press the access button "1" once. Keep holding the button down until the following appears in the display (approx. 5 seconds).

• Tap the button until f appears in the display.
  Touch the access button "I" to confirm.
• By touching the V button you can select either Fahrenheit or Celsius for the temperature display.

Fahrenheit
I: Celsius
-: return to menu

Touch the access button "I" to confirm the setting.
- Tap the button until a c appears in the display.
Touch the access button "0".

You have left the Custom settings mode.

When you are in the Custom settings mode the door alarm is turned off automatically. Once the door is closed it is reactivated.

Humidity

In a conventional refrigerator, the humidity levels are too low for storing wines. High humidity levels (60 - 70%) are very important for the storage of wine, so that the corks remain moist. Under low humidity, the corks dry out from the outside and can no longer seal the bottles properly. This is why wine bottles should always be stored lying down, so that the wine can keep the corks moistened from within. If air enters the bottle, a wine will inevitably spoil.

Tip: Wine bottles should stand upright for at least two hours before serving, or, better still whole day long, to enable deposits to settle to the bottom of the bottle.

Increasing or decreasing the humidity

The unit comes factory pre-set to high humidity.

If you would like to use the wine unit for long-term storage, it is recommended that you select the higher humidity. The interior climate will then correspond with the conditions in a wine cellar.

Humidity is raised or lowered for all temperature zones simultaneously.

Touch the access button "I" so it turns yellow.

• Tap the sensor button for any temperature zone so it turns yellow.
  Note the position of the button, but do not touch.
  Touch the access button " again so it turns white.

Only the access button "I" is visible.

• Place one finger on the position of the button and hold (the button will not be visible).

Optimum temperature and air quality

While holding down the button, press the access button "?" once. Keep holding the button down until the following appears in the display (approx. 5 seconds).

• Tap the button until U appears in the display.
  Touch the access button "?" to confirm.
• By touching the button you can either increase or decrease the humidity inside the unit.

D:lower humidity
1: higher humidity
- : return to menu.

• Touch the access button "▶" to confirm the setting.
• Tap the button until a c appears in the display.
  Touch the access button "0".

You have left the Custom settings mode.

When you are in the Custom settings mode the door alarm is turned off automatically. Once the door is closed it is reactivated.

If you have selected a higher humidity setting, the fans will cut in. This is to ensure that the humidity is uniformly distributed throughout the interior.

Whenever the unit door is opened, the fans will automatically switch off temporarily.

Air exchange through the activate charcoal filter

External air passes through the filter before entering the unit.

The active charcoal filter ensures that only clean, odor-free air enters the unit, creating additional protection against odor contamination.

The filter will need to be changed periodically, or when odors are present in the unit. See "Cleaning and Care - Active charcoal filter" for more information.

Storage tips

• Always unpack bottles - do not store wine in crates or boxes.
• Always lay bottles on their side for storage. This keeps the corks moist from the inside, preventing air from entering.
• Store similar wine varieties beside each other on the same shelf, to avoid restacking and the need to disturbed other bottles.
• Before serving, rosé and red wine bottles should spend at least two hours upright and open, to reach optimal drinking temperature. Sparkling wine and champagnes should be chilled briefly in the refrigerator before serving.
• Remember that wine should always be cooled to slightly lower than the ideal serving temperature, as the temperature increases by 1^ to 2^ as soon as it is poured into a glass.

Wooden racks

For convenient removal and addition of bottles, the wooden racks can be pulled out on rails.

The wooden racks can also be completely removed.

Pull out the empty wooden rack (along with the rails) as far as the stop, then lift it up and out.
To replace the racks, set them on the extended rails so that they click into place.

Be sure that the ventilation slits at the rear of the unit are not blocked. They are essential for the unit to operate properly.

Bottle display rack

The display rack, allows you to display selected bottles so they can be seen even with the door closed.

• Lay the wine bottles in the display rack, so that they touch the wooden guide-rail ①.
  To remove the display rack pull it up and out, then attach it to the rear position on the wooden rack ② The bottles can now be stored on the wooden rack in the usual manner.

Additional display racks are available from Miele.

The display rack can only be attached to wooden racks with wide cross-ties. In the upper temperature zone, these are found in the lower position. In the lower temperature zones, they are found in both the upper and lower position.

It is recommended that the wooden racks always be left in the pre-set positions. This makes optimal use of the interior space.

Never stack bottles on the wooden racks. Only the bottom-most level in each temperature zone can support a stack of bottles (remove the wooden rack).

Maximum capacity

The unit can hold approx. 102 bottles (0.75 l).

Display lighting

The display lighting can be turned on if you wish the bottles to be lit up even when the door is closed.

Turning on

Touch the access button " 串 " so it turns yellow.

display light

Touch the "Display light" sensor button so that it turns yellow.

The display lighting will now remain on in the 2 lower temperature zones, even when the door is closed. When the door is open, the interior lighting also comes on in all three temperature zones.

Turning off

Touch the "Display light" sensor button so that it turns white.

The display lighting is now turned off. When the door is closed, the interior is dark, and when the door is opened the interior lighting comes on.

Duration of the display lighting

The display lighting is factory pre-set to 30 minutes.

display light

To change this time setting, press and hold the "Display light" sensor button for 2 seconds.

The set time (in minutes) appears in the display:

15

Use the and buttons next to the display to change the duration of the lighting in increments of 15 minutes.

You can set the lighting to last for 15, 30, 45, 60, 75 or 90 minutes.

To confirm the setting touch the access button "I" until all the displays go out.

If the door is closed before the set time is completed, the lighting duration starts over again from the beginning.

During normal operation, condensate and frost can form on the rear wall of the refrigerator and drawers.

You do not need to remove this build-up, it will defrost and evaporate automatically with the heat generated by the appliance.

To reduce the risk of electrical shock, disconnect the appliance from the power supply by shutting off the power main, tripping the circuit breaker or unplugging the power cord before maintenance.

Never use cleaning agents containing abrasive substances such as sand, soda, acids, chlorides or chemical solvents. Non-abrasive cleaning agents are also unsuitable, as they can cause matte areas to appear.

Avoid getting water on the solid wood facing or the shelves.

Stainless steel surfaces can be cleaned using a non-abrasive stainless steel cleaner (available from Miele).

Do not use a steam cleaner to clean this appliance. Pressurized steam could penetrate electrical components and cause a short circuit.

Do not allow water to get into the electronic unit or lights.

Before cleaning

Use the main switch to turn the appliance off completely.
The main switch is located on the right side underneath the control panel.
Unplug the power cord.
Remove any bottles from the appliance and store it in a cool place.
Take out any removable parts, e.g., shelves.

Cleaning the interior

It is recommended to clean the interior once a month.
Use a mild solution of warm water and liquid dish soap.
Clean the wooden racks with a damp cloth. Do not allow the racks to become too wet.
After washing, wipe down the interior and accessories with a clean wet cloth, then dry with a soft cloth. Leave the appliance door open for a short time, so the moisture can evaporate.

Appliance door

Stainless steel surfaces can be cleaned using a non-abrasive stainless steel cleaner.
To help prevent resoiling, a conditioner for stainless steel can also be used. Apply sparingly with even pressure.

Ventilation slits

• Check the ventilation slits regularly. Remove any dirt/dust with a vacuum cleaner or brush. Clean as needed.

Door seals

Do not use any oils or grease on the door seals as these will cause the seals to deteriorate and become porous over time.

Clean the door seal with water only and dry thoroughly.

After cleaning

• Return all bottles to the appliance.
  Insert the plug into the power outlet and turn on the appliance at the main switch.

Active charcoal filters

Replacement filters are available from Miele.

Remove the cover ① over the filter, use a screwdriver if necessary.
Remove the old filter ② and replace with a new active charcoal filter.
Replace the cover ① over the new filter.

Changing the light bulbs

Do not remove the light covers for the display lighting. Should the lighting covers be damaged or need to be removed due to damage, do not look directly or with an optical instrument at the lighting.

Interior lighting:

The lighting automatically switches off after the door has been open for approx. 5 minutes. This is not a fault.

After the bulb has cooled for a short time it will turn on again.

If the light does not come on when the door is opened briefly, the light bulb should be changed.

Use the main switch to turn the appliance off.

To reduce the risk of electric shock, disconnect the appliance from the power supply by unplugging or tripping the circuit breaker.

Turn the light cover counterclockwise and pull out.

Never touch a halogen bulb with bare fingers.

When inserting a glass halogen bulb, always hold with a soft cloth.

Pull the defective light bulb from the socket.
- Place the new bulb in the socket. Halogen bulb type: 5 W/12 V/socket G 4.
Put the light cover back on and turn clockwise into place.

Restore power to the appliance.

Frequently asked questions

With the aid of the following guide minor problems can be corrected without a service call.

Repairs should only be carried out by a qualified and trained person in strict accordance with local and national safety regulations. Unauthorized repairs could cause personal injury or machine damage and may void the warranty.

What if the appliance does not get cold?

Possible fault	Solution
The machine is not turned on.	Check whether the appliance is switched on at the main switch.
The machine is not plugged in.	Check that the plug is correctly inserted in the power outlet.
Check that the fuse has not tripped.	Reset the circuit breaker.
The temperature is set incorrectly.	Check the display.
What if the temperature is too low?
Select a warmer temperature.	See "Setting the temperature".
The door is not closed.	Check that the door has been closed properly.
A large amount of bottles has been put in the appliance at the same time.	This makes the compressor run for longer, causing the temperature in the appliance to fall automatically.
What if the compressor kicks on very frequently and for too long?
The ventilation slits are covered or dusty.	Clean with a vacuum or brush.
The door has been opened too frequently.	Once the appliance returns to the set temperature the compressor will turn off.
The door is not closed.	Check that the door has been closed properly.
What if the alarm is ringing?
Possible fault	Solution
The appliance door has been open for longer than 5 minutes.	Close the door.
What if the alarm is ringing and the "alarm" indicator is lit?
The door is not closed.	One of these conditions has caused the temperature in the appliance to become too warm.
The ventilation slits are covered.	Once the alarm condition has been corrected, the alarm will turn off and the "alarm" indicator will stop flashing.
A large amount of wine was stored at once.
There has been a power failure.
What if the display lighting is not working?
The display lighting turns off automatically depending on the time set. See "Display lighting".	If the display lighting still does not turn on after 15 minutes with the door closed, contact Miele Technical Service.
A white coating has formed around the wine corks.
The corks are made of a material which has caused a chemical reaction (oxidation).	The white coating can be removed with a dry cloth. The coating has no effect on the quality of the wine.
Mildew is beginning to form on the wine bottle labels.
Depending on the type of adhesive used mildew may begin to form on the labels.	Wash the wine bottles and remove any adhesive residue.

Frequently asked questions

The appliance is making noises.
Issue	Possible fault	Solution
Brrrrr...	Humming noise made by the compressor. This noise can get louder for brief periods when the motor is switching on.	These noises are not a fault. The noise of the compressor and the coolant circulating in the system is unavoidable.
Blubb, blubb....	A gurgling noise can be heard when coolant is circulating through the pipes.
Click....	Clicking sounds are made when the thermostat switches the compressor on and off.
Sssrrrrr....	On multi-zone and frost-free appliances you can sometimes just hear the movement of air circulating inside the appliance.
Rattling, vibrating	The appliance is uneven.	Realign the appliance using a level, by raising or lowering the screw feet underneath the appliance.
	The appliance is touching another appliance or piece of furniture.	Move it away.
	Drawers, baskets or shelves are unstable or sticking.	Check all removable items and refit them correctly.
	Bottles or containers are unstable or knocking against each other.	Separate them.
	The transport cable clips are hanging loose at the back of the appliance.	Remove the clips.

In the event of a fault which you cannot easily fix yourself, please contact the Miele Technical Service Department at the address on the back of this booklet.

When contacting the Technical Service Department, please quote the model and serial number of your appliance given on the data plate inside the appliance.

MieleCare

(USA only)

MieleCare, our Extended Service Contract program; gives you the assurance of knowing that your appliance investment is covered by 5 years of worry-free ownership.

MieleCare is the only Extended Service Contract in the industry that guarantees repairs by a Miele Authorized Service Provider using genuine Miele parts. Only genuine Miele parts installed by factory-trained professionals can guarantee the safety, reliability and longevity of your Miele appliance.

Please note that unless expressly approved in writing by the Miele Service department, Extended Service Contracts offered by other providers for Miele products will not be recognized by Miele. Our goal is to prevent unauthorized (and untrained) service personnel from working on your Miele products, possibly doing further damage to them, you and/or your home.

To learn more about MieleCare Extended Service Contracts, please contact your appliance dealer or visit us online at:

http://miele.com/mielecare

Installation instructions

To prevent accidents and machine damage read these instructions

before

installation or use.

Disposal of packing materials

The cardboard box and packing materials are biodegradable and recyclable. Please recycle.

Ensure that any plastic wrappings, bags, etc., are disposed of safely and kept out of the reach of babies and young children. Danger of suffocation!

Disposal of an old appliance

Old appliances contain materials that can be recycled. Please contact your local recycling center about the possibility of recycling these materials.

Before discarding an old appliance, disconnect it from the electrical supply and cut off the power cord to prevent it from becoming a hazard.

In areas with a tropical climate (over 100^ / 38^ and more than 70% air humidity) the wine cooler must only be operated in air conditioned locations. Otherwise the function of the machine cannot be guaranteed.

Have the appliance installed by a qualified technician, according to the enclosed installation instructions.

WARNING

This appliance is top-heavy and must be secured to prevent the possibility of tipping forward. Anti-tip protection is required. Keep the door closed until the appliance is completely installed and secured as per the installation instructions.

Empty weight of your machine:

KWT 16X1 SF 375 lbs (170 kg)

Installation site

The appliance should be installed in a dry, well ventilated room.

Do not install the appliance:

• outdoors,
• in an environment with dripping water,
• in rooms which are at risk of frost.

The installation location should not be exposed to direct sunlight, nor near a heat source, such as an oven, radiator, etc.

The ambient temperature should not drop below 55^ (13 °C) or rise above 110^ (43 °C), otherwise malfunctions may occur.

If installation next to a heat source is unavoidable, use a suitable insulating plate or observe the following minimum distances from the heat source:

• 1^1 / 4 (3 cm) from an electric cooktop or oven.
• 12'' (30 cm) from a gas cooktop or oven.

Base

A fully loaded appliance is very heavy. The load-bearing capacity of your floor must meet the following requirements:

KWT 16x1 SF .741 lbs (336 kg)

To ensure that the appliance is installed securely and functions properly, the base must be flat, level and made of a hard, rigid material.

If in doubt, contact Miele.

Furniture/fixtures

The new appliance will be mounted securely to adjacent furniture/fixtures.

For this reason it is essential that all attachable furniture/fixtures are connected securely to the base or the wall by suitable means.

Ventilation

The air intake and outlet must not be blocked or covered in any way. They also need to be dusted/cleaned on a regular basis.

Installation niche

To ensure safe, trouble-free installation and the best possible cosmetic result, check to be sure that the installation space complies with the installation dimensions. See "Niche dimensions".

The side walls of the installation cavity must be plumb.

The minimum thickness of the side walls and the top wall must be 5 / 8" (16 mm).

The minimum thickness of the toe-kick panel must be 12 (13 mm). A thickness of 34 (19 mm) is recommended.

Installation options

There are many different installation options. You are limited only by the design of the kitchen.

The door hinge cannot be exchanged.

Single column

The appliance can be installed at any preferred location in the kitchen.

However, be sure the door will open and close properly in the chosen location.

Side-by-side

This appliance can be installed "side-by-side" with another fridge/freezer using a "Merging Kit".

The "Merging Kit" is available from Miele.

Contact Miele or your dealer for specific information about which combinations will work with your appliance.

For instructions on how to attach the appliances and install the heating mat, please refer to the instructions included with the "Merging Kit", available from Miele.

Appliances attached together using the "Merging Kit"

If the appliances are installed directly next to each other (without a partition), they need to be attached together using the "Merging Kit".

Installation with partition using the "Merging Kit"

The minimum thickness of the partition is 58 (16 mm).

If there is a partition with a thickness from 5 / 8'' (16 mm) to 6^5 /_16'' (160 mm) between the adjacent appliances, then each appliance should be individually installed within its own niche using the mounting accessories included. The "Merging Kit" will also be needed.

The "Merging Kit" is available from Miele.

Installation with partition without using the "Merging Kit"

If there is a partition with a thickness of more than 6^5 / 16 (160 mm) between the adjacent appliances, then each appliance should be individually installed within its own niche using the mounting accessories included (the "Merging Kit" is not necessary).

Side panels

If one side of the appliance is visible, a side panel must be used.

The side panel must be firmly secured to the wall, the floor and the overhead furniture/ fixtures before the appliance is placed in the cavity.

The dimensions of the side panel are taken from the opposite wall of the installation space. During installation, ensure that the cavity is square and the measurements are correct.

Adjusting the door opening angle (optional accessory)

Depending on the installation site, it may be necessary to adjust the door opening angle to 90^ .

Open the door.

Insert the banking pin through the holes and drive in with a hammer.

Power supply

1. Power supply

	A
KWT 16X1 SF	12" (305 mm)

Door dimensions (open min. 90^ )

	A
KWT 16X1 SF	26 5/8" (677 mm)

Niche dimensions

	A	B
KWT 16x1 SF	24 1/2" (622.2 mm)	24" (610 mm)

Before you begin

Read these instructions completely and carefully.
Have the appliance installed by a qualified technician, according to the enclosed installation instructions.

To reduce the risk of injury or damage to the product, two people should be used for installation.

These installation instructions are intended for use by qualified installers. In addition to these instructions, the appliance must be installed in accordance with all local codes. In the absence of a local code, the following should be used:

• In the USA, the National Electric Code, ANSI/NFPA 70 - latest edition/State and Municipal codes and/or local codes.
• In Canada, the Canadian Electric code C22.1 - latest edition/Provincial and Municipal codes and/or local codes.

Tools needed for installation

• Cutter with adjustable blade
• Cordless screwdriver T 20
• Torx screwdriver T 20
• Hammer drill for drilling holes in wall or floor
• Wood drills in different sizes
• Hammer
• Open end wrench 1/2 (SW 13 mm)
• Box-end wrench
• 5 / 16" (8 mm) hex nut driver
• Adhesive tape
  Multi-grip pliers
• Level
  Metal tape measure
• Square

Other

• Stepladder
  Dolly, hand tuck
• Wooden beam (cross section min. 3'' × 4'' [75 cm × 100 cm]) as an alternative tilt protection, length according to the width of the installation cavity)
• Wood screws in different sizes

Optional accessories

• "Merging Kit" for side-by-side installation
  RemoteVision module for wireless monitoring

Check the installation niche

To ensure a safe, trouble-free installation and the best possible cosmetic result, check to be sure that the installation space complies with the installation requirements.

Check the base (see "Installation").
Check the dimensions of the cavity.
Check that the cavity is square.
- Check the location of the power outlet.
- Check that all furniture parts in the vicinity of the appliance are securely connected to the wall.
- Check that the adjacent furniture/fixtures do not collide with the open door.

Before installation

Caution - the appliance is very heavy. Use caution when unpacking and opening the door, danger of tipping.

To protect the base from damage during installation, attach a hard board, linoleum, etc., to the floor in front of the intended installation location.
Take the supplied accessories out of the protective packaging.

There are transportation safety devices inside the appliance to protect the shelves until installation is complete. Do not remove them, or parts may be damaged.

Check the appliance for damage in transit.

Do not install the appliance if it is visibly damaged. If in doubt, contact Miele.

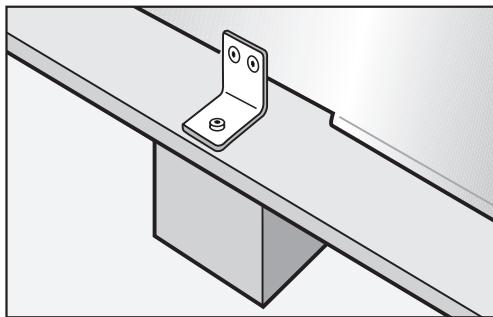

Loosen the bracket that holds the appliance to the pallet.

Caution! The appliance is no longer secured and may be unstable.
From the rear of the appliance carefully lift it from the pallet.

Once the appliance is on the ground it can be rolled around.

RemoteVision module installation

(optional accessory)

Always disconnect the appliance from the power supply when performing installation, maintenance or service work.

Install the RemoteVision module before placing the appliance in its installation niche.

Once connected the RemoteVision module will increase the energy consumption of the appliance.

The slot for the RemoteVision module is located in the lower area of the back of your appliance.

• Unscrew the screws ① on the cover ② and pull off the sticker ③ .
  Remove the cover ②.

Push the module into the slot until it locks into place.
- Connect the appliance to the power supply and turn it on. After several seconds the indicator light will come on.

The indicator light will display different colors one after the other; any control light at the end indicates that the module was correctly installed.

If the indicator light does not come on, installation of the module was unsuccessful. In that case, repeat the process. If that does not correct the problem, contact Miele.

Pull the antenna ④ straight out.
Guide the cover ② over the antenna ④ and screw on the cover.
Angle the antenna ④ so that it faces to the right or left.
If necessary, disconnect the power supply and continue installing the appliance.

If you would like to connect your appliance to the Home Security System, proceed now (see "Home Security System").

Home Security System (HSS)

If desired, the wine storage unit can be connected to the security system of your house, via a switching contact. If connected, you will be immediately informed of rising temperatures in the wine cooler.

The Home security system connection must be hooked up before the unit is installed.

Contact a qualified electrician or authorized agent from alarm company to connect your home's security system to the wine cellar.

Always disconnect the appliance from the power supply before performing installation, maintenance or service work.

• Remove the toe-kick panel from the appliance.

Choose the desired switching contact and connect according to alarm system requirements.

Output of the Home Security System on the electronic board:

NC: normally closed

Com: common

NO: normally open

Switching capacity: 120 V/250mA
30 V/1A

• Continue with the appliance installation.

Preparing the installation niche

Keep the appliance door closed until it is securely fastened in the niche. Tipping hazard.

If the installation niche is deeper than the appliance, a solid wooden beam ① can be placed behind the anti-tip brackets ② so the appliance can be securely attached to the base or wall.

The length of the wooden beam ① should be to the width of the installation space.

If possible, always screw the wooden beam into existing studs on the rear panel of the niche.

Mounting Accessories

The mounting accessories needed for installing the appliance into the niche are included in the packaging. Several plastic bags are included which are numbered alphabetically.

The bag needed for each step will be marked with its respective letter.

Use the included Torx screwdriver to tighten the screws.

Anti-tip-brackets

The anti-tip brackets help keep the appliance safely secured to the installation niche to prevent tipping.

Two anti-tip brackets are recommended for each appliance or appliance combination (side-by-side).

The distance "D" between the anti-tip brackets ② is the width of the appliance.

Position the anti-tip brackets ② on the left and right walls of the appliance niche.
■ Mark the holes through the anti-tip brackets ② on the floor of the installation niche.
Set the brackets aside.

Assure that there are no electrical wires or plumbing in the area which the screws could penetrate-risk of injury and damage.

Drill pilot holes:

• 1 / 8" (3 mm) for the 5 × 60 ~mm wood screws
• 1 / 16" (2 mm) for the 4 × 15 ~mm wood screws.

Tightly secure the anti-tip brackets in the niche.

Be certain that the screws penetrate through the flooring and into the wall plate a minimum of 3 / 4 (19 mm).

Securing an alternative anti-tip device

If the anti-tip brackets cannot be attached securely, an alternative anti-tip device can be used.

Ensure that there is no "give" between the appliance and the anti-tip device.

If possible, always screw the wooden beam to existing studs.

Cut a wooden beam

(cross section min. 3'' × 4''

[75 cm x 100 cm]) to the required length.

The length is equal to the width of the installation niche.

• If the installation cavity is deeper than the appliance, select a beam which has a larger cross section, or attach two beams.

• The beam must cover the appliance by at least 2'' (50.8 mm).
  ■ Mark the installation height (lower edge of the beam) on the rear wall of the niche.
  Select screws according to the thickness of the wooden beam.

Example: 3 12 (89 mm) screw for 2x4 beam.

Determine the number of screws based on the cavity width, to ensure that the beam will be attached securely.
- Locate wall studs near the rear wall of the cavity and mark drill holes in the beam.
Pre-drill the wooden beam.
- Attach the wooden beam to the rear wall of the niche.

If a side-by-side installation is desired, connect the two appliances together.

See the Installation Manual included with the "Merging Kit".

Sliding the appliance into the installation niche

Unscrew the plinth.

• To protect the corners of the installation space, attach the supplied edge protector ① on both sides with adhesive tape.
  Plug the appliance into the power outlet ②.

The plug of the appliance should be easily accessible after installation. If the plug is not accessible after the appliance has been installed, disconnection from the power supply should be completed via the circuit breaker.

In the case of side-by-side installations, a separate outlet must be used for each appliance.

• To prevent the power cord from becoming caught: Tie a piece of string to the middle of the power cord and feed it forward under the appliance. When sliding the appliance in, pull the cable forward ③.
  Carefully slide the appliance into the space until the height-adjustable wheels interlock with the anti-tip brackets ④.

If resistance is felt when attempting to slide the appliance into the installation niche - for example, because the floor is uneven,

Turn the rear adjustable wheels slightly outward (see "Aligning the appliance"), then push the appliance in.

Be careful not to damage the power cord attached to the floor.

Remove the edge protector ①.

Aligning the appliance

Align the appliance with the surrounding cabinets.

The height-adjustable feet at the front and rear can all be adjusted from the front.

• Front: with an open-ended wrench 1 / 2'' (SW 13).

The feet can be adjusted from the top and bottom ⑤.

Rear: with a 5/16 " (8 mm) hex nut driver via flexible shaft ⑥.

A mark is located on the appliance base and is used as a standard gauge for height adjustment. When adjusting the height, align this mark at 1 14 (32 mm) above the floor.

■ Unscrew the height-adjustable feet until the mark on the base has reached the indicated guide dimension 1 14 (32 mm).

• Check that the appliance is level with the surrounding cabinets.

Note:

• Do not twist or jam the appliance inside the niche. When unscrewing the height-adjustable feet, proceed gradually, alternating between left and right.
• The adjustment of the rear feet is aided if the appliance is lifted at the rear (tipped forward slightly).
• If using a wooden beam as an alternative anti-tip device, rotate the appliance all the way toward the wooden beam.
• Do not use a power tool to adjust the rear feet!

Attaching the appliance to the installation niche

Open the appliance door.

Fasten the appliance on the left and right hand sides with the 3 (supplied) wood screws.

If there is a fairly large gap above the appliance, cut a wooden beam to fit exactly and place it in the gap.

Attaching the toe-kick cover

The maximum height of the toe-kick cover is 4'' (102 mm) from the top of the floor. Do not cover ventilation slits in the plinth. Risk of damage to the appliance.

If required, cut the toe-kick cover to the required length and height.

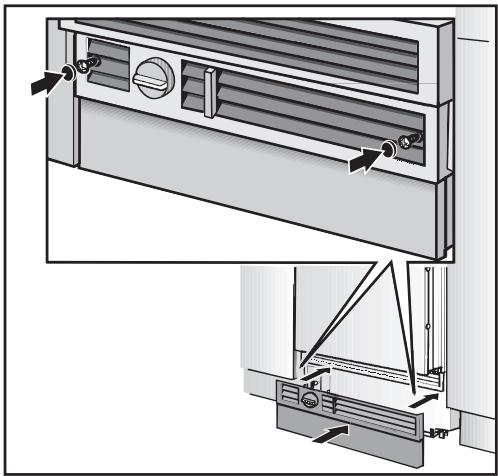

• Attach the plinth to the appliance.

Put the included cover plates in place.

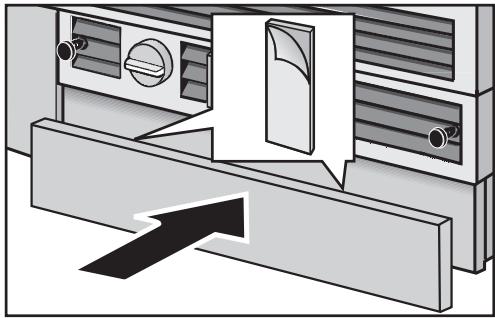

Remove the foil from the adhesive strips.
- Attach a toe-kick cover to the plinth.

Mounting the air separator

The air separator keeps the supply and exhaust air separate. This prevents warm exhaust air from flowing into the machine, optimizing the energy performance of the unit.

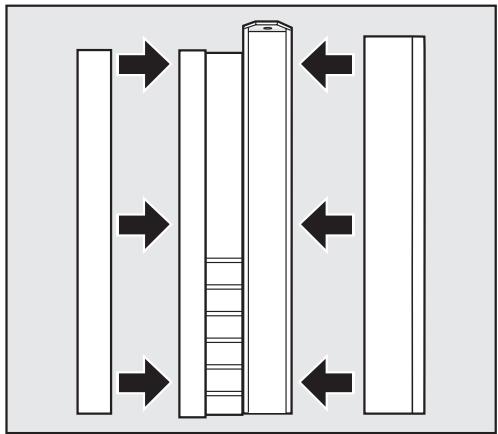

If necessary, shorten the three parts of the air separator.
- Insert the foam pieces back into the sides.

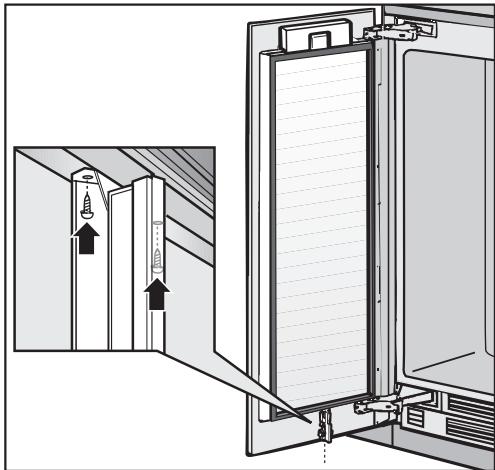

Position the air separator in the center of the appliance door.
From below, screw the air separator firmly onto the door with the 2 screws.

Avoid the risk of electrical shock

• Plug into a grounded 3-prong outlet.
• Do not move the ground plug.
• Do not use an adapter.
• Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

Improper connection of the equipment grounding conductor may result in electric shock. If you are in any doubt as to whether the appliance has been properly grounded, have the appliance checked by a qualified electrician or service technician.

Installation, repairs and other work by unqualified persons could be dangerous.

Before installing the appliance, verify that the voltage, load and circuit rating information found on the data plate match the household electrical supply.

If there are any questions regarding the electrical connection of this appliance to the power supply, please consult a licensed electrician or call the Miele Technical Service.

USA1-800-999-1360

CDN1-800-565-6435

The appliance is supplied with a UL-listed, 3-wire power cord and NEMA 5-15 P plug ready for connection to a 120V , 60Hz supply.

The fuse rating is 15 amps.

The appliance requires a 3-wire receptacle.

The receptacle must be installed by a licensed electrician only.

In the case of side-by-side installations, a separate outlet must be used for each appliance. Ideally, the power outlet should be next to the appliance and easily accessible. Do not connect the appliance to the power supply by an extension cord. Extension cords do not guarantee the required safety of the appliance (danger of overheating).

If any changes are needed to the household wiring or power supply, this work must be performed by a qualified electrician.

RemoteVision (optional accessory)

Miele's RemoteVision Wi-Fi technology creates a 'virtual link' between your appliance and our monitoring center. If a fault occurs, Miele's client service center will be notified and contact you, or another trusted individual identified on your call roster, in order to gain access to your appliance to fix the problem.

For information on set-up and installation of the RemoteVision module see the "Installation" section of this manual.

Be sure your wireless system meets the following requirements

• A wireless router that supports an IEEE 802.11b protocol
• Windows XP® or newer operating system, Mac® OS X 10.3 or higher
• Cable or DSL modem

• Microsoft® Internet Explorer 6 or higher, Safari 2.0 or higher, Firefox 1.5 or higher

• Please note that each wireless router manufacturer supplies their own device drivers and setup programs. Due to the differences in manufacturers, exact router setup instructions are not included in this manual. Wording and instructions may vary.

Accessing the RemoteVision control panel

Touch the access button " 串 " so it turns yellow.

• Touch the sensor button for any temperature zone so it turns yellow.
  Note the position of the button, but do not touch.
  Touch the access button " again so it turns white.

Only the access button "I" is visible.

• Place one finger on the position of the button and hold (the button will not be visible).
  While holding down the button, press the access button "?" once. Keep holding the button down until the following appears in the display (approx. 5 seconds).

Access to the Custom settings mode is now active for approximately 10 seconds.

• Tap the button until r appears in the display.
  Touch the access button "0" to confirm.

See the table on the following page for a description of each setting in the display.

Use the or buttons to select the RemoteVision options.

The module has been connected to the network when r appears in the display.

If r = does not appear, refer to the "Network options" section of the XKM 2000 Installation Instruction manual.

Press and hold the access button "f" for 2 seconds to confirm the change.
To return to the main menu, tap the V button until a solid r - appears in the display.
Press the access button "I" to confirm.
- Tap the button until a c appears in the display.
Touch the access button "0".

You have left the Custom settings mode.

When you are in the Custom settings mode the door alarm is turned off automatically. Once the door is closed it is reactivated.

RemoteVision (optional accessory)

MasterCool control panel options for RemoteVision

Status indicators	Description of function
Flashing r-	Module booting phase
Flashing r-	Not connected to network
Flashing r-	Connection to network established, no IP address assigned
Solid r-	Connected to network
Flashing r-	In Ad-Hoc Mode, not connected
Flashing r-	In Ad-Hoc Mode, connected

Selectable options	Description of function
r -	Back
r 2	Reboot the module
r 3	Reset to factory settings
r 4	Enter Ad-Hoc Mode

Note: If you cannot select any option (other than r - "Back", the module has not been installed correctly.

U.S.A. Miele, Inc.

National Headquarters

9 Independence Way Princeton, NJ 08540

Phone: [phone]
609-419-9898

Fax: [phone]

www.miele.com

Technical Service & Support Nationwide

Phone: [phone]

Fax: [phone]

[e-mail]

Canada Miele Limited

Headquarters and Showroom

161 Four Valley Drive

Vaughan, ON L4K 4V8

Phone: [phone]

905-660-9936

Fax: [phone]

www.miele.ca

[e-mail] (general enquiries)

[e-mail] (commercial enquiries)

MieleCare National Service

Phone: [phone]

905-532-2272

Fax: [phone]

[e-mail] (technical enquiries)
