USER MANUAL DA 289-3 MIELE

Operating and installation instructions

Ventilation System DA 289-3

To prevent accidents and machine damage, read these instructions before installation or use.

Table of contents

IMPORTANT SAFETY INSTRUCTIONS 3

Functional description 7

Guide to the hood 8

Operation 10

Main power switch. 10

Selecting the power level. 10

Delayed Shut Down 11

Turning the lighting on/off 11

Dimming the lighting 11

Grease filter timer. 12

Checking the grease filter timer 12

Reprogramming the grease filter timer 13

Cleaning and care 14

Grease filter and air intake panel. 14

Cleaning the casing. 16

Changing the light bulbs 17

After Sales Service 18

Installation instructions 19

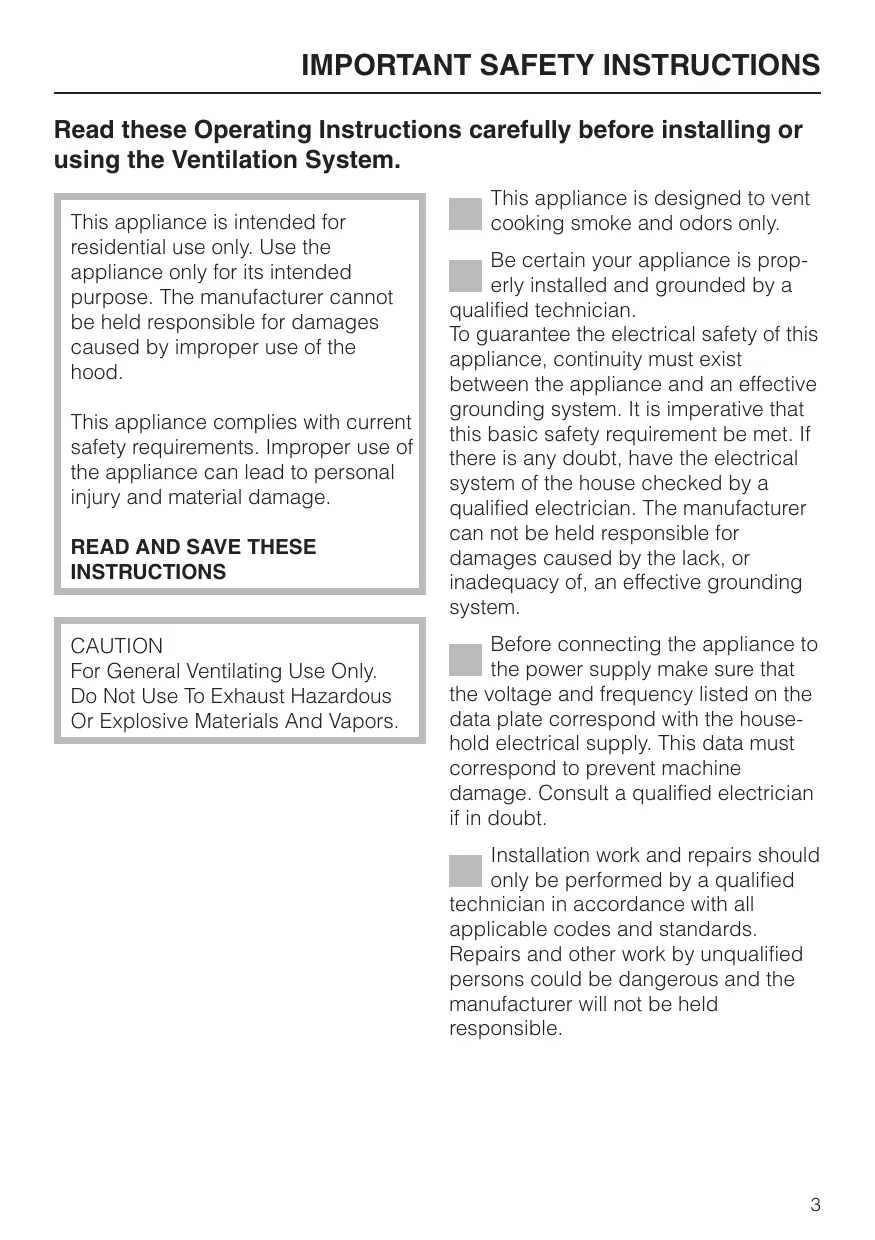

Read these Operating Instructions carefully before installing or using the Ventilation System.

This appliance is intended for residential use only. Use the appliance only for its intended purpose. The manufacturer cannot be held responsible for damages caused by improper use of the hood.

This appliance complies with current safety requirements. Improper use of the appliance can lead to personal injury and material damage.

READ AND SAVE THESE INSTRUCTIONS

CAUTION

For General Ventilating Use Only. Do Not Use To Exhaust Hazardous Or Explosive Materials And Vapors.

This appliance is designed to vent cooking smoke and odors only.

Be certain your appliance is properly installed and grounded by a qualified technician.

To guarantee the electrical safety of this appliance, continuity must exist between the appliance and an effective grounding system. It is imperative that this basic safety requirement be met. If there is any doubt, have the electrical system of the house checked by a qualified electrician. The manufacturer can not be held responsible for damages caused by the lack, or inadequacy of, an effective grounding system.

Before connecting the appliance to the power supply make sure that the voltage and frequency listed on the data plate correspond with the household electrical supply. This data must correspond to prevent machine damage. Consult a qualified electrician if in doubt.

Installation work and repairs should only be performed by a qualified technician in accordance with all applicable codes and standards. Repairs and other work by unqualified persons could be dangerous and the manufacturer will not be held responsible.

This equipment is not designed for maritime use or for use in mobile installations such as caravans or aircraft. However, under certain conditions it may be possible for an installation in these applications. Please contact the nearest Miele dealer or the Miele Technical Service Department with specific requirements.
Before servicing or cleaning the unit, switch power off at the service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means can not be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
Before discarding an old appliance, unplug it from the power supply and remove the power cord and any doors to prevent hazards.

Use

Do not allow children to play with or operate the appliance or its controls. Supervise its use by the elderly or infirm.
Be careful when preparing a flambe beneath the hood. Flames may be drawn up into the hood by the suction or grease filters may catch fire.
Never operate gas burners without pots.
Do not leave cooking surfaces unattended while in use. Overheated food, oil and grease can catch fire.
Do not use the hood without the grease filters in place.
Clean the grease filters regularly. Dirty filters are a fire hazard.
Do not use a steam cleaner to clean the hood. Steam could penetrate electrical components and cause a short circuit.
In areas subject to infestation by cockroaches or other pest, keep the appliance and its surroundings clean at all times. Any damage caused by cockroaches or other pest will not be covered under warranty.

WARNING - TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers may ignite. Heat oils slowly on low or medium settings.
Always turn hood "ON" when cooking at high heat or when cooking flaming foods.
Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
Use proper pan size. Always use cookware appropriate for the size of the surface element.

WARNING TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:

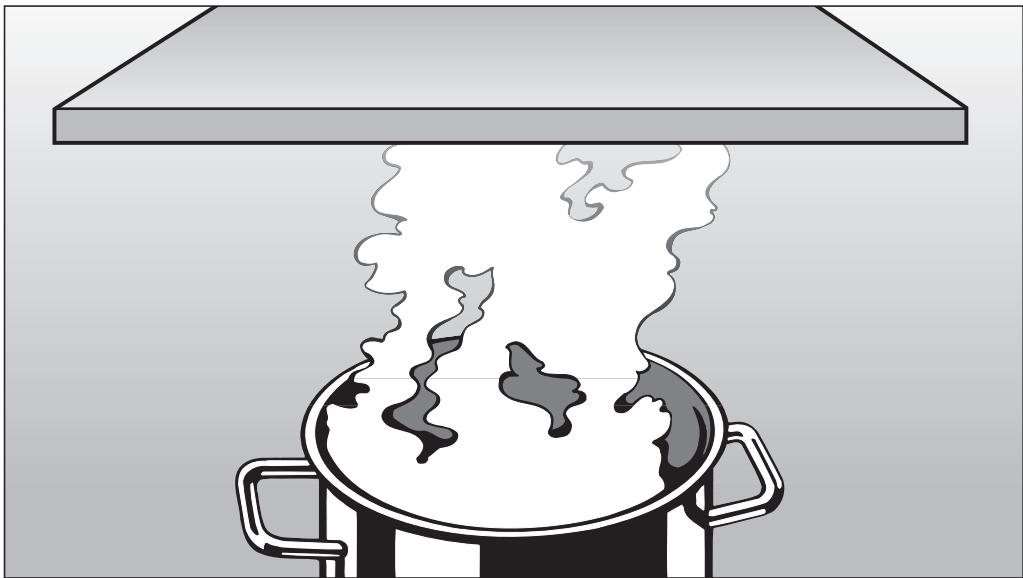

SMOTHER FLAMES with a close fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
NEVER PICK UP A FLAMING PAN - You may be burned.
DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result.

Use an extinguisher ONLY IF:

• You know you have a Class ABC extinguisher, and you already know how to operate it.
• The fire is small and contained in the area where it started.
• The fire department is being called.
• You can fight the fire with your back to an exit.

Installation

WARNING To reduce the risk of fire, use only metal ductwork.

When installing the hood, make sure that a minimum safety distances of 14^3 / 8 is maintained between a Miele cooktop and the bottom of the hood.

If local building codes require a greater safety distance, follow their requirement.

For non-Miele cooking appliances maintain the safety distances recommended by the cooktop manufacturer in their installation and operating instructions.

If there is more than one appliance beneath the hood and they have different minimum safety distances always select the greater distance.

Be careful not to damage hidden electrical wiring or plumbing when cutting or drilling into the wall or ceiling.
- Do not use an extension cord to connect the appliance to electricity. Extension cords do not guarantee the required safety of the appliance, (e.g. danger of overheating).
Do not install this hood over cooktops burning solid fuel.
Any fittings, sealant, or materials used to install the ductwork must be made of approved non-flammable materials.

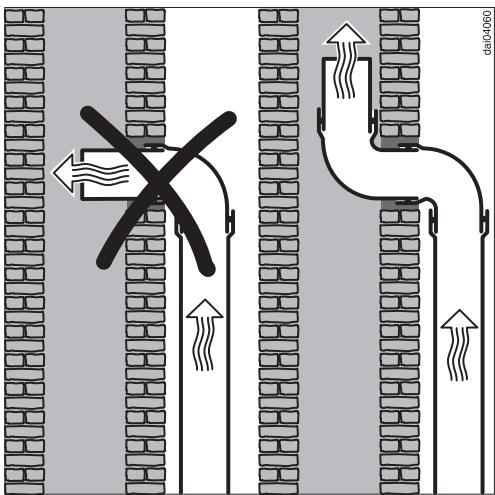

Never connect an exhaust hood to an active chimney, dryer vent, vent flue, or room ventilating ductwork. Seek professional advice before connecting an exhaust hood vent to an existing, inactive chimney or vent flue.
Ducted fans must always be vented outdoors.
Make sure that the airflow in the room is sufficient for combustion and exhausting of all non-electric heating appliances (water heaters, gas cooktops, gas ovens, etc.), otherwise backdrafts may occur. Follow the heating manufacturer's guidelines and safety standards or those published by the National Fire Protection Association (NFPA), or the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE). If in doubt, consult an experienced professional.

The ventilation hood works by air extraction. The air is drawn in through the air intake panel, cleaned by the grease filter and directed outside.

The hood comes equipped with a non-return flap. This flap automatically closes when the hood is turned off so that no exchange of outside air and room air can occur. When the hood is turned on, the air pressure of the exhaust fan automatically opens the flap blowing the inside air and cooking odors outside.

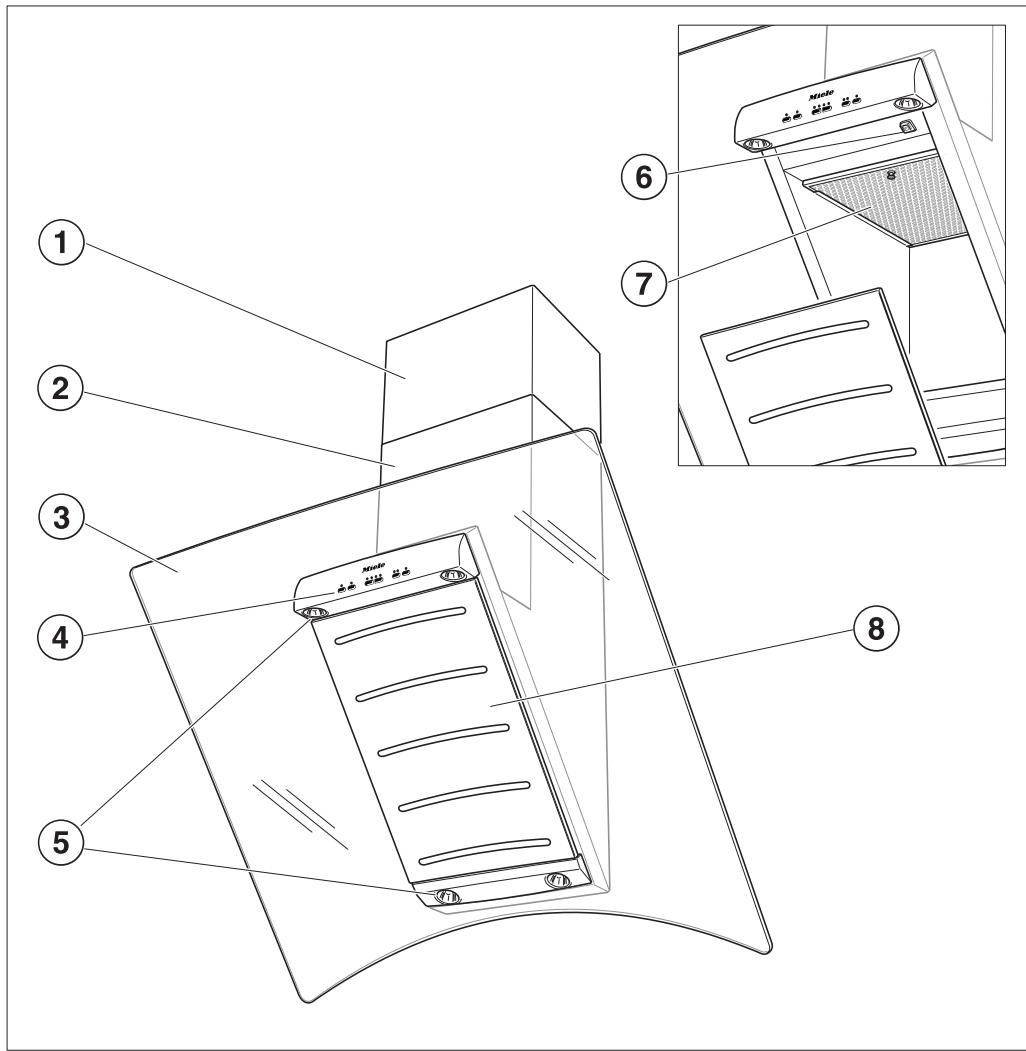

dai0953

① Chimney extension
② Chimney
③ Canopy
④ Control panel
Overhead lighting
(6) Main power switch
⑦ Grease filter
Air intake panel

Light button

This button turns the light on and off and also dims the light.

The lighting can be used independently of the fan.

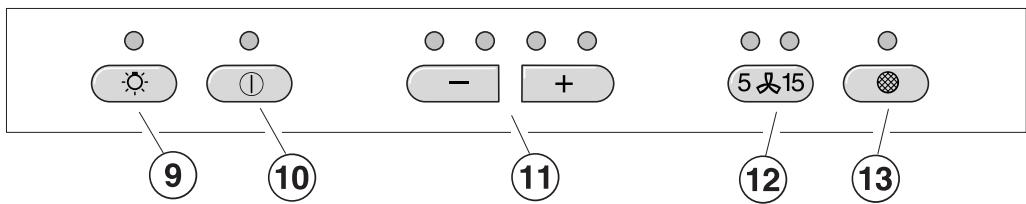

10 On/Off button
① Fan power selection

Four fan speed selection

12 Delayed shut down
This button activates the Delayed Shut Down feature. The fan can be set to turn off automatically after either 5 or 15 minutes.
Grease filter button

The indicator above the grease filter button lights when the grease filter and air intake panel need to be cleaned. This button is also used:

• to reset the grease filter timer after cleaning the grease filter and air intake panel (see "Cleaning and Care").
• to show how long the grease filter has been in use (see "Operation / Filter timers").
• to change the number of hours counted by the grease filter timer (see "Operation / Reprogramming the filter timers").

Main power switch

• Remove the air intake panel to access the main power switch (see "Cleaning and Care").
  Press the main power switch to "I". The fan and lighting are ready to use.

If the appliance is not going to be used for a long period of time (e.g. while vacationing) it should be turned off at the main power switch to "0".

The next time it is turned on, the hood will operate at the level previously used.

Turning on the fan

Press the On/Off button.

Selecting the power level

Use the -1 + controls to select the desired power level.

+ =increases the fan speed - decreases the fan speed

Level "1" to "3" (green indicators) are usually sufficient for normal cooking.

Intensive setting

Level "4" (yellow indicator) should be used for a short period when frying or cooking food with a strong aroma.

Fan performance

The maximum air flow capacity is 625 cfm. Factors such as narrow duct diameter and bends will affect this value.

• Level 1 operates at 40% capacity
• Level 2 operates at 60% capacity
• Level 3 operates at 80% capacity
• Level 4 operates at 100% capacity

Delayed Shut Down

If odors or smoke remain in the kitchen after cooking has been completed, the Delayed Shut Down feature can be selected to allow the hood to continue running for either 5 or 15 minutes.

Press the Delayed Shut Down button while the fan is still running.

Press once = 5 minute delay (left indicator lights)

Press twice = 15 minute delay (right indicator lights)

To cancel the Delayed Shut Down feature press the button again.

Turning off the fan

Press the On/Off button to turn the fan off.

The indicator goes out.

Automatic Safety Shut Off

The fan will turn off automatically 10 hours after the last button was activated. The lighting however will remain on.

Press the On/Off button to turn the fan back on again.

Turning the lighting on/off

The overhead lighting can be turned on and off independently of the fan.

Press the light button briefly to turn on the lighting.

The light button indicator illuminates.

Press the light button briefly again to turn off the lighting.

The light button indicator will go out.

Dimming the lighting

The brightness of the lighting can be adjusted.

• While the lighting is turned on, press the light button. The lighting will dim until the button is released.
  If the button is pressed again, the lighting will brighten until the button is released.

If the button is pressed continuously, the light will cycle between bright and dark.

Press the light button again to turn off the lighting.

Grease filter timer

A timer monitors the hours of fan operation. The indicator for the grease filter will light after 30 hours of operation. The grease filter and air intake panel must then be cleaned.

After the grease filter has been cleaned and put in place, the grease filter timer must be reset.

To do this, press the grease filter button for about 3 seconds.

The indicator will go out.

Checking the grease filter timer

To check the percentage of time already used:

Press the On/Off button to turn the fan on.

Press the grease filter button.

The number of flashing + + indicators show the percentage of programmed hours that have been used.

1 indicator = less than 25 %
2 indicators = less than 50 %
3 indicators = less than 75 %
4 indicators = less than 100 %

This information will remain stored in memory in the event of a power failure.

Reprogramming the grease filter timer

The grease filter timer is preset to 30 hours. This time can be lengthened or shortened to 20, 30, 40 or 50 hours.

• A time of 20 hours should be programmed in kitchens with frequent pan or deep frying.
• A time of 20 hours should also be programmed if the kitchen is only used occasionally to prevent grease which has accumulated over a long period of time from hardening on the filters making cleaning more difficult.

Press the On/Off button to turn off the fan.

Press the Delayed Shut Down and grease filter buttons at the same time.

The indicator for the grease filter and one of the -1 + indicators will flash.

The lit + indicator shows the programmed time:

1st indicator from the left = 20 hours

2nd indicator from the left = 30 hours

3rd indicator from the left = 40 hours

4th indicator from the left = 50 hours.

Use the = or + button to select the desired time.

Store the selection by pressing the grease filter button.

If the procedure is not stored within 4 minutes of programming, the hood will automatically default to the "old" data.

Grease filter and air intake panel

The reusable metal grease filter removes solid particles from the vented kitchen air (grease, dust, etc).

The grease filter and the air intake panel should be cleaned every 3 - 4 weeks or whenever the grease filter indicator lights.

Keep the grease filter clean to prevent a fire hazard.

Removing the air intake panel

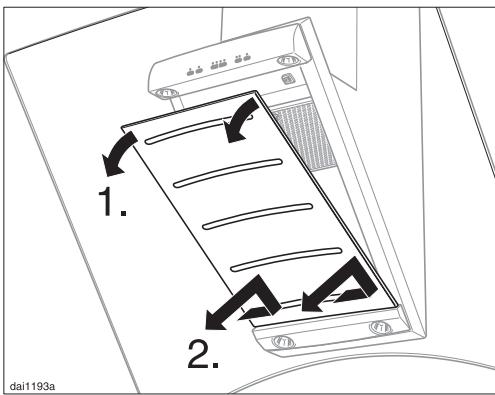

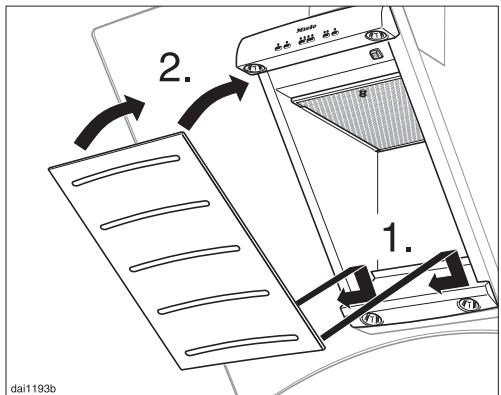

To remove the air intake panel gently pull out and downward, shifting the lower part a bit to the right. Lift it out of the latches.

Removing the grease filter

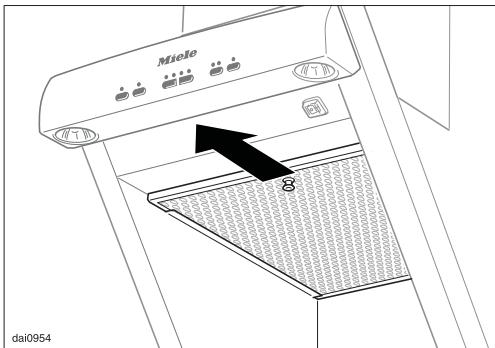

To remove the grease filter, pull on the lever.

Clean the filter

• by hand: use a scrub brush in warm water with a mild deterge
• in a dishwasher: place the filters in the lower basket, making sure that the spray arm is not blocked.

Depending on the detergent, cleaning the grease filter in a dishwasher may cause permanent discoloration of the filter surface. Performance of the filter will not be affected by this discoloration.

After cleaning, the filter can be placed on a towel to air dry.
Clean the air intake panel according to "Cleaning the casing".
While the filter and the air intake panel are removed, clean any dirt or grease from the interior casing to prevent the risk of fire.

Push the grease filter back in place.
- Hook the air intake panel on the latches and push a little to the left. Push it toward the unit so that it clicks in place.
After returning the grease filter, press the grease filter button for 3 seconds to reset the timer. The indicator light will go out.
If the grease filter and air intake panel are cleaned before the grease filter timer has reached its maximum, the grease filter button should be pressed for 6 seconds to reset the counter to zero.

Before cleaning or servicing the hood, disconnect it from the power supply by either removing the fuse, unplugging it from the outlet or manually "tripping" the circuit breaker.

Cleaning the casing

Never use abrasive cleaners, scouring pads, steel wool or caustic (oven) cleaners on the hood. They will damage the surface.

The air intake panel, exterior surfaces and controls can be cleaned with warm water and liquid dish soap applied with a soft sponge.
Wipe dry using a soft cloth.

Only use a slightly damp sponge when cleaning the controls. Water could penetrate into the electronics and cause damage.

Glass surfaces can be cleaned using glass cleaner.

Stainless steel

Stainless steel surfaces can be cleaned using a non-abrasive stainless steel cleaner.

To help prevent resoiling, a conditioner for stainless steel can also be used. Apply sparingly with even pressure.

Stainless steel colored controls

These controls may become discolored or damaged if not cleaned regularly. Do not use a stainless steel cleaner on these controls.

Changing the light bulbs

Before changing the light bulbs, disconnect the hood from the power supply by either removing the fuse, unplugging it, or manually "tripping" the circuit breaker.

When in use halogen bulbs become extremely hot, and they can burn your hands. Do not attempt to change the bulbs until they have had sufficient time to cool down.

Do not touch the bulb surface. Fingerprints or body oils deposited on the bulb will decrease the life of the bulb. Please follow the bulb manufacturer's instructions.

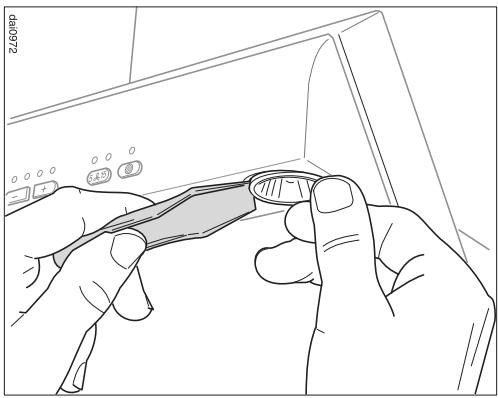

Pull the old bulb out of its socket using the enclosed lever. Replace it with a new one. Be careful not to drop the bulb on the cooktop.

Replacement bulbs may be ordered from Miele's Technical Service Department.

USA 1-800-999-1360

CDN 1-800-565-6435

In the event of a fault which you cannot correct yourself please contact:

• Your Miele Dealer

or

• The Miele Technical Service Department

USA 1-800-999-1360

When contacting the Technical Service Department, please quote the model and serial number of your appliance. These are shown on the data plate which is visible when the grease filter is removed.

Installation instructions

Table of contents

Caring for the environment 21
Installation accessories 22

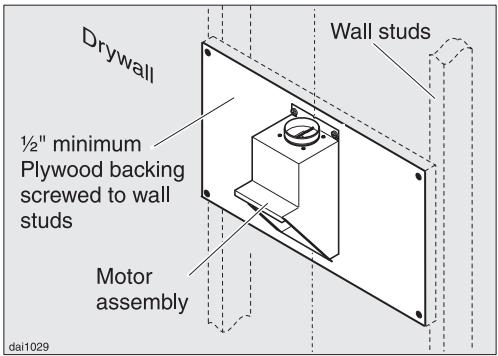

Plywood backing 24
Electrical data 25

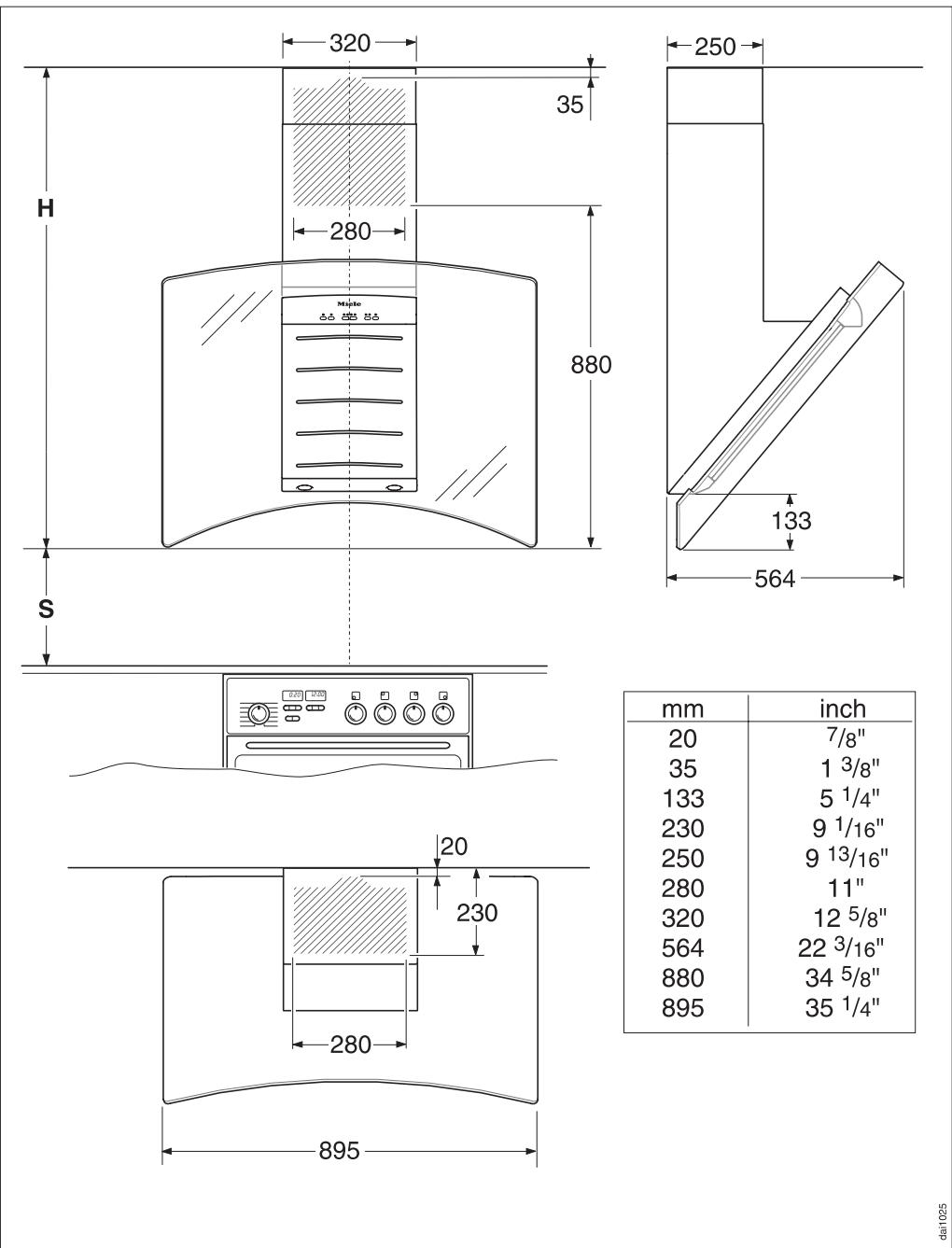

Appliance dimensions 26
Installation 28
Installation instruction 28

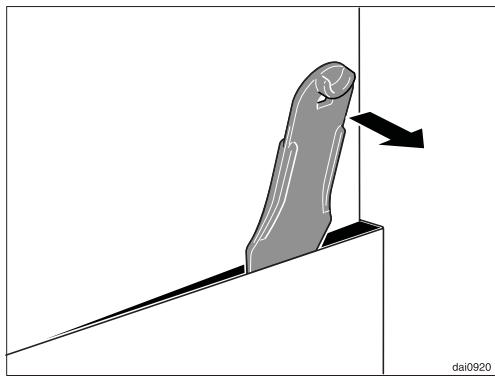

Dismantling 28
Air extraction 29
Condensate trap 30

Disposal of packing material

The cardboard box and packing materials protect the appliance during shipping. They have been designed to be biodegradable and recyclable. Please recycle.

Ensure that any plastic wrappings, bags etc. are disposed of safely and kept out of the reach of children. Danger of suffocation!

Disposal of an old appliance

Old appliances may contain materials that can be recycled. Please contact your local recycling authority about the possibility of recycling these materials.

Before discarding an old hood, unplug it from the outlet and cut off its power cord to prevent hazards.

① 3 protective shields
prevent scratches to the chimney during installation.
② Upper retaining plate secures the chimney extension.
③ Middle retaining plate for additional stability of the chimney.
④ 2 hose clips for securing the ducting.
⑤ 1 reducing collar

for use with 5'' (125 mm) exhaust ducting.
⑥ 1 non-return flap for vented air extraction only.

Caution: During the installation process, please be careful of sharp edges that can cause harm.

5 large headed screws 5 × 40 mm

for securing the retaining plates and the canopy.

(S8 wall anchors included in the packaging are not for use in USA / CDN.)

2 screws 5 × 60 ~mm for securing the chimney.

6 screws 3.5 × 9.5 ~mm for securing the canopy and filter housing

1 lever for dismantling the chimney and changing the light bulbs

Installation instruction sheet

The majority of the weight of the installed ventilation system will be supported by the lower retaining plate. It must be firmly attached to the stud framing behind the drywall. If studs are not available in the required locations, a plywood backing (min. 1/2 " (13 mm) thick) spanning at least two studs must be installed. Failure to adequately support the weight as stated may result in the ventilation system falling off the wall, causing personal injury and property damage.

(If plywood backing is not needed, proceed to the included installation sheet.)

To install a plywood backing

Determine and mark the location of the retaining plate for the canopy as outlined on the installation sheet.
Make a cutting line 3'' (76 mm) above and 3'' (76 mm) below the outline of the retaining plate.

Find the studs to the left and right of the mounting location by tapping the wall or using a stud finder.
■ Mark a vertical cutting line along the center of each stud.

Be careful not to damage any wiring or plumbing that may be located behind the wall. Make sure that the power supply to the area where this installation is being performed has been turned off at the breaker panel before cutting into the wall.

Remove the drywall between the cutting lines and replace it with plywood of a matching thickness (min. 1 / 2 " (13 mm) thick). Tape the joints and refinish the wall.
■ Proceed to the included installation sheet to complete the installation.

All electrical work should be performed by a qualified electrician in strict accordance with national and local safety regulations.

Installation, repairs and other work by unqualified persons could be dangerous. The manufacturer can not be held responsible for unauthorized work.

Ensure that power to the appliance is OFF while installation or repair work is performed.

Verify that the voltage, load and circuit rating information found on the data plate (located behind the grease filter), match the household electrical supply before installing the hood.

If there is any question concerning the electrical connection of this appliance to your power supply, please consult a licensed electrician or call Miele's Technical Service Department.

USA 1-800-999-1360

CDN 1-800-565-6435

WARNING:

THIS APPLIANCE MUST BE GROUNDED

Important

The hood comes equipped with a 5 ft (1.5 m) power cord with a NEMA 5-15 molded plug for connection to a 120 VAC, 60 Hz, 15 A power outlet.

Maximum load 390W

Light. 4 x 10 W

Voltage 120 V

Frequency 60 Hz

Circuit rating. 15 A

Cut out area in wall or ceiling for entrance of 6'' (150 mm)
ductwork or 5'' (125 mm)

ductwork with a reducing collar.

Standard unit height H =

37 13/16" - 51 15/16"

(960 - 1320 mm)

Distance S above the cooktop

Do not install this exhaust hood over cooktops burning solid fuel.

When installing the hood, make sure that the minimum safety distance

(S) between the top of a Miele cooktop and the bottom of the hood is at least 14^3 / 8 (365 mm).

For non-Miele cooking appliances maintain the safety distances recommended by the cooktop manufacturer in their installation and operating instructions.

If there is more than one appliance beneath the hood and they have different minimum safety distances always select the greater distance.

See "IMPORTANT SAFETY INSTRUCTIONS" for further information.

Read the entire installation procedure and determine height (S) before beginning the installation. Installations differ depending on the model and venting method. If the hood is fitted flush to the ceiling, the sum of S + H + Workspace should not exceed the room height.

Installation instruction

See the enclosed installation instruction sheet.

Please read the "Important Safety Instructions" and Installation instructions before installing this hood.

Protective film

The casing is covered by a protective film to prevent scratches during transport.

Peel off the film before installing the casing parts.

Dismantling

If the hood needs to be disassembled, follow the instructions on the installation sheet in reverse order.

A lever is enclosed for easier removal of the chimney extension.

After removing the screws from the chimney, slide the lever between chimney and chimney extension and gently apply pressure to ease the chimney from its hooks.

WARNING

Danger of toxic fumes.

Gas cooking appliances release carbon monoxide that can be harmful or fatal if inhaled.

The exhaust gases extracted by the hood should be vented outside of the building only.

Do not terminate the exhaust ducts in attics, garages, crawlspaces, etc.

To reduce the risk of fire, only use metal ductwork.

Please read and follow the

"IMPORTANT SAFETY

INSTRUCTIONS" to reduce the risk of personal injury. Follow all local building codes when installing the hood.

Exhaust ducting and connections

• The ducting should be as short and straight as possible, and the number of sharp bends should be minimized.
• For most efficient air extraction, the diameter of the ductwork should not be less than 6'' (150 mm). Use of flat ducts also reduces the air extraction efficiency.
• Noise levels of the hood will increase if flat ducts or round ducts of less than 6'' (150 mm) in diameter are used.
• Use smooth or flexible pipes made from approved non-flammable materials for exhaust ducting.
• Where the ductwork is horizontal, it must slope away from the hood at least 1 / 8 " per foot (1cm per meter) to prevent condensation dripping into the appliance.
• If the exhaust is ducted through an outside wall, a Miele Telescopic Wall Vent can be used.

• If the exhaust is ducted into an inactive flue, the air must be expelled parallel to the flow direction of the flue.

Never connect an exhaust hood to an active chimney, dryer vent, vent flue, or room venting ductwork. Seek professional advice before connecting an exhaust hood vent to an existing, inactive chimney or vent flue.

Condensate trap

Important:

If the ductwork runs through rooms, ceilings, garages, etc. where temperature variations exist, it may need to be insulated to reduce condensation. In some cases, a condensate trap may also be required to collect and evaporate any condensate which may occur.

When installing a condensate trap, ensure that it is positioned vertically and if possible directly above the exhaust outlet.

Miele, Inc. USA

National Headquarters

9 Independence Way

Princeton, NJ 08540

Phone: [phone]

609-419-9898

Fax: [phone]

www.mieleusa.com

Miele Limited CDN

National Headquarters

55G East Beaver Creek Road

Richmond Hill, ON L4B 1E5

Phone: [phone]

905-707-1171

Fax: [phone]

www.miele.ca

[e-mail] (general enquiries)

[e-mail] (tech.service)

Technical Service & Support

Nationwide

Phone: [phone]

Fax: [phone]

Mid-West Region

Phone: [phone]

Fax: [phone]

South-East Region

Phone: [phone]

Fax: [phone]

West-Coast Region

Phone: [phone]

Fax: [phone]

Technical Service & Support

Ontario Region

Phone: [phone]

Fax: [phone]

Quebec Region

Phone: [phone]

Fax: [phone]

British Columbia Region

Phone: [phone]

Fax: [phone]
