Product type	Canister vacuum cleaner
Brand	Polti
Model	Forzaspira CS 200
Suction power	200 W (motor 2000 W)
Container capacity	3.5 L
Filtration	Washable HEPA filter
Cord length	6 m
Operating radius	9 m
Noise level	78 dB(A)
Weight	6.2 kg
Dimensions (L x W x H)	400 x 280 x 320 mm
Power supply	Mains 220-240 V ~ 50-60 Hz
Power consumption	2000 W
Included accessories	Parquet nozzle, turbo brush, crevice tool, upholstery nozzle
Usage modes	Floors, carpets, upholstery, crevices
Filter maintenance	Wash with water every 3 months
Bag replacement	Disposable Class S bag (model 200)
Safety	Motor thermal fuse
Spare parts	Available on request
Warranty	2 years
General information	Made in Italy

Frequently Asked Questions - Forzaspira CS 200 POLTI

How to empty the bag of the Forzaspira CS 200 vacuum?

To empty the bag, open the front compartment by pressing the release button. Remove the disposable bag and replace it with a new one (Polti model 200). Close the lid making sure it clicks into place.

How to clean the HEPA filter?

The HEPA filter is washable. Remove it from the appliance and rinse it with lukewarm water. Let it dry completely (24 hours) before putting it back. Never use chemical products.

What to do if the vacuum loses power?

First check if the bag is full or the filter is clogged. Clean the filter and change the bag if necessary. Also check that there is no obstruction in the hose or brush.

Can I use the vacuum on parquet floors?

Yes, the Forzaspira CS 200 comes with a special parquet nozzle. Use it on hard floors to avoid scratches. You can also adjust the power if necessary.

The vacuum stops after a few minutes, why?

This may be due to overheating. The appliance has thermal protection. Let it cool down for 30 minutes then check that the filter and bag are not clogged.

How to change the vacuum bag?

Open the compartment, remove the full bag, insert a new bag (ref. Polti 200) pushing it all the way in, then close. Make sure to use original bags.

The cord no longer retracts automatically, what to do?

Gently pull the cord then press the rewind pedal. If the problem persists, check that the cord is not twisted or stuck. Gradual manual unwinding may help.

Where can I find spare parts?

Spare parts (filters, bags, brushes) are available from Polti customer service or on the official website. Use the model number Forzaspira CS 200.

The vacuum makes an abnormal noise, what to do?

Immediately stop the appliance. Check that no object is stuck in the brush or hose. If the noise persists, contact after-sales service.

What is the warranty of this vacuum?

The legal warranty is 2 years. Keep the purchase receipt. For covered breakdowns, contact the retailer or Polti customer service.

USER MANUAL Forzaspira CS 200 POLTI

Black-and-white photo of a Bolti vacuum cleaner with coiled tubing and attached air filter (no visible text or symbols)

REGISTER YOUR PRODUCT REGISTRA IL TUO PRODOTTO ENREGISTREZ VOTRE PRODUIT REGISTRA TU PRODUCTO GERÄTREGISTRIERUNG REGISTE O SEU PRODUTO

www.polti.com

POLTI

NATURAL HOME FEELING

FORZASPIRA CS200

NUMERO DI MATRICOLA (18 digit) SN

KEEP THESE INSTRUCTIONS

• Read these instructions carefully before using the appliance.
• Any use which does not comply with these instructions will invalidate the warranty.
• If this instruction manual is lost, it is possible to review it and/or download it from the web site www.polti.com
• Unpack the product and make sure it is intact as well as all the accessories listed in the key. If in doubt, do not use the product and contact an Authorized Service Centre.
• This appliance has been designed only for domestic use.
• This appliance can be used by children over 8 years old, by people with reduced physical, sensory or mental abilities or by inexperienced persons provided they are instructed in advance on its safe use and only if informed of the dangers inherent to the product.
  • Children must not play with the appliance.
• The cleaning and maintenance of the appliance may not be done by children without the supervision of an adult.
• In case the appliance is accidentally dropped, it is necessary to have it checked by an authorized Service Centre as the internal safety features may have been affected.
• Keep all the parts of the packaging out of the reach of children, they are not a toy. Keep the plastic bag out of the reach of children: danger of suffocation.

SAFETY WARNINGS:

Risk of electric shock and/or short circuit:

• The wiring system to which the appliance is connected must always comply with the laws in force.
• Before connecting the appliance, make sure that the mains voltage is the same as the voltage indicated on the data label of the appliance and that the power outlet is connected to earth.
• Always turn off the appliance at the on/off switch before unplugging it.

FORZASPIRA CS200

• If the appliance is left unused, always disconnect it from the mains. Never leave the appliance unattended with the cable plugged into the mains.
• Always make sure the appliance is unplugged before performing maintenance work of any kind.
• Do not pull the power cable out of the socket, but grasp the plug itself to avoid damage to the socket.
• Do not allow the power cable to be twisted, crushed, stretched, or come into contact with sharp or hot surfaces.
• Do not use the appliance if the power cable or other important parts of the appliance are damaged. Instead, contact an authorised service centre.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not use electric extension leads that are not authorized by the manufacturer, as they may cause damage or fire.
• Never touch the appliance with wet hands or feet with the cable plugged into the mains.
• Do not use the appliance when barefoot.
• Do not use the appliance near washbasins, bathtubs, showers or containers full of water.
• Never immerse the appliance, the cable or the plugs in water or another liquid.

SAFETY WARNINGS:

Risk of injuries and/or burns when using the appliance:

• Use of the appliance in places where there is a danger of explosions is prohibited.
• Do not use the product with toxic substances.
• In case of breakdown or malfunction switch off the appliance and never attempt to disassemble it, but refer to an authorized Polti Service Centre.
• This appliance is equipped with safety devices which are to be replaced only by a suitably qualified technician.
• Do not use if the appliance has been dropped and has visible signs of damage.

FORZASPIRA CS200

SAFETY WARNINGS:

using the appliance:

• Never leave the appliance exposed to the weather.
• Do not place the appliance near a live element, an electric stove or any other source of heat.
• Do not expose the appliance to temperatures under 0^irc C or over 40^irc C
• Press the buttons only with a finger, without excessive force and avoid using a pointed object such as a pen.
• Do not wind the power cable around the appliance, especially when the appliance is still hot.
• To avoid prejudicing the safety of the appliance when repairing or replacing accessories, use only original spare parts.
• It is necessary to keep the unit in horizontal position during operation.
• Always rest the appliance on a stable surface.
• Do not vacuum up liquids
• Do not use the appliance to suck up acids or solvents, as these might cause serious damage to the appliance and above all do not suck in explosive dust or liquids, as these could cause explosions on coming into contact with the inside components of the appliance.
• Do not vacuum up toxic substances.
• Do not suck up burning or incandescent objects such as embers, ash or other material in which combustion is taking place.

FORZASPIRA CS200

Read these instructions carefully before using the appliance.

Congratulations on your purchase and welcome to the Polti world of cleaning.

We know how important it is to be able to depend on a reliable appliance for every day cleaning, that is why your vacuum cleaner has been designed to let you experience efficient as well as quick, fast cleaning. Powerful suction, easy and intuitive use and a wealth of accessories make your vacuum cleaner the ideal assistant.

Please also visit our website www.polti.com, where you can find all the information and advice necessary to better use the product, and where you can register your newly purchased product to receive exclusive benefits.

KEY

1) Carrying handle
2) Suction opening connection
3) Button to open accessory holder lid
4) Accessory holder lid
5) Bag full indicator
6) Suction control
7) ON/OFF switch
8) Filter grill
9) Parking housing
10) Cable-winder button
11) Power-supply cable
12) Dust-collection-bag release button

ACCESSORIES

A) Flexible hose
A1) Flexible hose handle
A2) Manual suction regulator
A3) Hose-attach button
B) Telescopic tube
B1) Telescopic tube-adjustment button
C) Universal brush
C1) Hook for parking
C2) Brush selector rugs/floors
D) Lance
E) Bristle nozzle
F) Dust-collection bag

CE This unit conforms with EC-directives 2004/108/CE (EMC) and 2006/95/CE (low voltage).

Polti S.p.A. reserves the right to change equipment or accessory specification without prior notice.

CORRECT USE OF THE PRODUCT

This appliance is intended for home use for vacuuming solids as described and in accordance with the instructions provided in this manual. Please read these instructions carefully and keep them, as you may find them useful in future.

Polti declines liability for any damage or accident derived from any use of this appliance which does not comply with the instructions contained in this booklet.

ATTENTION

Directive 2011/65/UE (Waste Electrical and Electronic Equipment - WEEE): information for users This product complies with EU Directive 2011/65/UE.

The crossed-out wastebasket symbol on the appliance means that at the end of its useful lifespan, the product must be disposed of separately from ordinary household wastes.

The user is responsible for delivering the appliance to an appropriate collection facility at the end of its useful lifespan.

Appropriate separate collection to permit recycling, treatment and environmentally compatible disposal helps prevent negative impact on the environment and human health and promotes recycling of the materials making up the product. For more information on available collection facilities, contact your local waste collection service or the shop where you bought this appliance.

PREPARATION/USE

• Remove the appliance from the packaging, checking that the product is whole and that all the parts are there.
  ♦ Insert the suction opening (A3) of the flexible hose (A) into the connection (2), and turn it clockwise (Fig. 1). To remove it from the appliance, turn the suction opening of the flexible hose (A) anti-clockwise (Fig. 2) and pull it out.
  ◆ Unwind the power supply cable (11) and insert the plug into a suitable power socket.
  ◆ Press the ON/OFF switch (7) (Fig. 3) to start suction.
  To adjust suction, turn the knob (6) to the desired position (Fig. 4). We suggest minimum level for curtains, medium-low for filled furniture and high for floors and hard surfaces (ceramic, marble etc.).

With the manual suction regulator (A2) it is possible to intervene promptly in case of accidental suction (i.e. curtains), reducing the suction power. Move the regulator to uncover the hole located on the handle, thus reducing suction (Fig. 5).

◆ To end suction, press the ON/OFF switch again (7).

ACCESSORIES HOLDER

The lance (D) and the bristle nozzle (F) are kept in the accessory holder. To access it, press the button (3) and lift the lid (4) (Fig. 6).

USING ACCESSORIES

Accessories may be connected directly to the hose (A) or to the telescopic tube (B) (Fig. 7-8).

Using the telescopic tube (B)

The length of the telescopic tube can be adjusted by pressing the button (B1) in the direction of the arrow.

Using the universal brush (C)

Connect the brush to the telescopic tube (B).

To vacuum hard floors, use the switch (C2) to select the bristles-extended position.

To vacuum rugs and carpeting use the switch (C2) to select the no-bristles position.

Lance (D)

This lance is suitable for thorough cleaning of the more difficult-to-reach places, like skirting-boards, sofa gaps, armchairs, upholstered furniture, car seats.

Bristle nozzle (F)

The small nozzle is recommended for removing dust from upholstered surfaces such as the joints of sofas, armchairs, mattresses, car upholstery, etc.

AUTOMATIC CABLE WINDER

Before starting the automatic cable rewind, using the button (10), make sure that the power plug is disconnected from the mains. We recommend guiding the cable during this operation.

PUTTING THE APPLIANCE AWAY

It is possible to replace the appliance by resting the brush (G) with the tube (B) in the parking housing (9) (Fig. 10-11).

CARE OF YOUR APPLIANCE

• Before attempting any maintenance operation, always disconnect the appliance from the mains.
• To clean the body of the appliance, simply use a moist cloth. Do not use solvents or detergents which may harm the body material.

DUST COLLECTION BAG BAG REPLACEMENT

When the dust-collection bag (F) is full, the indicator (5) will turn red (Fig. 12).

Note: The indicator (5) does not work with the suction control (6) set on minimum.

The fill level of the bag must be checked with the suction control (6) at maximum suction power.

♦ Turn the appliance off and disconnect it.
◆ Press the button (12) and lift the lid (4) (Fig. 13 - 14).
◆ Pull out the full dust-collection bag (Fig. 15) and throw it away.
◆ Insert a new dust-collection bag, reversing the process (Fig. 16).
◆ Close the lid again.

Note: If the dust-collection bag is not inserted, the lid will not close.

Note:

The dust-collection bags can be purchased at all major household-appliance shops or online at www.polti.com.

MOTOR AIR-FILTER CLEANING

♦ Turn the appliance off and disconnect it.
♦ Press the button (12) and lift the lid (4).
♦ Pull out the dust-collection bag.
♦ Pull the motor filter out as shown in the figure (17 - 18).
◆ After having washed it with water, dry thoroughly. If the filter is torn, replace it.
♦ Replace everything repeating the steps above in reverse.

REMOVING AND CLEANING THE HEPA FILTER

♦ Lift the filter grill (8) and remove the filter (Fig. 12).
◆ Rinse the filter under cold running water.
◆ After washing, shake it gently to remove any residual dirt and excess water.

ATTENTION

Do not dry the filter using heat. Wait 24 hours before replacing the filters in the appliance.
♦ Replace torn filters.
◆ The filters should be cleaned every 4 months.
♦ Do not clean the filters with tools which could damage them.
♦ Do not use detergents, do not rub the filter, and do not wash it in a dishwasher.

TROUBLESHOOTING

PROBLEM CAUSE	SOLUTION
The vacuum cleaner does not turn on	Power supply cable (11) not insertedON/OFF switch (7) is turned off	Connect the power supply cable (11) to a suitable electric socket.Turn on the ON/OFF switch (7).
The vacuum has little or no suction	Flexible hose / telescopic tube clogged.Dust-collection bag (7) over full.Check that suction control is not at the minimum level.There is no dust-collection bag.The container lid is not completely closed.	Clean the tubes.Replace the dust-collection bag (7).Increase the suction level.Insert the dust-collection bag.Close the lid properly.

WARRANTY

WARRANTY CONDITIONS

For repairs, the appliance must be accompanied by proof of purchase.

Polti products are guaranteed to the original purchaser for two years from the date of purchase as shown on a valid receipt issued by the seller.

This guarantee does not affect the consumer's rights under European Directive 99/44/CE regarding certain aspects of the sale and guarantee of consumer goods; consumers should address claims under these provisions to the retailer where they purchased the goods.

This guarantee is effective in countries where European Directive 99/44/CE has been implemented. Local guarantee legislation applies in all other countries.

WHAT THE WARRANTY COVERS

During the guarantee period, Polti will repair products with defects in workmanship or materials at no charge to the customer for either labour or materials.

In case of irreparable defects, Polti S.p.A. may replace the product free of charge.

A minor patent defect for which it was not possible, or is excessively expensive, to repair or replace does not give the right to terminate the contract.

To have work performed under this guarantee, consumers must contact an Authorised Polti Technical Assistance Centre. The consumer must present a valid receipt issued by the seller at the time of purchase as evidence of the date of purchase; without proof of purchase and the relative date, the work will be charged. Therefore, please store your receipt carefully for the entire warranty period.

WHAT THE WARRANTY DOES NOT COVER

The warranty is subject to limitations and does not cover defects due to improper use or use other than that indicated in the instruction booklet which forms an integral part of the sales contract of the product. The warranty does not cover defects resulting from force majeure (fires, short circuits) or caused by third parties (tampering). The warranty does not cover damages caused by the use of non-original Polti parts, repairs or alterations performed by staff or service centres not authorised by Polti.

The guarantee does not cover parts that are damaged by wear or subject to normal wear (consumables such as filters, brushes, etc.). The guarantee doesn't cover any possible damage caused by li-mescale. Polti will accept no responsibility for any injury to people or animals or damage to objects directly or indirectly resulting from failure to follow the instructions provided in the instruction booklet, in particular the warnings and product maintenance instructions.

The warranty does not cover the assembly of accessories that have been modified or are not adapted to the appliance.

FORZASPIRA CS200

REGISTER YOUR PRODUCT

Register your appliance on our website at www.polti.com.

You will receive an email containing a promotional code and the instructions for taking advantage of the current offers.

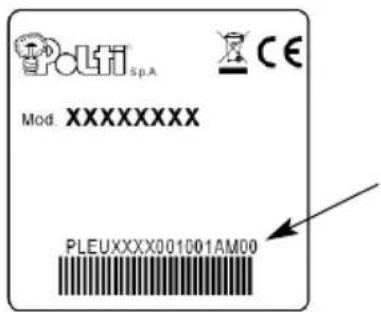

To register your Polti product, you must enter, in addition to your personal information, the appliance serial number (SN) which you will find on the silver label, located under the product:

Example:

SERIAL NUMBER

(18 digit) SN

To save time and keep your serial number to hand, write it in the space provided on the back cover of this manual.

CONSERVER CES INSTRUCTIONS

NUMERO DE SERIE (18 chiffres) SN

USO CORRECTO DEL PRODUCTO

NÚMERO DE SÉRIE

(18 dígitos) SN

3D illustration of an open box with an @ symbol inside, symbolizing email or online access (no text or symbols present)

SN:

REGISTER YOUR PRODUCT REGISTRA IL TUO PRODOTTO ENREGISTREZ VOTRE PRODUIT REGISTRA TU PRODUCTO GERÄTREGISTRIERUNG REGISTE O SEU PRODUTO

www.polti.com

YOU WILL ENJOY SPECIAL OFFERS POTRAI USUFRUIRE DI OFFERTE SPECIALI VOUS POURREZ BÉNÉFICIER D'OFFRES EXCLUSIVES PODRÁ DISFRUTAR DE OFERTAS ESPECIALES SIE KÖNNEN DIE SONDERANGEBOTE NUTZEN VOCÊ APRECIARÁ AS NOSSAS OFERTAS ESPECIAIS

CALL CENTER

22070 -Bulgarograsso (CO) - Italy
