Product Type	Refrigerator with Freezer
Brand	Beko
Model	GN163220S
Power Supply	220-240 V ~ 50 Hz, 10-16 A fuse
Refrigerant	R600a (flammable)
Freezer Compartment	Yes, with temperature range -18°C to -24°C
Cooler Compartment	Yes, temperature range 1°C to 8°C
Water Dispenser	Yes, with water tank and optional filter
Ice Maker	Yes, icematic and ice storage box with crushed/cube options
Rapid Cooling	Yes, activates for 1 hour
Rapid Freezing	Yes, activates for 24 hours
Vacation Function	Yes, disables cooling in cooler compartment
Eco-Fuzzy / AutoEco	Yes, energy-saving modes
Humidity-Controlled Crisper	Yes (FreSHelf)
HarvestFresh / Blue Light	Yes, preserves vitamins in fruits and vegetables
Ionizer	Yes, eliminates bacteria and odours

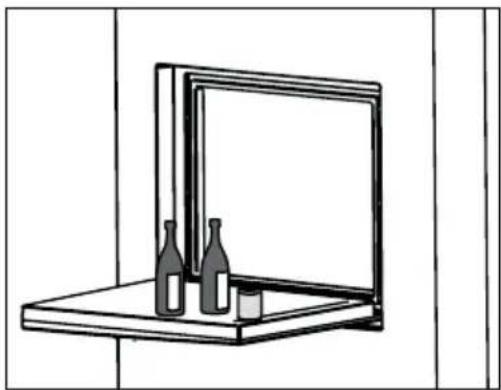

Minibar	Yes, access without opening main door
Odour Filter	Yes, reduces unwanted smells
Zero Degree Compartment	Yes, for deli and meat
Door Open Alert	Yes, audible after 1 minute
Interior Lighting	LED lamp (service replacement required)
Adjustable Feet	Yes, front stands
Compliance	WEEE, RoHS
Spare Parts Availability	Original spare parts for 10 years after purchase

Frequently Asked Questions - GN163220S BEKO

How to activate rapid cooling?

Press the Rapid Cool button on the indicator panel. The rapid cool indicator will light up and the cooler compartment temperature will be set to 1°C. The function cancels automatically after 1 hour.

What is the vacation function?

Press and hold the Vacation button for 3 seconds. The cooler compartment stops cooling (display shows '- -'), while other compartments maintain their set temperatures. Use this when the refrigerator is not used for extended periods. Press the button again to cancel.

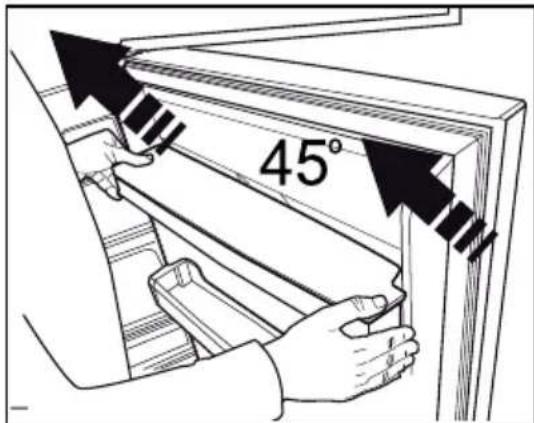

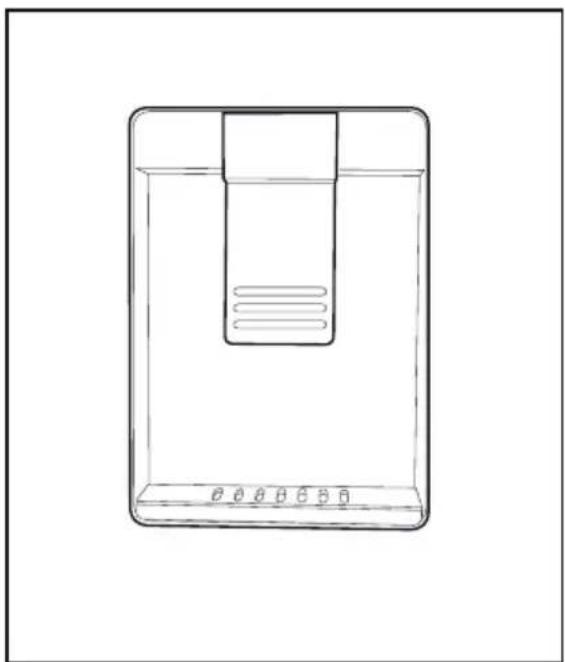

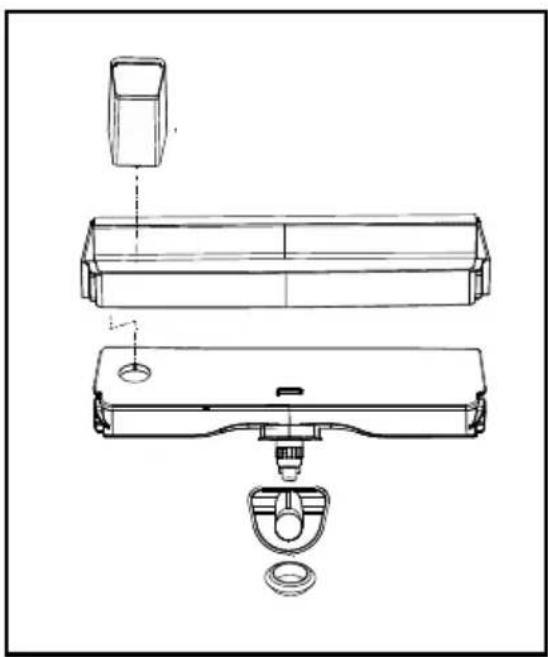

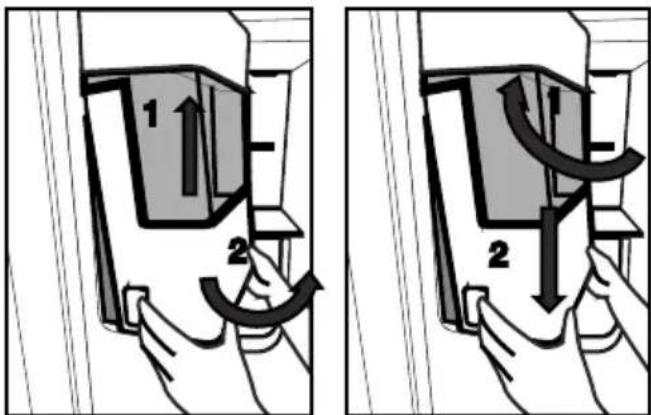

How to clean the water tank?

Remove the water tank from the door shelf by holding both sides and lifting at a 45° angle. Detach and clean the lid. Do not wash in a dishwasher. Fill only with clean drinking water.

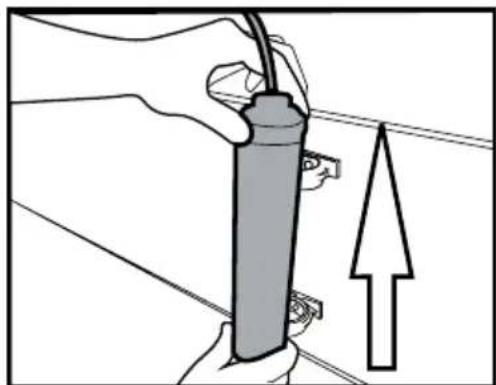

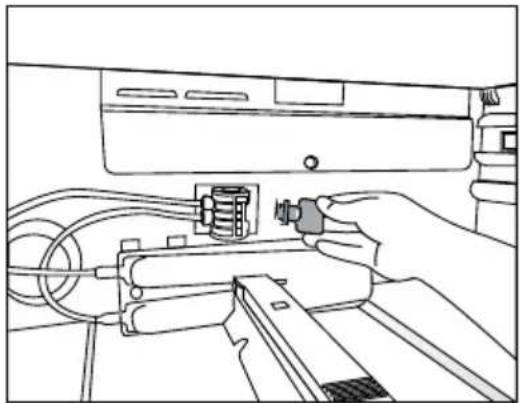

How to install the water filter?

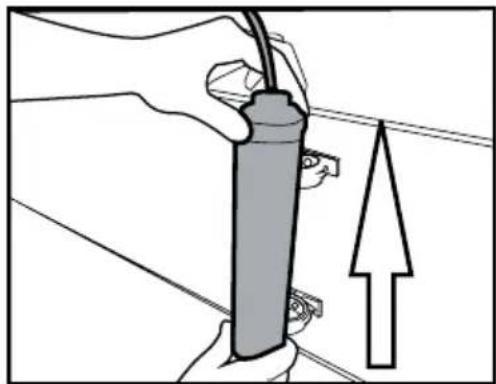

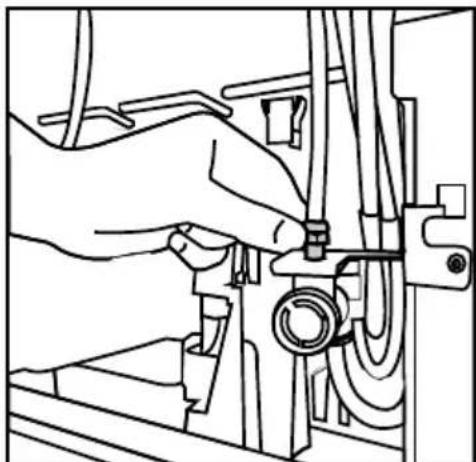

For internal filter: remove the vegetable bin, pull the filter bypass cover, insert the filter until it clicks. For external filter: fix the filter bracket on the wall, attach the filter, and connect the water hose. After installation, discard the first 10 glasses of water.

What does the error status indicator mean?

If the refrigerator is not cooling adequately or a sensor fails, the error indicator lights up. The freezer display shows 'E' and the cooler display shows a number (1, 2, 3...). Contact authorized service with the code.

How to adjust the temperature?

Use the Compartment Selection button to choose cooler or freezer, then press the Temperature Adjustment button. Cooler: 1°C to 8°C. Freezer: -18°C to -24°C. Press repeatedly to cycle.

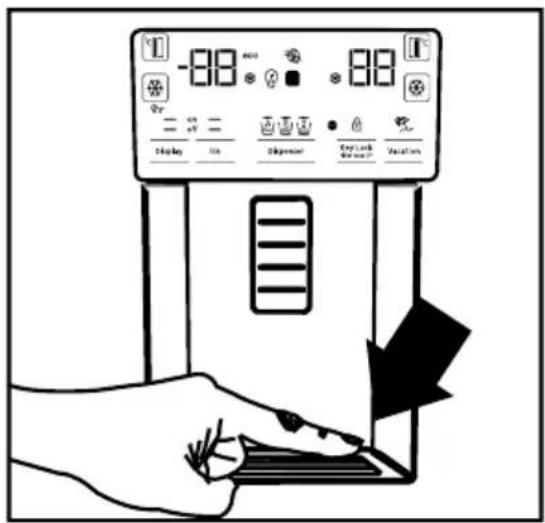

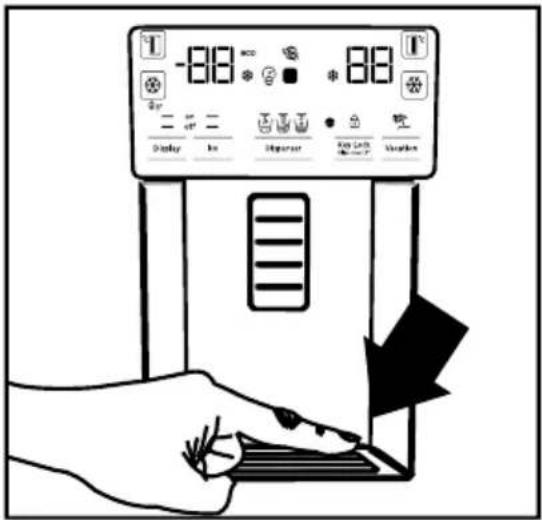

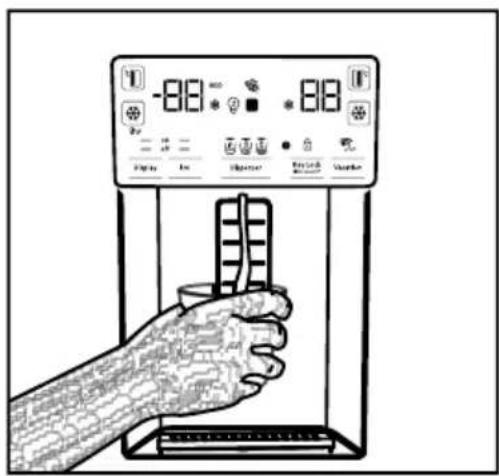

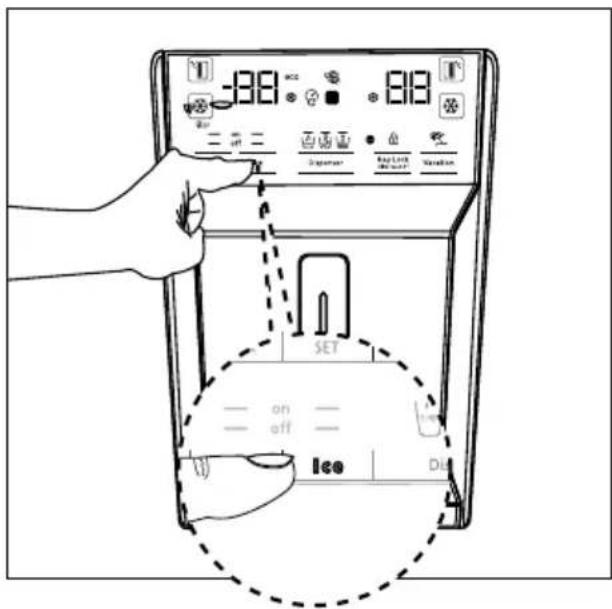

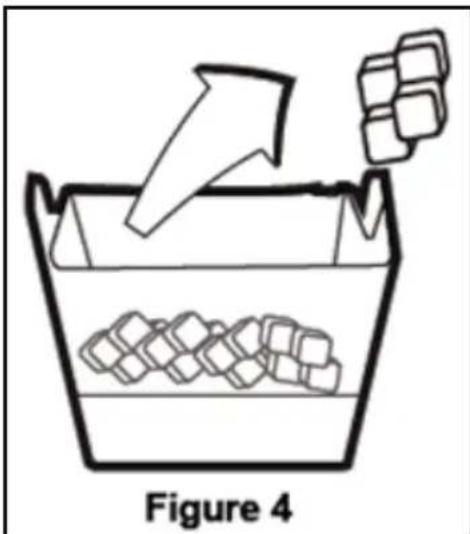

How to use the ice maker?

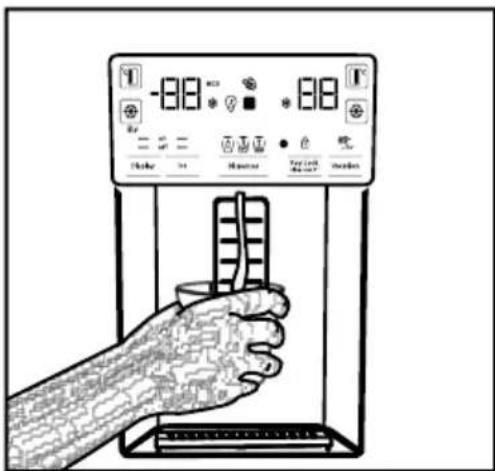

Select ice type (cube or crushed) on the display. Push the trigger on the water fountain. Wait about 12 hours after first installation for ice production. If ice chunks form, remove the ice stock reservoir and break apart the chunks.

How to save energy?

Keep doors closed, do not place hot food inside, avoid overfilling, and use the Eco-Fuzzy or AutoEco functions. The default freezer setting of -18°C is the most economical. The display may turn off automatically (Energy Saving function).

How to replace the odour filter?

The odour filter is located in the cooler compartment air duct. It does not require replacement; simply clean it periodically with a soft brush or vacuum according to the manual. If it becomes saturated, contact authorized service.

What to do if the door does not close?

Check if food packages are blocking the door. Ensure the refrigerator is level – adjust the front stands. Verify that the door gaskets are clean and not damaged. If the problem persists, contact authorized service.

USER MANUAL GN163220S BEKO

GN163220S

Please read this manual before using the product!

Dear Customer,

We would like you to make the best use of our product, which has been manufactured in modern facilities with care and meticulous quality controls.

Thus, we advise you to read the entire user manual before you use the product. In case the product changes hands, do not forget to hand the guide to its new owner along with the product.

This guide will help you use the product quickly and safely.

• Please read the user guide carefully before installing and operating the product. • Always observe the applicable safety instructions.
• Keep the user guide within easy reach for future use.
• Please read any other documents provided with the product.

Keep in mind that this user guide may apply to several product models. The guide clearly indicates any variations of different models.

	Important information and useful tips.
	Risk of life and property.
	Risk of electric shock.
	The product's packaging is made of recyclable materials, in accordance with the National Environment Legislation.

Table of Contents

1. Safety and environment instructions 3

1.1. General safety....3 1.1.1 HC warning 4 1.1.2 For models with water dispenser ..... 4 1.2. Intended use....5 1.3. Child safety....5 1.4. Compliance with WEEE Directive and Disposing of the Waste Product ..... 5 1.5. Compliance with RoHS Directive ..... 5 1.6. Package information ..... 5

2 Refrigerator 6

2 Refrigerator 7

3 Installation 8

3.1. Right place for installation ..... 8 3.2. Attaching the plastic wedges ..... 8 3.3. Adjusting the stands ..... 9 3.4. Power connection ..... 9 3.5. Water connection ..... 10 3.6. Connecting water hose to the product ..... 11 3.7. Connecting to water mains ..... 11 3.8. For products using water carboy ..... 12 3.9. Water filter 12 3.9.1. Fixing external filter on the wall (Optional) 13 3.9.2. Internal filter 14

4 Preparation 16

4.1. What to do for energy saving ..... 16 4.2. First Use 16

5 Using the product 17

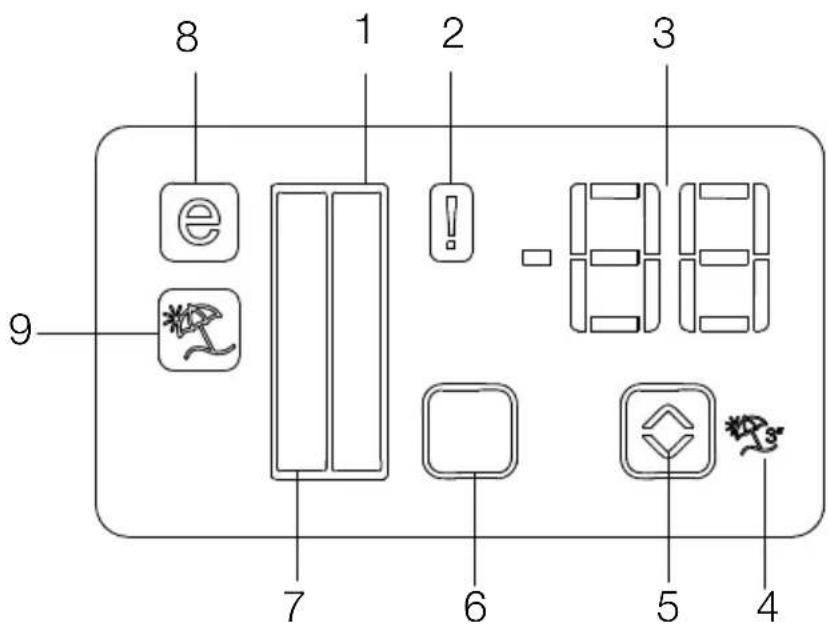

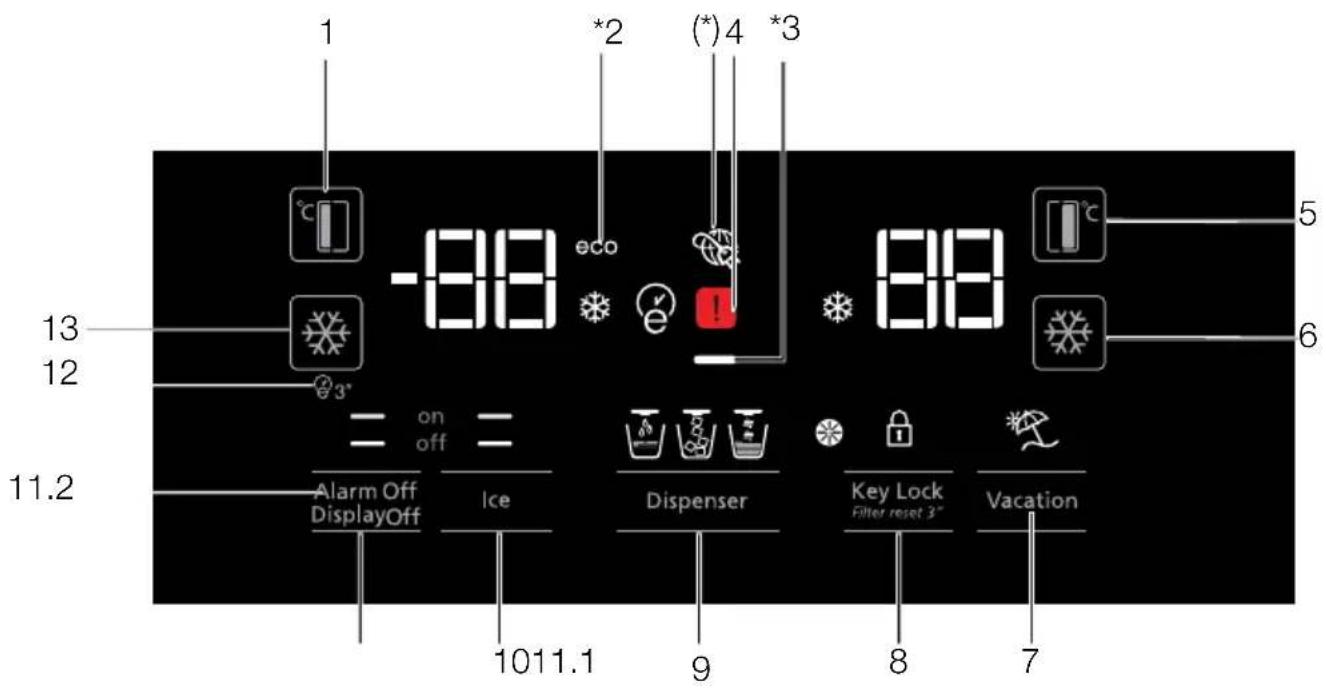

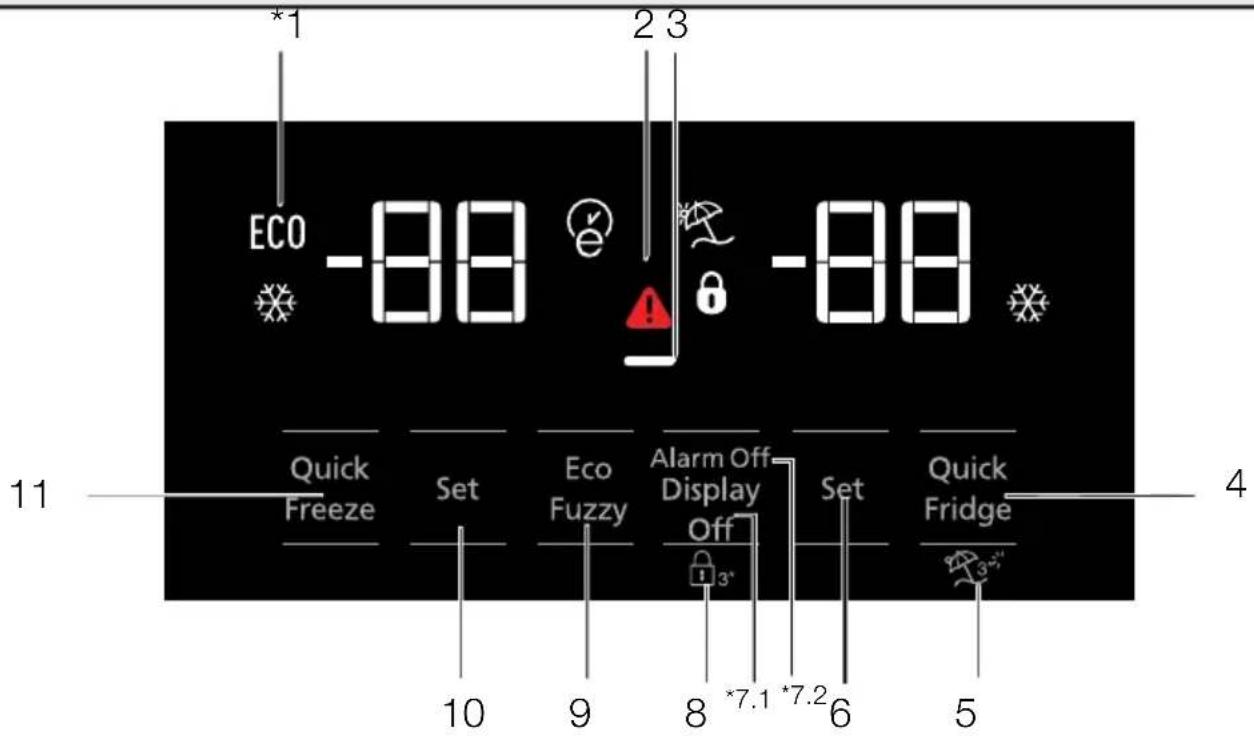

5.1. Indicator panel 17 5.2. Activating water filter change warning ..... 25 5.3. Humidity controlled crisper ..... 27 5.4. Using the water fountain ..... 27 5.5. Filling the fountain water tank ..... 27 5.6. Cleaning the water tank. 28 5.7. Taking ice / water ..... 29 5.8. Drip tray 29 5.9. Zero degree compartment....30 5.10. Vegetable bin 30 5.11. Blue light/HarvestFresh ..... 30 5.12. lonizer 30 5.13. Minibar 30 5.14. Odour filter 30 5.15. Icematic and ice storage box ..... 31 5.16. Ice-maker ..... 31 5.17. Freezing fresh food 33 5.18. Recommendations for storing frozen foods 33 5.19. Deep freezer details ..... 33 5.20. Placing the food. 34 5.21. Door open alert .... 34 5.22. Interior light 34

6 Maintenance and cleaning 35

6.1 Avoiding bad odours 35 6.2 Protecting the plastic surfaces ..... 35

7. Troubleshooting 36

1. Safety and environment instructions

This section provides the safety instructions necessary to prevent the risk of injury and material damage. Failure to observe these instructions will invalidate all types of product warranty.

Intended use

	WARNING:Keep ventilation openings, in the appliance enclosure or in the built-instructure, clear of obstruction.
	WARNING:Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
	WARNING:Do not damage the refrigerant circuit.
	WARNING:Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

This appliance is intended to be used in household and similar applications such as – staff kitchen areas in shops, offices and other working environments; – farm houses and by clients in hotels, motels and other residential type environments; – bed and breakfast type environments; – catering and similar non-retail applications.

1.1. General safety

- This product should not be used by persons with physical, sensory and mental disabilities, without sufficient

The device can only be used by such persons under supervision and instruction of a person responsible for their safety. Children should not be allowed to play with this device.

• In case of malfunction, unplug the device.
• After unplugging, wait at least 5 minutes before plugging in again. Unplug the product when not in use.
• Do not touch the plug with wet hands! Do not pull the cable to unplug, always hold the plug.
• Do not plug in the refrigerator if the socket is loose.
• Unplug the product during installation, maintenance, cleaning, and repair.
• If the product will not be used for a while, unplug the product and remove any food inside.
• Do not use the product when the compartment with circuit cards located on the upper back part of the product (electrical card box cover) (1) is open.

• Do not use steam or steamed cleaning materials for cleaning the refrigerator and melting the ice inside. Steam may contact the electrified areas and cause short circuit or electric shock!
• Do not wash the product by spraying or pouring water on it! Danger of electric shock!

Safety and environment instructions

• In case of malfunction, do not use the product, as it may cause electric shock. Contact the authorized service before doing anything.
• Plug the product into an earthed socket. Earthing must be done by a qualified electrician.
• If the product has LED type lighting, contact the authorized service for replacing or in case of any problem.
• Do not touch frozen food with wet hands! It may adhere to your hands!
• Do not place liquids in bottles and cans into the freezer compartment. They may explode.
• Place liquids in upright position after tightly closing the lid.
• Do not spray flammable substances near the product, as it may burn or explode.
• Do not keep flammable materials and products with flammable gas (sprays, etc.) in the refrigerator.
• Do not place containers holding liquids on top of the product. Splashing water on an electrified part may cause electric shock and risk of fire.
• Exposing the product to rain, snow, sunlight and wind will cause electrical danger. When relocating the product, do not pull by holding the door handle. The handle may come off.
• Take care to avoid trapping any part of your hands or body in any of the moving parts inside the product.
• Do not step or lean on the door, drawers and similar parts of the refrigerator. This will cause the product to fall down and cause damage to the parts. • Take care not to trap the power cable.

1.1.1 HC warning

If the product comprises a cooling system using R600a gas, take care to avoid damaging the cooling system and its pipe while using and moving the product. This gas is flammable. If the cooling system is damaged, keep the product away from sources of fire and ventilate the room immediately.

The label on the inner left side indicates the type of gas used in the product.

1.1.2 For models with water dispenser

• Pressure for cold water inlet shall be maximum 90 psi (6.2 bar). If your water pressure exceeds 80 psi (5.5 bar), use a pressure limiting valve in your mains system. If you do not know how to check your water pressure, ask for the help of a professional plumber.
• If there is risk of water hammer effect in your installation, always use a water hammer prevention equipment in your installation. Consult Professional plumbers if you are not sure that there is no water hammer effect in your installation.
• Do not install on the hot water inlet. Take precautions against of the risk of freezing of the hoses. Water temperature operating interval shall be 33°F (0.6°C) minimum and 100°F (38°C) maximum. • Use drinking water only.

Safety and environment instructions

1.2. Intended use

• This product is designed for home use. It is not intended for commercial use.
• The product should be used to store food and beverages only.
• Do not keep sensitive products requiring controlled temperatures (vaccines, heat sensitive medication, medical supplies, etc.) in the refrigerator.
• The manufacturer assumes no responsibility for any damage due to misuse or mishandling.
• Original spare parts will be provided for 10 years, following the product purchasing date.

1.3. Child safety

• Keep packaging materials out of children's reach.
• Do not allow the children to play with the product.
• If the product's door comprises a lock, keep the key out of children's reach.

1.4. Compliance with WEEE Directive and Disposing of the Waste Product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection

center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

1.5. Compliance with RoHS Directive

- This product complies with EU WEEE Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.6. Package information

- Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2

Refrigerator

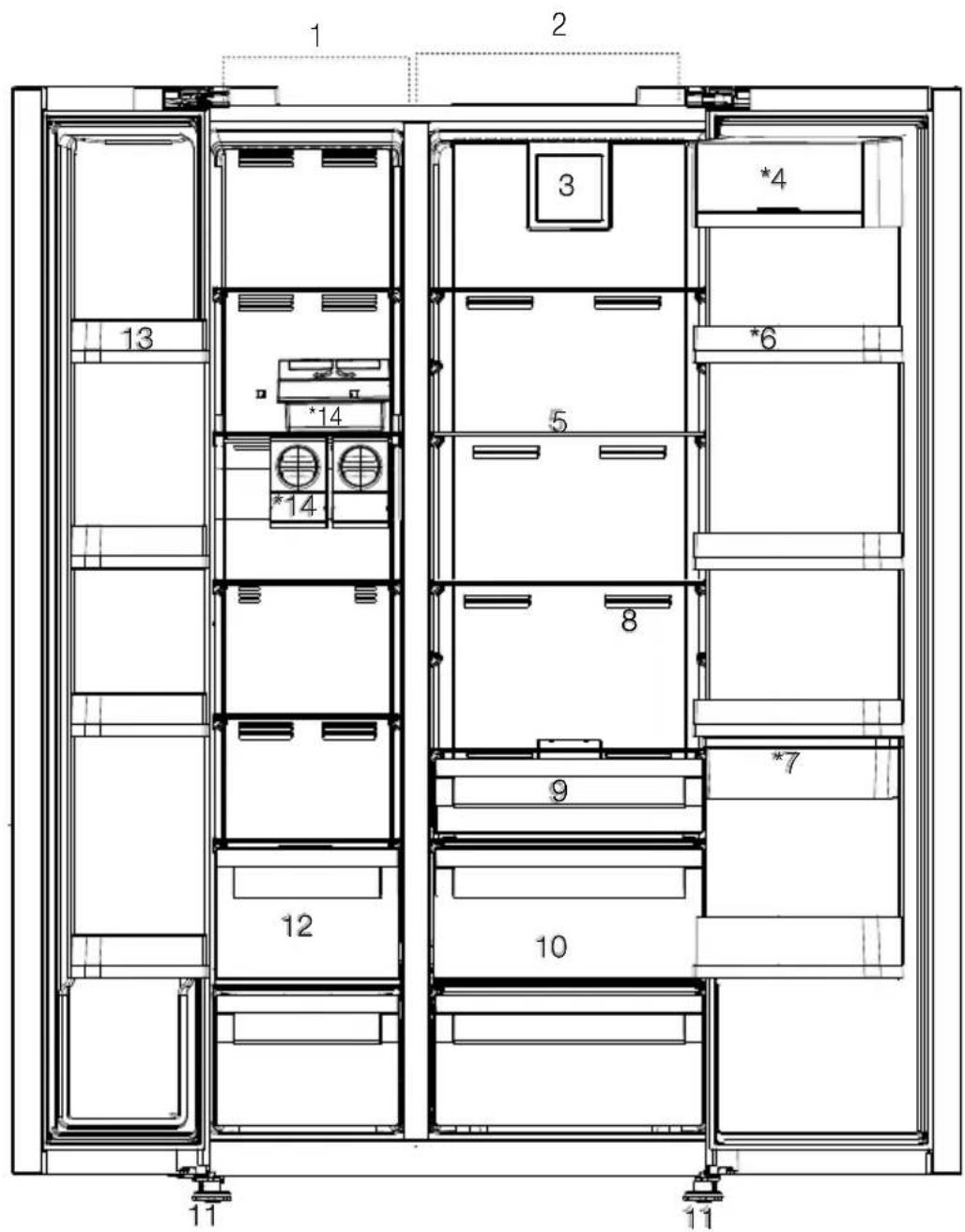

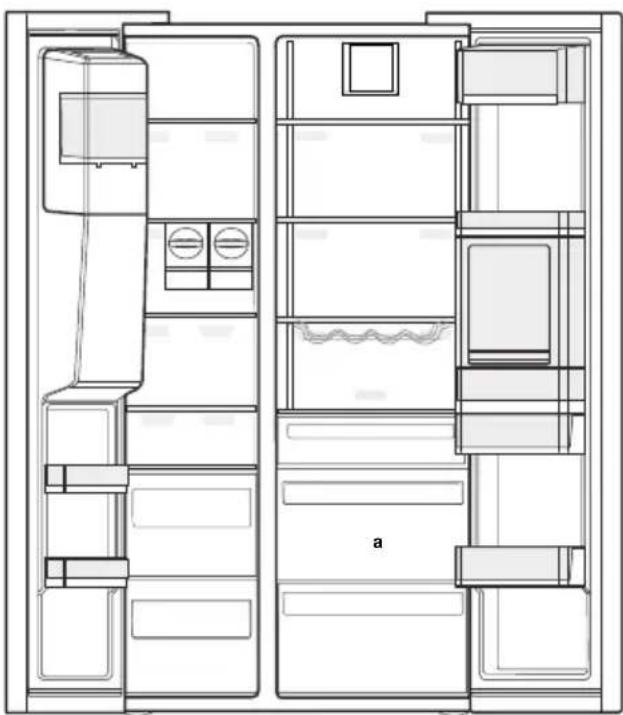

1- Freezer compartment 2- Cooler compartment 3- Fan 4- Butter-cheese compartment 5- Glass shelves 6- Cooler compartment door shelves 7- Minibar accessory 8- Water tank 9- Bottle shelf

10- Odour filter 11- Zero degree compartment 12- Vegetable bins 13- Adjustable stands 14- Frozen food storing compartments 15- Freezer compartment door shelves 16- Icematics 17- Ice storage box 18- Ice-maker decorative lid *Optional

*Optional: Figures in this user guide are schematic and may not exactly match your product. If your product does not comprise the relevant parts, the information pertains to other models.

2 Refrigerator

*Optional: Figures in this user guide are schematic and may not exactly match your product. If your product does not comprise the relevant parts, the information pertains to other models.

3 Installation

3.1. Right place for installation

Contact the Authorized Service for the product's installation. To ready the product for installation, see the information in the user guide and make sure the electric and water utilities are as required. If not, call an electrician and plumber to arrange the utilities as necessary.

	WARNING: The manufacturer assumes no responsibility for any damage caused by the work carried out by unauthorized persons.
	WARNING: The product's power cable must be unplugged during installation. Failure to do so may result in death or serious injuries!
	WARNING: : If the door span is too narrow for the product to pass, remove the door and turn the product sideways; if this does not work, contact the authorized service.

• Place the product on a flat surface to avoid vibration.
• Place the product at least 30 cm away from the heater, stove and similar sources of heat and at least 5 cm away from electric ovens.
• Do not expose the product to direct sunlight or keep in damp environments.
• Your product requires adequate air circulation to function efficiently. If the product will be placed in an alcove, remember to leave at least 5 cm clearance between the product and the ceiling, rear wall and the side walls.
• If the product will be placed in an alcove, remember to leave at least 5 cm clearance between the product and the ceiling, rear wall and the side walls. Check if the rear wall clearance protection component is present at its location (if provided with the product). If the component is not available, or if it is lost or fallen, position the product so that at least 5 cm clearance shall be left between the rear surface of the product and the wall of the room. The clearance at the rear is important for efficient operation of the product.

- Do not install the product in environments with temperatures below -5°C.

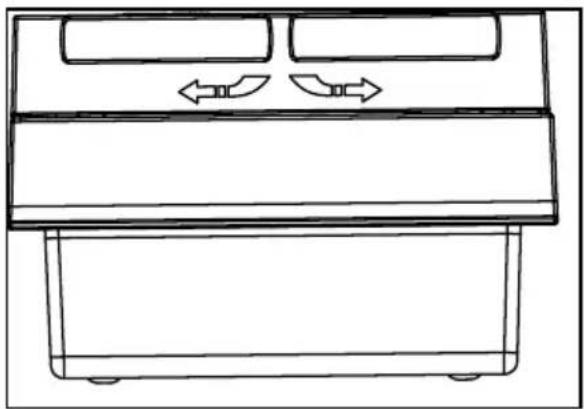

3.2. Attaching the plastic wedges

Use the plastic wedges provided with the product to provide sufficient space for air circulation between the product and the wall.

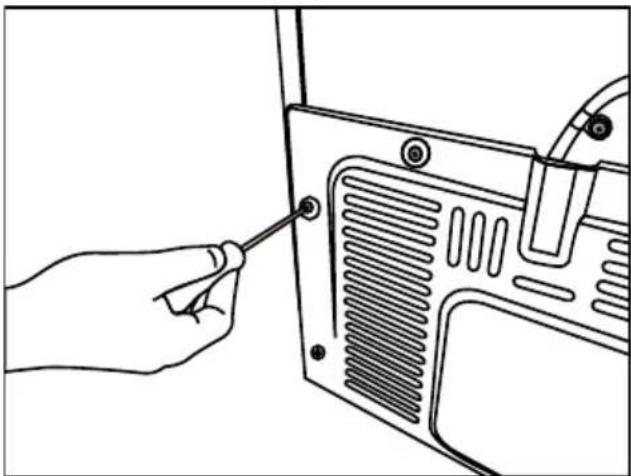

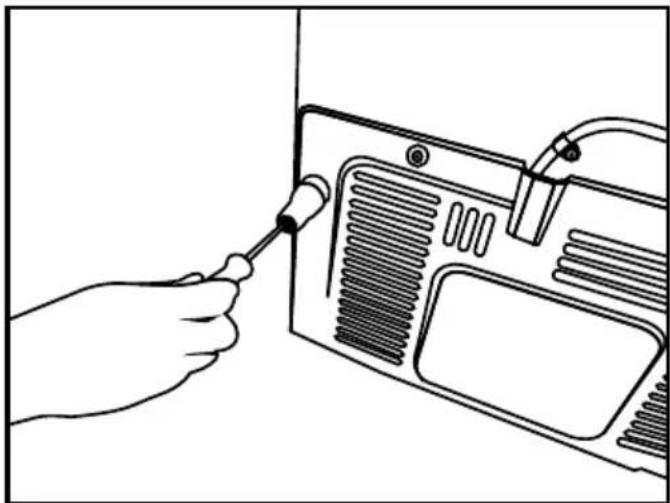

1. To attach the wedges, remove the screws on the product and use the screws provided with the wedges.

1. Attach 2 plastic wedges on the ventilation cover shown as j in the figure.

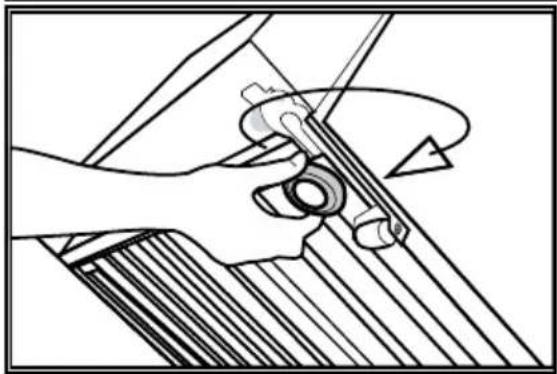

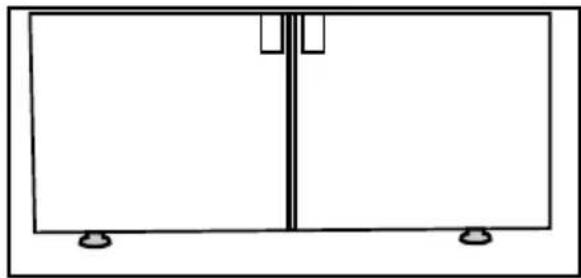

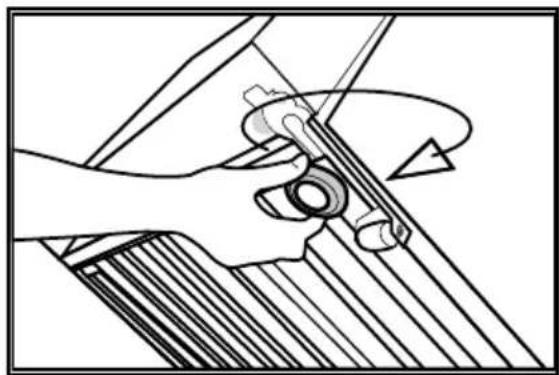

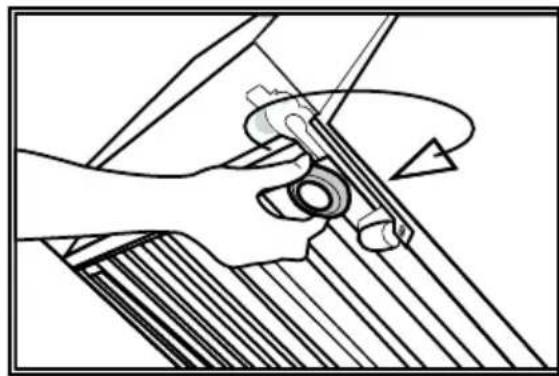

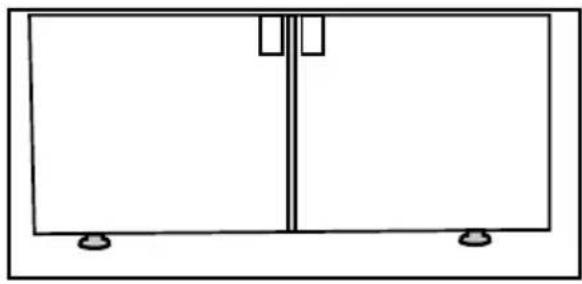

3.3. Adjusting the stands

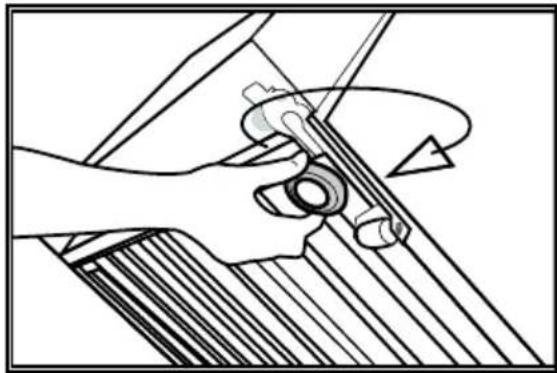

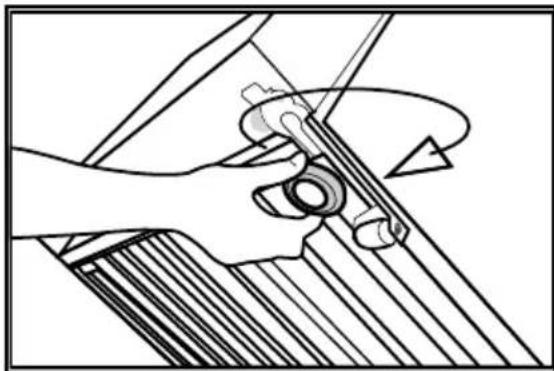

If the product is not in balanced position, adjust the front adjustable stands by rotating right or left.

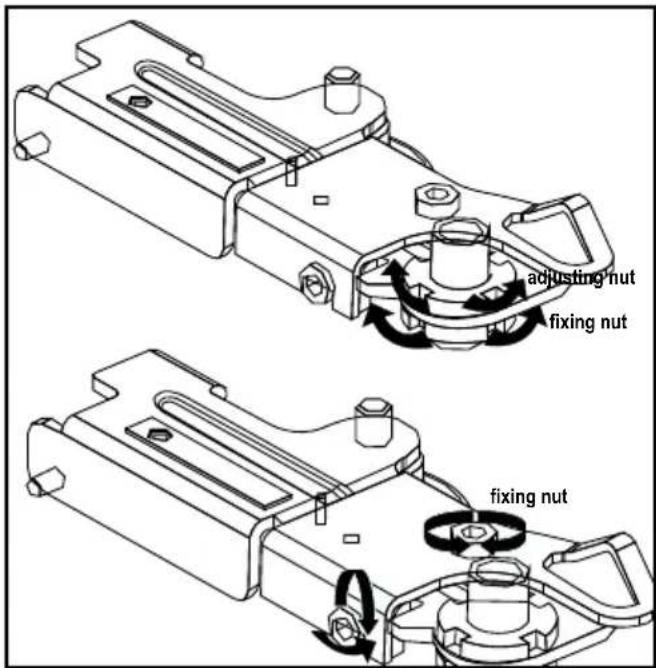

In order to adjust the doors vertically,

• Loosen the fixing nut at the bottom
• Screw adjusting nut (CW/CCW) according to the position of the door
• Tighten the fixing nut for the final position. In order to adjust the doors horizontally,
• Loosen the fixing bolt on the top.
• Screw the adjusting bolt (CW/CCW) on the side according to the position of the door.
• Tighten the fixing bolt on the top for the final position.

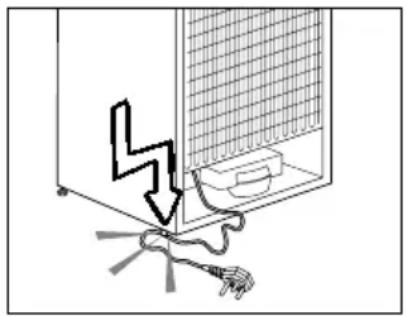

3.4. Power connection

WARNING: Do not use extension or multi sockets in power connection.

WARNING: Damaged power cable must be replaced by Authorized Service.

When placing two coolers in adjacent position, leave at least 4 cm distance between the two units.

• Our firm will not assume responsibility for any damages due to usage without earthing and power connection in compliance with national regulations.
• The power cable plug must be easily accessible after installation.
• Connect the refrigerator to an earthed socket with 220-240V/50 Hz voltage. The plug must comprise a 10-16A fuse.
• Do not use multi-group plug with or without extension cable between the wall socket and the refrigerator.

3.5. Water connection (Optional)

WARNING: Unplug the product and the water pump (if available) during connection.

The product's water mains, filter, and carboy connections must be made by an authorized service. The product can be connected to a carboy or directly to the water mains, depending on the model. To establish the connection, the water hose must first be connected to the product.

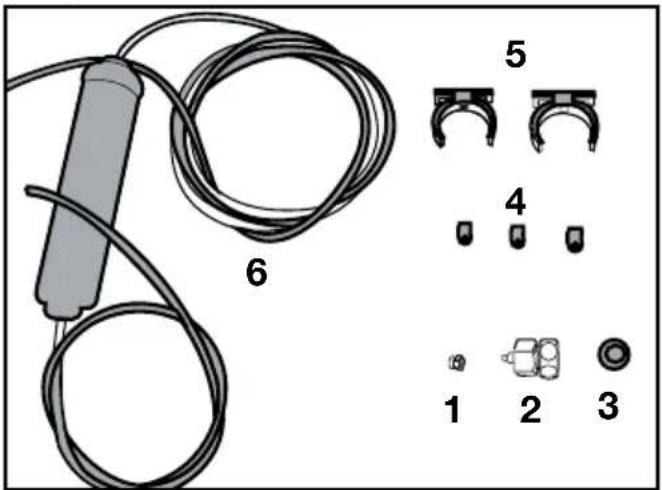

Check that the following parts are supplied with your product's model:

1. Connector (1 piece): Used to attach the water hose to the rear of the product.
2. Hose clip (3 pieces): Used to fix the water hose on the wall.
3. Water hose (1 piece, 5 meters, diameter 1/4 inch): Used for the water connection.
4. Faucet adapter (1 piece): Comprises a porous filter, used for connection to the cold water mains.
5. Water filter (1 piece, optional): Used to connect the mains water to the product. Water filter is not required if carboy connection is available.

Installation

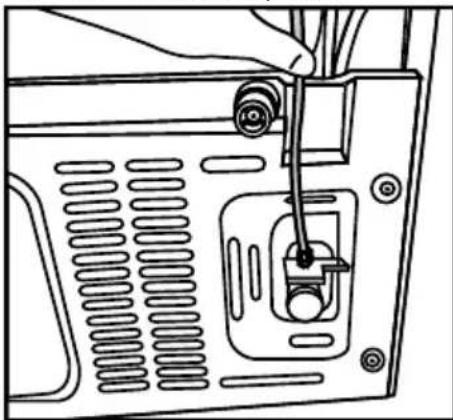

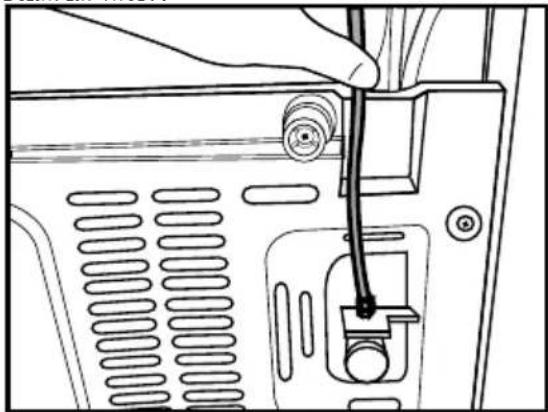

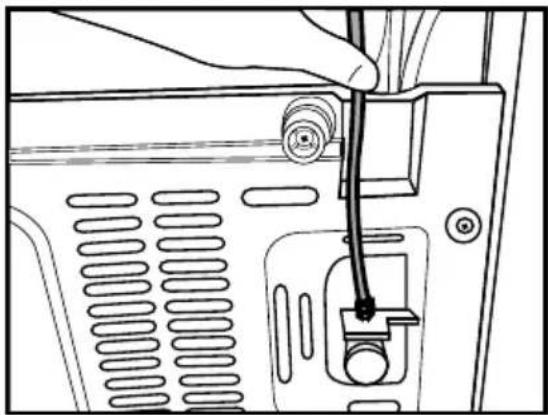

3.6. Connecting water hose to the product

To connect the water hose to the product, follow the instructions below.

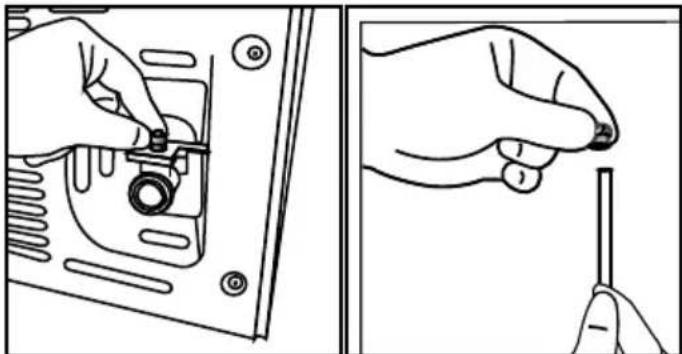

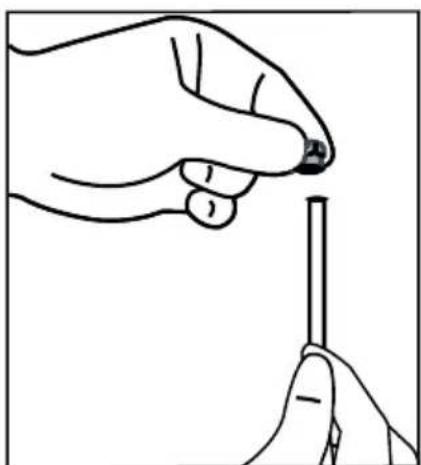

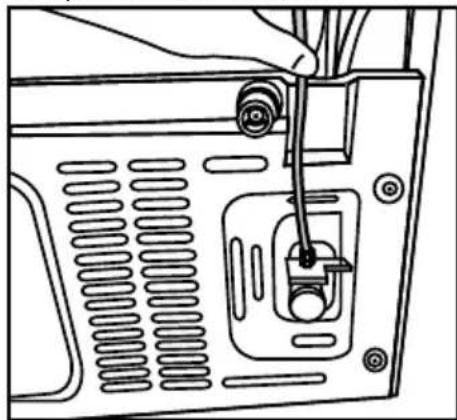

1. Remove the connector on the hose nozzle adaptor in the back of the product and run the hose through the connector.

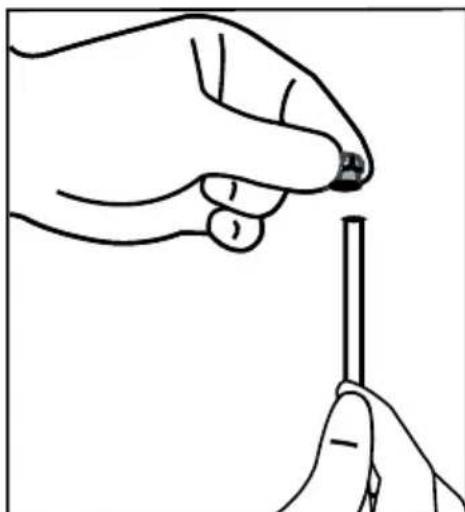

1. Push the water hose down tightly and connect to the hose nozzle adaptor.

1. Tighten the connector manually to fix on the hose nozzle adaptor. You may also tighten the connector using a pipe wrench or pliers.

1. Connect the other end of the hose to the water mains (See Section 3.7) or, to use carboy, to the water pump (See Section 3.8).

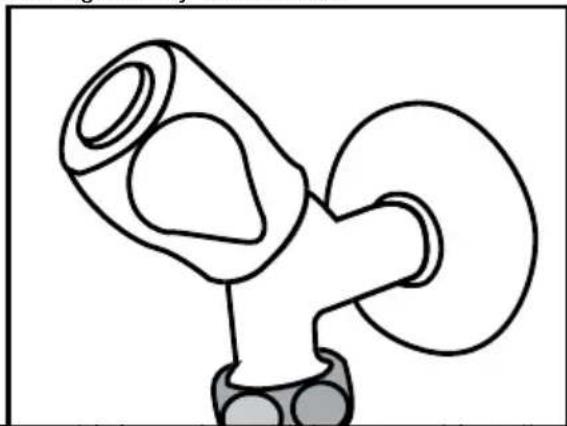

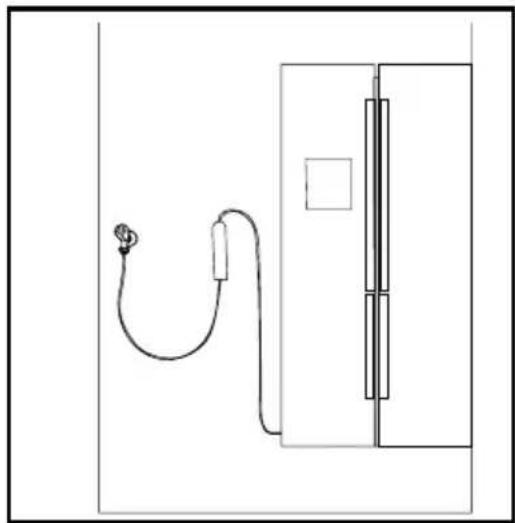

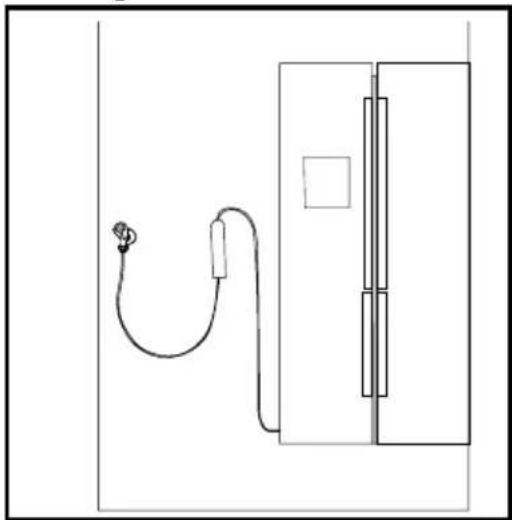

3.7. Connecting to water mains (Optional)

To use the product by connecting to the cold water mains, a standard 1/2" valve connector must be installed to the cold water mains in your home. If the connector is not available or if you are unsure, consult a qualified plumber.

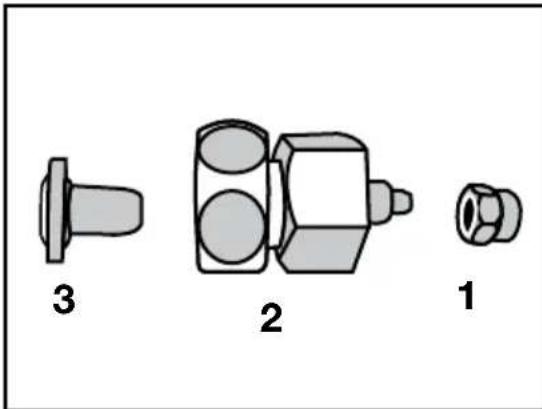

1. Detach the connector (1) from the faucet adaptor (2).

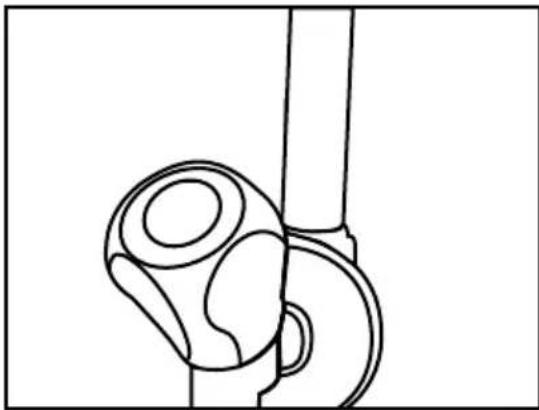

1. Connect the faucet adaptor to the water mains valve.

1. Attach the connector around the water hose.

Installation

1. Attach the connector into the faucet adaptor and tighten by hand or with a tool.

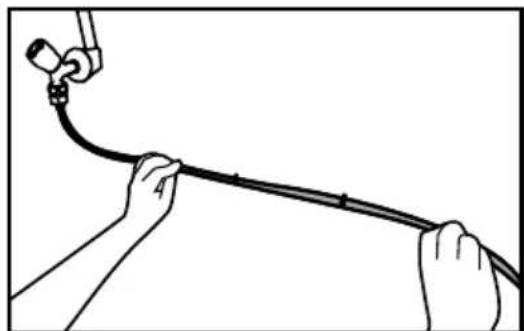

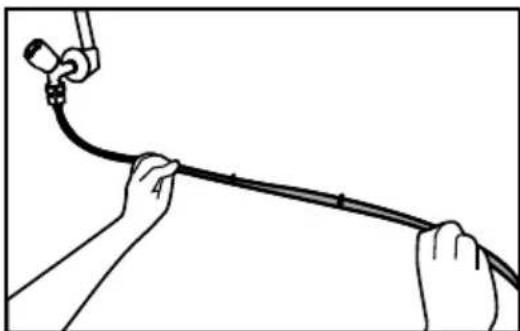

1. To avoid damaging, shifting, or accidentally disconnecting the hose, use the clips provided to fix the water hose appropriately.

WARNING: After turning the faucet on, make sure there is no water leak on either end of the water hose. In case of leakage, turn the valve off and tighten all connections using a pipe wrench or pliers.

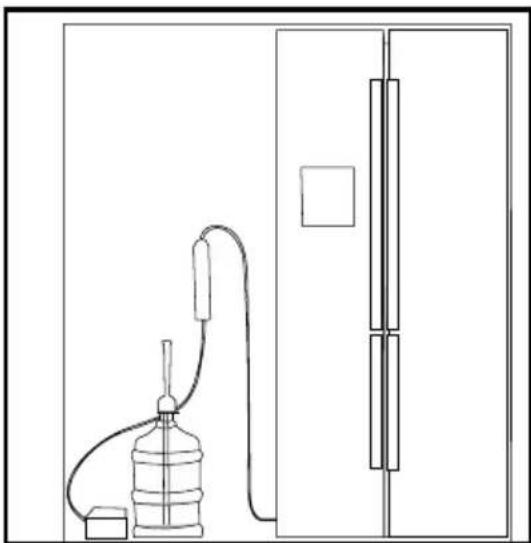

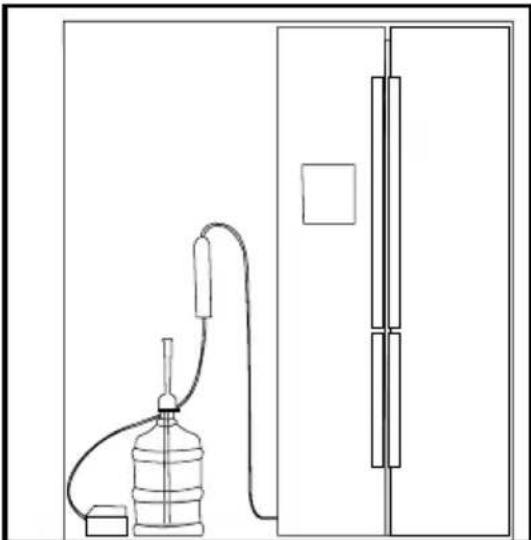

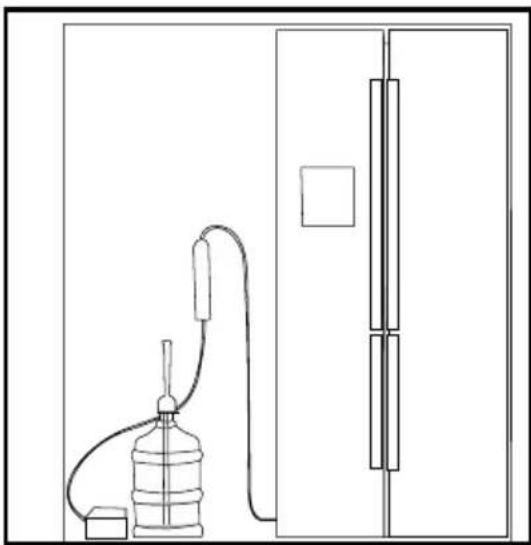

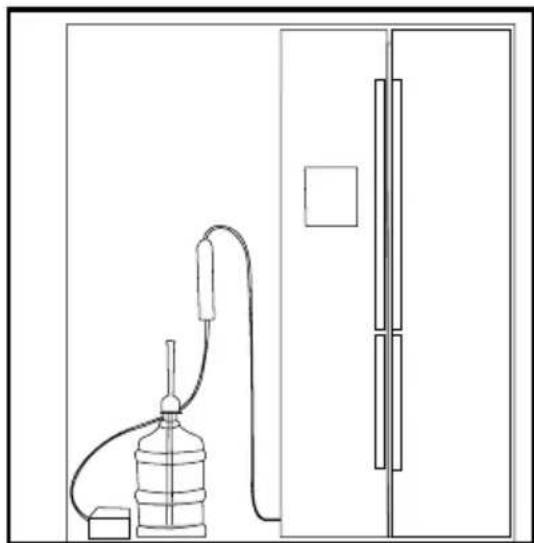

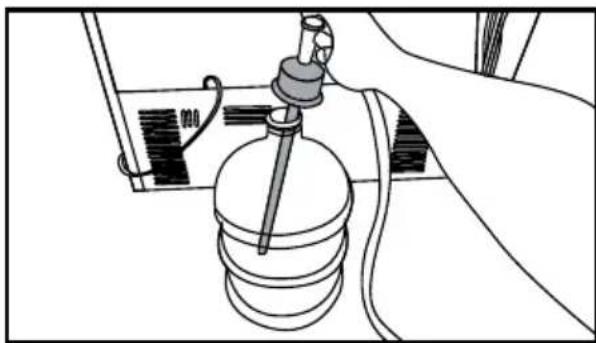

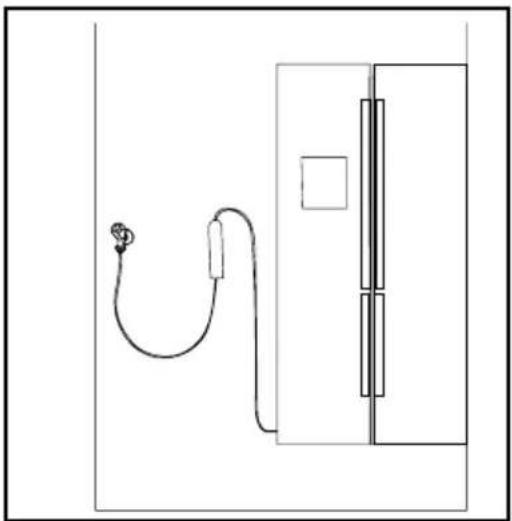

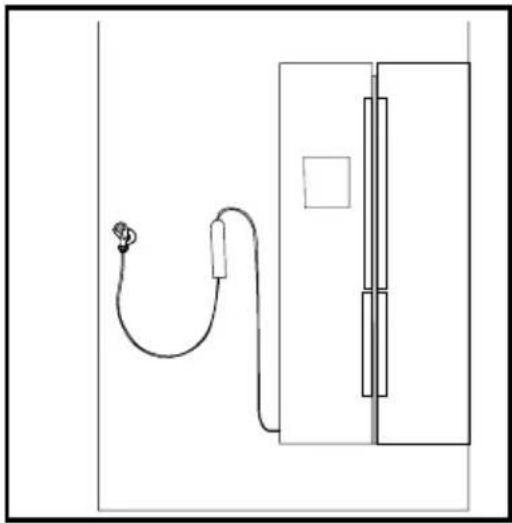

3.8. For products using water carboy (Optional)

To use a carboy for the product's water connection, the water pump recommended by the authorized service must be used.

1. Connect one end of the water hose provided with the pump to the product (see 3.6) and follow the instructions below.

1. Connect the other end of the water hose to the water pump by pushing the hose into the pump's hose inlet.

1. Place and fasten the pump hose inside the carboy.

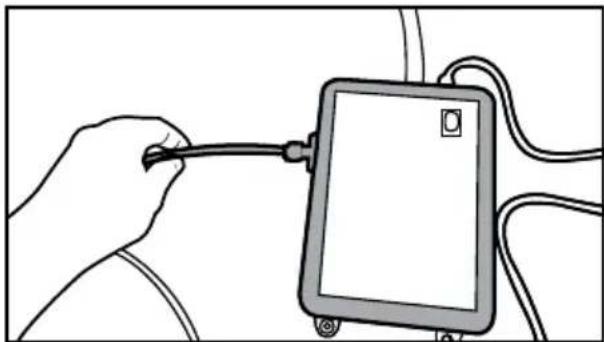

1. Once the connection is established, plug in and start the water pump.

	Please wait 2-3 minutes after starting the pump to achieve the desired efficiency.
	See also the pump's user guide for water connection.
	When using carboy, water filter is not required.

3.9 Water filter

(Optional)

The product may have an internal or external filter, depending on the model. To attach the water filter, follow the instructions below.

Installation

3.9.1. Fixing external filter on the wall (Optional)

WARNING: Do not fix the filter on the product.

Check to see the following parts are supplied with your product's model:

1. Connector (1 piece): Used to attach the water hose to the rear of the product.
2. Faucet adapter (1 piece): Used for connection to the cold water mains.
3. Porous filter (1 piece)
4. Hose clip (3 pieces): Used to fix the water hose on the wall.
5. Filter connecting apparatus (2 pieces): Used to fix the filter on the wall.
6. Water filter (1 piece): Used to connect the product to the water mains. Water filter is not necessary when using carboy connection.
7. Connect the faucet adaptor to the water mains valve.
8. Determine the location to fix the external filter. Fix the filter's connecting apparatus (5) on the wall.
9. Attach the filter in upright position on the filter connecting apparatus, as indicated on the label. (6)

1. Attach the water hose extending from the top of the filter to the product's water connection adaptor (see 3.6).

After the connection is established, it should look like the figure below.

Installation

3.9.2. Internal filter

The internal filter provided with the product is not installed upon delivery; please follow the instructions below to install the filter.

Water line:

Carboy line:

Do not use the first 10 glasses of water after connecting the filter.

1. "Ice Off" indicator must be active while installing the filter. Switch the ON-OFF indicator using the "Ice" button on the screen.

1. Remove the vegetable bin (a) to access the water filter.

Installation

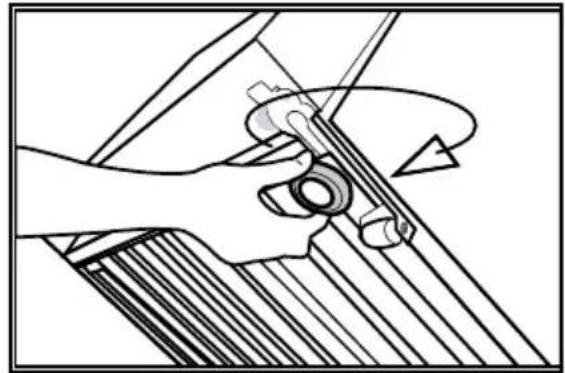

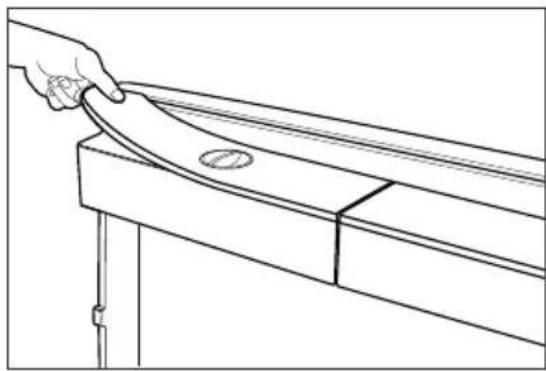

1. Remove the water filter by-pass cover by pulling.

A few drops of water may flow out after removing the cover; this is normal.

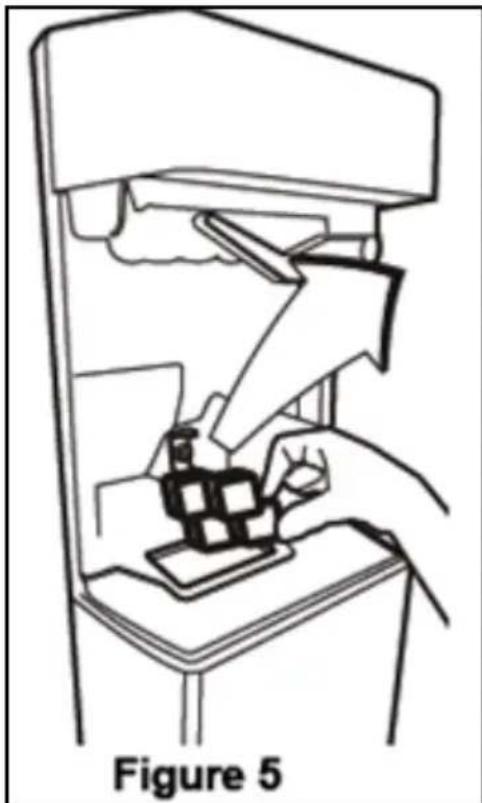

1. Place the water filter cover into the mechanism and push to lock in place.

1. Push the "Ice" button on the screen again to cancel the "Ice Off" mode.

The water filter will clear certain foreign particles in the water. It will not clear the microorganisms in the water.

See section 5.2 for activating the filter replacing period.

4 Preparation

4.1. What to do for energy saving

Connecting the product to electronic energy-saving systems is harmful, as it may damage the product.

• Do not keep the refrigerator doors open for long periods.
• Do not place hot food or beverages into the refrigerator.
• Do not overfill the refrigerator; blocking the internal air flow will reduce cooling capacity.
• The energy consumption value specified for the refrigerator was measured with the freezer compartment's upper shelf removed, other shelves and the lowest drawers in place and under maximum load. The top glass shelf can be used, depending on the shape and size of food to be frozen.
• Depending on the product's features; defrosting frozen foods in the cooler compartment will ensure energy saving and preserve food quality.
• The baskets/drawers that are provided with the chill compartment must always be in use for low energy consumption and for better storage conditions.
• Since hot and humid air will not directly penetrate into your product when the doors are not opened, your product will optimize itself in conditions sufficient to protect your food. Functions and components such as compressor, fan, heater, defrost, lighting, display and so on will operate according to the needs to consume minimum energy under these circumstances.
• Food contact with the temperature sensor in the freezer compartment may increase energy consumption of the appliance. Thus any contact with the sensor(s) must be avoided.
• Make sure the foods are not in contact with the cooler compartment temperature sensor described below.

4.2. First Use

Before using your refrigerator, make sure the necessary preparations are made in line with the instructions in "Safety and environment instructions" and "Installation" sections.

- Keep the product running with no food inside for 6 hours and do not open the door, unless absolutely necessary.

A sound will be heard when the compressor is engaged. It is normal to hear sound even when the compressor is inactive, due to the compressed liquids and gasses in the cooling system.

It is normal for the front edges of the refrigerator to be warm. These areas are designed to warm up in order to prevent condensation.

In some models, the indicator panel automatically turns off 5 minutes after the door has closed. It will be reactivated when the door has opened or pressed on any key.

5 Using the product

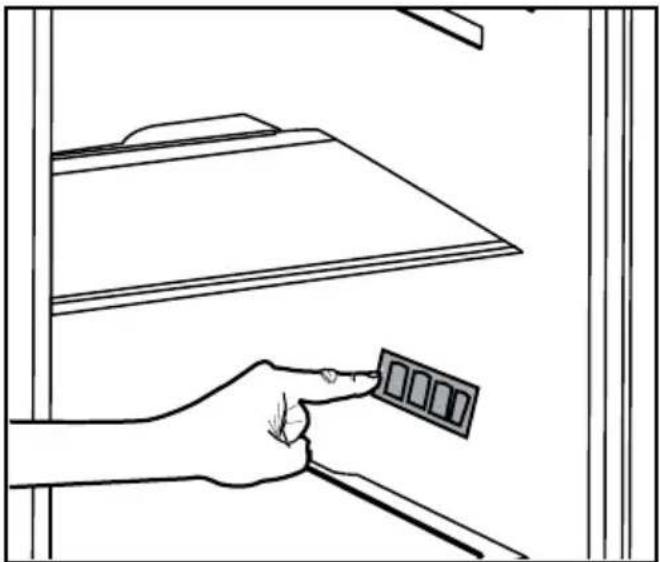

5.1. Indicator panel

Indicator panels may vary depending on the model of your product.

Audial and visual functions of the indicator panel will assist in using the refrigerator.

1. Cooler compartment indicator
2. Error status indicator
3. Temperature indicator
4. Vacation function button
5. Temperature adjustment button
6. Compartment selection button
7. Freezer Compartment indicator
8. Economy mode indicator
9. Vacation function indicator

*optional

*Optional: The figures in this user guide are intended as drafts and may not perfectly match your product. If your product does not comprise the relevant parts, the information pertains to other models.

1. Cooler compartment indicator

The cooler compartment light will turn on when adjusting the cooler compartment temperature.

2. Error status indicator

This sensor will activate if the refrigerator is not cooling adequately or in case of sensor fault. When this indicator is active, the freezer compartment temperature indicator will display "E" and the cooler compartment temperature indicator will display "1, 2, 3..." etc. numbers. The numbers on the indicator serve to inform the service personnel about the fault.

3. Temperature indicator

Indicates the temperature of the freezer and cooler compartments.

4. Vacation function button

To activate this function, press and hold the Vacation button for 3 seconds. When the Vacation function is active, the cooler compartment temperature indicator displays the inscription "-" and no cooling process will be active in the cooling compartment. This function is not suitable to keep food in the cooler compartment. Other compartments will remain cooled with the respective temperature set for each compartment.

Push the Vacation button (") again to cancel this function.

5. Temperature adjustment button

Respective compartment's temperature varies in -24°C..... -18°C and 8°C...1°C ranges.

6. Compartment selection button

Use the refrigerator compartment selection button to toggle between the cooler and freezer compartments.

7. Freezer Compartment indicator

The freezer compartment light will turn on when adjusting the cooler compartment temperature.

8. Economy mode indicator

Indicates the refrigerator is running on energy-saving mode. This indicator will be active when the temperature in the freezer compartment is set to -18°C.

9. Vacation function indicator

Indicates the vacation function is active.

Using the product

1. Economic use 2- High temperature / fault alert
2. Energy saving function (display off) 4- Rapid cooling 5- Vacation function 6- Cooler compartment temperature setting
3. Energy saving (display off) /Alarm off 8- Keypad lock 9- Eco-fuzzy 10- Freezer compartment temperature setting 11- Rapid freezing

*Optional: The figures in this user guide are intended as drafts and may not perfectly match your product. If your product does not comprise the relevant parts, the information pertains to other models.

Using the product

1. Economic use

This sign will light up when the freezer compartment is set to -18°C, the most economical setting. The economic use indicator will turn off when rapid cooling or rapid freezing function is selected.

2. Power failure/High temperature / error warning indicator

This indicator (⚠️) will light up in case of temperature faults or fault alerts.

This indicator illuminates during power failure, high temperature failures and error warnings. During sustained power failures, the highest temperature that the freezer compartment reaches will flash on the digital display. After checking the food located in the freezer compartment, press the alarm off button to clear the warning.

3. Energy saving function (display off)

If the product doors are kept closed for a long time, the energy saving function is automatically activated and the energy saving symbol is illuminated. When the energy saving function is activated, all symbols on the display other than the energy saving symbol will turn off. When the energy saving function is activated, if any button is pressed or the door is opened, the energy saving function will be cancelled and the symbols on the display will return to normal. The energy saving function is activated during delivery from the factory and cannot be cancelled.

4. Rapid cooling

When the rapid cooling function is turned on, the rapid cool indicator will light up (*) and the cooler compartment temperature indicator will display the value 1. Push the Rapid cool button again to cancel this function. The Rapid cool indicator will turn off and return to normal setting. The rapid cooling function will be automatically cancelled after 1 hour, unless cancelled by the user. To cool a large amount of fresh food, press the rapid cool button before placing the food in the cooler compartment.

5. Vacation function

To activate the Vacation function, press the quick fridge button for 3 seconds; this will activate the vacation mode indicator (*). When the Vacation function is active, the cooler compartment temperature indicator displays the inscription "- -" and no cooling process will be active in the cooling compartment. This function is not suitable to keep food in the cooler compartment. Other compartments will remain cooled with the respective temperature set for each compartment. Push the vacation function button again to cancel this function.

6. Cooler compartment temperature setting

After pressing the button, the cooler compartment temperature can be set to 8, 7, 6, 5, 4, 3, 2, and 1 respectively. (☐)

7.1 Energy saving (display off)

Pressing this button (—) will light up the energy-saving sign (.) and the Energy-saving function will activate. Activating the energy-saving function will turn off all other signs on the display. When the energy-saving function is active, pressing any button or opening the door will deactivate the energy-saving function and the display signals will return to normal. Pressing this button (.) again will turn off the energy-saving sign and deactivate the energy-saving function.

7.2 Alarm off

In case of power failure/high temperature alarm, after checking the food located in the freezer compartment press the alarm off button to clear the warning.

8. Keypad lock

Press the display off button, simultaneously for 3 seconds. The keypad lock sign will light up and the keypad lock will be activated; the buttons will be inactive when the Keypad lock is activated. Press the Display off button again simultaneously for 3 seconds. The keypad lock sign will turn off and the keypad lock mode will be disengaged. Press the Display off button to prevent changing the refrigerator's temperature settings.

Using the product

9. Eco-fuzzy

To activate the eco-fuzzy function, press and hold the eco-fuzzy button for 1 second. When this function is active, the freezer will switch to the economic mode after at least 6 hours and the economic use indicator will light up. To deactivate the (e) eco-fuzzy function, press and hold the eco-fuzzy function button for 3 seconds.

The indicator will light up after 6 hours when the eco-fuzzy function is active.

10. Freezer compartment temperature setting

The temperature in the freezer compartment is adjustable. Pressing the button will enable the freezer compartment temperature to be set at -18, -19, -20, -21, -22, -23 and -24.

11. Rapid freezing

For rapid freezing, press the button; this will activate the rapid freezing indicator (✿).

When the rapid freezing function is turned on, the rapid freeze indicator will light up and the freezer compartment temperature indicator will display the value -27. Press the Rapid freeze button (✿) again to cancel this function. The Rapid freeze indicator will turn off and return to normal setting. The rapid freezing function will be automatically cancelled after 24 hours, unless cancelled by the user. To freeze a large amount of fresh food, press the rapid freeze button before placing the food in the freezer compartment.

1. Freezer compartment temperature setting
2. Economy mode
3. Energy saving function (display off)
4. Power failure/High temperature / error warning indicator
5. Cooler compartment temperature setting
6. Rapid cooling
7. Vacation function
8. Keypad lock / filter replacing alert cancellation
9. Water, fragmented ice, ice cubes selection
10. Ice making on/off
11. Display on/off/Alarm off
12. Autoeco
13. Rapid freezing

*Optional: The figures in this user guide are intended as drafts and may not perfectly match your product. If your product does not comprise the relevant parts, the information pertains to other models.

Using the product

1. Freezer compartment temperature setting Pressing the button (☐) will enable the freezer compartment temperature to be set at -18,-19,-20,-21,-22,-23,-24,-18...

2. Economy mode

Indicates the refrigerator is running on energy-saving mode. This indicator will be active when the freezer compartment temperature is set at -18 or the energy-saving cooling is engaged by eco-extra function. (ECO)

3. Energy saving function (display off)

If the product doors are kept closed for a long time, the energy saving function is automatically activated and the energy saving symbol is illuminated. When the energy saving function is activated, all symbols on the display other than the energy saving symbol will turn off. When the energy saving function is activated, if any button is pressed or the door is opened, the energy saving function will be cancelled and the symbols on the display will return to normal. The energy saving function is activated during delivery from the factory and cannot be cancelled.

4. Power failure/High temperature / error warning indicator

This indicator (⚠️) will light up in case of temperature faults or fault alerts. If you see this indicator is lit up, please see the "recommended solutions for problems" section in this guide.

This indicator illuminates during power failure, high temperature failures, and error warnings. During sustained power failures, the highest temperature that the freezer compartment reaches will flash on the digital display. After checking the food located in the freezer compartment, press the alarm off button to clear the warning.

5. Cooler compartment temperature setting

After pressing the button (☐), the cooler compartment temperature can be set to 8, 7, 6, 5, 4, 3, 2, etc.

6. Rapid cooling

For rapid cooling, press the button; this will activate the rapid cooling indicator (✿). Press this button again to deactivate this function.

Use this function when placing fresh foods into the cooler compartment or to rapidly cool the food items. When this function is activated, the refrigerator will be engaged for 1 hour.

7. Vacation function

When the Vacation function (✗) is active, the cooler compartment temperature indicator displays the inscription "-" and no cooling process will be active in the cooling compartment. This function is not suitable to keep food in the cooler compartment. Other compartments will remain cooled with the respective temperature set for each compartment.

Press the vacation function button again to cancel this function. (**)

8. Keypad lock / filter replacement alert cancellation

Press the keypad lock button ( ) to activate the keypad lock. You may also use this function to prevent changing the refrigerator's temperature settings. The refrigerator's filter must be replaced every 6 months. If you follow the instructions in section 5.2, the refrigerator will automatically calculate the remaining period and the filter replacement alert indicator ( ) will light up when the filter expires.

Press and hold the button (*) for 3 seconds to turn off the filter alert light.

9. Water, crushed ice, and ice cube selection

Navigate the water (☐), ice cube (☐), and crushed ice (☐) selections using button number 8. The active indicator will remain lit.

10. Ice making on/off

Press the button (☐) to cancel (☐) or activate (☐) ice making.

11.1 Display on/off

When you press the Display off button and the (— off) function is lit, all other icons on the display will turn off and the display will enter energy saving mode. When you press the Display off button again and the (— on) function is lit, all other icons on the display will light up and the display will exit energy saving mode.

Using the product

11.2 Alarm off warning

In case of power failure or high temperature alarm, after checking the food in the freezer compartment, press the alarm off button to clear the warning.

12. Autoeco

Press the auto eco button (e3") for 3 seconds to activate this function. If the door remains closed for a long time when this function is activated, the cooler section will switch to economic mode. Press the button again to deactivate this function.

The indicator will light up after 6 hours when the auto eco function is active. (e)

13. Rapid freezing

Press the button (✗) for rapid freezing. Press the button again to deactivate the function.

5.2. Activating water filter change warning

(For products connected to the mains water line and equipped with filter)

Water filter change warning is activated as follows:

Automatic filter usage time calculation is not enabled ex factory.

It must be enabled in products equipped with a filter.

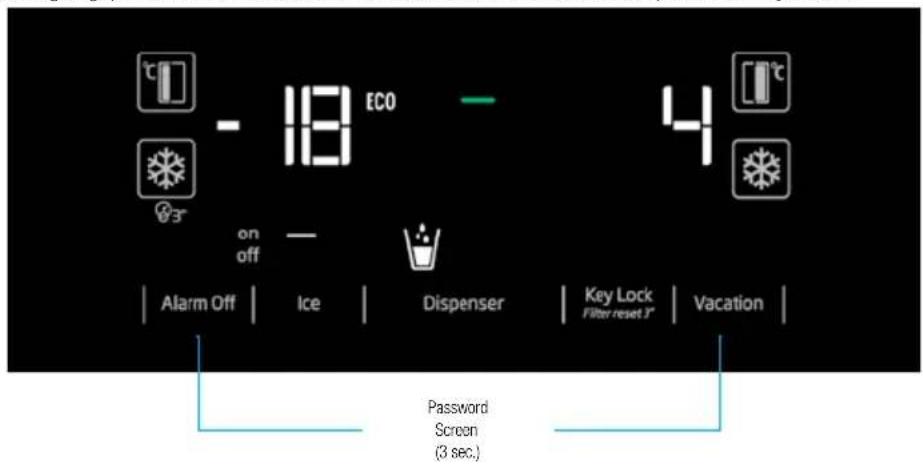

The S4 display board we use in the refrigerator has a nine-key system.

Set values are shown in the display.

*(pressing 3 seconds)

After energising, press Alarm Off and Vacation buttons for 3 seconds to enter the password entry screen.

Using the product

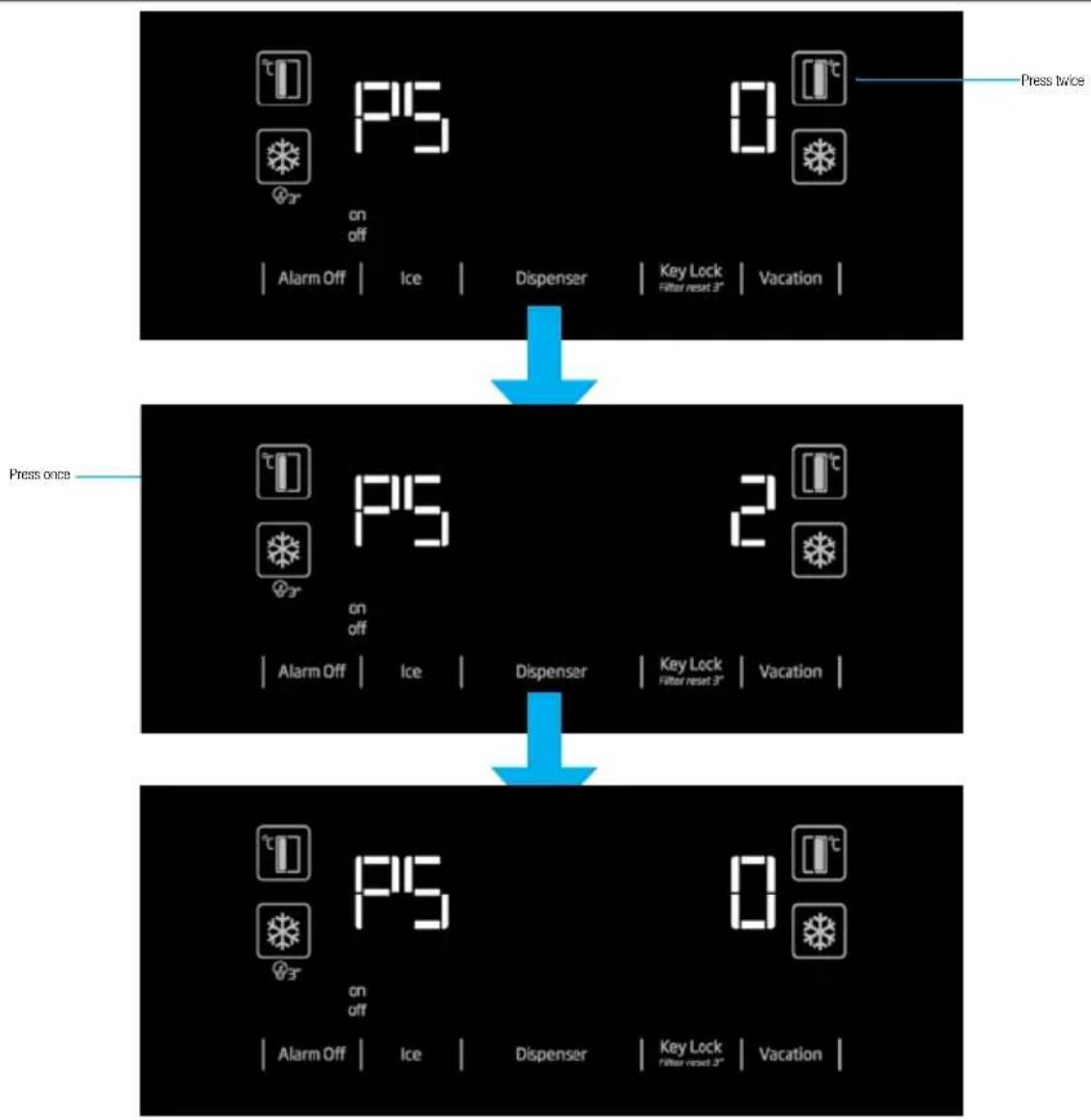

"Upon seeing PS 0 screen, de-energise the refrigerator and energise it again. This way, the filter counter will be activated. The filter warning LED will be active on the display in 130 days. After replacing the filter with a new one, press the Key Lock button for 3 seconds to make the filter counter to count down from 130 days.

Repeat the steps given above to cancel this function."

Using the product

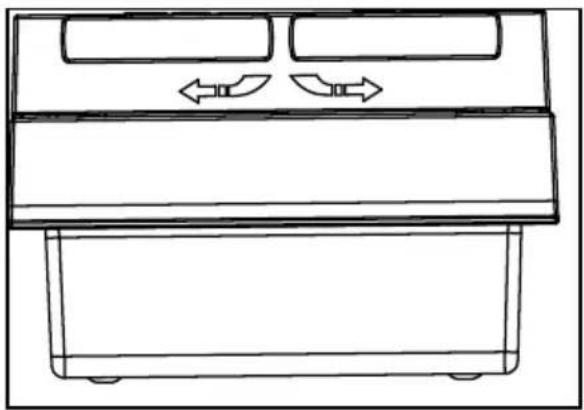

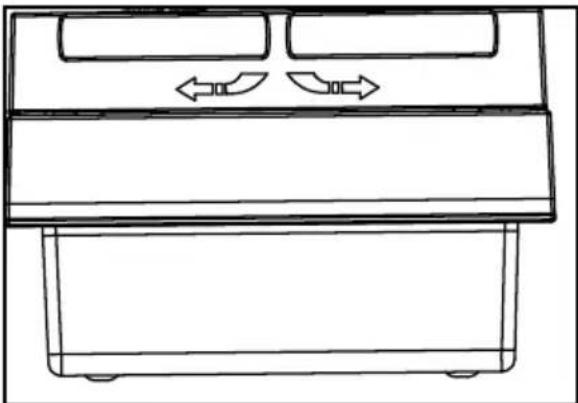

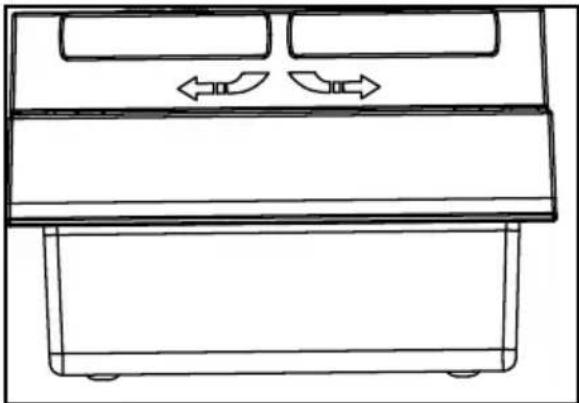

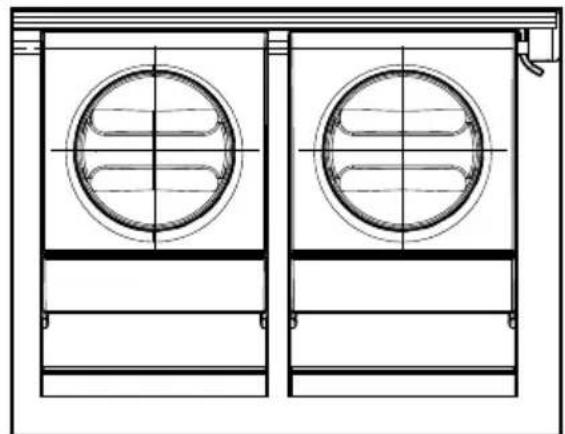

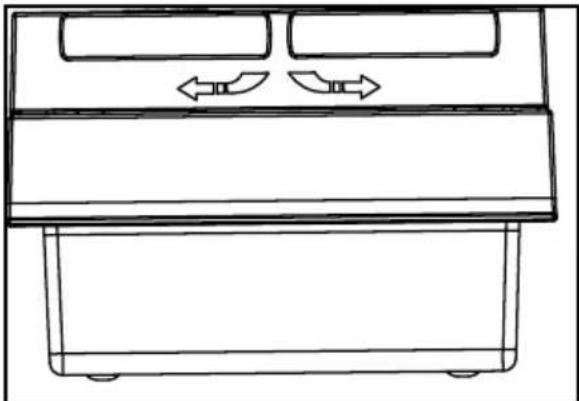

5.3. Humidity controlled crisper (FreSHelf)

(This feature is optional)

Humidity rates of the vegetables and fruit are kept under control with the feature of humidity-controlled crisper and the food is ensured to stay fresh for longer.

We recommend you to place the leafy vegetables such as lettuce, spinach and the vegetables which are sensitive to humidity loss, in a horizontal manner as much as possible inside the crisper, not on their roots in a vertical position.

While the vegetables are being placed, specific gravity of the vegetables should be taken into consideration. Heavy and hard vegetables should be put at the bottom of the crisper and the lightweight and soft vegetables should be placed over.

Never leave the vegetables inside the crisper in their bags. If the vegetables are left inside their bags, this will cause them to decompose in a short period of time. In case contacting with other vegetables is not preferred for hygiene concerns, use a perforated paper and other similar packaging materials instead of a bag.

Do not place together the pear, apricot, peach, etc. and apple in particular which have a high level of generation of ethylene gas in the same crisper with the other vegetables and fruit. The ethylene gas which is emitted by these fruit may cause the other fruit to ripen faster and decompose in a shorter time.

5.4. Using the water fountain (for certain models)

The first few glasses of water taken from the fountain will normally be warm.

If the water fountain is not used for a long time, dispose of the first few glasses of water to get clean water.

You must wait approximately 12 hours to get cold water after first operating.

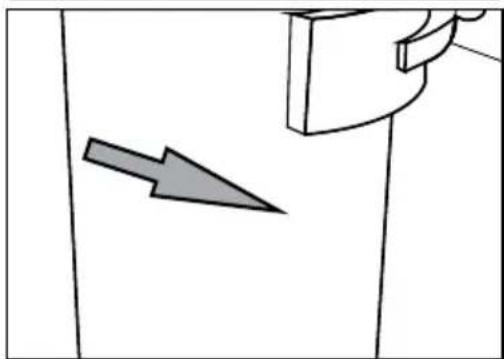

Use the display to select the water option, then pull the trigger to get water. Remove the glass shortly after pulling the trigger.

5.5. Filling the fountain water tank

Open the water tank's lid, as shown in the figure. Fill in pure and clean drinking water. Close the lid.

Using the product

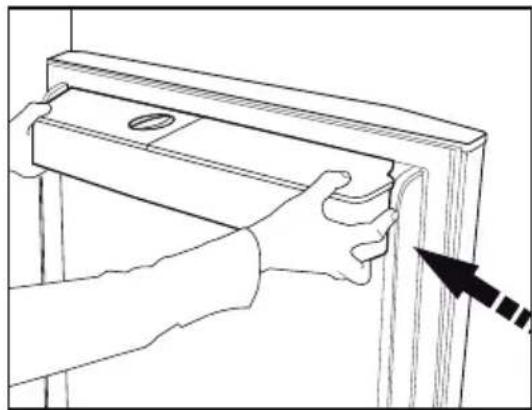

5.6 Cleaning the water tank

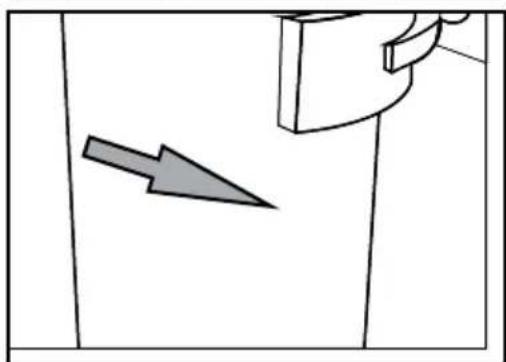

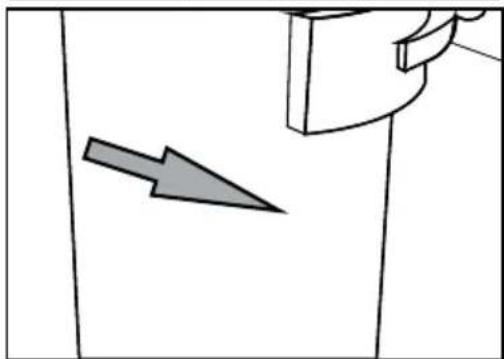

Remove the water filling reservoir inside the door shelf.

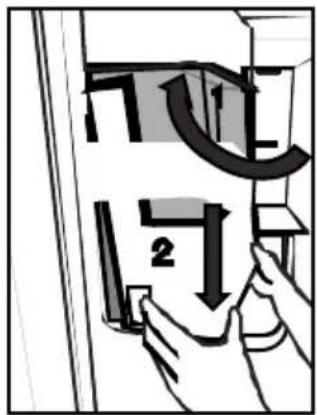

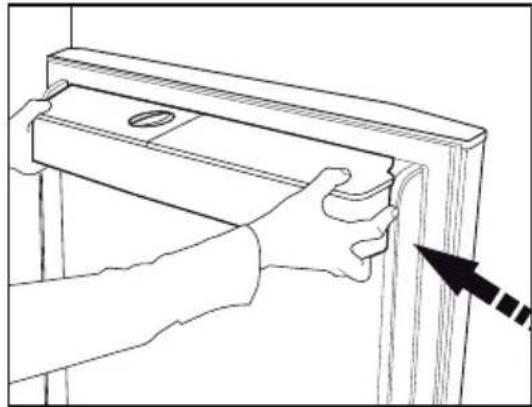

Detach by holding both sides of the door shelf.

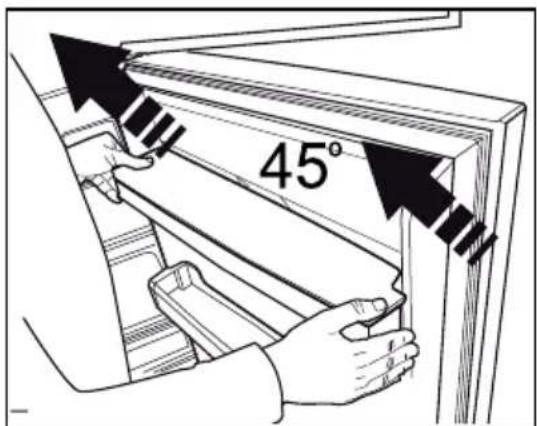

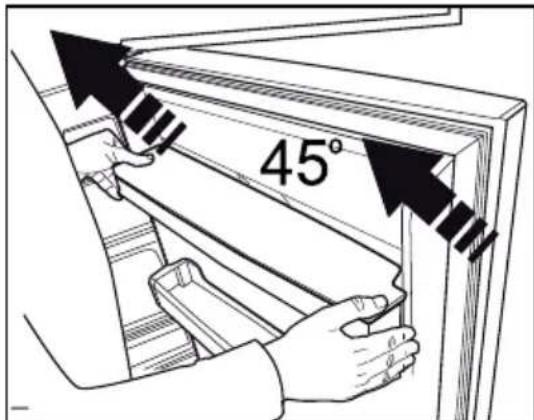

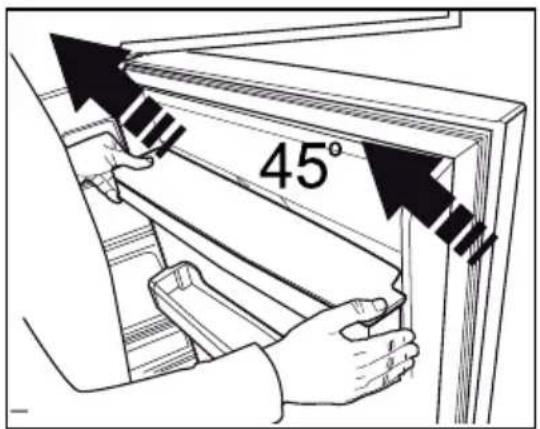

Hold both sides of the water tank and remove at a 45° angle.

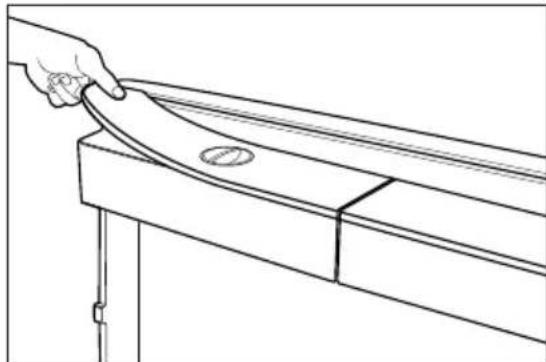

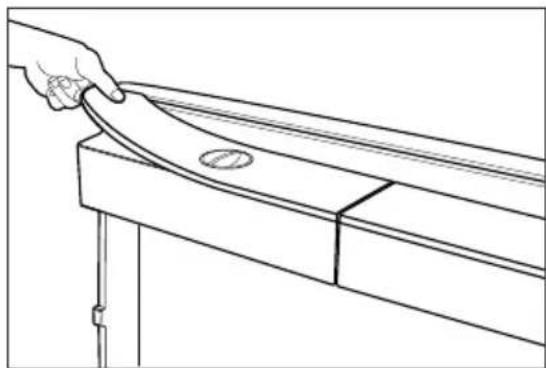

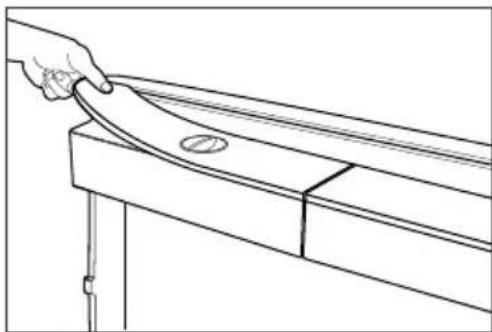

Remove and clean the water tank lid.

Do not fill the water tank with fruit juice, fizzy beverages, alcoholic beverages, or any other liquids incompatible for use in the water fountain. Using such liquids will cause malfunction and irreparable damage to the water fountain. Using the fountain in this way is not within the scope of warranty. Such certain chemicals and additives in the beverages/liquids may cause material damage to the water tank.

The water tank and water fountain components cannot be washed in dishwashers.

5.7 Taking ice/water (Optional)

To take water (💡) / ice cube (💡) / fragmented ice (💡), use the display to select the respective option. Take water/ice by pushing the trigger on the water fountain forward. When switching between ice cube (💡) / fragmented ice (💡) options, the previous ice type may be discharged a few more times.

• You must wait approximately 12 hours before taking ice from the ice/water fountain for the first time. The fountain may not discharge ice if there is insufficient ice in the ice box.

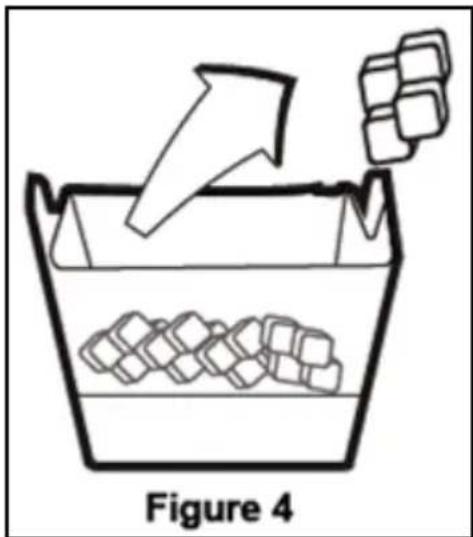

• The 30 pieces of ice cubes (3-4 litres) taken after first operating should not be used.
• In case of power blackout or temporary malfunction, the ice may partly melt and re-freeze. This will cause the ice pieces to merge with each other. In case of extended power blackouts or malfunction, the ice may melt and leak out. If you experience this problem, remove the ice in the ice box and clean the box.

WARNING: The product's water system should be connected to cold water line only. Do not connect to hot water line.

- The product may not discharge water during first operation. This is caused by the air in the system. The air in the system must be discharged. To do this, push the water fountain trigger for 1-2 minutes until the fountain discharges water. The initial water flow may be irregular. The water will flow normally once the air in the system is discharged.

• The water may be cloudy during first use of the filter; do not consume the first 10 glasses of water.
• You must wait approximately 12 hours to get cold water after first installation.
• The product's water system is designed for clean water only. Do not use any other beverages.
• It is recommended to disconnect the water supply if the product will not be used for long periods during vacation etc.
• If the water fountain is not used for a long time, the first 1-2 glasses of water received may be warm.

5.8. Drip tray (optional)

The water dripping from the water fountain accumulates on the drip tray; no water drainage is available. Pull the drip tray out or push on the edges to remove the tray. You may then discharge the water inside the drip tray.

Using the product

5.9. Zero degree compartment (Optional)

Use this compartment to keep delicatessen at lower temperatures or meat products for immediate consumption. Do not place fruits and vegetables in this compartment. You can expand the product's internal volume by removing any of the zero degree compartments. To remove the compartment, simply pull forth, lift up and pull out.

5.10. Vegetable bin

The refrigerator's vegetable bin is designed to keep vegetables fresh by preserving humidity. For this purpose, the overall cold air circulation is intensified in the vegetable bin. Keep fruits and vegetables in this compartment. Keep the green-leaved vegetables and fruits separately to prolong their life.

5.11. Blue light/HarvestFresh

*May not be available in all models

For the blue light,

Fruits and vegetables stored in the crispers that are illuminated with a blue light continue their photosynthesis by means of the wavelength effect of blue light and thus preserve their vitamin content.

ForHarvestFresh,

Fruits and vegetables stored in crispers illuminated with the HarvestFresh technology preserve their vitamins for a longer time thanks to the blue, green, red lights and dark cycles, which simulate a day cycle.

If you open the door of the refrigerator during the dark period of the HarvestFresh technology, the refrigerator will automatically detect this and enable the blue-green or red light to illuminate the crisper for your convenience. After you have closed the door of the refrigerator, the dark period will continue, representing the night time in a day cycle.

5.12. Ionizer

(Optional)

The ionizer system in the cooler compartment's air duct serves to ionize the air. The negative ion emissions will eliminate bacteria and other molecules causing odour in the air.

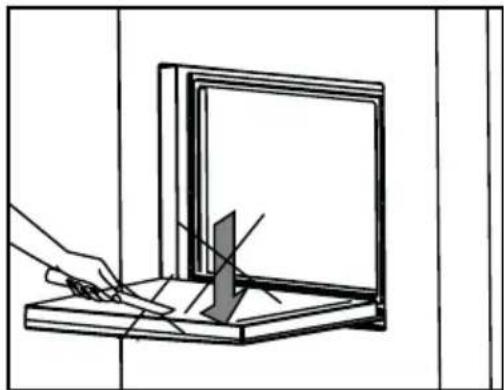

5.13. Minibar

(Optional)

The refrigerator's minibar door shelf can be accessed without opening the door. This will allow you to easily take frequently consumed food and beverages from the refrigerator. To open the minibar cover, push with your hand and pull towards yourself.

WARNING: Do not sit, hang or place heavy objects on the minibar cover. This may damage the product or cause you to be injured.

To close this compartment, simply push forward from the upper section of the cover.

5.14. Odour filter

(optional)

The odour filter in the cooler compartment's air duct will prevent undesirable odour formation.

Using the product

5.15. Icematic and ice storage box (Optional)

Fill the icematic with water and put it in place. The ice will be ready after approximately two hours. Do not remove the icematic to take the ice.

Turn the buttons on the ice chamber's right-hand side by 90°; the ice will fall into the ice storage box below. You may then remove the ice storage box and serve the ice.

The ice storage box is intended for storing ice only. Do not fill it with water. Doing so will cause it to break.

5.16. Ice-maker

(Optional)

The ice maker is located on the upper section of the freezer cover.

Hold the handles on the sides of the ice stock reservoir and move it up to remove.

Remove the ice-maker decorative lid by moving it up.

OPERATION

To remove the ice reservoir

Hold the ice stock reservoir from the handles, then move it up and pull the ice stock reservoir. (Figure 1)

To reinstall the ice reservoir

Hold the ice stock reservoir from the handles, move it up at an angle to fit the sides of the reservoir into their slots and make sure that the ice selector pin is mounted properly. (Figure 2)

Push downwards firmly, until there is no space left between the reservoir and the door plastic. (Figure 2)

If you have difficulty refitting the reservoir, turn the rotary gear 90° and reinstall it as shown in Figure 3. Any sound you hear when the ice drops into the reservoir is a part of normal operation.

Using the product

When the ice dispenser does not work properly

If you do not remove ice cubes for a long time, they will cause formation of ice chunks. In this case, please remove the ice stock reservoir in accordance with the instructions given above, separate the ice chunks, discard the inseparable ice, and put the ice cubes back into the ice stock reservoir. (Figure 4)

When ice does not come out, check for any ice stuck in the canal and remove it. Regularly check the ice canal to clear the obstacles as shown in Figure 5. When using your refrigerator for the first time or when not using it for an extended period of time, ice cubes may be small due to air in the pipe after connection; any air will be purged during normal use. Discard the ice produced for approximately one day since the water pipe may contain contaminants.

Caution!

Do not insert the hand or any other object into the ice canal and blade since it may damage the parts or hurt the hand.

Do not let children hang on the ice dispenser or the ice maker since it may cause an injury.

To prevent dropping the ice stock reservoir, use both hands when removing it.

If you close the door hard, it may cause water spilling over the ice stock reservoir.

Do not dismount the ice stock reservoir unless it is necessary.

If there is a lockout (ice does not come from the refrigerator) while taking broken ice, try to take cubed ice.

Then it will be suitable for taking broken ice again.

While taking broken ice, cubed ice may come first. There is a case of coming cubed ice while taking broken ice.

Freezer door on front of the ice machine can create a light snow and film layer.

This is normal, and it is recommended to clean without waiting for a long time.

Over time, water accumulates in the lower zone of the water dispenser. It is recommended to clean the water within this zone periodically.

While the ice falls from the ice storage reservoir, the sound is normal and does not

Using the product

indicate that the product is problematic.

The blade mechanism inside the ice bank is sharp and can cut your hand.

If the ice dispenser does not provide ice, the ice may be stuck together. Remove the tank and clean it again.

The ice type cannot be changed on the display when the ice trigger is pressed to obtain ice. Release the trigger, change the ice type on the display, and obtain ice again.

5.17. Freezing fresh food

• To preserve food quality, the food items placed in the freezer compartment must be frozen as quickly as possible. Use the rapid freezing function for this.
• Freezing the food items when fresh will extend the storage time in the freezer compartment.
• Pack the food items in air-tight packs and seal tightly.
• Make sure the food items are packed before putting them in the freezer. Use freezer holders, tinfoil, damp-proof paper, plastic bags, or similar packaging materials instead of traditional packaging paper.
• Mark each food pack by writing the date on the package before freezing. This will allow you to determine the freshness of each pack every time the freezer is opened. Keep the earlier food items in the front to ensure they are used first.
• Frozen food items must be used immediately after defrosting and should not be frozen again.
• Do not freeze large quantities of food at once.

5.18. Recommendations for storing frozen foods

The compartment must be set to at least -18°C.

1. Place the food items in the freezer as quickly as possible to avoid defrosting.
2. Before freezing, check the "Expiry Date" on the package to make sure it is not expired.
3. Make sure the food's packaging is not damaged.

5.19. Deep freezer details

As per the IEC 62552 standards, the freezer must have the capacity to freeze 4.5 kg of food items at -18°C or lower temperatures in 24 hours for each 100 litres of freezer compartment volume. Food items can only be preserved for extended periods at or below temperature of -18°C. You can keep the foods fresh for months (in deep freezer at or below temperatures of -18°C).

The food items to be frozen must not contact the already-frozen food inside to avoid partial defrosting.

Boil the vegetables and filter the water to extend the frozen storage time. Place the food in air-tight packages after filtering and place in the freezer. Bananas, tomatoes, lettuce, celery, boiled eggs, potatoes and similar food items should not be frozen. Freezing these food items will simply reduce the nutritional value and food quality, as well as possible spoiling which is harmful to health.

Freezer Compartment Setting	Cooler Compartment Setting	Descriptions
-18°C 4°C This is the default, recommended setting.
-20,-22 or -24°C	4°C	These settings are recommended for ambient temperatures exceeding 30°C.
Rapid Freeze 4°C		Use this to freeze food items in a short time, the product will reset to previous settings when the process is completed.
-18°C or colder	2°C	Use these settings if you believe the cooler compartment is not cold enough due to ambient temperature or frequently opening the door.

Using the product

5.20. Placing the food

Freezer compartment shelves	Various frozen goods including meat, fish, ice cream, vegetables etc.
Cooler compartment shelves	Food items inside pots, capped plate and capped cases, eggs (in capped case)
Cooler compartment door shelves	Small and packed food or beverages
Vegetable bin	Fruits and vegetables
Fresh food compartment	Delicatessen (breakfast food, meat products to be consumed in short notice)

5.21. Door open alert

(Optional)

An audible alert will be heard if the product's door remains open for 1 minute. The audible alert will stop when the door is closed or any button on the display (if available) is pressed.

5.22. Interior light

Interior light uses a LED type lamp. Contact the authorized service for any problems with this lamp.

The lamp(s) used in this appliance is not suitable for household room illumination. The intended purpose of this lamp is to assist the user to place foodstuffs in the refrigerator/freezer in a safe and comfortable way.

6 Maintenance and cleaning

Cleaning your fridge at regular intervals will extend the service life of the product.

WARNING:

Unplug the product before cleaning it.

• Never use gasoline, benzene or similar substances for cleaning purposes.
• Never use any sharp and abrasive tools, soap, household cleaners, detergent and wax polish for cleaning.
• For non-No Frost products, water drops and frosting up to a fingerbreadth occur on the rear wall of the Fridge compartment. Do not clean it; never apply oil or similar agents on it.
• Only use slightly damp microfiber cloths to clean the outer surface of the product. Sponges and other types of cleaning cloths may scratch the surface
• Dissolve one teaspoon of bi-carbonate in half litre of water. Soak a cloth with the solution and wrung it thoroughly. Wipe the interior of the refrigerator with this cloth and the dry thoroughly.
• Make sure that no water enters the lamp housing and other electrical items.
• If you will not use the refrigerator for a long period of time, unplug it, remove all food inside, clean it and leave the door ajar.
• Check regularly that the door gaskets are clean. If not, clean them.
• To remove door and body shelves, remove all of their contents.
• Remove the door shelves by pulling them up. After cleaning, slide them from top to bottom to install.
• Never use cleaning agents or water that contain chlorine to clean the outer surfaces and chromium coated parts of the product. Chlorine causes corrosion on such metal surfaces.

6.1 Avoiding bad odours

• Materials that may cause odour are not used in the production of our refrigerators. However, due to inappropriate food preserving conditions and not cleaning the inner surface of the refrigerator as required can bring forth the problem of odour. Pay attention to following to avoid this problem:
• Keeping the refrigerator clean is important. Food residuals, stains, etc. can cause odour. Therefore, clean the refrigerator with bi-carbonate dissolved in water every few months. Never use detergents or soap.
• Keep the food in closed containers. Microorganisms spreading out from uncovered containers can cause unpleasant odours.
• Never keep the food that have passed best before dates and spoiled in the refrigerator.

6.2 Protecting the plastic surfaces

Do not put liquid oils or oil-cooked meals in your refrigerator in unsealed containers as they damage the plastic surfaces of the refrigerator. If oil is spilled or smeared onto the plastic surfaces, clean and rinse the relevant part of the surface at once with warm water.

7. Troubleshooting

Check this list before contacting the service. Doing so will save you time and money. This list includes frequent complaints that are not related to faulty workmanship or materials. Certain features mentioned herein may not apply to your product.

The refrigerator is not working.

• The power plug is not fully settled. >>> Plug it in to settle completely into the socket.
• The fuse connected to the socket powering the product or the main fuse is blown. >>> Check the fuses.

Condensation on the side wall of the cooler compartment (MULTI ZONE, COOL, CONTROL and FLEXI ZONE).

• The door is opened too frequently. >>> Take care not to open the product's door too frequently.
• The environment is too humid. >>> Do not install the product in humid environments.
• Foods containing liquids are kept in unsealed holders. >>> Keep the foods containing liquids in sealed holders.
• The product's door is left open. >>> Do not keep the product's door open for long periods.
• The thermostat is set to too low temperature. Set the thermostat to appropriate temperature.

Compressor is not working.

• In case of sudden power failure or pulling the power plug off and putting back on, the gas pressure in the product's cooling system is not balanced, which triggers the compressor thermic safeguard. The product will restart after approximately 6 minutes. If the product does not restart after this period, contact the service.
• Defrosting is active. >>> This is normal for a fully-automatic defrosting product. The defrosting is carried out periodically.
• The product is not plugged in. >>> Make sure the power cord is plugged in.
• The temperature setting is incorrect. >>> Select the appropriate temperature setting.
• The power is out. >>> The product will continue to operate normally once the power is restored.

The refrigerator's operating noise is increasing while in use.

- The product's operating performance may vary depending on the ambient temperature variations. This is normal and not a malfunction.

The refrigerator runs too often or for too long.

• The new product may be larger than the previous one. Larger products will run for longer periods.
• The room temperature may be high. >>> The product will normally run for long periods in higher room temperature.
• The product may have been recently plugged in or a new food item is placed inside. >>> The product will take longer to reach the set temperature when recently plugged in or a new food item is placed inside. This is normal.
• Large quantities of hot food may have been recently placed into the product. >>> Do not place hot food into the product.
• The doors were opened frequently or kept open for long periods. >>> The warm air moving inside will cause the product to run longer. Do not open the doors too frequently.
• The freezer or cooler door may be ajar. >>> Check that the doors are fully closed.
• The product may be set to temperature too low. >>> Set the temperature to a higher degree and wait for the product to reach the adjusted temperature.
• The cooler or freezer door washer may be dirty, worn out, broken or not properly settled. >>> Clean or replace the washer. Damaged / torn door washer will cause the product to run for longer periods to preserve the current temperature.

The freezer temperature is very low, but the cooler temperature is adequate.

- The freezer compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again.

The cooler temperature is very low, but the freezer temperature is adequate.

- The cooler compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again.

The food items kept in cooler compartment drawers are frozen.

- The cooler compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again.

Troubleshooting

The temperature in the cooler or the freezer is too high.

• The cooler compartment temperature is set to a very high degree. >>> Temperature setting of the cooler compartment has an effect on the temperature in the freezer compartment. Wait until the temperature of relevant parts reach the sufficient level by changing the temperature of cooler or freezer compartments.
• The doors were opened frequently or kept open for long periods. >>> Do not open the doors too frequently. • The door may be ajar. >>> Fully close the door.
• The product may have been recently plugged in or a new food item is placed inside. >>> This is normal. The product will take longer to reach the set temperature when recently plugged in or a new food item is placed inside.
• Large quantities of hot food may have been recently placed into the product. >>> Do not place hot food into the product.

Shaking or noise.

• The ground is not level or durable. >>> If the product is shaking when moved slowly, adjust the stands to balance the product. Also make sure the ground is sufficiently durable to bear the product.
• Any items placed on the product may cause noise. >>> Remove any items placed on the product.

The product is making noise of liquid flowing, spraying etc.

- The product's operating principles involve liquid and gas flows. >>> This is normal and not a malfunction.

There is sound of wind blowing coming from the product.

- The product uses a fan for the cooling process. This is normal and not a malfunction.

There is condensation on the product's internal walls.

• Hot or humid weather will increase icing and condensation. This is normal and not a malfunction.
• The doors were opened frequently or kept open for long periods. >>> Do not open the doors too frequently; if open, close the door. • The door may be ajar. >>> Fully close the door.

There is condensation on the product's exterior or between the doors.

- The ambient weather may be humid, this is quite normal in humid weather. >>> The condensation will dissipate when the humidity is reduced.

The interior smells bad.

• The product is not cleaned regularly. >>> Clean the interior regularly using sponge, warm water and carbonated water.
• Certain holders and packaging materials may cause odour. >>> Use holders and packaging materials without free of odour.
• The foods were placed in unsealed holders. >>> Keep the foods in sealed holders. Micro-organisms may spread out of unsealed food items and cause malodour. Remove any expired or spoilt foods from the product.

The door is not closing.

• Food packages may be blocking the door. >>> Relocate any items blocking the doors.
• The product is not standing in full upright position on the ground. >>> Adjust the stands to balance the product.
• The ground is not level or durable. >>> Make sure the ground is level and sufficiently durable to bear the product.

The vegetable bin is jammed.

- The food items may be in contact with the upper section of the drawer. >>> Reorganize the food items in the drawer.

If The Surface Of The Product Is Hot.

- High temperatures may be observed between the two doors, on the side panels and at the rear grill while the product is operating. This is normal and does not require service maintenance! Be careful when touching these areas.

WARNING:

If the problem persists after following the instructions in this section, contact your vendor or an Authorised Service. Do not try to repair the product.

1- Freezer compartment 2- Refrigerator compartment 3- Fan 4- Butter and cheese rack 5- Glass shelves 6- Refrigerator door shelves 7- Minibar accessory 8- Water reservoir 9- Lower drawer 10- Odor filter

Installation

1. Attach the connector around the water hose.

Installation

Installation

3.9.2. Internal filter

Water line:

Bottle filler line:

Installation

4.2. First use

5.17. Ice maker

(Optional)

Note!

GN163220S

Installation

Installation

Installation

Water circuit:

Installation

5.9. Zero-degree compartment

(Optional)

Commissioning

Commissioning

Commissioning

3.9.2. Internal filter

Water circuit:

Water tank circuit:

Commissioning

Use of the product

Use of the product

GN163220S

Installation

Installation

WARNING: TURN ON

Installation

Installation

• In case of malfunction, do not use the product, as this may lead to electric shock. Contact an authorized service before doing anything.
• Connect the device to a grounded outlet. Grounding must be done by a trained electrician.
• If the product has LED lighting, contact an authorized service for replacement or in case of any problem.
• Do not touch frozen foods with wet hands! They can stick to your hands!
• Do not place liquids in bottles and cans in the freezer. They may burst!
• Place liquids in an upright position after firmly closing the lid.
• Do not spray flammable substances near the product, as they may ignite or explode.
• Do not store flammable materials or products with flammable gas (sprays, etc.) in the refrigerator.
• Do not place containers with liquids on top of the product. Spilling water on an electrified part can lead to electric shock and fire hazard.
• If you expose the product to rain, snow, sun, and wind, it will cause electrical hazards. When moving the product, do not pull it by the handle. The handle can be removed.
• Take care to avoid catching any part of your hands or body in any of the moving parts inside the product.
• Do not stand or lean on the doors, drawers, and similar parts of the refrigerator. This will cause the product to fall and damage parts.
• Take care not to catch the power cord.
• When installing the appliance, ensure that the power cord is not trapped or damaged.
• Do not place multiple portable sockets or portable power supplies on the back of the appliance.

This product is made of high-quality parts and materials that can be reused and are suitable for recycling. At the end of its working life, do not dispose of the waste product with normal household and other waste. Take it to a collection center for recycling electrical and electronic equipment. Please ask your local authorities where these collection centers are.

1.5. Compliance with the RoHS Directive

1- Freezer 2- Refrigerator 3- Fan 4- Butter and cheese compartment 5- Glass shelves 6- Door shelves of the cooling compartment 7- Minibar accessory 8- Water tank 9- Bottle shelf

10- Filter for odors 11- Zero-degree compartment 12- Vegetable drawer 13- Adjustable feet 14- Compartments for storing frozen food 15- Freezer door shelves 16- Icematics 17- Ice storage bin 18- Decorative cover for icemaker

*Optional

* Optional: The images in this manual are diagrams and may not fully correspond to your product. If your product does not contain the parts shown in these images, the information applies to other models.

2 Refrigerator

* Optional: The images in this manual are diagrams and may not fully correspond to your product. If your product does not contain the parts shown in these images, the information applies to other models.

3 Installation

1. Attach the 2 plastic pins to the ventilation cover as shown in (j) in the figure.

3.3. Adjusting the feet

If the appliance is not balanced, adjust the front adjustable feet by turning them right or left.

To set the doors vertically, loosen the locking nut at the bottom. Turn the adjustment nut (CW/CCW) according to the door position.

Tighten the locking nut to the end position.

To set the doors horizontally, loosen the locking screw at the top. Turn the adjustment screw (CW/CCW) on one side according to the door position.

1. Connector (1 piece): Used to connect the water hose to the back of the appliance.
2. Hose clamp (3 pieces): Used to fix the water hose to the wall.
3. Water hose (1 piece, 5 meters, 1/4 inch diameter): Used for water connection.
4. Faucet adapter (1 piece): Contains a porous filter, used for connecting to the cold water supply.
5. Water filter (1 piece * Optional): Used to connect water from the water supply network to the product. The water filter is not needed if the device has a water bottle.

Installation

1. Push the water hose firmly downward and connect it to the hose nozzle adapter.

1. Connect the other end of the hose to the water supply network (see section 3.7) or, for water bottle models, to the water pump (see section 3.8).

3.7. Connecting to the water supply network (Optional)

To use the product by connecting to the cold water supply, a standard 1/2" valve connector must be installed on the cold water supply line in your home. If you do not have such a connector or are unsure, contact a qualified plumber.

Installation

1. Attach the connector to the faucet adapter and tighten by hand or with a tool.

1. To avoid damage, disconnection, or accidental hose detachment, use clamps to secure the water hose properly.

WARNING: After turning on the faucet, ensure there are no water leaks at both ends of the hose. In case of leakage, turn off the valve and tighten all connections using a pipe wrench or pliers.

3.8. For products with a water bottle

(Optional)

To use the water bottle for the product's water connection, a water pump recommended by an authorized service center must be used.

1. Connect the other end of the hose to the water pump by pushing the hose into the pump inlet.

1. Connect the water hose that extends from the top of the filter to the product's water connection adapter (see 3.6).

After establishing the connection, it should look like the figure.

Installation

3.9.2. Internal filter

The internal filter supplied with the product is not installed at delivery; please follow the instructions below to install the filter.

Water line:

Bottle line:

Installation

1. Remove the water filter's pass-through cap by pulling on it.

It is normal for a few drops of water to flow after removing the cap.

4.2. First use

Before using the refrigerator, make sure that the necessary preparations are made in accordance with the instructions in the sections “Safety and Environment Instructions” and “Installation”.

5.4. Filling the water tank

Open the water tank cover, as shown in the figure. Fill with clean drinking water. Close the cover.

Using the product

5.5. Cleaning the water tank

Remove the water filling tank inside the door shelf.

Detach by holding both sides of the door shelf.

Hold both sides of the water tank and remove it at a 45° angle.

Take out and clean the water tank cover.

5.7. Taking ice / water (optional)

To take water ( ) / ice cubes ( ) / crushed ice ( ), use the display to select the appropriate option. Take water / ice by pressing the trigger on the front faucet. When switching between the ice cube ( ) / crushed ice ( ) options, you may get the previous type of ice a few more times.

• You must wait about 12 hours before taking ice from the ice/water dispenser for the first time. The dispenser cannot dispense ice if there is not enough ice in the ice box.
• You should not use the first 30 ice cubes (3-4 liters) taken after first use.
• In case of a power outage or temporary malfunction, ice may partially melt and refreeze. This will cause the ice pieces to stick together. In case of a prolonged power outage or malfunction, ice may melt and leak out. If you encounter this problem, remove the ice from the ice maker and clean the box.

WARNING: The product's water system should only be connected to a cold water line. Do not connect it to a hot water line.

- The product may not dispense water during first use. This is caused by air in the system. The air in the system must be released. To do this, press the dispenser trigger for 1-2 minutes until the dispenser starts dispensing water. The initial water flow may be irregular. Water will flow normally after the air in the system is released.

• Water may be cloudy during the first use of the filter; do not consume the first 10 glasses of water.
• You must wait about 12 hours to get cold water after first installation.
• The product's water system is designed for clean water only. Do not use any other beverages.
• It is recommended to shut off the water supply if the product will not be used for an extended period, such as during holidays.
• If the faucet has not been used for a long time, the first 1-2 glasses of water you get may be warm.

5.8. Drip tray

(optional)

Water dripping from the faucet collects in the drip tray; drainage is not available. Pull out the tray or push on the edges to remove it. You can then discard the water that has collected inside the tray.

Product use

5.9. Zero-degree compartment (optional)

Use this compartment to store delicatessen at lower temperatures or meat products for immediate consumption. Do not place fruits and vegetables in this space. You can expand the internal volume of the product by removing any of the zero-degree compartments. To remove the compartment, simply pull it forward, lift, and pull out.

5.16. Ice maker

(optional)

The ice maker is located on the upper part of the freezer lid.

Hold the handles on the sides of the ice reservoir and lift them to remove it.

Remove the decorative cover of the ice maker by moving it upward.

OPERATION

To remove the ice reservoir

Hold the ice reservoir by the handles, then pull it up and out. (Figure 1)

To reinstall the ice reservoir

Hold the ice reservoir by the handles, tilt it upward at an angle to align the sides of the reservoir with their slots, and make sure the ice selector pin is correctly positioned. (Figure 2)

If you have difficulty reinstalling the reservoir, rotate the unit 90 degrees and reinstall as shown in Figure 3.

When the ice dispenser does not work properly

If you do not remove ice cubes for a long time, they may form ice clumps. In that case, remove the ice reservoir as described earlier, break apart the ice clumps, discard any ice that cannot be separated, and return the ice cubes to the reservoir. (Figure 4)

When ice does not come out, check for jammed pieces in the chute and remove them. Regularly check the ice chute to clear any obstructions as shown in Figure 5.

When using the refrigerator for the first time or after not using it for an extended period

Ice cubes may be small due to air in the water line after connection; the air will be purged during normal operation.

Caution!

Do not put your hand or other objects into the ice chute and blades, as you may damage parts or injure yourself.

GN163220S

WARNING:

Installation

Water line

Tank line:

Installation

Figure 4

Mounting

Mounting

Mounting

3.9.2. Internal filter

Water line:

Gallon line:

Mounting

4.2. First use

Using the device

5.9. Zero-degree compartment

5.16. Ice maker
