RO8221 11 SILENCE FORCE, RO8249 11 SILENCE FORCE EXTREME, RO8264 11 SILENCE FORCE EXTREME CYCLONIC - Vacuum Cleaner ROWENTA - Free user manual and instructions

Product type	Bagless canister vacuum cleaner
Brand	Rowenta
Models	RO8221, RO8249, RO8264
Filtration technology	3-level system: black foam filter, microfilter, HEPA filter
Collection type	Bagless dust bin
Separation system	Cone separator and air/dust separation grid
Included accessories	Hose with ERGO COMFORT SILENCE handle, metal telescopic tube, all-floor nozzle, telescopic crevice tool, upholstery nozzle, integrated brush (EASY BRUSH), POWER CONTROL slider
Floor types	All types (carpets, rugs, parquet, hard floors)
Noise level	Silence Force - silent technology
Suction power	Variable via mechanical slider on the handle (positions Min, Medium, Max)
Power supply	Mains (voltage adapted to network)
Cord rewinder	Yes, by foot pedal
Carrying handle	Yes, integrated
Motor protection	Overheat protection
Spare parts	HEPA filter (ref ZR9015 01), filtration cassette (ref RS-RT3587)
Filter maintenance	Black foam filter: wash every 6 months; Microfilter: wash every 6 months; HEPA filter: replace every 12 months
Warranty	Manufacturer's warranty (see international warranty card)
Safety standards	Compliant with Low Voltage Directive (2006/95/EC) and EMC Directive (2004/108/EC)
Use	Household only
Storage	Integrated parking position, optional accessory holder

Frequently Asked Questions - RO8221 11 SILENCE FORCE, RO8249 11 SILENCE FORCE EXTREME, RO8264 11 SILENCE FORCE EXTREME CYCLONIC ROWENTA

How to clean the black foam filter?

Press the hood release button, tilt the hood, remove the black foam filter, wash it with clean water and wring it out. Let it dry for at least 12 hours before reinstalling. Never operate the vacuum cleaner without a dry filter.

How to clean the microfilter?

Open the hood, remove the filtration cassette, separate the black foam filter from the microfilter, wash the microfilter with clean water, let dry for 12 hours, then reassemble. Make sure the microfilter is thoroughly dry.

How to replace the HEPA filter?

Remove the accessory holder, place the vacuum cleaner in upright position, open the access door to the HEPA filter, remove the old filter, tap it lightly over a trash can to clean it, or replace it with a new one (ref. ZR9015 01). Put it back, close the door. Replace the HEPA filter every 12 months.

What to do if my vacuum cleaner no longer sucks?

Check that the appliance is plugged in. Unplug it and check for blockages in the accessories, tube, hose, separator, grid or compartment. Clean the black foam filter, microfilter and HEPA filter. Make sure the dust bin is not full and properly positioned, and that the hood is well closed.

What to do if the vacuum cleaner hood does not close?

Make sure the filtration cassette (black foam filter + microfilter) is properly in place. The appliance is equipped with a safety system that prevents closing if the cassette is missing. Reinsert the cassette correctly.

How to empty the dust bin?

Pull the dust bin by the handle, separate the fine dust bin from the main bin, empty both over a trash can. Clean the seals with a cloth, then reassemble the bin and put it back. Never exceed the max level.

How to clean the air/dust separation system?

Remove the hose, open the hood, press the eject button of the separator and remove the system. Separate the separation compartment by turning slightly to the left, wash the parts with clean water, let dry for 6 hours, then reassemble by clipping.

Why does the separator fill up quickly?

This may be due to blockages in the duct between the separation compartment and the dust bin, or blocked bin inlets. Check and clean the ducts and bin seals.

How to use accessories for different floors?

For carpets and rugs: all-floor nozzle with brush retracted or turbo brush. For parquet and hard floors: all-floor nozzle with brush extended or parquet nozzle. For corners: telescopic crevice tool. For furniture: integrated brush or upholstery nozzle.

Where to buy replacement filters?

Filters are available at your retailer or at Rowenta Authorized Service Centers. References: HEPA filter ZR9015 01, filtration cassette RS-RT3587.

USER MANUAL RO8221 11 SILENCE FORCE, RO8249 11 SILENCE FORCE EXTREME, RO8264 11 SILENCE FORCE EXTREME CYCLONIC ROWENTA

RO81xx / RO82xx series

www.rowenta.com

755282/01-14/13

fig.1

fig. 2

fig. 3

fig.4

fig. 5

fig. 6

fig. 7

fig. 8

fig.9

fig. 10

fig. 11

fig. 12

fig. 13

fig. 14

fig. 15

fig. 16

fig. 17

fig. 18

fig. 19

fig. 20

fig. 21

fig. 22

fig. 23

fig. 24

fig. 25

fig. 26

fig. 27

fig. 28

fig. 29

fig. 30

fig. 31

fig. 32

fig. 33

fig. 34

fig. 35

fig. 36

fig. 37

fig. 38

fig. 39

fig. 40

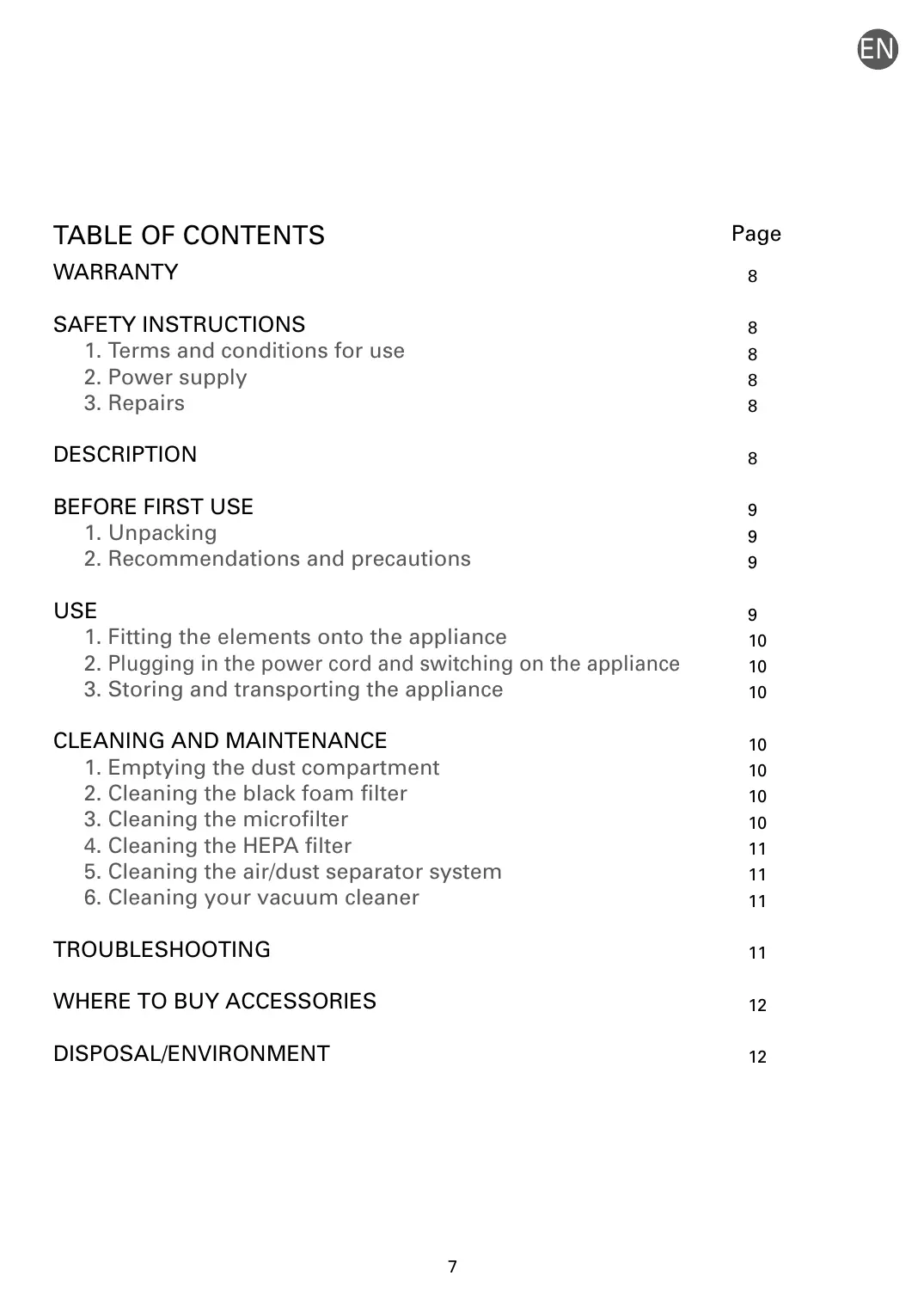

SOMMAIRE

GARANTIE 2

CONSEILS DE SECURITÉ 2

SAFETY INSTRUCTIONS 8

1. Terms and conditions for use 8
2. Power supply 8
3. Repairs 8

DESCRIPTION 8

BEFORE FIRST USE 9

1. Unpacking 9
2. Recommendations and precautions 9

USE 9

1. Fitting the elements onto the appliance 10
2. Plugging in the power cord and switching on the appliance 10
3. Storing and transporting the appliance 10

CLEANING AND MAINTENANCE 10

1. Emptying the dust compartment 10
2. Cleaning the black foam filter 10
3. Cleaning the microfilter 10
4. Cleaning the HEPA filter 11
5. Cleaning the air/dust separator system 11
6. Cleaning your vacuum cleaner 11

TROUBLESHOOTING 11

WHERE TO BUY ACCESSORIES 12

DISPOSAL/ENVIRONMENT 12

WARRANTY

• This appliance is for domestic use only; any misuse or use that does not conform to the instructions will release the brand from all liability and the warranty will be cancelled.

SAFETY INSTRUCTIONS

For your safety, this appliance complies with all applicable standards and regulations (Low Voltage 2006/95/EC, Electromagnetic Compatibility 2005/108/EC, Environmental directives, etc.).

This appliance should not be used by persons (including children) with reduced physical, sensory or mental abilities, or by persons lacking experience or knowledge, unless they are duly watched over or trained on how to use the appliance.

Children should be supervised to ensure they do not play with the appliance.

This device can be used by children over 8 years old and by persons with reduced physical, sensory or mental capacities, and by persons lacking experience or knowledge, if they are correctly watched over, or if they have received proper instructions relative to the safe use of the appliance and if they have fully understood the risks implied.

Children must not play with the appliance. Cleaning and maintenance of this appliance must not be carried out by children unless they are at least 8 years old and supervised by a responsible person. Keep the device and its cord away from children under 8 years old.

1·Terms and conditions for use

Your vacuum cleaner is an electrical appliance: is should be used under normal conditions for use.

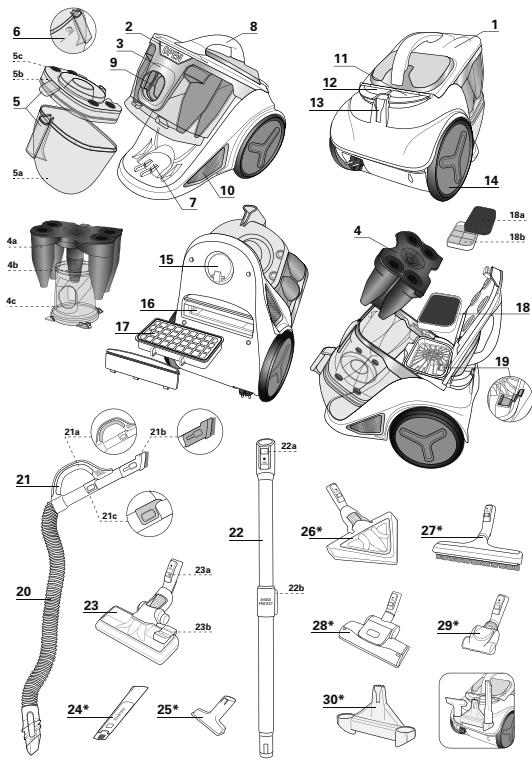

DESCRIPTION

1 Cover
2 Cover release button
3 Front cover
4 Air/dust separation system

a - Cone separator
b - Air/dust separation grille
c - Separation compartment

5 Dust compartment

a - Main compartment
b - Fine dust compartment
c - Dust compartment seals

6 Maximum fill level for dust compartment
7 Dust compartment housing
8 Carrying handle

• According to model: these systems are specific to certain models or are accessories available as an option.

• Read the instructions for use carefully before using your appliance for the first time: use that does not conform to the instructions will release Rowenta from all liability.

Use and store the appliance out of the reach of children.

Never leave the vacuum on unsupervised.

Do not place the nozzle or the end of the tube near the eyes or ears.

Do not vacuum wet surfaces, any type of liquids, hot substances, supersmooth substances (platinum, cement, ash, etc.), large sharp waste (glass), harmful products (solvants, abrasives, etc.), aggressive products (acids, cleaning products, etc.), inflammable and explosive products (oil or alcohol based).

Never immerse the appliance in water; do not spill water on the appliance and do not store it outside.

Do not use the appliance if: it has been dropped and there is visible damage or it fails to function correctly.

In this case, do not open the appliance but send it to the nearest

Approved Service Centre or contact Rowenta Customer Services.

2 • Power supply

Check that your vacuum cleaner voltage corresponds to that of your domestic power supply.

Switch off and disconnect the appliance by unplugging without pulling the cord: immediately after use, before changing accessories, before cleaning, maintenance or changing the filter.

Do not use the appliance if the power cord is damaged. The cord winder and cord for your vacuum cleaner must be replaced by an Approved Service Centre as special tools are required for repairs to avoid any risks.

Important: the mains plug should be protected with a 16 A fuse at least. If the circuit breaker is triggered while the appliance is in operation, this may be due to the fact that other appliances with high connected power are connected at the same time to the same electrical circuit. This can be avoided by setting the appliance to a low power before turning on and then adjusting to a higher power.

3·Repairs

Repairs should only be performed by specialists using original spare parts.

Repairs carried out by the user can pose a risk and cancel the warranty.

9 Suction inlet
10 Air outlet grille
11 ON/OFF button
12 Power cord wind button
13 Parking positions
14 Wheels
15 Multi-direction wheel
16 HEPA filter housing
17 HEPA filter (ref. ZR9015.01)
18 Filtration cassette (ref. RS-RT3587)
a - Black foam filter
b - Microfilter
19 Filtration cassette detection system (18)

DESCRIPTION

Accessories

20 Flexible hose with power nozzle ERGO COMFORT SILENCE (21)
21 a - ERGO COMFORT SILENCE ergonomic nozzle
b - Integrated brush (EASY BRUSH)
c - Manual power switch (POWER CONTROL)
22 ERGO COMFORT SILENCE metal telescopic tube
a - Nozzle/tube locking system (LOCK SYSTEM)
b - Tube adjustment button (TELESCOPIC SYSTEM)
23 ERGO COMFORT SILENCE multi-surface nozzle

a - Nozzle/tube locking system (LOCK SYSTEM)
b - 2-position button: brush retracted for rugs and carpets/brush released for parquet and smooth floors

24 Telescopic crevice nozzle
25 Upholstery nozzle
26 Delta parquet nozzle
27 Rectangular parquet nozzle
28 Turbo-brush
29 Mini turbo-brush
30 Accessory support*

BEFORE FIRST USE

1 · Unpacking

Unpack your appliance and remove any labels, keep your warranty form and read the instructions carefully before using your appliance for the first time.

2. Recommendations and precautions

Unwind the power cord completely before each use. Do not jam it and do not allow it to rub against sharp edges.

If you are using an electrical extension, check that it is in perfect condition and that it is suited to the power of your vacuum cleaner. Do not unplug the appliance by pulling on the power cord.

Do not move the vacuum cleaner by pulling on the power cord, the appliance must be moved using its carrying handle.

USE

1. Fitting the elements onto the appliance

Clip the end of the hose to the suction inlet located at the front of the appliance (fig.1). To remove, unclip the end using the clip and remove.

Fix the accessory support to the notch in the parking position located at the back of the vaccuum cleaner (fig.2) and store the accessories on top.

Note: The accessory support does not need to be removed to open the vacuum cleaner lid.

• Fit the metal telescopic tube to the end of the nozzle until you hear a click indicating that it is locked (fig.3). To remove, press the tube lock button and remove.
• Fit the multi-surface nozzle (23) to the end of the metal telescopic tube until you hear a click indicating that it is locked (fig.4). To remove, press the nozzle lock button and remove.
• Adjust the metal telescopic tube to the desired length using the telescopic system (TELESCOPIC SYSTEM) (fig.5). Fit the corresponding accessory to the end of the metal telescopic tube or the nozzle:
• For rugs and carpets: use the multi-surface nozzle in the retracted brush nozzle position or the Turbo-brush* (fibres and animal hairs).

Do not use the power cord or the hose to lift the appliance. Switch off and unplug your vacuum cleaner after each use. Always switch off and unplug your vacuum cleaner before maintenance or cleaning.

Your vacuum cleaner is fitted with a safety device which prevents the motor from overheating. In certain cases (when used on chairs, sofas, etc.) the safety device may be tripped and the appliance may make an unusual noise that is not serious.

Only use original Rowenta accessories and filters.

Check that all the filters are in place.

Do not operate your vacuum cleaner without the filtration system fitted (foam, microfilter and filter).

Never place the foam and microfilter in the appliance unless they are completely dry.

If you have any difficulties in finding accessories or filters for this vacuum cleaner, contact the Rowenta Customer Service.

• For parquet and smooth floors: use the multi-surface nozzle in the brush release position or for best results use the parquet nozzle*.
• For corners and hard to reach spots: use the telescopic crevice nozzle*.
• For upholstery and delicate surfaces: use the brush with the nozzle (EASY BRUSH) or the upholstery nozzle*.

IMPORTANT: always switch off and disconnect your vacuum cleaner before changing the accessories.

ERGONOMIC RECOMMENDATIONS

ERGO COMFORT SILENCE range

Ergonomic, the ERGO COMFORT SILENCE range has been designed to facilitate and improve user comfort when vacuuming.

To prevent bending over and to ensure upright posture, make sure to:

1. Adjust the length of the ERGO COMFORT SILENCE metal telescopic tube to your body (fig.6).
2. Place your second hand on the front of the ERGO COMFORT SILENCE nozzle handle (fig.7).

USE

2 • Plugging in the power cord and switching on the appliance

Unwind the power cord completely, plug in your vacuum cleaner and press the ON/OFF button (fig. 8).

ATTENTION: do not operate your vacuum cleaner without the filtration system fitted (foam, microfilter and filter).

Set the suction power using the manual power switch* on the power nozzle (fig.9):

• Position (MIN) for vacuuming delicate fabrics (curtains, textiles).
• Position (Medium) for daily vacuuming of all types of surfaces with low levels of soiling.
• Position (MAX) for vacuuming hard floors (tiled floors, parquet, etc.) and rugs and carpets in the case of high levels of soiling.

CLEANING AND MAINTENANCE

The air we breathe contains particles that can be allergenic: larva and dust mite faeces, mould, pollen, smoke and animal waste (hair, skin, saliva, urine), etc.

The finest particles can penetrate deep inside the respiratory system or can cause inflammation and affect the entire respiratory system.

(H)EPA ([High] Efficiency Particulate Air Filter) filters retain the finest particles.

Thanks to the (H)EPA filter, the air released into the room is cleaner than the air suctioned.

IMPORTANT: always switch off and unplug your vacuum cleaner before cleaning or servicing. Check and clean your vacuum cleaner and the different filters regularly.

IMPORTANT: do not operate your vacuum cleaner without the filtration system fitted (foam, microfilter and filter).

1. Emptying the dust compartment (5)

After each use, empty the dust compartment as follows:

Take the dust compartment by the handle and remove it (fig. 15).

Separate the fine dust compartment (5b) from the main compartment (5a) (Fig.16).

Empty the main compartment over a dustbin (Fig.17) then empty the fine dust compartment (5b) (Fig.18).

Clean the compartment seals using a cloth.

Reposition the fine dust compartment on the main compartment (Fig.19) then put the dust compartment back into place (fig.20).

IMPORTANT: do not use the vacuum cleaner once the maximum level (6) is reached on the dust compartment.

3 • Storing and transporting the appliance

After use, switch off your vacuum cleaner by pressing the ON/OFF button and unplug it (fig. 10). Wind the power cord by pressing the power cord wind button (fig. 11).

It is easy to carry your vacuum cleaner using the handle (8). Do not carry your appliance using the dust compartment handle (fig.12).

When storing your vacuum cleaner, place the tube in its storage compartment at the back of the appliance (fig.13).

You do not need to remove the accessory support (30) to store the accessory range (Fig.14).

2 · Cleaning the black foam filter (18a)

IMPORTANT: clean the black foam filter every 6 months or when the suction is no longer satisfactory.

Press the cover release button (fig.21). Tip the cover backwards (fig.22).

Remove the black foam filter (fig.23) then wash and squeeze it (fig.24). Leave to dry for at least 12 hours before refitting.

ATTENTION: let the black foam filter dry completely and make sure it is completely dry before placing it back in the appliance.

Reposition the black foam filter and close the cover.

3 • Cleaning the microfilter (18b)

IMPORTANT: clean the microfilter every 6 months.

Press the cover release button (fig.21). Tip the cover backwards (fig.22).

Remove the filtration cassette (18) then separate the black foam filter (18a) from the microfilter (18b) (fig.25).

Wash the microfilter (fig.26). Leave to dry for at least 12 hours before refitting.

ATTENTION: let the microfilter dry completely and make sure that it is well dry before refitting on the appliance.

Reposition the black foam filter and close the cover.

CLEANING AND MAINTENANCE

ATTENTION: your appliance is equipped with a safety system (19) for detecting the filtration cassette: the cover cannot be closed if the filtration cassette is not fitted (18a+18b).

IMPORTANT: if the appliance does not perform as normal after cleaning the black foam filter and microfilter on your vacuum cleaner, clean the HEPA filter.

4 • Cleaning the HEPA filter (17)

Remove the accessory support (30) then place the vacuum cleaner in the vertical position (Fig.27).

Open the HEPA filter hatch (Fig.28).

Remove the HEPA filter from its housing (fig.29). Clean the HEPA filter by gently patting it over a dustbin (fig. 30). Reposition it in its housing (Fig.31).

Reposition the hatch until you hear a click indicating that it is closed (Fig. 32).

IMPORTANT: replace the HEPA filter every 12 months. The HEPA filter (ref ZR9015.01) is available from your dealer or in Approved Service Centres.

5. Cleaning the air/dust separator system (4)

Remove the hose from the vacuum cleaner.

Open the vacuum cleaner cover (fig. 21-22).

Press the separator release button (fig.33) then remove from

TROUBLESHOOTING

IMPORTANT: stop your vacuum cleaner immediately by pressing the Start/Stop button as soon as it stops performing as normal and before performing any checks.

If your vacuum cleaner will not start

• The appliance is not powered. Check that the appliance is plugged in correctly.

If your vacuum cleaner has no suction power
- An accessory, the tube, hose, separator (4a), air/dust separation grille (4b) or the separation compartment (4c) is blocked: unblock them.
- The black foam filter (18a) is saturated: clean it.
- The microfilter (18b) is saturated: clean it.
- The HEPA filter (17) is saturated: clean it by patting it over a dustbin. If the HEPA filter is damaged, change it.

If your vacuum cleaner has less suction power, is noisy or makes a whistling noise

• An accessory, the tube, hose, separator (4a), air/dust separation grille (4b) or the separation compartment (4c) is partially blocked: unblock them.
• The dust compartment is full: empty and wash it.
• The vacuum cleaner cover is not fitted correctly: close properly.

the separation system (fig.34).

Remove the separation compartment (4c) by turning slightly to the left (fig.35) then separate the two components (fig.36). Wash the components (4a + b and 4c) in clear water (fig. 37) and leave to dry for 6 hours.

Refit the filter system components (4):

• Reposition the separation compartment (4c) on the separation system (4a+b) (fig. 38) by turning slightly until you hear the click indicating that it is closed (fig. 39).
• Then reposition the entire separation system (4) in the appliance (fig. 40) and close the cover.

6 · Cleaning your vacuum cleaner

Wipe the body of the vacuum cleaner and accessories with a soft damp cloth, then dry with a dry cloth.

Wash the dust compartment (5a+ 5b) under clear or soapy water, then dry with a dry cloth.

IMPORTANT: do not use aggressive or abrasive detergents. The transparency of the dust compartment and/or front cover and/or cover may change over time; this does not affect the appliance performance.

ATTENTION: do not wash the vacuum cleaner cover under clear water. Clean using a soft wet cloth.

• The dust compartment is not correctly fitted: fit it correctly.
• The nozzle's manual power switch* is open: close it.

If the cone separator (4a) fills up

• Dust accumulates in the separation compartment (4c): Check that the pipe between the separator (4c) and the dust compartment (5) is not blocked. Check that nothing is obstructing the dust compartment inlets.
• The dust compartment inlets are blocked: remove the dust compartment and empty it. Clean the dust compartment seals.

If it is difficult to move the nozzle
- Open the manual power switch* on the nozzle.

If the power cord does not wind completely
- The cord slows down as it winds up: pull the power cord out again and press the power cord wind button.

If a problem persists, take your vacuum cleaner to your local Rowenta Approved Service Centre.

To find a list of Authorised Service Centres, contact Customer Services, the contact details for which you will find on the enclosed international guarantee card.

ACCESSORIES*	USE	FITTING THE ACCESSORY	PLACE OF PURCHASE
Upholstery brush	For cleaning upholstery.	Attach the upholstery brush to the end of the nozzle.
Upholstery nozzle	For cleaning upholstery.	Fit the upholstery nozzle to the end of the nozzle or tube.
Telescopic crevice nozzle	For corners and hard to reach spots.	Fit the telescopic crevice nozzle to the end of the nozzle or tube.
Rectangular parquet nozzle	For delicate floors.	Fit the parquet nozzle to the end of the tube.	Rowenta Authorised Service Centres (To find a list of Authorised Service Centres, contact Customer Services, the contact details for which you will find on the enclosed international guarantee card).
DELTA parquet nozzle	For delicate floors.	Fit the DELTA parquet nozzle to the end of the tube.
Mini turbo-brush	For deep-cleaning upholstery fabrics.	Fit the mini turbo-brush to the end of the tube.
Turbo-brush	For removing animal hairs and fibres embedded in rugs and carpets.	Fit the turbo-brush to the end of the tube.

DISPOSAL/ENVIRONMENT

Packaging: the packaging protecting your appliance consists of environment-friendly and recyclable materials. Packaging that is no longer used should be disposed of at specially designated collection points.

The used appliance: do not dispose of your appliance with household waste. Your appliance contains numerous valuable or recyclable materials and therefore should be given to a dealer or a recycling centre for disposal.

Think of the environment!

Used filters: as they do not contain forbidden substances in terms of household waste, the used filters can be disposed of with household waste.

ÍNDCICE

GARANTÍA 14

LIMPEZA E MANUTENÇA 22

1. Esvaziamento do recipientepara o pó 22
2. Lavagem do filtro de espuma preto 22
3. Limpeza do microfiltro 22
4. Limpeza do filtro HEPA 23
5. Limpeza do Sistema de separacao de ar/pó 23
6. Limpeza do aspirador 23

RESOLUÇA O DE PROBLEMAS 23

ONDE ADQUIRIR OS ACESSORIES 24

BESCHRIJVING VAN HET APPARAAT 32

4·De HEPA filter schoonmaken (17)
