DCR-SR21B - Camcorder SONY - Free user manual and instructions

Product Type	Camcorder
Brand	Sony
Model	DCR-SR21B
Recording Media	80GB Internal Hard Drive, Memory Stick Duo slot
Image Sensor	1/8 inch CCD, approx. 1.0 Megapixels
Optical Zoom	60x (Optical), 2000x (Digital)
LCD Screen	2.7 inch Clear Photo LCD Plus (230K dots)
Video Resolution	Standard Definition (720x480)
Dimensions (W x H x D)	Approx. 56 x 64 x 107 mm (without protrusions)
Weight	Approx. 270 g (without battery)
Power Source	Rechargeable Battery Pack (InfoLITHIUM H Series) or AC Adaptor
Battery Life (typical)	Approx. 95 minutes with NP-FH50 battery
Main Functions	SteadyShot image stabilization, Face Detection, Direct Copy to DVD without PC
Input/Output Ports	USB 2.0, A/V OUT, DC IN, LANC jack
Maintenance	Clean lens with soft cloth; avoid moisture; keep away from magnets
Safety	Do not disassemble; avoid dropping; use only specified batteries/chargers
Spare Parts and Repairability	Contact Sony authorized service centers; some parts available online
General Information	Manual available for free download in PDF format at notice-facile.com

Frequently Asked Questions - DCR-SR21B SONY

How do I transfer videos from the DCR-SR21B to my computer?

Connect the camcorder to your computer via the USB cable. The internal hard drive will appear as an external drive. Copy video files (typically in MPEG2 format) and use software like PlayMemories Home or any video editor to import them.

What type of battery does the DCR-SR21B use?

It uses a rechargeable InfoLITHIUM H Series battery pack, such as NP-FH50 or compatible models. Always use genuine Sony batteries for optimal performance.

How can I record directly to a DVD without a computer?

Connect the camcorder to a compatible DVDirect DVD burner via USB, or use the One Touch DVD Burn feature if available. Follow the on-screen instructions on the camcorder's LCD.

Why is my camcorder not turning on?

Ensure the battery is charged and properly inserted. Try connecting the AC adaptor. If still not working, the battery may need replacement. Refer to the manual for troubleshooting.

Can I use Memory Stick cards in this camcorder?

Yes, the DCR-SR21B has a slot for Memory Stick Duo cards (not PRO Duo speed required). You can record to the card or copy files from the hard drive.

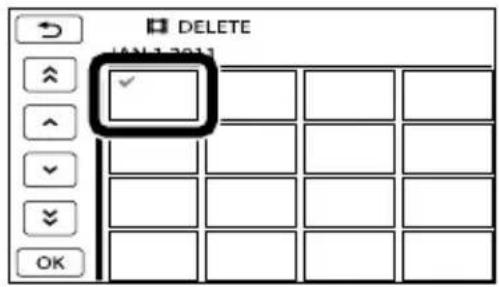

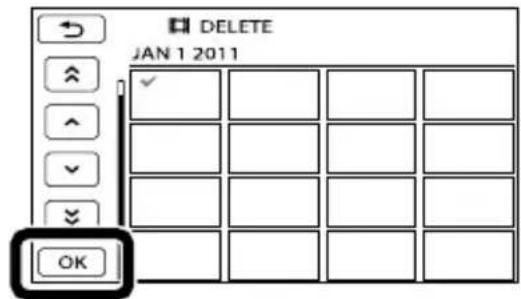

How do I delete videos from the hard drive?

In playback mode, select the video you want to delete, press the DELETE button (usually marked with a trash icon), and confirm. To delete all, use the menu option Format (this erases everything).

What is the maximum recording time on the internal hard drive?

With the 80GB hard drive and standard definition recording, you can record approximately 30 hours in the highest quality mode (HQ) or longer in lower quality modes.

How do I clean the lens safely?

Use a soft lens cleaning cloth or a blower brush. Gently wipe in a circular motion. Do not use solvents or harsh chemicals. For stubborn smudges, a lens cleaning solution applied to the cloth is acceptable.

Can I connect the camcorder to a TV?

Yes, use the supplied A/V cable (composite) or an optional component/S-video cable. Connect to the TV's video input. For audio, connect the red and white plugs. Set the TV to the correct input channel.

Where can I find the user manual?

The user manual is available for free download in PDF format from notice-facile.com. Search for 'DCR-SR21B Sony' and select English language.

USER MANUAL DCR-SR21B SONY

Digital Video Camera Recorder

Operating Guide US

HANDYCAM®

Owner's Record

The model and serial numbers are located on the bottom. Record the serial number in the space provided below. Refer to these numbers whenever you call your Sony dealer regarding this product.

Model No. DCR-

Serial No.

Model No. AC-

Serial No.

WARNING

To reduce fire or shock hazard, do not expose the unit to rain or moisture.

Do not expose the batteries to excessive heat such as sunshine, fire or the like.

This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

US

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS.

DANGER - TO REDUCE THE RISK OF FIRE

OR ELECTRIC SHOCK,

CAREFULLY FOLLOW THESE

INSTRUCTIONS.

• Read these instructions.
• Keep these instructions.
• Heed all warnings.

- Follow all instructions.

- Do not use this apparatus near water.

- Clean only with dry cloth.

- Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

- Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

- Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

- Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

- Only use attachments/accessories specified by the manufacturer.

- Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

- Unplug this apparatus during lightning storms or when unused for long periods of time.

- Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

- If the shape of the plug does not fit the power outlet, use an attachment plug adaptor of the proper configuration for the power outlet.

Representative plug of power supply cord of countries/regions around the world.

The representative supply voltage and plug type are described in this chart.

Depending on the area, different types of plug and supply voltage are used.

Attention: Power cord meeting demands from each country shall be used.

- For only the United States

Use a UL Listed, 1.5-3 m (5-10 ft.), Type SPT-2 or NISPT-2, AWG no. 18 power supply cord, rated for 125 V 7 A, with a NEMA 1-15P plug rated for 125 V 15 A.

Europe

Countries/regions Voltage Frequency (Hz) Plug type
Austria 230 50 C
Belgium 230 50 C
Czech 220 50 C
Denmark 230 50 C
Finland	230 50 C
France	230 50 C
Germany	230 50 C
Greece	220 50 C
Hungary	220 50 C
Iceland 230 50 C
Ireland	230 50	C/BF
Italy	220 50 C
Luxemburg	230 50 C
Netherlands	230 50 C
Norway	230 50 C
Poland	220 50 C
Portugal	230 50 C
Romania	220 50 C
Russia	220 50 C
Slovak	220 50 C
Spain	127/230	50 C
Sweden	230 50 C
Switzerland	230 50 C
UK	240 50	BF

Asia

Countries/regions Voltage Frequency (Hz) Plug type
China 220 50 A
Hong Kong	200/220	50	BF
India	230/240	50 C
Indonesia	127/230	50 C
Japan	100	50/60	A
Korea (rep)	220 60 C
Malaysia	240 50	BF
Philippines	220/230	60	A/C
Singapore	230 50	BF
Taiwan 110 60 A
Thailand	220 50	C/BF

Countries/regions Voltage Frequency (Hz) Plug type

Vietnam 220 50 A/C

Oceania

Countries/regions Voltage Frequency (Hz) Plug type

Australia 240 50 O

New Zealand 230/240 50 O

North America

Countries/regions Voltage Frequency (Hz) Plug type

Canada 120 60 A

USA 120 60 A

Central America

Countries/regions Voltage Frequency (Hz) Plug type

Bahamas 120/240 60 A

Costa Rica 110 60 A

Cuba 110/220 60 A/C

Dominican Republic 110 60 A

El Salvador 110 60 A

Guatemala 120 60 A

Honduras 110 60 A

Jamaica 110 50 A

Mexico 120/127 60 A

Nicaragua 120/240 60 A

Panama 110/220 60 A

South America

Countries/regions Voltage Frequency (Hz) Plug type

Argentina

220 50 C/BF/O

Brazil 127/220 60 A/C

Chile 220 50 C

Colombia 120 60 A

Peru 220 60 A/C

Venezuela 120 60 A

Middle East

Countries/regions Voltage Frequency (Hz) Plug type

Iran

220 50

C/BF

Iraq

220 50

C/BF

Israel 230 50 C

Saudi Arabia 127/220 50 A/C/BF

Turkey 220 50 C

UAE 240 50 C/BF

Africa

Countries/regions Voltage Frequency (Hz) Plug type

Algeria

127/220 50 C

Congo (Dem) 220 50 C

Egypt 220 50 C

Ethiopia 220 50 C

Kenya 240 50 C/BF

Nigeria 230 50 C/BF

South Africa 220/230 50 C/BF

Tanzania 230 50 C/BF

Tunisia 220 50 C

Read this first

Before operating the unit, please read this manual thoroughly, and retain it for future reference.

CAUTION

Battery pack

If the battery pack is mishandled, the battery pack can burst, cause a fire or even chemical burns. Observe the following cautions.

• Do not disassemble.
• Do not crush and do not expose the battery pack to any shock or force such as hammering, dropping or stepping on it.
• Do not short circuit and do not allow metal objects to come into contact with the battery terminals.
• Do not expose to high temperature above 60°C (140 °F) such as in direct sunlight or in a car parked in the sun.
• Do not incinerate or dispose of in fire.
• Do not handle damaged or leaking lithium ion batteries.
• Be sure to charge the battery pack using a genuine Sony battery charger or a device that can charge the battery pack.
• Keep the battery pack out of the reach of small children.
• Keep the battery pack dry.
• Replace only with the same or equivalent type recommended by Sony.
• Dispose of used battery packs promptly as described in the instructions.

Replace the battery with the specified type only. Otherwise, fire or injury may result.

AC Adaptor

Do not use the AC Adaptor placed in a narrow space, such as between a wall and furniture.

Use the nearby wall outlet (wall socket) when using the AC Adaptor. Disconnect the AC Adaptor from the wall outlet (wall socket) immediately if any malfunction occurs while using your camcorder.

Even if your camcorder is turned off, AC power source (mains) is still supplied to it while connected to the wall outlet (wall socket) via the AC Adaptor.

For customers in the U.S.A. and CANADA

RECYCLING LITHIUM-ION BATTERIES

Lithium-Ion batteries are recyclable.

You can help preserve our environment by returning your used rechargeable batteries to the collection and recycling location nearest you.

For more information regarding recycling of rechargeable batteries, call toll free 1-800-822-8837, or visit http://www.rbrc.org/

Caution: Do not handle damaged or leaking Lithium-Ion batteries.

Battery pack

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This Class B digital apparatus complies with Canadian ICES-003.

For the customers in the U.S.A.

UL is an internationally recognized safety organization.

The UL Mark on the product means it has been UL Listed.

If you have any questions about this product, you may call:

Sony Customer Information Center 1-800-222-SONY (7669).

The number below is for the FCC related matters only.

Regulatory Information

Declaration of Conformity

Trade Name: SONY

Model No.: DCR-PJ5

Responsible Party: Sony Electronics Inc.

Address: 16530 Via Esprillo, San Diego, CA 92127 U.S.A.

Telephone No.: 858-942-2230

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Declaration of Conformity

Trade Name: SONY

Model No.: DCR-SR21

Responsible Party: Sony Electronics Inc.

Address: 16530 Via Esprillo, San Diego, CA 92127 U.S.A.

Telephone No.: 858-942-2230

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Declaration of Conformity

Trade Name: SONY

Model No.: DCR-SX21

Responsible Party: Sony Electronics Inc.

Address: 16530 Via Esprillo, San Diego, CA 92127 U.S.A.

Telephone No.: 858-942-2230

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

Note

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

The supplied interface cable must be used with the equipment in order to comply with the limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules.

To select a MENU item

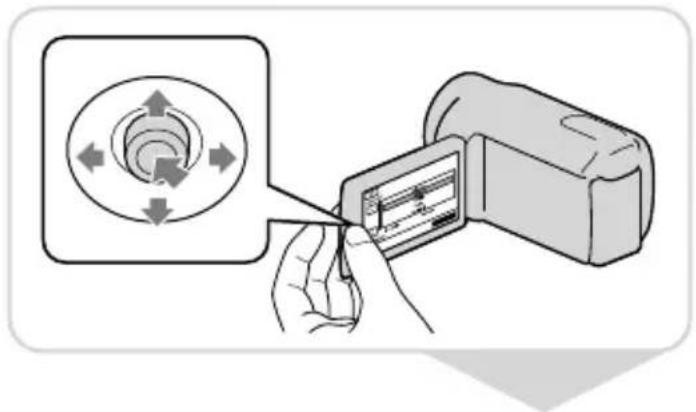

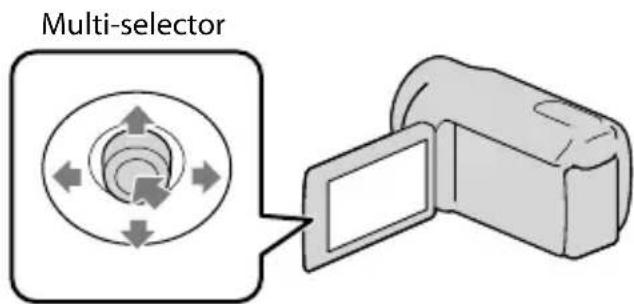

You can use the multi-selector to select/decide the items in the MENU.

① Select a button by placing an orange frame over it using ▼/▲/◄/► of the multi-selector. ② Press the center of the multi-selector to confirm your selection.

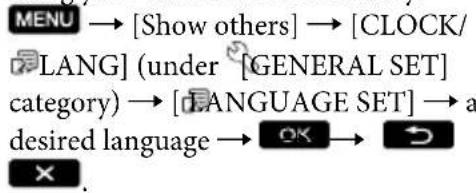

To change the language setting

- The on-screen displays in each local language are used for illustrating the operating procedures. Change the screen language before using your camcorder if necessary.

Supplied items

The numbers in ( ) are the supplied quantity.

□ AC Adaptor (1)

□ Power cord (Mains lead) (1)

□ A/V connecting cable (1) □

□ USB cable (1) B

□ Rechargeable battery pack NP-FV30 (1)

□ CD-ROM "Handycam" Application

Software (1)

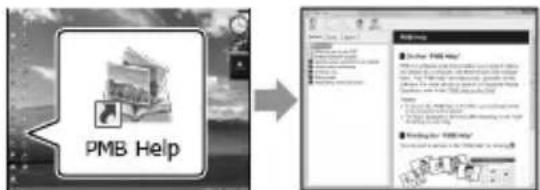

- “PMB” (software, including “PMB Help”)

- "Handycam" Handbook (PDF)

☐ “Operating Guide” (This manual) (1)

Capturing

Page 16 (Recording)

Sharing

Page 25 (Creating a disc)

Sharing now

Page 22 (Projector)

DCR-PJ5 Only

Table of contents

IMPORTANT SAFETY INSTRUCTIONS 4

Read this first....7

Everyday as unforgettable moment with "Handycam" 10

Preparation

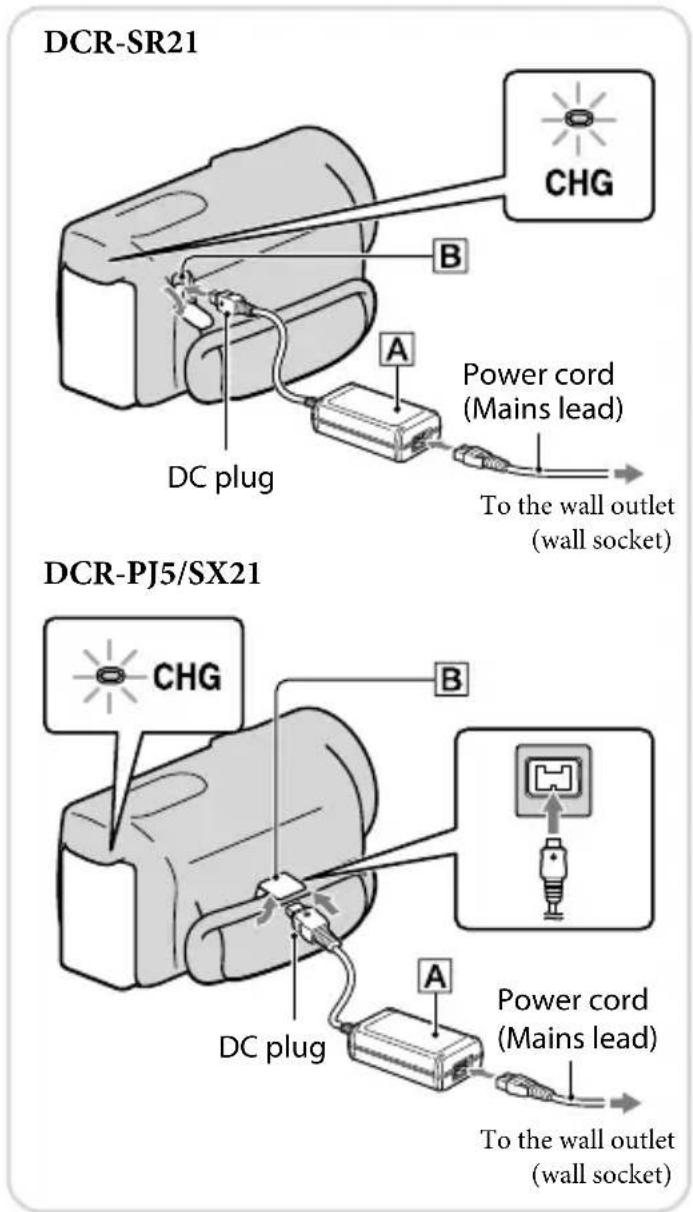

Charging 13

Setting.... 14

Recording/Playback

Recording.... 16

Playback on the camcorder 18

Deleting movies and photos.... 20

Playing back images through the built-in projector (DCR-PJ5) 22

Playing images on a TV 24

Saving movies and photos

Saving images on a disc 25

Saving images in external media (DIRECT COPY).... 30

Using a computer

Useful functions available if you connect the camcorder to a computer.... 32

Preparing a computer.... 33

Starting PMB (Picture Motion Browser).... 35

Using "PMB Portable" 36

Customizing your camcorder

Using menus 37

Dividing a movie 42

Getting detailed information from the "Handycam" Handbook 42

Additional Information

Screen indicators.... 43

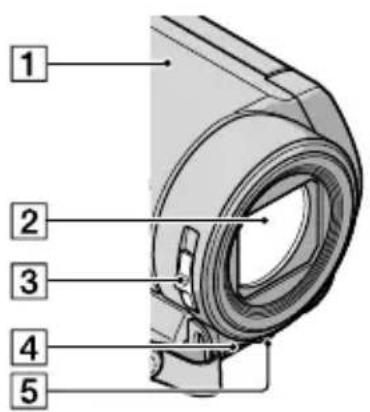

Parts and controls.... 44

? Troubleshooting.... 46

Specifications 48

Precautions.... 51

Index 56

Preparation

Charging

1 Attach the battery pack.

To remove the battery pack Close the LCD screen. Slide the BATT (battery) release lever and remove the battery pack.

2 Connect the AC Adaptor A to the DC IN jack B and the wall outlet (wall socket).

Setting

1 Open the LCD screen to turn on your camcorder.

To turn off the power Close the LCD screen.

2 Set the geographical area and the time using the multi-selector.

3 Insert the memory card into the memory card slot.

To eject the memory card Lightly push the memory card in once.

Notes

- The date and time are automatically recorded on the recording media, and can be displayed during playback. MENU → [Show others] → [PLAYBACK SET] (under ▶ [PLAYBACK] category) → [DATA CODE] → [DATE/TIME] → OK → 📋 ×

- You can turn off the operation beeps. MENU → [Show others] → [SOUND/DISP SET] (under 📋 [GENERAL SET] category) → [BEEP] → [OFF] → OK → ☑ ×

Changing the recording media (DCR-SR21)

In the default setting, both movies and photos are recorded on the internal hard disk. You can change the recording media to Memory card.

Recording/Playback

Recording

1 Open the lens cover.

2 Select a mode (Movie/Photo).

Movie:

Photo:

3 Movie:

Press START/STOP.

Photo:

Press PHOTO.

Notes

• If you close the LCD screen while recording movies, the camcorder stops recording.
• The maximum continuous recordable time of movies is about 13 hours.
• When a movie file exceeds 2 GB, the next movie file is created automatically.
• You can check the recordable time, estimated remaining capacity, etc.

MENU → [Show others] → [MEDIA INFO] (under [MANAGE MEDIA] category).

Recording in a dimly-lit place

You can turn on the LED VIDEO LIGHT by pressing LIGHT.

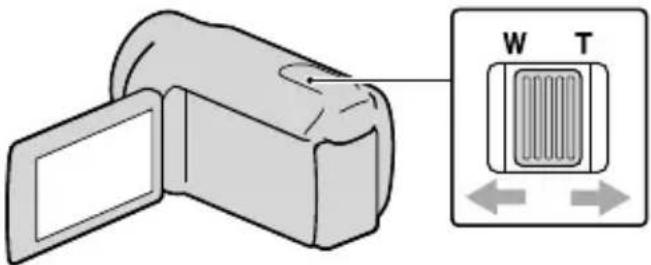

Zooming

You can magnify images up to 67 times the original size with the power zoom lever.

Displaying the icons and indicators again

You can display the icons and indicators by pressing the multi-selector if they are not shown.

Playback on the camcorder

1 Press VIEW IMAGES) to display the VISUAL INDEX screen.

2 Movie: Select □ (Movie).

Photo: Select 📷 (Photo).

3 Select the desired image.

Movie playback screen

You can adjust the volume.

Photo playback screen

Deleting movies and photos

1 Select MENU [Show others] → [DELETE] (under the [EDIT] category).

2 Movie: Select [DELETE] → [DELETE].

Photo: Select [DELETE] → [DELETE].

3 Select the images to be deleted.

The check mark appears.

Notes

• You cannot restore images once they are deleted. Save important movies and photos in advance.
• Do not remove the battery pack or the AC Adaptor from your camcorder while deleting the images. It may damage the recording media.

Playing back images through the built-in projector (DCR-PJ5)

1 Press PROJECTOR.

2 Adjust the projected image.

3 Select the image you want to project.

Notes

- Be careful of the following operations or situations while using the projector.

- Make sure not to project images towards the eyes.

- Make sure not to touch the projector lens.

- The LCD screen and the projector lens become hot while in use.

- Using the projector shortens battery life.

- If you connect the camcorder to a TV and use the projector function, sound will be output from the TV; however, no image will be output.

Viewing images recorded on other devices, using the projector

① MENU → [Show others] → [PROJECTOR] (under ☐ [OTHERS] category) → [SOURCE] → [PROJECTOR INPUT] → OK. ② Connect your camcorder to the other device with the A/V connecting cable.

③ Press PROJECTOR.

• Sound of other devices cannot be input to the camcorder. - Operation buttons are not displayed on images projected when [PROJECTOR INPUT] is set. If the camcorder is not connected to another device, a blank blue screen will be projected.

Perform the following operations when you want to project images on the camcorder.

- Firstly, press PROJECTOR to stop projecting. Select MENU → [Show others] → [PROJECTOR] (under [OTHERS] category) → [SOURCE] → [MEMORY CARD] → OK, and then press PROJECTOR again.

– Turn the power of the camcorder off, then on again, and then press PROJECTOR.

Changing the aspect ratio of the image

You can change the aspect ratio of the image projected by the projector according to the recorded image size.

① Select MENU → [Show others] → [PROJECTOR] (under ☐ [OTHERS] category). ② Select [SCREEN FORMAT] → [16:9 WIDE] or [4:3].

Playing images on a TV

Set the input selector of the TV to the input your camcorder will be connected to.

1 Connect your camcorder to a TV with the A/V connecting cable (supplied).

2 Play back movies and photos on your camcorder.

Notes

- For details, refer to the instruction manuals supplied with the TV.

Saving movies and photos

Saving images on a disc

Connect the AC Adaptor and the power cord (mains lead) to the DC IN jack of your camcorder and the wall outlet (wall socket).

Using DVDirect Express

1 Connect the DVD writer to the (USB) jack of your camcorder with the USB cable of the DVD writer. 2 Insert an unused disc into the DVD writer. 3 Press (DISC BURN) on the DVD writer. 4 Select OK [END] → [EJECT DISC] → OK.

Notes

• Refer also to the instruction manual supplied with the DVD writer. - Only unused discs of the following types can be used:

• The device does not support two-layered discs. - DVDirect Express is referred to as "DVD writer" in this section. - Do not do any of the following when creating a disc.

– Turn off the camcorder - Disconnect the USB cable or the AC Adaptor - Subject the camcorder to mechanical shock or vibration – Eject the memory card from the camcorder

- Play the created disc to make sure dubbing was performed correctly before deleting the movies on your camcorder.

• If [Failed.] or [DISC BURN failed.] appears on the screen, insert another disc into the DVD writer and perform the DISC BURN operation again.
• If the total memory size of movies to be burnt by the DISC BURN operation exceeds that of the disc, disc creation stops when the limit is reached. The last movie on the disc may be cut off.
• Disc creation time to dub movies to the limit of the disc is about 20 minutes to 60 minutes. It may take more time depending on the recording mode or the number of scenes.

Customizing a disc with DISC BURN OPTION

Perform this operation in the following cases:

• When dubbing a desired image
• When creating multiple copies of the same disc
• When dubbing images in the memory card (DCR-SR21)

① Select [DISC BURN OPTION] on the screen in step 3. ② Select the recording media containing the movie(s) you want to save (DCR-SR21). ③ Select the movie you want to burn on the disc.

Remaining Disc capacity

④ Select [YES] on the camcorder screen. ⑤ After the operation is completed, select [EXIT] → [END].

Playing back a disc on the DVD writer

① When playing back movies on the TV screen, connect the camcorder to a TV. ② Insert a created disc into the DVD writer. ③ Press the play button on the DVD writer. ④ Select [END] → [EJECT DISC] on the screen and remove the disc after the operation is completed.

- If you cannot play back created discs on any DVD player, connect the camcorder to the DVD writer, and then play back.

Using a DVD writer, etc., other than DVDirect Express

1 Connect a DVD writer, etc., to the ♂ (USB) jack of your camcorder with the USB cable (supplied). 2 Select the recording media that contains the images on the camcorder screen.

[USB CONNECT]: Internal hard disk (DCR-SR21) [USB CONNECT]: Memory card

3 Record images on the connected device. 4 Select [END] → [YES] after the operation is completed.

Notes

• Refer also to the instruction manuals supplied with devices to be connected. - Sony DVD writer may not be available in some countries/regions.

Using a recorder, etc.

1 Insert the recording media into the recording device (a disc recorder, etc.). 2 Connect your camcorder to the recording device with the A/V connecting cable (supplied).

3 Start playback on your camcorder, and record it on the recording device. 4 When dubbing is finished, stop the recording device, and then your camcorder.

Notes

• Since dubbing is performed via analog data transfer, the image quality may deteriorate.
• You can hide the screen indicators (such as a counter, etc.) on the screen of the monitor device connected.
• You can record the date/time or camera settings data.
• You can change the aspect ratio according to the screen size of display devices (TV, etc.).
• When you connect a monaural device, connect the yellow plug of the A/V connecting cable to the video input jack, and the white (left channel) or the red (right channel) plug to the audio input jack on the device.

Saving images in external media (DIRECT COPY)

Connect the AC Adaptor and the power cord (mains lead) to the DC IN jack of your camcorder and the wall outlet (wall socket).

1 If the external media has the AC power cable, connect it to the wall outlet (wall socket).

To the wall outlet (wall socket)

2 Connect the external media to the ⬤ (USB) jack of your camcorder with the USB Adaptor Cable (sold separately).

3 Select [Copy].

4 Select after the operation is completed.

Notes

• For this operation, you need the USB Adaptor Cable VMC-UAM1 (sold separately).
• The USB Adaptor Cable VMC-UAM1 may not be available in some countries/regions.
• The number of scenes you can save on the external media are as follows.

Movies: 9,999 movies

Photos: 9,999 frames × 899 folders

The number of scenes may be smaller depending on the type of images recorded.

Viewing images recorded on external media, with your camcorder

① Select [Play without copying.] in step 4 above.

The VISUAL INDEX screen of the external media is displayed.

② Play back the image.

You can also view images on a TV connected to your camcorder.

Using a computer

Useful functions available if you connect the camcorder to a computer

The software PMB stored in the CD-ROM (supplied) includes functions that enable you to do more with the images recorded with the camcorder. (Windows)

Easy uploading when away from home

With PMB Portable, which is pre-installed on the camcorder, you can play back or upload your images to the Web by connecting your camcorder to a computer away from home.

Preparing a computer

Step 1 Checking the computer system

Windows

OS*1

Microsoft Windows XP SP3*/Windows Vista SP2*3/Windows 7 SP1

CPU*4

Intel Pentium III 1 GHz or faster

Application

PMB/PMB Portable

Memory

256 MB or moreOther system requirements for OS should be met.

Hard disk

Disk volume required for installation:Approximately 500 MB (5 GB or more may be necessary when creating DVD discs.)

Display

Minimum 1,024 dots × 768 dots

Others

USB port (this must be provided as standard, Hi-Speed USB (USB 2.0 compatible)), DVD burner (CD-ROM drive is necessary for installation)

Macintosh

OS

PMB Portable: Mac OS X*5 (v10.5-v10.6)

^*1 Standard installation is required. Operation is not assured if the OS has been upgraded or in a multi-boot environment.

^*2 64-bit editions and Starter (Edition) are not supported. Windows Image Mastering API (IMAPI) Ver.2.0 or newer is required to use disc creation function, etc.

*3 Starter (Edition) is not supported.

*4 Faster processor is recommended.

*5 Macintosh equipped with Intel processor

Notes

- Operation with all computer environments is not assured.

When using a Macintosh

The supplied software "PMB" is not supported by Macintosh computers. To import the movies and photos to the computer, please contact Apple Inc.

Step 2: Installing the supplied software "PMB"

Install "PMB" before connecting your camcorder to a computer.

Notes

- If a version of "PMB" under 5.0.00 has been installed on your computer, you may be unable to use some functions of that "PMB" when installing the "PMB" from the supplied CD-ROM. Also, "PMB Launcher" is installed from the supplied CD-ROM and you can start "PMB" or other software by using the "PMB Launcher." Double-click the "PMB Launcher" shortcut icon on the computer screen to start "PMB Launcher."

1. Confirm that your camcorder is not connected to the computer.

2. Turn on the computer.

• Log on as an Administrator for installation.
• Close all applications running on the computer before installing the software.

3 Place the supplied CD-ROM in the disc drive of your computer.

The installation screen appears.

- If the screen does not appear, click [Start] → [Computer] (in Windows XP, [My Computer]), then double-click [SONYPMB (E:)] (CD-ROM)*.

* Drive names (such as (E:)) may vary depending on the computer.

4 Click [Install].

5 Select the country or region.

6 Select the language for the application to be installed, then proceed to the next screen.

7 Read the terms of the license agreement carefully. If you agree to the terms, change ○ to ● and then click [Next] → [Install].

8 Turn on your camcorder, then connect the camcorder to the computer using the supplied USB cable.

The [USB SELECT] screen appears on the camcorder screen automatically.

9 Select the one of the media types

displayed on the screen to make the computer recognize your camcorder.

[USB CONNECT]: Internal hard disk (DCR-SR21)

[USB CONNECT]: Memory card

- If the [USB SELECT] screen does not appear, select MENU → [Show others] → [USB CONNECT] (under 📄 [OTHERS] category).

10 Click [Continue] on the computer screen.

11 Follow the on-screen instructions to install the software.

- Depending on the computer, you may need to install third party software. If the installation screen appears, follow the instructions to install the required software.

- Restart the computer if required to complete the installation. When the installation is completed, the following icons will appear. Remove the CD-ROM from your computer.

: Starts "PMB."

: Displays "PMB Help."

: Displays "PMB Launcher." "PMB Launcher" enables you to start "PMB" or other software, or to open web sites.

- Other icons may appear. - No icon may appear depending on the installation procedure.

To disconnect your camcorder from the computer

① Click the icon at the bottom right of the desktop of the computer → [Safely remove USB Mass Storage Device].

② Select [END] → [YES] on the camcorder screen.

③ Disconnect the USB cable.

Notes

• Do not format the media of your camcorder from a computer. Your camcorder may not operate correctly.
• Access from the computer using the supplied software "PMB." Do not modify the files or folders on the camcorder from the computer. The image files may be destroyed or may not be played back. • Operation is not guaranteed, if you perform the above operation.

Starting PMB (Picture Motion Browser)

Double-click the "PMB" shortcut icon on the computer screen.

Notes

- If the icon is not displayed on the computer screen, click [Start] → [All Programs] → [PMB] to start "PMB."

Reading "PMB Help"

For details on how to use "PMB," read the "PMB Help." Double-click the "PMB Help" shortcut icon on the computer screen to open the "PMB Help."

Notes

- If the icon is not displayed on the computer screen, click [Start] → [All Programs] → [PMB] → [PMB Help]. You can also open the "PMB Help" from [Help] of "PMB."

Using "PMB Portable"

"PMB Portable" which allows you to easily upload images to a network service starts up by connecting your camcorder to a computer.

You can see the detailed usage when you click the help button in the upper right after starting "PMB Portable."

1 Turn on your camcorder, then connect it to a computer with the USB cable.

The [USB SELECT] screen appears on the LCD of your camcorder.

2 Select the recording media for which you wish to use "PMB Portable."

[USB CONNECT]: Internal hard disk (DCR-SR21)

[USB CONNECT]: Memory card

- If the [USB SELECT] screen does not appear, go to MENU → [Show others] → [USB CONNECT] (under the 📄 [OTHERS] category).

3. Click "PMB Portable."

The User Agreement screen appears.

4. Configure the settings, following the instructions on the screen.

"PMB Portable" starts up.

For more details on “PMB Portable,” see the “PMB Portable” help.

Customizing your camcorder

Using menus

Using the menus, you can perform useful functions and change various settings. If you make good use of menu operations, you can enjoy using your camcorder.

The camcorder has various menu items under each of eight menu categories.

M MANUAL SETTINGS (Items to adjust for scene condition) → p. 39 SHOOTING SET (Items for customized shooting) → p. 39 PHOTO SETTINGS (Items for recording photos) → p. 39 PLAYBACK (Items for playback) → p. 39 EDIT (Items for editing) → p. 39 OTHERS (Items for other settings) → p. 40 MANAGE MEDIA (Items for recording media) → p. 40 GENERAL SET (Other setup items) → p. 41

Operating menus

• Select with ▼/▲/◄/► and press the center of the multi-selector to confirm your selection. • An orange frame appears on the selected item.

× : To finish setting the menu. ≠ / ≠ menu list moves from category to category. ^ / ≠ menu list moves through 4 items at once. My : To return to the [MY MENU].

① Select MENU ② Select [Show others] on the [MY MENU] screen. ③ Select the menu item to be changed.

④ After changing the setting, select OK. To finish setting the menu, select ✗.

To return to the previous menu screen, select ↻.

- OK may not be displayed depending on the menu item.

Notes

- You may not be able to set some menu items, depending on the recording or playback conditions.

Using the OPTION MENU

The OPTION MENU appears just like the pop-up window that appears when you right-click the mouse on a computer. When 📄 is displayed at bottom-right of the screen, you can use the OPTION MENU. You select 🔊, and the menu items you can change in the context appear.

① Select (OPTION). ② Select the desired tab → the item to change the setting. ③ After completing the setting, select OK.

Notes

• Grayed out menu items or settings are not available.
• When the item you want is not on the screen, select another tab. (There may be no tab.)
• The tabs and items that appear on the screen depend on the recording/playback status of your camcorder at the time.

Menu lists

(MANUAL SETTINGS) category

SCENE SELECTION ...... Selects an appropriate recording setting according to the type of scene, such as night view or beach.

FADER ...... Fades scenes in or out.

WHITE BAL .... Adjusts the color balance to the brightness of the recording environment.

EXPOSURE .... Adjusts the brightness of movies and photos.

FOCUS ...... Focuses manually.

TELE MACRO .... Shoots a subject in focus with the background out of focus.

(SHOOTING SET) category

REC MODE .... Sets the mode to record movies. When recording fast moving subjects, a high image quality is recommended.

GUIDEFRAME .... Displays the frame to make sure the subject is horizontal or vertical.

STEADYSHOT .... Sets the SteadyShot function when recording movies.

AUTO SLW SHUTTR ...... Adjusts the shutter speed automatically.

FACE DETECTION ...... Adjusts the image quality of the face(s) automatically.

AUDIO REC SET

BLT-IN ZOOM MIC ...... Records movies with vivid sound appropriate to the zoom position.

MICREF LEVEL ...... Sets the microphone level.

OTHER REC SET

DIGITAL ZOOM ...... Sets the maximum zoom level of the digital zoom that exceeds the zoom level of the optical zoom.

BACK LIGHT ....Adjusts the exposure for backlit subjects.

WIDE SELECT ......Sets the horizontal to vertical ratio when recording movies.

(PHOTO SETTINGS) category

SELF-TIMER......Sets the self-timer when your camcorder is in photo recording mode.

IMAGE SIZE ....Sets the photo size.

FILE NO. .... Sets how to assign the file number.

(PLAYBACK) category

VISUAL INDEX ......Displays recording images as thumbnails (p. 18).

VIEW IMAGES

DATE INDEX ......Enables searching for desired images by date.

FILM ROLL ......Displays and plays the scenes by a certain interval.

FACE ......Displays and plays the face scenes.

PLAYLIST....Displays and plays the playlist of movies.

PLAYBACK SET

DATA CODE ......Displays the detailed recording data during playback.

(EDIT) category

DELETE

DELETE ......Deletes movies. DELETE ...... Deletes photos.

PROTECT

PROTECT ....Protects movies to avoid deleting. PROTECT ...... Protects photos to avoid deleting.

DIVIDE ......Divides movies.

PHOTO CAPTURE ...... Captures photos from desired scenes of movies.

MOVIE DUB*1

DUB by select ......Selects movies and dub.

DUB by date ...... Dubs all movies of a specified date.

DUB ALL ....Dubs all saved movies in a playlist.

PHOTO COPY *1*

COPY by select ...... Selects photos and copy.

COPY by date ......Copies all photos of a specified date.

PLAYLIST EDIT

ADD ...... Adds movies in a playlist. ADD by date ......Adds movies recorded on a same day at one time in a playlist. ERASE ....Erases movies from a playlist. ERASE ALL ....Erases all movies from a playlist. MOVE ......Changes the order of movies in a playlist.

(OTHERS) category

PROJECTOR *2*

SOURCE....Projects the images recorded on other devices (p. 23).

SCREEN FORMAT ......Changes the aspect ratio of the projected images (p. 23).

USB CONNECT

USB CONNECT *1* .....Connects the internal hard disk via USB.

USB CONNECT ...... Connects the memory card via USB.

DISC BURN ...... Allows you to save images onto discs (p. 25).

BATTERY INFO ......Displays the battery information.

(MANAGE MEDIA) category

MEDIA SETTINGS*1*

MOVIE MEDIA SET ......Sets the media for recording movies (p. 15).

PHOTO MEDIA SET ...... Sets the media for recording photos (p. 15).

MEDIA INFO......Displays information on the recording media, such as free space.

MEDIA FORMAT

HDD*1 .... Deletes all data on the internal hard disk.

MEMORY CARD ...... Deletes all data on the memory card.

REPAIR IMG.DB F.

HDD*1 Repairs the image database file on the internal hard disk (p. 48).

MEMORY CARD ...... Repairs the image database file on the memory card (p. 48).

SOUND/DISP SET

VOLUME ....Adjusts the volume of playback sound (p. 19).

BEEP ....Sets whether the camcorder sounds operation beeps or not.

LCD BRIGHT ....Adjusts the brightness of the LCD screen.

LCD BL LEVEL ...... Adjusts the backlight of the LCD screen.

LCD COLOR ....Adjusts the color intensity of the LCD screen.

DISPLAY SET ....Sets the duration that icons or indicators are displayed on the LCD screen.

OUTPUT SETTINGS

TV TYPE ...... Converts the signal depending on the TV connected (p. 24).

DISP OUTPUT......Sets whether the on-screen displays appears on the TV screen or not.

CLOCK/LANG

CLOCK SET .... Sets the date and time.

AREA SET ....Adjusts for a time difference without stopping the clock.

DST SET/SUMMERTIME Sets the summertime.

LANGUAGE SET ......Sets the display language (p. 9).

POWER SETTINGS

A.SHUT OFF ...... Changes the [A.SHUT OFF] setting.

OTHER SETTINGS

DEMO MODE......Sets whether the demonstration appears or not.

USB LUN SETTING ...... Sets the compatibility when using a USB connection.

DROP SENSOR ^*1 ..... Activates or deactivates the drop sensor.

*1 DCR-SR21

^*2 DCR-PJ5

Dividing a movie

1 Select MENU [Show others] → [DIVIDE] (under EDIT] category).

2 Select the movie to be divided.

3 Select ▶

The movie pauses. Play and pause toggles as you press ▶.

Adjusts the dividing point with more precision after you selected the dividing point with ▶.

Returns to the beginning of the selected movie

4 Select OK → [YES] → OK

Notes

- You cannot restore movies once they are divided.

Tips

- You can divide a movie on the playback screen from OPTION MENU.

- You can combine divided movies using the supplied "PMB". Refer to "PMB Help" (p 35) for details.

Getting detailed information from the "Handycam" Handbook

For details on advanced operations, please read the "Handycam" Handbook, on the CD-ROM (supplied) using a computer.

1. To install the "Handycam" Handbook on a Windows computer, place the supplied CD-ROM in the disc drive of your computer.

2. Click [Handbook].

3. Select the desired language and the model name of your camcorder, then click [Install].

- The model name of your camcorder is printed on its bottom surface.

To view the "Handycam" Handbook, double-click the shortcut icon on the computer screen.

- When using a Macintosh, open the [Handbook] – [US] folder in the CD-ROM, then copy [Handbook.pdf].

- You need Adobe Reader to read the "Handycam" Handbook. If it is not installed on your computer, you can download it from the Adobe Systems web page:

http://www.adobe.com/

Additional Information

Screen indicators

Upper left, Center, Upper right

Bottom

Upper left

Indicator Meaning
MENU	MENU button
	Self-timer recording
	MICREF LEVEL low
4:3	WIDE SELECT
	BLT-IN ZOOM MIC
60 min Remaining battery
	Recording folder of memory card
	VIDEO LIGHT
	Return button

Center

Indicator Meaning
[STBY]/[REC] Recording status
	Photo size
	Slide show set
	Warning
	Playback mode

Upper right

Indicator Meaning
HQ SP LP	Recording mode (HQ/SP/LP)
	Recording/playback/editing media
0:00:00	Counter (hour:minute:second)

Indicator Meaning
[00min]	Estimated recording remaining time
WHITE BLACK FADER FADER	FADER
	Drop sensor off
	Drop sensor activated
9999 9999	Approximate number of recordable photos and recording media
	Playback folder of memory card
100/112	Current playing movie or photo/Number of total recorded movies or photos

Bottom

Indicator Meaning
	[FACE DETECTION] set to [OFF]
	Manual focus
	SCENE SELECTION
	White balance
	SteadyShot off
	EXPOSURE
	TELE MACRO
	BACK LIGHT
	INTELLIGENT AUTO
	OPTION button
	VIEW IMAGES button
	Slide show button
101-0005	Data file name
	Protected image
	Index button
	Movie mode/photo mode

- Indicators and their positions are approximate and may differ from what you actually see.

- Some indicators may not appear, depending on your camcorder model.

Parts and controls

Figures in ( ) are reference pages.

1 Speaker (DCR-PJ5) 2 Lens 3 LENS COVER switch 4 Built-in microphone 5 LED VIDEO LIGHT (17)

DCR-SR21/SX21

1 LCD screen 2 LIGHT button (17) 3 Multi-selector (9) 4 VIEW IMAGES button (18, 24, 28)

DCR-PJ5

1 LCD screen 2 LIGHT button (17) 3 Multi-selector (9) 4 VIEW IMAGES button (18, 24, 28) 5 PROJECTOR button (22) 6 Projector lens 7 PROJECTOR FOCUS lever

1 Speaker (DCR-SR21/SX21) 2 USB jack (25, 27, 30, 34) 3 A/V OUT jack (24, 28) PROJECTOR IN jack (DCR-PJ5) (23) 4 MODE button (16) 5 INTELLIGENT AUTO button 6 RESET button (46)

DCR-PJ5/SX21

1 Power zoom lever 2 PHOTO button (16) 3 POWER lamp 4 START/STOP button (16) 5 Battery pack (13) 6 CHG (charge) lamp (13) 7 Grip belt 8 DC IN jack (13) 9 Access lamp (memory card) (14) 10 BATT (battery) release lever (13) 11 Tripod receptacle 12 Memory card slot (14)

DCR-SR21

1 Power zoom lever 2 PHOTO button (16) 3 POWER lamp 4 CHG (charge) lamp (13) 5 Battery pack (13) 6 START/STOP button (16) 7 DC IN jack (13) 8 Grip belt 9 Hook for a shoulder belt 10 Access lamp (memory card) (14) 11 BATT (battery) release lever (13) 12 Tripod receptacle 13 Memory card slot (14)

Fastening the grip belt

Troubleshooting

If you run into any problems using your camcorder, follow the steps below.

1. Check the list (p. 46 to 48), and inspect your camcorder. 2. Remove the power source, attach the power source again after about 1 minute, and turn the camcorder on. 3. Press RESET (p. 44) using a pointed object, and turn the camcorder on. If you press RESET, all settings, including the clock setting, are reset.

RESET button

4. Contact your Sony dealer or local authorized Sony service facility.

• Your camcorder may be required to initialize or change the current internal recording media of your camcorder, depending on the problem. In the event of this, the data stored on the internal recording media will be deleted. Be sure to save the data on the internal recording media on other media (backup) before sending your camcorder for repair. We will not compensate you for any loss of internal recording media data.
• During repair, we may check a minimum amount of data stored on the internal recording media in order to investigate the problem. However, your Sony dealer will neither copy nor retain your data.

The power does not turn on.

• Attach a charged battery pack to the camcorder (p. 13).
• Connect the plug of the AC Adaptor to the wall outlet (wall socket).

The camcorder does not operate even when the power is set to on.

• It takes a few seconds for your camcorder to be ready to shoot after the power is turned on. This is not a malfunction.
• Disconnect the AC Adaptor from the wall outlet (wall socket) or remove the battery pack, then reconnect it after about 1 minute. If your camcorder still does not work, press RESET (p. 44) using a pointed object. (If you press RESET, all settings, including the clock setting, are reset.)
• The temperature of your camcorder is extremely high. Turn off the camcorder and leave it for a while in a cool place.
• The temperature of your camcorder is extremely low. Leave the camcorder with the power turned on. If you still cannot operate your camcorder, turn off the camcorder and take it to a warm place. Leave the camcorder there for a while, then turn on the camcorder.

Your camcorder gets warm.

- Your camcorder may become warm during operation. This is not a malfunction.

The power abruptly turns off.

• Use the AC Adaptor.
• Turn on the power again.
• Charge the battery pack (p. 13).
• In the default setting, the power turns off automatically if you leave your camcorder without any operation for about 5 minutes, to save battery power ([A.SHUT OFF]).

Pressing START/STOP or PHOTO does not record images.

• Press MODE to display the (Movie) or (Photo) icons.
• Your camcorder is recording the image you have just shot on the recording media. You cannot make any new recordings during this period. • The recording media is full. Delete

unnecessary images (p. 20).

- Total number of movie scenes or photos has exceeded the recordable capacity of your camcorder. Delete unnecessary images (p. 20).

The recording stops.

- The temperature of your camcorder is extremely high/low. Turn off your camcorder and leave it for a while in a cool/warm place.

"PMB" cannot be installed.

- Check the computer environment or installation procedure required to install "PMB" (p. 33).

"PMB" does not work correctly.

- Quit "PMB" and restart your computer.

The camcorder is not recognized by the computer.

• Disconnect devices from the USB jack of the computer other than the keyboard, mouse, and your camcorder.
• Disconnect the USB cable from the computer and your camcorder, and restart the computer, then connect the computer and your camcorder again in an orderly manner.

Self-diagnosis display/Warning indicators

If indicators appear on the LCD screen, check the following.

If the problem persists even after you have tried to fix a couple of times, contact your Sony dealer or local authorized Sony service facility. In this case, when you contact them, give them all the numbers of the error code beginning with C or E.

C:04:□□

- The battery pack is not an “InfoLITHIUM” battery pack V series. Use an “InfoLITHIUM”

battery pack (V series).

- Connect the DC plug of the AC Adaptor to your camcorder securely (p. 13).

- The battery pack temperature is high. Change the battery pack or place it in a cool place.

C:13:□□ / C:32:□□

- Remove the power source. Reconnect it and operate your camcorder again.

E:□□:□□

- Follow the steps from ② to ④ on page 46.

• The indicator flashes when the internal hard disk of your camcorder becomes full. Delete unnecessary images (p. 20), or format the internal hard disk (p. 54) after storing the images on other media.
• An error may have occurred with the internal hard disk of your camcorder.

- Battery power is low.

- The battery pack temperature is high. Change the battery pack or place it in a cool place.

- The temperature of your camcorder is getting high. Turn off your camcorder and leave it in a cool place.

- The temperature of your camcorder is low. Make the camcorder warm.

• No memory card is inserted (p. 14).
• The indicator flashes when the memory card

Specifications

becomes full. Delete unnecessary images (p. 20), or format the memory card (p. 54) after storing the images on other media.

- The Image Database File is damaged. Check the data base file by selecting MENU → [Show others] → [REPAIR IMG.DB F.] (under [MANAGE MEDIA] category) → the recording medium (DCR-SR21).

• The memory card is damaged. Format the memory card with your camcorder (p. 54).

- Incompatible memory card is inserted (p. 54).

- Access to the memory card was restricted on another device.

- The camcorder is unsteady. Hold the camcorder steady with both hands. However, note that the camera-shake warning indicator does not disappear.

B

- The drop sensor function is activated. You may not be able to record nor play back images.

System

Signal format: NTSC color, EIA standards

Movie recording format:

Video: MPEG-2 PS

Audio recording system:

Dolby Digital 2ch

Dolby Digital Stereo Creator

Photo file format

: DCF Ver.2.0 Compatible

Recording media (Movie/Photo)

Internal hard disk

DCR-SR21: 80 GB

"Memory Stick PRO Duo" media

SD memory card (Class 2 or faster)

When measuring media capacity, 1 GB equals

1 billion bytes, a portion of which is used for system management and/or application files.

The capacity that a user can use is approximately 79.3 GB.

Image device

2.25 mm (1/8 type) CCD (Charge Coupled Device)

Gross: Approx. 800 000 pixels

Effective (Movie, 16:9): Approx.

490 000 pixels

Effective (Photo, 16:9): Approx. 490 000 pixels

Effective (Photo, 4:3): Approx. 490 000 pixels

Lens

57x (Optical), 67x (Extended), 1800x (Digital)

F1.8 - F5.7

Focal length:

f=1.8 mm ~ 102.6 mm (3/32 in. ~ 4 1/8 in.)

When converted to a 35 mm still camera

For movies: 39 mm ~ 2 223 mm (1 9/16 in. ~ 87 5/8 in.) (16:9)

For photos: 44 mm ~ 2 508 mm (1 3/4 in. ~ 98 3/4 in.) (4:3)

Color temperature: [AUTO], [ONE PUSH],

[INDOOR] (3 200 K), [OUTDOOR] (5 800 K)

Minimum illumination

3 lx (lux) ([AUTO SLW SHUTTR] is set to [ON], shutter speed 1/30 second)

Input/Output connectors

A/V OUT jack: Video/audio output jack

USB jack: mini-AB

LCD screen

Picture: 6.7 cm (2.7 type, aspect ratio 16:9)

Total number of pixels: 230 400 (960×240)

Projector (DCR-PJ5)

Projection type: DLP

Light source: LED (R/G/B)

Focus: Manual

Image size: 10 type \~ 60 type

Throw Distance: Approx. 0.5 m \~ 3.0 m (1.6 feet \~ 9.8 feet)

Color repeatability: Approx. 16 700 000

Brightness*: Max. 10 lumens

Contrast ratio: 1500:1

Resolution (output): nHD (640 × 360)

Continuous projection time (when using the supplied battery pack): Approx. 1.0 h

* The specification of the brightness given here is the average value for this camcorder at the time of shipment and is indicated in the format specified in JIS X 6911:2003 for data projectors. The measurement method and conditions are based on Appendix 2 of the standard.

General

Power requirements: DC 6.8 V/7.2 V (battery pack) DC 8.4 V (AC Adaptor)

Average power consumption: During camera recording, using LCD screen at normal brightness:

DCR-SR21

Internal hard disk: 2.1W

Memory card: 1.9W

DCR-PJ5/SX21: 1.9W

Operating temperature: 0°C to 40°C (32°F to 104°F)

Storage temperature: -20°C to +60°C (-4°F to +140°F)

Dimensions (approx.) DCR-PJ5:

58.5 mm × 55.5 mm × 113.5 mm (2 3/8 in.

× 2 1/4 in. × 4 1/2 in.) (w/h/d) including the projecting parts

58.5 mm × 55.5 mm × 124.5 mm (2 3/8

in. × 2 1/4 in. × 5 in.) (w/h/d) including the projecting parts, and the supplied rechargeable battery pack attached DCR-SR21:

59 mm × 64.5 mm × 113.5 mm (2 3/8 in. ×

2 5/8 in. × 4 1/2 in.) (w/h/d) including the projecting parts

59 mm × 64.5 mm × 124.5 mm (2 3/8

in. × 2 5/8 in. × 5 in.) (w/h/d) including the projecting parts, and the supplied rechargeable battery pack attached DCR-SX21:

54 mm × 55.5 mm × 113.5 mm (2 1/4 in. ×

2 1/4 in. × 4 1/2 in.) (w/h/d) including the projecting parts

54 mm × 55.5 mm × 124.5 mm (2 1/4

in. × 2 1/4 in. × 5 in.) (w/h/d) including

the projecting parts, and the supplied rechargeable battery pack attached

Mass (approx.)

DCR-PJ5:

230 g (8.0 oz) main unit only

270 g (9.0 oz) including the supplied rechargeable battery pack and memory card DCR-SR21:

270 g (9.0 oz) main unit only

310 g (10.0 oz) including the supplied

rechargeable battery pack DCR-SX21:

195 g (6.0 oz) main unit only

240 g (8.0 oz) including the supplied rechargeable battery pack and memory card

AC Adaptor AC-L200C/AC-L200D

Power requirements: AC 100 V - 240 V, 50 Hz/60 Hz

Current consumption: 0.35 A - 0.18 A

Power consumption: 18 W

Output voltage: DC 8.4 V*

Operating temperature: 0°C to 40°C (32°F to 104°F)

Storage temperature: -20°C to +60°C (-4°F to +140°F)

Dimensions (approx.): 48 mm × 29 mm × 81 mm (1 15/16 in. × 1 3/16 in. × 3 1/4 in.) (w/h/d) excluding the projecting parts

Mass (approx.): 170 g (6.0 oz) excluding the power cord (mains lead)

* See the label on the AC Adaptor for other specifications.

Rechargeable battery pack NP-FV30

Maximum output voltage: DC 8.4 V

Output voltage: DC 7.2 V

Maximum charge voltage: DC 8.4 V

Maximum charge current: 2.12 A

Capacity

typical: 3.6 Wh (500 mAh)

minimum: 3.6 Wh (500 mAh)

Type: Li-ion

Design and specifications of your camcorder and accessories are subject to change without notice.

• Manufactured under license from Dolby Laboratories.

Expected charging and running times for the supplied battery pack (in minutes)

These tables show the approximate available running times when you use a fully charged battery pack.

	DCR-SR21		DCR-SX21	DCR-PJ5
Recording media	Internal hard disk	Memory card
Charging time (full charge)	115
Continuous recording time	95 105
Typical recording time	45 50
Playback time 12	5 145

• Each recording time is measured when the [REC MODE] is set to SP. • Typical recording time shows the time when you repeat recording start/stop, switching the movie or photo mode, and zooming. - When using a Sony memory card. - Times measured when using the camcorder at 25°C (77°F). 10°C to 30°C (50°F to 86°F) is recommended. - The recording and playback time will be shorter when you use your camcorder in low temperatures. - The recording and playback time will be shorter depending on the conditions under which you use your camcorder. - The maximum recording time of movies and the number of photos that can be recorded, are displayed on the screen (p. 43) - The recordable time may vary depending on the recording and subject conditions, [REC MODE].

On trademarks

• "Handycam" and are registered trademarks of Sony Corporation.
• "Memory Stick," "Memory Stick Duo," "Memory Stick PRO Duo," "Memory Stick PRO-HG Duo," "Memory Stick Micro," "MagicGate," "MagicGate Memory Stick" and "MagicGate Memory Stick Duo" are trademarks or registered trademarks of Sony Corporation.

- "InfoLITHIUM" is a trademark of Sony Corporation.

- "DVDirect" is a trademark of Sony Corporation.

- Dolby and the double-D symbol are trademarks of Dolby Laboratories.

- Microsoft, Windows, Windows Vista, and DirectX are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

• Macintosh and Mac OS are registered trademarks of Apple Inc. in the U.S. and other countries.

- Intel, Intel Core, and Pentium are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.

- Adobe, the Adobe logo, and Adobe Acrobat are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.

- SDXC logo is a trademark of SD-3C, LLC.

- MultiMediaCard is a trademark of MultiMediaCard Association.

All other product names mentioned herein may be the trademarks or registered trademarks of their respective companies. Furthermore, ^TM and ^® are not mentioned in each case in this manual.

Precautions

Recording

• When you use a memory card with your camcorder for the first time, formatting the memory card with your camcorder (p. 54) is recommended for stable operation. All data recorded on the memory card will be deleted when it is formatted, and cannot be recovered. Save important data to your computer, etc., beforehand.
• Before starting to record, test the recording function to make sure that the image and sound are recorded without any problems.
• Compensation for the contents of recordings cannot be provided, even if recording or playback is not possible due to a malfunction of the camcorder, storage media, etc.
• TV color systems differ depending on the country/region. To view your recordings on a TV, you need an NTSC system-based TV.
• Television programs, films, video tapes, and other materials may be copyrighted. Unauthorized recording of such materials may be contrary to copyright laws.
• The following states will be indicated if data is still being written onto the recording media after recording has finished. During this time, do not apply shock or vibration to the camcorder, or remove the battery or AC Adaptor.
• Access lamp (p. 14) is lit or flashing – The media icon in the upper right of the LCD screen is flashing

Note on playback

• Images recorded on your camcorder may not play correctly on other devices. Conversely, images recorded on other devices may not play correctly on this camcorder.

- Movies recorded on SD memory cards cannot be played on A/V equipment of other manufacturers.

About images, illustrations, and screen displays of this manual

- The example images used in this manual for illustration purposes are captured using a digital still camera, and therefore may appear

different from images and screen indicators that actually appear on your camcorder. And, the illustrations of your camcorder and its screen indication are exaggerated or simplified for understandability.

- In this manual, the internal hard disk (DCR-SR21) of your camcorder and memory card are called “recording media.”

- Design and specifications of your camcorder and accessories are subject to change without notice.

Confirm the model name of your camcorder

- The model name is shown in this manual when there is a difference in specification between models. Confirm the model name on the bottom of your camcorder.

- The main differences in specification of this series are as follows.

	Recording media	Capacity of internal recording media	Projector
DCR-SR21	Internal hard disk + memory card	80 GB	—
DCR-SX21	Memory card	—	—
DCR-PJ5			√

On use and care

- The camcorder is not dustproofed, dripproofed or waterproofed.

- Do not use or store the camcorder and accessories in the following locations:

– Anywhere extremely hot, cold or humid. Never leave them exposed to temperatures above 60 °C (140 °F), such as under direct sunlight, near heaters or in a car parked in the sun. They may malfunction or become deformed. – Near strong magnetic fields or mechanical

vibration. The camcorder may malfunction.

- Near strong radio waves or radiation. The camcorder may not be able to record properly.

- Near AM receivers and video equipment. Noise may occur.

- On a sandy beach or anywhere dusty. If sand or dust gets in your camcorder, it may malfunction. Sometimes this malfunction cannot be repaired.

- Near windows or outdoors, where the LCD screen or the lens may be exposed to direct sunlight. This damages the inside of the LCD screen.

- Operate your camcorder on DC 6.8 V/7.2 V (battery pack) or DC 8.4 V (AC Adaptor).

- For DC or AC operation, use the accessories recommended in these operating instructions.

- Do not let your camcorder get wet, for example, from rain or sea water. If your camcorder gets wet, it may malfunction. Sometimes this malfunction cannot be repaired.

- If any solid object or liquid gets inside the casing, unplug your camcorder and have it checked by a Sony dealer before operating it any further.

- Avoid rough handling, disassembling, modifying, physical shock, or impact such as hammering, dropping or stepping on the product. Be particularly careful of the lens.

- Keep the camcorder turning off when you are not using your camcorder.

- Do not wrap your camcorder with a towel, for example, and operate it. Doing so might cause heat to build up inside.

- When disconnecting the power cord (mains lead), pull it by the plug and not the cord (lead).

- Do not damage the power cord (mains lead) such as by placing anything heavy on it.

- Do not use a deformed or damaged battery pack.

- Keep metal contacts clean.

- If the battery electrolytic liquid has leaked:

- Consult your local authorized Sony service facility.

- Wash off any liquid that may have contacted your skin.

- If any liquid gets in your eyes, wash with

plenty of water and consult a doctor.

When not using your camcorder for a long time

- To keep your camcorder in optimum state for a long time, turn it on and let it run by recording and playing back images about once a month.

- Use up the battery pack completely before storing it.

LCD screen

- Do not exert excessive pressure on the LCD screen, as it may cause damage.

- If your camcorder is used in a cold place, a residual image may appear on the LCD screen. This is not a malfunction.

- While using your camcorder, the back of the LCD screen may heat up. This is not a malfunction.

To clean the LCD screen

- If fingerprints or dust make the LCD screen dirty, it is recommended that you use a soft cloth to clean it. When you use the LCD Cleaning Kit (sold separately), do not apply the cleaning liquid directly to the LCD screen. Use cleaning paper moistened with the liquid.

To clean the projector lens (DCR-PJ5)

- Wipe the lens gently with a soft cloth such as a cleaning cloth or glass cleaning cloth.

- Stubborn stains may be removed with a soft cloth such as a cleaning cloth or glass cleaning cloth lightly dampened with water.

- Never use a solvent such as alcohol, benzene or thinner; acid, alkaline or abrasive detergent; or a chemical cleaning cloth, as they will damage the lens surface.

On handling the casing

- If the casing is soiled, clean the camcorder body with a soft cloth lightly moistened with water, and then wipe the casing with a dry soft cloth.

- Avoid the following to avoid damage to the finish:

- Using chemicals such as thinner, benzine, alcohol, chemical cloths, repellent, insecticide

and sunscreen

• Handling the camcorder with above substances on your hands – Leaving the casing in contact with rubber or vinyl objects for a long period of time

About care and storage of the lens

- Wipe the surface of the lens clean with a soft cloth in the following instances:

• When there are fingerprints on the lens surface – In hot or humid locations
• When the lens is exposed to salty air such as at the seaside
• Store in a well-ventilated location subject to little dirt or dust.
• To prevent mold, periodically clean the lens as described above.

On charging the pre-installed rechargeable battery

Your camcorder has a pre-installed rechargeable battery to retain the date, time, and other settings even when the camcorder is turned off. The pre-installed rechargeable battery is always charged while your camcorder is connected to the wall outlet (wall socket) via the AC Adaptor or while the battery pack is attached. The rechargeable battery will be fully discharged in about 3 months if you do not use your camcorder at all. Use your camcorder after charging the pre-installed rechargeable battery. However, even if the pre-installed rechargeable battery is not charged, the camcorder operation will not be affected as long as you are not recording the date.

Procedures

Connect your camcorder to a wall outlet (wall socket) using the supplied AC Adaptor, and leave it with the LCD screen closed for more than 24 hours.

Note on disposal/transfer of the camcorder (DCR-SR21)

Even if you delete all movies and still images, or perform [MEDIA FORMAT], data on the internal recording media may not be completely erased. When you transfer the camcorder, it is recommended that you perform [EMPTY] (See “Getting detailed information from the “Handycam” Handbook” on page 42.) to prevent the recovery of your data. Also, when you dispose of the camcorder, it is recommended that you destroy the actual body of the camcorder.

Battery pack

• When you remove the battery pack or disconnect the AC Adaptor, close the LCD screen and make sure that the POWER lamp (p. 14), the access lamp (p. 14) are turned off.
• The CHG (charge) lamp flashes during charging under the following conditions:

– The battery pack is not attached correctly. – The battery pack is damaged. - The temperature of the battery pack is low. Remove the battery pack from your camcorder and put it in a warm place. - The temperature of the battery pack is high. Remove the battery pack from your camcorder and put it in a cool place.

AC Adaptor

• Use the nearby wall outlet (wall socket) when using the AC Adaptor. Disconnect the AC Adaptor from the wall outlet (wall socket) immediately if any malfunction occurs while using your camcorder.
• Do not use the AC Adaptor placed in a narrow space, such as between a wall and furniture.
• Do not short-circuit the DC plug of the AC Adaptor or battery terminal with any metallic objects. This may cause a malfunction.

Memory card

• Set the recording medium to [MEMORY CARD] to record movies and/or photos on a memory card (DCR-SR21).
• Types of memory card you can use with your camcorder

- Only “Memory Stick PRO Duo” media, “Memory Stick PRO-HG Duo” media, SD memory cards (Class 2 or faster), SDHC memory cards (Class 2 or faster) and SDXC memory cards (Class 2 or faster) can be used with this camcorder. Operation with all

memory cards is not assured.

• “Memory Stick PRO Duo” media of up to 32 GB and SD memory cards of up to 64 GB have been tested and proven to operate with your camcorder.
• For recording movies on “Memory Stick PRO Duo” media, it is recommended that you use “Memory Stick PRO Duo” media of 512 MB or larger. – In this manual, “Memory Stick PRO Duo” media and “Memory Stick PRO-HG Duo” media are called “Memory Stick PRO Duo” media and SD memory cards, SDHC memory cards and SDXC memory cards are called SD memory cards.
• MultiMediaCard cannot be used.
• Images recorded on SDXC memory cards cannot be played back or imported on non-exFAT*-compatible computers, AV components, etc., connected to this camcorder by USB cable. Check that the connected devices are compatible with exFAT beforehand. If you connect a device that is not compatible with exFAT, the screen for initialization may appear. Never execute initialization, otherwise all recorded contents will be lost.

* exFAT is the file system used in SDXC memory cards.

- Size of memory cards that can be used with your camcorder

• Only “Memory Stick Duo” media that is about a half the size of the standard “Memory Stick” media, and standard-sized SD memory cards can be used.
• Do not attach a label, etc., to a memory card or memory card adaptor. Doing so may cause a malfunction.

Menu items

- A menu item that is grayed out is not available

under the current recording or playback conditions.

Save all your recorded image data

- To prevent your image data from being lost, save all your recorded images on external media periodically. It is recommended that you save the image data on a disc such as a DVD-R using your computer. Also, you can save your image data using a VCR or a DVD/HDD recorder, etc. (p. 25).

Note on the camcorder/battery pack temperature

- When the temperature of the camcorder or battery pack becomes extremely high or extremely low, you may not be able to record or play back on the camcorder, due to the protection features of the camcorder being activated in such situations. In this case, an indicator appears on the LCD screen.

When the camcorder is connected to a computer or accessories

• Do not try to format the recording media of the camcorder using a computer. If you do so, your camcorder may not operate correctly.
• When connecting your camcorder to another device with a cable, be sure to insert the connector plug in the correct way. Pushing the plug forcibly into the terminal will damage the terminal and may result in a malfunction of your camcorder.

If you cannot record/play back images, perform [MEDIA FORMAT]

- If you repeat recording/deleting images for a long time, fragmentation of data occurs on the recording media. Images cannot be saved or recorded. In such a case, save your images on some type of external media first, and then perform [MEDIA FORMAT] by selecting MENU → [Show others] → [MEDIA FORMAT] (under [MANAGE MEDIA] category) → the desired medium (DCR-SR21) → [YES] → [YES] → OK.

Notes on use

• Do not do any of the following, otherwise, the recording media may be damaged, recorded images may be impossible to play back or may be lost, or other malfunctions could occur. – Eject the memory card when the access lamp (p. 14) is lit or flashing
• Remove the battery pack or AC Adaptor from the camcorder, or subject the camcorder to shock or vibration when the POWER lamp (p. 14) or the access lamp (p. 14) are lit or flashing
• Do not use your camcorder in very loud areas (DCR-SR21).

On the drop sensor (DCR-SR21)

- To protect the internal hard disk from shock by dropping, the camcorder has a drop sensor function. When a drop occurs, or under a non-gravity condition, the block noise made when this function is activated by the camcorder may also be recorded. If the drop sensor catches a drop repeatedly, recording/playback may be stopped.

Note on using the camcorder at high altitudes (DCR-SR21)

- Do not turn on the camcorder in a low-pressure area, where the altitude is more than 5,000 meters (16,000 feet). Doing so may damage the internal hard disk drive of your camcorder.

Index

A

A/V connecting cable.... 23, 24, 28

Altitude 55

B

battery pack ....13

C

Care 51

Charging and running times .....50

Charging the battery pack .....13

CLOCK SET 14

Computer....33

Computer system ....33

D

DATA CODE ....14

DATE/TIME....14

DELETE 20

Disc recorder 28

Dividing a movie ....42

DVDirect Express ......25

DVD writer....27

E

External media ....30

H

"Handycam" Handbook ......42

|

Install 33

Internal hard disk ....15

L

LANGUAGE SET ......9

M

Macintosh 33

Maintenance ....51

MEDIA SETTINGS ....15

Memory card ....53

"Memory Stick" media ....53

"Memory Stick PRO-HG Duo" media ....53

"Memory Stick PRO Duo" media 53

Menus 37, 39

MOVIE MEDIA SET ......15

Movies ....16

MY MENU 37

MY MENU SETTING ......37

O

Operation beeps....14

OPTION MENU ....38

P

PHOTO MEDIA SET ......15

Photos ....16

Playback ....18

PMB (Picture Motion Browser) 35

PMB Help 35

Power on 14

Precautions ....51

R

Recording 16

Recording media....15

Repair 46

RESET 44

S

Saving images in external media ....30

Saving images on a disc .....25

Screen indicators ....43

Self-diagnosis display ....47

Setting the date and time .....14

Software 33

Specifications ....48

Supplied items 9

T

Tripod......45

Troubleshooting ....46

Turning the power on ....14

TV 24

U

USB cable 25, 27

USB CONNECT ......25, 27

V

VIDEO LIGHT ......17

VIEW IMAGES ....18

VISUAL INDEX ......18

Volume 19

W

Wall outlet (wall socket) .....13

Warning indicators ....47

Windows 33

Z

Zoom 45

You will find the menu lists on pages 39 to 41.

□ CD-ROM "Handycam" Application

Software (1)

Share now

Index

2 Movie:

Notes

Notes

Notes

3 Select [Copy.].

1 Speaker (DCR-SR21/SX21) 2 ⬤ (USB) jack (19, 21, 24, 28) 3 A/V OUT jack (18, 22)

PROJECTOR IN jack (DCR-PJ5) (17)

DVDirect Express ......19

Items supplied .....3

Power .....8

"Memory Stick PRO-HG Duo" 52

Menus 32, 35

MY MENU 32

O

OPTION MENU ....33

P

Movies ......10

Additional information on this product and answers to frequently asked questions can be found at our Customer Support Website.

Printed on 70% or more recycled paper.
