Product Type	Portable DVD Player
Brand	Trevi
Model	PDX 1015
Display Type	TFT LCD
Screen Size	10.1 inches
Display Resolution	1024 x 600 pixels
Disc Compatibility	DVD, DVD±R/RW, CD, CD-R/RW
Supported Media Formats	MPEG4, DivX, XviD, MP3, JPEG
Audio Output	Built-in stereo speakers, headphone jack
Video Output	AV output
Power Supply	AC adapter (100-240V) and rechargeable battery
Battery Life	Approximately 2.5 hours
Dimensions (W x D x H)	260 x 190 x 40 mm
Weight	1.2 kg
Warranty	1 year
Cleaning	Wipe with a dry, soft cloth. Do not use liquids.
Safety Precautions	Avoid moisture and direct sunlight. Do not disassemble.
Spare Parts Availability	Contact Trevi customer service or authorized dealers.

Frequently Asked Questions - PDX 1015 Trevi

What disc formats does the Trevi PDX 1015 support?

It supports DVD, DVD±R/RW, CD, and CD-R/RW discs.

Can I play MP3 files on this portable DVD player?

Yes, it supports MP3 playback from CD/DVD discs.

How long does the battery last on the PDX 1015?

The rechargeable battery provides approximately 2.5 hours of playback.

Does the PDX 1015 have a headphone jack?

Yes, it includes a headphone jack for private listening.

What is the screen size of the Trevi PDX 1015?

It has a 10.1-inch TFT LCD display.

Can I connect this DVD player to a TV?

Yes, it has an AV output to connect to a TV or external display.

How do I clean the device?

Use a dry, soft cloth. Avoid liquids and harsh chemicals.

What is the input voltage for the AC adapter?

The AC adapter accepts 100-240V, making it suitable for worldwide use.

Does it support DivX or XviD video files?

Yes, it supports DivX and XviD formats.

Where can I find replacement parts?

Contact Trevi customer service or visit the official website for spare parts.

USER MANUAL PDX 1015 Trevi

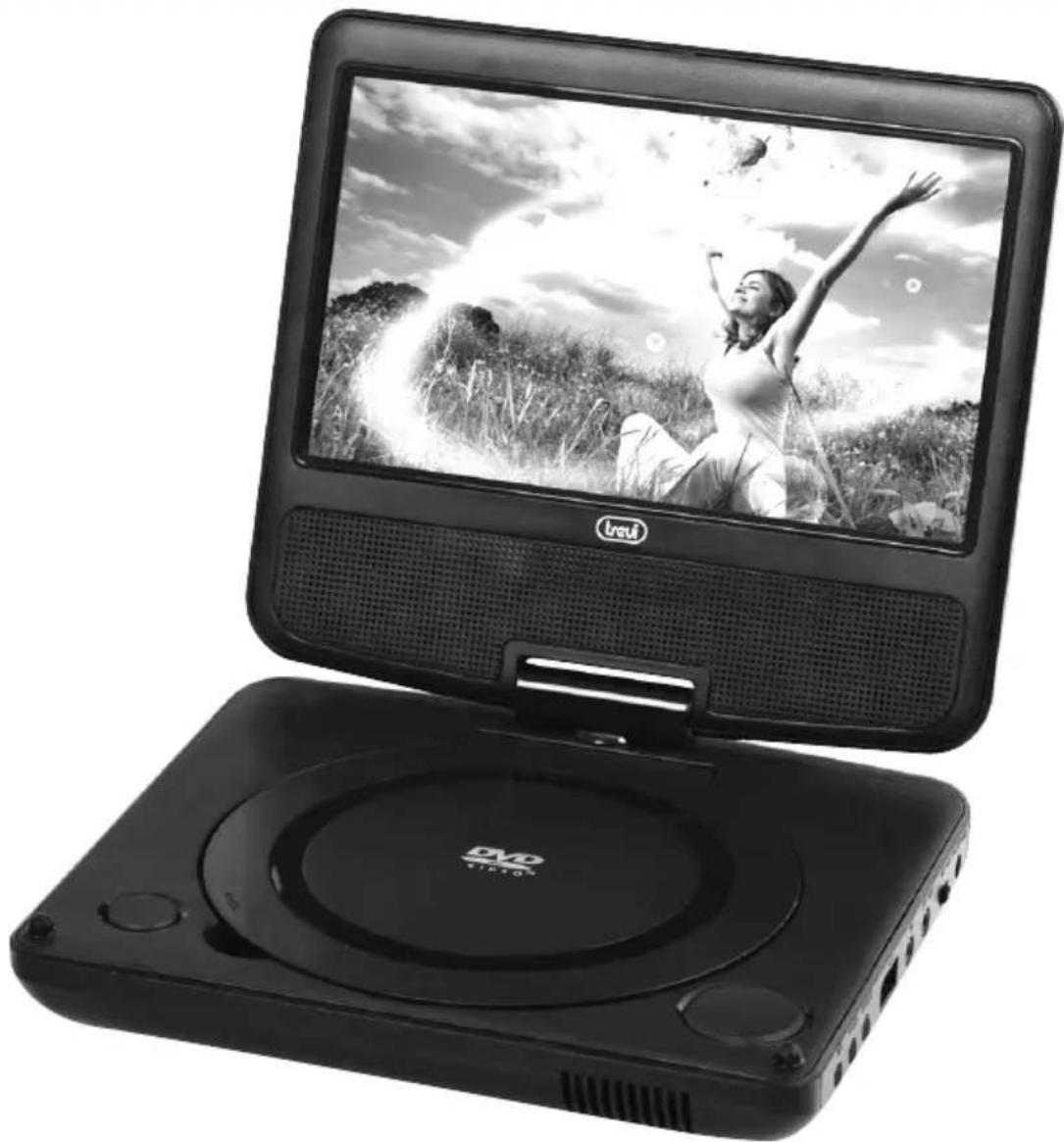

Black-and-white photo of a portable electronic device with a woman relaxing on grassy terrain, no visible text or symbols on the device body.

MANUALE D'USO E COLLEGAMENTO USER'S MANUAL

INDICE

Black triangular warning symbol with a white lightning bolt inside (no text or numbers)

ATTENZIONE

RISCHIO DI SCOSSE ELETTRICHE NON ESPORRE A PIOGGIA E UMIDITÀ

Black triangular warning symbol with exclamation mark (no text or numbers)

ATTENZIONE: NON APRITE L'APPARECCHIO. ALL'INTERNO NON VI SONO COMANDI MANIPOLABILI DALL'UTENTE NE PARTI DI RICAMBIO. PER TUTTE LE OPERAZIONI DI SERVIZIO RIVOLGERSI AD UN CENTRO DI ASSISTENZA AUTORIZZATO TREVI

VOLTAGGIO PERICOLOSO

Illustration of a bookshelf with a black X symbol crossed out, no text or symbols present

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols present)

COLLEGAMENTO CUFFIE/AURICOLARI

Sharpness (Nitidezza)

Black-and-white photo of a retro-style TV with a woman relaxing on a grassy field, no visible text or symbols on the device.

USER'S MANUAL

Important Safety Instructions

Warning: To reduce the risk of electric shock, do not remove the cover or back. There are no user-serviceable parts inside. Refer servicing to qualified personnel.

Warning: To prevent fire or electric shock hazard, do not expose the unit to rain or moisture.

Do not expose the Adaptor and portable DVD to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the unit.

Keep the portable DVD away from direct sunlight and heat source such as radiators or stoves.

Do not block the ventilation openings. Slots and openings on the unit are provided for ventilation. The openings should never be blocked by placing your portable DVD on a cushion, sofa or other similar surface.

Do not place the portable DVD on unstable cart, stand, tripod, bracket or table. The unit may fall, resulting in possible damage or injury.

Never place heavy or sharp objects on the LCD panel or frame.

Only use the AC adapter included with portable DVD. Using any other adapter will void your warranty.

The plug of AC adaptor is used as the disconnect device, the disconnect device shall remain readily operable.

Unplug the power from the outlet w hen the unit is not in use.

Attention should be drawn to the environmental aspects of battery disposal.

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

WARNING: The battery (battery or batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or the like.

WARNING: Excessive sound pressure from earphones or headphones can cause hearing loss.

WARNING: Only use attachments/accessories specified provided by the manufacturer, the portable DVD is supplied by AC adapter, the AC adapter is used as disconnect device, the disconnect device shall remain readily oper able.

Caution: Danger of explosion if battery is incorrectly replaced, replaced only with the same or equivalent type (Lithium battery)

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmen tal safe recycling.

Safety Precautions

WARNING

RISK OF ELECTRIC SHOCK DO NOT OPEN

Warning: This digital video disc player employs a laser system. Use of controls, adjustments, or the performance of procedures other than those specified herein may result in hazardous radiation Exposure.

Warning: To prevent direct exposure to laser beam, do not open the enclosure. Visible laser radiation when open.

Warning: Never stare directly into the laser beam.

Caution: Do not install this product in a confined space such as a book case or similar unit.

Warning: when the unit using by child, parents must make sure to let the child understand all contents in Instruction book how battery using to guarantee using battery correctly all the time.

Warning: when find battery overheat, swell or dour, please stop using battery and contact service centre for getting replacement.

Warning: do not charging battery on the place of insufficient ventilation such as: mattress, sofa, cushion, soft mat.....

Warning: we will not take any responsibility if user incorrectly use battery, not following our warning instruction label on the battery case.

Warning: more than 250mm USB extension cord is prohibited to use for USB port

Notes on Copyrights:

It is forbidden by law to copy, broadcast, show, broadcast via cable, play in public, or rent copyrighted material without permission.

This product features the copy protection function developed by Macrovision. Copy protection signals are recorded on some discs. When recording and playing the pictures of these discs picture noise will appear. This product incorporates copyright protection technology that is protected by method claims of certain U.S. Patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by macrovision Corporation. Reverse engineering or disassembly is prohibited.

SERIAL NUMBER:

You can find the serial number on the back of the unit. This number is unique to this unit and not available to others. You should record requested information here and retain this guide as a permanent record of your purchase.

Model No. ____ Serial No. ____ Date of Purchase ____

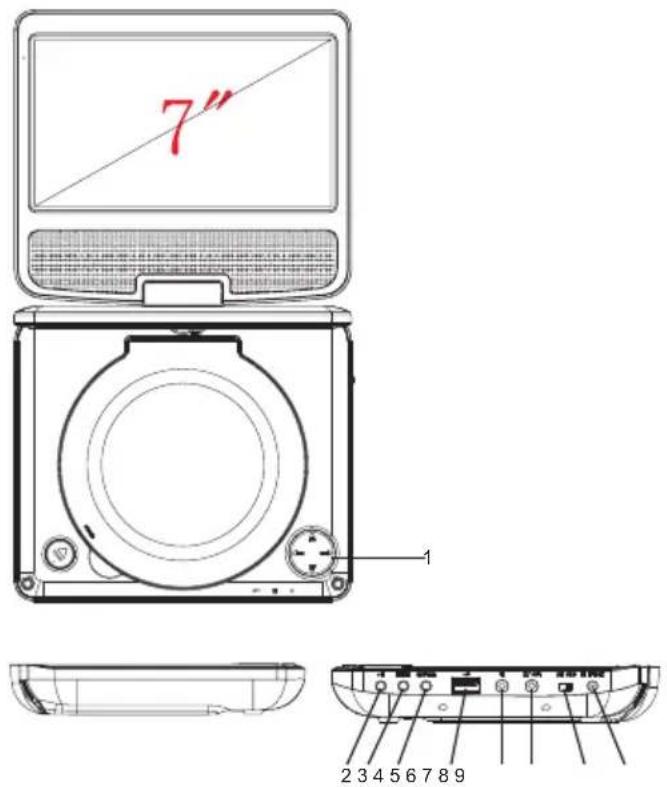

Identification of Controls

Main Unit

Identification of Controls

Remote control unit

1. ZOOM

Each press of the ZOOM button changes the TV screen in the following sequence:2X size 3X size 4X size 1/2 1/3 1/4.

2. SEARCH

Goto time point, title or chapter you want in DVD Mode.

3. SUBTITLE

Press SUBTITLE repeatedly during playback to hear a different subtitle languages.

4. ANGLE

Press ANGLE will change the view angle, on DVDs that support this feature.

1. ▲/◄◄ Up / Prev

▼/▶▶ Down / Next
◄ / VOL- Left / VOL-
▶ / VOL+ Right / VOL+

Remarks:

Short press▲/▼/◄/► is Up/Down/Left/Right;

Long press▲ /▼ is Prev/Next

Long press◄/► is VOL-/VOL+

1. ▶ PLAY/PAUSE;RETURN

1. SETUP
2. SOURCE
3. USB
4. Earphone Socket
5. AV OUT
6. ON/OFF
7. DC IN 9-12V

5. TITLE

Return to DVD title menu.

6. ENTER

Confirms menu selection.

7. SETUP

Accesses or removes setup menu.

8. VOL -

Adjust VOLUME.

9. REPEAT

Press REPEAT during playback to select a desired repeat mode.

DVD: you can play a chapter/title/all on a disc.

VCD CD: you can play a track/all on a disc.

MP3 WMA: you can select Repeat one/Repeat folder/ALL

play mode on a disc.

10.A B

To repeat a segment: press AB once to set the starting point for repeat segment, press it again to set an end point, and the player will repeat the segment from the start to the end point.

11.PROGRAM

DVD VCD CD MP3: The program function enables you to store your favourite tracks from the disc. Press PROGRAM button, then PROGRAM MENU will appear on screen, now you can use the number or direction keys input the titles, chapters or tracks number and select PLAY option to resume normal playback, press PROGRAM and select CLEAR option on the program menu.

JPEG: You can press PROGRAM repeatedly to select the slide show mode, the are 16 types slide show.

12. DISPLAY

To display the playtime and status information.

13. SOURCE

DVD/USB.

Identification of Controls

Remote control unit

14. MUTE

Disable Audio output.

15. 0-9 NUMBER BUTTON

Selects numbered items in a menu.

16.10+ BUTTON

In order to select a track 10 or greater, first press 10+, For example; select track 12, first press 10+, and then press number 2 button.

17.STEP

Press STEP once to pause playback, Form this station, press STEP to advance one video frame.

18. MENU

Accesses menu on a DVD disc, PBC on/off switch for VCD.

19. AUDIO

DVD: Press AUDIO repeatedly during playback to hear a different audio language or audio track, if available.

CD VCD: Press AUDIO repeatedly during playback to hear a different audio channel (Stereo, Left, or Right).

20. PLAY/PAUSE

Press PLAY/PAUSE once to pause playback, pressing PLAY/PAUSE second time will resume the playback.

21. STOP

When this button is pressed once, the unit records the stopped point, from where playback will resume if ENTER is pressed after wards. But if STOP button is pressed again instead of ENTER button, there will be no resume function.

22. RETURN

Return to upper page.

23. VOL +

Adjust VOLUME.

SETUP Menu Setting

System Setup Page

Press SETUP button to get the setup menu. Use direction buttons

▲▼◀▶ to select the preferred item. After finishing settings, press SETUP again to normal display.

System Setup

TV System

Selecting the color system that corresponds to your TV when AV output. This DVD Player is compatible with both NTSC and PAL. PAL - Select this if the connected TV is PAL system. It will change the video signal of a NTSC disc and output in PAL format.

NTSC - Select this if the connected TV is NTSC system. It will change the video signal of a PAL disc and output in NTSC format.

Power Resume

This function is used to turn the last memory on or off.

24. Reverse Skip

Go to previous chapter/ track to the beginning.

25. Forward Skip

Go to next chapter/ track.

26. ➤ BUTTON

Press ➤ BUTTON allow skipping ahead at 5-level speed(X2->X4->X8->X20), press ENTER button return to normal playback.

27. ◀ BUTTON

Press ◀ BUTTON allow skipping back at 5-level speed(X2->X4->X8->X20), press ENTER button return to normal playback.

TV Type

Selects the aspect ratio of the playback picture.

4:3 PS: if you have a normal TV and want both sides of the picture to be trimmed or formatted to fit your TV screen.

4:3 LB: if you have a normal TV. In this case, a wide picture with black bands on the upper and lower portions of the TV screen will be displayed.

16:9: wide screen display.

Password

Input user password. Default password is 0000.

Rating

After input correct password, you can change parental level.

Default

Restore the factory setting of setup menu.

Language Setup Page

Language setup

You can select OSD language, and select audio/subtitle/menu language of DVD discs if available. Also you can select font type for mpeg4 subtitle.

SETUP Menu Setting

Audio Setup Page

The function is use to select standby setting: OFF, 3 HOURS,
4 HOURS
OFF: No standby
3 HOURS: No remote control and panelkey operation within three hours into standby
4 HOURS: No remote control and panelkey operation within four hours into standby

Parameters and specifications

Electronical parameters

Item		Standard requirement
Power requirements		: AC 100-240 V, 50/60 Hz
Power consumption		:<10W
Operating humidity		: 5 % to 90 %
Output	VIDEO OUT	:1 Vp-p (75Ω)
	AUDIO OUT	:1.2 Vrms (1 KHz, 0 dB)

System

Laser	:Semiconductor laser, wavelength 650 nm
Signal system	:NTSC / PAL
Frequency response	:20Hz to 20 kHz(1dB)
Signal-to-noise ratio	:More than 80 dB (ANALOG OUT connectors only)
Dynamic range	:More than 85 dB (DVD/CD)

Note: Design and specifications are subject to change prior notice.

Video Setup Page

You can change the video setting: brightness, contrast, hue, saturation.

Battery Parameters

Battery Specifications:

Output: 7.4V

Charge / Discharge Time:

Standard charge time: 3h \~ 4h

Storage and work circumstances:

1. Storage circumstances	Temperature	Humidity
6 months	-20°C +45 C~	65±20%
1 week	-20°C +65 C~	65±20%
2.Work circumstances	Temperature	Humidity
Standard charge	0°C +45 C~	65±20%
Standard discharge	-20°C +65 C~	65±20%

PRECAUTIONS FOR CORRECT DISPOSAL OF THE PRODUCT.

The symbol shown on the equipment indicates that waste must be disposed of in “separate collection” and so the product must not be disposed of together with urban waste.

The user must take the product to special “separate waste collection centres” provided by local government, or deliver it to the retailer against the purchase of a new product.

Separate collection of waste and subsequent treatment, recycling and disposal operations promotes the production of equipment with recycled materials and limits negative effects on the environment and on health caused by improper handling of waste.

Illegal disposal of the product leads to the enforcement of administrative penalties.

INFORMATION NOTE ON THE REMOVAL AND DISPOSAL OF BATTERIES

Warning: Only high-qualified personnel should perform this operation!

BATTERY REMOVAL

The appliance should not be plugged to the mains socket when performing this operation!

I. Remove the screws tightening the lower part of the appliance;

1. Select the battery and disconnect and remove the battery.

Used batteries should not be disposed of with household waste or thrown into fire or water.

Used batteries should be recycled or disposed of in separate waste collection centres.

PDX 1015

PORTABLE CD/DVD PLAYER 7" AVEC USB INPUT

PORTABLE DVD/CD PLAYER 7" MIT USB INPUT

REPRODUCTOR DVD/CD PORTÁTIL 7" CON ENTRADA USB

Black-and-white photo of a retro-style TV with a person relaxing on screen, no visible text or symbols on the device body.

GUIDE RAPIDE - KURZANLEITUNG - GUÍA RÁPIDA

UTILISATION ET RECHARGEMENT DE LA BATTERIE

RECOMMANDATIONS POUR L'ÉLIMINATION CORRECTE DU PRODUIT.
