Product Type	Digital Kitchen Scale
Brand	Orava
Model	EV-2
Maximum Weight Capacity	5 kg
Accuracy	1 g
Display Type	LCD
Power Source	2 x AAA batteries
Platform Material	Tempered Glass
Units of Measurement	g, kg, lb, oz, ml, fl.oz
Tare Function	Yes
Auto-Off	Yes
Overload Indication	Yes
Low Battery Indication	Yes
Dimensions (W x D x H)	200 x 150 x 20 mm
Net Weight	0.35 kg
Cleaning Instructions	Wipe with a damp cloth; do not immerse in water
Safety Features	Overload protection; non-slip feet
Spare Parts Availability	Contact manufacturer; not user-serviceable

Frequently Asked Questions - EV-2 Orava

How do I change the battery in the Orava EV-2 kitchen scale?

Open the battery compartment on the bottom of the scale, remove the old batteries, and insert two new AAA batteries with correct polarity.

What units can the EV-2 scale measure in?

The scale supports grams (g), kilograms (kg), pounds (lb), ounces (oz), milliliters (ml) for water, and fluid ounces (fl.oz).

Why doesn't my EV-2 scale turn on?

Check if batteries are installed correctly or if they are depleted. Also ensure the scale is on a flat surface and the power button is pressed firmly.

How do I use the tare function on the EV-2?

Place an empty container on the scale, press the TARE button to reset the weight to zero, then add ingredients. The display will show only the weight of the contents.

What is the maximum weight limit for the EV-2 scale?

The maximum capacity is 5 kg (11 lb). Exceeding this may damage the scale and void warranty.

How do I clean the scale?

Wipe the glass platform and body with a soft damp cloth. Do not use abrasive cleaners or immerse the scale in water.

Does the scale have auto-off?

Yes, the EV-2 automatically turns off after a period of inactivity to save battery life.

How do I switch between units on the EV-2?

Repeatedly press the MODE or UNIT button to cycle through g, kg, lb, oz, ml, and fl.oz until the desired unit appears.

What does 'Err' or 'O-Ld' mean on the display?

These indicate overload - the weight exceeds the maximum capacity. Remove the excess weight immediately to prevent damage.

Can I use the scale in wet conditions?

No, the scale is not waterproof. Keep it in a dry environment and avoid spillage on the electronics.

USER MANUAL EV-2 Orava

White digital kitchen scale with a digital display and control buttons (no visible text or symbols on the device itself)

ORAVA retail 1, a.s.

Seberíniho 2

821 03 Bratislava

Slovenská republika

Dovozca:

ORAVA retail 1, a.s.

Seberíniho 2

821 03 Bratislava

Slovenská republika

ORAVA distribution CZ, s.r.o.

Ostravska 494

739 25 Sviadnov

Česká republika

LIKVIDÁCIA POUŽITÝCH ELEKTRICKÝCH A ELEKTRONICKÝCH ZARIADENÍ

ORAVA retail 1, a.s.

Seberíniho 2

821 03 Bratislava

Slovenská republika

Dovozce:

ORAVA retail 1. a.s.

Seberíniho 2

821 03 Bratislava

Slovenská republika

ORAVA distribution CZ, s.r.o.

Ostravska 494

739 25 Sviadno

Česká republika

LIKVIDACE POUŽITÝCH ELEKTRICKÝCH A ELEKTRONICKÝCH ZAŘÍZENÍ

ORAVA retail 1, a.s.

Seberíniho 2

821 03 Bratislava

Slovenská republika

Dystrubutorzy:

ORAVA retail 1, a.s.

Seberíniho 2

821 03 Bratislava

Slovenská republika

ORAVA distribution CZ, s.r.o.

Ostravska 494

739 25 Sviadnov

Česká republika

1. GENERAL SAFETY INSTRUCTIONS AND WARNINGS

This document contains important safety instructions and notices for the safe, correct and economical operation of the electrical/electronic equipment. Its compliance helps the user avoid risks, increase reliability and product life.

1.1 General safety instructions

• Before commissioning, we recommend that you carefully read the operating instructions and operate the equipment in accordance with the instructions!
• The safety instructions and warnings in this manual do not cover all the possible conditions and situations that may arise when using the device. The user must understand that a factor that can not be incorporated into any of the products is personal responsibility and caution. These factors must therefore be ensured by users serving this device.
• Failure to follow the safety instructions and warnings is forbidden by the manufacturer for any damage to health or property!
• Remove all packaging material and labels from the device before using it for the first time. Securely keep the packaging material out of the reach of children and unaccompanied minors.
• Make sure that the appliance is complete and shows no signs of damage before using the appliance for the first time. If the product is defective or if it has any visible damage, do not use the product.
• Keep the operating instructions as close to the device as possible throughout its service life. Always keep the operating instructions together with the device for future use and use by new users.
• Do not change the technical parameters and features of the device by unauthorized modification or modification of any part of the device.
• The manufacturer is not responsible for damages caused during transportation, misuse, damage or destruction of the equipment due to unfavorable weather conditions.
• Use the appliance only for the intended purpose and in the manner specified by the manufacturer.

1.2 Safety of the operating environment

• Do not use the device in an industrial environment or outside environment!

• Features of the operating environment

• Ambient temperature: +5 ÷ +40 °C

• Humidity: 5 ÷ 85%

• Altitude: ≤ 2000 m

• Occurrence of water: occasional occurrence of water vapor

- Additional characteristics are determined by the data on the label and in the „Technical data“ section of the operating instructions.

1.3 Electrical safety

• This appliance is designed exclusively for safe low voltage supply - from the primary battery.
• The device operates with a safe low voltage, so there is no electric shock when used and operated under reasonably foreseeable conditions.

1.4 Safety of persons

• This appliance is intended for use by persons without a professional qualification (layperson) according to the instructions specified by the manufacturer.
• Device operator includes activities such as switching on and off, user manipulation and setting of operating parameters, visual or auditory inspection of the equipment, and user cleaning and maintenance.
• This device may be used by children under 3 years of age and persons with reduced physical, sensory or mental capabilities or lack of experience or knowledge when supervised or instructed to use the device safely and understand the dangers involved.
  • Children may not play with the device.
• Cleaning and maintenance of users may not be performed by children without supervision.

1.5 Cleaning, maintenance and repairs

- Perform the normal user cleaning and maintenance of the appliance only as recommended. Do not use solvents or harsh detergents and articles for cleaning. Pollution and visible stains from touching fingers and/hands can be cleaned using detergents specially designed to clean household appliances and consumer electronics respectively. equipment installed in the interior of the vehicle.

• Never fix the appliance yourself!
• Only consign guarantee and qualified personnel (*) for warranty or post-warranty service.

2. Special Safety Notices

• Electrical equipment is designed and manufactured in such a way as to allow for safe operation and use by persons without a professional qualification. Despite all the measures taken by the manufacturer to ensure safe use, handling and use, it carries with it certain residual risks and associated potential hazards.
• To warn of potential hazards, the following symbols and their meanings have been used on the device and in the accompanying documentation:

This symbol warns users that if the safety instructions for use and operation of the device are not followed, there is a risk of: serious injury!

Danger of damage to equipment or other property damage!

Transport/Carriage

• When transporting and using, of the transport carriage be careful when moving, to avoid overturning the device.
• Transport/transmit the equipment only after thorough inspection of the space and routes, which must be unobstructed.
• Never carry the machine while it is in operation. Do not carry the device while it is connected to a wall outlet.
• Transfer the device firmly to the bottom edge of the base or solid parts of the body. When carrying, make sure that your hands and equipment are not damp or slippery.

There is a risk of serious injury or life threatening!

There is a risk of damage to the device!

Unpacking/Packaging

• Unpack the equipment (and accessories if equipped) before putting it into service and remove all parts of the packaging material and labels. Store the packaging in a safe place, especially out of the reach of children and unaccompanied persons, or dispose of them safely.
• Clean the appliance before operating it by following the instructions in section

„Putting into operation“ or „, “Cleaning and maintenance“.

- Never clean the device (its electronics parts) in a way that could cause the cleaning liquid to run into the device. Clean these parts with a slightly moistened cloth and wipe dry or let it dry.

- Do not immerse the appliance in water or other liquids. There is a risk of damage to the device!

Check/Startup

• It is recommended that you carry out the initial and subsequent periodic inspections of the equipment.
• Never use the appliance if it is incomplete, damaged, or any part of it has been damaged during use.
• Do not use non-original and incomplete parts of the device and its accessories. There is a risk of serious injury!

- If the equipment has been transported and stored at low temperatures or excessive humidity (eg in the winter), first leave it 12 to 1 hour „acclimatize“ at room temperature to remove any moisture in the electronics that occurs when the ambient temperature changes. There is a risk of damage to the device!

Location/Installation

• Only place the device on:
• Straight, firm and stable pads - for tables and desks, and for furniture parts intended for the use of kitchen utensils.
• Always make sure that the place where you want to place the machine has sufficient mechanical strength and load capacity.

Warning!

• Do not place the appliance:
• to an uneven, unstable and dirty surface,
• on the narrow edge of tables, tables or parts of furniture,
• in the vicinity of containers with water or other liquids.
• Do not expose the device to:
• direct sunlight and equipment producing excessive heat,
• a sudden and significant change in ambient temperature,
• vibrations and mechanical stress,
• excessive dust,
• water and excess moisture,
• insect,
• an aggressive external environment.

Warning!

• Place the device in a place where children can not reach freely.
• Prevent children from handling the device. The device may not over-age children and cause injury.
• Mechanical damage (eg cracking of the plastic covers) of the device can cause serious injury.

There is a risk of serious injury!

There is a risk of damage to equipment or other property damage!

Operation/Supervision

• For the correct and reliable operation of an electronic device that has been stored at low temperatures and at high humidity (eg in the winter), first allow the device to acclimate.
• Use the appliance horizontally and placed on a fixed pad. An uneven, unstable or soft pad may adversely affect the accuracy of weight measurement results.
• Do not use the device near a strong electromagnetic field. Effect of a strong electromagnetic field may affect the accuracy of the electronic device's functions.

• Do not use the appliance near water containers. If the appliance falls into the water, take it to a specialist service to check if it is safe and working properly.

• Store the device in a clean and dry place. Do not load the device during storage.

• Never overload the machine beyond the limits set by the technical specifications!
• If the device has non-standard features, have it checked by a specialist workshop.
• If any safety component (mechanical, electrical/electronic) is part of the device, never disable this part/component! If the safety component is damaged or not working, do not use the appliance!
• Never underestimate the potential hazards and pay extra caution !!!

Power Supplies/Batteries

Safety instructions for replacing and loading with the power supply - batteries.

Warning!

- When using electrical/electronic devices that are equipped with a DC voltage source - such as a battery or accumulator, always follow important safety instructions and warnings when operating and handling these sources.

Warning!

- Never charge the batteries!

- Never disassemble the batteries!

- Never heat the batteries or throw them into the fire! Failure to follow the safety instructions could result in:

Danger of serious injury!

Danger of explosion!

Chemical Danger!

Danger of damage to equipment or other property damage!

Warning!

• The device is equipped with a power source that can be exchanged for battery users.
• Risk of electric shock, explosion, electrolyte leakage, corrosion in case of incorrect exchange and handling.
• Dispose of batteries in accordance with applicable regulations and provisions for disposal of electronic devices.

Warning!

- Always store batteries out of reach of children, inappropriate persons and pets.

- Carefully keep the batteries in use so that children can not swallow them and dispose of them as soon as possible. If swallowing occurs, seek medical advice immediately.

- Use only the same or equivalent type of battery specified by the manufacturer. Do not use new batteries together with old ones. This may result in damage to the device.

- Wipe the battery with dry cloth before inserting it into the machine. This will ensure a better electrical contact.

• Insert the batteries to match the „+“ and „-“ symbols on the batteries and on the inside of the device cover.
• Do not handle the batteries with metal tools (eg tweezers, etc.). Conductive contact between the two poles of the battery may cause a short circuit.
• If you are not using the device for a long time, it is recommended to remove the batteries from the device. This protects your device from damage to leaking batteries. If the batteries leak out, have the appliance cleaned by an authorized service center.

Cleaning and maintenance of food contact equipment.

• The appliance is designed for food contact. Therefore, always clean thoroughly and remove all parts of food residues before using it for the first time and always after use.
• Perform the following steps to clean the device:
• Use only a soft sponge or cloth to clean the covers, parts and accessories of the appliance and liquid detergents designed for cleaning and washing the dishwasher.
• Do not use abrasive (abrasive) cleaners, steel wires, cleaning powders, and the like. Do not use any scrapers and sharp tools.
• Do not use steam and/or high pressure cleaners as they may cause damage to parts of the unit.
• Apply a small amount of liquid detergent concentrate to the sponge or cloth. Clean the parts with adequate pressure, but wipe them thoroughly and dispose of all food and grease residues.
• Then clean the cleaned surfaces of the appliance and its parts with a soft cloth and wash with warm water if necessary.
• Apply this procedure appropriately, or repeat 2-3 times to remove all food and detergent residues.
• Always thoroughly dry the cleaned and washed surfaces of the appliance and its parts with a soft cloth or paper cloth.

Producer:

ORAVA retail 1, a.s.

Seberíniho 2

821 03 Bratislava

Slovenská republika

Importer:

ORAVA retail 1. a.s.

Seberiniho 2

821 03 Bratislava

Slovenská republika

ORAVA distribution CZ, s.r.o.

Ostravská 494

739 25 Sviadnov

Ceska republika

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT

The symbol on the product or on its packaging indicates that this product does not belong to household waste. It is necessary to take it to a collection point for electrical recycling and electronic equipment.

By ensuring proper disposal of this product, you will help prevent negative consequences to the environment and human health that would otherwise be caused by inappropriate disposal of this product. For more detailed information about recycling of this product, please contact your local authority, your household waste disposal service or the shop where you purchased the product.

This product meets all the essential requirements of the EU directives that apply to it.

Operation

Display description:

TARE Tare (packing weight/container)

- Negative value

o Zero weight

lb Pounds

oz Ounces

g Grams

kg Kilograms

Preparation

Power supply

The device works on two 1.5-volt AAA batteries.

Before using the device, you need to insert the battery into the device. Open the battery compartment cover and insert two 1.5V AAA batteries.

Observe the correct polarity + and -. Close the battery compartment cover.

Umiestnenie

Place the device on a flat and hard surface. Do not drop him on the carpet or floor.

Weighing

1 Place a bowl or other container on the weighing surface before switching on the appliance.
2 Press the „ON/OFF“ button to turn on the balance.
3 Wait until the „0“ appears in the display before weighing.
4 Place the prepared food on the dish (the weight appears on the display).

If the weight of the food exceeds 2000 g or 5000 g (depending on the model), an error message „Err“ will appear on the display.

Switching units

If you need to change weight units, you can do so by pressing the „UNIT“ button. Each stroke alternates between metric and English weight units.

Functions „ZERO“ and „TARE“

If you want to consider several types of food and do not want to empty the bowl after each weighing, follow these steps:

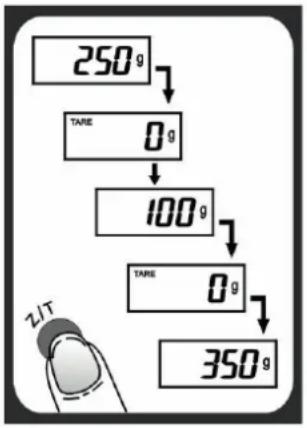

Case 1: If the total weight of the weighed food is less than or equal to 4% of the maximum weight (up to 80 g for the 2000 g model and 200 g for the 5000 g model)

After the first weighing, press the „Z/T“ button. The display shows „0g“. „o“ in the lower left corner of the display indicates that the „ZERO“ function is active.

You can add and weigh more foods up to a maximum weight of 2000g or 5000g (depending on the model), leaving the weighed food out of the bowl (always add the „Z/T“ button after adding another food).

Case 2: If the total weight of the weighted food is greater than 4% of the maximum weighted weight (more than 80g in the 2000g model and more than 200g in the 5000g model)

After the first weighing, press the „Z/T“ button. The display shows „0g“. „TARE“ in the upper left corner of the display indicates that the „TARE“ function is active.

The maximum weighing capacity is reduced by the total weight of the weighed food.

In this case, after pressing the „Z/T“ button again, „0g“ appears on the display and after one more pressing „Z/T“, the display shows the total weight of all foods.

Turn off the scale

Automatic shutdown

If you do not use the balance and the display shows „0g“ for about 2 minutes, the balance automatically turns off.

Manual shutdown

Turn off the appliance after use by pressing the „ON/OFF“ button. The display goes off.

Warning indicators

1 Poor battery. It is necessary to replace the battery with a new one.
2 The maximum weighing capacity is exceeded. Immediately remove the weighed food to avoid scale damage. Maximum load capacity is indicated on the display.

Replace the battery and dispose of it

If „Lo“ appears in the display, it is necessary to replace the battery.

Dispose of the battery in an environmentally friendly manner by handing it over to your specialist dealer or by throwing them into special containers prepared for this purpose by the municipality. Check the battery disposal method in accordance with applicable local regulations and standards. Do not dispose of it in unsorted municipal waste.

If you do not plan to use the device for a long time, select the battery from the device. This prevents it from being discharged and potentially damaging the device by leaking the electrolyte.

Cleaning and maintenance

Only clean the scale with a dry cloth slightly moistened in water. Do not use any abrasive cleaners or solvents such as alcohol, benzine or thinner for cleaning.

Do not immerse the balance in water. Clean all plastic parts immediately after weighing fatty foods, spices, strong flavors and dyed foods. Avoid contact of the balance with acidic foods (citrus juices, etc.).

Warning

If the display is permanently showing an „Err“ error message, or if the balance does not work even when you replace the battery, contact your dealer or an authorized service center.

Technical specifications

Power supply: 3 V DC batteries (2x 1.5V AAA)

Unit of measure: Metric (kg, g) / English (pounds, ounce)

Maximum weight: 5000 g

Weight: 450 g (assembled)

Dimensions (W x H x D): 218 x 130 x 218 (compiled)

The right to change is reserved!

Warranty conditions

A warranty period of 24 months is provided for this device. When exercising the right to a warranty service, return the warranty card and the cash receipt of the equipment to the service center together with the product. The date of the warranty card and proof of purchase must be the same. If not, the warranty will not be granted.

- The right to free repair of the product during the warranty period expires if:

• the user does not submit a valid warranty and proof of purchase of the product;
• malfunctions due to incorrect connection, improper use and maintenance (dusty environment), mechanical damage, engine failure and residential installation;
• do unauthorized interference or alteration in the product by an unauthorized person and/or a malfunction due to the use of non-original spare parts;
• the appliance is not used according to the enclosed operating instructions.

Other terms and conditions related to the warranty

The shop where the device is sold to the consumer is obliged to show the device to the buyer and inform the buyer:

• the way it is used and handled;
• how warranty repairs are available;
• with the nearest warranty service as well as the way the warranty service is dispatched to the supplier's service center;
• properly fill in the warranty card. Incorrect and incomplete warranty card is void and the consumer loses the right to warranty;
• the guarantee / repair, exchange or withdrawal of the contract / are covered by the relevant provisions of the Civil Code and the Complaint Rules.
