SR850 - Earphones SAMSON - Free user manual and instructions

Product Type	Over-ear semi-open headphones
Brand	Samson
Model	SR850
Driver Type	Dynamic, 50mm
Impedance	32 ohms
Frequency Response	10 Hz – 30 kHz
Sensitivity	98 dB SPL at 1 mW
Maximum Power Handling	500 mW
Connector Type	Gold-plated 3.5 mm stereo mini jack
Cable Length	3 m (straight, detachable)
Weight	250 g
Ear Cushions	Velour, replaceable
Headband Padding	Memory foam, leather-like
Design	Semi-open back
Foldable	Yes (swivel earcups)
Controls	None (passive)
Battery	None (passive)
Compatibility	Devices with 3.5 mm headphone jack
Included Accessories	3.5 mm to 6.3 mm adapter, user manual
Cleaning Instructions	Wipe with dry cloth; do not use liquids
Safety	Do not use at high volume for extended periods
Repairability	Replaceable ear pads and cable; user-serviceable

Frequently Asked Questions - SR850 SAMSON

Does the Samson SR850 have a detachable cable?

Yes, the SR850 features a detachable 3-meter cable with a 3.5mm jack, making replacement easy if damaged.

Are the ear pads replaceable on the SR850?

Yes, the velour ear pads are removable and replaceable, allowing for customization or renewal.

What is the impedance of the Samson SR850?

The impedance is 32 ohms, which makes them easy to drive with smartphones, laptops, and audio interfaces.

Are the Samson SR850 good for gaming?

Yes, they provide a wide soundstage and decent bass, suitable for casual gaming, though they lack a built-in microphone.

How comfortable are the SR850 for long sessions?

The velour ear pads and padded headband offer good comfort for extended use, but the clamping force may vary.

Do the SR850 require an amplifier?

No, due to their low impedance (32 ohms), they can be driven adequately by most portable devices without an external amp.

Can I use the Samson SR850 with a 6.3mm jack?

Yes, an included 3.5mm to 6.3mm adapter allows connection to professional audio equipment.

What is the frequency response of the SR850?

The frequency range is 10 Hz to 30 kHz, providing extended bass and crisp highs.

Are the Samson SR850 noise-canceling?

No, they are semi-open, so they leak sound and do not offer active noise cancellation, but they provide some passive isolation due to padding.

How should I clean my SR850 headphones?

Wipe the headband and ear pads with a dry, soft cloth. Do not use water or cleaning chemicals. Replace ear pads if they become worn.

USER MANUAL SR850 SAMSON

Line drawing of a pair of high-voltage headphones with earbuds and headsets (no text or symbols)

Studio Reference Headphones

Owner's Manual

SAMSON®

Table of Contents

WARNING 1

SR850 Introduction 2-3

SR850 Features....4

SR850 Specifications ....5

Copyright 2009, Samson Technologies Corp.

Printed June 2009 v1.0

Samson Technologies Corp.

45 Gilpin Avenue

Hauppauge, New York 11788-8816

Phone: 1-800-3-SAMSON (1-800-372-6766)

Fax: [phone]

www.samsontech.com

WARNING! This product is capable of causing permanent damage to your hearing if used at excessive volumes!

To protect your hearing, the Samson SR850's should always be used at as low a volume as possible. We recommend that you stringently follow the guidelines established by the U.S. Occupational Safety Health Administration (OSHA) regarding maximum time exposure at various sound pressure levels:

. Don't use this product for more than 8 hours at 90 dB SPL
. Don't use this product for more than 4 hours at 95 dB SPL
. Don't use this product for more than 2 hours at 100 dB SPL
. Don't use this product for more than 1 hour at 105 dB SPL
. Don't use this product for more than 1/2 hour at 110 dB SPL
. Don't use this product for more than 15 minutes at 115 dB SPL
. Don't operate at listening levels of greater than 120 dB SPL!

Pay attention to what your ears are telling you! Ringing is a sign that you have set the gain levels too high and that damage may result. We recommend that you consult with a qualified audiologist if you exhibit ringing or any other symptoms.

SR850 Introduction

Thank you for purchasing the SR850, Studio Reference Headphones from Samson! The SR850's are semi-open headphones designed to provide a linear frequency response making them extremely accurate and great for critical mixing or for music playback. The headphones high frequency response is smooth and sweet, and the bass response is warm and tight, thanks to the 50 mm neodymium drivers. The semi-open, or circumaural design reduces ear fatigue and is easy to listen to during long mixing or listening sessions. The SR850 employs soft ear cushions that are comfortable and fit snugly over most any ear, and the self-adjusting band ensures a good fit. Whether your are just kicking back and listing to your MP3 player, or mixing your digital recording, the SR850 headphones are an ideal choice.

In these pages, you'll find a detailed description and specifications of the SR850 headphones, as well as step-by-step instructions for its setup and use, and full specifications. You'll also find a warranty card enclosed—please don't forget to fill it out and mail it in so that you can receive online technical support and so we can send you updated information about these and other Samson products in the future. Also, be sure to check out our web site (www.samsontech.com) for complete information about our full product line. With proper care your SR850's will operate trouble free for many years. We recommend you record your serial number in the space provided below for future reference.

Serial number: ____

Date of purchase: ____

SR850 Introduction

Should your unit ever require servicing, a Return Authorization number (RA) must be obtained before shipping your unit to Samson. Without this number, the unit will not be accepted. Please call Samson at 1-800-3SAMSON (1-800-372-6766) for a Return Authorization number prior to shipping your unit. Please retain the original packing materials and if possible, return the unit in the original carton and packing materials. If you purchased your Samson product outside the United States, please contact your local distributor for warranty information and service.

SR850 Features

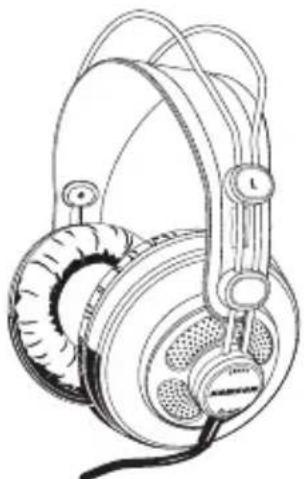

Line drawing of a pair of electronic headsets with earbuds and foam heads (no text or symbols)

Features

• Professional studio reference headphones
- Semi-open design for enhanced ambient listening environment
- 50 mm drivers for exceptional reproduction and wide dynamic range
• Frequency response 10 Hz - 30 kHz
• 32 ohms impedance
• Self-adjusting headband for a secure, comfortable fit
- 1/8" to 1/4" gold plated adapter included

SR850 Specifications

Driver type. . . . . . . . . . . . . . . . . . . . . . . . . . Dynamic

Type. . . . . . . . . . . . . . . . . . . . . . . . . Semi-open type

Driver Unit: .... 50 mm, 38μ diaphragm, Neodymium magnet

Frequency response ..... 10 Hz - 30 kHz

Impedance 32Ω

Sensitivity 98dB

Connector....1/8"(3.5 mm) with 1/8'(3.5 mm) to 1/4"(6.3mm) adapter-gold-plated

Cable 8.25' (2.5 m) long

Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95 oz (276 g)

Specifications subject to change without notice.
