CMX-130 - Radio SCOTT - Free user manual and instructions

Product Type	Portable Radio
Brand	Scott
Model	CMX-130
Dimensions (approx.)	200 x 120 x 50 mm
Weight (approx.)	0.5 kg (including batteries)
Power Supply	4 x AA batteries (not included) or AC adapter (optional)
Battery Life	Up to 30 hours (alkaline)
Frequency Range	AM: 530 - 1710 kHz, FM: 88 - 108 MHz
Speaker	Built-in 3-inch dynamic speaker
Headphone Jack	3.5 mm stereo jack
Antenna	Built-in ferrite AM antenna, telescopic FM antenna
Controls	Volume dial, tuning dial, on/off switch, band selector
Display	Analog tuning dial with frequency markings
Care Instructions	Wipe with a soft dry cloth. Do not use water or cleaning agents.
Safety Precautions	Keep away from heat sources and moisture. Do not disassemble.
Spare Parts Available	Batteries, antenna, AC adapter (contact manufacturer)
Repairability	Battery and antenna user-replaceable; other repairs by qualified technician
Certifications	CE, FCC

Frequently Asked Questions - CMX-130 SCOTT

How do I change the batteries in my Scott CMX-130 radio?

Open the battery compartment cover on the back of the radio. Insert 4 AA batteries according to the polarity markings (+/-). Close the cover securely.

How can I improve AM/FM reception?

For FM, fully extend the telescopic antenna. For AM, rotate the entire radio to align the internal ferrite antenna with the broadcast station. Avoid placing near metal objects.

Can I use headphones with this radio?

Yes, plug a 3.5 mm headphone (not included) into the headphone jack on the side of the radio. The built-in speaker will automatically mute.

How do I clean my Scott CMX-130 radio?

Wipe the exterior with a soft, dry cloth. Do not use water, alcohol, or any cleaning agents. Ensure the radio is turned off and batteries removed before cleaning.

What type of AC adapter can I use with this radio?

The radio accepts a DC 6V, 500mA adapter with a center positive plug. Use only a Scott-approved adapter to avoid damage.

Why is there no sound coming from my radio?

Check that the radio is turned on and volume is not set to minimum. Ensure batteries are fresh and inserted correctly, or that the AC adapter is connected. Also verify the band selection.

Is the Scott CMX-130 waterproof?

No, this radio is not waterproof. Keep it away from water and moisture to prevent damage.

How can I dispose of old batteries?

Dispose of batteries according to local regulations. Do not incinerate. Use recycling facilities where available.

Where can I find replacement parts or accessories?

Contact Scott customer service or visit the official website for spare batteries, antennas, and AC adapters.

Does this radio have a digital display?

No, the Scott CMX-130 features an analog tuning dial with frequency markings. It does not have a digital display.

USER MANUAL CMX-130 SCOTT

Alarm Clock Radio with Digital Display

Instruction Manual

C€

PRECAUTIONS

Follow the advice below for safe and appropriate operations.

INSTALLATION

. Do not use the unit in places which are extremely hot, cold, dusty, or humid.

. Place the unit on a flat and even surface.

. Do not restrict the airflow of the unit by placing it in a place with poor airflow, by covering it with a cloth, or by placing it on a carpet.

. Do not place naked flame sources such as lighted candles on the apparatus.

. Use the apparatus only in moderate climates (not in tropical climates).

. Do not expose the apparatus to dripping or splashing.

. Do not place objects filled with liquids, such as vases, on the apparatus.

SAFETY

. When connecting and disconnecting the AC power cord from the AC mains outlet, pull the plug and not the cord itself. Pulling the cord may damage it and may be dangerous.

. The mains plug must remain readily operable.

. When you are not going to use the unit for a long period of time, disconnect the AC power cord from the AC mains outlet.

AC VOLTAGE

. Before use, check that the rated voltage of your unit matches your local voltage.

CONDENSATION

. When there is condensation inside the unit, it may not function normally.

. Unplug the unit for 1 to 2 hours before turning the power back on, or gradually heat the room up and dry the unit before use.

. Ensure a minimum distance of 5 cm around the apparatus for sufficient ventilation.

. Do not impede the ventilation by covering the ventilation openings with items such as newspapers, tablecloths, curtains, etc.

BATTERIES

. Pay attention to the environmental aspects of battery disposal

		CAUTIONRISK OF ELECTRIC SHOCKDO NOT OPEN
The lightning flash with an arrowhead symbol within a triangle is a warning sign alerting the user to the presence of “dangerous voltage” inside the unit.		ATTENTION: To reduce the risk of electric shock, do not remove the cover. There are no user serviceable parts inside the unit. Refer all servicing to qualified personnel.	The exclamation mark within a triangle is a warning sign alerting the user to the presence of important instructions accompanying the product.

PACKAGE INCLUDES:

1. Alarm clock radio
2. AC/ DC adapter
3. Instruction manual

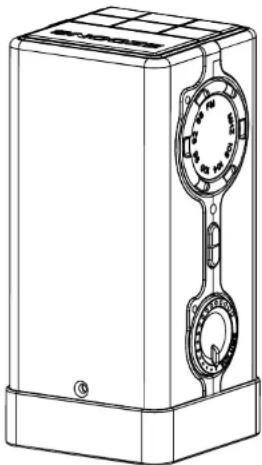

LOCATION OF CONTROLS

1. HOUR/DAY, AL ON/MODE button

2. TIME button

3. TEMP button (temperature)

4. DATE button

5. MIN/MONTH button

6. ALARM button

7. TUNING dial

8. Speaker

9. EM antenna wire

10. DC IN 6V jack

11. DC IN 6V jack

12. 6 Headphones jack

13. Radio on LED indicator

14. ⏻ / OK button

15. VOLUME dial

16. COLOR button

17. Clock back up battery compartment

18. Temperature sensor

19. Multi-color LCD display

20. SNOOZE button

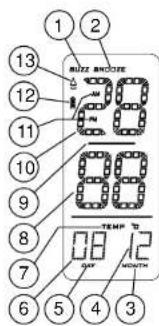

LCD DISPLAY

1. Buzzer alarm indicator
2. SNOOZE indicator
3. MONTH
4. Month /Temperature value
5. DAY
6. Day (01....31)
7. Temperature in °C: degrees Celsius
8. Minutes
9. Seconds indicator (flashes once per second)
10. Hours
11. AM / PM indication for 12-hour clock display
12. Back up battery indicator
13. Alarm indicator

INSTALLING THE BATTERY

Installing the clock back up battery

Clock back up

The clock and alarm time can be maintained against power failure with a 3V lithium battery (not supplied). In the event of power failure, the clock time will still run and the clock back-up battery indicator “ ₁ ” is displayed, but without the display backlight. During power interruption, the clock time may gain or lose a few minutes per hour and may require resetting.

Battery insertion

1. Open the battery compartment on the bottom of the unit by pushing and rotating anticlockwise.
2. Insert a 3V lithium battery (CR2025 or equivalent) into the battery compartment, following the correct polarities marked inside the battery compartment.
3. Replace the battery cover by pushing and rotating clockwise.
   Note: For optimum performance, the battery should be replaced every 6 months.

Precautions when using batteries

1. CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

2. Ensure that you follow the correct polarities when installing the battery as indicated in the battery compartment. Reversed batteries may cause damage to the unit.

3. Exhausted batteries must be removed to prevent possible battery leakage.
4. Dispose of batteries properly according to environmental regulations.

Notes on the clock back up battery

Please note that this unit will not operate fully by battery power alone. The batteries provide a back up system only in the event of an interruption of the AC power supply.

OPERATING INSTRUCTIONS

Connecting the power supply

Insert the AC/DC adapter plug into the AC mains outlet with a 230V AC \~ 50Hz power source and the other end into the DC IN 6V jack at the back of the unit. The unit goes to standby mode and the clock starts to run.

Clock and Alarm time setting

Select 24-hour or 12-hour clock display

The 24-hour clock display is the default setting. Press and hold down the TIME button to select the 12-hour clock display and "AM" or "PM" will be indicated on the display. Press and hold the TIME button again to select the 24-hour clock display.

Setting the clock

1. Press the TIME button and the clock time display will flash.
2. Press the HOUR button to set the hours.
3. Press the MIN button to set the minutes
4. Press and hold down the HOUR or MIN button to quickly change the hours or minutes.
5. Press the TIME button again to confirm the time setting.

Setting the date

1. Press the DATE button and the date display will flash.

2. Press the DAY button to set the day.

3. Press the MONTH button to set the month.

4. Press and hold down the DAY or MONTH button to quickly change the day or month.

5. Press the DATE button again to confirm the time setting.

Note: On this unit, February contains 29 days. However, this only happens once every four years. If the month of February only contains 28 days, you will have to correct the date at the end of the month and go manually from 29/02 to 01/03.

Setting the alarm time

1. Press the ALARM button and the alarm time will flash.

2. Follow the above steps 2 to 4 in "Setting the clock" to set the alarm time and "Will be displayed.

3. Press the ALARM button again to confirm the alarm time setting.

Alarm operation

The unit allows you to wake up to the sound of the buzzer or radio.

1. Press the ALARM button and alarm time will flash.

2. To adjust the alarm time, follow the above steps in "Settling the alarm time".

3. Press the AL ON/MODE button to activate the alarm function.

4. Press the AL ON/MODE button again to select the buzzer ( ) or the radio alarm mode ( ).

5. When the preset alarm time is reached, the alarm will sound in the selected alarm mode (buzzer or radio).

6. Press ⏻ /ON button to stop the alarm and it will sound again the next day.

7. To cancel the alarm function, press and hold down the ALARM button for about 2 seconds.

Note: While the buzzer alarm volume is fixed and cannot be adjusted, the radio alarm volume can be adjusted to your desired level using the VOLUME dial. To select the station, refer to "RADIO OPERATION".

Snooze function

When the alarm sounds, press the SNOOZE button to stop the alarm temporarily and it will sound again after 9 minutes. This alarm cycle will repeat up to one hour. To cancel the SNOOZE function and repeat the alarm the next day, press the ⏻/ON button.

Temperature LCD display

Press the TEMP button to display the temperature in ° C. After 5 seconds, the date will be displayed again.

Multi-color LCD display

The LCD display backlight has a total of 7 colors, which are displayed in sequence. You can choose to display one color only by pressing the COLOR button when the desired backlight color is being displayed. Press this button again to return to automatic color changing.

RADIO OPERATION

Listening to the FM radio

1. Press the b_c / n to turn on the unit. The radio on LED lights up.
2. Turn the TUNING dial to receive an FM station.
3. Adjust the volume level by turning the VOLUME dial.
4. To turn off the radio, press the ⏻/ON button to go to standby mode. Note: Extend and position the FM antenna to achieve optimum reception.

Connecting headphones

Plug the headphones (not supplied) into the headphones jack at the back of the main unit for private listening. The speaker output will be shut off automatically.

MAINTENANCE

Care and maintenance

To clean the unit, unplug it and wipe off dust and stains with a soft cloth moistened with a mild soap and water solution only. Do not use benzene, thinner or similar chemicals to clean the cabinet.

If at any time in the future you should need to dispose of this product, please note that waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice (Waste Electrical and Electronic Equipment Directive).

TECHNICAL SPECIFICATIONS

Temperature		Measurable range 0 - 50 °C +/- 1°C
Radio
Tuning range	FM 87.5 – 108 MHz
Antenna		FM	wire	antenna
General
Output	power	100	mW
Power	consumption	2.3	W
Speaker		1"	diameter,	8 Ohm	impedance
Power source (AC/DC adapter)		Input: AC 230V ~ 50Hz, output: DE IN 6V
Clock back up battery		1 x lithium battery CR2025 (not supplied)
Dimension		58 (L) x 58 (W) x 122 (H) mm
Weight		0.25	Kg

Note: Due to continuing improvements, the technical specifications are subject to change without notice.
