USER MANUAL DXI 50 WL SCOTT

Wi-Fi Internet / Ethernet Radio with USB port and SD/MMC Player

vTuner

powered by

Instruction Manual

CE

PRECAUTIONS

Follow the advice below for safe and appropriate operations.

PLACEMENT

. Do not use the unit in places which are extremely hot, cold, dusty, or humid.
. Place the unit on a flat and even surface.
. Do not restrict the air flow of the unit by placing it in a place with poor air flow, by covering it with a cloth, or by placing it on a carpet.
. Do not place naked flame sources, such as lighted candles on the apparatus.
. Use the apparatus only in moderate climates (not in tropical climates).
. Do not expose the apparatus to dripping or splashing.
. Do not place objects filled with liquids such as vases, on the apparatus.

SAFETY

. When connecting and disconnecting the AC power cord from the AC mains outlet, pull the plug and not the cord itself. Pulling the cord may damage it and may be dangerous.
. The mains plug must remain readily operable.
. When you are not going to use the unit for a long period of time, disconnect the AC power cord from the AC mains outlet.

AC VOLTAGE

. Before use, check that the rated voltage of your unit matches your local voltage.

CONDENSATION

. When there is condensation inside the unit, it may not function normally.
. Unplug the unit for 1 to 2 hours before turning the power back on, or gradually heat the room up and dry the unit before use.
. Ensure a minimum distance of 5 cm around the apparatus for sufficient ventilation.

BATTERIES

. Pay attention to the environmental aspects of battery disposal.

The lightning flash with an arrowhead symbol within a triangle is a warning sign alerting the user to the presence of dangerous voltage inside the unit.

ATTENTION : To reduce the risk of electric shock, do not remove the cover. There are no user serviceable parts inside the unit. Refer all servicing to qualified personnel.

The exclamation mark within a triangle is a warning sign alerting the user to the presence of important instructions accompanying the product.

TABLE OF CONTENTS

PRECAUTIONS.... 1

TABLE OF CONTENTS.... 2

BOX CONTENTS 2

FEATURES.... 2

LOCATION OF CONTROLS.... 3

PREREQUISITES FOR INTERNET RADIO.... 4

CONNECTIONS.... 4

INSTALLING BATTERIES 5

BASIC OPERATIONS.... 6

INTERNET RADIO OPERATION.... 7

USB DEVICE AND SD/MMC CARD OPERATION.... 9

RECORD FUNCTION.... 10

MEDIA SERVER.... 11

MAINTENANCE.... 12

TROUBLESHOOTING GUIDE.... 12

TECHNICAL SPECIFICATIONS.... 13

BOX CONTENTS

1. Main unit 4. Audio cable

2. AC/DC adapter 5. Instruction manual

3. Remote control with battery

FEATURES

This unit allows you to enjoy thousands of Internet radio stations from around the world thanks to your broadband Internet connection. Here are the different features of your Internet radio:

• You can listen to web radio stations even when your PC is switched off. vTuner live Internet radio service offers more than 11 000 radio stations from around the world and more than 10 000 regularly updated podcasts.
• Enjoy music stored on your (networked) PC.
• You can connect the unit to your Internet network wirelessly (Wi-Fi) or with a cable (Ethernet).
• You can store up to eight web radio stations.
• You can record programs broadcast on a web radio station on a USB device or SD/MMC card, for private usage only.
• You can play files on your USB device or SD/MMC card.
• Using the Audio Out jack, you can connect an external amplifier system to your unit and use it as a docking station.
  • Automatic time set and summer/winter time for European time zones.
• The firmware can easily be upgraded via the Internet.

Note: Due to continuous improvements, the features may be subject to change without notice. Please upgrade the firmware regularly by browsing through the menus: Main menu → Set-up → Update software. Please download the latest update of the instruction manual at http://www.awox.com/scott.

LOCATION OF CONTROLS

Unit back view

1. Ethernet jack
2. DC IN 5V jack
3. Audio Out jack

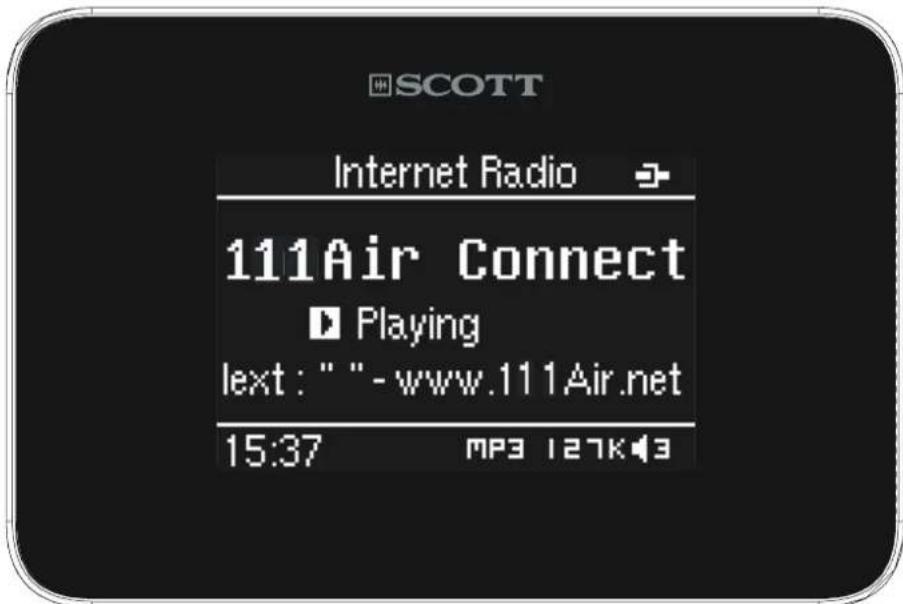

Unit front and side views

1. LCD display
2. SD/MMC card slot
3. USB port
4. IR (Infra-red) remote control sensor

Remote control

1. (⏻) ON/STANDBY button
2. BACK button
3. DOWN ▼ button
4. Preset buttons
5. Repeat/Shuffle 📋/button
6. Previous ◀ button
7. VOL +/- buttons
8. OK button
9. UP▲ button
10. Play/Pause ▶ II button
11. Stop ■ button
12. Next ▶▶I button
13. RECORD REC button
14. Fast backward ◀ button
15. MEM button (memory)
16. MENU button
17. Mute 🔔 button

LCD display

1. Name of current menu
2. Connection status (Wi-Fi or Ethernet)
3. Navigation
4. Volume
5. Clock time
6. Content of the current menu

1. Fast forward ▶ button


PREREQUISITES FOR INTERNET RADIO

First of all, you will need a broadband Internet connection: a modem + router or a wireless access point. You can choose between a wired connection (Ethernet) and a wireless connection (Wi-Fi).

CONNECTIONS

Note: In order to avoid any malfunctions, do not turn on the unit before making the connections.

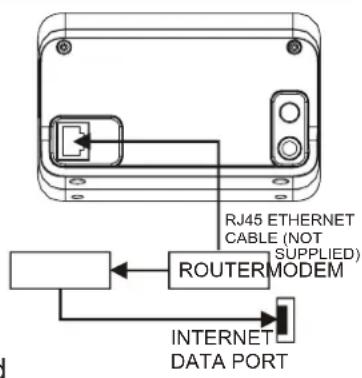

Wired connection (Ethernet)

Connect the unit to your broadband Internet connection using an RJ45 Ethernet cable (not supplied) via the router and broadband modem (cable/DSL) as illustrated. Follow your router's instruction manual to ensure a correct Internet connection.

If you do not have a router, connect the unit directly to the modem and then switch the modem off and back on to access the internet connection.

Note: Some modems have a built-in router, so they are included in the same unit.

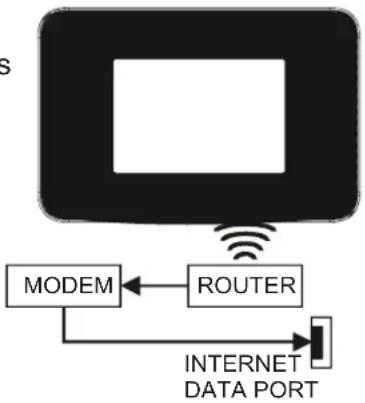

Wi-Fi connection

Use a router (not supplied) to connect the wireless access point (Wi-Fi) to your broadband Internet connection as illustrated. Should you have problems with the Internet connection setup, contact your networking device supplier and/or Internet service provider.

Note: The unit should work anywhere within a range of at least 15 meters around the wireless access point. However, the connection will depend on your router's performance and environmental factors such as the number and thickness of the walls, doors or windows.

Configurations

- If your wireless network is protected by Wired Equivalent Privacy (WEP) or Wi-Fi Protected Access (WPA) data encryption, you need to know the WEP or WPA code in order to connect the unit to the network.

- If your wireless network is configured to accept trusted units only, you need to enter the unit's MAC address into your wireless access point. The unit's MAC address can be located by browsing through the menu: Main menu → Setup → Information → Network Status.

• To enter the unit's MAC address into your wireless access point, you must read the instructions supplied with the wireless access point.
• For more details on configurations, refer to the “INTERNET RADIO OPERATION” section.

Connecting the power supply

Insert the AC/DC adapter plug into an AC mains outlet with a 100 - 240V AC \~ 50/60Hz power source, and insert the other end into the DC IN jack at the back of the unit.

Connecting an external amplifier system

Connect the Internet radio's Audio Out jack to the AUX IN jack on the externa amplifier system using the audio cable (supplied).

Audio cable	RCA jacks
	Right Left
Red plug √
White plug √

Connecting headphones

Plug the headphones (not supplied) into the unit's Audio Out jack for private listening.

INSTALLING THE BATTERY

Installing the remote control battery

1. Remove the battery compartment cover on the bottom of the remote control, by pressing the left tab to the right whilst removing the cover.
2. Insert a 3V lithium battery (CR2025 or equivalent) with the polarity (+) matching the diagram on the bottom of the remote control.
3. Replace the battery compartment cover.

Note: The remote control battery normally lasts for about one year, although it depends on how often and for what operations the remote control is used. If the remote control fails to work when it is operated near the unit, replace the battery.

Precautions when using batteries

1. CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type of battery.
2. Ensure you follow the correct polarities when installing the batteries (see the battery compartment). Reversed batteries may damage the remote control.
3. Exhausted batteries must be removed as they may leak.
4. Dispose of batteries properly according to environmental regulations.

BASIC OPERATIONS

ON/ STANDBY mode

After connecting the Internet radio to the power supply (refer to previous section - CONNECTIONS), press the (ON/STANDBY button to turn on the unit or go to standby mode.

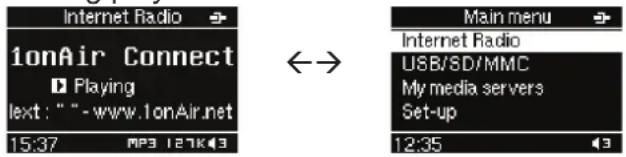

Menu

Press the MENU button repeatedly to switch between the main menu and playback screen.

During playback Main menu

Navigation and number/character entry

Press the ▲,▼ buttons to scroll through the menu and press the OK button to enter the highlighted item. You can press the BACK button to return to the previous menu. Hold down the MENU button to return to the main menu. When entering numbers, e.g. a time, press the ▲,▼ buttons to select the desired number and press the OK button to confirm. When entering WPA key

characters, such as a WEP/WPA key during the Wi-Fi connection set-up, use the ◀◀, ▶buttons to move to the previous or next number/ character and use the BACK button to delete the current number/ character. Press the▼ button to confirm your choice.

In the main menu, you can select the following menus: "Internet Radio", "USB/SD/MMC", "My media servers", and "Set-up".

"Set-up" menu:

Settings Descriptions Display
“Internet Connection”	Wi-Fi: Ethernet:	Wi-Fi connection. Ethernet connection.
“Time”	Automatic: Manual: Format:	Automatic time set. Adjust the clock time manually. Select 24-hour or 12-hour display.

“Time zone”	Select the time zone for your region. The default is GMT+01.
“Language”	Select the on-screen-display language.
“Update software”	Upgrade the firmware via the Internet.
Information	Check the serial number and network status such as MAC address.
“Reset” Reset all settings to default values.

TIME set

Automatic time set

Select Set-up → Time → Automatic. When the unit is successfully connected to the Internet, the time is automatically set in accordance with the preset time zone.

Note: Winter and summer time are automatically set when the GMT+01 time zone is selected.

Set the clock manually

When the internet is not connected, you have to set the clock manually.

1. Select the following menus: Set-up → Time → Manual. The clock time is displayed.

2. Press the ▲,▼ buttons to adjust the hours and press the OK button to confirm.

3. Repeat step 2 to adjust the minutes.

Your unit can be connected to a wireless network (Wi-Fi) or an Ethernet connection. This allows you to enjoy the vTuner live Internet radio service.

Note: Before operating this mode, make sure that you have read and understood the instructions in "PREREQUISITES FOR INTERNET RADIO" and "CONNECTIONS".

Configurations

Wired connection (Ethernet)

1. Connect the unit to your broadband Internet connection using an RJ45 Ethernet cable (not supplied). Refer to "CONNECTIONS" for more details.

2. Browse through the following menus: "Set-up" → "Internet Connection" → "Ethernet" → "Automatic mode (DHCP)" or "STATIC IP".

Depending on your Internet connection type, select "Automatic mode (DHCP)" or "STATIC IP" to enable the unit to connect to the Internet. In "DHCP" mode, an IP address is automatically assigned to the unit. In "STATIC IP" mode, you must

check with your service provider to obtain the correct IP data. To enter these IP data, browse through the following menus:

“IP address” → “network mask” → “gateway IP address” → “DNS server IP address”

Wi-Fi connection

1. Ensure that your Wi-Fi network is working properly (refer to the "CONNECTIONS" section).
2. Browse through the following menus: "Set-up" → "Internet Connection" → "Wi-Fi". The unit will scan for all available wireless networks and display their names.
3. Select the network and press the OK button to confirm.
4. The encryption security system (WEP or WPA) will be detected. Enter the WEP or WPA code. In order to do so, refer to previous section - BASIC OPERATIONS.
5. Press the ▶ button to confirm.

Note: For both the Ethernet and Wi-Fi connection, the

message “Connection successful” will be displayed to confirm that the unit is connected to the Internet. If this is not the case, “Connection failed” will be displayed. In this case, enter the IP data and the WEP or WPA key again and also make sure that the wired or wireless networks are available and working.

Listening to a web radio station

After successfully connecting to the Internet, you can enjoy the vTuner live Internet radio service by selecting “Internet Radio”. The following options are available:

Options Descriptions
Country	The unit can automatically detect the country in which the unit is located and display the web radio stations in that country.
Favorites	The “Favorites” option allows you to find your favorite stations.
Location	This option allows you to select a country and then select web radio station in this country.
Format	This option allows you to choose a category: “News”, “Comedy”, “Dance” and “Sports”. etc.
New Stations	Select the new stations that have been added since the last update.
Most Popular Stations	Select the most popular stations.
Podcasts By Genre	Select your favorite type of podcast such as “Arts Entertainment”, “Lifestyle”, “Music”, “Talk”, “TV” and “Variety”.
Podcasts By Location	Select your favorite type of podcast by location.

During playback, you can press the ▶ button to pause/resume play. Press the button to stop.

Preset web radio stations

You can store up to eight preset stations for web radio.

1. Select a desired station. Press the MEM button and then one of the preset buttons (1-8) to store the station under this number. The icon “①” will be displayed.
2. Repeat step 1 to store any other desired stations.

Listen to a preset web station

In web radio mode, press one of the preset buttons (1 -8) to listen to the preset of your choice.

List of favorite stations

You can bookmark the current web radio station in a list of “Favorites”. This list is stored in the “Favorites” menu.

1. When you wish to store a web radio station, press the OK button to bookmark it in the "Favorites" menu. 2. To find a station stored in the "Favorites" menu, browse through the following menus: "Internet Radio" → "Favorites" and select the desired station.
2. Press the OK button to confi

station, press the 📋/4To remove the bookmark for a

"Favorites" menu and re-enter it to check that the station is not in the "Favorites" list.

NotedioStatione do not broadcast 24 hours per day, and some are

not always on-line. The Wi-Fi antenna is built into the unit. To achieve optimum reception of the wireless connection, place the unit close to the wireless access point. The reception depends on your router's performance and environmental factors.

USB DEVICE AND SD/MMC CARD OPERATION

This unit allows you to listen to files on a USB device or SD/MMC card.

also copy files from your USB device to your SD/MMC card and vice-versa. You can also record web radio programs to a USB device or SD/MMC card.

Playback

1. Insert a U SB device into the USB port or/and an SD/MMC card into the SD/MMC card slot on the side of the unit.
2. Browse through the following menus: "USB/SD/MMC" →"Playing" →"USB" or "SD/MMC".

1. Press the ▲,▼ buttons to select a folder and press the OK button to confirm the selection. Then repeat the procedure to select a file and start playback.

2. To skip to the next/ previous file, press the ◀◀, ▶▶I buttons.

3. To search fast backward/forward, hold down the ◀◀,▶▶ buttons repeatedly to jump in steps of 30 seconds or 1 minute and resume to normal. You can also press the ▶II button to resume to normal playback. (Note: This function will be only available in the future.)

4. To pause playback, press the ▶II button. Press it again to resume playback.

REPEAT and RANDOM playback

Press the 📋/💡 button repeatedly to select one of the following playback odes: Repeat one 📋, Repeat order 📋, Repeat Random o

Copy files

1. Insert both a USB devaMCaE SD/M card into the unit.
2. Browse through the following menus: "USB/SD/MMC" → "Copy" → "USB" or "SD/MMC".
3. Select the file to you wish to copy and press the OK button to confirm.
4. Select the destination folder and press the REC button to confirm.

Note: If the destination device is full, copying will fail. Ensure that the device contains at least one folder in which to place the copied file. Some external hard disks may not be supported. Hard disks that have a built-in power supply should be favored. Due to different formats, some models of USB devices, SD/MMC cards or MP3 players may take longer to be read or may not be read at all.

RECORD FUNCTION

You can record a program broadcast on a web radio station to a USB device or SD/MMC card, for private usage only

Recording web radio station broadcasts

1) Insert a USB device and/or SD/MMC card into the unit and select the desired web radio station.
2) Press the REC button to start recording. If you have inserted both a USB

device and an SD/MMC card, select the destination device (USB or SD/MMC). Press the OK button to confirm.

3) You can name the file you are about to create. In order to do so, use the ▲,▼ buttons to choose a character, use the ◀◀,▶◀I buttons to delete or add a character. Then press the REC or OK button to start recording.

4) To stop recording, press the REC button. The file is then s v d on the chosen device.

Playing recorded files

Refer to "USB DEVICE AND SD/MMC CARD OPERATION" to play the recorded files.

MEDIA SERVER

StepgirSibloMedia Sha Media Player 11

After downloading and installing geWindndsMedieCPrg your radio to the network, you need to set up media sharing so that you share music with your radio. The following steps describe how to set up media sharing

in Windows Media Player 11.

1. In Windows Media Player 11, click the small arrow below the Library tab, and then click Media Sharing.
2. In the Media Sharing dialogue box, select the Share my media check box.
3. Cbake they media to" box. In the list, click the icon representing your radio, then click Allow, and the selected device will now show a green tick. Now click OK.
4. If your device does not appear in the list of devices, perform the following steps: In the certain menu of your Internet radio, s "My Media Servers". A list of available computers will appear. Select the re computer.

Your device will now appear in the list. If you want to check that this is your radio, right-click on the device and select "Properties": your radio's MAC address will be shown.

Note: Please ensure that your PC is connected to the same network as your Internet radio. You can choose the fders that you want to share using the Library tab.

Step 2: Play Music on your Internet Radio.

After installing and configuring your radio and Windows Media Player 11, you are now ready to play music via a wireless connection. The following steps describe how to play music with your radio:

1. Select "My Media Servers" in the main menu.
2. Select the computer you wish to play the music files from.
3. Use the controls to choose one of the following categories: Artists, Album, Playlist, Rating and then press the OK button to confirm.
4. Select the tracks you want to play, then press the OK butto n. Enjoy the music!

MAINTENANCE

re and maintenance Ca

To clean the casing, unplug the unit and wipe off dust and stains with a soft cloth moistened with a mild soap and d Watersothetbenzelye, thinner or similar chemicals.

If at any time in the future you should need to dispose of this product, please note that waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice. (Waste Electrical and Electronic Equipment Directive)

TROUBLESHOOTING GUIDE

Internet Radio
1. No Internet connection	1.1.2.3.4.5.6.7.8.9.10.11.12.13.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.29.30.31.32.33.34.35.36.37.38.39.40.41.42.43.44.45.46.47.48.49.50.51.52.53.54.55.56.57.58.59.60.61.62.63.64.65.66.67.68.69.70.71.72.73.74.75.76.77.78.79.80.81.82.83.84.85.86.87.88.89.90.91.92.93.94.95.96.97.98.99.10.11.12.13.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.29.30.31.32.33.34.35.36.37.38.39.40.41.41.42.43.44.45.46.47.48.49.50.51.52.53.54.55.56.57.58.59.60.61.62.63.64.65.66.67.68.69.70.71.72.73,74.75.76.77.78.79.80.81.82.83.84.85.86.87.88.89.90.91.92.93.94.95.96.97.98.99.10.11.12.13.14.15.16.27.28.29.30.31.32.33.34.35.36.37.38.39.40.41.42.43.44.45.46.47.48.49.50.51.52.53.54.55.56.57.58.58.59.60.61.62.63.64.65.66.67.68.69.70.71.72.73.74.75.76.77.78.79.80.81.82.83.84.85.86.87.88.89.90 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243 244 245 246 247 248 249 250 251 252 253 254 255 256 257 258 259 260 261 262 263 264 265 266 267 268 269 270 271 272 273 274 275 276 277 278 279 280 281 282 283 284 285 286 287 288 289 290 291 292 293 294 295 296 297 298 299 300 301 302 303 304 305 306 307 308 309 310 311 312 313 314 315 316 317 318 319 320 321 322 323 324 325 326 327 328 329 330 331 332 333 334 335 336 337 338 339 340 341 342 343 344 345 346 347 348 349 350 351 352 353 354 355 356 357 358 359 360 361 362 363 364 365 366 367 368 369 370 371 372 373 374 375 376 377 378 379 380 381 382 383 384 385 386 387 388 389 390 391 392 393 394 395 396 397 398 399 400 401 402 403 404 405 406 407 408 409 410 411 412 413 414 415 416 417 418 419 420 421 422 423 424 425 426 427 428 429 430 431 432 433 434 435 436 437 438 439 440 441 442 443 444 445 446 447 448 449 450 451 452 453 454 455 456 457 458 459 460 461 462 463 464 465 466 467 468 469 470 471 472 473 474 475 476 477 478 479 480 481 482 483 484 485 486 487 488 489 490 491 492 493 494 495 496 497 498 499 500 501 502 503 504 505 506 507 508 509 510 511 512 513 514 515 516 517 518 519 520 521 522 523 524 525 526 527 528 529 530 531 532 533 534 535 536 537 538 539 540 541 542 543 544 545 546 547 548 549 550 551 552 553 554 555 556 557 558 559 560 561 562 563 564 565 566 567 568 569 570 571 572 573 574 575 576 577 578 579 580 581 582 583 584 585 586 587 588 589 590 591 592 593 594 595 596 597 598 599 600 601 602 603 604 605 606 607 608 609 610 611 612 613 614 615 616 617 618 619 620 621 622 623 624 625 626 627 628 629 630 631 632 633 634 635 636 637 638 639 640 641 642 643 644 645 646 647 648 649 650 651 652 653 654 655 656 657 658 659 660 661 662 663 664 665 666 667 668 669 670 671 672 673 674 675 676 677 678 679 680 681 682 683 684 685 686 687 688 689 690 691 692 693 694 695 696 697 698 699 700 701 702 703 704 705 706 707 708 709 710 711 712 713 714 715 716 717 718 719 720 721 722 723 724 725 726 727 728 729 730 731 732 733 734 735 736 737 738 739 740 741 742 743 744 745 746 747 748 749 750 751 752 753 754 755 756 757 758 759 760 761 762 763 764 765 766 767 768 769 770 771 772 773 774 775 776 777 778 779 780 781 782 783 784 785 786 787 788 789 790 791 792 793 794 795 796 797 798 799 800 801 802 803 804 805 806 807 808 809 810 811 812 813 814 815 816 817 818 819 820 821 822 823 824 825 826 827 828 829 830 831 832 833 834 835 836 837 838 839 840 841 842 843 844 845 846 847 848 849 850 851 852 853 854 855 856 857 858 859 860 861 862 863 864 865 866 867 868 869 870 871 872 873 874 875 876 877 878 879 880 881 882 883 884 885 886 887 888 889 890 891 892 893 894 895 896 897 898 899 900 901 902 903 904 905 906 907 908 909 910 911 912 913 914 915 916 917 918 919 920 921 922 923 924 925 926 927 928 929 930 931 932 933 934 935 936 937 938 939 940 941 942 943 944 945 946 947 948 949 950 951 952 953 954 955 956 957 958 959 960 961 962 963 964 965 966 967 968 969 970 971 972 973 974 975 976 977 978 979 980 981 982 983 984 985 986 987 988 989 990 991 992 993 994 995 996 997 998 999 100
USB device, SD/MMC card
3. USB device or SD/MMC card cannot be inserted	3.1 Insert it the other way round.
4. USB device or SD/MMC card is not read	4.1 Some external hard disks may not be supported. Hard disks that have a built-in power supply should be favored.4.2 NTFS format is not supported. Check that the USB device file system is formatted with FAT or FAT32.4.3 Due to different technical specifications, some models of USB devices, SD/MMC cards or MP3 players may not be read.4.4 The SDHC card (high capacity, 4 GB and higher) is not supported.

General
5. The unit or display malfunctions	5.1 Press the ON/STANDBY ( ⏻) button to go to Standby mode and press it again to turn on the unit.5.2 Reset by unplugging the AC/DC adapter for few seconds and plugging it back in.
6. No sound 6.1 Adjust the volume.6.2 Ensure that the audio cable is properly connected.6.3 Switch off the mute function.
7. The remote control does not work	7.1 Move closer to theunit and point the remote control towards the infrared sensor.7.2 Insert the battery with the polarity (+) matching the diagram on the bottom of the remote control.7.3 Replace the battery.

Note: Uthelero persist, please download the firmware for this Internet radio from ht ottpa/nd/vplacevck.com as USB device. Unplug the AC/DC adapter and insert the USB device into the unit. Plug the AC/DC adapter back in and it will automatically upgrade the system.

TECHNICAL SPECIFICATIONS

Internet Radio
Wired connection..... J 45 Ethernet jack	Network 10/100 R
Wireless (Wi-Fi) connection..... 802.11b/g with WEP/WPA encryption
V-tuner live Internet radio service.....	11 000 stations + 10 000 podcasts
Number of stations that can be stored...	8
Wi-Fi antenna.....	Built into the unit
USB device/ Card
Compatible files.....	MP3, WMA, WAV
USB port type.....	2.0
USB maximum handling capacity.....	320 GB
Card type.....	SD/MMC (SD HC card not supported)
Card maximum handling capacity.....	2 GB
MP3 sampling rate.....	32, 44, 48 kHz
WMA sampling rate..... 44, 48 kHz
Other connections
Audio Out jack.....	3.5 mm stereo jack
General
Power consumption.....	5 W
AC/DC adapter.....	AC 100 - 240V ~ 50/60Hz
DC Output.....	DC IN 5V/ 2A
Remote control battery.....	3V lithium battery (CR2025)
Dimensions.....	83 (H) x 125 (W) x 42 (D) mm
Weight (without AC/DC adapter).....	0.25 Kg

Note: Due to continuing improvements, the technical specifications are subject to change without notice.
