HW-H751 - Soundbar SAMSUNG - Free user manual and instructions

Brand	Samsung
Model	HW-H751
Type	Soundbar
Dimensions (W x H x D)	1160 x 80 x 135 mm (bar), 200 x 400 x 300 mm (subwoofer)
Weight	5.2 kg (bar), 7.6 kg (subwoofer)
Power supply	100-240V, 50/60Hz
Power consumption	35 W (bar), 30 W (subwoofer)
Main features	Bluetooth, HDMI ARC, optical input, USB, Surround Sound mode
Total power	320 W RMS
Number of channels	2.1
Frequency response	40 Hz – 20 kHz
Wireless connectivity	Yes (Bluetooth)
Remote control	Infrared remote included
Wall mounting	Possible (bracket provided)
Care and cleaning	Clean with a soft, dry cloth. Do not use chemicals.
Safety	Do not expose to moisture. Turn off before cleaning.
Spare parts and repairability	Repairability index: 6.5/10. Available parts: remote battery, cables.

Frequently Asked Questions - HW-H751 SAMSUNG

How do I connect the soundbar to my TV?

Use an HDMI ARC or optical cable. Connect one end to the soundbar and the other to the TV. Then select the corresponding source.

Can I use the soundbar without the subwoofer?

Yes, but the subwoofer enhances the bass. You can disable it through settings.

The remote control does not work, what should I do?

Check the batteries. If the problem persists, reset the remote by removing the batteries for 30 seconds.

How do I reset the soundbar?

Press and hold the 'Volume +' and 'Source' buttons simultaneously for 5 seconds. The device will restart.

The sound is distorted, what can I do?

Check the connections. Lower the volume. Make sure the audio source is not saturated. Set the equalizer to 'Standard'.

Can I stream music via Bluetooth?

Yes, enable Bluetooth on your device and select 'Samsung HW-H751' from the list of devices.

How do I clean the soundbar?

Use a soft, dry cloth. Never use solvents or abrasive products.

The soundbar does not turn on, what should I check?

Make sure the power cord is properly connected. Check the electrical outlet. If nothing works, contact customer service.

Can I control the soundbar with my smartphone?

Yes, download the Samsung Audio Remote app (depending on model). Connect via Bluetooth to control volume, sources and settings.

How do I mount the soundbar on the wall?

Use the provided wall mount. Secure it firmly to the wall, then hang the soundbar. Ensure the wall can support the weight.

USER MANUAL HW-H751 SAMSUNG

Thank you for purchasing this Samsung product.

To receive a more complete service, please register your product at

www.samsung.com/register

FEATURES

TV SoundConnect

TV SoundConnect lets you listen to audio from your TV on your Soundbar via a Bluetooth connection and lets you control the sound.

HDMI

HDMI transmits video and audio signals simultaneously, and provides a clearer picture.

The unit is also equipped with the ARC function which lets you listen to sound from your TV through the Soundbar via an HDMI cable. This function is only available if you connect the unit to an ARC compliant TV.

Surround Sound Expansion

The Surround Sound Expansion feature adds depth and spaciousness to your listening experience. Surround Sound Expansion is powered by Sonic Emotion.

Wireless Subwoofer

Samsung's wireless module does away with cables running between the main unit and the subwoofer. Instead, the subwoofer connects to a compact wireless module that communicates with the main unit.

Special Sound Effects

You can select different Sound Effects - CINEMA / SPORTS / VOICE / MUSIC / STANDARD (Original Sound) - depending on the type of content you want to enjoy.

Multi-function Remote Control

You can use the supplied remote control to control various operations with the simple press of a button.

USB Host Support

You can connect and play music files from external USB storage devices such as MP3 players, USB flash memory, etc. using the Soundbar's USB HOST function.

Bluetooth Function

You can connect a Bluetooth device to the Soundbar and enjoy music with high quality stereo sound, all without wires!

NFC

Connect your NFC compatible device via Bluetooth to the Soundbar using this simple set-up procedure and play music on the device through the Soundbar. It is supported in some area's models only.

Multiroom Link

Once the Soundbar is connected to a smart device with Multiroom Link App, you can connect multiple Samsung Multiroom devices together wirelessly.

LICENSES

DOLBY. DIGITAL

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

dts® 2.0 Channel

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS 2.0 Channel is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.

HDMI

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

- To send inquiries and requests regarding open sources, contact Samsung via Email ([e-mail]).

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

This symbol indicates "dangerous voltage" inside the product that presents a risk of electric shock or personal injury.

This symbol indicates important instructions accompanying the product.

WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

• This apparatus shall always be connected to an AC outlet with a protective grounding connection.
• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.

CAUTION

• Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases, on the apparatus.
• To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power plug must be easily and readily accessible at all times.

Wiring the Main Power Supply Plug (UK Only)

IMPORTANT NOTICE

The mains lead on this equipment is supplied with a moulded plug incorporating a fuse. The value of the fuse is indicated on the pin face of the plug and if it requires replacing, a fuse approved to BS1362 of the same rating must be used. Never use the plug with the fuse cover removed. If the cover is detachable and a replacement is required,

it must be of the same colour as the fuse fitted in the plug. Replacement covers are available from your dealer. If the fitted plug is not suitable for the power points in your house or the cable is not long enough to reach a power point, you should obtain a suitable safety approved extension lead or consult your dealer for assistance. However, if there is no alternative to cutting off the plug, remove the fuse and then safely dispose of the plug. Do not connect the plug to a mains socket as there is a risk of shock hazard from the bared flexible cord. Never attempt to insert bare wires directly into a mains socket. A plug and fuse must be used at all times.

IMPORTANT

The wires in the mains lead are coloured in accordance with the following code:– BLUE = NEUTRAL BROWN = LIVE As these colours may not correspond to the coloured markings identifying the terminals in your plug, proceed as follows:– The wire coloured BLUE must be connected to the terminal marked with the letter N or coloured BLUE or BLACK. The wire coloured BROWN must be connected to the terminal marked with the letter L or coloured BROWN or RED.

WARNING : DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH THE LETTER E OR BY THE EARTH SYMBOL ⊥, OR COLOURED GREEN OR GREEN AND YELLOW.

PRECAUTIONS

Ensure that the AC power supply in your house complies with the power requirements listed on the identification sticker located on the back of your product. Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation 7~10 cm. Make sure the ventilation slots are not covered. Do not place the unit on amplifiers or other equipment which may become hot. This unit is designed for continuous use. To fully turn off the unit, disconnect the AC plug from the wall outlet. Unplug the unit if you intend to leave it unused for a long period of time.

During thunderstorms, disconnect the AC plug from the wall outlet. Voltage peaks due to lightning could damage the unit.

Protect the product from moist store (reverses) and excess heat (e.g. a fireplace) or equipment creating strong magnetic or electric fields. Disconnect the power cable from the AC supply if the unit malfunctions. Your product is not intended for industrial use. It is for personal use only.

Condensation may occur if your product has been stored in cold temperatures. If transporting the unit during the winter, wait approximately 2 hours until the unit has reached room temperature before using.

Do not expose the unit to direct sunlight or other heat sources.

This could lead to overheating and cause the unit to malfunction.

The batteries used with this product contain chemicals that are harmful to the environment.

Do not dispose of batteries in the general household trash.

Do not dispose of batteries in a fire.

Do not short circuit, disassemble, or overheat the batteries.

Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type.

CONTENTS

2 FEATURES

2 Licenses

3 SAFETY INFORMATION

3 Safety Warnings

4 Precautions

6 GETTING STARTED

6 Before reading the User's Manual

6 What's Included

7 DESCRIPTIONS

7 Front/Bottom Panel

8 Rear Panel

9 REMOTE CONTROL

9 Remote Control Buttons and Functions

11 CONNECTIONS

11 Installing the Wall Mount

12 Detaching the Wall Mount

12 Installing the bracket without referring to the Wall-mount Installation Guide

13 Connecting the Wireless Subwoofer

14 Attaching the Toroidal Ferrite Core Soundbar Power Cord

15 Connecting an External Device using an HDMI cable

16 Connecting an External Device using Optical (digital) cable or Audio (analogue) cable

16 Assembling the Cable Clip

17 FUNCTIONS

17 Input Mode

17 ARC (HDMI OUT)

18 Bluetooth

20 NFC

21 TV SoundConnect

22 USB

23 Using the Network Standby On function

23 Using the AUTO POWER LINK Function

24 Using the Multiroom Link

26 Software update

27 TROUBLESHOOTING

28 APPENDIX

28 Specifications

• Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. An administration fee may be charged if either (a) an engineer is called out at your request and there is no defect with the product (i.e., where the user manual has not been read), or (b) you bring the unit to a repair center and there is no defect with the product (i.e., where the user manual has not been read).
• You will be informed of the administration fee amount before a technician visits.

GETTING STARTED

BEFORE READING THE USER'S MANUAL

Note the following terms before reading the user manual.

Icons used in this manual

Icon	Term	Definition
	Caution	Indicates a situation where a function does not operate or settings may be canceled.
	Note	Indicates tips or instructions on the page that help you operate a function.

Safety Instructions and Troubleshooting

1) Be sure to familiarize yourself with the Safety Instructions before using this product. (See page 3) 2) If a problem occurs, check Troubleshooting. (See page 27)

Copyright

©2014 Samsung Electronics Co., Ltd.

All rights reserved; no part of this user's manual may be reproduced or copied without the prior written permission of Samsung Electronics Co., Ltd.

WHAT'S INCLUDED

Check for the supplied accessories shown below.

Remote Control / Lithium Battery (3V: CR2032)

(Holder-screw1: 2EA)

(Holder-screw2: 2EA)

Holder-Screw

AUX Cable

User Manual

Power Cord

Cable Clip

(Wall Mount L: 1EA)

(Wall Mount R: 1EA)

Bracket-Wall Mount

DC Adapter

NFC Sticker

Wall Mount Guide

(For power cable : 1EA)

Toroidal ferrite core

- The appearance of the accessories may differ slightly from the illustrations above.

DESCRIPTIONS

FRONT/BOTTOM PANEL

• When you turn on this unit, there will be a 10 to 12 second delay before it produces sound.
• Do not bring cellular phones or mobile devices near the vacuum tube amp, or put other electronic devices on the top of the product. Signals from these devices can cause noise or distortion in the audio.
• Do not let children touch the product's surface when the set is on. It will be hot.

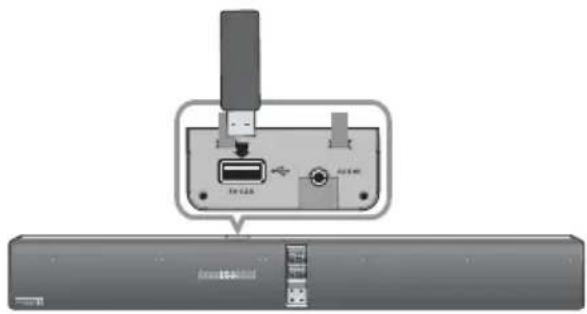

• Open the USB COVER to use USB or AUX port.

REAR PANEL

Connect to the digital (optical) output of an external device.

• When disconnecting the power cable of the AC power adaptor from the wall outlet, pull the plug. Do not pull the cable.
• Do not connect this unit or other components to an AC outlet until all connections between components are complete.

REMOTE CONTROL

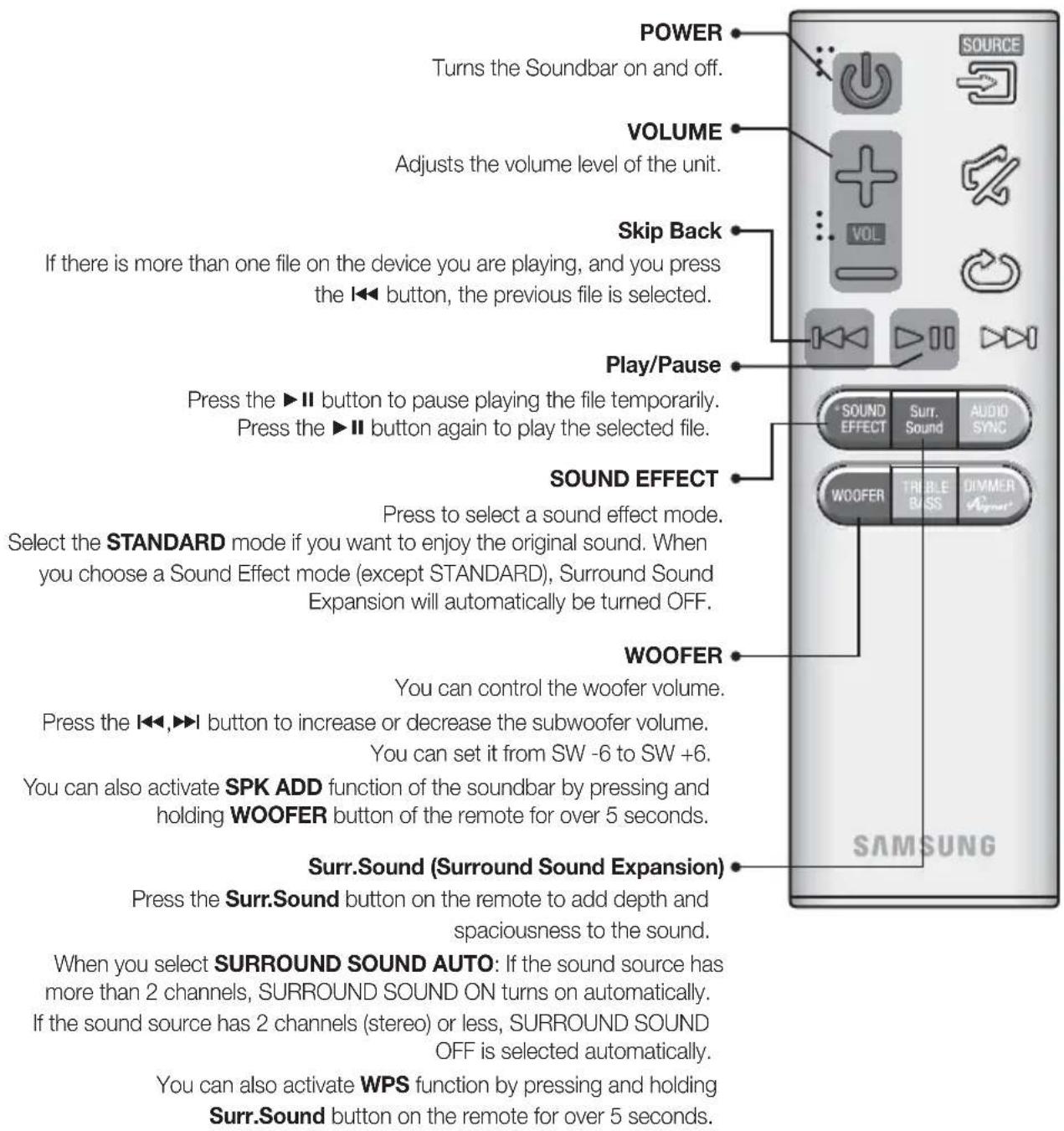

REMOTE CONTROL BUTTONS AND FUNCTIONS

SOURCE

Press to select a source connected to the Soundbar.

MUTE

You can turn the volume down to 0 with the push of a button. Press again to restore the sound to the previous volume level.

REPEAT

Press to set the REPEAT function during music playback from a USB device.

REPEAT OFF : Cancels Repeat Playback.

REPEAT FILE : Repeatedly play a track.

REPEAT ALL : Repeatedly play all tracks.

REPEAT RANDOM : Plays tracks in random order. (A track that has already been played may be played again.)

Skip Forward

If there is more than one file on the device you are playing, and you press the ▶ button, the next file is selected.

AUDIO SYNC

If the Soundbar is connected to a digital TV and the video appears out of sync with the audio, press the AUDIO SYNC buttons to sync the audio with the video. Use the I◄◄,►►I buttons to set the audio delay between 0 ms and 300 ms. In USB mode, TV mode, and BT mode, the Audio Sync function may not work.

You can also activate Wi-Fi SETUP function by pressing and holding AUDIO SYNC button on the remote for over 7 seconds.

DIMMER/Anynet+

DIMMER : Press the DIMMER/Anynet+ button to control the brightness of the VACUUM TUBE AMP. DIMMER does not function for 30 seconds after you turn on the product for the very first time.

Anynet+ : Press and hold the DIMMER/Anynet+ button for more than 5 seconds to turn the Anynet+ function and AUTO POWER LINK function on or off. The Anynet+ function lets you control the Soundbar with the remote from an Anynet+ compatible Samsung TV. The Soundbar must be connected to the TV via an HDMI cable. See page 23 for details about AUTO POWER LINK.

TREBLE BASS

Press to select Treble or Bass. Then, use the ◀◀,▶▶I button to adjust the Treble or Bass volume from -3 to +3.

• Soundbar is a Samsung proprietary name. - Operate the TV using the TV's remote control.

▶ Installing the Batteries in the Remote Control

1. Use a suitable coin to turn the remote control's battery cover counterclockwise to remove it as shown in the figure above.
2. Insert a 3V lithium battery. Keep the positive (+) pole facing up when inserting the battery. Put the battery cover on and align the '●' marks side by side as shown in the figure above.
3. Use a suitable coin to turn the remote control battery cover clockwise as far as it will go to fix it in place.

CONNECTIONS

INSTALLING THE WALL MOUNT

You can use the wall mount bracket to mount this unit on a wall.

▶ Installation Precautions

• Install on a vertical wall only. - For the installation, avoid a location with high temperature or humidity, or a wall that cannot sustain the weight of the set. - Check the strength of the wall. If the wall is not strong enough to support the unit, reinforce the wall or install the unit on a different wall that can support the unit's weight. - Purchase and use the fixing screws or anchors appropriate for the kind of wall you have (plaster board, iron board, wood, etc.). If possible, fix the support screws into wall studs. - Purchase wall mounting screws according to the type and thickness of the wall you will mount the Soundbar on.

• Diameter: M5
• Length: L 35 mm or longer recommended

- Connect cables from the unit to external devices before you install it on the wall.

- Make sure the unit is turned off and unplugged before you install it. Otherwise, it may cause an electric shock.

1. Place the installation guide against the wall surface.

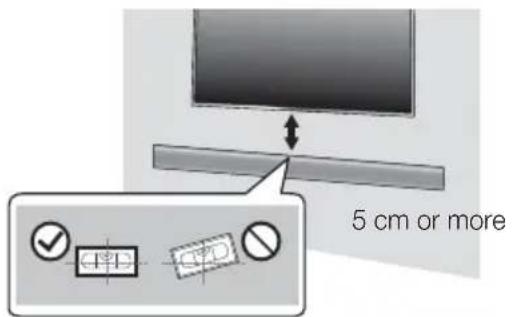

• The installation guide must be level. - Install at least 5 cm below the TV, if the TV is mounted on the wall.

1. Mark the location where the screws will go through on the wall using a pen, and then remove the installation guide.
2. Fasten the wall mounts and screws to the marked locations.

• The left and right mounts are different shapes.

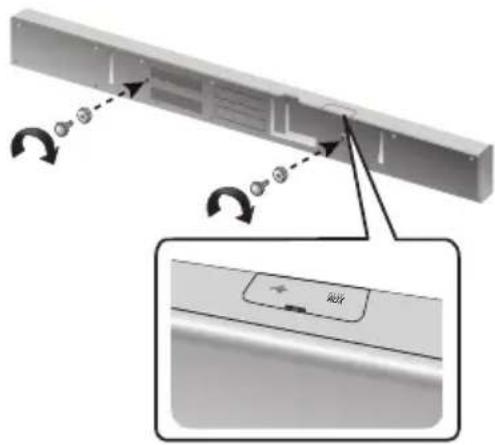

1. Secure the two holder screws to the screw holes on the back of the Soundbar's main body, one on the left and one on the right.
2. Dust may be introduced into the Soundbar's inside if mounted on the wall. Make sure to keep the USB COVER closed.
3. Set the holder screws on the back of the Soundbar into the grooves of the wall mount. For safe installation, make sure to push the holder screws all the way to the bottom of the grooves.

Using the Soundbar with Wall Mount [Wall Mounting the Soundbar]

DETACHING THE WALL MOUNT

1. Pull the Soundbar upwards as shown in the figure to separate it from the wall mount.

Using the Soundbar with Wall Mount [Detaching the Soundbar from the Wall Mount]

• Do not hang onto the installed unit and avoid striking or dropping the unit.
• Secure the unit firmly to the wall so that it does not fall off. If the unit falls off, it may cause an injury or damage the product.
• When the unit is installed on a wall, please make sure that children do not pull any of the connecting cables, as it may cause it to fall.
• For the optimal performance of a wall mount installation, install the speaker system at least 5 cm below the TV, if the TV is mounted on the wall.
• For your safety, if you do not mount the unit on the wall, install it on a secure, flat surface where it is unlikely to fall.

INSTALLING THE BRACKET WITHOUT REFERRING TO THE WALL-MOUNT INSTALLATION GUIDE

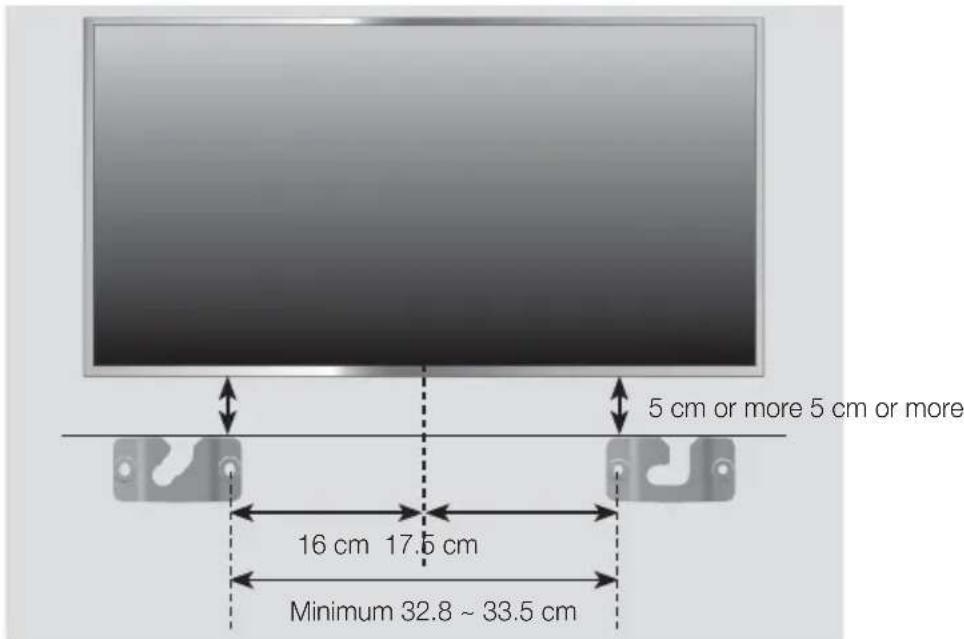

1. Place the "Wall Mount L" on the desired wall surface while paralleled to the floor as shown above, and fix a screw through the hole on its right end.
2. Place the "Wall Mount R" on the desired wall surface while paralleled to the floor as shown above, and fix a screw through the hole on its left end.

- If Wall Mount L/R are to be mounted beneath the TV, check their fixing hole positions in steps 1 and 2, so that they are aligned appropriately to the center of the TV's bottom.

1. Fix screws through the rest of the holes.

CONNECTING THE WIRELESS SUBWOOFER

The Subwoofer's linking ID is preset at the factory and the main unit and subwoofer should link (connect wirelessly) automatically when the main unit and subwoofer are turned on. If the LINK indicator does not light when the main unit and subwoofer are turned on, please set the ID by following the procedure below. Complete this process within 30 seconds after the Link Indicator on the subwoofer starts blinking.

1. Plug the power cords of the main unit and subwoofer into an AC wall outlet.
2. Confirm that the main unit is off (in STANDBY Mode).
3. Press the ID SET button on the back of the subwoofer with a small, pointed object for 5 seconds.

- The LINK indicator (Blue LED) on the subwoofer blinks quickly.

1. While the main unit is powered off (in STANDBY mode), press and hold the MUTE ( ) on the remote control for 5 seconds.
2. The ID SET message appears on the Soundbar's display.
3. To finalise the link, turn the main unit's power on while the subwoofer's LINK LED blinks.

- The main unit and the subwoofer should now be linked (connected).

- The LINK indicator (blue LED) on the subwoofer should be on and solid blue.

- If the LINK indicator is not solid blue, the linking process has failed. Turn off the main unit and start again from Step 2.

- You can enjoy better sound from the wireless subwoofer by selecting a Sound Effect. (See page 10)

- Before moving or installing the product, be sure to turn off the power and disconnect the power cord.

- If the main unit is powered off, the wireless subwoofer will be in standby mode and the STANDBY LED on the upper side will come on after the LINK indicator (Blue LED) blinks for 30 seconds.

- If you use a device that uses the same frequency (2.4GHz) as the Soundbar near the Soundbar, interference may cause some sound interruption.

- The transmission distance of the wireless signal between the main unit and subwoofer is about 10 m, but may vary depending on your operating environment.

If a steel-concrete or metallic wall is between the main unit and the wireless subwoofer, the system may not operate at all, because the wireless signal cannot penetrate metal.

- If the main unit doesn't make a wireless connection, follow steps 1-6 in the left hand column to re-set the connection between the main unit and wireless subwoofer.

- The wireless receiving antenna is built into the wireless subwoofer. Keep the unit away from water and moisture.

- For optimal listening performance, make sure that the area around the wireless subwoofer location is clear of any obstructions.

ATTACHING THE TOROIDAL FERRITE CORE SOUNDBAR POWER CORD

You can reduce noise caused by electromagnetic radiation by fitting the ferrite core to the Soundbar power cord.

1. Unlock and open the ferrite core.
2. Wind the Soundbar power cable around the ferrite core twice. (Start winding 5 to 10 cm away from the core).
3. Close the ferrite core by pressing it until it clicks.

CONNECTING AN EXTERNAL DEVICE USING AN HDMI CABLE

HDMI is the standard digital interface for connecting to such TVs, projectors, DVD players, Blu-ray players, set top boxes, and more.

Because HDMI transmits the highest quality digital signal, you can enjoy superior video and audio - as it was originally created at the digital source.

HDMI IN

Connect an HDMI cable (not supplied) from the HDMI IN jack on the back of the product to the HDMI OUT jack on your digital device.

and,

HDMI OUT (TV)

Connect an HDMI cable (not supplied) from the HDMI OUT (TV) jack on the back of the product to the HDMI IN jack on your TV.

- HDMI is an interface that enables the digital transmission of video and audio data with just a single connector.

ARC (HDMI OUT)

The ARC function allows digital audio to output via the HDMI OUT (ARC) port.

It can be enabled only when the Soundbar is connected to a TV that supports the ARC function.

• Anynet+ must be turned on.

- This function is not available if the HDMI cable does not support ARC.

CONNECTING AN EXTERNAL DEVICE USING OPTICAL (DIGITAL) CABLE OR AUDIO (ANALOGUE) CABLE

This unit comes equipped with one optical in digital jack and one audio Analogue in jack, giving you two ways to connect it to a TV.

OPTICAL IN

Connect the OPTICAL IN (Audio) on the main unit to the OPTICAL OUT jack of the TV or Source Device. Change the function to D.IN.

- Do not connect the power cord of this product or your TV to the wall outlet until all connections between components are complete.

- Before moving or installing this product, be sure to turn off the power and disconnect the power cord.

ASSEMBLING THE CABLE CLIP

or,

AUX IN

Connect AUX IN (Audio) on the main unit to the AUDIO OUT jack of the TV or Source Device.

Change the function to AUX.

Attach the cable clip to the unit as shown, and then run the cables through the clip to keep them neat.

FUNCTIONS

INPUT MODE

Press the (F.) button on the main unit's front panel or the → (SOURCE) button on the remote control to select the mode you want.

Input mode Display
Optical Digital input	D.IN
AUX input	AUX
HDMI input	HDMI
BLUETOOTH mode	BT
TV SoundConnect	TV
USB mode	USB

The unit turns off automatically in the following situations:

• D.IN/HDMI/BT/TV/USB/ARC Mode

- If there is no audio signal for 15 minutes.

- AUX Mode

- If there is no KEY input for 8 hours when the AUX cable is connected.

- If the AUX cable is disconnected for 15 minutes.

- To disable Auto Power down Off, press the ▶II button for over 5 seconds in AUX mode.

ARC (HDMI OUT)

ARC (Audio Return Channel) transfers digital audio signal to the HDMI OUT (ARC) port.

1. Connect the TV supporting ARC to the Soundbar with an HDMI cable.
2. Turn on the TV, and turn on the Soundbar's Anynet+.
3. Press the ⬆ .) button on the main unit's front panel or the → (SOURCE) button on the remote control to select the D.IN mode.

• If the HDMI cable does not support ARC feature, ARC may not work properly.
• To turn off the ARC function, turn Anynet+ off.

BLUETOOTH

You can connect a Bluetooth device to the Soundbar and enjoy music with high quality stereo sound, all without wires!

To connect the Soundbar to a Bluetooth device:

Check if the Bluetooth device supports the Bluetooth compliant stereo headset function.

1. Press the ⬤) button on the main unit's front panel or the → (SOURCE) button on the remote control to select the BT mode.
2. Select the Bluetooth menu on the Bluetooth device you want to connect. (Refer to the Bluetooth device's user manual.)
3. Select the Stereo headset menu on the Bluetooth device.

You will see a list of scanned devices.

1. Select "[Samsung] Soundbar" from the list.

When the Soundbar is connected to the Bluetooth device, it will display BT READY → [Bluetooth Device Name] → BT on the front display.

- The device name can only be displayed in English. An underline " _ " will be displayed if the name is not in English.

- If the Bluetooth device has failed to pair with the Soundbar, delete the previous "[Samsung]Soundbar" found by the Bluetooth device and have it search for the Soundbar again.

1. Play music on the connected device.

- You can listen to the music playing on the connected Bluetooth device over the Soundbar.

- In BT mode, the Play/Pause/Next/Prev functions are not available. However, these functions are available in Bluetooth devices supporting AVRCP.

- If asked for PIN code when connecting a Bluetooth device, enter <0000>.

- Only one Bluetooth device can be paired at a time.

- The Bluetooth connection will be terminated when you turn the Soundbar off.

- The Soundbar may not perform Bluetooth search or connection correctly under the following circumstances:

- If there is a strong electrical field around the Soundbar.

- If several Bluetooth devices are simultaneously paired with the Soundbar.

- If the Bluetooth device is turned off, not in place, or malfunctions.

- Note that such devices as microwave ovens, wireless LAN adaptors, fluorescent lights, and gas stoves use the same frequency range as the Bluetooth device, which can cause electric interference.

- The Soundbar supports SBC data (44.1kHz, 48kHz).

- Connect only to a Bluetooth device that supports the A2DP (AV) function.

- You cannot connect the Soundbar to a Bluetooth device that supports only the HF (Hands Free) function.

▶ To disconnect the Bluetooth device from the Soundbar

You can disconnect the Bluetooth device from the Soundbar. For instructions, see the Bluetooth device's user manual.

• The Soundbar will be disconnected. - When the Soundbar is disconnected from the Bluetooth device, the Soundbar will display BT DISCONNECTED on the front display.

▶ To disconnect the Soundbar from the Bluetooth device

Press the → (SOURCE) button on the remote control or the (F.) button on the product's front panel to switch from BT to another mode or turn off the Soundbar.

- The connected Bluetooth device will wait a certain amount of time for a response from the Soundbar before terminating the connection. (Disconnection time may differ, depending on the Bluetooth device)

• In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Soundbar and the Bluetooth device exceeds 5 m.
• The Soundbar automatically turns off after 15 minutes in the Ready state.

More About Bluetooth

Bluetooth is a technology that enables Bluetooth-compliant devices to interconnect easily with each other using a short wireless connection.

- A Bluetooth device may cause noise or malfunction, depending on usage, when:

• A part of your body is in contact with the receiving/transmitting system of the Bluetooth device or the Soundbar.
• It is subject to electrical variation from obstructions caused by a wall, corner, or office partition.
• It is exposed to electrical interference from same frequency-band devices including medical equipment, microwave ovens, and wireless LANs.
• Pair the Soundbar with the Bluetooth device while they are close together.
• The further the distance between the Soundbar and Bluetooth device, the worse the quality is. If the distance exceeds the Bluetooth operational range, the connection is lost.
• In poor reception areas, the Bluetooth connection may not work properly.
• The Bluetooth connection only works when it is close to the unit. The connection will be automatically cut off if the Bluetooth device is out of range. Even within range, the sound quality may be degraded by obstacles such as walls or doors.
• This wireless device may cause electric interference during its operation.

NFC

You can connect your Soundbar to an NFC-enabled smart device through a Bluetooth connection with a simple setup. Once connected, you can enjoy music stored in your smart device through the Soundbar. It is supported in some area's models only.

▶ Connecting with NFC and smart devices

1. Detach the NFC sticker label from the package and attach it to a desired spot.
2. Putting the NFC sticker within a 3 m radius from the unit is recommended.
3. Do not attach the NFC sticker on a metallic surface including the Soundbar.

Metallic objects may interfere with communication and the NFC sticker may not work properly.

1. Press the (☐.) button on the main unit's front panel or the → (SOURCE) button on the remote control to select the BT mode.
2. Enable the NFC function of your smart device.
3. Bring your smart device's NFC antenna close to the NFC label.
4. When the connection prompt appears on your smart device's display, select .

- Once the connection is established, the completion message appears.

※ To reconnect once the initial connection had been successful, start from step 3.

▶ Disconnecting NFC

Bring your smart device's NFC antenna close to the NFC label on the Soundbar again. The disconnection message appears on the smart device's display.

▶ To connect another smart device to the Soundbar which is already connected to another NFC compatible device

Bring the new smart device close to the NFC label of the Soundbar.

- The NFC function is implemented in Android v4.1.2 Jelly Bean and later operating systems.

- To make NFC connections, your smart device needs both Android OS 4.1.2 Jelly Bean or later and the NFC tag for NFC function execution. You also need to download the "Samsung NFC Connection" application from the Google Play store and install it on your smart device. For further details, please refer to the smart device's user manual.

• The location of the NFC antenna is different in different devices. Confirm the location of your smart device's antenna in the device's user manual before attempting to pair it with the Soundbar.
• If your smart device is in a thick housing or case, the NFC connection may not be stable.
• The N-mark is a trade mark or registered trade mark of the NFC Forum Inc. in the United States and other countries.
• If you have trouble with an NFC connection
• Actually touching your smart device to the NFC label can cause NFC connection failure.
• If the "Empty tag" error is displayed on the smart device, please try again.
• Check whether your smart device's antenna is close enough to the NFC logo.

- If you turn off the Soundbar when the Network Standby On feature is ON, and then try to connect a Bluetooth device that has been previously connected using NFC, the Soundbar will turn on automatically when the device connects. To set the Network Standby On feature, see page 23.

TV SOUNDCONNECT

You can enjoy TV sound through your Soundbar when it is connected to a Samsung TV that supports the TV SoundConnect function.

▶ Connecting a TV to the Soundbar

1. Turn on the TV and Soundbar.

• Turn on the menu of the TV. - Move to Speaker Settings on "Sound" tab. - Set the "Add New Device" menu to "On".

1. Press the ⬆.) button on the main unit's front panel or the → (SOURCE) button on the remote control to select the TV mode.
2. On the TV, a message asking whether to enable the TV SoundConnect function. "[Samsung] Soundbar" is displayed on the TV screen.
3. Select to finish connecting the TV and Soundbar by TV remote control.

• Switching the Soundbar's mode from TV to another mode automatically terminates TV SoundConnect.
• To connect the Soundbar to another TV, the existing connection must be terminated.
• Terminate the connection to the existing TV, and then press the ▶ II button on the remote control for 5 seconds to connect to another TV.

• The TV SoundConnect (SoundShare) function is supported by some Samsung TVs released from 2012 on. Check whether your TV supports the TV SoundConnect (SoundShare) function before you begin. (For further information, refer to the TV's user manual.)
• If your Samsung TV was released before 2014, check the SoundShare setting menu.
• If the distance between the TV and Soundbar exceeds 5 m, the connection may not be stable or the audio may stutter. If this occurs, relocate the TV or Soundbar so that they are within operational range, and then re-establish the TV SoundConnect connection. • TV SoundConnect Operational Ranges:

- Recommended pairing range: within 50 cm

- Recommended operational range: within 5 m

- The Play/Pause, Next, Prev buttons are not operable in TV SoundConnect mode.

USB

You can play music files located on USB storage devices through the Soundbar.

USB port Display

1. Connect the USB device to the USB port of the product.
2. Press the ( ) button on the main unit's front panel or the → (SOURCE) button on the remote control to select the USB mode.
3. USB appears on the display screen.
4. The Soundbar connection to the USB device is complete.
5. The Soundbar automatically turns off (Auto Power Off) if no USB device has been connected for more than 15 minutes.

▶ Before you connect a USB device

Be aware of the following:

• If the file name of a file or folder on a USB device exceeds 10 characters, it is not displayed on the Soundbar's display.
• This product may not be compatible with certain types of USB storage media.
• The Soundbar supports the FAT16 and FAT32 file systems.

- The NTFS file system is not supported.

• Connect USB devices directly to the USB port of the product. Otherwise, you may encounter a USB compatibility problem.
• Do not connect multiple storage devices to the product via a multi-card reader. It may not operate properly. • Digital camera PTP protocols are not supported.
• Do not remove the USB device while it is transferring files.
• DRM-protected music files (MP3, WMA) from commercial web sites cannot be played. • External HDDs are not supported. • Mobile phone devices are not supported.
• File Format Type Compatibility list:

Format Codec
*.mp3	MPEG 1 Layer2
	MPEG 1 Layer3
	MPEG 2 Layer3
	MPEG 2.5 Layer3
*.wma	Wave_Format_MSAudio1
	Wave_Format_MSAudio2
*.aac	AAC
	AAC-LC
	HE-AAC
*.wav	-
*.ogg	OGG 1.1.0
*.flac	FLAC 1.1.0, FLAC 1.2.1

※ Supported Sampling Rate above 16KHz

USING THE NETWORK STANDBY ON FUNCTION

The Network Standby On function becomes available if wireless connection was properly established between the smart device and Soundbar. This function turns on the Soundbar automatically when a smart device attempts to connect to the Soundbar via Bluetooth or Wi-Fi. If the Soundbar was turned on via Bluetooth connection, its input mode is set to BT automatically. Turning on the Soundbar via Wi-Fi is available only by using the App. For further information, refer to the Web manual.

1. Connect the Smart device to your Soundbar.
2. Turn the Network Standby On function on by pressing the ▶▶I button on the Soundbar remote for more than 5 seconds. You can turn the function off by pressing the ▶▶I button again for more than 5 seconds.

• Available only if the Soundbar is listed among the Smart device's paired devices. (The Smart device and the Soundbar must have been previously paired at least once.)
• Soundbar will appear in the Smart device's searched devices list only when the Soundbar is displaying [BT READY] or [WiFi READY].
• In the TV SoundConnect mode, the Soundbar cannot be paired to another Smart device.
• If Network Standby On function did not work - The Network Standby On is set to Off.
• Wi-Fi connection to the Soundbar will be terminated if its power cord was disconnected or the power was cut off. Turn on the Soundbar and reconnect.

USING THE AUTO POWER LINK FUNCTION

If the Soundbar is connected to an external device via an optical cable, the AUTO POWER LINK function can be used. If you connect the main unit to a TV with a digital optical cable, set the Auto Power function to ON so that the Soundbar turns on automatically when you turn on the TV.

1. Connect the Soundbar and an external device with an optical cable.
2. Press and hold the DIMMER/Anynet+ button for more than 5 seconds to toggle the function.

AUTO POWER LINK Display
ON	ANYNET+ OFF / POWER LINK ON
OFF	ANYNET+ ON / POWER LINK OFF

USING THE MULTIROOM LINK

Once the Soundbar is connected to a smart device with the Multiroom Link App, you can connect multiple Samsung Multiroom devices together wirelessly.

▶ Before you begin

Communication Basics

1. Requirements: Wireless Router, Smart Device
2. The wireless router should be connected to the Internet.
3. The smart device should be connected to the router via a Wi-Fi connection.

▶ Installing the Samsung Multiroom App

To use the Soundbar, you must download and install the Samsung Multiroom App from Google Play or the App Store. With the Samsung Multiroom App installed, you can play music stored on your smart device, from connected devices and other content providers, and from Internet radio stations.

Android or iOS

Download the Samsung Multiroom app from Google Play or the App Store on your smart device.

Market search: Samsung Multiroom

Accessing the Samsung Multiroom App

To access the Samsung Multiroom app, press the Multiroom app icon on your smart device.

▶ Connecting with Soundbar

Connect the Soundbar to a wired/wireless router. A wired or wireless connection (using Wi-Fi SETUP or WPS, you can see the guide on the Multiroom APP) to the router can be established.

Connecting the Soundbar to Your Network with a LAN Cable

1. Connect your smart device to your Wi-Fi network.
2. On your smart device, select the Samsung Multiroom app. Setup starts.
3. In the app, select "I don't have a Hub", and then press Next. On the next screen, select Soundbar from the device type, and then press Next.
4. Select Wired from the network type, and then press Next.
5. Connect one end of the LAN cable to the Soundbar's LAN port. Connect the other end to your wireless router. (You cannot use the Soundbar without a wireless router.)
6. Plug the Soundbar into an electrical outlet.

• For further information on connecting the Soundbar with a wired/wireless router, refer to the manual on the Web.
• For further information on connecting the product for Multiroom Link, please refer to the web-based user manual or manual provided within the app.

- Web manual: www.Samsung.com → Support → Product name search → HW-H750 or HW-H751 PDF file download.

SOFTWARE UPDATE

▶ Updating with USB

Samsung may offer updates for the Soundbar's system firmware in the future.

If an update is offered, you can update the firmware by connecting a USB device with the firmware update stored on it to the USB port on your Soundbar.

Note that if there are multiple update files, you must load them onto the USB device singly and use them to update the firmware one file at a time.

Please visit Samsung.com or contact the Samsung call center to receive more information about downloading updates files.

1. While the Soundbar is turned off, connect the USB storage device that contains the updating firmware to the Soundbar's USB port.
2. Turn on the Soundbar. UPDATE appears on the display and updating begins within 3 minutes.

- Upon completion of updating, the Soundbar turns off and on automatically.

If UPDATE was not displayed

1. Turn off the Soundbar, connect the USB storage device that contains update files to the Soundbar's USB port.
2. Disconnect the power cord, reconnect it and turn it on.

- Updating firmware may not work properly if audio files supported by the Soundbar are stored in the USB storage device.

- Do not disconnect the power or remove the USB device while updates are being applied. The main unit will turn off automatically after completing the firmware update.

- After reset, all settings are reset to their factory default settings. We recommend you write down your settings so that you can easily reset them after the update. Note that updating firmware resets subwoofer connection too. If connection to the subwoofer is not established automatically after resetting, refer to page 13. If the firmware fails to update, we recommend formatting the USB device in FAT16 and trying again.

- Do not format the USB device in the NTFS format. The Soundbar does not support the NTFS file system.

- Depending on the manufacturer, some USB devices may not be supported.

▶ Auto update

Even when the Soundbar is turned off, the Soundbar will automatically check latest software version and continue to update if it was connected to the Internet.

- The Soundbar is configured to run auto update by default.

- To use auto update function, the Soundbar must be connected to the Internet.

- Wi-Fi connection to the Soundbar will be terminated if its power cord was disconnected or the power was cut off. Turn on the Soundbar and reconnect.

TROUBLESHOOTING

Before requesting service, please check the following.

The unit will not turn on.
• Is the power cord plugged into the outlet?	→ Connect the power plug to the outlet.

A function does not work when the button is pressed.
• Is there static electricity in the air?	→ Disconnect the power plug and connect it again.

Sound is not produced.
Is the Mute function on?Is the volume set to minimum?	→Press the Mute button to cancel the function.→Adjust the Volume.

The remote control does not work.
Are the batteries drained?Is the distance between the remote control and main unit too far?	→ Replace with new batteries.→ Move closer to the unit.

The TV SoundConnect (TV pairing) failed.
Does your TV support TV SoundConnect?Is your TV firmware the latest version?Does an error occur when connecting?Reset the TV MODE and connect again.	→ TV SoundConnect is supported by some Samsung TVs released from 2012 on. Check your TV to see if it supports TV SoundConnect.→ Update your TV with the latest firmware.→ Contact the Samsung call centre.→ Press and hold the button for 5 seconds to reset the TV SoundConnect connection.

The red LED on the subwoofer blinks and the subwoofer is not producing sound.
• Your subwoofer may not be connected to the main body of the product.	→ Try to connect your subwoofer again.(See Page 13)

The subwoofer drones and vibrates noticeably.
• Try to adjust the vibration of your subwoofer.	→ Press the WOOFER button on your remote control to adjust its value (between SW-6 and SW+6).

APPENDIX

SPECIFICATIONS

Model name	HW-H750, HW-H751
GENERAL	USB 5V/0.5A
	Weight	Main Unit 3.3 kg
		Subwoofer (PS-WH750, PS-WH751)	9.8 kg
	Dimensions(W x H x D)	Main Unit 943 x 123 x 57 mm
		Subwoofer (PS-WH750, PS-WH751)	305.5 x 388.5 x 305.5 mm
	Operating Temperature Range		+5 °C to +35 °C
	Operating Humidity Range 10 % to 75 %
AMPLIFIER	Rated Output Power	Main Front	40W/CH, 6 OHM, THD = 1%, 1kHz
		Main Bottom	40W/CH, 6 OHM, THD = 1%, 1kHz
		Subwoofer (PS-WH750, PS-WH751)	160W, 3 OHM, THD = 10%, 100Hz
	S/N Ratio (Analogue Input) 65 dB
	Separation (1kHz) 65 dB

* S/N ratio, distortion, separation, and usable sensitivity are based on measurements using AES (Audio Engineering Society) guidelines. * Nominal specification

Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.

- Weight and dimensions are approximate.

- For the power supply and Power Consumption, refer to the label attached to the product.

※ Precaution: The product will restart automatically if you turn on/off Wi-Fi/Ethernet.

Overall Standby Power Consumption (W)(All the network ports are “ON” condition)		6.4W
Wi-Fi/Ethernet	Port deactivation method	Press WPS button on the product for 30 seconds to turn Wi-Fi/Ethernet On / Off.
Bluetooth	Port deactivation method	Press SPK ADD button on the product for 30 seconds to turn Bluetooth On / Off.

※ Open Source License Notice

For further information on Open Sources used in this product, please visit the website:

http://opensource.samsung.com

※ Spotify License

• The Spotify Software is subject to third party licenses found here: www.spotify.com/connect/third-party-licenses.
• For more information about Spotify Connect, please visit www.spotify.com/connect

CE!

Hereby, Samsung Electronics, declares that this equipment is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

The original Declaration of Conformity may be found at http://www.samsung.com, go to Support > Search Product Support and enter the model name.

This equipment may be operated in all EU countries.

This equipment may only be used indoors.

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care Centre.

CountryContactCentre 📞 Website
AUSTRIA	0800 - SAMSUNG (0800 - 7267864)	www.samsung.com/at/support
BELGIUM02-201	1-24-18	www.samsung.com/be/support (Dutch)www.samsung.com/be_fr/support (French)
BOSNIA05133	1999www.samsung.com/support
BULGARIA0700	13311,sharingcostwww.samsung.com/bg/support
CROATIA06272	6786www.samsung.com/hr/support
CZECH800-SAMSUNG(800-726786) www.samsung.com/cz/support
DENMARK	70701970	www.samsung.com/dk/support
FINLAND030-62	27515 www.samsung.com/fi/support
FRANCE	0148630000	www.samsung.com/fr/support
GERMANY	0180 6 SAMSUNG bzw.0180 6 7267864*(*0,20 €/Anruf aus dem dt.Festnetz, aus dem Mobilfunkmax. 0,60 €/Anruf)	www.samsung.com/de/support
CYPRUS	8009 4000 only from landline, toll free	www.samsung.com/gr/support
GREECE	80111-SAMSUNG(80111726 7864) only from land line([phone] from mobile and land line
HUNGARY	0680SAMSUNG(0680-726-786)0680PREMIUM (0680-773-648)	http://www.samsung.com/hu/support
ITALIA	800-SAMSUNG(800.7267864)	www.samsung.com/it/support
LUXEMBURG	26103710	www.samsung.com/support

CountryContactCentre WebSite
MONTENEGRO	020405888www.samsung.com/support
SLOVENIA	080697267090 726 786	www.samsung.com/si/support
NETHERLANDS	0900-SAMSUNG(0900-7267864)(€ 0,10/Min)	www.samsung.com/nl/support
NORWAY	81556480	www.samsung.com/no/support
POLAND	0 801-172-678* lub [phone] **(całkowity koszt połączenia jak za1 impuls według taryfy operatora** (koszt połączenia według taryfyoperatora)	www.samsung.com/pl/support
PORTUGAL	808207267www.samsung.com/pt/support
ROMANIA	08008 SAMSUNG (08008 7267864) TOLL FREE No.	www.samsung.com/ro/support
SERBIA	0113216899	www.samsung.com/rs/support
SLOVAKIA	0800 - SAMSUNG(0800-726 786)	www.samsung.com/sk/support
SPAIN	0034902172678	www.samsung.com/es/support
SWEDEN	07717267864(SAMSUNG)www.samsung.com/se/support
SWITZERLAND	08487267864(0848-SAMSUNG)	www.samsung.com/ch/support(German)www.samsung.com/ch_fr/support (French)
U.K	0330SAMSUNG(7267864)www.samsung.com/uk/support
EIRE	0818717100	www.samsung.com/ie/support
LITHUANIA	8-800-77777	www.samsung.com/lt/support
LATVIA	8000-7267	www.samsung.com/hv/support
ESTONIA800-7267 www.samsung.com/ee/support

[Correct disposal of batteries in this product]

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in countries with separate collection systems)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

(Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

CONNECTING AN EXTERNAL DEVICE USING AN HDMI CABLE

Surround Sound Expansion

CONNECTING AN EXTERNAL DEVICE USING AN HDMI CABLE

Ferrite toroidal core

CONNECTING AN EXTERNAL DEVICE WITH AN HDMI CABLE

0

AUX IN

ITA

Surround Sound Expansion

CONNECTING AN EXTERNAL DEVICE WITH AN HDMI CABLE

1. Secure the battery compartment cover of the remote control in place by turning it with a suitable coin to the end position.

CONNECTIONS

INSTALLING THE WALL MOUNT BRACKET

CONNECTING AN EXTERNAL DEVICE USING AN HDMI CABLE

or,

AUX IN

Režim Vstupu Displej
Optický digitálny vstup	D.IN
Vstup AUX	AUX
Vstup HDMI	HDMI
Režim BLUETOOTH	BT
TV SoundConnect	TV
Režim USB	USB

▶ Updating via USB device

▶ Update via USB

Surround Sound Expansion

^ Do not expose the device to direct sunlight or other heat sources.

CONNECTING AN EXTERNAL DEVICE WITH AN HDMI CABLE

Vhodni način Prikaz
Optični digitalni vhod	D.IN
Vhod AUX	AUX
Vhod HDMI	HDMI
Način BLUETOOTH	BT
TV SoundConnect	TV
Način USB	USB

▶ Update via USB

ñ

AUX IN

Special Sound Module (Special Sound)

CONNECTING THE WIRELESS SUBWOOFER

CONNECTING AN EXTERNAL DEVICE WITH AN HDMI CABLE

Accessing the Samsung Multiroom App

To access the Samsung Multiroom app, tap the Multiroom app icon on your smart device.

▶ Update via USB

CONNECTING AN EXTERNAL DEVICE WITH AN HDMI CABLE

Режим на въвеждане	Дисплей
Оптичен цифров вход	D.IN
AUX вход AUX
HDMI вход HDMI
BLUETOOTH режим	BT
TV SoundConnect TV
USB режим USB

Ensure that the AC mains voltage in your home complies with the label on the back of the product. Install the product horizontally on a suitable base (furniture) so that there is enough space around it for ventilation 7~10 cm. Make sure the ventilation openings are not covered. Do not place the device on amplifiers or other equipment that may heat up. This device is intended for continuous use. To completely turn off the device, disconnect the AC plug from the wall outlet. Disconnect the device if you do not intend to use it for an extended period.

During a thunderstorm, unplug the power cord from the wall outlet. Voltage spikes caused by lightning can damage the device.

Protect the product from moisture (e.g., vases) and excessive heat (e.g., fireplace) or equipment that generates strong magnetic or electric fields. Unplug the power cord from the mains (outlet) if the device does not function properly. This product is not intended for industrial use. Use this product only for personal use.

Do not expose the device to direct sunlight or other heat sources. This may cause overheating and malfunction of the device.

Batteries used with this product contain chemicals that are harmful to the environment.

Do not dispose of batteries in household waste.

1. Use a coin to turn the battery compartment cover of the remote control counterclockwise to remove it, as shown in the figure above.

1. Insert a 3 V lithium battery. When inserting the battery, keep the positive (+) pole facing upward. Place the battery cover and align the '●' marks next to each other, as shown in the figure above.

1. Use a coin to turn the battery compartment cover clockwise to the end to secure it.

CONNECTIONS

INSTALLING THE WALL MOUNT BRACKET

1. Connect the power cords of the main unit and the subwoofer speaker to the AC wall outlet.
2. Make sure the main unit is turned off (in STANDBY mode).
3. Using a small pointed object, press the ID SET button on the back of the subwoofer and hold it for 5 seconds.

- The LINK indicator (blue LED) on the subwoofer blinks rapidly.

1. While the main unit is off (in STANDBY mode), press the MUTE button on the remote control and hold it for 5 seconds.
2. The message ID SET appears on the Soundbar display.
3. To complete the connection, turn on the power of the main unit while the blue LED of the subwoofer is blinking.

- The main unit and subwoofer are now connected.

- The LINK indicator (blue LED) on the subwoofer should be on and glowing blue.

CONNECTING AN EXTERNAL DEVICE VIA HDMI CABLE

Attach the cable holder to the device as shown, then route the cables through the holder to arrange them neatly.

FUNCTIONS

INPUT MODE

Press the (☐) button on the front panel of the main unit or the → (SOURCE) button on the remote control to select the desired mode.

Mod ulaza Displej
Optički digitalni ulaz	D.IN
AUX ulaz AUX
HDMI ulaz HDMI
BLUETOOTH režim BT
TV SoundConnect TV
USB režim USB

1. Remove the NFC sticker from the box and place it in the desired location.
2. It is recommended to place the NFC sticker within a 3 m radius of the device.
3. Do not place the NFC sticker on a metal surface, including the Soundbar device. Metal objects can interfere with communication and the NFC sticker may not work properly.
4. Press the (F.) button on the front panel of the main unit or the → (SOURCE) button on the remote control to select BT mode.
5. Enable the NFC function on your smart device.
6. Bring the NFC antenna of your smart device close to the NFC sticker.
7. When a connection message appears on your smart device's screen, select it.

1. Connect a USB device to the product's USB port.
2. Press the (F.) button on the front panel of the main unit or the → (SOURCE) button on the remote control to select USB mode.
3. USB appears on the display screen.
4. The soundbar and USB device are successfully connected.
5. It automatically turns off (Auto Power Off) if no USB device is connected for more than 15 minutes.

▶ Before connecting a USB device

Surround Sound Expansion

Ensure that the AC power supply in your household matches the identification label on the back of the product. Place the product horizontally on a suitable surface (furniture) with enough space for ventilation 7~10 cm. Make sure the ventilation openings are not covered. Do not place the unit on amplifiers or other equipment that heats up. This unit is designed for continuous use. To completely turn off the unit, unplug the power cord from the wall outlet. If you do not intend to use the unit for a long time, unplug it.

During a thunderstorm, unplug the AC power cord from the wall outlet. Voltage spikes due to lightning can damage the device.

1. To remove the remote control battery cover, insert a coin into the slot on the cover and turn it to the left as shown above, then remove the cover.

1. Insert a 3V lithium battery. When inserting the battery, the positive pole (+) must face upward. Replace the battery cover and align the '●' marks with each other as shown above.

1. Plug the power cords of the main unit and subwoofer into the AC wall outlet.
2. Confirm that the main unit is turned off (in STANDBY state).
3. Using a small pointed object, press and hold the ID SET button on the back of the subwoofer for 5 seconds.

- The LINK indicator (blue LED) on the subwoofer blinks rapidly.

1. While the main unit is turned off (in STANDBY state), press and hold the MUTE button on the remote control for 5 seconds.
2. The message ID SET appears on the soundbar display.
3. To complete the connection, turn on the main unit while the blue LED on the subwoofer is blinking.
4. The main unit and subwoofer should now be connected (paired).
5. The LINK indicator (blue LED) on the subwoofer should be lit and blue.
6. If the LINK indicator does not glow steadily blue, the pairing procedure has failed. Turn off the main unit and repeat the procedure from step 2.
7. You can achieve better sound from the wireless subwoofer by selecting a sound effect. (See page 10)

• Before moving or installing the product, be sure to turn off the power and unplug the power cord from the outlet.
• If the main unit is turned off, the wireless subwoofer will switch to standby mode, and the STANDBY indicator will appear on the top display. After 30 seconds, the blue LINK indicator will start blinking.
• If you use a device that uses the same frequency (2.4 GHz) as the Soundbar near the Soundbar, interference may cause sound interruptions.
• The radio wave transmission range is approximately 10 m, but it may vary depending on the operating environment. If there is a steel-reinforced concrete or metal wall between the main unit and the wireless receiver module, the system may not work at all, because radio waves do not pass through metal.
• If the main unit does not establish a wireless connection, follow the above steps 1 to 6 and try to re-establish the connection between the main unit and the wireless subwoofer.

• The wireless reception antenna is built into the wireless subwoofer. Keep the unit away from water and moisture.
• For optimal performance when listening, there should be no obstacles around the wireless subwoofer.

ATTACHING THE TOROIDAL FERRITE CORE TO THE SOUNDBAR POWER CORD

CONNECTING AN EXTERNAL DEVICE USING AN HDMI CABLE

HDMI is a standard digital interface for connecting to devices such as TVs, projectors, DVD players, Blu-ray players, digital television receivers, etc.

Since HDMI transmits the highest quality digital signal, you can enjoy superior video and audio quality that seems as if it was originally created in the digital source.

Attach the cable connector to the unit as shown, then route the cables through the connector to organize them.

FUNCTIONS

INPUT MODE

To select the mode, press the (F.) button on the front panel of the main unit or → (SOURCE) on the remote control.

Način ulaza Zaslon
Optički Digitalni ulaz	D.IN
Ulaz AUX	AUX
Ulaz HDMI	HDMI
BLUETOOTH Način	BT
TV SoundConnect	TV
USB Način	USB

1. Connect a USB device to the product's USB port.
2. To select USB mode, press the

(+) button on the front panel of the main unit or (SOURCE) on the remote control.

1. USB appears on the screen.
2. Connecting the Soundbar device to a USB device is complete.
3. It automatically turns off (Auto Power Off) if no USB device is connected for more than 15 minutes.

▶ Before connecting a USB device

▶ Updating via USB
