Product type	Multifunction electric grill
Model	Pro-Multi-Grill D2000.730
Brand	BEEM
Dimensions (L x W x H)	Approximately 42 x 30 x 16 cm
Weight	Approximately 3.5 kg
Power supply	220-240 V ~ 50/60 Hz
Power	2000 W
Adjustable temperature	Electronic thermostat from 80°C to 230°C
Main functions	Grilling, raclette, stone grilling, plancha
Cooking plates	2 removable non-stick plates (smooth and grooved)
Capacity	For 4 to 6 people
Included accessories	Plates, 4 raclette pans, spatula, drip tray
Maintenance and cleaning	Removable plates dishwasher-safe; body can be cleaned with a damp cloth
Safety	Automatic shut-off in case of overheating, cool-touch handle
Spare parts and repairability	Parts available via BEEM after-sales service
Warranty	2 years
Certifications	CE, GS

Frequently Asked Questions - Pro-Multi-Gril D2000.730 BEEM

What types of dishes can I prepare with the Pro-Multi-Grill?

You can grill meats, fish, vegetables, make raclettes with the pans, or cook crêpes/pancakes on the smooth plate.

How to clean the cooking plates?

The non-stick plates are removable and dishwasher-safe. For manual cleaning, use a soft sponge and dish soap. Avoid abrasives.

Is the temperature adjustable?

Yes, the electronic thermostat allows you to set the temperature from 80°C to 230°C, with an indicator light indicating preheating.

Can I use the appliance without the raclette pans?

Absolutely, the pans are optional. You can use the plates alone for direct grilling.

How many people can eat with this appliance?

The appliance is designed for 4 to 6 people, ideal for friendly meals.

Does the appliance turn off automatically?

Yes, it has a safety device that cuts off the power in case of overheating.

What is the power of the appliance?

The power is 2000 W, ensuring rapid temperature rise and even cooking.

Are the plates compatible with other appliances?

No, the plates are specific to the Pro-Multi-Grill D2000.730 model and are not interchangeable.

Where to find spare parts?

Spare parts are available from BEEM customer service or on their website.

Is the power cord long enough?

The cord is about 80 cm long, allowing easy connection to a nearby outlet.

USER MANUAL Pro-Multi-Gril D2000.730 BEEM

Elements of Lifestyle

Bedienungsanleitung

User Manual

Mode d'emploi

Pro-Multi-Grill 3 in 1 V2

Kontaktgrill

Contact grill

Gril de contact

Open the fold-out page at the beginning and end of the user manual in order to view the illustrations during reading.

BIO-PLUS GRANIT (Modell 19.002)

Safety instructions .... 19

Appliance description 22

Non-stick coating 22

Startup 23

Preparations....24

Operation and use 25

Cleaning and care 27

Troubleshooting 28

Storage 29

Technical data 29

Spare parts and other accessories .. 30

Dear Customer,

before using the appliance, please read the instructions contained in this user manual on startup, safety, intended use as well as cleaning and care.

Open the fold-out page at the beginning and end of the user manual in order to view the illustrations during reading.

Keep this user manual in a safe place and pass it on to any future owners together with the appliance.

General notes

Copyright

This document is copyrighted. Any duplication or reprinting, in whole or in part, and the reproduction of the illustrations, even in modified form, is only permitted with the written approval of the manufacturer.

Notes on environmental protection

The packaging materials used can be recycled. When no longer re-d, dispose of the packaging materials rding to local environmental regula-

This product may not be disposed of in the domestic refuse within the European Union. Dispose of the appli-via communal collection points.

Warranty/Guarantee

In addition to the statutory warranty obligation, BEEM also grants an extended manufacturer's guarantee for some products.

Provided this is granted, the corresponding details for each product can be found either on the product-specific packaging, advertising material or on the BEEM website.

Please visit our website to obtain more information on comprehensive guarantee conditions, available accessories and spare parts as well as user manuals in various languages.

Symbols used

DANGER

This indicates an imminent hazardous situation, which could lead to severe physical injury or death.

Follow these instructions to avoid ▶ danger.

WARNING

This indicates a possible hazardous situation, which could lead to severe physical injury or death.

Follow these instructions to avoid ▶ danger.

CAUTION

This indicates a potentially hazardous situation, which could lead to minor injuries or material damage.

Follow these instructions to avoid ▶ danger.

NOTE!

A note contains additional information to simplify the use of the appliance.

Symbols on the appliance

Symbol Meaning

Warning of hot surfaces

Intended use

This appliance is intended for predominantly non-commercial use in closed rooms for grilling and frying food.

Any use other than previously stated is considered as improper use.

WARNING

If not used for its intended purpose and/or used in any other way, the appliance may be or become a source of danger.

Use the appliance only for its intended purpose.

Observe the procedures described in this user manual.

No claims of any kind will be accepted for damage resulting from use of the appliance for other than its intended purpose.

The risk must be borne solely by the user.

Declaration of Conformity

BEEM hereby declares that this appliance complies with the fundamental requirements and other relevant provisions of 2006/95/EC, 2009/125/EC and 2004/108/EC directives.

Limitation of liability

We assume no reliability for damage or follow-up damage in the case of:

failure to observe the instructions in ■ the user manual,

use for other than the intended purpose,

improper or unsuitable handling, ■

incorrectly performed repairs, ■

unauthorised modifications, ■

use of non-approved parts or spare ■ parts,

use of unsuitable supplementary or accessory parts.

Safety instructions

This appliance may be used by children under the age 8 years and by persons with reduced physical, sensory or mental abilities or lack of experience and/or knowledge only if they are supervised or were instructed on using the appliance and have understood the possible dangers.

Store the appliance and the connecting cable out of the reach of children under 8 years of age.

Children must be supervised to ensure that they do not play with the appli- ance.

Inspect the appliance for visible signs of damage before use. Do not use a damaged appliance.

Do not leave the appliance unattended during operation.

Only allow repairs to the appliance ■ to be carried out by an authorised specialist or by the works customer service; this particularly applies to replacing a damaged connecting cable. Unqualified repairs can lead to considerable danger for the user. They will also invalidate the warranty/guarantee.

Repairs to the appliance during the ■ warranty/guarantee period may only be carried out by service centres authorised by the manufacturer, otherwise the warranty/guarantee will become invalid in the event of damage or subsequent damage.

Defective parts may only be replaced with original spare parts. Only original spare parts guarantee that the safety requirements are met.

- Do not use this appliance together with an external timer or a separate remote control system.

DANGER

Danger from electric current!

Do not use the appliance if the mains cable or mains plug is damaged.

Do not open the housing of the appliance. Danger from electric current if live connections are touched and/or the electrical and mechanical configuration is changed.

Never immerse the appliance or the mains plug in water or other liquids.

Pull the plug out of the mains socket,

if you are not using the appliance, before inserting/removing the grill plates,

if a malfunction occurs during operation,

before you clean the appliance. –

Risk of suffocation!

Never play with packaging material.

Risk of suffocation.

WARNING

Fire risk

Never use the appliance in the ▶ vicinity of or underneath flammable materials such as curtains.

WARNING

Danger of burns

Check that the upper grill plate is ▶ securely fixed.

Do not touch the hot surfaces during operation.

Only touch the appliance during operation using the handles or knobs.

Allow the appliance to cool down ▶ before cleaning and before inserting/ removing the grill plates.

CAUTION

Do not pull the connecting cable to remove the plug from the mains socket.

Do not use abrasive cleaning agents or metal brushes, nylon brushes or other objects that could scratch the surface when cleaning the grill plates.

Never lift or move the appliance with the mains cable.

▶ Do not cut any food on the grill plate.

▶ Use only spoons and spatulas for turning over food that are suitable for non-stick surfaces.

Requirements for the place of use

For safe and trouble-free operation of the appliance, the place of operation must satisfy the following requirements:

Place the appliance on a level, heat ■ resistant surface that is also resistant to splashing fat.

The surface finishes on furniture may contain substances that can be detrimental to the rubber feet of the appliance. If necessary, place a mat under the feet of the appliance.

Do not place the appliance in a hot, ■ wet or very humid environment or in the vicinity of inflammable materials.

There must be a gap of at least 15 cm between the appliance and any walls, furniture or other objects.

Select a location that does not allow children to reach the hot surfaces of the appliance.

The mains socket must be easily accessible and allow fast disconnection in the event of an emergency.

Electrical connection

For safe and trouble-free operation of the appliance, the following instructions must be observed for the electrical connection:

Before connecting the appliance, ■ compare the connection data (voltage and frequency) on the rating plate with those of your mains power supply. The data must correspond in order to avoid damage to the appliance. If in doubt, ask your electrical appliance retailer.

The mains socket must be protected by at least a 10 A automatic circuit breaker.

Ensure that the mains lead is undamaged and is not laid over sharp edges.

The mains cable must not be pulled ■ tightly, bent or come into contact with hot surfaces.

Route the cable to prevent risk of tripping.

If the appliance is to be connected ■ to the power supply via an extension lead, the cable cross-section must be at least 1.5 mm ^4 .

The electrical safety of the appliance is only assured when it is connected to a properly installed protective earth (PE) conductor system. Connection to a mains socket without PE conductor is forbidden. If in doubt, the electrical system must be checked by a qualified electrician. The manufacturer assumes no liability for injury or damage caused by a missing or interrupted protective earth conductor.

Appliance description

(see illustration on the left fold-out)

Handle1

Lid2

Unlocking button for the upper grill 3 plate

Standby indicator4

ON/OFF switch5

Power indicator light6

Temperature regulator7

Unlocking button for the lower grill 8 plate

Recessed grip9

Spacer10

Rest support for spacer11

Cable winder 12

(on the rear of the appliance)

Upper grill plate13

Oil drain14

Lower grill plate15

Drip tray16

17 Cleaning spatula

18 User manual (not illustrated)

Temperature regulator

To set the temperature, proceed as follows:

◆ Move the temperature regulator (7) to the desired level:

Symbol	Meaning
[ASAC]	lowest temperature
	highest temperature

Spacer (image J)

Symbol	Meaning
	Open grill
	Unlock lid
[C554]	Lock lid
	Contact grill
	Use the spacer

Non-stick coating

BIO-LON KERAMIK (model 19.001)

BIO-LON® KERAMIK

The BIO-LON non-stick coating not only distinguishes itself by health and environmental awareness but also has other special features:

■ high scratch resistance,
■ environmental friendliness,
■ durability,
■ optimum heat distribution
■ fast heating up and long heat storage,
■ simple cleaning.

BIO-LON furnishes the grill pates with outstanding characteristics:

■ lotus beading effect
■ low fat requirement,
■ no sticking or burning
■ temperature resistant up to approx. 400 °C
■ hardness that withstands even the strongest loads.

BIO-PLUS GRANIT (model 19.002)

The granite stone sealing is extremely scratch proof, hard and durable. This allows preparation of dishes without burning or sticking – even without oil or fat.

The BIO-PLUS GRANIT grill plates are easy on nutrients and preserve vitamins. Cleaning succeeds effortlessly.

Startup

Unpacking

Remove the appliance, all accessory parts and the user manual from the box.

Remove all packaging materials and protective foils from the product and the accessories before using it for the first time.

NOTE!

Do not remove the rating plate or any warning signs on the appliance. If possible, keep the original packaging during the warranty/guarantee period in order to be able to pack the appliance properly in the event of a guarantee claim. Transport damage will invalidate the warranty/guarantee.

Check the delivery contents

Check for visible signs of damage or missing items.

Report incomplete or damaged contents to your supplier immediately.

Prior to first use

Clean the appliance as described in the section

Cleaning and care (page 27).

Before using the appliance for the first time, heat it up once for approx. 10 minutes to remove any production residue (grease).

Push the temperature regulator (7) – to the "⚡" position (highest temperature).

Insert the plug into a mains socket. – Move the ON/OFF switch (5) to – the "I" position. The power indicator light (6) lights up and the appliance begins heating.

-When the standby indicator (4) lights up, the set temperature has been reached.

NOTE!

Due to the materials used, a new appliance can produce light odour or smoke when it is used for the first time. This will diminish after a short period of time. Ensure sufficient ventilation.

◆Wait for 10 minutes.

◆ Push the temperature regulator (7) to "☐" (lowest temperature).

◆Move the ON/OFF switch (5) to the "O" position.

◆ Allow the appliance to cool down completely.

Clean the appliance as described in the section

Cleaning and care (page 27).

Preparations

Inserting/removing grill plates

NOTE!

The grill plates are interchangeable.

Allow the appliance to cool down ▶ before inserting/removing the grill plates.

Inserting the lower grill plate (see images A1 and A2)

Push both supporting hooks into the appropriate recesses at the back of the lower part of the housing.

Press the grill plate down until it engages audibly.

Removing the lower grill plate (see image B)

Press the unlocking button (8) and remove the grill plate.

Inserting the lower grill plate (see images C1 and C2)

Hang the grill plate onto the lower supporting hook on the upper part of the housing.

Press the grill plate down as illustrated until it engages audibly.

Removing the lower grill plate (see image D)

Press the unlocking button (3) and remove the grill plate.

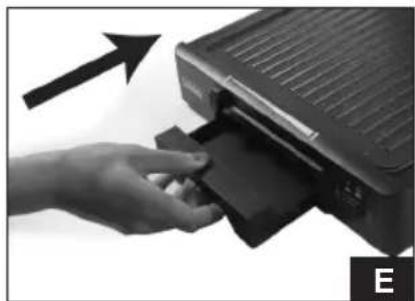

Inserting the drip tray (see image E)

Push the removable drip tray (16) ◆ from the front into the opening on the back of the lower part of the housing until it engages.

Setting the gap (see image F)

The gap between both grill plates can be set using the spacer and is dependent on the thickness of the food to be grilled.

Push the spacer (10) to the desired position so that it lies securely on the desired level of the rest support (11).

Folding up the lid (see image G)

The appliance can be used as an open grill. The lid must be opened back completely for this purpose. Proceed as follows:

Push the spacer to the "◆" position and open the lid at the same time until it engages.

Locking engages automatically when closing.

Locking the lid (see image H)

Push the spacer to the "☐".

◆Close down the lid (2).

◆ Push the spacer to the "☐".

Operation and use

General notes

The food should be at room temperature since frozen food requires longer to cook and can also dry out.

To achieve the best results, preheat the grill until the required temperature has been reached and the standby lamp (4) lights up.

Carefully monitor grilling and regulate the temperature – if necessary.

Possibilities for use

Contact grill

(see image H)

You can prepare various different foods such as steaks, sausages or vegetables using the contact grill.

The contact grill is particularly suitable for quick low-fat preparation of meals since both sides are grilled simultaneously and the ribbed surface of the grill allows fat to quickly flow into the drip tray.

If you wish to grill different meals at the same time, they must have the same thickness so that contact to the surface of the grill plate remains even.

Open grill

(see image G)

By opening the lid completely, you can double the size of the grilling surface therefore enabling several persons to grill simultaneously, for example, hamburgers, steaks, fish or vegetables.

You can cook different meals on both sides at the same time without them influencing the taste of each other.

Regularly turn over the food to ensure even cooking. Fish and meat should be turned over only once as they can dry out.

We do not recommend cooking poultry with bones as this is difficult to do evenly.

Grilling with the spacer

(see image F)

You can set the gap between both ■ of the grill plates with the help of the spacer. You then have the opportunity to gratinate your food with cheese just like Hawaii toast.

Make sure that the gap is adjusted accordingly so that the cheese does not stick to the upper grill plate.

Using the appliance

Switching on

◆ Insert the drip tray (16) as described in the section Inserting the drip tray (page 24).
◆ Insert the plug into a mains socket.
◆ Move the ON/OFF switch (5) to the "I" position. The power indicator light (6) lights up and the appliance begins heating.

Use the temperature regulator (7) to set the desired temperature depending on the food (see section temperature regulator; page 22).

Allow the appliance to heat up after switching on. The operating temperature is reached in approx. 8 minutes when the lid (2) is closed.

When the standby indicator (4) lights up, the preset temperature has been reached and grilling can start.

NOTE!

The temperature settings can be ▶ changed at any time during grilling.

Using as a contact grill or sandwich toaster

Switch on the appliance as described in the section Operating the appliance: Switching on (page 25).

Open the lid (2). ◆

Put the food onto the lower grill plate (15).

Close down the lid (2). ◆

Grill the food until it is browned or ◆ cooked as desired.

Using as an open grill

Fold up the lid (2) completely as de- described in the section Folding up the lid (page 24).

Switch on the appliance as described in the section Operating the appliance: Switching on (page 25).

Put the food onto both grill plates. ◆

Grill the food until it is browned or ◆ cooked as desired.

NOTE!

Regularly turn over food to ensure even cooking; if possible, only turn over fish and meat once to avoid drying it out.

Using the spacer

Set the desired gap as described in the section Setting the gap (page 24).

Switch on the appliance as described in the section Operating the appliance: Switching on (page 25).

Open the lid (2). ◆

Put the food onto the lower grill plate (15).

Close down the lid (2). ◆

Grill the food until it is browned or ◆ cooked as desired.

Switching off

Push the temperature regulator (7) to "☐".

Move the ON/OFF switch (5) to the "O" position. The power indicator (6) and the standby indicator (4) go out.

◆ Allow the appliance to cool down completely.

After using

Switch off the appliance. ◆

Pull the plug out of the mains socket.

Remove stubborn stains from warm grill plates using a wooden spatula.

Allow the appliance to cool down and clean it as described in the section Cleaning and care (page 27).

Cleaning and care

Before beginning work, pay attention to the safety instructions in the Safety section (page 19)!

The appliance must be cleaned after ■ each use.

Clean the appliance as soon as it has cooled down. Waiting too long makes cleaning unnecessarily difficult.

Leftovers that stick to the the grill ■ plates can burn into the coating if not removed correctly

Grill plates

NOTE!

Grill plates are not suitable for dish-washers.

Remove the grill plates as described in the section Removing/inserting grill plates (page 24).

Wipe the grill plates with a damp cloth or sponge and a little washing-up liquid and then with a damp cloth without washing-up liquid.

NOTE!

In the case of stubborn stains, cleaning is easier if the grill plates are soaked first.

Housing

Wipe the housing with a damp cloth or sponge.

We recommend using INOX-METAL-POLISH from Beem for regular maintenance and the removal of difficult stains from stainless steel surfaces. The polish restores appliances to their original shine. INOX-METAL-POLISH is available in tubes and is suitable for pots as well as for other objects made of stainless steel, chromium, brass, copper, aluminium, silver and also hard plastics. INOX-METAL-POLISH is used in factories for polishing stainless steel. You can obtain INOX-METAL-POLISH from your retailer or by phoning us or visiting our website at www.beem.de.

Drip tray (see image I)

Remove the drip tray (16), empty it and wash with warm water or in a dishwasher.

Troubleshooting

The following table helps in localising and remedying minor faults:

Fault Possible cause Remedy
The power indicator does not light up after switching on.	Plug not inserted into socket.	Insert plug.
	Automatic circuit breaker in fuse box tripped.	Switch on the automatic circuit breaker again.
The automatic circuit breaker in the fuse box trips.	Too many appliances connected to the same power circuit.	Reduce the number of appliances on the power circuit.
	No fault detected. Contact customer service.
Oil leaks from underneath the appliance.	Drip tray not inserted. Inserting the drip tray.
	Drip tray is full. Empty drip tray.

NOTE!

If you cannot resolve the problem with the steps described above, please contact customer service.

Storage

If you do not intend to use the appliance for a longer period of time, clean it as described in the section Cleaning and care (page 27).

Store the appliance and all accessory parts at a dry, clean and frost-free location, which is protected against direct sunlight.

Technical data

Model	Contact grillPro-Multi-Grill 3 in 1 V2
Type number
BIO-LON KERAMIK B19,001
BIO-PLUS GRANIT B19,002
Operating voltage 220 - 240 V AC
Mains frequency 50/60 Hz
Power consumption 1650 - 2000 W
Dimensions	130 x 365 x 400 cm(H x W x D)
Approximate weight 4 kg
Protection class I

Spare parts and other accessories

Item* Article No. Designation
13, 15 900 730 001	Grill plate set for model B19.002 (BIO-PLUS GRANIT)
13, 15 900 730 006	Grill plate set for model B19.001 (BIO-LON KERAMIK)
16 900 730 021 Drip tray
17 900 730 011 Cleaning spatula

* numbering according to the description of the appliance

Table des matières

BIO-PLUS GRANIT (Model 19.002)

Close-up of hands installing or adjusting a black plastic tray on an open case (no visible text or symbols)

Hand placing a small electronic device into a black plastic case (no visible text or symbols)

Close-up of a hand pressing down on a black electronic device with a grid and ventilation slots (no visible text or symbols)

Microscopic view of a metallic component with circular annotation highlighting a defect or defect (no text or symbols present)

Close-up of a hand opening a black corrugated metal tray (no text or symbols visible)

Close-up of a hand gripping a black mechanical component with a metallic bracket (no visible text or symbols)

Hand inserting a card into a device with an arrow indicating direction (no text or symbols visible)

Grilled grater with open lid and flat plate, no visible text or symbols

Black plastic electronic device with grid and mounting bracket (no visible text or symbols)

Exterior view of a black and white electronic device with a flat top and control panel (no visible text or symbols)

Stacked electronic devices with a metal rod inserted, no visible text or symbols

Close-up of a mechanical component with directional arrows and a label 'J' (no readable text or symbols)

Elements of Lifestyle

BEEM GmbH

Subject to printing error.

For service in other countries contact your local dealer.
