Product type	Hair straightener
Brand	Philips
Model	SalonStraight Duo HP4688
Dimensions (approx.)	30 x 4 x 3 cm
Weight (approx.)	400 g
Power supply	220-240 V, 50-60 Hz
Power	60 W
Temperature range	160 °C - 230 °C
Heating time	30 seconds
Plate coating	Floating ceramic
Adjustable temperature	Yes, with dial
Auto shut-off	Yes, after 60 minutes
Swivel cord	Yes
Cord length	2 m
Indicator light	Yes, ready to use
Safety lock	Yes
Maintenance and cleaning	Clean with a damp cloth after cooling
Spare parts	Available on the Philips website
Warranty	2 years

Frequently Asked Questions - SalonStraight Duo HP4688 PHILIPS

How to adjust the temperature on the Philips SalonStraight Duo HP4688?

Use the adjustment dial located on the handle to choose the temperature suitable for your hair type. Temperatures range from 160°C for fine hair to 230°C for thick hair.

How long does the straightener take to heat up?

The heating time is about 30 seconds. An indicator light lets you know when it is ready.

Does the straightener turn off automatically?

Yes, the Philips SalonStraight Duo HP4688 has an auto shut-off after 60 minutes of inactivity for added safety.

How to clean the plates of the straightener?

Let the device cool down, then wipe the plates with a damp cloth. Do not use abrasive products.

Can I use this straightener on wet hair?

No, this straightener is designed for use on dry hair. Using it on damp hair can damage the hair and the device.

What type of coating do the plates have?

The plates are floating ceramic, which allows smooth gliding and even heat distribution.

Is the cord swivel?

Yes, the cord is swivel to prevent tangles and ease movement during styling.

Is there a safety lock?

Yes, the straightener has a lock to close the plates for easy storage.

What to do if the device no longer heats up?

First check the electrical connection and the fuse. If the problem persists, contact Philips customer service or an authorized center.

Where can I find spare parts?

Spare parts like plates or the cord are available on the official Philips website or from authorized resellers.

USER MANUAL SalonStraight Duo HP4688 PHILIPS

Register your product and get support at www.philips.com/welcome

HP4688

Black handheld electronic device with a cable, shown against a white background (no text or symbols visible)

PHILIPS

Diagram of open and closed panels with grid patterns and directional arrows, no text or symbols present

ENGLISH 6

DANSK 13

DEUTSCH 19

ΕΛΛΗΝΙΚΑ 26

ESPAÑOL 34

SUOMI 41

FRANÇAIS 47

ITALIANO 54

NEDERLANDS 61

NORSK 68

PORTUGUÊS 74

SVENSKA 81

TÜRKÇE 87

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

The new Philips SalonStraight DUO is specially designed to give you perfect straight results and to prevent hair damage at the same time. This is because this straightener has two sets of plates next to each other, which give the hair a dual treatment in one single stroke. First, the ceramic straightening plates with professional styling temperatures glide over the hair to give perfect results. Immediately after that, the white marble protection plates softly glide over the hair to neutralise damaging excess heat within seconds.

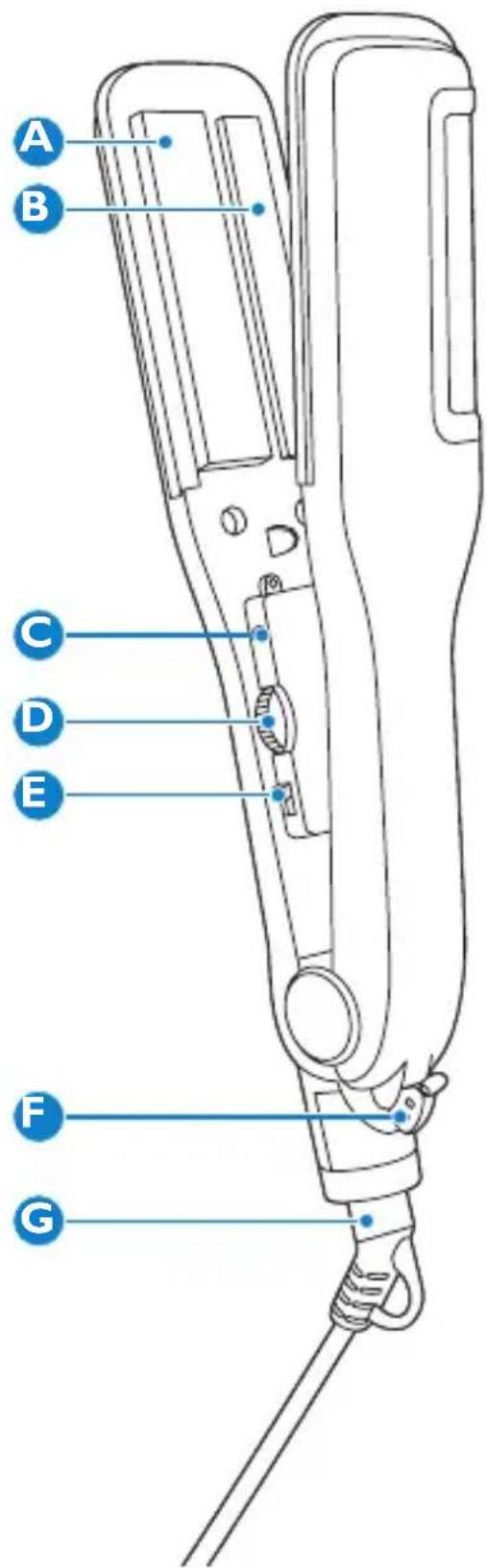

General description (Fig. 1)

A Ceramic-coated straightening plates
B White marble protection plates
C Power-on light
D Temperature setting selector
E Easy-access on/off switch
F Easy-lock system
G Swivel cord

Important

Read this user manual carefully before you use the appliance and save it for future reference.

Danger

- Keep the appliance away from water. Do not use it near or over water contained in baths, washbasins, sinks etc. When you use the appliance in a bathroom, unplug it after use. The proximity of water presents a risk, even when the appliance is switched off.

Warning

- Check if the voltage indicated on the appliance corresponds to the local mains voltage before you connect the appliance.

• Check the condition of the mains cord regularly. Do not use the appliance if the plug, the mains cord or the appliance itself is damaged.
• If the mains cord is damaged, you must have it replaced by Philips, a service centre authorised by Philips or similarly qualified persons in order to avoid a hazard.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Keep the appliance away from non-heat-resistant surfaces and never cover the appliance with anything (e.g. a towel or clothing) when it is hot.
• Keep the appliance away from flammable items.
• Never leave the appliance unattended when it is plugged in.
• Always unplug the appliance after use.
• Always return the appliance to a service centre authorised by Philips for examination or repair. Repair by unqualified people could cause an extremely hazardous situation for the user.

Caution

- For additional protection, we advise you to install a residual current device (RCD) in the electrical circuit that supplies the bathroom. This RCD must have a rated residual operating current not higher than 30mA. Ask your installer for advice.

- Keep the plates clean and free of dust, dirt and styling products such as mousse, spray and gel. Dust, dirt and styling products may cause damage to the ceramic-coated straightening plates.

- The straightening plates and the plastic parts near the plates reach a high temperature quickly. Prevent the hot surfaces of the appliance from coming into contact with your skin.

- The straightening plates have a ceramic coating. This coating slowly wears away over time. This does not affect the performance of the appliance.

ENGLISH8

• If you use the appliance on colour-treated hair, the marble plates may stain. This does not affect the performance of the appliance.
• Do not leave the plates in your hair for more than a few seconds at a time as this may cause damage to your hair.
• Only use the appliance on dry hair.
• Do not use the appliance on artificial hair.
• Do not use the appliance for any other purpose than described in this manual.
• Wait until the appliance has cooled down before you store it.
• Do not wind the mains cord round the appliance.
• The maximum temperature occurs just after heating up. The actual temperature during use may be lower.

Electromagnetic fields (EMF)

This Philips appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.

Using the appliance

Never leave the appliance unattended when it is plugged in.

Always put the appliance on a heat-resistant surface when it is heating up and when it is hot.

Straighteners are powerful styling tools and must always be used with care.

As with all straighteners that reach salon-high temperatures, do not use the appliance frequently to avoid damage to the hair. If you use the straightener incorrectly or if you use it at the wrong temperature setting, you could overheat your hair or even burn it. Always make sure you select a temperature setting that is suitable for your hair type.

Straightening

1 Put the plug in the wall socket.

2 Set the on/off switch to 'on'.

The power-on light goes on.

The straightening plates heat up rapidly and are ready for use within 60 seconds.

Some condensation may develop on the inside of the window near the marble plate. This is normal and does not affect the performance of the appliance.

3 Set the temperature setting selector to the preferred temperature setting (1-25) (Fig. 2).

• Always select a low temperature setting when you use the straightener for the first time.
• For coarse, curly or hard-to-straighten hair, select a temperature setting between 13 and 25 (155°C-210°C).
• For fine, medium-textured or softly waved hair, select a temperature setting between 1 and 12 (115°C-150°C).

Take extra care with pale, blonde, bleached or colour-treated hair, since it is susceptible to damage at high temperatures.

4 Comb or brush your hair so that it is disentangled and smooth. (Fig. 3)

Use a comb to divide the hair into sections. Do not put too much hair in one section.

Tip: It is better to section off the crown area and to straighten the hair underneath first, followed by the top area.

5 Take a section that is approximately 3-4cm wide.
6 Hold the straightener in such a way that the marble protection plates point upwards and the hot straightening plates point downwards (Fig. 4).

- Look at the symbol on the appliance. (Fig. 5)

If the hot straightening plates point in the wrong direction, turn the appliance around. When you slide the straightener down the hair, the hot straightening plates must touch the hair before the marble protection plates.

7 Press the handles of the appliance firmly together.

ENGLISH10

8 Slide the straightener down the lock of hair in 5 seconds, from root to hair end, without stopping (Fig. 6).
9 Repeat this process after 20 seconds until you have achieved the desired look.
10 Let your hair cool down. Do not comb or brush it before it has cooled down, as this would ruin the hairstyle you have just created.

Cleaning

1 Switch off the appliance and unplug it.
2 Let the appliance cool down completely on a heat-resistant surface.
3 Clean the appliance with a damp cloth.

Storage

Never wind the mains cord round the appliance.

1 Switch off the appliance and unplug it.
2 Let the appliance cool down on a heat-resistant surface.
3 Use the easy-lock system to lock the two halves of the appliance together.
4 Store the appliance in a safe and dry place.

Environment

- Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment (Fig. 7).

Guarantee & service

If you need service or information or if you have a problem, please visit the Philips website at www.philips.com or contact the Philips Consumer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Consumer Care Centre in your country, go to your local Philips dealer.

Troubleshooting

This chapter summarises the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, contact the Consumer Care Centre in your country.

Problem Possible cause Solution

The appliance does not work.	There is a power failure or the socket to which the appliance is connected is not live.	Check if the power supply works. If it does, plug in another appliance to check whether the socket is live.
	The appliance is switched off.	Set the on/off switch to ‘on’.
	The appliance is not suitable for the voltage to which it is connected.	Make sure that the voltage indicated on the appliance corresponds to the local mains voltage.
	The mains cord of the appliance is damaged.	If the mains cord is damaged, you must have it replaced by Philips, a service centre authorised by Philips or similarly qualified persons in order to avoid a hazard.

Problem Possible cause Solution

The appliance does not heat up sufficiently.

The temperature setting selector is set to a low setting.

Set the temperature setting selector to a higher setting.

Introduktion

Close-up of a medical or surgical tool with an arrow pointing to a component, and a magnified inset showing a circular component (no text or symbols visible)

Illustration of a person holding a pen, with blue arrows indicating direction (no text or symbols)

Illustration of a person holding a hairdryer (no text or symbols)

Blue icon depicting a medical or laboratory procedure with three parallel lines and a downward arrow (no text or symbols)
