Product type	Freestanding dishwasher
Brand	Electrolux
Model	ESF 2410
Height	85 cm
Width	60 cm
Depth	60 cm
Weight	45 kg
Power voltage	220-240 V
Frequency	50 Hz
Power consumption	2000 W
Water consumption per cycle	13 L
Noise level	49 dB
Number of place settings	12
Wash programs	6 (Intensive, Normal, Eco, Quick, Rinse, Soak)
Energy rating	A+ (typical)
Delay start	Yes (3/6/9 hours)
Child lock	Yes
Overflow protection	Yes (AquaStop)
Interior light	No
Cutlery basket	Yes (removable)
Adjustable upper basket	Yes
Filter type	Self-cleaning filter
Drying system	Condensation drying
Spare parts available	Filters, spray arms, detergent dispenser, door seal

Frequently Asked Questions - ESF 2410 ELECTROLUX

How do I install the Electrolux ESF 2410 dishwasher?

Ensure the dishwasher is placed on a level surface. Connect the water inlet hose to a cold water supply (max 60°C) and the drain hose to a suitable drain. Plug into a grounded 220-240V outlet. For detailed steps, refer to the installation guide in the manual.

How should I load dishes for best results?

Place plates and bowls in the lower basket facing the spray arms. Put cups, glasses, and small items in the upper basket. Ensure items do not block spray arms. Use the cutlery basket for knives, forks, and spoons. Avoid overcrowding to allow water circulation.

What detergent should I use?

Use a dishwasher detergent (powder, gel, or tablets) designed for automatic dishwashers. Add rinse aid to improve drying and avoid spots. The detergent dispenser has compartments for main wash and pre-wash; follow the detergent dosage instructions on the package.

How do I clean the filter?

Turn off the dishwasher and remove the lower basket. Unscrew the cylindrical filter and rinse it under running water. Also clean the flat filter. Remove any debris. Replace the filter and secure it. Clean the filter regularly (every 1-2 months) to maintain performance.

Why is the dishwasher not starting?

Check if the door is properly closed and latched. Ensure the power is on and the circuit breaker hasn't tripped. Verify that the water supply is open. If a program was set, press the start button. Also check if the delay start option is active. If problem persists, consult the troubleshooting section.

How do I add salt and rinse aid?

Open the salt reservoir cap at the bottom of the dishwasher, fill with dishwasher salt (use a funnel), then replace the cap. For rinse aid, open the dispenser on the door, pour until the indicator window turns dark, then close. Adjust dosage as needed for water hardness.

What do error codes mean?

Common error codes: E1 (water intake fault), E3 (heating problem), E4 (overflow). Check for blocked hoses or filters. For specific codes, refer to the manual's error code table and follow suggested actions.

How can I improve drying performance?

Use rinse aid to reduce water droplets. Select a program with a higher temperature final rinse. Open the door slightly after the cycle ends to let steam escape. Ensure dishes are unloaded after the cycle to avoid condensation.

Is the dishwasher energy efficient?

The Electrolux ESF 2410 has an energy rating of A+ (typical). The Eco program uses less energy and water for normal soiled loads. Use the half-load option if available to save resources. Running full loads increases efficiency.

Where can I get spare parts?

Spare parts such as filters, spray arms, detergent dispensers, and door seals are available from Electrolux authorized service centers or online retailers. Use the model number ESF 2410 for correct parts. Always use genuine parts for safety.

USER MANUAL ESF 2410 ELECTROLUX

Electrolux. Thinking of you.

Více o nás naleznete na adrese www.electrolux.com

Obsah

Illustration of a tray holding various kitchen utensils and dishes (no text or symbols)

Košíček na příbory

Illustration of a basket containing various kitchen utensils and cutlery (no text or symbols)

Diagram of a mechanical component with circular holes and a rotating ring, no text or symbols present

Illustration of a hand holding a pipe fitting with a valve and a small inset showing the handle (no text or symbols)

Diagram of a U-shaped pipe with a labeled component 'A' (no text or symbols beyond label)

Electrolux. Thinking of you.

Share more of our thinking at www.electrolux.com

Contents

Safety information 17

Product description 18

Control panel 19

Use of the appliance 20

Setting the water softener 21

Use of dishwasher salt 22

Use of rinse aid 22

Loading cutlery and dishes 23

Use of detergent 24

Setting and starting a washing programme

25

Washing programmes 26

Care and cleaning 26

What to do if... 27

Technical data 29

Installation 29

Water connection 30

Electrical connection 31

Environment concerns

31

Subject to change without notice

Safety information

For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

Correct use

• The appliance is designed exclusively for domestic use.
• Only use the appliance to clean household utensils that are applicable for dishwashers.
• Do not put solvents in the appliance. Risk of explosion.
• Put the knives and all items with sharp points in the cutlery basket with their points down. If not, put in a horizontal position in the main basket.
• Use only branded products for dishwashers (detergent, salt, rinse aid).
• If you open the door while the appliance is in operation, hot steam can escape. Risk of skin burns.
• Do not remove dishes from the dishwasher before the end of the washing programme.

• When the washing programme is completed, disconnect the mains plug from the mains socket and close the water tap.

• Only an authorised service engineer can repair this appliance. Use only original spare parts.

• Do not do repairs yourself to prevent injury and damage to the appliance. Always contact your local Service Force Centre.

General safety

• Persons (including children) with reduced physical sensory, mental capabilities or lack of experience and knowledge must not use the appliance. They must have supervision or instruction for the operation of the appliance by a person responsible for their safety.
• Obey the safety instructions from the manufacturer of the dishwasher detergent to prevent burns to eyes, mouth and throat.
• Do not drink the water from the dishwasher. Detergent residues can stay in your appliance.
• Always close the door when you do not use the appliance to prevent injury and not to stumble over the open door.
• Do not sit or stand on the open door.

Child safety

- Only adults can use this appliance. Children must get supervision to make sure that they do not play with the appliance.

• Keep all the packaging away from children. There is a risk of suffocation.
• Keep all detergents in a safe area. Do not let children touch the detergents.
• Keep children away from the appliance when the door is open.

Installation

• Make sure that the appliance is not damaged because of transport. Do not connect a damaged appliance. If necessary, contact the supplier.
• Remove all packaging before first use.
• A qualified and competent person must do the electrical installation.

• A qualified and competent person must do the plumbing installation.

• Do not change the specifications or modify this product. Risk of injury and damage to the appliance.

• Do not use the appliance:

• if the mains cable or water hoses are damaged.

• if the control panel, worktop or plinth area are damaged, that you can get access to the inner side of the appliance.

Contact your local Service Force Centre.

- Do not drill into the sides of the appliance to prevent damage to hydraulic and electrical components.

Warning! Carefully obey the instructions for electrical and water connections.

Product description

1 Rinse aid dispenser
2 Spray arm
3 Fine filter
4 Detergent dispenser
5 Coarse filter
6 Salt container

The rating label is on the back of appliance.

Control panel

1 On/off button
2 Delay start button / (Delay start)
3 Programme selection/cancel button / (Programme/ Cancel)
4 Indicator lights
5 Programme indicator lights

Indicator lights
Programme-in-progress – Comes on when you select a washing pro-gramme.	– Stays on for all the duration of the washing pro-gramme.– Goes off at the end of the washing programme.
Salt1)	Comes on when it is necessary to fill the salt con-tainer. Refer to 'Use of dishwasher salt'.After you fill the container, the salt indicator light can continue to stay on for some hours. This does not have an unwanted effect on the operation of the appliance.

Indicator lights

End Comes on when the washing programme is com-

pleted. Auxiliary functions:

• Level of the water softener.
• Activation/deactivation the audible signals.
• An alarm if the appliance has a malfunction.

1) When the salt container is empty, the related indicator light does not come on while a washing programme operates.

Programme selection/cancel button

Use the programme selection/cancel button for these operations:

• To set the washing programme. Refer to the chapter 'Setting and starting a washing programme'.
• To set the water softener. Refer to the chapter 'Setting the water softener'.
• To deactivate/activate the audible signals. Refer to the section 'Audible signals'.
• To cancel a washing programme in progress. Refer to the chapter 'Setting and starting a washing programme'.

Delay start button

Use the delay start button to delay the start of the washing programme with an interval of 3 hours. Refer to the chapter 'Setting and starting a washing programme'.

Setting mode

The appliance is in setting mode when all the programme indicator lights are off and the end indicator light flashes.

The appliance must be in setting mode for these operations:

• To set a washing programme.
• To set the water softener level.
• To deactivate/activate the audible signals. If a programme indicator light is on, cancel the programme to go back to the setting mode. Refer to the chapter "Setting and starting a washing programme".

Programme indicator lights A and B

Apart the selection of the corresponding washing programme, these lights have an auxiliary functions:

• The adjustment of the water softener level.
• Deactivation/activation of the audible signals.

Use of the appliance

Refer to the following instructions for each step of procedure:

Audible signals

You can hear an audible signal:

• At the end of the washing programme.
• When the appliance has a malfunction.

The activation of the audible signals is set at the factory.

Do these steps to deactivate the audible signals:

1. Switch on the appliance.
2. Make sure that the appliance is in setting mode.

3. Press and hold the programme selection/cancel button until programme indicator light A flashes and programme indicator light B comes on.

4. Press the programme selection/cancel button again.

5. Programme indicator light A comes on.

6. Programme indicator light B starts to flash.

7. Wait until programme indicator light A goes off.

8. Programme indicator light B continues to flash.
   – The end indicator light comes on.
   The audible signals are activated.

9. Press the programme selection/cancel button again.

- The end indicator light goes off. The audible signals are deactivated.

1. Switch off the appliance to save the operation.

Do these steps to activate the audible signals:

1. Do the above procedure until the end indicator light comes on.

2. Make a check if the water softener level is correct for the water hardness in your area. If necessary set the water softener.

3. Fill the salt container with dishwasher salt.
4. Fill the rinse aid dispenser with rinse aid.
5. Load cutlery and dishes into the dishwasher.
6. Set the correct washing programme for the type of load and soil.

Setting the water softener

The water softener removes minerals and salts from the water supply. Minerals and salts can have bad effect on the operation of the appliance.

Water hardness is measured in equivalent scales:

- German degrees (dH°).

1. Fill the detergent dispenser with the correct quantity of detergent.
2. Start the washing programme.

If you use detergent tablets, refer to the chapter 'Use of detergent'.

• French degrees (°TH).
• mmol/l (millimol per litre - international unit for the hardness of water).
• Clarke.

Adjust the water softener to the water hardness in your area. If necessary, contact your local water authority.

Water hardness				Water hardness setting
°dH mmol/l	°TH Clarke
>24 >4.2 >40 >29 10
22-24	3,9-4,2	39-40	27-29	9
20-22	3,5-3,9	35-39	25-27	8
18-20	3,2-3,5	32-35	23-25	7
16-18	2,8-3,2	28-32	20-23	6
13-16	2,3-2,8	23-28	17-20	5
10-13	1,8-2,3	18-23	13-17	4
7-10	1,2-1,8	12-18	9-13	3
4-7	0.7-1,2	7-12	5-9	2
<4 < 0.7 < 7 < 5				11)

1) No use of salt required.

Electronic adjustment

The water softener is set at the factory at level 5.

1. Switch on the appliance.
2. Make sure that the appliance is in setting mode.
3. Press and hold the programme selection/cancel button.
4. Release the programme selection/cancel button when programme indicator light A starts to flash and programme indicator light B comes on.
5. Wait until programme indicator light B goes off.

6. Programme indicator light A starts to flash.
   – The end indicator light starts to flash.

7. Press the programme selection/cancel button one time.

8. Programme indicator light A starts to flash.

9. The setting function of the water softener is activated.

10. The end indicator light flashes to show the level of the water softener.
    Example: 5 flashes, pause, 5 flashes, pause, etc... = level 5.

11. Press the programme selection/cancel button one time to increase the water softener level by one step.

12. Press the on/off button to save the operation.

Use of dishwasher salt

Caution! Only use dishwashers salt. Types of salt that are not applicable for dishwashers cause damage to the water softener.

Caution! Grains of salt and salty water on the bottom of the appliance can cause corrosion. Fill the appliance with salt before you start a washing programme to prevent corrosion.

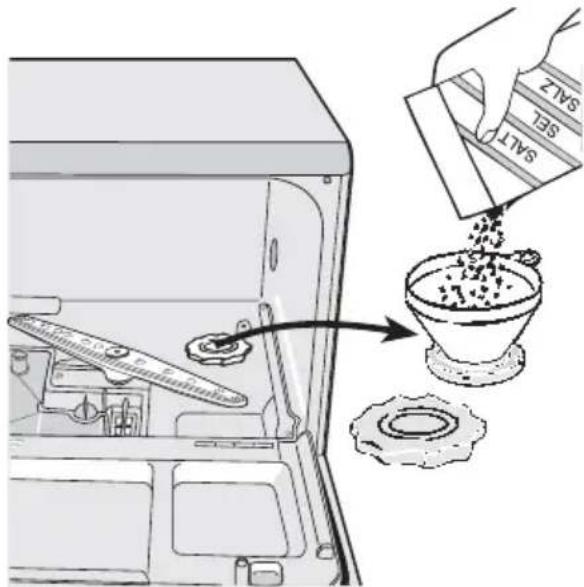

Do these steps to fill the salt container:

1. Turn the cap anticlockwise to open the salt container.
2. Fill the salt container with 1 litre of water (only the first operation).
3. Use the funnel to fill the salt container with salt.

Use of rinse aid

Caution! Only use branded rinse aid for dishwashers.

Do not fill the rinse aid dispenser with other products (e.g. dishwasher cleaning agent, liquid detergent). There is a risk of damage to the appliance.

i Rinse aid makes it possible to dry the dishes without streaks and stains. Rinse aid is automatically added during the last rinsing phase.

Do these steps to fill the rinse aid dispenser:

1. Remove the salt around the opening of the salt container.

2. Turn the cap clockwise to close the salt container.

i It is normal that water overflows from the salt container when you fill it with salt.

When you set the water softener to level 1, the salt indicator light does not stay on.

1. Turn the filler receptacle (1) to open the rinse aid dispenser.
2. Fill the rinse aid dispenser with rinse aid. The red mark on the level indicator (2) shows the maximum level.

Loading cutlery and dishes

Helpful hints and tips

Caution! Only use the appliance for household utensils that are applicable for dishwashers.

Do not use the appliance to clean objects that can absorb water (sponges, household cloths, etc.).

- Before you load cutlery and dishes, do these steps:

• Remove all food remainings and debris.
• Make burnt, remaining food in pans soft.

- While you load cutlery and dishes, do these steps:

• Load hollow items (e.g. cups, glasses and pans) with the opening down.
• Make sure that water does not collect in the container or in a deep base.
• Make sure that cutlery and dishes do not lie inside one another.
• Make sure that cutlery and dishes do not cover other cutlery and dishes.
• Make sure that glasses do not touch other glasses.
• Put small objects in the cutlery basket.

- Plastic items and pans with non-stick coatings can keep water droplets.

1. Remove the spilled rinse aid with an absorbent cloth to prevent too much foam during the subsequent washing programme.
2. Turn the filler receptacle (1) to close the rinse aid dispenser.

The capacity of the rinse aid dispenser is approximately 140 ml. The quantity of rinse aid is sufficient for approximately 40-70 washing programmes.

Adjust the dosage of rinse aid

Refer to the washing results (chapter 'What to do if...'). Start with the lowest dosage.

1. Turn the arrow (3) clockwise to increase the dosage.
2. Increase the dose if there are water droplets or limescale on the dishes.

3. Fill the rinse aid dispenser when the rinse aid comes near the bottom of the level indicator.

4. Plastic items do not dry as well as porcelain and steel items.

5. Put light items in the main basket. Make sure that the items do not move.

Caution! Make sure that the spray arm can move freely before you start a washing programme.

Primary basket

Arrange the deep dishes and large lids around the edge of the basket. Arrange items on and below the cup racks. The water must come to all parts of the dishes.

You can fold the cup racks to clean high items.

Illustration of a kitchen appliance basket with various kitchen utensils (no text or symbols)

Cutlery basket

Warning! Do not put long-bladed knives in a vertical position to prevent injury.

Arrange long and/or sharp items of cutlery horizontally in the primary basket. Be careful with sharp items such as knives.

Use of detergent

Only use detergents (powder, liquid or tablet) that are applicable for dishwashers.

Follow the data on the packaging:

• Dosage recommended by the manufacturer.
  • Storage recommendations.

The instructions on the packaging usually refer to large dishwashers (12 settings).

Do not use more than the correct quantity of detergent to save an environment.

Fill with detergent

Do these steps to fill the detergent dispenser:

1. Open the door.
2. Fill the detergent dispenser with detergent.
3. If you use detergent tablets, put the tablet in the dispenser.
4. Close the door. Push the door until it locks in position.

Use of detergent tablets

Put the detergent tablet in the detergent dispenser.

Some of the tablets contain agents such as:

- detergent

Use the cutlery basket for:

• forks and spoons with the handles down.
  • knives with the handles up.

Illustration of a basket containing various kitchen utensils and cutlery (no text or symbols)

The cutlery basket has a cutlery grid that you can remove.

Do not let the cutlery bond together.

i Make sure that the spray arm can move freely before you close the door.

• rinse aid
• dishwasher salt.

Some types of tablets can contain other agents.

Do these steps to use detergent tablets:

1. Make sure that the detergent tablets are applicable for your water hardness. Refer to the instructions from the manufacturer.
2. Set the lowest levels of water hardness and rinse aid dosage.
   i It is not necessary to fill the salt container and the rinse aid dispenser.

Do these steps when the drying results are not satisfactory:

1. Fill the rinse aid dispenser with rinse aid.
2. Set the rinse aid dosage to the medium position.

Do these steps to use the detergent powder again:

1. Fill the salt container and the rinse aid dispenser.
2. Set the water softener to the highest level.
3. Do a washing programme without dishes.
4. Adjust the water softener. Refer to 'Setting the water softener'.
5. Adjust the rinse aid dosage.

i Different brands of detergent dissolve in different times. Some detergent tablets do not have the best cleaning results during short washing programmes. Use

long washing programmes when you use detergent tablets to fully remove the detergent.

Setting and starting a washing programme

1. Close the door.

2. Press the on/off button.

- The end indicator light starts to flash.

1. Press the programme selection/cancel button again and again to set the washing programme. Refer to the chapter 'Washing programmes'.

2. The washing programme indicator light comes on.

3. The washing programme starts.

When the washing programme operates, you cannot change the programme. Cancel the washing programme.

Warning! Only interrupt or cancel a washing programme if necessary.
Caution! Open the door carefully. Hot steam can come free.

Cancelling a washing programme

1. Press and hold the programme selection/cancel button for approximately 3 seconds.

2. The programme indicator light goes off.

3. The end indicator light starts to flash.

4. Release the programme selection/cancel button to cancel the washing programme.

At this time you can do these steps:

1. Switch off the appliance.
2. Set a new washing programme.

Fill the detergent dispenser with detergent before you set a new washing programme.

Interrupting a washing programme

Open the door.

- The programme stops.

Close the door.

- The programme continues from the point of interruption.

Setting and starting a washing programme with delay start

1. Press the on/off button.
2. Press the delay start button.

- The delay start indicator light comes on.

1. Set a washing programme.

- The programme indicator light comes on.

Do not open the door during the count-down to prevent interruption of the countdown. When you close the door again, the countdown continues from the point of interruption.

Cancelling a delay start:

1. Press the delay start button.

2. The delay start indicator light goes off.

3. The programme starts immediately.

End of the washing programme

Switch off the appliance in these conditions:

• The appliance stops automatically.
• The end indicator light comes on.

• The audible signals for the end of the programme operate.

• Press the on/off button.

• Open the door.
• For better drying results, keep the door ajar for some minutes before you remove the dishes.

Let the dishes cool down before you remove them from the appliance. Hot dishes are easily damaged.

Washing programmes

Washing programmes

Programme	Degree of soil	Type of load	Programme description
	Heavy soil Crockery, cutlery,pots and pans		Main wash up to 70°C2 intermediate rinsesFinal rinseDrying
	Normal soil Crockery and cutlery		Main wash up to 65°C1 intermediate rinseFinal rinseDrying
	Normal soil Crockery and cutlery		Main wash up to 55°C1 intermediate rinseFinal rinseDrying
[ZSZD]	Normal or light soil Crockery and cutlery		Main wash up to 50°C1 intermediate rinseFinal rinse
[BYXW]	Normal or light soil Delicate crockeryand glassware		Main wash up to 40°C1 intermediate rinseFinal rinse

1) Test programme for test institutes. Please refer to separate leaflet supplied, for test data.

Consumption values

Programme		Duration (in minutes)	Energy (in kWh)	Water (in litres)
[0535]		100-110 0,9-1,0 9-10
		80-90 0,7-0,8 7-8
[HHOD]		140-150 0,5-0,6 7-8
[X05C]		40 0,5 8
Y		35 0,4 8

The pressure and temperature of the water, the variations of power supply

and the quantity of dishes can change these values.

Care and cleaning

Warning! Switch the appliance off before you clean the filters.

Cleaning the filters

Caution! Do not use the appliance without filters. Make sure that the installation of the filters is correct. Incorrect installation will cause unsatisfactory washing results and damage to the appliance.

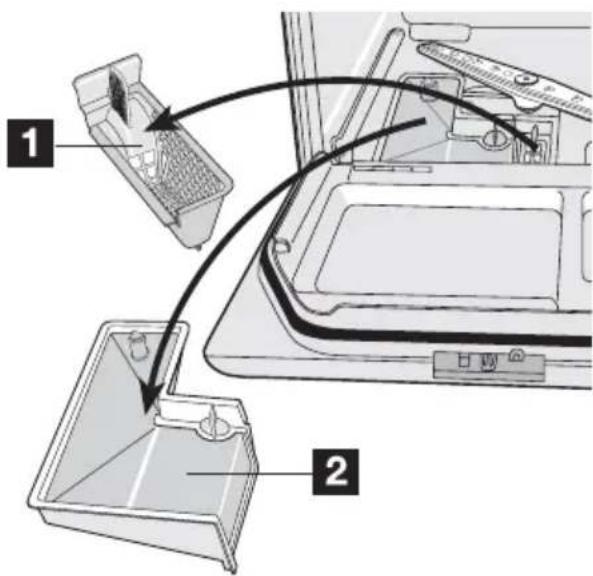

The dishwasher has two filters:

1. coarse filter
2. fine filter

Do these steps to clean the filters:

1. Open the door.
2. Remove the basket.
3. Remove the filters in the bottom of the appliance.
4. Clean the filters below running water.
5. Put the filters back.
6. Close the door.

Cleaning the spray arm

Regularly examine the spray arm. Remove remaining food from the holes in the spray arm.

Diagram of a mechanical component with circular holes and a rotating ring, no text or symbols present

What to do if...

The appliance does not start or stops during operation.

If there is a fault, first try to find a solution to the problem yourself. If you cannot find a solution to the problem yourself, contact the Service Force Centre.

Do these steps to remove the spray arm:

1. Turn the nut clockwise.
2. Remove the spray arm.
3. Clean the holes fully.

External cleaning

Clean the external surfaces of the appliance and control panel with a damp soft cloth. Only use neutral detergents. Do not use abrasive products, scouring pads or solvents (acetone, trichloroethylene etc...).

Frost precautions

Caution! Do not install the appliance where the temperature is below 0 °C. The manufacturer is not responsible for damage because of frost.

If not possible, empty the appliance and close the door. Disconnect the water inlet hose and remove water from the water inlet hose.

Caution! Switch off the appliance before you do the below suggested corrective actions.

Fault code and malfunction Possible cause and solution
continuous flash of the light of the running programmeintermittent audible signal1 flash of the end indicator lightThe dishwasher does not fill with water	The water tap is blocked or furred with limescale.Clean the water tap.The water tap is closed.Open the water tap.The filter in the water inlet hose is blocked.Clean the filter.The connection of the water inlet hose is not correct. The hose can be kinked or squashed.Make sure that the connection is correct.
continuous flash of the light of the running programmeintermittent audible signal2 flashes of the end indicator lightThe dishwasher will not drain	There is a blockage in the sink spigot.Clean the sink spigot.The connection of the water drain hose is not correct. The hose can be kinked or squashed.Make sure that the connection is correct.
the drain pump operates continuouslyall indicators lights on the control panel go offThe anti-flood device operates	Close the water tap and contact your local Service Force Centre.
The programme does not start • The appliance door is not closed.Close the door.Mains plug is not connected in.Put in the mains.The fuse has blown out in the household fuse box.Replace the fuse.Delay start is set.Cancel the delay start to start the programme immediately.
After the check, switch on the appliance. The programme continues from the point of interruption. If the malfunction shows again, contact your Service Force Centre.For other fault codes, not described in the chart, contact your Service Force Centre.These data are necessary to help you quickly and correctly:	Model (Mod.)Product number (PNC)Serial number (S.N.)For these data, refer to the rating plate.Write the necessary data here:Model description : ......Product number : ......Serial number : ......

The cleaning results are not satisfactory
The dishes are not clean • The selected washing programme is not applicable for the type of load and soil.• The basket is loaded incorrectly so that water cannot reach all surfaces.• Spray arm does not turn freely because of incorrect arrangement of the load.• The filters are dirty or not correctly installed.• The quantity of detergent is too little or missing.
Limescales particles on the dishes	• The salt container is empty.• The water softener is adjusted on a wrong level.• The salt container cap is not closed correctly.
The dishes are wet and dull • No rinse aid has been used.• The rinse aid dispenser is empty.
There are streaks, milky spots or a bluish coating on glasses and dishes	• Decrease the rinse aid dosage.

The cleaning results are not satisfactory

Dry water drop signs on glasses and dishes

Increase rinse aid dosage.The detergent can be the cause.

Technical data

Dimensions Width mm 450
Height mm 460
Depth mm 480
Water supply pressure Minimum 0,5 bar (0,05 MPa)
Maximum 8 bar (0,8 MPa)
Capacity Place settings 5

Information on the electrical connection, voltage and overall power is given on the rating plate on the back of appliance.

Installation

Warning! Make sure that mains plug is disconnected from the mains socket during installation.

Fitting the appliance

Put the appliance adjacent to a water tap and a drain.

When you put the appliance in place, make sure that the water hoses are not kinked or squashed.

Install the appliance on a kitchen sink, work-top or built-in..

Positioning

Install the dishwasher into the furniture of the kitchen.

Make sure that the dimensions of the recess agree with the given dimensions.

Make sure that there are openings in the furniture for the inlet hose, the water drain hose and the mains cable.

Adjusting the level of the appliance

Make sure that the appliance is level to close and seal the door correctly. If the level of the appliance is correct, the door does not catch on the sides of the cabinet. If the door does not close correctly, loosen or tighten the adjustable feet until the appliance is level.

Water connection

Inlet hose

The appliance has safety features to prevent that the water in the appliance goes back into the drinking water system.

Connect the appliance to a hot (max. 60°) or cold water supply.

If the hot water comes from alternative sources of energy that are more environmentally friendly (e.g. solar or photovoltaic panels and aeolian), use a hot water supply to decrease energy consumption.

It is important that a water tap or stopcock is near the dishwasher with easy access.

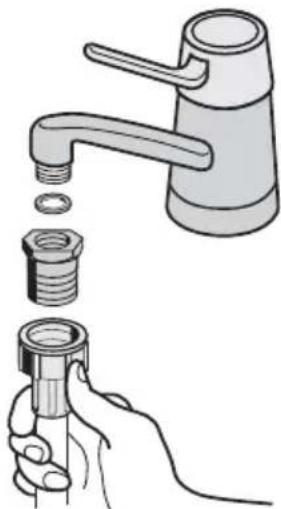

Connect the inlet hose to a water tap with an external thread of 3/4". If it is necessary, use the restrictor 1/2".

Illustration of a hand holding a pipe fitting with a faucet and a bolt, showing mechanical assembly (no text or symbols)

If the water inlet hose is too short, replace the water inlet hose with an applicable, longer high-pressure hose. Do not connect an extension hose.

To suit the installation, it is possible to turn the end of the hose that is connected to the dishwasher. Do these steps :

1. Loosen the retaining nut.

2. Turn the hose.

3. Tighten the retaining nut.

Warning! Make sure that the retaining nut and all other connections are tight before you move the dishwasher into position.

Warning! Always use a new water inlet hose. Do not use connection hoses from an old appliance.

Drain hose

The appliance has water safety system to prevent water damage. If there is a malfunction, the drain pump automatically starts to drain the remaining water out of the dishwasher.

Warning! Only if the dishwasher is connected to the mains socket, the water safety system operates when the dishwasher is off.

2 procedures are possible to install the water drain hose :

1. Attach the plastic curve supplied at the end of the hose.

Put the water drain hose in the sink.

1. Connect the water drain hose to the water drain system.

The hose must be less than 75 cm above the bottom of the dishwasher to prevent incorrect operation of appliance.

If you connect the water drain hose to a trap spigot under the sink, remove the plastic membrane (A). If you do not remove the membrane, remaining food can cause a blockage in the drain hose spigot

Diagram of a U-shaped pipe with a valve and labeled component A (no text or symbols beyond label)

Electrical connection

Warning! The manufacturer is not responsible if you do not follow these safety precautions.

Ground the appliance according to safety precautions.

Make sure that the rated voltage and type of power on the rating plate agree with the voltage and the power of the local power supply.

Always use a correctly installed shock-proof socket.

Do not use multi-way plugs, connectors and extension cables. There is a risk of fire.

Do not replace the mains cable yourself.

Contact the Service Force Centre.

Make sure that the mains plug is accessible after installation.

Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

Environment concerns

The symbol ☒ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

The packaging materials are environmentally friendly and can be recycled. The plastic

components are identified by markings, e.g. >PE<, >PS<, etc. Discard the packaging materials in the applicable container at the community waste disposal facilities.

Warning! To discard the appliance, follow the procedure:

• Pull the mains plug out of the socket.
• Cut off the mains cable and mains plug and discard them.
• Discard the door catch. This prevents the children to close themselves inside the appliance and endanger their lives.

Electrolux. Thinking of you.

Illustration of a basket containing various food items including rice, vegetables, and bread (no text or symbols)

Besteckkorb

Illustration of a basket containing various kitchen utensils and utensils, no text or symbols present.

Technical illustration of a mechanical component with circular features and a rotation arrow (no text or symbols)

Illustration of a hand holding a pipe fitting next to a faucet and a bolt (no text or symbols)

Diagram of a U-shaped pipe with a labeled component 'A' (no text or symbols beyond label)

Electrolux. Thinking of you.

Illustration of various kitchen utensils and dishes arranged in a tray (no text or symbols)

Kosz na sztućce

Illustration of a basket containing various kitchen utensils and cutlery (no text or symbols)

Diagram of a mechanical component with rotating parts and a rotation arrow (no text or symbols)

Illustration of a hand holding a pipe fitting with a faucet and a bolt, no text or symbols present

Diagram of a U-shaped pipe with a side outlet and labeled component A (no text or symbols beyond label)

Electrolux. Thinking of you.

Illustration of a multi-tiered kitchen appliance with cutlery and vegetables (no text or symbols)

Illustration of a basket containing various kitchen utensils and utensils (no text or symbols)

Diagram of a mechanical component with circular holes and a rotating ring, no text or symbols present

Illustration of a hand holding a pipe fitting with a faucet and a bolt, showing mechanical assembly (no text or symbols)

Diagram of a U-shaped pipe with a labeled component 'A' (no text or symbols beyond label)
