Product type	Large format eco-solvent printer with cutting function
Brand	Roland
Model	VS-420
Maximum print width	1067 mm (42 inches)
Print technology	Piezoelectric inkjet with variable-droplet print heads
Ink used	Roland ECO-SOL MAX eco-solvent ink or compatible
Maximum print resolution	1440 x 1440 dpi
Print speed (draft mode)	Up to 13 m²/h
Built-in cutter	Yes, with cutting pressure and tangential blade
Compatible media types	Vinyl rolls, banner, paper, adhesive, etc.
Dimensions (W x D x H)	1900 x 750 x 1220 mm
Weight	140 kg
Power supply	220-240 V AC, 50/60 Hz, 3 A
Power consumption	Operating: 200 W, standby: 18 W
Connection interfaces	USB 2.0, Ethernet 10/100 Base-T
Management software	Roland VersaWorks (RIP) included
Compatible operating systems	Windows 7/8/10/11, macOS 10.13 and later
Maintenance and cleaning	Regular cleaning of print heads, ink purge, lubrication of rails
Safety	Emergency stop, door sensors, mandatory grounding
Spare parts and repairability	Parts available from Roland after-sales service, repair by certified technician
General information	User manual and documentation available for free download at notice-facile.com

Frequently Asked Questions - VS-420 ROLAND

How to replace the ink cartridge on the Roland VS-420?

Open the cartridge cover located at the front of the machine. Pull the clip on the empty cartridge to remove it. Insert the new cartridge until it clicks. Perform an ink fill from the control panel (under Maintenance > Ink Charge).

What type of ink should be used with the Roland VS-420?

Use exclusively Roland ECO-SOL MAX ink or certified compatible inks. Use of non-recommended ink can damage the print heads and void the warranty.

How to clean the print heads of the Roland VS-420?

From the control panel menu, select Maintenance > Head Cleaning. The machine runs a purge cycle. You can also perform manual cleaning with a cotton swab moistened with Roland cleaning solution.

The machine is not printing correctly, what should I check?

First check that the media is loaded correctly and the edge sensors are aligned. Then perform a nozzle test (Maintenance > Nozzle Test). If nozzles are clogged, run a cleaning. Also ensure the drivers are up to date.

How to calibrate the cut on the Roland VS-420?

Load a media with crop marks. From VersaWorks software, enable the Cut with Registration Marks function. Then perform automatic calibration from the menu Maintenance > Cut Calibration.

What is the maximum weight of the media roll?

The maximum roll weight is approximately 40 kg. Always use a suitable roll support to avoid damaging the axle.

How to resolve a media loading error?

Check that the roll is centered on the axle and the side guide is adjusted. Reset the detection by going to Maintenance > Media Reset. If the error persists, clean the optical sensors under the cover.

Can the Roland VS-420 be used without VersaWorks software?

VersaWorks software is recommended for optimal compatibility. However, you can use other RIPs compatible with Roland printers via Ethernet or USB connection.

How to replace the cutting blade?

Turn off the machine. Remove the blade carousel cover. Unscrew the fixing screw of the old blade, insert the new blade (type Roland CB09UB for example) and tighten. Readjust the cutting pressure in the settings.

Does the Roland VS-420 require special maintenance in case of prolonged inactivity?

Yes, if the machine is not used for more than 2 weeks, run a Full Cleaning cycle and perform a purge before shutting it down. Store the machine in a temperate environment (15-30°C) and relative humidity 20-80%. Consider covering the print heads with a cloth moistened with maintenance liquid.

USER MANUAL VS-420 ROLAND

Line drawing of a long industrial machine with control panel and base mount (no text or symbols)

Thank you very much for purchasing this product.

To ensure correct and safe usage with a full understanding of this product's performance, please be sure to read through this manual completely and store it in a safe location.
➢ Unauthorized copying or transferral, in whole or in part, of this manual is prohibited.
The contents of this document and the specifications of this product are subject to change without notice.
The documentation and the product have been prepared and tested as much as possible. If you find any misprint or error, please inform us.
➢ Roland DG Corp. assumes no responsibility for any direct or indirect loss or damage which may occur through use of this product, regardless of any failure to perform on the part of this product.
➢ Roland DG Corp. assumes no responsibility for any direct or indirect loss or damage which may occur with respect to any article made using this product.

For the USA

FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Unauthorized changes or modification to this system can void the users authority to operate this equipment.

For Canada

CLASS A NOTICE

This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

CLASSE A AVIS

This product contains chemicals known to cause cancer, birth defects and other reproductive harm, including lead.

For EU Countries

WARNING

This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

NOTICE

Grounding Instructions

In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This tool is equipped with an electric cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into a matching outlet that is properly installed and grounded in accordance with all local codes and ordinances.

Do not modify the plug provided - if it will not fit the outlet, have the proper outlet installed by a qualified electrician.

Improper connection of the equipment-grounding conductor can result in a risk of electric shock. The conductor with insulation having an outer surface that is green with or without yellow stripes is the equipment-grounding conductor. If repair or replacement of the electric cord or plug is necessary, do not connect the equipment-grounding conductor to a live terminal.

Check with a qualified electrician or service personnel if the grounding instructions are not completely understood, or if in doubt as to whether the tool is properly grounded.

Use only 3-wire extension cords that have 3-prong grounding plugs and 3-pole receptacles that accept the tool's plug.

Repair or replace damaged or worn out cord immediately.

Operating Instructions

KEEP WORK AREA CLEAN. Cluttered areas and benches invites accidents.

DON'T USE IN DANGEROUS ENVIRONMENT. Don't use power tools in damp or wet locations, or expose them to rain. Keep work area well lighted.

DISCONNECT TOOLS before servicing; when changing accessories, such as blades, bits, cutters, and like.

REDUCE THE RISK OF UNINTENTIONAL STARTING. Make sure the switch is in off position before plugging in.

USE RECOMMENDED ACCESSORIES. Consult the owner's manual for recommended accessories. The use of improper accessories may cause risk of injury to persons.

NEVER LEAVE TOOL RUNNING UNATTENDED. TURN POWER OFF. Don't leave tool until it comes to a complete stop.

For EU Countries

Manufacturer:

ROLAND DG CORPORATION

1-6-4 Shinmiyakoda, Kita-ku, Hamamatsu-shi, Shizuoka-ken, 431-2103 JAPAN

The authorized representative in the EU:

Roland DG Corporation, German Office Halskestr. 7, 47877 Willich, Germany

Contents....1

Chapter 1 Machine Highlights ....5

Part Names and Functions ....6

Printer Unit....6

Operation Panel 8

Menu List....9

Main Menu....9

Language and Unit Menu....12

Function Menu 13

To Ensure Safe Use....14

Important Notes on Handling and Use 29

Chapter 2 Basic Operation....31

Prepare the Media....32

Type of Media 32

Usable Media 33

Switch On! 34

Switch On! 34

The Power-saving Feature (Sleep Mode) 34

Loading Media 35

Loading Roll Media 35

Loading the Sheet Media 42

Performing the Initial Adjustment (Correcting for Misalignment in Bidirectional Printing More

Precisely)....44

Setup of Media 46

About [Media Setting] menu ....46

Setup of Media ([Media Setting] menu)....46

Outputting....57

Setting the Output-start Location....57

Printing Tests and Cleaning 58

Important Note on Cutting....59

Setting The Cutting Test And The Blade Force....60

Getting Ready to Receive Data from a Computer 62

Starting Output....63

Pausing and Canceling Output 64

Cutting Off the Media....64

Switch Off....66

Switch Off....66

Chapter 3 Maintenance: For always using the printer in the best condition .....67

Checking for Remaining Ink and Replacing Cartridges 68

Checking for Remaining Ink....68

How to Replace Ink Cartridges....69

Maintenance that Should Be Performed Daily 70

Maintenance of Ink Cartridges....70

Disposing of Discharged Ink 70

Cleaning....72

About Care and Maintenance of Print Head....73

When Normal Cleaning Is Not Effective 74

Medium/ Powerful Cleaning 74

Maintenance that Should Be Performed More Than Once a Month .....75

When Manual-Cleaning Becomes Necessary....75

Manual Cleaning of Print Head 76

When Problems Such As Dot Drop-out are Not Cleared Up 81

When Problems Such As Dot Drop-out are Not Cleared Up....81

Replacing Consumable Parts 84

Replacing the Wiper 84

Replacing the Felt Wiper....87

Replacing the Blade....90

Replacing the Separating Knife....92

When Not in Use for a Prolonged Period 94

Keep Performing Maintenance....94

Alarm Feature 94

Chapter 4 Part of Practice....95

Fully Utilizing Preset Function 96

Saving Various Settings as a Name Assigned Preset....96

Loading a Saved Preset....98

Fully Utilize the Media Heating System 99

What Is the Media Heating System? 99

Making the Temperature Setting for the Media Heating System 100

Control of Media Heating System during Preheating 102

Drying the Trailing Edge of the Printing Area on the Dryer 102

Setting the Drying Time after Printing....103

Fully Utilizing the Correction Function 104

Correcting for Misalignment in Bidirectional Printing.... 104

Correcting for Misalignment in Bidirectional Printing More Precisely 105

Alleviating Horizontal Bands and the Like (feed correction function) 105

Accommodating to the Types and Condition of Media 107

Adjusting Head Height to Match Media Thickness....107

Using Transparent Media....108

Printing Hard-to-dry Media 108

Using the Media Easy to be Winkled/Hard to be Fed....109

Speeding Up Output for Narrow Media....110

Preventing Soiling of the Media and Dot Drop-out....111

Using Sticky Media....112

Clamping the Nozzle Array to be Used (CMYKLcLm mode only) 113

Fully Utilizing Cutting Function 114

Hints and Tips for Cutting Setting 114

Preventing Pulling of the Media with Undue Force When Performing Cutting Only 114

Fine-tuning the Cutting Conditions....115

Accurately Adjusting the Cutting-in Amount 117

Performing Distance Correction During Cutting....118

Correcting Misalignment of the Printing and Cutting Positions 119

Prioritize The Settings of This Machine to The Settings of a Computer Side 121

Viewing the Automatic Environment Correction Function Settings 122

Performing Printing and Cutting Separately 123

To Perform Printing and Cutting Separately....123

Printing with Crop Marks 123

Aligning Automatically and Cutting....125

Aligning Manually and Cutting....127

Correcting Misalignment for Printing and Cutting When Using Crop Marks 128

Using Media Take-up System....131

Use The Media Take-up System When The Output Accompanied With The Pull-back Operation is Performed 131

Use Conditions of Take-up System When "TU2" is Selected 131

Chapter 5 To Administrators....133

Output Operation Management 134

Printing a System Report....134

Determining What Happens When Ink Runs Out....134

Displaying the Amount of Media Remaining.... 135

Making Sure to Verify the Setting for the Amount Remaining Every Time the Media Is Changed....136

Printing the Amount of Remaining Media 137

System Management of Printer 138

Setting for the Menu Language and the Units of Measurement 138

Setting the Interval until Activation of the Sleep Mode (Power Saving Function). 138

Deactivating the Sleep Mode (Power Saving Function).... 139

Viewing Information about the System of This Machine....140

Returning All Settings to Their Initial Values....141

Chapter 6 Read this chapter whenever you face a problem. (FAQ) ......143

Printer Does Not Start Up! 144

The Printer Unit Doesn't Run....144

The Media Heating System Doesn't Warm Up....145

Cannot cut off the media....145

Attractive Printing or Cutting is Impossible....146

Printed Results Are Coarse or Contain Horizontal Stripes 146

Colors Are Unstable or Uneven 147

The Media Becomes Soiled When Printed 148

Cutting Is Misaligned or Skewed 148

Media Jam Occurs! 150

The Media Jams....150

Media Feed is Not Smooth 151

Media Wrinkles or Shrinks 151

Media Feed Is Not Straight....152

Media Feed Is Not Smooth....152

Print Head Stops Moving. Why? 153

What to Do First 153

If the Heads Still Do Not Move....153

A Message Appears 155

An Error Message Appears 157

Chapter 7 Main Specifications....161

Printing/Cutting Area 162

Maximum Area 162

Maximum Area When Using Crop Marks 162

The Media-cutoff Location During Continuous Printing 163

About the Blade....164

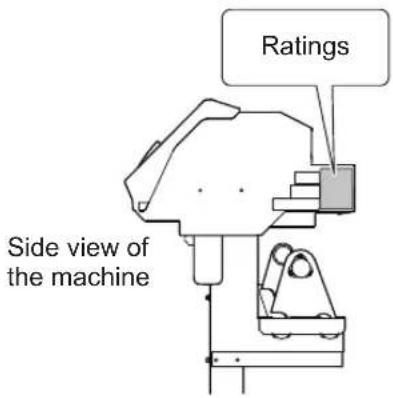

Locations of the Power Rating and Serial Number Labels 165

Specifications....166

This document is the Use's Manual for four models: VS-640/540/420/300. This document uses the following notation to distinguish between the four models where necessary.

VS-640 — 64-inch model

VS-540 — 54-inch model

VS-420 — 42-inch model

VS-300 — 30-inch model

Also, most of the figures in this document depict the VS-640

Company names and product names are trademarks or registered trademarks of their respective holders.

Copyright © 2010 Roland DG Corporation

http://www.rolanddg.com/

Chapter 1

Machine Highlights

1

Highlights

Machine

Contents ...... 1

Part Names and Functions ......6

Printer Unit 6

Operation Panel 8

Menu List 9

Main Menu 9

Language and Unit Menu ....12

Function Menu ....13

⚠️ To Ensure Safe Use ....14

Important Notes on Handling and Use ....29

Printer Unit

Front

Rear

Front cover inside/print head periphery

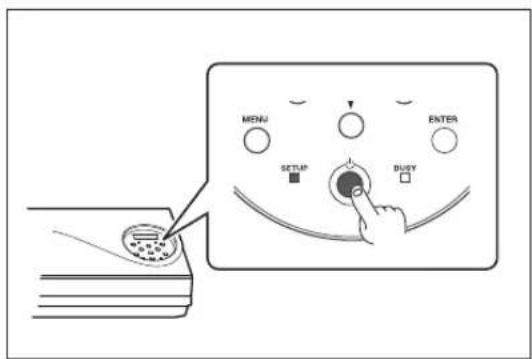

Operation Panel

Panel Notation

In this document, the keys and lights on the operation panel are indicated by the following illustration.

Main Menu


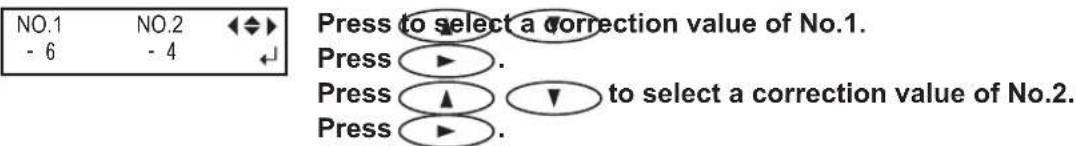

    U --> V["NO. 1 NO. 2 -15 -20"]
    V --> W["NO. 9 NO. 10 -15 -20"]
    U --> X["To the [TEST PRINT"] men u]
    O --> Y["MENU CALIBRA TION"]
    Y --> Z["CALIBRA TION TEST PRINT"]
    Z --> AA["CALIBRA TION SETTING"]
    AA --> AB["SETTING 0.00% > 0.00%"]
    Y --> AC["MENU HEAD HEIGHT T"]
    AC --> AD["HEAD HEIGHT T HIGH HIGH"]
    AD --> AE["Continue"]

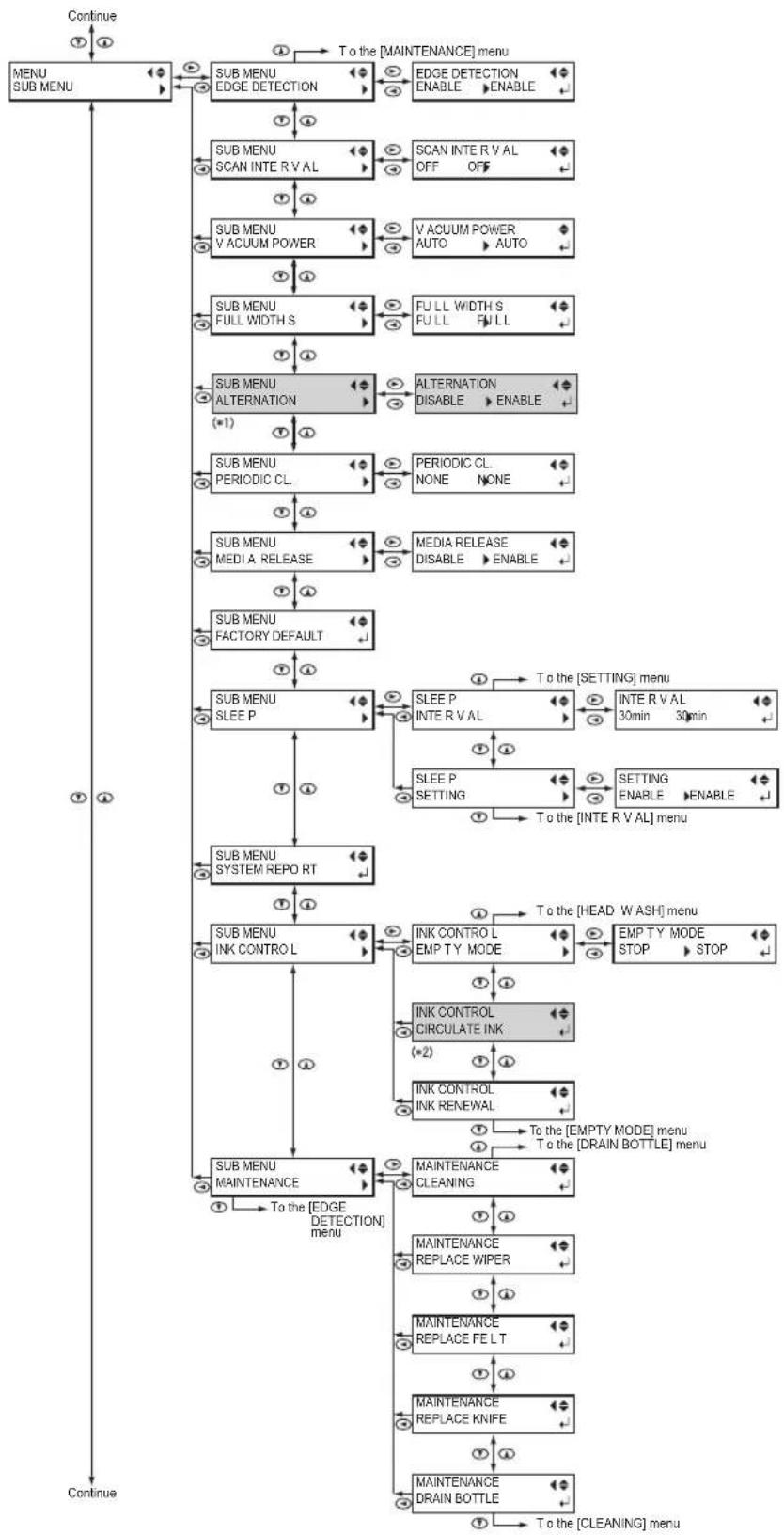


(*1) This menu is displayed only when the ink mode is CMYKLcLm.

(*2) This menu is displayed only when the ink mode is CMYKLcLmWMT.


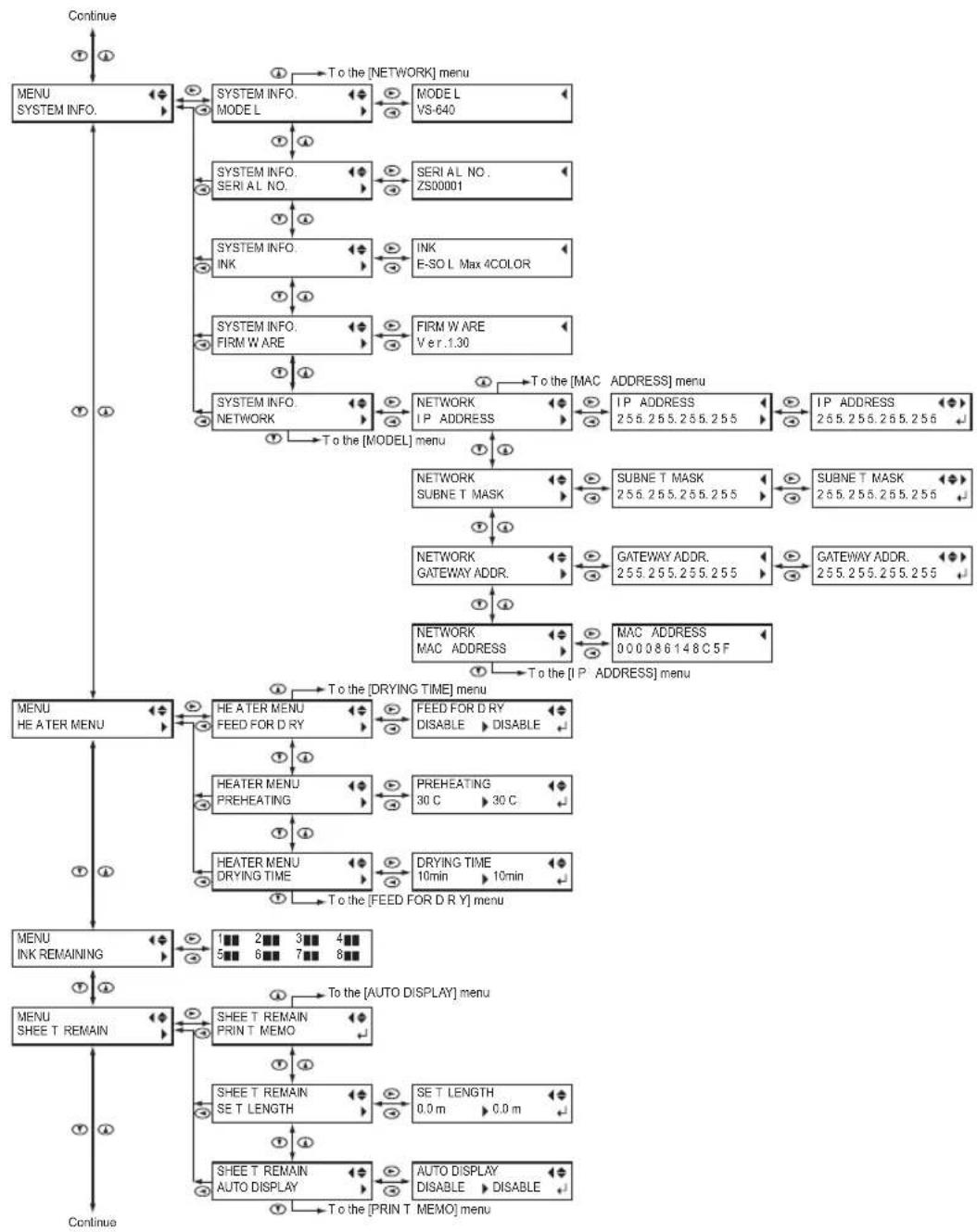

    A["Continue"] --> B["MENU SYSTEM INFO."]
    B --> C["SYSTEM INFO. MODEL"]
    C --> D["TYPE L VS-640"]
    C --> E["TYPE L SERIAL NO. ZS00001"]
    C --> F["TYPE L INK E-SOL Max 4COLOR"]
    C --> G["TYPE L FIRM W ARE Ver.1.30"]
    G --> H["TYPE L NETWORK IP ADDRESS"]
    H --> I["TYPE L NETWORK SUBNE T MASK"]
    I --> J["TYPE L NETWORK GATEWAY ADDR."]
    J --> K["TYPE L NETWORK MAC ADDRESS"]
    K --> L["TYPE L NETWORK MAC ADDRESS 000086148C5F"]
    M["MENU HE ATER MENU"] --> N["HE ATER MENU FEED FOR D RY"]
    N --> O["TYPE L FEED FOR D RY DISABLE DISABLE"]
    N --> P["TYPE L FEED FOR D RY DISABLE"]
    Q["MENU SHEET REMAIN"] --> R["SHEET T REMAIN PRIN T MEMO"]
    R --> S["TYPE L TYPE L SE T LENGTH 0.0 m"]
    R --> T["TYPE L TYPE L SE T LENGTH 0.0 m"]
    U["MENU INK REMAINING"] --> V["SHEET T REMAIN AUTO DISPLAY"]
    V --> W["TYPE L TYPE L AUTO DISPLAY DISABLE DISABLE"]
    V --> X["TYPE L TYPE L TYPE L TYPE T REMAIN DISPLAY DISABLE DISABLE"]
    Y["Continue"] --> Z["To the [NETWORK"] menu]
    Z --> AA["TYPE L TYPE L TYPE L TYPE T REMAIN DISPLAY DISABLE DISABLE DISABLE"]
    AB["To the [MODEL"] menu] --> AC["TYPE L TYPE L TYPE L TYPE T REMAIN DISPLAY DISABLE DISABLE DISABLE"]
    AD["To the [DRYING TIME"] menu] --> AE["TYPE L TYPE L TYPE L TYPE T REMAIN DISPLAY DISABLE DISABLE DISABLE"]
    AF["To the [AUTO DISPLAY"] menu] --> AG["TYPE L TYPE L TYPE L TYPE T REMAIN DISPLAY DISABLE DISABLE DISABLE TABLE"]

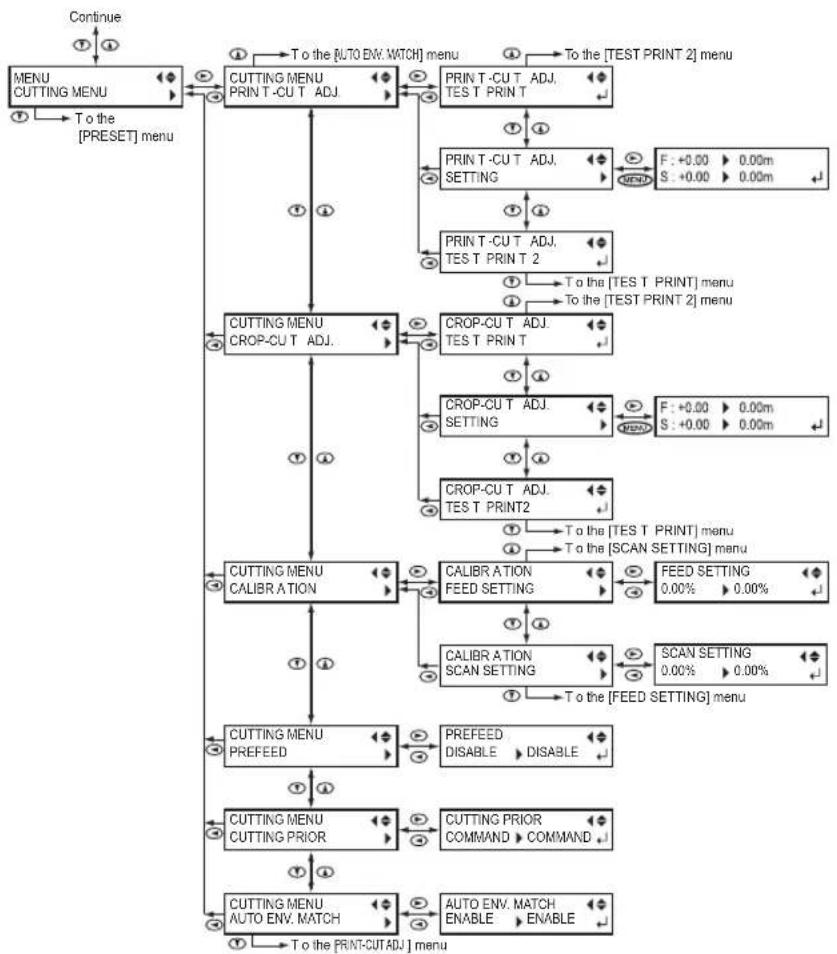


Language and Unit Menu

Function Menu

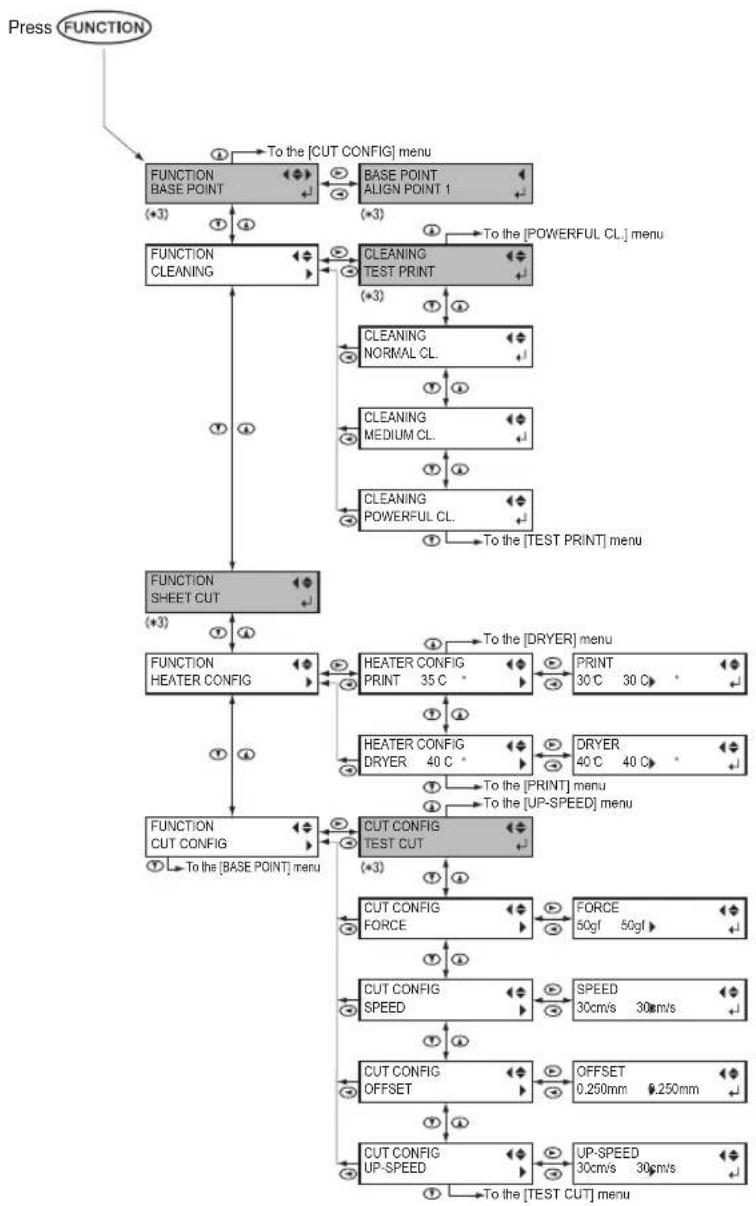


(*3) This is not displayed when no media is loaded (that is, when is dark).

Improper handling or operation of this machine may result in injury or damage to property. Points which must be observed to prevent such injury or damage are described as follows.

About ⚠WARNING and CAUTION Notices

WARNING	Used for instructions intended to alert the user to the risk of death or severe injury should the unit be used improperly.
CAUTION	Used for instructions intended to alert the user to the risk of injury or material damage should the unit be used improperly.Note: Material damage refers to damage or other adverse effects caused with respect to the home and all its furnishings, as well to domestic animals or pets.

About the Symbols

	The Symbol alerts the user to important instructions or warnings. The specific meaning of the symbol is determined by the design contained within the triangle. The symbol at left means "danger of electrocution."
	The Symbol alerts the user to items that must never be carried out (are forbidden). The specific thing that must not be done is indicated by the design contained within the circle. The symbol at left means the unit must never be disassembled.
	The Symbol alerts the user to things that must be carried out. The specific thing that must be done is indicated by the design contained within the circle. The symbol at left means the power-cord plug must be unplugged from the outlet.

Incorrect operation may cause injury.

WARNING

Be sure to follow the operation procedures described in this documentation. Never allow anyone unfamiliar with the usage or handling of the machine to touch it.

Incorrect usage or handling may lead to an accident.

Keep children away from the machine. The machine includes areas and components that pose a hazard to children and may result in injury, blindness, choking, or other serious accident.

Never operate the machine while tired or after ingesting alcohol or any medication.

Operation requires unimpaired judgment. Impaired judgment may result in an accident.

Never use the machine for any purpose for which it is not intended, or use the machine in an undue manner that exceeds its capacity.

Doing so may result in injury or fire.

For accessories (optional and consumable items, power cord, and the like), use only genuine articles compatible with this machine.

Incompatible items may lead to an accident.

Before attempting cleaning, maintenance, or attachment or detachment of optional items, disconnect the power cord.

Attempting such operations while the machine is connected to a power source may result in injury or electrical shock.

WARNING

Never attempt to disassemble, repair, or modify the machine.

Doing so may result in fire, electrical shock, or injury. Entrust repairs to a trained service technician.

CAUTION

Exercise caution to avoid being pinched or becoming caught.

Inadvertent contact with certain areas may cause the hand or fingers to be pinched or become caught. Use care when performing operations.

Never attempt operation while wearing a necktie, necklace, or loose clothing. Bind long hair securely.

Such items may become caught in the machine, resulting in injury.

Conduct operations in a clean, brightly lit location.

Working in a location that is dark or cluttered may lead to an accident, such as becoming caught in the machine as the result of an inadvertent stumble.

Never climb or lean on the machine.

The machine is not made to support a person. Climbing or leaning on the machine may dislodge components and cause a slip or fall, resulting in injury.

Caution: cutting tool.

This machine has an internal tool. To avoid injury, handle the tool with care.

Danger of electrical short, shock, electrocution, or fire

WARNING

Connect to an electrical outlet that complies with this machine's ratings (for voltage, frequency, and current).

Incorrect voltage or insufficient current may cause fire or electrical shock.

Never use out of doors or in any location where exposure to water or high humidity may occur. Never touch with wet hands.

Doing so may result in fire or electrical shock.

Never allow any foreign object to get inside. Never expose to liquid spills.

Inserting objects such as coins or matches or allowing beverages to be spilled into the ventilation ports may result in fire or electrical shock. If anything gets inside, immediately disconnect the power cord and contact your authorized Roland DG Corp. dealer.

Never place any flammable object nearby. Never use a combustible aerosol spray nearby. Never use in any location where gases can accumulate.

Combustion or explosion may be a danger.

WARNING

Handle the power cord, plug, and electrical outlet correctly and with care. Never use any article that is damaged.

Using a damaged article may result in fire or electrical shock.

When using an extension cord or power strip, use one that adequately satisfies the machine's ratings (for voltage, frequency, and current).

Use of multiple electrical loads on a single electrical outlet or of a lengthy extension cord may cause fire.

Connect to ground.

This can prevent fire or electrical shock due to current leakage in the event of malfunction.

Position so that the power plug is within immediate reach at all times.

This is to enable quick disconnection of the power plug in the event of an emergency. Install the machine next to an electrical outlet. Also, provide enough empty space to allow immediate access to the electrical outlet.

If sparking, smoke, burning odor, unusual sound, or abnormal operation occurs, immediately unplug the power cord. Never use if any component is damaged.

Continuing to use the machine may result in fire, electrical shock, or injury. Contact your authorized Roland DG Corp. dealer.

Important notes about the power cord, plug, and electrical outlet

Diagram of a cable or wire connection with no text or symbols, showing a cable inserted into a wall and connected to a vertical pole (no text or symbols present)

Never place any object on top or subject to damage.

Illustration of a hand using a tool to clean or disinfect electrical outlets, no text or symbols present

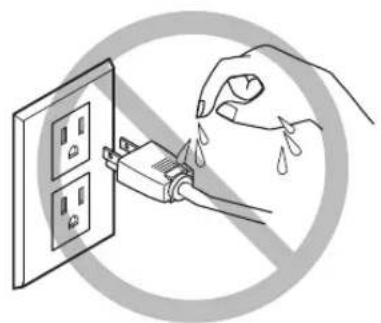

Never allow to get wet.

Diagram of a cable being inserted into a wall, with no text or symbols present

Never bend or twist with undue force.

Diagram showing a cable being inserted into a wall socket connected to a device with no visible text or symbols

Never make hot.

Illustration of a hand inserting a plug into an electrical outlet with starburst effects (no text or symbols)

Never pull with undue force.

Diagram of a cable inserted into an electrical outlet, no text or symbols present

Dust may cause fire.

Simple line drawing of a cable being inserted into a wall socket, no text or symbols present

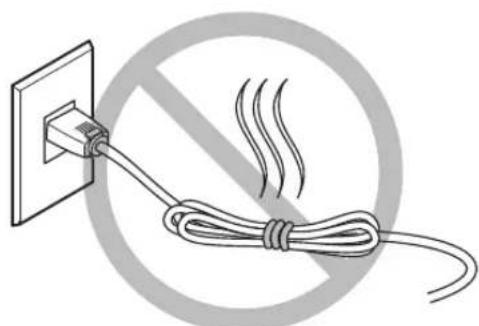

Never bundle, bind, or roll up.

Ink, cleaning fluid, and discharged fluid are flammable and toxic.

WARNING

Keep open flame away from the work area. Ink and discharged fluid are flammable.

Never store ink, cleaning fluid, or discharged fluid in any of the following locations.

▶ Any location exposed to open flame
➢ Any location where high temperature may occur
➢ Near bleach or any other such oxidizing agent or explosive material
➢ Any location within the reach of children Fire may be a danger. Accidental ingestion by children may pose a health hazard.

Never place an ink cartridge in fire.

Ink may flow out, catch fire, and spread fire to other nearby objects.

Never drink or sniff ink, cleaning fluid, or discharged fluid, or allow them to come in contact with the eyes or skin.

Doing so may be hazardous to the health.

CAUTION

Ensure adequate ventilation for the work area.

Failing to perform ventilation may result in a health hazard or danger of combustion due to ink fumes.

Never allow an ink cartridge to be subjected to impact, and never attempt to disassemble.

Ink may leak.

In the event of ingestion or physical distress

In the event of contact with the eyes, immediately flush with water for at least 15 minutes. If eye irritation continues, seek treatment by a physician.
In the event of contact with skin, immediately wash with soap. If irritation or inflammation occurs, seek treatment by a physician.
In the event of ingestion, do not induce vomiting, and immediately seek treatment by a physician. Forcibly inducing vomiting may lead to danger of choking.
If odor leads to physical distress, move to a well-ventilated location and rest quietly. If dizziness or nausea persists, seek treatment by a physician.

This machine weighs 200 kg (441 lb.). Media weighs 40 kg (88 lb.).

WARNING

Install the machine in a location that is level, stable, and able to bear the weight of the machine.

The total weight may reach over 200 kg (441 lb.) for the 64-inch model (, 170 kg (375 lb.) for the 54-inch model, 150 kg (331 lb.) for the 42-inch model, and 130 kg (287 lb.) for the 30-inch model). Installation in an unsuitable location may cause a major accident, including tip over, fall, or collapse.

Unloading and emplacement are operations that must be performed by 6 persons or more (, by 4 persons or more for the 30-inch model).

Tasks that require undue effort when performed by a small number of persons may result in physical injury. Also, if dropped, such items may cause injury.

WARNING

Be sure to lock the stand's casters.

If the machine should begin to topple, a major accident may result, including crushing of the appendages or the body.

When storing roll media, implement adequate safety measures to ensure that the stored media will not roll, fall, or topple over.

Danger exists of becoming pinned under the media and suffering serious injury.

Handling roll media is an operation that must be performed by two persons or more, and care must be taken to prevent falls.

Attempting to lift heavy media in a manner that taxes your strength may cause physical injury.

Danger of fire, burns, or toxic gas emissions

WARNING

Caution: high temperatures

Areas such as the dryer become hot. Exercise caution to avoid fire or burns.

When printing is not being performed, remove any loaded media or switch off the power.

The continued application of heat at a single location may cause the release of toxic gases from the media or pose a fire hazard.

WARNING

Never use media that cannot withstand heat.

Doing so may degrade the media, or may result in fire or the release of toxic gases.

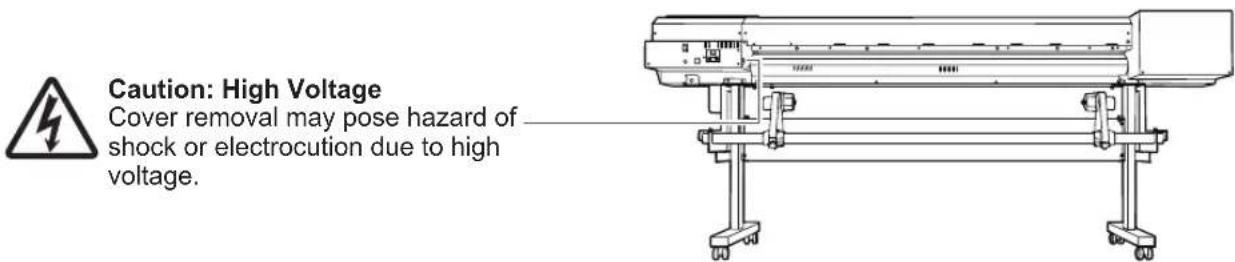

Warning Labels

Warning labels are affixed to make areas of danger immediately clear. The meanings of these labels are as follows. Be sure to heed their warnings. Also, never remove the labels or allow them to become obscured.

Caution: Pinching Hazard Be careful not to allow the fingers to become pinched when closing covers.

Caution: Moving Print Heads The print heads inside the cover move at high speed and pose a hazard. Never insert the hand or fingers into the gap.

Flammable Ink and discharged fluid are flammable. Keep away from open flame.

Ink Is Toxic Ink and discharged fluid are toxic. Avoid contact with the body. Use only in a well-ventilated area.

Caution: High Temperature The platen and dryer become hot. Exercise caution to avoid fire or burns.

Flammable

Ink and discharged fluid are flammable. Keep away from open flame.

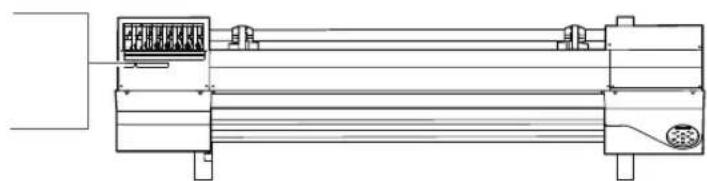

Ink Is Toxic

Ink and discharged fluid are toxic. Avoid contact with the body. Use only in a well-ventilated area.

Technical line drawing of a mechanical device with no visible text or symbols

Diagram of a cable or wire connection between two vertical plates, with no text or symbols present.

Illustration of a hand using a power plug to cut a star-shaped object, with sparkles indicating explosion or damage (no text or symbols)

Simple line drawing of a plug with a coiled cable, no text or symbols present

Illustration of a hand using a tool to clean or remove electrical outlets, no text or symbols present

Diagram of a cable being inserted into a socket connected to a device, with no visible text or symbols.

Diagram of a cable inserted into a wall socket, enclosed in a circle with no text or symbols

Technical line drawing of a printer or printer with mounting legs and control panel (no text or symbols)

Inflammable

Technical line drawing of a mechanical device with no visible text or symbols

This machine is a precision device. To ensure the full performance of this machine, be sure to observe the following important points. Failure to observe them may not only result in loss of performance, but may also cause malfunction or breakdown.

Printer Unit

This machine is a precision device.

➢ Handle carefully, and never subject the machine to impact or excessive force.
➢ Never needlessly put your hand or fingers inside the cover, the ink-cartridge ports, or other internal areas of the machine.

Install in a suitable location.

➢ Install in a location having the specified temperature and relative humidity.
➢ Install in a quiet, stable location offering good operating conditions.

The print heads are delicate.

➢ Never needlessly touch or allow media to scrape them. Failure to handle with care may cause damage.
The print heads may be damaged if allowed to dry out. The machine prevents desiccation automatically, but improper operation may render this feature inoperative. Operate properly, as specified in this manual.
➢ Never allow the machine to stand with an ink cartridge removed. Remaining ink in the printer may harden and clog the print heads.
The print heads are components that wear out. Periodic replacement is required, with the frequency of replacement depending on use.

This machine becomes hot.

➢ Never cover the ventilation holes with cloth, tape, or anything else.

Ink Cartridges

Ink cartridges come in various types.

Use a type that is compatible with the printer. Also, be sure to use only genuine items from Roland DG Corp.

Never subject to impact or attempt to disassemble.

➢ Never drop or shake forcefully. The impact may rupture the internal pouch and cause the ink to leak.
▶ Never attempt to disassemble.
▶ Never attempt to refill the ink.
If ink gets on your hands or clothing, wash it off as soon as possible. Removal may become difficult if allowed to stand.

Storage

➢ Store unopened in a well-ventilated location at a temperature of -20 to 40°C (-4 to 104°F).

Chapter 2

Basic Operation

Prepare the Media ....32

Type of Media 32

Usable Media 33

Switch On! 34

Switch On! 34

The Power-saving Feature (Sleep Mode) 34

Loading Media 35

Loading Roll Media 35

Loading the Sheet Media....42

Performing the Initial Adjustment (Correcting for Misalignment in

Bidirectional Printing More Precisely) 44

Setup of Media 46

About [Media Setting] menu 46

Setup of Media ([Media Setting] menu) 46

Outputting ....57

Setting the Output-start Location ....57

Printing Tests and Cleaning 58

Important Note on Cutting ....59

Setting The Cutting Test And The Blade Force....60

Getting Ready to Receive Data from a Computer ....62

Starting Output 63

Pausing and Canceling Output 64

Cutting Off the Media 64

Switch Off 66

Switch Off 66

Type of Media

In this manual, the paper used for output is called "media." There are the following main two media types used in this machine.

➢ Roll media: Media wound onto a paper tube
Sheet media: Media not wound onto a paper tube such as standard-size media

2

Various paper quality types of roll media and sheet media are selectable according your purpose. For detailed information about each media, contact your media supplier. Media is also available from our following website.

http://www.rolanddg.com/

Usable Media

This machine cannot necessarily print every kind of media. When selecting media, be sure to carry out testing in advance to make sure that satisfactory printing quality is obtained.

Size

Width (For both Roll Media and sheet media)

64-inch model: 210 to 1625 mm (8.3 to 64 inches)

54-inch model: 210 to 1371 mm (8.3 to 54 inches)

42-inch model: 210 to 1071 mm (8.3 to 42 inches)

30-inch model: 210 to 762 mm (8.3 to 30 inches)

A) Cuttable media thickness (For both Roll Media and sheet media)

0.08 mm to 0.22 mm (0.3 to 1 mil) (depending on media composition)

B) Maximum media thickness (For both Roll Media and sheet media)

Printing only:1.0 mm (4mil)

When performing cutting: 0.4 mm (1.6 mil)

Roll outer diameter

210 mm (8.2 inches)

Paper tube (core) inner diameter

76.2 mm (3 inches) or 50.8 mm (2 inches)

Note: To use 2 inches media, the optional media flanges are required. For information about optional items, contact your authorized dealer or us.

Roll weight

64-inch model: 40 kg (88 lb.)

54-inch model: 30 kg (66 lb.)

42-inch model: 25 kg (55 lb.)

30-inch model: 25 kg (55 lb.)

Note: When using the take-up unit, conditions are dependent on the usable media of the take-up unit.

Other conditions

Media such as the following cannot be used.

➢ Media whose end is attached to the paper tube (core)
➢ Media which is severely warped or which has a strong tendency to reroll
➢ Media that cannot withstand the heat of the media heating system
➢ Media whose paper tube (core) is bent or crushed
➢ Media that bends under its own weight when loaded
▶ Media on a sagging roll
▶ Media that is rolled unevenly

Switch On!

WARNING

When output is not being performed, remove any loaded media or switch off the sub power.

The continued application of heat at a single location may cause the release of toxic gases from the media or pose a fire hazard.

Procedure

1

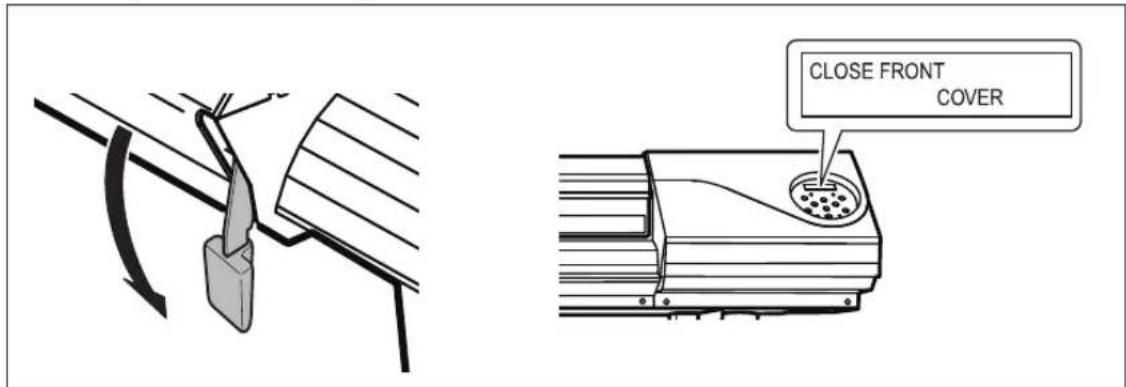

Close the front cover.

2

Turn on the main power switch.

3

Press the sub power button.

Note: For installation of the ink cartridge and selection of the language displayed on the display screen, refer to Setup Guide.

The Power-saving Feature (Sleep Mode)

This machine is provided with a power-saving feature that switches to a low-power "sleep mode" when a fixed interval passes with no operation. The factory default for the time after which the machine switches to the sleep mode is 30 minutes. When the machine is in the sleep mode, the sub power switch flashes slowly. Using the operation panel or performing operations such as sending output data from the computer (when media is loaded) restores the machine to its normal mode.

This setting of sleep mode can be changed. However, we recommend leaving the power-saving feature on and setting the activation time for the sleep mode to 30 minutes or less to reduce power consumption and prevent problems such as overheating.

P. 138, "Setting the Interval until Activation of the Sleep Mode (Power Saving Function)," p. 139, "Deactivating the Sleep Mode (Power Saving Function)"

Loading Roll Media

CAUTION

Load roll media correctly.

Otherwise the media may fall and cause injury.

CAUTION

Roll media weighs about 40 kg (88 lb.). To avoid injury, handle with care.

CAUTION

Never load media that weighs over 40 kg (88lb.) for the 64-inch model (, 30 kg (66lb.) for the 54-inch model, and 25 kg (55lb.) for the 42-inch or the 30-inch model).

The machine may fail to withstand the weight and tip over or cause the media to fall.

2

Operation

Basic

1. Install the media to the media holder.

Note: The media holder of this machine is exclusive use for the media of paper tube (core) inner diameter 3 inches. To use 2 inches media, the optional media flanges are required. For information about optional items, contact your authorized dealer or us.

① Open the front cover.
② Move the media clamps to the left and right ends respectively.

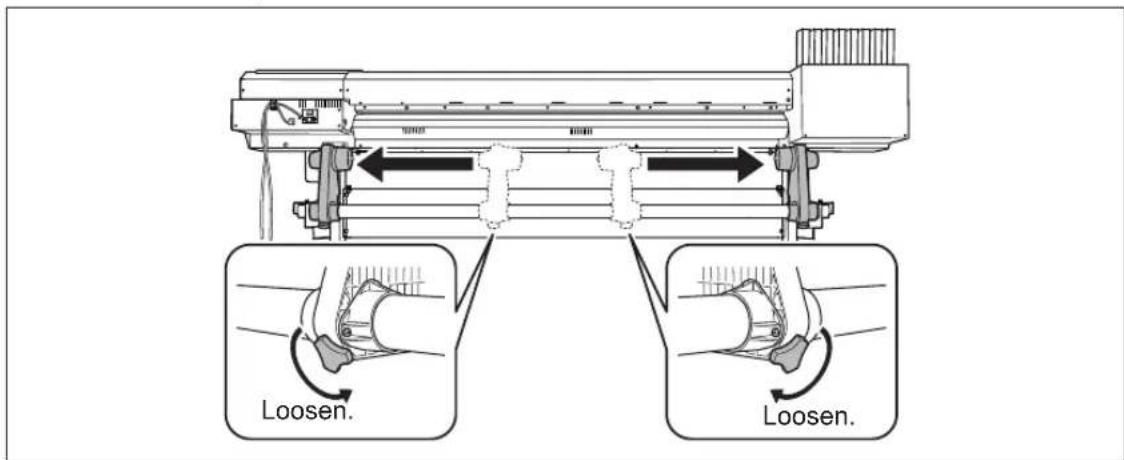

② ① Loosen the retaining screws of the media holders.
② Move the media holders all the way to the left and right.

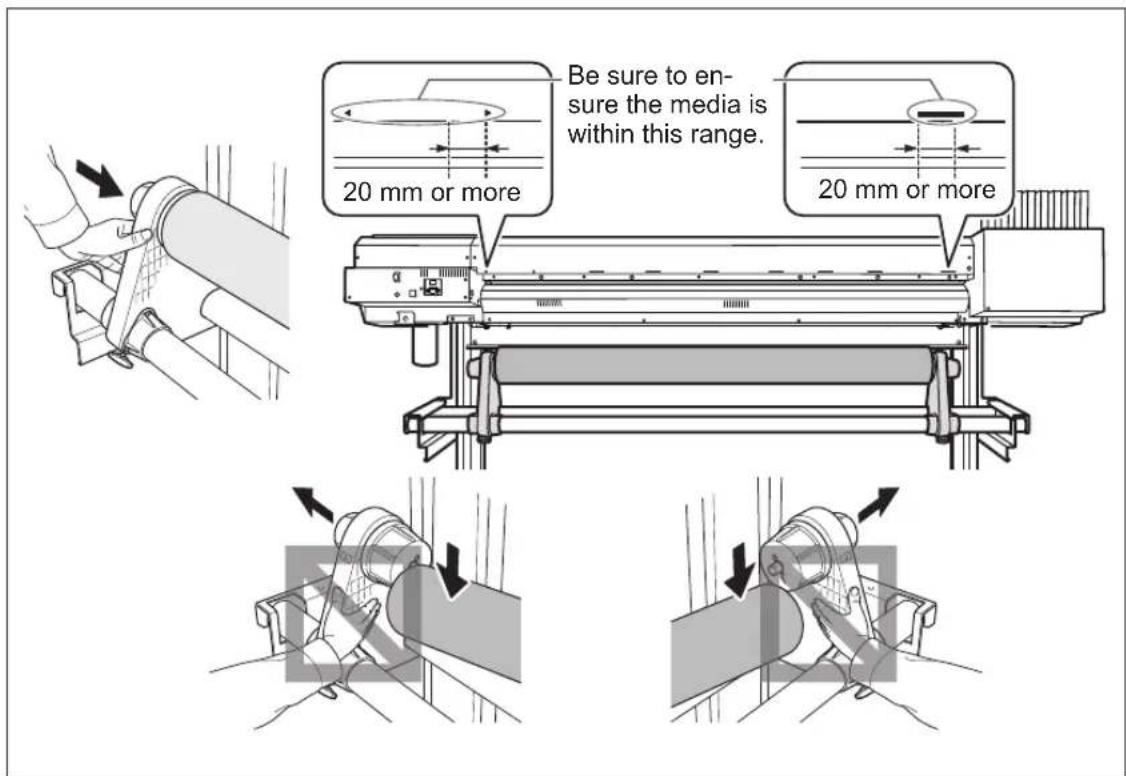

③ ① Fit the paper tube (core) onto the end cap of the media holder [Left].

Do not secure the media holder now.

② Move the media holder [Right] and fit the media cap onto the paper tube core of the media.

Fit it securely to prevent the media from easy loose.

IMPORTANT! Install conforming to the procedures.

Load the media while the left media holder is positioned close to the left edge, as shown in the figure. Also, never secure the media holder in place before loading the media. Loading media without performing these steps in the proper order may make smooth media feed impossible or yield poor printing results.

How to use the media flanges for the paper tube inner diameter 2 inches

* The media flanges for the paper tube inner diameter 2 inches are optional items.

4 Hold the outer side of the media holder [Left] and position the left and right side edges of the media to match the grit patterns.

When deciding the position, hold the both sides of media holders from the outer sides and move it. Do not hold the media directly to move.

CAUTION

Never attempt this operation while holding any location other than the one specified.

The media may fall from the media holder, resulting in injury.

IMPORTANT! Decide the left and right side positions of the media finally at this step.

After this procedure is completed, if the left and right side positions do not fit the proper position when securing the media with pinch rollers, go back to this step to redo this procedure. Printing quality is affected due to skew media feed, if you hold the media only to readjust the position forcibly.

5 Secure the media holder by tightening the securing screws slightly.

Technical illustration of a mechanical device with two views showing internal components and motion arrows (no text or symbols)

2. Pass the media through the printer and secure the media holders.

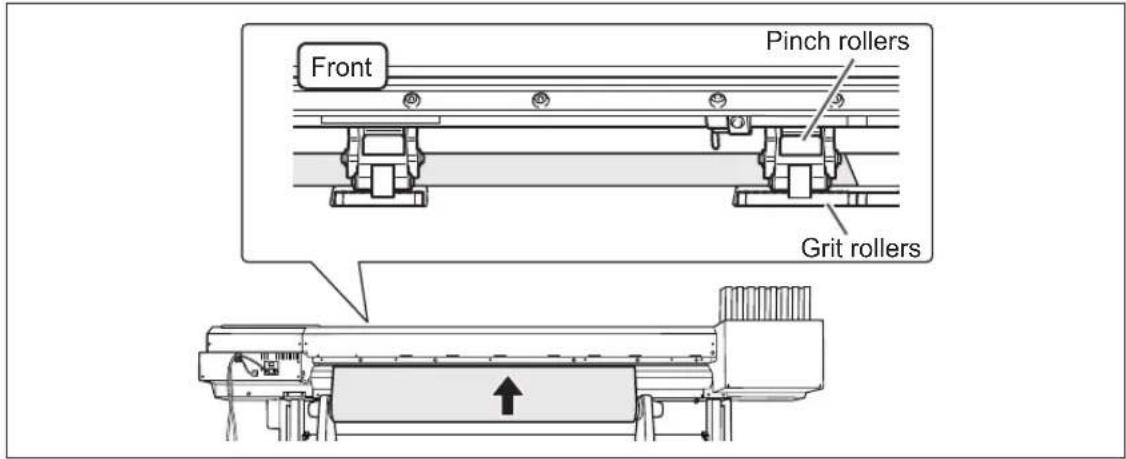

① Pass the leading edge of the media between the pinch rollers and the grit rollers.

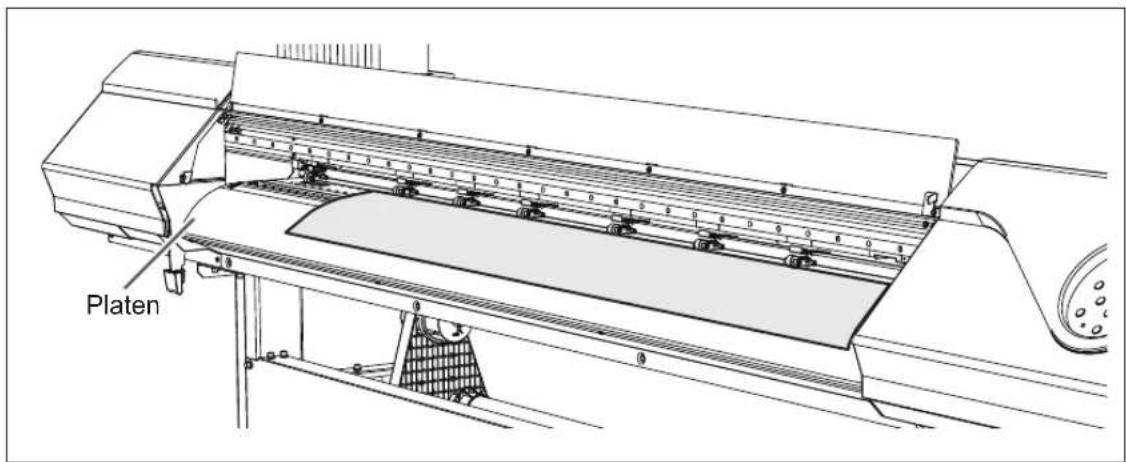

2 Pull out the media over the platen.

3 Check both edges of the media are placed on the grit rollers.

Be sure to place the right edge of the media on the right end grit rollers.

4 Place the left and right pinch rollers (affixed with blue stickers) on both edges of the media.

Place them on the positions from the media edges by about 10 mm respectively.

IMPORTANT!

If you want to readjust the media position at this step, go back to the procedure 1 and redo the procedure 1. ^④ . Printing quality is affected due to skew media feed, if you hold the media only to readjust the position forcibly.

5 Place the pinch rolls over all the grid rollers covered by the media.

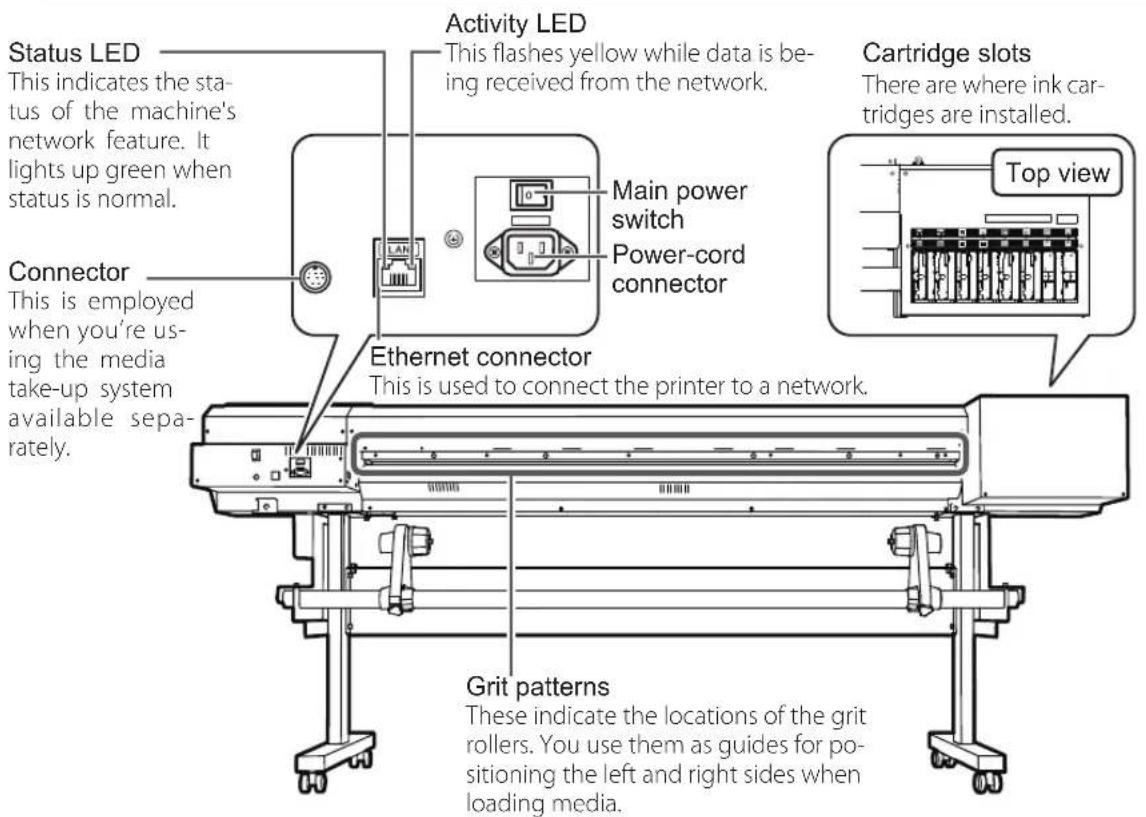

The grit patterns can be found at the place where grit rollers are located. Be sure to remove the remaining middle pinch rollers.

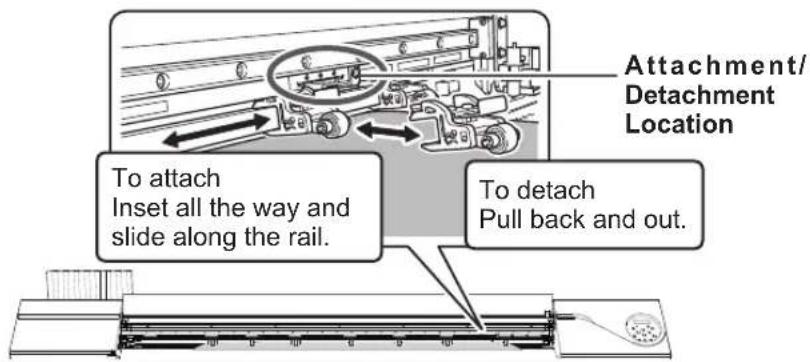

Attaching and Detaching Middle Pinch Rollers

6 Hold the media at the center and pull it out, being sure to keep it straight and all areas of the media to be taut.

7 Lower the loading lever to secure the media in place.

SETUP starts to flash, and then the screen shown in the figure appears.

3. Clamp the edges of the media with the media clamp.

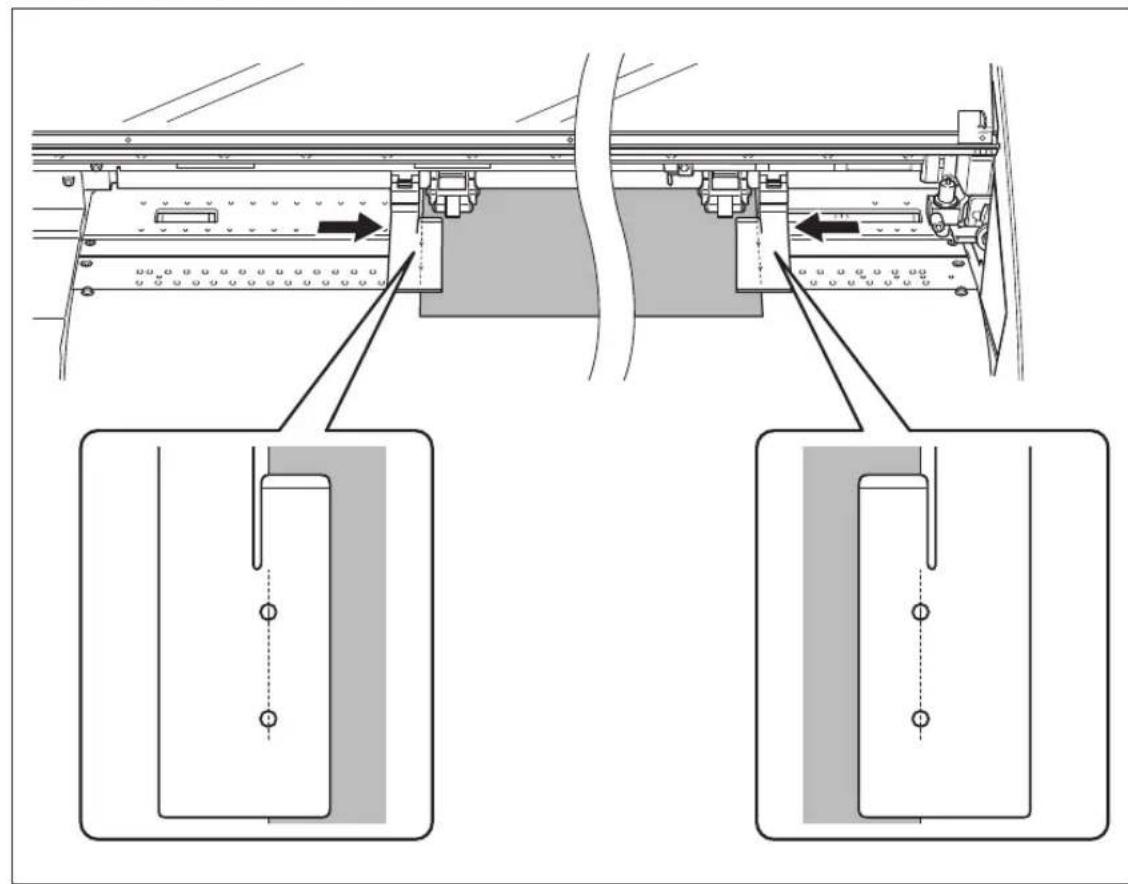

① Move the left and right media clamps above the edges of the media.

② Line up the edges of the media with the centers of the holes of the media clamps.

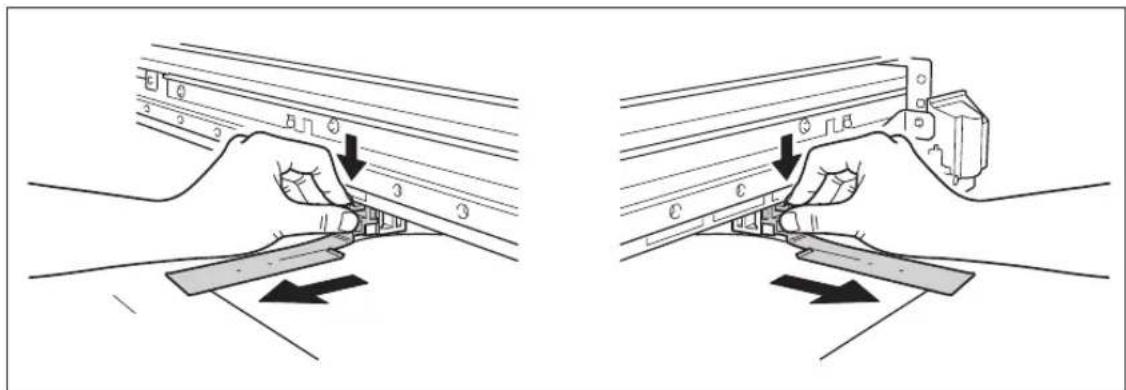

When you're performing cutting only, never use the media clamps.

P. 59, "Important Note on Cutting"

② Close the front cover.

When the front cover is closed, the print-head carriage moves and detects the width of media. This operation is called initialization. When initialization ends, SETUP remains steadily lighted, and the printable width is displayed on the display screen. This completes loading of the media.

IMPORTANT! Remove when not using roll media.

If roll media is allowed to stand unused in a loaded state for an extended period, the media may sag. This can cause poor printing quality and motor errors, so be sure to remove and store such media when not in use.

Loading the Sheet Media

Procedure

1 Move the media holders to the left and right.

Move them to a location where they don't disturb the media when the media is hung down from the rear of the machine. If they disturb the media, remove them with the shaft. For information on how to remove, refer to "Setup Guide."

② Pass the media through the printer and secure the media holders.

Procedure 2. ① to ⑤ of [Loading Roll Media]

3 Align the front edge of the media with the location shown in the figure.

4 Lower the loading lever to secure the media in place.

SETUP starts to flash, and then the screen shown in the figure appears.

When you're performing cutting only, never use the media clamps.

P. 59, "Important Note on Cutting"

⑤ ① Move the left and right media clamps above the edges of the media.

② Line up the edges of the media with the centers of the holes of the media clamps.

6 Close the front cover.

When the front cover is closed, the print-head carriage moves and detects the width of media. This operation is called initialization. When initialization ends, SETUP remains steadily lighted, and the printable width is displayed on the screen. This completes loading of the media.

Performing the Initial Adjustment (Correcting for Misalignment in Bidirectional Printing More Precisely)

Perform the initial adjustment (correction for misalignment in bidirectional printing more precisely) of this machine. In the following case, perform this adjustment.

When using this machine for the first time
When changing the media to use for the first time
When further correction is required to improve printing, such as when simple correction is performed for misalignment in bidirectional printing. P. 104, "Correcting for Misalignment in Bidirectional Printing"

Procedure

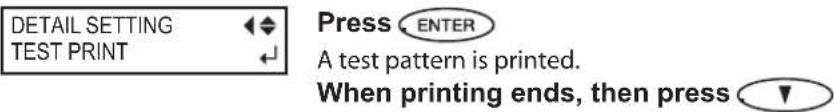

1

②

3

4

5

6

To decide a Correction Value

Choose the value that produces the least misalignment of 2lines.

Press to select a correction value of No.3 Press ▶. Set correction values of No.4 to No.10. in the same manner.

When correction value settings end, press ENTER

Press to go back to the original screen.

About [Media Setting] menu

To ensure the optimal output according to the media size and type, various setting items are provided in this machine. However, it is hard work to perform these settings one by one referring to this document. So, this machine provides the [Media Setting] menu that guides these settings in the interactive mode. Using this menu, you can set all of the basic settings only by setting according to the instructions on the display.

Since the setting details can be stored as the preset menu, you can promote your operation efficiently saving the setup steps when using the same type of media. Once storing the basic settings as the preset, you can do fine adjustment according to need.

The items set through the [Media Setting] menu can be also set individually.

Setup of Media ([Media Setting] menu)

➢ Only Printing: Perform the procedure 1. to 6., and 10., 11.
➢ Printing & Cutting: Perform all the procedure 1. to 11.

Note: If any setting is not needed for each setting item, you can go to the next menu by selecting [NEXT].

1. Starting the [Media Setting] menu.

1 Load media.

Check that no sagging is found on the media. If any sagging exists, the followed correction value settings do not work effectively.

P. 35, "Loading Media"

When the left figure is displayed, press ENTER

2. Setting the Temperature of Print Heater and Dryer

Current preset temperature

Temperature to be set

Use to set the temperature.

Recommended temperature: 35 degrees (95°F)

Press to enable the setting.

2

Current preset temperature
Temperature to be set

Use to set the temperature.

Recommended temperature: 40 degrees (104°F)

Press to enable the setting.

For the individual setting method of this setting item and the description, refer to p. 100, "Making the Temperature Setting for the Media Heating System."

To cancel the setting

Procedure

1 Press during the setting.

② QUIT SETTING? YES [NO] Press to select [YES]. Press ENTER.

The screen returns to the screen shown at the left. By selecting [NO], the screen returns to the screen displayed when you pressed MENU.

3. Adjusting the Head Height

1

Press to select [CHANGE]. Press ENTER to enable the setting.

2

When the left figure is displayed, open the front cover.

3

Move the height-adjustment lever to adjust the head height.

When moving to the [High] direction, the buzzer sounds twice, and to the [Low] direction, the buzzer sounds once.

POINT!

Normally set to [Low]. For the media that is wrinkled and comes loose from the platen, set to [High].

4

Close the front cover.

For the individual setting method of this setting item and the description, refer to p. 107, "Adjusting Head Height to Match Media Thickness."

4. Perform the position correction of feed direction (Alleviate Horizontal Stripes).

POINT!

Feed direction means the feed direction of the media. Perform the correction adjusting to the media in advance because horizontal stripes are more likely to occur during printing when the movement distance of the media changes subtly depending on the media's thickness.

1

Press to select [SET]. Press ENTER to enable the setting.

The test pattern of feed correction is output.

2

When the left figure is displayed, press ENTER

Use to set the correction value. Press ENTER to enable the setting.

To decide a Correction Value

Select the value to make the upper/lower rectangular gap and overlap smallest.

4

[To confirm again/To adjust again]

Press ▶ to select[ EXEC]. Press ENTER to enable the setting.

The test pattern of feed correction is output again. Go back to the procedure ③ and set again.

[To go to the next after correction is completed] Press ▶ to select [COMPL]. Press ENTER to enable the setting.

For the individual setting method of this setting item and the description, refer to p. 105 , "Alleviating Horizontal Bands and the Like (feed correction function)."

5. Performing the correction for misalignment in bidirectional printing

POINT!

This machine prints by the bidirectional mode (in which the heads perform printing during both their outbound pass and return pass). This printing method is called "Bidirectional Printing." This method offers the advantage of being able to shorten output times, but subtle misalignment occurs during the outbound and return passes. The procedure to correct this and eliminate misalignment is "Bidirectional Correction."

1

Press to select [SET].

Press ENTER to enable the setting.

The test pattern of bidirectional correction is output.

2

When the left figure is displayed, press ENTER

3

Use to set the correction value. Press ENTER to enable the setting.

Current correction value

To decide a Correction Value

Choose the value that produces the least misalignment of 2 lines.

4

[To confirm again/adjust again]

Press ▶ to select [EXEC].

Press ENTER to enable the setting.

The test pattern of bidirectional correction is output again. Go back to the procedure 3 and set again.

[To go to the next after correction is completed]

Press ▶ to select [COMPL].

Press ENTER to enable the setting.

For the individual setting method of this setting item and the description, refer to p. 104, "Correcting for Misalignment in Bidirectional Printing."

6. Deciding to perform the setting for cutting or not

[Only Printing] Press ▶ to select [NEXT]. Press ENTER to enable the setting. Go to Procedure 10.

[Print & Cut] Press ◀ to select [SET]. Press ENTER to enable the setting. Go to Procedure 7.

7. Setting the blade force

POINT!

For high-quality cutting, perform a cutting test to check the cutting quality for the media and adjust the blade force.

1 CUT FORCE [SET] NEXT Press to select SET]. Press ENTER to enable the setting.

The test pattern is cut. Circle and rectangle are cut. Peal off the two shapes.

2 CONTINUE ADJ. ? [EXEC] COMPL [Two shapes are peeled off separately] Press ▶ to select [COMPL].

Press ENTER to enable the setting. Go to Procedure 8.

[Two shapes are peeled off together/backing paper is also cut] Press 🔍 to select [EXEC]. Press ENTER to enable the setting. Go to Procedure 3.

Use to adjust the blade force.

If two shapes are peeled off together raise the blade force. If backing paper is cut too reduce the blade force.

Press to enable the setting.

Cut the test pattern again. Check the result.

[Two shapes are peeled off separately]

Press ▶ to select [COMPL].

Press ENTER to enable the setting.

Go to Procedure 8.

[Two shapes are peeled off together]

Press ◀ to select [EXEC]

Press ENTER to enable the setting.

Cut the test pattern again. Go back to the procedure ③ and set again.

For the individual setting method of this setting item and the description, refer to p. 115, "Fine-tuning the Cutting Conditions."

8. Correcting Misalignment for Printing and Cutting

POINT!

Subtle misalignment between the printing and cutting positions may occur due to the thickness of the media or the head height. We recommend making correction to match the media you're using.

Press to select [SET].

Press ENTER to enable the setting.

The test pattern (P&C1) is printed and cut. The test pattern is printed at three locations on the media: at the two edges and in the center.

② Check the test pattern condition.

To check the test pattern (P&C1)

Check to make sure that the printing position and the cutting position are aligned.

Cutting position and printing position are misaligned.

Solid gray square with no visible text, symbols, or features.

Cutting position and printing position are aligned.

3

[Cutting position and printing position are aligned]

Press ▶ to select [COMPL].

Press ENTER to enable the setting.

Go to Procedure9.

[Cutting position and printing position are not aligned]

Press ▶ to select [EXEC].

Press ENTER to enable the setting.

The test pattern (P&C2) for setting the correction values is printed and cut.

Go to Procedure 4.

4

When the left figure is displayed, press ENTER

5

Check the correction values from the test pattern condition.

To check the test pattern (P&C2)

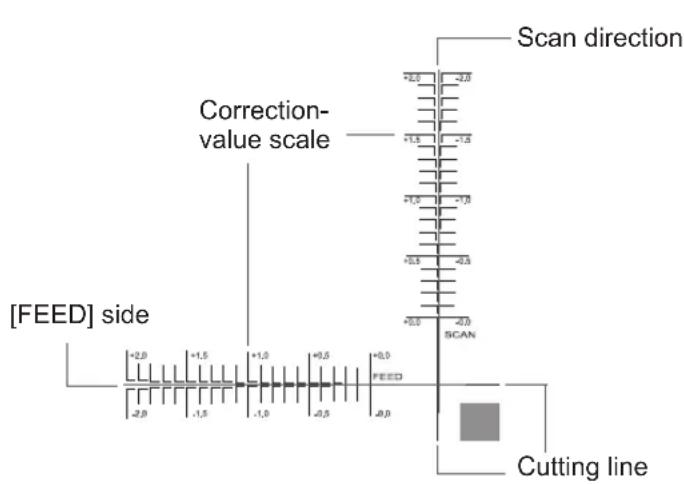

The point where the cutting line intersects the correction-value scale is the correction value. Check the scan direction and the [FEED] side respectively.

Use to set the correction value of [FEED] side

(F).

Use ◀ ▶ to set the correction value of scan direction (S).

Press ENTER to enable the setting.

The test pattern (P&C1) is printed and cut again. Check the condition of test pattern to check that the printing position and the cutting position are aligned.

[Cutting position and printing position are aligned]

Press ▶ to select [COMPL].

Press ENTER to enable the setting.

Go to Procedure9.

[Cutting position and printing position are not aligned]

Press ▶ to select [EXEC].

Press ENTER to enable the setting.

Go back to Procedure ⑥ and set the correction values again. Repeat

Procedure ⑥ and ⑦ until the optimal alignment is got.

For the individual setting method of this setting item and the description, refer to p. 119, "Correcting Misalignment of the Printing and Cutting positions."

Correcting Misalignment for Printing and Cutting Position When Using Crop Marks.

POINT!

When you remove the printed media, and then reload it and perform cutting, use the crop marks. For this case, correction is to be performed because the positioning of printing and cutting may be misaligned even when you're using crop marks depending on the composition of the media.

[To perform consecutive printing and cutting]

Press ▶ to select [NEXT].

Go to Procedure10.

[To perform printing and cutting separately]

Press ▶ to select [SET].

Press ENTER to enable the setting.

The test pattern (C&C1) is printed and cut. Go to Procedure 2.

Check the test pattern condition.

To check the test pattern (C&C1)

Check to make sure that the printing position and the cutting position are aligned.

[Cutting position and printing position are not aligned]

Solid gray square with no visible text, symbols, or features.

[Cutting position and printing position are aligned]

3

[Cutting position and printing position are aligned]

Press ▶ to select [COMPL].

Press ENTER to enable the setting.

Go to Procedure 10.

[Cutting position and printing position are not aligned]

Press ◀ to select [EXEC].

Press ENTER to enable the setting.

The test pattern (C&C2) for setting the correction values is printed and cut.

4

When the left figure is displayed, press ENTER

5

Check the correction values from the test pattern condition.

To check the test pattern (C&C2)

The point where the cutting line intersects the correction-value scale is the correction value. Check the scan direction and the [FEED] side respectively.

For the figure, the correction value is "-0.3."

Use to set the correction value of [FEED] side

(F).

Use ◀ ▶ to set the correction value of scan direction (S).

Press ENTER to enable the setting.

The test pattern (C&C1) is printed and cut again. Check the condition of test pattern to check that the printing position and the cutting position are aligned.

[Cutting position and printing position are aligned]

Press ▶ to select [COMPL].

Press ENTER to enable the setting.

Go to Procedure 10.

[Cutting position and printing position are not aligned]

Press ▶ to select [EXEC].

Press ENTER to enable the setting.

Go back to Procedure 6 and set the correction values again. And repeat

Procedure ⑥ and ⑦ until the optimal alignment is got.

For the individual setting method of this setting item and the description, refer to p. 128, "Correcting Misalignment for Printing and Cutting When Using Crop Marks."

10. Setting the Drying Method and Time after Printing

Press to select the item. Press ENTER to enable the setting.

POINT!

Drying Method after Printing

After the 1st page is printed, set that the media should be fed until the trailing edge of the printed area is positioned directly on the dryer. To make sure to dry the entire printed area, [ENABLE] If [DISABLE] is selected, the trailing edge of the printing area is not fed to the dryer unless you continue with a subsequent printing

For the individual setting method of this setting item and the description, refer to p. 102, "Drying the Trailing Edge of the Printing Area on the Dryer."

2

Press to select the item.

Example of setting time (general guide):

* The setting time varies according to the settings of type of media and printing quality. Output accompanying pull-back; use the middle pinch rollers; non-coated vinyl media about three minutes

Press ENTER to enable the setting.

POINT! Drying Time after Printing

Set the drying time after the 1st page is printed. The next operation is not started until the set time passes.

For the individual setting method of this setting item and the description, refer to p. 103, "Setting the Drying Time after Printing."

11. Saving the Setting as Preset

1

Press to select [SAVE].

Press ENTER to enable the setting.

If you select [NEXT], the performed settings are retained. But your settings are overwritten or deleted, when you operate the [Media Setting] menu again or switch off the main power of this machine.

2

Use to select [Destination to Save].

You can select one of NAME1 to 8.

Press to enable the setting.

3

Use to select characters.

Use ▶ to move the next character.

Select the following characters in the same way.

You can enter up to 15 characters.

Press to enable the setting.

For the individual setting method of this setting item and the description, refer to p. 96, "Fully Utilizing Preset Function."

This completes the operation of the [Media Setting] menu.

Setting the Output-start Location

You can set the output-start location at any location you prefer. (You can output if you do not set this.) Note, however, that this setting must be made for each individual page.

Procedure

1 Open the front cover.

2

Use to move the center of the blade with the output-start location.

Only cutting carriage moves.

3 When the location is set, press FUNCTION

4

When the left figure is displayed, press to enable the setting.

BASE remains steadily lighted and when the screen displays the character "B" together with the output-possible width at the location, setting is completed.

POINT!

Note, however, that the left and right positions are not restored to their defaults for test patterns. If you're using the separately available media take-up unit, never adjust by pressing. Doing so may pull the media with undue force, resulting in an error or malfunction.

Printing Tests and Cleaning

Before you carry out actual printing, we recommend performing a printing test to ensure no dot drop-out occurs. If dot drop-out occurs, perform cleaning of the print head (Normal Cleaning).

How to Perform a Printing Test

Procedure

1 Setting the Output-start Location
P. 57, "Setting the Output-start Location"
2 Press FUNCTION
3 FUNCTION CLEANING Press to display the left figure. Press ▶.
4 CLEANING ← Press ENTER TEST PRINT ← A test pattern is printed.

How to Perform a Normal cleaning

Procedure

1

2

3

When it finishes, the screen shown in the figure appears again.

4

5

Perform a printing test again to make sure the dot drop-out has been corrected. If the problem persists, try performing cleaning a second time. If the printer has been used for a long period, the problem may persist even after two or three-cycle cleaning. Then try cleaning using a different method.

P. 74, "When Normal Cleaning Is Not Effective"

Important Note on Cutting

When you're performing cutting only, never use the media clamps.

When you're performing cutting only, remove the media clamps or move to the locations where they don't clamp the media.

Two-step diagram showing hand positioning of a mechanical component with arrows indicating movement (no text or symbols)

When you're performing cutting only using the roll media, never allow the media to hang down from the rear of the machine. (or set the [PREFEED] menu to "ENABLE.")

This prevents a motor error or fall of the roll because the media is pulled with excessive force.

For the [PREFEED] menu, refer to p. 114, "Preventing Pulling of the Media with Undue Force When Performing Cutting Only."

Turn the media by hand to pull out the necessary length from the roll.

If the media is hanged down from the rear of the machine, you can leave the [PREFEED] function "DISABLE."

Technical line drawing of a mechanical device with rollers and frame (no text or symbols)

When you're performing printing followed immediately by cutting (Print and Cut), then before you start cutting, allow the ink to dry sufficiently.

Use your software RIP to make the setting for the drying time. For information on how to make the setting, refer to the documentation for the software RIP you're using. The drying time varies according to the media.

Setting The Cutting Test And The Blade Force

For high-quality cutting, then before you perform actual cutting, we recommend carrying out a cutting test to check the cutting quality for the media. Adjust the blade force depending on the cutting quality.

1. Carrying out the cutting test

1 Press to move the cutting carriage to the location where you want to carry out the cutting test.
You can freely set the location for the cutting test.

2 Close the front cover. Press FUNCTION.

3 FUNCTION ◀️ Press several times to display the left figure. CUT CONFIG ▶ Press ▶.

4 CUT CONFIG TEST CUT Press ENTER The test pattern is cut.

5

Peel off the cut shapes to verify the cutting quality.

[Two shapes are peeled off separately]

You do not need to perform the setting because the blade force is appropriate.

[Two shapes are peeled off together/backing paper is also cut]

Go to the next Procedure to set the blade force.

2. Setting the blade force.

1

Press

2

Press

3

Press to select the value.

[Two shapes are peeled off together]

Raise the blade force.

[Backing paper is also cut]

Reduce the blade force.

Press to enable the setting.

4

Press to go back to the original screen.

At the [CUT CONFIG] menu, you can also make settings for other cutting conditions in addition to the blade force. Refer to the following pages.

P. 115, "Fine-tuning the Cutting Conditions"

Getting Ready to Receive Data from a Computer

When p. 35, "Loading Media," p. 46, "Setup of Media" are completed, get ready to receive the data from a computer.

CAUTION

Never touch the print heads while output is in progress. The print heads move at high speed. Contact may cause injury.

Procedure

1 Close the front cover.
② Make sure stays steadily lit. If the light does not come on, lower the loading lever.

3 Wait until stays steadily lit.

4 Make sure the top menu is displayed. If the top menu is not displayed, press MENU, then press

POINT!

Output Is Not Possible in These Situations
The machine does not run when the front cover is open.
➢ Never open it when printing is in progress. Doing so interrupts printing.
Data from the computer is not accepted when SETUP is dark.
➢ Printing does not start until HEATER lights up.
Data from the computer is not accepted when you are not at the top menu.

Starting Output

When the operation of p. 62, "Getting Ready to Receive Data from a Computer" is completed, you can start output. To output, the following procedure is required

① Creating Output Data

Create the output data using the application software like Adobe Illustrator and like that. For information on how to create the data, refer to the documentation of your application software.

② Sending the Output Data to This Machine Using the Software RIP.

Use the included software RIP "Roland VersaWorks." For information on how to install and use Roland VersaWorks, refer to "Roland VersaWorks Quick Start Guide" and HELP of Roland VersaWorks. If using the white ink and metallic silver ink, refer to "SPECIAL COLOR INK GUIDE."

IMPORTANT!

Points that must be observed

➢ Be sure to set the media clamps during printing. Otherwise the edges of the media may warp and catch on the print head.
During output, never touch the media that's already been discharged. Doing so may obstruct media feed or cause the media to rub against the heads, which may result in a paper jam or damage to the heads.
Keep the loading lever raised when the machine is not in use.

POINT!

If Ink Runs Out

When ink runs out, a warning beep sounds and a slot number of which ink runs out is displayed on the display screen.

P. 69, "How to Replace Ink Cartridges"

Before you perform lengthy printing, check the amount of ink remaining in the ink cartridges.

Before you perform lengthy printing, check the amount of ink remaining in the ink cartridges. When ink runs out and printing is paused, the coloring at the seam may be altered when printing resumes.

P. 68, "Checking for Remaining Ink"

Pausing and Canceling Output

You can pause and cancel printing before it finishes. We do not recommend resuming printing because horizontal stripes are produced at the place where output stopped.

Procedure

1 Press before output finishes

This pauses printing operation.

Press again to resume printing.

To cancel the output, go the next Procedure without pressing. PAUSE

2

TO CANCEL, HOLD DOWN PAUSE KEY

When the screen shown in the figure appears, hold down for one second or longer.

This cancels printing operation.

PAUSE

3 Stop sending the output data from the computer.

Cutting Off the Media

Procedure

1 Close the front cover.

② Make sure lightsup.

3 Press FUNCTION

4 FUNCTION SHEET CUT

REMOVE MEDIA CLAMPS

Press several times to display the left figure.

Press ENTER.

When the media clamps are attached, the screen shown in the figure appears. Open the front cover and detach the left and right media clamps.

Line drawing of a hand operating a mechanical device with no visible text or symbols

Press ENTER

The media is cut off.

You can make the setting in the software RIP for automatic media cutoff after printing or cutting has finished. For information on how to make the setting, refer to the documentation for the software RIP you're using.

IMPORTANT!

Cut-off Operations

➢ Be sure to detach the media clamps. Performing cutoff with the media clamps remaining attached may cause the operation to be interrupted due to detection of the media clamps.
If the media clamps are present on the machine when the setting to execute automatic cutoff of the media is made on the computer, the media clamps are detected and no cutoff operation is performed
Before you're performing cutoff, never use ▲ to pull the media back. Unless the end of the media has been pulled out to a location to the front of the platen, cutoff may not be performed smoothly.

IMPORTANT!

Give Attention to Media Composition

For some types of media, cutoff is not possible.
Some types of media may remain on the platen after cutoff. If the media remains on the platen, remove it by hand.

Switch Off

WARNING

When output is not being performed, remove any loaded media or switch off the sub power.

The continued application of heat at a single location may cause the release of toxic gases from the media or pose a fire hazard.

Procedure

1

Switch off the sub power whenever output is finished.

Hold down the sub power button for one second or longer.

2

Technical line drawing of a mechanical assembly with an arrow indicating motion (no text or symbols)

Raise the loading lever.

Even except for switching off the power, raise the loading lever.

IMPORTANT!

Leave the main power switched on at all times.

Never switch off the main power. By switching on the main power, the automatic maintenance function is carried out periodically. If the automatic maintenance is not carried out, it may result in breakdown of this machine such as breakdown of the print head.

Never switch off the main power or unplug the power cord suddenly while operation is in progress.

Switching off the main power or unplugging the power cord suddenly while operation in progress may damage the print head. Be sure to first switch off the sub power.

If the main power is accidentally switched off, immediately turn the power back on.

Chapter 3 Maintenance:

For always using the printer in the best condition

Checking for Remaining Ink and Replacing Cartridges ....68

Checking for Remaining Ink 68

How to Replace Ink Cartridges ....69

Maintenance that Should Be Performed Daily ....70

Maintenance of Ink Cartridges....70

Disposing of Discharged Ink 70

Cleaning 72

About Care and Maintenance of Print Head 73

When Normal Cleaning Is Not Effective 74

Medium/ Powerful Cleaning ....74

Maintenance that Should Be Performed More Than Once a Month 75

When Manual-Cleaning Becomes Necessary ....75

Manual Cleaning of Print Head....76

When Problems Such As Dot Drop-out are Not Cleared Up......81

When Problems Such As Dot Drop-out are Not Cleared Up .....81

Replacing Consumable Parts 84

Replacing the Wiper 84

Replacing the Felt Wiper 87

Replacing the Blade 90

Replacing the Separating Knife 92

When Not in Use for a Prolonged Period ....94

Keep Performing Maintenance 94

Alarm Feature 94

Checking for Remaining Ink

Procedure

1

2

Press several times until the screen shown on the left appears.

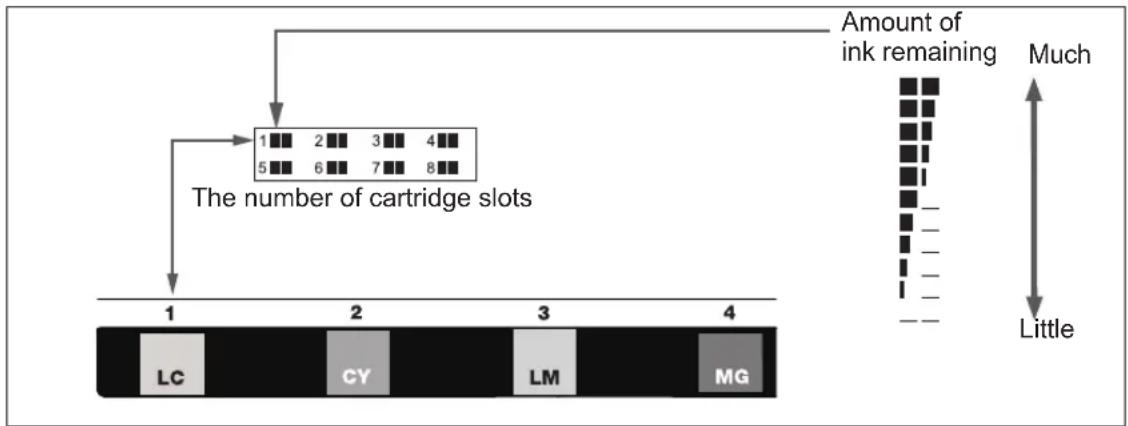

indicates the amount of ink remaining. When there are more, the amount of ink remaining is larger.

* The display shows an approximate guide to the amount of remaining ink. It may differ somewhat from the actual amount remaining.

3

Press to go back to the original screen.

How to Replace Ink Cartridges

When ink runs out, a warning beep sounds and printing pauses (unless the default settings have been changed). Pull out the empty cartridge and insert a new one. Printing resumes.

IMPORTANT!

Important Notes on Replacing Cartridges

Insert and remove slowly, one at a time.
➢ Never insert the cartridge askew by force. Insert it straight. Inserting the cartridge askew may cause ink leakage.
➢ Be sure to replace with an item of identical type.
➢ Never use an ink cartridge which has already been used in other machines even if it is of the identical type.
▶ Never mix items of different types.
➢ Never allow the machine to stand with an ink cartridge removed. The print head may become clogged.
➢ Never insert or remove a partially used ink cartridge.
➢ Never remove an ink cartridge suddenly while the printer is in operation.

WARNING

Never store ink, cleaning fluid, or discharged fluid in any of the following locations.

▶ Any location exposed to open flame
Any location where high temperature may occur
Near bleach or any other such oxidizing agent or explosive material
➢ Any location within the reach of children

Fire may be a danger. Accidental ingestion by children may pose a health hazard.

Maintenance of Ink Cartridges

SHAKE CARTRIDGE

1 2 3 4 5 6 7 8

When the message shown in the figure is displayed, remove the ink cartridge of the flashing slot number and shake it gently. To get the stable printing quality, shake the ink cartridge periodically to maintain the good ink condition. When the ink cartridge is reinserted into the original slot or ENTER is pressed, the message disappears.

Disposing of Discharged Ink

CHECK DRAIN BOTTLE

The drain bottle collects discharged fluid. Dispose of collected material before the bottle becomes full. The message shown in the figure appears when a certain amount of discharged fluid has collected in the bottle. Follow the procedure below to discard the discharged fluid.

Procedure

CHECK DRAIN BOTTLE

When the message shown in the figure appears, press ENTER

Press. MENU

MENU SUB MENU

Press several times until the screen shown on the left appears.

SUB MENU MAINTENANCE

Press ▶, and then ▲

When the screen shown on the left appears, detach the bottle, discard the discharged fluid to empty it.

CAUTION

Before you detach the drain bottle, be sure to wait for the screen to display "EMPTY DRAIN BOTTLE."

Failing to follow this procedure may cause discharged fluid to flow out of the tube and spill, soiling your hands or the floor.

7

Attach the emptied drain bottle to the machine.

Press ENTER.

8

Press. ENTER

9

Press to go back to the original screen.

WARNING

Never place discharged fluid near open flame.

Doing so may cause fire.

CAUTION

To store discharged fluid temporarily, place it in the included drain bottle or in a durable sealed container such as a metal can or polyethylene tank, and cap tightly.

Any spillage or vapor leakage make cause fire, odor, or physical distress.

Dispose of discharged fluid properly, in accordance with the laws in effect in your locale.

Discharged fluid is flammable and contains toxic ingredients. Never attempt to incinerate discharged fluid or discard it with ordinary trash. Also, do not dispose of it in sewer systems, rivers, or streams. Doing so may have an adverse impact on the environment.

Cleaning

WARNING

Never use gasoline, alcohol, thinner, or any other flammable material. Doing so may cause fire.

CAUTION

Before attempting cleaning, switch off the sub power and wait until the platen and dryer cool (approximately 30 minutes).

Sudden movement of the machine may cause injury, or hot components may cause burns.

Wipe away any buildup of ink or grime on the media path and other locations as daily cleaning. In particular, the pinch rollers, grit rollers, and platen are likely to get a buildup of grime. Clean by wiping with a cloth moistened by neutral detergent diluted with water then wrung dry.

POINT!

This machine is a precision device, and is sensitive to dust and dirt. Perform cleaning on a daily basis.
➢ Never attempt to oil or lubricate the machine.

About Care and Maintenance of Print Head

Care of the print head is essential to ensuring optimal printing at all times. There are daily care and periodic care.

Daily Care and Maintenance

Normal cleaning

It is recommended to perform the normal cleaning before daily operation.

P. 58, "Printing Tests and Cleaning"

Periodic Care and Maintenance

Medium cleaning/Powerful cleaning

Perform the medium cleaning or powerful cleaning when the problems such as dot drop-out are not cleared up by the normal cleaning.

P. 74, "Medium/ Powerful Cleaning"

▶ Manual Cleaning of Print Head

Based on your frequency of use, perform the manual cleaning periodically.

P. 76, "Manual Cleaning of Print Head"

*The print head is component that wears out. Periodic replacement is required, with the frequency of replacement depending on use. Purchase them from your authorized Roland DG Corp. dealer.

Medium/ Powerful Cleaning

When the problems such as dot drop-out are not cleared up by the "normal cleaning" (p. 58, "Printing Tests and Cleaning"), try the more forceful "medium cleaning." If the condition is not improved, try the even more forceful "powerful cleaning."

POINT!

Note, however, that the medium and powerful cleaning consumes more ink than normal cleaning, and too-frequent use may damage the print head itself. Avoid using it more than necessary.

Procedure

1 Press FUNCTION

② FUNCTION ◀ Press several times to display the left figure. CLEANING ▶ Press ▶.

③ CLEANING MEDIUM CL. Press or and select "Medium." When "Medium" is not effective, select "Powerful." Press ENTER to enable the setting.

4 CLEANING... "Medium"

The screen shown in the figure appears and cleaning starts. When it finishes, the screen shown in the figure appears again.

"Powerful"

The screen shown in the figure appears and cleaning starts. When it finishes, the screen shown in the figure appears again.

5 W1200mm SETUP SHEET Press to go back to the original screen.

When Powerful Cleaning Is Not Effective

When the problems such as dot drop-out are not cleared up even by performing powerful cleaning several times, perform "Manual Cleaning of Print Head." Such cleaning can be effective when carried out periodically, according to the frequency of use.

P. 76, "Manual Cleaning of Print Head"

When Manual-Cleaning Becomes Necessary

Perform the manual cleaning more than once a month.

To keep the stable output condition at all times, perform the manual cleaning more than once a month. The manual cleaning takes approximately 10 minutes.

The manual cleaning is recommended when the following symptoms occur.

It is recommended to perform the manual cleaning when any of the symptoms given below occurs and it cannot be solved by the automatic cleaning functions such as the normal cleaning.

For your information, replacement of the wiper or felt wiper is also effective to improve the symptoms.

P. 84, "Replacing the Wiper" p. 87, "Replacing the Felt Wiper"

Dot drop-out or deflection Ink drips Dragging dirt

Two circular diagrams on a textured background, no text or symbols present

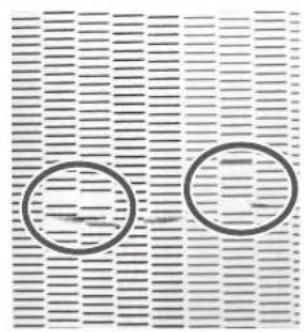

Flaws in the dot pattern are caused by dust on the print head.

Two simple diagrams: a small oval with dots on the left and a larger oval with four dots inside, both outlined in white (no text or symbols)

Ink that has adhered to a dirty or dusty print head drips onto the media.

Abstract geometric shape with concentric circles and a horizontal ellipse (no text or symbols)

When dirt or dust accumulates on the print head it can interfere with image quality.

* When the cleaning stick and cleaning fluid for the manual cleaning runs out, place an order for them with your authorized Roland DG Corp. dealer.
* The print head is a component that wears out. Periodic replacement is required, with the frequency of replacement depending on use. Purchase them from your authorized Roland DG Corp. dealer.

Manual Cleaning of Print Head

IMPORTANT!

Important Notes on This Procedure

Before attempting this operation, remove any media.
To prevent the heads from drying out, finish this procedure in 30 minutes or less. A warning beep sounds after 30 minutes.
➢ Never use any implement other than the included cleaning stick. Cotton swabs or other lint-producing items may damage the heads. If you use up the cleaning stick, purchase a new one from your authorized Roland DG Corp. dealer.
➢ Never immerse a cleaning stick that has already been used to perform cleaning in the cleaning liquid. Doing so may degrade the cleaning liquid.
➢ Do not put the cleaning stick used for cleaning into the cleaning fluid. It will deteriorate the fluid.
➢ Never rub the nozzle surface of the print head.
➢ Stroke the sponges very gently, applying as little pressure as possible. Never rub, scrape, or crush them.

When a warning beep sounds during cleaning

A warning beep sounds in 30 minutes after the operation is started. At this time, stop work, and follow the procedure in step. 4 on page 71 to attach cover L and cover R, then close the front cover. Press ENTER to quit the manual-cleaning menu. After that, restart the procedure from the beginning.

CAUTION

Be sure to perform operations as specified by the instructions above, and never touch any area not specified in the instructions.

Sudden movement of the machine may cause injury.

1. Change to the print-head manual-cleaning menu.

1 Remove any media.

2 Press MENU

3 MENU SUB MENU

4 SUB MENU MAINTENANCE

5 MAINTENANCE CLEANING

Press several times until the screen shown on the left appears.

Press ▶, and then ▲

Press.

Press ENTER
