Brand	Güde
Model	GHS 690 L
Product type	Hedge trimmer
Power supply	Electric 230 V~ 50 Hz
Rated power	690 W
Blade length	60 cm
Tooth spacing	30 mm
Cutting speed	3200 min⁻¹
Weight	4.2 kg
Sound level	93 dB(A)
Vibration level	2.5 m/s²
Protection	Class II
Main features	Hedge and shrub cutting; double blade; ergonomic handle
Maintenance and cleaning	Clean blades after use, lubricate regularly, sharpen if necessary
Safety	Blade guard, safety switch, quick stop
Spare parts and repairability	Replacement blades, brushes, switches available; repairable by a professional
General information	2-year warranty, Güde after-sales service

Frequently Asked Questions - GHS 690 L GUDE

What is the power of the GHS 690 L hedge trimmer?

The rated power is 690 W.

What is the blade length?

The blade is 60 cm long.

Is the hedge trimmer corded or cordless?

It is a corded model (230 V~).

How to maintain the blades?

Clean the blades after each use, apply lubricating oil, and sharpen if necessary.

What safety measures are there?

The device is equipped with a blade guard and a safety switch to prevent accidental starts.

Is the noise level high?

The noise level reaches 93 dB(A), it is recommended to wear hearing protection.

Where to find spare parts?

Spare parts such as blades or brushes are available from Güde after-sales service or authorized dealers.

What is the warranty?

The warranty is 2 years (except for professional use).

Can it cut thick branches?

The tooth spacing of 30 mm allows cutting branches up to 30 mm in diameter.

Is the hedge trimmer heavy?

It weighs about 4.2 kg, which is standard for an electric hedge trimmer.

USER MANUAL GHS 690 L GUDE

Blue-handled utility tool with diagonal rack and black handle (no visible text or symbols)

GHS 690 L

# 93999

ENGLISH Please read the instructions carefully before starting the machine.

Exterior view of a hair shower and spray can assembly (no text or symbols visible)

DE	montage	SI	Montaža
GB	Assembly	HR	Montaža
FR	Montage	BG	Монтаж
IT	Montaggio	RO	Montaj
NL	Montage	BA	Montaža
CZ	Montáž
SK	Montáž
HU	Szerelés

DE	Betrieb	SI	Delovanje
GB	Operation	HR	Rad
FR	Fonctionnement	BG	Pábota
IT	Esercizio	RO	Functionare
NL	Gebruik	BA	Rad
CZ	Provoz
SK	Prevádzka
HU	Üzemeltetés

DE	Transport / Lagerung	SI	Transport / Shranjevanje
GB	Transport / storage	HR	Prijevoz / Uskladištenje
FR	Transport / Stockage	BG	Транспортиране / Съхранение
IT	Trasporto / Stoccaggio	RO	Transport / Depozitare
NL	Transport / Bewaring	BA	Prevoz / Uskladištenje
CZ	Přeprava / Uložení
SK	Transport / Uloženie
HU	Szállítás / Tárolás

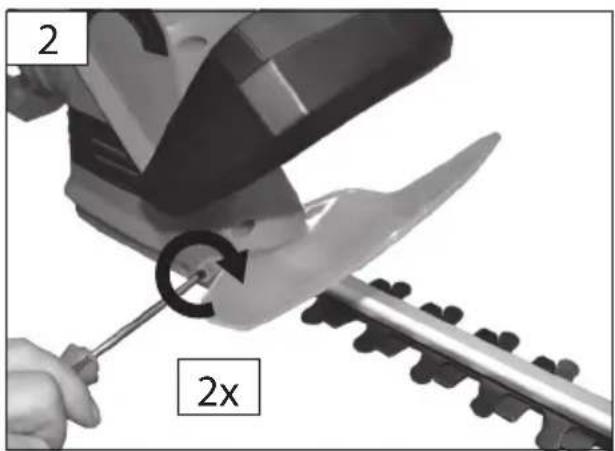

DE montage

GB Assembly

FR Montage

IT Montaggio

NL Montage

CZ Montáž

SK Montáž

HU Szerelés

SI Montaža

HR Montaža

BG Монтаж

RO Montaj

BA Montaža

Close-up of a mechanical component with a curved bracket and metallic parts (no visible text or symbols)

Black cylindrical container with a V-shaped top and side outlet, no visible text or symbols

Blue hatched tool next to a diagonal metal bar, with a green checkmark on the right (no text or symbols)

DE Betrieb

GB Operation

FR Fonctionnement

IT Esercizio

NL Gebruik

CZ Provoz

SK Prevádzka

HU üzemeltetés

SI Delovanje

HR Rad

BG Работа

RO Functionare

BA Rad

Electric power adapter with attached plug and lock icon (no text or symbols)

Close-up of a mechanical component with a threaded shaft and circular end caps, showing a directional arrow (no text or symbols)

	DE	Betrieb	SI	Delovanje
	GB	Operation	HR	Rad
	FR	Fonctionnement	BG	Pábota
	IT	Esercizio	RO	Functionare
	NL	Gebruik	BA	Rad
	CZ	Provoz
	SK	Prevádzka
	HU	üzemeltetés

Four blue circular icons representing different safety and footwear symbols: hand, helmet, boot, and shirt (no text or labels)

Three-step diagram showing a car charging plug being inserted, with an arrow indicating the process (no text or symbols present)

Three-step diagram showing a car head with cable, indicating left, right, and bottom views of the device (no text or symbols present)

Close-up of a blue and black hairpin with a metallic screw, showing internal components and a close-up of its tip (no text or symbols visible)

DE	Montage	SI	Montaža
GB	Assembly	HR	Montaža
FR	Montage	BG	Монтаж
IT	Montaggio	RO	Montaj
NL	Montage	BA	Montaža
CZ	Montáž
SK	Montáž
HU	Szerelés

DE	Betrieb	SI	Delovanje
GB	Operation	HR	Rad
FR	Fonctionnement	BG	Pábota
IT	Esercizio	RO	Functionare
NL	Gebruik	BA	Rad
CZ	Provoz
SK	Prevádzka
HU	Üzemeltetés

DE	Transport / Lagerung	SI	Transport / Shranjevanje
GB	Transport / storage	HR	Prijevoz / Uskladištenje
FR	Transport / Stockage	BG	Транспортиране / Съхранение
IT	Trasporto / Stoccaggio	RO	Transport / Depozitare
NL	Transport / Bewaring	BA	Prevoz / Uskladištenje
CZ	Přeprava / Uložení
SK	Transport / Uloženie
HU	Szállítás / Tárolás

Technische Daten

Heckenschere......GHS 690 L

Artikel-Nr. 93999

Wear protective clothing with cut through resistant ply!

Service connection....230 V\~50 Hz
Motor output....710 W/P1
knife movement....1700 min -1
knife Spacing 24 mm
Cutting length....600 mm

Beam length 690 mm

Weight 3,6 kg
Degree of protection IP 20
☐ Protection class....II

Noise and Vibration Information

Sound pressure level L_PA^1) .....81 dB (A)

Measured sound power level L_WA^1) .....100,44 dB (A)

Guaranteed sound power level L WA......102 dB (A)

Wear ear protectors!

Warning: The vibration emission level will vary because of the ways in which a power tool can be used and may increase above the level given in this information sheet. The vibration emission level may be used to compare one tool with another.

It may be used for a preliminary assessment of exposure.

An accurate estimate of the vibratory load should also take into account the times when the tool is shut down or when it is running but not actually in use. This may significantly reduce the vibratory load over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Read and understand the operating instructions before using the appliance. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties.

In case of any doubts about connection and operation refer please to our customer center

Power tool description

1. Safety switch
2. Front hands protection
3. Knife/cutter bar
4. eyelet wall mounting
5. Knife/cutter bar protection
6. cable strain relief
7. Power supply cable
8. ON/OFF switch
9. rotary handle lock

Specified Conditions Of Use

The hedge trimmer is designed for trimming shrubs and hedges in private hobby gardens

The device must not be used for crushing compost, as persons or damage to property können. The hedge trimmer is designed for trimming shrubs and hedges in private hobby gardens.

Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

The charger may only be operated with a detective switch against stray current (RCD x. stray current 30mA).

Requirements for operating staff

The operating staff must carefully read the Operating Instructions before using the appliance.

Qualification : Apart from the detailed instructions by a professional, no special qualification is necessary for appliance using.

Minimum age : Persons over 18 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.

Training : Using the appliance only requires corresponding training by a professional or the Operating Instructions. No special training is necessary.

The operator is responsible for accidents or risks to third parties.

Observe to keep out of dangerous zone

Emergency procedure

Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. For the sake of eventual accident, in accordance with DIN 13164, a workplace has to be fitted with a first-aid kit. It is essential to replace any used material in the first-aid kit immediately after it has been used.

If you seek help, state the following pieces of information

1. Accident site
2. Accident type
3. Number of injured persons
4. Injury type(s)

Symbols

	Caution!
	Read the Operating Instructions!
	Take the battery always out before any work on the appliance.
	Cable pulling / transport prohibited
	In case of cable damage or nock, immediately pull out plug from socket
	Keep distance of personsObserve to keep out of dangerous zone
	Protect against moistureNever expose tool to rain.
	Wear eye protection !Wear ear protectors!
	Wear protective gloves !
	Wear safety cut through resistant shoes with safety sole and steel toe !
	Portez une tenue de protection avec doublure contre perçage!
	Any damaged or disposed electric or electronic devices must be delivered to appropriate collection centres.

General Power Tool Safety Warnings

Warning

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term „power tool“ in the warnings refers to your mains-operated (cordepower tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (groundepower tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCprotected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do

not use a power tool while you are tired or under the influence of drugs, alcohol or medication.

A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc.

in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Additional safety instructions Hedge trimmer

• Keep parts of your body off the cutting blade. Do not remove jammed material while the blades are moving.
• When removing jammed material, make sure the appliance is off.
• Attach the knife protection for transport or storage. Before you start with the work, search the thicket for hidden objects such as wire fences, etc.
• Do not let children, other persons or pets near the cutting scissors.
• Do not use the cutting scissors if the cutting tool is not fitted properly or when it is damaged.
• Before adjusting the cutting scissors, make sure the knives or blades do not touch stones or debris.
• Do not cut any hard objects. This could lead to accidents and damage the cutting scissors.
• Avoid abnormal posture and do not work above shoulder height.
• Respect the system voltage!
• Do not attempt to remove shavings when the knives are moving. When removing any jammed material, make sure the cutting scissors are off and stopped. When lifting or holding the cutting scissors, do not hold the cutting knives.

⚠️CAUTION: Knives are still running for a short time after being switched off.

Putting into operation for your safety

Before carrying out any work on the machine, disconnect the plug from the socket.

Before carrying out any work on the machine, onnect the plug from the socket.

Before using the appliance, perform a visual inspection at all times to make sure the power cord and the plug, in particular, are not damaged on the charger.

The machine must not be used under any circumstances if the machine or the safety devices are damaged.

If the device is defective, the repair has to be made exclusively by the customer service. Use only original accessories and original spare parts.

Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

Guarantee

Warranty period of 12 months applies to commercial use and 24 months applies to private use and commences on the day of purchase of the device.

The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period.

The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are

Service

Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label. Please enter it here for future reference

Serial No.:

Art. No:

Year of production:

Tel.: [phone] / 700-360

Fax: [phone]

E-Mail: [e-mail]

Disposal

Note to the disposal arising from icons placed on the appliance or on the package. Description of the meanings can be found in section "Marking".

Do not dispose of electrical appliances in the ehold waste.

According to European Directive 2002/96/EC on waste electrical and electronic equipment and transposition to the national law, worn electrical equipment must be collected separately and put to recycling.

Recycling alternative to the return requirement:

As an alternative to recycling, the owner of the electrical equipment is obliged to provide assistance in professional recycling. For this purpose, an old appliance can be put to a collection centre that will dispose of it in accordance with the national circulation management and the Waste Act.

This does not apply to accessories connected to old appliances and auxiliary equipment without electrical components.

Transport packaging disposal

The packaging protects the appliance against damage during transport. Packaging materials are usually chosen according to environmental-friendliness and waste treatment aspects and can therefore be recycled. Returning the packaging to material circulation saves raw materials and reduces waste. Parts of packaging (e.g. foils, styrofoam ^® ) can be dangerous to children. Risk of suffocation! Keep the packaging out of reach of children and dispose them as quickly as possible.

Inspection and maintenance plan

Generally Whole appliance		Regularly clean the outer partLet regularly checked by authorized workshopCheck for cracks and fissuresLet regularly sharpen
	Plastic bodyKnife/cutter bar
Before any start-up ON/OFF switchPower supply cable		Functional testFunctional test
After every take out of service	Knife/cutter bar protection Use Knife/cutter bar protection
storage Whole appliance To be cleaned and the knife barslightly lubricated.To be safely stored in a cold room. Have it checked in a specialised workshop.

Failures - Causes - Removal

Failures Causes Removal
Cutting scissors not working.	Broken cableAppliance is defectiveInternal cables are defective	Consult with the customer service centreConsult with the customer service centreConsult with the customer service centre
Unsteady running, strong vibrations	Appliance is defective Consult with the customer service centre

Risk of injury if the On/Off button is pressed unintentionally.

Entretien

EC-DECLARATION OF CONFORMITY

We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives. In case of any change to the appliance not discussed with us the Declaration expires.

DECLARATION CE DE CONFORMITE

PROHLASENI O SHODE EU

2006/95/EC 2004/108/EC

2009/105/EC 1907/2006/EC

2011/65/EC ROHS 2009/142/EC

89/686/EEC (PPE) 1935/2004/EC

□ □

2006/42/EC

Annex IV

Notified Body:

Reg. No.:

2000/14/EC_2005/88/EC

Noise: guaranteed LWA 102 dB (A)

97/6 8/EC_

Emission No.:

Wolpertshausen, Nov 11st,2013

10.0% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 1

45.5%

\( {\mathrm{A}}_{1} = {2\pi } + {2\pi } + {2\pi } + {2\pi } + {2\pi } + {2\pi } + {2\pi } + {2\pi } + {2\pi } + {2\pi } + {2\pi } + {2\pi } + {2\pi } + {2\pi } + {2\pi } + {2\pi } + {2\pi } + {2\sigma } + {2\sigma } + {2\sigma } + {2\sigma } + {2\sigma } + {2\sigma } + {2\sigma } + {2\sigma } + {2\sigma } + {2\sigma } + {2\sigma } + {2\sigma } + {2\sigma } + {2\sigma } + {2\sigma } + {2\sigma } + {2\sigma } + {3\sigma } + {3\sigma } + {3\sigma } + {3\sigma } + {3\sigma } + {3\sigma } + {3\sigma } + {3\sigma } + {3\sigma } + {3\sigma } + {3\sigma } + {3\sigma } + {3\sigma } + {3\sigma } + {3\sigma } + {3\sigma } + {3\sigma }+{3\sigma }+{3\sigma }+{3\sigma }+{3\sigma }+{3\sigma }+{3\sigma }+{3\sigma }+{3\sigma }+{3\sigma }+{3\sigma }+{3\sigma }+{3\sigma }\;{\mathrm{A}}_{1} = {\mathrm{A}}_{1} - {\mathrm{A}}_{1} - {\mathrm{A}}_{1} - {\mathrm{A}}_{1} - {\mathrm{A}}_{1} - {\mathrm{A}}_{1} - {\mathrm{A}}_{1} - {\mathrm{A}}_{1} - {\mathrm{A}}_{1} - {\mathrm{A}}_{1} - {\mathrm{A}}_{1} - {\mathrm{A}}_{1} -{\mathrm{A}}_{1} - {\mathrm{A}}_{1} - {\mathrm{A}}_{1} - {\mathrm{A}}_{1} - {\mathrm{A}}_{1} - {\mathrm{A}}_{1} - {\mathrm{A}}_{1} - {\mathrm{A}}_{1} - {\mathrm{A}}_{1} - {\mathrm{A}}_{1} - {\mathrm{A}}_{1} - {\textbf{\textit{\footnotesize}}}^{* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *

10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

GÜDE GmbH & Co. KG

Birkichstrasse 6

74549 Wolpertshausen

Deutschland
