USER MANUAL TA-VE610 SONY

Integrated AV Amplifier

Operating Instructions ____ EN

To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.

Precautions

On safety

- Should any solid object or liquid fall into the cabinet, unplug the amplifier and have it checked by qualified personnel before operating it any further.

On power sources

• Before operating the amplifier, check that the operating voltage is identical with your local power supply. The operating voltage is indicated on the nameplate at the rear of the amplifier.
• The amplifier is not disconnected from the AC power source as long as it is connected to the wall outlet, even if the amplifier itself has been turned off.
• If you are not going to use the amplifier for a long time, be sure to disconnect the amplifier from the wall outlet. To disconnect the AC power cord, grasp the plug itself; never pull the cord.
  • One blade of the plug is wider than the other for the purpose of safety and will fit into the wall outlet only one way. If you are unable to insert the plug fully into the outlet, contact your dealer.
• AC power cord must be changed only at the qualified service shop.

On placement

• Place the amplifier in a location with adequate ventilation to prevent heat buildup and prolong the life of the amplifier.
• Do not place the amplifier near heat sources, or in a place subject to direct sunlight, excessive dust or mechanical shock.
• Do not place anything on top of the cabinet that might block the ventilation holes and cause malfunctions.

On operation

- Before connecting other components, be sure to turn off and unplug the amplifier.

On cleaning

- Clean the cabinet, panel and controls with a soft cloth slightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzine.

If you have any question or problem concerning your amplifier, please consult your nearest Sony dealer.

About This Manual

The instructions in this manual are for model TA-VE610.

Conventions

• The instructions in this manual describe the controls on the amplifier. You can also use the controls on the remote if they have the same or similar names as those on the amplifier.
• A "Quick Reference Guide" is supplied on page 29.
• The "Remote Button Descriptions" section on page 26 provides an overview of the remote buttons.
• The following icons are used in this manual:

Indicates that you can use only the remote to do the task.

Indicates hints and tips for making the task easier.

This amplifier incorporates the Dolby* Pro Logic Surround system.

* Manufactured under license from Dolby Laboratories Licensing Corporation. DOLBY, the double-D symbol ☐ and "PRO LOGIC" are trademarks of Dolby Laboratories Licensing Corporation.

TABLE OF CONTENTS

Getting Started

Unpacking 4

Hookup Overview 4

Audio Component Hookups 5

Speaker System Hookups 5

TV/VCR Hookups 7

AC Hookups 8

Before You Use Your Amplifier 9

Basic Operations

Selecting a Component 9

Indexing Program Sources 12

Recording 13

Using the Sleep Timer 14

Dolby Surround Setup

Dolby Pro Logic 14

Sound Adjustment

Using Pre-programmed Sound Fields 16

Customizing the Sound Fields 17

Advanced Remote Operations

Operating One Component While Using Another (background operation) 19

Changing the Factory Setting of a FUNCTION Button 20

Additional Information

Troubleshooting 21

Specifications 22

Glossary 23

Table of Functions of the SET UP Button 24

Rear Panel Descriptions 25

Remote Button Descriptions 26

Index 28

Quick Reference Guide 29

Unpacking

Check that you received the following items with the amplifier:

• Remote commander (remote) RM-U501 (1)
  • Size AA (R6) batteries (2)

Inserting batteries into the remote

Insert two size AA (R6) batteries with the + and - on the battery compartment. When using the remote, point it at the remote sensor R on the amplifier.

Diagram showing a device transitioning from a battery to a control panel with arrows indicating direction (no text or symbols present)

When to replace batteries

Under normal use, the batteries should last for about 6 months. When the remote no longer operates the amplifier, replace both batteries with new ones.

Notes

• Do not leave the remote in an extremely hot or humid place.
• Do not use a new battery with an old one.
• Do not expose the remote sensor to direct sunlight or lighting apparatuses. Doing so may cause a malfunction.
• If you don't use the remote for an extended period of time, remove the batteries to avoid possible damage from battery leakage and corrosion.

Hookup Overview

The amplifier allows you to connect and control the following audio/video components. Follow the hookup procedures for the components that you want to connect to the amplifier on the pages specified. To learn the locations and names of each jacks, see "Rear Panel Descriptions" on page 25.

Before you get started

• Turn off the power to all components before making any connections.
• Do not connect the AC power cords until all of the connections are completed.
• Be sure to make connections firmly to avoid hum and noise.
• When connecting an audio/video cable, be sure to match the color-coded pins to the appropriate jacks on the components: Yellow (video) to Yellow; White (left, audio) to White; and Red (right, audio) to Red.

Audio Component Hookups

Overview

This section describes how to connect your audio components to the amplifier.

What cords will I need?

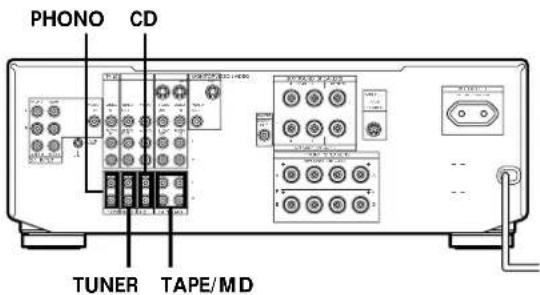

Audio cords (not supplied) (1 for each CD player, tuner, and turntable; 2 for each tape deck or MD deck)

Hookups

The arrow indicates signal flow.

CD player

Tuner

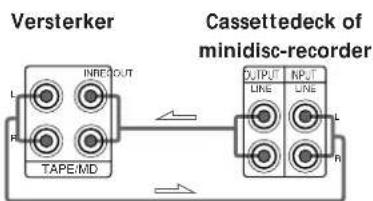

Tape deck or MD deck

Turntable

If your turntable has an earth lead

To prevent hum, connect the earth lead to the SIGNAL GND terminal on the amplifier.

Speaker System Hookups

Overview

This section describes how to connect your speakers to the amplifier. Although front (left and right) speakers are required, center and rear speakers are optional. Adding center and rear speakers will enhance the surround effects. Connecting an active woofer will increase bass response.

What cords will I need?

- Speaker cord (not supplied) (1 for each speaker)

Twist the stripped ends of the cord about 2/3 inch (15 mm). Be sure to match the speaker cord to the appropriate terminal on the components: + to + and - to -. If the cords are reversed, the sound will be distorted and will lack bass.

• Monaural audio cord (not supplied) (1 for an active woofer)

Getting Started

Hookups

Front speakers

To connect the speaker cords

Rear and center speakers

Active woofer

Amplifier Active woofer

Wireless rear speaker

When using an optional Sony wireless rear speaker system, connect the transmitter to the WIRELESS REAR SPEAKER jack.

Note

Do not connect any other component to the WIRELESS REAR SPEAKER jack.

If you have an additional front speaker system

Connect them to the FRONT SPEAKERS B terminals.

Note

If you use front speakers with low maximum power input, adjust the volume carefully to avoid excessive output on the speakers.

Speaker placement

For optimum surround sound effect, place your speakers as shown below.

Selecting the speaker system

If you connect only one set of front speakers, set the SPEAKERS selector on the front panel to A. If you connect two sets of front speakers, see the following:

To drive	Set SPEAKERS selector to
Speaker system A (connected to the FRONT SPEAKERS A terminals)	A
Speaker system B (connected to the FRONT SPEAKERS B terminals)	B

Both speaker systems A and B(parallel connection)

A+B

TV/VCR Hookups

Overview

This section describes how to connect video components to the amplifier.

What cables will I need?

- Audio/video cable (not supplied) (1 for each TV or LD player; 2 for each VCR)

• Video cable (not supplied) (1 for a TV monitor)

Yellow

Yellow

If you want to watch higher quality video images

You can connect an S-VIDEO cable (not supplied) to the VIDEO 1, VIDEO 3, or MONITOR jack.

Hookups

The arrow indicates signal flow.

TV monitor

If you use a TV monitor, do not connect anything to the TV/LD VIDEO IN jack.

If you have two VCRs, connect the second one to the VIDEO 2 jacks.

Video camera recorder or video game

Use the VIDEO 3 INPUT jacks on the front panel.

TV or LD player

If you have an additional TV or LD player, connect it to the VIDEO 2 jacks.

(Continued)

Getting Started

You can play decoded Dolby Digital (AC-3) soundtracks through the speakers connected to the amplifier

If you have a Dolby Digital (AC-3) decoder, you can use the amplifier to amplify a decoded Dolby Digital (AC-3) soundtrack with the following connections. Refer to the instruction manual supplied with your Dolby Digital (AC-3) decoder.

Amplifier

AC Hookups

Connecting the AC power cord

Connect the AC power cord from this amplifier and from your audio/video components to a wall outlet. If you connect another audio component to AC OUTLET on the amplifier, the amplifier can supply power to the connected component so you can turn on/off whole system when you turn on/off the amplifier.

Caution

Make sure that the power consumption of the component connected to amplifier's AC OUTLET does not exceed the wattage stated on the rear panel. Do not connect high-wattage electrical home appliances such as electric irons, fans, or TVs to this outlet.

Before You Use Your Amplifier

Before you start using your amplifier, make sure that you have:

• Turned MASTER VOLUME to the leftmost position (0).
• Selected the appropriate speaker system. (For details, see "Selecting the speaker system" on page 6.)
• Set BALANCE to the center position.

Turn on the amplifier and check the following indicator.

- Press MUTING on the remote if "MUTING" appears in the display.

Clearing the amplifier's memory

Before you use your amplifier for the first time or when you want to clear the amplifier's memory, do the procedure below.

1 Turn off the amplifier.
2 Press down VIDEO FUNCTION, AUDIO FUNCTION >MODE, and POWER simultaneously. The contents of the memory (e.g., parameter settings) are erased.

Selecting a Component

To listen to or watch a connected component, first select the function on the amplifier or with the remote. Before you begin, make sure you have:

• Connected all components securely and correctly as indicated on pages 4 to 8.
• Turned MASTER VOLUME to the leftmost position (0) to avoid damaging your speakers.

1 Press POWER to turn on the amplifier. The STANDBY indicator turns off.
2 Select the component you want to use:

To watch or listen to	Press (repeatedly)	To light up
Video tapes	VIDEO FUNCTION	VIDEO 1 or VIDEO 2
Video camera recorder or video game	VIDEO FUNCTION	VIDEO 3
Laser discs	VIDEO FUNCTION	TV/LD
TV programs	VIDEO FUNCTION	TV/LD
Audio tapes	AUDIO FUNCTION	TAPE/MD
MiniDiscs (MD)	AUDIO FUNCTION	TAPE/MD
Compact Discs (CD)	AUDIO FUNCTION	CD

(Continued)

To watch or listen to	(repeatedly)	To light upPress
Radio programs	AUDIO FUNCTION	TUNER
Records	AUDIO FUNCTION	PHONO

3 Turn on the component, for example, a CD player, and then start playing.
4 Turn MASTER VOLUME to adjust the volume. To adjust the volume of the TV's speakers, use the volume control on the TV.

To play the decoded Dolby Digital (AC-3) program source connected to the 5.1 INPUT jacks

Press 5.1 INPUT so that the 5.1 INPUT indicator lights up.

To Do this

Mute the sound | |	Press MUTING on the remote. Press again to restore the sound.
Reinforce the bass Press BASS BOOST to turn on the BASS BOOST indicator
Adjust the balance of front speakers	Turn BALANCE left or right

When you listen with headphones

Connect the headphones to the PHONES jack and set SPEAKERS to OFF.

When you want to enjoy high quality sound

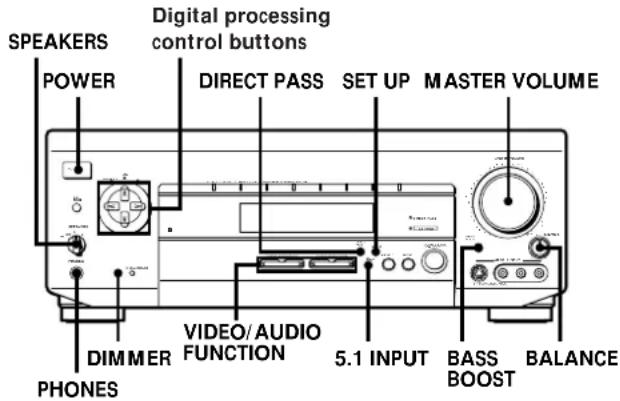

Press DIRECT PASS (or DIRECT on the remote) to bypass the tone controls, bass reinforcement, and surround effects.

The DIRECT PASS indicator lights up.

To select another component when a decoded Dolby digital (AC-3) program source is selected

Press VIDEO/AUDIO FUNCTION to turn off the 5.1 INPUT indicator.

Note

BASS BOOST, DIRECT PASS, and SOUND FIELD ON/OFF buttons do not operate when the 5.1 INPUT indicator is on.

You can adjust the brightness of the display

Press DIMMER repeatedly to select the brightness.

Watching TV/video programs

To watch Do this

TV programs Turn on both the TV and the amplifierand press VIDEO FUNCTIONrepeatedly until the TV/LD indicatorlights up

Videos or laser discs 1 Press VIDEO FUNCTION repeatedly to select the component (for example,VIDEO 1).2 Turn on the TV and set the TV's video input to match your video component.3 Turn on the component (VCR or LD player), and start playback.

When you watch TV or video programs

We recommend you play audio portion through the amplifier instead of your TV's speakers. This lets you take advantage of the amplifier's surround sound effects, like Dolby Surround, and lets you use the amplifier's remote to control the audio. Turn off the speakers on your TV before you start so you can enjoy the surround sound from your amplifier.

Using the remote

The remote lets you operate the amplifier and the Sony components that are connected to it.

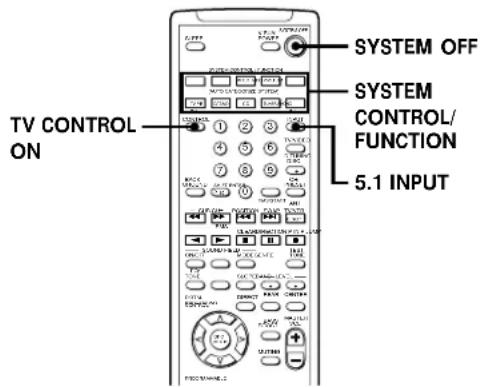

1 Press one of the SYSTEM CONTROL/

FUNCTION buttons to select the component you want to use.

The amplifier and the selected component turn on. The SYSTEM CONTROL/FUNCTION buttons on the remote are factory-set as follows:

To play	Press
Video tapes	VIDEO 1 (VTR 3^* ),VIDEO 2 (VTR 1^* ) orVIDEO 3 (VTR 2^* )
Laser discs	LD
TV programs	TV
Audio tapes	TAPE
MiniDiscs (MD)	DAT/MD
Compact Discs (CD)	CD
Radio programs	TUNER
Records	PHONO

* Sony VCRs are operated with a VTR 1, 2, or 3 setting that corresponds to Beta, 8mm, and VHS, respectively.

Note

Pressing a SYSTEM CONTROL/FUNCTION button will activate the component indicated for that button (i.e., the component connected to the respective connector). If, however, the connected component is different from the one indicated for the button, the component will not be activated when the button is pressed only once.

For example, to watch Sony LD player connected to the VIDEO 2 jacks (page 7):

Press VIDEO 2 to switch the function, then press LD to set the remote control to operate the LD player.

To play the decoded Dolby Digital (AC-3) program source connected to the 5.1 INPUT jacks

Press 5.1 INPUT so that the 5.1 INPUT indicator on the main unit lights up.

If you want to change the factory setting of a button

See page 20.

If the component does not turn on

Press the power switch on the component.

2 Start playing.

See "Remote Button Descriptions" on page 26 for details.

To turn off the components

Press SYSTEM OFF. This will also turn off the video/audio component connected to AC OUTLET on the back of this unit at the same time.

If you use a Sony TV

When you press TV to watch a TV program, the TV turns on and switches to the TV input. The TV also turns on automatically and switches to the appropriate video input when you press VIDEO 1 or VIDEO 2. If the TV does not switch to the appropriate input automatically, press TV/VIDEO on the remote.

Watching TV without the amplifier (for Sony TVs only)

Press TV CONTROL ON to set the remote to operate TV functions only. When you press this button, the TV turns on and switches to the TV input. If the TV does not automatically switch to the TV input, press TV/VIDEO.

(Continued)

To select another component when a decoded Dolby digital (AC-3) program source is selected

Press any SYSTEM CONTROL/FUNCTION button to turn off the 5.1 INPUT indicator on the main unit.

Making components selectable/unselectable

You can do these settings so that certain components become unselectable even if you press AUDIO/VIDEO FUNCTION.

1 Press SET UP repeatedly to select FUNC HOOK UP.
2 Use the digital processing control buttons ( ∧ ∨) to select a component.
3 Use the digital processing control buttons ( K ) to select -Y- (selectable) or -N- (unselectable).

Note

If you try to select the component which is set to -N- by using the remote, "CANNOT USE" appears in the display.

Indexing Program Sources

You can enter a name of up to 8 characters for program sources. These index names (for example, "VHS") appear in the amplifier's display when a program source is selected.

Note that no more than one name can be entered for each program source.

This function is useful for distinguishing components of the same kind; 2 VCRs, for example, can be specified as "VHS" and "8MM," respectively. It is also handy for identifying components connected to jacks meant for another type of component; for example, a second CD player connected to the TUNER jacks.

1 Select the program source (component) to be named.
2 Press DPC MODE repeatedly until the INDEX indicator lights up.
3 Create an index name by using the digital processing control buttons as follows:

Press ∧ or ∨ to select a character, and then press

to move the cursor to the next position.

The index name is stored automatically.

To insert a space

Press ∠r until a blank space appears in the display (the space is between "l" and "A").

If you've made a mistake

Press or repeatedly until the character you want to change flashes. Then select the right character.

To assign index names to other sources

Repeat the procedure above.

You can display either the program source name or component originally meant for the selected jacks Each time you press DISPLAY, the display switches between the component originally meant for the selected jacks and the program source name.

You can create an index name for the component connected to the 5.1 INPUT jacks

Press 5.1 INPUT and do the procedure on page 12 starting from Step 2.

Recording

This amplifier makes it easy to record to and from the components connected to the amplifier. You don't have to connect playback and recording components directly: once you select a program source on the amplifier, you can record and edit as you normally would using the controls on each component.

Before you begin, make sure you've connected all components properly.

: Audio signal flow

→: Video signal flow

Recording on an audio tape or MiniDisc

You can record on a cassette tape or MiniDisc using the amplifier. See the instruction manual of your cassette deck or MD deck if you need help.

1 Select the component to be recorded.
2 Set the component to be ready for playing. For example, insert a CD into the CD player.
3 Insert a blank tape or an MD into the recording deck and adjust the recording level, if necessary.

4 Start recording on the recording deck and then start playing the component.

Note

Sound adjustments do not affect the signal output from the TAPE/MD RECOUT jacks.

Recording on a video tape

You can record from a VCR, a TV, or an LD player using the amplifier. You can also add audio from a variety of audio sources when editing a video tape. See your VCR or LD player's instruction manual if you need help.

1 Select the program source to be recorded.
2 Set the component to be ready for playing. For example, insert the laser disc you want to record from into the LD player.
3 Insert a blank video tape into the VCR (VIDEO 1 or VIDEO 2) for recording.
4 Start recording on the recording VCR and then start playing the video tape or laser disc you want to record.

You can record sound from a different audio source onto a video tape while copying from a video tape or laser disc

Locate the point where you want to start recording from another audio source, select the program source, then start playback. The audio from that source will be recorded onto the audio track of the video tape instead of the audio from the original.

To resume audio recording from the original, select the video source again.

Notes

• You cannot record audio from a program source connected to the 5.1 INPUT jacks.
• Sound adjustments do not affect the signal output from the VIDEO 1, 2 AUDIO OUT jacks.

Using the Sleep Timer

You can set the amplifier to turn off automatically at a time you specify.

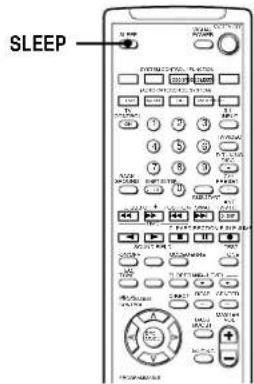

Press SLEEP on the remote while the power is on.

Each time you press SLEEP, the time changes as shown below.

The display dims after you specify the time.

You can freely specify the time

Press SLEEP first, then specify the time you want using the digital processing control buttons ( or ). The sleep time changes in 1 minute intervals. You can specify up to 5 hours.

You can check the time remaining before the amplifier turns off

Press SLEEP. The remaining time appears in the display.

Dolby Pro Logic

To obtain the best possible Dolby Pro Logic Surround sound, first select the center mode according to your speaker system. Then, adjust the sound parameters of the PRO LOGIC sound field.

Note that you must have at least one additional pair of speakers and/or one center speaker to do the following adjustments.

Selecting the center mode

The amplifier offers you four center modes: PHANTOM, 3 CH LOGIC, NORMAL, and WIDE. Each mode is designed for a different speaker configuration. Select the mode that best suits your speaker system configuration.

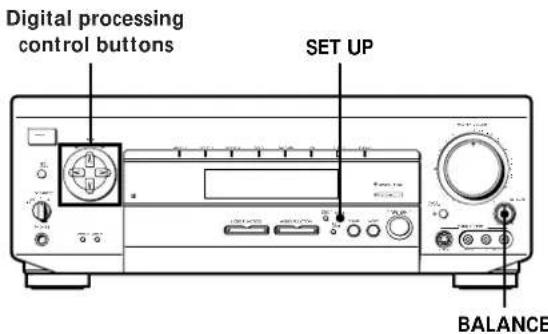

1 Press SET UP on the main unit repeatedly to select CTR MODE.
2 Use the digital processing control buttons ( ∧

∨ / ◀ )▶ to select the center mode you want by referring to the following table.

If you have So thatSelect

Front and rear speakers, no center speaker	PHANTOM The sound of the center channel is output from the front speakers
Front and center speakers, no rear speaker	3 CH LOGIC (3 Channel Logic)	The sound of the rear channel is output from the front speakers
Front and rear speakers, and a small center speaker	NORMAL The bass sound of the center channel is output from the front speakers (because a small speaker cannot produce enough bass)
Front and rear speakers, and a center speaker equivalent to your front speakers	WIDE You can obtain “complete” Dolby Pro Logic Surround sound

Adjusting the speaker volume

The test tone feature lets you set the volume of your speakers to the same level. (If all of your speakers have equal performance, you don't have to adjust the speaker volume.)

Using the controls on the remote lets you adjust the volume level from your listening position.

1 Do Steps 1 to 3 on page 16 to select the PRO LOGIC sound field.
2 Make sure the center mode setting is correctly made (see the table on this page).
3 Press TEST TONE on the remote. You will hear the test tone from each speaker sequentially.
4 Adjust the volume levels so that you hear the test tone from each speaker at the same volume level when you are in your listening position:

• To adjust the balance of the front right and front left speakers, use the BALANCE control on the front of the main unit.
• To adjust the level of center speaker, press CENTER LEVEL + or - on the remote.
• To adjust the level of rear speakers, press REAR LEVEL + or - on the remote.

5 Press TEST TONE on the remote to turn off the test tone.

You can adjust all the speakers at one time

Press MASTER VOL + or - on the remote.

You can increase the output level of the rear speakers

You can raise the output of the rear speakers by 5 dB. When turning on the amplifier, press POWER and MODE simultaneously to display "GAIN UP." To return the output level to normal, repeat this procedure to display "GAIN NORM."

(Continued)

Dolby Surround Setup Sound Adjust

ent

What is the test tone?

Signal given out by the amplifier for adjusting the speaker volume. The test tone will come out as follows:

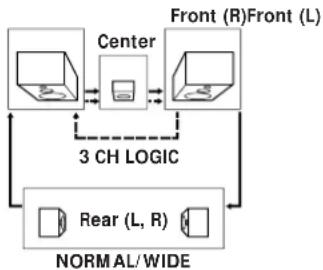

- In a system with a center speaker (NORMAL/WIDE/3 CH LOGIC modes)

The test tone is output from the front L (left), center, front R (right), and rear speakers in succession.

- In a system without a center speaker (PHANTOM mode)

The test tone is output from the front and the rear speakers alternately.

Using Pre-programmed Sound Fields

You can take advantage of surround sound simply by selecting one of the pre-programmed sound fields according to the program you want to play.

1 Press SOUND FIELD ON/OFF to turn on the sound field.
One of the indicators lights up in the display.
2 Press GENRE to select the type of sound field you desire.
3 Press MODE to select the mode you desire from the respective genre.

Select the appropriate sound field according to the chart on page 17.

To play without surround effects

Select "ACOUSTIC" from MUSIC. The surround effects are defeated but you can still adjust the tone parameter (see page 18).

To turn off the sound fields

Press SOUND FIELD ON/OFF.

You can find Dolby Surround-encoded software by looking at the packaging

However, some videos and laser discs may use Dolby Surround sound even if it's not indicated on the package.

Note

Sound fields are turned off whenever the program source connected to the 5.1 INPUT jacks is selected.

Sound fields

GENRE MODE To
PRO LOGIC*	PRO LOGIC	Decode programs processed with Dolby Surround
	ENHANCED	Provide additional output to the rear speakers after decoding the Dolby Surround program
MOVIE	C(INEMA) STUDIO A	Reproduce the acoustics of a sound stage of a studio producing regular movies
	C(INEMA) STUDIO B	Reproduce the acoustics of a sound stage of a studio producing SFX or action movies with lots of sound effects
	THEATER	Add the acoustic reflections of a theater to decoded Dolby Surround signals
	MONO MOVIE	Create a theater-like environment from movies with monaural soundtracks
MUSIC	HALL	Reproduce the acoustics of a hall
	JAZZ CLUB	Reproduce the acoustics of a jazz club
	ACOUSTIC**	Reproduce normal 2 channel stereo. (No surround effects)
SPORTS	STADIUM	Reproduce the feeling of a large open-air stadium. Great for sporting events or electric sounds.
GAME	GAME	Obtain maximum audio impact from video game software

* Be sure to adjust the volume level of the center and/or rear speakers to get the most out of the Dolby Pro Logic Surround Sound (page 15).
**The hookups of the center and/or rear speakers are unnecessary.

Customizing the Sound Fields

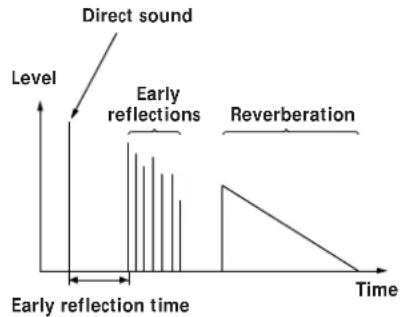

Each sound field is composed of a tone parameter (bass/treble) and surround sound parameters — variables of sound that create the sound image. You can customize the sound fields by adjusting some of the sound parameters to suit your listening situation.

Once you customize the sound fields, they are stored in memory unless the amplifier is unplugged for about 1 week. To change a customized sound field, make new adjustments to the sound field.

Adjustable parameters for each sound field

GENRE	MODE	TONE	EFFECT	REAR	CENTER	DELAY
PRO LOGIC	PRO LOGIC	●		●*	●**	●
	ENHANCED	●		●*	●**	●
MOVIE	C STUDIO A	●	●	●*	●**
	C STUDIO B	●	●	●*	●**
	THEATER	●	●	●*	●**
	MONO MOVIE	●	●	●
MUSIC	HALL	●	●	●
	JAZZ CLUB	●	●	●
	ACOUSTIC	●
SPORTS	STADIUM	●	●	●
GAME	GAME	●	●	●

* Adjustable only when center mode is set to PHANTOM, NORMAL, or WIDE (see page 15).

**Adjustable only when center mode is set to 3 CH LOGIC, NORMAL, or WIDE (see page 15).

Note

The EFFECT parameter allows you to adjust the overall presence of the sound field.

Before you get started

To take advantage of Dolby Surround sound, go to "Dolby Pro Logic" on page 14. This section describes how to adjust the levels of your speaker system and customize the PRO LOGIC sound field.

Adjusting the tone parameter

Adjust the tone (bass or treble) of the front speakers for optimum sound. You can adjust the tone of all sounds fields, including Dolby Surround.

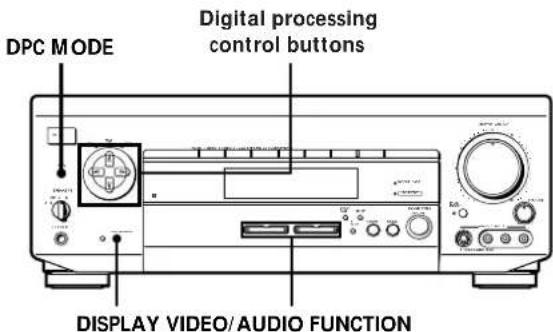

1 Press DPC MODE repeatedly until the TONE indicator lights up.
2 Use the digital processing control buttons ( ∧ ∨) to select BASS or TREBLE.
3 Use the digital processing control buttons ( K > ) to adjust the tone level.
The adjusted tone level is stored automatically.

You can turn off the tone adjustments without erasing them

The tone adjustments and on/off setting are stored separately for each sound field. Press DPC MODE repeatedly to turn off the TONE indicator.

Adjusting the delay time

You can make the surround sound more effective by delaying the output from the rear speakers (delay time). You can select a delay time of 15 ms (S), 20 ms (M), and 30 ms (L). Set a short delay time when the rear speakers are located in a large room or far from your listening position.

1 Start playing a program source encoded with Dolby surround sound.
2 Press DPC MODE repeatedly until the SUR indicator lights up.
3 Use the digital processing control buttons ( ∧ ∨) to select the delay time. The current delay time appears in the display.
4 Use the digital processing control buttons ( K > ) to adjust the delay time.

Adjusting surround sound parameters

Change the surround parameters to fit your listening situation. See the chart on page 17 for parameters you can adjust in each sound field.

To adjust the parameters of the PRO LOGIC sound field, see "Dolby Pro Logic" on page 14.

1 Press DPC MODE repeatedly until the SUR indicator lights up.
2 Use the digital processing control buttons ( ∧ ∨) to select the parameter you want.
3 Use the digital processing control buttons ( > ) to adjust the level of the parameter. The adjusted parameters are stored automatically.

Note

If you make new adjustments to a sound field, the previous settings are replaced by the new ones.

Resetting customized sound fields to the factory settings

1 If the power is on, press POWER to turn off the power.
2 Hold down SOUND FIELD ON/OFF and press POWER.

"SURR CLEAR" appears in the display and all the sound fields are reset at once.

Operating One Component While Using Another (background operation)

You can temporarily operate other components while listening to or watching a program.

1 Hold down BACKGROUND.
2 Press both the corresponding button of the component you're going to use (see the table below) and one of the following buttons at the same time; VISUAL POWER, TV/VIDEO, CH/PRESET +/-, ANT TV/VTR, D.SKIP, ▶, ◀, ■, ◀◀/▶▶, I◀◀/▶▶, II, ●.

Example: To start recording on a tape deck while listening to a CD While holding down BACKGROUND, press 4 (or 5) and press ● + ▶ at the same time.

The following buttons correspond to the components.

The button	Corresponds to
1	CD player
2	DAT deck
3	MD deck
4	Tape deck A
5	Tape deck B
6	LD player
7	VCR (remote control mode VTR 1*)
8	VCR (remote control mode VTR 2*)
9	VCR (remote control mode VTR 3*)
>10	DBS (Digital Broadcasting System) tuner

* Sony VCRs are operated with a VTR 1, 2 or 3 setting that corresponds to Beta, 8mm, and VHS, respectively.

Changing the Factory Setting of a FUNCTION Button

If the factory settings of the SYSTEM CONTROL/FUNCTION buttons (page 11) don't match your system components, you can change them. For example, if you connect a Sony LD player to the VIDEO 2 jacks, you can assign the VIDEO 2 button to set the remote to control the LD player.

Note that the settings of the TUNER and PHONO buttons cannot be changed.

1 Hold down the SYSTEM CONTROL/FUNCTION button whose function you want to change (VIDEO 2, for example).
2 Press the corresponding numeric button of the component you want to assign to the SYSTEM CONTROL/FUNCTION button (6 - LD player, for example).

For the numeric buttons, see the table in

"Operating One Component While Using

Another" on page 19.

Now you can use the VIDEO 2 button to control your Sony LD player.

To reset the setting to the factory setting

Repeat the above procedure.

Troubleshooting

If you experience any of the following difficulties while using the amplifier, use this troubleshooting guide to help you remedy the problem. Should any problem persist, consult your nearest Sony dealer.

There's no sound or only a very low-level sound is heard.

→ Check that the speakers and components are connected securely.
→ Make sure you select the correct component on the amplifier.
→ Make sure you set the SPEAKERS selector correctly (see page 6).
→ Press MUTING on the remote if "MUTING" is shown in the display.
The protective device on the amplifier has been activated because of a short circuit. Turn off the amplifier, eliminate the short-circuit problem and turn on the power again.

The left and right sounds are unbalanced or reversed.

→ Check that the speakers and components are connected correctly and securely.
→ Adjust the BALANCE control.

Severe hum or noise is heard.

→ Check that the speakers and components are connected securely.
→ Check that the connecting cords are away from a transformer or motor, and at least 10 feet (3 meters) away from a TV set or fluorescent light.
→ Place your TV away from the audio components.
→ Make sure you connect a ground wire to the m SIGNAL GND terminal.
The plugs and jacks are dirty. Wipe them with a cloth slightly moistened with alcohol.

No sound is heard from the center speaker.

→ Select a PRO LOGIC or MOVIE (except MONO MOVIE) sound field (see pages 16 and 17).
→ Select the appropriate center mode (see page 15).
→ Adjust the speaker volume appropriately (see page 15).

A component cannot be selected.

→ Check the FUNC HOOK UP setting of the component (see page 12).

Recording cannot be made.

→ Check that the components are connected correctly.
→ Select the source component with the VIDEO/AUDIO FUNCTION buttons.
→ You cannot record audio from a program source connected to the 5.1 INPUT jacks (see page 13).

No sound or only a very low-level sound is heard from the rear speakers.

→ Select the appropriate center mode (see page 15).
→ Adjust the speaker volume appropriately (see page 15).
→ Make sure you turned on the sound field.

Surround effect cannot be obtained.

→ Turn on the sound field.
→ Make sure that the SPEAKERS selector is set to A or B when you use two sets of front speakers.

No picture or an unclear picture appears on the TV screen or on the monitor.

→ Select the appropriate function on the amplifier.
→ Set your TV to the appropriate input mode (press TV/VIDEO on the remote for Sony TVs).
→ Place your TV away from the audio components.

The remote does not function.

→ Point the remote at the remote sensor R on the amplifier.
→ Remove the obstacles in the path of the remote and the amplifier.
→ Replace both batteries in the remote with new ones if they are weak.
→ Make sure you select the correct function on the remote.
→ Pressing TV CONTROL ON sets the remote to operate the TV only. In this case, press one of the SYSTEM CONTROL/FUNCTION buttons before operating the amplifier (etc.).
→ Press POWER on the main unit to turn on the amplifier and check the FUNC HOOK UP setting of the component you want to use. If the component is set to -N-, the amplifier and the component will not turn on when you press respective SYSTEM CONTROL/FUNCTION button.

Specifications

Amplifier section

POWER OUTPUT

Stereo mode (4 ohms at 1 kHz, THD 0.7%)

100W + 100W

Surround mode (4 ohms at 1 kHz, THD 0.7%)

Front: 100 W/ch

Center*: 100 W

Rear*: 100 W/ch

*Depending on the sound field settings and the source, sound will not be output.

5.1 mode (4 ohms at 1 kHz, THD 0.7%)

Front: 100 W/ch

Center: 100 W

Rear: 100 W/ch

Harmonic distortion at rated output

Less than 0.09% (with DIRECT PASS on)

Frequency response

PHONO: RIAA equalization curve

±0.5 dB

CD, TAPE/MD, VIDEO 1, 2:

10 Hz - 50 kHz ^+0_-1 dB (with DIRECT PASS on)

Inputs

	Sensitivity	Impedance	S/N (weighting network, input level)
PHONO	2.5 mV 50 kilohms		75 dB*(A, 2.5 mV)
CD	200 mV	50 kilohms	82 dB*(A, 200 mV)
TAPE/MD, VIDEO 1, 2,3, TV/LD, TUNER	150 mV	50 kilohms	82 dB*(A, 150 mV)
5.1 INPUT	200 mV 50 kilohms		82 dB*(A, 150 mV)

* '78 IHF

Outputs VIDEO 1, 2 AUDIO OUT:

Voltage: 150 mV

Impedance: 10 kilohms

WOOFER:

Voltage: 2 V

Impedance: 1 kilohms

PHONES:

Accepts low and high impedance headphones

BASS BOOST +10 dB at 70 Hz

TONE ±8 dB at 100 Hz and 10 kHz

Video section

Inputs 1 Vp-p 75 ohms

Outputs 1 Vp-p 75 ohms

General

System Preamplifier section:

Low-noise NF type equalizer

Power amplifier section:

Pure-complementary SEPP

Power requirements

230 V AC, 50/60 Hz

Power consumption

240 W

AC outlets 1 switched, maximum

100 W

Dimensions

430 · 155 · 350 mm

including projecting parts and controls

Mass (Approx.) 9.8 kg

Supplied accessories

See page 4.

Design and specifications are subject to change without notice.

Glossary

Center mode

Setting of speakers to enhance Dolby Pro Logic Surround mode. To obtain the best possible surround sound, select one of the four center modes (page 15) according to your speaker system.

Delay time

Time lag between the surround sound output from front speakers and rear speakers. By adjusting the delay time of the rear speakers, you can obtain the feeling of presence. Make the delay time longer when you have placed the rear speakers in a small room or close to your listening position, and make it shorter when you have placed them in a large room or apart from your listening position.

Dolby Digital (AC-3)

This is a new digital surround system proposed to reproduce Dolby SR-D (the 3 dimensional sound system developed for use in movie theaters) in the home. This technology allows you to enjoy the full 5.1 ch soundtrack intended by the filmmaker, in the comfort of your own home.

Dolby Pro Logic Surround

Decoding system of Dolby Surround sound standardized in TV programs and movies. Compared with the former Dolby Surround system, Dolby Pro Logic Surround improves sound image by using four separate channels: off-screen audio effects, on-screen dialog, left-to-right panning, and music. These channels manipulate the sound to be heard and enhance the action as it happens on the screen. To take advantage of Dolby Pro Logic, you should have at least one pair of rear speakers and/or one center speaker. You also need to select the appropriate center mode to enjoy a full effect.

Effect level

Combination of the level of early reflections and reverberation. You can adjust the effect level in 6 levels. As you select higher levels, the room becomes "live," and as you select lower levels, the room becomes "dead."

5.1 INPUT jacks

These jacks are used to input decoded Dolby Digital (AC-3) audio signals, allowing you to enjoy 5.1 channel surround sound. Use these jacks to connect a Dolby Digital (AC-3) decoder or a DVD player with a built-in (AC-3) decoder.

Parameter

Variable of sound that composes sound image, such as tone or delay time. You can customize the pre-programmed sound fields by adjusting parameters to suit your listening situation.

Sound field

Sound pattern produced by a sounding source or sources in a given environment due to direct and reflected sounds and the acoustics of the environment.

Surround sound

Sound that consists of three elements: direct sound, early reflected sound (early reflections) and reverberative sound (reverberation). The acoustics where you hear the sound affect the way these three sound elements are heard. These sound elements are combined in such a way that you can actually feel the size and the type of a concert hall.

• Types of sound


• Transition of sound from rear speakers

Table of Functions of the SET UP Button

You can make various settings using the SET UP button on the main unit and the digital processing control buttons. Operations related to each menu are explained in the previous sections. The table below describes how to access each menu.

Press SET UP repeatedly to select*	Press ∧ or ∨ to select	Then press < or > to select	See page
CTR MODE PHANTOM — 15
	3 CH LOGIC
	NORMAL
	WIDE
FUNC HOOK UP VIDEO 1 -Y- or -N- 12
	VIDEO 2
	TV/LD
	TAPE
	DAT/MD
	CD
	TUNER
	PHONO

* "USE CURSOR" appears in the display after 4 seconds you press the SET UP button.

Rear Panel Descriptions

Remote Button Descriptions

Page numbers in parentheses refer to procedures that use the remote button. In these procedures, the remote button is either required or used in place of a main-unit button with the same function and name (or a similar name). Refer to the table on the next page for an explanation of remote buttons not indicated below or for remote buttons without a corresponding button on the main unit.

1 SLEEP (14)
② SYSTEM OFF (11)
③ SYSTEM CONTROL/ FUNCTION (9 to 14, 20)
4 5.1 INPUT (11, 13)
5 TV/VIDEO (11)
6 TEST TONE (15)
7 CENTER LEVEL +/− (15)

⑧ REAR LEVEL +/− (15)
9 BASS BOOST (10)
10 MASTER VOL +/− (10, 15)
11 MUTING (10)
12 DPC MODE (12, 18)
13 DIGITAL PROCESSING CONTROL (12, 14, 15, 18)
14 DIRECT (10)

15 EQ/TONE (18)
16 SOUND FIELD ON/OFF/GENRE/MODE (16)
17 BACKGROUND (19)
18 Numeric buttons (19, 20)
19 TV CONTROL ON (11)

Remote Button	Operates Function Remote
0-9, >10 Tuner Selects preset numbers.
	CD player/MD deck/LD player	Selects track numbers. 0 selects track 10.
	TV/VCR Selects channel numbers.
CH/PRESET +/-	Tuner Scans and selects preset stations.
		Selects preset channels.TV/VCR
	CD playerDISC	Selects discs (CD player with multi-disc changer only).
D.TUNING Tuner Selects the direct tuning mode.
	CD playerD. SKIBkips discs (CD player with multi-disc changer only).
SHIFT	Tuner Selects the memory bank.
◀◀/▶▶ CD player Searches tracks (forward or backward).
	deck/VCR/LD player	Fast forwards or rewinds.Tape de
I◀◀/▶▶I	CD player/ MD deck/LD player	Skips tracks.
II	CD player/ Tape deck/MD deck/LD player/VCR	Pauses play or record. (Also starts recording with components in record standby.)
▶	CD player/ Tape deck/MD deck/LD player/VCR	Starts play.
■	CD player/ Tape deck/MD deck/LD player/VCR	Stops play.
◀	Tape deck Starts play on the reverse side.
●	Tape deck Sets tape decks to the record standby mode.
●+▶	Tape deck/MD deck/VCR	Starts recording when pressed with ▶ (or ◀ on tape deck).

Button	Operates Function
RMS DIRECTION	Tape deck Selects tape direction (tape decks with the RMS* function only).
RMS CLEAR Tape deck Clears RMS * program (tape decks with the RMS function only).
RMS DIRECTION◀/▶	Tape deck Programs tracks (tape deck with the RMS* function only).
ENTER	TV/VCR/CD player	Changes channels/discs when used with 0-9.
VISUAL POWER	player	Turns on or off the power.TV/VCR/LD
	TV-/--	Selects the channel entry mode, either one or two digit (in Europe only).
	TVSUB CH +/-	Selects preset channels for the small picture.**
k/MD	TVPOSITION	Changes the position of the small picture.**
	TVSWAP	Swaps the small and the large picture.**
	TVP IN P	Activates the picture-in-picture function.**
	TVJUMP	Jumps back and forth between the previous and current channels.
	VCRANT TV/VRElects output signal from the antenna terminal: TV signal or VCR program.
+/-	TVMASTER VOINormally, adjusts the master volume of the amplifier.If TV CONTROL ON was pressed, it adjusts the volume on the TV.
	TVMUTING	Normally, mutes the sound from the amplifier.If TV CONTROL ON was pressed, the sound on the TV itself is muted.
		Not applicable.—SLOPE
		Not applicable.—BAND

* RMS: Random Music Sensor
** Only for Sony TVs with the picture-in-picture function

A

Adjusting delay time 18 speaker volume 15 surround sound parameters 18 tone parameter 18

B

Background operation 19 Battery 4

C

Center mode 15,23 Connecting. See Hookups Customizing remote 20 sound field 17,18

D

Delay time 18, 23 Dolby Pro Logic Surround 14-16, 23 Dolby Surround setup 14, 15 Dubbing. See Recording

E, F, G

Editing. See Recording Effect level 17, 23

H

Hookups AC power cord 8 audio components 5 overview 4 speakers 5,6 TV/VCRs 7,8

I, J, K

Indexing program source 12

L

Labeling. See Indexing program source

M, N, O

Making components selectable/unselectable 12

P, Q

Parameter 17, 18, 23

R

Recording on an audio tape or MD 13 on a video tape 14 Remote background operation 19 changing the setting 20

S

Selecting a component on the main unit 9 using the remote 11 Selecting the center mode 15 Sleep timer 14 Sound field adjustable parameters 17 customizing 17, 18 pre-programmed 16, 17, 23 resetting 19 Speakers connection 5, 6 placement 6 selecting speaker system 6 Supplied accessories 4 Surround sound 14, 15, 23

T

Test tone 16

U, V

Unpacking 4

W, X, Y, Z

Watching TV/video programs 10

Names of controls

Buttons

BACKGROUND 19 BASS BOOST 9 CENTER LEVEL +/- 14 DIMMER 9 DIRECT PASS 9 DISPLAY 12 DPC MODE 12, 17 GENRE 16 MODE 9, 16 MUTING 10 REAR LEVEL +/- 14 SET UP 9, 14 SLEEP 14 SOUND FIELD ON/OFF 16, 17 SYSTEM CONTROL/ FUNCTION 11, 20 SYSTEM OFF 11 TEST TONE 14 TV CONTROL ON 11 VIDEO/AUDIO FUNCTI 9, 12, 13 </> /( ^digital processin control) 9, 12, 14, 17 Numeric buttons 19, 20 5.1 INPUT 9, 11

Switch and selector

Connectors and terminals

FRONT SPEAKERS A/B 5 SIGNAL GND 5 SURROUND SPEAKERS (CENTER/REAR) 5

Controls

BALANCE 9,14 MASTER VOLUME 9

Jacks

CD 5 MONITOR 7 PHONES 9 PHONO 5 TAPE/MD 5 TUNER 5 TV/LD 7 VIDEO 1/2/3 7 WIRELESS REAR SPEAKER 5 WOOFER 5 5.1 INPUT 8

Indicators

BASS BOOST 10
DIRECT PASS 10
INDEX 12
STANDBY 9
SUR 18
TONE 18
5.1 INPUT 12

Other

AC OUTLET 8 R 4

Selecting a Component

Example1: Playing a CD

Press repeatedly until the CD indicator lights up.

Turn on the CD player.

Start playing.

Example2: Watching a video tape

Press repeatedly until the VIDEO 1 indicator lights up.

Turn on the VCR.

Start playing.

Using Pre-programmed Sound Fields

Example: Watching a Dolby Surround-encoded movie on a laser disc player connected to TV/LD

Press repeatedly until the TV/LD indicator lights up.

Press repeatedly to select PRO LOGIC.

Press repeatedly to select PRO LOGIC or ENHANCED.

Turn on the LD player.

Start playing.

AVERTISSEMENT

Diagram showing a device transitioning from a labeled component to a closed electrical box with four terminals (no text or symbols present)

GENRE	MODE	TONE	EFFECT	REAR	CENTER	DELAY
PRO LOGIC	PRO LOGIC	●		●*	●**	●
	ENHANCED	●		●*	●**	●
MOVIE	C STUDIO A	●	●	●*	●**
	C STUDIO B	●	●	●*	●**
	THEATER	●	●	●*	●**
	MONO MOVIE	●	●	●
MUSIC	HALL	●	●	●
	JAZZ CLUB	●	●	●
	ACOUSTIC	●
SPORTS	STADIUM	●	●	●
GAME	GAME	●	●	●

SOUND FIELD ON/OFF 16,

SYSTEM CONTROL/FUNCTION 11,20

Diagram showing a device transitioning from a battery to a motor (no text or symbols present)

Aansluitingen

Cassettedeck of minidisc-recorder

Platenspeler

GENRE	MODE	TONE	EFFECT	REAR	CENTER	DELAY
PRO LOGIC	PRO LOGIC	●		●*	●*	●
	ENHANCED	●		●*	●*	●
MOVIE	C STUDIO A	●	●	●*	●*
	C STUDIO B	●	●	●*	●*
	THEATER	●	●	●*	●*
	MONO MOVIE	●	●	●
MUSIC	HALL	●	●	●
	JAZZ CLUB	●	●	●
	ACOUSTIC	●
SPORTS	STADIUM	●	●	●
GAME	GAME	●	●	●

Schakel de videorecorder in.

INNEHÅLLSFÖRTECKNING

Förberedelser

Uppackning 4

Diagram showing a device transitioning from a battery pack to a cable, with arrows indicating direction (no text or symbols present)

GENRE	MODE	TONE	EFFECT	REAR	CENTER	DELAY
PRO LOGIC	PRO LOGIC	●		●*	●*	●
	ENHANCED	●		●*	●*	●
MOVIE	C STUDIO A	●	●	●*	●*
	C STUDIO B	●	●	●*	●*
	THEATER	●	●	●*	●*
	MONO MOVIE	●	●	●
MUSIC	HALL	●	●	●
	JAZZ CLUB	●	●	●
	ACOUSTIC	●
SPORTS	STADIUM	●	●	●
GAME	GAME	●	●	●

Surroundljud 14, 15, 23

T

Testton 16 Titta på TV/videoprogram 10

U

Uppackning 4

V, X, Y, Z, Å
