USER MANUAL TA-FE210 SONY

Integrated Stereo Amplifier

Operating Instructions ____ EN

To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.

Precautions

On safety

• Do not disassemble the cabinet as this may result in an electrical shock. Refer servicing to qualified personnel only.
• Should any solid object or liquid fall into the cabinet, unplug the amplifier and have it checked by qualified personnel before operating it any further.

On power sources

• Before operating the amplifier, check that the operating voltage of the amplifier is identical with your local power supply. The operating voltage is indicated on the nameplate at the rear of the amplifier.
• The amplifier is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the amplifier itself has been turned off.
• If you are not going to use the amplifier for a long time, be sure to disconnect the amplifier from the wall outlet. To disconnect the AC power cord (mains lead), grasp the plug itself; never pull the cord.
• AC power cord must be changed only at the qualified service shop.

On placement

• Place the amplifier in a location with adequate ventilation to prevent heat built-up and prolong the life of the amplifier.
• Do not place the amplifier near heat sources, or in a place subject to direct sunlight, excessive dust or mechanical shock.
• Do not place anything on top of the cabinet that might block the ventilation holes and cause malfunctions.

On operation

Before connecting other components, be sure to turn off and unplug the amplifier.

On cleaning the amplifier

Clean the cabinet, panel and controls with a soft cloth slightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzine.

On the prevention of howling

Do the following:
—lower the volume.
—keep the turntable as far from the speakers as possible.
—use commercially available audio insulators on the bottom of the turntable.
—keep the microphone away from the speakers during use.

For further protection against howling, set the speakers or turntable on top of a heavy wooden board or concrete slab.

If you have any questions or problems concerning your amplifier, please consult your nearest Sony dealer.

Welcome!

Thank you for purchasing the Sony Integrated Stereo Amplifier. Before operating the amplifier, please read this manual thoroughly and retain it for future reference.

About This Manual

The instructions in this manual are for models TA-FE910R, FE710R, FE610R, FE510R, FE310R, and FE210. Check your model number by looking at the rear panel of your amplifier. The TA-FE910R is the model used for illustration purposes unless stated otherwise. Any difference in operation is clearly indicated in the text, for example, "TA-FE910R/FE710R/FE610R only."

Type of differences

Feature\Model	FE310RFE5208
Operability on the remote commander	●	●
AUX jacks	●	●
SOURCE DIRECT button and indicator	●	●
Switched AC outlets	●*	●*
FON reception	●
Tape monitor function	●
SUBSONIC button
SPEAKERS selector

* Unavailable on U.K. models

Note that all of the above features are provided on the TA-FE910R, FE710R, and FE610R.

Conventions

• Instructions in this manual describe the controls on the amplifier. For details on the remote buttons control (unavailable on the TA-FE210), see "Remote Button Descriptions" on page 12.

- The following icon is used in this manual:

Indicates hints and tips for making the task easier.

TABLE OF CONTENTS

Getting Started

Hookup Overview 4

Audio Component Hookups 4

Speaker System Hookups 5

Mains Lead Hookups 6

Listening to the Music 7

Recording 9

Additional Information

Troubleshooting 10

Specifications 10

Rear Panel Descriptions 12

Remote Button Descriptions (TA-FE910R/FE710R/FE610R/FE510R/

FE310R only) 12

Unpacking (TA-FE910R/FE710R/FE610R/FE510R/FE310R only)

Check that you have received the following supplied items:

• Remote commander (remote) (1)
  For TA-FE910R/FE710R/FE610R: RM-S316
  For TA-FE510R/FE310R: RM-S315

- Sony batteries SUM-3 (NS) (2)

Inserting batteries into the remote

Insert two size-AA (R6) batteries, matching the + and - on the batteries with the markings inside the battery compartment. When using the remote, point it at the remote control sensor on the amplifier.

When to replace batteries

With normal use, the batteries should last for about 6 months. When the remote no longer operates the amplifier, replace all the batteries.

Notes

• Do not leave the remote near an extremely hot or humid place.
• Do not drop any foreign object into the remote casing, particularly when replacing the batteries.
• Do not expose the remote sensor to direct sunlight or lighting equipment. Doing so may cause a malfunction.
• If you don't use the remote for an extended period of time, remove the batteries to avoid possible damage from battery leakage and corrosion.

Hookup Overview

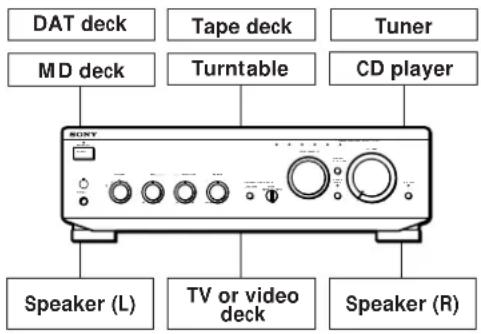

The amplifier allows you to connect and control the following audio components. Follow the hookup procedure indicated for each component that you want to connect.

To learn the location and name of each jack, see "Rear Panel Descriptions" on page 12.

Before you get started

• Turn off the power to all components before making any connections.
• Do not connect the mains leads of the various components until all connections are completed.
• Use the audio connecting cords supplied with each component for hooking up with the amplifier. Purchase and use optionally available cords as required.
• Be sure to make connections firmly to prevent hum and noise.
• When connecting an audio connecting cord, be sure to match the R (right) and L (left) jacks of the amplifier to the R and L jacks on the other components.

Audio Component Hookups

Overview

Here you learn how to connect your audio components to the amplifier.

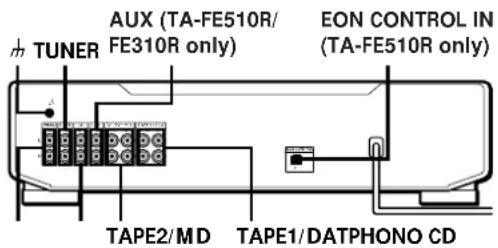

• TA-FE910R/FE710R/FE610R

• TA-FE510R/FE310R/FE210

What cords will I need?

Audio connecting cord (not supplied) (2 for each tape deck, DAT deck, or MD deck; 1 for other components)

Hookups

The arrow indicates signal flow.

Note

The jacks on the TA-FE510R are shown in the following illustrations.

Tape deck, DAT deck, or MD deck

Use the configuration above to connect the OUTPUT and INPUT jacks of:

—a tape deck or DAT deck to the TAPE1/DAT jacks.

—a tape deck or MD deck to the TAPE2/MD jacks.

Turntable

1 Remove the shorting plugs from the PHONO jacks before connecting the cables (but not unless you connect a turntable).

Do not attach the shorting plugs to any set of the REC OUT jacks. Doing so may stop output from the amplifier or cause the unit to malfunction.

2 Connect the audio connecting cords.

Amplifier Turntable

Note

To prevent hum, connect the earth lead to SIGNAL GND (h) on the amplifier.

TV or video deck (TA-FE910R/FE710R/FE610R/FE510R/FE310R only)

Amplifier TV or video deck

EON CONTROL (TA-FE910R/FE710R/FE610R/FE510R only)

Amplifier

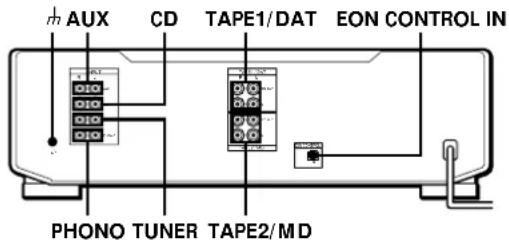

If your tuner is equipped with an EON CONTROL OUT terminal, connect it to the EON CONTROL IN terminal on the amplifier to allow use of the EON (Enhanced Other Networks) function of the RDS (Radio Data System) (see page 8).

Speaker System Hookups

Overview

Here you learn how to connect speakers to the amplifier. You can connect two pairs of speakers, SPEAKERS A and B (TA-FE910R/FE710R/FE610R only).

• TA-FE910R/FE710R/FE610R
SPEAKERS A SPEAKERS B

• TA-FE510R/FE310R

SPEAKERS

• TA-FE210

SPEAKERS

What cords will I need?

Speaker cord (not supplied) (1 for each speaker)

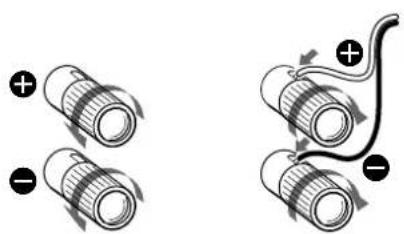

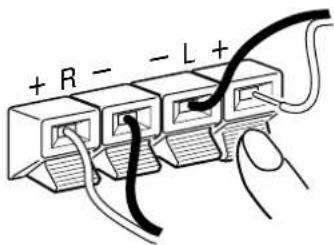

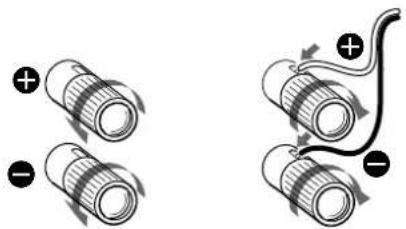

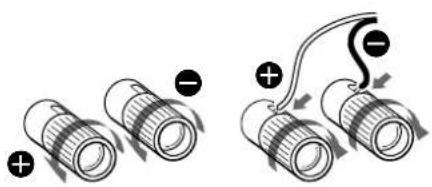

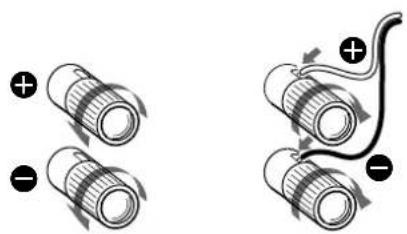

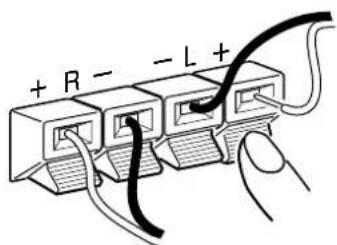

Twist the stripped ends of the cord about 15mm. Be sure to match the speaker cord to the appropriate terminal on the components: + to + and - to -. If the cords are reversed, the sound will be distorted and will lack bass.

Getting Started

Hookups

• TA-FE910R/FE710R/FE610R

• TA-FE510R/FE310R

• TA-FE210

Connecting to bi-wire system speakers (TA-FE910R/FE710R/FE610R only)

Since the two pairs of speaker terminals on your amplifier, SPEAKERS A and B, can provide simultaneous speaker output, you can use them to connect a bi-wire speaker system. To drive both speaker systems simultaneously, set SPEAKERS to A+B.

To select the speaker system A or B

Set SPEAKERS to A or B. To drive both speaker systems simultaneously, set SPEAKERS to A+B.

Note

Use speakers with a nominal impedance of 4 to 16 ohms. When outputting at the same time to two speaker systems, use speakers with a nominal impedance of 8 to 16 ohms.

Mains Lead Hookups

Connecting the mains lead

Connect the mains lead from this amplifier and from your audio/video components to wall outlets.

You can power other components through AC OUTLET on the amplifier (unavailable on the TA-FE510R (U.K. model), FE310R (U.K. model), and TA-FE210)

By connecting other audio components to AC OUTLET on the amplifier, you can supply power to the connected components through the amplifier and turn them all on or off when you turn the amplifier on or off.

Caution

Make sure that the total power consumption of all components connected to the outlets on the amplifier does not exceed 100 watts. Do not connect electrical home appliances such as an electric iron, fan, TV, or other high-wattage appliances to these outlets.

Note

Separate the mains lead, audio connecting cords and speaker cords. Noise or sound deterioration may occur when audio connecting cords are in contact with the mains lead, or when the mains lead or speaker cords are placed near the tuner's loop aerial or aerial wire.

Listening to the Music

1

If POWER is pressed down (TA-FE510R/FE310R only)

You can turn the amplifier on and off by pressing POWER on the remote.

To listen through the headphones

Connect the headphones to PHONES and set SPEAKERS to OFF (TA-FE910R/FE710R/FE610R only).

To listen directly to the input signal (TA-FE910R/FE710R/FE610R/FE510R/FE310R only)

Press SOURCE DIRECT so that the indicator lights up. Since the circuits of TONE controls, BALANCE control, LOUDNESS button, and SUBSONIC button (TA-FE910R/FE710R/FE610R only) are bypassed, you cannot adjust bass, treble, the balance, reinforce the bass and treble, or reduce subsonic noise components while listening to a source directly.

Note

Avoid high speaker output at which the sound is distorted. High-frequency distortion may damage the tweeters.

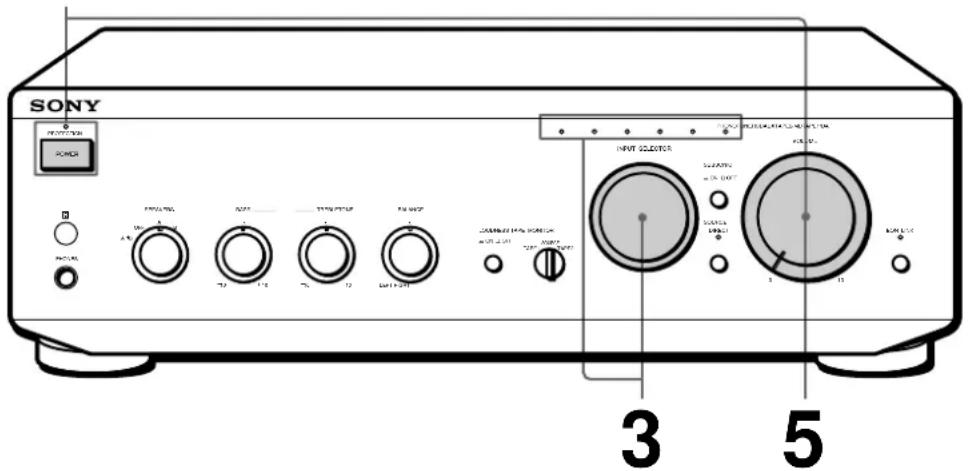

1 Press POWER to turn on the amplifier and turn VOLUME fully counterclockwise to prevent damaging the speakers with excessive output.

The PROTECTION indicator lights up, then goes off (TA-FE910R/FE710R/FE610R only).

2 Turn on the programme source you want to listen to.

3 Set INPUT SELECTOR to the respective programme source. The indicator for the programme source lights up.

To listen to a	Turn INPUT SELECTOR for
Record	PHONO
Radio broadcast	TUNER
Compact disc	CD
Source connected to AUX	AUX (unavailable on the TA-FE210)
Source connected to:—TAPE1/DAT—TAPE2/MD	TAPE1/DATTAPE2/MD

4 Start the programme source.

5 Adjust the volume by turning VOLUME.

To	Press or turn
Adjust the bass	BASS
Adjust the treble	TREBLE
Adjust the balance	BALANCE
Reinforce the bass and treble at low listening level	LOUDNESS
Reduce subsonic noise components created by warped records, etc.	SUBSONIC (TA-FE910R/FE710R/FE610R only)

What is the Enhanced Other Networks (EON)?

One convenient RDS service is "Enhanced Other Networks" (or "EON"). This allows the unit to automatically switch to a programme type of your choice when one starts in your broadcast area.

To receive the Enhanced Other Networks (EON) programmes (TA-FE910R/FE710R/FE610R/FE510R only)

When your amplifier is connected to a Sony tuner with the EON CONTROL system, the amplifier switches to any EON programme that is broadcast in your EON area, and switches back to the last selected programme source when the programme ends.

1 Make sure that the amplifier and the tuner are connected through the EON CONTROL terminals (see page 5).

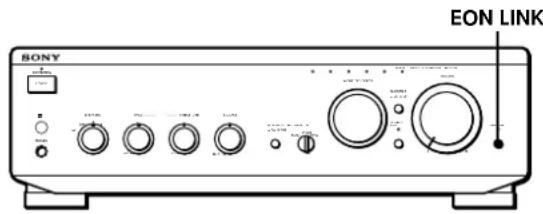

2 Press EON LINK so that the indicator lights up. Whenever an EON programme starts on the radio frequency that your tuner is set to, you will receive it.

To cancel EON reception

Press EON LINK again so that the indicator goes off.

Notes

• If you select another programme source while receiving an EON programme, EON reception ends. However, as long as the EON LINK indicator lights up, you can receive EON programmes automatically.
• Make sure to cancel EON reception before starting to record since an EON programme may interfere with your recording.
• If you activate the Tape Monitor function (see page 9) while the EON LINK indicator is lit, the indicator goes off and you cannot receive EON programmes. If this happens, deactivate the Tape Monitor function so that the indicator lights up again.

Recording

You can record the same source on two recording components at the same time

You can monitor the recorded sound (Tape Monitor function) (TA-FE910R/FE710R/FE610R/FE510R only)

You can monitor the recorded sound if the tape deck you are recording on has separate playback and recording heads.

To monitor the sound, set TAPE MONITOR to TAPE1 or TAPE2 (TA-FE910R/FE710R only) or press TAPE1 MONITOR (TA-FE610R/FE510R only).

Note that on the TA-FE610R/FE510R, you can monitor the only sound being recorded from the TAPE1/DAT jacks.

1 Press POWER to turn on the amplifier.

2 Turn on the programme source you want to record.

3 Select the programme source that you want to record by turning INPUT SELECTOR.

The indicator for the programme source lights up.

To record a	Set INPUT SELECTOR to
Record	PHONO
Radio broadcast	TUNER
Compact disc	CD
Source connected to AUX	AUX (unavailable on the TA-FE210)
Source connected to:—TAPE1/DAT—TAPE2/MD	TAPE1/DATTAPE2/MD

4 Prepare the recording component for recording, then start recording.

5 Start playing the programme source.

Troubleshooting

If you experience any of the following difficulties while using the amplifier, use this troubleshooting guide to help you remedy the problem. Should any problem persist, consult your nearest Sony dealer.

No sound output.

→ Connect the audio connecting cords firmly.
→ Connect the amplifier and other audio components correctly.
→ Turn INPUT SELECTOR to the appropriate programme source.

No audio from one channel or unbalanced speaker output.

→ Turn BALANCE to adjust the balance.
→ Check the speaker and input connections of silent channel.

Weak bass or treble.

→ Adjust the TONE controls.
→ Change speaker positions or room conditions to eliminate obstructions in sound path.

Distorted sound.

→ Improperly selected input signal.
→ Insufficient input capacity of speakers. Lower the volume.

Lack of bass or ambiguity in instrument positions.

→ Speaker cord and terminal polarity are reversed. Reconnect the cords with correct polarity.

Hum or noise.

→ Ground the turntable system (see page 5).
→ Connect the audio connecting cords firmly.
The amplifier is picking up interference from a TV set. Move the amplifier away from the TV set or turn the TV set off.

The remote does not function (TA-FE910R/FE710R/FE610R/FE510R/FE310R only).

→ Remove any obstructions between the remote control sensor on the amplifier and the remote.
→ Point the remote towards the remote sensor on the front of the amplifier.
→ The remote is too far from the amplifier. Move closer to the amplifier.
→ Replace the batteries in the remote.

The PROTECTION indicator lights up (TA-FE910R/FE710R/FE610R only) and/or sudden loss of audio.

→ Check if a short-circuit has occurred. Turn off the amplifier and check the connected components and speakers.

Specifications

Amplifier section

DIN power output

TA-FE910R: 120 W + 120 W (4 ohms at 1 kHz) 80 W + 80 W (8 ohms at 1 kHz)
TA-FE710R: 100 W + 100 W (4 ohms at 1 kHz)
65 W + 65 W (8 ohms at 1 kHz)
TA-FE610R: 80 W + 80 W (4 ohms at 1 kHz)
60 W + 60 W (8 ohms at 1 kHz)
TA-FE510R: 80 W + 80 W (4 ohms at 1 kHz)
60 W + 60 W (8 ohms at 1 kHz)
TA-FE310R: 55 W + 55 W (4 ohms at 1 kHz)
45 W + 45 W (8 ohms at 1 kHz)
TA-FE210: 45 W + 45 W (8 ohms at 1 kHz)

Total harmonic distortion

TA-FE910R/FE710R/FE610R: Less than 0.008% (at 10 W output)

Frequency response

PHONO (20 Hz - 20 kHz): RIAA equalization curve ±0.5 dB
TUNER, CD AUX (unavailable on the TA-FE210), TAPE1/DAT, TAPE2/MD
TA-FE910R/FE710R/FE610R: 7 Hz - 100 kHz ⁺⁰-3 dB
TA-FE510R/FE310R/FE210: 7 Hz - 70 kHz 3⁺⁰ dB

S/N (network A)

PHONO
TA-FE910R/FE710R: 94 dB
TA-FE610R: 90 dB
TA-FE510R/FE310R/FE210: 80 dB
TUNER, CD, AUX (unavailable on the TA-FE210),
TAPE1/DAT, TAPE2/MD: 105 dB

Output voltage / impedance

REC OUT
TA-FE910R/FE710R/FE610R: 150 mV, 1 kilohm
TA-FE510R/FE310R/FE210: 200 mV, 1 kilohm PHONES
TA-FE910R/FE710R/FE610R: 10 mW (at 8 ohms)
TA-FE510R/FE310R/FE210: 5 mW (at 8 ohms)

Speakers impedance

TA-FE910R/FE710R/FE610R/FE510R/FE310R: 4 - 16 ohms, 8 - 16 ohms (SPEAKERS A+B)

TA-FE210: 8 - 16 ohms

Damping factor

TA-FE910R/FE710R/FE610R: 100 (8 ohms, 1 kHz) TA-FE510R/FE310R/FE210: 80 (8 ohms, 1 kHz)

General

System

Power amplifier: Pure-complementary SEPP OCL power amplifier with all stages directly coupled Preamplifier: Low-noise, equalizer amplifier

Power requirements

TA-FE910R/FE710R: 230 V AC, 50/60 Hz TA-FE610R/FE510R/FE310R/FE210: 220 - 230 V AC, 50/60 Hz

Power consumption

TA-FE910R: 265 W TA-FE710R: 220 W TA-FE610R: 180 W TA-FE510R: 160 W TA-FE310R/FE210: 120 W

Dimensions (approx.) (w/h/d)

TA-FE910R/FE710R/FE610R: 430 · 135 · 365 mm TA-FE510R/FE310R: 430 · 105 · 300 mm TA-FE210: 430 · 105 · 290 mm incl. projecting parts and controls

Mass (approx.)

TA-FE910R: 7.4 kg TA-FE710R: 7.0 kg TA-FE610R: 6.4 kg TA-FE510R: 4.8 kg TA-FE310R: 4.3 kg TA-FE210: 4.1 kg

Supplied accessories

Remote commander (remote) (1) RM-S316 (TA-FE910R/FE710R/FE610R only) RM-S315 (TA-FE510R/FE310R only) Sony batteries SUM-3 (NS) (2) (TA-FE910R/FE710R/FE610R/FE510R/FE310R only)

Design and specifications are subject to change without notice.

Rear Panel Descriptions

• TA-FE910R

• TA-FE510R

• TA-FE210

1 (SIGNAL GND)
2 AUX (unavailable on the TA-FE210)
3 CD
4 TUNER
5 PHONO
6 TAPE2/MD
7 TAPE1/DAT
8 SPEAKERS (TA-FE510R/FE310R/FE210 only)
9 EON CONTROL IN (TA-FE910R/FE710R/FE610R/FE510R only)
10 SPEAKERS A/B (TA-FE910R/FE710R/FE610R only)
11 AC OUTLET (unavailable on the TA-FE510R (U.K. model), FE310R (U.K. model), and TA-FE210)
12 Mains lead

Remote Button Descriptions

(TA-FE910R/FE710R/FE610R/FE510R/

FE310R only)

You can use the supplied remote to control other Sony audio components equipped with the R (remote control sensor) mark.

Remote Button(s)	For operating the	Function
POWER (RM-S315 only)	Amplifier Turns the power on and off.
FUNCTIONCD	Amplifier Selects input signal from the CD jacks.
TUNER Amplifier Selects input signal from the TUNER jacks.
PHONO Amplifier Selects input signal from the PHONO jacks.
TAPE1/DAT Amplifier Selects input signal from the TAPE1/DAT jacks.
TAPE2/MD Amplifier Selects input signal from the TAPE2/MD jacks.
AUX Amplifier Selects input signal from the AUX jacks.
TUNERPRESET +/-	Tuner	Scans and selects preset stations.
CD▶	CD player Starts playback.
		Pauses playback.■ CD play
		Stops playback.■ CD play
◀◀/▶◀	CD player	Locates tracks (AMS*).
D.SKIP Skips a CD player CD player equipped with a multi-disc changer).
MD▶	MD deck	Starts playback.
	MD deck	Pauses playback.■
■	MD deck	Stops playback.
◀◀/▶◀	MD deck	Locates tracks.
TAPE DECK A/B◀◀/▶	Deck A or B Starts playback.
■ Deck A or B		Stops all tape operations.
◀◀/▶▶ Fast Dkwards Br rewinds the tape.
VOL +/- Amplifier Controls the volume.

*Automatic Music Sensor

AVERTISSEMENT

• TA-FE510R/FE310R/FE210

Raccordements

• TA-FE510R/FE310R

• TA-FE210

TA-FE910R/FE710R: 94 dB

TA-FE610R: 90 dB

TA-FE510R/FE310R/FE210: 80 dB

TA-FE910R/FE710R/FE610R/FE510R/FE310R:

4 - 16 ohms, 8 - 16 ohms (SPEAKERS A+B)

TA-FE210: 8 - 16 ohms

TA-FE910R/FE710R/FE610R: 100 (8 ohms, 1 kHz)

TA-FE510R/FE310R/FE210: 80 (8 ohms, 1 kHz)

Généralités

Système

TA-FE610R/FE510R/FE310R/FE210:

TA-FE310R/FE210: 120 W

Dimensions (approx.) (l/h/p)

TA-FE910R/FE710R/FE610R: 430 · 135 · 365 mm

TA-FE510R/FE310R: 430 · 105 · 300 mm

TA-FE210: 430 · 105 · 290 mm

Piles Sony SUM-3 (NS) (2) (TA-FE910R/FE710R/

FE610R/FE510R/FE310R seulement)

• TA-FE510R/FE310R/FE210

• TA-FE510R/FE310R

• TA-FE210

TA-FE910R: 120 W + 120 W (4 ohmios a 1 kHz)
80 W + 80 W (8 ohmios a 1 kHz)
TA-FE710R: 100 W + 100 W (4 ohmios a 1 kHz)
65 W + 65 W (8 ohmios a 1 kHz)
TA-FE610R: 80 W + 80 W (4 ohmios a 1 kHz)
60 W + 60 W (8 ohmios a 1 kHz)
TA-FE510R: 80 W + 80 W (4 ohmios a 1 kHz)
60 W + 60 W (8 ohmios a 1 kHz)
TA-FE310R: 55 W + 55 W (4 ohmios a 1 kHz)
45 W + 45 W (8 ohmios a 1 kHz)
TA-FE210: 45 W + 45 W (8 ohmios a 1 kHz)

TA-FE910R/FE710R: 94 dB

TA-FE610R: 90 dB

TA-FE510R/FE310R/FE210: 80 dB

TUNER, CD, AUX (no existe en TA-FE210), TAPE1/

DAT, TAPE2/MD: 105 dB

TA-FE910R/FE710R/FE610R/FE510R/FE310R:

4 - 16 ohmios, 8 - 16 ohmios (SPEAKERS A+B)

TA-FE210: 8 - 16 ohmios

TA-FE510R/FE310R/FE210: 80 (8 ohmios, 1 kHz)

Generales

Sistema

TA-FE910R: 265 W TA-FE710R: 220 W TA-FE610R: 180 W TA-FE510R: 160 W TA-FE310R/FE200: 120 W

Dimensiones (aprox.) (an/al/prf)

TA-FE910R/FE710R/FE610R: 430 · 135 · 365 mm TA-FE510R/FE310R: 430 · 105 · 300 mm TA-FE210: 430 · 105 · 290 mm Incl. partes y controles salientes

Masa (aprox.)

TA-FE910R: 7,4 kg
TA-FE710R: 7,0 kg
TA-FE610R: 6,4 kg
TA-FE510R: 4,8 kg
TA-FE310R: 4,3 kg
TA-FE210: 4,1 kg

• TA-FE510R/FE310R/FE210

• TA-FE510R/FE310R

• TA-FE210

TA-FE910R: 120 W + 120 W (4 ohms a 1 kHz)
80 W + 80 W (8 ohms a 1 kHz)
TA-FE710R: 100 W + 100 W (4 ohms a 1 kHz)
65 W + 65 W (8 ohms a 1 kHz)
TA-FE610R: 80 W + 80 W (4 ohms a 1 kHz)
60 W + 60 W (8 ohms a 1 kHz)
TA-FE510R: 80 W + 80 W (4 ohms a 1 kHz)
60 W + 60 W (8 ohms a 1 kHz)
TA-FE310R: 55 W + 55 W (4 ohms a 1 kHz)
45 W + 45 W (8 ohms a 1 kHz)
TA-FE210: 45 W + 45 W (8 ohms a 1 kHz)

TA-FE910R/FE710R: 94 dB

TA-FE610R: 90 dB

TA-FE510R/FE310R/FE210: 80 dB

TUNER, CD, AUX (excepto no TA-FE210), TAPE1/

DAT, TAPE2/MD: 105 dB

TA-FE510R/FE310R/FE210: 200mV, 1 kohm PHONES

TA-FE910R/FE710R/FE610R: 10 mW (a 8 ohms)

TA-FE510R/FE310R/FE210: 5 mW (a 8 ohms)

TA-FE910R/FE710R/FE610R/FE510R/FE310R:

4 - 16 ohms, 8 - 16 ohms (SPEAKERS A+B)

TA-FE210: 8 - 16 ohms

TA-FE910R/FE710R/FE610R: 100 (8 ohms, 1 kHz)

TA-FE510R/FE310R/FE210: 80 (8 ohms, 1 kHz)

Geral

Sistema

TA-FE910R: 265 W
TA-FE710R: 220 W
TA-FE610R: 180 W
TA-FE510R: 160 W
TA-FE310R/FE210: 120 W
