Product type	Cordless drill/driver
Brand	SKIL
Model	2321 AA
Battery voltage	18 V
Battery type	Lithium-ion (Li-ion)
No-load speed	0-450 / 0-1500 rpm (two speeds)
Max torque	35 Nm
Chuck capacity	1.5 - 10 mm (keyless)
Number of torque positions	15 + drilling position
Drilling in wood	Up to 25 mm
Drilling in steel	Up to 10 mm
Weight	1.1 kg (with battery)
Dimensions (L x W x H)	190 x 70 x 230 mm
Rotation direction	Reversible (left / right)
Lighting	Integrated LED
Handle	Ergonomic, rubberized
Power supply	Cordless, removable battery
Charger included	Yes, fast charger
Maintenance and cleaning	Clean with a slightly damp cloth, avoid solvents
Safety	Switch lock, chuck brake, overload protection
Spare parts available	Chuck, battery, charger, carbon brushes
Repairability	Repairability index of 7.5/10
Warranty	2 years

Frequently Asked Questions - 2321 AA SKIL

How to change the chuck on the SKIL 2321 AA drill/driver?

To change the chuck, loosen the screw in the chuck (counterclockwise) with a Torx screwdriver, then unscrew the entire chuck. Screw on the new chuck and tighten the screw. Make sure to lock the shaft with an Allen key.

How to adjust the torque setting?

Turn the torque adjustment ring located behind the chuck. The numbers (1 to 15) indicate the torque level. Set it to the number suitable for your screw to avoid damaging the material.

My battery does not hold a charge, what should I do?

Check that the battery is properly inserted and the contacts are clean. Test the battery condition with another charger. If it no longer charges, it probably needs to be replaced.

How to reverse the rotation direction?

Use the rotation direction switch located above the trigger. Push it left for clockwise rotation (screwing) and right for counterclockwise (unscrewing). Do not change direction while the motor is running to avoid damage.

The drill/driver no longer starts, what to check?

Make sure the battery is charged and engaged. Check the carbon brushes (wear/replace if < 6 mm). If the problem persists, consult an after-sales service.

What is the battery type and voltage?

The SKIL 2321 AA drill/driver uses a Lithium-ion 18 V battery. It is interchangeable with other tools in the same SKIL range.

How to clean the drill/driver after use?

Clean the housing with a soft, dry cloth. The ventilation slots can be dusted with a soft brush. Never use chemicals or water.

Can I use accessories from other brands?

Yes, provided they have a shank of 10 mm or less (universal chuck). For drills and bits, use models compatible with drill/drivers.

How to change the carbon brushes?

Unscrew the side caps of the motor (on each side). Remove the worn brushes and insert new ones respecting the direction. Replace the caps. This operation is necessary after approximately 100 hours of use.

The drill/driver heats up abnormally, is it serious?

Slight heating is normal during intensive use. If the heat is excessive, stop the tool and check the ventilation slots. A blockage can cause overheating of the motor. Let it cool before reusing.

USER MANUAL 2321 AA SKIL

Black and white photo of a SKIL electric drill with visible grip and handle (no text or symbols on the device body)

GB ORIGINAL INSTRUCTIONS 7
F NOTICE ORIGINALE 10
D ORIGINALBETRIEBSANLEITUNG 14
NL ORIGINELE GEBRUIKSAANWIJZING 18
S BRUKSANVISNING I ORIGINAL 22
DK ORIGINAL BRUGSANVISNING 26
N ORIGINAL BRUKSANVISNING 30
FIN ALKUPERÄISET OHJEET 33
E MANUAL ORIGINAL 37
P MANUAL ORIGINAL 41
I ISTRUZIONI ORIGINALI 45
H EREDETI HASZNÁLATI UTASÍTÁS 49
CZ PÜVODNÍM NÁVODEM K POUŽÍVÁNÍ 53
TR ORİJINAL İŞLETME TALİMATI 56
PL INSTRUKCJA ORYGINALNA 60
RU ПОДЛИННИК РУКОВОДСТВА ПО ЭКСПЛУАТАЦИИ 64

UA ОРИГІНАЛЬНА ІНСТРУКЦІЯ З ЕКСПЛУАТАЦІЇ 69
GR ΠΡΩΤΟΥΠΟ ΟΔΗΓΙΩΝ ΧΡΗΣΗΣ 73
RO INSTRUCTIUNI DE FOLOSIRE ORIGINALE 78
BG ОРИГИНАЛНО РЪКОВОДСТВО ЗА ЕКСПЛОАТАЦИЯ 82
SK PÔVODNÝ NÁVOD NA POUŽITIE 86
HR ORIGINALNE UPUTE ZA RAD 90
SRB ORIGINALNO UPUTSTVO ZA RAD 94
SLO IZVIRNA NAVODILA 97
EST ALGUPÄRANE KASUTUSJUHEND 101
LV ORIGINĀLĀ LIETOŠANAS PAMĀCĪBA 104
LT ORIGINALI INSTRUKCIJA 109
МК ИЗВОРНО УПАТСТВО ЗА РАБОТА 112
AL UDHËZIMET ORIGJINALE 117
AR دليل الاستعمال 126
④ RAHENMAI AUSLI 124

www.skil.com

① 2321

②

Icon of a person reading a book inside a circle (no text or symbols)

Simple line drawing of a house with an arrow indicating direction (no text or symbols)

Line drawing of a SKIL electric drill (no text or symbols on the device body)

Line drawing of a hand holding a SKL electric drill, with a light bulb and number 20 nearby (no text or symbols on the diagram itself)

Illustration of a hand using a power tool to install a grid panel, with a light bulb nearby (no text or symbols)

GB

Cordless drill/driver 2321

INTRODUCTION

• This tool is intended for drilling in wood, metal, ceramic and plastic; tools with electronic speed control and left/right rotation are also suitable for screwdriving and thread cutting
  • This tool is not intended for professional use
• The light of this power tool is intended to illuminate the power tool's direct area of working operation and is not suitable for household room illumination
• Read and save this instruction manual ③

TECHNICAL DATA ①

Max. torque for hard screwdriving application according to ISO 5393 : 25Nm

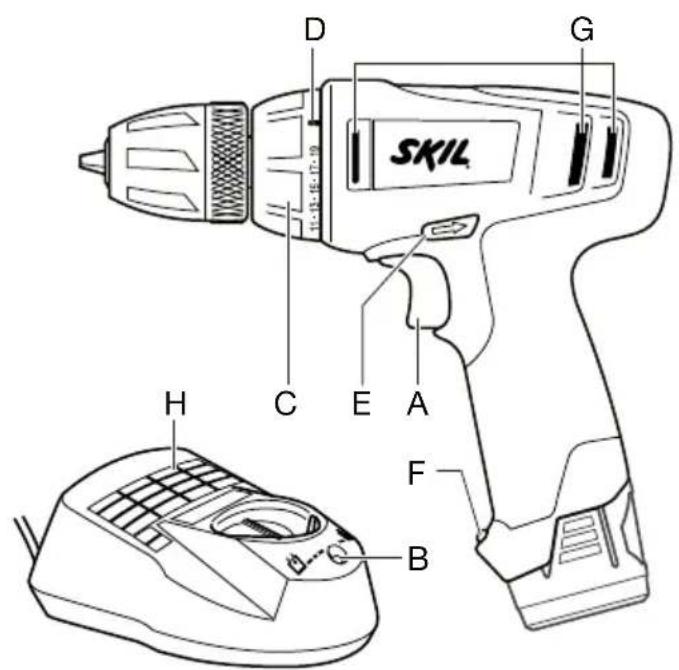

TOOL ELEMENTS ②

A Switch for on/off and speed control
B Green charging light
C Ring for torque control
D Lock-position (clutch)
E Switch for changing direction of rotation
F Spot light
G Ventilation slots
H Charger

SAFETY

GENERAL SAFETY INSTRUCTIONS

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) WORK AREA SAFETY
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2) ELECTRICAL SAFETY
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use an earth leakage circuit breaker. Use of an earth leakage circuit breaker reduces the risk of electric shock.
3) PERSONAL SAFETY
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4) POWER TOOL USE AND CARE
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) BATTERY TOOL USE AND CARE

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

c) When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

6) SERVICE

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

SAFETY INSTRUCTIONS FOR CORDLESS DRILL/DRIVERS

• Avoid damage that can be caused by screws, nails and other elements in your workpiece; remove them before you start working
• Always check that the supply voltage is the same as the voltage indicated on the nameplate of the charger
• In case of electrical or mechanical malfunction, immediately switch off the tool or unplug charger from power source
• SKIL can assure flawless functioning of the tool only when original accessories are used
• Use only accessories with an allowable speed matching at least the highest no-load speed of the tool
• The tool/charger is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction

concerning use of the tool/charger by a person responsible for their safety

• Ensure that children do not play with the tool/charger
• Secure the workpiece (a workpiece clamped with clamping devices or in a vice is held more securely than by hand)

- Hold the power tool only by the insulated gripping surfaces when performing an operation where the accessory may contact hidden wiring or its own power cord (contact with a "live" wire will also make exposed metal parts of the power tool "live" and shock the operator)

- Use suitable detectors to find hidden utility lines or call the local utility company for assistance (contact with electric lines can lead to fire or electrical shock; damaging a gas line can result in an explosion; penetrating a water pipe will cause property damage or an electrical shock)

- Do not work materials containing asbestos (asbestos is considered carcinogenic)

- Dust from material such as paint containing lead, some wood species, minerals and metal may be harmful (contact with or inhalation of the dust may cause allergic reactions and/or respiratory diseases to the operator or bystanders); wear a dust mask and work with a dust extraction device when connectable

- Certain kinds of dust are classified as carcinogenic (such as oak and beech dust) especially in conjunction with additives for wood conditioning; wear a dust mask and work with a dust extraction device when connectable

- Follow the dust-related national requirements for the materials you want to work with

- Ensure that switch E ^② is in the middle (locking) position before making any adjustments or changing accessories as well as when carrying or storing the tool

CHARGING/BATTERIES

• Charge battery only with the charger that is supplied with the tool
• Do not touch the contacts in the charger
• Do not expose tool/charger/battery to rain
• Do not charge battery in damp or wet environments
• Store tool/charger/battery in locations where temperature will not exceed 50°C or drop below 0°C
• Do not use charger when damaged; take it to one of the officially registered SKIL Service Stations for a safety check
• Do not use charger when cord or plug is damaged; cord or plug should be replaced immediately at one of the officially registered SKIL Service Stations
• Do not use battery when damaged; it should be replaced immediately
• Do not disassemble charger or battery
• Do not attempt to recharge non-rechargeable batteries with the charger
• If you anticipate long periods of non-use for the tool, it is best to unplug the charger from its power source

EXPLANATION OF SYMBOLS ON CHARGER/BATTERY

③ Read the instruction manual before use
④ Only use the charger indoors
⑤ Double insulation (no earth wire required)

⑥ Batteries may explode when disposed of in fire, so do not burn battery for any reason
⑦ Store tool/charger/battery in locations where temperature will not exceed 50°C
⑧ Do not dispose of the charger together with household waste material
⑨ Do not dispose of the battery together with household waste material

WHEN CONNECTING NEW 3-PIN PLUG (U.K. ONLY):

• Do not connect the blue (= neutral) or brown (= live) wire in the cord of the charger to the earth terminal of the plug
• If for any reason the old plug is cut off the cord of the charger, it must be disposed of safely and not left unattended

USE

• On/off ⑩
  • Speed control for smooth starting ⑪

• Charging battery ⑫

• connect charger to power source as illustrated

• green light B will turn on indicating that the charger is ready for operation ⑫a
• insert battery into charger as illustrated ⑫b
• green light B will blink indicating that the battery is being charged ⑫b
• after approximately 1 hour the battery is fully charged and green light B stays on after blinking ⑫c

! remove battery from charger after charging period has ended thereby lengthening the service life of the battery

IMPORTANT:

• if green light B does not blink after inserting a battery, this may mean:
  1) that the battery is too cold or too hot (charger only charges batteries when its temperature is between 0^ C and 45^ C)
  2) that the battery should be replaced
• the lithium-ion battery can be charged at any time (interrupting the charging procedure does not damage the battery)
• the lithium-ion battery does not have to be empty before charging (no "memory-effect" as with nickel-cadmium batteries)
• while charging, the charger and the battery may become warm to touch; this is normal and does not indicate a problem
• ensure that the outside surface of the battery is clean and dry before inserting into charger
• do not remove battery from tool while it is running
• a significantly reduced working period after charging indicates that the battery is worn out and should be replaced

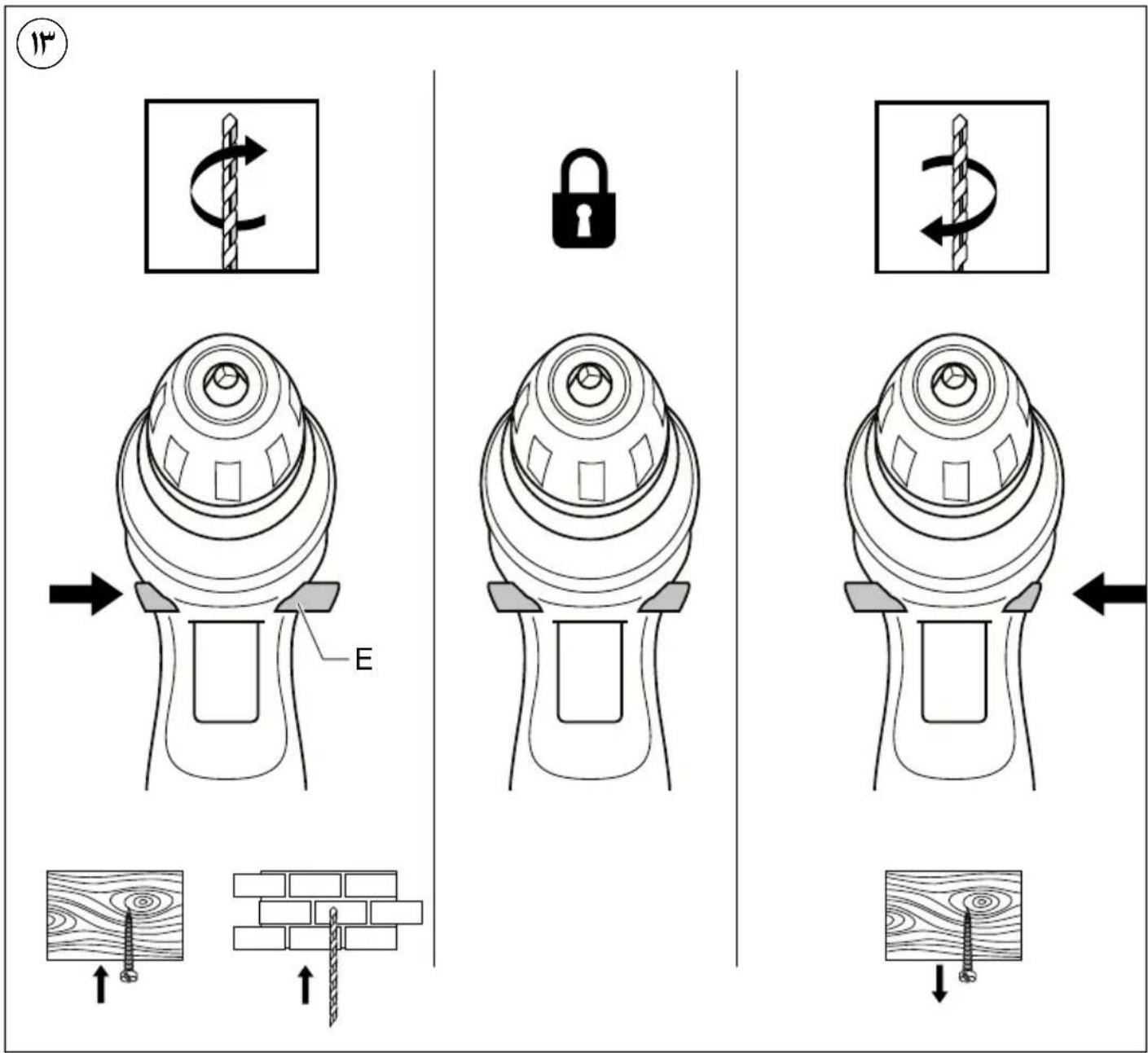

- Changing direction of rotation ⑬

• when not properly set in left/right position, switch A ② cannot be activated
  ! change direction of rotation only when tool is at a complete standstill

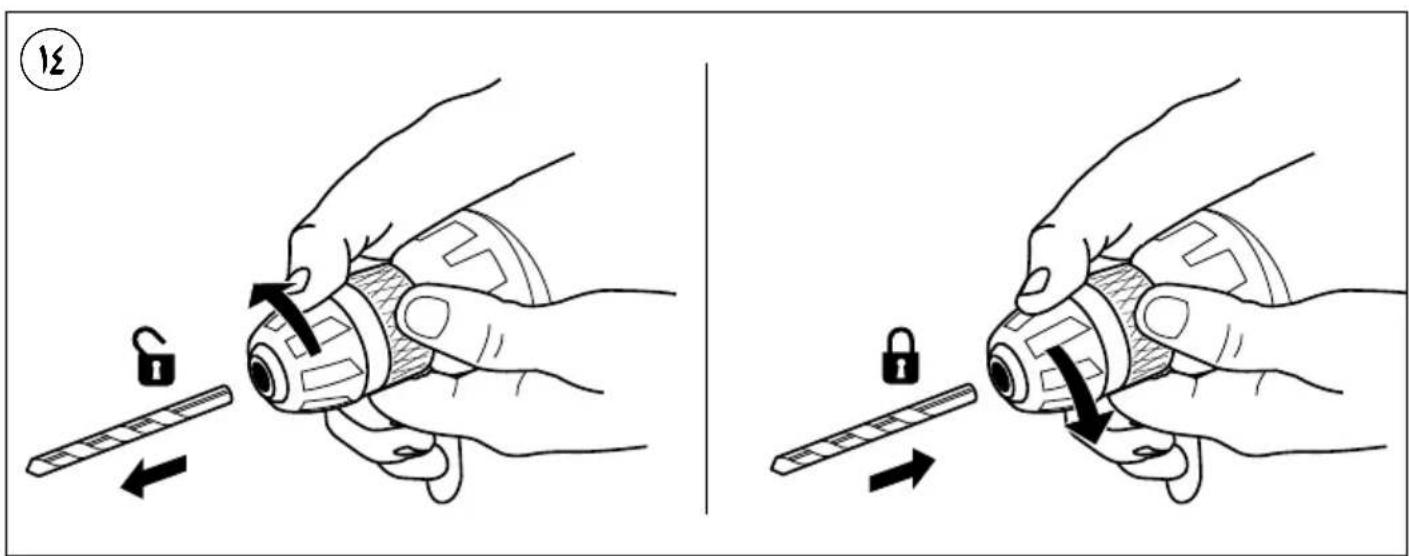

- Changing drill bits ⑭

• insert the bit as deep as possible in the chuck
• use screw bits in combination with a bitholder
  ! do not use bits with a damaged shank
  ! only use sharp bits

- Torque control (VariTorque) 15

• output torque will increase as clutch ring C is rotated from 1 to 19; position D will lock up the clutch to permit drilling or driving heavy duty work
• when turning in a screw, first try VariTorque position 1 and increase until the desired depth has been reached

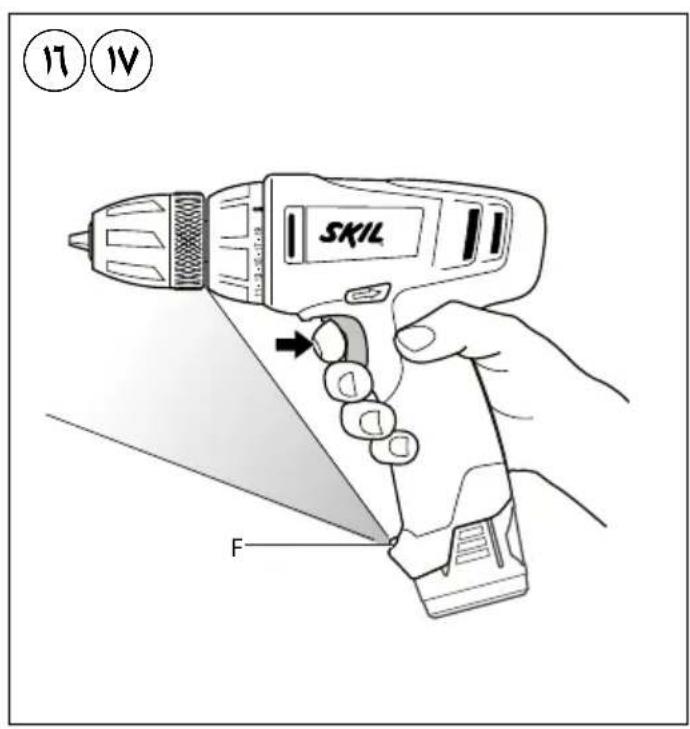

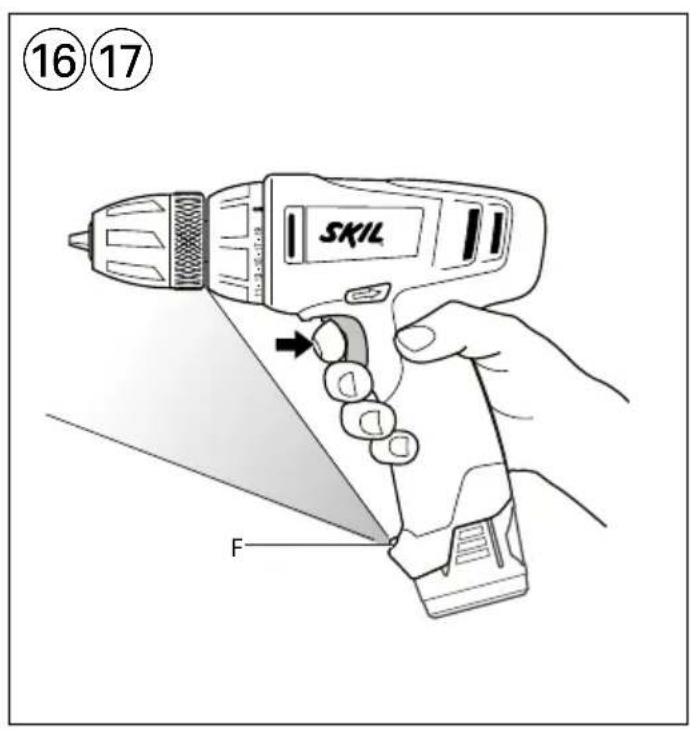

- Spot light F ⑯

Spot light F automatically lights on when activating switch A ②

- Battery protection

Switches off the tool automatically when

1) the load is too high
2) the battery temperature is not within the allowable operating temperature range of -10 to +60°C
3) the lithium-ion battery is nearly empty (to protect against deep discharge)

! do not continue to press the on/off switch after the tool is switched off automatically; battery may be damaged

- Holding and guiding the tool ⑰

! while working, always hold the tool at the grey-coloured grip area(s)

• keep ventilation slots G ② uncovered
• do not apply too much pressure on the tool; let the tool do the work for you

APPLICATION ADVICE

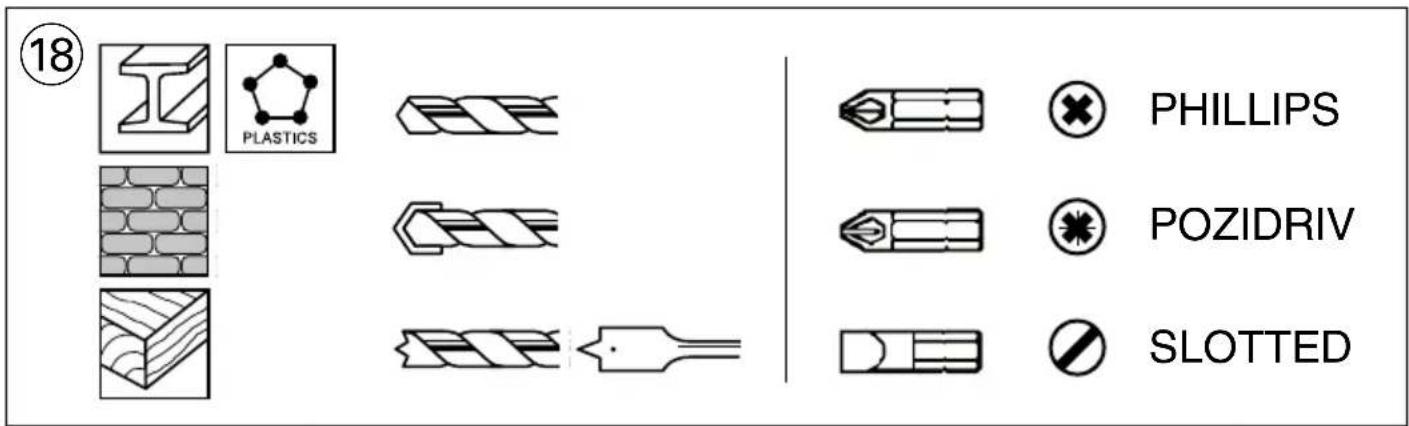

- Use the appropriate bits ⑱

! only use sharp bits

• When drilling ferrous metals
• pre-drill a smaller hole, when a large hole is required
• lubricate drill bit occasionally with oil
• When turning in a screw at/near the cross cut end or an edge of wood, pre-drill a hole in order to avoid cracking of the wood
• For an optimal use of the tool a steady pressure on the screw is required, especially while removing
• When screwdriving in hard wood one should pre-drill a hole
• Splinterfree drilling in wood ⑲
  • Dustfree drilling in walls ⑳

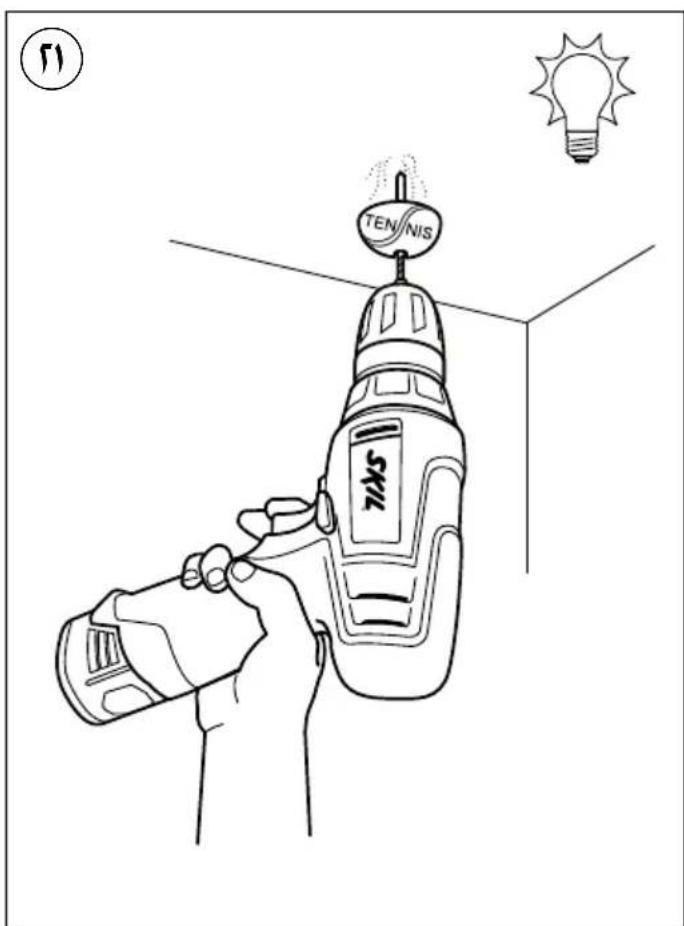

  • Dustfree drilling in ceilings ②1
• Drilling in tiles without skidding ②
• For more tips see www.skil.com

MAINTENANCE / SERVICE

• This tool is not intended for professional use
- Keep tool and charger clean

- clean charging contacts in charger with alcohol or contact cleaner

! unplug charger from power source before cleaning

- If the tool/charger should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an after-sales service centre for SKIL power tools

• send the tool or charger undismantled together with proof of purchase to your dealer or the nearest SKIL service station (addresses as well as the service diagram of the tool are listed on www.skil.com)
• in case of a defective charger send both charger and battery to your dealer or the SKIL service station

ENVIRONMENT

- Do not dispose of electric tools, accessories and packaging together with household waste material (only for EU countries)

- in observance of European Directive 2002/96/EC on waste of electric and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility - symbol ⑧ will remind you of this when the need for disposing occurs

- The battery must be kept separate from the natural environment and should not be disposed of as normal domestic waste (symbol ⑨ will remind you of this when the need for disposing occurs)

! prior to disposal protect battery terminals with heavy tape to prevent short-circuit

DECLARATION OF CONFORMITY C€

- We declare under our sole responsibility that the product described under “Technical data” is in conformity with the following standards or standardization documents: EN 60335, EN 61000, EN 60745, EN 55014, in accordance with the provisions of the directives 2006/95/EC, 2004/108/EC, 2006/42/EC, 2011/65/EU, 2009/125/EC (EU regulation 1194/2012)

• Technical file at: SKIL Europe BV (PT-SEU/ENG1), 4825 BD Breda, NL

- Measured in accordance with EN 60745 the sound pressure level of this tool is < 70 dB(A) (standard deviation: 3 dB) and the vibration *m / s^2 (hand-arm method; uncertainty K = 1.5m / s^2 )

* when screwdriving <2.5 m/s ^2 * when drilling in metal <2.5 m/s ^2

- The vibration emission level has been measured in accordance with a standardised test given in EN 60745; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned

- using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level - the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level

! protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns

Perceuse/visseuse sans fil 2321 INTRODUCTION

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

28.10.2013

C€09

BRUIT/VIBRATION

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

28.10.2013

C€09

ST∅J/VIBRATION

1) SIKKERHET PÅ ARBEIDSPLASSEN

VEDLIKEHOLD / SERVICE

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

28.10.2013

C€09

ST∅Y/VIBRASJON

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

28.10.2013

C€09

MELU/TÄRINÄ

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

28.10.2013

C€09

RUIDOS/VIBRACIONES

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

28.10.2013

C€09

RUÍDO/VIBRAÇÕES

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

28.10.2013

C€09

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

28.10.2013

C€09

ZAJ/REZGÉS

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

28.10.2013

C€09

ZGOMOT/VIBRATII

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

28.10.2013

C€09

HLUKU/VIBRÁCIÁCH

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

28.10.2013

C€09

BUCI/VIBRACIJAMA

- Mjereno prema EN 60745 prag zvučnog tlaka ovog električnog alata iznosi <70 dB(A) (standardna devijacija: 3 dB) a vibracija * m/s ^2 (postupkom na šaci-ruci; nesigurnost K = 1,5 m/s ^2 )

* kod uvijanja vijka <2,5 m/s²
* kod bušenja u metalu <2,5 m/s²

- Razina emitiranja vibracija izmjerena je sukladno normiranom testu danom u EN 60745; ona se može koristiti za usporedbu jedne alatke s drugom, te preliminarnu procjenu izloženosti vibracijama pri uporabi alatke za navedene namjene

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

28.10.2013

HRUP/VIBRACIJA

ÜLDISED OHUTUSJUHISED

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

28.10.2013

C€09

MÜRA/VIBRATSIOON

APKALPOŠANA / APKOPE

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

28.10.2013

C€09

TROKSNIS/VIBRĀCIJA

TECHNINIAI DUOMENYS ①

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

28.10.2013

C€09

TRIUKŠMINGUMAS/VIBRACIJA

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

28.10.2013

C€09

БУЧАВА/ВИБРАЦИИ

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

28.10.2013

C€09

ZHURMA/VIBRIMI

Line drawing of a hand holding a SKL electric drill, with a light bulb and circular icon in the corner (no text or symbols on the main diagram)

Illustration of a hand using a power tool to install a grid panel, with a light bulb symbol nearby (no text or symbols present)

Line drawing of a SKIL electric drill (no text or symbols on the device body)

①

2321

1

Icon of a person reading a book inside a circle (no text or symbols)

Simple line drawing of a house with an arrow indicating direction (no text or symbols)

Black and white photo of a SKIL electric drill with visible branding and handle (no text or symbols beyond brand name)

دليل الاستعمال

AR

راهنماي اصلی

FA

2610Z02075

10/13

سکیل أروبا ب.ق - کونینانبرج 60
