| Product type | Portable circular saw |
| Brand | Bosch |
| Model | GKS 190 Professional |
| Category | Saw |
| Rated power | 1400 W |
| No-load speed | 5500 rpm |
| Saw blade diameter | 190 mm |
| Blade arbor | 30 mm |
| Maximum cutting depth (90°) | 70 mm |
| Maximum cutting depth (45°) | 50 mm |
| Weight | 3.9 kg |
| Cable length | 2.5 m |
| Power supply | 230 V ~ 50 Hz |
| Main functions | Straight and bevel cuts up to 45°, parallel guide, blade brake system, kickback protection |
| Maintenance and cleaning | Regularly clean ventilation slots, check blade condition, replace worn carbon brushes |
| Safety | Restart protection switch, movable guard, adjustable depth stop |
| Spare parts and repairability | Available from Bosch after-sales service, repairability index 7.6/10 |
| General information | Supplied with carry bag, parallel guide, hex key, carbide saw blade |
Frequently Asked Questions - GKS 190 Professional BOSCH
User questions about GKS 190 Professional BOSCH
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Saw in PDF format for free! Find your manual GKS 190 Professional - BOSCH and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. GKS 190 Professional by BOSCH.
USER MANUAL GKS 190 Professional BOSCH
Robert Bosch GmbH
GKS 190 Professional
BOSCH
1 619 P06 540 | (30.9.08) Bosch Power Tools
4
1 619 P06 540 | (30.9.08) Bosch Power Tools
1 619 P06 540 | (30.9.08) Bosch Power Tools
6 | German
Safety instructions
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen Head of Product Certification
ppa. Aneka i.v. Nuoyen
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 22.07.2008
Assembly
General Power Tool Safety Warnings
WARNING
Read all safety warnings and all instructions. Failure to follow
the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges and moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
5) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
Safety Warnings for Circular Saws
DANGER: Keep hands away from cutting area and the blade. Keep your second hand on auxiliary handle, or motor housing. If both hands are holding the saw, they cannot be cut by the blade.
▶ Do not reach underneath the workpiece. The guard cannot protect you from the blade below the workpiece.
▶ Adjust the cutting depth to the thickness of the workpiece. Less than a full tooth of the blade teeth should be visible below the workpiece.
▶ Never hold the workpiece being cut in your hands or across your leg. Secure the workpiece to a stable platform. It is important to support the work properly to minimize body exposure, blade binding, or loss of control.
Hold the power tool only by the insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord. Contact with a "live" wire will also make exposed metal parts of the power tool "live" and shock the operator.
▶ When ripping always use a rip fence or straight edge guide. This improves the accuracy of cut and reduces the chance of blade binding.
▶ Always use blades with correct size and shape (diamond versus round) of arbour holes. Blades that do not match the mounting hardware of the saw will run eccentrically, causing loss of control.
▶ Never use damaged or incorrect blade washers or bolt. The blade washers and bolt were specially designed for your saw, for optimum performance and safety of operation.
▶ Causes and operator prevention of kick-back:
- Kickback is a sudden reaction to a pinched, bound or misaligned saw blade, causing an uncontrolled saw to lift up and out of the workpiece toward the operator.
- When the blade is pinched or bound tightly by the kerf closing down, the blade stalls and the motor reaction drives the unit rapidly back toward the operator.
- If the blade becomes twisted or misaligned in the cut, the teeth at the back edge of the blade can dig into the top surface of the wood causing the blade to climb out of the kerf and jump back toward the operator. Kickback is the result of saw misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.
Maintain a firm grip with both hands on the saw and position your arms to resist kickback forces. Position your body to either side of the blade, but not in line with the blade. Kickback could cause the saw to jump backwards, but kickback forces can be controlled by the operator, if proper precautions are taken. When blade is binding, or when interrupting a cut for any reason, release the trigger and hold the saw motionless in the material until the blade comes to a complete stop. Never attempt to remove the saw from the work or pull the saw backward while the blade is in motion or kickback may occur. Investigate and take corrective actions to eliminate the cause of blade binding. When restarting a saw in the workpiece, centre the saw blade in the kerf and check that saw teeth are not engaged into the material. If saw blade is binding, it may walk up or kickback from the workpiece as the saw is restarted. Support large panels to minimise the risk of blade pinching and kickback. Large panels tend to sag under their own weight. Supports must be placed under the panel on both sides, near the line of cut and near the edge of the panel.
▶ Do not use dull or damaged blades. Unsharpened or improperly set blades produce narrow kerf causing excessive friction, blade binding and kickback. ▶ Blade depth and bevel adjusting locking levers must be tight and secure before making cut. If blade adjustment shifts while cutting, it may cause binding and kickback. ▶ Use extra caution when making a “plunge cut” into existing walls or other blind areas. The protruding blade may cut objects that can cause kickback. ▶ Check lower guard for proper closing before each use. Do not operate the saw if lower guard does not move freely and close instantly. Never clamp or tie the lower guard into the open position. If saw is accidentally dropped, lower guard may be bent. Raise the lower guard with the retracting handle and make sure it moves freely and does not touch the blade or any other part, in all angles and depths of cut. ▶ Check the operation of the lower guard spring. If the guard and the spring are not operating properly, they must be serviced before use. Lower guard may operate sluggishly due to damaged parts, gummy deposits, or a build-up of debris. ▶ Lower guard should be retracted manually only for special cuts such as "plunge cuts" and "compound cuts". Raise lower guard by retracting handle and as soon as blade enters the material, the lower guard must be released. For all other sawing, the lower guard should operate automatically. ▶ Always observe that the lower guard is covering the blade before placing saw down on bench or floor. An unprotected, coasting blade will cause the saw to walk backwards, cutting whatever is in its path. Be aware of the time it takes for the blade to stop after switch is released. ▶ Do not reach into the saw dust ejector with your hands. They could be injured by rotating parts. ▶ Do not work overhead with the saw. In this manner you do not have sufficient control over the power tool.
▶ Use suitable detectors to determine if utility lines are hidden in the work area or call the local utility company for assistance. Contact with electric lines can lead to fire and electric shock. Damaging a gas line can lead to explosion. Penetrating a water line causes property damage or may cause an electric shock. - Do not operate the power tool stationary. It is not designed for operation with a saw table. ▶ Do not use high speed steel (HSS) saw blades. Such saw blades can easily break. ▶ Do not saw ferrous metals. Red hot chips can ignite the dust extraction. When working with the machine, always hold it firmly with both hands and provide for a secure stance. The power tool is guided more secure with both hands. - Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand. ▶ Always wait until the machine has come to a complete stop before placing it down. The tool insert can jam and lead to loss of control over the power tool. ▶ Never use the machine with a damaged cable. Do not touch the damaged cable and pull the mains plug when the cable is damaged while working. Damaged cables increase the risk of an electric shock.
Functional Description
Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
While reading the operating instructions, unfold the graphics page for the machine and leave it open.
Intended Use
The machine is intended for lengthways and crossways cutting of wood with straight cutting lines as well as mitre cuts in wood while resting firmly on the workpiece. With suitable saw blades, thin-walled non-ferrous metals, e.g., profiles, can also be sawed. Working ferrous metals is not permitted.
Product Features
The numbering of the product features refers to the illustration of the machine on the graphics page.
1 On/Off switch 2 Safety switch for On/Off switching 3 Auxiliary handle 4 Spindle lock button 5 Scale for mitre angle 6 Wing bolt for bevel-angle preselection 7 Wing bolt for parallel guide 8 Cutting mark, 45° 9 Cutting mark, 0°
10 Parallel guide
11 Retracting blade guard
12 Base plate
13 Lever for retracting blade guard
14 Sawdust ejector
15 Blade guard
16 Allen key
17 Clamping bolt with washer
18 Clamping flange
19 Saw blade*
20 Mounting flange
21 Saw spindle
22 Extraction adapter*
23 Clamping lever for cutting-depth preselection
24 Cutting-depth scale
25 Wing bolt for bevel-angle preselection
26 Set of screw clamps*
27 Guide-rail adapter*
28 Guide rail*
29 Connection piece*
30 Vacuum hose*
*Accessories shown or described are not part of the standard delivery scope of the product. A complete overview of accessories can be found in our accessories program.
Technical Data
| Circular Saw GKS 190 | Professional | |
| Article number | 3 601 F23 0.. | |
| Rated power input | W 1400 | |
| No-load speed | min -1 | 5500 |
| Cutting depth, max. | ||
| - for 0° bevel angle | mm | 70 |
| - for 45° bevel angle | mm | 50 |
| Spindle lock | ● | |
| Base plate dimensions | mm 302 x 140 | |
| Saw blade diameter, max. | mm 190 | |
| Saw blade diameter, min. | mm 184 | |
| Blade thickness, max. | mm 2.0 | |
| Mounting bore | mm 30 | |
| Weight according to EPTA-Procedure 01/2003 | kg 4.2 | |
| Protection class | ☐ / II | |
The values given are valid for nominal voltages [U] of 230/240 V. For lower voltage and models for specific countries, these values can vary.
Please observe the article number on the type plate of your machine. The trade names of the individual machines may vary.
Noise/Vibration Information
Measured values determined according to EN 60745.
Typically the A-weighted noise levels of the product are: Sound pressure level 96 dB(A); Sound power level 107 dB(A). Uncertainty K = 3 dB.
Wear hearing protection!
Vibration total values (triax vector sum) determined according to EN 60745:
Vibration emission value ah<2.5 m/s, Uncertainty K=1.5 m/s 2 .
The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.
The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.
An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.
Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.
Declaration of Conformity CE
We declare under our sole responsibility that the product described under "Technical Data" is in conformity with the following standards or standardization documents: EN 60745 according to the provisions of the directives 2004/108/EC, 98/37/EC (until 28 Dec 2009), 2006/42/EC (from 29 Dec 2009).
Technical file at:
Robert Bosch GmbH, PT/ESC,
D-70745 Leinfelden-Echterdingen
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen Head of Product Certification
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 22.07.2008
Assembly
Mounting/Replacing the Saw Blade
▶ Before any work on the machine itself, pull the mains plug. - When mounting the saw blade, wear protective gloves. Danger of injury when touching the saw blade. ▶ Only use saw blades that correspond with the characteristic data given in the operating instructions. ▶ Do not under any circumstances use grinding discs as the cutting tool.
Selecting a Saw Blade
An overview of recommended saw blades can be found at the end of this manual.
Removal of the Saw Blade (see figure A)
For changing the cutting tool, it is best to place the machine on the face side of the motor housing.
- Press the spindle lock button 4 and keep it pressed.
The spindle lock button 4 may be actuated only when the saw spindle is at a standstill. Otherwise, the power tool can be damaged.
- With the Allen key 16, unscrew the clamping bolt 17 turning in rotation direction 0.
- Tilt back the retracting blade guard 11 and hold firmly.
- Remove the clamping flange 18 and the saw blade 19 from the saw spindle 21.
Mounting the Saw Blade (see figure A)
For changing the cutting tool, it is best to place the machine on the face side of the motor housing.
- Clean the saw blade 19 and all clamping parts to be assembled.
- Tilt back the retracting blade guard 11 and hold firmly.
- Place the saw blade 19 on to the mounting flange 20. The cutting direction of the teeth (direction or arrow on saw blade) and the direction-of-rotation arrow on the blade guard 15 must correspond.
- Mount the clamping flange 18 and screw in the clamping bolt 17 turning in rotation direction ②. Observe correct mounting position of mounting flange 20 and clamping flange 18.
- Press the spindle lock button 4 and keep it pressed.
- With the Allen key 16, tighten the clamping bolt 17 turning in rotation direction ②. The tightening torque is between 6–9 Nm, which corresponds to hand tight plus ¼ turn.
Dust/Chip Extraction
▶ Before any work on the machine itself, pull the mains plug. Dusts from materials such as lead-containing coatings, some wood types, minerals and metal can be harmful to one's health. Touching or breathing-in the dusts can cause allergic reactions and/or lead to respiratory infections of the user or bystanders. Certain dusts, such as oak or beech dust, are considered as carcinogenic, especially in connection with wood-treatment additives (chromate, wood preservative). Materials containing asbestos may only be worked by specialists. - Use dust extraction whenever possible. - Provide for good ventilation of the working place. - It is recommended to wear a P2 filter-class respirator. Observe the relevant regulations in your country for the materials to be worked.
24 | English
Mounting the Extraction Adapter (see figure B)
Attach the extraction adapter 22 onto the saw-dust ejector 14 until it latches. A vacuum hose with a diameter of 35 mm can be connected to the extraction adapter 22.
The extraction adapter may not be mounted when no external dust extraction is connected. Otherwise the extraction channel can become clogged. Do not connect a dust bag to the extraction adapter. Otherwise the extraction system can become clogged.
To ensure optimum extraction, the extraction adapter 22 must be cleaned regularly.
External Dust Extraction
Connect the vacuum hose 30 to a vacuum cleaner (accessory). An overview for connecting to various vacuum cleaners can be found at the end of this manual.
The machine can be plugged directly into the receptacle of a Bosch all-purpose vacuum cleaner with remote starting control. The vacuum cleaner starts automatically when the machine is switched on.
The vacuum cleaner must be suitable for the material being worked.
When vacuuming dry dust that is especially detrimental to health or carcinogenic, use a special vacuum cleaner.
Operation
Operating Modes
Before any work on the machine itself, pull the mains plug.
Adjusting the Cutting Depth (see figure C)
Adjust the cutting depth to the thickness of the workpiece. Less than a full tooth of the blade teeth should be visible below the workpiece.
Loosen the clamping lever 23. For a smaller cutting depth, pull the saw away from the base plate 12; for a larger cutting depth, push the saw toward the base plate 12. Adjust the desired cutting depth at the cutting-depth scale. Tighten the clamping lever 23 again.
If the cutting depth cannot be fully adjusted after loosening clamping lever 23, pull clamping lever 23 away from the saw and swivel it downward. Release the clamping lever 23 again. Repeat this procedure until the requested cutting depth can be adjusted.
If the cutting depth cannot be sufficiently locked after tightening clamping lever 23, pull clamping lever 23 away from the saw and swivel it upward. Release the clamping lever 23 again. Repeat this procedure until the cutting depth is locked.
Adjusting the Cutting Angle
Loosen the wing bolts 6 and 25. Tilt the saw sidewards. Adjust the desired measure on the scale 5. Tighten the wing bolts 6 and 25 again.
Note: For bevel cuts, the cutting depth is smaller than the setting indicated on the cutting-depth scale 24.
Cutting Marks
The 0° cutting mark (9) indicates the position of the saw blade for right-angled cuts. The 45° cutting mark (8) indicates the position of the saw blade for 45° cuts.
For precise cuts, position the circular saw against the workpiece as shown in the figure. It is best to carry out a trial cut.
Starting Operation
Observe correct mains voltage! The voltage of the power source must agree with the voltage specified on the nameplate of the machine. Power tools marked with 230 V can also be operated with 220 V.
Switching On and Off
To start the machine, first push the lock-off button for the On/Off switch 2 and then press the On/Off switch 1 and keep it pressed.
To switch off the machine, release the On/Off switch 1.
Note: For safety reasons, the On/Off switch 1 cannot be locked; it must remain pressed during the entire operation.
Working Advice
Protect saw blades against impact and shock. Guide the machine evenly and with light feed in the cutting direction. Excessive feed significantly reduces the service life of the saw blade and can cause damage to the power tool.
Sawing performance and cutting quality depend essentially on the condition and the tooth form of the saw blade. Therefore, use only sharp saw blades that are suited for the material to be worked.
Sawing Wood
The correct selection of the saw blade depends on the type and quality of the wood and whether lengthwise or crosswise cuts are required.
When cutting spruce lengthwise, long spiral chips are formed.
Beech and oak dusts are especially detrimental to health. Therefore, work only with dust extraction.
Sawing with Parallel Guide (see figure D)
The parallel guide 10 enables exact cuts along a workpiece edge and cutting strips of the same dimension.
Loosen wing bolt 7 and slide the scale of the parallel guide 10 through the guide in the base plate 12. Adjust the desired cutting width as the scale setting at the respective cutting mark 9 or 8; see Section "Cutting Marks". Tighten wing bolt 7 again.

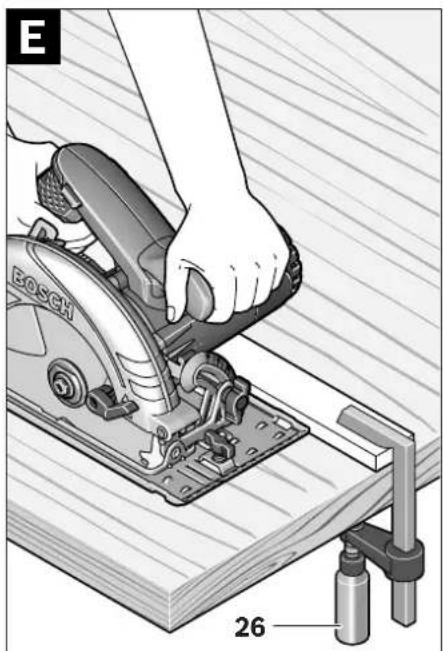

Sawing with Auxiliary Guide (see figure E)
For sawing large workpieces or straight edges, a board or strip can be clamped to the workpiece as an auxiliary guide; the base plate of the circular saw can be guided alongside the auxiliary guide.

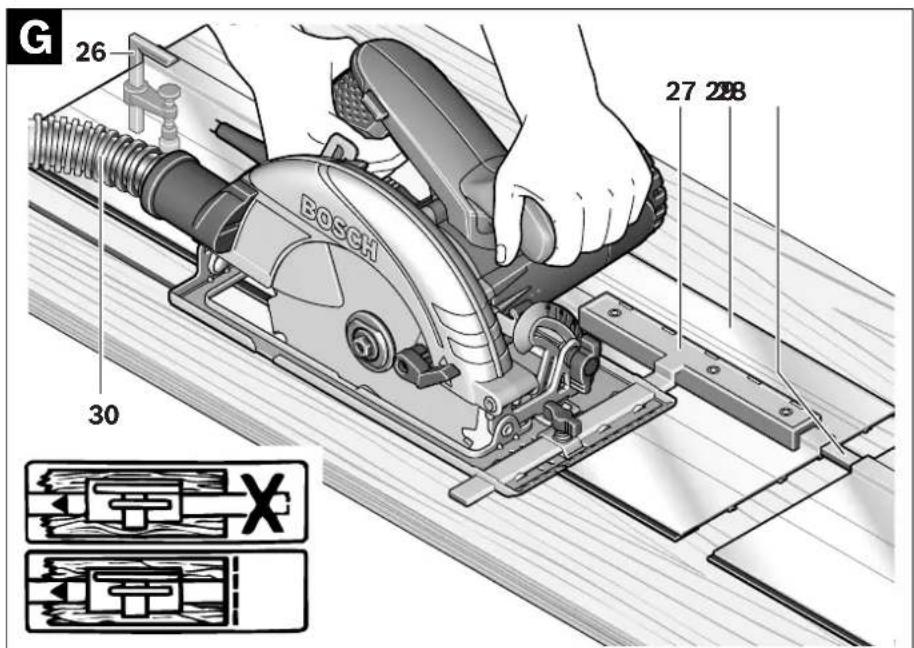

Sawing with Guide Rail (see figure F-G)
The guide rail 28 is used to carry out straight cuts.
The adhesive coating prevents the guide rail from slipping and protects the surface of the workpiece. The coating of the guide rail allows the circular saw to glide easily.
The rubber lip on the guide rail acts as a splinter guard that prevents fraying or tearing out of the surface when sawing wooden materials. For this, the teeth of the saw blade must face directly against the rubber lip.
The guide-rail adapter 27 is required for working with the guide rail 28. The guide-rail adapter 27 is mounted in the same manner as the parallel guide 10.
The following work steps are required for exact cuts using the guide rail 28:
- Place the guide rail 28 on to the workpiece projecting lightly over the side. Pay attention that the side with the rubber lip faces to the workpiece.
- Set the circular saw with the premounted guide-rail adapter 27 on to the guide rail 28.
- Adjust the desired cutting depth and the bevel angle. Observe the marks on the guide-rail adapter 27 for preadjustment of the various bevel angles; see figure F.
- Align the circular saw with guide-rail adapter in such a manner that the teeth of the saw blade 19 face against the rubber lip. The position of the saw blade 19 depends on the selected cutting angle. Do not saw into the guide rail.
- Tighten wing bolt 7 to lock the position of the guide-rail adapter.
- Remove the circular saw with the premounted guide-rail adapter 27 from the guide rail 28.
- Align the guide rail 28 on the workpiece in such a manner that the rubber lip lies exactly alongside the cutting edge.
- The guide rail 28 must not extend beyond the face side of the workpiece where the cut is to be started.
- Fasten the guide rail 28 with suitable clamping devices, e. g., screw clamps, on the workpiece. Set the circular saw with the pre-mounted guide-rail adapter 27 on to the guide rail.
- Switch the machine on and guide it in the cutting direction applying moderate and steady feed.
Two guide rails can be connected to one with use of the connection piece 29. Clamping is carried out with the four screws located in the connection piece.
Maintenance and Service
Maintenance and Cleaning
Before any work on the machine itself, pull the mains plug. For safe and proper working, always keep the machine and ventilation slots clean.
The retracting blade guard must always be able to move freely and retract automatically. Therefore, always keep the area around the retracting blade guard clean. Remove dust and chips by blowing out with compressed air or with a brush.
Saw blades that are not coated can be protected against corrosion with a thin coat of acid-free oil. Before use, the oil must be removed again, otherwise the wood will become soiled.
Resin and glue residue on the saw blade produces poor cuts. Therefore, clean the saw blade immediately after use.
If the machine should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an after-sales service centre for Bosch power tools.
In all correspondence and spare parts order, please always include the 10-digit article number given on the type plate of the machine.
WARNING! Important instructions for connecting a new 3-pin plug to the 2-wire cable.
The wires in the cable are coloured according to the following code:
Do not connect the blue or brown wire to the earth terminal of the plug.
Important: If for any reason the moulded plug is removed from the cable of this power tool, it must be disposed of safely.
After-sales Service and Customer Assistance
Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can also be found under:
www.bosch-pt.com
Our customer consultants answer your questions concerning best buy, application and adjustment of products and accessories.
Great Britain
Robert Bosch Ltd. (B.S.C.)
P.O. Box 98
Broadwater Park
North Orbital Road
Denham
Uxbridge
UB 9 5HJ
Tel. Service: +44 (0844) 736 0109
Fax: +44 (0844) 736 0146
Australia, New Zealand and Pacific Islands
Robert Bosch Australia Pty. Ltd.
Power Tools
Locked Bag 66
Clayton South VIC 3169
Customer Contact Center
Inside Australia:
Phone: +61 (01300) 307 044
Fax: +61 (01300) 307 045
Inside New Zealand:
Phone: +64 (0800) 543 353
Fax: +64 (0800) 428 570
Outside AU and NZ:
Phone: +61 (03) 9541 5555
www.bosch.com.au
Disposal
The machine, accessories and packaging should be sorted for environmental-friendly recycling.
Only for EC countries:
Do not dispose of power tools into household waste!
According to the European Guideline 2002/96/EC for Waste Electrical and Electronic Equipment and its implementation into national
right, power tools that are no longer usable must be collected separately and disposed of in an environmentally correct manner.
Subject to change without notice.
28 | Français
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen Head of Product Certification
ppa. Aucuca i.v. Nuoyen
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 22.07.2008
Montage
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen Head of Product Certification
ppa. dawna i.v. nuoyen
Robert Bosch GmbH, Power Tools Division
D-70745 Leinfelden-Echterdingen
22.07.2008
Assembly
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen Head of Product Certification
ppa. Aneka i.v. Nuoyen
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 22.07.2008
Assembly
Senior Vice President
Head of Product
Engineering
Certification
Robert Bosch GmbH, Power Tools Division
D-70745 Leinfelden-Echterdingen
22.07.2008
Assembly
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen Head of Product Certification
ppa. Amuca i.v. PuOyen
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 22.07.2008
Montage
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen Head of Product Certification
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 22.07.2008
Montering
Bosch Service Center
Telegrafvej 3
2750 Ballerup
Tel. Service Center: +45 (4489) 8855
Fax: +45 (4489) 87 55
E-Mail: vaerktoej@dk.bosch.com
Dansk | 95
Disposal
22 Extraction adapter*
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen Head of Product Certification
ppa. dawna i.v. Puoyen
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 22.07.2008
Assembly
Bosch Service Center
Telegrafvej 3
2750 Ballerup
Denmark
Tel.: +46 (020) 41 44 55
Fax: +46 (011) 18 76 91
Waste management
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen Head of Product Certification
ppa. Aminia
i.v. Nuoyen
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 22.07.2008
Assembly
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen Head of Product Certification
ppa. Aucuca i.v. Puoyen
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 22.07.2008
Installation
Dr. Egbert Schneider Senior Vice President
Dr. Eckerhard Strötgen Head of Product
Engineering
Certification
PPA. A##
i.v. Puoyen
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 22.07.2008
Assembly
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen
Head of Product
Certification
ppa. dianca
i.v. Nuoyen
Robert Bosch GmbH, Power Tools Division
D-70745 Leinfelden-Echterdingen
22.07.2008
Assembly
Bosch San. ve Tic. A.S.
Ahi Evran Cad. No:1 Kat:22
Polaris Plaza
80670 Maslak/Istanbul
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen Head of Product Certification
ppa. Amina i.v. Nuoyen
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 22.07.2008
Assembly
Robert Bosch Sp. z o.o.
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen Head of Product Certification
ppa. Aucu i.v. Puoyen
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 22.07.2008
Assembly
Bosch Service Center PT
K Vápence 1621/16
692 01 Mikulov
Tel.: +420 (519) 305 700
Fax: +420 (519) 305 705
E-Mail: servis.naradi@cz.bosch.com
www.bosch.cz
Waste disposal
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen Head of Product Certification
ppa. Amina i.v. Nuoyen
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 22.07.2008
Assembly
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen Head of Product Certification
ppa. Amina i.v. Nuoyen
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 22.07.2008
Assembly
Senior Vice President
Head of Product
Engineering
Certification
i.v. Nuoyen
Robert Bosch GmbH, Power Tools Division
D-70745 Leinfelden-Echterdingen
22.07.2008
Assembly
Dr. Egbert Schneider Senior Vice President Engineering Dr. Eckerhard Strötgen Head of Product Certification
ppa. Avena i.v. Puoyen
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 22.07.2008
Assembly
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen Head of Product Certification
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 22.07.2008
Montare
Bosch Service Center
Str. Horia Măcelariu Nr. 30-34,
013937 Bucureşti
Tel. Service scule electrice: +40 (021) 4 05 75 40
Fax: +40 (021) 4 05 75 66
E-Mail: infoBSC@ro.bosch.com
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen Head of Product Certification
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 22.07.2008
Montare
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen Head of Product Certification
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 22.07.2008
Assembly
Assembly of the circular saw blade/change
- Pull the mains plug out of the socket before carrying out any work on the power tool. ▶ Wear protective gloves when mounting the saw blade. There is a risk of injury when touching the saw blade. Only use saw blades that correspond to the characteristic data specified in these operating instructions. Never use grinding discs as a tool for use.
Selecting the saw blade
An overview of recommended saw blades can be found at the end of these instructions.
Removing the saw blade (see figure A)
Place the power tool for changing tools preferably on the side of the motor housing.
- Press the spindle lock button 4 and hold it pressed. Only activate the spindle lock button 4 when the saw spindle is at a standstill. Otherwise, the power tool may be damaged.
- Unscrew the clamping screw 17 with the hex key 16 in the direction of rotation 0.
- Swing the protective guard 11 back and hold it firmly.
- Remove the clamping flange 18 and the saw blade 19 from the saw spindle 21.
Mounting the saw blade (see figure A)
Place the power tool for changing tools preferably on the side of the motor housing.
- Clean the saw blade 19 and all the clamping parts.
- Tilt the pendulum protective guard 11 back and hold it firmly.
- Place the saw blade 19 onto the receiving flange 20. The cutting direction of the teeth (direction of the arrow on the saw blade) and the arrow for the direction of rotation on the protective guard 15 must be aligned.
- Position the clamping flange 18 and screw in the clamping screw 17 in the direction of rotation ②. Ensure the correct installation position of the receiving flange 20 and the clamping flange 18.
- Press the spindle lock button 4 and hold it down.
- Tighten the clamping screw 17 firmly with the hex key 16 in the direction of rotation ②. The tightening torque should be 6–9 Nm, which corresponds to hand-tightening plus 1/4 turn.
Dust/chip extraction
- Before any work on the power tool, pull the mains plug out of the socket. ▶ Dust from materials such as lead-containing coatings, some types of wood, minerals, and metal can be harmful to health. Contact with or inhalation of dust can cause allergic reactions and/or respiratory diseases in the operator or people nearby. Some dusts, such as oak and beech dust, are considered carcinogenic, especially in combination with wood treatment additives (chromates, wood preservatives). Material containing asbestos may only be worked on by specialists.
- Use a dust extractor if possible.
- Ensure good ventilation of the workplace.
- It is recommended to wear a breathing mask with filter class P2. Observe the regulations for the materials to be worked in your country.
Mounting the extraction adapter (see figure B)
Slide the extraction adapter 22 onto the chip ejector 14 until it clicks into place. A suction hose with a diameter of 35 mm can be connected to the extraction adapter 22.
- Place the circular saw with the guide rail adapter 27 mounted onto the guide rail 28.
- Set the desired cutting depth and bevel angle. Pay attention to the markings on the guide rail adapter 27 for adjusting various bevel angles, see figure F.
- Center the circular saw using the guide rail adapter so that the saw blade 19 with its teeth rests on the rubber ring. The position of the saw blade 19 depends on the selected cutting angle. Do not saw into the guide rail.
- Tighten the wing screw 7 firmly to fix the position of the guide rail adapter. – Lift the circular saw with the mounted guide rail adapter 27 off the guide rail 28.
- Center the guide rail 28 on the workpiece so that the rubber ring rests exactly on the desired cutting edge.
- The guide rail 28 must not be above the side of the workpiece that is to be cut.
- Secure the guide rail 28 to the workpiece with suitable clamping devices, for example clamps. Place the power tool with the mounted guide rail adapter 27 onto the guide rail.
- Switch on the power tool and guide it evenly with light pressure in the cutting direction.
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen Head of Product Certification
ppa. Amina i.v. Nuoyen
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 22.07.2008
Assembly
Dr. Egbert Schneider Senior Vice President Engineering Dr. Eckerhard Strötgen Head of Product Certification
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 22.07.2008
Assembly
Installing/replacing the circular saw blade
▶ Before any work on the power tool, pull the mains plug out of the socket. When mounting the saw blade, wear protective gloves. There is a risk of injury when touching the saw blade. - Use only saw blades that match the characteristic data given in these operating instructions. Under no circumstances use grinding discs as the working tool.
Selecting the saw blade
An overview of recommended saw blades can be found at the end of these instructions.
Dr. Egbert Schneider Senior Vice President Engineering Dr. Eckerhard Strötgen Head of Product Certification
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 22.07.2008
Assembly
Installing/replacing the saw blade
Dr. Egbert Schneider Senior Vice President
Dr. Eckerhard Strötgen Head of Product
Engineering
Certification
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 22.07.2008
Connection
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen Head of Product Certification
ppa. Mauka i.v. Nuoyen
Robert Bosch GmbH, Power Tools Division
D-70745 Leinfelden-Echterdingen
22.07.2008
Assembly
Senior Vice President Head of Product
Engineering Certification
ppa. Aseana i.v. Nuoyen
Robert Bosch GmbH, Power Tools Division
D-70745 Leinfelden-Echterdingen
22.07.2008
Senior Vice President Head of Product
Engineering Certification
ppa. Amania i.v. Nudzhen
Robert Bosch GmbH, Power Tools Division
D-70745 Leinfelden-Echterdingen
22.07.2008
Technical specifications
2 602 317 031 (1.4 m)
2 602 317 030 (0.7 m)
1 602 319 003
2 607 001 375
1 607 960 008
1 608 190 007
+
+
1 619 P06 204
∅ 35 mm
3 m 2 609 390 392
5 m 2 609 390 393
GAS 25
GAS 50
GAS 50 M
+
+
1 619 P06 204
∅ 35 mm
3 m 2 607 002 163
5 m 2 607 002 164
GAS 25
GAS 50
GAS 50 M
optiline WOOD
speedline WOOD
MULTI MATERIAL
CONSTRUCT WOOD
- GKS 190 PROFESSIONAL
- BOSCH
- GERMAN
- SAFETY INSTRUCTIONS
- ASSEMBLY
- GENERAL POWER TOOL SAFETY WARNINGS
- WARNING
- SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE
- WORK AREA SAFETY
- ELECTRICAL SAFETY
- PERSONAL SAFETY
- SAFETY WARNINGS FOR CIRCULAR SAWS
- FUNCTIONAL DESCRIPTION
- INTENDED USE
- PRODUCT FEATURES
- NOISE/VIBRATION INFORMATION
- WEAR HEARING PROTECTION
- DECLARATION OF CONFORMITY CE
- MOUNTING/REPLACING THE SAW BLADE
- SELECTING A SAW BLADE
- REMOVAL OF THE SAW BLADE (SEE FIGURE A)
- MOUNTING THE SAW BLADE (SEE FIGURE A)
- DUST/CHIP EXTRACTION
- ENGLISH
- MOUNTING THE EXTRACTION ADAPTER (SEE FIGURE B)
- EXTERNAL DUST EXTRACTION
- OPERATION
- OPERATING MODES
- ADJUSTING THE CUTTING DEPTH (SEE FIGURE C)
- ADJUSTING THE CUTTING ANGLE
- STARTING OPERATION
- SWITCHING ON AND OFF
- WORKING ADVICE
- SAWING WOOD
- SAWING WITH PARALLEL GUIDE (SEE FIGURE D)
- SAWING WITH AUXILIARY GUIDE (SEE FIGURE E)
- SAWING WITH GUIDE RAIL (SEE FIGURE F-G)
- MAINTENANCE AND SERVICE
- MAINTENANCE AND CLEANING
- WARNING! IMPORTANT INSTRUCTIONS FOR CONNECTING A NEW 3-PIN PLUG TO THE 2-WIRE CABLE
- AFTER-SALES SERVICE AND CUSTOMER ASSISTANCE
- WWW.BOSCH-PT.COM
- GREAT BRITAIN
- AUSTRALIA, NEW ZEALAND AND PACIFIC ISLANDS
- DISPOSAL
- ONLY FOR EC COUNTRIES
- MONTAGE
- MONTERING
- WASTE MANAGEMENT
- INSTALLATION
- WASTE DISPOSAL
- MONTARE
- ASSEMBLY OF THE CIRCULAR SAW BLADE/CHANGE
- SELECTING THE SAW BLADE
- REMOVING THE SAW BLADE (SEE FIGURE A)
- INSTALLING/REPLACING THE CIRCULAR SAW BLADE
- INSTALLING/REPLACING THE SAW BLADE
- CONNECTION
- TECHNICAL SPECIFICATIONS
Brand : BOSCH
Model : GKS 190 Professional
Category : Saw
