Product type	Laptop
Brand	Fujitsu Siemens
Model	LifeBook 544
Processor	Intel Core i5 or i7 (4th generation)
RAM	4 GB to 16 GB DDR3
Storage	500 GB SATA hard drive or 128 GB SSD
Screen	15.6 inches, 1366x768 or 1920x1080 resolution
Dimensions (W x D x H)	378 x 256 x 27 mm
Weight	2.3 kg
Power supply	65 W power adapter, 6-cell lithium-ion battery
Battery life	Up to 5 hours
Operating system	Windows 7 Professional or Windows 8.1
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth 4.0, Gigabit Ethernet
Ports	3x USB 3.0, 1x USB 2.0, VGA, HDMI, SD card reader
Main features	Professional laptop, TPM security, optional fingerprint reader
Maintenance and cleaning	Clean with a soft dry cloth, avoid abrasive products
Security	Kensington lock, BIOS password, TPM module
Spare parts and repairability	Battery, hard drive, RAM accessible; motherboard requires advanced disassembly
General information	Designed for enterprise use, robust and reliable

Frequently Asked Questions - LIFEBOOK 544 FUJITSU SIEMENS

How to change the battery of the Fujitsu Siemens Lifebook 544?

Turn off the computer, unplug the power adapter. Turn the device over, slide the battery latch, then remove it. Insert the new battery until it clicks.

My Lifebook 544 won't start, what should I do?

Check that the power adapter is plugged in and the power indicator is on. If nothing happens, remove the battery, hold the power button for 30 seconds, then reinsert the battery and try again.

How to upgrade the RAM of the Lifebook 544?

Unscrew the bottom cover marked 'RAM'. Insert compatible DDR3 modules (up to 16 GB). Close the cover. RAM must be installed in pairs to enable dual channel.

The fan is very noisy, is this normal?

Excessive noise may indicate dust buildup. Clean the ventilation grilles with a soft brush or compressed air. If the noise persists, contact a technician.

How to reset the BIOS password of the Lifebook 544?

Remove the CMOS battery on the motherboard for 1 minute, then put it back. This will clear BIOS settings, including the password. Note: all BIOS settings will be lost.

The screen stays black after sleep, what to do?

Press Fn+F7 (or the display toggle key) or hold the power button for 10 seconds to force shutdown, then restart.

What is the maximum supported screen resolution?

The Lifebook 544 supports a maximum resolution of 1920x1080 pixels (Full HD) for models with a matte screen.

Can I connect two external monitors?

Yes, via the VGA and HDMI ports. You can extend or duplicate the display. Use the Fn+F10 key to switch between display modes.

How to perform a factory reset?

At startup, press F11 (or Alt+F11) to access the recovery partition. Follow the on-screen instructions. Back up your data first as everything will be erased.

Is the Lifebook 544 compatible with Windows 10?

Yes, drivers for Windows 10 are available on Fujitsu's website. However, ensure you have at least 4 GB of RAM and a compatible processor.

USER MANUAL LIFEBOOK 544 FUJITSU SIEMENS

Congratulations on your purchase of an innovative product from Fujitsu.

The latest information about our products, tips, updates etc. can be found on the Internet at: "http://www.fujitsu.com/fts/"

You can find driver updates at: "http://support.ts.fujitsu.com/download"

Should you have any technical questions, please contact:

• our Hotline/Service Desk (see the Service Desk list or visit: "http://support.ts.fujitsu.com/contact/servicedesk")
• Your sales partner
• Your sales office

We hope you enjoy working with your new Fujitsu system!

FUJITSU

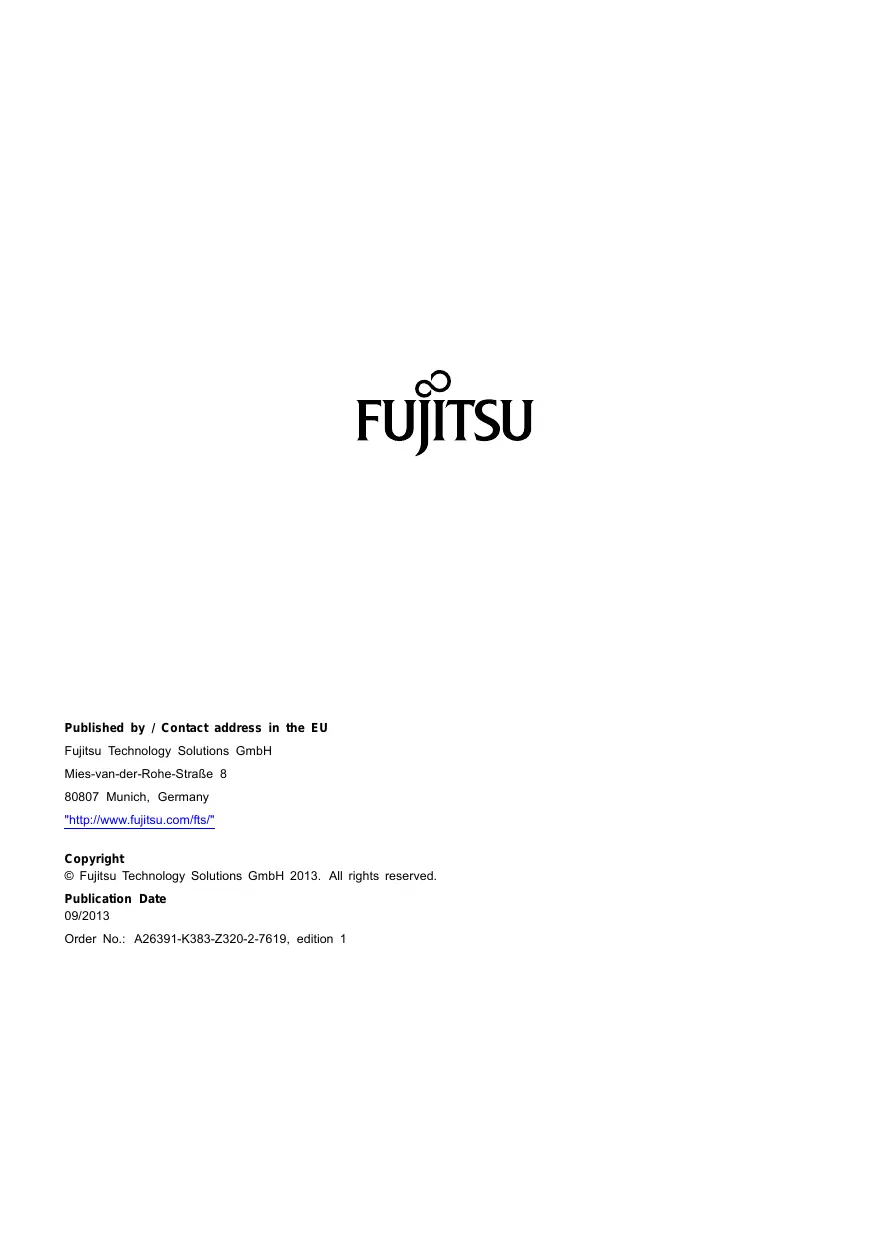

Published by / Contact address in the EU

Fujitsu Technology Solutions GmbH

80807 Munich, Germany

"http://www.fujitsu.com/fts/

Copyright

© Fujitsu Technology Solutions GmbH 2013. All rights reserved.

Publication Date

09/2013

Order No.: A26391-K383-Z320-2-7619, edition 1

LIFEBOOK A544 LIFEBOOK AH544 LIFEBOOK AH564

Operating Manual

7

Ports and controls 9

Important notes 13

First-time setup of your device 16

Working with the notebook 19

Security functions 40

Connecting external devices 44

Removing and installing components during servicing 49

Settings in BIOS Setup Utility 57

Troubleshooting and tips 59

Technical data 66

Manufacturer's notes 68

Index 74

Remarks

Information on the product description meets the design specifications of Fujitsu and is provided for comparison purposes. Several factors may cause the actual results to differ. Technical data is subject to change without prior notification. Fujitsu rejects any responsibility with regard to technical or editorial mistakes or omissions.

Trademarks

Fujitsu, the Fujitsu logo and LIFEBOOK are registered trademarks of Fujitsu Limited or its subsidiaries in the United States and other countries.

Microsoft and Windows are trademarks or registered trademarks of the Microsoft Corporation in the United States and/or other countries.

Adobe Reader is a trademark of Adobe Systems Incorporated.

Sony and Memory Stick are registered trademarks of Sony Electronics, Inc.

dt

Boost

Made under license from DTS Licensing Limited. DTS and the symbol are registered trademarks and & DTS Boost is a trademark of DTS, Inc. Product contains software. © DTS, Inc. All rights reserved.

All other trademarks specified here are the property of their respective owners.

Copyright

No part of this publication may be copied, reproduced or translated without the prior written consent of Fujitsu.

No part of this publication may be saved or transferred by any electronic means without the written approval of Fujitsu.

Contents

7

Further information 7

Notational conventions 8

Ports and controls 9

Important notes 13

Safety notes 13

Additional safety notes for devices with radio components 13

Energy saving 14

Energy saving under Windows 14

Travelling with your notebook 14

Before you travel 14

Notebook: transporting 15

Cleaning the notebook 15

First-time setup of your device 16

Unpacking and checking the device 16

Selecting a location 17

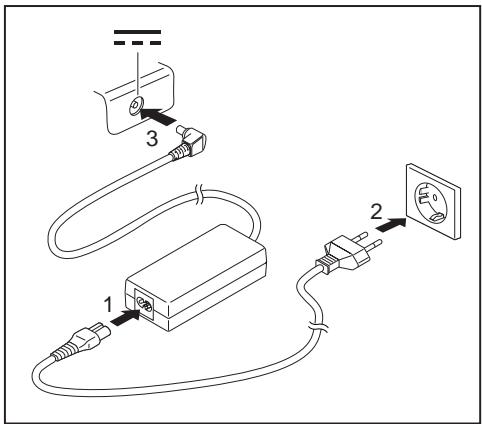

Mains adapter connecting 17

Switching on the device for the first time 18

Working with the notebook 19

Status indicators 19

Switching on the notebook 20

Notebook: switching off 21

Keyboard 22

Separate number block 24

Key combinations 24

Country and keyboard settings 26

Touchpad and touchpad buttons 26

Moving the pointer 26

Selecting an item 27

Executing commands 27

Dragging items 27

Switching the Touchpad on and off 27

Touchscreen/LCD screen without touch function (device-dependent) 28

Using fingers 29

Webcam 30

Rechargeable battery 31

Charging, caring for and maintaining the battery 31

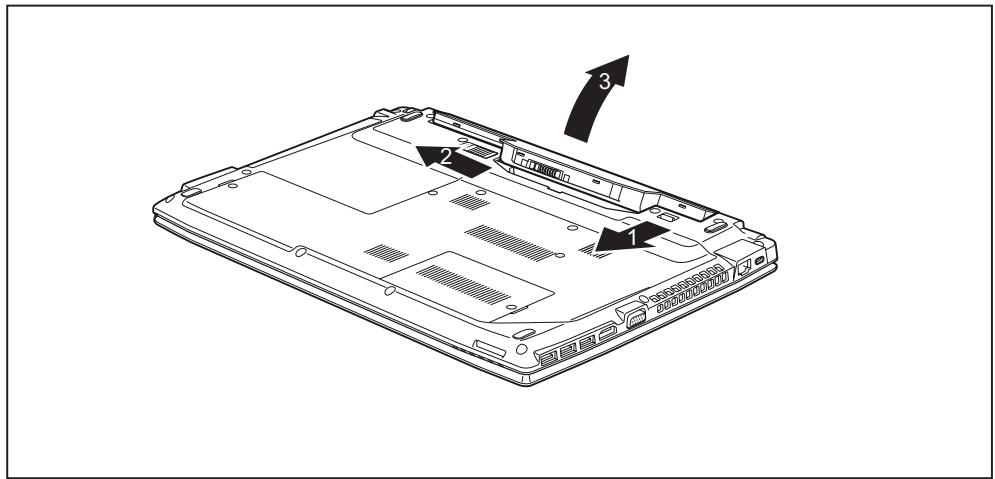

Removing and installing the battery 31

Optical drive (optional) 34

Handling data carriers 34

CD/DVD indicator 34

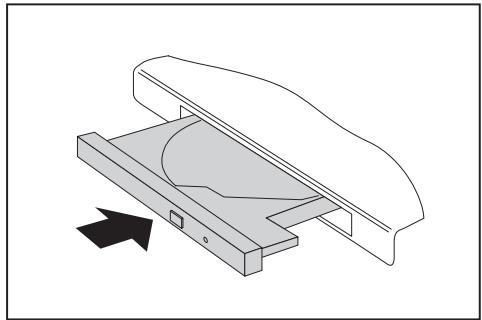

Inserting or removing a data carrier 35

Manual removal (emergency removal) 35

Using the power-management features 36

Memory cards 37

Supported formats 37

Inserting the memory card 37

Removing the memory card 37

Loudspeakers and microphones 38

Wireless LAN / Bluetooth 38

Switching the wireless components on and off 38

Setting up WLAN access 38

Ethernet and LAN 39

Security functions 40

Using the Security Lock 40

Configuring password protection in BIOS Setup Utility 41

Protecting BIOS Setup Utility (supervisor and user password) 41

Password protection for booting of the operating system 42

Password protection for the hard disk 43

44

Connecting an external monitor 45

HDMI port 45

Connecting USB devices 46

USB port with charging function (Anytime USB charge) 47

How to remove USB devices correctly 47

Connecting external audio devices 48

Microphone port/Line In 48

Headphone port 48

Removing and installing components during servicing 49

Notes on installing and removing boards and components 49

Preparing to remove components 50

Installing and removing memory expansion 50

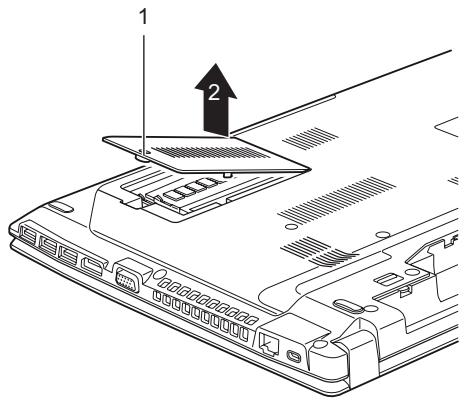

Removing the cover 51

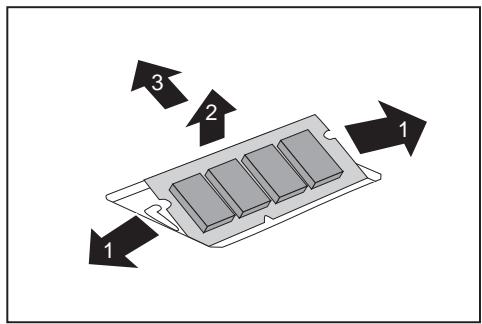

Removing memory modules 51

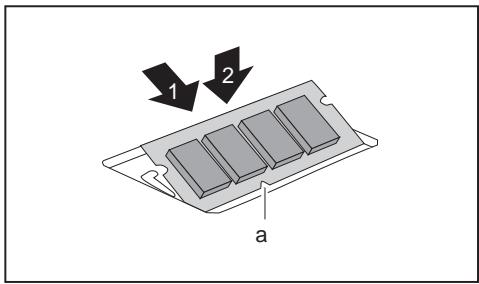

Installing a memory module 52

Securing the cover 52

Removing and installing the hard disk 53

Removing a cover 53

Removing a hard disk 54

Installing a hard disk 55

Attaching the cover 56

Finishing component removal 56

Settings in BIOS Setup Utility 57

Starting the BIOS Setup Utility 57

Operating BIOS Setup Utility 57

ExitingBIOS Setup Utility 58

Exit Saving Changes - save changes and exit BIOS Setup Utility 58

Exit Discarding Changes -Discard changes and exit BIOS Setup Utility 58

Load Setup Defaults - Copy Standard Entries 58

Discard Changes - Discard changes without exiting the BIOS Setup Utility 58

Save Changes - save changes without exiting the BIOS Setup Utility 58

Save Changes and Power Off 58

Troubleshooting and tips 59

Help if problems occur 59

Restoring the hard disk contents under Windows 60

The notebook's date or time is incorrect 60

The notebook's LCD screen remains blank 60

The LCD screen is difficult to read 61
The external monitor remains blank 61
The external monitor is blank or the image is unstable 61
The notebook cannot be started 62
The notebook stops working 62
The printer does not print 63
The radio connection to a network does not work 63
Acoustic warnings 63
Error messages on the screen 64

Technical data 66
LIFEBOOK 66
Rechargeable battery 66
Mains adapter (90W) 66
Power adapter, 65 W 67

Manufacturer's notes 68

Disposal and recycling 68
Declarations of Conformity 68
CE marking 68
Regulatory notices 69

Regulatory information for notebooks without radio device 69
DOC (Industry CANADA) notices 70
FCC regulatory information for notebooks with radio device 72

Index 74

Innovative technology

... and ergonomic design make your device a reliable and convenient companion.

The device boots very quickly, is ready for immediate use and offers a particularly long operating time because of its high capacity battery.

With the user-friendly "BIOS Setup Utility" you can control your notebook's hardware and better protect your system against unauthorised access by using the powerful password properties.

Information on the connections and user components of your notebook can be found in "Ports and controls", Page 9.

Further information

The Windows drivers for your device can be found on our Internet site. The factory installation of your device does not support any other operating system. Fujitsu Technology Solutions accepts no liability whatsoever if any other operating system is used.

Software oriented components of these instructions refer to Microsoft products, if they come within the scope of the delivery.

If you install other software products, pay attention to the operating instructions of the manufacturer.

Notational conventions

!	Pay particular attention to text marked with this symbol. Failure to observe these warnings could pose a risk to health, damage the device or lead to loss of data. The warranty will be invalidated if the device becomes defective through failure to observe these warnings.
i	Indicates important information for the proper use of the device.
>	Indicates an activity that must be performed
↓	Indicates a result
This font	indicates data entered using the keyboard in a program dialogue or at the command line, e.g. your password (Name123) or a command used to start a program (start.exe)
This font	indicates information that is displayed on the screen by a program, e.g.: Installation is complete.
This font	Indicates • terms and texts used in a software interface, e.g.: Click on Save • names of programs or files, e.g. Windows or setup.exe.
"This font"	Indicates • cross-references to another section, e.g. "Safety information" • cross-references to an external source, e.g. a web address: For more information, go to "http://www.fujitsu.com/fts/" • Names of CDs, DVDs and titles or designations for other materials, e.g.: "CD/DVD Drivers & Utilities" or "Safety/Regulations" manual
Key	indicates a key on the keyboard, e.g: F10
This font	indicates terms and texts that are emphasised or highlighted, e.g.: Do not switch off the device

Ports and controls

This chapter presents the individual hardware components of your device. It gives an overview of the indicators and connections of the device. Please familiarise yourself with these components before you start to work with the device.

Front of LIFEBOOK AH564 (with Touchscreen)

1 = Microphone
2 = Webcam
3 = WebCam LED
4 = Keyboard
5 = ON/OFF switch

6 = Touchpad
7 = Touchpad buttons
8 = Memory card slot
9 = Status indicators
10 = Loudspeaker

Front of LIFEBOOK A544 and AH544 (LCD screen without touch function)

1 = Microphone
2 = WebCam
3 = WebCam LED
4 = Keyboard
5 = ON/OFF switch

6 = Touchpad
7 = Touchpad buttons
8 = Memory card slot
9 = Status indicators
10 = Loudspeakers

Left panel

1 = Security Lock device
2 = LAN port
3 = VGA monitor port
4 = HDMI port

5 = USB port 3.0
6 = USB port 3.0
7 = USB port 3.0 with charging function (Anytime USB charge)

Right panel

1 = Headphone port
2 = Microphone jack
3 = USB port 2.0
4 = Optical drive (optional)

5 = Optical drive eject button (optional)
6 = Opening for manual ejection of data carrier (optional)
7 = DC input connector (DC IN)

Even if your system is not equipped with the optional optical drive, the eject button and the opening for the emergency eject are still present, but have no function.

Bottom

1 = Memory service compartment
4 = Battery compartment
2 = Hard disk service compartment
5 = Battery release
3 = Battery release

Important notes

This chapter contains essential safety information which must be followed when working with your notebook. Other notes also provide useful information which will help you with your notebook.

Safety notes

Please follow the safety notes provided in the "Safety/Regulations" manual as well as the safety notes given below.

Please pay special attention to the sections in the manual marked with the symbol on the left.

When connecting and disconnecting cables, observe the relevant notes in this operating manual.

Read the information on the ambient conditions in the "Technical data", Page 66 and "First-time setup of your device", Page 16 before preparing your notebook for use and switching it on for the first time.

When cleaning the device, please observe the relevant notes in the section "Cleaning the notebook", Page 15.

Pay attention to the additional safety notes for devices with radio components provided in the "Safety/Regulations" manual.

Please refer to the notes in the chapter "Removing and installing components during servicing", Page 49.

This notebook complies with the relevant safety regulations for data processing equipment. If you have questions about using your notebook in a particular area, please contact your sales outlet or our Hotline/Service Desk.

Additional safety notes for devices with radio components

If a radio component (Wireless LAN, Bluetooth, UMTS) is integrated in your notebook, you must be sure to observe the following safety notes when using your notebook:

• Switch off the radio components when you are in an aircraft or driving in a car.
• Switch off the radio components when you are in a hospital, an operating room or near a medical electronics system. The transmitted radio waves can impair the operation of medical devices.
• Switch off the radio components when you let the device get near flammable gases or into hazardous environments (e.g. petrol station, paintings), as the transmitted radio waves can cause an explosion or a fire.

For information on how to switch radio components on and off, see chapter "Switching the wireless components on and off", Page 38.

Energy saving

Switch the notebook off when it is not in use. Switch off external, connected devices if you are not using them. If you use the energy saving functions, the notebook uses less energy. You will then be able to work for longer before having to recharge the battery.

Energy efficiency is increased and the environmental impact is reduced. You save money while protecting the environment.

Energy saving under Windows

Make use of the power management features (see "Using the power-management features", Page 36").

Travelling with your notebook

Please observe the points listed below when travelling with your notebook.

Before you travel

Back up important data stored on your hard disk.
Switch off the radio component for data security reasons. With data traffic via a wireless connection, it is also possible for unauthorised third parties to receive data.

Information on activating data encryption is provided in the documentation for your radio component.

If you wish to use your notebook during a flight, first check with the flight attendants if it is OK to do so.

When travelling in other countries

If you are travelling abroad, check that the mains adapter can be operated with the local mains voltage. If this is not the case, obtain the appropriate mains adapter for your notebook. Do not use any other voltage converter!
- Check whether the local mains voltage and the power cable are compatible. If this is not the case, buy a power cable that matches the local conditions.
Enquire with the corresponding government office of the country you will be travelling in as to whether you may operate the radio component integrated in your notebook there (see also "CE marking", Page 68).

Notebook: transporting

Protect the notebook from severe shocks and extreme temperatures (e.g. direct sunlight in a car).

If your device has an optical drive, remove all data media (e.g. CD, DVD) from the drives.
Switch the notebook off.
Unplug the mains adapter and all external devices from the power socket.
Disconnect the mains adapter cable and the data cables for all external devices.
Close the LCD screen.
To protect against damaging jolts and bumps, use a notebook carrying case to transport your notebook.

Cleaning the notebook

Do not clean any interior parts yourself; leave this job to a service technician.

Only use cleaning products designed for computers. Normal household cleaners and polishes can damage the markings on the keyboard and the device, the paintwork or the notebook itself.

Ensure that no liquid enters the notebook.

The LCD screen very sensitive to scratches. Only clean the display surface with a very soft, slightly damp cloth.

Switch the notebook off.
In order to prevent accidentally switching the device on, remove the power cable from the mains adaptor and remove the battery (see "Removing and installing the battery", Page 31).
The surface can be cleaned with a dry cloth. If particularly dirty, use a cloth which has been moistened in mild domestic detergent and then carefully wrung out.

To clean the keyboard and the touchpad, if available, you can use disinfectant wipes.

Ensure that no liquid enters the device.

First-time setup of your device

Please read the chapter "Important notes", Page 13.

If your device is equipped with a Windows operating system, the necessary hardware drivers and supplied software are already pre-installed.

Before you switch on the device for the first time, connect it to the mains voltage using the mains adapter, see "Mains adapter connecting", Page 17. The mains adapter must be connected during the entire installation process.

A system test is performed when your device is first switched on. Various messages can appear. The display may remain dark for a short time or may flicker.

Please follow the instructions on the screen.

NEVER switch off your device during the first-time setup process.

On delivery, the battery can be found in the battery compartment or in the accessories kit.

The battery must be charged if you want to operate your device using the battery.

When used on the move, the built-in battery provides the device with the necessary power. You can increase the operating time by using the available energy-saving functions.

For instructions on how to connect external devices (e.g. mouse, printer) to your device, please refer to the operating manual for your device.

Unpacking and checking the device

Should you discover any damage that occurred during transportation, notify your local sales outlet immediately!

Unpack all the individual parts.
Check your device for any visible damage which may have occurred during transportation.

You may need the packaging in the future, if you need to transport your device.

Selecting a location

Select a suitable location for the device before setting it up. Follow the instructions below when doing so:

• Never place the device or the mains adapter on a heat-sensitive surface. The surface could be damaged as a result.
• Never place the device on a soft surface (e.g. carpeting, upholstered furniture, bed). This can block the air vents and cause overheating and damage.
• The underside of the device heats up during normal operation. Prolonged contact with the skin may become unpleasant or even result in burns.
• Place the device on a stable, flat, non-slippery surface. Please note that the rubber feet of the device may mark certain types of delicate surfaces.
• Keep other objects at least 100mm away from the device and its mains adapter to ensure adequate ventilation.
• Never cover the ventilation slots of the device.
• Do not expose the device to extreme environmental conditions. Protect the device from dust, humidity, and heat.

Mains adapter connecting

Observe the safety notes in the enclosed "Safety/Regulations" manual.

If the mains adapter is connected, you may feel a slight tingling when you touch the top of the aluminium housing. The combination of a mains adapter without protective earth and metallic housing parts causes a very weak electrical current. This effect is harmless. The device meets all relevant safety standards.

The supplied power cable conforms to the requirements of the country in which you purchased your device. Make sure that the power cable is approved for use in the country in which you intend to use it.

Connect the power cable (1) to the mains adapter.
Plug the mains cable (2) into a mains outlet.
Connect the mains adapter cable (3) to the DC jack (DC IN) of the device.

Switching on the device for the first time

When you switch on the device for the first time, the supplied software is installed and configured. Because this procedure must not be interrupted, you should set aside enough time for it to be fully completed and connect the device to the mains using the mains adapter.

During the installation process, DO NOT restart the device unless you are requested to do so!

To make it easier to use your device for the first time, the operating system is pre-installed on the hard disk.

Switch on your device.

During installation, follow the instructions on screen.

If a Windows operating system is installed on your device, you will find more information on the system and drivers, help programmes, updates, manuals etc. on the device or on the Internet at "http://www.fujitsu.com/fts/support/".

You can find information and help on the Windows operating system functions on the Internet at "http://windows.microsoft.com".

Working with the notebook

This chapter describes the basics for operating your notebook. Please read the chapter entitled "Connecting external devices", Page 44 for instructions on how to connect devices such as a mouse and a printer to the notebook.

Please refer to the notes in "Important notes", Page 13.

Status indicators

The status indicators provide information about the status of the power supply, the drives and the keyboard functions.

Status indicators	Description
(1)	Wireless components indicator ·The indicator is lit: The wireless components are switched on. ·The indicator is not lit: The wireless components are switched off.
	Power-on indicator/Standby ·The indicator is lit: The notebook is switched on. ·The indicator flashes: The notebook is in standby mode. ·The indicator is not lit: The notebook is switched off.
→	Battery charging indicator/power connector The state of charge of the battery is shown by the battery indicator. Without the mains adapter connected: ·Indicator is off: The system is in battery operation. With mains adapter connected: ·The indicator is illuminated (orange): The battery is charging. ·Indicator is blue: The battery is fully charged. ·Indicator flashes purple: a fault has occurred. The battery cannot be recharged. ·Indicator is off: There is no battery installed.
	Drive indicator The indicator is lit: One of the drives (e.g. hard disk, CD/DVD) is being accessed.
1	Num Lock indicator The indicator is lit: The Num key has been pressed. The virtual numerical keypad is activated. You can output the characters indicated on the upper right of the keys.
A	Caps Lock indicator The indicator is lit: The Caps Lock key has been pressed. All the characters you type will appear in upper case. In the case of overlay keys, the character printed on the upper left of the key will appear when that key is pressed.

Switching on the notebook

The power-on indicator is lit.

Open the LCD screen.
Press the ON/OFF switch for about one second to switch the notebook on.

Notebook: switching off

Back up your data and close all applications before you switch off your device. Otherwise data might be lost.

Shut down the operating system correctly.
If the notebook is not switched off automatically, press the ON/OFF switch for approx. five seconds.
Close the LCD screen.

Keyboard

The keyboard of your notebook is subject to continuous wear through normal use. The key markings are especially prone to wear. The key markings are liable to wear away over the life of the notebook.

The keyboard has been designed to provide all the functions of an enhanced keyboard. Some enhanced keyboard functions are mapped with key combinations.

The following description of keys refers to Windows. Additional functions supported by the keys are described in the relevant manuals supplied with your application programs.

The figure below shows how to access the different characters on keys with overlaid functions. The example applies when the Caps Lock key has not been activated.

The illustrations shown below may differ from your actual device.

Key	Description
	Backspace key The Backspace key deletes the character to the left of the cursor.
	Tab key The Tab key moves the cursor to the next tab stop.
	Enter key (return) The Enter key terminates a command line. The command you have entered is executed when you press this key.
	Caps Lock key The Caps Lock key activates the Caps Lock mode, and the corresponding icon is displayed in the Windows information area. In Caps Lock mode, all of the characters you type appear in upper case. In the case of overlay keys, the character printed on the upper left of the key will appear when that key is pressed. To cancel the Caps Lock function, simply press the Caps Lock key again.
	Shift key The Shift key causes uppercase characters to appear. In the case of overlay keys, the character printed on the upper left of the key appears when that key is pressed.
	Fn button The Fn key enables the special functions indicated on overlay keys (see "Key combinations", Page 24).
	Cursor keys The cursor keys move the cursor in the direction of the arrow, i.e. up, down, left, or right.
	Windows key The Windows key switches between the start screen and the last used application.
	Menu key The Menu key opens the menu for the active application.

Separate number block

The keyboard of your notebook has a separate number block on the far right.

Key combinations

The following description of key combinations applies to Windows operating systems. Some of the following key combinations may not function in other operating systems or with certain device drivers.

Other key combinations are described in the relevant manuals supplied with your application programs.

Key combinations are entered as follows:

Press the first key in the combination and keep it pressed.
While holding the first key down, press the other key or keys in the combination.

Combination	Description
Fn + F3	Switching the loudspeakers on and off This key combination switches your notebook's loudspeakers off and on.
Fn + F4	Switching the touchpad and touchpad buttons on/off This key combination switches the touchpad and the touchpad buttons on or off.
Fn + F5	Switching the wireless components on / off This key combination switches the wireless components off or on.
Fn + F6	Decrease screen brightness This key combination decreases the brightness of the screen.
Fn + F7	Increase screen brightness This key combination increases the brightness of the screen.
Fn + F8	Decrease volume This key combination reduces the volume of the internal loudspeakers.
Fn + F9	Increase volume This key combination increases the volume of the internal loudspeakers.
Fn + F10	Toggle output screen Use this key combination to select which screen(s) is/are used for display if an external monitor is connected. Screen output is possible: • only on the notebook's LCD screen • on the LCD screen of the notebook and the external monitor at the same time • only on the external monitor This setting is useful if you would like a high resolution and a high refresh rate on an external monitor.
Fn + F11	Power management functions Use this key combination to activate the power management functions (see chapter "Using the power-management features", Page 36).
Fn + F12	Switch webcam on/off This key combination switches the webcam on or off, provided the webcam has been enabled in the BIOS Setup utility.
Alt +	Switch between open applications Use this key combination to switch between several open applications.
Ctrl + Alt + Del	Windows security/Task-Manager This key combination opens the Windows security/Task-Manager window.
+	Back tab This key combination moves the cursor back to the previous tab stop.

Key combinations using the Windows keys are detailed in the manual for your operating system.

Country and keyboard settings

Change the country and keyboard settings as described in the documentation for your operating system.

Touchpad and touchpad buttons

Keep the touchpad clean. Protect it from dirt, liquids and grease.

Do not use the touchpad if your fingers are dirty.

Do not rest heavy objects (e.g. books) on the touchpad or the touchpad buttons.

1 = Touchpad
2 = Touchpad buttons

The touchpad enables you to move the mouse pointer on the screen.

The touchpad buttons allow you to select and execute commands. They correspond to the buttons on a conventional mouse.

You can use a key combination to disable the touchpad, to avoid accidentally moving the pointer on the screen (see also "Key combinations", Page 24).

Moving the pointer

Move your finger on the touchpad.
The pointer will move.

Selecting an item

Move the pointer to the item you wish to select.
Tap the touchpad once or press the left button once.
The item is selected.

Executing commands

Move the pointer to the field you wish to select.
Tap the touchpad twice or press the left button twice.
The command is executed.

Dragging items

Select the desired item.
Press and hold the left button and drag the item to the desired position with the finger on the touchpad.
The item will be moved.

Switching the Touchpad on and off

You can switch the Touchpad on and off using a key combination, see "Key combinations", Page 24.

Touchscreen/LCD screen without touch function (device-dependent)

High-quality TFT displays are installed in notebooks from Fujitsu Technology Solutions GmbH. For technical reasons, TFT monitors are manufactured for a specific resolution. An optimal, clear picture can only be ensured with the correct resolution intended for the relevant TFT monitor. A monitor resolution which differs from the specification can result in an unclear picture.

The screen resolution of the LCD monitor of your notebook is optimally set at the factory.

Current production technology cannot guarantee an absolutely fault-free screen display. A few isolated constantly lit or unlit pixels may be present. The maximum permitted number of such faulty pixels is specified in the international standard ISO 9241-307 (Class II).

Example:

A screen with a resolution of 1280 × 800 has 1280 × 800 = 1024000 pixels. Each pixel consists of three subpixels (red, green and blue), so there are almost 3 million subpixels in total. According to ISO 9241-307 (class II), a maximum of 2 light and 2 dark pixels and in addition 5 light or 10 dark subpixels or an equivalent mix (1 light subpixel counts as 2 dark subpixels) are allowed to be defective.

Pixel

A pixel consists of 3 subpixels, normally red, green and blue. A pixel is the smallest element that can be generated by complete functionality of the display.

Subpixel

A subpixel is a separately addressable internal structure within a pixel that enhances the pixel function.

Cluster

A cluster contains two or more defective pixels or subpixels in a 5 × 5 pixel block.

Background lighting

TFT monitors are operated with background lighting. The luminosity of the background lighting can decrease during the period of use of the notebook. However, you can set the brightness of your monitor individually.

Synchronising the display on the LCD screen and an external monitor

For more information, please refer to the chapter "Key combinations", Page 24 under "Display output, switch between".

Using fingers

You can use your finger on the touch screen of your device to execute commands and start applications.

Action	Description
Tapping	► Tap on a symbol, menu, button or folder to select this option or to activate it.
Tap and hold	► Tap on a button and let your finger stay there longer until the action is taken.
Dragging	► Tap and hold a symbol and drag it to another place. You can for instance drag apps or widgets onto the home page in this way.
Stroke or slide	► Stroke your finger quickly on the screen in one direction. This allows you to switch between different homepages, for example.
Double-tap	► To enlarge a view, quickly tap twice on a web page, map or another screen. When you double-tap on an image in a web browser, it will be enlarged and another double-tap will make it smaller again.
Zoom in/Zoom out	► With some apps, you can enlarge the display size by moving two fingers apart on the touchscreen, and reduce it by moving your fingers together.
Input fields	Data must be entered for some apps, for instance an Internet page or your name and password. ► Tap on the input field. An on-screen keyboard opens, with which you can enter your data.

Webcam

Depending on the software used, you can use your Webcam to take pictures, record video clips or take part in web chats.

The picture quality depends on the lighting conditions and the software being used.
- You can only operate the webcam with a particular application (e.g. an Internet telephony program or a video conferencing program which supports a webcam).
- When using the webcam the notebook support must not wobble.
- The webcam automatically adjusts itself to the current light level. For this reason the LCD screen may flicker while the light level is adjusted.

Further information on using the webcam and on the additional settings which are possible for your webcam can be found in the help function of the program which uses the webcam.

If you would like to perform a function test of your web cam, there is suitable test software available at "http://www.fujitsu.com/fts/support/index.html".

Rechargeable battery

When not plugged into a mains socket, the notebook runs on its built-in battery. You can increase the life of the battery by caring for the battery properly. The average battery life is around 500 charge/discharge cycles.

You can extend the battery life by taking advantage of the available energy saving functions.

Charging, caring for and maintaining the battery

The notebook battery can only be charged, when the ambient temperature is between 5°C and max. 35°C .

You can charge the battery by connecting the notebook to the mains adapter (see "Mains adapter connecting", Page 17).

If the battery is running low you will hear a warning alarm. If you do not connect the mains adapter within five minutes of the warning alarm described above, your notebook will automatically switch off.

monitoring the battery charging level

Windows also has a "Battery status meter" in the taskbar for monitoring the battery capacity. When you place the mouse pointer on the battery symbol, the system displays the battery status.

Battery storage

Keep the battery pack between 0°C and +30°C . The lower the temperature at which the batteries are stored, the lower the rate of self-discharge.

If you will be storing batteries for a longer period (longer than two months), the battery charge level should be approx. 30% . To prevent exhaustive discharge which would permanently damage the battery, check the level of charge of the battery at regular intervals.

To be able to make use of the optimal charging capacity of the batteries, the battery should be completely discharged and then fully recharged.

If you do not use the batteries for long periods, remove them from the notebook. Never store the batteries in the device.

If the device will not be used for a period of more than two days, remove the batteries from the device so that their state of charge is maintained.

Removing and installing the battery

Only use rechargeable batteries approved by Fujitsu Technology Solutions for your notebook.

Never use force when fitting or removing a battery.

Make sure that no foreign bodies get into the battery connections.

Never store a battery for longer periods in the discharged state. This can make it impossible to recharge.

Removing the battery

Prepare for removal, see chapter "Preparing to remove components", Page 50.

▶ Slide the release button in the direction of the arrow (1) and hold it in place.
▶ Slide the release button in direction of the arrow (2).
Remove the battery from the battery compartment (3).

Inserting battery

Position the battery at the edge.
Insert the battery into the battery compartment until it engages positively (1).
▶ Slide the release button in the direction of the arrow (2).
▶ Slide the release button in the direction of the arrow (3).
Complete the removal, see chapter "Finishing component removal", Page 56.

Optical drive (optional)

This product contains a light emitting diode, classification according to IEC 60825 1:2007: LASER CLASS 1, and must therefore not be opened.

Even if your system is not equipped with the optional optical drive, the eject button and the opening for the emergency eject are still present, but have no function.

Handling data carriers

Observe the following guidelines when handling data carriers:

• Avoid touching the surface of a data carrier. Only handle data carriers by their edges.
• Always store data carriers in their cases. This will protect the data carrier against being covered in dust, scratched or damaged in any other way.
• Protect your data carriers against dust, mechanical vibrations and direct sunlight.
• Avoid storing a data carrier in areas subject to high temperatures or humidity.

You may use both 8-cm and 12-cm data carriers in the optical drive.

When using a data carrier of lesser quality, vibrations and reading errors may occur.

CD/DVD indicator

The CD/DVD indicator flashes when a data carrier is inserted. The indicator goes out when the drive is ready for reading. The indicator lights up when the drive is being accessed. You may only remove the data carrier when the indicator is unlit.

If the CD/DVD indicator does not go out after a data carrier has been inserted, but instead continues to flash, this means that the drive cannot access the data carrier.

Either the data carrier is damaged or dirty or you are using a data carrier that the drive cannot read.

Inserting or removing a data carrier

The notebook must be switched on.

Push the insert/eject button (1).
The drive tray will open.
Gently pull the drive tray (2) completely out.

Place the data carrier in the drive tray with the printed side facing upwards.

or

Remove a data carrier that has been inserted.
Push in the drive tray until you feel it lock into place.

Manual removal (emergency removal)

In the event of a power failure or damage to the drive, you can remove the data carrier manually.

Switch your notebook off.
Push a pen or a piece of wire (such as a paperclip) firmly into the opening (1).
→ The drive tray is ejected. You can now pull the drive tray (2) out of the drive.

Using the power-management features

The notebook uses less power when the available power-management features are used. You will then be able to work longer when using the battery before having to recharge it.

Power efficiency is increased and environmental pollution reduced. By choosing the best power options, you can make significant savings and at the same time help protect the environment.

When you close the LCD screen, depending on the setting in Windows, the notebook automatically enters a power saving mode.

We recommend the following settings:

Function	On external power	On battery power
Turn off monitor	After 10 minutes	After 5 minutes
Turn off hard disk(s)	After 15 minutes	After 10 minutes
Energy saving (S3)	After 20 minutes	After 15 minutes
Hibernate mode (S4)	After 1 hour	After 30 minutes

Select the power management functions in your Control Panel.
Select the Screen Saver in your Control Panel.

If you need further information about an option, you can get help with most settings by pressing F1 to open the Microsoft Help.

When the notebook is in power-saving mode, the following must be remembered:

During power saving mode, open files are held in the main memory or in a swap file on the hard disk.

Never turn off your notebook while it is in a power saving mode. If the built-in battery is nearly empty, close the open files and do not go into power saving mode.

If you do not intend to use your notebook for a long period of time:

Exit power saving mode if necessary via the mouse or keyboard or by switching on the notebook.
Close all opened programs and completely shut down the notebook.

Memory cards

Your notebook is equipped with an integrated memory card reader.

Observe the manufacturer's instructions when handling the memory cards.

Supported formats

Your notebook supports the following formats:

SDHC
SDXC

Inserting the memory card

• Carefully slide the memory card into the slot. The label should be facing upward. Do not apply excessive force, as otherwise the delicate contact surfaces could be damaged.
  → Depending on the particular type used, the memory card may protrude slightly from the slot.

Removing the memory card

To avoid any loss of data, always follow the correct procedure for removing the card (see the documentation for your operating system).

Pull the memory card out of the slot.

Loudspeakers and microphones

Information on the exact position of the speakers and microphone can be found in "Ports and controls", Page 9.

Please refer to chapter "Key combinations", Page 24 for information on setting the volume and also enabling/disabling the loudspeakers using key combinations.

If you attach an external microphone, the built-in microphone is disabled.

When you connect headphones or external speakers, the built-in speakers are disabled.

Information on connecting headphones and a microphone can be found in "Connecting external devices", Page 44.

Wireless LAN / Bluetooth

The installation of radio components not approved by Fujitsu Technology Solutions will invalidate the certifications issued for this device.

Switching the wireless components on and off

Press the key combination Fn + F5 to start the WirelessSelector.
The wireless component indicator will illuminate when one or more wireless components are switched on.

The Bluetooth module and the wireless LAN transmission unit (antenna) will be switched off when you switch off the radio components.

Pay attention to the additional safety notes for devices with wireless components provided in the "Safety" manual.

Details on using a Wireless LAN can be found in the online help system included in the Wireless LAN software.

Setting up WLAN access

• Requirement: A WLAN must be available and you must have the corresponding access information.

Information on configuring the WLAN access can be found in the documentation for your operating system.

Ethernet and LAN

The internal network module of your notebook supports Ethernet LAN. You can use it to establish a connection to a local network (LAN = Local Area Network).

Connect the network cable to the LAN port of the notebook (1).
Connect the network cable to your network connection (2).

Your network administrator can help you to configure and use the LAN connections. The network cable is not included in the delivery scope. This type of cable can be obtained from a specialist dealer.

Security functions

Your notebook has several security features that you can use to secure your system from unauthorised access.

This chapter explains how to use each function, and what the benefits are.

Please remember that in some cases, for example, forgetting your password, you may be locked out and unable to access your data. Therefore, please note the following information:

• Make regular backups to external data carriers such as external hard drives, CDs, DVDs or Blu-ray Discs.
• Some security functions need you to choose passwords. Make a note of the passwords and keep them in a safe place.

If you forget your passwords you will need to contact the our Service

Desk. Deletion or resetting of passwords is not covered by your warranty and a charge will be made for assistance.

Using the Security Lock

Your device comes with a Security Lock mechanism for the Kensington Lock Cable. You can use the Kensington Lock Cable, a sturdy steel cable, to help protect your notebook from theft. The Kensington Lock Cable is available as an accessory.

Fujitsu Technology Solutions recommends the use of a combination lock.

Fit the Kensington Lock Cable to the mechanism on your notebook.

Configuring password protection in BIOS Setup Utility

Before using the various options for password protection in the BIOS Setup utility to increase data security, please observe the following:

Make a note of the passwords and keep them in a safe place. If you forget your supervisor password you will not be able to access your notebook. Passwords are not covered by your warranty and a charge will be made for assistance.

Your password can be up to eight characters long and contain letters and numbers. No distinction is made between uppercase and lowercase.

Protecting BIOS Setup Utility (supervisor and user password)

If you have opened these operating instructions on the screen, we recommend that you print them out. You cannot call the instructions onto the screen while you are setting up the password.

The supervisor password and the user password both prevent unauthorised use of the BIOS-Setup-Utility. With the aid of the supervisor password you can access all of the functions of the BIOS-Setup-Utility, while the user password will only give you access to some of the functions. You can only set up a user password if a supervisor password has already been assigned.

Please refer to section "Settings in BIOS Setup Utility", Page 57 for a description of how to call up and operate the BIOS-Setup-Utility.

Setting supervisor and user password

Start the BIOS Setup Utility and go to the Security menu.
Select the Set Supervisor Password field and press the Enter key.
With Enter new Password: you are asked to enter a password.
Enter the password and press the Enter key.
Confirm new Password requires you to confirm the password.
Enter the password again and press the Enter key.
Changes have been saved is a confirmation that the new password has been saved.
To set the user password, select Set User Password and proceed exactly as when configuring the supervisor password.
If you do not want to change any other settings, you can exit BIOS Setup Utility.
In the Exit menu, select the option Save Changes & Exit.
Select Yes and press the Enter key.
→ The notebook will be rebooted and the new password will come into effect. It will now be necessary to first enter your supervisor or user password in order to open the BIOS Setup Utility. Please note that the user password only provides access to a few of the BIOS settings.

Changing the supervisor or user password

You can only change the supervisor password when you have logged into the BIOS Setup Utility with the supervisor password.

Call the BIOS Setup Utility and go to the Security menu.
When changing the password, proceed exactly as for password assignment.

Removing passwords

To remove a password (without setting a new password) perform the following steps:

Start the BIOS Setup Utility and go to the Security menu.
Highlight the Set Supervisor Password or Set User Password field and press the Enter key.
→ You will be requested to enter the current password by the Enter Current Password prompt.
You will be requested to enter a new password by the Enter New Password prompt.
Press the Enter key twice.
In the Exit menu, select the option Save Changes & Exit.
Select Yes and press the Enter key.
→ The notebook will now reboot with the password removed. Removing the supervisor password simultaneously deactivates the user password.

Password protection for booting of the operating system

With the supervisor password you have set in the BIOS Setup Utility (see section "Setting supervisor and user password", Page 41), you can also prevent booting of the operating system.

Activating system protection

Start the BIOS Setup Utility and go to the Security menu.
Select the Password on Boot option and press the Enter key.
Select the desired option (Disabled, First Boot or Every Boot) and press the Enter key
Select the Save Changes & Exit option under Exit.
→ The notebook will reboot. You will be prompted to enter your password (the supervisor password).

Deactivating system protection

Start the BIOS Setup Utility and go to the Security menu.
Select the Password on Boot option and press the Enter key.
Select the Disabled option and press the Enter key.
If you do not want to change any other settings, you can exit BIOS Setup Utility.
Select the Save Changes & Exit option under Exit.
The notebook will reboot. The system is no longer password-protected.

Password protection for the hard disk

The had disk password prevents unauthorised access to the hard disk drives and is checked internally each time the system is booted. The condition for this is that you have assigned at least the supervisor password.

Activating hard disk protection

Call up the BIOS Setup and select the Security menu.
→ If you have not assigned BIOS passwords yet, define the supervisor and the user password now, if desired (see "Security functions", Page 40).
Mark the Hard Disk Security field and press the Enter key.
In the Drive0 area mark the Set Master Password field and press the Enter key.
Enter new Password then appears and you are asked to enter a password.
Enter the password and press the Enter key.
Confirm new Password requires you to confirm the password.
Enter the password again and press the Enter key.
Setup Notice: Changes have been saved is displayed to confirm that the new password has been saved.
To assign the password for the second hard disk (Drive1), go to the Drive1 area and select the field Set Master Password, then proceed in exactly the same way as for setting up the password for the first hard disk (Drive0).
The field Password Entry on Boot is set to Enabled by default. You can exit the BIOS Setup once you have finished changing the settings.
From the Exit menu, choose the option Exit Saving Changes.
Press the Enter key and select Yes.
→ The notebook reboots and your hard disk is now protected with a password. The system will ask you to enter the password when the notebook is restarted again.

Deactivating hard disk protection

To cancel a password without setting a new one, proceed as follows:

Call up the BIOS Setup and select the Security menu.
Mark the Hard Disk Security field and press the Enter key.
In the Drive0 area mark the Set Master Password field and press the Enter key.
→ You will be initially requested to enter the old password by the Enter current Password prompt.
You will then be requested to enter a new password by the Enter new Password prompt.
After entering the password, press the Enter key three times.
From the Exit menu, choose the option Exit Saving Changes.
Press the Enter key and select Yes.
The notebook reboots, and password protection for the hard disk is cancelled.
To cancel the password for the second hard disk (Drive1), go to the Drive1 area and select the field Set Master Password, then proceed in exactly the same way as for cancelling the password for the first hard disk (Drive0).

Connecting external devices

Always refer to the safety information provided in "Important notes", Page 13 before connecting or disconnecting any devices to or from your notebook.

Always read the documentation supplied with the device you wish to connect.

Never connect or disconnect cables during a thunderstorm.

Never pull at a cable when disconnecting it. Always grasp the plug.

Follow the steps below in order, when connecting or disconnecting devices to your notebook:

With some devices such as USB devices, it is not necessary to switch off the notebook and the device before connecting/disconnecting. For more information about whether or not devices need to be switched off, please refer to the documentation supplied with the external device.

Some of the external devices require special drivers (see the operating system and external device documentation).

Connecting devices to the notebook

1. Turn off your notebook and all external devices.
2. Unplug your notebook and all devices from the mains sockets.
3. Connect the cables for your external devices following the instructions.
4. Plug all power cables into the mains sockets.

Disconnecting devices from the notebook

1. Turn off your notebook and all external devices.
2. Unplug your notebook and all devices from the mains sockets.
3. Disconnect the cables for your external devices following the instructions.

Connecting an external monitor

You can connect an external monitor to the analogue VGA monitor connection of the notebook. Screen output is limited to a maximum of two screens at any one time (see "Key combinations", Page 24, section "Toggle output screen").

Analogue VGA monitor connection socket

Switch off the notebook and the external monitor.
Connect the data cable of the external monitor to the monitor port of the notebook.
First switch on the external monitor and then the notebook.

You can also use a key combination to switch back and forth between the external monitor and the notebook's LCD screen, see chapter "Key combinations", Page 24.

You can display the same picture on the external monitor and the notebook LCD screen simultaneously.

HDMI port

The HDMI port on your notebook can be used to connect an external amplifier, LCD TV or a plasma TV with an HDMI connection.

Connect the data cable to the external device.
Connect the data cable to the HDMI port of the notebook.

Connecting USB devices

On the USB ports, you can connect external devices that also have a USB port (e.g. a DVD drive, a printer, a scanner or a modem).

USB devices are hot-pluggable. This means you can connect and disconnect devices while your operating system is running.

USB 1.x has a maximum data transfer rate of 12 Mbit/s.

USB 2.0 has a data transfer rate of up to 480 Mbit/s.

USB 3.0 has a data transfer rate of up to 5 Gbit/s.

Additional information can be found in the documentation for the USB devices.

Connect the data cable to the external device.
Connect the data cable to a USB port of the notebook.

Device drivers

USB devices will be automatically recognised and installed by your operating system.

USB port with charging function (Anytime USB charge)

It is recommended that the notebook be operated with the power supply connected whenever the USB port with charging function is in use, as this function will drain the battery more quickly if an external USB device is being charged.

The power supply unit must already be connected when the notebook is switched off, as otherwise the USB charging function will be disabled and the connected USB devices will not be charged.

Some USB devices (e.g. mobile telephones) require a driver in order to utilise the USB charging function. In this case the USB charging function will not work when the notebook is switched off, as no drivers are active when the notebook is switched off.

You can use this USB port to charge or supply power to a USB device (e.g. to charge a PDA or a mobile phone or to connect a USB lamp), even if the notebook is switched off.

How to remove USB devices correctly

Always correctly remove the device according to the rules described below, to ensure that none of your data is lost.

Left click on the icon to safely remove hardware, located in the taskbar.
Select the device which you want to shut down and remove.
Press the Enter key.
Wait for the dialogue box which tells you that it is now safe to remove the device.

Connecting external audio devices

Microphone port/Line In

The microphone port/Line In allows you to connect an external microphone, a MiniDisc player, MP3 player, CD player or a tape deck to your notebook.

Connect the audio cable to the external device.
Connect the audio cable to the microphone port/Line In of the notebook.

Headphone port

You can connect headphones or external loudspeakers to your notebook via the headphone port.

Connect the audio cable to the external device.
Connect the audio cable to the headphone port of the notebook.
The internal loudspeakers are disabled.

If you purchase a cable from a retailer, please note the following information:

The headphone port on your notebook is a "3.5 mm jack socket".

If you want to connect headphones or a speaker you will need a "3.5 mm jack plug".

Removing and installing components during servicing

Only qualified technicians should repair your notebook. Unauthorized opening or incorrect repair may greatly endanger the user (electric shock, fire risk) and will invalidate your warranty.

After consulting the Hotline/Service Desk, you may remove and install the components described in this chapter yourself.

If you remove and install components without consulting the Hotline/Service Desk, then the warranty of your notebook will be voided.

Notes on installing and removing boards and components

• Switch the notebook off and pull the power plug out of the mains socket.
  Always remove the battery.
  Take care when you use the locking mechanisms on the battery and any other component.
• Never use sharp objects such as screwdrivers, scissors or knives as leverage to remove covers.

Boards with electrostatic sensitive devices (ESD) are marked with the label shown.

When handling boards fitted with ESDs, you must always observe the following points:

• You must always discharge static build up (e.g. by touching a grounded object) before working.
  The equipment and tools you use must be free of static charges.
• Remove the power plug from the mains supply before inserting or removing boards containing ESDs.
  Always hold boards with ESDs by their edges.
• Never touch pins or conductors on boards fitted with ESDs.

Preparing to remove components

If you are going to remove or change system components, prepare for the removal as follows:

Please observe the safety information in chapter "Important notes", Page 13.

Remove the power plug from the mains outlet!

Switch the device off.

The device must not be in energy-saving mode!

Close the LCD screen.
Remove all the cables from the device.
- Turn the device over and place it on a stable, flat and clean surface. If necessary, lay an anti-slip cloth on this surface to prevent the device from being scratched.
Remove the battery (see "Removing the battery", Page 32).

Installing and removing memory expansion

If you are asked by the Hotline/Service Desk to remove and install the memory expansion yourself, proceed as follows:

Please observe the safety information in chapter "Important notes", Page 13.

When installing/removing memory modules, the battery must be removed from the notebook and the notebook must not be connected to the power supply, see "Preparing to remove components", Page 50.

Only use memory expansion modules that have been approved for your notebook (see "Technical data", Page 66).

Never use force when installing or removing a memory extension.

Make sure that foreign objects do not fall into the memory extension compartment.

You must open the service compartment to remove or install a memory module. On some devices, opening the compartment may expose other components. These components should be removed and replaced only by authorised specialists. Therefore, be sure to observe the following:

Individual components can become very hot during operation. Therefore, we recommend that you wait one hour after switching off the notebook before removing or installing memory modules. Otherwise, there is a risk of suffering burns!

As some components are exposed that are sensitive to static electricity, please take note of chapter "Notes on installing and removing boards and components", Page 49.

Removing the cover

Remove the screw (1).
Lift the cover off the notebook (2).

Removing memory modules

Carefully push the two mounting clips outwards (1).
The memory module snaps upwards (2).
Pull the memory module out of its slot in the direction of the arrow (3).

Installing a memory module

Insert the memory module with the contacts and the recess (a) facing the slot (1).
Carefully push the memory module downwards until you feel it click into place (2).

Securing the cover

Place the cover into its installation position in the direction of the arrow (1).
Secure the cover using the screw (2).

Removing and installing the hard disk Removing a cover

Remove the battery (see Chapter "Removing the battery", Page 32).

Remove the screws (1).

Keep the screws in a safe place. If you are removing more than one component at the same time, store the screws for the individual components separately from each other. If you install the wrong screws, components may be damaged.

The screws are not all the same length and when the cover is installed, the correct screws must be used.

Lift the cover off the notebook (2).

Removing a hard disk

To release the hard disk from the contacts, pull the hard disk in the direction of the arrow (1) using the pull-out aid.
Remove the hard disk from the hard disk compartment (2).

Installing a hard disk

If you are installing more than one component at the same time, keep the screws for the individual components separately from each other and make sure that you use the correct screws. If you install the wrong screws, components may be damaged.

Place the hard disk into the hard disk compartment (1).
Use the pull-out aid to slide the hard disk in the direction of the arrow (2) until it is heard to engage.

Attaching the cover

Place the cover in the correct mounting position (1).

Make sure that you have tightened the screws correctly and that the keyboard is firmly seated.

Make sure that you use the correct screws, they have different lengths.

Tighten the screws (2).
Insert the battery (see Chapter "Inserting battery", Page 33).

Finishing component removal

After you have removed or changed the system components as you required, please prepare your device for operation again as follows:

Install the battery again (see "Inserting battery", Page 33).
Turn the notebook the right way up again and place it on a flat surface.
Reconnect the cables that you disconnected before.

Settings in BIOS Setup Utility

The BIOS Setup Utility allows you to set the system functions and the hardware configuration for the notebook.

When it is delivered, the notebook is set to factory default settings. You can change these settings in BIOS Setup Utility. Any changes you make take effect as soon as you save and exit the BIOS Setup Utility.

The BIOS Setup Utility program contains the following menus:

About Displays information relating to the BIOS, processor and notebook

System Advanced system settings

Advanced Configuration of various hardware components, such as mouse, keyboard, processor

Security Password settings and security functions

Boot Configuration of the start-up sequence

Exit Exits the BIOS Setup Utility

Starting the BIOS Setup Utility

Reboot the device (switch off/on or reboot the operating system).
→ The following or a similar display appears on the screen at start-up:

BIOS Setup Boot Menu

Press the function key F2.
If a password has been assigned, enter the password and press the Enter key.

If you have forgotten the password, contact your system administrator or contact our customer service centre.

The BIOS Setup Utility starts.

Operating BIOS Setup Utility

Press the F1 key to display help on the operation of the BIOS Setup Utility. The description of the individual settings is shown in the right-hand window of the BIOS Setup Utility.

With the F9 key you can load the default settings of the BIOS Setup Utility.

Use the cursor keys ← or → to select the menu you wish to access to make changes.
The menu is displayed on the screen.
Select the option you want to change with the cursor keys or .
Press the Enter key.
Press the ESC key to exit the selected menu.
For future reference, make a note of the changes you have made (for example, in this manual).

Exiting BIOS Setup Utility

You need to select the desired option in the Exit menu and activate it by pressing the Enter key:

Exit Saving Changes - save changes and exit BIOS Setup Utility

To save the current menu settings and exit the BIOS Setup Utility, select Exit Saving Changes and Yes.
The notebook is rebooted and the new settings come into effect.

Exit Discarding Changes – Discard changes and exit BIOS Setup Utility

To discard the changes, select Exit Discarding Changes and Yes.
⇔ The settings in place when BIOS Setup Utility was called remain effective. BIOS Setup Utility is terminated and the notebook is rebooted.

Load Setup Defaults - Copy Standard Entries

To copy the standard entries for all menus of the BIOS Setup Utility, choose Load Setup Defaults and Yes.

Discard Changes – Discard changes without exiting the BIOS Setup Utility

To discard the changes you have made, select Discard Changes and Yes.
→ The settings in place when BIOS Setup Utility was called remain effective. You can now make additional settings in the BIOS Setup Utility.
If you want to exitBIOS Setup Utilitywith these settings, select Exit Saving Changes and Yes.

Save Changes - save changes without exiting the BIOS Setup Utility

To save the changes, select Save Changes and Yes.
The changes are saved. You can now make additional settings in the BIOS Setup Utility.
If you want to exit BIOS Setup Utility with these settings, choose Exit Saving Changes and Yes.

Save Changes and Power Off

To save the changes and switch off your device, select Save Changes and Power Off and Yes.
L → The changes are saved. Your device is shut down.

Troubleshooting and tips

Follow the safety notes in the "Safety/Regulations" manual when connecting or disconnecting cables.

If a fault occurs, try to correct it as described. If you fail to correct the problem, proceed as follows:

Make a note of the steps and the circumstances that led to the fault. Also make a note of any error messages displayed.
Switch the notebook off.
Please contact the Hotline/Service Desk.

You can find the telephone numbers in the service desk list. Please have the following information ready when you call:

• The model name and serial number of the notebook. The serial number is located on a sticker on the underside of the notebook.
  Notes of any messages that appear on the screen and information on acoustic signals.
• Any changes you have made to the hardware or software since receiving the notebook.
• Any changes you have made to the BIOS Setup settings since receiving the notebook.
• Your system configuration and all peripheral devices connected to your system.
• Your sales contract.

Our notebooks have been designed primarily with mobile applications in mind. This means that considerable effort has been made to optimise components and equipment in terms of weight, space and energy requirements. Depending on the particular configuration you have purchased, it is possible that functionality may be slightly reduced compared to a desktop PC if you are running processor-intensive gaming software, e.g. games with intensive 3D graphics. Updating your hardware with drivers which have not been approved by Fujitsu Technology Solutions may result in performance losses, data losses or malfunction of the equipment. A list of approved drivers and current BIOS versions can be downloaded from: "http://support.ts.fujitsu.com/Download/Index.asp"

Help if problems occur

Should you encounter a problem with your computer that you cannot resolve yourself:

Note the ID number of your device. The ID number is found on the type rating plate on the back or underside of the casing.
For further clarification of the problem, contact the Service Desk for your country (see the Service Desk list or visit the Internet at "http://support.ts.fujitsu.com/contact/servicedesk/ServiceDeskNumber_Int.asp"). When you do this, please have ready the ID number and serial number of your system.

Restoring the hard disk contents under Windows

You can use the "Windows Recovery CD" (optionally available) and the "Drivers & Utilities CD/DVD" to reinstall the operating system.

The instructions are provided on the case of the Recovery CD.

During the reinstall process your personal files and any installed programs will be deleted. We advise you to backup your files to an external hard drive, or CD / DVD disk before you start.

Switch the notebook on.
The following display briefly appears on the screen during start-up:

Diagnostic screen Boot Menu BIOS Setup

When this message appears, press the function key F12.
Insert the "Windows Recovery CD" into the optical drive.
Select CD-ROM and press the Enter key.
Follow the instructions on the screen.

After the installation you must install all the drivers again. Some installed hardware components will not be correctly supported until this has been done.

Insert the "Drivers & Utilities" CD/DVD into the optical drive. The CD starts automatically.
Click on the Desk Update button.
Select Automatic driver installation (Express) and click on Start installation.
Follow the instructions on the screen.
Restart your notebook when the driver installation is completed.

The notebook's date or time is incorrect

Cause	Troubleshooting
Time and date are incorrect.	► With the BIOS-Setup-Utility, you can set the date and time in the main menu.
If the time and date are still set incorrectly after switching on the notebook.	► Please contact your sales outlet or our Hotline/Service Desk.

The notebook's LCD screen remains blank

Cause	Troubleshooting
Monitor is switched off.	Press a key or touch the touchpad.
External monitor or television set connected.	Press the key combination to switch the screen output, see "Key combinations", Page 24.

The LCD screen is difficult to read

Cause	Troubleshooting
Reflected glare	► Turn the notebook or alter the tilt of the LCD screen.► Increase the brightness of the screen.

The external monitor remains blank

Cause	Troubleshooting
Monitor is switched off.	Switch the external monitor on.
Power saving has been activated (monitor is blank).	Press any key to continue.
Brightness is set to dark.	Adjust the brightness of the monitor.
Screen output is set to the notebook's LCD screen	Press the key combination to switch the screen output, see "Key combinations", Page 24.
The external monitor's power cable or data cable is not connected properly.	Switch off the external monitor and the notebook. Check whether the power cable is plugged properly into the external monitor and into the power socket. Check whether the data cable is properly connected to the notebook and the external monitor (if it is plugged in with a connector). Switch on the external monitor and the notebook.

The external monitor is blank or the image is unstable

Cause

Troubleshooting

The wrong external monitor has been selected or the wrong screen resolution has been set for the application program.

Terminate the application program in Windows by pressing Alt + F4. If the fault persists after closing the program, use the key combination for switching the screen output (see "Key combinations", Page 24) to switch over to the notebook's LCD screen. Change the following setting: Set the screen resolution: Set the screen resolution as described in the documentation for your operating system. Select monitor: Select monitor 1 or 2 as described in the documentation for your operating system.

The notebook cannot be started

Cause	Troubleshooting
The battery is not installed correctly.	Check whether the battery is installed correctly in its compartment. Switch the notebook on.
The battery is dead.	Charge the battery. or Insert a charged battery. or Connect the mains adapter to the notebook.
The power adapter is not connected correctly.	Check whether the mains adapter is connected correctly to the notebook. Switch the notebook on.

The notebook stops working

Cause	Troubleshooting
Notebook is in energy saving mode.	Leave energy saving mode.
An application programme has caused the malfunction.	Close the application program or restart the notebook (by restarting the operating system or switching the device off and back on again).
The battery is dead.	Charge the battery. or Insert a charged battery. or Connect the mains adapter to the notebook.

The printer does not print

Cause	Troubleshooting
The printer is not switched on.	Make sure that the printer is switched on and ready for operation (refer to the documentation supplied with the printer).
The printer is not connected correctly.	Check that the data cable connecting the notebook to the printer is properly connected.
The printer driver is faulty or not correctly installed, or it is the wrong printer driver.	Check that the data cable connecting the notebook to the printer is properly connected. Check whether the correct printer driver is loaded (refer to the printer documentation).

The radio connection to a network does not work

Cause	Troubleshooting
The wireless component is disabled.	Switch the radio component on (see "Switching the wireless components on and off", Page 38).
The wireless component is enabled. Despite this, the wireless connection to a network does not work.	Check whether the radio connection is switched on via the software. Further information on using the radio component can be found in the help files.

Acoustic warnings

Cause	Troubleshooting
A beep sounds every few seconds. The battery is almost flat.	Charge the battery.

Error messages on the screen

This section describes the error messages generated by the BIOS Setup. Error messages displayed by the operating system or programmes are described in the relevant documentation.

If the error message appears repeatedly, despite troubleshooting measures, please contact the place of purchase or our customer service centre.

Error message/cause	Resolution
CMOS battery badIf the error message occurs repeatedly, the buffer battery in the notebook is flat.	▶ Contact your sales outlet or our customer service centre.
System CMOS checksum bad - default configuration usedThe system configuration information is incorrect.	▶ Switch the notebook off.▶ Switch the notebook on.▶ Press the function key F2 to access the BIOS Setup.▶ In the BIOS Setup, select the Exit menu.▶ Select the entry Load Setup Defaults.▶ Select OK and press the Enter key.
Extended memory failed at offset: xxx Failing Bits: zzzz zzzzWhen testing the extended memory an error has resulted at the address xxxx.	▶ Check whether the additional memory module has been inserted correctly.
Failure Fixed Disk nThe settings of the hard disk drive are incorrect.	▶ Start the BIOS Setup (Primary Master submenu) and select the correct settings.
Keyboard controller error	▶ Switch the notebook off with the ON/OFF switch.▶ Wait 3 - 5 seconds and switch on the notebook again.
Keyboard error	If you are using an external keyboard:▶ Check the connection and reboot the notebook.
nn Stuck key	▶ Make sure that no key is pressed.
Operating system not found	▶ Check in the BIOS Setup whether your hard disk has been set correctly.▶ Make sure that the operating system is installed on the corresponding drive.
Press <F1> to resume, <F2> to SETUPThis error message appears if an error occurs during the self-test before starting the operating system.	▶ Press the F1 function key to start the operating system.▶ Press the function key F2 to access the BIOS Setup.
Previous boot incomplete - Default configuration used Due to an error during the previous system boot, default values were used for certain settings. Check the settings in the BIOS Setup.	Press the F1 function key when prompted to do so.
Real time clock error	Contact your sales outlet or our customer service centre.
nnnnK Shadow RAM failed at offset: xxx Failing Bits: zzzz	Contact your sales outlet or our customer service centre.
System battery is dead - Replace and run SETUP	Contact your sales outlet or our customer service centre.
System cache error - Cache disabled	Contact your sales outlet or our customer service centre.
System timer error	Contact your sales outlet or our customer service centre.

Technical data

LIFEBOOK

Ambient conditions
Temperature:
Operation	5 °C ... 35 °C
Transportation	-15 °C ... 60 °C
Dimensions
Width x Depth x Height	378 mm x 252 mm x 31.6 mm
Weight (including 6-cell rechargeable battery)	Approx. 2.5 kg

The data sheet for the device provides further technical data. You will find the data sheet on your device or on the Internet at "http://www.fujitsu.com/fts/support/".

Rechargeable battery

You can find information on the batteries used in your device on the Internet at "http://www.fujitsu.com/fts/support/".

	6-cell rechargeable battery
Rated voltage	10.8 V
Rated capacity	4500 mAh (48 Wh)

Mains adapter (90W)

Primary

Rated voltage	100 V to 240 V (automatic)
Rated frequency	50 Hz to 60 Hz (automatic)

Secondary

Rated voltage	19 V
Max. rated current	4.74 A

An additional mains adapter or power cable can be ordered at any time.

Power adapter, 65 W

Primary

Rated voltage	100 V to 240 V (automatic)
Rated frequency	50 Hz to 60 Hz (automatic)

Secondary (device-dependent)

Rated voltage	19 V
Max. rated current	3.42 A

An additional mains adapter or power cable can be ordered at any time.

Manufacturer's notes

Disposal and recycling

You can find information on this subject on your notebook or on our website ("http://www.fujitsu.com/fts/about/fts/environment-care/").

Declarations of Conformity

The "Declarations of Conformity" for the device can be found on the Internet at: "http://globalsp.ts.fujitsu.com/sites/certificates/default.aspx".

Fujitsu Technology Solutions hereby declares that your device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

CE marking

CE marking for devices with radio component

This device, in the version delivered, complies with the requirements of Directive 2009/125/EC on "Ecodesign" as well as the requirements of R&TTE Directive 199/5/EC of the European Parliament and Council dated 9 March 1999 governing radio and telecommunications terminal equipment and mutual recognition of conformity.

This equipment can be used in the following countries:

Belgium	Bulgaria	Denmark	Germany
Estonia	Finland	France	Greece
UK	Ireland	Iceland	Italy
Latvia	Liechtenstein	Lithuania	Luxembourg
Malta	The Netherlands	Norway	Austria
Poland	Portugal	Rumania	Sweden
Switzerland	Slovakia	Slovenia	Spain
Czech Republic	Hungary	Cyprus	Croatia
Turkey

Contact the corresponding government office in the respective country for current information on possible operating restrictions. If your country is not included in the list, then please contact the corresponding supervisory authority as to whether the use of this product is permitted in your country.

Regulatory notices

If there is no FCC logo and also no FCC ID on the device then this device is not approved by the Federal Communications Commission (FCC) of the USA. Although it is not explicitly forbidden to travel in the US trading area carrying this device, to avoid trouble at customs clearance, Fujitsu Technology Solutions GmbH recommends not to bring this device into the US trading area.

Regulatory information for notebooks without radio device

NOTICE:

Changes or modifications not expressly approved by Fujitsu Technology Solutions could void this user's authority to operate the equipment.

Notice to Users of Radios and Television

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet that is on a different circuit than the receiver.
- Consult the dealer or an experienced radio/TV technician for help.

Notice to Users of the US Telephone Network

Your notebook may be supplied with an internal modem which complies with Part 68 of the FCC rules. On this notebook is a label that contains the FCC Registration Number and the Ringer Equivalence Number (REN) for this equipment among other information. If requested, the user must provide their telephone company with the following information:

1. The telephone number to which the notebook is connected.
2. The Ringer Equivalence Number (REN) for this equipment.
3. The equipment requires a standard modular jack type USOC RJ-11C which is FCC Part 68 compliant.
4. The FCC Registration Number.

This equipment is designed to be connected to the telephone network or premises wiring using a standard modular jack type USOC RJ-11C which is FCC Part 68 compliant and a line cord between the modem and the telephone network with a minimum of 26AWG.

The REN is used to determine the number of devices that you may connect to your telephone line and still have all of those devices ring when your number is called. Too many devices on one line may result in failure to ring in response to an incoming call. In most, but not all, areas the sum of the RENs of all of the devices should not exceed five (5). To be certain of the number of devices you may connect to your line, as determined by the RENs, contact your local telephone company. If this equipment causes harm to the telephone network, your telephone company may discontinue your service temporarily. If possible, they will notify you in advance. If advance notice is not practical they will notify you as soon as possible. You will also be advised of your right to file a complaint with the FCC.

This fax modem also complies with fax branding requirements per FCC Part 68.

Your telephone company will probably ask you to disconnect this equipment from the telephone network until the problem is corrected and you are sure that the equipment is not malfunctioning. This equipment may not be used on coin-operated telephones provided by your telephone company. Connection to party lines is subject to state tariffs. Contact your state's public utility commission, public service commission or corporation commission for more information.

This equipment includes automatic dialing capability. When programming and/or making test calls to emergency numbers:

• Remain on the line and briefly explain to the dispatcher the reason for the call.
  Perform such activities in off-peak hours, such as early morning or late evening.

FCC rules prohibit the use of non-hearing aid compatible telephones in the following locations or applications:

All public or semi-public coin-operated or credit card telephones.
- Elevators, highways, tunnels (automobile, subway, railroad or pedestrian) where a person with impaired hearing might be isolated in an emergency.
- Places where telephones are specifically installed to alert emergency authorities such as fire, police or medical assistance personnel.
Hospital rooms, residential health care facilities, convalescent homes and prisons.
Hotel, motel or apartment lobbies.
Stores where telephones are used by patrons to order merchandise.
- Public transportation terminals where telephones are used to call taxis or to reserve lodging or rental cars.
- In hotel and motel rooms as at least ten percent of the rooms must contain hearing aid-compatible telephones or jacks for plug-in hearing aid compatible telephones which will be provided to hearing impaired customers on request.

DOC (Industry CANADA) notices

Notice to Users of Radios and Television

This Class B digital apparatus meets all requirements of Canadian Interference-Caising Equipment Regulations.

Notice to Users of the Canadian Telephone Network

NOTICE:

This equipment meets the applicable Industry Canada Terminal Equipment Technical Specifications. This is confirmed by the registration number. The abbreviation, IC, before the registration number signifies that registration was performed based on a Declaration of Conformity indicating that Industry Canada technical specifications were met. It does not imply that Industry Canada approved the equipment. Before connecting this equipment to a telephone line the user should ensure that it is permissible to connect this equipment to the local telecommunication facilities. The user should be aware that compliance with the certification standards does not prevent service degradation in some situations.

Repairs to telecommunication equipment should be made by a Canadian authorised maintenance facility. Any repairs or alterations not expressly approved by Fujitsu or

any equipment failures may give the telecommunication company cause to request the user to disconnect the equipment from the telephone line.

NOTICE:

The Ringer Equivalence Number (REN) for this terminal equipment is 0.0. The REN assigned to each terminal equipment provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed five.

CAUTION:

For safety, users should ensure that the electrical ground of the power utility, the telephone lines and the metallic water pipes are connected together. Users should NOT attempt to make such connections themselves but should contact the appropriate electric inspection authority or electrician. This may be particularly important in rural areas.

This unit requires an AC adapter to operate. Only use a UL Listed Class 2 adapter. The correct output rating is indicated on the AC adapter label. Refer to the illustration below for the correct AC Adapter output polarity:

CAUTION:

To reduce the risk of fire, use only 26AWG or larger telecommunications line cord.

For Authorized Repair Technicians Only

CAUTION:

For continued protection against risk of fire, replace only with the same type and rating fuse.

WARNING:

Danger of explosion if Lithium (CMOS) battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.

Dispose of used batteries according to the manufacturer's instructions.

FCC regulatory information for notebooks with radio device

Federal Communications Commission statement

This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause interference, and

(2) this device must accept any interference, including interference that may cause undesired operation of this device.

FCC Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.
2. Increase the distance between the equipment and the receiver.
3. Connect the equipment to an outlet on a circuit different from the one the receiver is connected to.
4. Consult the dealer or an experienced radio/TV technician for help.

Please note the following regulatory information related to the optional radio device.

FCC Radio Frequency Exposure statement

This radio device has been evaluated under FCC Bulletin OET 65C and found compliant with the requirements as set forth in CFR 47 Sections 2.1091, 2.1093, and 15.247 (b) (4) addressing RF

Exposure from radio frequency devices. The radiated output power of this radio device is far below the FCC radio frequency exposure limits. Nevertheless, this device shall be used in such a manner that the potential for human contact during normal operation is minimized. When using this device, a certain separation distance between antenna and nearby persons must be maintained to ensure RF exposure compliance. In order to comply with RF exposure limits established in the ANSI C95.1 standards, the distance between the antennas and the user should not be less than 20 cm (8 inches).

Regulatory Notes and Statements

Radio device, health and authorisation for use

Radio-frequency electromagnetic energy is emitted from the wireless devices. The energy levels of these emissions, however, are far much less than the electromagnetic energy emissions from wireless devices such as mobile phones. Radio devices are safe for use by consumers because they operate within the guidelines found in radio frequency safety standards and recommendations.

The use of the radio devices may be restricted in some situations or environments, such as:

on board an airplane, or
in an explosive environment, or
- in situations where the interference risk to other devices or services is perceived or identified as harmful.

In cases in which the policy regarding use of radio devices in specific environments is not clear (e.g., airports, hospitals, chemical/oil/gas industrial plants, private buildings), obtain authorization to use these devices prior to operating the equipment.

Regulatory Information/Disclaimers

Installation and use of this radio device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications made to this device that are not expressly approved by the manufacturer may void the user's authority to operate the equipment. The manufacturer is not responsible for any radio or television interference caused by unauthorized modification of this device, or the substitution or attachment of connecting cables and equipment other than those specified by the manufacturer. It is the responsibility of the user to correct any interference caused by such unauthorized modification, substitution or attachment. The manufacturer and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failure to comply with these guidelines.

Export restrictions

This product or software contains encryption code which may not be exported or transferred from the US or Canada without an approved US Department of Commerce export license. This device complies with Part 15 of FCC Rules, as well as ICES 003 B / NMB 003 B. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesirable operation.

Modifications not expressly authorised by Fujitsu Technology Solutions may invalidate the user's right to operate this equipment.

Index

A

Acoustic error messages 63

Alt + Tab 25

Anti-theft protection 40

Audio devices, connecting 48

Audio ports 48

B

Back tab 25

Backspace 23

Bass loudspeaker (subwoofer) 38

Battery

battery life 31

caring for and maintaining 31

charge level 31, 36

charging 31

self-discharge 31

storage 31

Battery indicator 20

Battery status indicator see Battery indicator 20

Battery status meter 31

Battery symbol see Battery indicator 20

BIOS Setup Utility

calling 57

exiting 58

operating 57

protecting with password 41

settings 57

Bluetooth

Switching the module off 38

Switching the module on 38

Bluetooth, safety notes 13

Board 49

Buffer battery, load 60

Buttons 22

C

Caps Lock 23

indicator 20

CD/DVD indicator 34

CD/DVD: manual emergency

CE marking 68

Charging capacity, battery 31

Cleaning 15

Components installing / removing 49

Configuration, BIOS Setup Utility 57

Connecting audio devices 48

Connecting headphones 48

Crystal View display

cleaning 15

Ctrl+Alt+Del 25

Cursor control keys 23

Cursor keys 23

D

Date is incorrect 60

Declaration of conformity 68

Device

setting up 17

Devices

connecting 44

disconnecting 44

DOC (INDUSTRY CANADA) NOTICES 70

Drive

indicator 20

E

Emergency removal of data carrier 35

Energy

energy saving 14

Energy saving 14

Energy saving functions 25

Energy saving mode

leaving 62

Enter 23

Enter key 23

Error message:

on the screen 64

Error messages on the screen 64

Errors

Acoustic warnings 63

ESD 49

Ethernet LAN 39

F

Fault

correction 59

First-time setup 16

Fn key 23

Fn+F10 25

Fn+F11 25

Fn+F12 25

Fn+F3 24

Fn+F4 24

Fn+F5 24

Fn+F6 25

Fn+F7 25

Fn+F8 25

Fn+F9 25

G

Getting started 16

H

Handling

data carriers 34

Hard disk:

restoring the contents 60

Hardware configuration 57

HDMI port 45

1

Important notes 13

Incorrect date/time 60

Indicator

Caps Lock 20

drive 20

Num Lock 20

Inserting

a data carrier 35

K

Key combinations 24

Keyboard 22

cleaning 15

L

LCD screen

cleaning 15

decrease brightness 25

difficult to read 61

notes 28

reflected glare 61

remains blank 60

LCD screen is too dark 60

Life, battery 31

Line feed 23

Loudspeakers 38

switch off 24

switch on 24

M

Main memory

see Adding memory 50

Mains adapter

connecting 17

setting up 17

Manual removal of data carrier 35

Mechanical backup 40

Memory card

handling 37

inserting 37

removing 37

Memory expansion

installing 52

removing 51

Memory module

important notes 50

installing 52

removing 51

Microphone 38

Microphone, connecting 48

Mobile operation 14

Monitor

connecting 45

drifting display 61

remains blank 61

Monitor port

see VGA connection socket 45

N

Notebook

before you travel 14

cannot be started 62

cleaning 15

stops working 62

switching off 21

transporting 14-15

using 19

Notebook, operation 19

Notes 13

boards 49

cleaning 15

disposal / recycling 68

energy saving 14

LCD screen 28

Safety 13

transport 14

Num Lock

indicator 20, 24

Numeric keypad 22

see Separate numeric keypad 24

0

Operating system activating system protection 42 cancel system protection 42 protecting with password 42

Operating system, restoring 60 Optical drive 34

P

Packaging 16

Password changing 42 entering 41 removing 42

Password protection 41

Password protection: hard disk 43

Peripheral devices connecting 44 disconnecting 44

Power power consumption 36 power-management features 36

Power indicator 20

Preparing for operation 17

Printer does not print 63

R

Radio component: safety notes 13

Rechargeable battery 31 see Battery 31

Regulatory information notebooks with radio device 72 Notebooks without radio device 69

Removing a data carrier 35

Removing memory see Adding memory 50

Return 23

S

Safety notes 13

Screen no screen display 61

Screen brightness decrease 25 increase 25

Screen port see VGA connection socket 45

Security functions 40

Security Lock 40
Selecting a location 17
Self-discharge, battery 31
Separate numeric keypad 24
Servicing 49

Setup seeBIOS Setup Utility 57

Shift 23

Shift + Tab 25

Shift key 23

Slot Memory cards 37

Standby indicator 20

Status indicators 19

Summer time 60

Supervisor password changing 42 entering 41 removing 42

Switching on the notebook 20

Switching on for the first time 18

System configuration 57

System expansion 50 see Adding memory 50

System settings, BIOS Setup Utility 57

T

Tab key 23

Technical data 66
Mains adapter 66-67
notebook 66

The radio connection to a network does not work 63

Time not correct 60

Time, daylight savings 60

Tips 59

Toggle output screen 25

Touchpad 24, 26 buttons 26

cleaning 15

dragging items 27

执行命令 27

moving the pointer 26

selecting an item 27

switch off 24

Touchpad buttons 24

Transport

Transport damage 16

Transportation 14-15

Travel, notebook 14

Troubleshooting 59

USB charging function 47

USB ports 46

User password changing 42 entering 41 removing 42

Using the Kensington Lock Cable 40

V VGA connection socket 45

Volume decrease 25 increase 25

Volume control 38

Webcam 30 off 25

Windows key 23

Wireless components switch off 24 switch on 24

Wireless LAN Switching the module off 38
Switching the module on 38

Wireless LAN: safety notes 13
