Product Type	27-inch Monitor
Model	KAMN27F7VA
Brand	Kogan
Screen Size	27 inches (68.6 cm)
Resolution	1920 x 1080 (Full HD)
Refresh Rate	75 Hz
Panel Type	IPS
Aspect Ratio	16:9
Brightness	250 cd/m²
Contrast Ratio	1000:1 (Static)
Response Time	5 ms (GTG)
Viewing Angles	178°/178°
Connectivity	HDMI 1.4 x 2, VGA x 1, Audio Out x 1
Power Consumption	Typical: 30W, Standby: <0.5W
Weight (with stand)	4.5 kg
Dimensions (with stand)	615 x 450 x 180 mm
VESA Mount	100 x 100 mm
Speakers	2 x 2W built-in
Tilt Adjustment	-5° to 15°
Cleaning	Use a soft dry cloth; avoid solvents

Frequently Asked Questions - KAMN27F7VA Kogan

How do I connect my Kogan KAMN27F7VA monitor to a PC?

Use the included HDMI or VGA cable. Connect one end to the monitor and the other to your PC. Then select the correct input source using the monitor's menu buttons.

What is the native resolution of the KAMN27F7VA?

The native resolution is 1920 x 1080 (Full HD). Ensure your PC is set to this resolution for optimal clarity.

Can I mount this monitor on a wall?

Yes, the monitor supports VESA 100x100mm mounting. Use a compatible wall mount bracket and follow the instructions in the manual.

How do I clean the screen safely?

Turn off the monitor and unplug it. Use a soft, dry microfiber cloth to gently wipe the screen. For stubborn stains, slightly dampen the cloth with water. Do not use alcohol or ammonia-based cleaners.

What should I do if the monitor has no signal?

Check that the cable is securely connected to both the monitor and the PC. Ensure the correct input source is selected. Test with a different cable or port if possible.

Does the monitor have built-in speakers?

Yes, it has 2 x 2W speakers. Audio can be output through the HDMI connection or via the audio out port for external speakers.

How do I adjust the monitor's brightness and contrast?

Press the Menu button on the monitor to access the OSD. Use the directional buttons to navigate to Picture settings, then adjust brightness and contrast to your preference.

Is the monitor compatible with Mac?

Yes, the KAMN27F7VA works with Mac computers via HDMI or VGA (with an adapter if needed).

What does the LED indicator on the monitor mean?

A steady blue LED indicates normal operation. A blinking blue LED means the monitor is in standby or no input signal. Off means power is disconnected.

How do I reset the monitor to factory settings?

Go to the OSD menu, navigate to Setup or Others, and select Reset or Factory Reset. Confirm your choice to restore default settings.

USER MANUAL KAMN27F7VA Kogan

27" FULL HD FREESYNC FRAMELESS MONITOR

1920 x 1080, 75Hz

KAMN27F7VA

SAFETY & WARNINGS

Ensure to read all instructions and warnings in this user guide prior to first use. Retain this user guide for future reference.

• This monitor is designed with ventilation holes on the back of the casing. Do not cover or block them.
• Avoid placing the monitor near heaters, stoves, fireplaces, or other heat sources.
• Do not place this monitor in rooms lacking adequate ventilation.
• Do not insert any objects or spray any liquids into the vents.
• Do not position the monitor in unsafe locations. If the monitor falls, it may be damaged and cause injury to people within its vicinity.
• Do not place heavy objects on the monitor, its power cord, or any connected cables.
• Do not open the back panel of the monitor as it contains a high-voltage current even when not plugged in.
• Unplug the monitor if it will not be used for an extended period.
• Ensure the monitor is unplugged before cleaning.

HDMI®

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States, and other countries.

COMPONENTS

Empty white rectangle with a thin black border (no text or symbols)

A Monitor (x1)

B Stand stem (x1)

C Stand base (x1)

D Stand stem plate (x1)

E M4 8mm screw (x3)

F M5 12mm screw (x1)

G Power cord (x1)

H HDMI cable (x1)

I User guide (x1)

1 Menu/select button

6 HDMI port

2 Exit/input menu button

7 VGA port

3 Up/increase volume button

8 3.5mm audio port

4 Down/brightness button

9 Power port

5 Power button

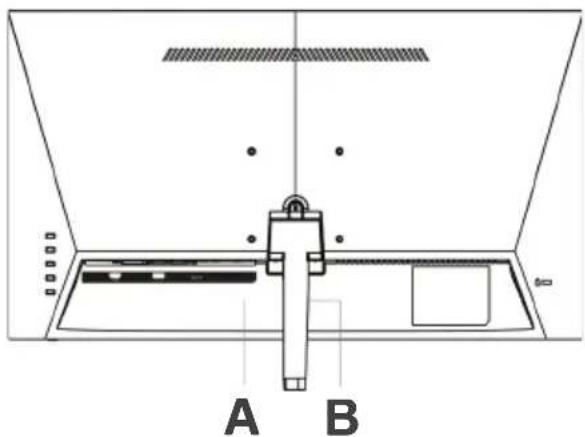

STAND ASSEMBLY

1. With the display side facing down, lay the monitor (A) on a soft cloth to prevent damage.

2. Clip the stand stem plate (D) into the stand stem (B). Using a screwdriver (not supplied), secure the M4 8mm screws (E) through the holes on the stand stem plate (D) to the stand stem (B).

3. Clip the stand stem (B) into the monitor (A).

4. Align the stand base (C) with the stand stem (B). Using a screwdriver, secure the stand base (C) to the stand stem (B) with the M5 12mm screw (F).

VESA MOUNT

If mounting to a wall, ensure the stand base and stand stem are disconnected from the monitor.

Consult a professional before mounting the monitor.

1. With the display side facing down, lay the monitor on a soft cloth to prevent damage.
2. Identify the four wall mounting screws on the back of the monitor.
3. Mount the monitor as desired with the steps provided with your VESA mount.

Simple geometric diagram with a rectangle inside a square, no text or symbols present.

Notes:

• Ensure there is at least a 10cm clearance away from all sides of the monitor.
  • The mounting hole distance for this monitor is 100mm x 100mm.
  • M4 8mm screws are required.
  • VESA mount and mounting accessories are not included.
  • Images are for reference only.

CONNECTIVITY

Before connecting, ensure the display is switched off.

Power cable

Connect one end of the power cable into the power port on the monitor. Connect the other end into a power socket.

HDMI

In order for the monitor to receive HDMI signals to your computer, plug one end of the included HDMI cable into the HDMI port on the monitor.

Plug the other end into the HDMI port on your computer.

3.5mm audio port

In order to receive audio signals to your computer, plug your earphones, headphones, or other audio device (not included) into the 3.5mm audio port on the monitor.

If any audio device is connected to the computer at the same time, it will not produce sound.

VGA

In order for the monitor to receive VGA signals to your computer, plug one end of a VGA cable (not included) into the VGA port on the monitor.

Plug the other end into the VGA port on your computer.

OPERATION

1. Connect the monitor to your computer via HDMI/VGA.
2. Connect one end of the power cable into the power port of the monitor. Connect the other end into an outlet, then turn the outlet on.

Note:

It is recommended that a surge protector with adequate voltage is used if the monitor cannot be directly connected to an outlet.

1. Press the power button to turn the monitor on.

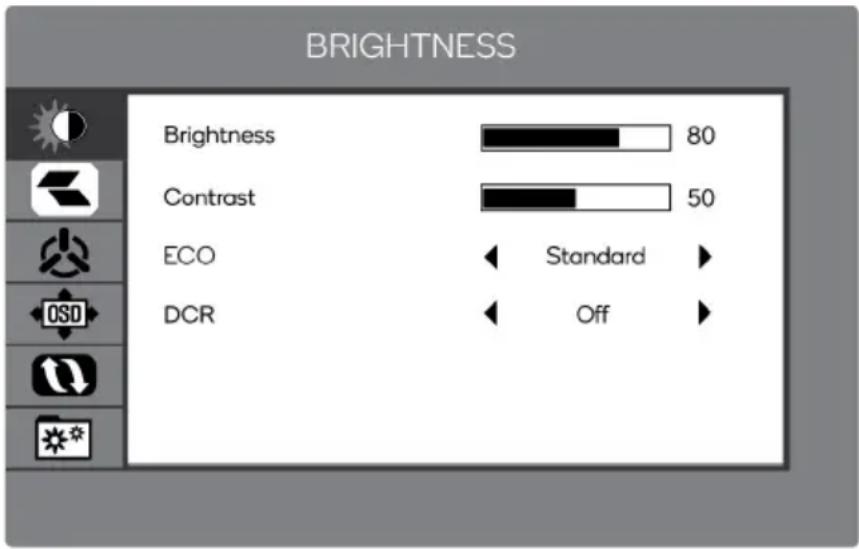

On-Screen display (OSD) menu

The OSD menu allows adjustments to various settings for the monitor.

1. Press the menu/select button to access the OSD menu.
2. Press the up and down buttons to browse through the categories of settings. Press the menu/select button to enter the sub-menu.
3. Press the up and down buttons to browse through the sub-menu. Press the menu/select button to enter the adjustment settings of the desired setting.
4. Press the up and down buttons to adjust the desired setting. Press the menu/select button to confirm the adjustment.
5. Press the exit/input menu button to exit the OSD menu.

OSD menu settings

Below is a list of the settings available that can be adjusted through the OSD menu.

Category	Sub-Menu	Options	Description
BRIGHTNESS	Brightness 0-100		Adjusts the display brightness
	Contrast	0-100	Adjusts the display contrast
	ECO modes	Standard, Movie, RTS, FPS, Game, Text	Sets the display's colour balance to pre-set levels to suit different uses
	DCR On, Off		Turns the DCR function on/off
IMAGE	H. position 0-100		Adjusts the horizontal position of the display
	V. position 0-100		Adjusts the vertical position of the display
	Clock 0-100 Adjusts the clock setting
	Phase	0-100	Adjusts the phase setting
	Aspect	Wide, 4:3	Sets the aspect ratio
COLOUR TEMP.	Colour temp.	Warm, User, Cool	Includes pre-set (Warm, Cool) and custom (User) colour temperatures
	Red 0-100		Allows for manual adjustment of the RGB colour balance
	Green 0-100
	Blue 0-100
	Low blue light 0-100		Adjusts the intensity of the low blue light effect
OSD SETTINGS	Language	English, Español, Русский, Français, ☐ ☐ , Português, Deutsch, Türkçe, 简体中文, Polski, Italiano, Nederlands	Sets the OSD language
	OSD H. POS. 0-100		Adjusts the horizontal position of the OSD menu
	OSD V. POS. 0-100		Adjusts the vertical position of the OSD menu
	OSD timer 0-60		Sets how long the OSD menu will remain on-screen without input (in seconds)
	Transparency 0-100		Sets the level of transparency of the OSD menu
RESET	Image auto adjust	N/A	Using this feature automatically adjusts the horizontal/vertical position, focus, and clock of the display
	Colour auto adjust	N/A	Using this feature will reset the colour settings to default
	Reset N/A		Resets the monitor to factory default settings
MISC.	Signal source VGA, HDMI		Selects the input signal source
	Mute On, Off Mutes/unmutes volume
	Volume 0-100 Adjusts audio volume
	FreeSync On, Off		Turns the FreeSync function on and off
	Over Drive On, Off		Turns the over drive function on and off. Turning it on will reduce ghosting and boost the refresh rate.

Adjusting the angle of the monitor

The screen can be tilted forwards up to 5° or backwards up to 15°.

To adjust the angle, hold the edges of the screen with both hands and tilt.

Note:

Do not directly touch the screen when tilting.

FreeSync

To use this feature, ensure your hardware has FreeSync capabilities, and that the graphics drivers are fully up to date.

After connecting the monitor, you may receive a prompt to enable the feature on your computer. If you do not receive the prompt, you may need to enable the function in the graphics card menu.

Check your graphics card manufacturer's documentation for instructions on how to turn on and/or enable FreeSync.

Note:

The feature is enabled by default when set to a 75Hz refresh rate.

Input menu shortcut

To quickly change the input source between HDMI and VGA:

1. Press the exit/input menu button to access the input menu.
2. Press the up and down buttons to highlight the desired input source, then press the menu/select button to confirm.

Brightness shortcut

When outside the OSD menu, press the up and down buttons to adjust the brightness.

ECO modes

There are various pre-set colour modes suited for various use cases available on this monitor. These can be accessed using the ECO modes menu. The modes include the following:

• Standard (suitable for most activities)
  • Movie (best suited when watching movies)
  • RTS (best suited when playing real time strategy games)
• FPS (best suited when playing first person shooter games)
  • Game (best suited for general gaming)
  • Text (best suited when reading text)

CLEANING & CARE

Ensure the monitor is turned off and unplugged before cleaning.

• Wipe the body with a slightly damp, clean cloth.
• Wipe the screen with a dry microfibre cloth.

Note:

Do not use cleaning alcohol, ammonia-based liquids, or other harsh cleaners.

SPECIFICATIONS

Model	KAMN242F7VA
Screen size	24"
Aspect ratio	16:9
Backlight E-LED
Brightness	250 cd/m^2
Panel	VA
Resolution	1920 x 1080
Refresh rate	75Hz
Response time 16ms
Viewing angle	178° (H)178° (V) (typical)
Contrast ratio	3000:1
VESA mounting	100 x 100mm
Colours	16.7M
FreeSync Yes
Signal input	x1 VGA, x1 HDM
Power	DC 12V, 4A

Audio

Audio out Yes

Speakers No

Accessories

Power adapter Yes

HDMI cable Yes

Additional functions

Low blue light Yes

Flicker-free Yes

Physical dimensions

Dimensions (with stand) 613 x 182.2 x 443.8mm

Dimensions (without stand) 613 x 53.1 x 361.4mm

Net weight 3.56kg

Gross weight 4.83kg

Need more information?

We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com

kogan.com
