Product Type	KNX Actuator for Home Automation
Brand	Hager
Model	WGCXR121AS
Dimensions (H x W x D)	90 x 36 x 64 mm
Weight	0.15 kg
Power Supply	Via KNX bus, 29 V DC SELV
Power Consumption	Typical 10 mA on bus
Number of Outputs	4 relay outputs, 16 A each
Output Type	Potential-free changeover contacts
Switching Voltage	250 V AC
Switching Current	16 A (resistive load)
Load Types	Resistive, capacitive, inductive (cos φ ≥ 0.6)
Mounting	DIN rail (TH35) in distribution board
Degree of Protection	IP20 (indoor use)
Operating Temperature	-5°C to +45°C
KNX Medium	TP1 (Twisted Pair)
Functions	Switching, dimming, blind/shutter control, scene recall
Programming & Commissioning	Via ETS software (KNX tool)
Maintenance	No regular maintenance required; keep clean and dry
Safety	Overload and short-circuit protection per EN 60669-2-1
Wire Cross-Section	0.5 - 4 mm² (rigid/flexible)
Compatibility	KNX devices, Hager tebis/tec, third-party KNX
Certifications	CE, KNX certified
Warranty	2 years (manufacturer defect)

Frequently Asked Questions - WGCXR121AS HAGER

What is the Hager WGCXR121AS used for?

The Hager WGCXR121AS is a KNX actuator for controlling lighting, blinds, or small loads in home automation systems. It provides 4 relay outputs for switching or shutter control.

How do I power the WGCXR121AS?

It is powered via the KNX bus (29 V DC SELV). No external power supply is needed. The bus voltage is provided by a KNX power supply unit installed in the distribution board.

Can I use this actuator for dimming?

No, the WGCXR121AS is a switching actuator with relay outputs. It cannot directly dim lights. For dimming, use a KNX dimming actuator or add a dimming module.

What is the maximum load per output?

Each relay output can switch up to 16 A at 250 V AC resistive load. For inductive loads (e.g., motors), ensure a power factor ≥ 0.6 and reduce load accordingly.

How do I program the WGCXR121AS?

The device is programmed using ETS software (Engineering Tool Software) from the KNX Association. Connect via a KNX interface, assign physical address, and configure parameters.

Is the WGCXR121AS compatible with Hager tebis systems?

Yes, it is fully compatible with Hager tebis and tec KNX home automation systems, as well as other KNX-certified products.

What does the LED indicator on the device mean?

The red/green LED indicates operating status: green = normal, red = error (e.g., bus failure). Refer to manual for detailed signaling.

Can I use the actuator outdoors?

No, the IP20 rating means it is suitable only for indoor use in dry locations. It must be installed in a weatherproof enclosure if used in damp areas.

How do I reset the actuator to factory settings?

Press and hold the programming button (approx. 10 seconds) until the LED flashes red. This will reset the address and parameters. Re-channel then in ETS.

What are the dimensions and mounting requirements?

Dimensions: 90 x 36 x 64 mm. It snaps onto a DIN rail (TH35) in the electrical distribution board. Allow at least 10 cm clearance for ventilation.

USER MANUAL WGCXR121AS HAGER

16AX switches 1way/2way 10AX intermediate switch Hager Muse / Hager Inspire

Installation manual

Safety instructions

Electrical equipment must only be installed and assembled by a qualified electrician in accordance with the relevant installation standards, regulations, directives and safety and accident prevention directives of the country.

Failure to comply with these installation instructions may result in damage to the device, fire or other hazards.

Function

Mechanical light switches for electrical installations in buildings.

Correct use

• For the flush-mounted installation in standard wall boxes (recommended wall box depth ≥ 35 mm).
• Only suitable for use in indoor areas with no drip and no spray water.

Technical data

Rated voltage: 250 V\~

Frequency: 50/60 Hz

Conductor cross-section of screw terminals: max. 3 x 1.5 mm ⁴

Distance of fixing holes: 60.3 mm

Switch compliance: BS EN 60669-1, IEC 60669-1

16AX switches 1way/2way

Rated current: max. 16 AX

10AX intermediate switch

Rated current: max. 10 AX

Information for electricians Installation and electrical connection

DANGER!

Touching live parts can result in an electric shock.

An electric shock can lead to death.

Disconnect the connecting cables before working on the device and cover all live parts in the area!

Preparing the device for installation

(for example "16AX 2gang 1way switch")

Carefully loosen the frame on the notches with a flat-blade screwdriver. Lift up and remove the frame (1).

■ Remove the rockers also with a flat-blade screwdriver.

Connecting the device

2A

General circuit diagram

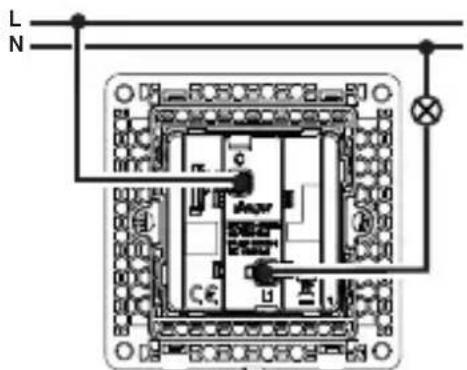

1gang 1way switch

1way switch

2gang 1way switch

2B

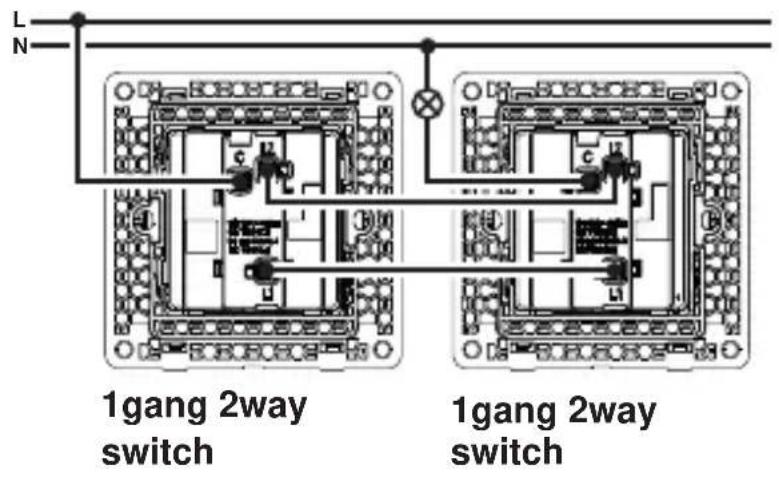

2way switch

2C
Intermediate switch

- Strip connection cables approx. 10 ... 12 mm.

■ Wire the switch according to the appropriate wiring diagram (2A or 2B or 2C).

Installing the device into the wall box

(for example "16AX 2gang 1way switch")

3

Technical diagram of a cable assembly with internal components and screwdriver (no text or labels)

■ After wiring, fix the device with the two screws attached into the wall box (3).

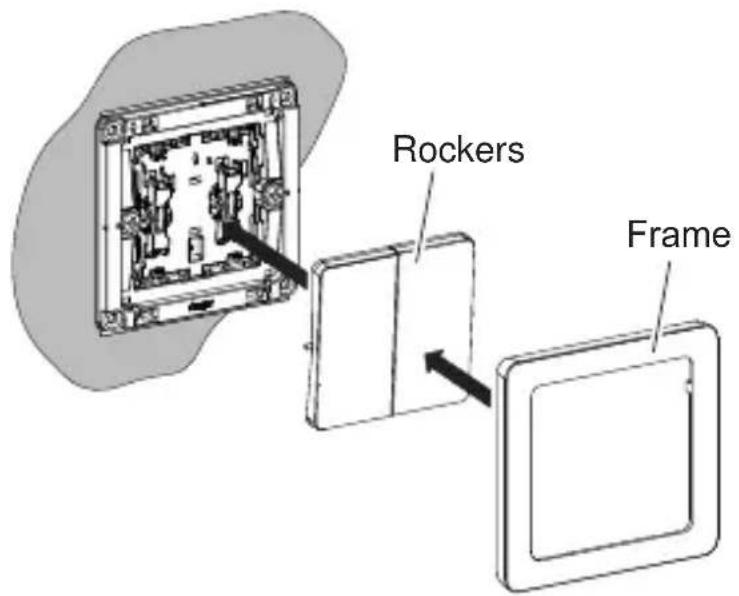

Assembling the rockers and frame

(for example "16AX 2gang 1way switch")

4

■ Fix the rockers and frame onto the device (4).

2-5gang frames are available for multiple combinations.
