Product type Key card switch (RFID)
Rated voltage 230 V~
Frequency 50/60 Hz
Rated current 16 A
Delay time 30 s (+/- 10 s)
Standby power consumption < 1.5 W
Contact type Relay, 1 normally-open contact
Conductor cross-section (screw terminals) Max. 3 x 1.5 mm²
Distance of fixing holes 60.3 mm
Operating temperature -5 ... +45°C
Relative humidity (non-condensing) 5 ... 95% (at 25°C)
Standards BS EN 60669-2-1, IEC 60669-2-1
Installation Flush-mounted in standard wall box (depth ≥ 35 mm)
Suitable for (loads) Incandescent, HV halogen, fluorescent, 230 V LED lamps, dimmable electronic transformers (marked L, C)
Function Central switching of loads via key card; automatic off after delay; LED orientation light
Compatibility Hager Muse / Hager Inspire series
Maintenance and cleaning Wipe with a dry cloth; do not use liquids or sprays
Safety Installation only by qualified electrician; disconnect before insulation testing
Spare parts and reparability Contact Hager service for replacement modules or frames
Indoor use only Yes, no drip or spray water

Frequently Asked Questions - WGCXHKTRFIDNB HAGER

What is the difference between the mechanical and RFID key card switches?
The mechanical version uses a standard key card, while the RFID version (WGCXHKTRFIDNB) works exclusively with the programmed RFID key card provided.
Can I use this switch with LED bulbs?
Yes, it is suitable for 230 V LED lamps as well as incandescent, halogen, fluorescent lamps, and dimmable electronic transformers.
What is the delay time before the loads switch off?
The delay time is approximately 30 seconds (+/- 10 s) after the key card is removed.
Do I need a neutral wire for installation?
The installation diagram (2A) shows direct switching of loads; a neutral wire is not explicitly required but follow the connecting diagram provided in the manual.
What is the maximum load current?
The rated current is 16 A. For higher loads, use a contactor (diagram 2B).
How do I reset the orientation light?
The LED orientation light turns on automatically when the key card is removed. There is no manual reset; it is part of the normal operation.
Can I install this outdoors?
No, it is only suitable for indoor areas with no drip or spray water.
What should I do if the switch does not respond to the RFID card?
Ensure the card is the correct programmed RFID card. If the issue persists, check connections and contact a qualified electrician or Hager support.
Is insulation resistance testing allowed with the device connected?
No, disconnect the product before carrying out insulation resistance testing to avoid damage.
What is the operating temperature range?
The operating temperature is -5 to +45°C with relative humidity up to 95% (non-condensing).

User questions about WGCXHKTRFIDNB HAGER

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Home Automation in PDF format for free! Find your manual WGCXHKTRFIDNB - HAGER and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. WGCXHKTRFIDNB by HAGER.

USER MANUAL WGCXHKTRFIDNB HAGER

16A key card switch - mechanical

16A key card switch - RFID

Hager Muse / Hager Inspire

Installation and operating

instructions

Safety instructions

Electrical equipment must only be installed and assembled by a qualified electrician in accordance with the relevant installation standards, regulations, directives and safety and accident prevention directives of the country.

Failure to comply with these installation instructions may result in damage to the device, fire or other hazards.

Function

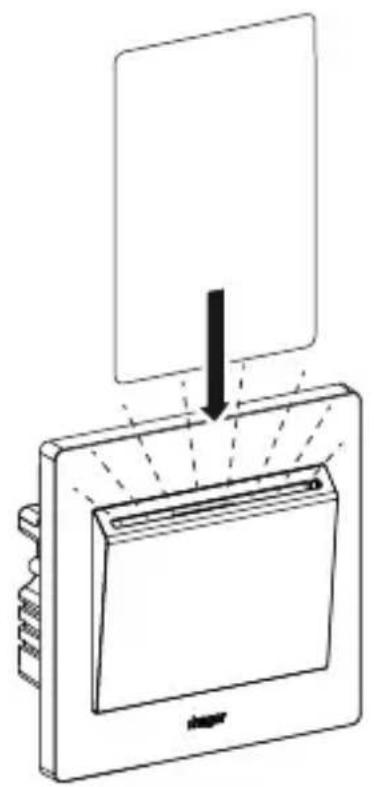

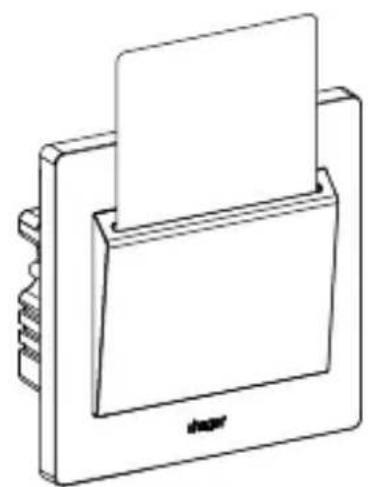

The key card switch is used for central switching on of electric loads by inserting a key card as well as for storage of the key card. The key card switch is installed in the entrance area. When the key card is removed the connected loads will be switched off automatically after the delay time has expired (approx. 30 seconds) and the LED orientation light of the key card switch is switched on.

HAGER WGCXHKTRFIDNB - Function - 1

natural_image Diagram of a device with a paper plane and a screen, showing internal components and a downward arrow (no text or symbols)

HAGER WGCXHKTRFIDNB - Function - 2

natural_image Technical line drawing of a mechanical component with a paper clip and threaded base (no text or symbols)

HAGER WGCXHKTRFIDNB - Function - 3

The key card switch RFID works exclusively with the RFID key card programmed for this purpose.

Correct use

  • Switching of incandescent lamps, high-voltage halogen lamps, fluorescent lamps, 230 V LED lamps as well as dimmable electronic transformers (marked with L, C) with halogen lamps.
  • For the flush-mounted installation in standard wall boxes (recommended wall box depth ≥ 35 mm).
  • Only suitable for use in indoor areas with no drip and no spray water.

Technical data

Rated voltage: 230 V\~

Frequency: 50/60 Hz

Rated current: 16 A

Delay time: 30 s (+/- 10 s)

Power consumption (standby): < 1.5 W

Contact type: relay, 1 normally-open contact

Conductor cross-section of screw terminals: max. 3 x 1.5 mm²

Distance of fixing holes: 60.3 mm

Operating temperature: -5 ... +45°C

Relative humidity (without condensation): 5 ... 95 % (at 25 °C)

Standards: BS EN 60669-2-1, IEC 60669-2-1

HAGER WGCXHKTRFIDNB - Technical data - 1

WARNING!

To avoid possible damage to the product or spurious insulation readings, please DISCONNECT the product before carrying out insulation resistance testing!

Information for electricians Installation and electrical connection

HAGER WGCXHKTRFIDNB - Information for electricians Installation and electrical connection - 1

DANGER!

Touching live parts can result in an electric shock.

An electric shock can lead to death.

Disconnect the connecting cables before working on the device and cover all live parts in the area!

Preparing the device for installation

1 Frame Key card module Notches Switch insert

■ Loosen the frame on the notches with a flat-blade screwdriver (1).

- Carefully remove the key card module from the switch insert.

Connecting the device

2A L N E LLOADN

2B L1 L2 L3 N E LLOADN steuer

- Strip connection cables approx. 12 mm.

■ Connect key card switch for direct switching of loads according to connecting diagram (2A). Can be installed alternatively with a load contactor (2B).

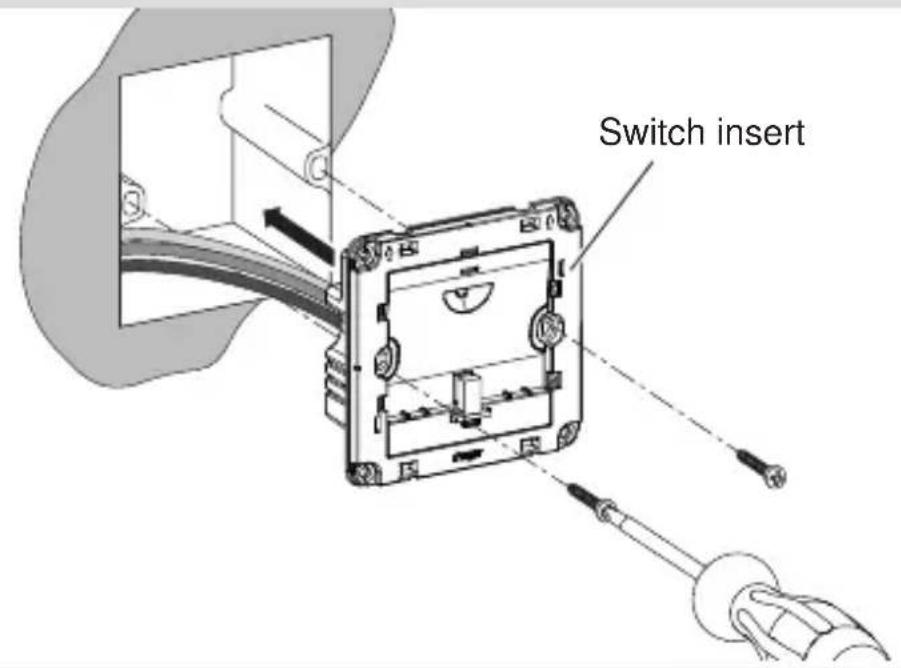

Installing the device into the wall box

3
Switch insert

■ After wiring, fix the switch insert with the two screws attached into the wall box (3).

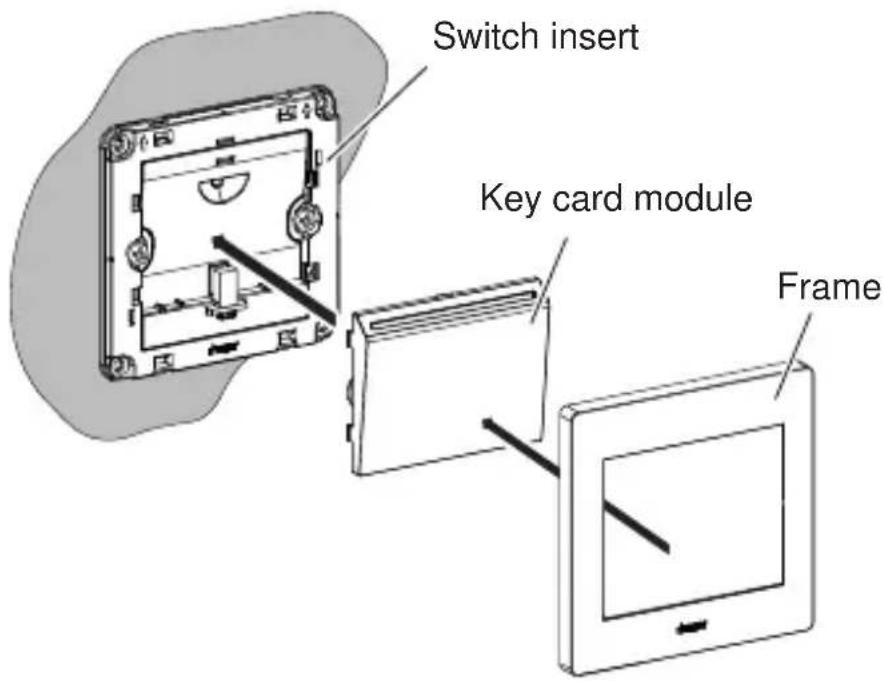

Assembling the key card module and frame

4
Switch insert Key card module Frame

Place the key card module in the correct position and let snap in carefully (4).

Fit frame.

HAGER WGCXHKTRFIDNB - Assembling the key card module and frame - 2

2-5gang frames are available for multiple combinations.
