Product Type	Fixed Mounting Plate
Brand	Gabor
Model	CP-8
Dimensions	8 x 8 inches (20.3 x 20.3 cm)
Weight Capacity	500 lb (226 kg)
Material	Steel
Mount Thread	1.5 NPT
Mounting Surface Options	Wooden ceiling, suspended ceiling, concrete ceiling
Included Components	Mounting plate
Warranty	10-year limited warranty
Cleaning Instructions	Use mild detergent and soft cloth; wipe dry quickly
Safety Warnings	Do not exceed 500 lb weight limit; do not mount on vertical surfaces
Installation Recommendation	Professional installation strongly recommended
Compatible Extension Columns	1.5 NPT threaded extension column (not included)
Additional Models	L-6: 6 x 6 inches

Frequently Asked Questions - CP-8 Gabor

What is the maximum weight capacity of the Gabor CP-8 mounting plate?

The maximum weight capacity is 500 pounds (226 kg), but may be limited by the supporting structure.

Can the CP-8 be mounted on a vertical wall or angled ceiling?

No, the mounting plate is designed only for horizontal ceilings. Do not use on vertical surfaces or angled ceilings.

What types of ceilings are compatible with the CP-8?

The plate can be mounted to wooden ceilings, suspended ceilings, or concrete ceilings. Follow specific instructions for each.

Do I need to purchase extension columns separately?

Yes, a 1.5 NPT threaded extension column is required but not included. Attach it to the plate's threaded collar.

How should I clean the Gabor CP-8 mounting plate?

Use a mild detergent solution and a soft cloth, then wipe dry quickly. Avoid excessive exposure to liquids.

What tools are required for installation?

Depending on ceiling type, you may need screws, threaded rods, anchors, wrenches, hex keys, and a drill. See manual for details.

Is professional installation recommended?

Yes, it is strongly recommended that a qualified professional installs this product to ensure safety.

What is the warranty period for the CP-8?

Gabor offers a 10-year limited warranty from the original purchase date.

Can the CP-8 be used with any 1.5 NPT mount?

Yes, it is designed for 1.5 NPT threaded mounts and extension columns. Ensure compatibility with your equipment.

How do I level the mounting plate during installation?

For suspended ceilings, rotate the nuts on the threaded rods up or down to adjust the plate until it is level, then tighten.

USER MANUAL CP-8 Gabor

Technical line drawing of a square plate with a central cylindrical component and four mounting holes (no text or symbols)

User Manual

Thank you for choosing Gabor.

The Geator Fixed 1.5 NPT Mounting Plates offer a simple to attach solid steel plate that allows the instruction of universal L.P. NPT mounts and extension columns. The durable steel construction supports up to 500 pounds, depending on the support structure, so you can easily hang a "V. Michigan" or projector from your ceiling.

If you have safety concerns about installing this product, contact a qualified professional or installation contractor.

If this product is missing hardware or there are defective parts, visit www.maceogobet.com or call Customer Service at 212 594 2353.

Product Specifications

Dimensions

L-6: 6 × 6 in. (5.2 × 10.2 cm)

CP-8:8×8 in.(20.3×20.3cm)

Max Weight Capacity

500 lb.(226 kg)

Material

S.cc

Mount Compatibility

1541

Parts List

Mounting plate

Tools and Hardware

Overview

Instructions

You can easily attach the Fixed Mounting Plate to a wooden stud fromed ceiling, or suspended ceiling, or into concrete. Make sure you do not attach the plate to a vertical mounting surface such as walls or angled ceilings.

Important! Check the weight implications of the supporting structure and mounting components to ensure you do not exceed the lowest weight capacity.

Mounting to a Wooden Ceiling

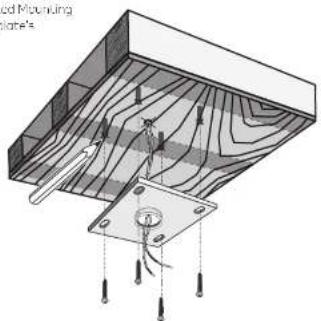

To mount the plate to a wooden ceiling, use 5/6.18 to 2½ inch (minimum) Grade 2 by screws to secure the Fixed Mounting Plate to the ceiling, via the plate's mounting holes.

Mounting to a Suspended Ceiling

Mount the plate from a suspended ceiling by using four 3/8-inch Grade 2 or better threaded rods, which are secured to finming channels spanning up to 5 feet by Grade 2 or better 3/8-inch channel huts.

1. Screw threaded into each channel out.
2. Screw a nut onto each threaded rod.
3. Insert washers onto the Unroded rods, one fit the plate onto the rods.
4. Rotate the nuts up and down the uncoated rods to adjust the plate until it's level.
5. Once the plate is level, fit a washer and nut onto earn of the four threaded rods, and tighten the nuts until secure.

Mounting into Concrete

Mount the point to an -inch-thick concrete ceiling. Anchors must be installed into the concrete before installing the Gcnor Fixed Mounting Plate.

Warning! Make sure the concrete is structurally solid with no cracks or other defects, as this can result in person injury or damage to equipment.

1. Use the plate's mounting holes as a juice, and drill four holes into the concrete.
2. Insert an anchor into earn hole, can then screw a threaded rod into each anchor.
3. Screw a nut onto each threaded rod.
4. Insert washers onto the threaded rocs, and fit the plate onto the rocs.
5. Rotate the nuts-up and down the threaded rods to adjust the plate until it's level.
6. Once the plate is level, fit a washer and nut onto each of the four threaded rods, and John on the no to until secure.

Technical diagram of a mechanical assembly with mounting bracket and mounting plate (no text or symbols)

Attaching an Extension Column

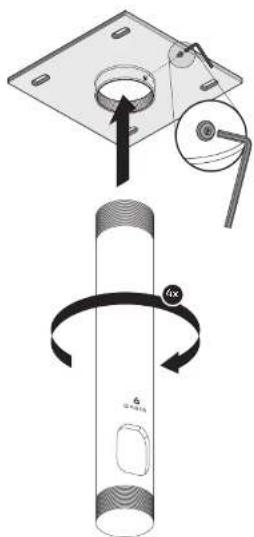

1. Install a 15 NPT-throoved extension column (not reduced) into the plate's forended collar. Tighten with at least four hand turns.
2. Use the original pinhead security set screw to lock the call, main plane, and lighten with the hex key.
3. Connect the amount of your TV, monitor, or projector, using the instructions included with the manufacture's manual for your equipment.

Safety Warnings

• When rescaling this product, be sure to refer to the mounting instructions detailed in this monocic failure to oblice by the mounting instructions may void the product's warranty.
• Do not exceed the maximum weight limit, as this can result in serious personal injury or damage to equivalent. The labor rate's responsibility to make sure all components attached to the Labor Mounting Rates do not exceed 500 pounds (226 kg).
• The 500 pound weight capacity of the Labor Mounting Plates may be limited to the lowest weight capacity of any components, counted between the Labor Mounting Plates and the applicable structure.
• Do not use to be vertical supports such as walls or angled ceilings.
• Do not use this product for only 1.5 NPT mount or extension columns other from what is, intended for the exact specified one, size parameters, and weight limits are found both on the product box and in the instruction monuci.

• It is strongly recommended that this product be installed by a qualified professional or installation contractor. Color takes no responsibility for any product, damage or repair injury resulting from hindcraving, incorrect mounting, faulty assembly, or improper use of this product.

• The Fixed U.S. NFI Mounting Plates are intended to be used with a U.S. NFI threaded extension column (not included).

• The Labor Mounting Plates are designed to be moved to a 2-inch wood studded ceiling covered with 3-inch drywall or in an 4 inch thick corner ceiling using either 1/4 or 5/6 inch log bolts with anchors (not included) or 5/10 to 8-inch log bolts with concrete anchors (not included) or suspended from four 3-inch grades 2 or better than 4 inches (not included) while the so-called two flooring channels (not included) soon a maximum five feet by grade 2 or better 3-inch channel nuts (not included).
• Do not mount the device on structures that may be affected by vibrations or noticeable impacts; do not install near a heater, fireplace, or any other source of direct heat energy.
  • This product may contain small parts which can possibly pose a choking hazard; keep out of excess of children and pets.
• Excessive exposure to liquids may store the finished product when cleaning the product, use only a mild detergent solution, and quickly wipe dry with a soft cloth.
• All means are for all other purposes, only.

Ten-Year Limited Warranty

This Labor product is warranted to the original purchaser to be free from defects in motor abd and workmanship under normal consumer use for a period of ten (10) years from the original purchase date or this day (30) days after replacement, whichever occurs twice. The warranty provider's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, or the provider's discretion, of any purchase that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by the warranty provider. If the product has been discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality and function.

This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDED MAKERS NEITHER ANY EXPRESS WARRANTY IS NOR ANY IMPLICID WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCANTALITY OR BENEFESS FOR A PARTIC IN ARPURPOSED. This warranty or provides you with specific legal rights, and you may also have additional rights that vary from state to state.

To obtain warranty coverage, concert the Cabor Customer Service Department to obtain a return merchandise authorization ("RMA") number, and return the defective amount to Grant along with the RMA number and proof of purchase. Shipment of the defective products at the purchaser's own risk and expense.

For more information or to exchange service, visit www.madebygobcr.com or call Customer Service at 212 584-2353.
