Product Type	Dishwasher
Brand	AEG
Model	F54030IM0
Dimensions (W x H x D)	596 x 818-898 x 570 mm
Capacity	12 place settings
Electrical Connection	220-240 V, 50 Hz
Power Consumption (Left-on mode)	0.99 W
Power Consumption (Off-mode)	0.10 W
Water Supply Pressure (min/max)	0.5 / 8 bar (0.05 / 0.8 MPa)
Water Supply Temperature (max)	60 °C (hot water optional)
Programs	NORMAL, PRO 70, ECO, Quick Rinse
Options	Multitab, Delay Start (1-19 h)
Water Softener Adjustment	Manual and electronic (levels 1-10)
Rinse Aid Dispenser Capacity	Adjustable (1-4 or 1-6)
Salt Container Capacity	1 L (initial fill required)
Spray Arms	Upper and lower rotors
Filtration System	3-part filter (A, B, C)
Safety Features	Anti-flood device, child lock, door catch
Installation Type	Freestanding or integrated (adjustable height)
Energy Efficiency	ECO program: 1.0-1.1 kWh, 13-15 L water

Frequently Asked Questions - F54030IM0 AEG

How do I adjust the water softener level?

Turn the water hardness dial to position 1 or 2 for manual adjustment. For electronic adjustment, press and hold Multitab while turning the programme knob counterclockwise until the marker aligns with the first programme, then use Multitab to change the level.

What should I do if the dishwasher doesn't fill with water?

Check that the water tap is open, the water pressure is sufficient, the inlet hose filter is not clogged, and the hose has no kinks. If the alarm code ,10 appears, troubleshoot as above.

How do I use the Multitab option?

Press Multitab before starting a programme when using combi detergent tablets. This deactivates rinse aid and salt flow. To deactivate, press Multitab again. If you stop using tablets, refill salt and rinse aid and adjust water softener.

Why are there white streaks on my glasses?

This is usually caused by too much rinse aid. Adjust the rinse aid selector to a lower position. Also check that you are not using too much detergent.

How do I clean the filters?

Turn filter (A) counterclockwise and remove it. Disassemble (A) into (A1) and (A2). Remove filter (B). Wash all parts under water. Reassemble in reverse order, ensuring (B) sits under the two guides (C).

Can I use hot water supply?

Yes, if the hot water comes from alternative energy sources (solar, aeolian). The maximum inlet temperature is 60 °C. This can reduce energy consumption.

What programmes are available?

The dishwasher offers NORMAL (65 °C), PRO 70 (70 °C, hygienic), ECO (50 °C, standard), and a Quick Rinse (12 min) for preventing odors. ECO is the most efficient.

How do I set a delay start?

Select a programme, press Delay repeatedly until the desired delay time (1-19 hours) appears, then press Start. The countdown begins and the programme starts automatically when it reaches zero.

What should I do if the anti-flood device activates?

If alarm code ,30 appears, close the water tap and contact the Service. Do not use the appliance until it is inspected.

How do I activate the rinse aid dispenser when using Multitab?

Enter setting mode: turn programme knob to off, press and hold Multitab while turning knob counterclockwise to first programme. Release Multitab, then turn knob to second programme. Use Multitab to toggle between 0d (off) and 1d (on). Confirm by turning knob to off.

USER MANUAL F54030IM0 AEG

Modern kitchen interior with white cabinets, a large stainless steel refrigerator, and a black stove (no visible text or symbols)

INDHOLD

1. SIKKERHEDSANVISNINGER 3
2. PRODUKTBESKRIVELSE 5
3. BETJENINGSPANEL 6
4. PROGRAMMER 6
5. TILVALG 7
6. F∅R IBRUGTAGNING 8
7. DAGLIG BRUG 10
8. RÅD 12
9. VEDLIGEHOLDELSE OG RENG∅RING 13
10. FEJLFINDING 14
11. TEKNISK INFORMATION 16
12. MILJ∅HENSYN 16

FOR PERFEKTE RESULTATER

ADVARSEL

Højspænding.

1 ∅verste spulearm
2 Nederste spulearm
3 Filtre
4 Typeskilt
5 Saltbeholder
6 Justering af vandets hårdhedsgrad

Mechanical gear assembly diagram showing two components with rotational motion arrows (no text or labels)

Line drawing of a hand cleaning a floor drain with a circular component and pipe (no text or symbols)

Line drawing of a hand holding a tool interacting with a mechanical component (no text or symbols)

WAARSCHUWING!

Mechanical gear assembly diagram showing two components with rotational motion arrows (no text or labels)

Zet de waterhardheidsknop in stand 1 of 2.

Line drawing of a hand cleaning a tiled floor with a circular component and pipe (no text or symbols)

Line drawing of a hand holding a propeller blade with a circular component inserted (no text or symbols)

10. PROBLEEMOPLOSSING

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information: www.aeg.com

Register your product for better service: www.aeg.com/productregistration

Buy Accessories, Consumables and Original spare parts for your appliance: www.aeg.com/shop

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts.

When contacting Service, ensure that you have the following data available.

The information can be found on the rating plate. Model, PNC, Serial Number.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

1. ⚠️ SAFETY INSTRUCTIONS

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

1.1 Children and vulnerable people safety

WARNING!

Risk of suffocation, injury or permanent disability.

• Do not let persons, children included, with reduced physical sensory, reduced mental functions or lack of experience and knowledge use the appliance. They must have supervision or instruction for the operation of the appliance by a person who is responsible for their safety.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep all detergents away from children.
• Keep children and pets away from the appliance door when it is open.

1.2 Installation

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Do not install or use the appliance where the temperature is less than 0 °C.
• Obey the installation instruction supplied with the appliance.
• Make sure that the appliance is installed below and adjacent to safe structures.

Electrical connection

WARNING!

Risk of fire and electrical shock.

- The appliance must be earthed.

• Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician.
• Always use a correctly installed shock-proof socket.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the mains plug and to the mains cable. Should the appliance power supply cable need to be replaced, this must be carried out by our Service Centre.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• Do not touch the mains cable or the mains plug with wet hands.
• This appliance complies with the E.E.C. Directives.

Water connection

• Make sure not to cause damage to the water hoses.
• Before you connect the appliance to new pipes or pipes not used for a long time, let the water flow until it is clean.
• The first time you use the appliance, make sure that there is no leakage.
• The water inlet hose has a safety valve and a sheath with an inner mains cable.

WARNING!

Dangerous voltage.

- If the water inlet hose is damaged, immediately disconnect the mains plug from the mains socket. Contact the Service to replace the water inlet hose.

1.3 Use

- This appliance is intended to be used in household and similar applications such as:

- Staff kitchen areas in shops, offices and other working environments

- Farm houses

- By clients in hotels, motels and other residential type environments

- Bed and breakfast type environments.

WARNING!

Risk of injury, burns, electrical shock or fire.

- Do not change the specification of this appliance.

- Put knives and cutlery with sharp points in the cutlery basket with the points down or in a horizontal position.

- Do not keep the appliance door open without supervision to prevent to fall on it.

• Do not sit or stand on the open door.
• Dishwasher detergents are dangerous. Obey the safety instructions on the detergent packaging.
• Do not drink and play with the water in the appliance.
• Do not remove the dishes from the appliance until the programme is completed. There can be detergent on the dishes.
• The appliance can release hot steam if you open the door while a programme operates.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.
• Do not use water spray and steam to clean the appliance.

1.4 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent children and pets to get closed in the appliance.

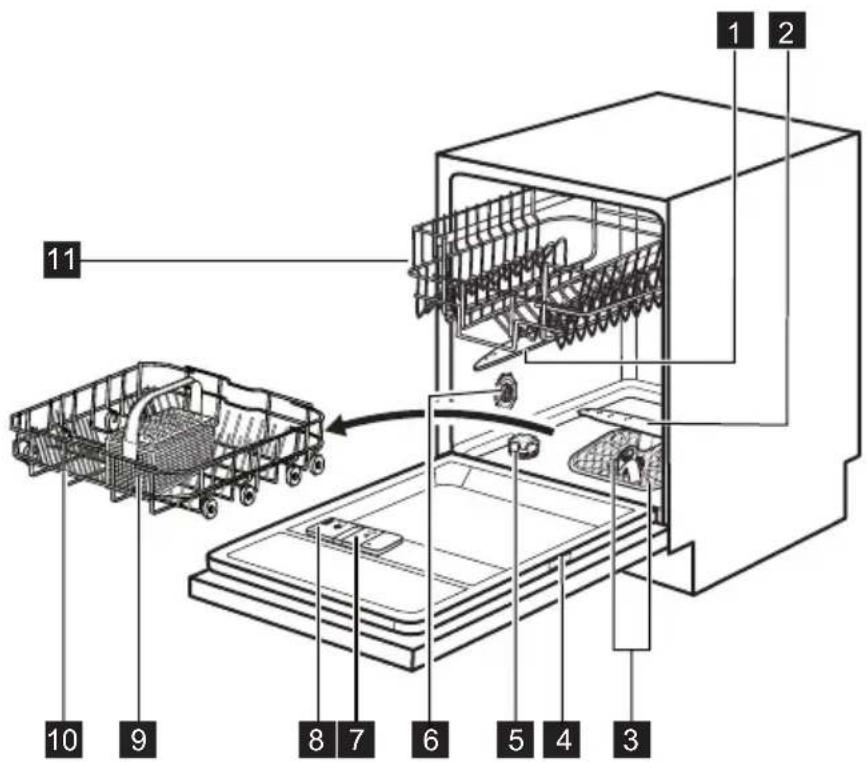

2. PRODUCT DESCRIPTION

1 Upper spray arm
2 Lower spray arm
3 Filters
4 Rating plate
5 Salt container
6 Water hardness dial

7 Rinse aid dispenser
8 Detergent dispenser
9 Cutlery basket
10 Lower basket
11 Upper basket

3. CONTROL PANEL

1 Programme guide
2 Programme marker
3 Off position
4 Indicators
5 Display

6 Start button
7 Delay button
8 Multitab button
9 Programme knob

Indicators Description
	Washing phase indicator.
	Drying phase indicator.
	Rinse aid indicator. This indicator is off while the programme operates.
[TDBK]	Salt indicator. This indicator is off while the pro-gramme operates.
	Multitab indicator.

4. PROGRAMMES

Pro-gramme1)	Degree of soil Type of load	Programme phases	Dura-tion (min)	Energy (kWh)	Water (l)
NORMAL	Normal soil Crockery and cutlery	Prewash Wash 65 °C Rinses Dry	90 - 100	1.4 - 1.6	17 - 19
PRO 702)	Heavy soil Crockery, cut-lery, pots and pans	Prewash Wash 70 °C Rinses Dry	140 - 150	1.5 - 1.7	15 - 17
ECO3)	Normal soil Crockery and cutlery	Prewash Wash 50 °C Rinses Dry	155 - 165	1.0 - 1.1	13 - 15
4)	All Prewash 12 0.1 4

1) The pressure and the temperature of the water, the variations of the mains supply, the options and the quantity of dishes can change the programme duration and the consumption values.
2) This programme has a high temperature rinsing phase for better hygiene results. During the rinsing phase, the temperature stays at 70^ C for 10 to 14 minutes.
3) This is the standard programme for test institutes. With this programme you have the most efficient use of water and energy consumption for crockery and cutlery with normal soil.
4) Use this programme to quickly rinse the dishes. This prevents the remaining food to bond on the dishes and bad odours to come out from the appliance. Do not use detergent with this programme.

Information for test institutes

For all the necessary information for test performance. send an email to:

[e-mail]

Write down the product number (PNC) that is on the rating plate.

5. OPTIONS

Activate or deactivate the options before the start of a programme. You cannot activate or deactivate the options while a programme operates.

If one or more options are set, make sure that the related indicators are on before the programme starts.

5.1 Multitab option

Activate this option only when you use the combi detergent tablets.

This option deactivates the flow of rinse aid and salt. The related indicators are off.

The programme duration can increase.

Activating the Multitab option

Activate or deactivate the Multi-tab option before the start of a programme. You cannot activate or deactivate this option while a programme operates.

1. Press the on/off button to activate the appliance. Make sure that the appliance is in setting mode. Refer to 'SETTING AND STARTING A PROGRAMME'.

2. Press Multitab, the Multitab indicator comes on.

The option stays on until you deactivate it. Press Multitab, the Multitab indicator goes off.

If you stop to use the combi detergent tablets, before you start to use separately detergent, rinse aid and dishwasher salt, do these steps:

1. Deactivate the Multitab option.
2. Set the water softener to the highest level.

3. Make sure that the salt container and the rinse aid dispenser are full.

4. Start the shortest programme with a rinsing phase, without detergent and without dishes.

5. Adjust the water softener to the water hardness in your area.
6. Adjust the released quantity of rinse aid.

6. BEFORE FIRST USE

1. Make sure that the set level of the water softener agrees with the water hardness in your area. If not, adjust the water softener. Contact your local water authority to know the water hardness in your area.

2. Fill the salt container.

3. Fill the rinse aid dispenser.

4. Open the water tap.

5. Processing residues can stay in the appliance. Start a programme to remove them. Do not use detergent and do not load the baskets.

If you use the combi detergent tablets, activate the multitab option.

6.1 Adjusting the water softener

Water hardness			Water softener adjustment
German degrees (°dH)	French degrees (°fH)	mmol/l Clarke degrees	Manual Elec-tronic
51 - 70 91 - 125 9.1 - 12.5 64 - 88			21)	10
43 - 50 76 - 90 7.6 - 9.0 53 - 63			21)	9
37 - 42 65 - 75 6.5 - 7.5 46 - 52			21)	8
29 - 36 51 - 64 5.1 - 6.4 36 - 45			21)	7
23 - 28 40 - 50 4.0 - 5.0 28 - 35			21)	6
19 - 22 33 - 39 3.3 - 3.9 23 - 27			21)	51)
15 - 18 26 - 32 2.6 - 3.2 18 - 22 1 4
11 - 14 19 - 25 1.9 - 2.5 13 - 17 1 3
4 - 10 7 - 18 0.7 - 1.8 5 - 12 1 2
< 4 < 7	< 0.7	< 5	12)	12)

1) Factory position.

2) Do not use salt at this level.

You must adjust the water softener manually and electronically.

Manual adjustment

Mechanical gear assembly diagram showing two components with rotational motion arrows (no text or labels)

Turn the water hardness dial to the position 1 or 2.

Electronic adjustment

The appliance must be in setting mode. Refer to 'SETTING AND STARTING A PROGRAMME'.

1. Make sure that the programme marker on the programme knob is aligned with the off position.

2. Press and hold Multitab. At the same time turn the programme knob counterclockwise until the programme marker is aligned with the first programme on the control panel.

3. Release Multitab when the display shows the setting of the water softener.
   • Example: 5 L = level 5.

4. Press Multitab again and again to change the setting.

5. To confirm the setting, turn the programme knob until the programme marker is aligned with the off position.

6.2 Filling the salt container

Line drawing of a hand cleaning a floor drain with a circular component and pipe outlet (no text or symbols)

1. Turn the cap counterclockwise and open the salt container.
2. Put 1 litre of water in the salt container (only for the first time).
3. Fill the salt container with dishwasher salt.
4. Remove the salt around the opening of the salt container.
5. Turn the cap clockwise to close the salt container.

CAUTION!

Water and salt can come out from the salt container when you fill it. Risk of corrosion. To prevent it, after you fill the salt container, start a programme.

6.3 Filling the rinse aid dispenser

1. Press the release button (D) to open the lid (C).
2. Fill the rinse aid dispenser (A), no more than the mark 'max'.
3. Remove the spilled rinse aid with an absorbent cloth to prevent too much foam.
4. Close the lid. Make sure that the release button locks into position.

You can turn the selector of the released quantity (B) between position 1 (lowest quantity) and position 4 or 6 (highest quantity).

7. DAILY USE

1. Open the water tap.
2. Turn the programme knob until the programme marker is aligned with a programme on the control panel. Make sure that the appliance is in setting mode, refer to 'SETTING AND STARTING A PROGRAMME'.

- If the salt indicator is on, fill the salt container.

- If the rinse aid indicator is on, fill the rinse aid dispenser.

1. Load the baskets.
2. Add the detergent.
3. Set and start the correct programme for the type of load and the degree of soil.

7.1 Using the detergent

1. Press the release button (B) to open the lid (C).
2. Put the detergent in the compartment (A).
3. If the programme has a prewash phase, put a small quantity of detergent in the compartment (D).
4. If you use detergent tablets, put the tablet in the compartment (A).
5. Close the lid. Make sure that the release button locks into position.

7.2 Setting and starting a programme

Setting mode

The appliance must be in setting mode to:

• Start a programme.
• Set the level of the water softener.
• Activate the rinse aid dispenser when the Multitab function is on.

Turn the programme knob until the programme marker is aligned with a programme on the control panel:

• If the programme duration flashes in the display, the appliance is in setting mode.
• If the programme duration in the display is not flashing, the appliance is not in setting mode.

To put the appliance in setting mode, press and hold Multitab and Delay until the programme duration flashes in the

display and the phase indicators for the programme come on.

Starting a programme without delay start

1. Open the water tap.
2. Close the appliance door.

3. Turn the programme knob until the programme marker is aligned with the programme you want to set. Make sure that the appliance is in setting mode.

4. The programme duration flashes in the display.
   • The phase indicators of the set programme come on.

5. Press Start. The programme starts.

6. The programme duration stops flashing in the display and starts to decrease with steps of 1 minute.

7. Only the indicator of the phase in operation stays on.

Starting a programme with delay start

1. Set the programme.
2. Press Delay again and again until the display shows the delay time you want to set (from 1 to 19 hours).
3. The delay time flashes in the display.
4. Press Start. The countdown starts.
5. The delay time stops flashing in the display. The countdown starts to decrease with steps of 1 hour.
6. The phase indicators of the set programme go off.
7. When the countdown is completed, the programme starts.
8. The indicator of the phase in operation comes on.

Opening the door while the appliance operates

If you open the door, the appliance stops. When you close the door, the appliance continues from the point of interruption.

Cancelling the delay start while the countdown operates

Press Delay again and again until the display shows the programme duration and the phase indicators of the set programme come on. The programme starts.

Cancelling the programme

Press and hold Multitab and Delay until the programme duration flashes in the display and the phase indicators of the set programme come on.

Make sure that there is detergent in the detergent dispenser before you start a new programme.

At the end of the programme

When the programme is completed, the display shows 0 and the phase indicators go off.

1. Deactivate the appliance. Turn the programme knob until the programme marker is aligned with the off position.

2. Close the water tap.

- If you do not deactivate the appliance, after three minutes from the end of the programme:

– All the indicators go off.

– The display shows one horizontal status bar.

This helps to decrease the energy consumption.

Press one of the buttons, the display and the indicators come on again.

- Let the dishes become cold before you remove them from the appliance. Hot dishes can be easily damaged.

- First remove the items from the lower basket, then from the upper basket.

- There can be water on the sides and on the door of the appliance. Stainless steel becomes cool more quickly than the dishes.

8. HINTS AND TIPS

8.1 The water softener

Hard water contains a high quantity of minerals that can cause damage to the appliance and bad washing results. The water softener neutralises these minerals.

The dishwasher salt keeps the water softener clean and in good conditions. It is important to set the right level of the water softener. This makes sure that the water softener uses the correct quantity of dishwasher salt and water.

8.2 Using salt, rinse aid and detergent

• Only use salt, rinse aid and detergent for dishwasher. Other products can cause damage to the appliance.
• The rinse aid helps, during the last rinsing phase, to dry the dishes without streaks and stains.
• Combi detergent tablets contain detergent, rinse aid and other added agents. Be sure that these tablets are applicable to the water hardness in your area. Refer to the instructions on the packaging of the products.

If you want to use these tablets out of the applicable water hardness, you must also use dishwasher salt. First activate the Multitab option, then adjust the water softener to the water hardness in your area and use dishwasher salt.

- Detergent tablets do not fully dissolve with short programmes. To prevent detergent residues on the tableware, we recommend that you use the tablets with long programmes.

Do not use more than the correct quantity of detergent. Refer to the instructions on the detergent packaging.

8.3 Loading the baskets

Refer to the supplied leaflet with examples of the load of the baskets.

• Only use the appliance to wash items that are dishwasher-safe.

• Do not put in the appliance items made of wood, horn, aluminium, pewter and copper.

• Do not put in the appliance items that can absorb water (sponges, household cloths).

• Remove remaining food from the items.
• To remove easily remaining burned food, soak pots and pans in water before you put them in the appliance.
• Put hollow items (cups, glasses and pans) with the opening down.
• Make sure that cutlery and dishes do not bond together. Mix spoons with other cutlery.
• Make sure that glasses do not touch other glasses.
• Put the small items in the cutlery basket.
• Put the light items in the upper basket. Make sure that they do not move.
• Make sure that the spray arms can move freely before you start a programme.

8.4 Before starting a programme

Make sure that:

• The filters are clean and correctly installed.
• The spray arms are not clogged.
• The position of the items in the baskets is correct.
• The programme is applicable for the type of load and for the degree of soil.
• The correct quantity of detergent is used.
• There is dishwasher salt and rinse aid (unless you use combi detergent tablets).
• The cap of the salt container is tight.

9. CARE AND CLEANING

WARNING!

Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.

Dirty filters and clogged spray arms decrease the washing results.

Make a check regularly and, if necessary, clean them.

9.1 Cleaning the filters

Line drawing of a hand holding a small object with a curved arrow, no text or symbols present

1. Turn the filter (A) counterclockwise and remove it.

2. To disassemble the filter (A), pull apart (A1) and (A2).

3. Remove the filter (B).

4. Wash the filters with water.

5. Put the filter (B) to its initial position. Make sure that it assembles correctly under the two guides (C).

6. Assemble the filter (A) and put it into position in filter (B). Turn it clockwise until it locks.

An incorrect position of the filters can cause bad washing results and damage to the appliance.

9.2 Cleaning the spray arms

Do not remove the spray arms. If the holes in the spray arms are clogged, remove remaining parts of soil with a thin pointed object.

Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads or solvents.

9.3 External cleaning

Clean the appliance with a moist soft cloth.

10. TROUBLESHOOTING

The appliance does not start or it stops during operation.

Before you contact the Service, refer to the information that follows for a solution to the problem.

With some problems, the display shows an alarm code:

• ,10 - The appliance does not fill with water.

• ,20 - The appliance does not drain the water.
• ,30 - The anti-flood device is on.

WARNING!

Deactivate the appliance before you do the checks. Turn the programme knob until the programme marker is aligned with the off position.

Problem Possible solution
You cannot activate the appli-ance.	Make sure that the mains plug is connected to the mains socket.
Make sure that there is not a damaged fuse in the fuse box.
The programme does not start. Make sure that the appliance door is closed.
Press Start.
If the delay start is set, cancel the setting or wait for the end of the countdown.
The appliance does not fill with water.	Make sure that the water tap is open.
Make sure that the pressure of the water supply is not too low. For this information, contact your local water authority.
Make sure that the water tap is not clogged.
Make sure that the filter in the inlet hose is not clogged.
Make sure that the inlet hose has no kinks or bends.
The appliance does not drain the water.	Make sure that the sink spigot is not clog-ged.
Make sure that the drain hose has no kinks or bends.
The anti-flood device is on. Close the water tap and contact the Service.

After the checks are completed, activate the appliance. The programme continues from the point of interruption. If the problem occurs again, contact the Service. If the display shows other alarm codes, contact the Service.

10.1 If the washing and drying results are not satisfactory

Whitish streaks or bluish layers on glasses and dishes

• The released quantity of rinse aid is too much. Adjust the rinse aid selector to a lower position.
• The quantity of detergent is too much.

Stains and dry water drops on glasses and dishes

• The released quantity of rinse aid is not sufficient. Adjust the rinse aid selector to a higher position.
• The quality of the detergent can be the cause.

Dishes are wet

• The programme is without a drying phase or with a low temperature drying phase.
• The rinse aid dispenser is empty.
• The quality of the rinse aid can be the cause.
• The quality of the combi detergent tablets can be the cause. Try a different brand or activate the rinse aid dis-

penser and use rinse aid together with the combi detergent tablets.

Refer to 'HINTS AND TIPS' for other possible causes.

Activating the rinse aid dispenser with the multitab function activated

The appliance must be in setting mode. Refer to 'SETTING AND STARTING A PROGRAMME'.

1. Make sure that the programme marker on the programme knob is aligned with the off position.

2. Press and hold Multitab. At the same time turn the programme knob counterclockwise until the programme marker is aligned with the first programme on the control panel.

3. Release Multitab when the display shows the setting of the water softener.

4. Turn the programme knob counterclockwise until the programme marker is aligned with the second washing programme on the control panel.

5. The display shows the setting of the rinse aid dispenser.

0d	Off
Id	On

1. Press Multitab to change the setting.

2. To confirm the setting, turn the programme knob until the programme marker is aligned with the off position.

11. TECHNICAL INFORMATION

Dimensions Width / Height / Depth(mm)		596 / 818 - 898 / 570
Electrical connection Refer to the rating plate.
Voltage 220-240 V
Frequency 50 Hz
Water supply pressure	Min. / max. (bar / MPa)	(0.5 / 0.05 ) / (8 / 0.8 )
Water supply1)	Cold water or hot water2)	max. 60 °C
Capacity Place settings 12
Power consumption Left-on mode 0.99 W
	Off-mode 0.10 W

1) Connect the water inlet hose to a water tap with a 3/4" thread.

2) If the hot water comes from alternative sources of energy, (e.g. solar panels, aeolian energy), use the hot water supply to decrease energy consumption.

12. ENVIRONMENT CONCERNS

Recycle the materials with the symbol ⚙. Put the packaging in applicable containers to recycle it.

Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose

appliances marked with the symbol ✉ with the household waste. Return the product to your local recycling

facility or contact your municipal office.

INNEHÅLL

1. SÄKERHETSFÖRESKRIFTER 51
2. PRODUKTBESKRIVNING 53
3. KONTROLLPANEL 54
4. PROGRAM 54
5. TILLVALSFUNKTIONER 55
6. INNAN MASKINEN ANVÄNDS FÖRSTA GÅNGEN 56
7. DAGLIG ANVÄNDNING 58
8. RÅD OCH TIPS 60
9. UNDERHÅLL OCH RENGÖRING 61
10. FELSÖKNING 62
11. TEKNISK INFORMATION 64
12. MILJÖSKYDD 64

FÖR PERFEKT RESULTAT

WARNING

Farlig spänning.

Mechanical gear assembly diagram showing two components with rotational motion arrows (no text or labels)

Line drawing of a hand cleaning a floor drain with a circular vent and water droplets (no text or symbols)

Line drawing of a hand holding a curved object with arrows indicating motion or rotation (no text or symbols)
