Contents

1 Things you should know 2-4

Safety precautions 2

Copyright 3

Disclaimer 3

FCC compliance 3

Environmental information 3-4

System requirements 4

Disclaimer of warranty 4

Limitations of damages 4

2 Your WebCam 4

Welcome 4

3 What's in the box? 5

4 Functional overview 5

5 Installation 6-7

5.1 Installing the WebCam software 6-7

5.2 Connecting the WebCam to your PC / laptop 7

6 WebCam settings 8

6.1 WebCam Companion 8

6.2 Fun settings menu 8-10

6.3 Image settings menu 11

6.4 Audio settings menu 11-12

6.5 Property pages 12-15

7 Operating the WebCam 15

8 Technical data 16

9 Frequently asked questions (FAQ) 16-19

9.1 How can I adjust image quality? 16-17

9.2 The microphone of my Philips WebCam does not work (properly). What should I do? 17-18

9.3 Using my Philips WebCam makes my PC / laptop run slow. What should I do? 18-19

9.4 How can I restore the settings of my Philips WebCam to the default factory settings? 19

1 Things you should know

Please read the following instructions carefully, and retain them for future reference. It may be helpful to have the instructions for use for the PC at hand for reference.

Safety precautions

Observe the following guidelines to ensure that the WebCam will operate safely and to prevent defects.

• Do not use your WebCam in environments outside the following range: temperature: 0°C to 40°C, relative humidity: 45% \~ 85%.
• Do not use or store your WebCam in/under:
• direct sunlight exposure;
• very humid and dusty environment;
• near any kind of heat sources.
• If your WebCam gets wet, dry it with soft cloth as soon as possible.
• If the lens is dirty, do NOT touch the lens with your fingers.
• Clean the outside of the WebCam with a soft cloth.
• Do NOT use cleaning fluids based on alcohol, methylated spirit, ammonia, etc.
• Do NOT attempt to disassemble or repair your WebCam by yourself. Do not open the WebCam. In the event of technical difficulties return it to your Philips retailer.
• Do NOT use your WebCam in the water.
• Protect the WebCam from oil, vapour, steam, moisture, and dust.
• Never point the WebCam lens at the sun.

Copyright

Copyright © 2008 by Philips Consumer Electronics B.V.

All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without prior written permission from Philips. Brands and product names are trademarks or registered trademarks of their respective companies.

Disclaimer

Philips makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.

Philips assumes no responsibility for any error that may appear in this document. Philips makes no commitment to update nor to keep current the information contained in this document.

FCC compliance

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1 this device may not cause harmful interference, and
2 this device must accept any interference received, including interference that may cause undesired operation.

Note!

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Any unauthorized modification to this equipment could result in the revocation of the authorization to operate the equipment.

Environmental information

Disposal of your old product Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.

Please inform yourself about the local separate collection system for electrical and electronic products.

Please act according to your local rules and do not dispose of your old products with your normal household waste. The correct disposal of your old product will help prevent potential negative consequences for the environment and human health.

Warning

Plastic bags can be dangerous. To avoid danger of suffocation, keep this bag away from babies and small children.

System requirements

• Microsoft ^ Windows ^ XP (SP2) or Vista;
• Pentium ^ III, 850 Mhz or equivalent;
• 256 MB RAM and 200 MB free hard disk space;
• One free USB port and CD-ROM or DVD drive.

Disclaimer of warranty

The software on the CD-ROM supplied is sold ‘as is’ and without warranties whether expressed or implied. Because of the various software and hardware environments into which this program may be put, no warranty of fitness for a particular purpose is offered.

Limitations of damages

The vendor will not be liable for any indirect, special, incidental or consequential damages (including damages for loss of business, loss of profits, or the like), whether based on breach of contract, tort (including negligence), product liability or otherwise, even if the vendor or its representatives have been advised of the possibility of such damages and even if a remedy set forth herein is found to have failed its essential purpose.

2 Your WebCam

Congratulations on your purchase and welcome to Philips. To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome

Welcome

The Philips SPC1030NC WebCam you have just purchased is manufactured to the highest standards and will give you years of trouble-free use. Brilliant images and blazing colors, that's what you get with the SPC1030NC WebCam.

After installation, the new WebCam can be used for all sorts of applications, such as:

Video:

use the Philips SPC1030NC WebCam for video chatting and video calling. The WebCam works with Skype, Windows® Live Messenger, Yahoo! Messenger, AOL Instant Messenger, QQ and other instant messaging and VoIP (Voice over Internet Protocol) services;

Video sharing:

make your own personal videos and share them with friends and family via YouTube, Yahoo! Video, etc.;

Snapshot images:

use the Snapshot button to easily take photos without using your mouse and share your photos via Flickr, MySpace, etc.;

Editing and special effects:

edit images and recordings using Webcam Companion.

The following sections in this manual give a step-by-step description of the installation process and explain how to use the Philips SPC1030NC WebCam.

3 What's in the box?

Please check that the following items are packed in the Philips SPC1030NC box. They are provided to help you set up and use your Philips SPC1030NC.

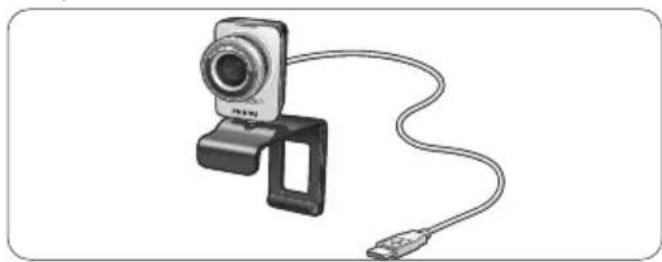

Philips SPC1030NC WebCam

Illustration of a digital camera with a cable and connector (no text or symbols)

Installation CD-ROM including user manual

PHILIP SPC630NC 1985-00-2024 1982 00:2024

4 Functional overview

1 2 3 4 5 6 7 PHILIPS

1 Snapshot button

Enables you to take photos without using your mouse.

2 Focus ring

For manually adjusting the focus of the lens.

3 Rotating foot

For manually changing the vertical angle of the WebCam.

4 Clamp with rubber rims / camera foot

For attaching the WebCam to your (flat panel) PC monitor or laptop screen. The clamp can be folded when the WebCam is placed on a desk or (large) desktop monitor.

Illustration of a digital camera with a cable, no text or symbols present

5 USB connector

For connecting the WebCam to the USB port of the desktop or laptop PC.

The WebCam will derive its power from the desktop or laptop PC when a USB connection is made.

6 Digital microphone

For adding voice and sound when video calling and video recording.

7 Power LED

Lights up red when the WebCam is in use.

5 Installation

5.1 Installing the WebCam software

The software supplied only works on PCs with the operating systems Microsoft® Windows® XP (SP2) and Vista. Also refer to 1 'Things you should know' - 'System requirements'.

Notes

• Unplug all your USB devices (except USB keyboard and USB mouse) before you start.
• Do not plug in your WebCam yet. Run the Installation CD-ROM first.
• Have your Windows ^ CD-ROM at hand.

1 Place the installation CD-ROM in your PC's / laptop's CD-ROM / DVD drive.

Illustration of a hand placing a circular object into a CD inside a computer tower (no text or symbols)

• After a couple of seconds the 'Language selection' screen appears.

Note

If the 'Language selection' screen does not appear automatically, open 'Computer' or 'My computer', double click on the CD, then double click on the 'Setup.exe' icon.

2 Select your language.

Windows 9.0 (Windows) - Open Options: C:\Program Files\Microsoft Office\ Open Cancel Help Open/Forward Open Close Help Open/Forward Open Close Help Open/Forward Open Help

• Installation continues automatically.
• The 'Welcome' screen appears.

3 Click 'Next' to continue.

Welcome to the Local/Local Wizard for PDS - 3.0000 Windows Import to this local or your download

• The 'Manual' screen appears.
4 Select the first option if you wish to read the user manual before continuing installation. You can print out the manual so you will have it at hand during the rest of the installation process.

After you read or printed the user manual, continue installation by selecting the second option.

Or:

Select the second option if you wish to continue installation.

Click 'Next' to continue.

Login Type [ ] (File Edit/Find List/Get Now/Help) New Version: All Users ■ 100% or more. 200% or more. 300% or more. 400% or more. 500% or more. 600% or more. 700% or more. 800% or more. 900% or more. 1000% or more. ↓

- The ‘Installation’ screen appears. The items that can be installed are shown on the left side of the screen. An explanation of each item is given on the right side. All required items are selected by default.

5 Click the 'Next' button if you wish to install all items.

Software 3.0.1.2.1 - Windows 1.0.1.2 Sub-Process Sub-Process: not at all Microsoft Windows 1.0.1.2.1 - Windows 1.0.1.2 Microsoft Windows 1.0.1.2 - Microsoft Windows 1.0.1.2 Microsoft Windows 1.0.1.2 - Microsoft Windows 1.0.1.2 Microsoft Windows 1.0.1.2 - Microsoft Windows 1.0.1.2 Microsoft Windows 1.0.1.2 - Microsoft Windows 1.0.1.2 Microsoft Windows 1.0.1.2 - Microsoft Windows 1.0.1.2 Microsoft 1.0.1.2 - Microsoft Windows 1.0.1.2 Microsoft Windows 1.0.1.2 - Microsoft Windows 1.0.1.2 Microsoft Windows 1.0.1.2 - Microsoft Windows 1.0.1.2 Microsoft Windows 1.0.1.2 - Microsoft Windows 1.0.1.2 Microsoft Windows 1.0.1.2 - Microsoft Windows Microsoft Windows 1.0.1.2 - Microsoft Windows 1.0.1.2 Microsoft Windows 1.0.1.2 - Microsoft Windows 1.0.1.2 Microsoft Windows 1.0.1.2 - Microsoft Windows 1.0.1.2 Microsoft Windows 1.0.1.2 - Microsoft Windows 1.0.1.2 Microsoft Windows 1.0.1.2 Microsoft Windows 1.0.1.2 Microsoft Windows 1.0.1.2 Microsoft Windows 1.0.1.2 Microsoft Windows 1.0.1.2 Microsoft Windows 1.0.1.2 Microsoft Windows 1.0.1.2 Microsoft Windows 1.0.1.2 Microsoft Windows 1.0.1.2 Microsoft 5678-8888-8888-8888-8888-8888-8888-8888-8888-8888-8888-8888-8888-8888-8888-8888-8888-8888-8888-8888-8888-88

Or:

If there are certain items you do not wish to install, check the boxes before these items. Select at least 'WebCam Driver SPC1030' and 'Philips CamSuite'.

Click the 'Next' button.

•The following software license agreement appears.

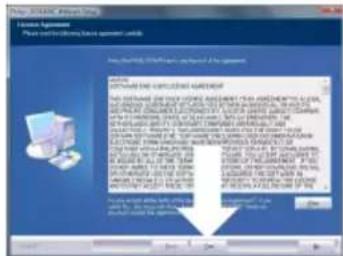

6 Click on 'Yes' to continue the installation.

Name: STRAWB, Inc. (2016) Copyright © 2016 © 2016 Copyright © 2016 Copyright © 2016 Copyright © 2016 Copyright © 2016 Copyright © 2016 Copyright © 2016 Copyright © 2016 Copyright © 2016 Copyright © 2016 Copyright © 2016 Copyright © 2016 Copyright © 2016 Copyright © 20 Copyright © 2016 Copyright © 2016 Copyright © 2016 Copyright © 2016 Copyright © 2016 Copyright © 2016 Copyright © 2016 Copyright © 2016 Copyright © 2016 Copyright © 2016 Copyright © 2016 Copyright © 2016 Copyright © Copyright © 2016 Copyright © 2016 Copyright © 2016 Copyright © 2016 Copyright © 2016 Copyright © 2016 Copyright © 2016 Copyright © 2016 Copyright © 2016 Copyright © 2016 Copyright © 2016 Copyright © 2016 Copyright ©2016 Copyright © 2016 Copyright © 2016 Copyright © 2016 Copyright © 2016 Copyright © 2016 Copyright © 2016 Copyright © 2016 Copyright © 2016 Copyright © 2016 Copyright © 2016 Copyright © 2016 Copyright © 2015 Copyright © 2015 Copyright © 2015 Copyright © 2015 Copyright © 2015 Copyright © 2015 Copyright © 2015 Copyright © 2015 Copyright © 2015 Copyright © 2015 Copyright © 2015 Copyright © 2015 Copyright © 2015 Copyright ©2015 Copyright © 2015 Copyright © 2015 Copyright © 2015 Copyright © 2015 Copyright © 2015 Copyright © 2015 Copyright © 2015 Copyright © 2015 Copyright © 2015 Copyright © 2015 Copyright © 2015 Copyright © 2014 Copyright © 2014 Copyright © 2014 Copyright © 2014 Copyright © 2014 Copyright © 2014 Copyright © 2014 Copyright © 2014 Copyright © 2014 Copyright © 2014 Copyright © 2014 Copyright © 2014 Copyright © 2014 Copyright ©2013 Copyright © 2013 Copyright © 2013 Copyright © 2013 Copyright © 2013 Copyright © 2013 Copyright © 2013 Copyright © 2013 Copyright © 2013 Copyright © 2013

• The following screen appears.

7 Click 'Next' to continue.

• The 'Reboot' screen appears.

8 Select 'Yes', then click 'Finish' to restart your PC / laptop.

Install Hard Disk Complete To install hard disk, the installed hard disk is installed in Windows NTech. This will be installed on the following website: ● On account for the hard disk ● On network to install the network ■ Install hard disk into the hard disk ■ Install hard disk into the network

- After installation, the 'Philips CamSuite' shortcut will be visible in the Windows taskbar (bottom right of your screen). - In the 'Philips CamSuite' you can adjust the WebCam settings. For this, refer to 6 'WebCam settings'.

9 You can now connect your WebCam.

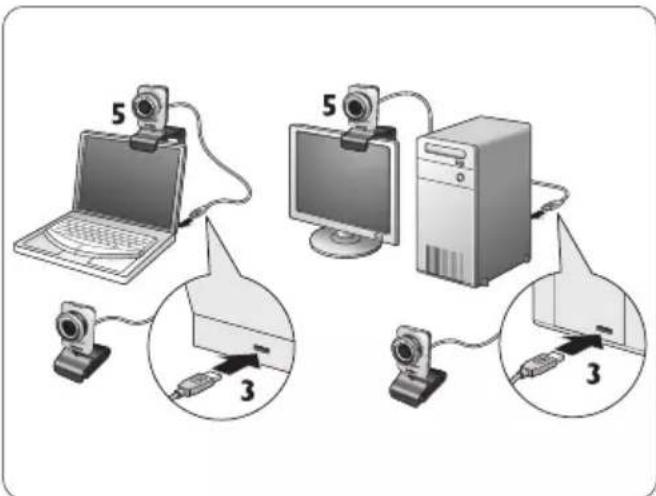

5.2 Connecting the WebCam to your PC / laptop

5 5 3 3

1 Be sure to run the installation CD first, before connecting the WebCam to the PC / laptop. For this, refer to 5.1 'Installing the WebCam software'.

2 Turn on the PC / laptop.

3 Connect the USB connector of the USB cable to the USB port of the PC / laptop. • The WebCam will now derive its power from the PC / laptop.

4 Aim the webcam as required.

5 Use the clamp and the two rubber rims to attach the WebCam to your (flat panel) PC monitor or laptop screen.

Or:

Fold the clamp to place the WebCam on a desk or (large) desktop monitor.

6 WebCam settings

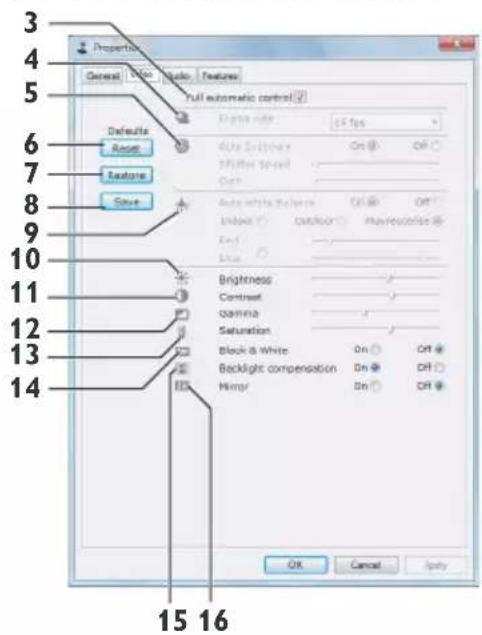

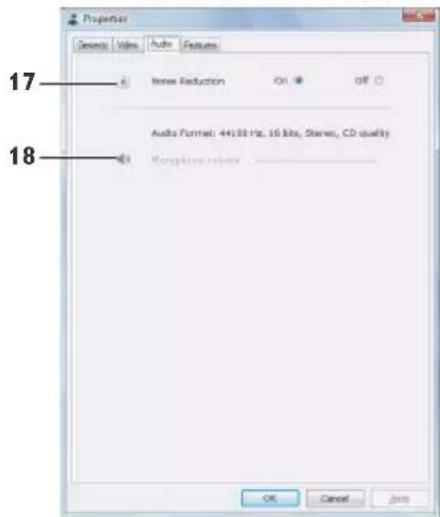

All SPC1030NC WebCam settings can be adjusted in the property pages. The Philips CamSuite application however, enables you to easily access a number of the most used settings (properties). When activating instant messaging or VoIP service (Skype, Windows® Live Messenger, Yahoo! Messenger, etc.), the Philips CamSuite control panel appears automatically.

The control panel can also be accessed by double clicking the Philips CamSuite icon ‘in the Windows taskbar (bottom right of your screen).

The following settings can be made via the Philips CamSuite control panel:

• WebCam Companion (launches the WebCam Companion application);
• Fun settings;
• Image settings;
• Audio settings;
• Advanced settings (Property pages).

Philips CamSuite PHILIPS

6.1 WebCam Companion

Via WebCam Companion you have access to WebCam features as:

• capturing images;
• making video recordings;
• adjusting monitor settings;
• broadcasting your videos over the Internet.

- Click the ‘’ button in the Philips CamSuite control panel or double click the WebCam Companion icon 📁 on the desktop to launch WebCam Companion.

- For detailed information on how to use WebCam Companion, refer to the 'Help' menu or press the 'F1' button within the application.

Note:

WhenWebCam Companion is not selected during installation, the WebCam Companion icon 'will not be visible on the desktop and a message will appear when clicking the 'button. For installation refer to 5.1 'Installing the WebCam software'.

6.2 Fun settings menu

In the Fun settings menu you can juice up your video chats and video calls by placing fun logos and fun frames, adding fun effects and changing your background image.

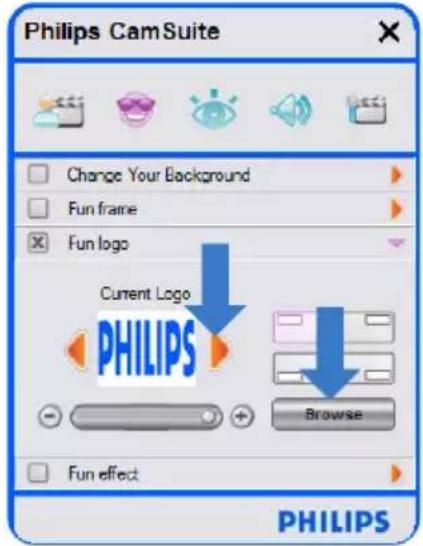

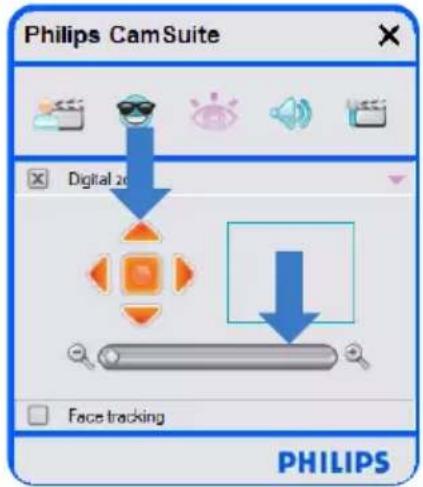

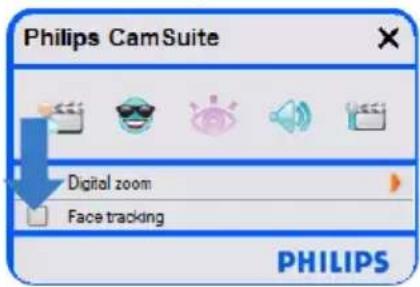

- Click the ‘button in the Philips CamSuite control panel to open the Fun settings menu.

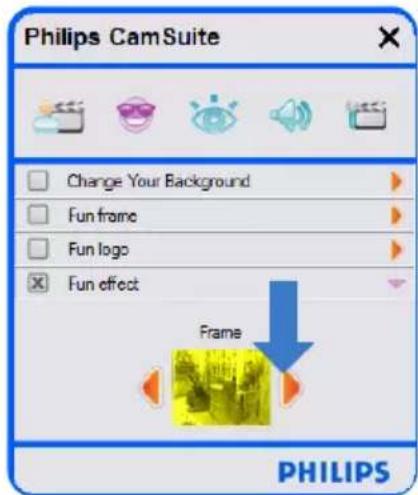

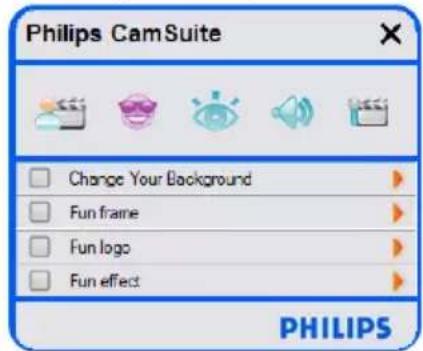

Philips CamSuite Change Your Background Fun frame Fun logo Fun effect PHILIPS

• Check the box before an item to activate that item.
• Click the '▶' button to open the control panel for that item.
• Click the '▼' button to close the control panel for the selected item.
• Click the ‘’ button again to return to the Philips CamSuite control panel.

6.2.1 Change Your Background

Enables you to replace the actual (real-time) background image by one from the WebCam background list or by one of your own pictures.

1 Open the Change Your Background control panel (▶').

- In the control panel, a background image is shown in a preview window. The background name is displayed above the window. By default, the last selected background is shown. When this option is enabled for the first time, the first image from the WebCam background list is selected and shown.

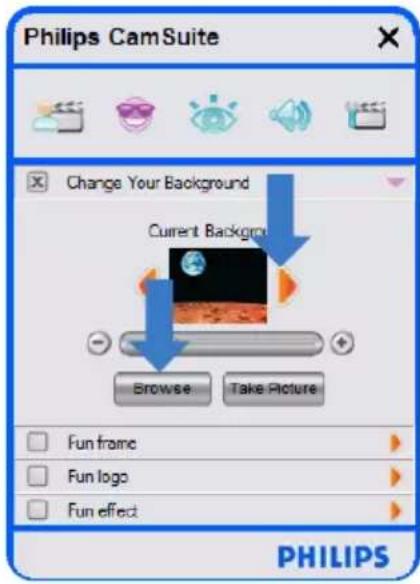

2 Use the ‘◀’ and ‘▶’ buttons on both sides of the preview window to select a background from the WebCam background list.

Or:

Use the 'Browse' button to browse and load pictures from your computer's hard disk.

Philips CamSuite Change Your Background Current Background Browse Take Picture Fun frame Fun logo Fun effect PHILIPS

3 Take a picture of the actual background: Click 'Take Picture' and step out of the WebCam field of view.

• Three seconds are now counted down and a picture of the actual background is taken.
  You will hear a shutter sound.
• The actual background is now replaced by the selected background.

Notes:

When changing the background, make sure that:

- the actual background is static. There should be no movement within the WebCam field of view. Not even the movement of a curtain.

Illustration of a hand holding a computer with a red X symbol, no text or symbols present

Illustration of a desk with a laptop and camera, viewed through a window (no text or symbols)

- there is sufficient light in the room. The better the lighting conditions, the better the performance of the ‘Change Your background’ feature.

Illustration of a desk with a laptop and a camera, marked with an orange 'X' (no text or symbols present)

Illustration of a desk with a laptop and camera on top, no text or symbols present

• lighting conditions are not changed. Even a slight change in the lighting conditions will negatively influence the image.
• the colors of the cloths you wear are not the same as the background color.

Illustration of a person using a laptop with a red X symbol overlay (no text or symbols present)

Illustration of a person using a laptop at a desk (no text or symbols visible)

- the WebCam does not move, even the slightest movement will negatively influence the image.

Illustration of a laptop with a camera and a red X symbol, no text or symbols present

Illustration of a laptop with a camera on top, placed on a desk (no text or symbols visible)

4 Use the tuning slider 'e optimize image quality.

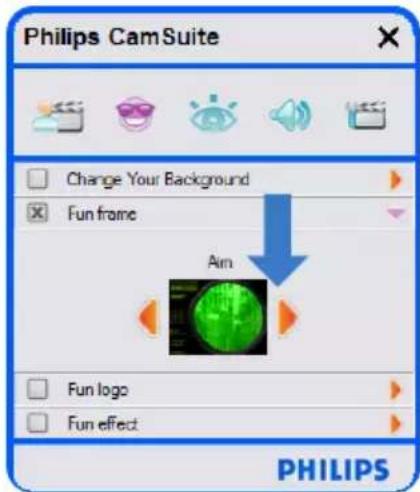

6.2.2 Fun frame

Enables you to place an overlay (frame) over the current video stream.

1 Open the Fun frame control panel ('▶').

- In the control panel, a frame image is shown in a preview window. The frame name is displayed above the window. By default, the last selected frame is shown. When this option is enabled for the first time, the first frame from the WebCam frame list is selected and shown.

2 Use the ‘◀’ and ‘▶’ buttons on both sides of the preview window to select a frame from the WebCam frame list.

Philips CamSuite Change Your Background Fun frame Aim Fun logo Fun effect PHILIPS

6.2.3 Fun logo

Enables you to add fun logos to the image. You can add a logo from the WebCam list of logos or one of your own logos (pictures).

1 Open the Fun logo control panel ('▶').

- In the control panel, a logo is shown in a preview window. The logo name is displayed above the window. By default, the last used logo is shown. When this option is enabled for the first time, the Philips logo will be selected and shown.

2 Use the ‘◀’ and ‘▶’ buttons on both sides of the preview window to select a logo from the WebCam logo list.

Or:

Use the 'Browse' button to browse and load pictures from your computer's hard disk.

Philips Cam Suite Change Your Background Fun frame Fun logo Current Logo PHILIPS Browse Fun effect PHILIPS

6.2.4 Fun effect

Enables you to add fun effects to your video recordings and video calls. For example, you can display the video with canvas effect, distortion effect, embossing effect and many more.

1 Open the Fun effect control panel ('▶').

- In the control panel, an effect is shown in a preview window. The fun effect name is displayed above the window. By default, the last selected effect is shown. When this option is enabled for the first time, the first effect from the WebCam effect list is selected and shown.

2 Use the ‘◀’ and ‘▶’ buttons on both sides of the preview window to select an effect from the WebCam effect list.

Philips Cam Suite Change Your Background Fun frame Fun logo Fun effect Frame PHILIPS

6.3 Image settings menu

Enables you to optimize image quality.

- Click the 'button in the Philips CamSuite control panel to open the Image settings menu.

Philips CamSuite Digital zoom Face tracking PHILIPS

• Check the box before an item to activate that item.
• Click the '▶' button to open the control panel for that item.
• Click the '▼' button to close the control panel for the selected item.
• Click the ‘’ button again to return to the Philips CamSuite control panel.

6.3.1 Face tracking

If you activate the Face tracking option, the WebCam will track your face. This gives you more convenience while video chatting, because you stay in the centre of the image even if you move during a video conference.

- Just check the box before Face tracking to activate this option.

Philips CamSuite Digital zoom Face tracking PHILIPS

6.3.2 Digital zoom

Gets an object closer.

1 Open the Digita zoom control panel ('▶').

Philips CamSuite Digital 20 Face tracking PHILIPS

2 Use the slider to dynamically zoom in and out.

- The frame shows the position to the overall image. The frame increases / decreases according to zoom factor.

• Use the panning arrows (left / right / up / down) to move the frame.
• Use the center button to position the frame in the center of the image.

Note!

Digital zoom magnifies the pixels but not the actual image. It degrades image quality.

6.4 Audio settings menu

Enables you to optimize audio quality.

- Click the ‘’ button in the Philips CamSuite control panel to open the Audio settings menu.

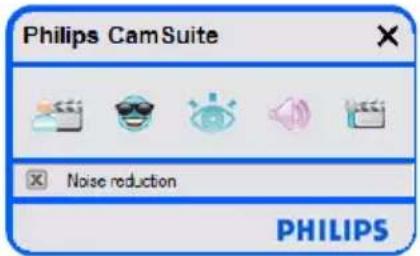

Philips Cam Suite Noise reduction PHILIPS

6.4.1 Noise reduction

Significantly reduces all stationary noises picked up by the WebCam's microphone, such as air conditioner noise and the noise made by the fan inside your computer. It enhances clarity of speech in both quiet and noisy environments. The result is more listening comfort and easier communication.

- Just check the box before Noise reduction to activate this option.

6.5 Property pages

In the Property pages you can adjust all possible SPC1030NC WebCam settings (properties): General, Video, Audio and Features.

Note!

For easy access to the most used WebCam settings (Fun, Image, Audio), open the Philips CamSuite control panel and make settings as described in the previous chapters.

- Click the ‘’ button in the Philips CamSuite control panel to open the Property pages. - The General settings screen appears.

Properties Camera Video Audio Features 1 Pictureface Image On @ Off Region 50fps 2 OK Cancel Apply

6.5.1 General settings

- You can adjust the following general settings:

1 Flickerless image

The Flickerless image option should only be used under flickering light conditions (e.g. fluorescent or neon lamps) to prevent flickering or strangely colored video images. If this option is used under normal lighting conditions the video image may be overexposed.

2 Region

If you are using the Philips SPC1030NC in Europe, select '50 Hz' and if you are using the Philips SPC1030NC in North America, select '60 Hz'. For Asia this setting is dependent on the local mains output. E.g. for China, select '50 Hz' and for Taiwan, select '60 Hz'. For Japan the setting is region dependent. Please check your local mains output to find the correct 'Region' setting.

6.5.2 Video settings

- Click the Video tab.

• The Video settings screen appears.

Properties General Audio Audio Features Full automatic control (2) Default Reset Feature Save 15 16 OK Cancel Apply Brightness Contrast Saturation Black & White Backlight compensation Mirror ON ON ON ON ON ON OK Cancel Apply

- You can now adjust the following video settings:

3 Full automatic control: on/off

This full automatic control mode provides a very easy way to get the best out of your Philips SPC1030NC WebCam. Or you can choose to have maximum manual control over the WebCam settings by switching the full automatic control mode off. Full automatic control 'on' is the preferred setting for normal use.

Techniques active within full automatic control mode are:

• Automatic exposure control and automatic white balance control, to provide the best video source signal possible;
- Automatic frame rate selection for improved WebCam sensitivity in low light conditions.

4 Frame rate

You can use the scroll open menu to set the frame rate of the video you wish to capture. E.g. 30 fps means that the WebCam will capture video at 30 frames per second.

5 Auto Exposure

The exposure is the amount of light received by the sensor and is determined by how long the sensor is exposed to capture a snapshot or video frame. The result depends on the sensitivity of the sensor. The WebCam will find the optimal setting if you select the automatic exposure option.

Shutter speed

The shutter speed determines how long the camera shutter remains open as a picture is taken. The slower the shutter speed, the longer the exposure time. The shutter speed controls the total amount of light reaching the sensor. Use the slider to set the desired shutter speed.

Gain

In video, gain is the amount of white in a video picture. Use the slider to set the desired gain level.

6 Reset

Press this button if you would like to reset the WebCam settings to the default factory settings.

7 Restore

Press this button if you would like to restore your personal preferred settings.

8 S a v e

Press this button if you would like to save your personal preferred settings.

9 Auto White Balance

Most light sources are not 100% pure white but have a certain ‘color temperature’. Normally our eyes compensate for lighting conditions with different color temperatures.

If the automatic white balance is selected, the WebCam will look for a reference point which represents white. It will then calculate all other colors based on this white point and compensate the other colors accordingly, just like the human eye.

You can also select fixed settings for 'Indoor', 'Outdoor' and 'Fluorescence' conditions or use the 'Red' and 'Blue' sliders if you would like to set the WebCam according to your personal color temperature preferences.

10 Brightness

Brightness enables you to adjust the brightness of the displayed image or video to suit your own preference. Use the slider to find your preferred setting.

11 Contrast

Contrast enables you to control the ratio between dark and light according to your own preference. Use the slider to find your preferred setting.

12 Gamma

Gamma enables you to brighten dark areas within the displayed image or video and visualize more details without over-exposing already light areas. Use the slider to find your preferred setting.

13 Saturation

Saturation enables you to set the color reproduction from black and white to a full color image or video according to your own preference. Use the slider to find your preferred setting.

14 Black and white

The 'Black and white' checkbox is used to switch from color images to black and white and back.

15 Backlight compensation

Turn on the backlight compensation to improve the image quality when you have a scene where the background has a high illumination level (for instance when you are sitting in front of a bright light).

16 Mirror

Clicking the 'Mirror Image' checkbox flips the image horizontally. You can use this feature when you want to use the Philips SPC1030NC and monitor as a mirror, or to take pictures of mirrored images.

6.5.3 Audio settings

- Click the Audio tab.

• The 'Audio settings' screen appears.

Properties Delete Views Audio Features Noise Reduction OK OFF Audio Format: 441.88 Hz, 16 bits, Stereo, CD quality Options options OK Cancel Print

- You can now adjust the audio volume setting:

17 Noise reduction

Refer to 6.4.1 'Noise reduction' for an explanation of the feature and information on how to activate it via the Philips CamSuite control panel.

18 Volume slider

This slider provides manual control over the microphone.

6.5.4 Features settings

- Click the Features tab. - The 'Features settings' screen appears.

Properties Camera Video Audio Features Face tracking On OFF Digital sound Change Background Noon Case picture Browse Tuning 100 Add logs Philips SEGS_100_In Browse Long size Video frames Arm Video Effects Frame OK Cancel Help

• You can now adjust the following features settings:

19 Face tracking

Refer to 6.3.1 'Face tracking' for an explanation of the feature and information on how to activate it via the Philips CamSuite control panel.

20 Digital zoom

Refer to 6.3.2 'Digital zoom' for an explanation of the feature and information on how to activate it via the Philips CamSuite control panel.

21 Change Background

Refer to 6.2.1 'Change Your Background' for an explanation of the feature and information on how to activate it via the Philips CamSuite control panel.

22 Add logo

Refer to 6.2.3 'Fun logo' for an explanation of the feature and information on how to activate it via the Philips CamSuite control panel.

23 Video Frames

Refer to 6.2.2 'Fun frame' for an explanation of the feature and information on how to activate it via the Philips CamSuite control panel.

24 Video Effects

Refer to 6.2.4 'Fun effect' for an explanation of the feature and information on how to activate it via the Philips CamSuite control panel.

7 Operating the WebCam

The Philips SPC1030NC WebCam works with all instant messaging and VoIP (Voice over Internet Protocol) applications such as Skype, Windows® Live Messenger, Yahoo! Messenger, AOL Instant Messenger and QQ.

After installing an application, make the required WebCam settings within the application in order to be able to properly use the WebCam via the specific application. For this, refer to the help function of the application.

Also refer to 6.1 'WebCam Companion'.

8 Technical data

Sensor 1.3 MP CMOS

Real video resolution (Max.) 1.3 MP

Real still image resolution (Max.) 1.3 MP

Interpolated video resolution (Max.) 2.0 MP

Interpolated still image resolution (Max.) 8.0 MP

Frames per second 60 fps

F-number 2.6

Lens view angle 80 degrees

Minimum subject illumination < 5 lux

Data format YUY2, MJPEG

Interfacing USB 2.0

USB video class UVC

USB cable length 1.5 m

Microphone Digital built-in

Power Supplied via USB cable

Voltage requirements 5V (---), 0.5A

9 Frequently asked questions (FAQ)

9.1 How can I adjust image quality?

The default settings of the Philips WebCam usually offer the best possible image quality. It might be possible that you are not completely satisfied with the current image quality. In this case, follow the steps below to adjust image quality according to you own personal preferences.

1 Open a WebCam viewer such as WebCam Companion or an instant messaging service such as Skype, Windows® Live Messenger or Yahoo! Messenger to see what you are filming.

- The Philips CamSuite control panel appears automatically. If not, open Philips CamSuite by double clicking the Philips CamSuite icon ‘💡’ in the Windows taskbar (bottom right of your screen).

Philips CamSuite PHILIPS

2 Click the ‘☐’ button to open the property pages.

• The General settings screen appears.

3 Check the Region setting for the WebCam and adjust if necessary.

• Select '50 Hz' for Europe and China.
• Select '60 Hz' for North America and Taiwan.
• For other regions, check your local mains output to find the correct ‘Region’ setting.

4 Click 'OK' to save your settings.

General Audio Audio Features Keyboard Image On Web OK Engine 50% OK Cancel OK

5 Click the Video tab.

• The Video settings screen appears.

Properties General Video Audio Features Default Sheet1 Display Save Full automatic control of Display mode: On/Off Select performance: On/Off Output performance: On/Off Auto mode: On/Off Default: Outperform: Main response: Fill: Fill: Brightness: Contrast: Gamma: Saturation: Gloss & effects: On/Off Background compensation: On/Off Hiness: On/Off OK Cancel Help

6 Adjust the gamma value of the displayed image or video. The gamma setting enables you to visualize more details.

- Use the slider to find your preferred setting. Slide to the left to see more details; slide to the right to see less details.

7 Adjust the brightness of the displayed image or video.

- Use the slider to find your preferred setting. Sliding to the left makes the image darker; sliding to the right makes the image brighter.

8 Click 'OK' to save your settings.

9.2 The microphone of my Philips WebCam or headset does not work (properly). What should I do?

9.2.1 Windows ^® XP (SP2)

1 Click the Windows 'Start' button (bottom left of your screen).
2 Open the 'Control panel'.
3 Click 'Sound, speech and audio devices'.
4 Click 'Sound and Audio Devices'.
5 Click the 'Voice' tab in the screen that appears.
6 Set the Philips WebCam or the connected headset as default device for 'Voice recording'.
7 Click 'OK' to save your settings.

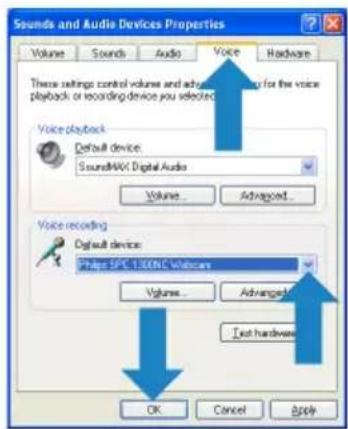

Sounds and Audio Devices Properties Volume Sounds Audio Voice Hardware These settings control volume and adjust your size for the voice playback or recording device you selected. Voice playback Default device: SoundMAX Digital Audio Volume Advanced... Voice recording Default device: Philips SPEC 1.300NC Webcam Volume Advanced... Just hardware... OK Cancel Apply

9.2.2 Windows ^® Vista

1 Click the Windows 'Start' button (bottom left of your screen).
2 Open the 'Control panel'.
3 Click 'Hardware and Sound'.
4 Click 'Sound'.
5 Click the 'Recording' tab in the screen that appears.
6 Select the Philips WebCam or the connected headset and click 'Set Default'.

7 Click 'OK' to save your settings.

Sound Playback Recording Sounds Select a recording device below to modify its settings Microphone Philips SPC380C PC Camera Austin Microphones Working Microphone Working Configure Get Default Properties OK Cancel Apply

9.3 Using my Philips WebCam makes my PC / laptop run slow.What should I do?

1 Close software applications that do not necessarily need to run.

2 Open the Philips CamSuite control panel by double clicking the Philips CamSuite icon in the Windows taskbar (bottom right of your screen).

3 Click the 📋button to open the property pages.

• The General settings screen appears.

4 Click the Features tab.

• The Feature settings screen appears.

5 Check whether the following features are enabled (boxes checked):

• Change Background;
• Add logo;
• Video Frames;
• Video Effects.

If enabled, disable these features by dischecking the boxes.

Properties Search Video Audio Pictures Face tracking On Off Digital zoom Change Background: Mean False picture Browse Turning 0 100 Add logo: PHILIPS.org, www.it Browse Logo size Video Frames: Image Video Effects: Frame OK Cancel Help

6 Click the Video tab.
• The Video settings screen appears.
7 Check whether Full automatic control is enabled (box checked). If enabled, disable Full automatic control by dischecking its box.
8 Set Frame rate to a minimum of 5 fps.
9 Click 'OK' to save your settings.

Properties General Video Active Features Full automatic control Default Cancel Reduction Show Onset Cryogenic Current Current Onset Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Cryogenic Cryogenic Cryogenic Cryogenic Cryogenic Cryogenic Cryogenic Cryogenic Cryogenic Cryogenic Cryogenic Cryogenic Cryogenic Cryogenic Cryogenic Cryogenic Cryogenic Cryogenic Cryogenic Cryogenic Cryogenic Cryogenic Cryogenic Cryogenic Cryogenic Crygenic

Note!

The maximum frame rate (frames per second (fps) produced by the WebCam) and the maximum image resolution depend on the specifications of your PC / laptop. The WebCam software will automatically adjust frame rate and resolution as good as possible for your particular situation. It might be possible that the specifications of your PC / laptop do not meet the requirements for maximum frame rate and resolution setting.

9.4 How can I reset the settings of my Philips WebCam to the default factory settings?

1 Open the Philips CamSuite control panel by double clicking the Philips CamSuite icon in the Windows taskbar (bottom right of your screen).

2 Click the 'button to open the property pages.

• The General settings screen appears.

3 Click the Video tab.

4 Click the 'Reset' button.

- All WebCam settings are now reset back to the default factory settings.

5 Click 'OK' to save your settings.

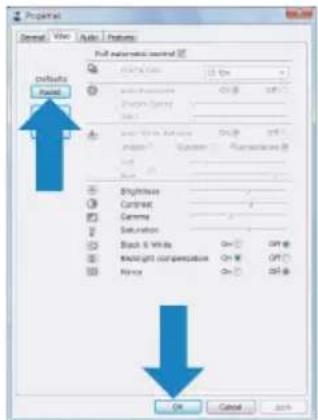

Properties General Video Audio Features Default Reset Full horizontal section Color: 100% Angle: 120° Horizontal Spacing: Normal Vertical to Right: 50° Horizontal to Bottom: 50° Horizontal to Top: 50° Width: 500 px Opacity: 100% Sensitivity: Black & White On: On Off: Off Highlight compensation On: On Off: Off Hence On: On Off: Off OK Cancel Help

All rights reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner. The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice.

No liability will be accepted by the publisher for any consequence of its use.

Publication there of does not convey nor imply any license under patent- or other industrial or intellectual property rights.

April 2008

www.philips.com
