USER MANUAL KFW 1303 KORONA

Digital fitness balance scale with digital display showing 6:18-24, no visible text or symbols on the device itself.

DIAGNOSE-WAAGE Gebrauchsanweisung (2...11)
GB DIAGNOSTIC SCALE Instructions for use (12...20)
F PÈSE-PERSONNE IMPÉDANCEMÉTRE Mode d'emploi (21...29)
E BÁSCULA PARA DIAGNÓSTICO Instrucciones para el uso (30...38)
BILANCIA DIAGNOSTICA Istruzioni per l'uso (39...47)
GR ΔΙΑΓΝΩΣΤΙΚΗ ΖΥΓΑΡΙΑ Οδηγίες χρήσης (48...57)
RUS ДИАГНОСТИЧЕСКИЕ ВЕСЫ Инструкция по применению (58...67)
PL WAGA DIAGNOSTYCZNA Instrukcja obsługi (68...76)
NL DIAGNOSEWEEGSCHAAL Gebruiksaanwijzing (77...85)

Zum Kennenlernen1

Getting to know your instrument1

Function of the unit

This digital diagnostic scale is used to weigh you and to provide diagnostic data about your personal fitness.

The scale is intended for individual, household use.

The scale has the following diagnostic functions that can be used by up to 10 persons:

Body weight measurement•

Measurement of body fat percentage•

Body water percentage•

Muscle percentage •

Bone mass•

In addition, the scales include target weight analysis, which is presented in chart form.

The memory function allows access to starting weight as well as to the last-recorded measurement.

Signs and symbols2

The following symbols appear in these instructions.

Warning Warning instruction indicating a risk of injury or damage to health.

Important Safety note indicating possible damage to the unit/accessory.

Note Note on important information.

Safety notes3

Safety notes

- The scales must not be used by persons with medical implants (e.g. heart pace-makers) Otherwise their function could be impaired. Do not use during pregnancy.

Do not stand on the outer edge to one side of the scale otherwise it may • tip!

- Keep children away from packaging materials (risk of suffocation).

General notes

The unit is for personal use only and is not intended for medical or commercial applications.

Please note that technically related measuring tolerances are possible, as the scale is not calibrated for professional medical applications.

Before submitting any complaint, first check the batteries and replace them if necessary.

Should you have any questions concerning the use of our devices, please contact your dealer or customer service.

Unit description4

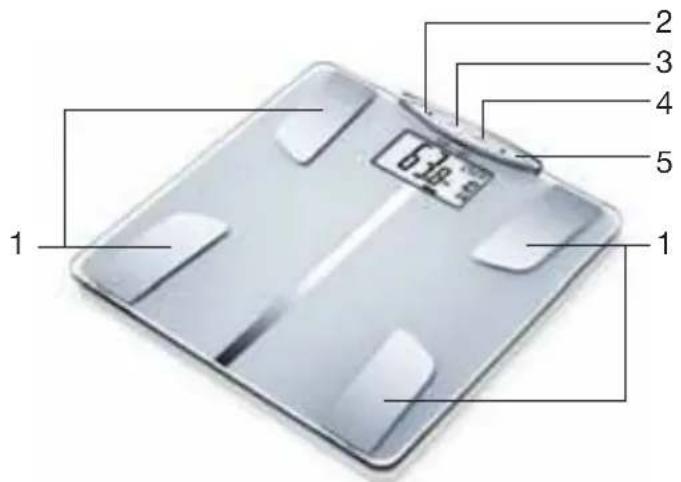

Overview

Electrodes1

▲2 Up button

SET button3

MEM button4

▼5 Down button

1 2 3 4 5 1

Initial use5

Inserting the batteries

Please remove the plastic insulating strip and/or position the batteries correctly with regards to polarity. If the scale fails to operate, remove the batteries completely and reinsert them.

Changing the weight unit

The scale shows the values in kg. You can set the device to measure in kilograms, or in pounds "LB" and stones "ST", using the button at the back of the device.

Setting up the scale

Set up the scale on a level and solid surface.

Information6

General tips

If possible, always weigh yourself at the same time of day (preferably in the morning), after using the toilet, on an empty stomach and unclothed, in order to achieve comparable results.

Important for the measurement: only measure body fat when barefoot and with the soles of the feet slightly moist. Completely dry soles can result in unsatisfactory measurements due to inadequate conductivity.

Stand still and upright during the measurement.

Wait a few hours after unaccustomed physical activity.

Wait approx. 15 minutes after getting up in the morning to allow the water in the body to • distribute.

Limitations

When measuring body fat and other values, deviating and implausible results may occur in: children under approx. 10 years,

competitive athletes and body builders,•

pregnant women,•

persons with fever, undergoing dialysis treatment or with symptoms of edema or osteoporosis,

- persons taking cardiovascular medication (affecting the heart and vascular system), persons taking vascular dilating or vascular constricting medication,

persons with considerable anatomic deviations of the legs in relation to total body size • (length of the legs considerably shortened or lengthened).

7 Settings

The scales include the following features:

Athlete mode

Athletes have a specific metabolism and a higher muscle density, which means that resistance in the body is increased. So that this higher resistance is not measured as fat, athletes must set the scales to a special mode that carefully factors this in.

Children and teenager mode

Measurement of body fat and body water which is suited to children and teenagers of ten years and over.

Target weight analysis

A new, additional feature is the ability to enter a target weight. This means that progress is monitored and calculated automatically by the scales with each weighing; a percentage is then presented on the display in chart form. At each weighing, the last-recorded weight is also displayed.

Enter your personal information before using the scale.

Setting user data

You must enter personal user parameters in order to measure your body fat percentage and other physical data.

The scale has 10 user memory locations which allows, for example, you and your family members to save personal settings and retrieve them later.

User data Parameters
Memory position 1 to 10
Body height 100 to 220 cm(3’-03” bis 7’-03”)
Age 10 to 100 years
Sex	male(TAS3)female(64CD)
Athlete mode

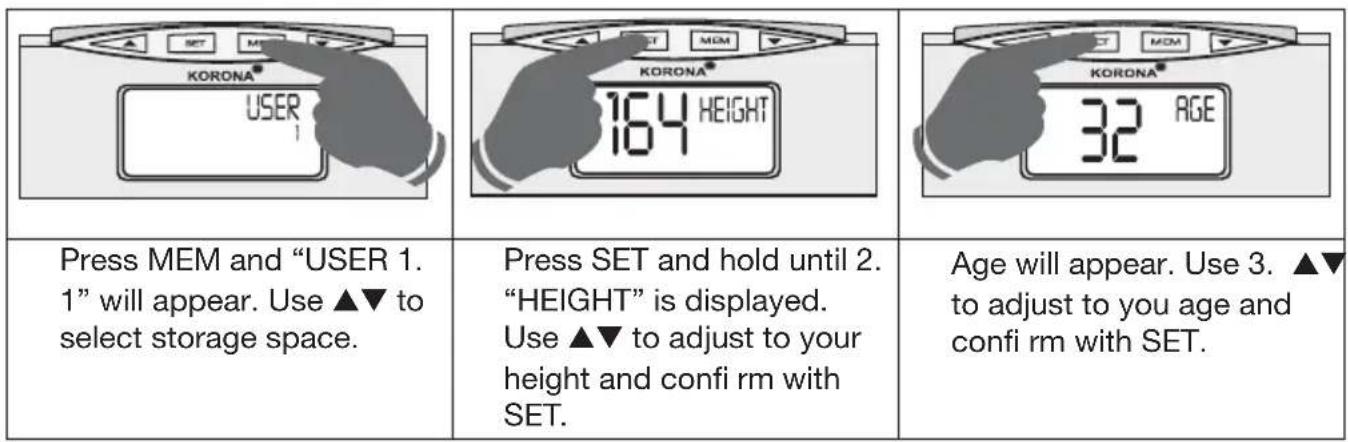

Press MEM and "USER 1.1" will appear. Use ▲▼ to select storage space.

Press SET and hold until 2. "HEIGHT" is displayed. Use ▲▼ to adjust to your height and confi rm with SET.

Age will appear. Use 3. to adjust to you age and confirm with SET.

SET MEM KORONA GENDER

"GENDER" will appear. 4. Use ▼ to choose between male and female

SET MOM KORONA GENDER — 有 无 —

If necessary, use 5. ▲ to select "athlete mode" and confirm with SET.

KORONA® YES GOAL

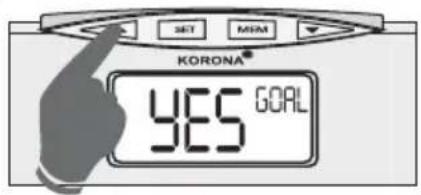

1. "GOAL" will appear. Use ▲▼ to select target weight on (YES) or off (NO), and confirm with SET.

KORONA YES GOAL	KORONA USER - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
7. When target weight analysis is activated (GOAL, KG is displayed), use ▲▼ to set the target weight that you would like to achieve, and confi rm with SET.	8. “- - - - -” will appear, followed by 0.0 kg. You may step onto the scales.

SET MIM KORONA® YES GOAL

SET MEM KORONA USER 10

1. “- - - -” will appear, followed by 0.0 kg. You may step onto the scales.

Measuring

Press MEM and “USER 1. 1” will appear. Use ▲▼ to select storage space.	The last-recorded weight 2. is displayed.	0.0 kg will appear. Step 3. onto the scales.

63.8 USE 10 KG PRESS

19.8 FAT %

55.3 WATER %

Current weight.4. Percentage body fat.5. Percentage body water.6.

7. Muscle density.	8. Bone weight.	9. Target weight.

65.9 START KG

64.0 LAST KG

Empty rounded rectangle with black border (no text or symbols)

Press the ▲▼ button when displayed in order to stop the automatic procedure. For notes on evaluation, see page 17.

Weighing

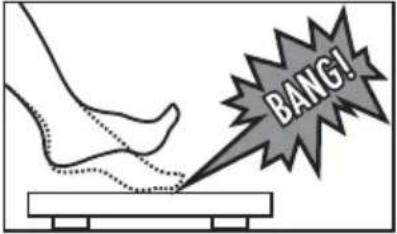

Tap your foot quickly, 1. forcefully and audibly on the scales to activate the vibration sensor.	0.0 kg will appear. Step 2. onto the scales and stand still.	After a short time, your 3. weight will be displayed.

Evaluation of results9

Body fat percentage

The body fat values are shown in the display. The following body fat percentages are guide values (contact your physician for further information).

Man Woman

Age low	normal	high very	high Age	low normal
10-14	<11	11-16	16.1-21	>21.1
15-19	<12	12-17	17.1-22	>22.1
20-29	<13	13-18	18.1-23	>23.1
30-39	<14	14-19	19.1-24	>24.1
40-49	<15	15-20	20.1-25	>25.1
50-59	<16	16-21	21.1-26	>26.1
60-69	<17	17-22	22.1-27	>27.1
70-100	<18	18-23	23.1-28	>28.1

high very	high
10-14	<16	16-21	21.1-26	>26.1
15-19	<17	17-22	22.1-27	>27.1
20-29	<18	18-23	23.1-28	>28.1
30-39	<19	19-24	24.1-29	>29.1
40-49	<20	20-25	25.1-30	>30.1
50-59	<21	21-26	26.1-31	>31.1
60-69	<22	22-27	27.1-32	>32.1
70-100	<23	23-28	28.1-33	>33.1

A lower value is often found in athletes. Depending on the type of sports, training intensity and physical constitution, values may result which are below the recommended values stated. It should, however, be noted that there could be a danger to health in the case of extremely low values.

Body water percentage

The body water percentage is normally within the following ranges:

Man

Age	poor	good	very good
10-100	<50	50-65	>65

Woman

Age	poor	good	very good
10-100	<45	45-60	>60

Body fat contains relatively little water. Therefore persons with a high body fat percentage have body water percentages below the recommended values. With endurance athletes, however, the recommended values could be exceeded due to low fat percentages and high muscle percentage.

This scale is unsuitable for measuring body water in order to draw medical conclusions concerning age-related water retention, for example. If necessary ask your physician. Basically, a high body water percentage should be the aim.

Bone mass

Like the rest of our body, our bones are subject to the natural development, degeneration and ageing processes. Bone mass increases rapidly in childhood and reaches its maximum between 30 and 40 years of age. Bone mass reduces slightly with increasing age. You can reduce this degeneration somewhat with healthy nutrition (particularly calcium and vitamin D) and regular exercise. With appropriate muscle building, you can also strengthen your bone structure. Note that this scale will not show you the calcium content of your bones, but will measure the weight of all bone constituents (organic substances, inorganic substances and water). Little influence can be exerted on bone mass, but it will vary slightly within the influencing factors (weight, height, age, gender). no recognised guidelines or recommendations relating to bone mass measurement.

Attention:

Please do not confuse bone mass with bone density.

Bone density can be determined only by means of a medical examination (e.g. computer tomography, ultrasound). It is therefore not possible to draw conclusions concerning changes to the bones and bone hardness (e.g. osteoporosis) using this scale.

Results in relation to time

Remember that only long-term trends are important. Short-term fluiduations in weight over a few days are usually the result of a loss of fluid.

The interpretation of the results reflects changes in total body weight, percentage of body fat and body water as well as muscle density, and takes into account the length of time over which these changes take place. Sudden changes within days must be distinguished from medium term changes (over weeks) and long term changes (months).

A basic rule is that short term changes in weight almost exclusively represent changes in water content, whereas medium and long term changes may also involve the fat and muscle percentages.

If your weight reduces over the short term, but your body fat percentage increases or re-• mains the same, you have merely lost water – e.g. after a training session, sauna session or a diet restricted only to rapid weight loss.

If your weight increases over the medium term and the body fat percentage falls or stays the same, then you could have built up valuable muscle mass.

• If your weight and body fat percentage fall simultaneously then your diet is working – you are losing fat mass.
• Ideally you should support your diet with physical activity, fitness or power training. This way you can increase your muscle percentage over the medium term.

Body fat, body water or muscle percentages should not be added (certain elements of muscle tissue also contain body water).

Replacing batteries10

The batteries in the scales must be replaced if the message “Lo” appears in the display. If the batteries are too flat, then the scales will switch off automatically.

Storage and maintenance11

The precision of the measurements and service life of the device depends on its careful handling:

Important:

The unit should be cleaned occasionally. Do not use abrasive detergents and never • immerse the unit in water.

Make sure that no liquids come into contact with the scales. Never submerge the • scales in water. Never rinse them in running water.

Do not stand any objects on the scales when not in use.

Protect the scales from knocks, damp, dust, chemicals, drastic changes in temperature, electromagnetic fi elds and nearby sources of heat (ovens, heaters). Do not press the buttons violently or with pointed objects.

Do not wash the unit in a dishwasher!

Disposal12

Standard and rechargeable batteries should not be disposed of separately from the household waste. As a consumer, you are legally obliged to return used batteries for proper disposal. You can hand in your used batteries at public collection points in your district or sales outlets where batteries of this type are sold.

Note:

The codes below are printed on batteries containing harmful substances:

Pb = Battery contains lead,

Cd = Battery contains cadmium,

Hg = Battery contains mercury.

For environmental reasons, do not dispose of the scale with the batteries in the household waste at the end of its useful life. Dispose of the unit at a suitable local collection or recycling point.

Observe the local regulations for material disposal.

Dispose of the unit in accordance with EC Directive 2002/96/EC – WEEE (Waste Electrical and Electronic Equipment).

If you have any questions, please contact the local authorities responsible for waste disposal.

What if there are problems?13

If the scale detects and error when measuring, the following is displayed.

Display Cause Remedy
EE The maximum	load capacity of 180 kg was exceeded.	Do not load the unit with over 180 kg.
Lo The batteries are almost empty. Replace the batteries
EE The electrical resistance between the electrodes and the sole of your foot is too high (e.g. if you have tough calluses).		Repeat the measurement barefoot. If necessary, moisten the soles of your feet slightly. If necessary, remove the calluses from the soles of your feet.
		The fat percentage is outside the measurable range (less than 5% or greater than 50%).
		The water percentage is outside the measurable range (less than 36% or greater than 70%).
		The muscle and bone percentages are outside the measurable range (age and gender related).

No measurement possible

Possible errors Remedy
The scale was not activated before you stood on it. If you step on the scale before “0.0 KG” is displayed, the scale will not work correctly.	Activate the scale correctly (wait for “0.0 KG”) and repeat the measurement.
The batteries in the scale are empty. Replace the batteries.

Incorrect weight measurement

Possible errors Remedy
Scale is on carpeting. Place the scale on a level and solid surface.
Incorrect zero point of scale. Activate the scale, wait approximately 4 seconds, repeat measurement.

SET MEM KORONA YES GOAL

SET MEM KORONA® USER ID

SET MEM KORONA YES GOAL

SET MEM KORONA USER 10

26.6 MUSCLE kg

7.1 BONE 1.1 KG

58.0 GOAL KG

(Waste Electrical and Electronic Equipment).
