USER MANUAL Everio GZ-MS120AE JVC

INSTRUCTIONS MANUAL DE INSTRUCCIONES

EN SP

MEMORY CAMERA

CÁMARA DIGITAL

GZ-MS120

Illustration of a silver digital camera with lens and control panel (no text or symbols)

Please read the instruction manual prior to connecting or operating this product.

For more details on the operations, refer to the GUIDEBOOK in the supplied CD-ROM.

Thank you for purchasing this memory camera. Before use, please read the safety information and precautions contained in pages 2 and 3 to ensure safe use of this product.

For Future Reference:

Enter the Model No. (located on the bottom of the memory camera) and Serial No. (located on the battery pack mount of the memory camera) below.

Model No.

Serial No.

Apreciado cliente

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

NOTES:

• The rating plate and safety caution are on the bottom and/or the back of the main unit.
• The serial number plate is on the battery pack mount.
  ● The rating information and safety caution of the AC adapter are on its upper and lower sides.

For USA-California Only

This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material – special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate

When the equipment is installed in a cabinet or on a shelf, make sure that it has sufficient space on all sides to allow for ventilation (10 cm (3-15/16") or more on both sides, on top and at the rear).

Do not block the ventilation holes. (If the ventilation holes are blocked by a newspaper, or cloth etc. the heat may not be able to get out.)

No naked flame sources, such as lighted candles, should be placed on the apparatus.

When discarding batteries, environmental problems must be considered and the local rules or laws governing the disposal of these batteries must be followed strictly.

The apparatus shall not be exposed to dripping or splashing.

Do not use this equipment in a bathroom or places with water.

Also do not place any containers filled with water or liquids (such as cosmetics or medicines, flower vases, potted plants, cups etc.) on top of this unit. (If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)

Do not point the lens directly into the sun. This can cause eye injuries, as well as lead to the malfunctioning of internal circuitry. There is also a risk of fire or electric shock.

CAUTION!

The following notes concern possible physical damage to the camcorder and to the user. Carrying or holding the camcorder by the LCD monitor can result in dropping the unit, or in a malfunction. Do not use a tripod on unsteady or unlevel surfaces. It could tip over, causing serious damage to the camcorder.

CAUTION!

Connecting cables (Audio/Video, S-Video, etc.) to the camcorder and leaving it on top of the TV is not recommended, as tripping on the cables will cause the camcorder to fall, resulting in damage.

CAUTION:

The mains plug shall remain readily operable.

WARNING:

The battery pack and the camcorder with battery installed should not be exposed to excessive heat such as direct sunshine, fire or the like.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Only use attachments/accessories specified by the manufacturer.

10. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combina tip-over.

Symbolic icon of a person lifting a ladder inside a circle with a diagonal line (no text or symbols)

1. Unplug this apparatus during lightning storms or when unused for long periods of time.

2. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

If this symbol is shown, it is only valid in the European Union.

Remember that this camcorder is intended for private consumer use only.

Any commercial use without proper permission is prohibited. (Even if you record an event such as a show, performance or exhibition for personal enjoyment, it is strongly recommended that you obtain permission beforehand.)

Trademarks

● Manufactured under license from Dolby Laboratories. Dolby and double-D symbol are trademarks of Dolby Laboratories.
- Windows ^ is either registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
- Macintosh is a registered trademark of Apple Inc.
- iTunes is a trademark of Apple Inc., registered in the U.S. and other countries.
- YouTube and the YouTube logo are trademarks and/or registered trademarks of YouTube LLC.
- Other product and company names included in this instruction manual are trademarks and/or registered trademarks of their respective holders.

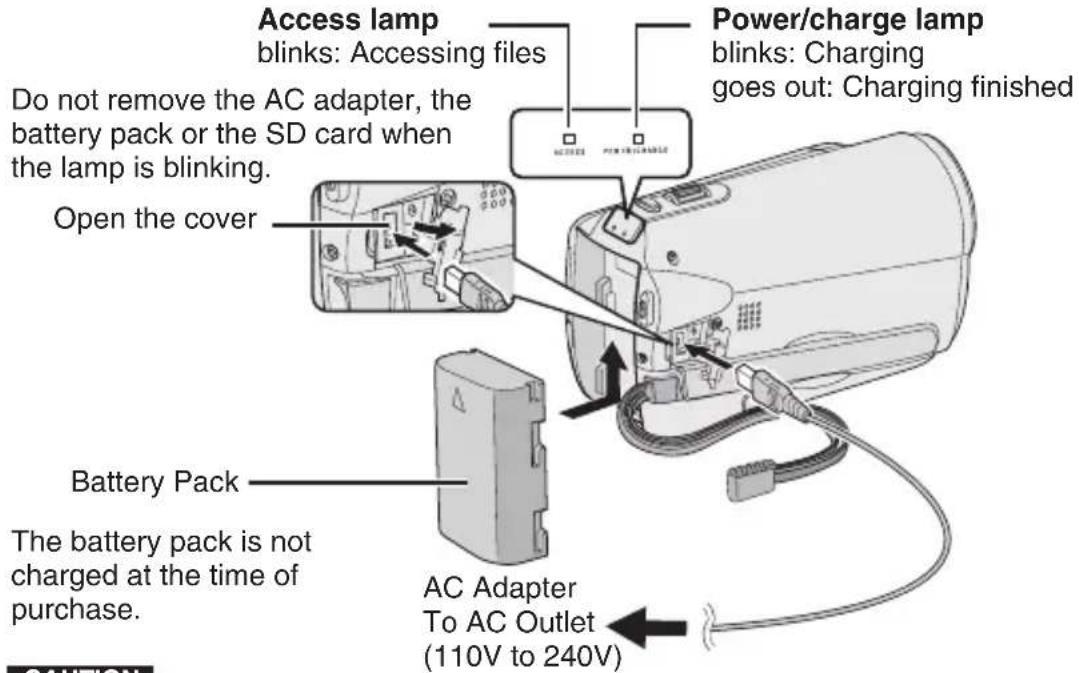

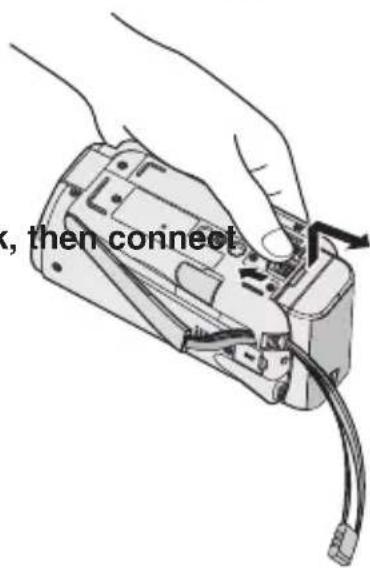

Charge the Battery Before Recording

Turn off the camcorder and attach the battery pack.

Access lamp blinks: Accessing files Do not remove the AC adapter, the battery pack or the SD card when the lamp is blinking. Open the cover Power/charge lamp blinks: Charging goes out: Charging finished Battery Pack The battery pack is not charged at the time of purchase. AC Adapter To AC Outlet (110V to 240V) CAUTION

CAUTION

- Be sure to use JVC battery packs. If you use any other battery packs besides JVC battery packs, safety and performance can not be guaranteed.

Insert the SD Card

Press Power ⏻ button to turn off the camcorder.

Firmly insert the card. (●) Slot B Slot A

1. Insert and remove the SD card only while the power is turned off. Otherwise, data on the card may be corrupted.
2. Format an SD card when using it for the first time.

Grip Adjustment

Adjust the strap and fastens.

Grip Strap Fasten Tab

• Do not pull the strap when you open the fasten. Please pull the tab to open it.
• Fasten the strap when you grip the camcorder.
• When carrying the camcorder, please be careful not to drop it.

Date/Time Setting

1 Open the LCD monitor to turn on the camcorder

Power button (°) LCD monitor

2 Select [YES] within 10 seconds

Slide your finger up and down on the sensor. Then touch OK.

SET DATE/TIME! YES NO SET OK

• When the message disappears, press the power button for at least 2 seconds to turn off the power, and then press it again for at least 2 seconds.
• Touch the sensors with your finger. The sensors do not function if you touch them with your finger nail or with gloves on.

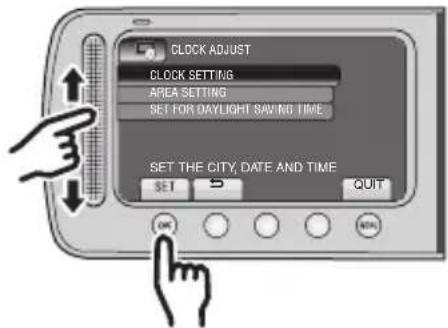

3 Select [CLOCK SETTING]

CLOCK ADJUST CLOCK SETTING AREA SETTING SET FOR DAYLIGHT SAVING TIME SET THE CITY, DATE AND TIME SET 5 QUIT OK

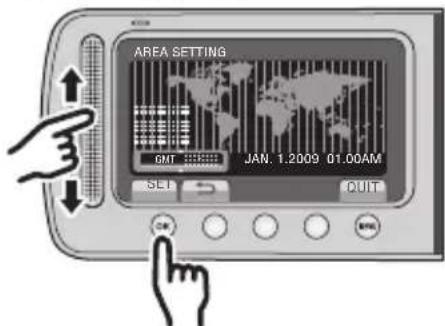

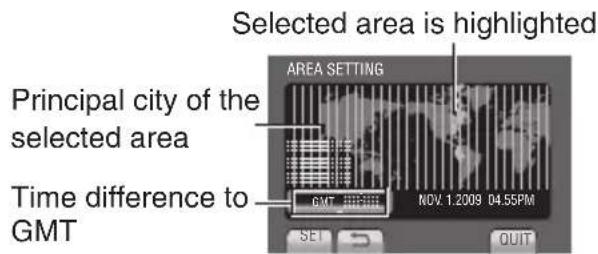

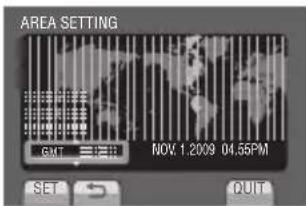

4 Select the city closest to the area where you use the camcorder

AREA SETTING GMT JAN. 1.2009 01.00AM SET OUT OK

5 Select [ON] or [OFF]

Select [ON] if daylight saving time is effective.

SET FOR DAYLIGHT SAVING TIME DAYLIGHT SAVING TIME (DST) OFF JAN. 1.2009 01:00 AM SET DAYLIGHT SAVING TIME

6 Set the date and time

Touch sensor: Sets the date and time

→: Moves the cursor to the right

OK: Clock starts

CLOCK SETTING DATE TIME NOV 2009 PMC4 S51 GMT-5:00 SAVE OUT

Video Recording

CAUTION

- Before recording an important scene, it is recommended to conduct a trial recording.

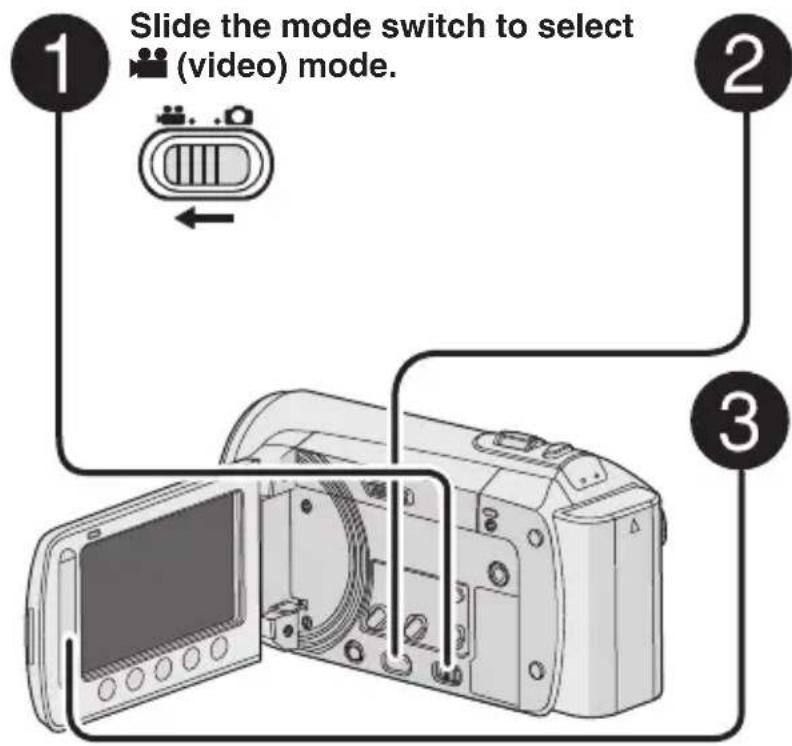

1) Slide the mode switch to select 📋 (video) mode

Diagram showing a camera module with an open screen and cable, connected to a left-side connector (no text or symbols present)

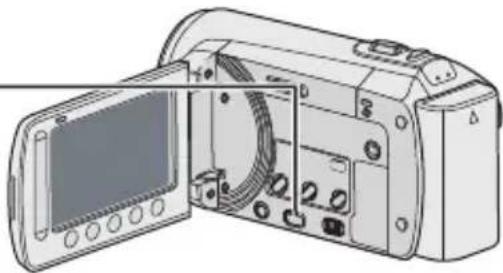

2 Select recording mode

PLAY /REC

The mode changes when you press the button.

Diagram of a digital camera module with an open screen and cable, showing no text or symbols.

The auto recording indicator appears.

14 h 59 m 0:04:01 II REC A /M

3 Start recording

is the START/STOP to start recording,

Press the START/STOP button to start recording, and press it again to stop.

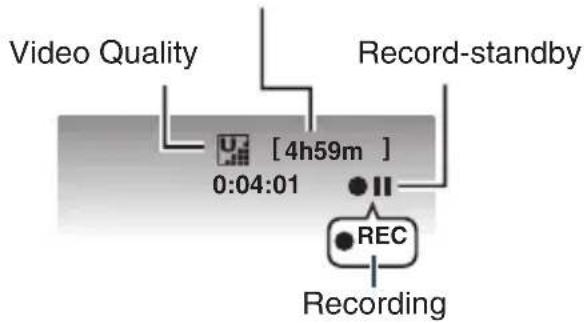

Remaining space on the SD Card

Video Quality Record-standby [4h59m ] 0:04:01 REC Recording

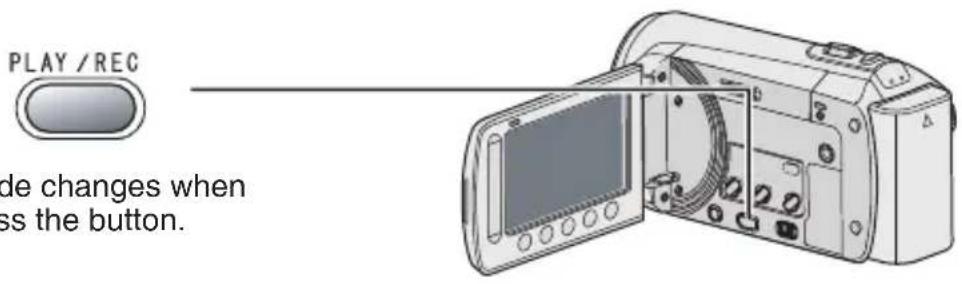

1 Select playback mode

PLAY / REC de changes when ss the button.

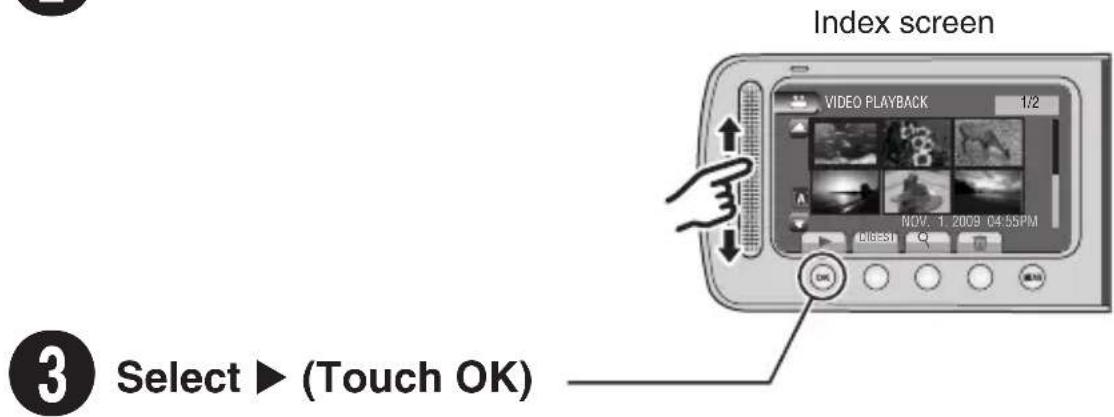

2 Select the desired file

Index screen VIDEO PLAYBACK 1/2 NOV. 1 2009 04:55PM DIGEST OK 3 Select ▶ (Touch OK)

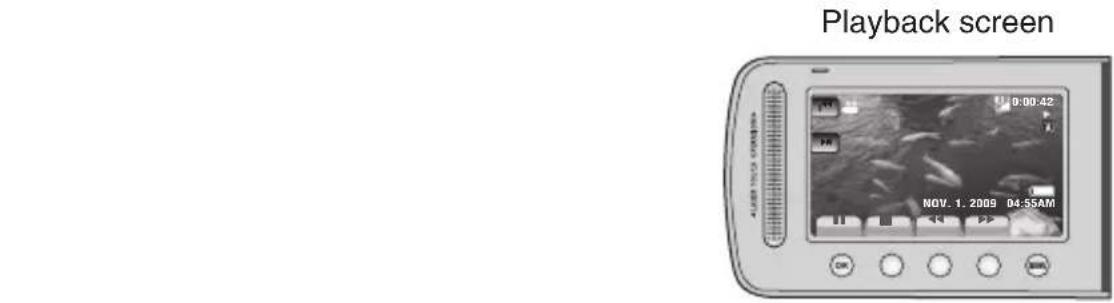

Playback screen 0:00:42 NOV. 1. 2009 04:55AM

■ To perform operations such as forward search or reverse search (p. 22)

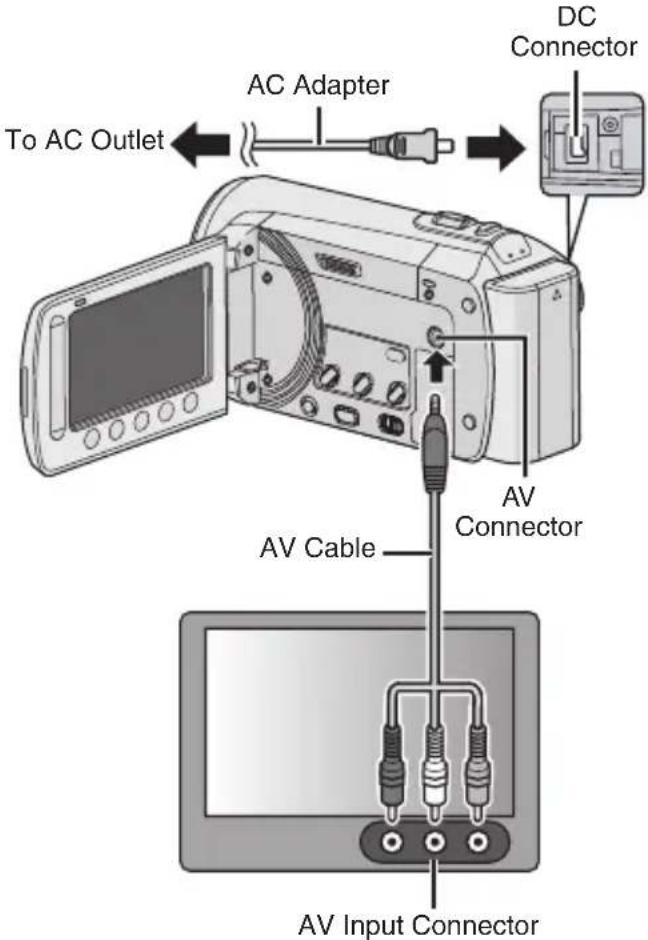

■ To view files on TV (p. 25)

CAUTION

Do not forget to make copies after recording!

• To copy files onto DVD discs (p. 29)

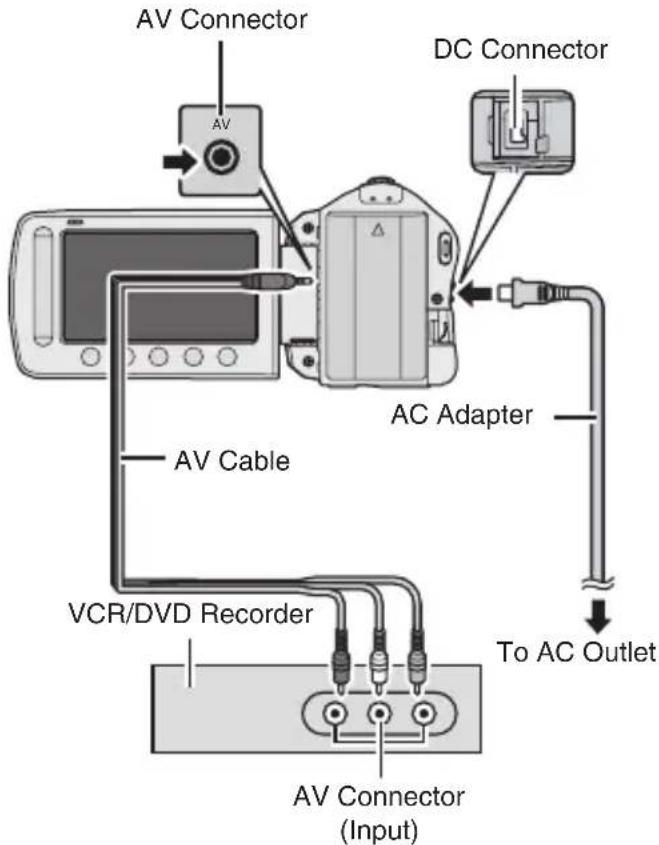

- To dub files using a VCR/DVD recorder (p. 34)
• To play back a created DVD disc (p. 28)
• To edit files on your computer (p. 29)

Contents

GETTING STARTED

Accessories 10

Attaching the Core Filter 10

Tripod Mounting 11

Index 12

Indications on LCD Monitor 14

Necessary Settings before Use 16

Charging the Battery Pack ....16

Date/Time Setting 16

Language Setting 17

Other Setting 18

Using an SD Card ....18

RECORDING/PLAYBACK

Recording Files 19

Video Recording 19

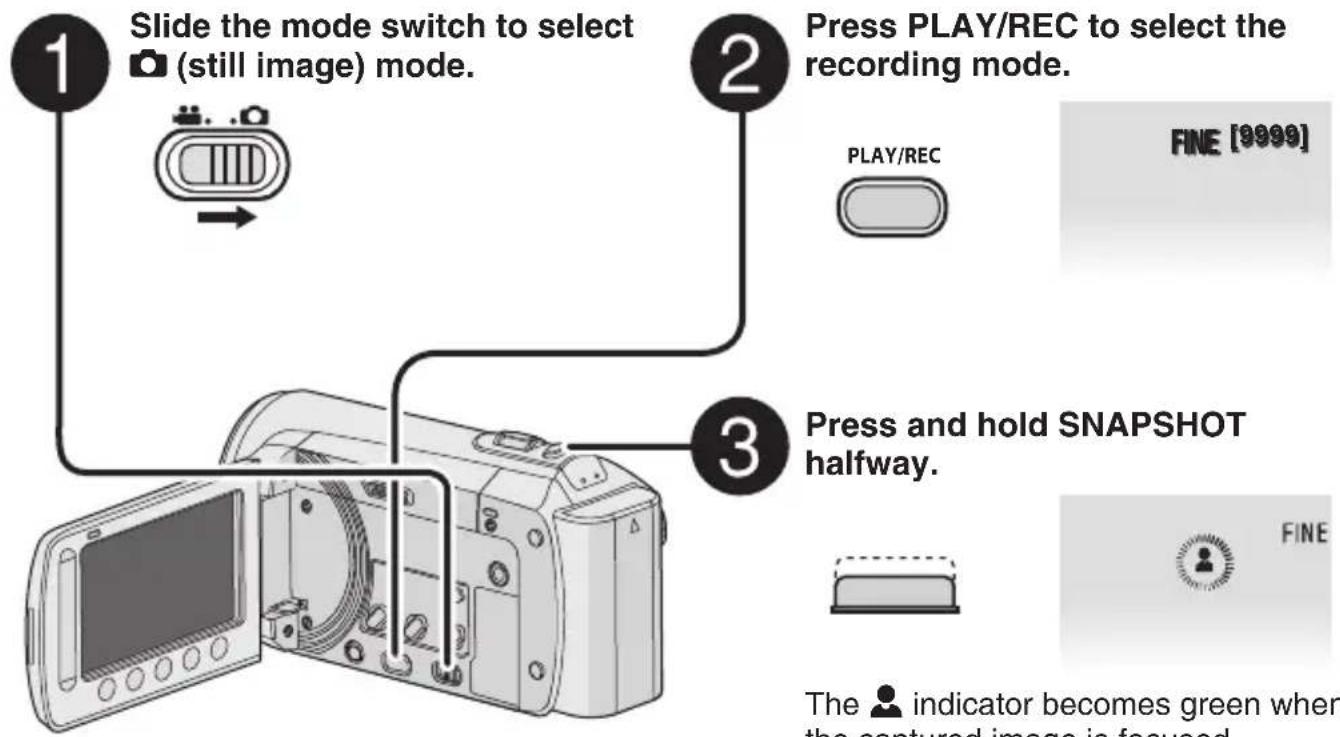

Still Image Recording ....20

Zooming 21

LED Light 21

Checking the Remaining Battery Power .....21

Checking the Remaining Space on the Recording Media ....21

Playing Back Files 22

Video Playback 22

Still Image Playback 23

Manual Recording 24

Changing to Manual Recording Mode .....24

Backlight Compensation 24

Manual Setting in Menu 24

USING WITH TV

Watching Images on TV.... 25

Connecting with TV....25

Playback Operation ....25

EDITING

Managing Files 26

Capturing a Still Image from a Video .....26

Deleting Files 26

COPYING

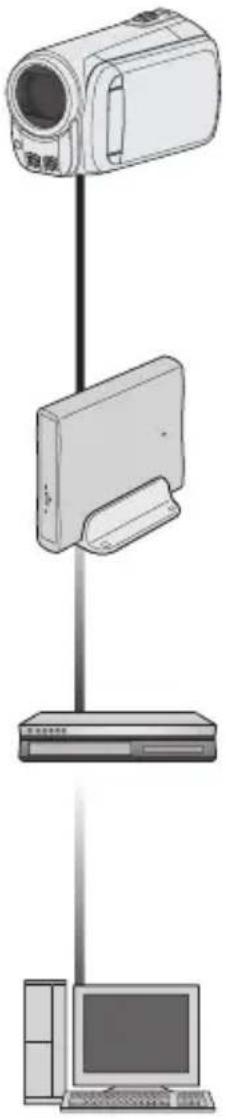

Copying Files 27

Using a DVD Burner ....27

Creating a DVD using a PC 29

Dubbing Files to VCR/DVD Recorder .....34

Using with a Portable Media Player .... 35

Turning on the Export Mode ....35

Changing the Export Setting ....35

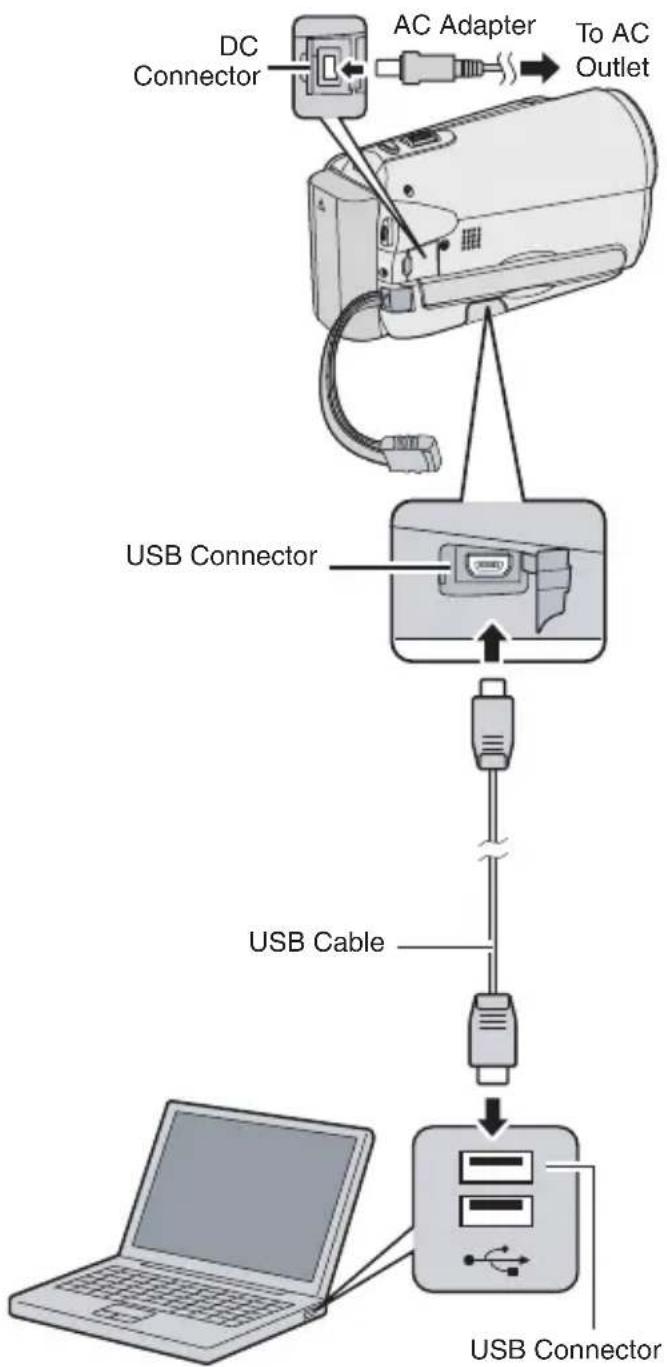

Transferring the Files to PC 35

Uploading Files to Websites 36

Turning on the Upload Mode 36

Uploading Files ....36

FURTHER INFORMATION

Changing the Menu Settings 37

Troubleshooting 37

Warning Indications 39

Specifications 40

Cautions 42

Terms 44

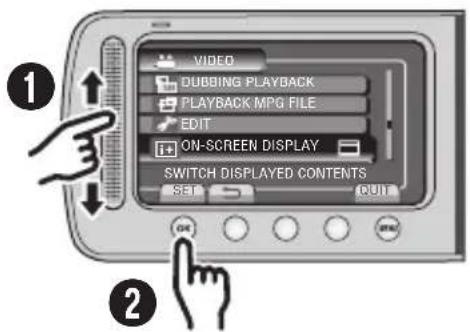

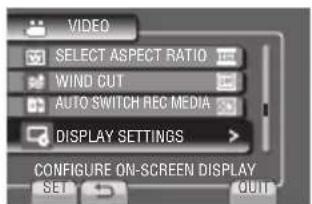

How to use the Touch Sensor

After the menu is displayed on the LCD monitor:

VIDEO DUBBING PLAYBACK PLAYBACK MPG FILE EDIT ON-SCREEN DISPLAY SWITCH DISPLAYED CONTENTS SET OUT OK Cancel

① Slide your finger up and down on the sensor.
② Select [SET]. (Touch OK.)

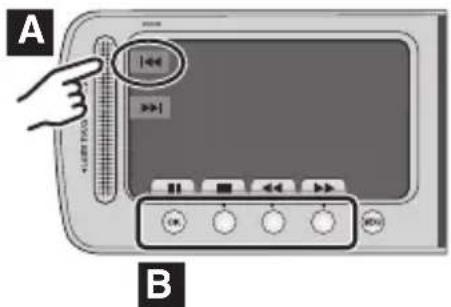

A B

A To select an on-screen button appearing on the left side, touch the portion of the sensor next to the on-screen button.
B To select an on-screen button appearing at the bottom of the screen, touch the buttons underneath them.

Read these INSTRUCTIONS to enjoy your CAMCORDER.

For more details on the operations, refer to the GUIDEBOOK in the supplied CD-ROM.

In order to view the GUIDEBOOK, Adobe®

Acrobat ^® Reader ^TM or Adobe ^® Reader ^® must be installed.

Adobe® Reader® can be loaded from Adobe's web site: http://www.adobe.com/

NOTE Select your desired language with a single click.

The model name is indicated on the bottom of your camcorder.

Read This First!

Make a backup of important recorded data It is recommended to copy your important recorded data to a DVD or other recording media for storage. JVC will not be responsible for any lost data.

Make a trial recording

Before the actual recording of important data, make a trial recording and play back the recorded data to check that the video and sound have been recorded correctly.

Reset the camcorder if it does not operate correctly

This camera uses a microcomputer. Factors such as background noise and interference can prevent it from operating correctly. Close the LCD monitor and remove the power supply (battery pack or AC adapter) from the camcorder, then reattach it.

Precautions on handling batteries

• Be sure to use the JVC BN-VF808U/VF815U/VF823U battery packs.
• If the camcorder is subjected to electrostatic discharge, turn off the power before using it again.

If a malfunction occurs, stop using the camcorder immediately and contact www.jvc.com or by phone at 1-800-252-5722

Recorded data may be erased while the camcorder is being repaired or inspected. Back up all data before requesting repairs or inspections.

Because the camcorder may be used for demonstration in a shop, the demonstration mode is set to on by default

To deactivate the demonstration mode, set [DEMO MODE] to [OFF].

When Using an SD Card

• Operations are confirmed on the following SD cards.
  Class 4 or higher compatible SD or SDHC card Panasonic, TOSHIBA, SanDisk, ATP SD card (256 MB to 2 GB) or SDHC card (4 GB to 32 GB).
• If other media are used, they may fail to record data correctly, or they may lose data that had already been recorded.
• MultiMediaCards are not supported.

Accessories

Two types of electronic devices with coiled cables, one labeled 'or', no visible text or symbols on the devices themselves.

AP-V20U/AP-V14U* AC Adapter

BN-VF808U Battery Pack

AV Cable

USB Cable CD-ROM

Core Filter (x2)

NOTE

Make sure to use the provided cables for connections. Do not use any other cables.

* AP-V14U is not mentioned in the GUIDEBOOK in the supplied CD-ROM

Attaching the Core Filter

The core filter reduces interference caused when connecting to other devices. Connect the end of the cable with the core filter to the camcorder.

Release the stopper.

To be connected

To be connected to the camcorder
3 cm (1-3/16")

Wind twice.

cable: Wind Once

USB cable: Wind Once. AC Adapter: Wind twice.

Illustration of a cable connector with a black arrow pointing to it (no text or symbols)

Tripod Mounting

Align the camcorder stud hole with the tripod stud, and the mounting socket with the screw, and then rotate the camcorder clockwise to mount it to the tripod.

Bottom of the camcorder

NOTE

Do not use a tripod on unsteady or unlevel surfaces. It could tip over, causing serious damage to the camcorder.

Index

Labeled diagram of a digital camera module showing internal components and an external device with ports B and A.

Diagram of a device with numbered components and labeled ports, including a USB port and connector pin.

Technical diagram of a digital camera with numbered parts labeled 18, 19, and 20

Technical diagram of a device rear panel with numbered components for identification

NOTE

- The LCD monitor can rotate 270^ .

180° 90°

- Be careful not to cover ⑱, ⑲ and ⑳ during shooting.

Camcorder

① Touch Sensor (p. 9)
② OK Button
③ MENU Button
④ Power Button [∅]
⑤ UPLOAD Button (p. 36)
⑥ PLAY/REC Button (p. 19, 20, 22, 23)
⑦ Mode Switch [▶, ▶]
⑧ DIRECT DVD Button (p. 28)
INFO Button (p. 21)
⑨ SD Card Slot
⑩ EXPORT Button (p. 35)
⑪ AV Connector (p. 25, 34)
⑫ START/STOP Button (p. 19)
⑬ SNAPSHOT Button (p. 20)
⑭ Zoom Lever [W ☐, T] (☐ p. 21) Speaker Volume Control [-VOL+] (☐ p. 22)
⑮ Speaker
⑯ DC Connector
⑰ USB Connector [ ♂ ] (p. 27, 30)
⑱ Lens
⑲ LED Light (p. 21)
⑳ Stereo Microphone
②1 Grip Strap
②2 Belt Strap
②3 Fasten
⑳ Stud Hole
⑲ Tripod Mounting Socket
②6 Battery Release Button [BATT.] (p. 16)

Indications on LCD Monitor

During both Video and Still Image Recording

1/4000 ±0 REVIEW W T LCD NOV. 1. 2009 4:55 PM

① Selected Recording Mode Indicator

(03 p. 24)

A : Auto Mode

M : Manual Mode

② Effect Mode Indicator

③ Tele Macro Mode Indicator

④ LED Light Indicator (p. 21)

⑤ Scene Select Indicator

⑥ Quick Review Indicator (p. 19, 20)

⑦ Zoom Indicator (p. 21)

⑧ SD Card Slot Indicator

A : Slot A (Default Setting)

B:Slot B

⑨ White Balance Indicator

⑩ Monitor Backlight Indicator

⑪ Battery Indicator

⑫ Date/Time (p. 16)

⑬ Manual Focus Adjustment Indicator

⑭ Backlight Compensation Indicator (p. 24)

⑮ Brightness Control Indicator

: Photometry Area Control Indicator

⑯ Shutter Speed

During Video Recording Only

① ② ③ ④ ⑤ ⑥ LIB. [4 h 59 m] REC PHOTO ⑦ ⑧ ⑨ ⑩ ⑪ ⑫

① Mode Indicator

② Export Mode Indicator

③ Counter

④ Upload Mode Indicator

⑤ Video Quality: U (ULTRA FINE), F (FINE), N (NORMAL), E (ECONOMY)

⑥ Remaining Time

⑦ ●REC: (Appears during recording.) ● ■: (Appears during record-standby mode.)

⑧ Digital Image Stabilizer (DIS) Indicator (Appears when [DIS] is set to [OFF].)

⑨ Auto Switch Rec Media

⑩ Wind Cut Indicator

⑪ Shooting Indicator (p. 19)

⑫ Event Indicator

During Still Image Recording Only

① ② ③ ④ FINE [9999] PHOTO ⑤ ⑥ ⑦

① Mode Indicator

② Focus Indicator

③ Image Quality: FINE (fine) or STD (standard)

④ Remaining Number of Shots

⑤ Shooting Indicator (p. 20)

⑥ Shutter Mode Indicator

⑦ Self-Timer Indicator

During Video Playback

① ② ③ ④ 1:55:01 +4 ⑤ ⑧ 8 N O V. 1. 2009 4:55 P M ⑥ ⑦

① Mode Indicator
② Playlist Playback Indicator (Appears when playing back a playlist.)
③ Video Quality: (ULTRA FINE),

F (FINE), N (NORMAL), E (ECONOMY)

④ Counter
⑤ Playback Mode

▶: Playback
II: Pause
▶: Forward Search
◀ Reverse Search

▶: Forward Slow-Motion
◀: Reverse Slow-Motion

(The number on the left shows speed.)

⑥ Battery Indicator
⑦ Date/Time (p. 16)
⑧ Volume Level Indicator

During Still Image Playback

① ② 101 - 0098 ③ ④ ⑤ NOV. 1. 2009 4:55 PM

① Mode Indicator
② Folder/File Number
③ Slide Show Playback Indicator
④ Battery Indicator
⑤ Date/Time (p. 16)

Necessary Settings before Use

Charging the Battery Pack

1 Close the LCD monitor to turn off the camcorder.

2 Attach the battery pack, then connect battery pack, then connect the AC adapter.

- With the “△” (arrow) on the battery pack pointing at the correct direction, slide the battery pack until it locks in place.

Arrow AC Adapter To AC Outlet (110V to 240V)

• The power/charge lamp blinks to indicate charging has started.
• When the lamp goes out, charging is finished.

■ To check the remaining battery power See page 21.
■ Required charging/recording time (approx.)

*When the LED light is off and the monitor backlight is set to [STANDARD] mode.

Battery pack C	Charging time Recording time
BN-VF808U(Provided)	1 hr. 50 min. 2 hr. 45 min.*
BN-VF815U 2	hr. 40 min. 5 hr. 25 min.*
BN-VF823U 3	hr. 40 min. 8 hr. 10 min.*

■ To detach the battery pack

k, then connect

NOTE

• You can also use the camcorder with just the AC adapter.
• The actual recording time may shorten depending on the recording environment, such as when recording scenes with fast moving.
• Please do not pull or bend the AC adapter plug and cable. This may damage the AC adapter.

Date/Time Setting

1 Open the LCD monitor to turn on the camcorder.
2 Touch MENU.
3 Select [DISPLAY SETTINGS].

VIDEO SELECT ASPECT RATIO WIND CUT AUTO SWITCH REC MEDIA DISPLAY SETTINGS CONFIGURE ON-SCREEN DISPLAY SET OUT

4 Select [CLOCK ADJUST].

DISPLAY SETTINGS LANGUAGE CLOCK ADJUST DATE DISPLAY STYLE MONITOR BRIGHT SET DATE AND TIME SET OUT

5 Select [CLOCK SETTING].

CLOCK ADJUST CLOCK SETTING AREA SETTING SET FOR DAYLIGHT SAVING TIME SET THE CITY, DATE AND TIME SET OUT

6 Select the city closest to the area where you use the camcorder.

Selected area is highlighted Principal city of the selected area Time difference to GMT AREA SETTING GMT NOV.1.2009 04.55PM SET OUT

7 Select [ON] if daylight saving time is effective.

[ON]: Clock is advanced 1 hour from the normal time which you set.

[OFF]: Deactivates the function.

SET FOR DAYLIGHT SAVING TIME DAYLIGHT SAVING TIME (DST) OFF NOV. 1 2009 04:55 PM SET DAYLIGHT SAVING TIME SET OUT

8 Set the date and time.

Select the item by using the touch sensor and select ( ) to set.

CLOCK SETTING DATE TIME MOV 1 2008 04 55 PM GMT- 5:30 SAVE 5 ← → OUT

9 Select [SAVE].

To reset the setting, select [QUIT].

Setting the clock to local time when traveling

After performing steps 1-4 (p. 16)

5 Select [AREA SETTING].

CLOCK ADJUST CLOCK SETTING AREA SETTING SET FOR DAYLIGHT SAVING TIME SET WHEN IN ANOTHER COUNTRY SET OUT

6 Select the city closest to the area you are traveling.

AREA SETTING GMT NOV.1.2009 04.55PM SET QUIT

■ To return to the previous screen Select ↩.
■ To quit the screen Select [QUIT].

Language Setting

The language on the display can be changed.

1 Open the LCD monitor to turn on the camcorder.
2 Touch MENU.
3 Select [DISPLAY SETTINGS].

VIDEO SELECT ASPECT RATIO WIND CUT AUTO SWITCH REC MEDIA DISPLAY SETTINGS CONFIGURE ON-SCREEN DISPLAY SET QUIT

4 Select [LANGUAGE].

DISPLAY SETTINGS LANGUAGE CLOCK ADJUST DATE DISPLAY STYLE MONITOR BRIGHT ON-SCREEN DISPLAY LANGUAGE SET OUT

5 Select the desired language.

■ To return to the previous screen Select ↩.
■ To quit the screen Select [QUIT].

Other Setting

Using an SD Card

If you want to record to an SD card, the following operations need to be performed.

● Operations are confirmed on the following SD cards. Class 4 or higher compatible SD or SDHC card Panasonic, TOSHIBA, SanDisk, ATP SD card (256 MB to 2 GB) or SDHC card (4 GB to 32 GB).
- If other media are used, they may fail to record data correctly, or they may lose data that had already been recorded.
- MultiMediaCards are not supported.
- Cards used to record video on this camcorder cannot be played back on other devices.
- Some card readers (including internal card readers in PCs) may not be able to support SDHC format. If you use an SDHC card for recording and encounter any reading error, the card reader you are using, might be a non-SDHC supported device. Please use the camcorder or other SDHC compatible devices to access the card.

① Insert an SD card

Preparation:

Press Power (💡) button to turn off the camcorder.

1 Open the SD card cover.
2 Firmly insert the card with its clipped edge first.

Clipped Edge ① ②

3 Close the SD card cover.

■ To remove an SD card

Push the SD card once.

After the card comes out a little, pull it out.

NOTE

• Insert and remove the SD card only while the power is turned off. Otherwise, data on the card may be corrupted.
• Do not touch the terminal on the reverse side of the label.

② Change the recording medium

The camcorder is programmed to record on SLOT A when it is shipped from the factory. You can change the recording medium to SLOT B.

Set [VIDEO SLOT SELECTION] and [IMAGE SLOT SELECTION] to [SLOT A] or [SLOT B].

MEDIA SETTING • SLOT A • SLOT B SET OUT

INFORMATION

1. Recording media switches automatically from Slot A to Slot B and vice versa after the card in the selected slot is full.
2. You can select Slot A or Slot B manually as recording media for video and still image respectivity.

③ Format an SD card when using it for the first time

Select [FORMAT SD CARD] to format the card.

MEDIA SETTING VIDEO SLOT SELECTION IMAGE SLOT SELECTION FORMAT SD CARD ERASE ALL DATA SET OUT

Recording Files

Video Recording

Preparation:

• Open the LCD monitor to turn on the camcorder.
• Insert an SD card.

Slide the mode switch to select (video) mode. SNAPSHOT

Press PLAY/REC to select recording mode.

[4 h 59 m] 0 : 00 : 00 ●II A

Press START/STOP to start recording.

Approximate remaining time for recording

You can also start/stop recording by selecting [REC] on the LCD monitor. (On-screen recording control)

■ To stop recording
Press the START/STOP button again.
■ To view the video you just recorded
Select 📄 during pause.
During the preview, you can delete the video by selecting 📄.
■ To change the picture quality
Change the settings in [VIDEO QUALITY].
■ To register a file to an event

■ To change the aspect ratio of the image (16:9/4:3)

Change the settings in [SELECT ASPECT RATIO].

■ To record a still image during video recording

Press SNAPSHOT.

NOTE

• The video recording mode is automatically selected when you turn the camcorder's power off and then on again.
• If the camcorder is not operated for 5 minutes while the power is on, it turns itself off automatically to conserve power. To turn the camcorder on again when using the battery pack, close the LCD monitor and open it again. When using the AC adapter, perform any operation such as zooming.
• After recording video for 12 consecutive hours, recording stops automatically. To ensure continuous recording, set [AUTO SWITCH REC MEDIA] to [ON] before you start recording.
• A new file will be created for every 4 GB of continuous shooting.
• This camcorder records video in MPEG2 format compliant with SD-VIDEO format. This camcorder is not compatible with other digital video formats.

Recording Files (Continued)

Still Image Recording

Preparation:

• Open the LCD monitor to turn on the camcorder.
• Insert an SD card.

■ To view the last recorded image
Select ☑ after shooting. Selecting ☑ during playback deletes that image.

■ To change the image quality Change the settings in [IMAGE QUALITY].

■ To record still images continuously Set to [CONTINUOUS SHOOTING] in [SHUTTER MODE].

4 Press SNAPSHOT fully to take a still image.

FINE [9999] PHOTO

NOTE

• DIS (Digital Image Stabilizer) does not function during still image recording.
• If the camcorder is not operated for 5 minutes while the power is on, it turns itself off automatically to conserve power. To turn on the camcorder again when using the battery pack, close the LCD monitor and open it again. When using the AC adapter, perform any operation such as zooming.

Zooming

Preparation:

• Select or mode.
• Select the recording mode.

Zoom out Zoom in

W: Wide angle T: Telephoto
You can also zoom out/zoom in by selecting [W] or [T] on the LCD monitor. (On-screen zoom control)

Maximum zoom ratio (factory-preset).

	mode	mode
[80X/DIGITAL] [35X/OPTICAL]

■ To change the maximum zoom ratio (mode only)

Change the settings in [ZOOM].

NOTE

Macro shooting is possible as close as approx. 5 cm (2") to the subject when the zoom lever is set all the way to W.

LED Light

Preparation:

• Select or mode.
• Select the recording mode.

1 Touch MENU.

2 Select [LIGHT].

3 Select the desired setting.

ON	The LED light remains on regardless of the surrounding conditions.
AUTO	The LED light turns on automatically when shooting in insufficient light conditions.
OFF	Deactivates this function.

Checking the Remaining Battery Power

Preparation:

• Attach the battery pack.
• Select the recording mode.

mode:

Press INFO three times or INFO and then select ☐.

mode:

Press INFO.

BATTERY CONDITION 100% 50% 0% MAX TIME 60 min OUT

■ To quit the screen

Select [QUIT] or press INFO.

NOTE

The recordable time display should only be used as a guide. It is displayed in 10 minute units.

Checking the Remaining Space on the Recording Media

Preparation:

• Select mode.
• Select the recording mode.

Press the INFO button once (Slot A) or twice (Slot B).

MAX RECORDING TIME 14h27m SLOT A 21h25m 28h27m 75h12m FREE USED SET QUIT

The maximum recording time is displayed for each video quality mode.

■ To change the video quality

1) Select the video quality.
2) Select [SET].

■ To change the recording media

1) Select INFO to select SLOT A or SLOT B.
2) Select [SET].

■ To quit the screen

Select [QUIT].

Playing Back Files

Video Playback

Preparation:

• Open the LCD monitor to turn on the camcorder.
• Insert an SD card.

Press PLAY/REC to select the playback mode.

VIDEO PLAYBACK 1/2 NOV. 01, 2009 04:55PM DIGEST

The index screen appears.

Select the desired file.

Underwater scene with multiple fish swimming near rocks (no visible text or symbols)

■ To move to the previous or next page Touch [▲] or [▼] for over a second.
■ To play back a few seconds from each select scene of the recorded video Touch [DIGEST].

■ To delete a video Select ☐ when playback is stopped.
■ To change the number of thumbnails Move the zoom lever to [T] or [W].

■ Operations during Video Playback On-screen buttons

◀◀ : Return to the first scene of the file
▶▶I : Go to the first scene of the next file
■ : Return to the index scene
◀◀ : Reverse search (during playback)
◀1: Frame-by-frame playback in reverse direction (during pause)*

▶ : Playback
II : Pause
▶▶: Forward search (during playback)
▶: Frame-by-frame playback in forward direction (during pause)*
* Slow playback starts when you keep touching the sensor button under ◀/▶ for a while.

■ Speaker volumeSpeaker volume

- : Turn down the volume - VOL. + W T +: Turn up the volume

Still Image Playback

Preparation:

• Open the LCD monitor to turn on the camcorder.
• Insert an SD card.

Slide the mode switch to select (still image) mode.

Press PLAY/REC to select the playback mode.

IMAGE PLAYBACK 1/2 NOV. 01. 2008 04:55PM

The index screen appears.

Select the desired file.

Exterior view of a poolside with swimming pools and a beachside structure (no signage or text visible)

■ To move to the previous or next page
Touch [▲] or [▼] for over a second.
■ To delete a still image
Select 面.
■ To change the number of thumbnails
Move the zoom lever to [T] or [W].

■ Operations during Still Image Playback On-screen buttons

◀ : Change playback order of slide show in reverse direction
▶ : Change playback order of slide show in forward direction
■ : Return to the index screen
◀◀ : Display the previous file
▶ : Start the slide show
II : End the slide show
▶▶I : Display the next file

Manual Recording

Manual recording mode enables you to set the focus and screen brightness etc. manually.

Changing to Manual Recording Mode

Preparation:

• Select or mode.
• Select the recording mode.

Select [A/M] twice.

M [4 h 59 m] A / M

■ To return to the auto recording mode Select [A/M] so that the A indicator appears.

Backlight Compensation

Backlight compensation brightens the subject by increasing the exposure.

In the manual recording mode:

Select

Screenshot of a software interface showing icons for M, REC, and A/M labels

■ To cancel backlight compensation Select 📋 again.

NOTE

If the LCD monitor is turned upside down, is not displayed. Change the setting when the LCD monitor is in the normal position.

Manual Setting in Menu

In the manual recording mode:

1 Touch MENU.
2 Select [MANUAL SETTING].

VIDEO M! MANUAL SETTING > LIGHT REGISTER EVENT VIDEO QUALITY USE DETAIL SETTINGS BASED SL QUIT

3 Select the desired menu.

VIDEO SCENE SELECT FOCUS ADJUST BRIGHTNESS SHUTTER SPEED THE BRIGHTNESS OF THE OUT

4 Select the desired setting.

VIDEO AUTO M MANUAL SET OUT

Depending on the kind of settings you select, you can set the value by using the touch sensor.

■ To return to the previous screen Select ↩.
■ To quit the screen Select [QUIT].

Viewing Files on TV

This camcorder is designed to be used with NTSC-type color television signals. It cannot be used with a television of a different standard.

Connection with TV

You can output videos from the AV connector.

■ To connect using the AV connector.

Preparation:

- Turn off all units.

To AC Outlet AC Adapter DC Connector AV Cable AV Input Connector

Playback Operation

After the connection with TV is completed

1 Turn on the camcorder and the TV.
2 Set the TV to its VIDEO mode.
3 (Only when connecting the camcorder to the VCR/DVD recorder) Turn on the VCD/DVD recorder, and set the VCR/DVD recorder to its AUX input mode.

4 Start playback on the camcorder. (p. 22, 23)

■ To display the camcorder's on-screen display on TV Set [DISPLAY ON TV] to [ON].

Managing Files

CAUTION

Do not remove the recording medium or perform any other operation (such as turning off the power) while accessing files. Also, be sure to use the provided AC adapter, as the data on the recording medium may be corrupted if the battery becomes exhausted during operation. If the data on the recording medium becomes corrupted, format the recording medium to use the medium again.

Capturing a Still Image from a Video

You can capture the desired scene from a recorded video, and store it as a still image.

Preparation:

• Select mode.
• Select the playback mode.

Press SNAPSHOT when playback is paused.

NOTE

• Captured still images are stored at a resolution of 640 x 360 (if the video was recorded in 16:9) or 640 x 480 (if the video was recorded in 4:3). The image can be elongated in the horizontal or vertical directions depending on the quality of the source video file.
• The continuous shooting function cannot be used to capture images.
• You cannot capture video during playback.

Deleting Files

• Protected files cannot be deleted. To delete them, release the protection first.
• Once files are deleted, they cannot be restored. Check files before deleting.

Preparation:

• Select or mode.
• Select the playback mode.

1 Touch MENU.

2 Select [DELETE].

VIDEO DELETE UPLOAD SETTINGS SEARCH PLAYBACK PLAYLIST DELETE RECORDED VIDEO SET QUIT

3 Select [CURRENT].

VIDEO DELETE CURRENT FILE SELECT DELETE ALL DELETE ONE SCENE AT A TIME SET QUIT

4 Select [YES].

DELETE? (REMAINING SCENES:0009) YES NO SET ← → QUIT

You can select the previous or next file by selecting ← or →.

■ To quit the screen Select [QUIT].

Copying Files

Types of Copying and Connectable Device

Illustration of a desktop computer setup with monitor, tower, and keyboard (no text or symbols)

DVD Burner (CU-VD50/CU-VD3)

You can copy video files recorded on this camcorder onto DVD discs.

VCR/DVD Recorder

You can dub video files recorded on this camcorder onto DVD discs.

PC

You can copy video/ still image files on this camcorder onto your PC.

NOTE

It is recommended to use the JVC DVD burner (CU-VD50/CU-VD3). When using CU-VD20 or CU-VD40, the recording time may take approx. 2 times longer than the time that is described in the instruction manual of DVD burner.

Using a DVD Burner

Supported discs: 12cm DVD-R, DVD-RW

• Regarding DVD-R discs, only unused DVD-R discs can be used. Regarding DVD-RW discs, used DVD-RW discs can also be used, but they need to be formatted before recording. Formatting a disc deletes all content recorded on the disc up until that time.
• Dual-layer discs cannot be used.

Regarding finalization after copying

The disc is automatically finalized so that it can be played on other devices. After finalizing, the disc is a play-only disc, so no more files can be added.

Connection with a DVD Burner

Preparation:

Turn on the camcorder first, then turn on the DVD burner.

DC Connector AC Adapter To AC Outlet USB Jack DVD Burner USB Connector USB Cable

NOTE

Refer also to the optional DVD burner's instruction manual.

* Use the USB cable that came with the DVD burner.

Copying Files (Continued)

Backup All Files

Preparation:

• Connect the camcorder to the DVD burner.
• Select mode.

1 Select [CREATE FROM ALL].

CREATE DVD CREATE FROM ALL SELECT AND CREATE CREATE DUPLICATE PLAYBACK COPY RECORDED VIDEOS

2 Select the desired menu.

CREATE FROM ALL ALL SCENES UNSAVED SCENES COPY ALL VIDEOS TO DVD SET

• [ALL SCENES]: All files in the recording medium are copied.
• [UNSAVED SCENES]: Files that have never been copied to a DVD disc are automatically selected and copied.

3 Select the desired disc number.

DVD CREATION LIST ALL(TOTAL:3) DVD1 DVD2 DVD3 SET CHECK OUT

• If you select [ALL], all discs in the list are created.
• To preview scenes, select [CHECK].
• mark shows that the disc is created already.

4 Select [YES] or [NO].

• [YES]: Displays the thumbnails by group.
- [NO]: Displays the thumbnails by date.

5 Select [EXECUTE].

• The files are copied on the disc. When [COMPLETED] appears, touch OK.
• When [INSERT NEXT DISC PRESS [STOP] TO EXIT CREATE] appears, change the disc. Remaining files are copied on the second disc.
• To cancel copying, select [STOP].

Copying Video Files that Have Never Been Copied

Files that have never been copied to the DVD discs are automatically selected and copied.

1 Open the LCD monitor to turn on the camcorder.

2 Press DIRECT DVD.

3 Select [EXECUTE].

UNSAVED SCENES READY TO CREATE DVD-R EXECUTE RETURN SET OUT

• The DVD disc begins to be created. When [COMPLETED] appears, touch OK.
• When [INSERT NEXT DISC PRESS [STOP] TO EXIT CREATE] appears, change the disc. Remaining files are copied on the second disc.
• To cancel the DVD creation, select [STOP].

■ To quit the screen

1) Select [QUIT].
2) When [QUIT?] appears, select [YES].

■ To play back the created disc using the camcorder

1) Connect the camcorder to the DVD burner.
2) Turn on the camcorder first, then turn on the DVD burner.
3) Select [PLAYBACK].
4) Select the desired folder.
5) Select the creation date of the disc.
6) Select the desired file. To return to the previous screen, select ↩.

Creating a DVD using a PC

Please read the "JVC SOFTWARE LICENCE AGREEMENT" in the CD-ROM instruction before you install software. You can copy the data from the camcorder and create a DVD using a PC.

① Installing the software to the PC

System Requirements

Windows Vista

OS: Windows Vista ^® Home Basic (SP1) Home Premium (SP1) (32-bit, pre-installed)

CPU: Either one of the following: - Intel® Pentium® 4, 1.6 GHz or higher - Intel® Pentium® M, 1.4 GHz or higher - Intel® Core™ Duo, 1.5 GHz or higher

RAM: At least 1 GB

Windows XP

OS: Windows ^ XP Home Edition (SP2/SP3) Professional (SP2/SP3) (pre-installed)

CPU: Either one of the following: - Intel® Pentium® 4, 1.6 GHz or higher - Intel® Pentium® M, 1.4 GHz or higher - Intel® Core™ Duo, 1.5 GHz or higher

RAM: At least 512 MB

■ To check the PC specification

Right-click on [Computer] (or [My Computer]) in the [Start] menu and select [Properties].

NOTE

• Make sure your PC has a recordable DVD drive.
• If your system does not meet the requirements, it is recommended to copy files using the DVD burner.
• Macintosh users may use the software included with their Macintosh (iMovie '08, iPhoto) to copy files to their computer.

Preparation:

Load the provided CD-ROM into the PC. In Windows Vista, the auto play dialog box appears.

1 Click [Easy Installation].

Every Software Setup Easy Installation... All provided software are available on the optional setting by instructions design. Custom Installation Put preferred installation by choosing the installed software, destination location and set-out. Read GUIDEBOOK 2nd

Follow the on-screen instructions.

2 Click [Next].

License Agreement Please check the following License agreement: Used by: End User License Agreement TITLE COMPLICATION End User License Agreement Single User Only, Non-Indicated Applications IMPORTANT READ CAPSICALLY: This End User License Agreement (Agreement) is a legal and bonding agreement between you written as an individual or a single entity. * 3 signed the full name of the License agreement * 4 not consent the full name of the License agreement

3 Click [Finish].

InstallShield-Walled Complete The installed metal-walled assembly installed into Installation. Click from to add the weight.

Everio MediaBrowser icon is created on the desktop.

■ To see the Instruction Guide for Everio MediaBrowser

1) Double-click the icon of the Everio MediaBrowser.
2) Click [Help], and click [MediaBrowser Help].

Edit: Metabreeze File 21 Edit (2) View(2) Window(2) Settings(2) Edit(2) Metabreeze Net(2) F1 Click for Latest Product Net Version Net(2) Device Show all

Copying Files (Continued)

② Making Backup on the PC

Preparation:

• Install the software to the PC.
- Make sure that enough free space is left in the PC's hardisk.
- Close the LCD monitor to turn off the camcorder.

1 Open the LCD monitor to turn on the camcorder.
2 Select [BACK UP].

USB MENU CREATE DVD UPLOAD EXPORT TO LIBRARY BACK-UP SAVE RECORDED VIDEO/STILL SET QUIT

Everio MediaBrowser starts on the PC.

Exterior view of a hard disk drive (no text or symbols visible)

3 Click [All volume in camcorder] and click [Next].

Screenshot of a software interface showing image thumbnails and a dialog box with Chinese text fields.

4 Click [Start].

Screenshot of a software interface showing image thumbnails and a context menu with Chinese text options.

Backup starts.

■ To disconnect the camcorder from the PC

1) Right-click the icon (Safety Remove Hardware) on the task bar and select [Safely remove USB Mass Storage Device].
2) Follow the on-screen instructions and make sure that the device can be safely removed.
3) Disconnect the USB cable and close the LCD monitor.

NOTE

It takes time to back up many videos.

③ Making User Lists to Arrange the Files

You can make a user list of a certain subject (such as Travel, Athletic meet) and put the files related to the subject into the user list.

Preparation:

Make backup on the PC.

1 Double-Click the icon and open the calendar.

2 Select [Movies only].

Screenshot of a legacy software interface showing a grid-based data table with highlighted cells and an 'OK' button.

3 Click [+].

Combine movies

4 Input the name of the new user list and click [OK].

Screenshot of a legacy software interface showing a form design panel with a progress bar and control buttons.

5 Double-click the recording date.

Page 7 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

The files recorded on the day are displayed.

6 Drag the file and drop into the user list.

Screenshot of a software interface showing image thumbnails and file list with Chinese labels

To add other files into the user list, repeat steps 5 and 6.

Copying Files (Continued)

④ Copying Files to a DVD

Preparation:

Use a recordable DVD disc. (It is recommended to use a DVD-R disc.)

1 Select the user list and click [Create Disc].

Screenshot of a file explorer window showing folder navigation and image thumbnails with timestamps

2 Click [Select files individually] and click [Next].

To add all the files onto DVD discs, click [Select all files displayed], then go to step 4.

Select the following ■ View of the Window View the Window Settings Help

3 Drag the file, and drop into the part at the bottom and click [Next].

Screenshot of a software interface showing image thumbnails and menu options in Chinese

4 Input the disc name, select the top menu style and click [Next].

Screenshot of a video editing software interface showing multiple video thumbnails and control panels

5 Click [Start].

Screenshot of a video editing software interface showing multiple video thumbnails and settings panels

NOTE

• For detail on operating Everio MediaBrowser, click [Help] and refer to "MediaBrowser Help".
• Adobe® Reader® must be installed to read "MediaBrowser Help". Adobe® Reader® can be loaded from Adobe's web site: http://www.adobe.com

- For assistance in operating the provided software, refer to the support information. (p. 33)

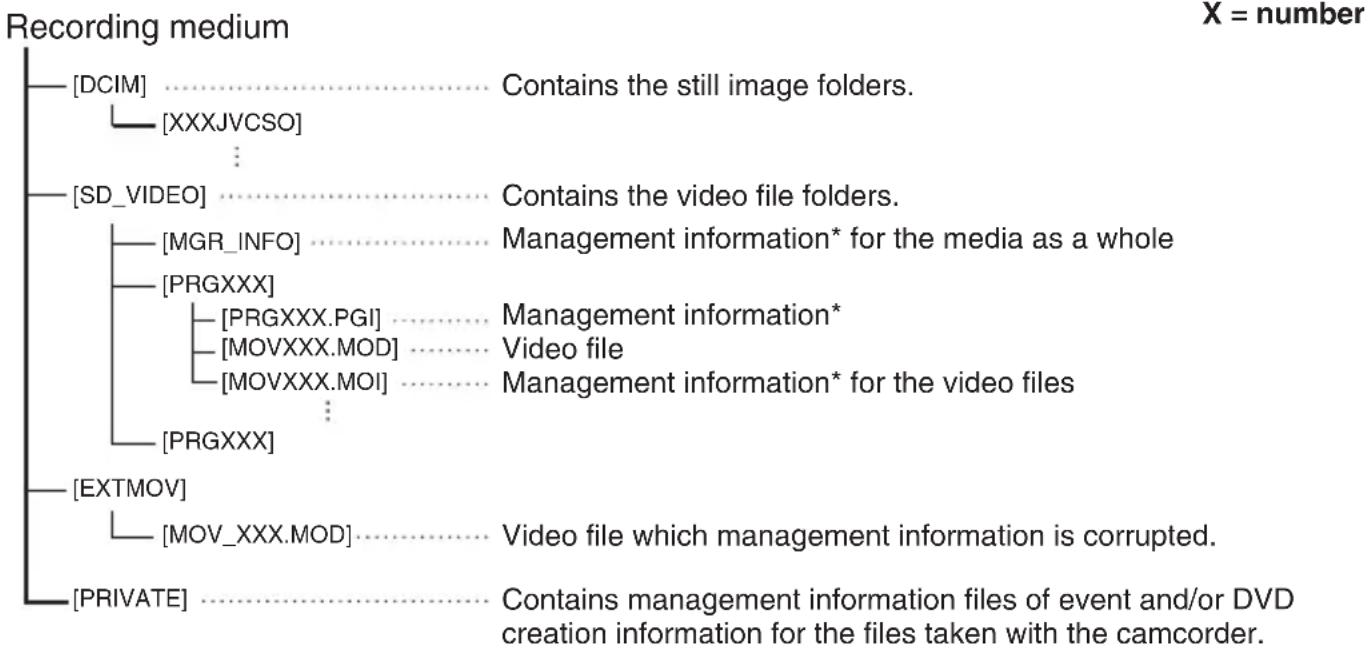

Folder Structure and Extensions

* Information such as the date and time of recording, recorded with the video file.

Customer Support Information

Use of this software is authorized according to the terms of the software licence.

JVC

When contacting the nearest JVC office or agency in your country (refer to the JVC Worldwide Service Network at http://www.jvc-victor.co.jp/english/worldmap/index-e.html) about this software, please have the following information ready.

• Product Name, Model, Problem Error Message
  • PC (Manufacturer, Model (Desktop/Laptop), CPU, OS, Memory (MB), Available Hard Disk Space (GB))

Please note that it may take some time to respond to your questions, depending on their subject matter. JVC cannot answer questions regarding basic operation of your PC, or questions regarding specifications or performance of the OS, other applications or drivers.

Pixela

Region Language	Phone #
USA and Canada English	[phone] (toll-free)
Europe (UK, Germany, France, and Spain)	English/German/French/Spanish [phone] (toll-free)
Other Countries in Europe	English/German/French/Spanish/Italian/Dutch	[phone]
Asia (Philippines) English	[phone]
China Chinese +86	-21-5385-3786

Homepage: http://www.pixela.co.jp/oem/jvc/e/index.html Please check our website for latest information and downloading.

Copying Files (Continued)

Dubbing Files to a VCR/DVD Recorder

Preparation:

• Create a playlist.
• Turn off all units.

■ To connect using the AV connectors (analog dubbing)

AV Connector DC Connector AC Adapter AV Cable VCR/DVD Recorder To AC Outlet AV Connector (Input)

1 Open the LCD monitor to turn on the camcorder.
2 Set the VCR/DVD recorder to its AUX input mode.

Check that the images from the camcorder are input correctly to the VCR/DVD recorder.

3 Play back playlists on the camcorder.

1) Touch MENU.
2) Select [DUBBING PLAYBACK].
3) Select the desired playlist.
4) Select [YES]. (A black screen is displayed for 5 seconds at the first and the last scene.)

4 At the point you want to start dubbing, start recording on the VCR/DVD recorder.

Refer to the VCR/DVD recorder's instruction manual.

■ To stop dubbing

Stop recording on the VCR/DVD recorder, then press START/STOP again.

■ To hide the date or icons on the screen Change the settings in [DISPLAY ON TV].

Using with a Portable Media Player

Turning on the Export Mode

You can easily transfer videos recorded in export mode to iTunes®. All the files with the export setting turned on are transferred to PC. For details on transferring, refer to the operation guide of MediaBrowser in the CD-ROM.

Preparation:

• Select ▶ mode.
• Select the recording mode.

Press EXPORT twice.

EXPORT

■ To turn off the export mode

Press EXPORT twice.

Changing the Export Setting

You can set the recorded videos to the export setting.

Preparation:

• Select ▶ mode.
• Select the playback mode.

1 Press EXPORT.

EXPORT

2 Select the file and select [L]·B.

EXPORT SETTINGS 1/3 LIB. LIB. A LIB. CHECK DONE

- To check the content of the file, select [CHECK].

3 Select [DONE].

■ To cancel the export setting Select the file and press [LIB.] again.

■ To quit the screen

1) Select [DONE].
2) Select [YES].

Transferring the Files to PC

Preparation:

• Install iTunes® on a PC. http://www.apple.com/itunes/

1 Connect the camcorder to the PC with the USB cable.

2 Select [EXPORT TO LIBRARY].

USB MENU CREATE DVD UPLOAD EXPORT TO LIBRARY BACK UP EASY VIDEO REGISTRATION SET CUT

EXPORT TO LIBRARY

All the files with the export setting turned on are transferred to PC.

■ Cannot export the file to iTunes®

- Refer to "Q&A", "Latest Information", "Download Information", etc. in [Click for Latest Product Info] in the help of the provided Everio MediaBrowser software.

Turning on the Upload Mode

You can upload the file to video sharing websites (YouTube™) quickly after recording. For more information on YouTube™, visit YouTube™ website: http://www.youtube.com/

Preparation:

• Select mode.
• Select the recording mode.

Press UPLOAD twice.

UPLOAD

ON UPLOAD REC

If you record a file with the upload mode set on, the recording stops automatically 10 minutes after the recording is started. The remaining time is displayed on the LCD monitor.

NOTE

The upload mode turns off each time recording is finished.

Uploading Files

For details on uploading fi les, refer to the operation guide of MediaBrowser in the CD-ROM.

1 Connect the camcorder to the PC with the USB cable.
2 Select [UPLOAD].

USB MENU PLAYBACK ON PC CREATE DVD UPLOAD EXPORT TO LIBRARY EASY UPLOAD TO VIDEO SB OUT

■ Cannot upload the file to YouTube™

• You need your YouTube™ account to upload files to YouTube™. Create your account.
• Refer to "Q&A", "Latest Information", "Download Information", etc. in [Click for Latest Product Info] in the help of the provided Everio MediaBrowser software.

Changing the Menu Settings

1 Touch MENU.

2 Select the desired menu.

VIDEO REGISTER EVENT VIDEO QUALITY ZOOM DIS DN IMAGE BLURRED NEED TO SET OUT

3 Select the desired setting.

VIDEO OFF ON ON SET QUIT

Troubleshooting

Before requesting service, consult the following chart. If the solutions indicated in the chart do not solve the problem, consult your nearest JVC dealer or JVC service center for instructions.

Refer also to the FAQ of new products on JVC's website.

■ To return to the previous screen Select ↩.
■ To quit the screen Select [QUIT].
■ To return to the previous screen Select ↩.
■ To quit the screen Select [QUIT].

The following phenomena are not malfunctions.

● The camcorder heats up when it is used for a long time.
● The battery heats up during charging.
- When playing back a video, the image stops momentarily or the sound is interrupted at junctions between scenes.
- LCD monitor momentarily become red or black when sunlight is recorded.
- Black spots, or red, green, or blue spots appear on the LCD monitor. (The LCD monitor contains 99.99% effective pixels, but 0.01% of fewer pixels may be ineffective.).

Trouble		Action
Power	No power is supplied.	Connect the AC adapter correctly.Recharge the battery pack.
Display	The remaining battery display is not correct.	Fully charge the battery pack, run it down, and then recharge it again.If the camcorder is used for long periods of time in high or low temperatures, or if the battery pack is repeatedly charged, the amount of remaining battery may not be displayed correctly.
	The LCD monitor is difficult to see.	The LCD monitor may be difficult to see if used in bright areas such as under direct sunlight.

Troubleshooting (Continued)

Trouble Action
Recording	Recording cannot be performed.	SD card is full. Delete unnecessary files or replace the SD card.
	Recording stops by itself.	Insert a commercially available SD card, and set each of the [VIDEO SLOT SELECTION] and [IMAGE SLOT SELECTION] to [SLOT A] or [SLOT B].Recording stops automatically after 12 hours of non-stop recording. To ensure continuous recording, set [AUTO SWITCH REC MEDIA] to [ON] before you start recording.
Playback	Sound or video are interrupted.	Sometimes playback is interrupted at the connecting section between two scenes. This is not a malfunction.
	Cannot find a recorded video.	Select [PLAYBACK MPG FILE] then search the video on the index screen.(Video files that have damaged management information can be played back.)Cancel group display and date search functions.Change the setting in [VIDEO SLOT SELECTION] or [IMAGE SLOT SELECTION]. (Files on other media are not displayed.)
Other problems	The camcorder operates slowly when switching between video mode and still image mode, or when switching the power on or off.	If there are many files (such as video) in the camcorder, it takes time for the camcorder to respond. It is recommended that you copy all files from the camcorder onto your computer, and erase the files from the camcorder.
	The lamp does not flash during battery pack charging.	Check the remaining battery pack charge.(When the battery pack is fully charged, the lamp does not flash.)When recharging in either a hot or cold environment, ensure that battery is being charged within the permitted temperature range.(If the battery pack is being recharged outside the permitted temperature range, recharging may stop to protect the battery pack.)
	Cannot upload the file to YouTubeTM.	You need your YouTubeTM account to upload files to YouTubeTM. Create your account.Refer to “Q&A”, “Latest Information”, “Download Information”, etc. in [Click for Latest Product Info] in the help of the provided Everio MediaBrowser software.
	Cannot export the file to iTunes®.	Refer to “Q&A”, “Latest Information”, “Download Information”, etc. in [Click for Latest Product Info] in the help of the provided Everio MediaBrowser software.

■ To reset the camcorder when it does not operate normally

① Close the LCD monitor and remove the power supply (battery pack or AC adapter) from the camcorder, then reattach it.
② Execute [FACTORY PRESET].

Warning Indications

Indication Action
SET DATE/TIME!	● Set the clock. If the message still appears after setting the clock, the battery for the clock has been depleted. Consult your nearest JVC dealer.
COMMUNICATING ERROR	● Be sure to use JVC battery packs.
NOT FORMATTED	● Select [OK] and select [YES] to perform formatting.
FORMAT ERROR!	● Check the operating procedure, and perform once again.● Turn off the camcorder, and turn it on again.
DATA DELETION ERROR
MEMORY CARD ERROR!	● Turn off the camcorder, and turn it on again.● Remove and re-insert the SD card. (MultiMediaCard cannot be used.)● Remove any dirt from the SD card terminals.● Insert the SD card before switching the power on.● If the problem persists, backup all data, and then perform formatting. (All data is deleted).
CANNOT TAKE MORE STILL IMAGES AT THE MOMENT	● Stop video recording, and then record a still image. (If an SD card is removed or inserted during video recording, a still image cannot be recorded.)
RECORDING FAILURE	● Turn off the camcorder, and turn it on again.
USE AC ADAPTER	● Use the AC Adapter as power supply.

Specifications

General

Power supply

DC 11 V (Using AC adapter)

DC 7.2 V (Using battery pack)

Power consumption

Approx. 1.8 W*

* When the LED light is off and the monitor

backlight is set to [STANDARD] mode.

Rated Current Consumption: 1A

Dimensions (W x H x D)

54.5 mm x 65 mm x 112.5 mm

(2-1/8" x 2-9/16" x 4-7/16")

Weight

Approx. 240 g (0.54 lbs)

Approx. 290 g (0.64 lbs) (incl. battery pack(incl. bat

and grip belt)

Operating temperature

0°C to 40°C (32°F to 104°F)

Storage temperature

-20^ to 50^ (-4^ to 122^)

Operating humidity

35% to 80%

■ Camera/LCD monitor

Pickup

1/6" (800,000 pixels) progressive CCD

Lens

F 1.8 to 4.0, f = 2.2 mm to 77.0 mm,

35:1 power zoom lens

Filter diameter

∅30.5 mm

LCD monitor

2.7" diagonally measured,

LCD panel/TFT active matrix system

LED Light

Within 1.5 m

(recommended shooting distance)

Connectors

AV output

Video output: 1.0 V (p-p), 75 Ω

Audio output: 300 mV (rms), 1 kΩ

USB

Mini USB type A and type B,

USB 2.0 compliant

■ AC adapter

Power requirement

AC 110 V to 240 V\~, 50 Hz/60 Hz

Output

DC 11 V ——, 1 A

■ Still image

Format

JPEG

Image size

1 mode: 832 x 624

Image quality

2 modes: FINE/STANDARD

■oryVideo

Signal format

NTSC standard

Recording/Playback format

Video: MPEG-2

Audio: Dolby Digital (2 ch)

Recording mode (video)

ULTRA FINE: 720 x 480 pixels, 8.5 Mbps (VBR)

FINE: 720 x 480 pixels, 5.5 Mbps (VBR)

NORMAL: 720 x 480 pixels, 4.2 Mbps (VBR)

ECONOMY: 352 x 240 pixels, 1.5 Mbps (VBR)

Recording mode (audio)

ULTRA FINE: 48 kHz, 384 kbps

FINE: 48 kHz, 384 kbps

NORMAL: 48 kHz, 256 kbps

ECONOMY: 48 kHz, 128 kbps

Design and specifications subject to change without notice.

Approximate recording time (for video)

Approximate number of storable images (for still image)

Mode	Recording medium		SD & SDHC Card
	Image size/Quality		256 MB	512 MB	1 GB	2 GB	4 GB	8 GB	16 GB	32 GB
	4.3	832 x 624 / FINE	970	1950	3950	7590	9999	9999	9999	9999
		832 x 624 / STANDARD	1450	2920	5930	9999	9999	9999	9999	9999
		640 x 480 / FINE	1450	2920	5930	9999	9999	9999	9999	9999
		640 x 480 / STANDARD	2080	4180	8480	9999	9999	9999	9999	9999
	16.9	640 x 360 / FINE	1820	3660	7420	9999	9999	9999	9999	9999
		640 x 360 / STANDARD	2420	4880	9890	9999	9999	9999	9999	9999

The recordable time and the number of still images are approximate and may differ depending on the recording environment, the condition of the SD card, or the remaining battery power.

hr: hour/min: minute

Required charging/recording time (approx.)

Battery pack	Charging time	Recording time
BN-VF808U(Provided)	1 hr. 50 min.	2 hr. 45 min.*
BN-VF815U	2 hr. 40 min.	5 hr. 25 min.*
BN-VF823U	3 hr. 40 min.	8 hr. 10 min.*

* When the LED light is off and the monitor backlight is set to [STANDARD] mode.

Cautions

AC Adapter

When using the AC adapter in areas other than the USA

The provided AC adapter features automatic voltage selection in the AC range from 110 V to 240 V.

USING HOUSEHOLD AC PLUG ADAPTER

In case of connecting the unit's power cord to an AC wall outlet other than American National Standard C73 series type use an AC plug adapter, called a "Siemens Plug", as shown. For this AC plug adapter, consult your nearest JVC dealer.

Plug Adapter

Pure electrical plug diagram without any text, numbers, or symbols

Battery Pack

The supplied battery pack is a lithium-ion battery. Before using the supplied battery pack or an optional battery pack, be sure to read the following cautions:

Terminals

Illustration of a mechanical component with a triangular tip and internal structure (no text or symbols)

• To avoid hazards

... do not burn.

... do not short-circuit the terminals. Keep it away from metallic objects when not in use. When transporting, make sure the provided battery cap is attached to the battery. If the battery cap is misplaced, carry the battery in a plastic bag.

... do not modify or disassemble.

... do not expose the battery to temperatures exceeding 60°C (140°F), as this may cause the battery to overheat, explode or catch fire. ... use only specified chargers.

• To prevent damage and prolong service life

... do not subject to unnecessary shock.

... charge within the temperature range of 10^ C to 35^ C ( 50^ F to 95^ F). This is a chemical reaction type battery — cooler temperatures impede chemical reaction, while warmer temperatures can prevent complete charging.

... store in a cool, dry place. Extended exposure to high temperatures will increase natural discharge and shorten service life.

... fully charge and then fully discharge the battery every 6 months when storing the battery pack over a long period time.

... remove from charger or powered unit when not in use, as some machines use current even when switched off.

RECYCLE RBRC Li-ion™ 7.800.822.8837

ATTENTION:

The battery you have purchased is recyclable. Please call 1-800-8-BATTERY for information on how to recycle this battery.

Recording Medium (SD Card)

- Be sure to follow the guidelines below to prevent corruption or damage to your recorded data.

• Do not bend or drop the recording medium, or subject it to strong pressure, jolts or vibrations.
• Do not splash the recording medium with water.
• Do not use, replace, or store the recording medium in locations that are exposed to strong static electricity or electrical noise.
• Do not turn off the camcorder power or remove the battery or AC adapter during shooting, playback, or when otherwise accessing the recording medium.
• Do not bring the recording medium near objects that have a strong magnetic field or that emit strong electromagnetic waves.
• Do not store the recording medium in locations with high temperature or high humidity.
• Do not touch the metal parts.

LCD Monitor

- To prevent damage to the LCD monitor, DO NOT

... push it strongly or apply any shocks.
... place the camcorder with LCD monitor on the bottom.

• To prolong service life

... avoid rubbing it with coarse cloth.

Main Unit

- For safety, DO NOT

... open the camcorder's chassis.
... disassemble or modify the unit.
... allow inflammables, water or metallic objects to enter the unit.
... remove the battery pack or disconnect the power supply while the power is on.
... leave the battery pack attached when the camcorder is not in use.
... place naked flame sources, such as lighted candles, on the apparatus.
... expose the apparatus to dripping or splashing.
... leave dust or metal objects adhered to the power plug or an AC wall outlet.
... insert any objects in the camcorder.

- Avoid using the unit

... in places subject to excessive humidity or dust.
... in places subject to soot or steam such as near a cooking stove.
... near appliances generating strong magnetic or electric fields (speakers, broadcasting antennas, etc.).
... in places subject to extremely high (over 40°C or 104°F) or extremely low (under 0°C or 32°F) temperatures.

• DO NOT leave the unit

... in places of over 50°C (122°F).
... in places where humidity is extremely low (below 35%) or extremely high (above 80%).
... in direct sunlight.
... in a closed car in summer.
... near a heater.
... in high places such as on a TV. Leaving the unit in high places while a cable is connected may result in a malfunction if the cable is caught and the unit falls onto the floor.
... place the camcorder in dusty or sandy areas, such as on a beach.

• To protect the unit, DO NOT

... allow it to become wet.
... drop the unit or strike it against hard objects.
... subject it to shock or excessive vibration during transportation.
... keep the lens directed at extremely bright objects for long periods.
... expose the lens to direct sunlight.
... swing it excessively when using the hand strap.
... swing the soft camcorder case excessively when the camcorder is inside it.

• To prevent the unit from dropping,

• Fasten the grip belt securely.
• When using the camcorder with a tripod, attach the camcorder to the tripod securely.
  If the camcorder drops, you may be injured and the camcorder may be damaged.
  When a child uses the unit, there must be parental guidance.

Declaration of Conformity

Model Number: GZ-MS120AU/BU/RU

Trade Name: JVC

Responsible party: JVC AMERICAS CORP.

Address: 1700 Valley Road Wayne, N. J. 07470

Telephone Number: 973-317-5000

This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not approved by JVC could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

This Class B digital apparatus complies with Canadian ICES-003.

Backlight Compensation 24 Battery Pack 16, 42

C

CD-ROM 10,29 Clock Adjust 16

D

Date/Time Setting .... 5 Daylight Saving Time .... 17 Deleting Files .... 26 Digest Playback .... 22 Dubbing Playback .... 34 DVD Backup .... 28 DVD Burner .... 27

E

Export to Library Mode 35

F

Finalize 27

|

iTunes 35

L

Language Setting .... 17 LCD Monitor .... 14, 42 LED Light .... 21

M

Manual Recording 24 Menu Settings 37

N

Number of Images 41

0

On-screen Recording Control 19 On-screen Zoom Control 21

P

Portable Media Player 35

Q

Quick Review 19,20

R

Recordable Time .... 41 Recording Medium .... 42 Remaining Battery Power .... 21 Remaining Recording Time .... 21

S

Speaker volume 22 SD Card 18

U

Uploading Files .... 36 USB Cable .... 27, 30

V

Viewing Files on TV 25

Y

YouTube 36

Z

Zoom 21

MEMO

Symbolic icon of a person lifting a ladder inside a circle (no text or symbols)

Diagram showing a digital camera module with an open screen and cable, connected to a device icon (no text or symbols present)

Diagram of a digital camera module with an open screen and cable, showing ports and wiring (no text or labels)

Two types of electrical connectors shown side by side, one with a power plug and cable, the other with a rectangular package (no text or symbols visible)

Labeled diagram of a digital camera module showing internal components and an external device with ports B and A.

Diagram of a device with numbered components and labeled ports, including a USB port and connector pin.

Technical diagram of a digital camera with numbered parts labeled 18, 19, and 20

Technical diagram of a device with numbered parts labeled 21 to 30

NOTA

1/4000 ±0 REVIEW W T LCD NOV. 1. 2009 4:55 PM

⑫ Fecha/hora (p. 16)

F (FINA), N (NORMAL), E (ECONÓMICA)

⑥ Tiempo restante

① ② ③ ④ FINE [9999] PHOTO ⑤ ⑥ ⑦

① Indicador de modo

Illustration of hands operating a handheld electronic device with cables and components (no text or symbols visible)

NOTA

Diagram showing a printer's internal structure with labeled parts and directional arrows indicating assembly or operation.

Borde recortado

Underwater scene with multiple fish swimming near rocks (no visible text or symbols)

Exterior view of a poolside with swimming chairs and a beachside structure (no signage or text visible)

[4 h 59 m] M A / M

Screenshot of a software interface with icons for file, folder, and buttons labeled REC and A/M

Illustration of a desktop computer setup with monitor, tower, and tower tower (no text or symbols)

Grabadora de DVD (CU-VD50/CU-VD3)

Evelo Software Setup Easy Installation All preferred software are installed on the optional setting by wireless devices. Custom Installation For preferred installation by filtering the selected software, destination location and so on. Read GUIDEBOOK Out

InstallShield/Visual Complete InstallShield closed to create Text HardwareIcon like: Image 25 and Image 25 can call for installation.

Clic Clic Clic Clic Dispositiva Monitor tool

Screenshot of a software interface with multiple image thumbnails and a dialog box containing Chinese text.

4 Haga clic en [Comienzo].

Screenshot of a software interface showing image thumbnails and a context menu with Chinese text options.

Screenshot of a legacy software interface showing a grid-based calendar with date and time fields, likely from an old application or calendar.

3 Haga clic en [+].

Combinar pellobas

Screenshot of a web-based content creation interface with a form input and navigation panel

June 5 4 9 12 13 18 17 18 19 20

Screenshot of a software interface showing a list of image thumbnails with Chinese labels, likely from an older document or presentation.

Introduction to update • Remove the new file to update • Remove the new file to update

Screenshot of a software interface showing file selection and image thumbnails with Chinese labels

Screenshot of a software interface showing image thumbnails and settings panels with Chinese labels

5 Haga clic en [Comienzo].

Screenshot of a software interface with multiple image thumbnails and control buttons, likely from an older application or presentation.

NOTA

ON UPLOAD REC

(2-1/8" x 2-9/16" x 4-7/16")

Peso

Aprox. 240 g (0,54 lbs)

Technical line drawing of a mechanical component with no visible text or symbols

RECYCLE RBRC Li-ion™ 7.800.822.8837

ATENCIÓN:

This Class B digital apparatus complies with Canadian ICES-003.
