USER MANUAL OLE 198 B-D4 OK

Front view of a modern flat-screen TV with a black screen and stand (no visible text or symbols)

Important safety instructions Important safety instructions

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

Please, read these safety instructions and respect the following warnings before the appliance is operated:

This TV with the weight of more than 20 kg must be lifted and carried by at least two people.

Be careful! This TV does not contain any parts which could be repaired by the user. In case of a fault, contact the producer or the authorized service. The contact with certain parts inside the appliance might endanger your life. The guarantee is not provided for the faults caused by non-professional interactions!

Do not remove the rear part of the appliance.

In order to prevent fi re spread, always keep candles and other open fl ames away from this product.

This appliance is designed for receiving and reproduction of video and sound signals. Any other use is strictly forbidden.

The ideal distance to watch TV is approximately five times longer of the diagonal of the screen. The light striking upon the screen from other light sources can cause reflections and make the quality of the picture worse.

Please, ensure the sufficient ventilation and appropriate distance of the appliance from other pieces of furniture.

The TV set is designed exclusively for the operation in a dry place. When using the appliance outside, please, make sure it is protected against moisture (rain, splashing water). Never expose the appliance to moisture.

- Do not place any containers with water on the appliance, such as vases, etc. These containers might get pushed over, which would endanger electric safety. Place the appliance exclusively on flat and stable surfaces. Do not place any objects such as newspaper or blankets, etc. on or under the appliance.

Make sure the appliance does not stand on any power cables as they might get damaged. Mobile phones and other devices such as WLAN adapters, monitoring cameras with wireless signal transmission, etc. might cause electromagnetic interference and they should not be placed near the appliance.

Do not place the appliance near heating elements or in a place with direct sunshine as it has a negative effect on

cooling of the appliance. Heat storage is dangerous and it can seriously reduce the lifetime of the appliance. In order to ensure the safety, ask the qualified person to remove the dirt from the appliance.

Try to prevent the mains cable or (if it is part of delivery) mains adapter damage. The appliance can only be connected with a supplied mains cable/adapter.

Storms are dangerous for all electric appliances. If the mains or aerial wiring is struck by the lightening, the appliance might get damaged, even if it is turned off. Thus you should disconnect all the cables and connectors of the appliance before the storm.

To clean the screen of the appliance use only a damp and soft cloth. Use only clean water, never detergents or in no case dissolvents.

Warning:

Never connect any external devices to a live appliance. Switch off not only the TV but also the devices which are being connected! Plug the appliance plug into the wall outlet after connecting the external devices and the aerial!

The product construction responds the protection class 1. Only a properly installed wall outlet with a guard wire (230 V\~/50 Hz) of public mains can be used as power source.

Always make sure there is free access to the appliance main switch and to its mains plug.

The appliance is not designed for a use in a workplace fitted with monitors.

The systematic use of headphones at high volume might lead to irreversible hearing damage.

- Ensure environmental disposal of this appliance and any components including batteries. When in doubt, please, contact your local authority for details of recycling.

While installing the appliance, do not forget that furniture surfaces are treated with various varnishes, plastics, etc. or they might be polished. The additions contained in these products might cause destruction of base material of appliance stand. This will result in the holdovers of this material stuck to the furniture surface, which are difficult to remove, if not even impossible.

The screen of your TV responds to the top quality requirements and it was checked in details for accidental faulty pixels several times. Due to the technological properties of the manufacturing process, it is not possible to eliminate the existence of a small number of faulty points on the screen for 100% (even with maximum care while production provided). These faulty pixels are not considered faults in terms of guarantee conditions, if their extent is not greater than the boundaries defined by DIN norm.

Important information regarding use of video games, computers, captions and other fixed image displays.

The extended use of fixed image program material can cause a permanent "shadow image" on LCD screen (this is sometimes incorrectly referred to as "burnout to the screen"). This shadow image is then permanently visible on the screen in the backro-und. It is a partly irreversible damage. You can avoid such a damage by respecting the following instructions:

Reduce the brightness/contrast setting to a minimum viewing level.

Do not display the fixed image for a long period of time. Avoid displaying of:

» Teletext time and charts,

» TV/DVD menu, e.g. DVD contents,

» In the „Pause“ mode (hold): Do not use this mode for a long time, e.g. while watching a DVD or a video.

» Turn off the appliance if you are not using it.

Important safety instructions

Batteries

Observe the correct polarity when inserting the batteries.

Do not expose batteries to high temperatures and do not place them on locations where the temperature might increase quickly, e.g. near the fire or on the direct sunshine.

Do not expose batteries to excessive radiant heat, do not throw them into the fi re, do not disassemble them and do not try to recharge unrechargeable batteries. They could leak out or explode.

» Never use different batteries together or mix new and old ones.

» Dispose of batteries in an environmentally friendly way.

» Most of the EU countries regulate the disposal of batteries by law.

Disposal

Do not dispose of this appliance as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to converse resources and protect the environment. Contact your retailer or local authorities for more information.

What is included in the box

Supply of this TV includes following parts:

1x TV 1x Remote control
2x AAA batteries 1x User guide
1x Stand1x Stand neck	1x RF cable
1 x TV stand installationpacket

Attaching the Stand

Please follow the instructions in the Stand installation leaflet, located in the accessories bag.

Wall mounting the TV

This television requires a VESA 100 wall mount, or equivalent.

1. Remove the four screws highlighted below.
2. The wall mount can now be easily attached to the mounting holes on the rear of the TV. These holes are indicated in the picture below.

Two identical diagrams showing a soccer field with six dots and one corner, no text or symbols present.

1. For optimum viewing, if wall mounting the TV higher than eye level, the TV should be tilted downwards so that the TV's screen is 'face on'. See fig 1 and 2

TV fi g 2fi g 1 CorrectWrong TV Viewing angleViewing angle

Important Note

Position the TV close to the wall to avoid the possibility of it falling when pushed.

The instructions shown below are a safer way to set up the TV, by fixing it to the wall, avoiding the possibility of it falling forwards if pulled. This will prevent the TV from falling forward and causing injury. This will also prevent the TV from damage.

This method is used if the TV is placed on a glass surface or you do not wish to screw anything into your furniture.

Ensure that children do not climb or hang onto the TV.

For this type of installation you will need a fastening chord

A) Using one/both of the top wall-mounting holes and screws (the screws are already supplied in the wall mounting holes) fasten one end of the fastening chord/s to the TV.
B) Secure the other end of the fastening chord/s to your wall.

Two computer monitors connected by wires, one open and one with cables (no text or symbols visible)

1

2 ON OFF

3 DTV RADIO USE DVD

First Time Installation Language English Country UK Environment EcGhme LCN On Auto Turning

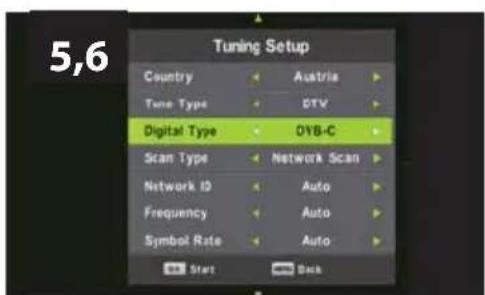

5,6 Tuning Setup Country Austria Time Type DTV Digital Type DYB-C Scan Type Network Scan Network ID Auto Frequency Auto Symbol Rate Auto Start Back

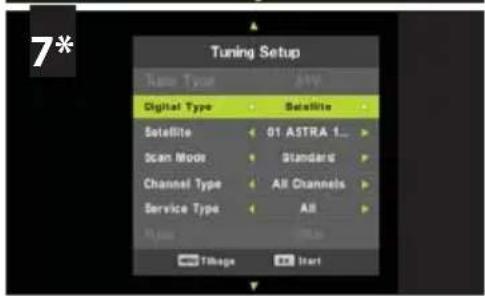

7* Tuning Setup Item Type ATV Digital Type Satellite Satellite 01 ASTRA 1... Scan Mode Standards Channel Type All Channels Service Type All Rise Tilbage Start

Getting started - initial set up

1. Using the RF cable supplied, connect the TV to the TV Aerial wall socket. Connect the power cable to the Electrical outlet.
2. Turn on the device with marked ON/OFF switch

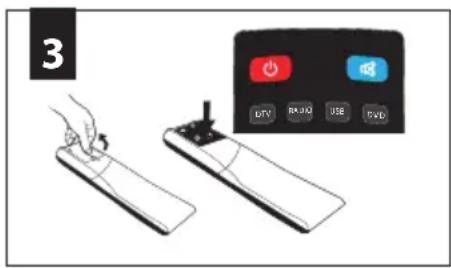

3. Insert the batteries supplied into the Remote control and press the Standby button to power on the TV.
4. You will now be welcomed with the initial set-up screen. If it does not appear, on the remote control, please press [MENU] then 8-8-8-8 and the menu will appear. Press OK on the remote control and tuning will start.

As part of our continuing efforts to reduce energy consumption, we added a new Ecohome feature (appears on the first installation screen). This function helps reduce energy consumption up 15% compared to other modes. The image brightness is reduced using Ecohome mode. If this setting does not suit your environment, you can choose from other modes (Note: the professional mode is the optimal default mode, but consumes 15% more than the Ecohome).

Please select desired language, country and environment. Set LCN* to ON if you want to arrange found channels by cable provider preferences (only applies to DVB-C channels).

Press [OK] button to start the tuning process.

1. In the next step select the type of digital broadcasting. You can choose between DVB-T (terrestrial), DVB-C (cable) or DVB-S2(satellite). The analog channel will be searched automatically, as most of the cable network includes analog channels.
2. Select DVB-C if your TV is connected to a cable TV network. Keep all default settings as it is recommended. Then press [OK] to start the search. If DVB-C channels are not found, contact your network provider for the valid "Network ID". Then perform a new search. Press the [MENU], select "Network ID" and enter the network ID. Start your search by clicking [OK].
3. Optional channel presets DVB-S2*: Select "Satellie" in the "Digital-type" in the menu for the optional channel presets. Here you can choose between the various satellites. Since selection completed, then the channel list of the exact satellite will be available to be imported into your TV system. This take several seconds. Conf i rm with [OK] button on the remote control, to start scanning. If you are missing channels, the reason for this is likely to be signal strength, you should consider connecting signal booster and re-tuning the TV.

Tip:

If the TV finds some, but not all, of the Digital channels, the TV is functioning correctly but the signal being received is not strong enough. (The signal strength needs to be above 85% - you can see the signal strength the TV is receiving when you change channels/ programmes) you will need to increase the signal reception in order to receive all of the channels available. The most economical way to do this is by purchasing and connecting a 'signal booster' in between the TV and the TV aerial socket. If this does not solve the problem, you will need to upgrade the TV aerial to a digital hi-gain compatible aerial.

* - Only for models with DVB-S tuner

Remote control

1. STANDBY - Switch on TV when in standby or vice versa.

MUTE – Mute the sound or vice versa.

DTV - Switch to digital TV source.

RADIO – Switch to Digital and switch between TV and radio in Digital mode.

USB - Switch to USB source.

DVD ^1 – Switch to DVD mode

1. 0 - 9 - to select a TV channel directly.

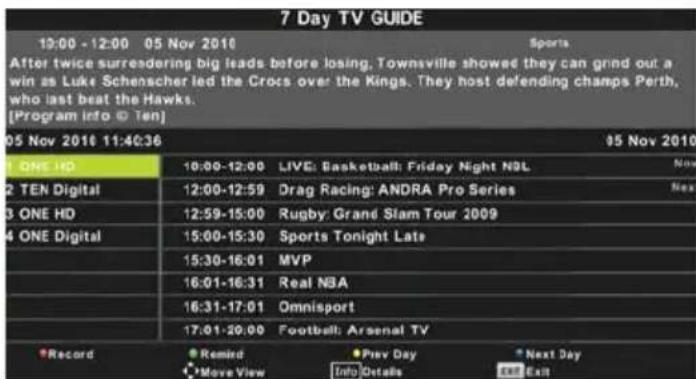

TV GUIDE – Opens the 7 Day TV Guide (Digital mode).

- To return to the previous channel viewed.

VOL ▲/▼ – To increase / decrease the sound level.

S.MODE - Scrolls through sound mode options

P.MODE - Scrolls through picture mode options

FAV – To display favourites menu.

CH ▲/▼ – To increase or decrease the channel being watched.

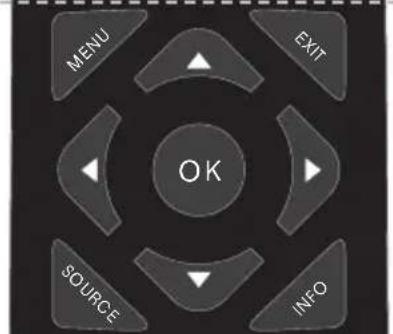

1. (▲/▼/◄/►/OK) – Allows you to navigate the on-screen menus and adjust the system settings to your preference.

MENU - To display OSD menu.

EXIT - To exit all menus.

SOURCE – To display the input/source menu.

INFO – Press once for now/next channel information. Press twice for programme information about current programme.

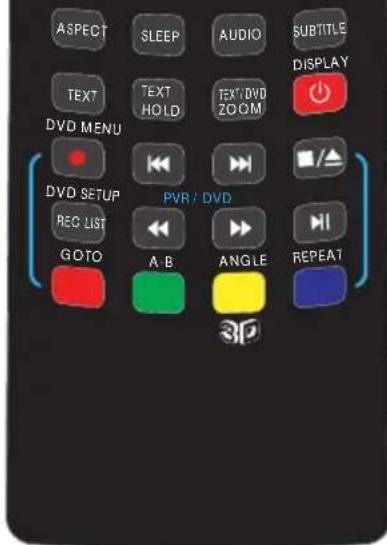

1. ASPECT – To switch the screen between the different picture formats.

SLEEP – Press repeatedly to cycle through the sleep options.

AUDIO - To change the audio language (if available).

SUBTITLE – To switch the dialogue at the bottom of the screen (on/off).

TEXT - Teletext mode - To enter Teletext

TEXT HOLD - Teletext mode - Hold current page which is displayed

TEXT DVD ZOOM - DVD mode - Teletext Mode - To zoom in -

DISPLAY – To switch off the screen when listening to radio

DVD MENU ^1 /Rec ^2 – DVD mode - To display the DVD disc menu PVR mode - PVR Record

DVD SETUP ^1 /Rec List ^2 – DVD mode - To display the DVD setup menu PVR mode - Opens the list of recordings.

- To restart the current chapter

▶▶- To advance forward to the next chapter

■ /▲- To stop the playback / Eject DVD.

- To play in fast rewind mode.

▶ – To play in fast forward mode.

▶- To play/pause

GOTO ^1 - DVD mode - To go to a specific chapter

A-B ^1 – DVD mode - Press once to set point, press a second time to return to point

ANGLE ^3 - DVD mode - Select different angle of DVD (if available)

REPEAT ^1 – DVD mode - To repeat playback

Red Green Yellow Blue button- Additional teletext and OSD functions

Yellow button ^3 - Switches between 3D type settings

1 - available only for TVs with DVD players

2 - available only with PVR function

3 - Available only for TVs with 3D function

1

DTV RADIO USB DVD 1 2 3 4 5 6 7 8 9 TV GUIDE 0 + P.MODE + VOL S.MODE CH FAV

3

MENU EXIT OK SOURCE INFO

4

ASPECT SLEEP AUDIO SUBTITLE DISPLAY TEXT TEXT HOLD TEXT/DVD ZOOM DVD MENU DVD Setup PVR / DVD REC LIST GOTO A B ANGLE REPEAT 3IP

TV buttons & Source menu

II◀	Play / Pause *
Vol+	Volume up and menu right
Vol-	Volume down and menu left
CH+	Programme/Channel up and menu up
CH-	Programme/Channel down and menu down
MENU	Displays Menu/OSD
SOURCE	Displays the input source menu
STANDBY	Standby Power On/Off

Connections

USBUSB-Input	HDMI 1, 2, 3* inHDMI-Input 1, 2, 3*
VGA(PC) *VGA PC-Input	VGA (PC) Audio In *3.5mm PC audio input
R/L - Video & YPbPr audio In *Component / Video audio input	Video (CVBS) *VIDEO Input
Mini YPbPr *Mini Component HD Input	YPbPr *Component HD Input
SCART *SCART-Input	CI Card INSCART input
RF InRF / TV Aerial Input	Sat In *Satellite Input
COAX Audio Out *Digital Coax output	HEADPHONES3.5mm Headphone output

* - Only on supported devices

Choosing Mode Input/Source

To switch between the different input/connections.

a) Using the buttons on the remote control:

1. Press [SOURCE/ AV] - The source menu will appear.
2. Press [▼] or [▲] to select the input you require.
3. Press [OK].

b) Using the buttons on the Television:

1. Press [SOURCE].
2. Scroll up / down using CH+/CH- buttons to the input/source you require.
3. Press Vol+ to change input/source to the one selected.

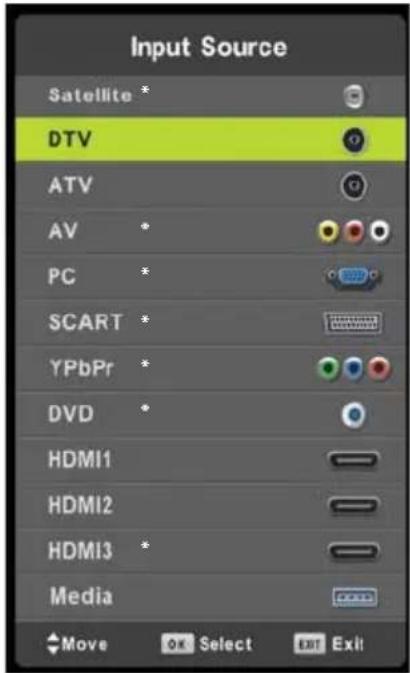

Input Source Satellite * DTV ATV AV * PC * SCART * YPbPr * DVD * HDMI1 HDMI2 HDMI3 * Media Move OK Select Exit

Connections

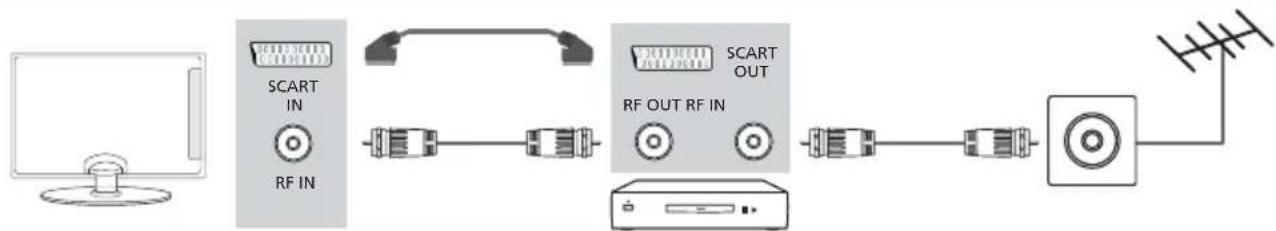

Connecting a DVD Player/Recorder, Video Recorder or Cable/Satellite Box

TVs Input/Source should be set to SCART.

Connecting a Camcorder, Camera or Games Console

TVs Input / Source should be set to Video.

Audio R/L Video (CVBS)

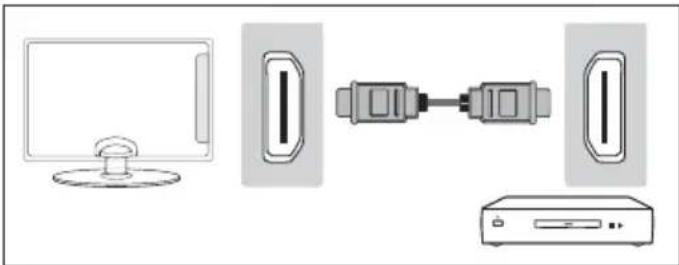

Connecting a High Definition (HD) Device by HDMI

Option 1 - via HDMI to HDMI cable. HDMI cable can output both video and audio and enables you to enjoy digital-quality video and audio with minimal loss of quality.

Diagram showing connection between a monitor, two USB connectors, and a printer (no text or symbols present)

Option 2 - via Component cable.

If your TV set has a component connectors (RED, GREEN, BLUE coloured sockets for video and RED & WHITE coloured sockets for sound), then use regarded YPrPb cable and RCA phono cable for video and sound connection. If TV set is equipped with mini Component connector, then you should use mini YPrPb cable adapter for video signal connection, as shown on the picture. Note: Cables for components connection are not supplied.

Y PB PR Mini YRSPY L R Y PB PR L R

Using the television as a computer monitor \*

Connect the VGA cable (not supplied) to the TV and then to your PC or laptop. In order to use the TV speakers, you connect your PC or laptop to the audio input IN of the TV, just over 3.5 mm jack (not included). The input source of the TV must be set to VGA.

Simple line drawing of a computer monitor with a stand (no text or symbols)

VGA IN AudiO IN VGA OUT AudiO OUT

* - only for devices with VGA connector

NOTE:

The unit without VGA connector shall not be used as a computer monitor, as it would be possible via HDMI.

TV Menu operation

TV Menu navigation

MENU EXIT OK SOURCE INFO

To access this menu, press [MENU] button on the remote control. To enter a menu press [OK]

If you wish to make changes to any of the default settings, use the scroll (▲/▼/◄/►) buttons. To confirm any settings press [OK] button.

To exit this menu at anytime, press [EXIT] button.

Channel

Auto Tuning ATV Manual Tuning DTV Manual Tuning Programme Edit Schedule List Signal Information CI Information Dish setup

Auto Tuning - Allows you to retune the television for all digital channels, digital radio stations and analogue channels.

ATV Manual Tuning - Allows you to manually tune your analogue signal.

DTV Manual Tuning- Allows you to manually tune your digital signal.

Programme Edit - Allows you to delete, skip and add favourite channels.

Schedule List - Lists your programme reminders.

Signal Information - Information about DVB signal.

CI Information - Pay per view services require a "smartcard" to be inserted into the TV. If you subscribe to a pay per view service the provider will issue you with a 'CAM' and a "smartcard". The CAM can then be inserted into the COMMON INTERFACE PORT (CI Card In).

Dish Setup* - This menu is only available in DVB-S2 mode. You can select the type of satellite, your transponder and your LNB type, etc.

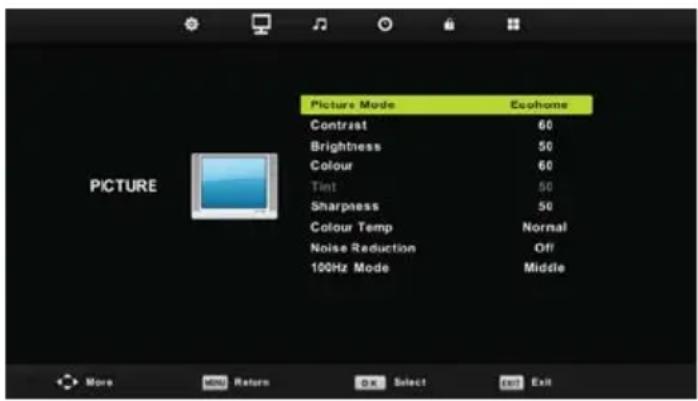

Picture Mode Contrast 60 Brightness 50 Colour 60 Tint 50 Sharpness 50 Colour Temp Normal Noise Reduction Off 100Hz Mode Middle More MENU Return On Select Exit Exit

Picture Mode - Choose from the following presets.

Standard Default settings

Dynamic Recommended settings for fast moving pictures

Mild Set to be lighter in colour and less bright

Personal Lets you manually alter all the settings

Ecohome Consume 15% less energy.

Contrast - Switch the balance between black and white.

Brightness - Increase or decrease the brightness of the picture.

Colour - Increases the colour from black and white.

Tint - Lets you increase or decrease the level of tint within the picture.

Sharpness - Increase or decrease the sharpness of the picture.

Colour Temperature - Choose from the following presets.

Normal Default settings

Warm Increases red within the picture

Cold Increases blue within the picturew

Noise Reduction - Choose from the following presets.

Off Turns noise reduction off
Low	Minor system adjustment
Middle	Medium system adjustments
High	Maximum system adjustments
Default Default settings

TV Menu operation

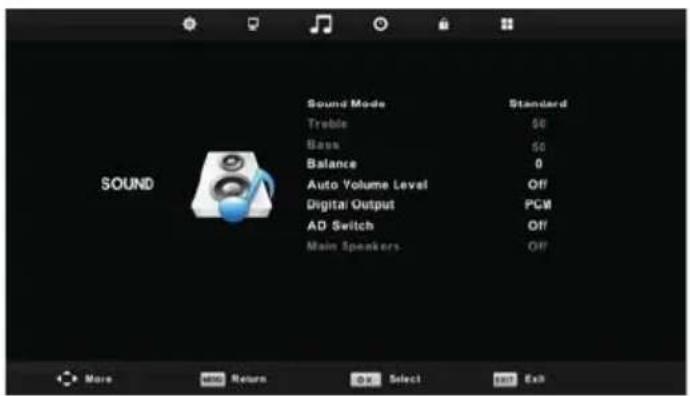

Sound

Sound Mode Treble Base Balance Auto Volume Level Digital Output AD Switch Main Speakers Standard 50 50 0 Off PLM Off Off More Return Select Ex

Sound Mode - Choose from the following presets:

Standard Default settings

Music Emphasises music over voices

Movie Provides live and full sound for movies

Personal Selects your personal sound settings

Sports Emphasises sound for sports

Tip: Treble and bass levels can only be adjusted when the sound mode 'Personal' is selected.

Treble - To adjust the level of high frequency within the sound.

Bass -To adjust the level of low frequency within the sound.

Balance - To switch the sound between the left and right speakers.

Auto Volume Level (AVL) - When 'on' is selected, the volume will stay at a constant level regardless of input/source.

Digital Output - This is the digital COAX Audio output. Choose from the following options:

Off	Off
Auto Selects the best settings automatically
PCM Select this option if you are connecting to a Stereo Hi-fi via coax cable (Pulse-code modulation (PCM) is a digital representation of an analogue signal)

AD Switch - Additional sound track for visually impaired. Available only on selected DTV shows.

Time

Clock Off Time Off On Time Off Time Zone CMT+1 Sleep Timer Off Auto Standby 4 H OSO Timer 30 S

Clock - Set the date and time. Date and time is set up automatically in DVB mode.

Off Time - Allows you to set a specific time for your TV to turn off.

On Time - Allows you to set a specific time for your TV to turn on, the channel it will then display, the source it will be on and also the volume. This function can then be toggled to repeat every day or a certain day.

Time Zone - Change your current time zone.

Sleep Timer - Lets you set the sleep timer so the television automatically switches off after a set amount of time. Off -> 10min -> 20min -> 30min -> 60min -> 90min -> 120min -> 180min -> 240min.

Auto standby - Adjustment for the auto standby in hourly increments: Off -> 3h -> 4h -> 5h.

OSD Timer - Lets you adjust the amount of time the On Screen Menu stays on the screen before disappearing.

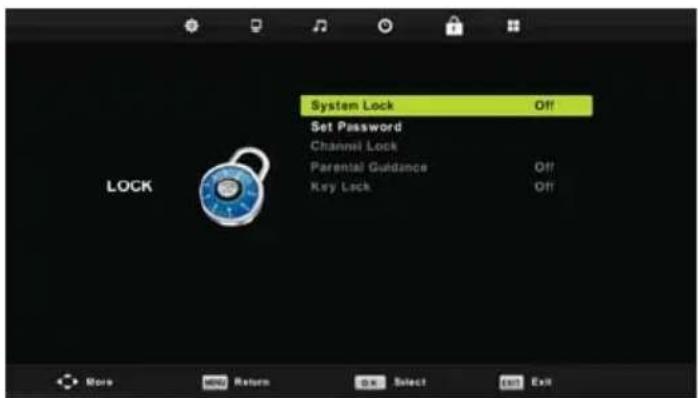

Lock

System Lock Set Password Channel Lock Parental Guidance Key Lock OFF OFF OK More Add Return Exit Select Exit Exit

System Lock - Allows you to lock or unlock the menu. You will be asked to enter a 4 digit password. Use the ◀ button o quit the password input. Use the ▶ button to clear. Default password is 0000.

Set Password - Change the default password.

Channel lock - Lock specifi c TV channels.

Parental Guidance - Lock TV channels based on age restriction.

Key Lock - Lock the TV buttons.

TV Menu operation

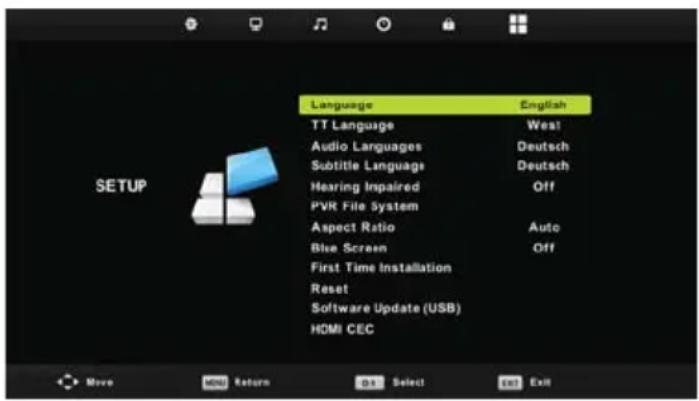

Setup

Language English TT Language West Audio Languages Deutsch Subtitle Language Deutsch Hearing Inpaired Off PVR File System Aspect Ratio Auto Blue Screen Off First Time Installation Reset Software Update (USB) HDMI CEC

Language - Allows you to change the language of the menu.

TT Language - Encoding settings for the proper display of teletext characters.

Audio Languages - Allows you to change audio language on selected DVB channels.

Subtitle Language - Allows you to change subtitles language on selected DVB channels.

Hearing Impaired - If signal provides support for the hearing impaired, the subtitles can be displayed by pressing the "Subtitle". If you set Hearing Impaired ON and switch to a channel with supports for hearing impaired subtitles will be activated automatically.

Aspect Ratio - Within the EU the picture format varies depending on the channel/broadcast. There are a number of different options to best meet your needs.

Auto Automatically displays the best picture format. So the picture is in the correct position. May have black lines at the top/bottom and/or sides.

4:3 Displays the 4:3 picture in its original size.Side bars are shown to fi ll the 16:9 screen.

16:9 Fills the screen with a regular 16:9 signal.

Zoom 1/2 The picture is the correct proportion but zoomed in to fi ll the screen.

Full Screen Stretch signal to fi ll the screen.

Blue Screen - Changes the background when there is no input between clear and a blue background (Only available on some sources).

First Time Installation - Starts the first time installation.

Reset - This resets the menus to factory settings.

Software Update (USB) - From time to time we may release new fi rmware to improve the operation of the television (available to download). This menu lets you install the new software/fi rmware onto the television. Further details of how to do this will be issued with the fi rmware. Contact the helpline or refer to the 'www.umc-slovakia.sk/products-support/' website.

HDMI CEC - Allows you to operate devices connected via HDMI with TV remote control.

Auto power - Automatically turn on/off connected devices via HDMI CEC

Device menu - Allows you to access devices menu and operate the menu using TV remote control.

HDMI ARC - Sends audio signal from terrestrial/satellite broadcast via HDMI to the AV receiver without using any additional audio cables, this functions is available only on HDMI 2 output.

HDMI CEC must be supported by connected device.

PC Settings \*

Screen Auto Adjust H-Offset 50 V-Offset 50 Size 50 Phase 14 Position Reset

Auto Adjust - Lets you automatically configure the television to be used as a computer monitor.

H Off set - Changes the horizontal position of the picture.

V Off set - Changes the vertical position of the picture.

Size - increase picture size.

Phase - To adjust delay time of phase in order to reduce the noise of picture

Position Reset - Changes back to the original settings

Tip: If the computer is left in-active for a period of time, the television will switch into a 'sleep' state (the screen will power off to save power). To switch back on press the standby button.

Tip: If you do not press any buttons for 10 seconds, the menu will automatically exit. You can change the length of time before the menu exits automatically - see 'OSD Timer' section.

* only for devices with VGA connector

TV Menu operation

7 Day TV Guide

7 Day TV GUIDE 19:00 - 12:00 05 Nov 2010 Sports After twice surrendering big leads before losing, Townsville showed they can grnd out a win as Luke Schenscher led the Crocs over the Kings. They host defending champs Perth, who last beat the Hawks. [Program info © Ten] 05 Nov 2010 11:40:36 $5 Nov 2010 ONE HD 10:00-12:00 LIVE: Basketball: Friday Night NBL Now TEN Digital 12:00-12:59 Drag Racing: ANDRA Pro Series Nex ONE HD 12:59-15:00 Rugby: Grand Slam Tour 2009 ONE Digital 15:00-15:30 Sports Tonight Late 15:30-16:01 MVP 16:01-16:31 Real NBA 16:31-17:01 Omnisport 17:01-20:00 Football: Arsenal TV Record Remird Play Day Next Day Move View Info Details Exit Exit

TV Guide is available in Digital TV mode. It provides information about forthcoming programmes (where supported by the Digital channel). You can view the start and end time of all programmes and on all channels for the next 7 days and set reminders.

1. Press [TV GUIDE]. The following 7 Day TV Guide will appear.

2. Navigate through the menu using ▲/▼/◄/►.

You can now:

Set a reminder by pressing GREEN.

View a previous day by pressing YELLOW.

View the next day by pressing BLUE.

[INFO] shows detailed information about the selected post

1. Press [EXIT] to exit the 7 day TV Guide.

USB mode / Media player

USB mode offers playback of various different types of content that you have saved on your USB Memory Stick. On switching to USB source the USB mode menu screen will appear. The content will be divided into Photo, Music, Movie and Text based on file type.

USB 2.0 PHOTO MUSC MOVIE TEXT

1. You can navigate through the menus using the scroll ▲/▼/◄/► buttons. To confirm the item you wish to play/view press [OK] button.

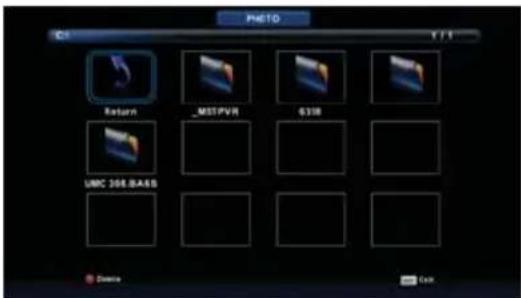

PHOTO Return C

1. Select the drive you require. (If your drive only has 1 partition you will only see 1 item).

File10 C:\ Return _MSTPVR S318 UMC 368-BASS Deluxe Exit

1. You can now access the item. Press OK to view.

PHOTO CA Return UMC 308.BAGS Resolution: 559 X 437 Size: 22 GB/px Name: -1.0 GB/px Time: 0:16:16 34020121129184809175.jpg

1. While viewing you may control the item playback modes by using the remote control buttons

or by invoking playback navigation menu and selecting on-screen buttons ▲/▼/◄/► and [OK]

TV Menu operation

DVD Menu\*

TEXT DVD MENU Text HOLD Text DVD ZOOM DVD SETUP PVR / DVD

To access this menu, press [D. MENU] button on the remote control. If you wish to make changes to any of the default settings, use the scroll ▲/▼/◄/► buttons. To confirm any settings press [OK] button.

To exit this menu at anytime, press [EXIT] button.

General Setup Page

TV Display - Choose from the following options

4:3PanScan	PS Traditional picture format, often used on old fi lm
4:3LetterBox	LB Traditional picture which has been adapted for widescreen
Wide Widescreen picture format

OSD Language - Select desired language

Audio Setup Page

Speaker Setup - Choose from the following options

LT/RT Set LT/RT Downmix

Stereo Set Stereo Downmix

Dolby Digital Page

Dual Mono

Stereo Outputs 2 channels of sound both left and right

Mono L Outputs left side sound

Mono R Outputs right side sound

Mix Mono Outputs a single channel of sound but mix between right and left

Dynamic Range - This is the difference between the quietest and loudest sounds. This setting works only with DVD discs recorded in Dolby digital.

Preference Page

TV Type - Choose from the following options

NTSC Normally used for discs from North America, Japan etc

PALThe standard for discs from UK/Europe, most of Asia, Australia etc

Multi For both NTSC and PAL

Default - This option allows you reset all DVD settings to factory settings.

Technical specifi cation

Model	OLE328B-D4, OLE328W-D4	OLE398B-D4 OLE328B-D4S OLE398B-D4S
Screen size (diagonal) 32"/81cm 39"/99cm 32"/81cm 39"/99cm
Resolution 1920 x 1080
Contrast Ratio 1400 3500 1400 3500
Brightness cd/m2	360 300 360 300
TV signal Inputs Antena 75 Ohm / PAL-SECAM Antena 75 Ohm / PAL-SECAM, DVB-S2
Video inputs	1 x SCART, 1 x CVBS/VIDEO, 1 x Component (YPbPr 1080p), 3x HDMI (1080p), 1x VGA/PC
Audio Inputs / Outputs	1 x 3,5 mm connector for PC audio input, 1 x L/R audio input Commonly used for CVBS/VIDEO and YPBPR (component), 1 x COAX – audio output, 1 x output for headphones
USB Port	1
Sound power, watts	2 x 9
Voltage / StandBy	AC 110V~240V; 50/60Hz; / 0,5W
Power consumption (Ecomode/Standard/Max)	40/60/80W	45/60/80W	40/60/80W	45/60/80W
Dimensions including stand (mm)	755 x 180 x 504	891 x 208 x 592	755 x 180 x 504	891 x 208 x 592
Dimensions without stand (mm)	755 x 66 x 460	891 x 73 x 538	755 x 66 x 460	891 x 73 x 538
Net weight (Kgs)	10,8 14,0	10,8 14,0

Model	OLE198B-D4	OLE228B-D4, OLE228W-D4	OLE228B-D4-DVD
Screen size (diagonal)	18.5"/47cm	21.5"/55cm	21.5"/55cm
Resolution	1366 x 768	1920 x 1080	1920 x 1080
Contrast Ratio	1000
Brightness cd/m2	250
TV signal inputs	Antena 75 Ohm / PAL-SECAM
Video inputs	1 x SCART, 1 x CVBS/VIDEO, 1 x Component (YPbPr 1080p), 2x HDMI (1080p)
Audio Inputs / Outputs	1 x L/R audio input Commonly used for CVBS/VIDEO and YPBPR (component), 1 x output for headphones
USB Port	1
Sound power, watts	2 x 3
Voltage / StandBy	AC 110V~240V; 50/60Hz; / 0,5W
Power consumption (Ecomode/Max)	17W/35W	21/40W	21/50W
Dimensions including stand (mm)	454 x 195 x 340	526 x 194 x 377	526 x 194 x 377
Dimensions without stand (mm)	454 x 50 x 300	526 x 45 x 337	526 x 45 x 337
Net weight (Kgs)	3	3,6 4,10

Frequently asked questions

General I would like to have louder sound by connecting additional speakers.	There are 2 options:1) Use Digital COAX output connected to an external amplifier/surround sound system.2) Use the 3.5mm headphone output and a 3.5mm to phono cable (available separately) to connect to an amplifier/surround sound system.
General Why are some options in the menu unavailable and greyed out.	Some options are only available in certain sources, i.e. HDMI, PC/VGA. They are unavailable in the other sources where they have no effect.
TV I have tuned in Digital TV but I am not receiving any or all of the channels and/or the channels I receive are breaking up.	1) Check you are in an area that can receive Digital TV.2) Check you are using an aerial that is able to receive a good digital signal. In most cases, you will need an outdoor digital hi-gain/wideband aerial. In areas that have excellent digital coverage, you may be able to use a loft type aerial but it is highly likely that you will also need to connect a booster between the back of the TV and the TV aerial wall socket. Unfortunately, to receive a good enough digital signal, it is not possible to use a portable/indoor type aerial.
TV I have re-tuned my television but when I switch it off it is not storing the channels.	Complete a first time installation, please refer to the set-up menu section of the manual of how to do this.
VCR/DVD Recorder I have connected the TV to my VCR or DVD Recorder via SCART but it is not recording.	In addition to connecting via SCART, you should connect the aerial cable from the wall socket to your VCR/DVD Recorder and another aerial cable from the VCR/DVD Recorder to the TV.
Game Consoles I have connected my PS3 to the TV via HDMI, but I am not receiving any pictures or sound on my Television.	1) Ensure the TVs source is on HDMI.2) Check your settings on your PS3 are as per the PS3 instruction manual.
Game Consoles I have connected my Xbox 360 to the TV via Component Cables (Red, Green & Blue) but I am not receiving any sound.	Component cables only provide HD Pictures. For the sound you will need to connect the Red & White audio cables on the Xbox to the Red & White phono inputs on the rear of the TV. Please refer to the 'Connections' pages.

Two computer monitors connected by wires, shown from different angles (no text or symbols visible)

1

Illustration of a computer monitor with a stand and an arrow labeled 'ON OFF' (no text or symbols on the monitor itself)

3 DTV RADIO USE FWD

DISPLAY – To switch off the screen when listening to radio

DVD MENU ^1 /Rec ^2 – DVD-Modus - Anzeige des DVD-Menüs.

MENU EXIT OK SOURCE INFO

4

ASPECT SLEEP AUDIO SUBTITLE DISPLAY TEXT TEXT HOLD TEXT/DVD ZOOM DVD MENU DVR / DVD REC LIST GOTO A B ANGLE REPEAT 3P

TV - Tasten

Diagram showing connection between a monitor, USB connector, and CD-ROM (no text or symbols)

MENU EXIT OK SOURCE INFO

USB Multimedia Player

Two identical diagrams showing a soccer field with six dots and one off the ground, no text or symbols present.

Two computer monitors connected by wires, one with a pointer and the other with a label '3' (no text or symbols on screens)

1

2 CN OFF

3 QTV RADIO USB DVD

DTV - Switch to digital TV source.

RADIO – Switch to Digital and switch between TV and radio in Digital mode.

Red Green Yellow Blue button- Additional teletext and OSD functions

Yellow button ^3 - Switches between 3D type settings

1 DTV RADIO USB DVD 2 1 2 3 4 5 6 7 8 9 TV GUIDE 0 P.MODE + + S.MODE +CH VOL FAV MENU EXIT OK SOURCE INFO 3 4 ASPECT SLEEP AUDIO SUBTITLE TEXT TEXT TEXT DVD DISPLAY DVD MENU HOLD ZOOM DVD SETUP PVR / DVD REC LIST ▼ ▼ ▼ ▼ ▼ ▼ GOTO A.B ANGLE REPEAT 3P

Diagram showing a computer monitor connected to two USB connectors and a CD-ROM (no text or symbols present)

* - only for devices with VGA connector

MENU EXIT OK SOURCE INFO

Size - increase picture size.

Phase - To adjust delay time of phase in order to reduce the noise of picture

Position Reset - Changes back to the original settings

PHOTO Rearout C

PHOTO C1 RETURN MSTPVR ESR PSTEN_HS_UBC UBC 356.SASS movie movie photo

G./D. Lt/Rt downmix

Stéréo Stereo downmix

Réglage Dolby D

Dual Mono -
