USER MANUAL 3D A INDESIT

Diagram illustrating kitchen appliance door panel installation steps with labeled components and directional arrows

2

Diagram showing a container with rotating arm and two circular insets illustrating mechanical components or positioning.

3

Diagram illustrating kitchen appliance assembly steps with labeled parts and directional arrows

4

Diagram of a multi-level storage cabinet with shelves and drawers, no text or symbols present

Illustration of a can being placed on a surface, showing mechanical components (no text or symbols)

Line drawing of a door with ventilation slots and a handle (no text or symbols)

Filtro anti-odori\*

Diagram of a mechanical assembly with a textured block and directional arrow (no text or symbols)

Diagram showing a screwdriver inserted into a component with arrows indicating direction (no text or symbols present)

Positioning and connection

Reversible doors

Description of the appliance, 13-14

Control panel

Overall view

Start-up and use, 15-16

Starting the appliance

Chiller system

Using the refrigerator to its full potential

Using the freezer to its full potential

Maintenance and care, 17

Switching the appliance off

Cleaning the appliance

Avoiding mould and unpleasant odours

Replacing the I Odour filter

Replacing the light bulb

Precautions and tips, 18

General safety

Disposal

Respecting and conserving the environment

Troubleshooting, 19

Assistance, 20

GB

! Before placing your new appliance into operation please read these operating instructions carefully. They contain important information for safe use, for installation and for care of the appliance.

! Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance.

Positioning and connection

Positioning

1. Place the appliance in a well-ventilated humidity-free room.
2. Do not obstruct the rear fan grills. The compressor and condenser give off heat and require good ventilation to operate correctly and save energy.
3. Leave a space of at least 10 cm between the top part of the appliance and any furniture above it, and at least 5 cm between the sides and any furniture/side walls.
4. Ensure the appliance is away from any sources of heat (direct sunlight, electric stove, etc.).
5. In order to maintain the correct distance between the appliance and the wall behind it, fit the spacers supplied in the installation kit, following the instructions provided.

Levelling

1. Install the appliance on a level and rigid floor.
2. If the floor is not perfectly horizontal, adjust the refrigerator by tightening or loosening the rear feet.

Electrical connections

After the appliance has been transported, carefully place it vertically and wait at least 3 hours before connecting it to the electricity mains. Before inserting the plug into the electrical socket ensure the following:

• The appliance is earthed and the plug is compliant with the law.
• The socket can withstand the maximum power of the appliance, which is indicated on the data plate located on the bottom left side of the fridge (e.g. 150 W).
• The voltage must be in the range between the values indicated on the data plate located on the bottom left side (e.g. 220-240V).
• The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it (see Assistance). Do not use extension cords or multiple sockets.

! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible.

! The cable must not be bent or compressed.

! The cable must be checked regularly and replaced by authorised technicians only (see Assistance).

! The manufacturer declines any liability should these safety measures not be observed.

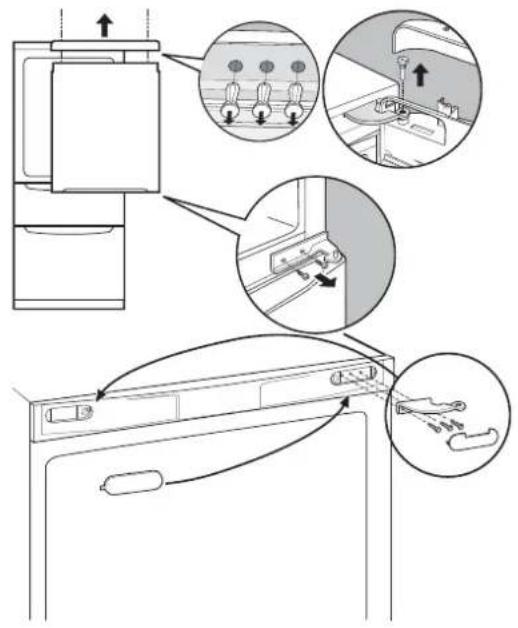

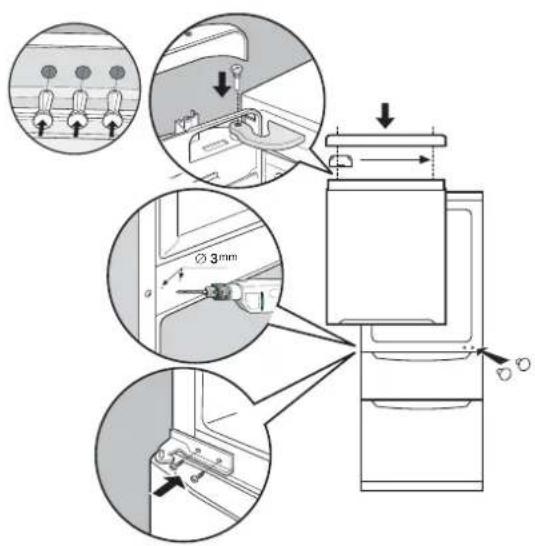

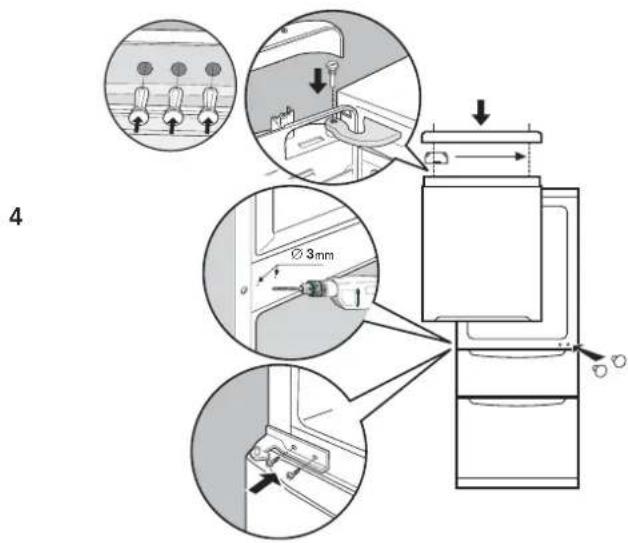

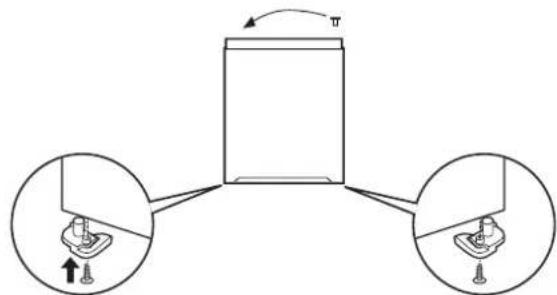

Reversible doors

1

Diagram illustrating kitchen appliance door panel installation steps with labeled components and directional arrows

2

3

Diagram showing a device with two circular insets highlighting mechanical components, likely illustrating a mechanical or electrical system.

4

Technical diagram illustrating a mechanical assembly with labeled parts and directional arrows indicating motion or assembly steps.

Description of the appliance

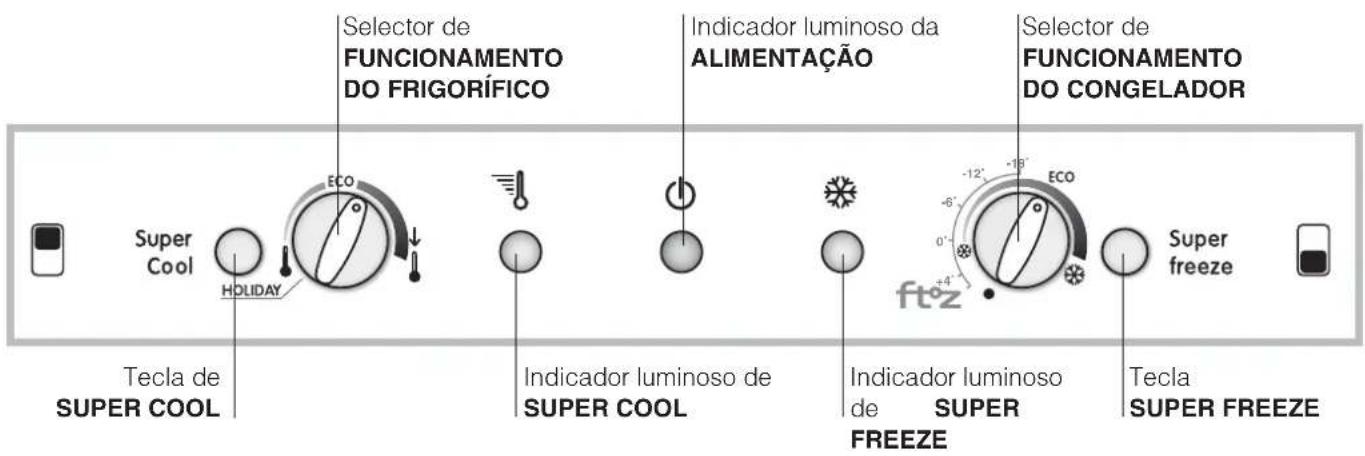

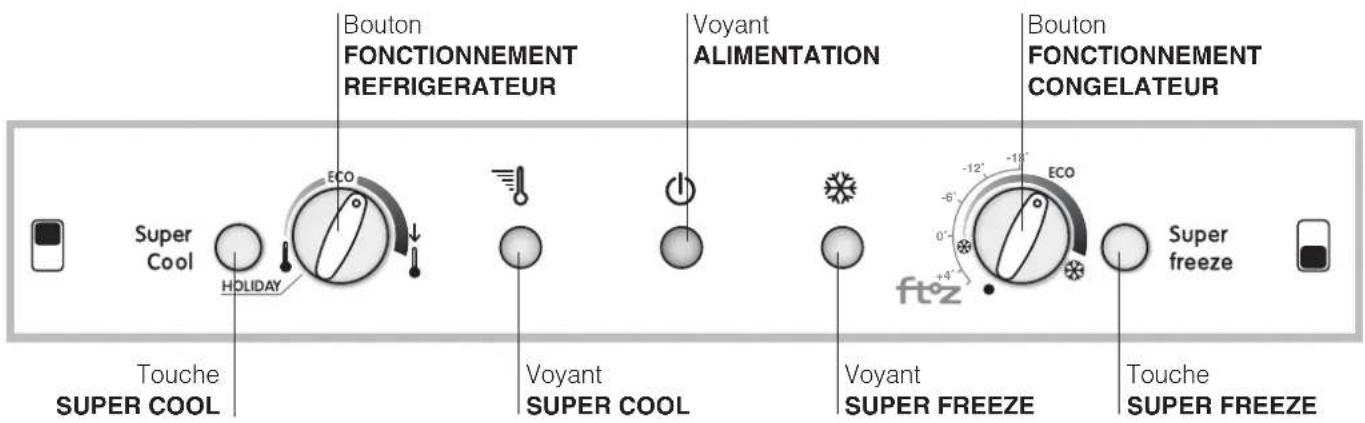

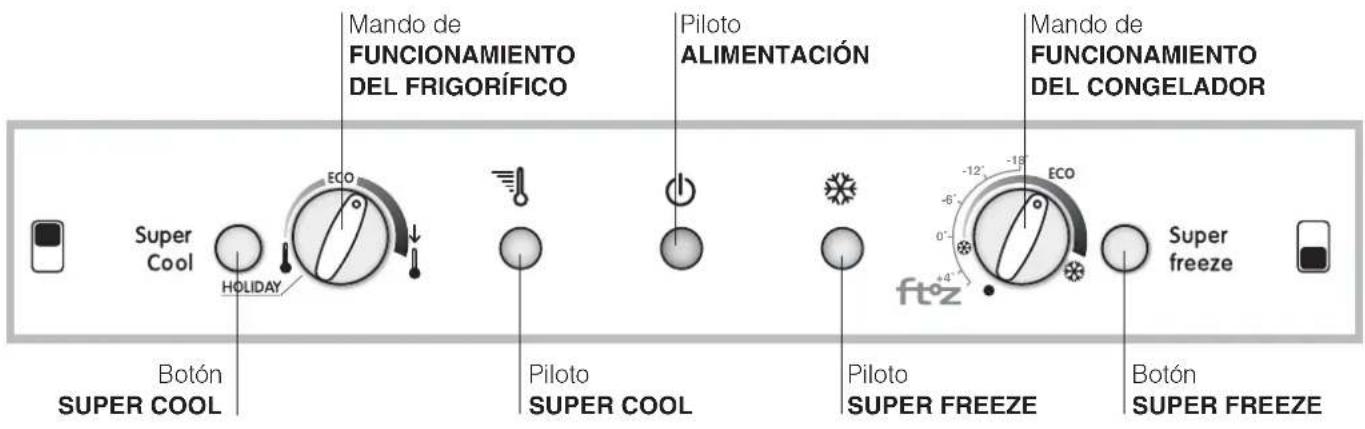

Control panel

GB

REFRIGERATOR OPERATION Knob POWER Indicator light FREEZER OPERATION Knob Super Cool ECO HOLIDAY SUPER COOL Button SUPER COOL Indicator light SUPER FREEZE Indicator light SUPER FREEZE Button

• SUPER COOL (quick cool) to lower the temperature of the refrigerator compartment rapidly. When it is pressed, the SUPER COOL indicator light illuminates (see Start-up and use).
  • REFRIGERATOR OPERATION Knob to regulate the temperature of the refrigerator compartment:

ECO is the optimal temperature for energy saving levels.

HOLIDAY is the holiday function (see Maintenance and care).

• SUPER COOL Yellow indicator light (rapid cooling) illuminates when the SUPER COOL button is pressed.

• POWER Indicator light illuminates when the appliance is connected to the electricity network.

• SUPER FREEZE Yellow indicator light (rapid freezing) illuminates when the SUPER FREEZE button is pressed.

• FREEZER OPERATION Knob to regulate the temperature of the freezer compartment:

* warmer.
colder.

ECO is the optimal temperature for energy saving levels.

● switches the appliance off, including the refrigerator.

(see Using the freezer to its full potential)

- SUPER FREEZE button (rapid freezing) to freeze fresh food. When it is pressed, the SUPER FREEZE indicator light illuminates (see Start-up and use).

! The indicator lights are also used to indicate an unusual temperature increase in the freezer compartment (see Troubleshooting).

Description of the appliance

GB

Overall view

The instructions contained in this manual are applicable to different model refrigerators. The diagrams may not directly represent the appliance purchased. For more complex features, consult the following pages.

LAMP (see Maintenance) SHELVES* WINE RACK* FLEX COOL BOX for MEAT and CHEESE* FRUIT and VEGETABLE bin FTZ compartment, FREEZER and STORAGE compartment FREEZER and STORAGE compartment STORAGE compartment Removable lidded shelf with EGG TRAY Removable multipurpose SHELVES* CAN RACK shelves* BOTTLE shelf

• Varies by number and/or position.
  * Available only on certain models.

Starting the appliance

! Before starting the appliance, follow the installation instructions (see Installation).

! Before connecting the appliance, clean the compartments and accessories well with lukewarm water and bicarbonate.

! The appliance comes with a motor protection control system which makes the compressor start approximately 8 minutes after being switched on. The compressor also starts each time the power supply is cut off whether voluntarily or involuntarily (blackout).

1. Set the FREEZER OPERATION knob on ●.
2. Insert the plug into the socket and ensure that the green POWER indicator light illuminates.
3. Turn the FREEZER OPERATION knob to an average value and press the SUPER FREEZE button (rapid freezing): the SUPER FREEZE indicator light will illuminate. Once the refrigerator has reached the optimal temperature, the indicator light goes out and you can begin food storage.
4. Turn the REFRIGERATOR OPERATION knob to an average value. After a few hours you will be able to put food in the refrigerator.

Chiller system

Architectural floor plan showing three stacked compartments with drawers and fixtures (no text or labels)

No Frost

The No Frost system circulates cold air continuously to collect humidity and prevent ice and frost formation. The system maintains an optimal humidity level in the compartment, preserving the original quality of the food,

preventing the food from sticking together and making defrosting a thing of the past. Do not block the aeration cells by placing food or containers in direct contact with the refrigerating back panel. Close bottles and wrap food tightly.

Using the refrigerator to its full potential

• Use the REFRIGERATOR OPERATION knob to adjust the temperature (see Description).
• Press the SUPER COOL button (rapid cooling) to lower the temperature quickly. For example, when you place a large number of new food items inside a fridge the internal temperature will rise slightly. The function quickly cools the groceries by temporarily reducing the temperature until it reaches the ideal level.
• Place only cold or lukewarm foods in the compartment, not hot foods (see Precautions and tips).
• Remember that cooked foods do not last longer than raw foods.
• Do not store liquids in open containers. They will increase humidity in the refrigerator and cause condensation to form.

1 2

SHELVES: with or without grill. Due to the special guides the shelves are removable and the height is adjustable (see diagram), allowing easy storage of large containers and food. Height can be adjusted without complete removal of the shelf.

FLEX COOL BOX*: This is the new box to keep meat, fish and cheese fresh. When positioned in the "lower" part of the fridge compartment, it is ideal for meat and fish; when moved to the "top" part of the fridge, it is perfect for cheese. It can be taken out of the fridge when it is not needed.

Illustration of a cylindrical can being placed on a surface, with no visible text or symbols

CAN RACK shelf: stores cans horizontally (see diagram). Yoghurt, butter or general containers may also be stored here.

Simple line drawing of a door with ventilation slots and a handle (no text or symbols)

ODOUR FILTER*: Some models are fitted with a new odour filter with active carbons, which ensures better air quality inside the refrigerator. The filter is located on the bottom right-hand side, inside

the ventilation opening.

* Available only on certain models.

Using the freezer to its full potential

• Use the FREEZER OPERATION knob to adjust the temperature (see Description).
• Do not re-freeze food that is defrosting or that has already been defrosted. These foods must be cooked and eaten (within 24 hours).
• Fresh food that needs to be frozen must not come into contact with food that has already been defrosted.
• Do not place glass bottles which contain liquids, and which are corked or hermetically sealed in the freezer because they could break.
• The maximum quantity of food that may be frozen daily is indicated on the plate containing the technical properties located on the bottom left side of the refrigerator compartment (for example: Kg/24h: 4).
• The top drawer can be used to store several types of food (semifreddo frozen desserts, ice creams and alcohol) at the most suitable temperature; the lower drawer (see overall view) is designed to store frozen food in normal conditions.

To freeze food (if the freezer is already in operation), deactivate the FTZ and empty the top drawer, press the rapid-freezing SUPER FREEZE button (the corresponding LED lights up), place the food inside and close the drawer. The function is deactivated automatically after 24 hours or when the optimal temperatures have been reached (LED switches off). The food may now be moved to the lower drawer (so that the FTZ functions may be used) or left in the FTZ compartment which, when left inactive, will function as a normal storage compartment.

! to avoid blocking the air circulation inside the freezer compartment, it is advisable not to obstruct the ventilation holes with food or containers.

! Do not open the door during freezing.

! If there is a power cut or malfunction, do not open the freezer door. This will help maintain the temperature inside the freezer, ensuring that foods are conserved for at least 9-14 hours.

TVZ compartment

The FTZ is a special compartment in the freezer which allows the user to choose between 6 different operating modes that may be set according to specific requirements and the type of food stored inside. The temperature settings available are +4°C, 0°C, -6°C, -12°C and -18°C; these options are displayed on the control panel (FREEZER COMPARTMENT knob). The FTZ has an independent control feature; it may also be deactivated using the control panel, for use as a normal freezer compartment.

Switching the appliance off

During cleaning and maintenance it is necessary to disconnect the appliance from the electricity supply:

1. set the FREEZER OPERATION knob on ●

2. pull the plug out of the socket

! If this procedure is not followed, the alarm may sound. This alarm does not indicate a malfunction. To restore normal operation, it is sufficient to set the FREEZER OPERATION knob on the desired value. To disconnect the appliance, follow point 1 and 2.

Cleaning the appliance

• The external and internal parts, as well as the rubber seals may be cleaned using a sponge that has been soaked in lukewarm water and bicarbonate of soda or neutral soap. Do not use solvents, abrasive products, bleach or ammonia.
• The removable accessories may be soaked in warm water and soap or dishwashing liquid. Rinse and dry them carefully.
• The back of the appliance may collect dust which can be removed by delicately using the hose of a vacuum cleaner set on medium power. The appliance must be switched off and the plug must be pulled out before cleaning the appliance.

Avoiding mould and unpleasant odours

• The appliance is manufactured with hygienic materials which are odour free. In order to maintain an odour free refrigerator and to prevent the formation of stains, food must always be covered or sealed properly.
• If you want to switch the appliance off for an extended period of time, clean the inside and leave the doors open.

Holiday function

To minimise energy usage when on holiday, it is not necessary to switch the appliance off. The appliance has a function which allows it to maintain the temperature of the refrigerator compartment at approximately 15^ C (which can also be used to conserve make-up and beauty products). The freezer temperature must be set to the minimum value in order to preserve the food.

ECO HOLIDAY

To enable the function: set the REFRIGERATOR OPERATION knob on

HOLIDAY (see diagram). A double acoustic signal informs you when it has been enabled. A single acoustic signal informs you when it has been disabled.

Replacing the I Odour filter

The filter should be replaced after approximately 6-8 months from when it is activated. This period may vary depending on the type of food that is stored. For information on where a replacement filter may be purchased, contact Assistance (see Assistance). To replace the filter, follow the instructions (see diagrams A and B).

A

Diagram of a microfluidic device with a sensor array and an upward arrow, no text or symbols present

Replacing the light bulb

To replace the light bulb in the refrigerator compartment, pull out the plug from the electrical socket. Follow the instructions below.

Access the light bulb by removing the cover as indicated in the diagram.

Replace it with a similar light bulb within the power range indicated on the cover (10W).

Illustration of a screwdriver inserted into a component with arrows indicating direction (no text or symbols)

! The appliance was designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully.

This appliance complies with the following Community Directives:

- 73/23/EEC of 19/02/73 (Low Voltage) and subsequent amendments;

-89/336/EEC of 03.05.89 (Electromagnetic Compatibility) and subsequent amendments; - 2002/96/CE..

General safety

- The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.

- The appliance must be used to store and freeze food products by adults only and according to the instructions in this manual.

- The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms.

- Do not touch the appliance with bare feet or with wet or moist hands and feet.

- Do not touch the internal cooling elements: this could cause skin abrasions or frost/freezer burns.

- When unplugging the appliance always pull the plug from the mains socket, do not pull on the cable.

- Before cleaning and maintenance, always switch off the appliance and disconnect it from the electrical supply. It is not sufficient to set the temperature adjustment knobs on (appliance off) to eliminate all electrical contact.

- In the case of a malfunction, under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance.

- Do not use utensils other than the scraper provided, or electrical equipment which is not of the type specified by the manufacturer, inside the frozen food storage compartments.

- Do not put ice cubes taken directly from the freezer into your mouth.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

- Keep packaging material out of the reach of children! It can become a choking or suffocation hazard.

Disposal

- Observe local environmental standards when disposing packaging material for recycling purposes.

- The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Respecting and conserving the environment

• Install the appliance in a fresh and well-ventilated room. Ensure that it is protected from direct sunlight and do not place it near heat sources.

- Try to avoid keeping the door open for long periods or opening the door too frequently in order to conserve energy.

- Do not fill the appliance with too much food: cold air must circulate freely for food to be preserved properly. If circulation is impeded, the compressor will work continuously.

- Do not place hot food directly into the refrigerator. The internal temperature will increase and force the compressor to work harder and will consume more energy.

- Defrost the appliance if ice forms (see Maintenance). A thick layer of ice makes cold transference to food products more difficult and results in increased energy consumption.

- Regularly check the door seals and wipe clean to ensure they are free of debris and to prevent cold air from escaping (see Maintenance).

Malfunctions:

The green POWER indicator light does not illuminate.

The motor does not start.

The indicator lights are on but the light is dim.

a) The alarm sounds.

b) The alarm sounds and the two yellow indicator lights flash. c) The alarm sounds and the two yellow indicator lights as well as the green one flash.

+ buzzer Heating is excessive + buzzer Heating danger

Possible causes / Solutions:

- The plug has not been inserted into the electrical socket, or not far enough to make contact, or there is no power in the house.

- The appliance comes with a motor protection control (see Start-up and use).

- Pull out and reverse the plug before putting it back in the socket.

a) The refrigerator door has remained open for more than two minutes (the buzzer will stop sounding when you shut the door) or the correct switching-off procedure was not followed (see Maintenance).

b) The temperature in the freezer is too high. Check the quality of the food products and dispose if necessary.

c) The temperature in the freezer has reached a dangerous level. The food must be disposed immediately.

b/c) In the first case the freezer will maintain a temperature of about 0^ C so that the food does not re-freeze. In the second case, however, the temperature will remain at approximately -18^ C. To turn off the acoustic signal open and close the refrigerator door. To restore normal operation bring the FREEZER OPERATION knob setting to ● (off) and turn the appliance on again.

The green POWER indicator light flashes.

The refrigerator and the freezer do not cool well.

The food inside the refrigerator is beginning to freeze.

The motor runs continuously.

The appliance makes a lot of noise.

Some of the external parts of the refrigerator become hot

- The appliance is not operating correctly. Contact the Technical Assistance Centre.

- The doors do not close properly or the seals are damaged.

- The doors are opened too frequently.

- The OPERATION knobs are not on the correct setting (see Description).

- The refrigerator or the freezer have been over-filled.

- The REFRIGERATOR OPERATION knob is not on the correct setting (see Description).

- The food is in contact with the back inside wall of the refrigerator.

- The SUPER FREEZE button has been pressed (rapid freezing): the yellow SUPER FREEZE light is on (see Description).

- The door is not closed properly or is continuously opened.

- The outside ambient temperature is very high.

- The appliance has not been installed on a level surface (see Installation).

- The appliance has been installed between cabinets that vibrate and make noise.

- The internal refrigerant makes a slight noise even when the compressor is off. This is not a defect, it is normal.

Before calling for Assistance:

• Check if the malfunction can be solved on your own (see Troubleshooting).
• If after all the checks, the appliance still does not operate or the problem persists, call the nearest Service Centre

Communicating:

• type of malfunction
• appliance model (Mod.)
• serial number (S/N)

This information can be found on the data plate located on the bottom left side of the refrigerator compartment.

model serial number Mod. RG 2330 220 - 240 V- 50 Hz 150 TI Cod. 93139180000 S/N 704211801 W W Fuse A Max 15 W Total 340 Gross Bruto Brut Gross Bruto Brut 75 Net Util Utilie Gross Bruto Brut Freez. Capac Poder de Cong kg/24 h 4,0 Class N Classe Compr. Syst. Kompr. R 134 a kg 0,090 Test Pressure HIGH-235 LOW 140 Made in Italy 13916

Never call on unauthorized and always refuse spare parts which are not originals.

Italiano, 1

English, 11

Français, 21

Espanol, 31

Portuges, 41

Ελληνικά, 51

3D A FTZ

3D A NX FTZ

Sommaire

Installation, 22

Diagram illustrating kitchen appliance door panel installation steps with labeled components and directional arrows

3

4 3mm

Tableau de bord

F

Bouton FONCTIONNEMENT REFRIGERATEUR Voyant ALIMENTATION Bouton FONCTIONNEMENT CONGELATEUR Super Cool ECO HOLIDAY Touche SUPER COOL Voyant SUPER COOL Voyant SUPER FREEZE Eco ft°z -12° -18° Super freeze Touche SUPER FREEZE

Diagram of a mechanical assembly with a block and directional arrow (no text or symbols)

Diagram showing a screwdriver inserted into a component with directional arrows indicating movement (no text or symbols present)

Diagram illustrating kitchen appliance assembly steps with labeled components and directional arrows

2

Diagram illustrating a mechanical or electrical system with labeled components and directional arrows, including inset views of a device component.

3

Diagram illustrating kitchen appliance interior components with labeled parts and directional arrows indicating movement or assembly.

4

Panel de control

E

Architectural floor plan showing three stacked compartments with windows and doors (no text or labels)

No Frost

Illustration of a hand holding a cylindrical object with a label, partially open by a curved surface (no text or symbols visible)

Simple line drawing of a door with ventilation slots and a handle (no text or symbols)

FILTRO ANTILORES\*

Diagram showing a tool inserted into a device panel with arrows indicating direction (no text or symbols)

Diagram of a mechanical assembly with a component labeled B and an upward arrow indicating motion (no text or symbols present)

Sustituir la bombilla

Diagram showing a screwdriver inserted into a component with directional arrows indicating movement (no text or symbols present)

Diagram illustrating kitchen appliance assembly steps with labeled parts and directional arrows

3

4 Ø 3mm

Painel de comandos

P

Selector de FUNCTIONAMENTO DO FRIGORÍFICO Indicador luminoso da ALIMENTAÇÃO Selector de FUNCTIONAMENTO DO CONGELADOR Super Cool HOLIDAY Eco Indicador luminoso de SUPER COOL Indicador luminoso de SUPER FCFEZE Super freeze Tecla de SUPER COOL Tecla SUPER FREEZE

Front view of a multi-level refrigerator with drawers and dish (no text or symbols visible)

No Frost

Illustration of a can being placed on a surface, showing mechanical components and a handle (no text or symbols)

Simple line drawing of a door with ventilation slots and a handle (no text or symbols)

Diagram showing a screwdriver inserted into a panel with arrows indicating direction (no text or symbols)

Diagram of a mechanical assembly with a component labeled B and an upward arrow indicating motion (no text or symbols present)

Diagram showing a screwdriver inserted into a component with directional arrows indicating movement (no text or symbols present)

Architectural line drawing of a multi-level refrigerator with drawers and storage compartments (no text or symbols)

Illustration of a hand holding a cylindrical can with a lid, partially open to show the interior (no text or symbols visible)

Simple line drawing of a door with ventilation slots and a handle (no text or symbols)

Diagram of a mechanical assembly with a grid-like structure and an upward arrow, no visible text or symbols

Diagram showing a screwdriver inserted into a component with directional arrows indicating movement (no text or symbols present)
