We are pleased that you have chosen a Schulthess dryer.

Your new dryer is the result of many years of development work. The highest quality requirements, both in development and manufacture, guarantee a long lifetime.

Its design meets all the current and future demands of modern laundry care. It offers you a varied and individual choice of programmes.

Sparing use of energy and short drying times help to ensure that you can use your dryer as economically as possible.

Please read these instructions carefully to enable you to use all the possibilities and advantages of your new dryer.

Please also note the safety notice on page 46 and the enclosed guarantee and customer services booklet.

We hope you will be very happy with your new Schulthess machine.

Yours,

Row of six gray buttons with icons and symbols: lock, refresh, drop, star, plus, and sunburst

Technical illustration showing two views of a washing machine with hand positioning and internal components, no text or symbols present.

Diagram of a kitchen appliance with a downward arrow indicating a process or operation (no text or symbols present)

Diagram of a refrigerator interior showing the front panel and side door, with an arrow pointing to the backrest area (no text or symbols present)

Technical line drawing of a front view of a washing machine with internal components and mounting holes (no text or symbols)

Row of six icons including battery, camera, water drop, stars, sun, and sunburst symbols in a grid layout

Line drawing of a hand placing a component into a circular device (no text or symbols)

Illustration of hands holding a mechanical component with upward and downward arrows indicating movement (no text or symbols)

Diagram of a device with a downward arrow indicating process or operation, no text or symbols present

Diagram of a microwave oven with a black arrow pointing to the interior panel (no text or symbols present)

Technical line drawing of a front-loading washing machine with internal components and mounting holes (no text or symbols)

Row of seven gray rectangular buttons with icons and symbols: timer, refresh, drop, star, plus, and sunburst.

Technical illustration showing two views of a door with internal components and hand positioning (no text or symbols)

Diagram of a device with a downward arrow indicating a process or operation, no text or symbols present.

Diagram of a microwave oven interior showing the lid and vent, with an arrow pointing to the inner casing (no text or symbols present)

Technical line drawing of a front-loading washing machine with internal components and mounting holes (no text or symbols)

What you need to know

▶ Waste disposal advice 46
▷Packaging from your new machine 46
▷Old machine 46
▶ Safety advice and warnings 46
▶ Environment and economy advice 46

Your new dryer

▶ Machine description 47
▶ Laundry advice 48
▷Sorting laundry 48
▷Drying tips 48

Start up

▶Preparation 48
▶ Opening the door 48
▶ Adding laundry 48
▶ Closing the door 48

Drying

▶Programme table 49/50
▶Drying 51
▷Drying programme 51
▷Express programme 51
▷Mixed programme 51
▷Timer programme 51
▷Special programmes 51
▷Selecting additional functions 51
▷Starting the programme 51
Programme progress / Programme status 51
▷Changing the programme 52
▷Interrupting the programme 52
▷ Adding more washing 52
▷Programme end 52
▷Removing the laundry 52
▷Switching off the machine 52

▶ Additional functions 52
▷Easy care 52
▷Start time preselect 52
▷Gentle drying 52
▷Gentle drying extra 52
▷Fast forward 52

Maintenance, Care, Cleaning

▶Cleaning the machine 53
▷Cleaning the filter 53
▷Cleaning the moisture sensor 53

Basic settings

▶Level of dryness 54
▶ Crease protection 54
▶Setting the time 54
▶Language 54
▶Extended basic settings 54

▷Child lock	54
▷Storing settings	54
▷Reduced mains power	54
▷LCD brightness / contrast settings	54
▷Alarm	55
▷Standby function	55
▷Optical interface	55
▷Default language	55

Cash Card

▶Inserting the Cash Card 55
▶Removing the Cash Card 55
▶Selecting the drying program 55
▶Displays during the program sequence 55
▶ Program end 55
▶ Re-crediting 55
▶Transferring remaining values 55

Problems

▶Rectifying minor faults yourself 56
▶Error messages 56/57

Customer services

▶ Product and serial numbers 57

Guarantee subscription 57

Notes 58

Waste Disposal Advice

Packaging from your new machine

⚠️ Dispose of all packaging materials properly.

⚠️ Packaging materials are not toys.

Processing and reuse saves raw materials and reduces waste volumes.

The packaging can be returned to the retailer or supplier. All packaging materials used are environmentally friendly and reusable. All card is made of 80-100% recycled paper.

Wood is not chemically treated. Films are made of polyethylene (PE), banding is made of polypropylene (PP).

These materials are pure hydrocarbon compounds and are recyclable.

Old Machines

⚠️ Worn out machines should be made unusable:

After unplugging the machine or after an electrician has removed the connection, cut through and remove the mains cable. Destroy or remove the door lock so that playing children cannot become locked in and put their lives at risk.

The symbol on the product or its packaging indicates that it is not to be disposed of as normal household waste, but must be taken to a collection point for the recycling of electrical and electronic appliances.

Through your contribution to the correct disposal of this product, you are helping to safeguard the environment and health of your fellow human beings. Improper disposal constitutes a hazard to the environment and health.

The old machine contains valuable materials which should be sent for recycling. Additional information on the recycling of this product can be obtained from your commune, your waste disposal contractor or the shop in which you bought the product.

i Where to take old appliances?

Anywhere that new appliances are sold, or to the official S.EN.S collection points or official S.EN.S recyclers.

The list of S.EN.S collection points can be found at www.sens.ch

Safety Advice and Warnings

This machine meets the stringent safety regulations for electronic devices.

Before using the machine:

Read the enclosed documents carefully before using your dryer. They contain important information on the installation, use and safety of the machine.

⚠️ Repairs should only be carried out by trained specialists. Incorrect repairs may cause considerable damage and risks to the user.
Keep the documents safe for other users or subsequent owners.
⚠️ Install the machine according to the installation instructions.
Do not plug in a machine with visible damage. In case of doubt, ask customer services or your retailer.

When drying laundry:

Do not leave children unattended with the machine.
⚠️ Keep pets away from the machine.
Only use the machine in the home for drying textiles.

At the end of the programme:

Do not reach into the rotating drum.

To protect your machine:

Do not climb on the machine.
Do not sit, lean or support yourself on the loading door (it could tip!).

When transporting your machine:

⚠️ Take care when transporting the machine (risk of injury)!. Do not lift the machine by the fittings on the front!
Do not connect the exhaust duct to a chimney to which a gas or coal fire or oven or a gas room heater is connected. There is a risk of poisoning if the machine sucks air in from the chimney!

Environment and Economy Advice

How to save electricity, time and costs

▶Your dryer will be most environmentally friendly and economical if you fill the machine with the maximum laundry load.
▶Do not exceed the maximum stated laundry load (see programme table, page 49).
▶Remove as much water as possible from the laundry before drying by spinning in a washing machine or spin dryer. The higher the spin speed, the shorter the drying time and lower the energy consumption.
▶You should also spin easy care laundry.
▶ Ensure good room ventilation when drying (open a window or door).
▶ Clean the filter after every drying cycle.

Control and display area

16 9 8 7 5 1 2 3 4 5 6 12 11 10 17 15 14 13 Spirit TopLine TA 6692 18 swissmade

Programmes

1 Special programmes
2 Time drying
3 Iron dry
4 Light dry
5 Cabinet dry
6 Extra dry
11 Mixed laundry
12 Express

Displays

16 Display

Interfaces

17 SCS-Schulthess Control System
(PC interface for customer services)
18 Module opening for the cash Card (Option)

Additional functions

7 Gentle dry extra
8 Gentle dry
9 Start time preselect
10 Easy care
13 Programme start
14 Open door
15 Fast forward

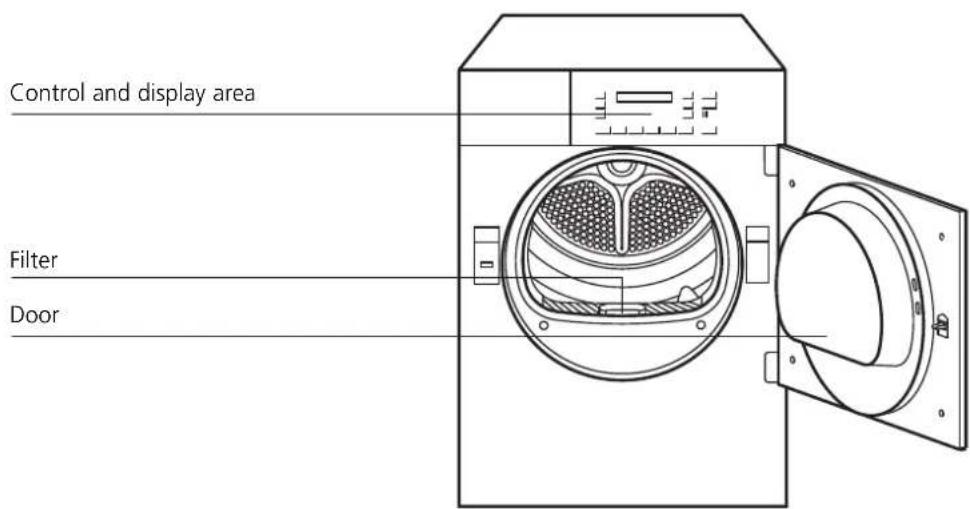

Control and display area Filter Door

Laundry Advice

Sorting the laundry

Pay attention to the drying symbols on your fabrics.

Dry at normal temperature.

Dry at low temperature

Do not tumble dry.

Do not dry the following fabrics in the machine:

●Sensitive fabrics (silk, synthetic curtains, etc.): creasing.

● Wringing wet laundry: waste of energy!

- Wool or textiles containing wool (Unless using the special programme «Wool Finish»): risk of felting!

▶To achieve even drying results, sort the laundry by fabric type and desired level of dryness. Do not exceed the maximum load, because overfilling affects the drying result and severely creases the laundry.

Tips for drying

▶ Do up all zips, hooks and eyes. Tie together loose belts, apron strings etc.

▶Remove easy care laundry from the dryer in a slightly damp state if possible (Select target dryness «Light Drying») and allow to finish drying in the air. Over drying causes creases.

▶ Laundry which is still too damp after drying a load of widely varying fabrics can be dried further using the timer programme 📷.

Knitted fabrics, e.g. jersey underwear, can shrink slightly during drying. Do not use the «Extra Dry» programme for these fabrics.

Start-up

⚠️ Install the machine according to the installation instructions. Before using the machine for the first time, wipe the inside of the drum with a damp cloth.

Preparation

Check whether:

The fluff filter is in place (see «Maintenance/Care/Cleaning», page 53).

The machine is plugged in or switched on at the wall. The machine is ready for use if all the control lights are flashing or have gone out in sleep mode. If one of the control lights stays on, proceed as follows:

▶With the fast forward button in the programme end position, press until the control light comes on. Wait until the control light flashes and press the «Open» button. (remove laundry if necessary).

Open the door

Press the «Open» button. The door press open.

▶Caution: The door only pops open if the mains power supply is switched on. If there is no power to open the door, the door can be opened manually by pressing next to the lock.

●The drum light comes on when the door is opened.

Add laundry

Before adding laundry, ensure that there are no foreign bodies or even trapped pets in the drum.
Only dry fabrics which have been washed with water in the dryer.
⚠ Laundry which has been treated with flammable solvents e.g. stain remover or white spirits, should not be dried in the dryer (Risk of explosion!).
Fabrics which contain foam rubber or which have hair spray, nail polish remover or similar substances on them should not be dried in the machine (fire risk!).
▶Place the laundry loosely in the drum, mixing large and small items.

Close the door

▶ Close the door by pushing it until the lock audibly engages.

▶ Ensure when closing the door that no laundry gets shut in it.

If the door is not closed, the safety switch will prevent the machine from operating.

Care Symbol	Max. load	Textile/Wash Type		Programme drying target	Programme selection button	Spun in washing machine at rpm	Approx. power cons. kWh	Approx. duration Min.
	Boil and coloured wash, cotton or linen
	7 kg	Bed and table linen, towels, T-shirts, polo shirts, work wear	for laundry to be ironed	Iron dry		14001000	2,42,9	3035
		T-shirts, polo shirts, dresses, trousers, work wear, underwear	for laundry which will not be ironed or only lightly ironed	Light dry		14001000	3,03,5	3641
		Flannels, tea towels and towels, bed linen, underwear, cotton socks	for laundry which will not be ironed	Cabinet dry		14001000	3,33,9	4147
		Towelling bathrobs and bed linen no underwear or socks	for particularly thick or multilayered fabrics	Extra dry		14001000	3,64,2	4550
Easy care (non-iron) laundry made of synthetic and mixed fibres and cotton with non-iron trim, e.g. viscose, cupro, modal, polyester
	3,5 kg	Trousers, dresses, skirts, shirts	for laundry to be ironed	Iron dry		800600	0,91,1	1822
		Trousers, dresses, skirts, shirts, blouses, corsetry, leggings, sportswear with large proportion of synthetic fibres	for laundry which will not be ironed or only lightly ironed	Light dry		800600	1,11,3	2327
		Over shirts, blouses, sportswear, bed and table linen, tracksuits	for laundry which will not be ironed	Cabinet dry		800600	1,31,6	2731
		Anoraks, covers	for particularly thick or multilayered fabrics	Extra dry		800600	1,71,9	3339
Special programmes
	2,3 kg	Sportswear synthetics and mixed fibres	Sports and weather gearThe laundry will be wardrobe dry.	Wardrobe dry		600	1,4	33
	3,5 kg	MixMixed laundry items	Cotton and mixed fibresThe laundry will be extra dry	Extra dry		800600	2,52,7	4550
		Timer dryingIndividual items, items with low moisture content	To finish drying damp laundry items	Timer drying10 - 150 minutes
	⚠️	For temperature sensitive fabrics press the additional «Gentle Dry» or «Gentle Drying extra» button!
		The power consumption values and programme durations given are guidelines determined under standard conditions. Fluctuations of up to 10% are possible.The programme will be correspondingly longer for machines with reduced mains power.

Programme table

Care Symbol	Max. load	Textile/Wash Type		Programme drying target	Programme selection button	Spun in washing machine at rpm	Approx. power cons. kWh	Approx. duration Min.
	Special programmes «s»
	3,5 kg	● Machine-washable wool	► The laundry becomes fleecier but not dry.Remove laundry directly after programme end and lay it out on a terry cloth for drying. (only part-dried)	Wool finish Tumble Dry	S 1x	800	0,1	5
	3,5 kg	● Jeans	► Jeans and cotton trousers are dried until «Iron Damp». Then hang up the laundry and let it air-dry.	Jeans Iron damp	S 2x	400	1,7	28
	2,3 kg	● Shirts/blouses	► Shirts and blouses are dried until «Iron Damp». The programme reduces folding, treats the laundry with care and additionally facilitates ironing.	Shirts/blouses Iron damp	S 3x	400	1,1	20
	2,3 kg	● Outdoor clothing	► To dry outdoor clothing, down jackets, etc.	Outdoor Wardrobe dry	S 4x	600	1,8	62
	1 wash load	● Cushions large or small	► Cushions, down jackets, etc. are dried until «Extra Dry». Turn cushions after 120 minutes, if necessary.	Pillows Time drying 10-150 min.	S 5x	600	5,6	150
	7 kg	● Terry towels	► Cotton terry towelling, bath towels,. bathrobes etc.	Terry towels Wardrobe dry	S 6x	max. 1400	3,7	43
	7 kg	● Bed linen	► Cotton sheets, stretch-fit sheets, duvet covers, pillowcases etc.	Bed linen Wardrobe dry	S 7x	max. 1400	3,7	48
		For temperature sensitive fabrics press the additional «Gentle Dry» or «Gentle Drying extra» button!			◎◎
		The power consumption values and programme durations given are guidelines determined under standard conditions. Fluctuations of up to 10% are possible.The programme will be correspondingly longer for machines with reduced mains power.

Drying

Drying programme

The electronic sampling system continually checks the current level of dryness of your laundry and automatically stops the programme when it reaches the specified level of dryness.

Select the programme for boil and coloured washing or easy care fabrics from the programme table.

Row of seven gray icons representing weather and refresh controls with icons for weather, water drop, stars, and sun.

▶Press the programme button.
● The control light for the selected programme lights up.
▶For easy care fabrics, select the additional «Special programme» function 📁

Express programme: 2,3 kg

Special programme for drying synthetic fabrics quickly, e.g. sportswear made of synthetic or mixed fibres. The laundry will be wardrobe dry.

▶Press the control button.
●The control light comes on.

Mixed programme: 3,5 kg

Mixed items made of cotton and easy care fabrics can be dried here. The laundry will be extra dry.

▶Press the control button.
●The control light comes on.

Time programme

The time programme can be used for drying individual items or to finish drying fabrics with a low moisture content that have already been partially dried. The drying time required depends on the type and amount of laundry and how damp it is.

▶Press the programme button.
●The time programme control light lights up and the minimum drying time of 10 minutes is displayed.
▶ Select the drying time by repeatedly pressing the button, up to a maximum of 150 minutes.

Special programmes

Using the special programmes, certain textiles can be dried especially adapted to the laundry.

Tip the key repeatedly until the desired programme appears on the display (see programme table, page 50).

Select additional functions

BOIL/COLOURED WASH 00:29h IRON DRY

After the programme has been selected, the control lights flash for the additional functions which can be added if required.

▶Press the desired function button(s) (see additional functions, page 52).
●The control light(s) for the selected additional function(s) light up.

Start programme

▶Press the start button.
●The control light is illuminated and the programme starts automatically.

⚠️ If the child lock is activated:

▶Hold the start button down and press the fast forward button.

Programme progress / Programme status

BOIL/COLOURED WASH 00:25h DRYING

With the moisture controlled programmes the dampness of the laundry is continually monitored by an electronic sampling system.

The programme time remaining is displayed. This remaining time is recalculated several times during drying, so the effective programme end will therefore vary by a few minutes.
▶For time programmes, the time remaining to the end of the programme is displayed.

Changing a programme before the start

▶Press the desired programme button again.
● All control lights for the available additional functions flash again and all settings are deleted.
▶ Select any additional functions.
▶ Start the programme.

Interrupting the programme

▶Interrupt the programme by pressing the fast forward button repeatedly, until «programme end» appears on the display.

If the child lock is activated:

▶ Hold the start button down.
▶ Simultaneously tip the fast gear key.

Adding more laundry

This is possible at any time.

▶Press the door open button.
●Wait for the drum to stop.
▶ Add your laundry.
▶ Close the door again.
▶ Press the start button.

If the child lock is activated:

▶Hold down the start and fast forward buttons at the same time.
▶The drying process is continued.

Programme end

The programme end is indicated by the display value 00h00, the display of «Programme End» as well as a flashing control light.

●An audible signal.
(only if summer function is switched on)
▶In the default setting the creasing protection is enabled. After the end of the programme, the drum continues to rotate in short intervals, so that the laundry does not crease (30 or 60 minutes).

Remove the laundry

▶ Press the door open button.
●The drum light comes on.
▶ Remove the laundry.
▶ Clean the filter (page 53).
▶ Close the door.

Switch off the machine

▶ Switch the machine off at the wall.

Additional Functions

Alongside the various drying programmes, your dryer also offers you the opportunity to design your own programmes.

By selecting one or more additional functions, you can tailor your drying programme to the specifics of your laundry.

▶ You have the opportunity to tailor your dryer to your needs by changing the basic settings (see page 54).

Easy care

For easy care fabrics made of synthetic or mixed fibres, and cotton with a non-iron finish.

Start time preselect

By pressing the Start time preselect button one or more times, the programme start time can be delayed by up to 23.5 hours.

This makes it possible to take advantage of cheaper night-time electricity, for example. The start time and consequently also the end time of a programme can be tailored to your individual lifestyle.

The display shows the start time and anticipated programme time end.

The preselected time starts when the start button is pressed.

When the start time is reached, the selected programme starts automatically. The current programme duration will be displayed.

Changing the preset starting time

- In the event of a power cut, the current time is stored. The duration of the power cut is not taken into account. The start time can be newly selected.

Note

●The preset starting time can be cancelled by pressing the quick cycle button.

Gentle dry

The gentle drying button must be pressed for very temperature sensitive fabrics such as acrylic fibres. The temperature is reduced and the drying time is extended slightly.

Gentle dry extra

With especially sensible textiles, the key «Gentle Dry Extra» can be pushed. The temperature is further reduced.

Fast forward

The programme can be shortened or interrupted by pressing the fast forward button. (see «changing/interrupting the programme»).

Maintenance / Care / Cleaning

Cleaning the machine

⚠ Ensure that the power supply is switched off before any cleaning, care or maintenance work.
Under no circumstances spray the machine with water.
Do not use solvents! These substances can damage parts of the machine, produce poisonous vapour and carry the risk of explosion!

Casings and control areas should only be cleaned with soap or a commercially available, solvent-free, non-abrasive cleaning product.

Cleaning the filter

When fabrics are used, the fibres are rubbed (laundry fluff), which are released when the fabrics are dried, collecting in the filter below the door. The fluff filter must therefore be cleaned after every use.

Technical illustration showing two views of a washing machine interior with hands adjusting the frame (no text or symbols present)

1. Press the door open button.

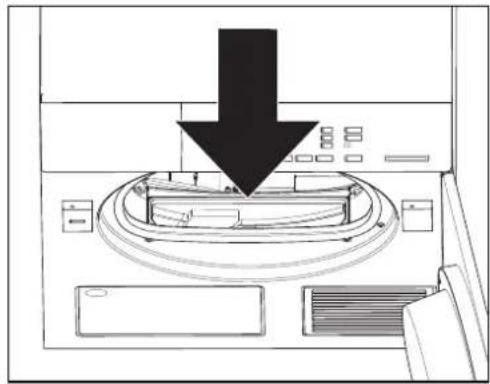

2. Pull out filter and open it.

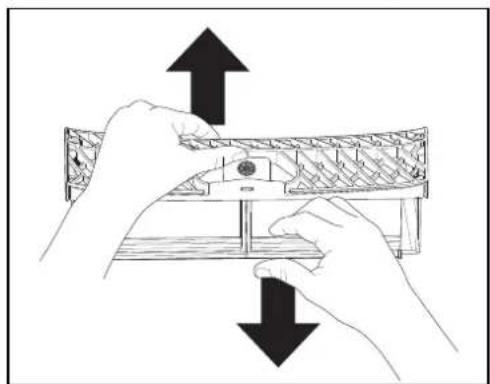

3. Rub your hand over the filter and remove the fluff. It may happen that a supposedly proper cleaned filter becomes impermeable, due to a fine, invisible coat remaining in the filter meshes. Hold the filter with one flat surface upwards and pour a little water on to it. If it is impermeable, clean the filter with a brush under running water.

Diagram of a computer monitor with an open lid and a black downward arrow indicating a download or operation (no text or symbols present)

3.1 From time to time it is necessary to clean the seal at the inner edge of the filter support and to remove fluffs that have accumulated inside the filter support. To do so, use a vacuum cleaner or a cleaning brush.
3.2 Run the pipe of the vacuum cleaner or the brush around the opening for the fluff filter. Remove any residual fluff.
4. Replace the filter properly.
5. Close the door.

Cleaning the moisture sensor

Diagram of a microwave oven with control panel and fan, showing internal components (no text or labels)

After longer operation, small deposits (lime, fabric refiner) can form on the front inner side of the drum on both sides of the longish moisture sensors.

With moisture controlled programmes, this can result in the desired level of dryness not being reached. Wipe deposits away with a cloth soaked in vinegar.

Basic Settings

The machine has basic settings from the factory. It can be adapted to the user's individual needs either when first used or later using the following functions.

The basic settings can only be changed if no dry programme is running. To change a basic setting, it is first necessary to hold the programme button(s) pressed and then press the fast forward button. The corresponding function is shown on the digital display. The display changes when the fast forward button is pressed repeatedly with the programme button(s) held down.

Example:

DRYING LEVEL NORMAL DRYING LEVEL HIGHER

Function switched off

Function switched on

Drying level (ex factory NORMAL)

When this function is switched on, the level of dryness for the moisture controlled programmes (wardrobe and extra dry) is slightly increased and the laundry will be slightly drier.

Crease protection (ex factory 30MIN)

When this function is switched on, the crease protection phase begins at the end of the programme.

Setting the time (the time is not set ex factory)

The hours can be set using the button and the minutes using the button.

Language (ex factory GERMAN)

This setting is temporarily valid for the selected programme and reverts back to the default language a few minutes after completion of the programme.

See «Advanced basic settings/default language»

Extended basic settings

▶By pressing these three buttons at the same time, the display shows the extended basic settings.
▶ Repeatedly pressing the button shows the possible settings.
▶Pressing the button allows the settings to be changed.
▶Pressing the button ends the display of the settings.

Child lock (ex factory OFF)

Select «Extended basic settings»!

The child lock is to prevent accidental starting, changing or deletion of a programme by small children.

Start a programme with the child lock switched on:

Hold the start button down and press the fast forward button.

Storing settings (ex factory OFF)

Select «Extended basic settings»!

With switched on memory button function, the special programme last used is stored and appears again as first on the display when next pressing the button.

Following this, the consecutive programmes can then be selected through repeatedly pressing the button.

This way, a frequently used special programme can be called up with only one press of the button.

With switched off function the «Wool Finish» programme appears as first.

Reduced mains power (ex factory OFF)

Select «Extended basic settings»!

If the mains voltage is reduced, the programme times will be extended accordingly.

$$ \text { Off } = 4 0 0 \mathrm{V} 3 \mathrm{N} \sim 6, 4 \mathrm{kW} / 1 0 \mathrm{AT} $$

$$ \mathrm{On} = 4 0 0 \mathrm{V} 2 \mathrm{N} \sim 4, 4 \mathrm{kW} / 1 0 \mathrm{AT} $$

LCD Brightness setting (ex factory 150)

Select «Extended basic settings»!

The button can be used to alter the brightness or text on the display.

LCD Contrast setting (ex factory 26)

Select «Extended basic settings»!

The ✗ button can be used to alter the contrast on the display.

Alarm volume (ex factory VOLUME 2)

⚠️ Select «Extended basic settings»!

With the Alarm setting switched on, a signal sounds at regular intervals at the end of the programme.

The volume can be adjusted in 3 levels.

Off

Volume 1

Volume 2

Volume 3

Standby function (ex factory ON)

Select «Extended basic settings»!

When the standby function is switched on, the controls switch off when no drying programme is running in energy saving mode. All displays are dark.

Optical interface (ex factory OFF)

Select «Extended basic settings»!

If the optical interface (SCS) is switched on, customer services can communicate with the machine by PC.

Default language (ex factory GERMAN)

Select «Extended basic settings»!

If another language is temporarily selected via the keys and minutes after programme end, in standby mode or after a long standstill, the setting reverts back to the default language.

Cash Card

Inserting the Cash Card

Insert the Cash Card with the ▲ symbol facing upwards. In the display will appear in succession the amount stored on the Cash Card, the amount on account which will be deducted, as well as the new Cash Card balance.

Any remaining credit balance stored in the appliance will be set off.

If the amount available on the Cash Card is not sufficient for the wash, a signal will sound and the remaining amount will appear flashing in the display. The difference can be settled with a second Cash Card.

Removing the Cash Card

Selecting and starting the drying program

▶Select the drying program
▶Select the additional functions
▶ Start the program

Displays during the program sequence

BOIL/COLOURED WASH	00:35h
CREDIT	2.60

During the drying program, the remaining time and the remaining credit balance are displayed alternately.

Program end

When the drying program is completed, the remaining amount is stored in the appliance under the appropriate Cash Card. This remaining credit balance will be set off at the next washing cycle. The program end is displayed by the display value 00:00h as well as the flashing control lamp «Open door».

Re-crediting

Re-crediting of the remaining credit balance is best made at the end of a washing day.

▶Insert the Cash Card. The amount stored on the Cash Card will appear in the digital display.
▶Re-credit by pressing the fast run button. In the digital display will appear in sequence the display the remaining credit balance which will be credited, as well as the new Cash Card balance.
▶ Remove the Cash Card.

Re-crediting can always be made only to that Cash Card from which the amount was originally deducted.

In the case of active child safety device:

Remaining value transfer

If there is not an adequately high remaining amount available on a Cash Card to pay for the booking on account, this will be displayed by the whistle signal and by the flashing display with the message saldo to small. By inserting a second Cash Card, the difference can be paid.

Problems

⚠️ Repairs, alterations or intervention on electronic equipment should only be carried out by qualified specialists. Inexpert repairs can cause considerable damage and risk to the user.
⚠️ Only original spare parts should be used for repairs.

Rectifying minor faults yourself

The machine does not start after pressing a programme button:

▶Check whether the mains power is switched on at the wall and the plug is in.
▶Check whether all the fuses are intact or the safety switch has tripped.

The machine does not start:

▶The start button has not been pressed.
▶ Start time preselect has been set. Only starts at the preselected start time.

The drying target was not achieved.

▶ Clean filter
▶ Increase degree of drying (see page 54).
▶ Clean moisture sensor (see page 53).

The drying takes too long.

▶ Clean filter.
▶Power failure (note lock times of EW).

The laundry is not dry after the maximum possible settings:

▶Drum is overloaded.
▶ Laundry not sufficiently spun.
▶ Insufficient room ventilation (open a window or door).
▶The filter is blocked with fluff (clean filter).
▶Check whether the building exhaust air duct is blocked.
▶Check whether the pipe lengths and cross-sections comply with the installation instructions.

Drum lighting does not work:

▶Faulty light bulb. For safety reasons, the lamp should only be replaced by customer services or a specialist.

Dampness in the room increases significantly:

▶The room does not have sufficient ventilation. Ensure adequate ventilation.

Door does not open:

▶If no power is available to open the door, you can open the door manually by pressing next to the door lock.

Error messages

If the following error messages are displayed, the programme can be restarted by pressing the start button once the error has been rectified.

«CHILD LOCK»

▶Hold the start button down and press the fast forward button.

«PLEASE CLOSE DOOR»

▶Push door closed until lock engages.

«CHECK HEATING LEVEL»

▶Programme stopped and alarm sounded. ▶Check whether all the temperature switches are switched on. Push with your finger once around all 3 round rubber seals (see diagram). If the problem is not fixed after doing this once, inform customer services.

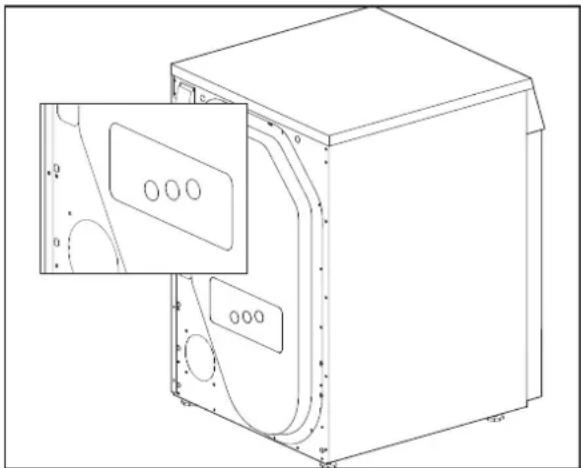

Technical line drawing of a washing machine with door and vent slots (no text or symbols)

If the machine displays an F - - error message:

▶Interrupt the programme using the fast forward button and select a new programme.

If error messages appear repeatedly:

▶Switch off the power for around 1 minute and switch it back on again. (Pull out the plug or switch off at the wall).
●The machine is ready for use again when the programme control lights flash.
▶Select a new programme.

If an error message appears again:

▶ Make a note of the error message.
▶Unplug the machine or switch it off at the wall.
▶ Notify customer services.

Fault messages (Cash Card)

The following fault displays are connected with the Cash Card.

Card wrong way up

▶Insert the Cash or Wash Card with the ▲ symbol facing upwards.

Cash Card empty

▶ Use a charged Cash Card.

Cash Card invalid

▶The Cash Card being used is not permitted. Notify the person responsible for the facility.

Cash Card taken out too quickly

▶Wait 5 seconds until the amount on account has been deducted and the new Cash Card balance appears.

Customer Services

Before you call customer services, check whether you can rectify the problem yourself (see «Rectifying minor faults yourself», page 56).

If advice is required, costs may be incurred if a service technician is required, even during the guarantee period.

If you cannot rectify a problem yourself, unplug the machine or switch it off at the wall and call customer services.

Dial the central customer services number (see back cover). You will be automatically connected to the customer services branch for your region.

Give customer services product and serial numbers.

You will find this information on the type label on the inside of the door.

Note the numbers for your machine here:

Product No.:

Serial No.:

Guarantee subscription

After the end of the normal 2 years guarantee period, this can be extended if required with a guarantee subscription. We will be happy to send you the relevant documents. Please see also the enclosed guarantee and customer services booklet.

Notizen / Notes / Note

Notizen / Notes / Note

Kundendienst

Business number customer service for switzerland

Tel. [phone]

Fax [phone]

SCHULTHESS
