Silver Wave 38225 - Toaster UNOLD - Free user manual and instructions

USER MANUAL Silver Wave 38225 UNOLD

Black UNOLD toaster with two food items on top, placed on a kitchen counter (no visible text or symbols)

Bedienungsanleitung

Instructions for use - Notice d'utilisation Gebruiksaanwijzing - Istruzioni per l'uso Manual de instrucciones - Návod k obsluze Instrukcja obsługi

Impressum:

Black and white photo of UNOID coffee machines including a squeegee, a kettle, and a two-tanter on a table with tea set in background (no text or symbols visible)

Instructions for use Model 38225

Technical speci cation....9

Safety Information 9

Tips for ideal toasting results 10

Before using the appliance the rst time....10

Operation....11

Cleaning and Care 11

Guarantee Conditions....30

Waste Disposal / Environmental Protection 34

Black UNOD 500 flatbread toaster with a dome-shaped top (no visible text or symbols)

Close-up of a printer's internal structure with a metallic object inserted, showing no visible text or symbols.

Housing Plastic black / silver, heat insulated

Size (W/D/H): Approx. 24,0 x 15,7 x 16,6 cm

Weight: Approx. 0,99 kg

Cable length: Approx. 98 cm, rmly mounted

Features: 2-slice toaster

Continuously variable toast darkness

Removable crumb tray

Heat insulated housing

Cable storage

Accessories Bun warmer

Instructions for use

Technical modi cations reserved.

SAFETY INFORMATION

Please read the following information and 1. keep it for future reference.

This appliance is not intended for use by 2. persons (including children) with limited physical, sensory or mental abilities or with lack of experience or lack of knowledge, unless they are supervised by a person who is responsible for their safety or have been instructed on how to use the appliance.

Children should be supervised in order 3. to ensure that they do not play with the appliance.

1. Keep the appliance out of the reach of children.

Connect appliance only to an AC power 5. supply with voltage corresponding to the voltage on the rating plate.

Do not operate this appliance with an 6. external timer or remote control system.

Never immerse the appliance or the power 7. cord in water or other liquids.

Do not clean the toaster or power cord in a 8. dishwasher.

The toaster should never come into contact 9. with water or other liquids. In case this ever happens, all parts must be completely dry before operating the appliance again.

Never touch the appliance or power cord 10.18. Use the toaster only indoors.

with wet hands.

This appliance is intended to be used in 11. household and similar applications such as:

■ staff kitchen areas in shops, of ces and other working environments;
■ farm houses;
■ by client in hotels, motels and other working environments;
■ bed and breakfast type environments.

1. For safety reasons, never place the appliance on hot surfaces, a metal tray or a wet surface.

Do not place the appliance or power cord 13. near openames during operation.

1. Always use the toaster on a level, uncluttered and heat-resistant surface.

Make sure that the power cord does not hang 15. over the edge of the countertop or table, since this can cause accidents, for example if small children pull on the cord.

1. Never Wrap the power cord around the appliance; instead, use the power cord storage compartment on the bottom of the appliance.

Route the power cord so that there is no 17. possibility of the cord being pulled or tripped over.

1. Use the toaster only indoors.

When in use, never cover the toaster with 19. aluminum foil or other materials that could cause the appliance to overheat.

Do not touch any hot surfaces, to prevent 20. burns. Always use the handles and control knobs.

Never use the appliance near ammable 21. materials such as curtains.

Do not move the appliance as long as it is in 22. operation, to prevent injuries.

1. Never operate the appliance without the crumb tray; empty the tray regularly.

Do not toast foods that can melt.24.

Do not insert excessively large foods or any 25. metal foils, silverware or tools in the appliance. They could cause a re or short circuit.

Do not use the appliance with accessories 26. of other manufacturers or brands, to prevent damage.

Unplug the appliance from the power supply 27. after use and prior to cleaning. Never leave the appliance unattended when it is plugged in to the power supply.

Clean the appliance after every use.28.

Check the appliance, the plug and the power 29. cord regularly for wear or damage. In case of damage to the power cord or other parts, please send the appliance or the power cord for inspection and repair to our after sales service (for address, see warranty terms). Unauthorized repairs can result in serious risks to the user and void the warranty.

If the supply cord is damaged, it must be 30. replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

The appliance is only provided for domestic use. The manufacturer does not assume any warranty in case of improper or incorrect use or after repair by unauthorized third parties.

TIPS FOR IDEAL TOASTING RESULTS

Different types of bread have varying 1. moisture content. Therefore, the same toast darkness setting can produce different results.

For bread that is slightly dry, use a lower 2. toast darkness setting.

For fresh bread or whole grain bread, use a 3.9 higher toast darkness setting.

Bread with an irregular surface requires a 4. higher toast darkness setting.

Thick bread slices need more time for 5. toasting; it may even be necessary to toast the bread a second time.

When toasting raisin bread, remove all 6. raisins from the surface, since otherwise they could burn.

1. Cut rolls in half before toasting.

If you toast only one slice, please select a 8. low toast darkness setting.

1. If you toast several slices one after the other, the bread will be somewhat darker at the same toast darkness setting.

2. To warm rolls, please use the bun warmer.

BEFORE USING THE APPLIANCE THE FIRST TIME

1. Remove all packaging materials and any transport safety devices.

Check to make sure that all accessories are 2. present.

Clean the toaster with a damp cloth, as 3. described in the chapter “Cleaning and care” on page 11.

1. Check to make sure that all parts are assembled correctly and the appliance is stable. Make sure that there is sufficient space between the toaster and walls or other appliances, since the toaster becomes hot during operation.

2. Connect the appliance via the power cord to the power supply (230 V\~, 50 Hz).

Before toasting bread the \^st time, conduct 6. one toasting cycle without bread. Press the toast lever down until it locks into place.

When the toasting cycle is completed, the 7. toast lever automatically jumps up. Now you can starting toasting bread.

OPERATION

Prepare the toaster as described in the 1. section "Before using the appliance the rst time".

Place the bread slices in the slots in the 2. toasting chamber.

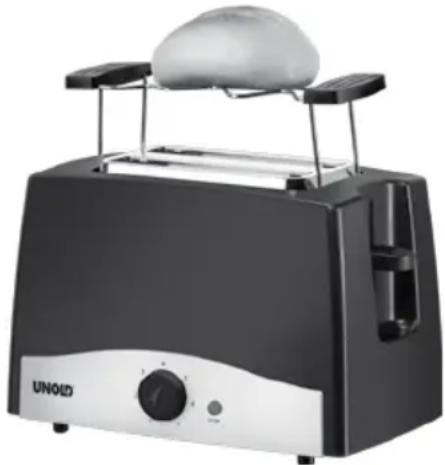

If you wish to warm up rolls, place the bun 3. warmer on the toaster so it is level and then place the rolls on top.

Black UNOLD-style toaster with a flat top and a white dome-shaped lid (no visible text or symbols)

Set the desired toast darkness with the 4. darkness control. You can select from six toast darkness settings: level 1 is very light and level 7 is very dark. For golden brown toast set the lever in the middle position.

Press the toast lever down until it locks into 5. place. The toaster starts toasting.

1. You can interrupt the toasting cycle any time by pressing the "Stop" button.

When the bread has been toasted to the set 7. darkness, it is automatically ejected. The appliance shuts off automatically.

For easier removal of the toasted bread 8. slices, the toaster features a lift function.

Press the toast lever upward to remove the toast.

CLEANING AND CARE

Allow the appliance to cool before cleaning 1. it.

Before cleaning, always turn off the appliance 2. and unplug it from the power supply.

Do not immerse the appliance and power 3. cord in water or other liquids or wash them in the dishwasher.

Wipe off the toaster with a damp cloth and a 4. little dishwashing detergent. Do not use any abrasive scouring agents, steel wool, metal objects, hot cleaning agents or disinfectants, since they can damage the appliance.

To remove stuck bread slices, unplug the 5. toaster and turn it over and shake lightly.

Never attempt to remove stuck bread slices with sharp or pointed tools or silverware.

Remove crumbs and any small pieces of 6. bread from the crumb tray regularly. To do this, pull the crumb tray on the side all the

way out and empty it. Wipe the crumb tray with a damp cloth, then dry it thoroughly and push it back into the appliance.

Close-up of a mechanical device with a transparent internal component and a black base (no visible text or symbols)

The appliance must be completely dry 7. before you use it again.

SPÉCIFICATION TECHNIQUE

Capacité: 800 W, 230 V\~, 50 Hz

Black UNOID 4-tan sit-up toaster with a dome-shaped top (no visible text or symbols)

Close-up of a mechanical device with internal components and a metallic housing (no visible text or symbols)

Black UNOLD food toaster with a flat top and a single flat lid (no visible text or symbols)

Close-up of a mechanical component with internal components and a metallic housing (no visible text or symbols)

Black UNOLED toaster with a flat top and a round cake on top (no visible text or symbols)

Close-up of a printer's internal structure with plastic components, no visible text or symbols

Black UNOLD 4-tor sit-up toaster with a flat top and a dome-shaped lid (no visible text or symbols)

Close-up of a printer's internal structure with paper feed and plastic components (no visible text or symbols)

Black UNOLED toaster with a flat top and a white dome-shaped lid (no visible text or symbols)

Close-up of a mechanical device with internal components and a metallic housing (no visible text or symbols)

Black UNHOLD 3000 disposable toaster with a flat top and side grates (no visible text or symbols)

Close-up of a mechanical component with a metallic part inserted, showing internal components and a small object on the surface (no text or symbols visible)

We guarantee our appliances for 24 months, or in case of commercial use for 12 months, from the date of purchase in case of defects that occur during normal use and are demonstrably due to a factory fault. Within the warranty period we will remedy defective materials or workmanship through repair or replacement, at our option.

Our warranty terms apply only to appliances sold in Germany and Austria. For other countries, please contact the responsible importer. In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged and postage paid, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. If the defect is covered by the warranty, the customer will be reimbursed for the shipping costs. The warranty does not cover damage from normal wear, improper handling and failure to comply with the maintenance and care instructions. The warranty is void if repairs or modifications are made to the appliance by third parties.

Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty.

CONDITIONS DE GARANTIE

Our appliances are produced on a high quality level for a long lifetime. Regular maintenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible we ask you to follow the following instructions for disposal.

Do not dispose this appliance together with your standard household waste. Please bring this product to an approved collection point for recycling of electric and electronic products.

By separate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment.

TRAITEMENT DES DÉCHETS / PROTECTION DE L'ENVIRONNEMENT
