USER MANUAL 332945 Black Viper Cyclone PRINCESS

Line drawing of a vacuum cleaner with attached hose and handle (no text or symbols)

A 12 13 10 9 15 11 8 6 427 53 1 14 (2x) 16 17

7 6 B

8 20 18 19 C

8 21 22 9 1617 D

9 25 10 23 24 12 1617 E

12 13 B A F

Line drawing of a vacuum cleaner next to a mounted pump, no text or symbols present

28 27 26 6 H

313029

29 J

32 35 3433 K

K

B

Gefeliciteerd!

You have purchased a Princess product. Our aim is to provide quality products with a tasteful design and at an affordable price. We hope that you will enjoy this product for many years.

Description (fig. A)

Your 332945 Princess vacuum cleaner has been designed for vacuuming dry substances. The appliance is not suitable for vacuuming wet substances. The appliance is suitable for indoor use only. The appliance is suitable for domestic use only.

1. On/off button
2. Mains cable rewind button
3. Speed control switch
4. Full indicator
5. Handgrip
6. Dust compartment
7. Release button (dust compartment)
8. Hose
9. Tube
10. Extension tube
11. Airflow control switch
12. Suction nozzle
13. Floor surface selector
14. Wheels
15. Bracket for temporary parking
16. Crevice nozzle
17. Brush nozzle

Assembly

Before you proceed, we need you to pay attention to the following notes:

- Before assembly, switch off the appliance and remove the mains plug from the wall socket.

Mounting and removing the dust compartment (fig. B)

Before you proceed, we would like you to focus your attention on the following notes:

- Do not use the appliance without the dust compartment.

To remove the dust compartment, keep the release button (7) pressed and pull the dust compartment (6) from the appliance. To mount the dust compartment, insert the dust compartment (6) into the appliance until the release button (7) clicks into place.

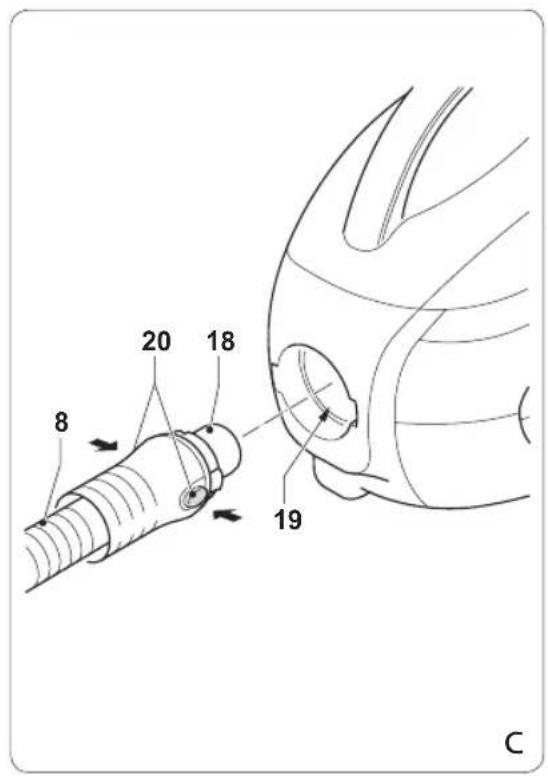

Mounting and removing the hose (fig. C)

Before you proceed, we would like you to focus your attention on the following notes:

- Before mounting the hose, make sure that the dust compartment is inserted into the appliance.

To mount the hose (8), insert the hose • outlet (18) into the hose connection (19) until the release buttons (20) click into place.

To remove the hose (8), keep the release · buttons (20) pressed and pull the hose outlet (18) from the hose connection (19).

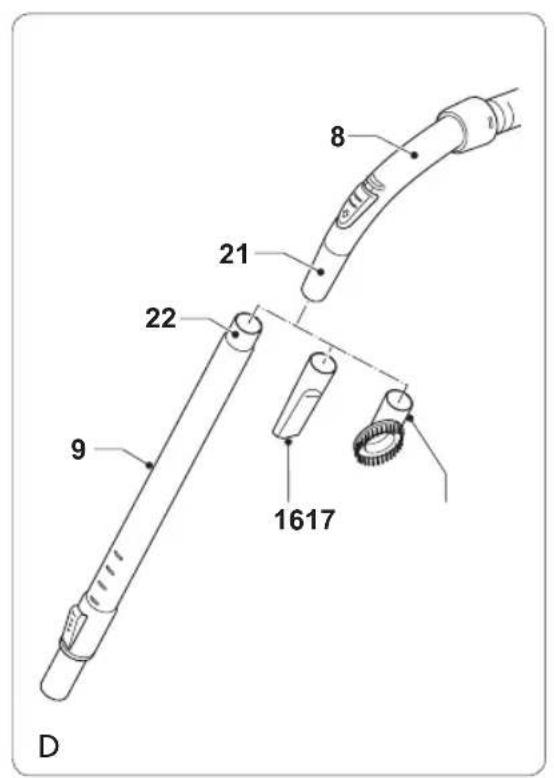

Mounting and removing the tube (fig. D)

To mount the tube (9), insert the hose inlet • (21) into the tube outlet (22).
To remove the tube (9), pull the hose inlet • (21) from the tube outlet (22).

Mounting and removing the accessories (fig. D & E)

Mounting and removing the suction nozzle (fig. E)

The suction nozzle (12) can be mounted to the extension tube (10).

To mount the suction nozzle (12), insert the tube inlet (23) into the tube connection (24).

To remove the suction nozzle (12), pull the tube inlet (23) from the tube connection (24).

Mounting and removing the crevice nozzle (fig. D & E)

The crevice nozzle (16) can be used for vacuuming in narrow and hard-to-reach places.

The crevice nozzle (16) can be mounted to the hose (8) or to the extension tube (10).

To mount the crevice nozzle to the hose (8), insert the hose inlet (21) into the crevice nozzle (16).

To mount the crevice nozzle to the • extension tube (10), insert the tube inlet (23) into the crevice nozzle (16).

To remove the crevice nozzle, pull the • crevice nozzle (16) from the hose inlet (21) or the tube inlet (23).

Mounting and removing the brush nozzle (fig. D & E)

The brush nozzle (17) can be used for vacuuming tables, desks and shelves.

The brush nozzle (17) can be mounted to the hose (8) or to the extension tube (10).

To mount the brush nozzle to the hose (8), insert the hose inlet (21) into the brush nozzle (17).

To mount the brush nozzle to the • extension tube (10), insert the tube inlet (23) into the brush nozzle (17).

To remove the brush nozzle, pull the brush • nozzle (17) from the hose inlet (21) or the tube inlet (23).

Use

Unwinding and rewinding the mains cable (fig. A)

The mains cable rewind button (2) can be operated by hand or foot.

Before you proceed, we would like you to focus your attention on the following notes:

- Do not unwind or rewind the mains cable while the appliance is switched on.

- Always hold the mains plug to unwind the mains cable. Never pull the mains cable.

Before use, hold the mains plug and • unwind a sufficient length of the mains cable from the back of the appliance.

After use, press the mains cable rewind · button (2) to rewind the mains cable back into the appliance.

Manually guide the mains cable to make sure that it does not swing back. Make sure that the mains plug is correctly located.

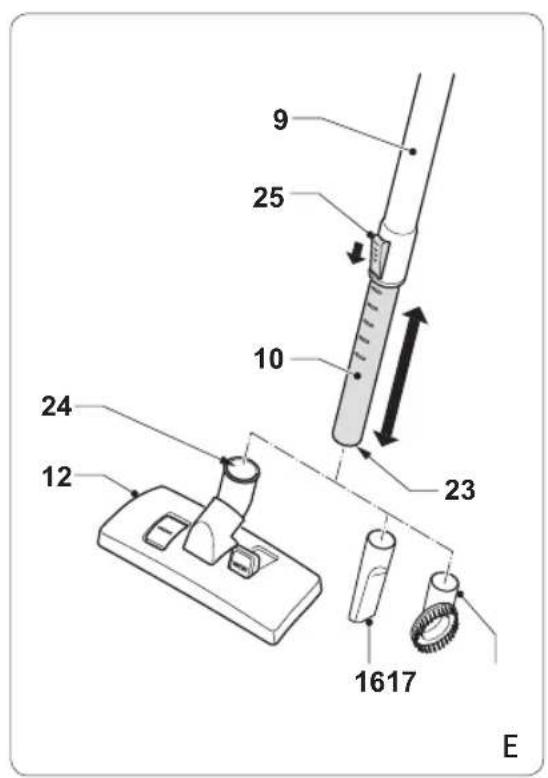

Adjusting the length of the tube (fig. E)

Keep the locking knob (25) pressed and slide the extension tube (10) to the required position.

Release the locking knob (25).

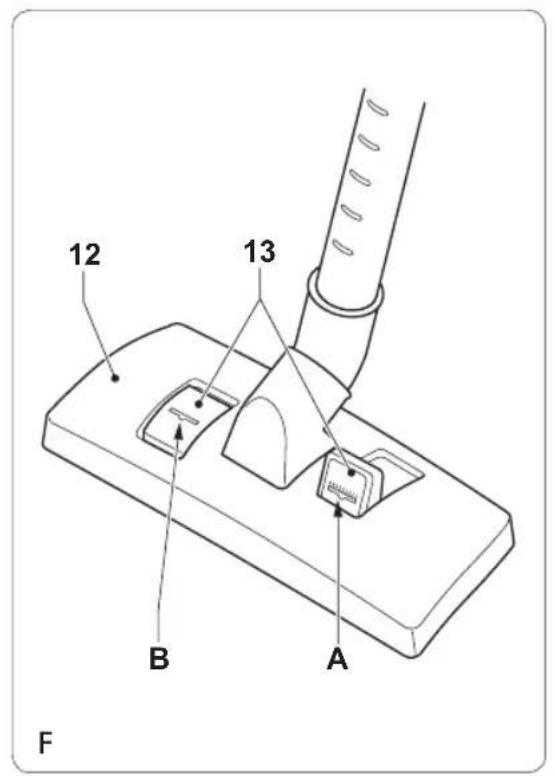

Adjusting the suction nozzle (fig. F)

The floor surface selector (13) can be set to adjust the suction nozzle (12) to the required floor surface. The floor surface selector (13) can be operated by hand or foot.

For vacuuming on laminates, tiles, etc., press the corresponding part (A) of the floor surface selector (13).

For vacuuming on carpets, press the corresponding part (B) of the floor surface selector (13).

Switching on and off (fig. A)

The on/off button (1) can be operated by hand or foot.

To switch on the appliance, press the • on/off button (1).

To switch off the appliance, press the • on/off button (1) again.

Adjusting the suction force (fig. A)

The speed control switch (3) can be used to adjust the suction force.

Set the speed control switch (3) to the required position:

• For vacuuming on hard surfaces (e.g. floors), set a high suction force.
• For vacuuming on soft surfaces (e.g. upholstery), set a low suction force.

Adjusting the airflow (fig. A)

The airflow can be adjusted using the airflow control switch (11).

To adjust the airflow, set the airflow control • switch (11) to the required position.

Carrying the appliance (fig. A)

The appliance can be carried using the handgrip (5).

• Raise the handgrip (5) into position.
• Carry the appliance using the handgrip (5).

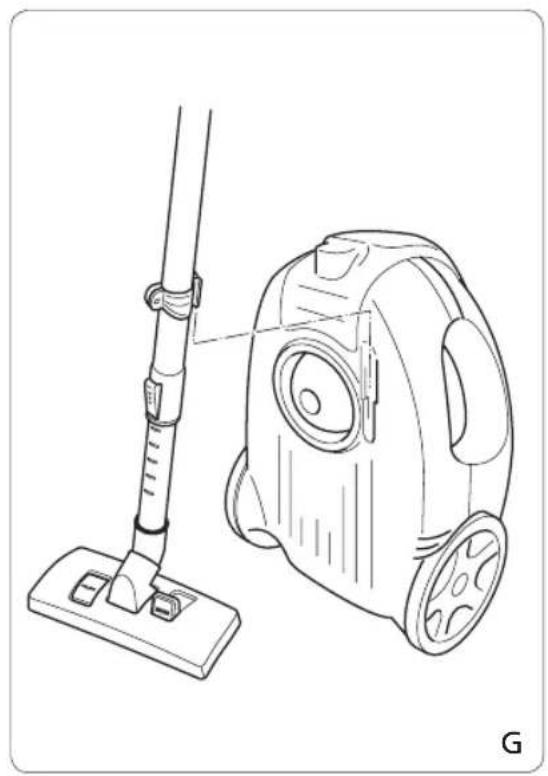

Temporarily parking the suction nozzle (fig. G)

To temporarily park the suction nozzle, use the park position as shown.

Cleaning and maintenance

Before you proceed, we need you to pay attention to the following notes:

• Before cleaning or maintenance, remove the mains plug from the wall socket and wait until the appliance has cooled down.
• Do not immerse the appliance in water or any other liquids.

Before you proceed, we would like you to focus your attention on the following notes:

• Do not use aggressive or abrasive cleaning agents to clean the appliance.
• Do not use sharp objects to clean the appliance.

Regularly check the appliance for possible damage.

Regularly clean the ventilation slots using a soft brush.

Store the appliance in a dry place, out of the reach of children.

Emptying the dust compartment (fig. A, B & H)

The dust compartment (6) must be emptied when the full indicator (4) comes on.

Keep the release button (7) pressed and • pull the dust compartment (6) from the appliance.

Press the release button (26) and open the • cover (27).

Carefully tap the dust compartment (6) • with your hand to remove the dust.

Close the cover (27) until the release • button (26) clicks into place.

Insert the dust compartment (6) into the appliance until the release button (7) clicks into place.

Cleaning the round filter (fig. B & H)

Keep the release button (7) pressed and • pull the dust compartment (6) from the appliance.

Press the release button (26) and open the • cover (27).

If necessary, empty the dust compartment • (6).

Turn the round filter (28) clockwise to remove the filter from the dust compartment (6).

Remove the dust from the round filter (28) using a soft brush.

Turn the round filter (28) counterclockwise • to insert the filter into the dust compartment (6).

Close the cover (27) until the release • button (26) clicks into place.

Insert the dust compartment (6) into the appliance until the release button (7) clicks into place.

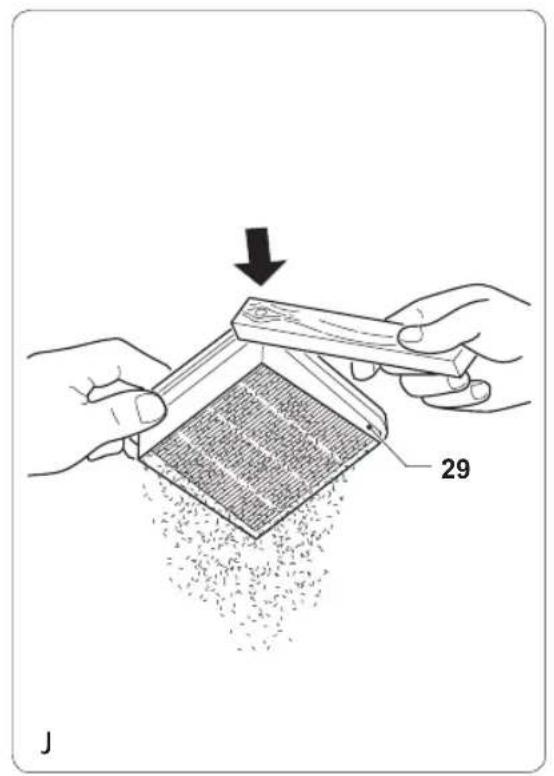

Cleaning and replacing the HEPA filter (fig. B, I & J)

The appliance is equipped with a HEPA filter. The HEPA filter is a special air filter which removes more than 99% of the dust particles that otherwise would recirculate back into the air. The HEPA filter must be cleaned regularly. The HEPA filter must be replaced after several months or whenever worn or damaged.

Replacement HEPA filters are available from our service station.

Before you proceed, we would like you to focus your attention on the following notes:

• Do not wash or rinse the HEPA filter.
• Do not tap the HEPA filter itself to avoid damage to the filter.

Keep the release button (7) pressed and • pull the dust compartment (6) from the appliance.

Remove the HEPA filter (29) from the filter · holder (31).

Carefully tap the plastic edge of the HEPA • filter (29) to remove the dust particles.

If the filter is worn, use a new filter.

- Insert the HEPA filter (29) into the filter holder (31).

Insert the dust compartment (6) into the appliance until the release button (7) clicks into place.

Cleaning and replacing the motor filter (fig. B & I)

The motor filter reduces the amount of dust entering the motor unit to a minimum.

The motor filter must be cleaned regularly. The motor filter must be replaced whenever damaged. Replacement motor filters are available from our service station.

Before you proceed, we would like you to focus your attention on the following notes:

- Do not wash or rinse the motor filter.

Keep the release button (7) pressed and • pull the dust compartment (6) from the appliance.

Remove the HEPA filter (29) from the filter • holder (31).

Remove the motor filter (30) from the filter • holder (31).

Remove the dust from the motor filter (30) using a soft brush. If the filter is damaged, use a new filter.

Insert the motor filter (30) into the filter · holder (31).

Insert the HEPA filter (29) into the filter • holder (31).

Insert the dust compartment (6) into the appliance until the release button (7) clicks into place.

Cleaning and replacing the outlet filter (fig. K)

The outlet filter reduces the amount of dust entering the motor unit to a minimum.

The outlet filter must be cleaned regularly. The outlet filter must be replaced after several months or whenever worn or damaged. Replacement outlet filters are available from our service station.

Before you proceed, we would like you to focus your attention on the following notes:

- Do not wash or rinse the outlet filter.

Keep the release button (32) pressed and remove the cover (33).

Remove the outlet filter (34) from the filter • holder (35).

Remove the dust from the outlet filter (34) using a soft brush. If the filter is worn, use a new filter.

Insert the outlet filter (34) into the filter · holder (35).

Mount the cover (33) until the release • button (32) clicks into place.

Safety instructions

General safety

Read the manual carefully before use. · Keep the manual for future reference.

Only use the appliance and the accessories • for their intended purposes. Do not use the appliance and the accessories for other purposes than described in the manual.

Do not use the appliance if any part or any accessory is damaged or defective. If a part or an accessory is damaged or defective, it must be replaced by the manufacturer or an authorised repair agent.

Children should be supervised to ensure that they do not play with the appliance.

- The use of this appliance by children or persons with a physical, sensory, mental or motorial disability, or lack of experience and knowledge can give cause to hazards. Persons responsible for their safety should give explicit instructions or supervise the use of the appliance.

- Do not use the appliance near bathtubs, showers, basins or other vessels containing water.

- Do not immerse the appliance in water or other liquids. If the appliance is immersed in water or other liquids, do not remove the appliance with your hands. Immediately remove the mains plug from the wall socket. If the appliance is immersed in water or other liquids, do not use the appliance again.

Electrical safety

Before use, always check that the mains voltage is the same as the voltage on the rating plate of the appliance.

- The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Make sure that water cannot enter the contact plugs of the mains cable.

Always fully unwind the mains cable.

Make sure that the mains cable does not • hang over the edge of a worktop and cannot be caught accidentally or tripped over.

Keep the mains cable away from heat, oil and sharp edges.

Do not use the appliance if the mains cable or the mains plug is damaged or defective.

If the mains cable or the mains plug is damaged or defective, it must be replaced by the manufacturer or an authorised repair agent.

Do not pull the mains cable to disconnect • the mains plug from the mains.

Disconnect the mains plug from the mains · when the appliance is not in use, before assembly or disassembly and before cleaning and maintenance.

Safety instructions for vacuum cleaners

Do not use the appliance outdoors.

Do not use the appliance without the dust · compartment.

Do not use the appliance without the • round filter. Do not use the appliance without the HEPA filter. Do not use the appliance without the motor filter. Do not use the appliance without the outlet filter.

Do not use the appliance to vacuum liquids.

Do not use the appliance to vacuum • flammable materials.

Only hold the appliance by the handgrip.

Keep the motor unit away from your eyes • and face.

Always work from bottom up when using the appliance on stairs.

Store the appliance in a dry place when • not in use. Make sure that children do not have access to stored appliances.

U.K. Wiring instructions

The wires in the mains lead are coloured in accordance with the following code:

BLUE

NEUTRAL

BROWN

LIVE

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red.

If a 13Amp (BS1363) plug is used, a 13Amp (BS1362) fuse must be fitted, or if any other type of plug is used, a 13Amp fuse must be fitted, either in the plug or adaptor, or on the distribution board.

This is a double-insulated appliance and does not need an earth connection.

Warning! On no account should either the live or neutral wires be connected to the earth terminal.

Disclaimer

Subject to change; specifications can be changed without further notice.
